This webinar shows you how you can use NXP's innovative MIFARE Plus and MIFARE DESFire products for secure closed loop payments in multi-vendor systems.

1. EXTERNAL USE

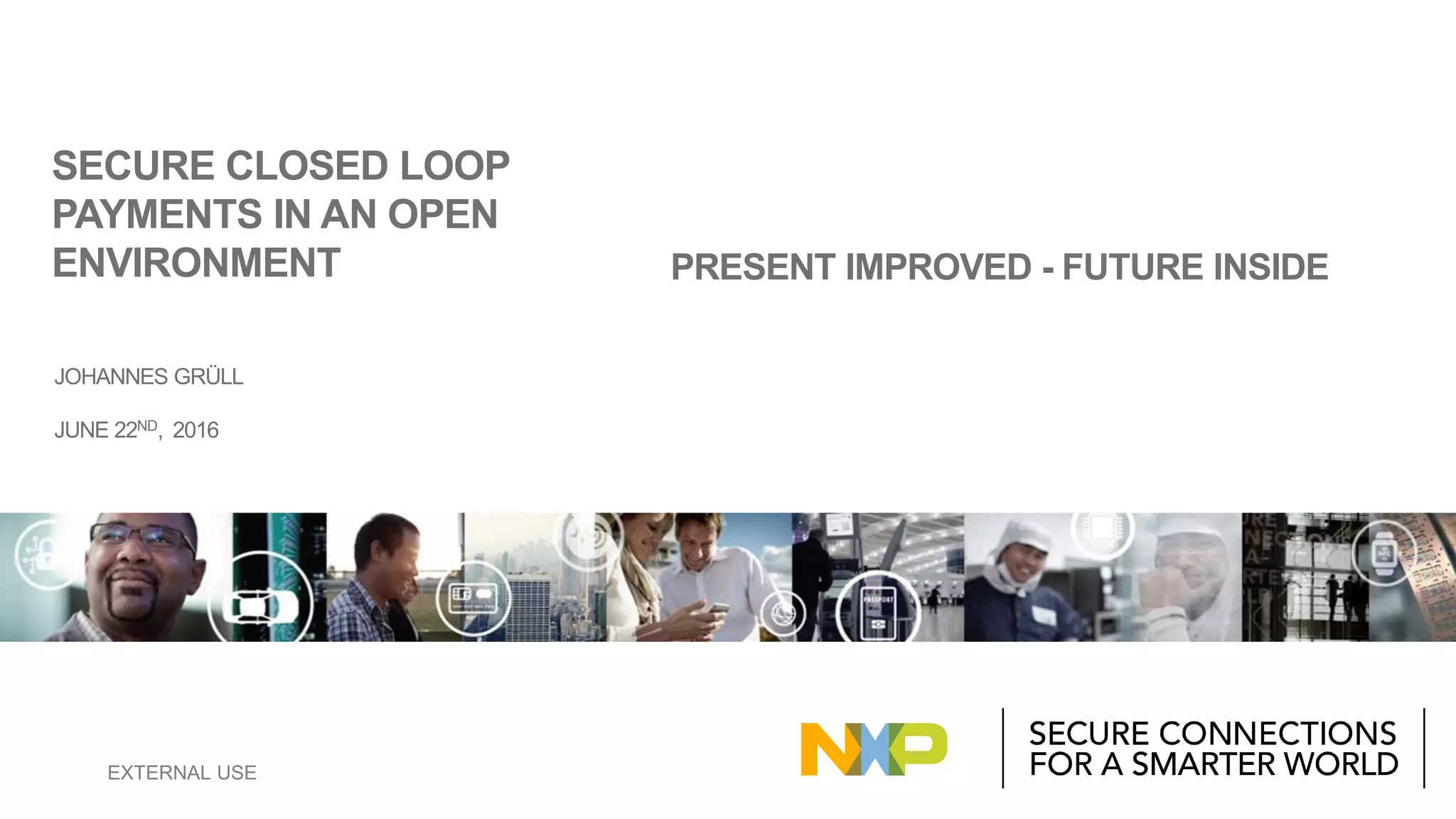

JOHANNES GRÜLL
JUNE 22ND, 2016
PRESENT IMPROVED - FUTURE INSIDE
SECURE CLOSED LOOP
PAYMENTS IN AN OPEN
ENVIRONMENT

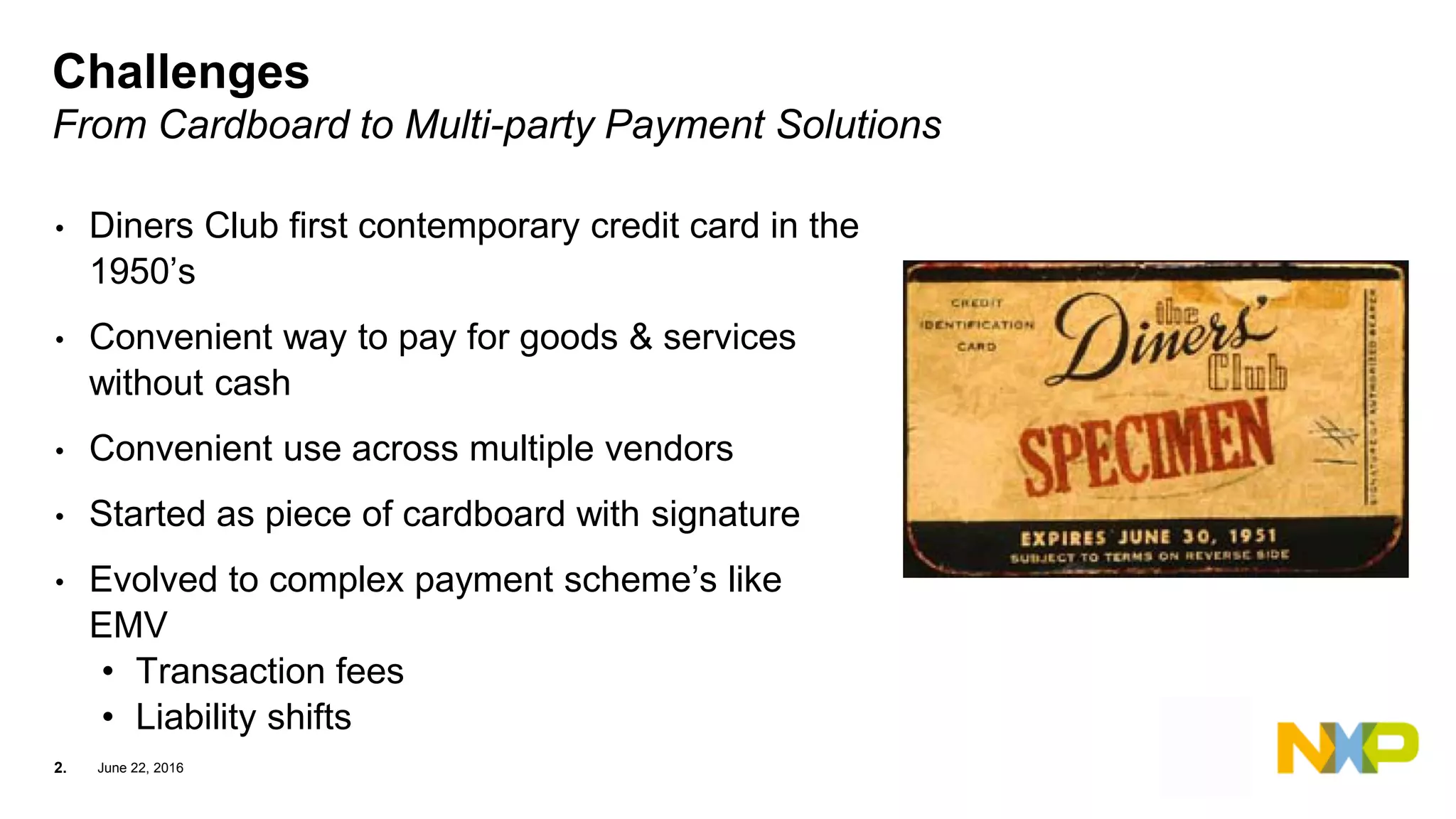

2. • Diners Club first contemporary credit card in the
1950’s
• Convenient way to pay for goods & services
without cash
• Convenient use across multiple vendors
• Started as piece of cardboard with signature
• Evolved to complex payment scheme’s like
EMV
• Transaction fees
• Liability shifts
Challenges
From Cardboard to Multi-party Payment Solutions
June 22, 20162.

3. Agenda
1. Adding value to access credentials
2. Trust & guarding against fraud
3. Practical implementation
• MIFARE DESFire EV2
• MIFARE Plus EV1

4. • Secure your smartcard a slot in your customer’s
wallet
• Increase personal value of card to customers
• Increased self service possibilities
• Increased customer & brand engagement
• Common Criteria based platforms allow to run
own payment solutions
• Receive cash in advance
• Minimize cash handling cost
• Power own incentive schemes towards customers &
partners
Closed-loop Micropayment
Increasing Value of Credentials
June 22, 20164.

5. Micropayment in Single-vendor vendor systems
June 22, 20165.
Vendor
Locations
Vendor/
Card Issuer
End
User
Card loadingSpending money

6. Demand for Multi-vendor Systems
June 22, 20166.
How can I
attract
additional
customers?
Service
Providers
Card
Issuer
End
User
I want
convenient
access with 1
credential only
I want to
increase the
value of my card
to end users

7. Micropayment in Multi-vendor systems - Challenge
June 22, 20167.
Service
Providers
Card
Issuer
End
User
1.
2.
Purchase
3.
Multiple challenges in claiming and re-
imbursing within the application
provider eco-system arise

8. • Traceability of Transactions
• Common Criteria certified solutions securing wallets
• New smartcard features securing and proofing transactions
• Authenticity of Transactions
• Tax regulations
• Cash register
• Privacy of individual data
• End user
• Service providers sales data
• Quick & reliable re-imbursement
• Automated
• Scalable
• Protecting individual application providers sales data
Challenges in multi-vendor systems
Shared Wallet Applications
June 22, 20168.

9. Use Cases: Campus Card
Cashless Campus as Eco-system
June 22, 20169.
• On-Campus Services
• Payment (vending machines, copying machines,…)
• Student self-service (registering, printing documents,..)
• Off-Campus Eco-system integration
• Public transport linking university sites
• Restaurants
• Cafes
• New Value Streams
• Co-promotion
• Fee based model
• Dedication of stipendiums
• Requirement: Scalable & future proof platforms

10. MIFARE Plus® generation benefits
MIFARE Plus® EV1
June 22, 2016
MIFARE
Plus S
MIFARE
Plus SE
MIFARE
Plus X
MIFARE
Plus EV1
RF Interface
P rotocol
UID –
unique
identifier
Communication
speed
M emory size
[Byte]
2KB 1KB 2KB 2KB
4KB 4KB 4KB
M emory M odel
Crypto
Key Length
Authentication
Communication,
S ecurity
T ransaction
M AC
yes
P roximity Check yes
V irtual Card
S elect
CC Certification EAL4+ no EAL4+ EAL5+
IS O 7816-4
AP DU
yes
NFC compliance
T arget
applications
Input
capacitance
17pF 17pF 17pF 17pF or 70pF
S ecure NFC
channel
in SL1& SL3
M ulti
applications
yes
NFC capabilities in SL3
Public transport / Campus cards / Access management
Compact, Sectors & 16- byte block
Crypto- 1, AES
48- bit crypto- 1, 128- bit AES
3- pass mutual
CMACed
MIFARE Plus
ISO/IEC 14443- 2, type A
ISO/IEC 14443- 3&4
7- byte UID, 4- byte NUID, RID
106- 848 Kbps
in SL3 level
Supported via MAD
no
no
no
1994
MIFARE
Classic
2009
MIFARE Plus
06/2015
MIFARE Plus SE
04/2016
MIFARE Plus EV1

11. MIFARE DESFire® generation benefits
MIFARE DESFire® EV2
June 22, 201611.
2002
MIFARE DESFire
2008
MIFARE DESFire EV1
2015
MIFARE DESFire EV1 256B
2016
MIFARE DESFire EV2
MIFARE
DESFire EV1
MIFARE
DESFire EV2
ISO/IEC 14443 A 1-4  
ISO/IEC 7816-4 support extended extended
EEPROM data memory 2/4/8KB 2/4/8KB
Flexible file structure  
NFC Forum Tag Type 4  
Secure, high-speed cmd  
Unique ID 7BUID or 4B RID 7BUID or 4B RID
Number of applications 28 unlimited
Number of files per app 32 32
High data rates support up to 848 Kbit/s up to 848 Kbit/s
Crypto algorithms support
DES/2K3DES/
3K3DES/AES
DES/2K3DES/
3K3DES/AES
CC certification (HW + SW) EAL 4+ EAL 5+
MIsmartApp feature - 
Transaction MAC per app - 
Multiple keysets per app - Up to 16 keysets
Multiple file access rights - Up to 8 keys
Inter-app files sharing - 
Virtual Card Architecture - 
Proximity Check - 
Delivery types
Wafer, MOA4 &
MOA8
Wafer, MOA4 &
MOB6

12. TransactionMAC
Securing your money in a shared economy
June 22, 201612.
• MAC calculated over the data of a whole
transaction
• Prove of card presence
• Counters to eliminate replay attempts
• Possibility to integrate reader ID to allocate
transaction to specific service provider
• Detect missing transactions

13. TransactionMAC in Multi-vendor Systems
June 22, 201613.
Service
Providers
Clearing
House
TMAC keys shared by card and
clearing house
TMAC‘s sent to clearing house
Re-imbursement after clearing
