1. Cloning Cryptographic
RFID Cards for 25$
November 29-30, WISSec 2010
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar
Department of Electrical Engineering and Information Technology
Chair for Embedded Security

2. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar
Agenda
 Motivation
 RFID Basics
Mifare Classic
Mifare DESFire (EV1)
 Real-World Attacks
 Conclusion
Timo Kasper, WISSec 2010 | November 29-30, 2010 2

3. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

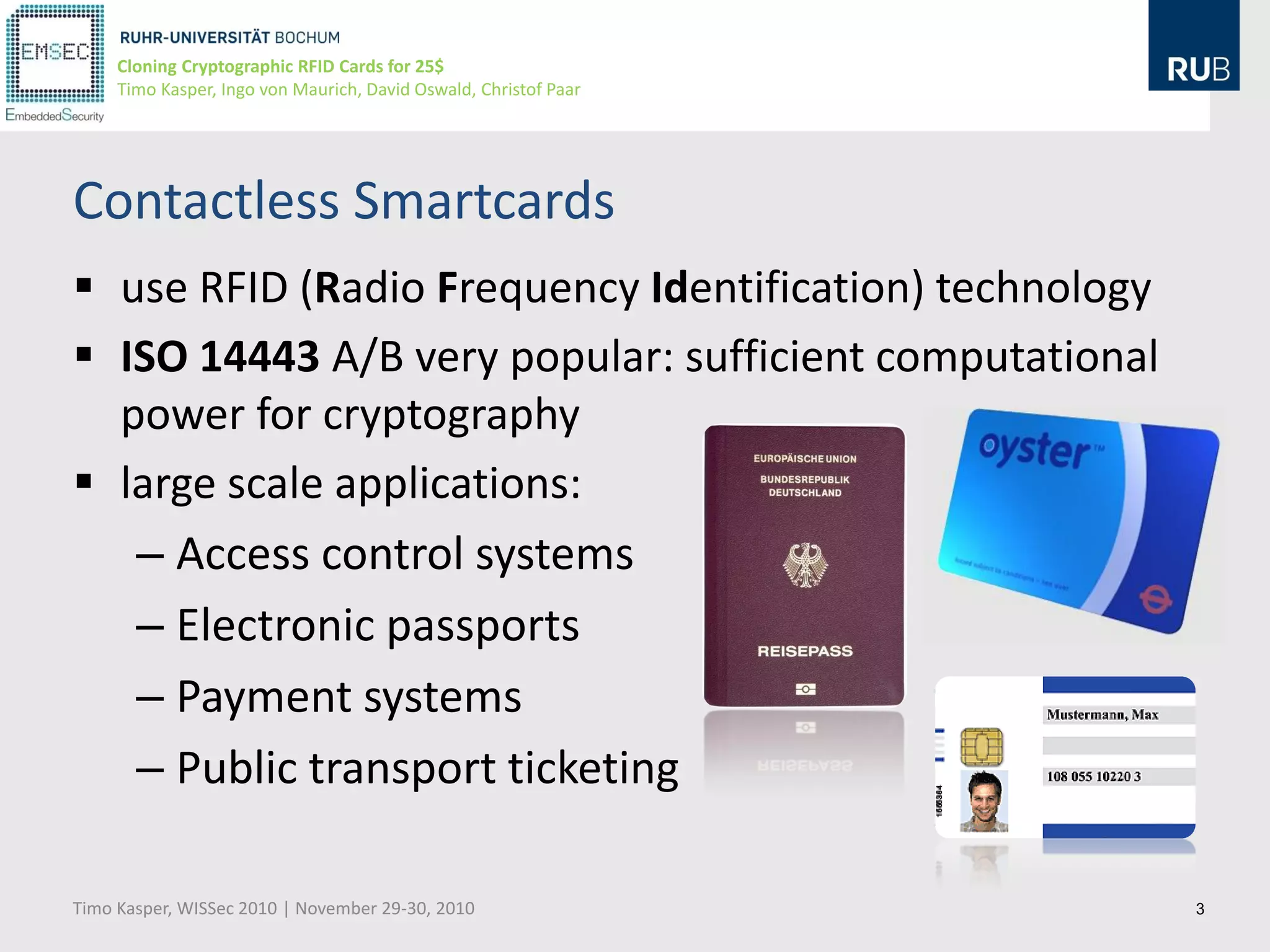

Contactless Smartcards
 use RFID (Radio Frequency Identification) technology
 ISO 14443 A/B very popular: sufficient computational
power for cryptography
 large scale applications:
– Access control systems
– Electronic passports
– Payment systems
– Public transport ticketing
Timo Kasper, WISSec 2010 | November 29-30, 2010 3

4. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

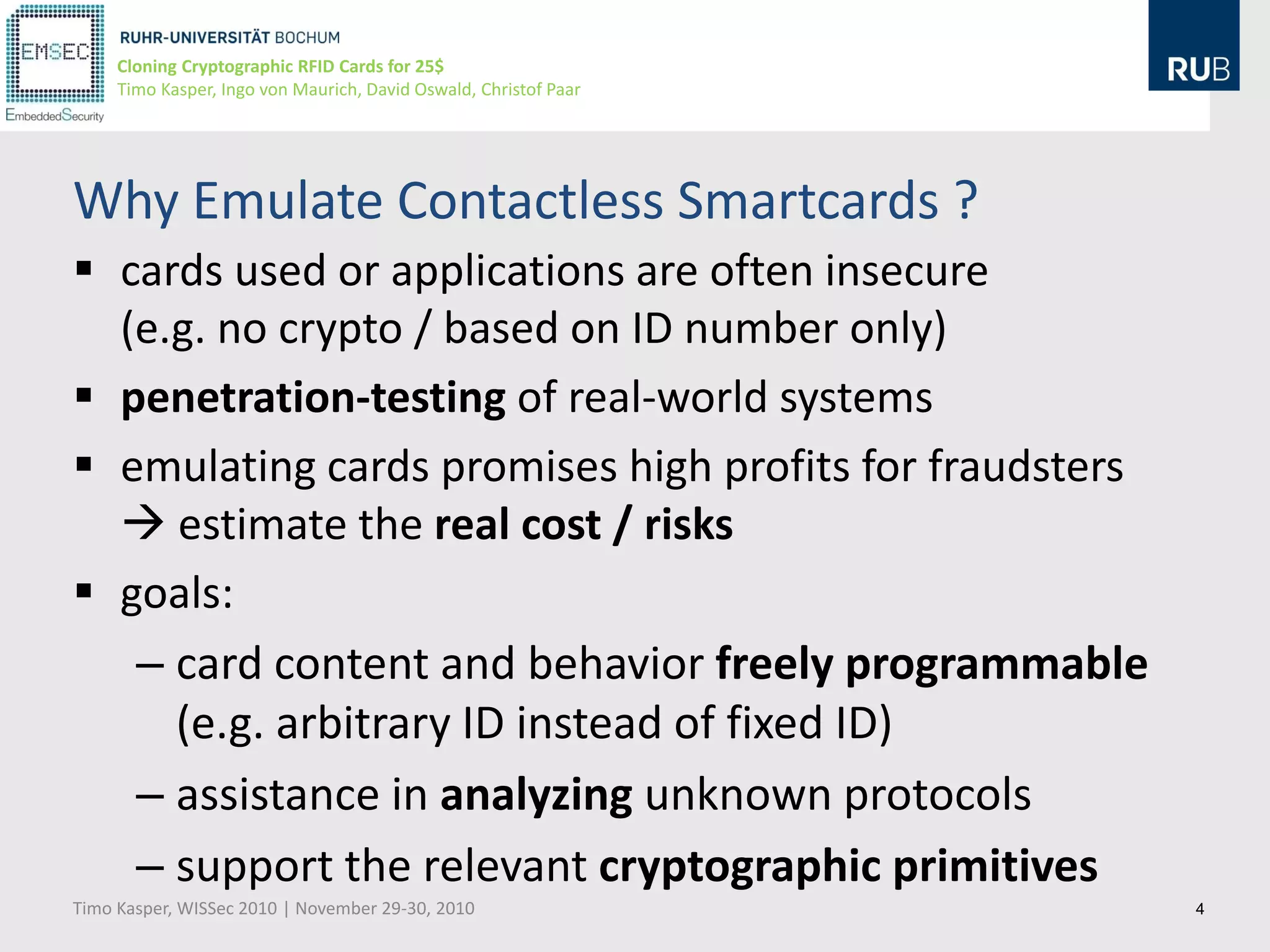

Why Emulate Contactless Smartcards ?
 cards used or applications are often insecure
(e.g. no crypto / based on ID number only)
 penetration-testing of real-world systems
 emulating cards promises high profits for fraudsters
 estimate the real cost / risks
 goals:
– card content and behavior freely programmable
(e.g. arbitrary ID instead of fixed ID)
– assistance in analyzing unknown protocols
– support the relevant cryptographic primitives
Timo Kasper, WISSec 2010 | November 29-30, 2010 4

5. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

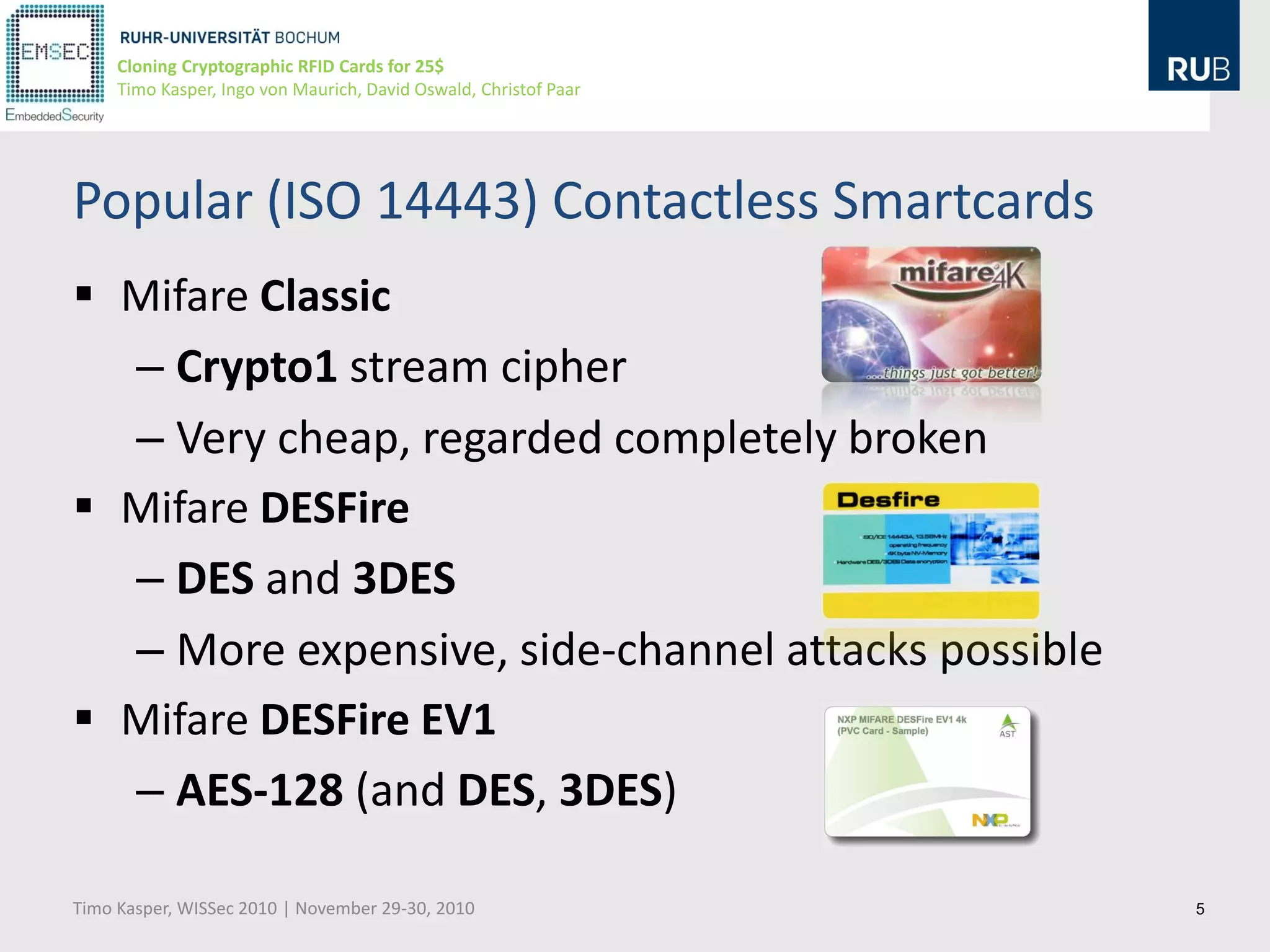

Popular (ISO 14443) Contactless Smartcards
 Mifare Classic
– Crypto1 stream cipher
– Very cheap, regarded completely broken
 Mifare DESFire
– DES and 3DES
– More expensive, side-channel attacks possible
 Mifare DESFire EV1
– AES-128 (and DES, 3DES)
Timo Kasper, WISSec 2010 | November 29-30, 2010 5

6. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

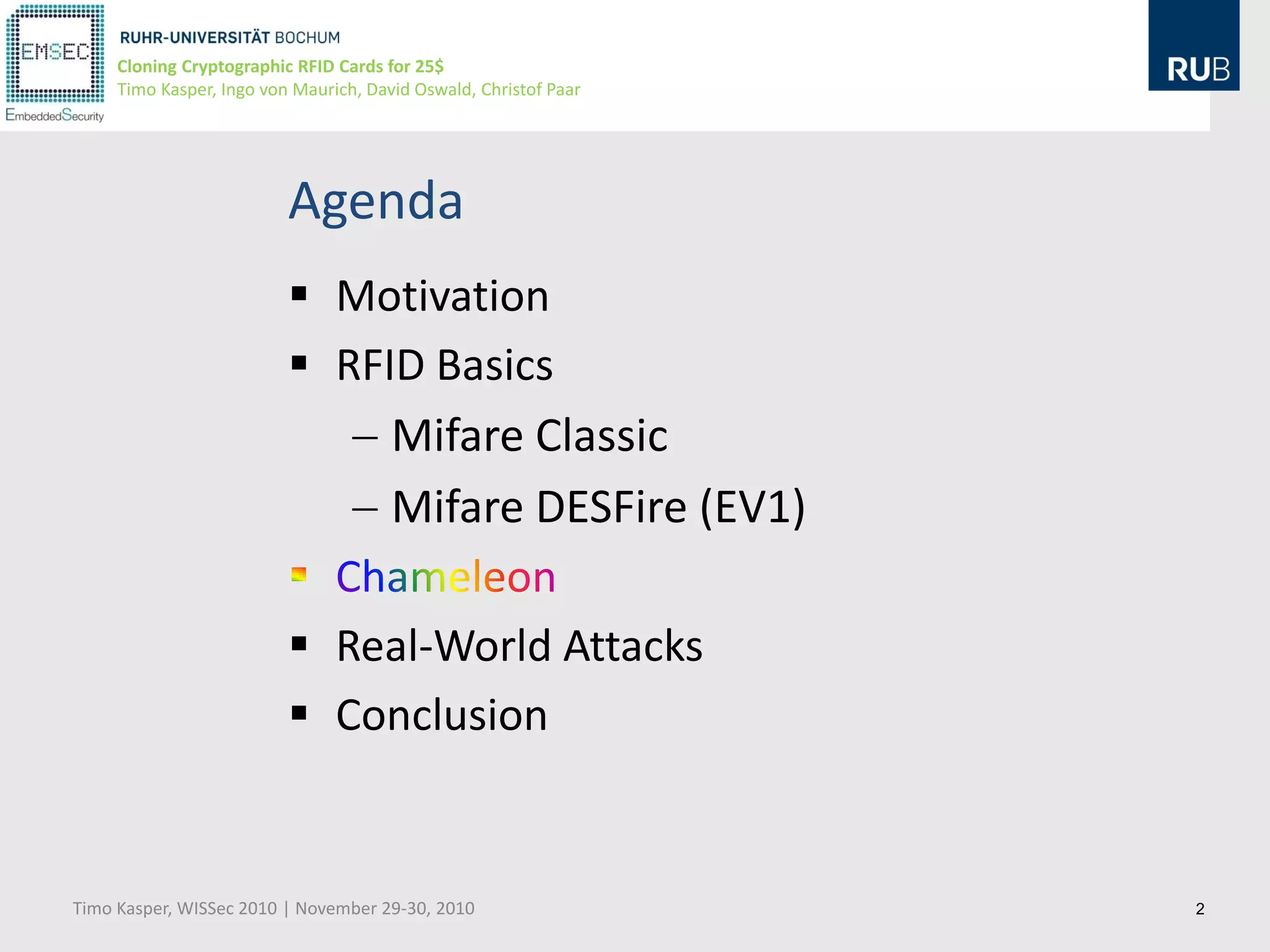

Agenda
 Motivation
 RFID Basics
Mifare Classic
Mifare DESFire (EV1)
 Chameleon
 Real-World Attacks
 Conclusion
Timo Kasper, WISSec 2010 | November 29-30, 2010 6

7. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

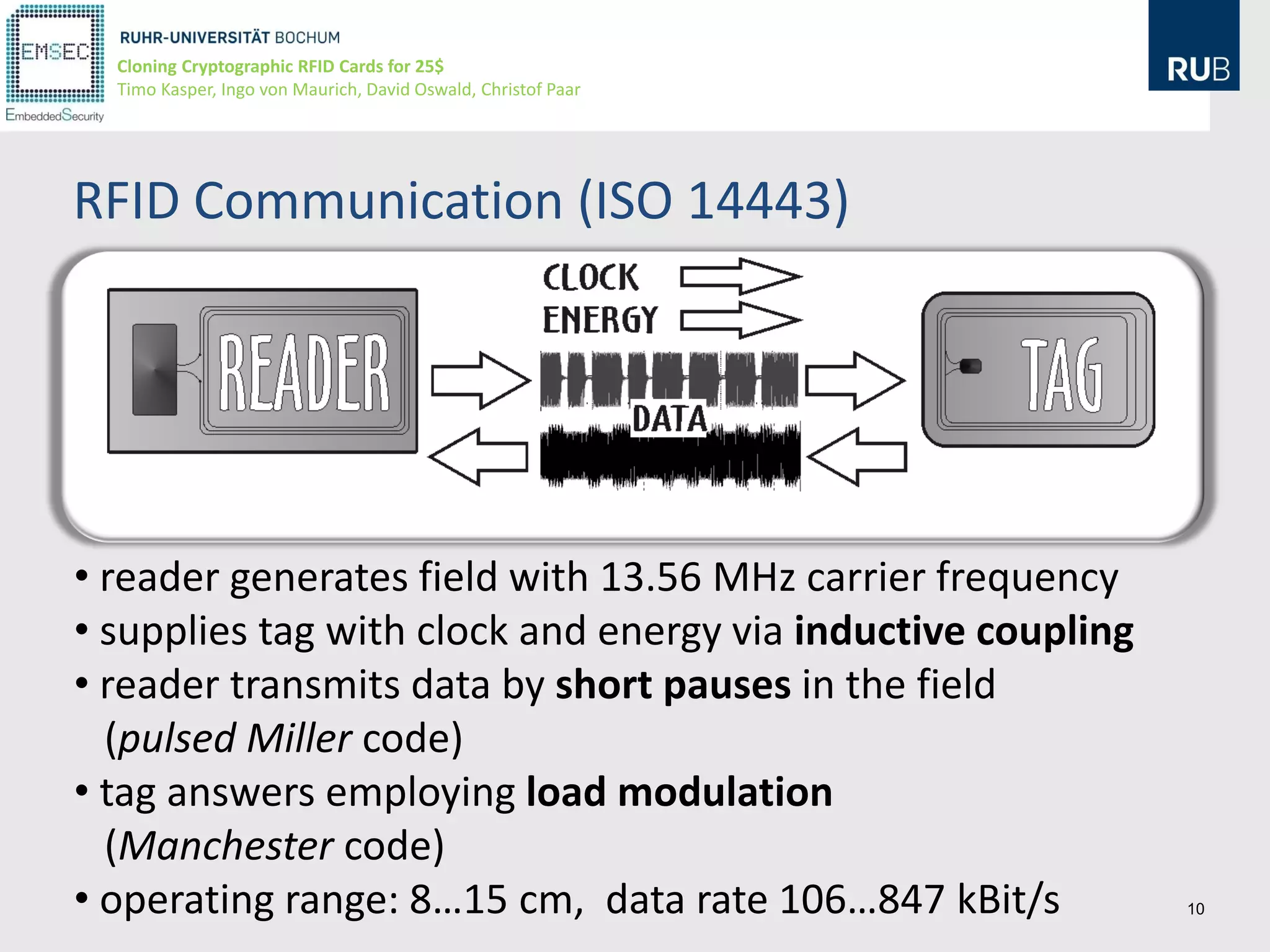

RFID Communication (ISO 14443)
• reader generates field with 13.56 MHz carrier frequency
• supplies tag with clock and energy via inductive coupling
• reader transmits data by short pauses in the field
(pulsed Miller code)
• tag answers employing load modulation
(Manchester code)
• operating range: 8…15 cm, data rate 106…847 kBit/s 10

8. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

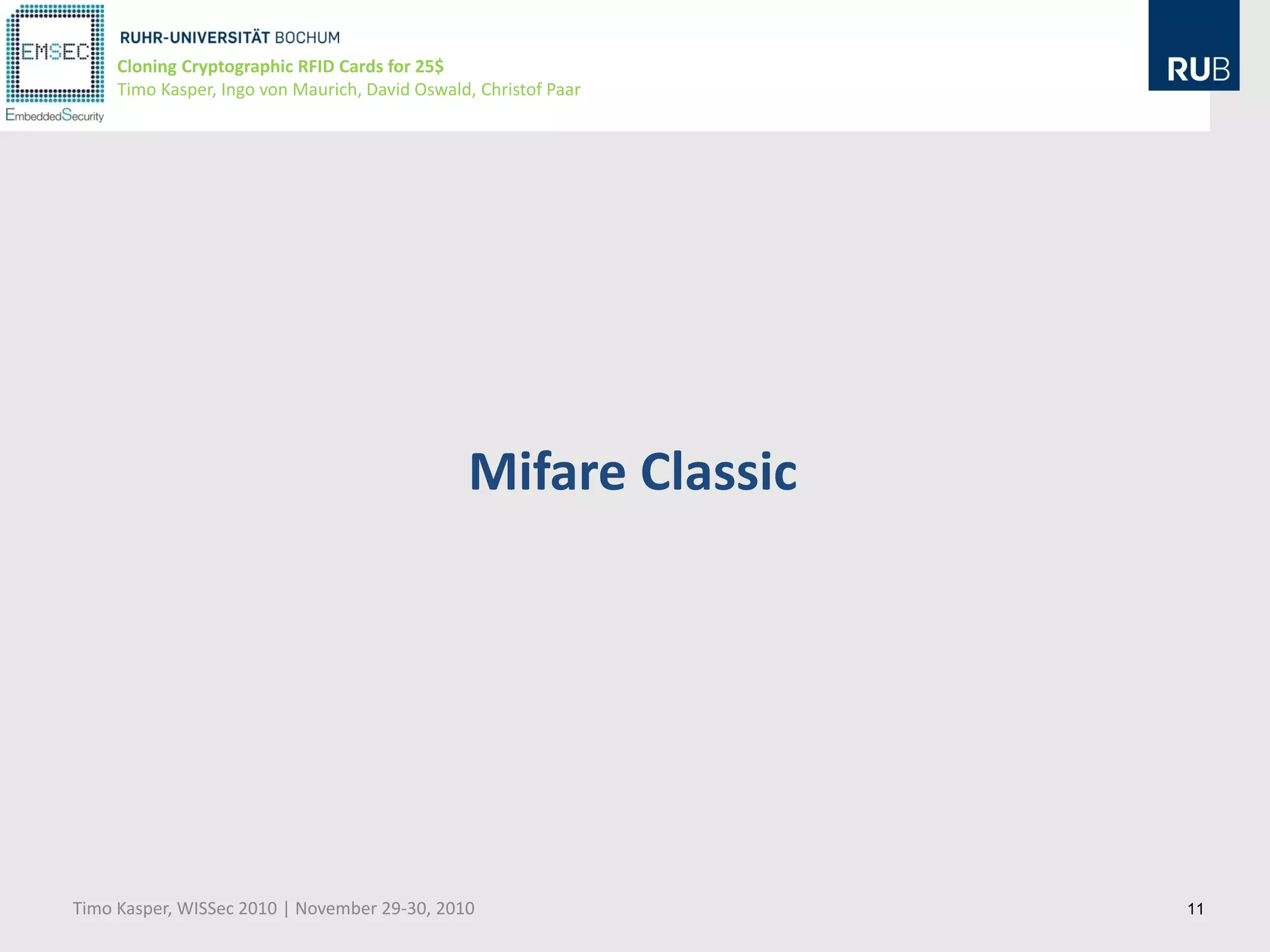

Mifare Classic
Timo Kasper, WISSec 2010 | November 29-30, 2010 11

9. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

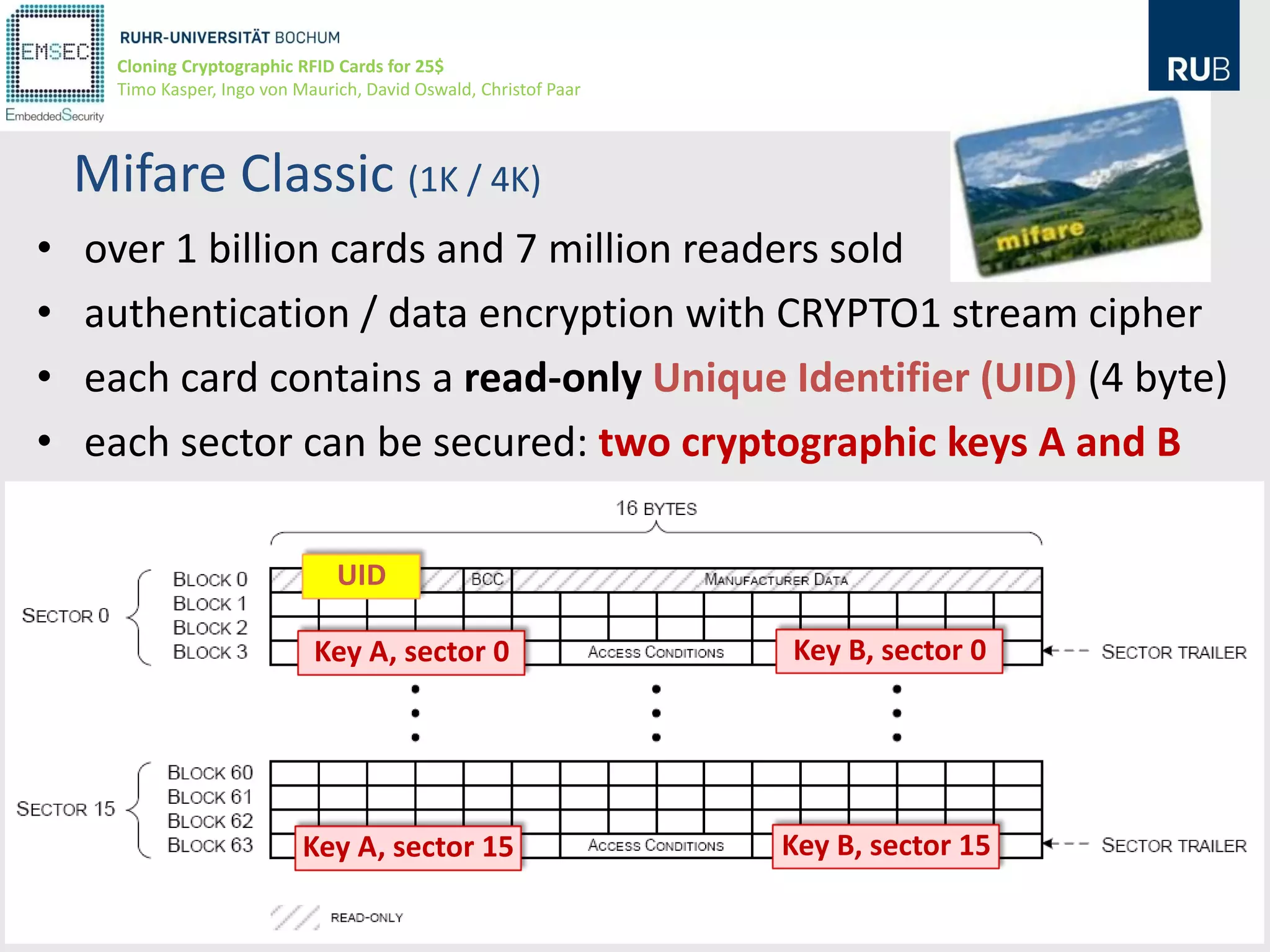

Mifare Classic (1K / 4K)
• over 1 billion cards and 7 million readers sold
• authentication / data encryption with CRYPTO1 stream cipher
• each card contains a read-only Unique Identifier (UID) (4 byte)
• each sector can be secured: two cryptographic keys A and B
UID
Key A, sector 0 Key B, sector 0
Key A, sector 15 Key B, sector 15
12

10. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

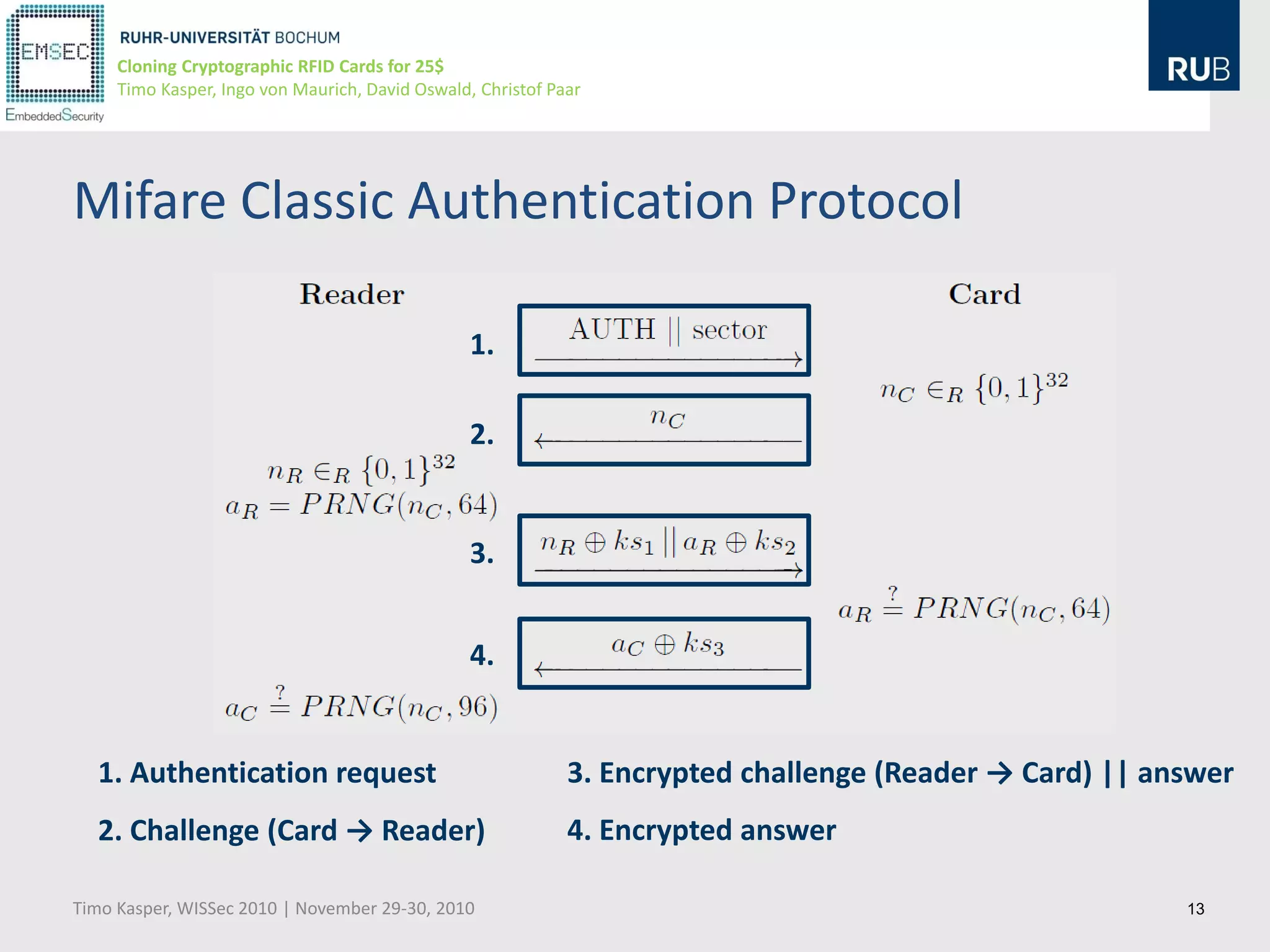

Mifare Classic Authentication Protocol
1.
2.
3.
4.
1. Authentication request 3. Encrypted challenge (Reader → Card) || answer
2. Challenge (Card → Reader) 4. Encrypted answer
Timo Kasper, WISSec 2010 | November 29-30, 2010 13

11. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

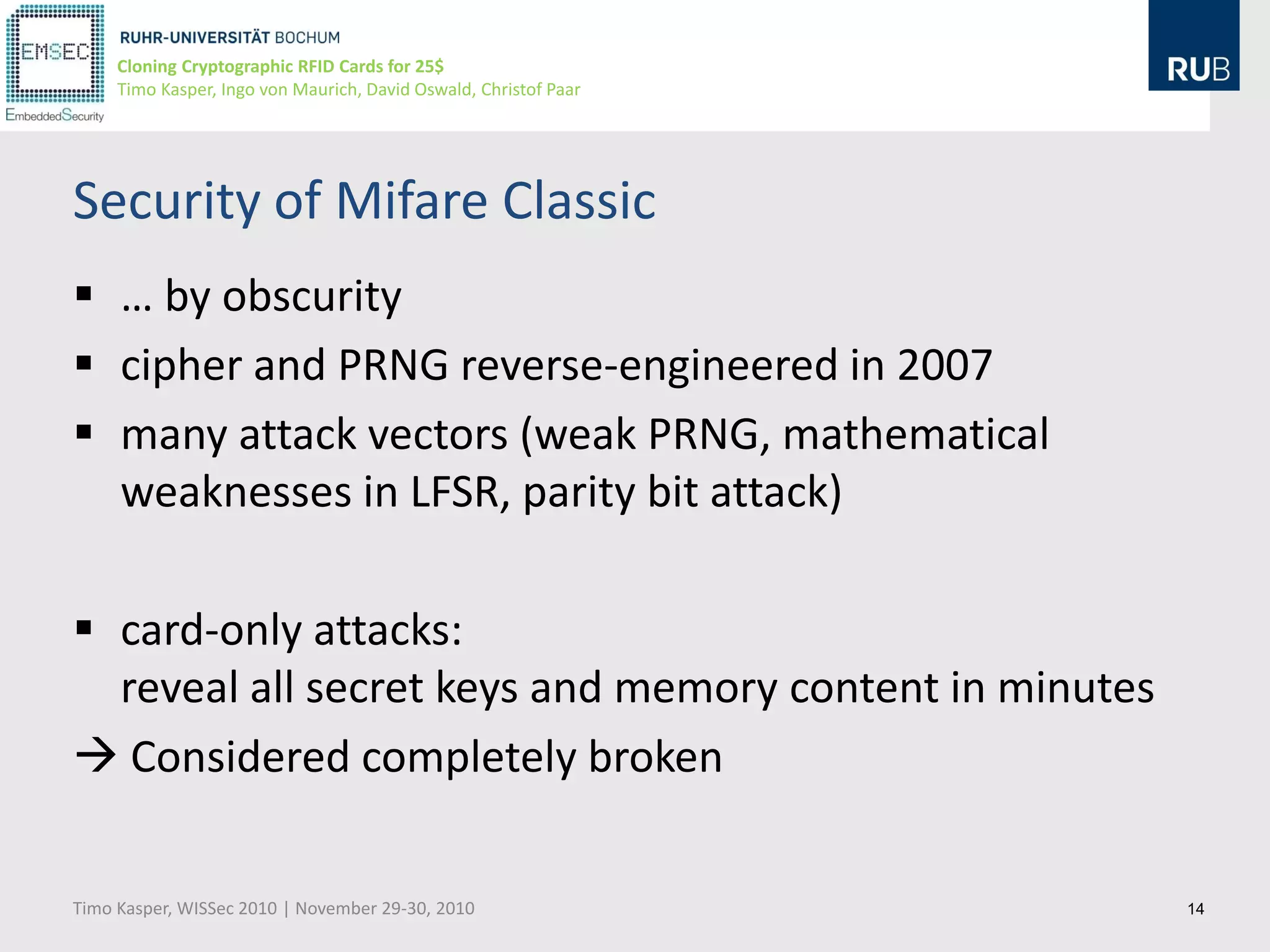

Security of Mifare Classic
 … by obscurity
 cipher and PRNG reverse-engineered in 2007
 many attack vectors (weak PRNG, mathematical
weaknesses in LFSR, parity bit attack)
 card-only attacks:
reveal all secret keys and memory content in minutes
 Considered completely broken
Timo Kasper, WISSec 2010 | November 29-30, 2010 14

12. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

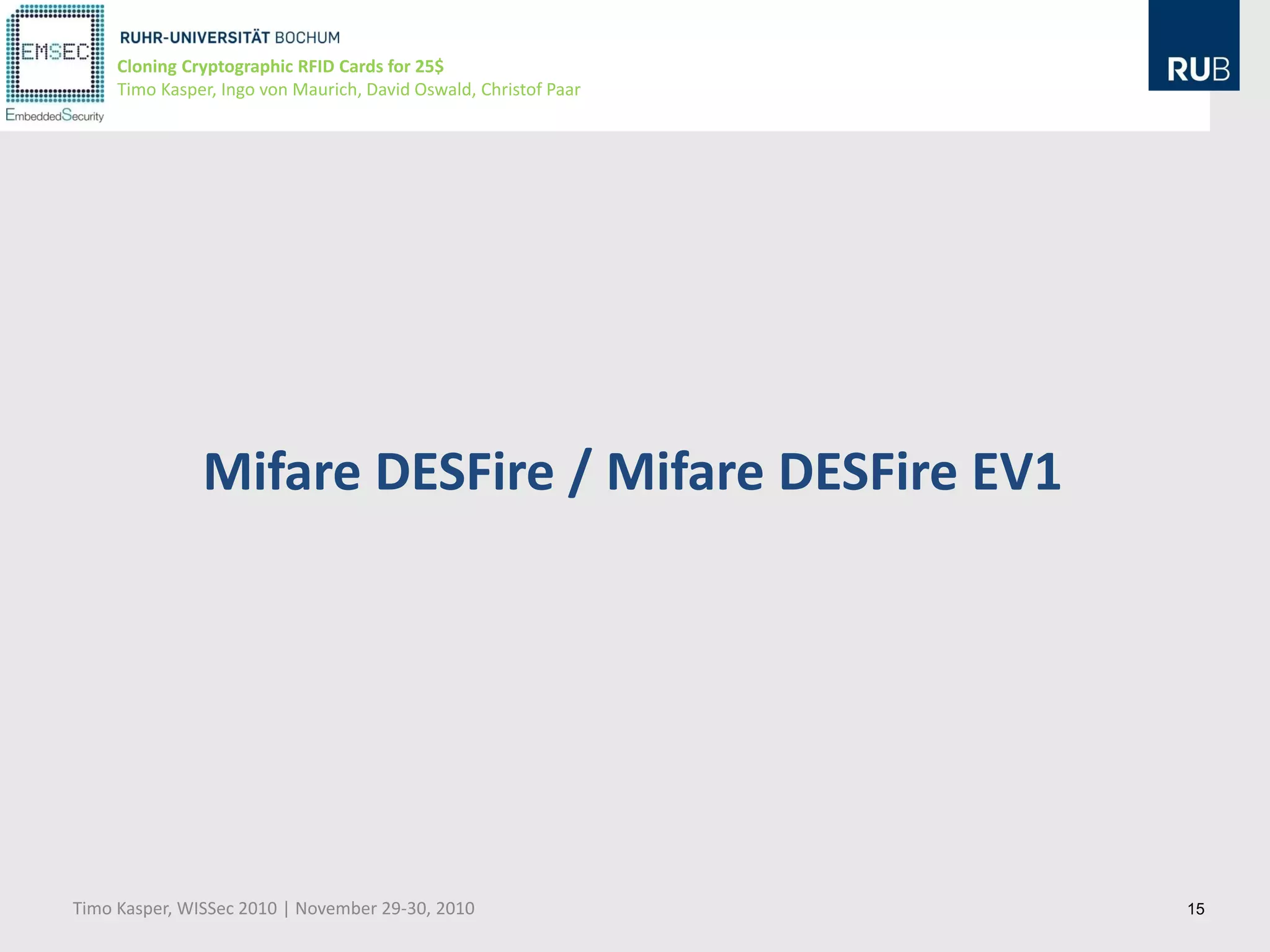

Mifare DESFire / Mifare DESFire EV1
Timo Kasper, WISSec 2010 | November 29-30, 2010 15

13. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

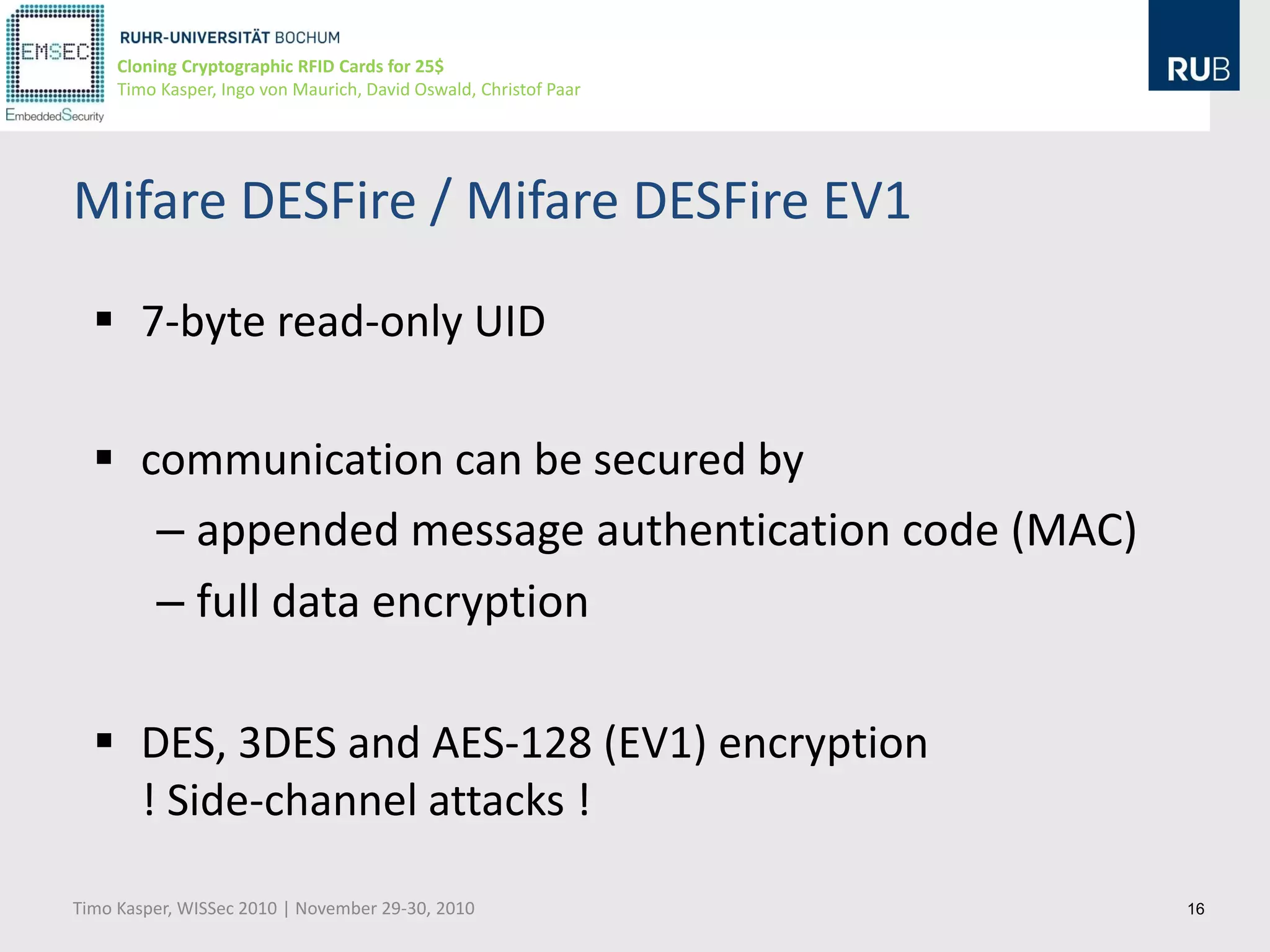

Mifare DESFire / Mifare DESFire EV1
 7-byte read-only UID
 communication can be secured by
– appended message authentication code (MAC)
– full data encryption
 DES, 3DES and AES-128 (EV1) encryption
! Side-channel attacks !
Timo Kasper, WISSec 2010 | November 29-30, 2010 16

14. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

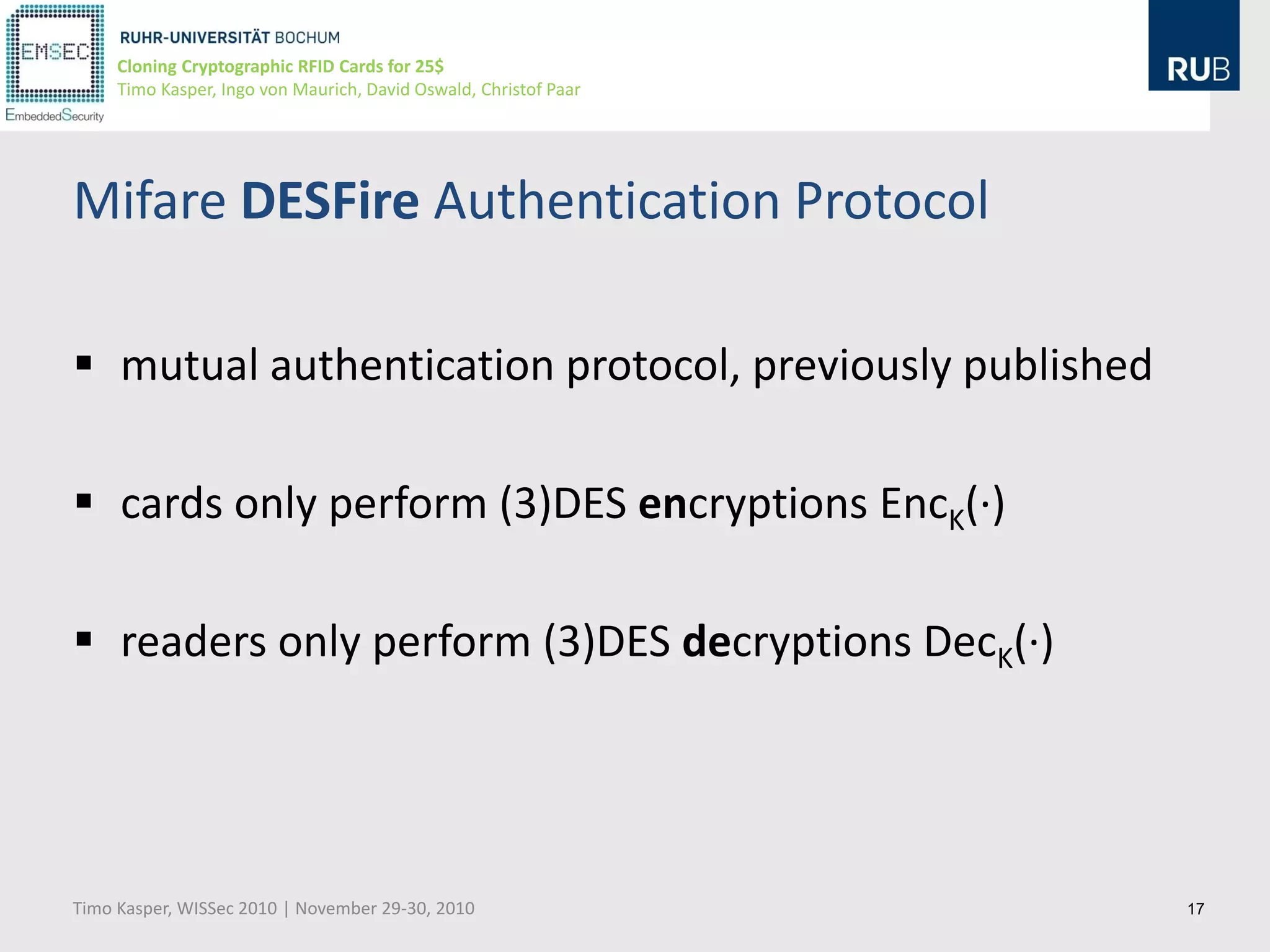

Mifare DESFire Authentication Protocol
 mutual authentication protocol, previously published
 cards only perform (3)DES encryptions EncK(∙)
 readers only perform (3)DES decryptions DecK(∙)
Timo Kasper, WISSec 2010 | November 29-30, 2010 17

15. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

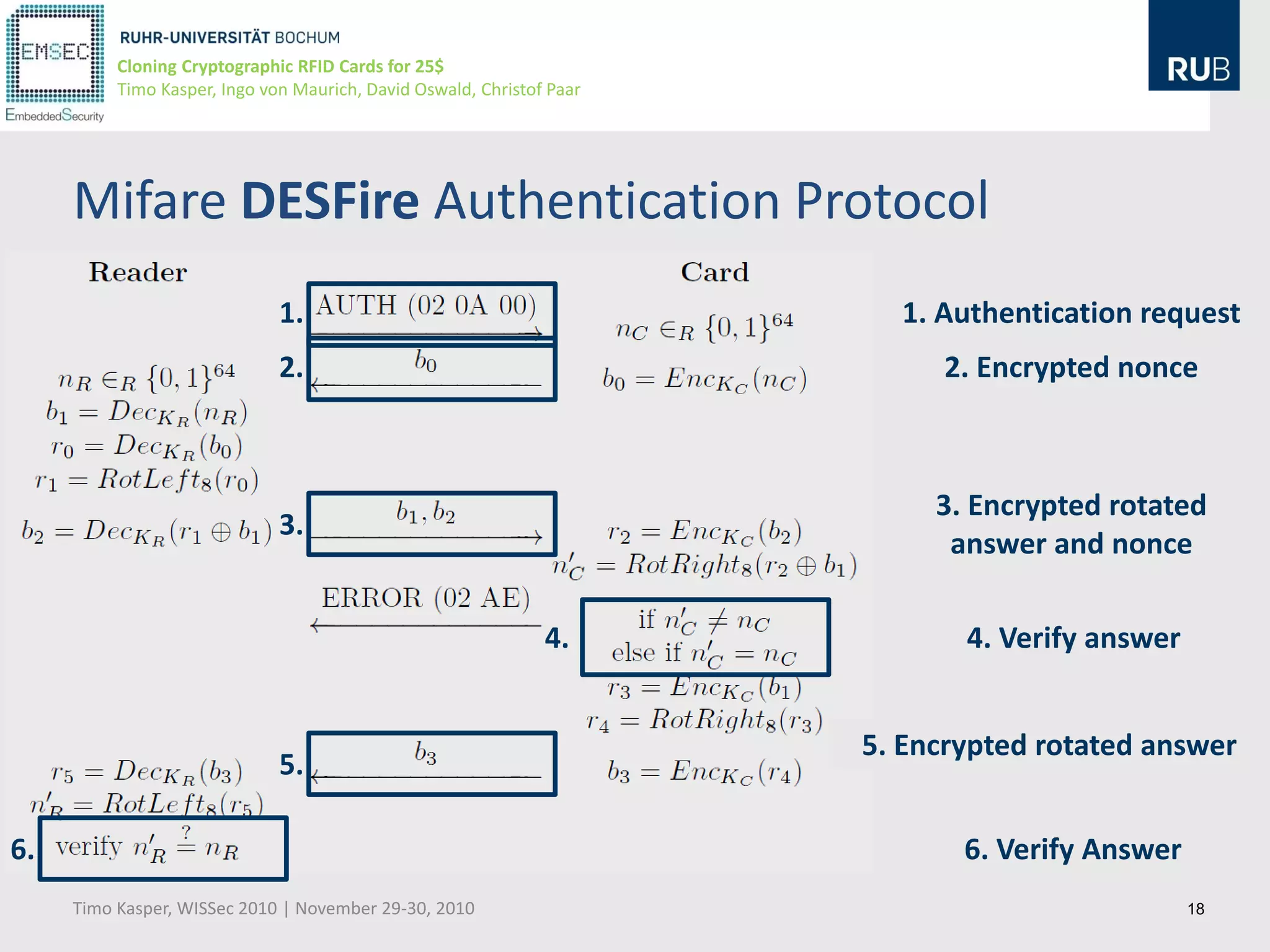

Mifare DESFire Authentication Protocol
1. 1. Authentication request
2. 2. Encrypted nonce
3. Encrypted rotated
3.
answer and nonce
4. 4. Verify answer
5. Encrypted rotated answer
5.
6. 6. Verify Answer
Timo Kasper, WISSec 2010 | November 29-30, 2010 18

16. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

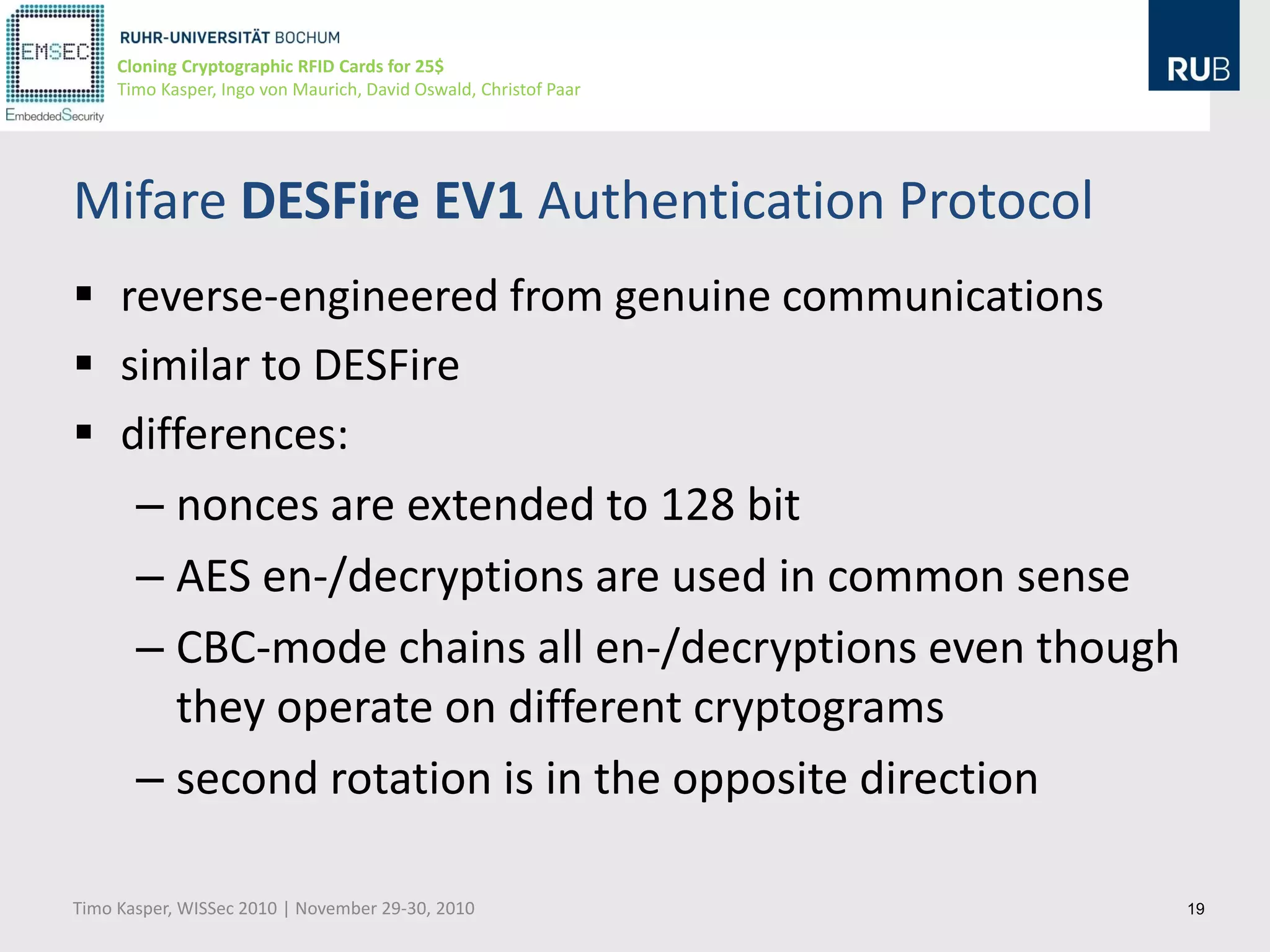

Mifare DESFire EV1 Authentication Protocol
 reverse-engineered from genuine communications
 similar to DESFire
 differences:
– nonces are extended to 128 bit
– AES en-/decryptions are used in common sense
– CBC-mode chains all en-/decryptions even though
they operate on different cryptograms
– second rotation is in the opposite direction
Timo Kasper, WISSec 2010 | November 29-30, 2010 19

17. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

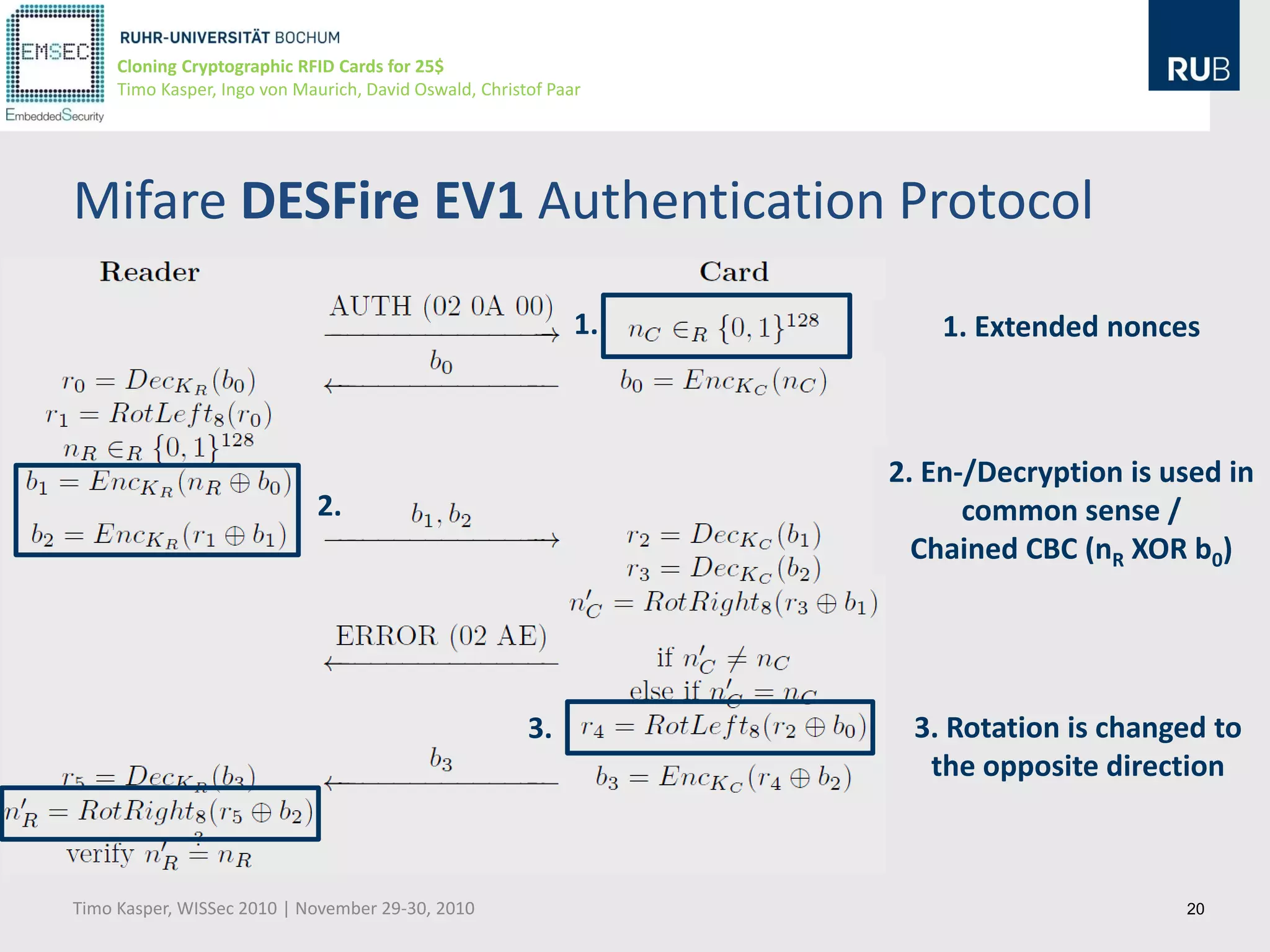

Mifare DESFire EV1 Authentication Protocol
1. 1. Extended nonces
2. En-/Decryption is used in
2. common sense /
Chained CBC (nR XOR b0)
3. 3. Rotation is changed to
the opposite direction
Timo Kasper, WISSec 2010 | November 29-30, 2010 20

18. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

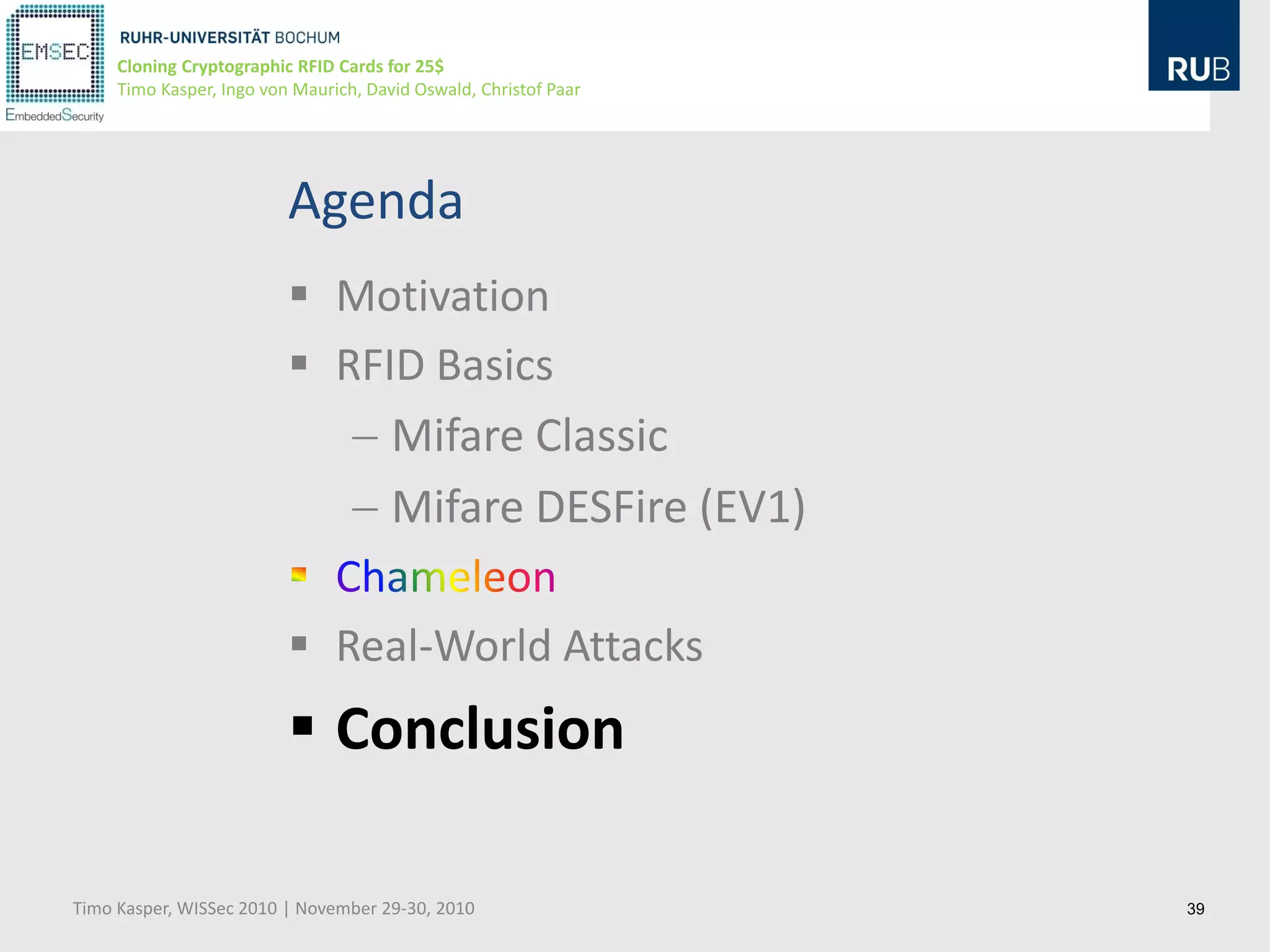

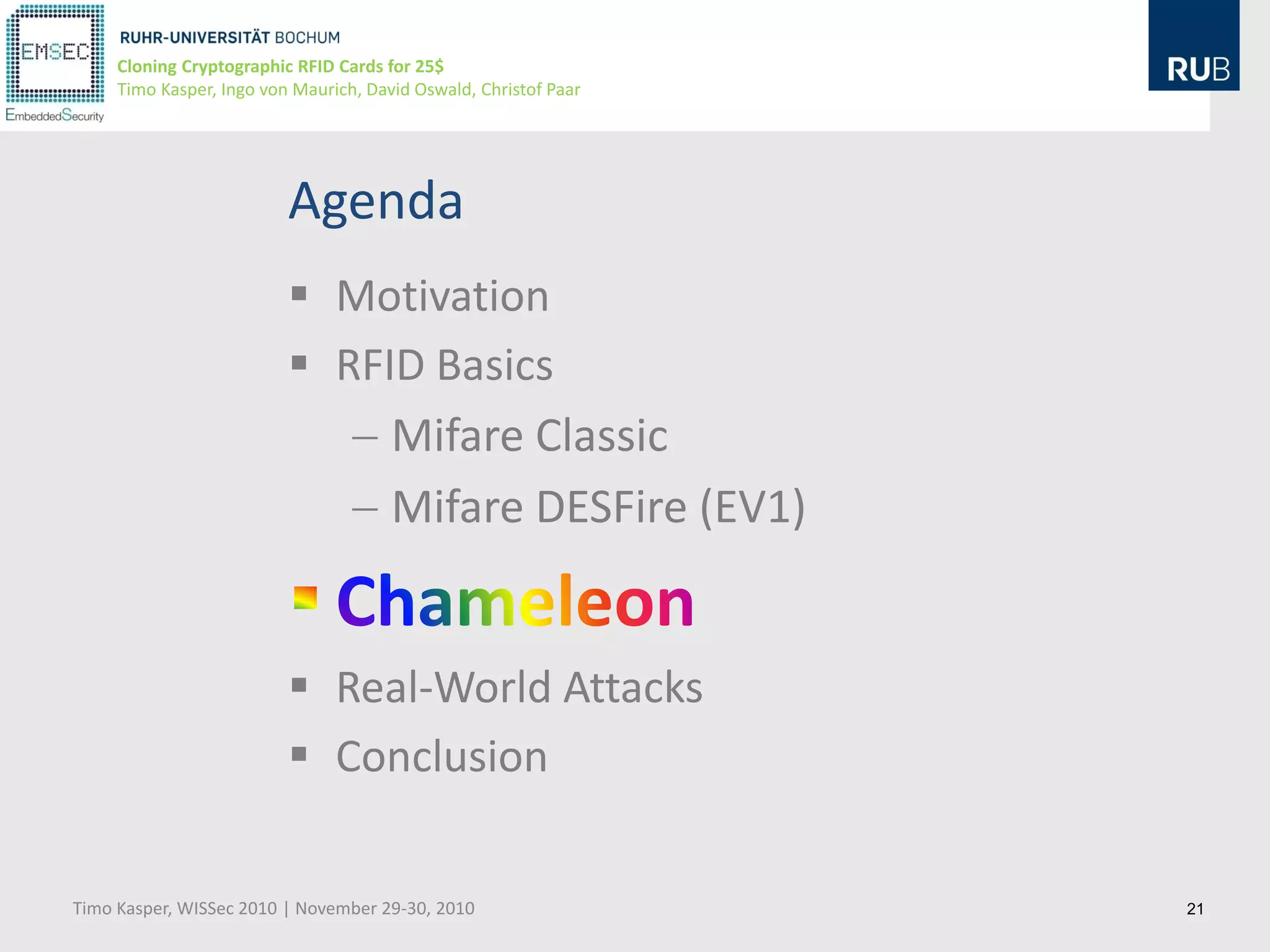

Agenda
 Motivation
 RFID Basics
Mifare Classic
Mifare DESFire (EV1)
 Real-World Attacks
 Conclusion
Timo Kasper, WISSec 2010 | November 29-30, 2010 21

19. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

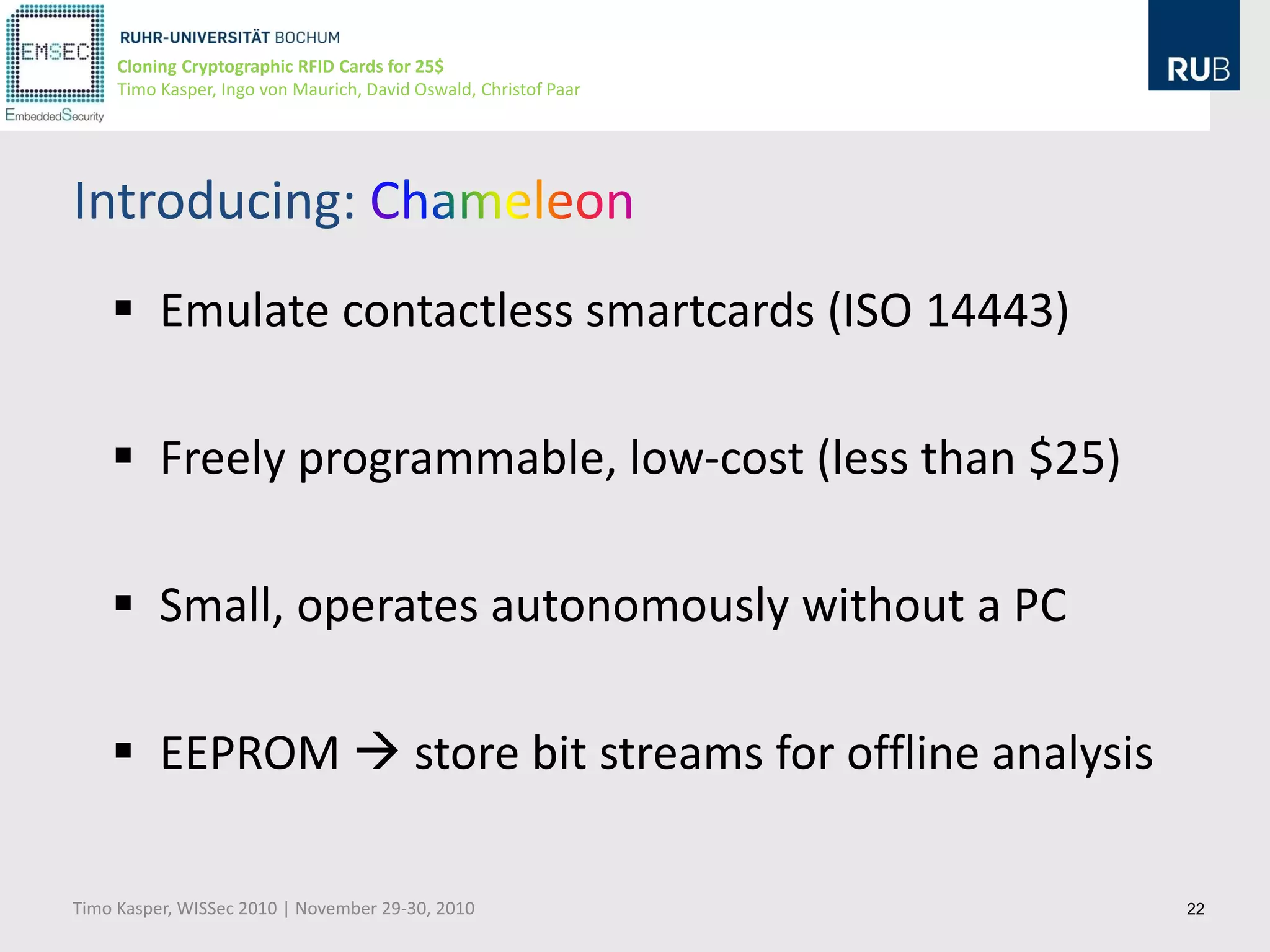

Introducing:
 Emulate contactless smartcards (ISO 14443)
 Freely programmable, low-cost (less than $25)
 Small, operates autonomously without a PC
 EEPROM  store bit streams for offline analysis
Timo Kasper, WISSec 2010 | November 29-30, 2010 22

20. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

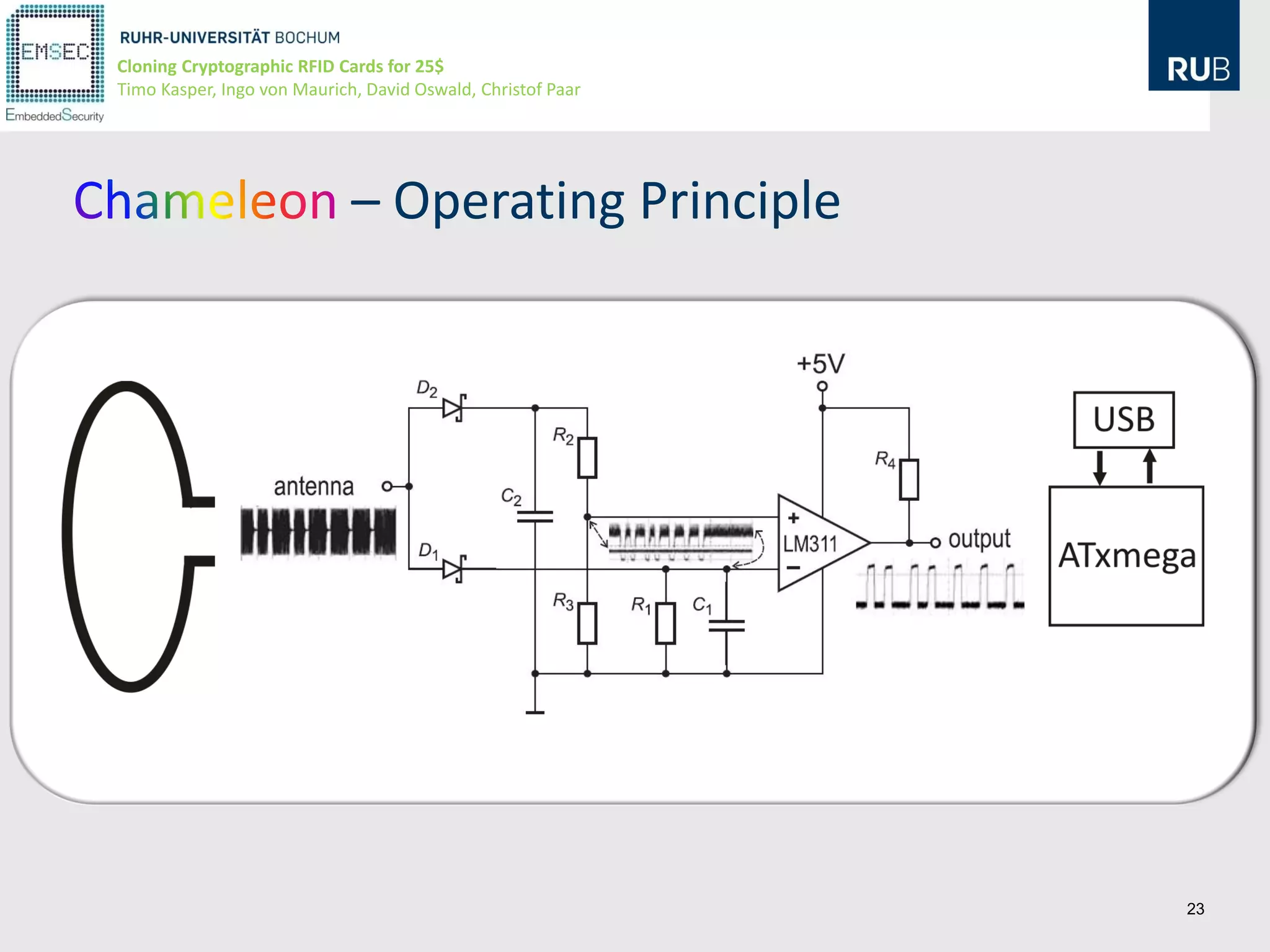

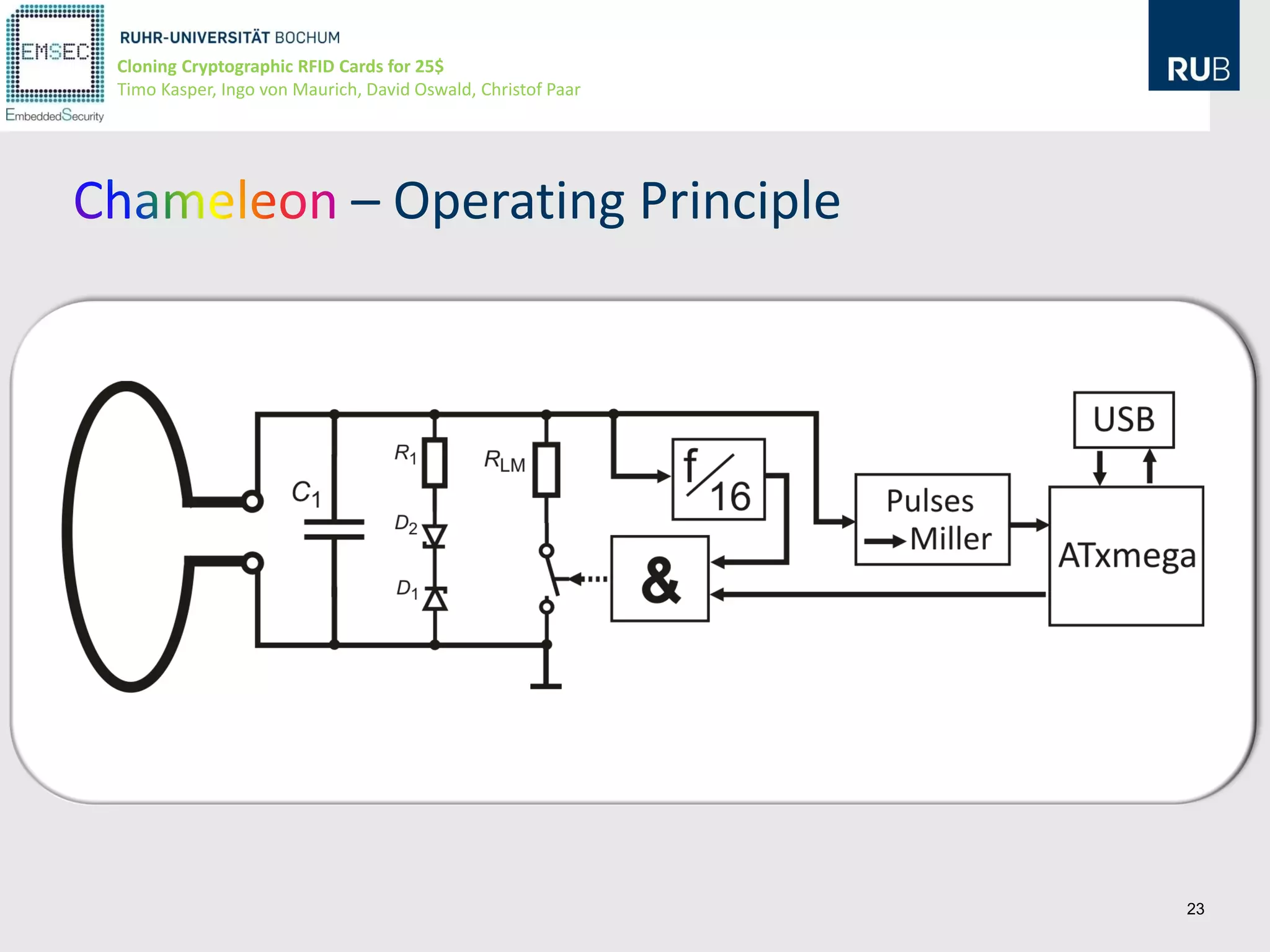

– Operating Principle
23

21. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar
– Operating Principle
23

22. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

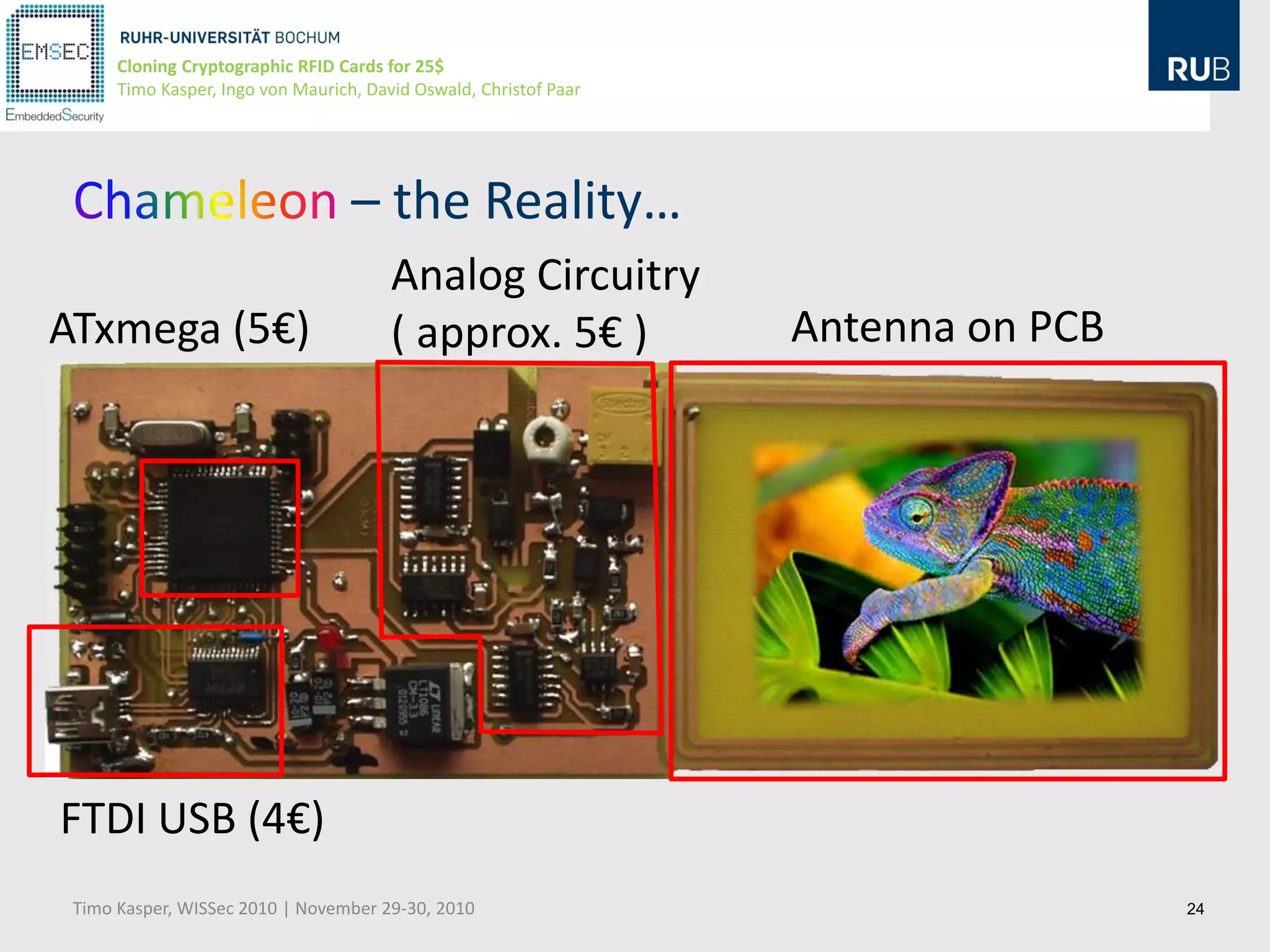

– the Reality…
Analog Circuitry
ATxmega (5€) ( approx. 5€ ) Antenna on PCB
FTDI USB (4€)
Timo Kasper, WISSec 2010 | November 29-30, 2010 24

23. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

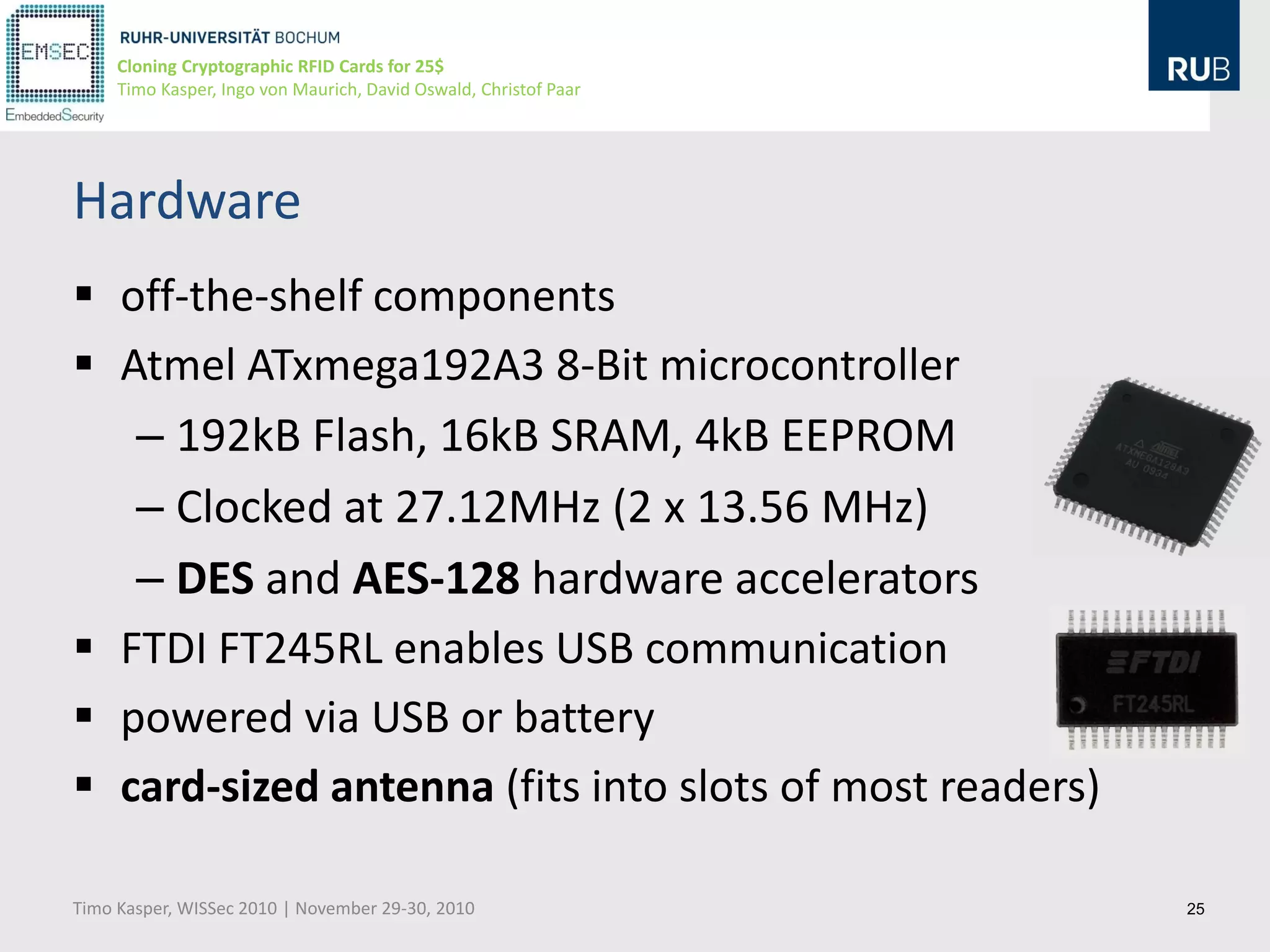

Hardware
 off-the-shelf components
 Atmel ATxmega192A3 8-Bit microcontroller
– 192kB Flash, 16kB SRAM, 4kB EEPROM
– Clocked at 27.12MHz (2 x 13.56 MHz)
– DES and AES-128 hardware accelerators
 FTDI FT245RL enables USB communication
 powered via USB or battery
 card-sized antenna (fits into slots of most readers)
Timo Kasper, WISSec 2010 | November 29-30, 2010 25

24. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

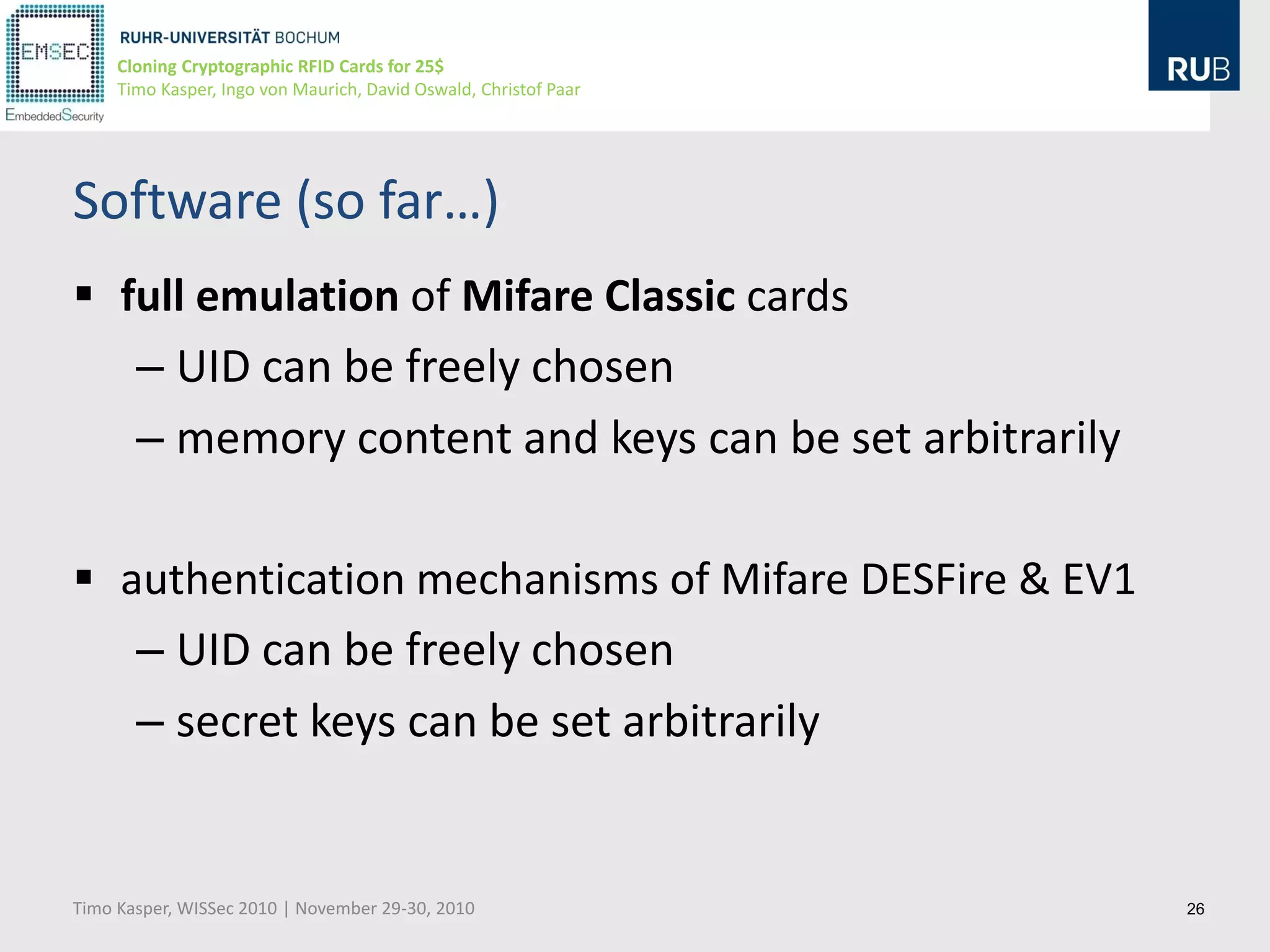

Software (so far…)
 full emulation of Mifare Classic cards
– UID can be freely chosen
– memory content and keys can be set arbitrarily
 authentication mechanisms of Mifare DESFire & EV1
– UID can be freely chosen
– secret keys can be set arbitrarily
Timo Kasper, WISSec 2010 | November 29-30, 2010 26

25. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

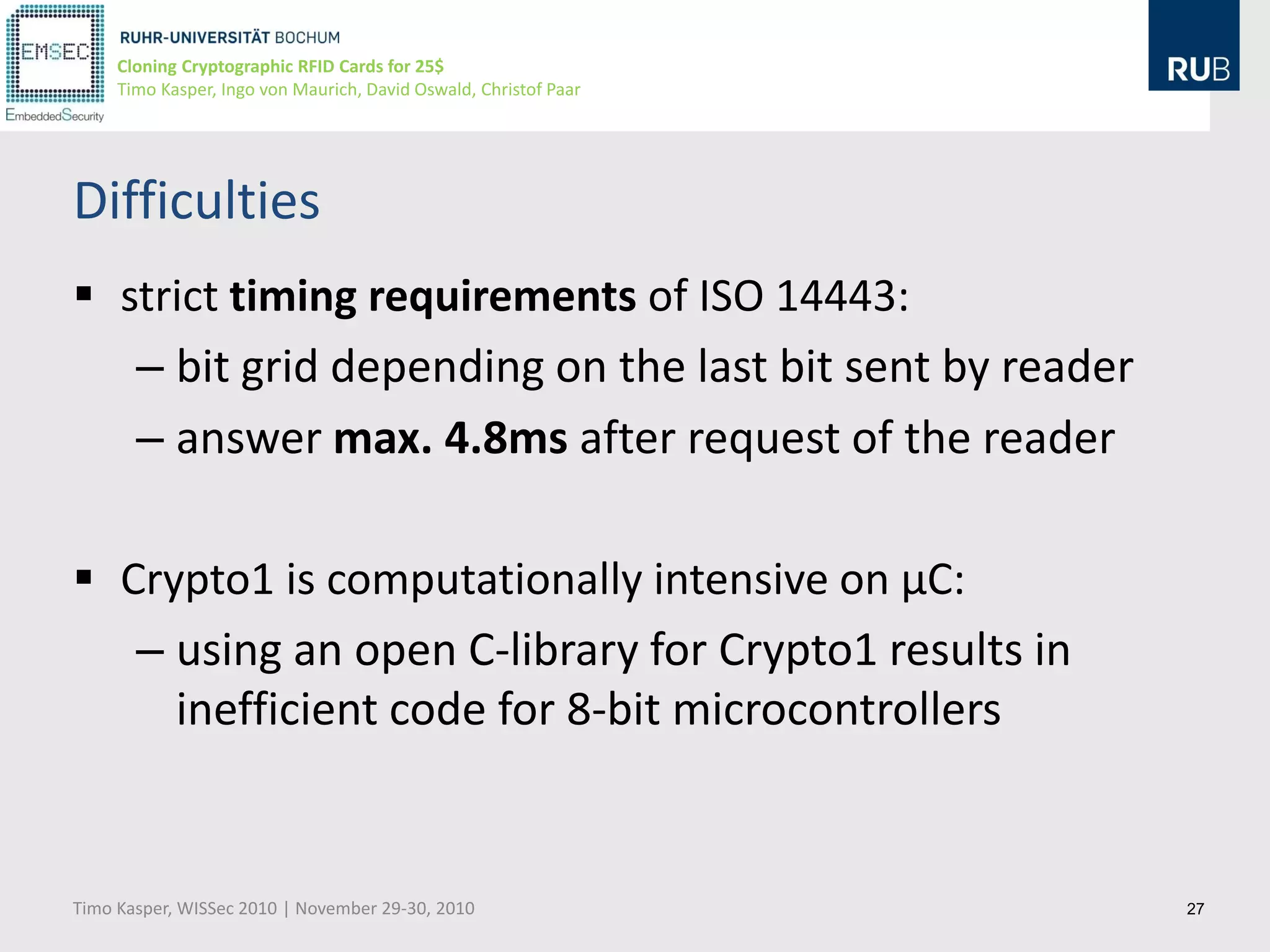

Difficulties
 strict timing requirements of ISO 14443:
– bit grid depending on the last bit sent by reader
– answer max. 4.8ms after request of the reader
 Crypto1 is computationally intensive on µC:
– using an open C-library for Crypto1 results in
inefficient code for 8-bit microcontrollers
Timo Kasper, WISSec 2010 | November 29-30, 2010 27

26. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

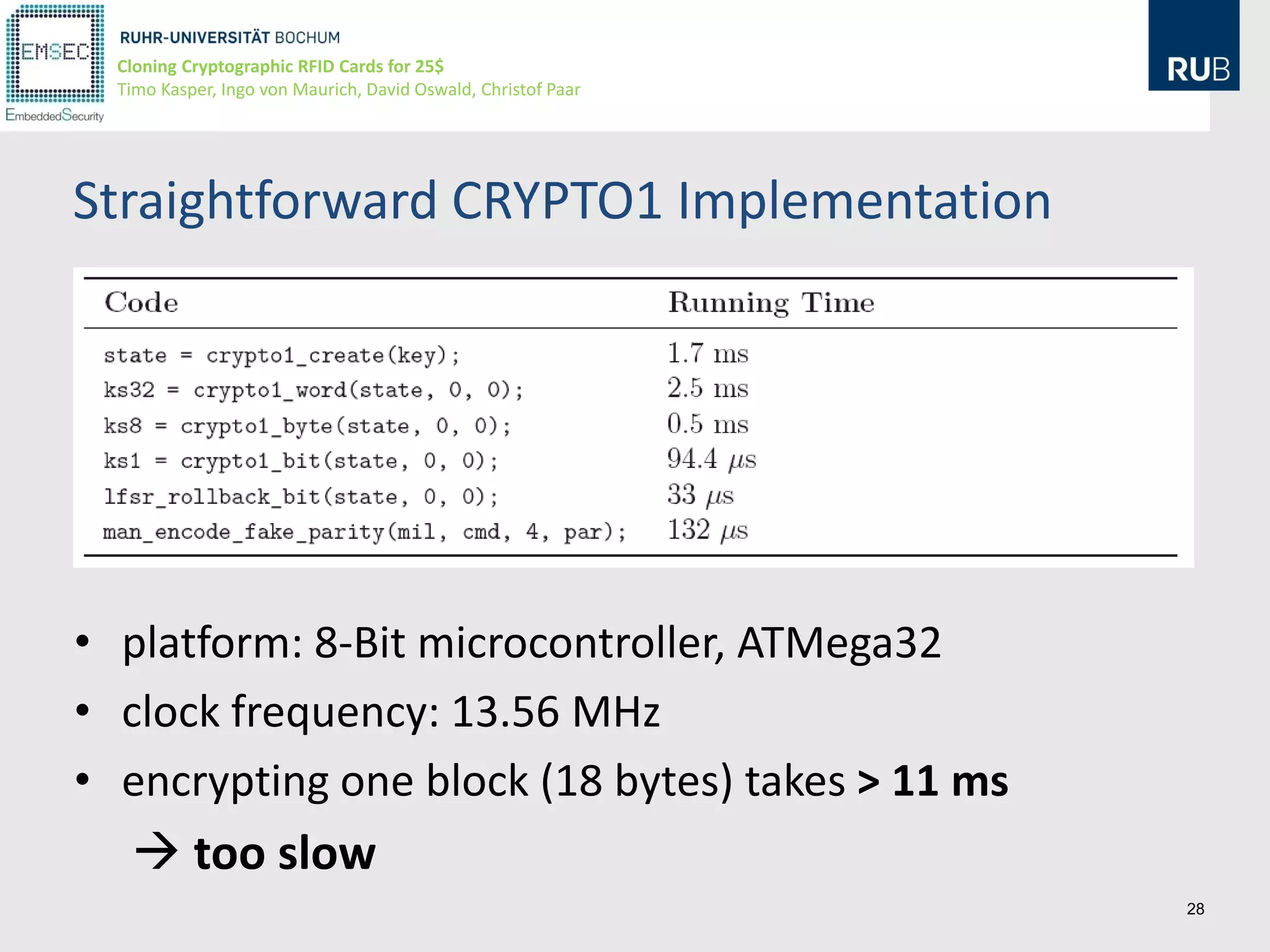

Straightforward CRYPTO1 Implementation
• platform: 8-Bit microcontroller, ATMega32
• clock frequency: 13.56 MHz
• encrypting one block (18 bytes) takes > 11 ms
 too slow
28

27. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

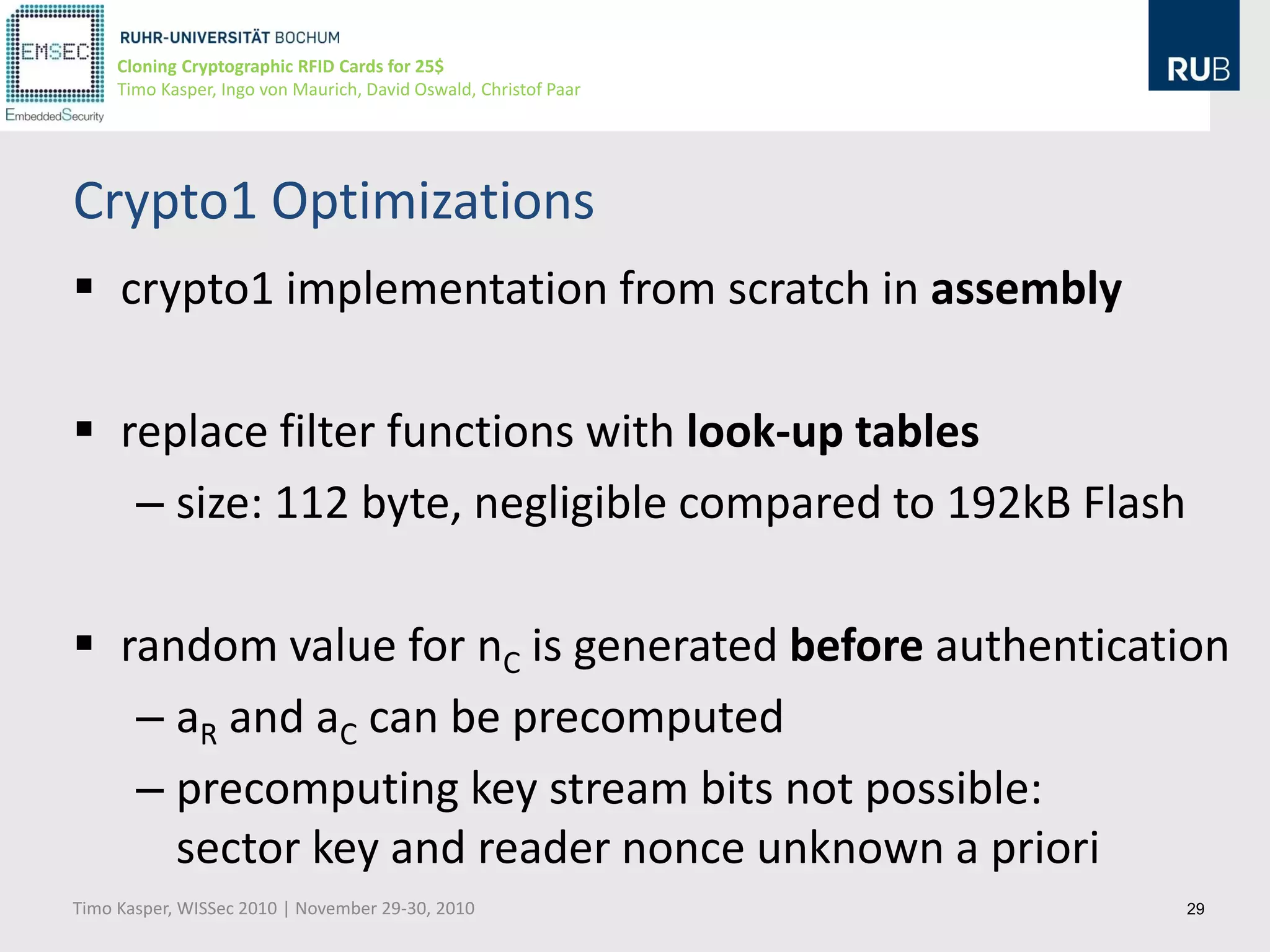

Crypto1 Optimizations
 crypto1 implementation from scratch in assembly
 replace filter functions with look-up tables
– size: 112 byte, negligible compared to 192kB Flash
 random value for nC is generated before authentication
– aR and aC can be precomputed
– precomputing key stream bits not possible:
sector key and reader nonce unknown a priori
Timo Kasper, WISSec 2010 | November 29-30, 2010 29

28. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

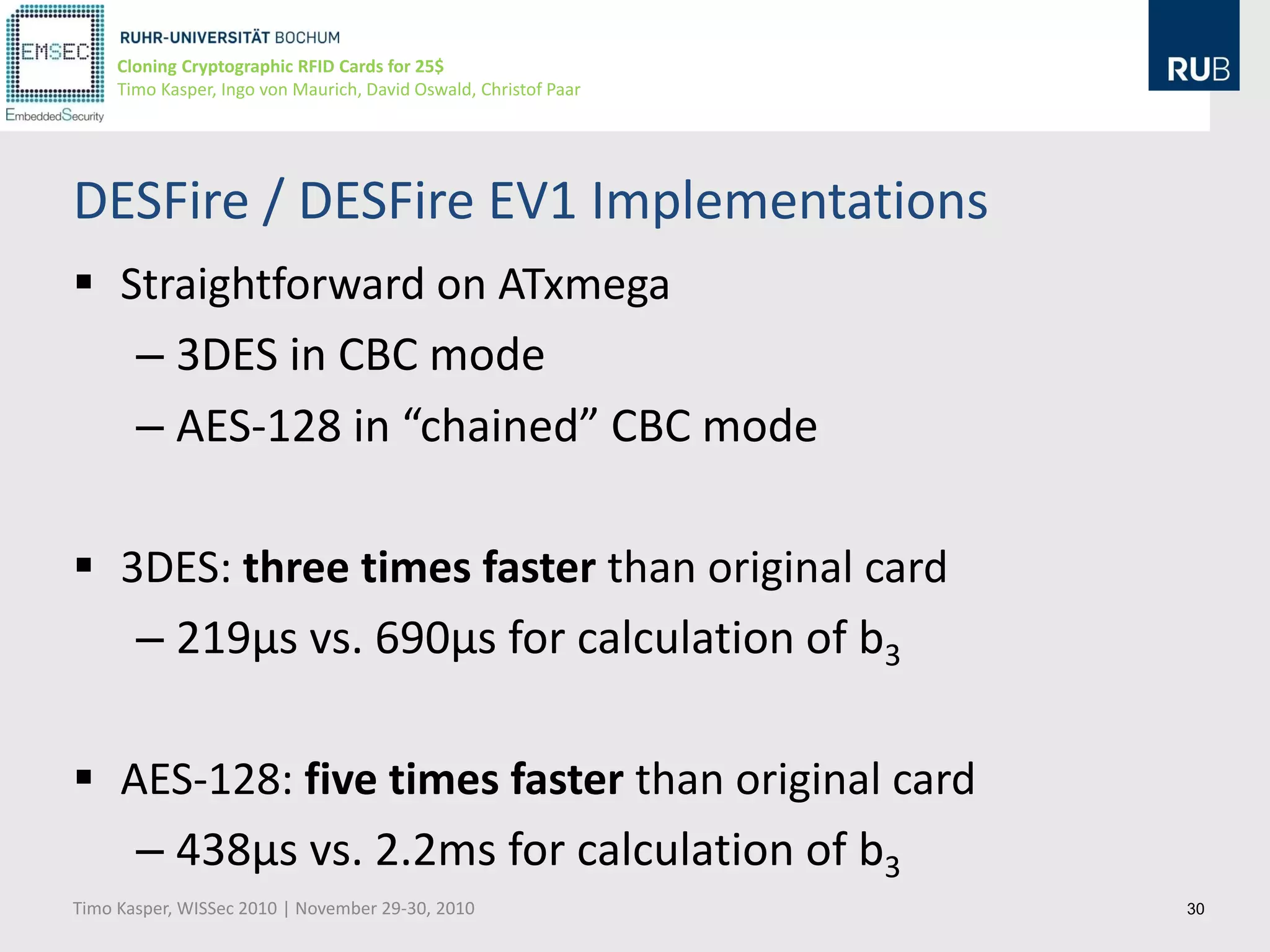

DESFire / DESFire EV1 Implementations
 Straightforward on ATxmega
– 3DES in CBC mode
– AES-128 in “chained” CBC mode
 3DES: three times faster than original card
– 219µs vs. 690µs for calculation of b3
 AES-128: five times faster than original card
– 438µs vs. 2.2ms for calculation of b3
Timo Kasper, WISSec 2010 | November 29-30, 2010 30

29. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

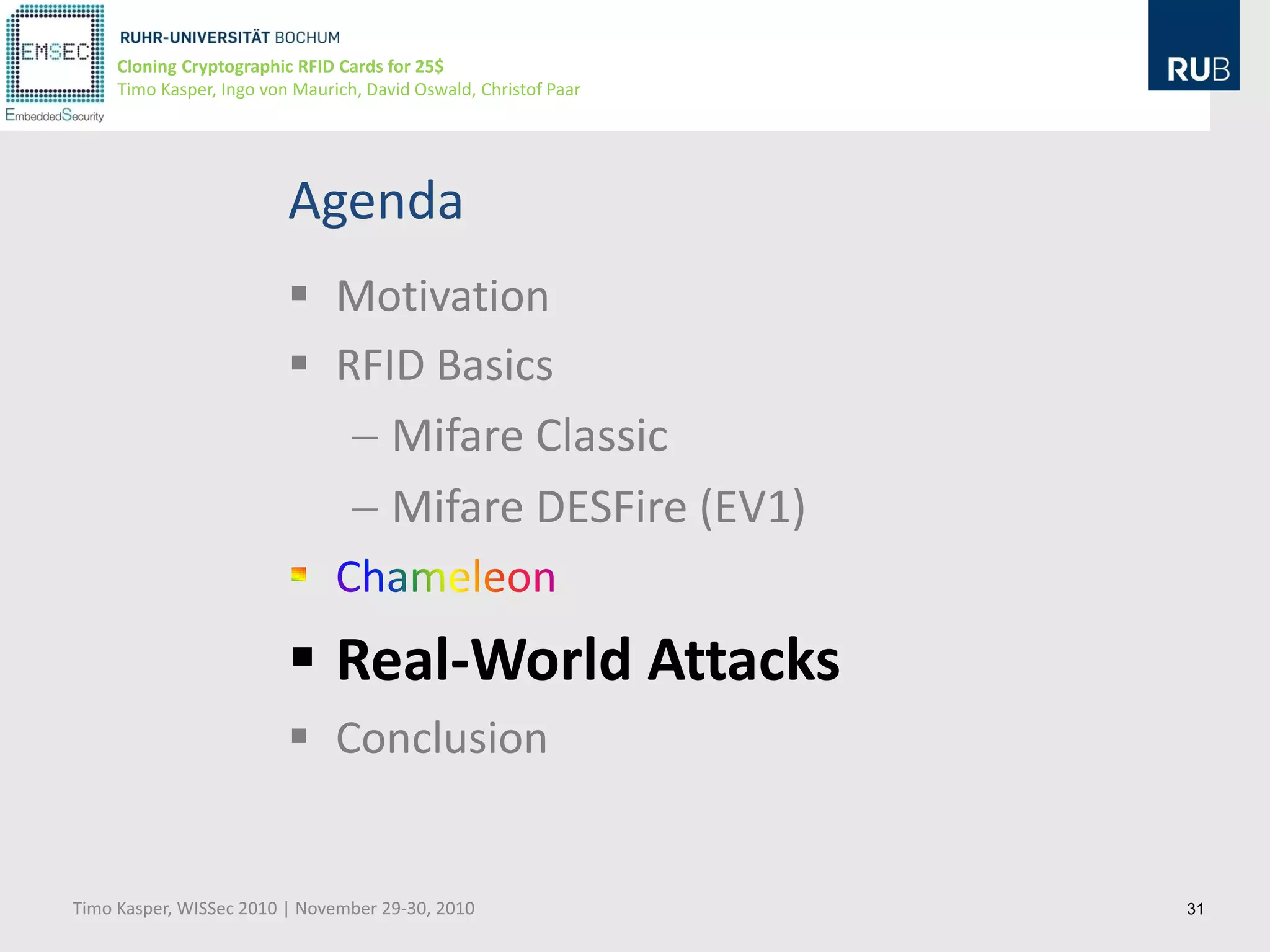

Agenda
 Motivation
 RFID Basics
Mifare Classic
Mifare DESFire (EV1)
 Real-World Attacks
 Conclusion
Timo Kasper, WISSec 2010 | November 29-30, 2010 31

30. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

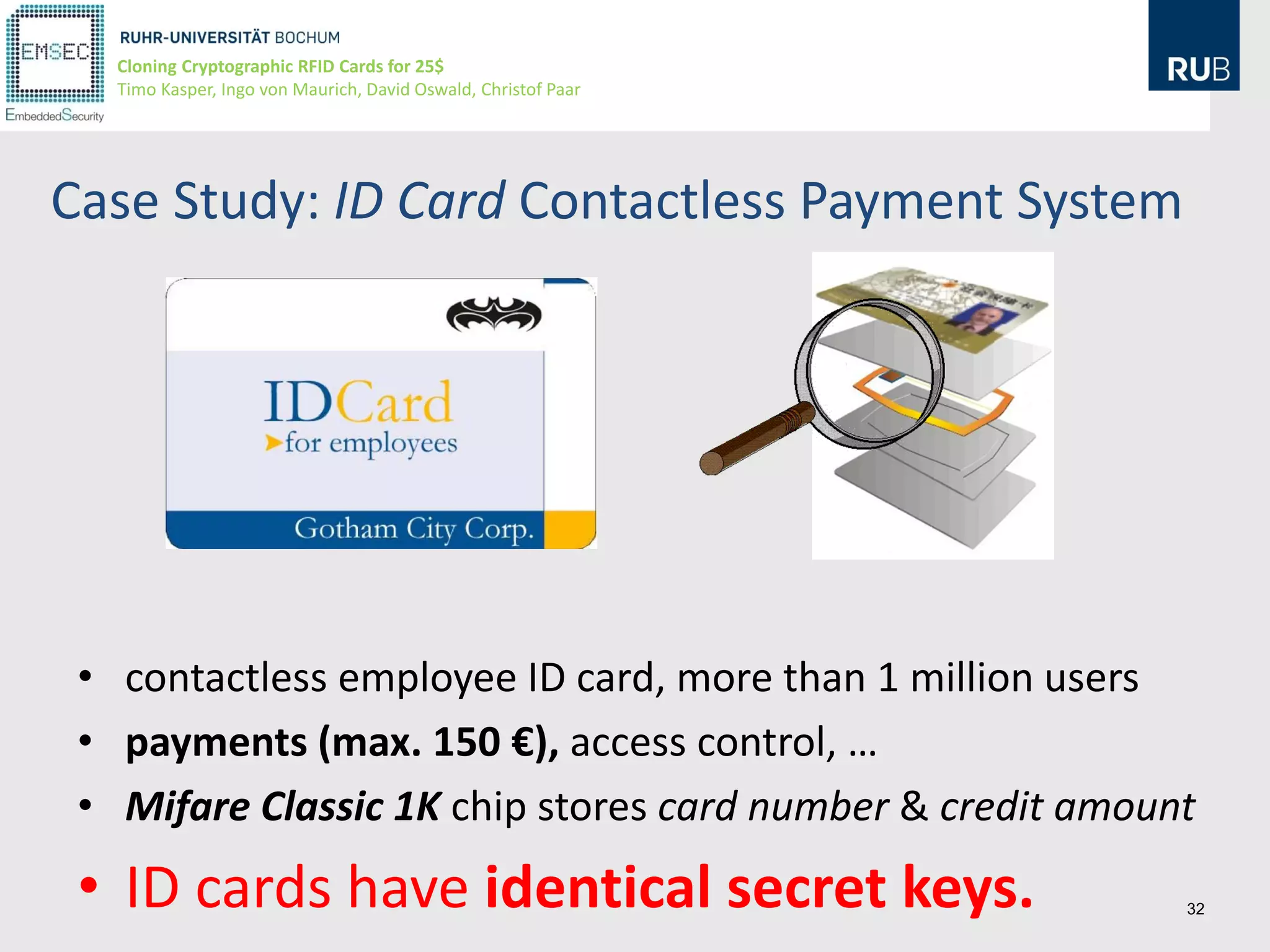

Case Study: ID Card Contactless Payment System
• contactless employee ID card, more than 1 million users
• payments (max. 150 €), access control, …
• Mifare Classic 1K chip stores card number & credit amount
• ID cards have identical secret keys. 32

31. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

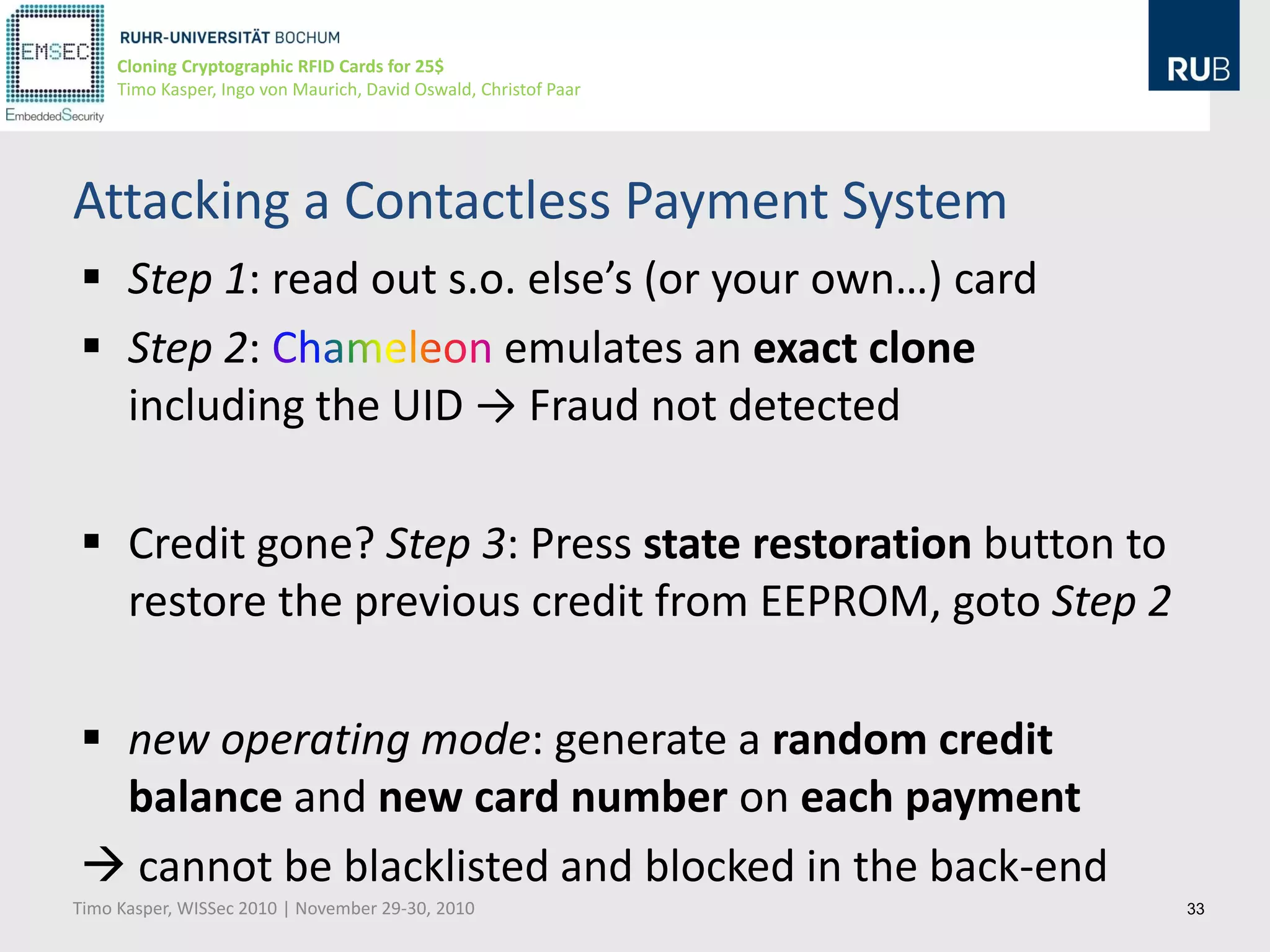

Attacking a Contactless Payment System
 Step 1: read out s.o. else’s (or your own…) card
 Step 2: emulates an exact clone
including the UID → Fraud not detected
 Credit gone? Step 3: Press state restoration button to
restore the previous credit from EEPROM, goto Step 2
 new operating mode: generate a random credit
balance and new card number on each payment
 cannot be blacklisted and blocked in the back-end
Timo Kasper, WISSec 2010 | November 29-30, 2010 33

32. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

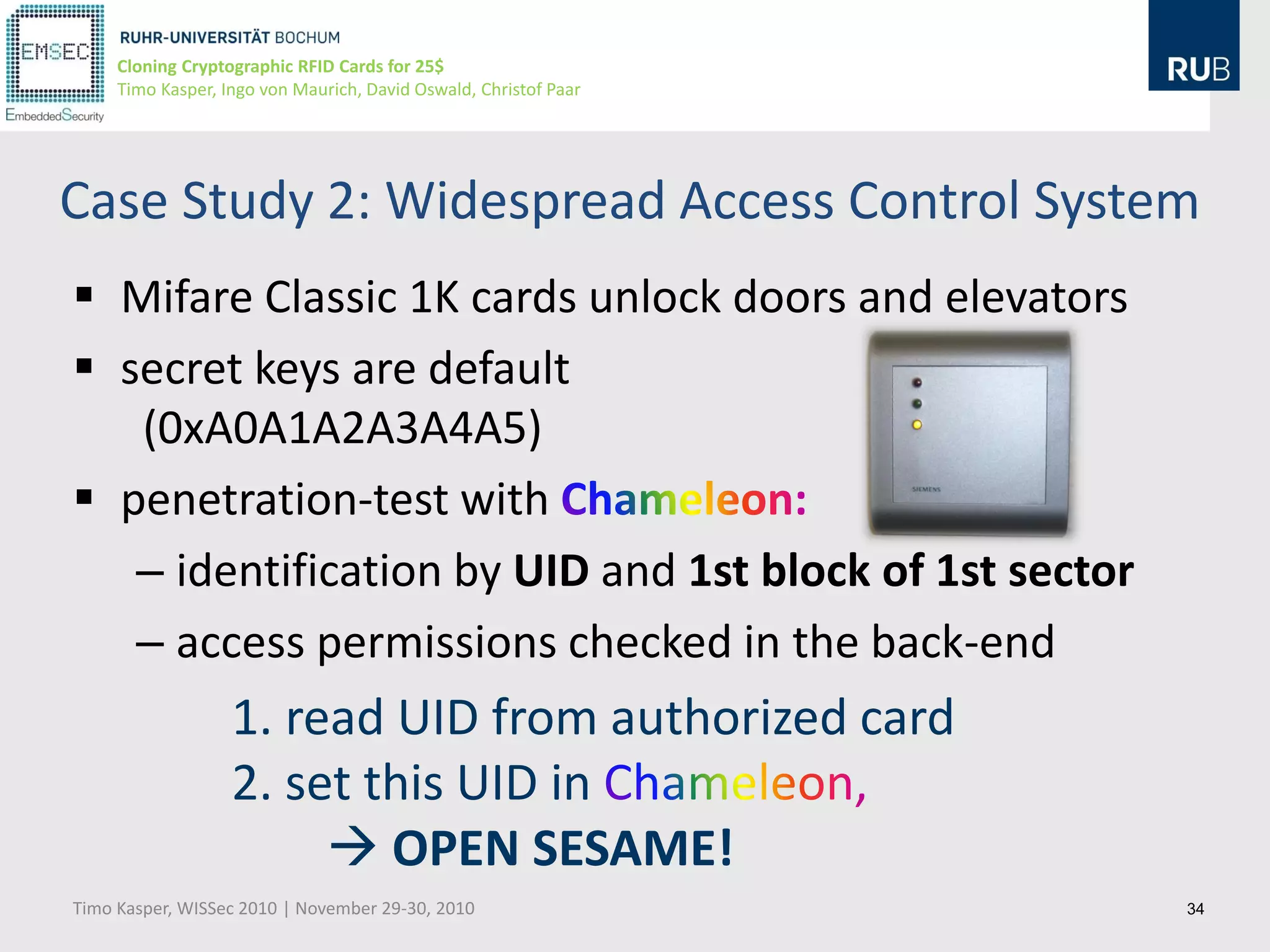

Case Study 2: Widespread Access Control System
 Mifare Classic 1K cards unlock doors and elevators
 secret keys are default
(0xA0A1A2A3A4A5)
 penetration-test with
– identification by UID and 1st block of 1st sector
– access permissions checked in the back-end
1. read UID from authorized card
2. set this UID in
 OPEN SESAME!
Timo Kasper, WISSec 2010 | November 29-30, 2010 34

33. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

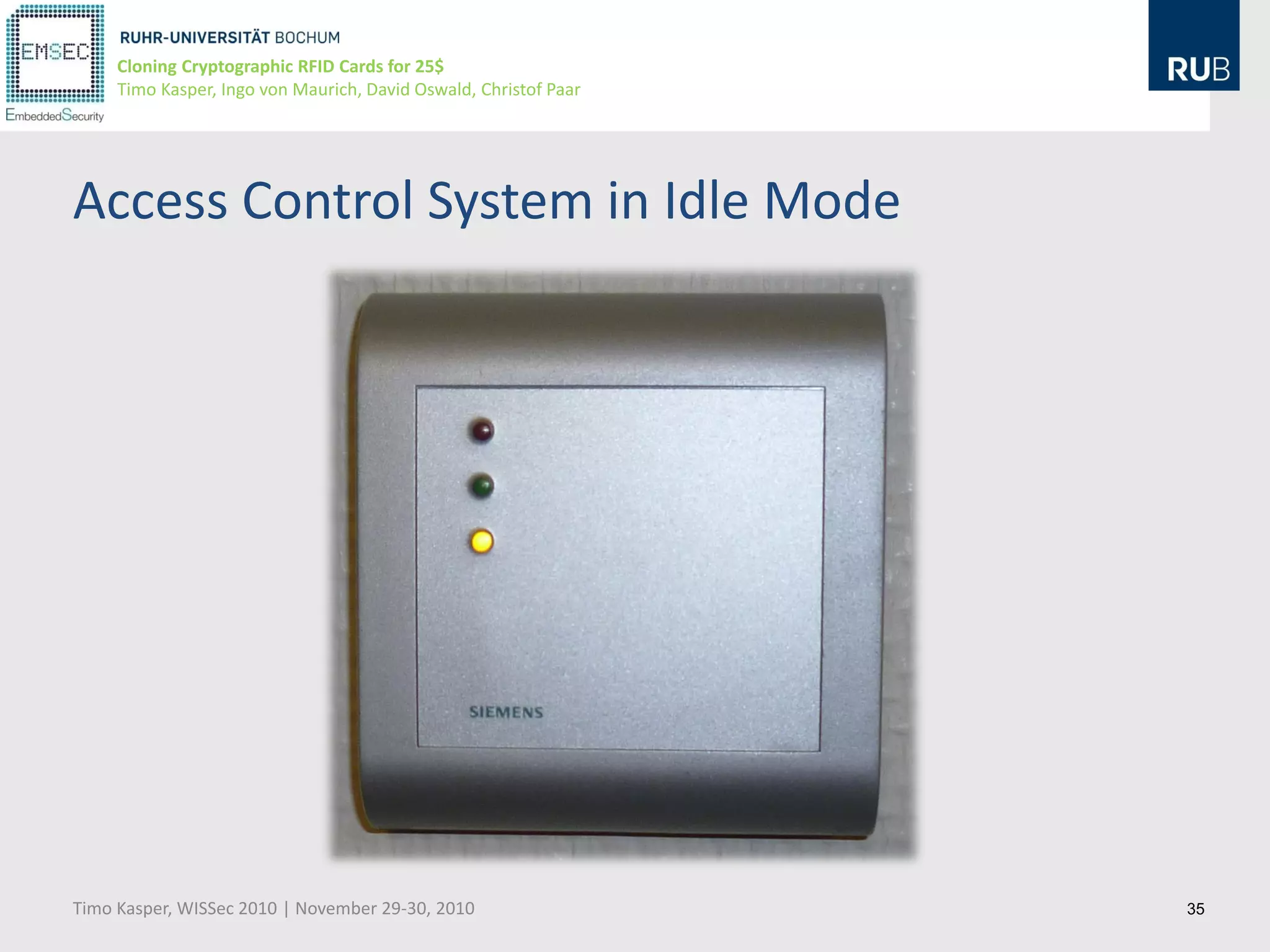

Access Control System in Idle Mode
Timo Kasper, WISSec 2010 | November 29-30, 2010 35

34. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

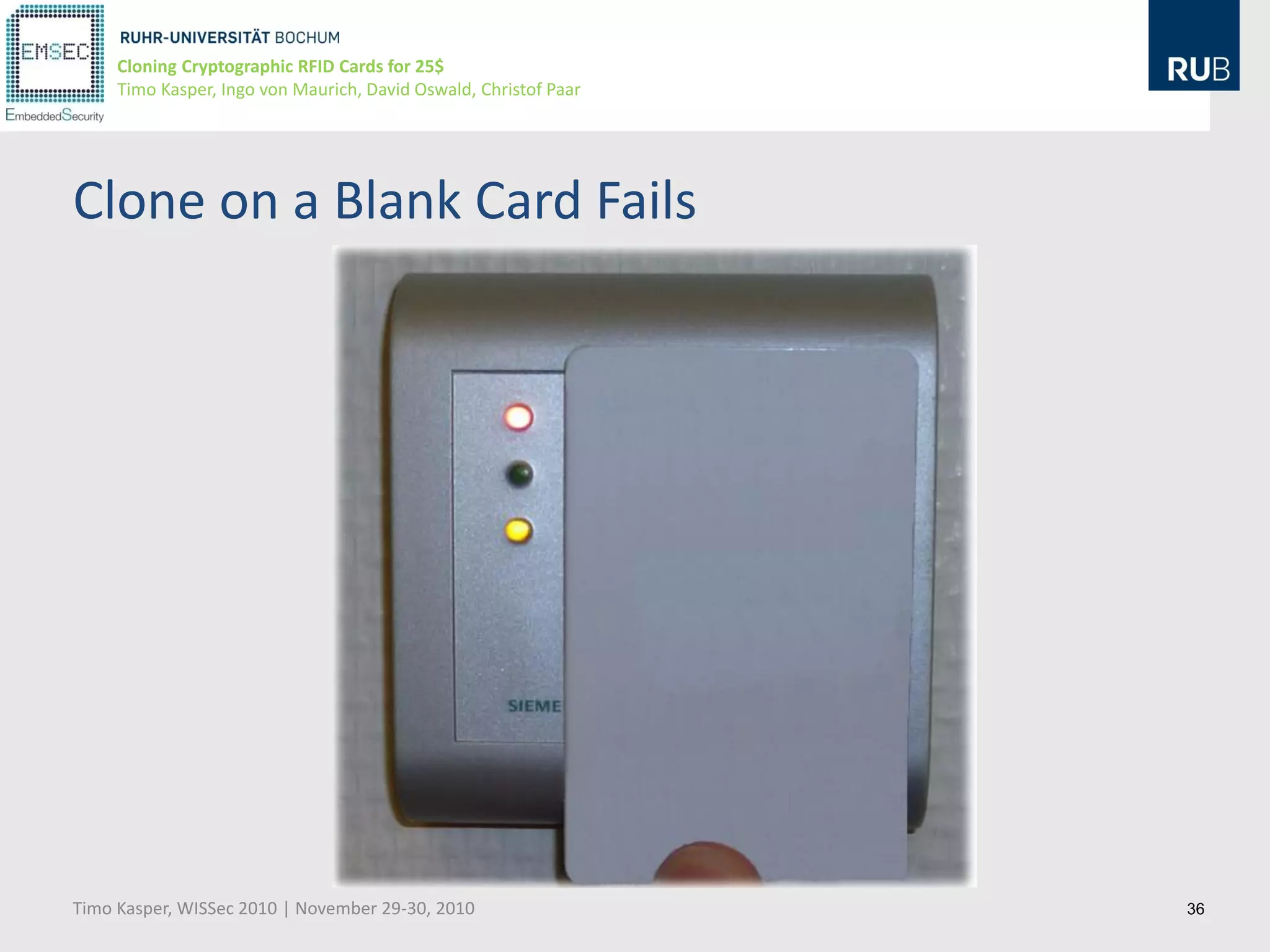

Clone on a Blank Card Fails
Timo Kasper, WISSec 2010 | November 29-30, 2010 36

35. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

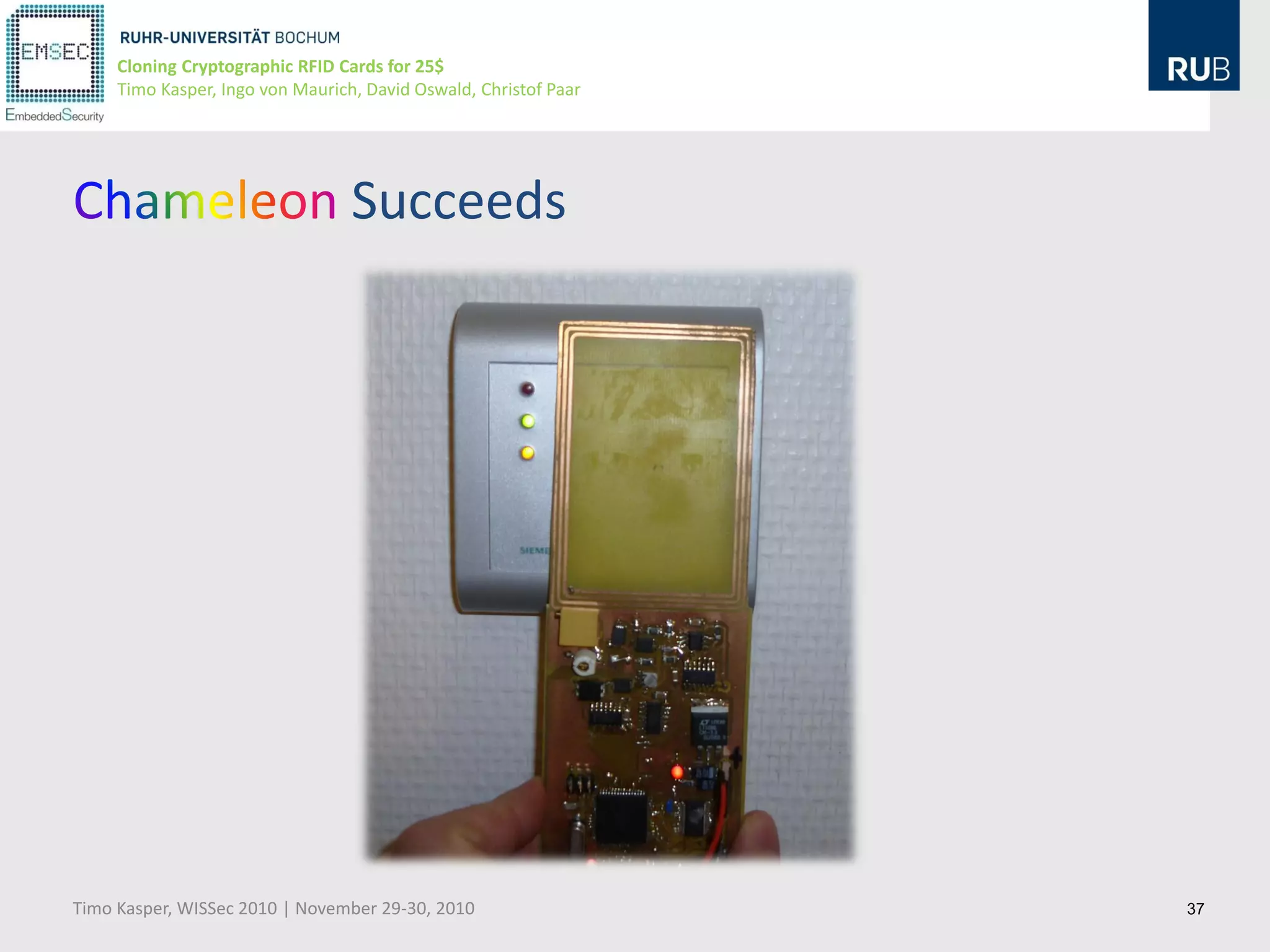

Succeeds
Timo Kasper, WISSec 2010 | November 29-30, 2010 37

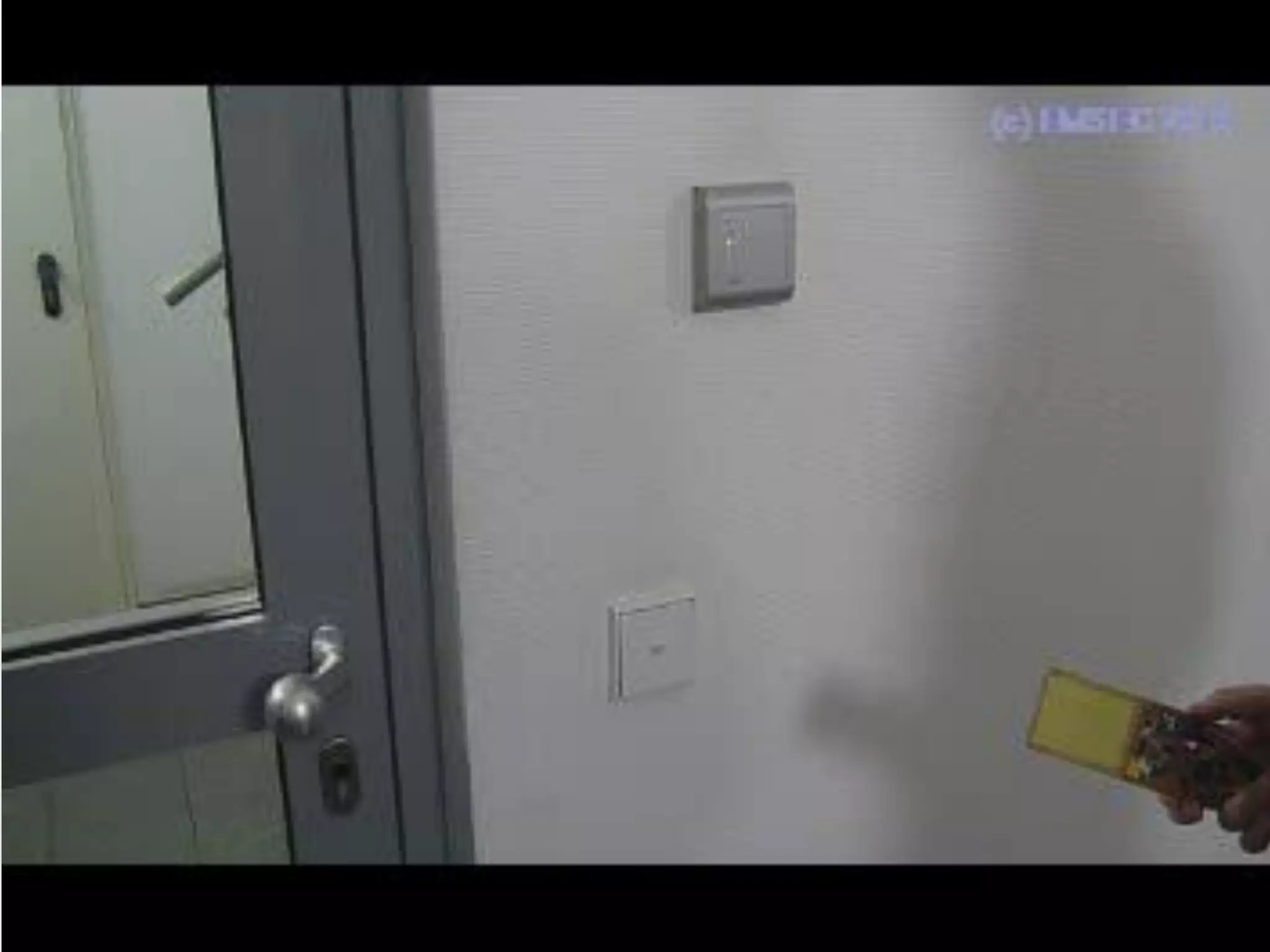

36. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar
Timo Kasper, WISSec 2010 | November 29-30, 2010 38

37. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar
Agenda
 Motivation
 RFID Basics
Mifare Classic
Mifare DESFire (EV1)
 Real-World Attacks
 Conclusion
Timo Kasper, WISSec 2010 | November 29-30, 2010 39

38. Cloning Cryptographic RFID Cards for 25$
Timo Kasper, Ingo von Maurich, David Oswald, Christof Paar

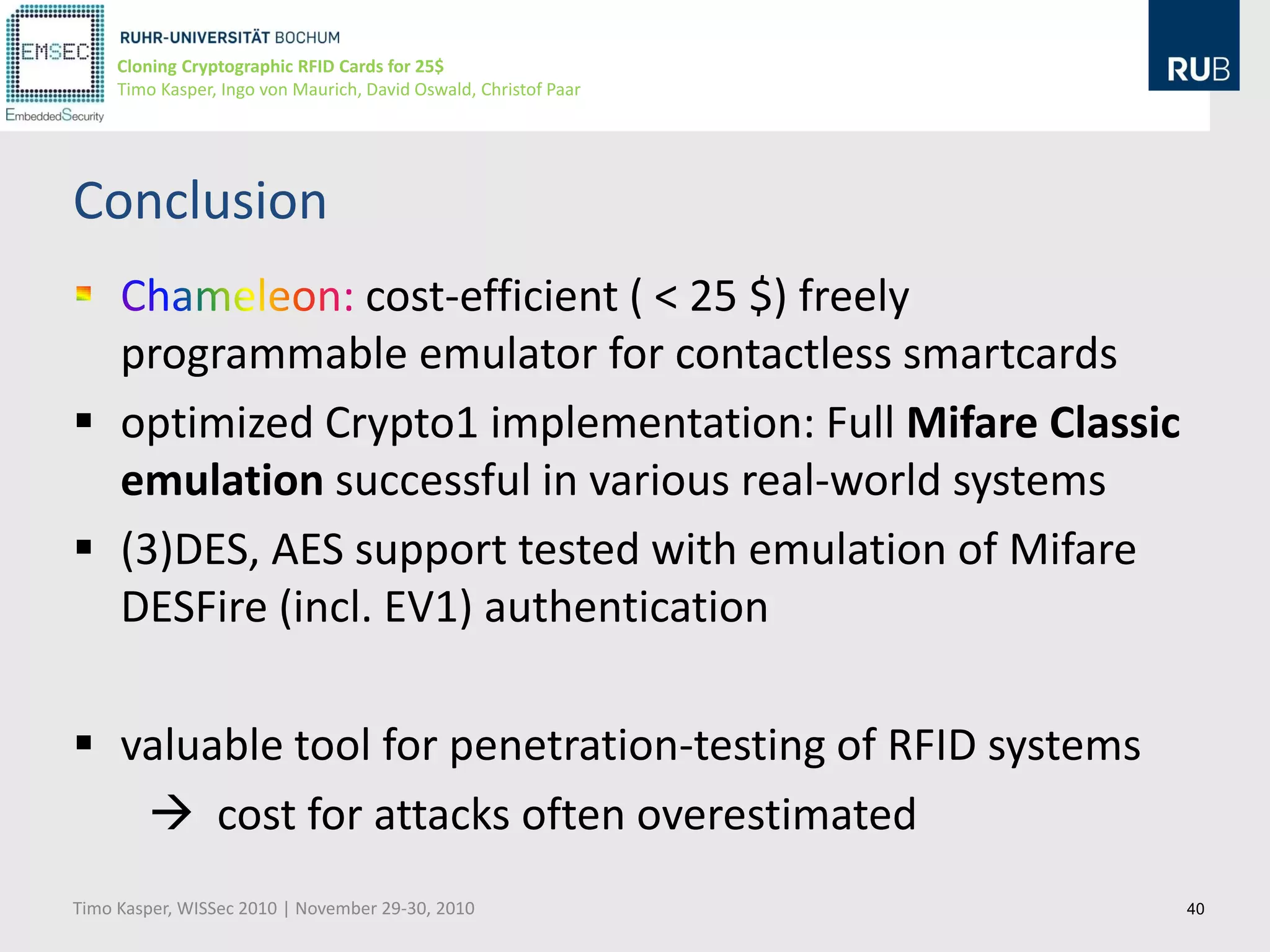

Conclusion
cost-efficient ( < 25 $) freely
programmable emulator for contactless smartcards
 optimized Crypto1 implementation: Full Mifare Classic
emulation successful in various real-world systems
 (3)DES, AES support tested with emulation of Mifare
DESFire (incl. EV1) authentication
 valuable tool for penetration-testing of RFID systems
 cost for attacks often overestimated
Timo Kasper, WISSec 2010 | November 29-30, 2010 40

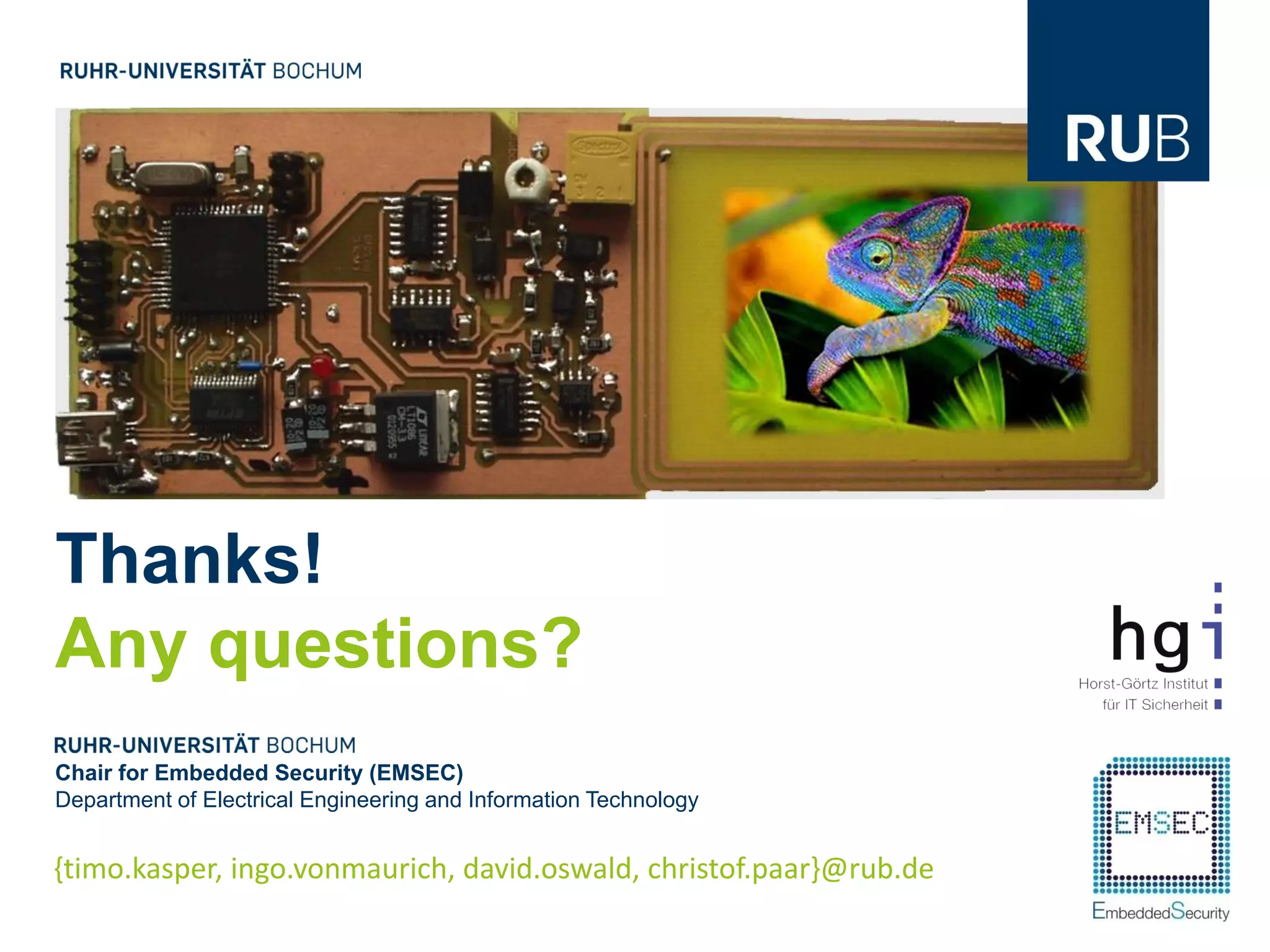

39. Thanks!
Any questions?
Chair for Embedded Security (EMSEC)
Department of Electrical Engineering and Information Technology
{timo.kasper, ingo.vonmaurich, david.oswald, christof.paar}@rub.de
