1. Mifare cards presentation
Yann ROBERT
Technical expert
18-04-2011

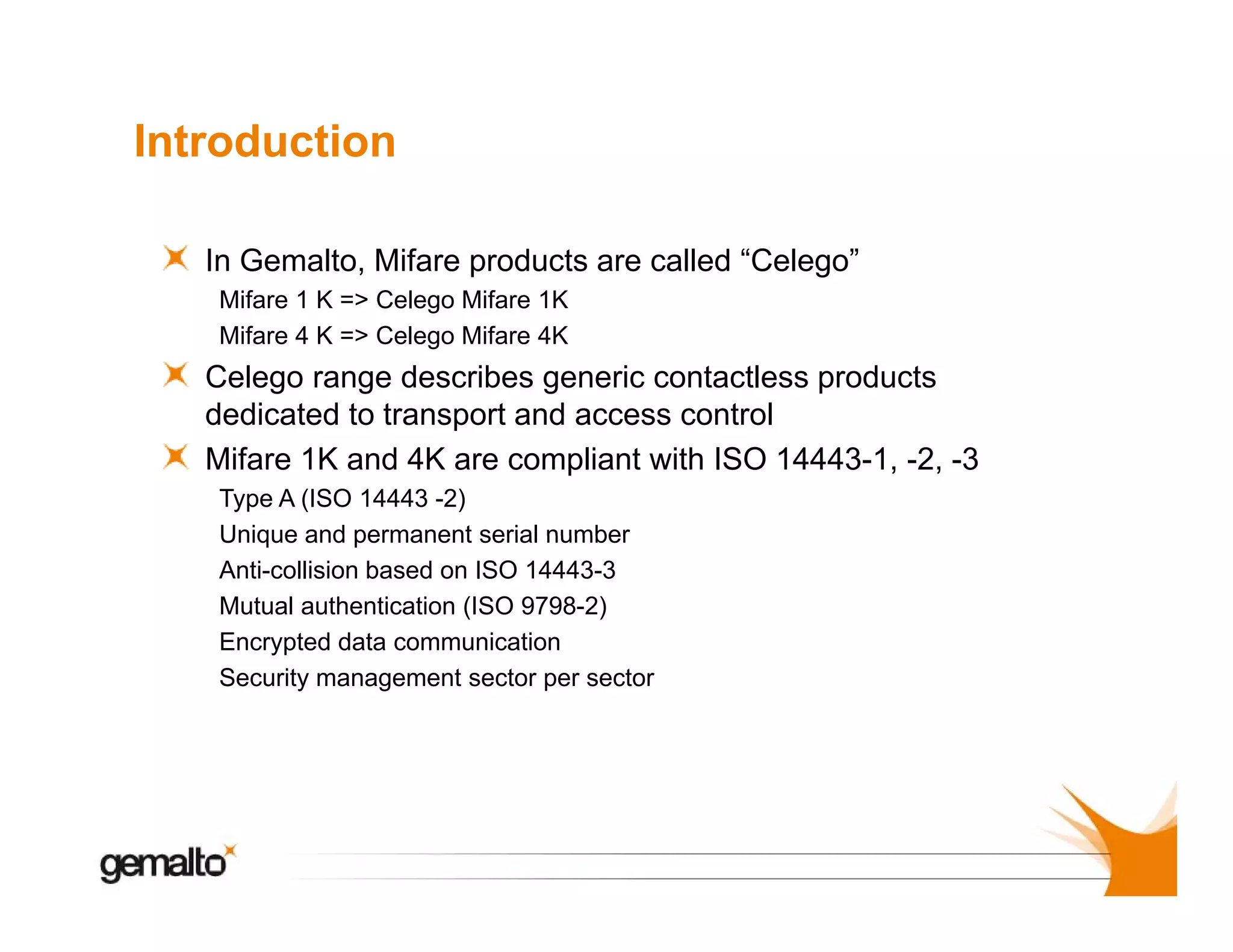

2. Introduction
In Gemalto, Mifare products are called “Celego”
Mifare 1 K => Celego Mifare 1K
Mifare 4 K => Celego Mifare 4K
Celego range describes generic contactless products
dedicated to transport and access control
Mifare 1K and 4K are compliant with ISO 14443-1, -2, -3
Type A (ISO 14443 -2)
Unique and permanent serial number
Anti-collision based on ISO 14443-3
Mutual authentication (ISO 9798-2)
Encrypted data communication
Security management sector per sector

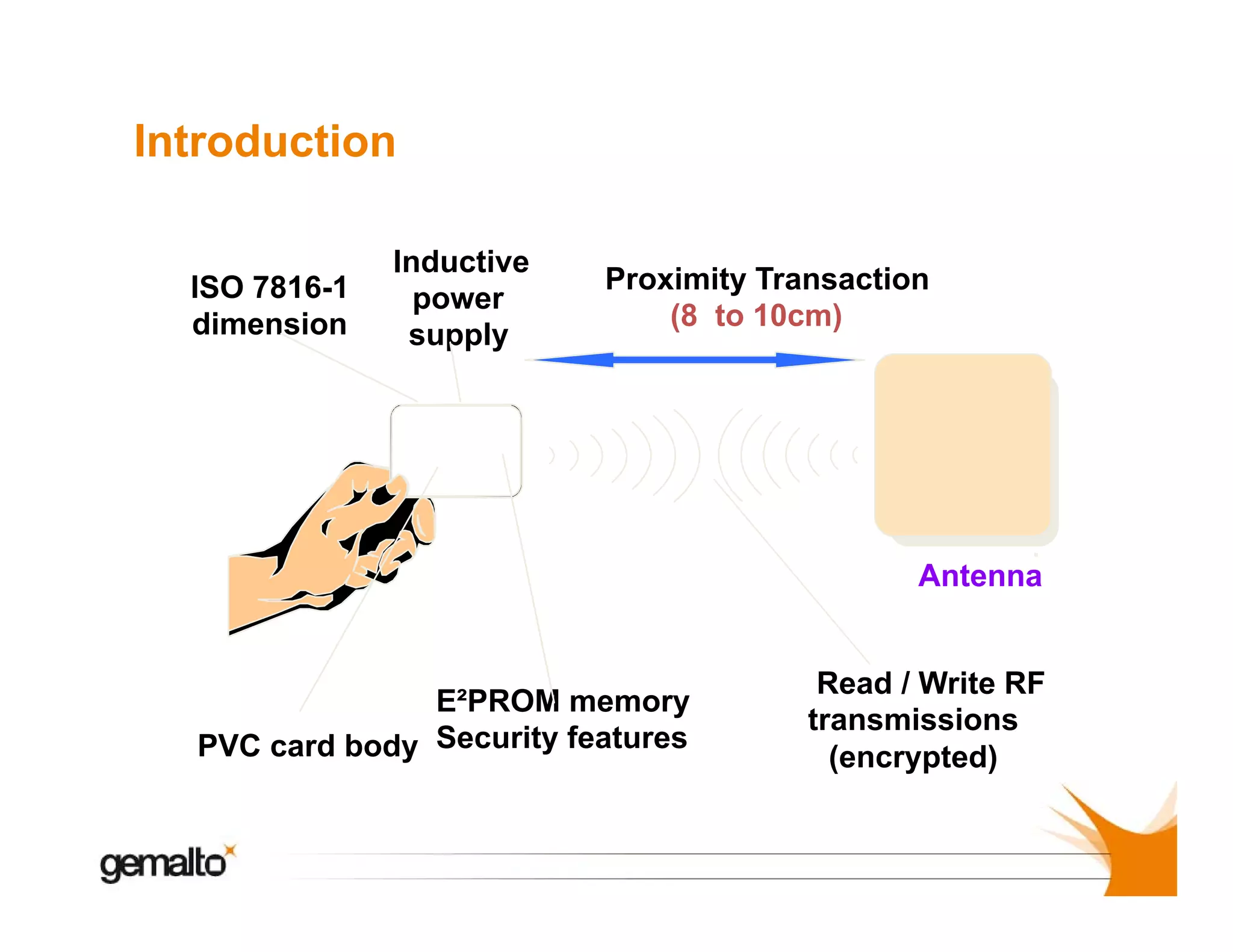

3. Introduction
ISO 7816-1
7816 1
dimension
Inductive
power
supply
Proximity Transaction
y
(8 to 10cm)
Antenna
E²PROM memory
PVC card body Security features
Read / Write RF
transmissions
(encrypted)

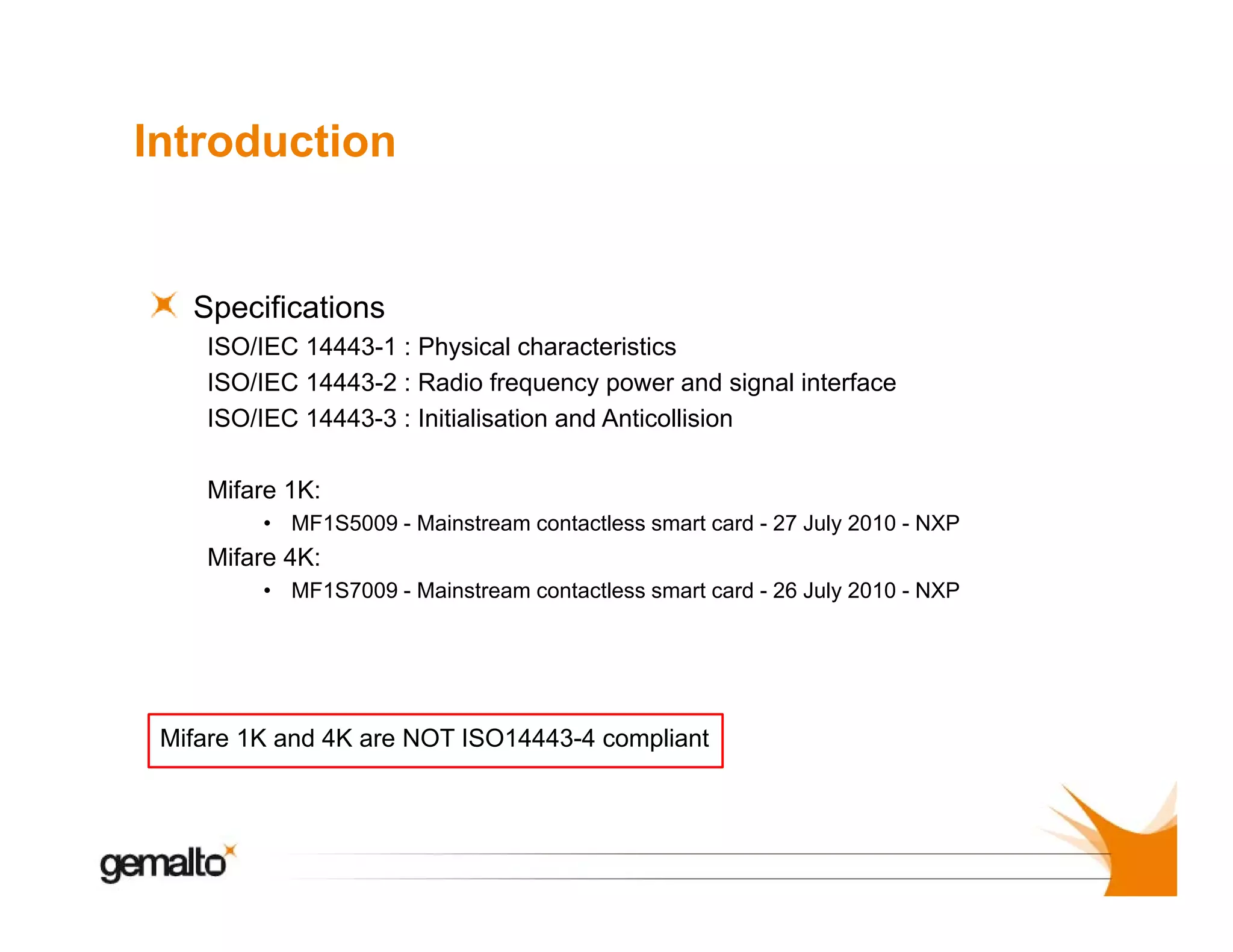

4. Introduction
Specifications
S
ifi i
ISO/IEC 14443-1 : Physical characteristics
ISO/IEC 14443-2 : Radio frequency power and signal interface
ISO/IEC 14443 3 : Initialisation and Anticollision
14443-3
Mifare 1K:
• MF1S5009 - Mainstream contactless smart card - 27 July 2010 - NXP
Mifare 4K:
• MF1S7009 - Mainstream contactless smart card - 26 July 2010 - NXP
Mifare 1K and 4K are NOT ISO14443-4 compliant

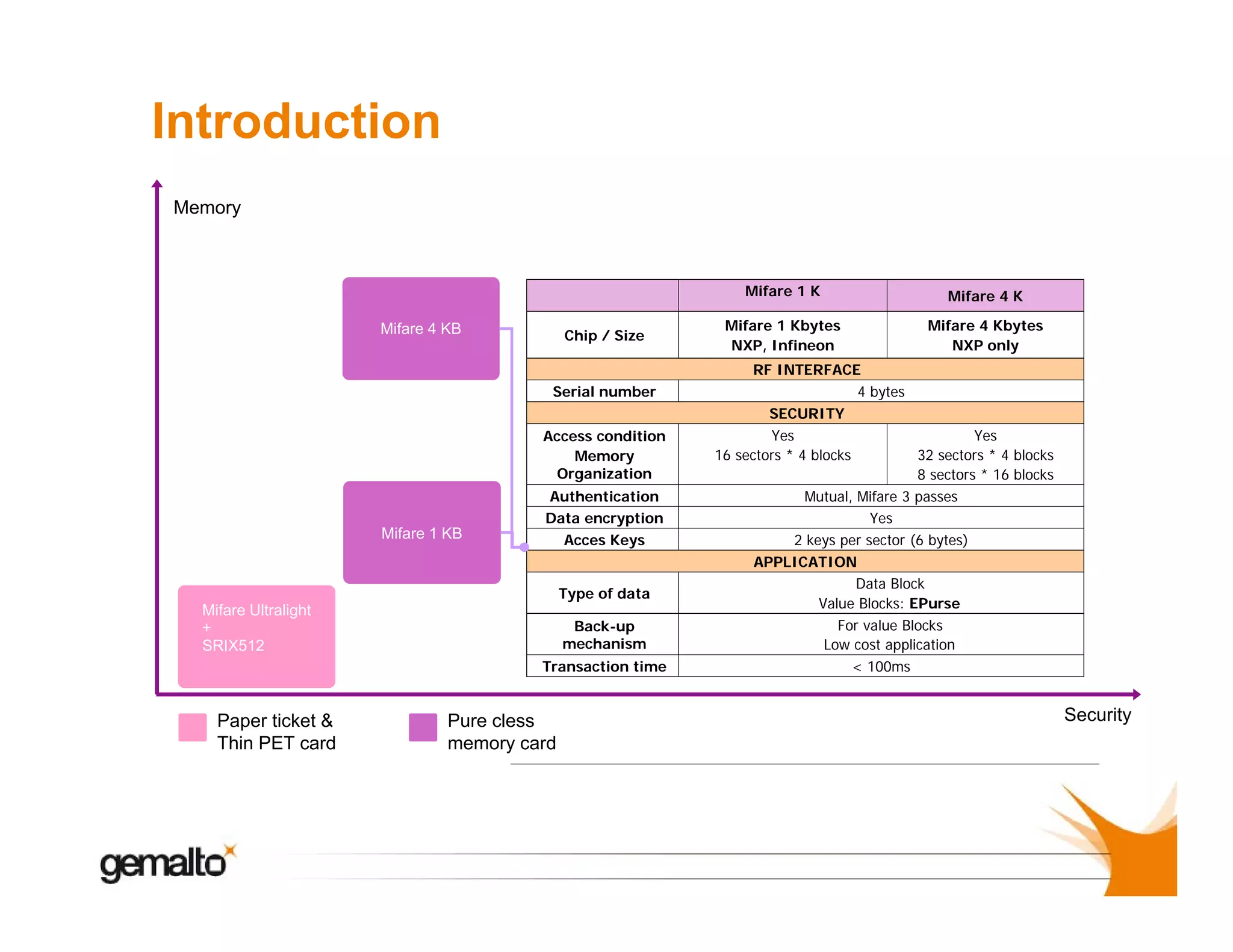

5. Introduction
Memory
Mifare 1 K
Mifare 4 KB
Chip / Size
Serial number
Access condition
Memory
Organization
Mifare 1 KB
Authentication
Data encryption
Acces Keys
A
K
Type of data
Mifare Ultralight
+
SRIX512
Back-up
mechanism
Transaction time
Paper ticket &
Thin PET card
Pure cless
memory card
Mifare 4 K
Mifare 1 Kbytes
NXP, Infineon
Mifare 4 Kbytes
NXP only
RF INTERFACE
4 bytes
SECURITY
Yes
Yes
16 sectors * 4 blocks
32 sectors * 4 blocks
8 sectors * 16 blocks
Mutual, Mifare 3 passes
Yes
2 keys per sector (6 bytes)
k
t
b t )
APPLICATION
Data Block
Value Blocks: EPurse
For value Blocks
Low cost application
< 100ms
Security

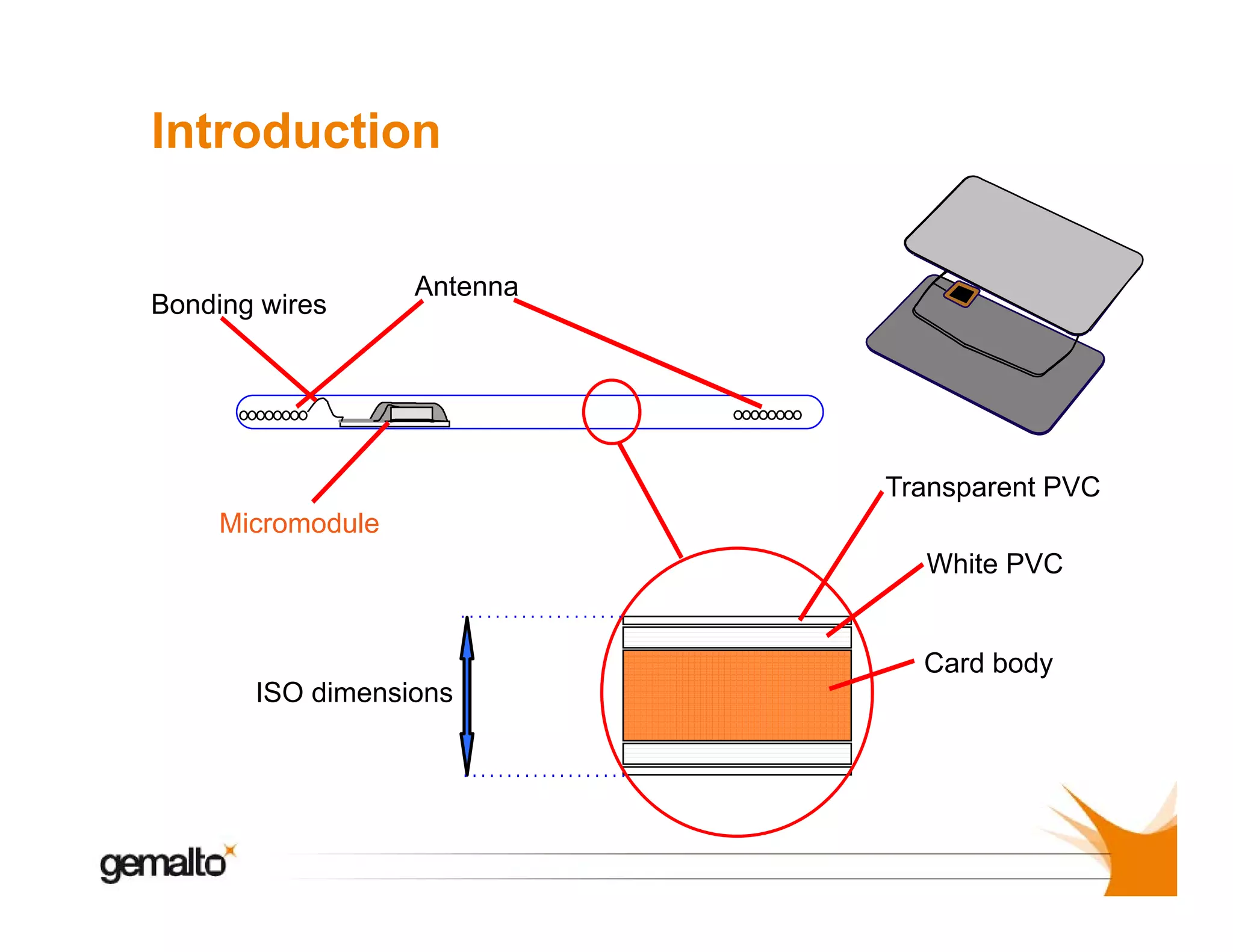

6. Introduction
Bonding i
B di wires
Antenna
te a
Transparent PVC
Micromodule
White PVC
Card body
C db d
ISO dimensions

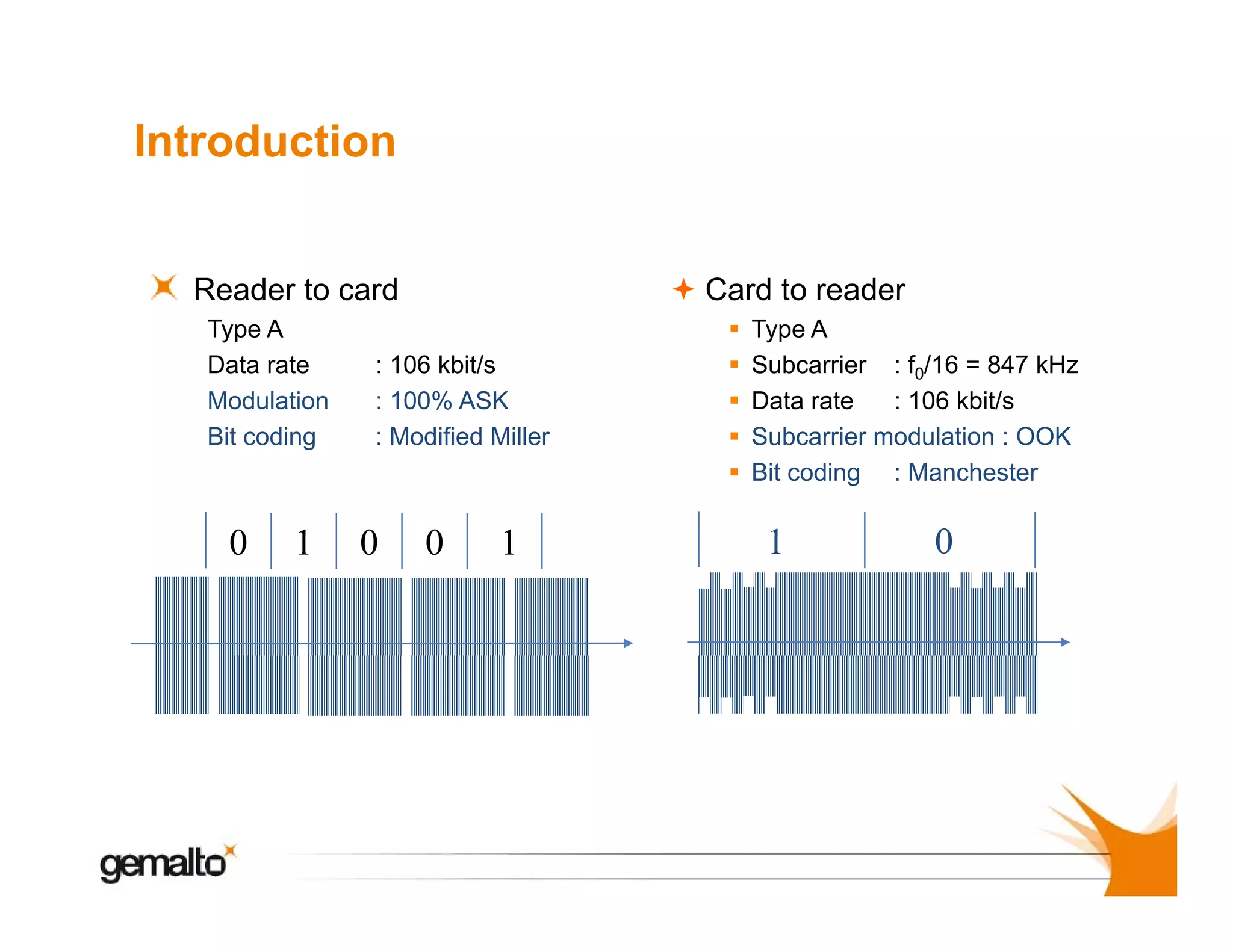

7. Introduction
Reader to card
Type A
Data rate
Modulation
Bit coding
0
1
Card to reader
: 106 kbit/s
: 100% ASK
: Modified Miller
0
0
1
Type A
Subcarrier : f0/16 = 847 kHz
Data rate
: 106 kbit/s
Subcarrier modulation : OOK
Bit coding : Manchester
1
0

8. Mifare mappings

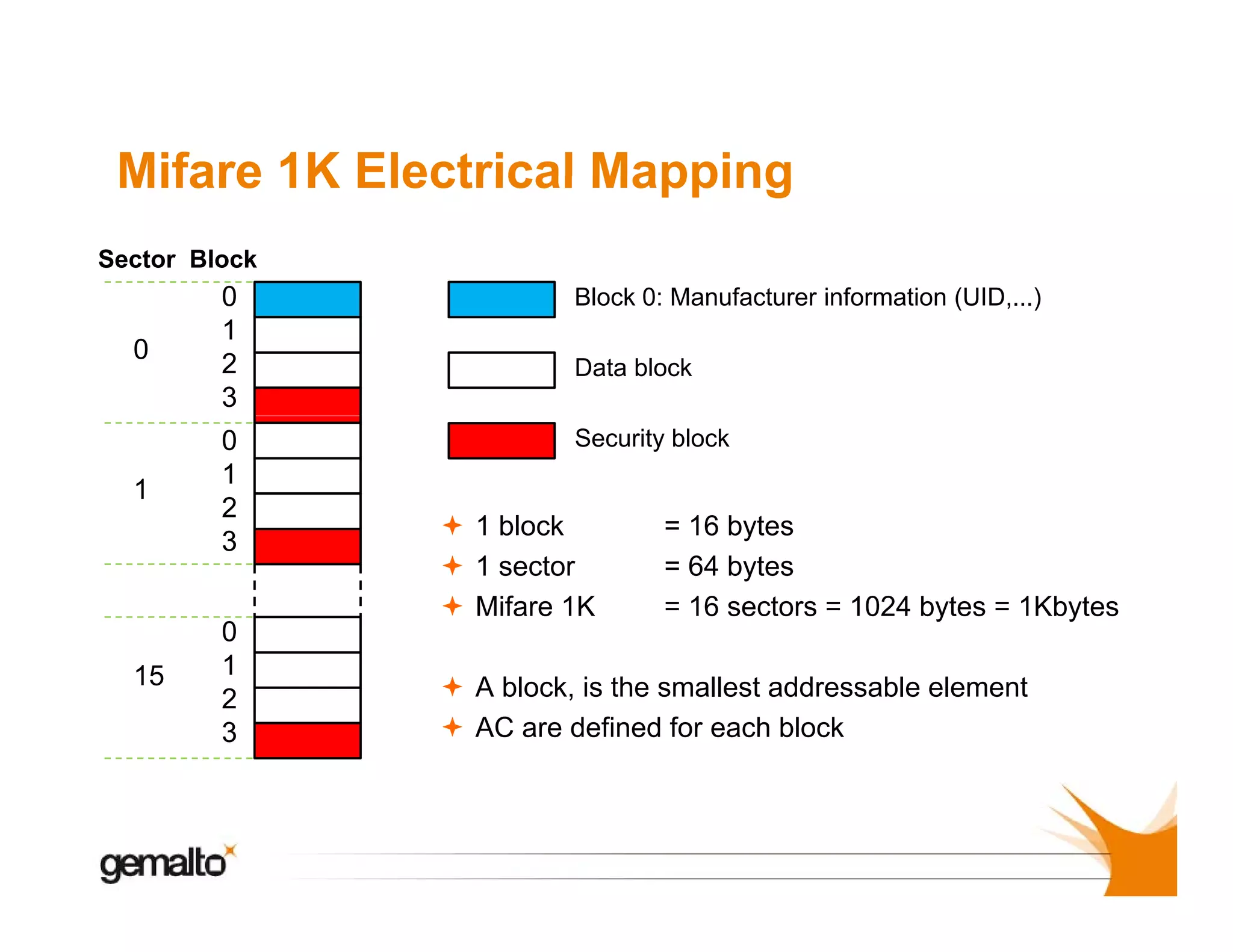

9. Mifare 1K Electrical Mapping
Sector Block
Block 0: Manufacturer information (UID,...)
(UID )
0
0
1
2
3
Security block
1
0
1
2
3
15
0
1
2
3
Data block
1 block
1 sector
Mifare 1K
= 16 bytes
y
= 64 bytes
= 16 sectors = 1024 bytes = 1Kbytes
A block, is the smallest addressable element
AC are defined for each block

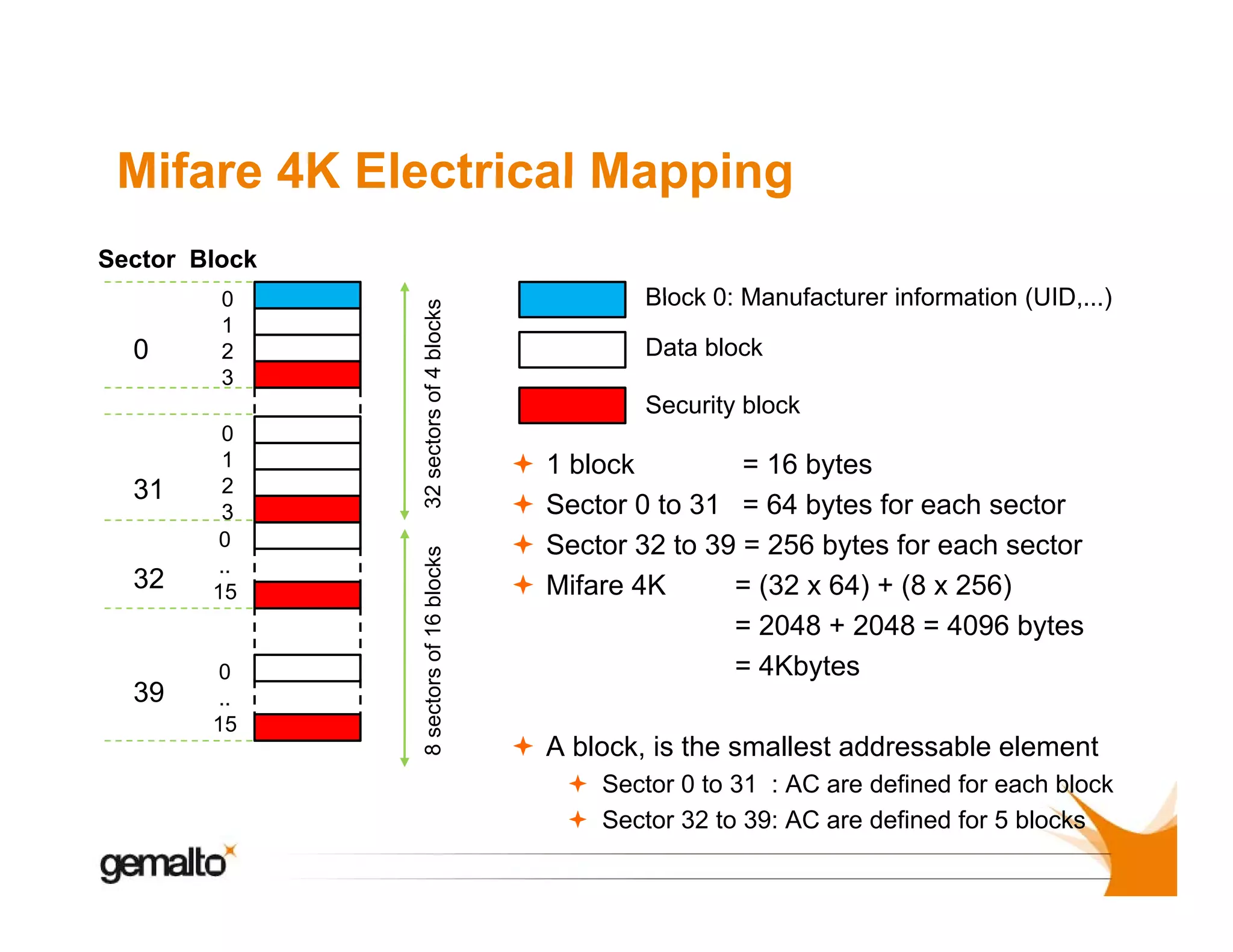

10. Mifare 4K Electrical Mapping
31
32
39
0
1
2
3
0
..
15
0
..
15
8 sectors of 16 blocks
o
0
0
1
2
3
32 sectors of 4 blocks
s
Sector Block
Block 0: Manufacturer information (UID,...)
(UID )
Data block
y
Security block
1 block
= 16 bytes
Sector 0 to 31 = 64 bytes for each sector
Sector
S t 32 t 39 = 256 b t f each sector
to
bytes for
h
t
Mifare 4K
= (32 x 64) + (8 x 256)
= 2048 + 2048 = 4096 bytes
= 4Kb
4Kbytes
A block, is the smallest addressable element
Sector t
S t 0 to 31 : AC are d fi d f each bl k
defined for
h block
Sector 32 to 39: AC are defined for 5 blocks

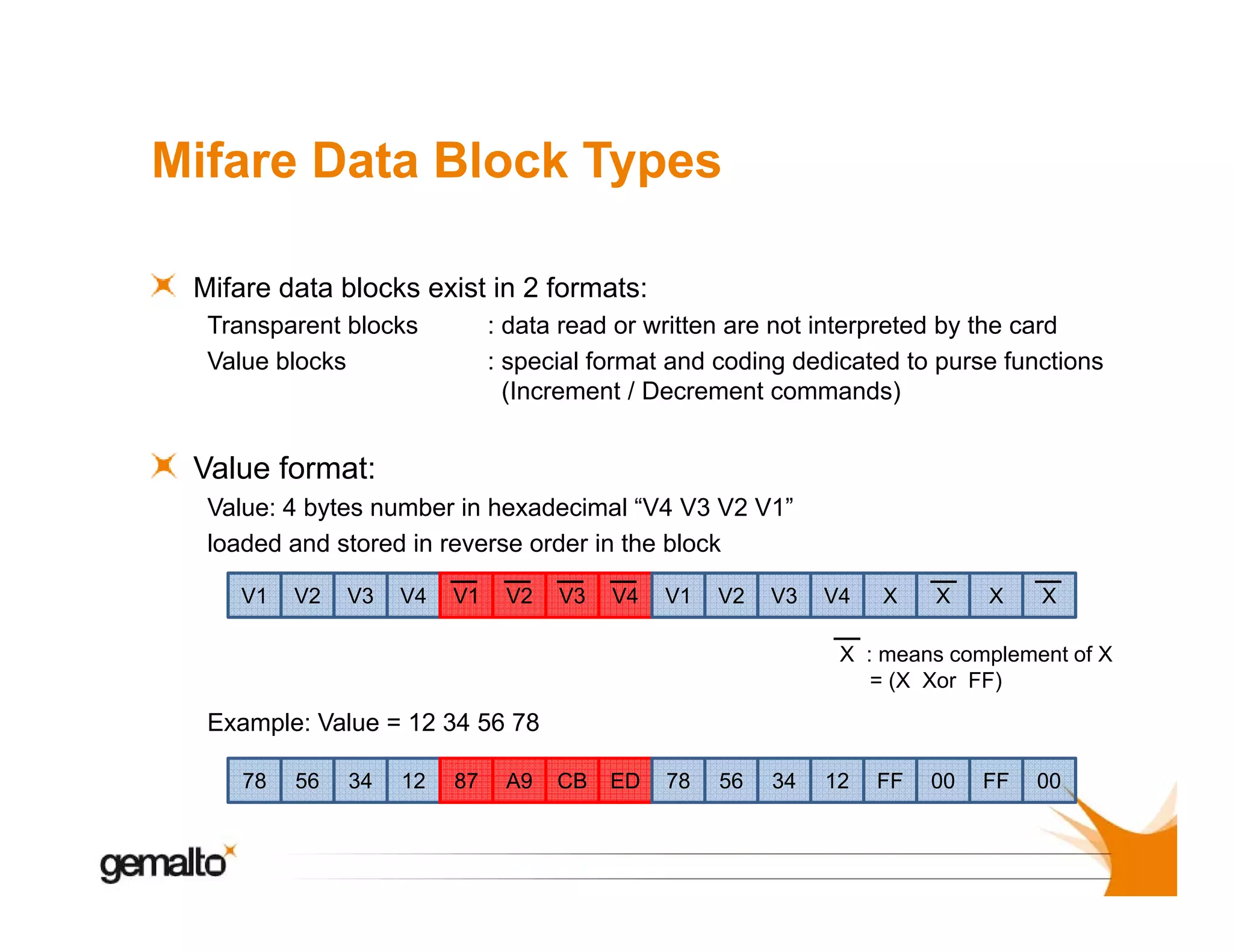

11. Mifare Data Block Types
Mifare data blocks exist in 2 formats:
Transparent blocks
Value blocks
: data read or written are not interpreted by the card
: special format and coding dedicated to purse functions
(Increment / Decrement commands)
Value format:
Value: 4 bytes number in hexadecimal “V4 V3 V2 V1”
loaded d t d in
l d d and stored i reverse order i th bl k
d in the block
V1
V2
V3
V4
V1
V2
V3
V4
V1
V2
V3
V4
X
X
X
X
X : means complement of X
= (X Xor FF)
Example: Value = 12 34 56 78
78
56
34
12
87
A9
CB
ED
78
56
34
12
FF
00
FF
00

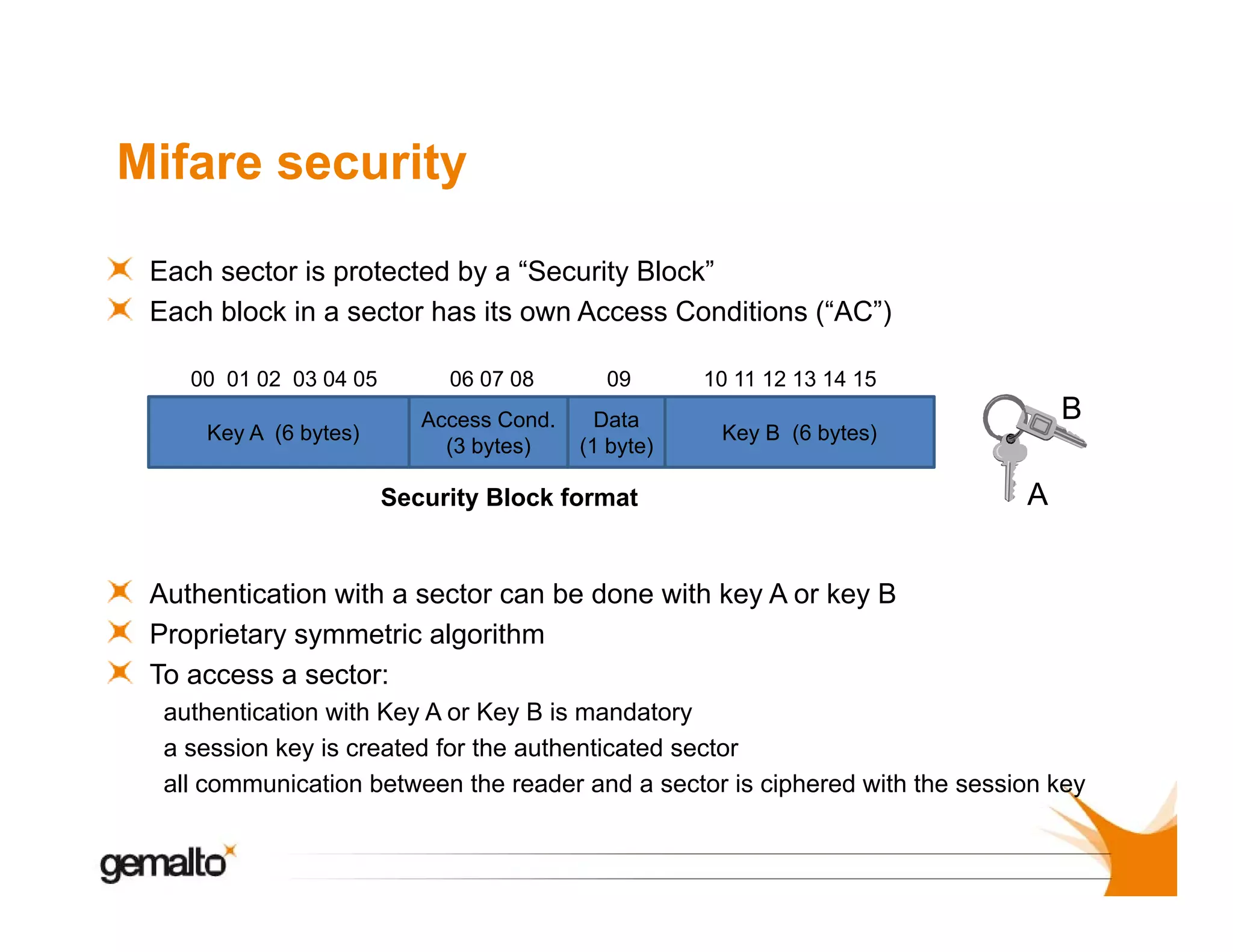

12. Mifare security
Each sector is protected by a “Security Block”
Each block in a sector has its own Access Conditions (“AC”)
00 01 02 03 04 05
06 07 08
09
Key A (6 bytes)
Access Cond
Cond.
(3 bytes)
Data
(1 byte)
10 11 12 13 14 15
B
Key B (6 bytes)
Security Block format
A
Authentication with a sector can be done with key A or key B
Proprietary symmetric algorithm
To access a sector:
authentication with Key A or Key B is mandatory
a session key is created for the authenticated sector
all communication b t
ll
i ti between th reader and a sector i ciphered with th session k
the
d
d
t is i h d ith the
i key

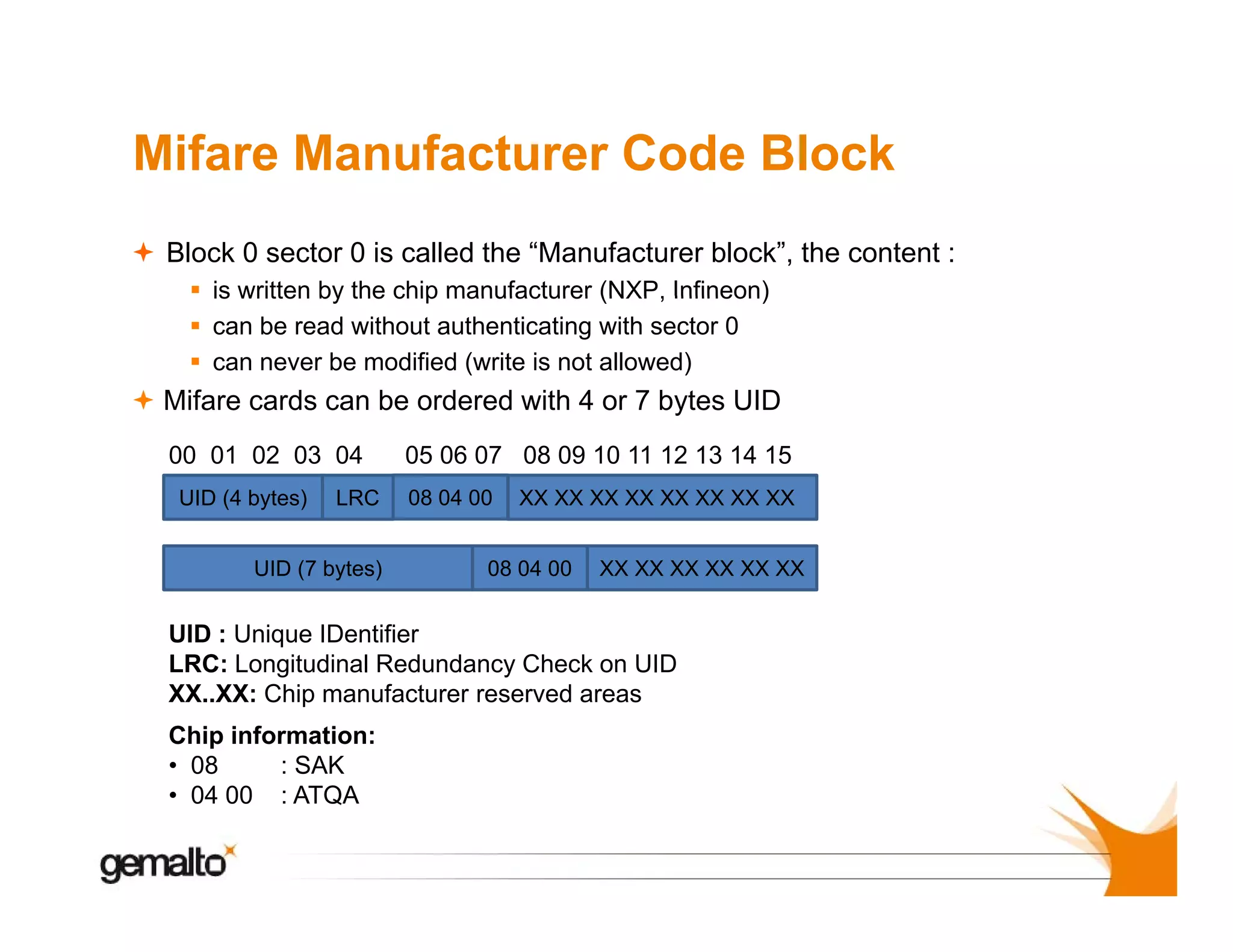

13. Mifare Manufacturer Code Block
Block 0 sector 0 is called the “Manufacturer block”, the content :
is written by the chip manufacturer (NXP Infineon)
(NXP,
can be read without authenticating with sector 0
can never be modified (write is not allowed)
Mifare cards can be ordered with 4 or 7 bytes UID
y
00 01 02 03 04
UID (4 bytes)
LRC
UID (7 bytes)
05 06 07 08 09 10 11 12 13 14 15
08 04 00
XX XX XX XX XX XX XX XX
08 04 00
XX XX XX XX XX XX
UID : Unique IDentifier
LRC: Longitudinal R d d
LRC L
it di l Redundancy Ch k on UID
Check
XX..XX: Chip manufacturer reserved areas
Chip information:
• 08
: SAK
• 04 00 : ATQA

14. Access conditions

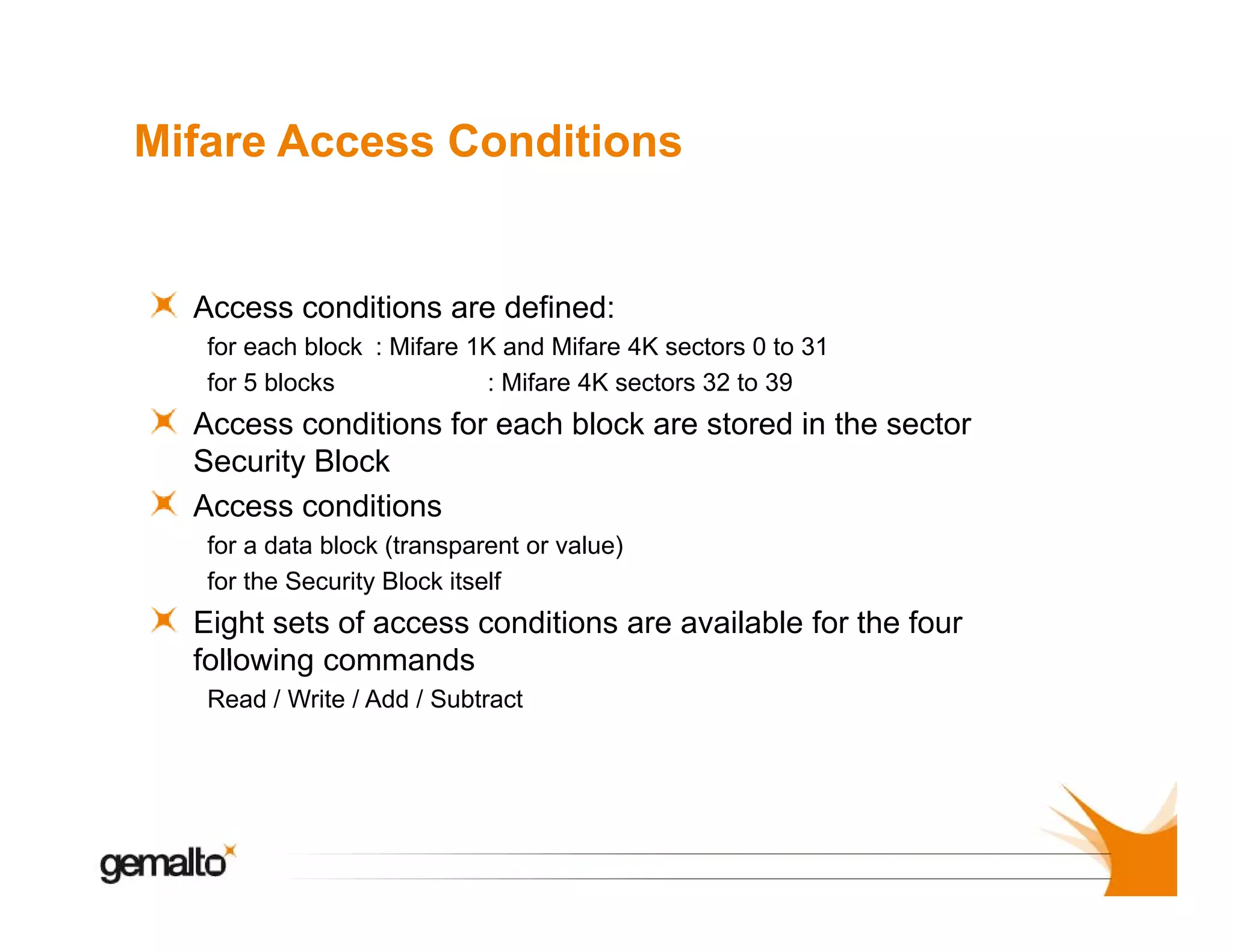

15. Mifare Access Conditions
Access conditions are d fi d
defined:
A
di i
for each block : Mifare 1K and Mifare 4K sectors 0 to 31
for 5 blocks
: Mifare 4K sectors 32 to 39
Access conditions f each bl k are stored i th sector
A
diti
for
h block
t d in the
t
Security Block
Access conditions
f a data block (transparent or value)
(
)
for
for the Security Block itself
Eight sets of access conditions are available for the four
following commands
Read / Write / Add / Subtract

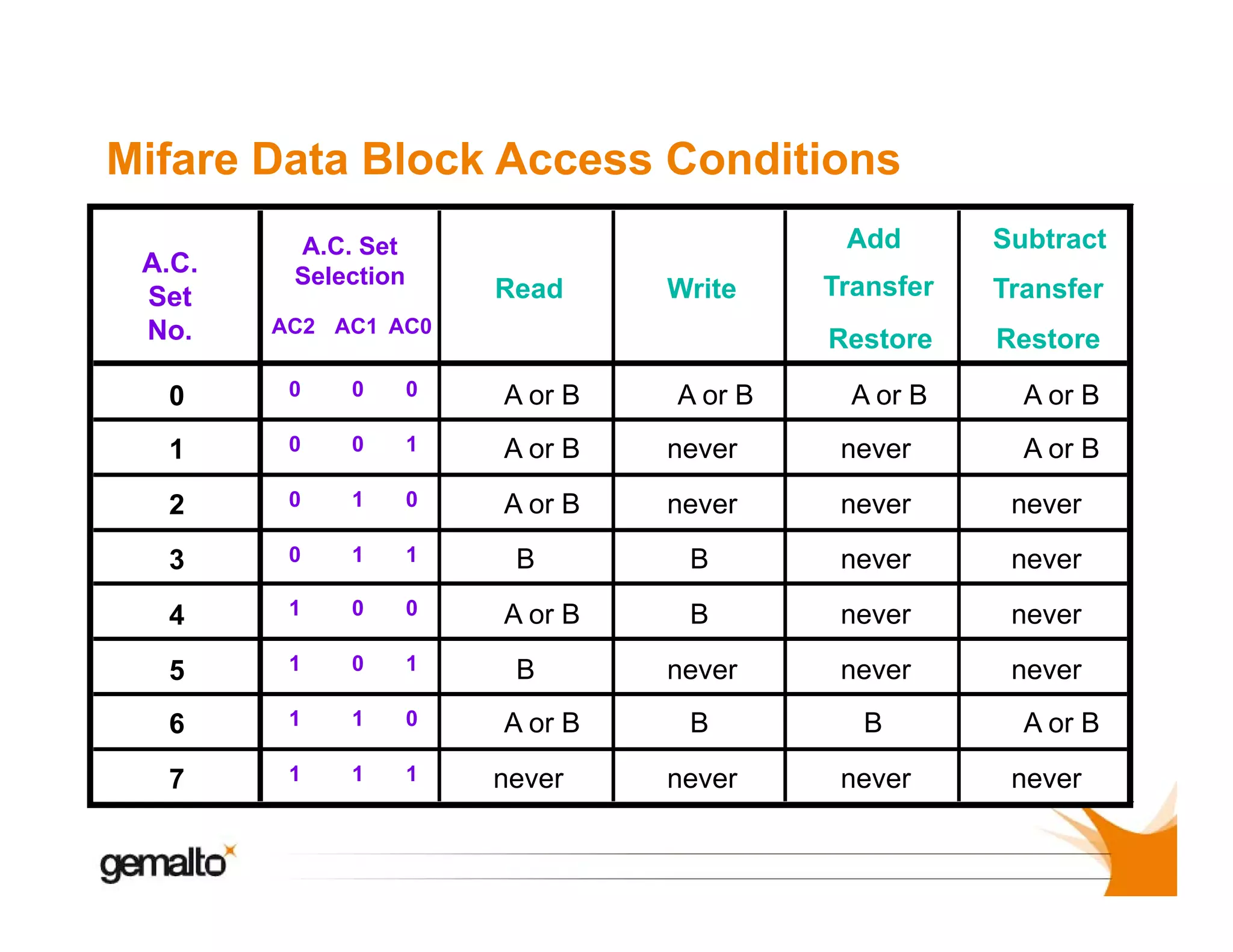

16. Mifare Data Block Access Conditions
A.C.
Set
No.
Add
A.C. Set
Selection
Write
AC2 AC1 AC0
Transfer
a se
Transfer
Restore
Read
Subtract
Restore
A or B
A or B
0
0
0
0
A or B
1
0
0
1
A or B
never
never
2
0
1
0
A or B
never
never
never
3
0
1
1
B
never
never
4
1
0
0
B
never
never
5
1
0
1
never
never
never
6
1
1
0
B
B
7
1
1
1
never
never
B
A or B
B
A or B
never
A or B
A or B
A or B
never

17. Mifare Security Block Access Conditions
y
A.C. Set
No.
No
A.C. Set
Selection
.
AC2 AC1 AC0
Key A
Read
Write
AC + B9
Read
Write
Key B
Read
Write
0
0
0
0
never A or B
A or B never
A or B A or B
1
0
0
1
never A or B
A or B A or B
A or B A or B
2
0
1
0
never
never
A or B never
A or B never
3
0
1
1
never
B
A or B
never
B
4
1
0
0
never
B
A or B never
never
B
5
1
0
1
never
never
A or B
never never
6
1
1
0
never
never
A or B never
never never
7
1
1
1
never
never
A or B never
never never
B
B

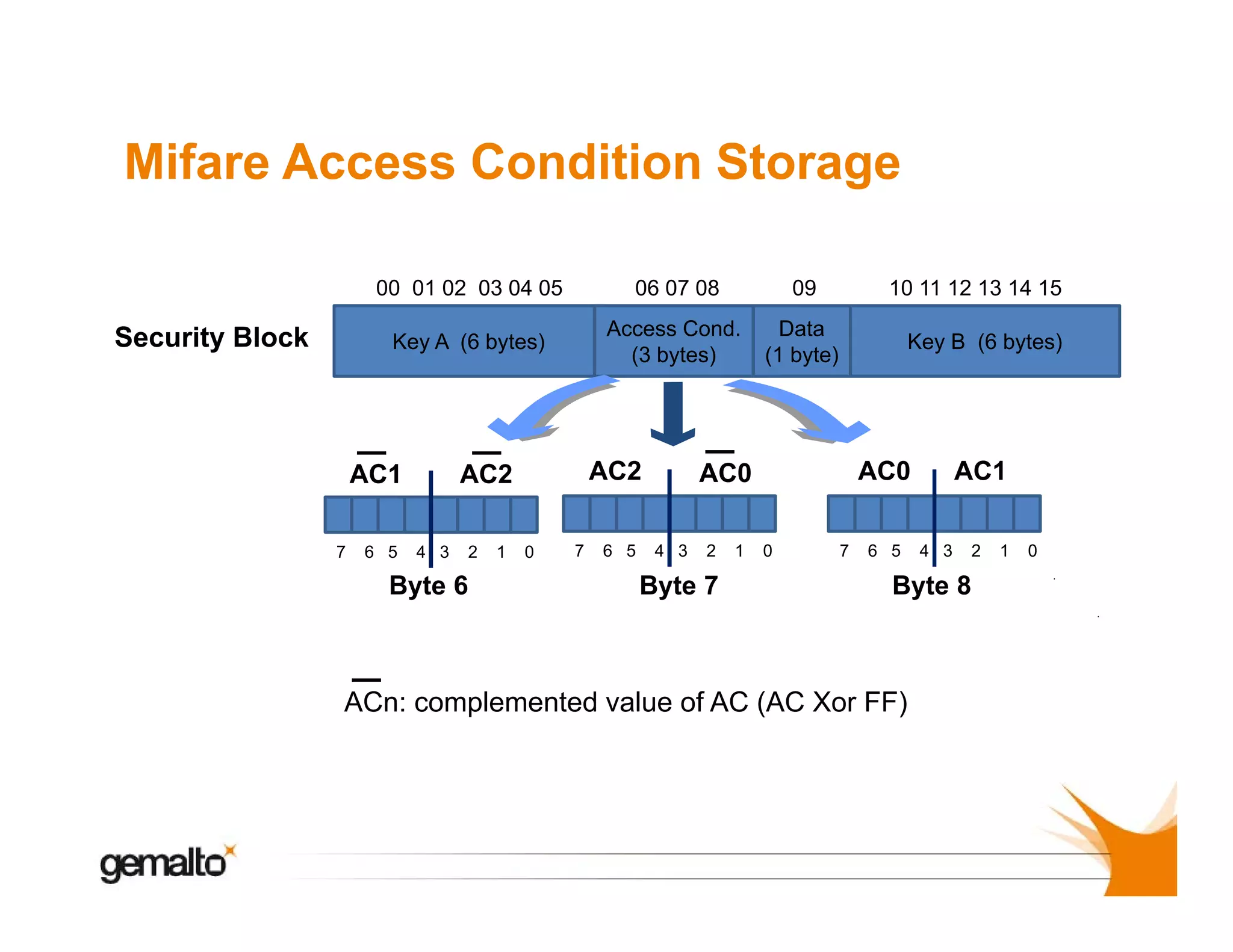

18. Mifare Access Condition Storage
00 01 02 03 04 05
09
Key A (6 bytes)
Security Block
06 07 08
Access Cond.
(3 bytes)
Data
(1 byte)
AC1
7
6 5
AC2
AC2
4 3
2
Byte 6
1
0
7
6 5
10 11 12 13 14 15
Key B (6 bytes)
AC0
AC0
4 3
2
Byte 7
1
0
7
6 5
AC1
4 3
2
Byte 8
ACn: complemented value of AC (AC Xor FF)
1
0

19. Access Conditions Definition example
R
Block 0
Block 1
Block 2
Transparent N
Transparent A/B
Value
A/B
W
A
N
N
B
AC2 AC1 AC0
S
N N
N N
B A/B
AC n° 7
AC n° 2
n
AC n° 6
Key A
R W
Block 3
Security
AC + B9
R W
Key B
R W
N
A/B B
N
N
N
1
0
1
1
1
1
1
0
0
AC2 AC1 AC0
AC n° 5
1
0
1

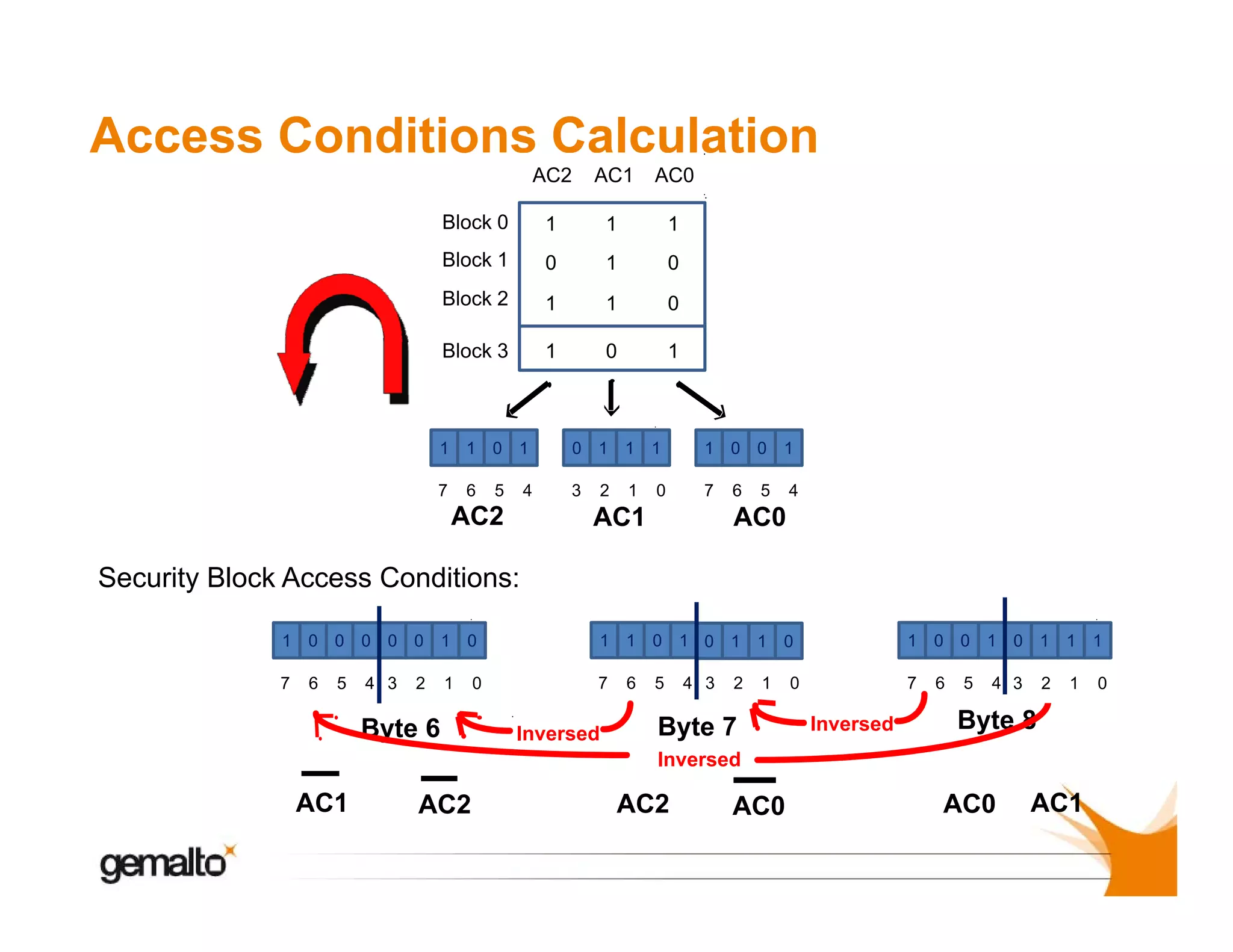

20. Access Conditions Calculation
AC2
AC1
AC0
Block 0
1
1
1
Block 1
0
1
0
Block 2
1
1
0
Block 3
1
0
1
1
1 0 1
0 1 1 1
1 0 0
1
7
6
3
7
4
5
4
AC2
2
1
0
AC1
6
5
AC0
Security Block Access Conditions:
1 0 0 0 0 0
1 0
1 1 0 1 0 1 1
7
1
7
6
5
4 3
2
Byte 6
0
Inversed
6
5
4 3
2
1 0 0 1 0 1 1 1
0
1
Byte 7
0
7
Inversed
6
5
4 3
2
1
Byte 8
Inversed
AC1
AC2
AC2
AC0
AC0
AC1
0

21. Mifare weaknesses

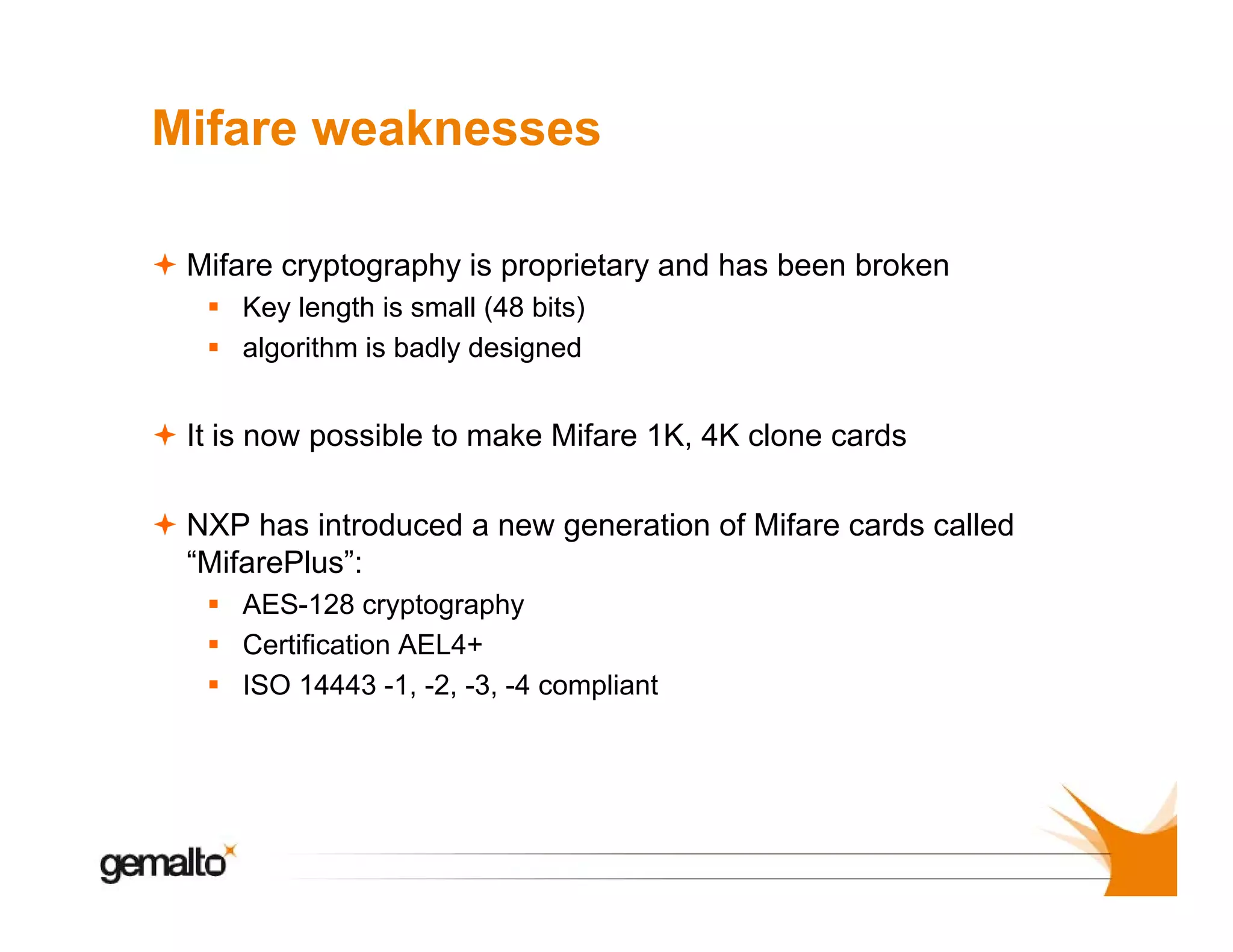

22. Mifare weaknesses
Mifare cryptography is proprietary and has been broken
Key length is small (48 bits)
algorithm is badly designed
It is now possible to make Mifare 1K, 4K clone cards
as
oduced
e ge e a o o
a e cards called
NXP has introduced a new generation of Mifare ca ds ca ed
“MifarePlus”:
AES-128 cryptography
Certification AEL4+
ISO 14443 -1, -2, -3, -4 compliant

23. Mifare emulation

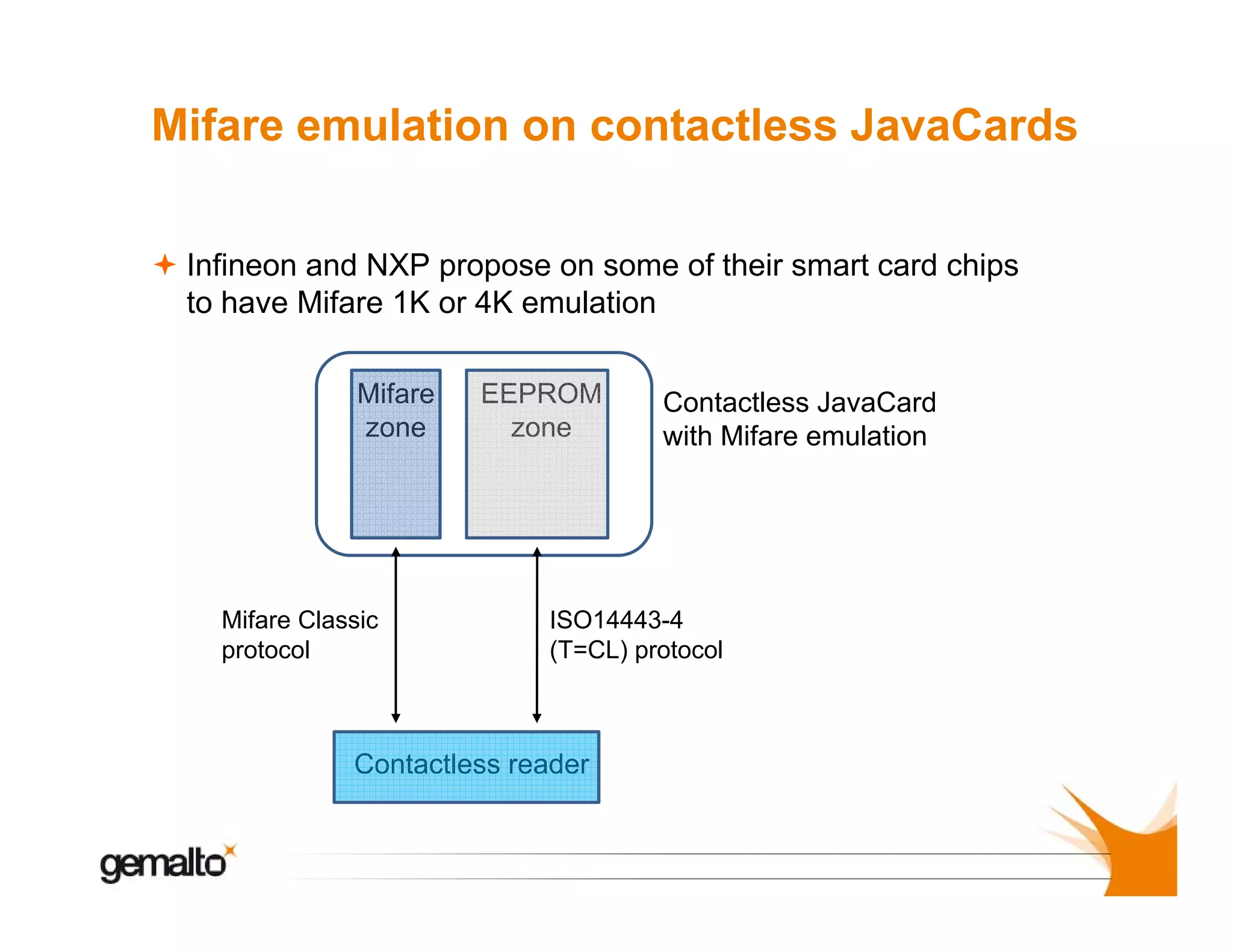

24. Mifare emulation on contactless JavaCards
Infineon and NXP propose on some of their smart card chips
to h
t have Mifare 1K or 4K emulation
Mif
l ti
Mifare
zone
Mifare Classic
protocol
EEPROM
zone
Contactless JavaCard
with Mifare emulation
ISO14443-4
(T CL)
(T=CL) protocol
Contactless reader

25. Mifare emulation on contactless JavaCards
An incompatibility problem may
happen on the “ATS available
ATS
check”
A card will supports ATS only if it is
compliant with ISO14443-4 (T=CL).
This is known when the card
answers the SAK

26. Mifare emulation on contactless JavaCards
WUPA (0x52)
ATQA (0x00 02)
ANTICOLLISION
ANTICOLLISION
SEL: 0x93
NVB: 0x20
CARD ANSWER
SELECT
SELECT
SEL: 0x93
NVB: 0x70
IUD: 0x12345678
BCC: 0x08
CRC_A:
CRC A: A23C
b8
x
x
x
b7
x
x
x
b6
x
1
0
b5
x
x
x
b4
x
x
x
b3
1
0
0
SELECT ACKNOLEDGE (SAK)
Mifare Classic 4K
IUD: 12345678
BCC 08
SAK
SAK: 20
CRC_A: 70FC
b2
x
x
x
b1
x
x
x
Meaning
Cascade bit: IUD not complete
IUD complete, card compliant with ISO14443-4
IUD complete, card NOT compliant with ISO14443-4
p ,
p
Select AcKnowledge (SAK) coding
Card type
Mifare Classic 1K
ANTICOLLISION Answer
Mifare Classic SAK
0x08 (NXP)
0x88 (Infineon)
0x18
SAK values
Mifare emulation SAK
0x28
0x38
