Web Programming and
Development
Introduction to Web Programming
Introduction to Web Programming

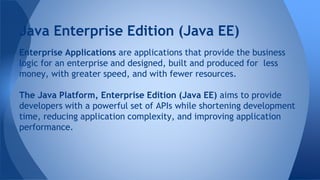

Enterprise Applications are applications that provide the business
logic for an enterprise and designed, built and produced for less
money, with greater speed, and with fewer resources.
The Java Platform, Enterprise Edition (Java EE) aims to provide
developers with a powerful set of APIs while shortening development
time, reducing application complexity, and improving application
performance.
Java Enterprise Edition (Java EE)

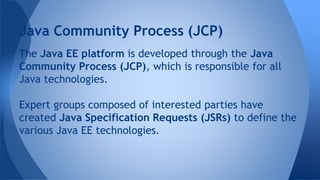

The Java EE platform is developed through the Java
Community Process (JCP), which is responsible for all
Java technologies.
Expert groups composed of interested parties have
created Java Specification Requests (JSRs) to define the
various Java EE technologies.
Java Community Process (JCP)

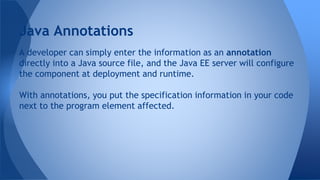

A developer can simply enter the information as an annotation
directly into a Java source file, and the Java EE server will configure
the component at deployment and runtime.
With annotations, you put the specification information in your code
next to the program element affected.
Java Annotations

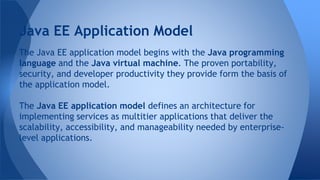

The Java EE application model begins with the Java programming
language and the Java virtual machine. The proven portability,
security, and developer productivity they provide form the basis of
the application model.
The Java EE application model defines an architecture for
implementing services as multitier applications that deliver the
scalability, accessibility, and manageability needed by enterprise-
level applications.
Java EE Application Model

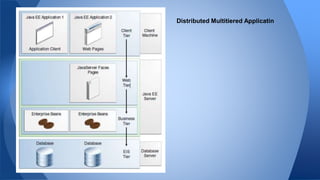

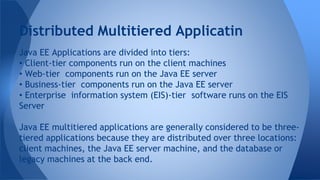

Java EE Applications are divided into tiers:
• Client-tier components run on the client machines
• Web-tier components run on the Java EE server
• Business-tier components run on the Java EE server
• Enterprise information system (EIS)-tier software runs on the EIS
Server
Java EE multitiered applications are generally considered to be three-
tiered applications because they are distributed over three locations:
client machines, the Java EE server machine, and the database or
legacy machines at the back end.
Distributed Multitiered Applicatin
Distributed Multitiered Applicatin

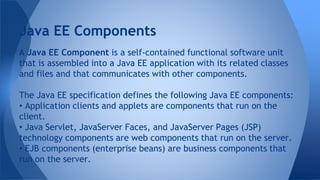

A Java EE Component is a self-contained functional software unit
that is assembled into a Java EE application with its related classes
and files and that communicates with other components.
The Java EE specification defines the following Java EE components:
• Application clients and applets are components that run on the
client.
• Java Servlet, JavaServer Faces, and JavaServer Pages (JSP)
technology components are web components that run on the server.
• EJB components (enterprise beans) are business components that
run on the server.
Java EE Components
A Java EE client is usually either:
• Web client
• Application client.
Java EE Clients

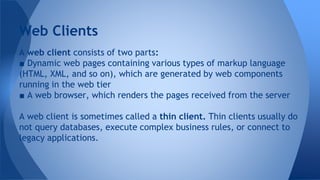

A web client consists of two parts:
■ Dynamic web pages containing various types of markup language
(HTML, XML, and so on), which are generated by web components
running in the web tier
■ A web browser, which renders the pages received from the server
A web client is sometimes called a thin client. Thin clients usually do
not query databases, execute complex business rules, or connect to
legacy applications.
Web Clients

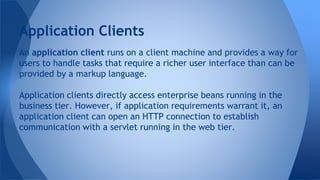

An application client runs on a client machine and provides a way for
users to handle tasks that require a richer user interface than can be
provided by a markup language.
Application clients directly access enterprise beans running in the
business tier. However, if application requirements warrant it, an
application client can open an HTTP connection to establish
communication with a servlet running in the web tier.
Application Clients

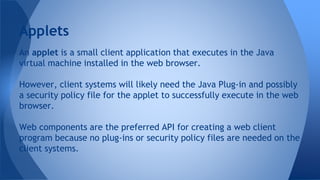

An applet is a small client application that executes in the Java
virtual machine installed in the web browser.
However, client systems will likely need the Java Plug-in and possibly
a security policy file for the applet to successfully execute in the web
browser.
Web components are the preferred API for creating a web client
program because no plug-ins or security policy files are needed on the
client systems.
Applets

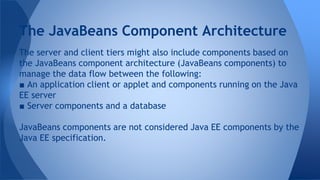

The server and client tiers might also include components based on
the JavaBeans component architecture (JavaBeans components) to
manage the data flow between the following:
■ An application client or applet and components running on the Java
EE server
■ Server components and a database
JavaBeans components are not considered Java EE components by the
Java EE specification.
The JavaBeans Component Architecture
Java EE web components are either servlets or web pages created
using JavaServer Faces technology and/or JSP technology (JSP pages):
• Servlets are Java programming language classes that dynamically
process requests and construct responses.
• JSP pages are text-based documents that execute as servlets but
allow a more natural approach to creating static content.
• JavaServer Faces technology builds on servlets and JSP technology
and provides a user interface component framework for web
applications.
Web Components

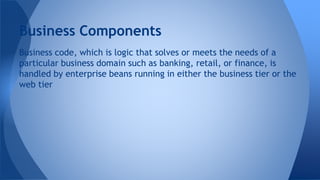

Business code, which is logic that solves or meets the needs of a
particular business domain such as banking, retail, or finance, is
handled by enterprise beans running in either the business tier or the
web tier
Business Components

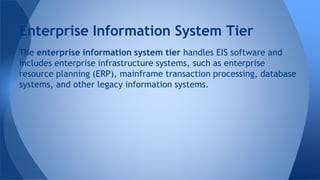

The enterprise information system tier handles EIS software and
includes enterprise infrastructure systems, such as enterprise
resource planning (ERP), mainframe transaction processing, database
systems, and other legacy information systems.
Enterprise Information System Tier

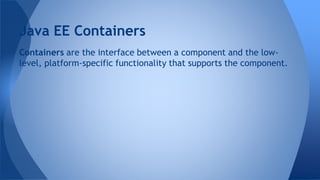

Containers are the interface between a component and the low-
level, platform-specific functionality that supports the component.
Java EE Containers

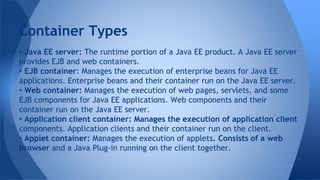

• Java EE server: The runtime portion of a Java EE product. A Java EE server
provides EJB and web containers.
• EJB container: Manages the execution of enterprise beans for Java EE
applications. Enterprise beans and their container run on the Java EE server.
• Web container: Manages the execution of web pages, servlets, and some
EJB components for Java EE applications. Web components and their
container run on the Java EE server.
• Application client container: Manages the execution of application client
components. Application clients and their container run on the client.
• Applet container: Manages the execution of applets. Consists of a web
browser and a Java Plug-in running on the client together.
Container Types

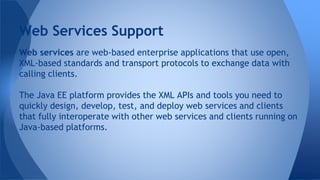

Web services are web-based enterprise applications that use open,
XML-based standards and transport protocols to exchange data with
calling clients.
The Java EE platform provides the XML APIs and tools you need to
quickly design, develop, test, and deploy web services and clients
that fully interoperate with other web services and clients running on
Java-based platforms.
Web Services Support
Extensible Markup Language (XML) is a cross-platform, extensible,
text-based standard for representing data.
Parties that exchange XML data can create their own tags to describe
the data, set up schemas to specify which tags can be used in a
particular kind of XML document, and use XML style sheets to manage
the display and handling of data.
XML

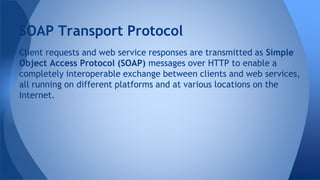

Client requests and web service responses are transmitted as Simple
Object Access Protocol (SOAP) messages over HTTP to enable a
completely interoperable exchange between clients and web services,
all running on different platforms and at various locations on the
Internet.
SOAP Transport Protocol

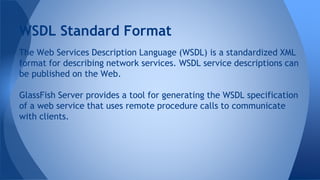

The Web Services Description Language (WSDL) is a standardized XML
format for describing network services. WSDL service descriptions can
be published on the Web.
GlassFish Server provides a tool for generating the WSDL specification
of a web service that uses remote procedure calls to communicate
with clients.
WSDL Standard Format

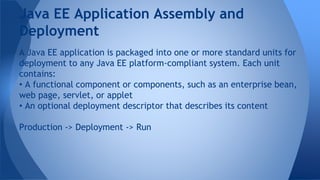

A Java EE application is packaged into one or more standard units for
deployment to any Java EE platform-compliant system. Each unit
contains:
• A functional component or components, such as an enterprise bean,
web page, servlet, or applet
• An optional deployment descriptor that describes its content
Production -> Deployment -> Run
Java EE Application Assembly and
Deployment

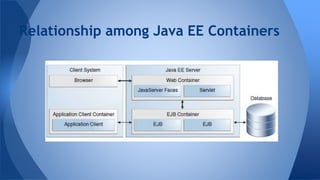

Relationship among Java EE Containers

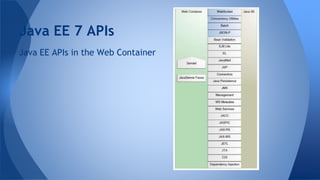

Java EE APIs in the Web Container
Java EE 7 APIs
Java EE APIs in the EJB Container
Java EE 7 APIs

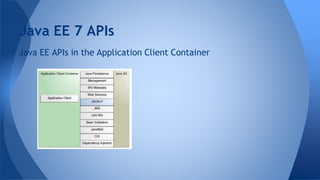

Java EE APIs in the Application Client Container
Java EE 7 APIs

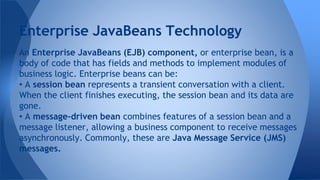

An Enterprise JavaBeans (EJB) component, or enterprise bean, is a
body of code that has fields and methods to implement modules of
business logic. Enterprise beans can be:
• A session bean represents a transient conversation with a client.
When the client finishes executing, the session bean and its data are
gone.
• A message-driven bean combines features of a session bean and a
message listener, allowing a business component to receive messages
asynchronously. Commonly, these are Java Message Service (JMS)
messages.
Enterprise JavaBeans Technology

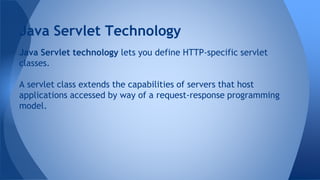

Java Servlet technology lets you define HTTP-specific servlet
classes.
A servlet class extends the capabilities of servers that host
applications accessed by way of a request-response programming
model.
Java Servlet Technology

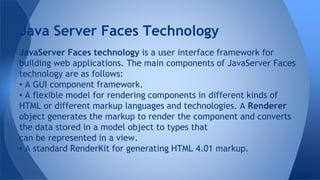

JavaServer Faces technology is a user interface framework for
building web applications. The main components of JavaServer Faces
technology are as follows:
• A GUI component framework.
• A flexible model for rendering components in different kinds of
HTML or different markup languages and technologies. A Renderer
object generates the markup to render the component and converts
the data stored in a model object to types that
can be represented in a view.
• A standard RenderKit for generating HTML 4.01 markup.
Java Server Faces Technology

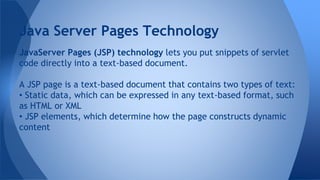

JavaServer Pages (JSP) technology lets you put snippets of servlet
code directly into a text-based document.
A JSP page is a text-based document that contains two types of text:
• Static data, which can be expressed in any text-based format, such
as HTML or XML
• JSP elements, which determine how the page constructs dynamic
content
Java Server Pages Technology

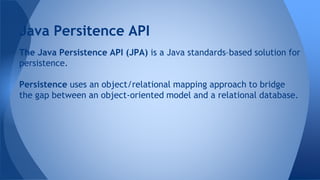

The Java Persistence API (JPA) is a Java standards–based solution for
persistence.
Persistence uses an object/relational mapping approach to bridge
the gap between an object-oriented model and a relational database.
Java Persitence API

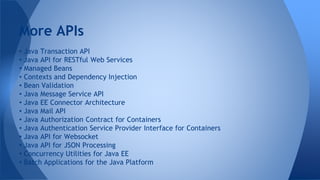

• Java Transaction API
• Java API for RESTful Web Services
• Managed Beans
• Contexts and Dependency Injection
• Bean Validation
• Java Message Service API
• Java EE Connector Architecture
• Java Mail API
• Java Authorization Contract for Containers
• Java Authentication Service Provider Interface for Containers
• Java API for Websocket
• Java API for JSON Processing
• Concurrency Utilities for Java EE
• Batch Applications for the Java Platform
More APIs

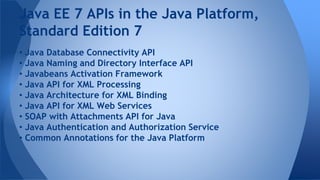

• Java Database Connectivity API
• Java Naming and Directory Interface API
• Javabeans Activation Framework
• Java API for XML Processing
• Java Architecture for XML Binding
• Java API for XML Web Services
• SOAP with Attachments API for Java
• Java Authentication and Authorization Service
• Common Annotations for the Java Platform
Java EE 7 APIs in the Java Platform,
Standard Edition 7
GlassFish Server is a compliant implementation of the Java EE 7
platform.
In addition to supporting all the APIs described in the previous
sections, GlassFish Server includes a number of Java EE tools that are
not part of the Java EE 7 platform but are provided as a convenience
to the developer.
GlassFish Server Tools

More Related Content

What's hot

Php Intro
Php IntroPhp Intro
Online test management system
Online test management systemOnline test management system
Online test management system
Prateek Agarwak

Web 2.0
Web 2.0Web 2.0
Web 2.0
TSUBHASHRI

Moving to Microsoft Visual Basic .NET
Moving to Microsoft Visual Basic .NETMoving to Microsoft Visual Basic .NET
Moving to Microsoft Visual Basic .NET
V Sanchez

Jsp abes new
Jsp abes newJsp abes new
Jsp abes new
Ashwin Perti

Modern Web Development
Modern Web DevelopmentModern Web Development
Modern Web Development
Robert Nyman

Asp.net presentation by gajanand bohra
Asp.net presentation by gajanand bohraAsp.net presentation by gajanand bohra
Asp.net presentation by gajanand bohra
Gajanand Bohra

Asp net
Asp netAsp net
Ppt for Online music store
Ppt for Online music storePpt for Online music store
Ppt for Online music store
ADEEBANADEEM

1. Spring intro IoC
1. Spring intro IoC1. Spring intro IoC
1. Spring intro IoC
ASG

Training report on web developing
Training report on web developingTraining report on web developing
Training report on web developing
Jawhar Ali

webservices overview
webservices overviewwebservices overview
webservices overview
elliando dias

Ruby on Rails: Building Web Applications Is Fun Again!
Ruby on Rails: Building Web Applications Is Fun Again!Ruby on Rails: Building Web Applications Is Fun Again!
Ruby on Rails: Building Web Applications Is Fun Again!
judofyr

Introduction to asp.net
Introduction to asp.netIntroduction to asp.net
Introduction to asp.net
Melick Baranasooriya

Top 10 Javascript Frameworks For Easy Web Development
Top 10 Javascript Frameworks For Easy Web DevelopmentTop 10 Javascript Frameworks For Easy Web Development
Top 10 Javascript Frameworks For Easy Web Development
Technostacks Infotech Pvt. Ltd.

Summer training report priyanka
Summer  training  report priyankaSummer  training  report priyanka
Summer training report priyanka
priyanka kumari

Web application architecture
Web application architectureWeb application architecture
Web application architecture
Tejaswini Deshpande

Introduction to ASP.NET
Introduction to ASP.NETIntroduction to ASP.NET
Introduction to ASP.NET
Peter Gfader

Architecture of the Web browser
Architecture of the Web browserArchitecture of the Web browser
Architecture of the Web browser
Sabin Buraga

CSS Architecture: Writing Maintainable CSS
CSS Architecture: Writing Maintainable CSSCSS Architecture: Writing Maintainable CSS
CSS Architecture: Writing Maintainable CSS
Alexei Skachykhin


What's hot (20)

Php Intro
Php IntroPhp Intro
Php Intro

Online test management system
Online test management systemOnline test management system
Online test management system

Web 2.0
Web 2.0Web 2.0
Web 2.0

Moving to Microsoft Visual Basic .NET
Moving to Microsoft Visual Basic .NETMoving to Microsoft Visual Basic .NET
Moving to Microsoft Visual Basic .NET

Jsp abes new
Jsp abes newJsp abes new
Jsp abes new

Modern Web Development
Modern Web DevelopmentModern Web Development
Modern Web Development

Asp.net presentation by gajanand bohra
Asp.net presentation by gajanand bohraAsp.net presentation by gajanand bohra
Asp.net presentation by gajanand bohra

Asp net
Asp netAsp net
Asp net

Ppt for Online music store
Ppt for Online music storePpt for Online music store
Ppt for Online music store

1. Spring intro IoC
1. Spring intro IoC1. Spring intro IoC
1. Spring intro IoC

Training report on web developing
Training report on web developingTraining report on web developing
Training report on web developing

webservices overview
webservices overviewwebservices overview
webservices overview

Ruby on Rails: Building Web Applications Is Fun Again!
Ruby on Rails: Building Web Applications Is Fun Again!Ruby on Rails: Building Web Applications Is Fun Again!
Ruby on Rails: Building Web Applications Is Fun Again!

Introduction to asp.net
Introduction to asp.netIntroduction to asp.net
Introduction to asp.net

Top 10 Javascript Frameworks For Easy Web Development
Top 10 Javascript Frameworks For Easy Web DevelopmentTop 10 Javascript Frameworks For Easy Web Development
Top 10 Javascript Frameworks For Easy Web Development

Summer training report priyanka
Summer  training  report priyankaSummer  training  report priyanka
Summer training report priyanka

Web application architecture
Web application architectureWeb application architecture
Web application architecture

Introduction to ASP.NET
Introduction to ASP.NETIntroduction to ASP.NET
Introduction to ASP.NET

Architecture of the Web browser
Architecture of the Web browserArchitecture of the Web browser
Architecture of the Web browser

CSS Architecture: Writing Maintainable CSS
CSS Architecture: Writing Maintainable CSSCSS Architecture: Writing Maintainable CSS
CSS Architecture: Writing Maintainable CSS


Viewers also liked

Java and the Web
Java and the WebJava and the Web
Java and the Web
Dmitry Buzdin

WEB I - 01 - Introduction to Web Development
WEB I - 01 - Introduction to Web DevelopmentWEB I - 01 - Introduction to Web Development
WEB I - 01 - Introduction to Web Development
Randy Connolly

Java Web Programming [1/9] : Introduction to Web Application
Java Web Programming [1/9] : Introduction to Web ApplicationJava Web Programming [1/9] : Introduction to Web Application
Java Web Programming [1/9] : Introduction to Web Application
IMC Institute

The web and programming: an introduction - Simple, short and friendly
The web and programming: an introduction - Simple, short and friendly The web and programming: an introduction - Simple, short and friendly
The web and programming: an introduction - Simple, short and friendly
Alja Isakovic

Introduction to Web Programming
Introduction to Web ProgrammingIntroduction to Web Programming
Introduction to Web Programming
Ynon Perek

Web Programming Intro
Web Programming IntroWeb Programming Intro
Web Programming Intro
Ynon Perek

Programming paradigm and web programming
Programming paradigm and web programmingProgramming paradigm and web programming
Programming paradigm and web programming
Mohammad Kamrul Hasan

Introduction to Web Programming - first course
Introduction to Web Programming - first courseIntroduction to Web Programming - first course
Introduction to Web Programming - first course
Vlad Posea

Web Development on Web Project Presentation
Web Development on Web Project PresentationWeb Development on Web Project Presentation
Web Development on Web Project Presentation
Milind Gokhale

Fundamentals of Web Development For Non-Developers
Fundamentals of Web Development For Non-DevelopersFundamentals of Web Development For Non-Developers
Fundamentals of Web Development For Non-Developers
Lemi Orhan Ergin


Viewers also liked (10)

Java and the Web
Java and the WebJava and the Web
Java and the Web

WEB I - 01 - Introduction to Web Development
WEB I - 01 - Introduction to Web DevelopmentWEB I - 01 - Introduction to Web Development
WEB I - 01 - Introduction to Web Development

Java Web Programming [1/9] : Introduction to Web Application
Java Web Programming [1/9] : Introduction to Web ApplicationJava Web Programming [1/9] : Introduction to Web Application
Java Web Programming [1/9] : Introduction to Web Application

The web and programming: an introduction - Simple, short and friendly
The web and programming: an introduction - Simple, short and friendly The web and programming: an introduction - Simple, short and friendly
The web and programming: an introduction - Simple, short and friendly

Introduction to Web Programming
Introduction to Web ProgrammingIntroduction to Web Programming
Introduction to Web Programming

Web Programming Intro
Web Programming IntroWeb Programming Intro
Web Programming Intro

Programming paradigm and web programming
Programming paradigm and web programmingProgramming paradigm and web programming
Programming paradigm and web programming

Introduction to Web Programming - first course
Introduction to Web Programming - first courseIntroduction to Web Programming - first course
Introduction to Web Programming - first course

Web Development on Web Project Presentation
Web Development on Web Project PresentationWeb Development on Web Project Presentation
Web Development on Web Project Presentation

Fundamentals of Web Development For Non-Developers
Fundamentals of Web Development For Non-DevelopersFundamentals of Web Development For Non-Developers
Fundamentals of Web Development For Non-Developers


Similar to Web programming and development - Introduction

Java EE 7 introduction
Java EE 7  introductionJava EE 7  introduction
Java EE 7 introduction
Moumie Soulemane

Java ee introduction
Java ee introductionJava ee introduction
Java ee introduction
Moumie Soulemane

Java J2EE
Java J2EEJava J2EE
Java J2EE
Sandeep Rawat

J2EE Architecture Explained
J2EE  Architecture ExplainedJ2EE  Architecture Explained
J2EE Architecture Explained
Adarsh Kr Sinha

EJ NOV-18 (Sol) (E-next.in).pdf
EJ NOV-18 (Sol) (E-next.in).pdfEJ NOV-18 (Sol) (E-next.in).pdf
EJ NOV-18 (Sol) (E-next.in).pdf
SPAMVEDANT

Introduction to java ee
Introduction to java eeIntroduction to java ee
Introduction to java ee
Ranjan Kumar

4. J2EE.pptx
4. J2EE.pptx4. J2EE.pptx
4. J2EE.pptx
HariChandruduM

Enterprice java
Enterprice javaEnterprice java
Enterprice java
GowriLatha1

Java Platform and IDE Netbeans 6.7 for Developing Enterprise and Web Applicat...
Java Platform and IDE Netbeans 6.7 for Developing Enterprise and Web Applicat...Java Platform and IDE Netbeans 6.7 for Developing Enterprise and Web Applicat...
Java Platform and IDE Netbeans 6.7 for Developing Enterprise and Web Applicat...
SSA KPI

IBM Websphere introduction and installation for beginners
IBM Websphere introduction and installation for beginnersIBM Websphere introduction and installation for beginners
IBM Websphere introduction and installation for beginners
Shubham Gupta

J2EE Notes JDBC database Connectiviy and Programs related to JDBC
J2EE Notes JDBC database Connectiviy and Programs related to JDBCJ2EE Notes JDBC database Connectiviy and Programs related to JDBC
J2EE Notes JDBC database Connectiviy and Programs related to JDBC
ChaithraCSHirematt

Introduction to ejb and struts framework
Introduction to ejb and struts frameworkIntroduction to ejb and struts framework
Introduction to ejb and struts framework
s4al_com

J2 EEE SIDES
J2 EEE  SIDESJ2 EEE  SIDES
J2 EEE SIDES
bputhal

Lecture 19 dynamic web - java - part 1
Lecture 19   dynamic web - java - part 1Lecture 19   dynamic web - java - part 1
Lecture 19 dynamic web - java - part 1
Д. Ганаа

Websphereinterview 100725022705-phpapp02
Websphereinterview 100725022705-phpapp02Websphereinterview 100725022705-phpapp02
Websphereinterview 100725022705-phpapp02
kishore2526

Enterprise application developement
Enterprise application developementEnterprise application developement
Enterprise application developement
Archana Jha

Introduction Java Web Framework and Web Server.
Introduction Java Web Framework and Web Server.Introduction Java Web Framework and Web Server.
Introduction Java Web Framework and Web Server.
suranisaunak

Lecture 19 - Dynamic Web - JAVA - Part 1.ppt
Lecture 19 - Dynamic Web - JAVA - Part 1.pptLecture 19 - Dynamic Web - JAVA - Part 1.ppt
Lecture 19 - Dynamic Web - JAVA - Part 1.ppt
KalsoomTahir2

Intorduction to struts
Intorduction to strutsIntorduction to struts
Intorduction to struts
Anup72

Jboss
JbossJboss

Similar to Web programming and development - Introduction (20)

Java EE 7 introduction
Java EE 7  introductionJava EE 7  introduction
Java EE 7 introduction

Java ee introduction
Java ee introductionJava ee introduction
Java ee introduction

Java J2EE
Java J2EEJava J2EE
Java J2EE

J2EE Architecture Explained
J2EE  Architecture ExplainedJ2EE  Architecture Explained
J2EE Architecture Explained

EJ NOV-18 (Sol) (E-next.in).pdf
EJ NOV-18 (Sol) (E-next.in).pdfEJ NOV-18 (Sol) (E-next.in).pdf
EJ NOV-18 (Sol) (E-next.in).pdf

Introduction to java ee
Introduction to java eeIntroduction to java ee
Introduction to java ee

4. J2EE.pptx
4. J2EE.pptx4. J2EE.pptx
4. J2EE.pptx

Enterprice java
Enterprice javaEnterprice java
Enterprice java

Java Platform and IDE Netbeans 6.7 for Developing Enterprise and Web Applicat...
Java Platform and IDE Netbeans 6.7 for Developing Enterprise and Web Applicat...Java Platform and IDE Netbeans 6.7 for Developing Enterprise and Web Applicat...
Java Platform and IDE Netbeans 6.7 for Developing Enterprise and Web Applicat...

IBM Websphere introduction and installation for beginners
IBM Websphere introduction and installation for beginnersIBM Websphere introduction and installation for beginners
IBM Websphere introduction and installation for beginners

J2EE Notes JDBC database Connectiviy and Programs related to JDBC
J2EE Notes JDBC database Connectiviy and Programs related to JDBCJ2EE Notes JDBC database Connectiviy and Programs related to JDBC
J2EE Notes JDBC database Connectiviy and Programs related to JDBC

Introduction to ejb and struts framework
Introduction to ejb and struts frameworkIntroduction to ejb and struts framework
Introduction to ejb and struts framework

J2 EEE SIDES
J2 EEE  SIDESJ2 EEE  SIDES
J2 EEE SIDES

Lecture 19 dynamic web - java - part 1
Lecture 19   dynamic web - java - part 1Lecture 19   dynamic web - java - part 1
Lecture 19 dynamic web - java - part 1

Websphereinterview 100725022705-phpapp02
Websphereinterview 100725022705-phpapp02Websphereinterview 100725022705-phpapp02
Websphereinterview 100725022705-phpapp02

Enterprise application developement
Enterprise application developementEnterprise application developement
Enterprise application developement

Introduction Java Web Framework and Web Server.
Introduction Java Web Framework and Web Server.Introduction Java Web Framework and Web Server.
Introduction Java Web Framework and Web Server.

Lecture 19 - Dynamic Web - JAVA - Part 1.ppt
Lecture 19 - Dynamic Web - JAVA - Part 1.pptLecture 19 - Dynamic Web - JAVA - Part 1.ppt
Lecture 19 - Dynamic Web - JAVA - Part 1.ppt

Intorduction to struts
Intorduction to strutsIntorduction to struts
Intorduction to struts

Jboss
JbossJboss
Jboss


More from Joel Briza

Management Information Systems - Chapter 3
Management Information Systems - Chapter 3Management Information Systems - Chapter 3
Management Information Systems - Chapter 3
Joel Briza

Management Information Systems - Chapter 2
Management Information Systems - Chapter 2Management Information Systems - Chapter 2
Management Information Systems - Chapter 2
Joel Briza

Management Information Technology - Chapter 1
Management Information Technology - Chapter 1Management Information Technology - Chapter 1
Management Information Technology - Chapter 1
Joel Briza

System analysis and design Part2
System analysis and design Part2System analysis and design Part2
System analysis and design Part2
Joel Briza

System Analysis and Design
System Analysis and DesignSystem Analysis and Design
System Analysis and Design
Joel Briza

Business software packages mkis
Business software packages   mkisBusiness software packages   mkis
Business software packages mkis
Joel Briza

Network security Encryption
Network security EncryptionNetwork security Encryption
Network security Encryption
Joel Briza

XML - Data Modeling
XML - Data ModelingXML - Data Modeling
XML - Data Modeling
Joel Briza

Business software packages - Accounting Software Systems
Business software packages - Accounting Software SystemsBusiness software packages - Accounting Software Systems
Business software packages - Accounting Software Systems
Joel Briza

Business software packages
Business software packagesBusiness software packages
Business software packages
Joel Briza

Database management systems
Database management systemsDatabase management systems
Database management systems
Joel Briza


More from Joel Briza (11)

Management Information Systems - Chapter 3
Management Information Systems - Chapter 3Management Information Systems - Chapter 3
Management Information Systems - Chapter 3

Management Information Systems - Chapter 2
Management Information Systems - Chapter 2Management Information Systems - Chapter 2
Management Information Systems - Chapter 2

Management Information Technology - Chapter 1
Management Information Technology - Chapter 1Management Information Technology - Chapter 1
Management Information Technology - Chapter 1

System analysis and design Part2
System analysis and design Part2System analysis and design Part2
System analysis and design Part2

System Analysis and Design
System Analysis and DesignSystem Analysis and Design
System Analysis and Design

Business software packages mkis
Business software packages   mkisBusiness software packages   mkis
Business software packages mkis

Network security Encryption
Network security EncryptionNetwork security Encryption
Network security Encryption

XML - Data Modeling
XML - Data ModelingXML - Data Modeling
XML - Data Modeling

Business software packages - Accounting Software Systems
Business software packages - Accounting Software SystemsBusiness software packages - Accounting Software Systems
Business software packages - Accounting Software Systems

Business software packages
Business software packagesBusiness software packages
Business software packages

Database management systems
Database management systemsDatabase management systems
Database management systems


Recently uploaded

Pride Month Slides 2024 David Douglas School District
Pride Month Slides 2024 David Douglas School DistrictPride Month Slides 2024 David Douglas School District
Pride Month Slides 2024 David Douglas School District
David Douglas School District

ANATOMY AND BIOMECHANICS OF HIP JOINT.pdf
ANATOMY AND BIOMECHANICS OF HIP JOINT.pdfANATOMY AND BIOMECHANICS OF HIP JOINT.pdf
ANATOMY AND BIOMECHANICS OF HIP JOINT.pdf
Priyankaranawat4

RPMS TEMPLATE FOR SCHOOL YEAR 2023-2024 FOR TEACHER 1 TO TEACHER 3
RPMS TEMPLATE FOR SCHOOL YEAR 2023-2024 FOR TEACHER 1 TO TEACHER 3RPMS TEMPLATE FOR SCHOOL YEAR 2023-2024 FOR TEACHER 1 TO TEACHER 3
RPMS TEMPLATE FOR SCHOOL YEAR 2023-2024 FOR TEACHER 1 TO TEACHER 3
IreneSebastianRueco1

Life upper-Intermediate B2 Workbook for student
Life upper-Intermediate B2 Workbook for studentLife upper-Intermediate B2 Workbook for student
Life upper-Intermediate B2 Workbook for student
NgcHiNguyn25

The basics of sentences session 5pptx.pptx
The basics of sentences session 5pptx.pptxThe basics of sentences session 5pptx.pptx
The basics of sentences session 5pptx.pptx
heathfieldcps1

How to Add Chatter in the odoo 17 ERP Module
How to Add Chatter in the odoo 17 ERP ModuleHow to Add Chatter in the odoo 17 ERP Module
How to Add Chatter in the odoo 17 ERP Module
Celine George

বাংলাদেশ অর্থনৈতিক সমীক্ষা (Economic Review) ২০২৪ UJS App.pdf
বাংলাদেশ অর্থনৈতিক সমীক্ষা (Economic Review) ২০২৪ UJS App.pdfবাংলাদেশ অর্থনৈতিক সমীক্ষা (Economic Review) ২০২৪ UJS App.pdf
বাংলাদেশ অর্থনৈতিক সমীক্ষা (Economic Review) ২০২৪ UJS App.pdf
eBook.com.bd (প্রয়োজনীয় বাংলা বই)

writing about opinions about Australia the movie
writing about opinions about Australia the moviewriting about opinions about Australia the movie
writing about opinions about Australia the movie
Nicholas Montgomery

Pollock and Snow "DEIA in the Scholarly Landscape, Session One: Setting Expec...
Pollock and Snow "DEIA in the Scholarly Landscape, Session One: Setting Expec...Pollock and Snow "DEIA in the Scholarly Landscape, Session One: Setting Expec...
Pollock and Snow "DEIA in the Scholarly Landscape, Session One: Setting Expec...
National Information Standards Organization (NISO)

Introduction to AI for Nonprofits with Tapp Network
Introduction to AI for Nonprofits with Tapp NetworkIntroduction to AI for Nonprofits with Tapp Network
Introduction to AI for Nonprofits with Tapp Network
TechSoup

BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
Nguyen Thanh Tu Collection

The Diamonds of 2023-2024 in the IGRA collection
The Diamonds of 2023-2024 in the IGRA collectionThe Diamonds of 2023-2024 in the IGRA collection
The Diamonds of 2023-2024 in the IGRA collection
Israel Genealogy Research Association

Main Java[All of the Base Concepts}.docx
Main Java[All of the Base Concepts}.docxMain Java[All of the Base Concepts}.docx
Main Java[All of the Base Concepts}.docx
adhitya5119

ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...
ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...
ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...
PECB

CACJapan - GROUP Presentation 1- Wk 4.pdf
CACJapan - GROUP Presentation 1- Wk 4.pdfCACJapan - GROUP Presentation 1- Wk 4.pdf
CACJapan - GROUP Presentation 1- Wk 4.pdf
camakaiclarkmusic

Hindi varnamala | hindi alphabet PPT.pdf
Hindi varnamala | hindi alphabet PPT.pdfHindi varnamala | hindi alphabet PPT.pdf
Hindi varnamala | hindi alphabet PPT.pdf
Dr. Mulla Adam Ali

PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.
Dr. Shivangi Singh Parihar

clinical examination of hip joint (1).pdf
clinical examination of hip joint (1).pdfclinical examination of hip joint (1).pdf
clinical examination of hip joint (1).pdf
Priyankaranawat4

Advanced Java[Extra Concepts, Not Difficult].docx
Advanced Java[Extra Concepts, Not Difficult].docxAdvanced Java[Extra Concepts, Not Difficult].docx
Advanced Java[Extra Concepts, Not Difficult].docx
adhitya5119

Types of Herbal Cosmetics its standardization.
Types of Herbal Cosmetics its standardization.Types of Herbal Cosmetics its standardization.
Types of Herbal Cosmetics its standardization.
Ashokrao Mane college of Pharmacy Peth-Vadgaon


Recently uploaded (20)

Pride Month Slides 2024 David Douglas School District
Pride Month Slides 2024 David Douglas School DistrictPride Month Slides 2024 David Douglas School District
Pride Month Slides 2024 David Douglas School District

ANATOMY AND BIOMECHANICS OF HIP JOINT.pdf
ANATOMY AND BIOMECHANICS OF HIP JOINT.pdfANATOMY AND BIOMECHANICS OF HIP JOINT.pdf
ANATOMY AND BIOMECHANICS OF HIP JOINT.pdf

RPMS TEMPLATE FOR SCHOOL YEAR 2023-2024 FOR TEACHER 1 TO TEACHER 3
RPMS TEMPLATE FOR SCHOOL YEAR 2023-2024 FOR TEACHER 1 TO TEACHER 3RPMS TEMPLATE FOR SCHOOL YEAR 2023-2024 FOR TEACHER 1 TO TEACHER 3
RPMS TEMPLATE FOR SCHOOL YEAR 2023-2024 FOR TEACHER 1 TO TEACHER 3

Life upper-Intermediate B2 Workbook for student
Life upper-Intermediate B2 Workbook for studentLife upper-Intermediate B2 Workbook for student
Life upper-Intermediate B2 Workbook for student

The basics of sentences session 5pptx.pptx
The basics of sentences session 5pptx.pptxThe basics of sentences session 5pptx.pptx
The basics of sentences session 5pptx.pptx

How to Add Chatter in the odoo 17 ERP Module
How to Add Chatter in the odoo 17 ERP ModuleHow to Add Chatter in the odoo 17 ERP Module
How to Add Chatter in the odoo 17 ERP Module

বাংলাদেশ অর্থনৈতিক সমীক্ষা (Economic Review) ২০২৪ UJS App.pdf
বাংলাদেশ অর্থনৈতিক সমীক্ষা (Economic Review) ২০২৪ UJS App.pdfবাংলাদেশ অর্থনৈতিক সমীক্ষা (Economic Review) ২০২৪ UJS App.pdf
বাংলাদেশ অর্থনৈতিক সমীক্ষা (Economic Review) ২০২৪ UJS App.pdf

writing about opinions about Australia the movie
writing about opinions about Australia the moviewriting about opinions about Australia the movie
writing about opinions about Australia the movie

Pollock and Snow "DEIA in the Scholarly Landscape, Session One: Setting Expec...
Pollock and Snow "DEIA in the Scholarly Landscape, Session One: Setting Expec...Pollock and Snow "DEIA in the Scholarly Landscape, Session One: Setting Expec...
Pollock and Snow "DEIA in the Scholarly Landscape, Session One: Setting Expec...

Introduction to AI for Nonprofits with Tapp Network
Introduction to AI for Nonprofits with Tapp NetworkIntroduction to AI for Nonprofits with Tapp Network
Introduction to AI for Nonprofits with Tapp Network

BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...

The Diamonds of 2023-2024 in the IGRA collection
The Diamonds of 2023-2024 in the IGRA collectionThe Diamonds of 2023-2024 in the IGRA collection
The Diamonds of 2023-2024 in the IGRA collection

Main Java[All of the Base Concepts}.docx
Main Java[All of the Base Concepts}.docxMain Java[All of the Base Concepts}.docx
Main Java[All of the Base Concepts}.docx

ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...
ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...
ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...

CACJapan - GROUP Presentation 1- Wk 4.pdf
CACJapan - GROUP Presentation 1- Wk 4.pdfCACJapan - GROUP Presentation 1- Wk 4.pdf
CACJapan - GROUP Presentation 1- Wk 4.pdf

Hindi varnamala | hindi alphabet PPT.pdf
Hindi varnamala | hindi alphabet PPT.pdfHindi varnamala | hindi alphabet PPT.pdf
Hindi varnamala | hindi alphabet PPT.pdf

PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.

clinical examination of hip joint (1).pdf
clinical examination of hip joint (1).pdfclinical examination of hip joint (1).pdf
clinical examination of hip joint (1).pdf

Advanced Java[Extra Concepts, Not Difficult].docx
Advanced Java[Extra Concepts, Not Difficult].docxAdvanced Java[Extra Concepts, Not Difficult].docx
Advanced Java[Extra Concepts, Not Difficult].docx

Types of Herbal Cosmetics its standardization.
Types of Herbal Cosmetics its standardization.Types of Herbal Cosmetics its standardization.
Types of Herbal Cosmetics its standardization.


Web programming and development - Introduction

  • 2. Introduction to Web Programming
  • 3. Enterprise Applications are applications that provide the business logic for an enterprise and designed, built and produced for less money, with greater speed, and with fewer resources. The Java Platform, Enterprise Edition (Java EE) aims to provide developers with a powerful set of APIs while shortening development time, reducing application complexity, and improving application performance. Java Enterprise Edition (Java EE)
  • 4. The Java EE platform is developed through the Java Community Process (JCP), which is responsible for all Java technologies. Expert groups composed of interested parties have created Java Specification Requests (JSRs) to define the various Java EE technologies. Java Community Process (JCP)
  • 5. A developer can simply enter the information as an annotation directly into a Java source file, and the Java EE server will configure the component at deployment and runtime. With annotations, you put the specification information in your code next to the program element affected. Java Annotations
  • 6. The Java EE application model begins with the Java programming language and the Java virtual machine. The proven portability, security, and developer productivity they provide form the basis of the application model. The Java EE application model defines an architecture for implementing services as multitier applications that deliver the scalability, accessibility, and manageability needed by enterprise- level applications. Java EE Application Model
  • 7. Java EE Applications are divided into tiers: • Client-tier components run on the client machines • Web-tier components run on the Java EE server • Business-tier components run on the Java EE server • Enterprise information system (EIS)-tier software runs on the EIS Server Java EE multitiered applications are generally considered to be three- tiered applications because they are distributed over three locations: client machines, the Java EE server machine, and the database or legacy machines at the back end. Distributed Multitiered Applicatin
  • 9. A Java EE Component is a self-contained functional software unit that is assembled into a Java EE application with its related classes and files and that communicates with other components. The Java EE specification defines the following Java EE components: • Application clients and applets are components that run on the client. • Java Servlet, JavaServer Faces, and JavaServer Pages (JSP) technology components are web components that run on the server. • EJB components (enterprise beans) are business components that run on the server. Java EE Components
  • 10. A Java EE client is usually either: • Web client • Application client. Java EE Clients
  • 11. A web client consists of two parts: ■ Dynamic web pages containing various types of markup language (HTML, XML, and so on), which are generated by web components running in the web tier ■ A web browser, which renders the pages received from the server A web client is sometimes called a thin client. Thin clients usually do not query databases, execute complex business rules, or connect to legacy applications. Web Clients
  • 12. An application client runs on a client machine and provides a way for users to handle tasks that require a richer user interface than can be provided by a markup language. Application clients directly access enterprise beans running in the business tier. However, if application requirements warrant it, an application client can open an HTTP connection to establish communication with a servlet running in the web tier. Application Clients
  • 13. An applet is a small client application that executes in the Java virtual machine installed in the web browser. However, client systems will likely need the Java Plug-in and possibly a security policy file for the applet to successfully execute in the web browser. Web components are the preferred API for creating a web client program because no plug-ins or security policy files are needed on the client systems. Applets
  • 14. The server and client tiers might also include components based on the JavaBeans component architecture (JavaBeans components) to manage the data flow between the following: ■ An application client or applet and components running on the Java EE server ■ Server components and a database JavaBeans components are not considered Java EE components by the Java EE specification. The JavaBeans Component Architecture
  • 15. Java EE web components are either servlets or web pages created using JavaServer Faces technology and/or JSP technology (JSP pages): • Servlets are Java programming language classes that dynamically process requests and construct responses. • JSP pages are text-based documents that execute as servlets but allow a more natural approach to creating static content. • JavaServer Faces technology builds on servlets and JSP technology and provides a user interface component framework for web applications. Web Components
  • 16. Business code, which is logic that solves or meets the needs of a particular business domain such as banking, retail, or finance, is handled by enterprise beans running in either the business tier or the web tier Business Components
  • 17. The enterprise information system tier handles EIS software and includes enterprise infrastructure systems, such as enterprise resource planning (ERP), mainframe transaction processing, database systems, and other legacy information systems. Enterprise Information System Tier
  • 18. Containers are the interface between a component and the low- level, platform-specific functionality that supports the component. Java EE Containers
  • 19. • Java EE server: The runtime portion of a Java EE product. A Java EE server provides EJB and web containers. • EJB container: Manages the execution of enterprise beans for Java EE applications. Enterprise beans and their container run on the Java EE server. • Web container: Manages the execution of web pages, servlets, and some EJB components for Java EE applications. Web components and their container run on the Java EE server. • Application client container: Manages the execution of application client components. Application clients and their container run on the client. • Applet container: Manages the execution of applets. Consists of a web browser and a Java Plug-in running on the client together. Container Types
  • 20. Web services are web-based enterprise applications that use open, XML-based standards and transport protocols to exchange data with calling clients. The Java EE platform provides the XML APIs and tools you need to quickly design, develop, test, and deploy web services and clients that fully interoperate with other web services and clients running on Java-based platforms. Web Services Support
  • 21. Extensible Markup Language (XML) is a cross-platform, extensible, text-based standard for representing data. Parties that exchange XML data can create their own tags to describe the data, set up schemas to specify which tags can be used in a particular kind of XML document, and use XML style sheets to manage the display and handling of data. XML
  • 22. Client requests and web service responses are transmitted as Simple Object Access Protocol (SOAP) messages over HTTP to enable a completely interoperable exchange between clients and web services, all running on different platforms and at various locations on the Internet. SOAP Transport Protocol
  • 23. The Web Services Description Language (WSDL) is a standardized XML format for describing network services. WSDL service descriptions can be published on the Web. GlassFish Server provides a tool for generating the WSDL specification of a web service that uses remote procedure calls to communicate with clients. WSDL Standard Format
  • 24. A Java EE application is packaged into one or more standard units for deployment to any Java EE platform-compliant system. Each unit contains: • A functional component or components, such as an enterprise bean, web page, servlet, or applet • An optional deployment descriptor that describes its content Production -> Deployment -> Run Java EE Application Assembly and Deployment
  • 25. Relationship among Java EE Containers
  • 26. Java EE APIs in the Web Container Java EE 7 APIs
  • 27. Java EE APIs in the EJB Container Java EE 7 APIs
  • 28. Java EE APIs in the Application Client Container Java EE 7 APIs
  • 29. An Enterprise JavaBeans (EJB) component, or enterprise bean, is a body of code that has fields and methods to implement modules of business logic. Enterprise beans can be: • A session bean represents a transient conversation with a client. When the client finishes executing, the session bean and its data are gone. • A message-driven bean combines features of a session bean and a message listener, allowing a business component to receive messages asynchronously. Commonly, these are Java Message Service (JMS) messages. Enterprise JavaBeans Technology
  • 30. Java Servlet technology lets you define HTTP-specific servlet classes. A servlet class extends the capabilities of servers that host applications accessed by way of a request-response programming model. Java Servlet Technology
  • 31. JavaServer Faces technology is a user interface framework for building web applications. The main components of JavaServer Faces technology are as follows: • A GUI component framework. • A flexible model for rendering components in different kinds of HTML or different markup languages and technologies. A Renderer object generates the markup to render the component and converts the data stored in a model object to types that can be represented in a view. • A standard RenderKit for generating HTML 4.01 markup. Java Server Faces Technology
  • 32. JavaServer Pages (JSP) technology lets you put snippets of servlet code directly into a text-based document. A JSP page is a text-based document that contains two types of text: • Static data, which can be expressed in any text-based format, such as HTML or XML • JSP elements, which determine how the page constructs dynamic content Java Server Pages Technology
  • 33. The Java Persistence API (JPA) is a Java standards–based solution for persistence. Persistence uses an object/relational mapping approach to bridge the gap between an object-oriented model and a relational database. Java Persitence API
  • 34. • Java Transaction API • Java API for RESTful Web Services • Managed Beans • Contexts and Dependency Injection • Bean Validation • Java Message Service API • Java EE Connector Architecture • Java Mail API • Java Authorization Contract for Containers • Java Authentication Service Provider Interface for Containers • Java API for Websocket • Java API for JSON Processing • Concurrency Utilities for Java EE • Batch Applications for the Java Platform More APIs
  • 35. • Java Database Connectivity API • Java Naming and Directory Interface API • Javabeans Activation Framework • Java API for XML Processing • Java Architecture for XML Binding • Java API for XML Web Services • SOAP with Attachments API for Java • Java Authentication and Authorization Service • Common Annotations for the Java Platform Java EE 7 APIs in the Java Platform, Standard Edition 7

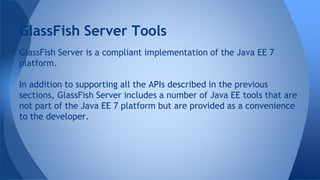

  • 36. GlassFish Server is a compliant implementation of the Java EE 7 platform. In addition to supporting all the APIs described in the previous sections, GlassFish Server includes a number of Java EE tools that are not part of the Java EE 7 platform but are provided as a convenience to the developer. GlassFish Server Tools
