Fundamentals of WebHigh level overview of web concepts
Lemİ Orhan Ergİn
Principal software Engineer @ Sony
guide for non-developers

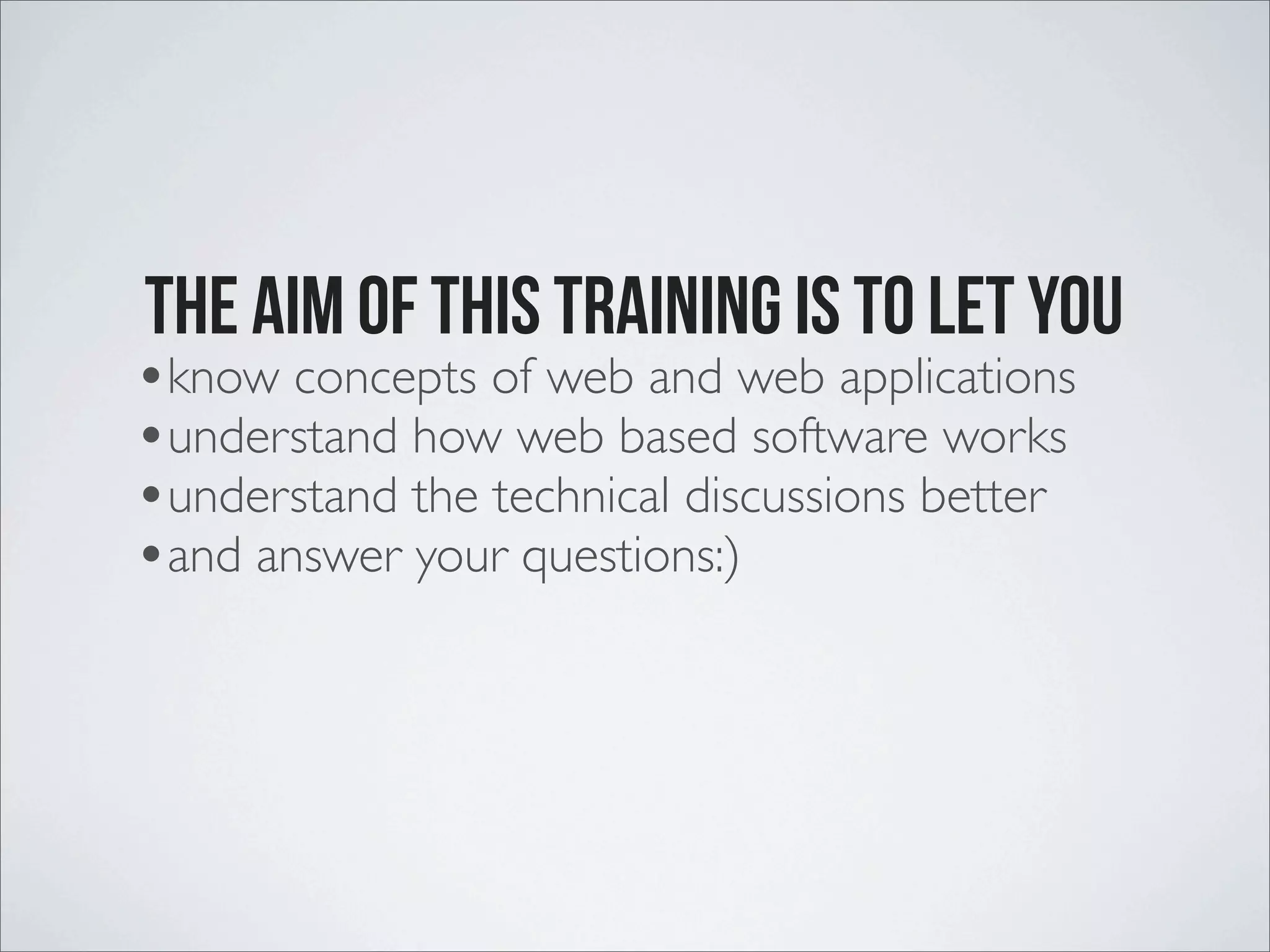

The aim of this training is to let you
•know concepts of web and web applications
•understand how web based software works
•understand the technical discussions better
•and answer your questions:)

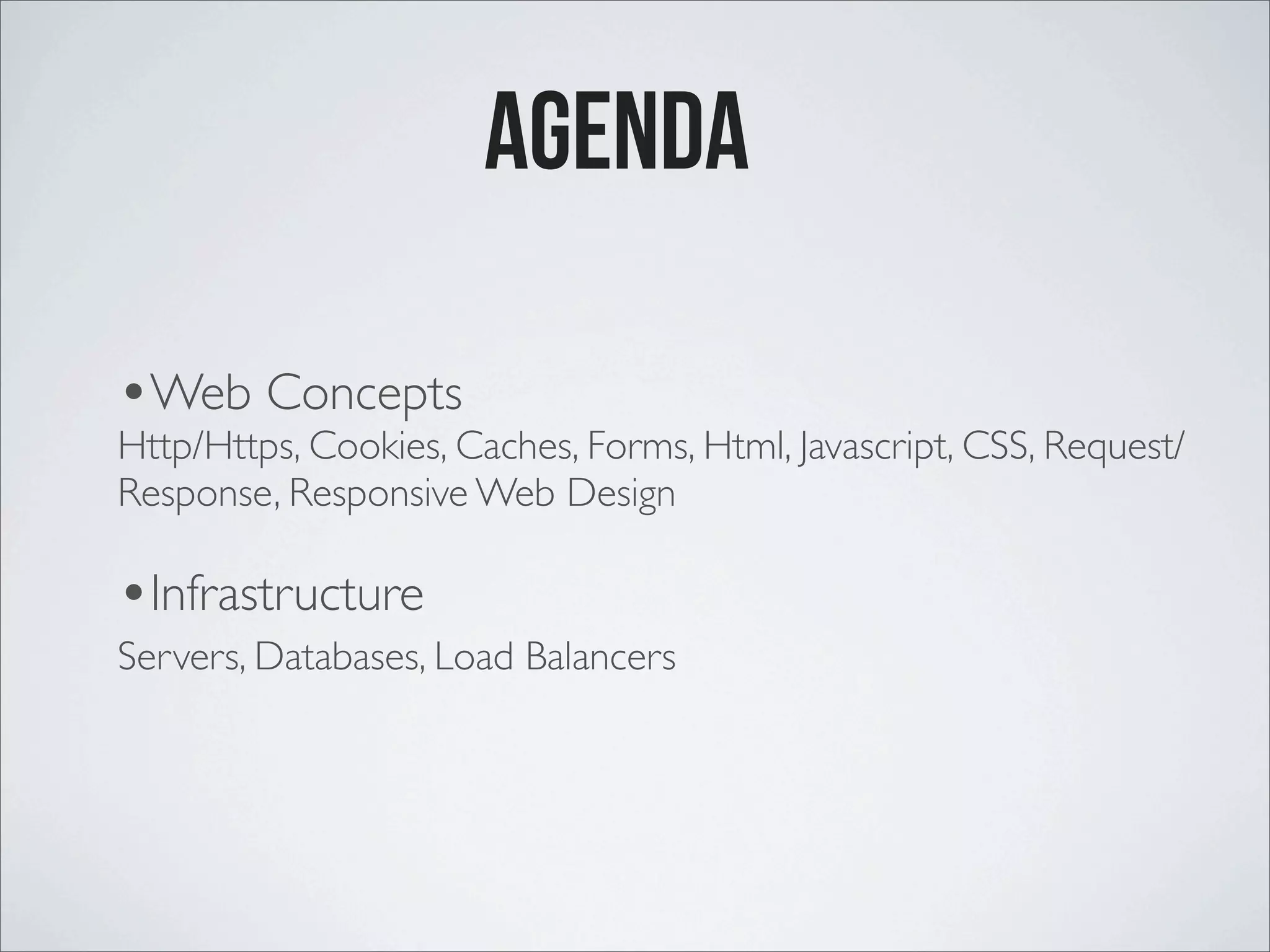

agenda
•Web Concepts
Http/Https, Cookies, Caches, Forms, Html, Javascript, CSS, Request/
Response, Responsive Web Design
•Infrastructure
Servers, Databases, Load Balancers

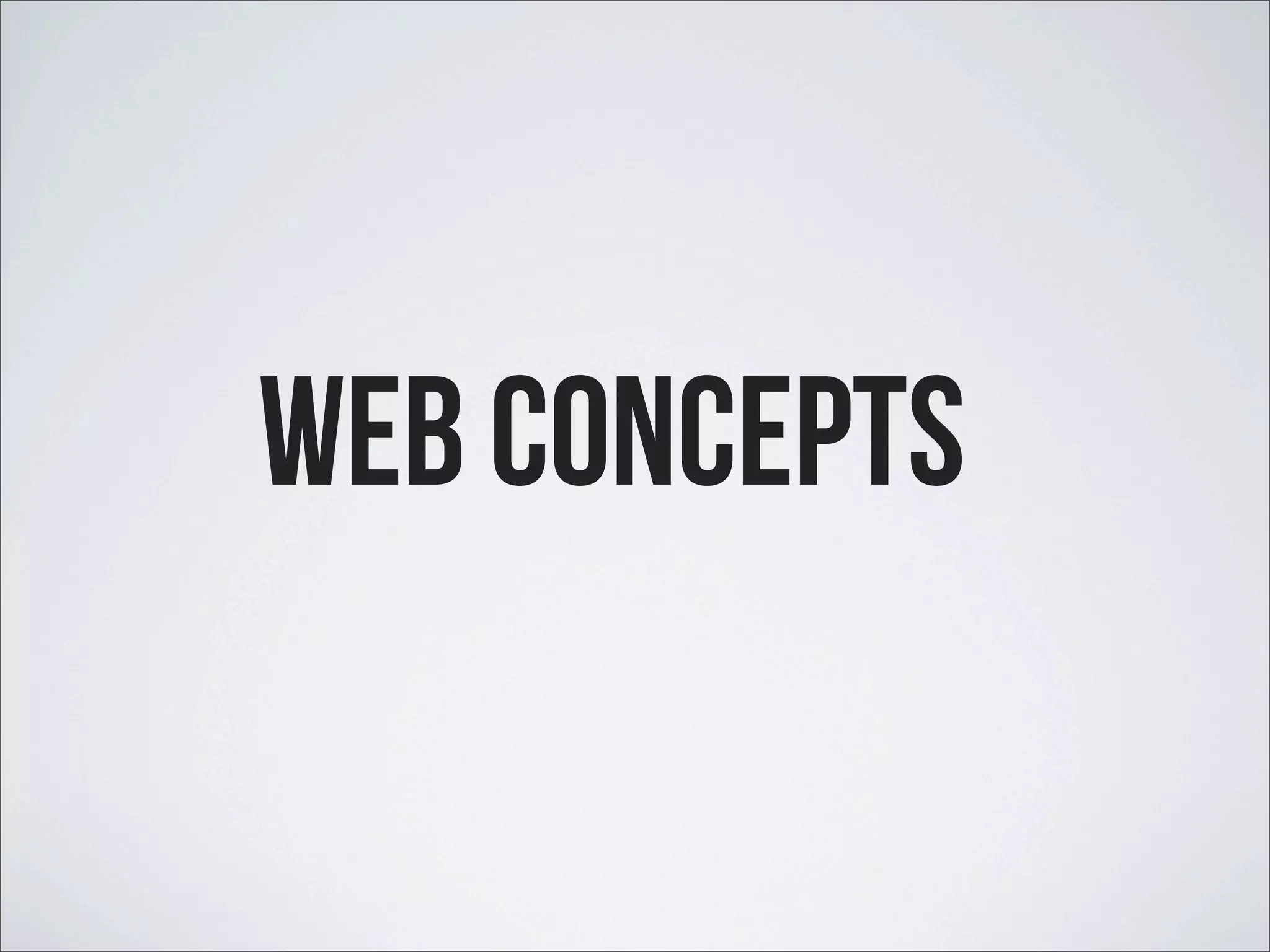

web concepts

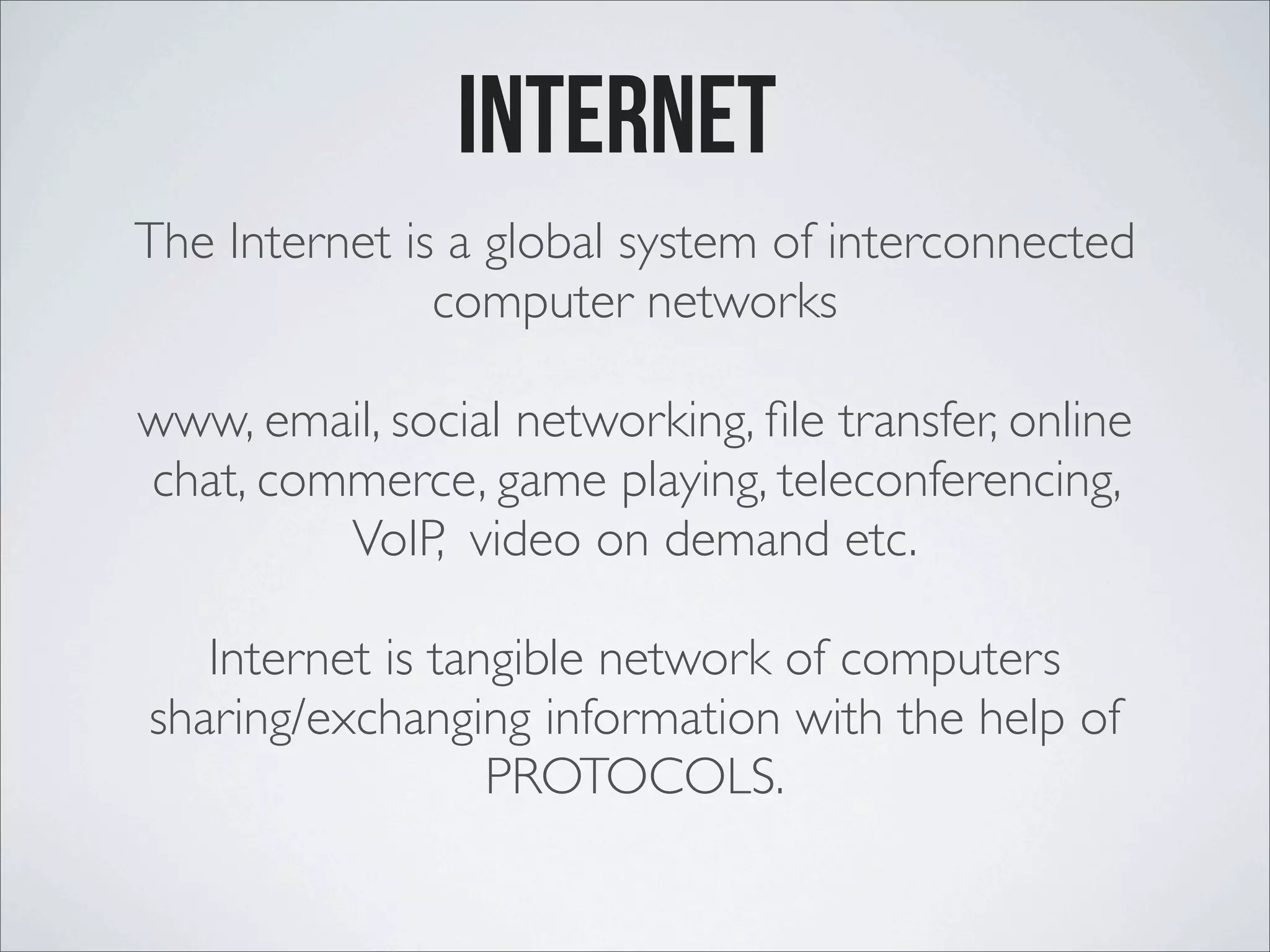

The Internet is a global system of interconnected
computer networks
www, email, social networking, file transfer, online
chat, commerce, game playing, teleconferencing,
VoIP, video on demand etc.
Internet is tangible network of computers
sharing/exchanging information with the help of
PROTOCOLS.
Internet

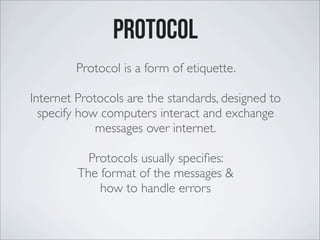

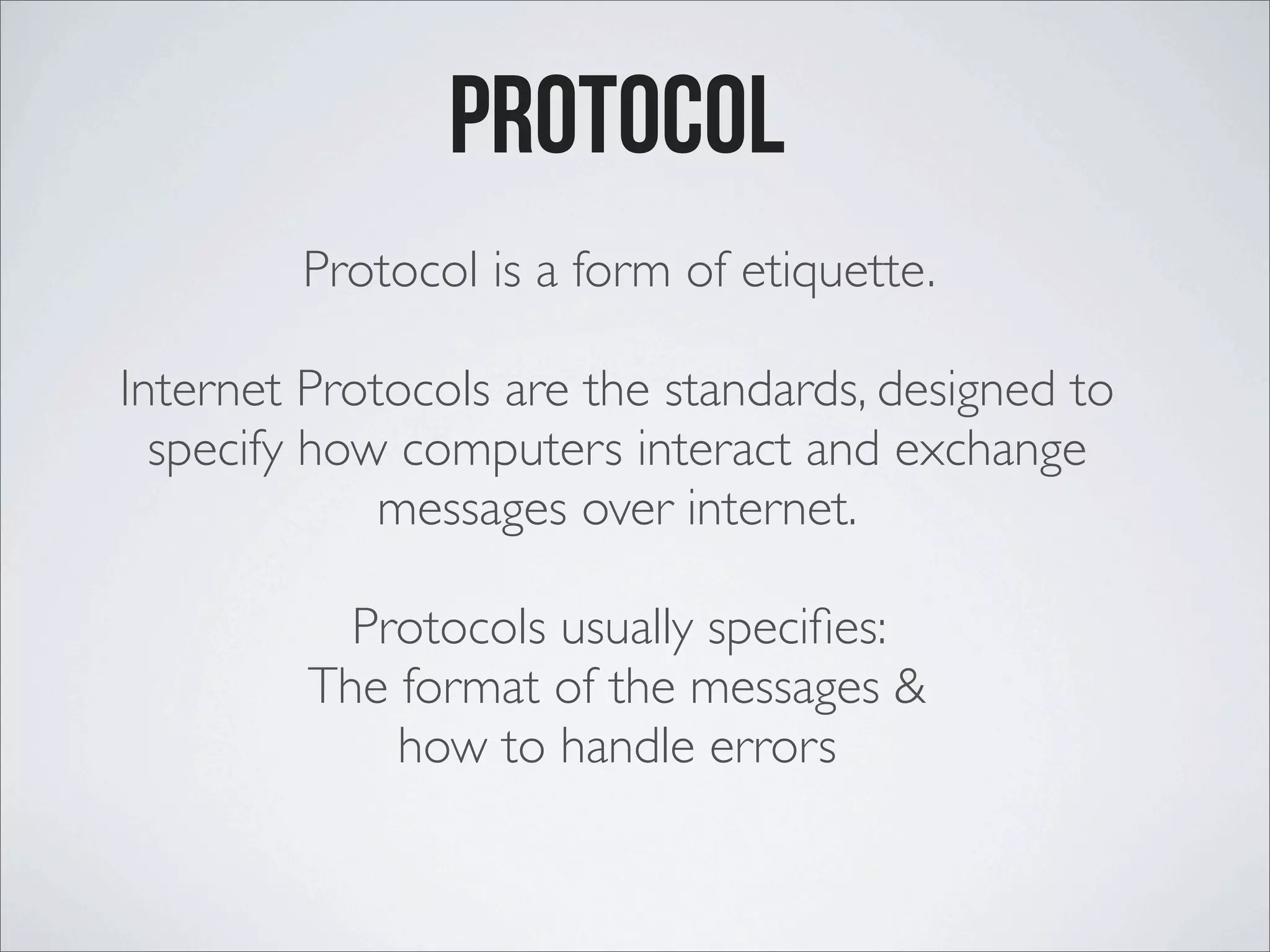

Protocol
Protocol is a form of etiquette.
Internet Protocols are the standards, designed to
specify how computers interact and exchange
messages over internet.
Protocols usually specifies:
The format of the messages &
how to handle errors

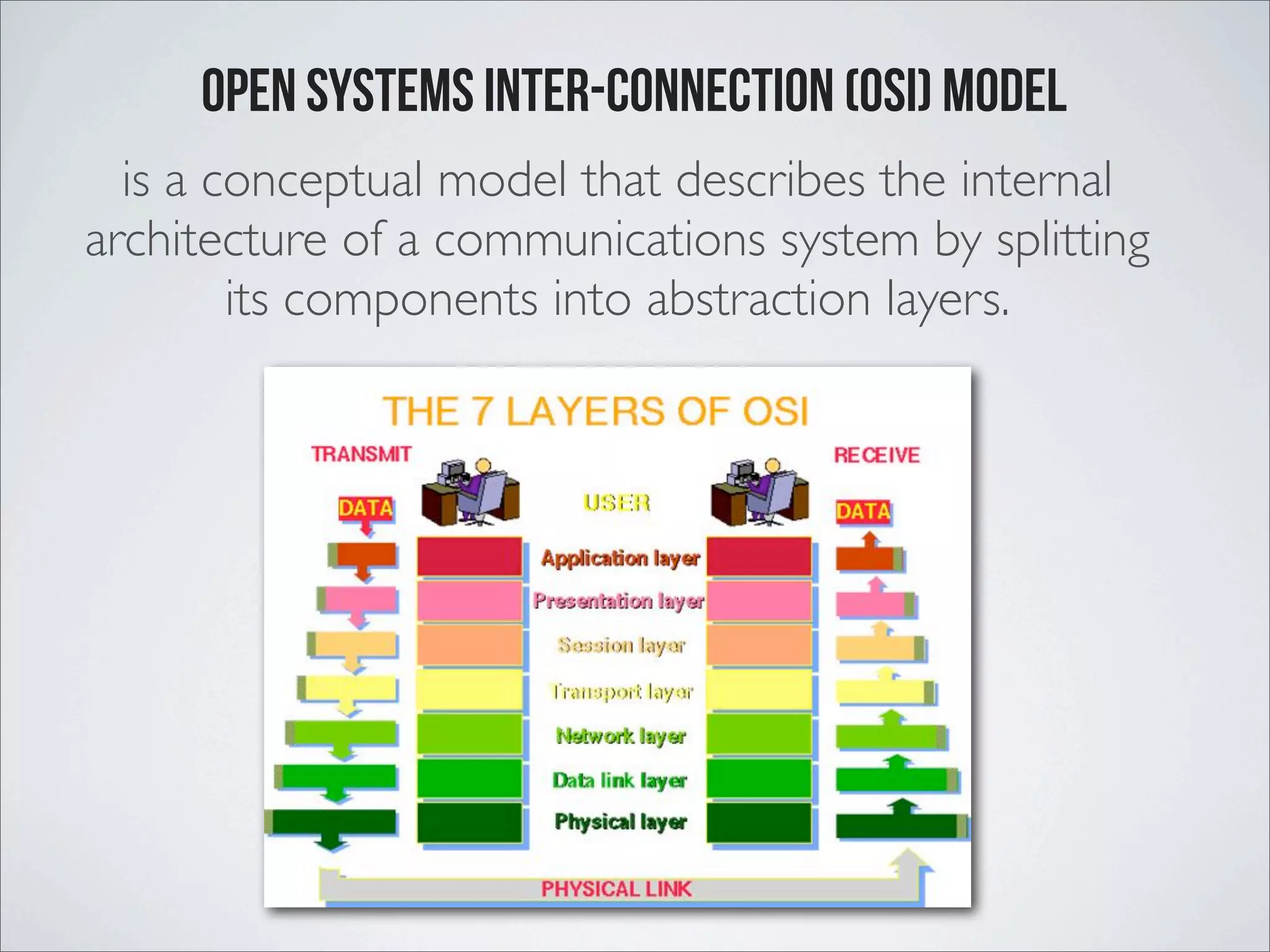

Open systems ınter-connection (OSI) model
is a conceptual model that describes the internal
architecture of a communications system by splitting
its components into abstraction layers.

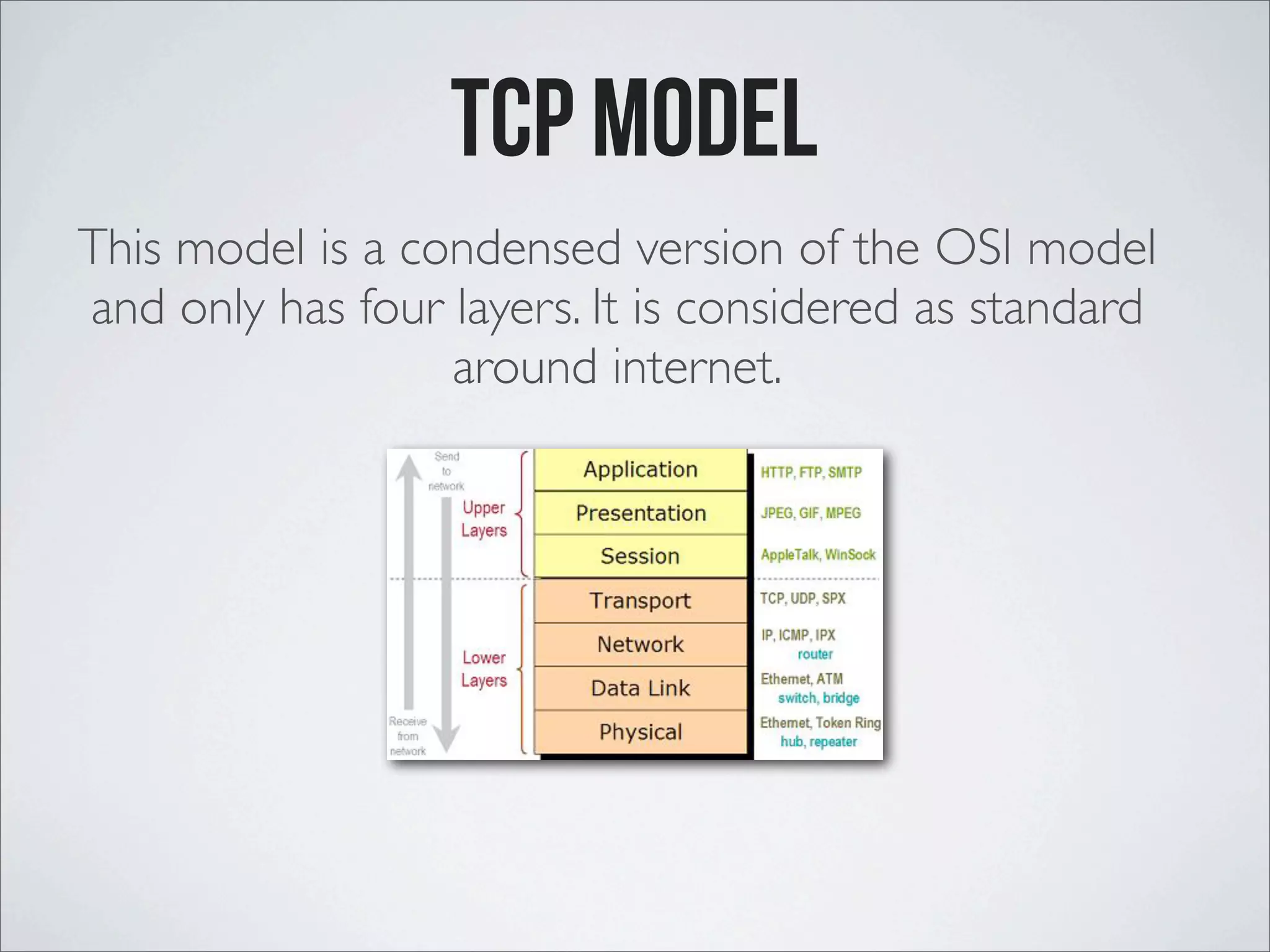

tcp model
This model is a condensed version of the OSI model
and only has four layers. It is considered as standard
around internet.

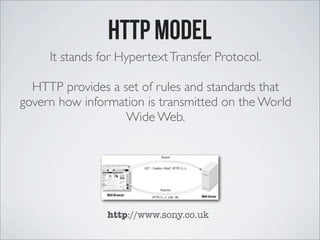

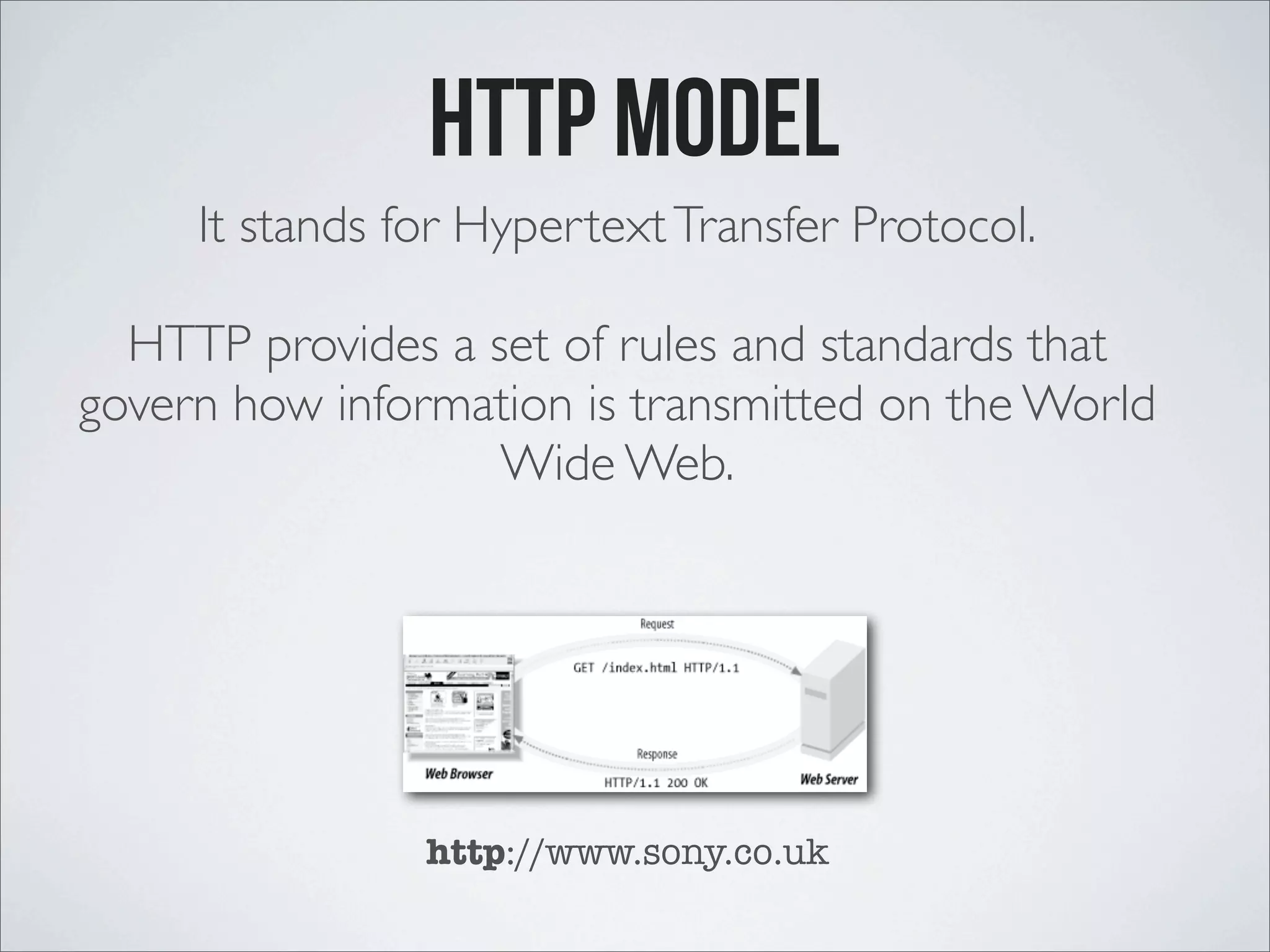

http model
It stands for HypertextTransfer Protocol.
HTTP provides a set of rules and standards that
govern how information is transmitted on the World
Wide Web.
http://www.sony.co.uk

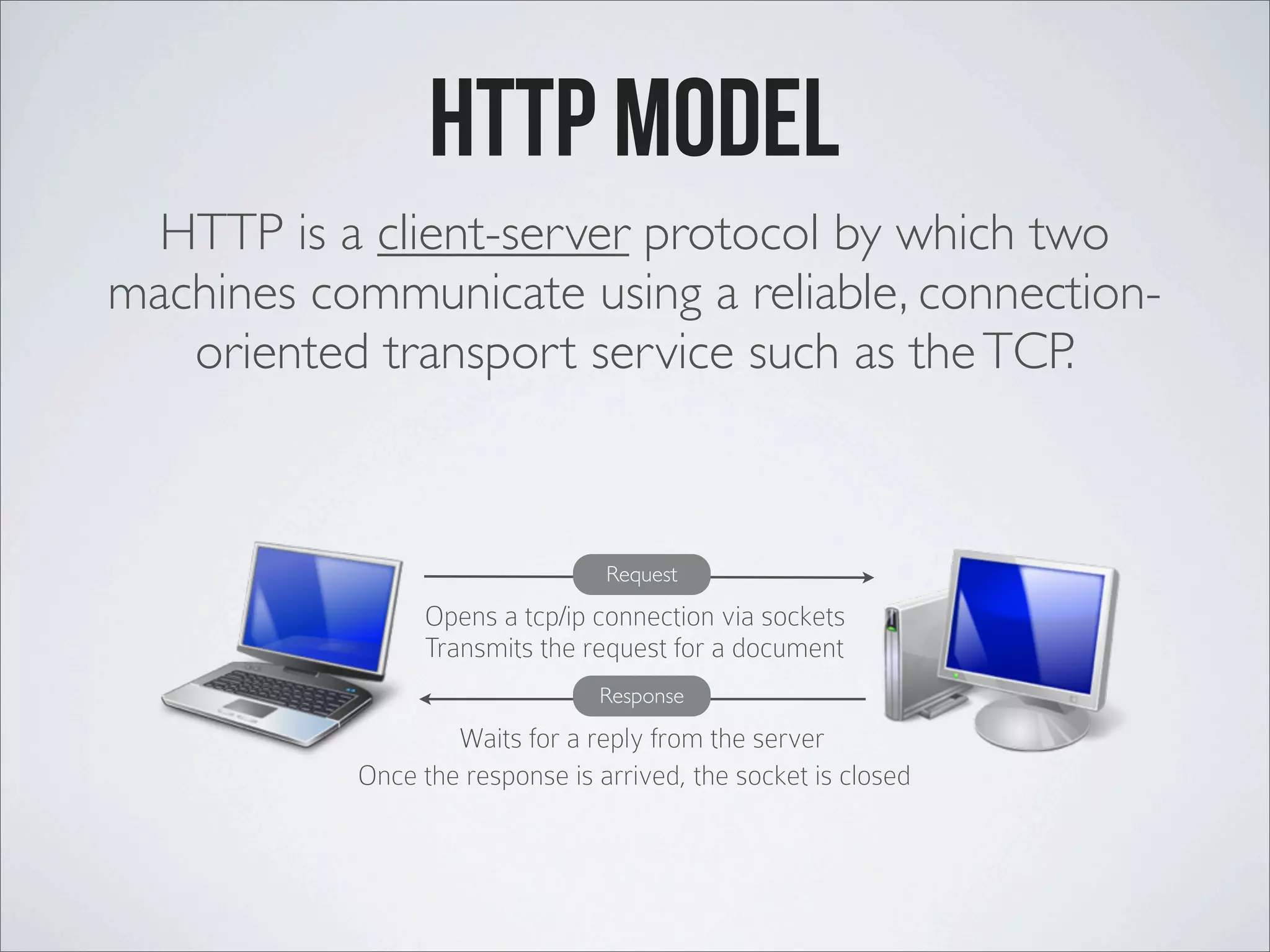

http model
HTTP is a client-server protocol by which two
machines communicate using a reliable, connection-
oriented transport service such as theTCP.
Opens a tcp/ip connection via sockets
Transmits the request for a document
Waits for a reply from the server
Once the response is arrived, the socket is closed
Request
Response

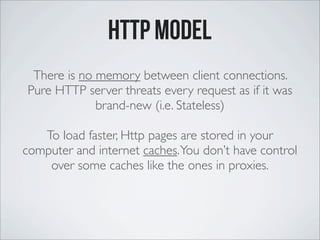

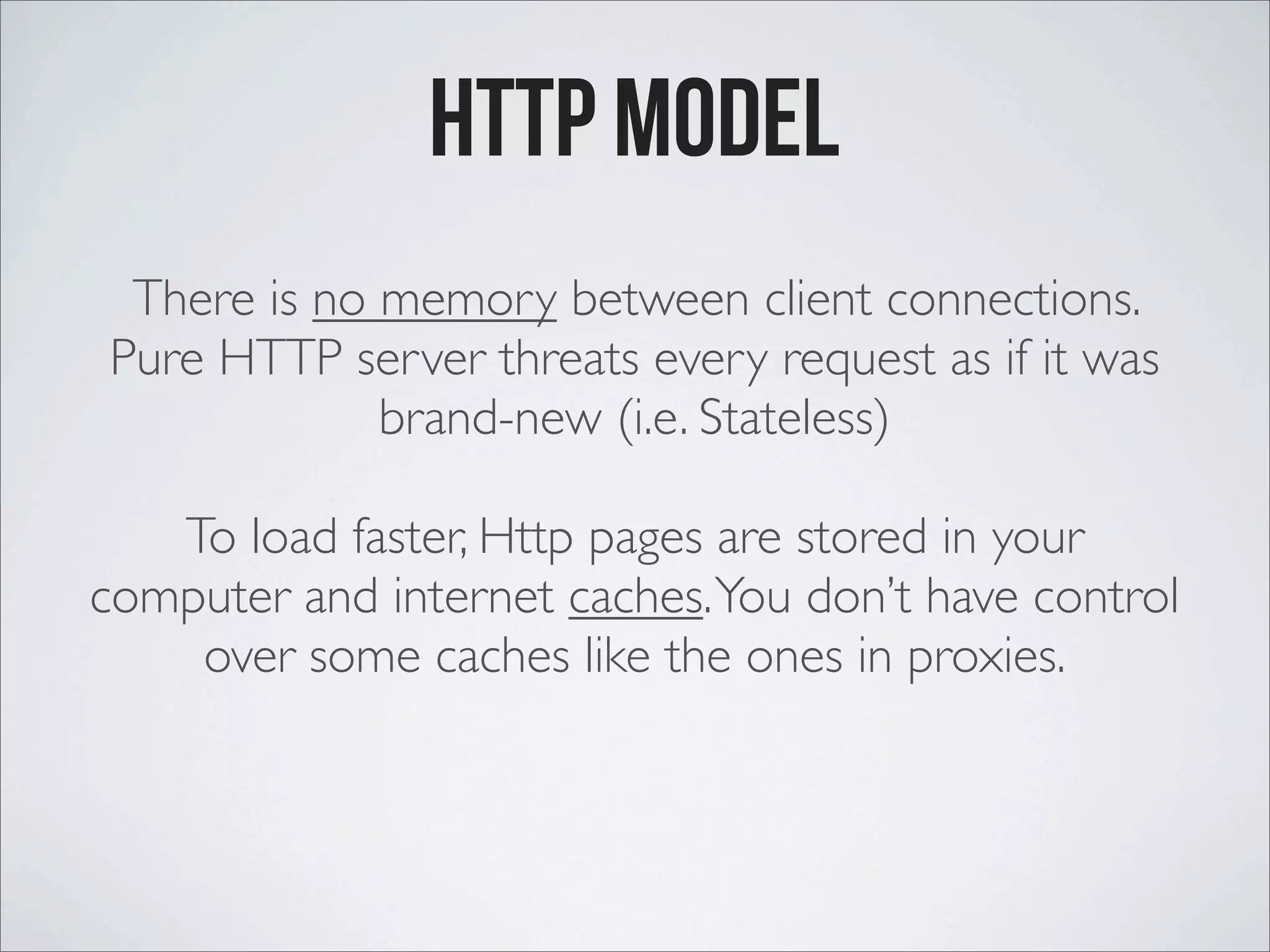

http model
There is no memory between client connections.
Pure HTTP server treats every request as if it was
brand-new (i.e. Stateless)
To load faster, Http pages are stored in your
computer and internet caches.You don’t have control
over some caches like the ones in proxies.

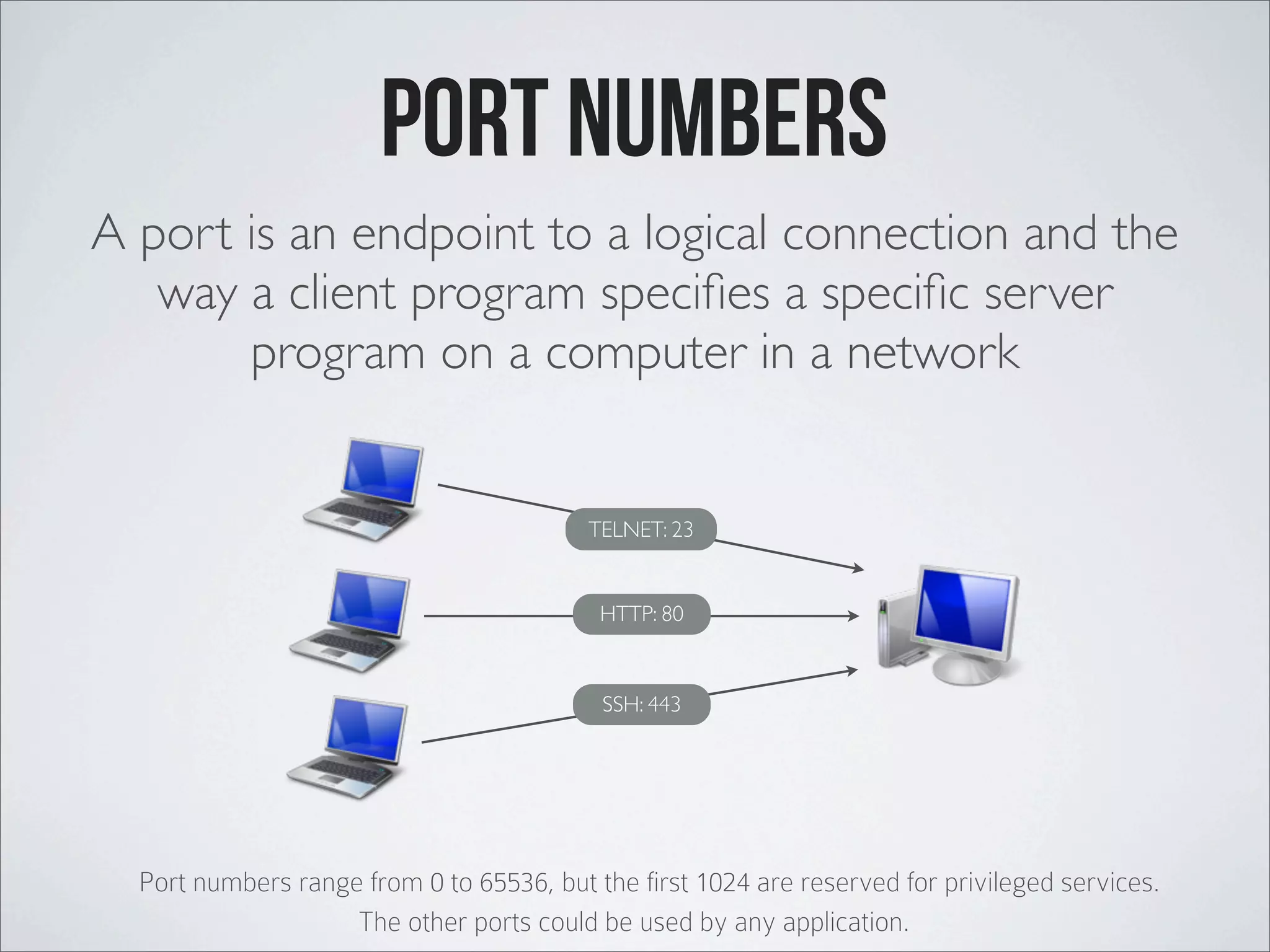

PORT NUMBERS
A port is an endpoint to a logical connection and the
way a client program specifies a specific server
program on a computer in a network
Port numbers range from 0 to 65536, but the first 1024 are reserved for privileged services.
The other ports could be used by any application.
HTTP: 80
SSH: 22
TELNET: 23

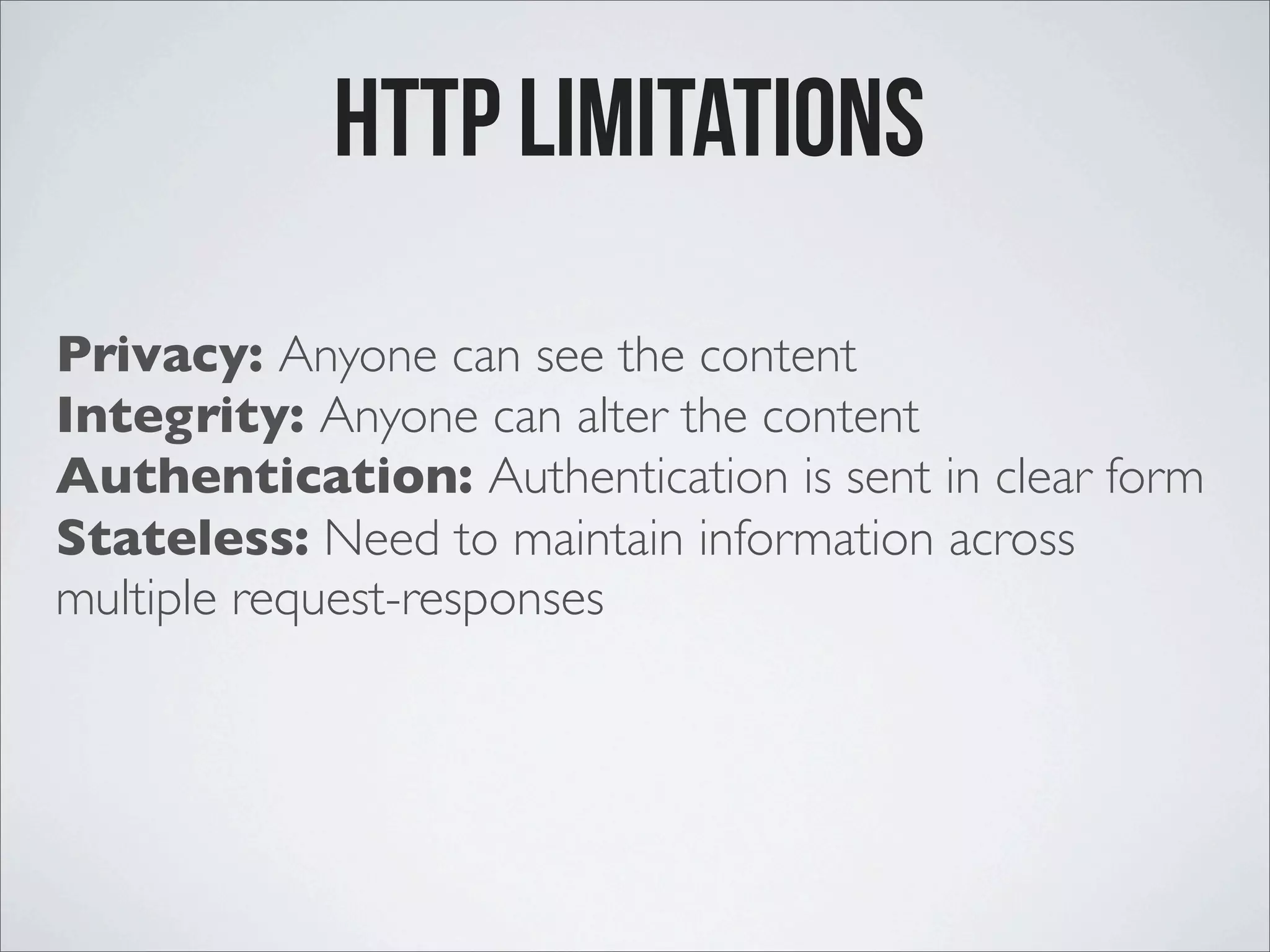

Privacy: Anyone can see the content
Integrity: Anyone can alter the content
Authentication: Authentication is sent in clear form
Stateless: Need to maintain information across
multiple request-responses
http Limitations

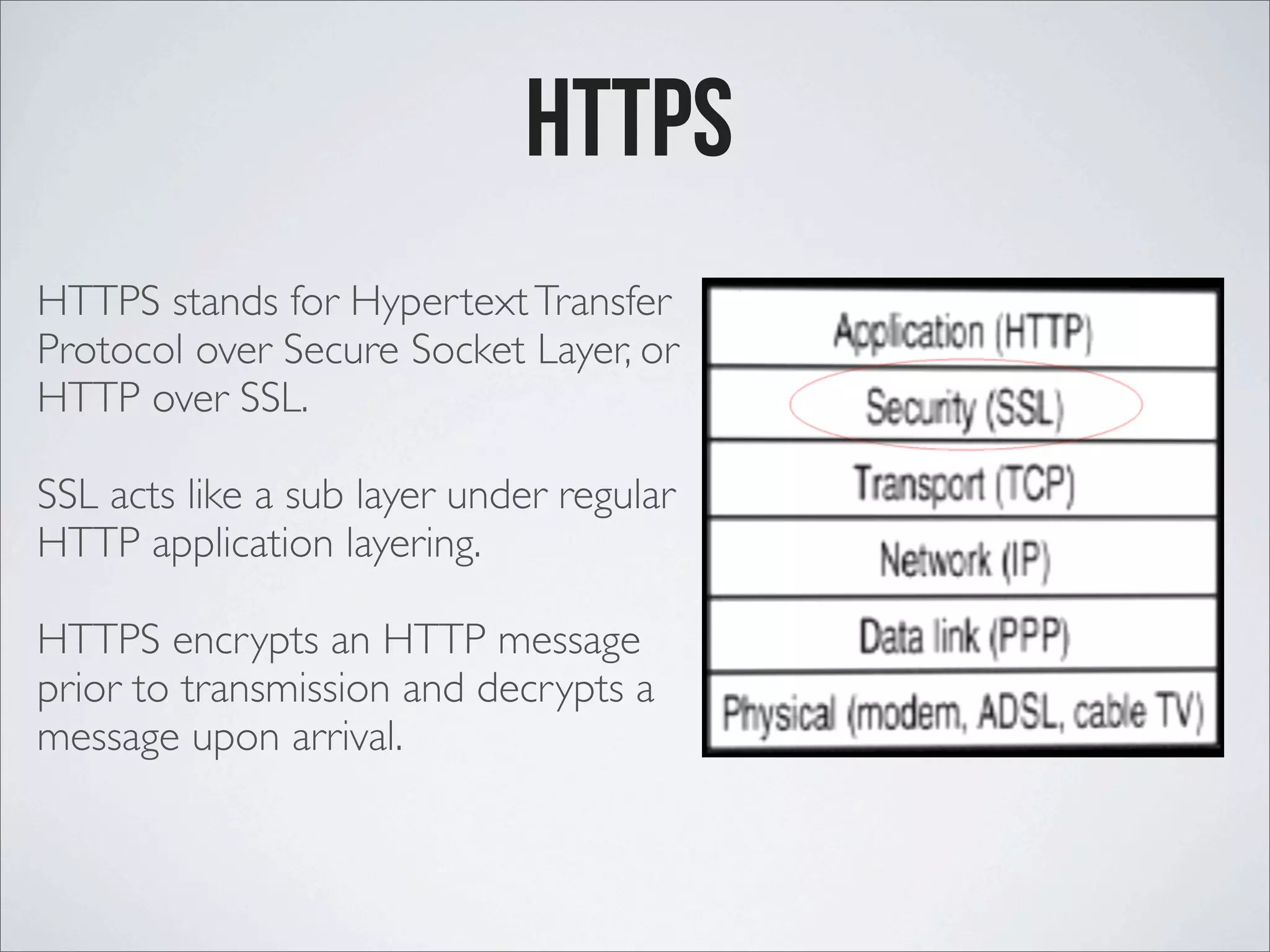

HTTPS stands for HypertextTransfer
Protocol over Secure Socket Layer, or
HTTP over SSL.
SSL acts like a sub layer under regular
HTTP application layering.
HTTPS encrypts an HTTP message
prior to transmission and decrypts a
message upon arrival.
httPS

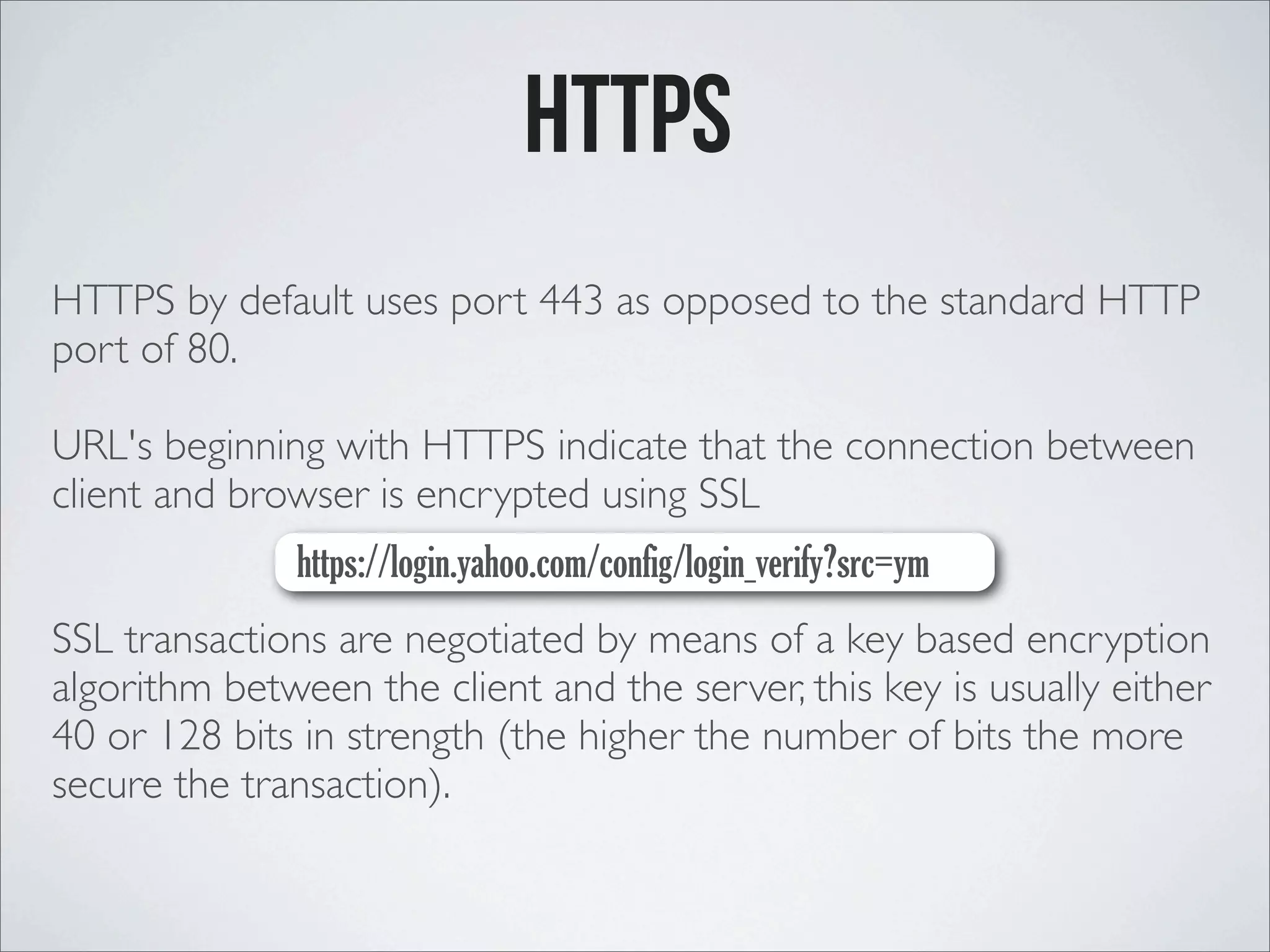

HTTPS by default uses port 443 as opposed to the standard HTTP
port of 80.
URL's beginning with HTTPS indicate that the connection between
client and browser is encrypted using SSL
SSL transactions are negotiated by means of a key based encryption
algorithm between the client and the server, this key is usually either
40 or 128 bits in strength (the higher the number of bits the more
secure the transaction).
httPS
https://login.yahoo.com/config/login_verify?src=ym
SSL HANDSHAKE

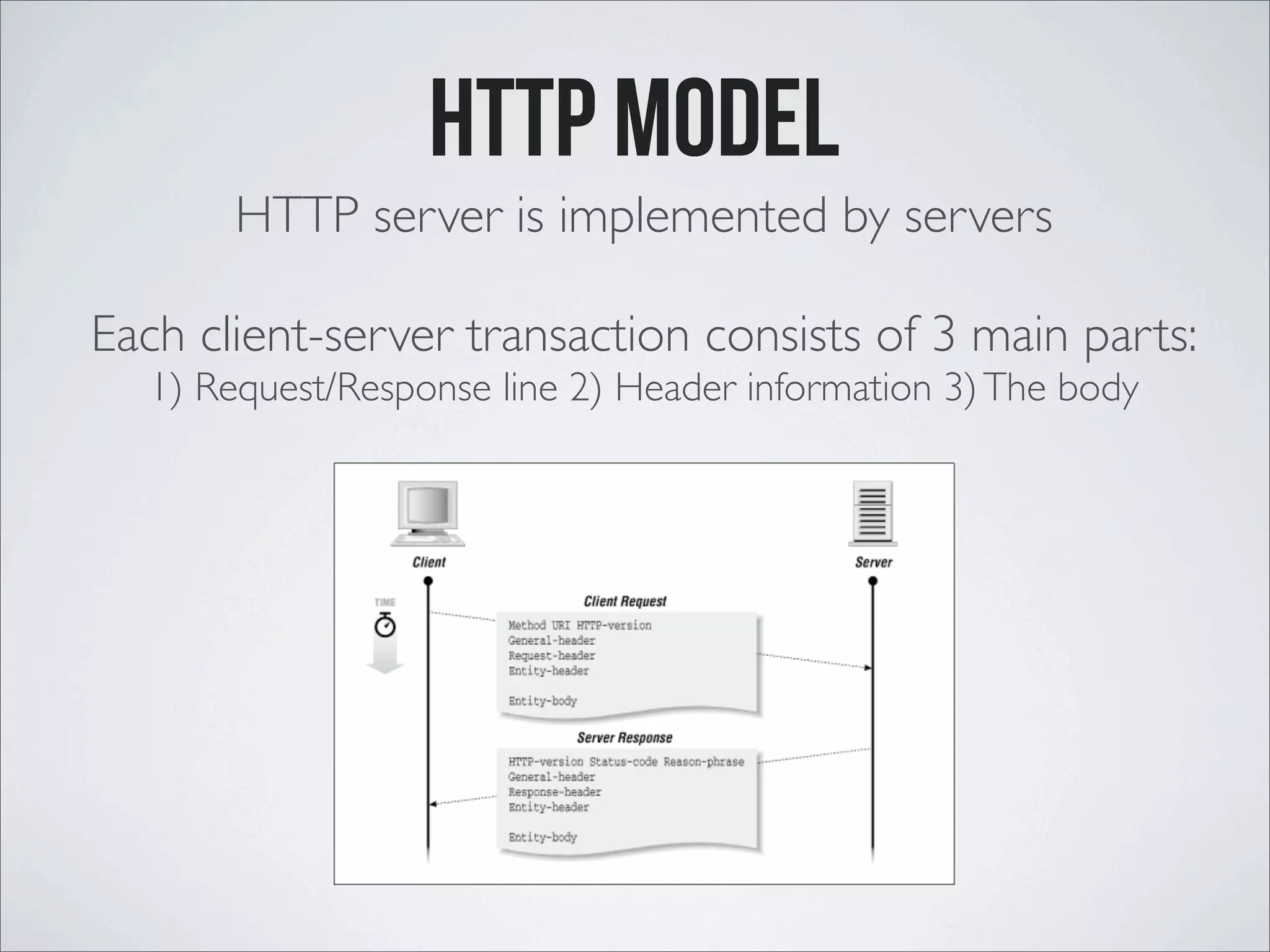

HTTP server is implemented by servers
Each client-server transaction consists of 3 main parts:
1) Request/Response line 2) Header information 3)The body
http model

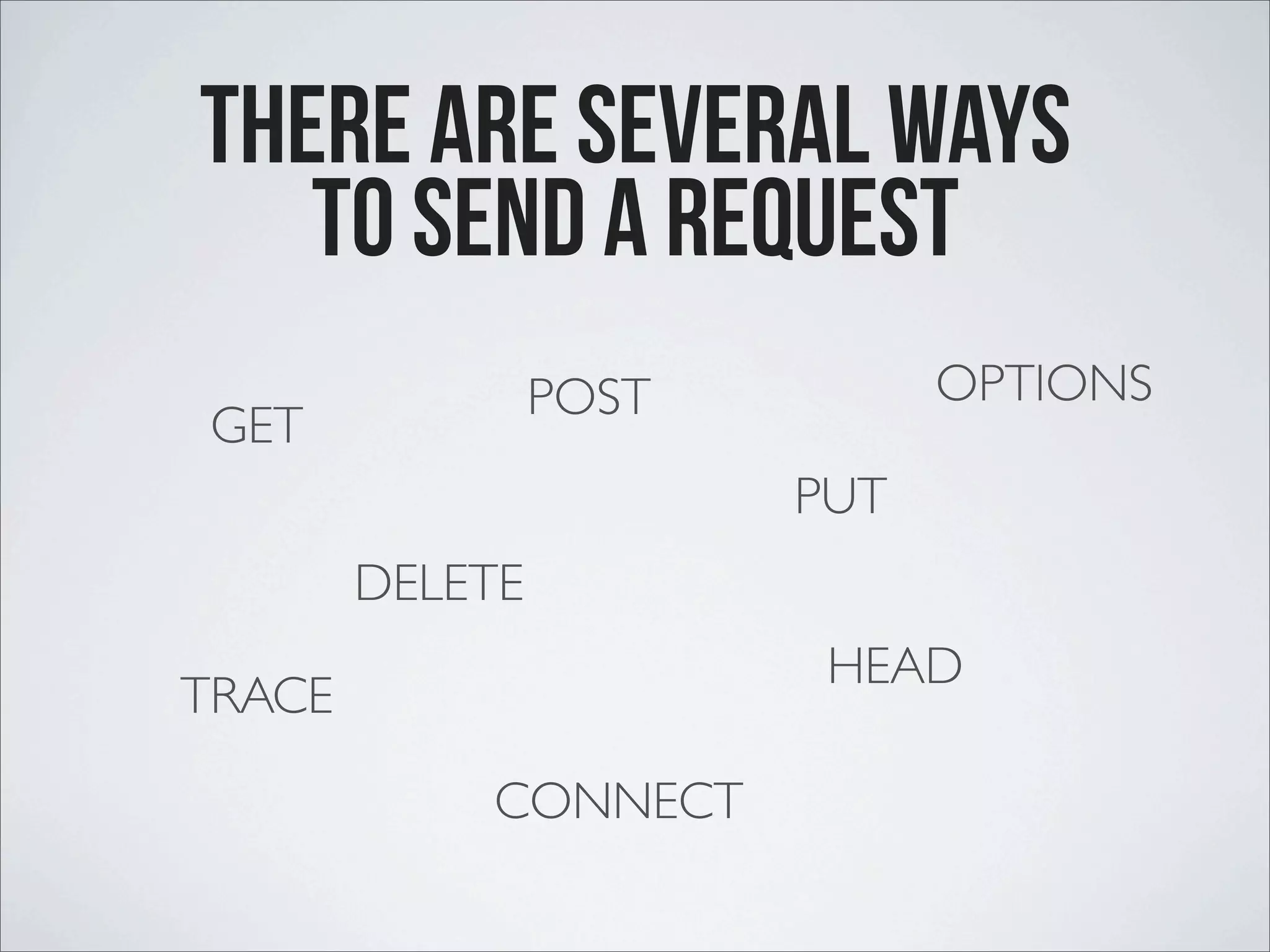

there are several ways
to send a request
GET
POST
PUT
DELETE
HEAD
OPTIONS
TRACE
CONNECT
HTTP METHOD: GET
•Retrieval of information
•Server sends a representation of a resource to client

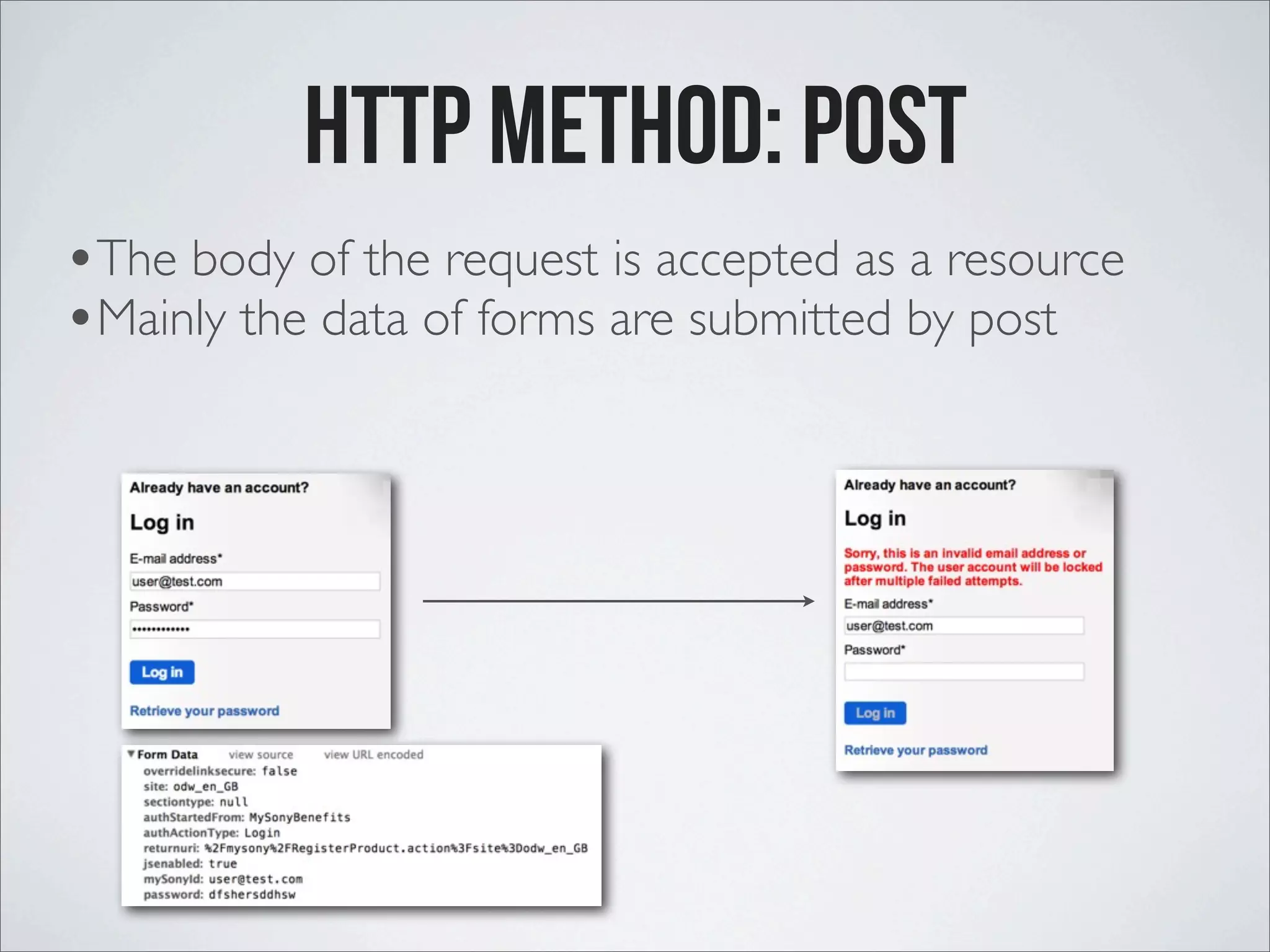

HTTP METHOD: POST
•The body of the request is accepted as a resource
•Mainly the data of forms are submitted by post

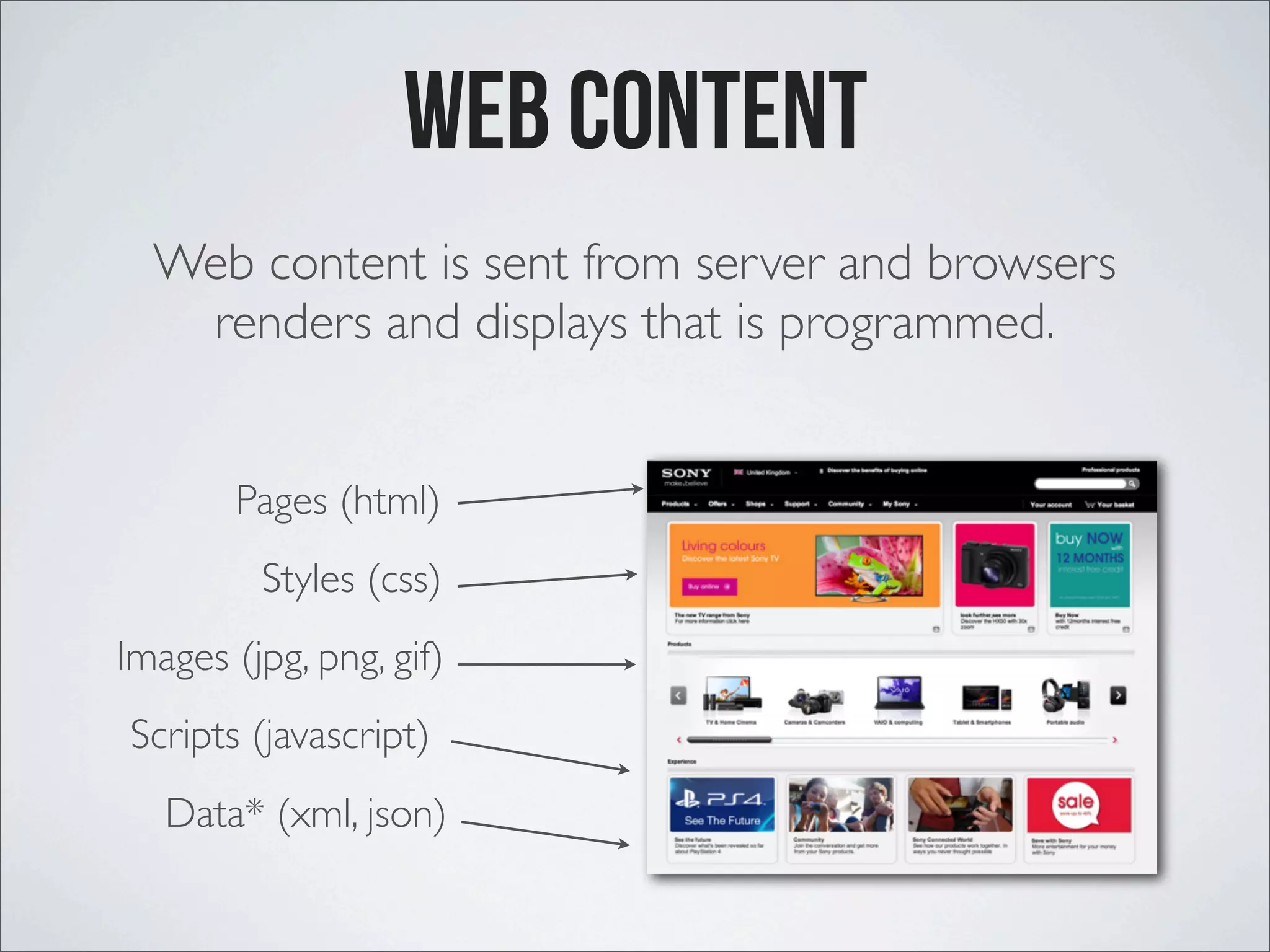

Web Content
Scripts (javascript)
Styles (css)
Pages (html)
Images (jpg, png, gif)
Web content is sent from server and browsers
renders and displays that is programmed.
Data* (xml, json)

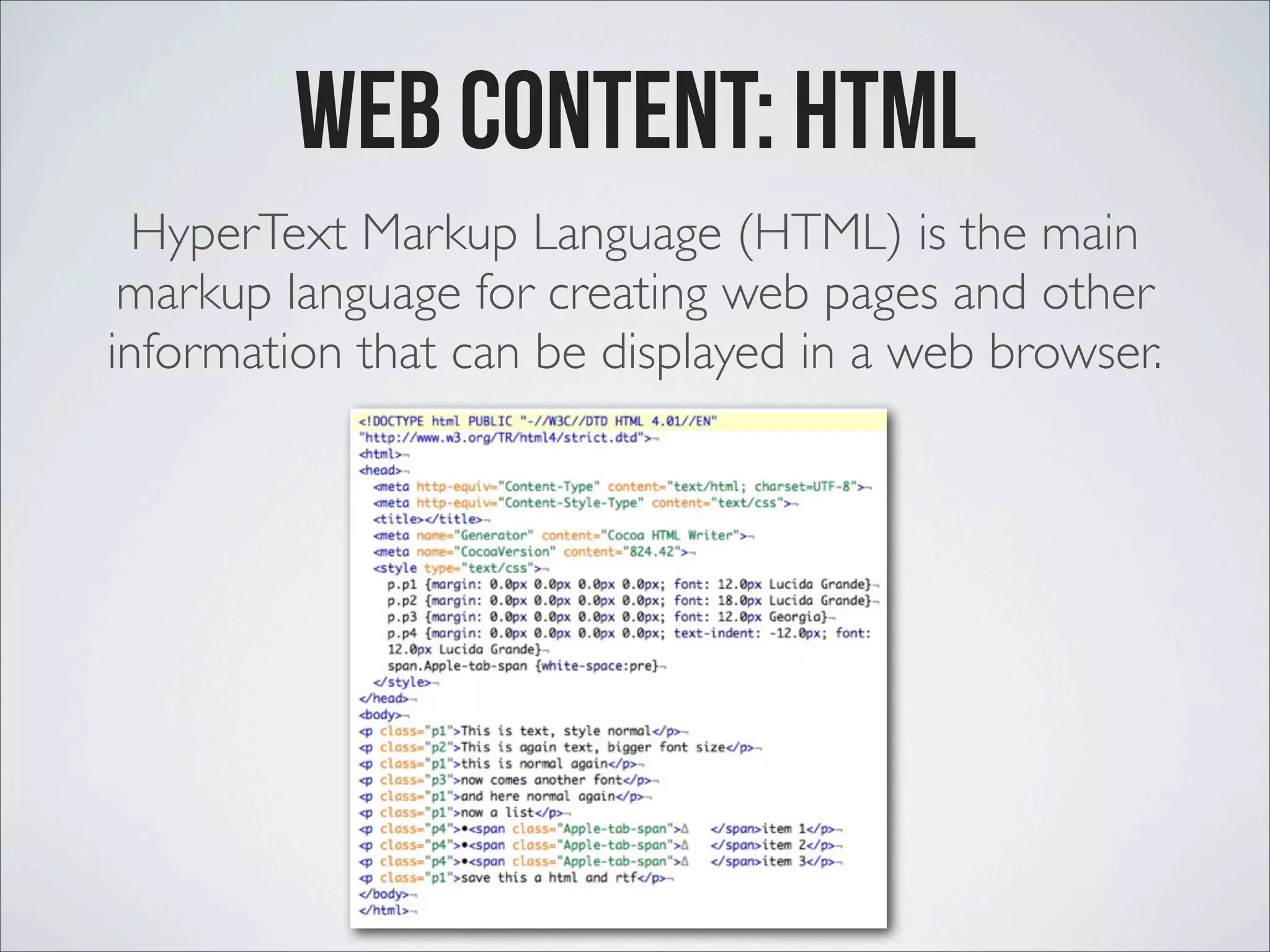

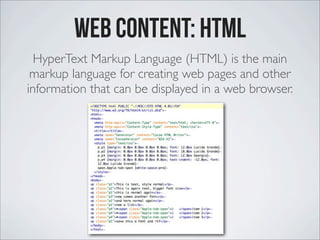

Web Content: HTML
HyperText Markup Language (HTML) is the main
markup language for creating web pages and other
information that can be displayed in a web browser.

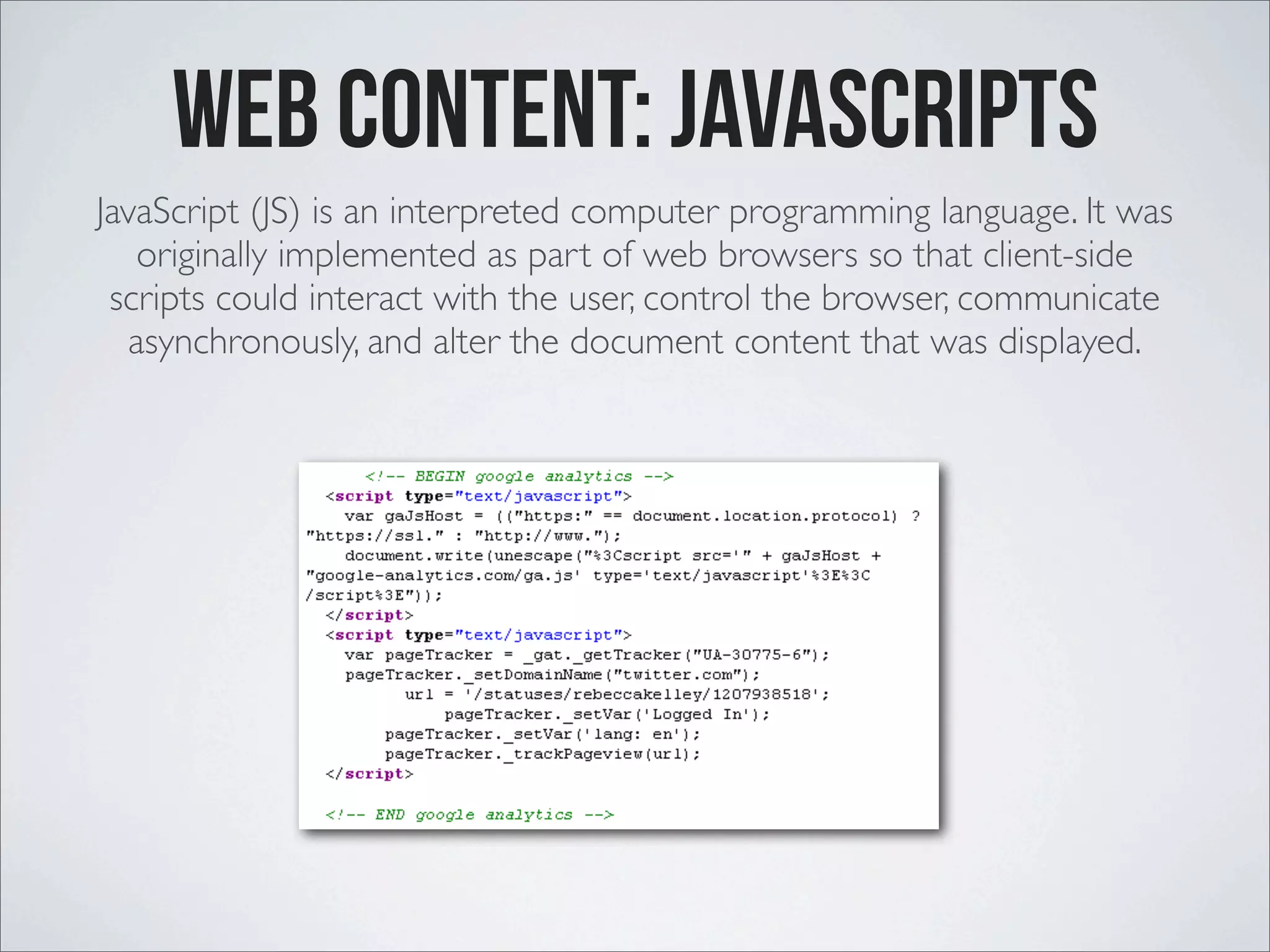

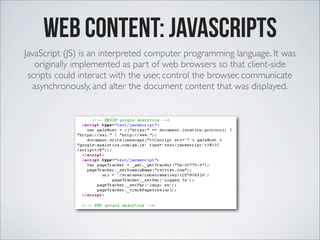

Web Content: Javascripts
JavaScript (JS) is an interpreted computer programming language. It was
originally implemented as part of web browsers so that client-side
scripts could interact with the user, control the browser, communicate
asynchronously, and alter the document content that was displayed.

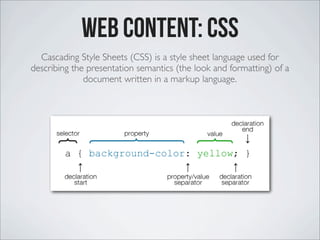

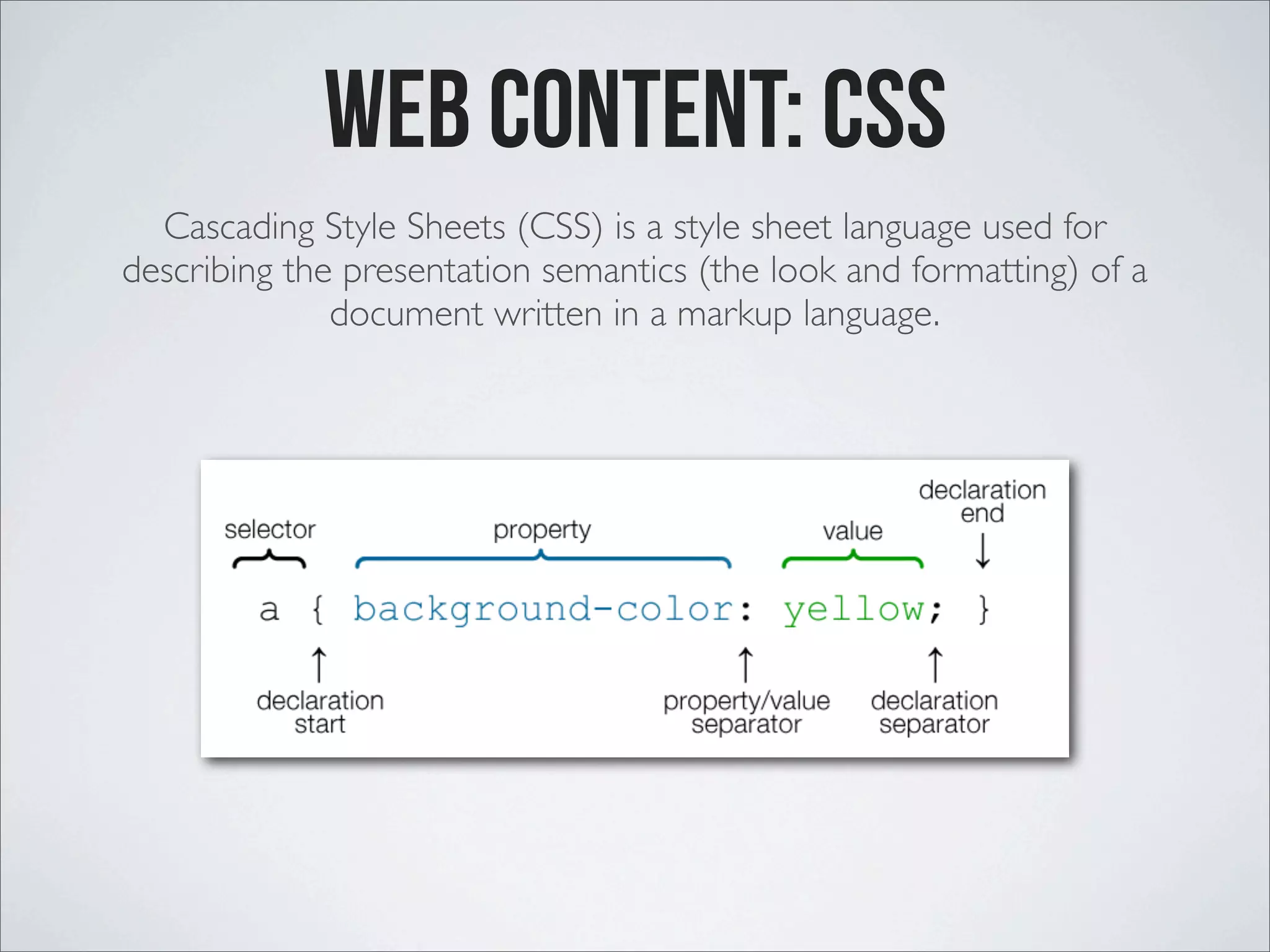

Web Content: CSS
Cascading Style Sheets (CSS) is a style sheet language used for
describing the presentation semantics (the look and formatting) of a
document written in a markup language.

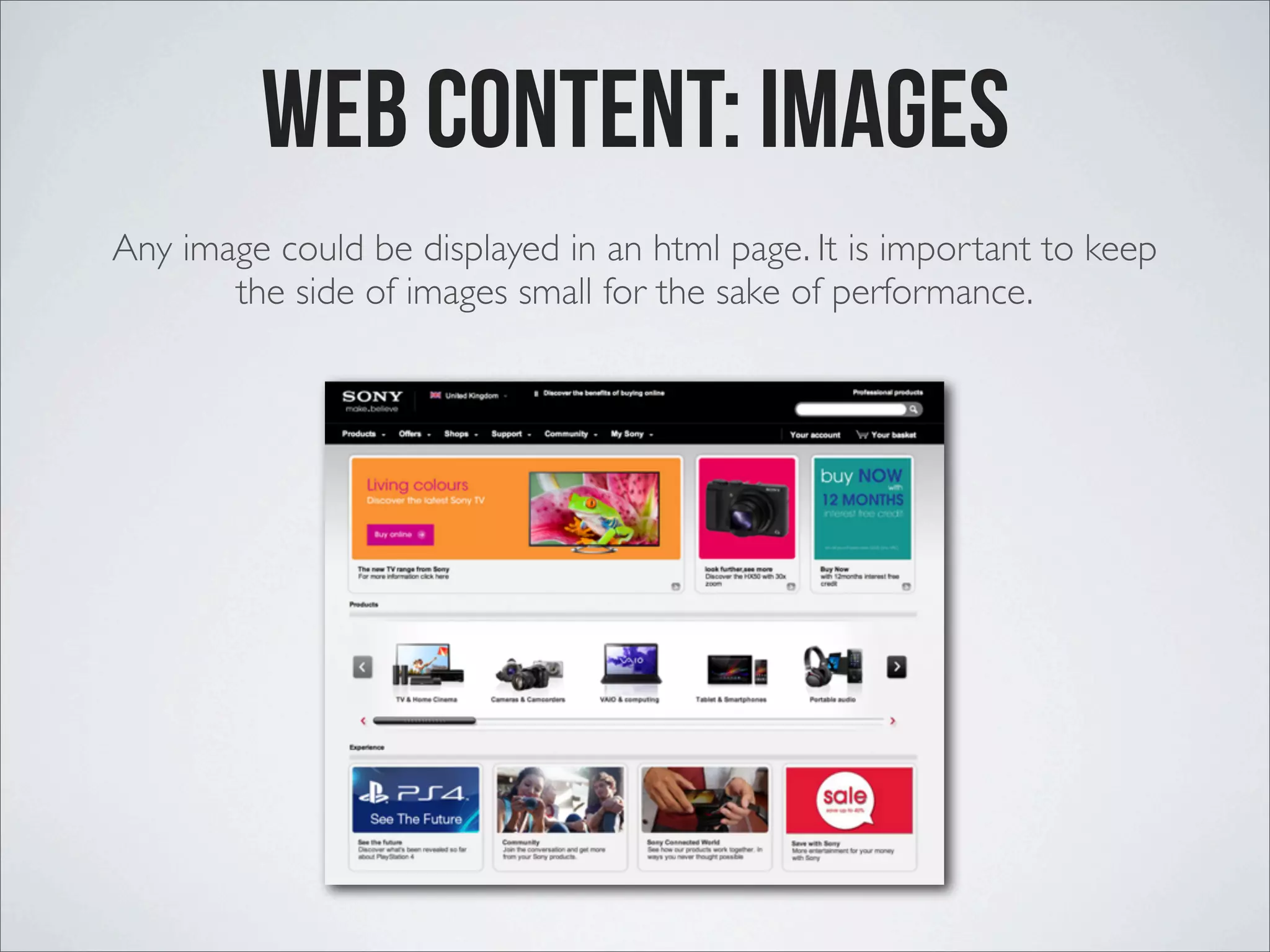

Web Content: IMAGES
Any image could be displayed in an html page. It is important to keep
the size of images small for the sake of performance.

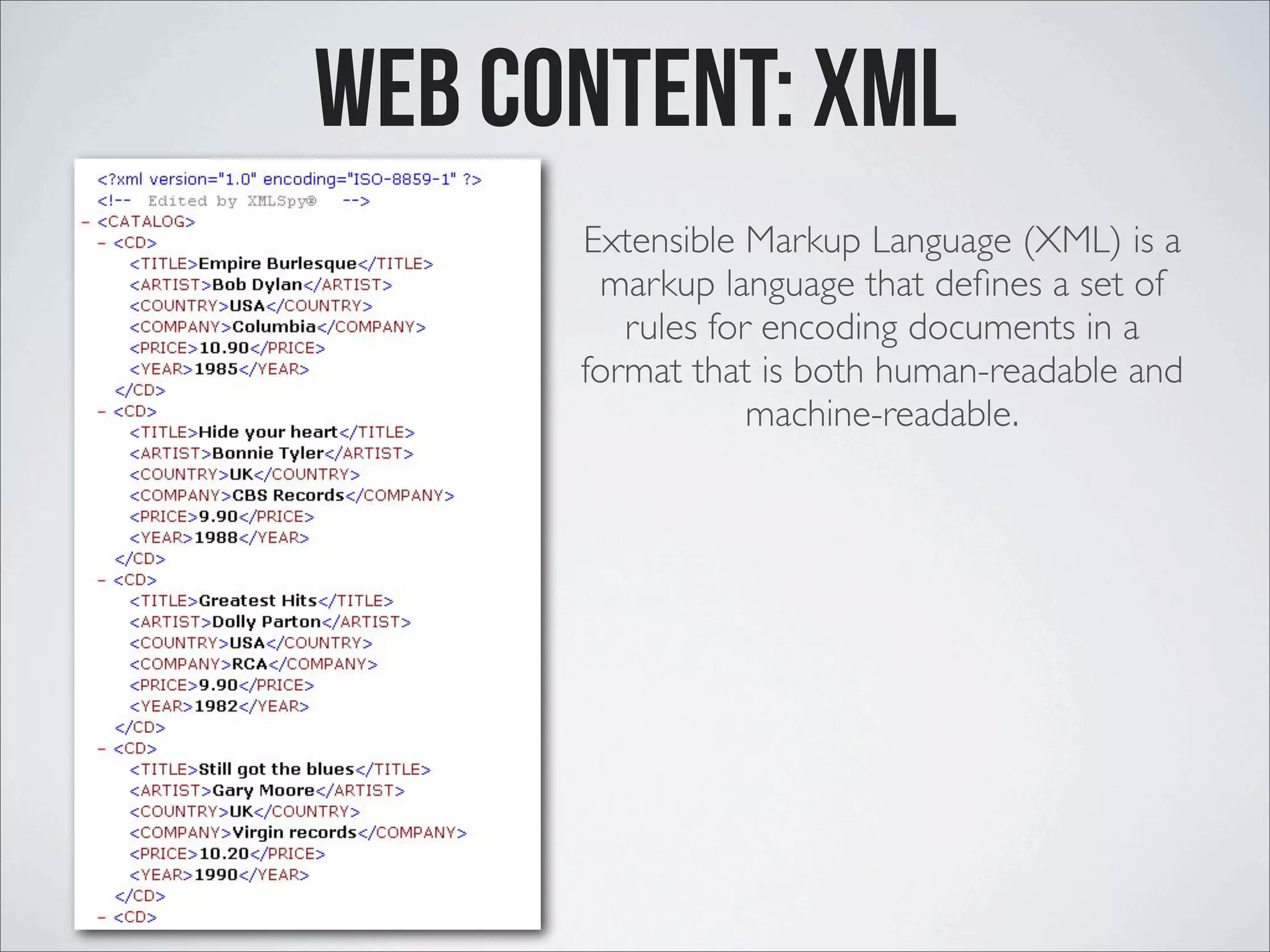

Web Content: XML
Extensible Markup Language (XML) is a
markup language that defines a set of
rules for encoding documents in a
format that is both human-readable and
machine-readable.

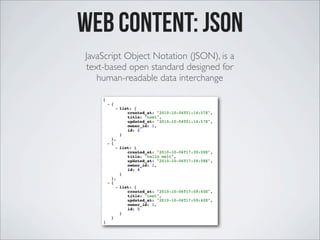

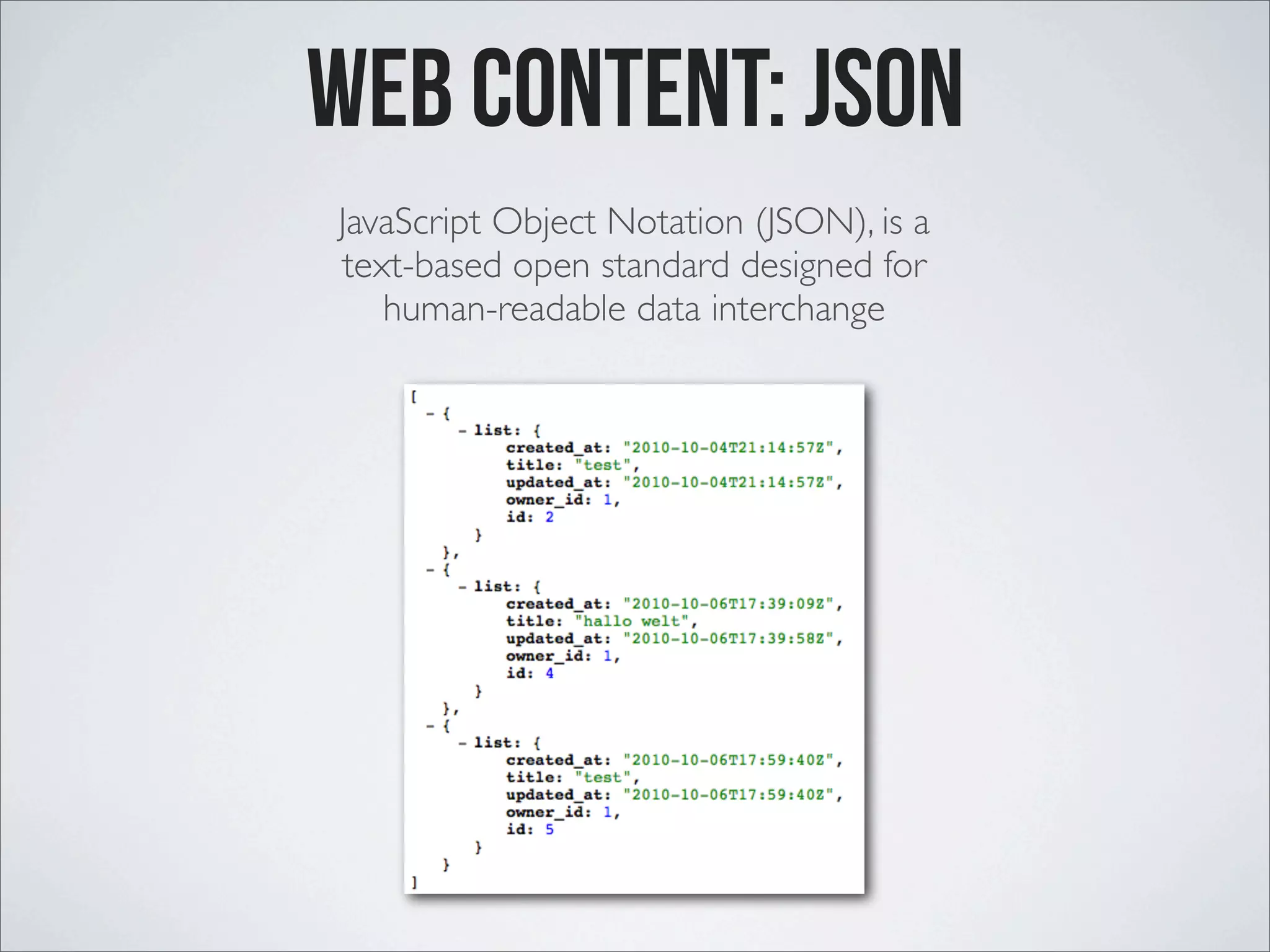

Web Content: JSON
JavaScript Object Notation (JSON), is a
text-based open standard designed for
human-readable data interchange

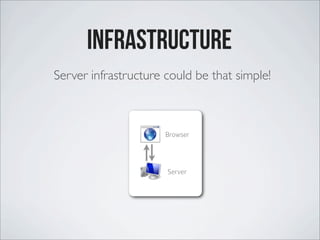

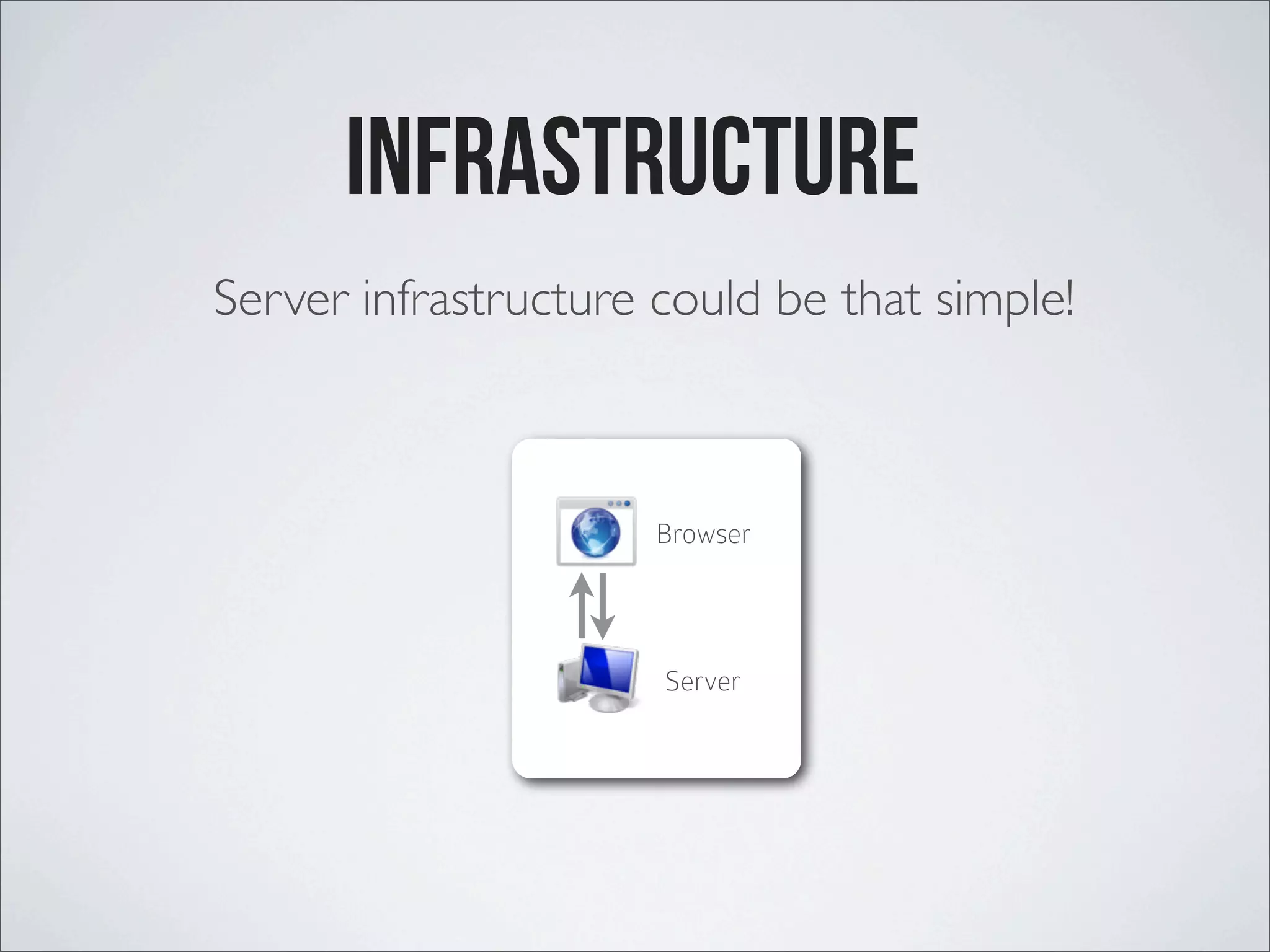

Server
Browser
Infrastructure
Server infrastructure could be that simple!

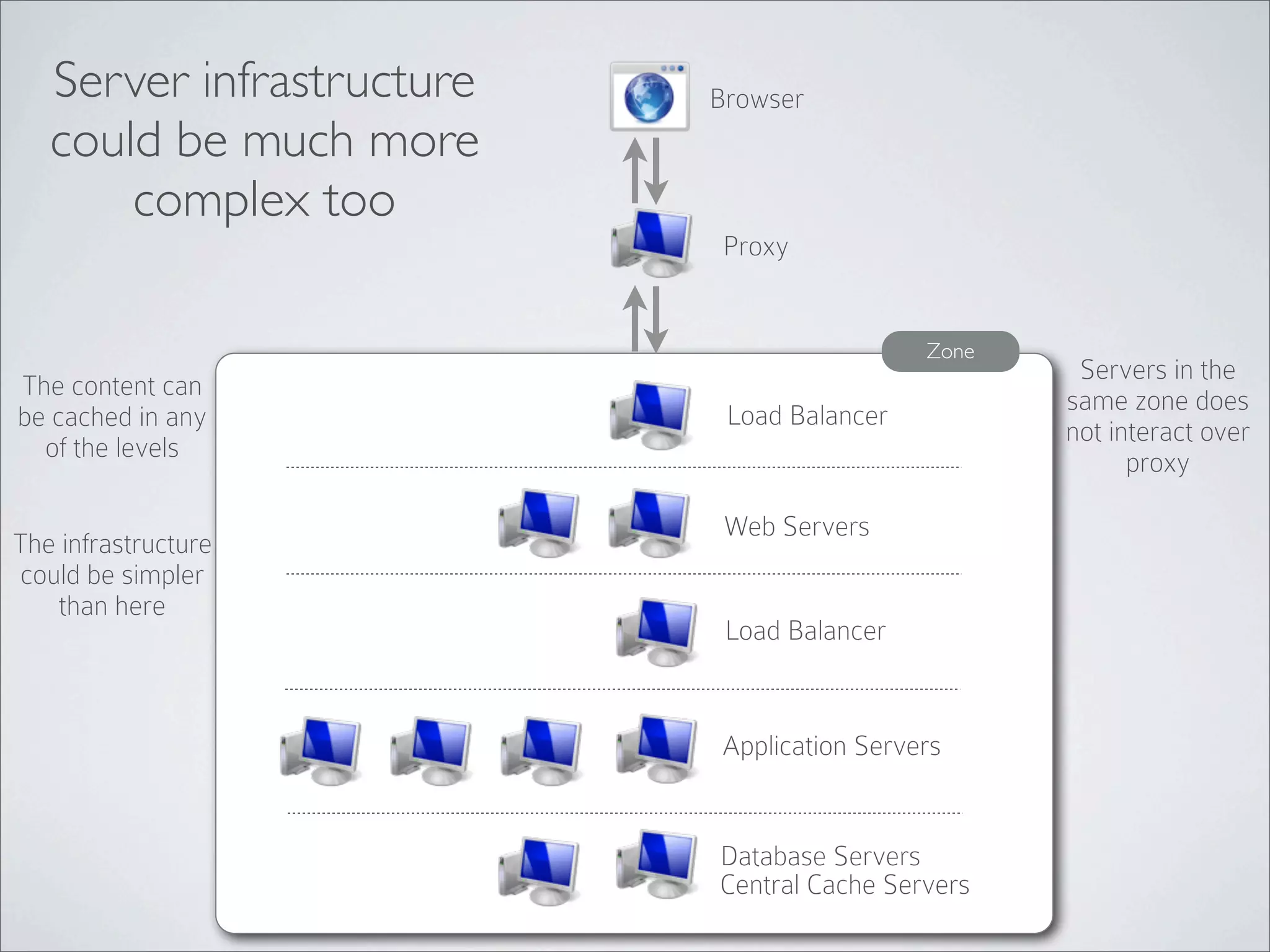

Load Balancer
Web Servers
Load Balancer
Application Servers
Database Servers
Proxy
Browser
Servers in the
same zone do not
interact over
proxy
Zone
The content can
be cached in any
of the levels
Central Cache Servers
The infrastructure
could be simpler
than here
Server infrastructure
could be much more
complex too
Client

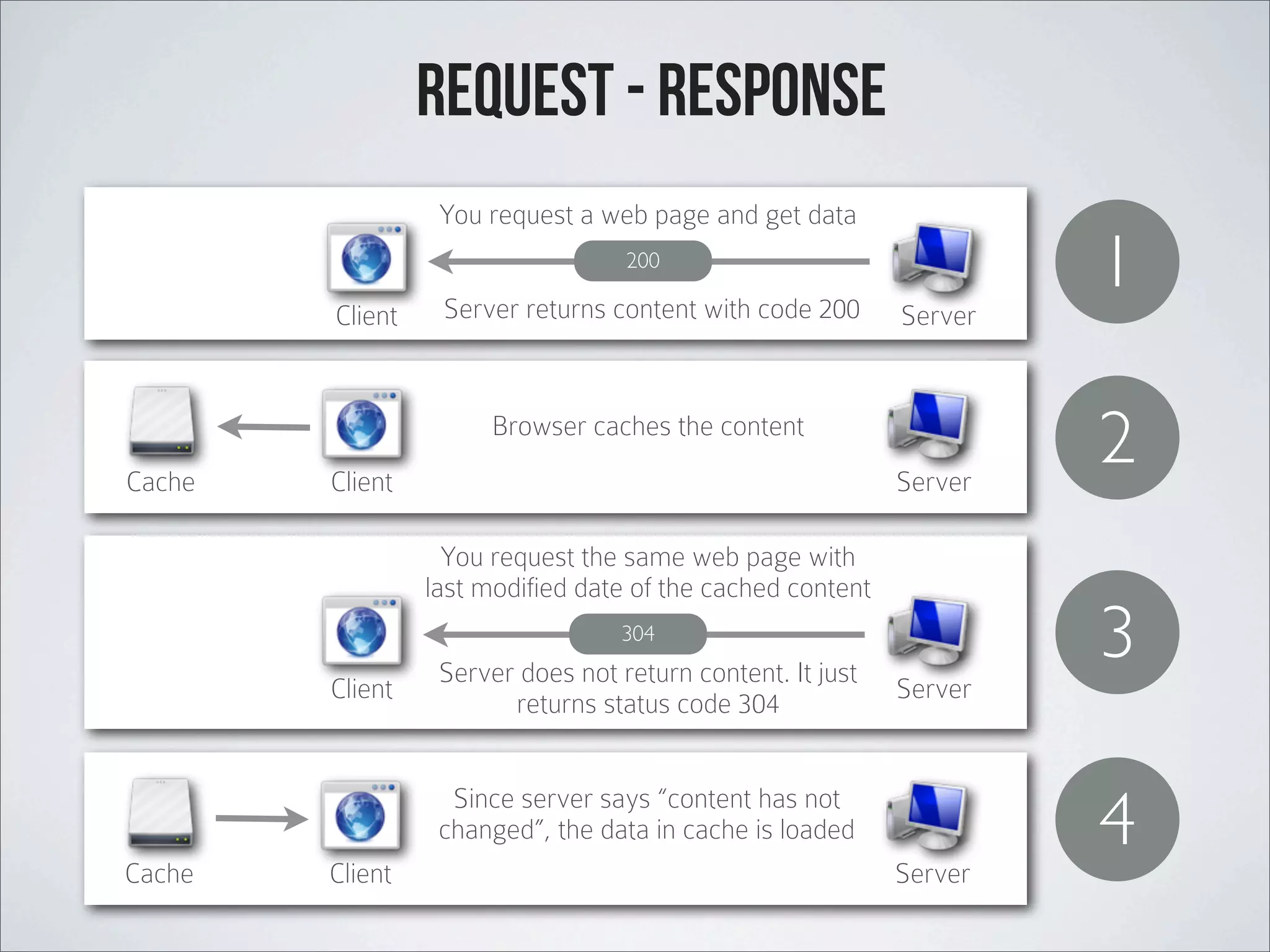

request - response
You request a web page and get data
Server
Client
Browser caches the content
ServerCache
200
Client
You request the same web page with
last modified date of the cached content
Server
304
Client
Since server says “content has not
changed”, the data in cache is loaded
ServerCache
1
2
3
4
Server does not return content. It just
returns status code 304
Server returns content with code 200

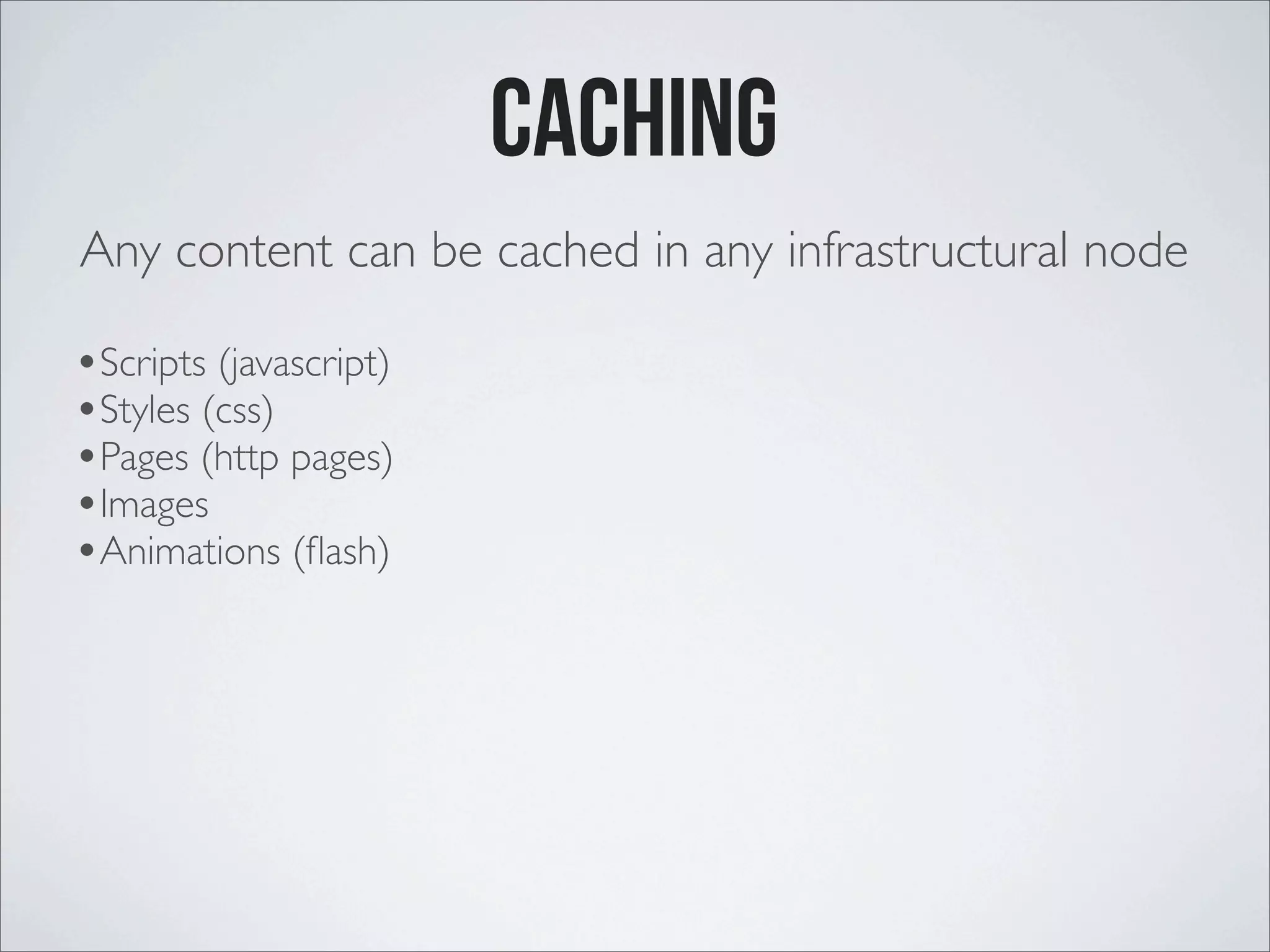

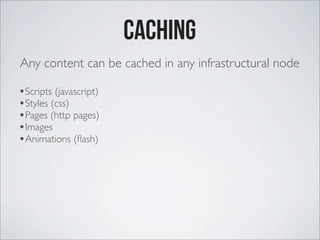

Caching
Any content can be cached in any infrastructural node
•Scripts (javascript)
•Styles (css)
•Pages (http pages)
•Images
•Animations (flash)
Load Balancer
Web Servers
Load Balancer
Application Servers
Database Servers
Proxy
Browser
Zone
Central Cache Servers

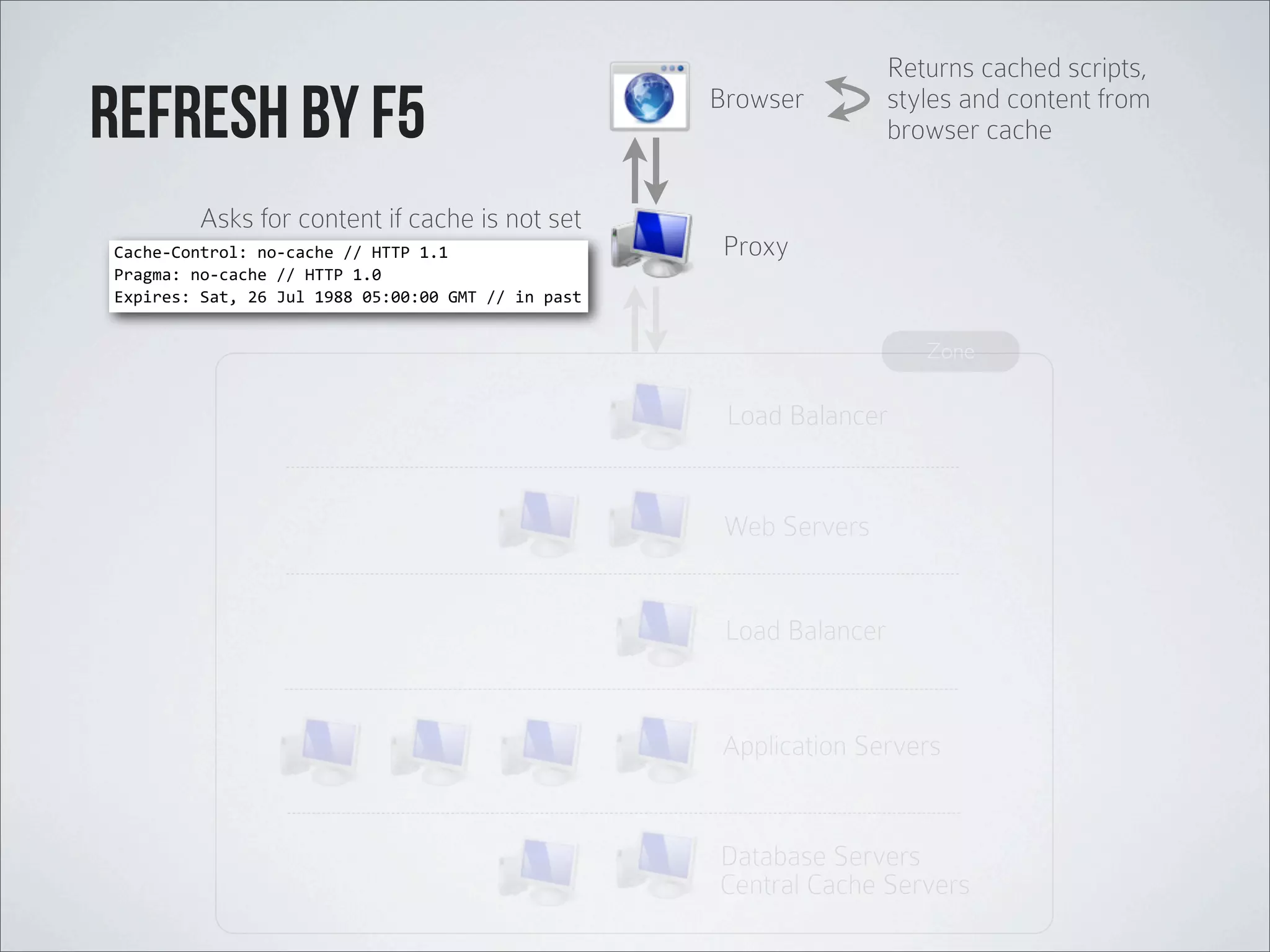

Returns cached scripts,
styles and content from

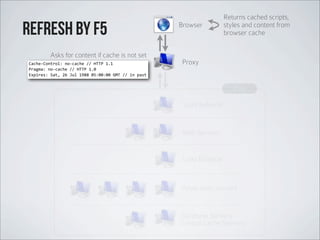

browser cacheRefresh By f5
Cache-­‐Control:  no-­‐cache  //  HTTP  1.1
Pragma:  no-­‐cache  //  HTTP  1.0
Expires:  Sat,  26  Jul  1988  05:00:00  GMT  //  in  past
Asks for content if cache is not set
Load Balancer
Web Servers
Load Balancer
Application Servers
Database Servers
Proxy
Browser
Zone
Central Cache Servers

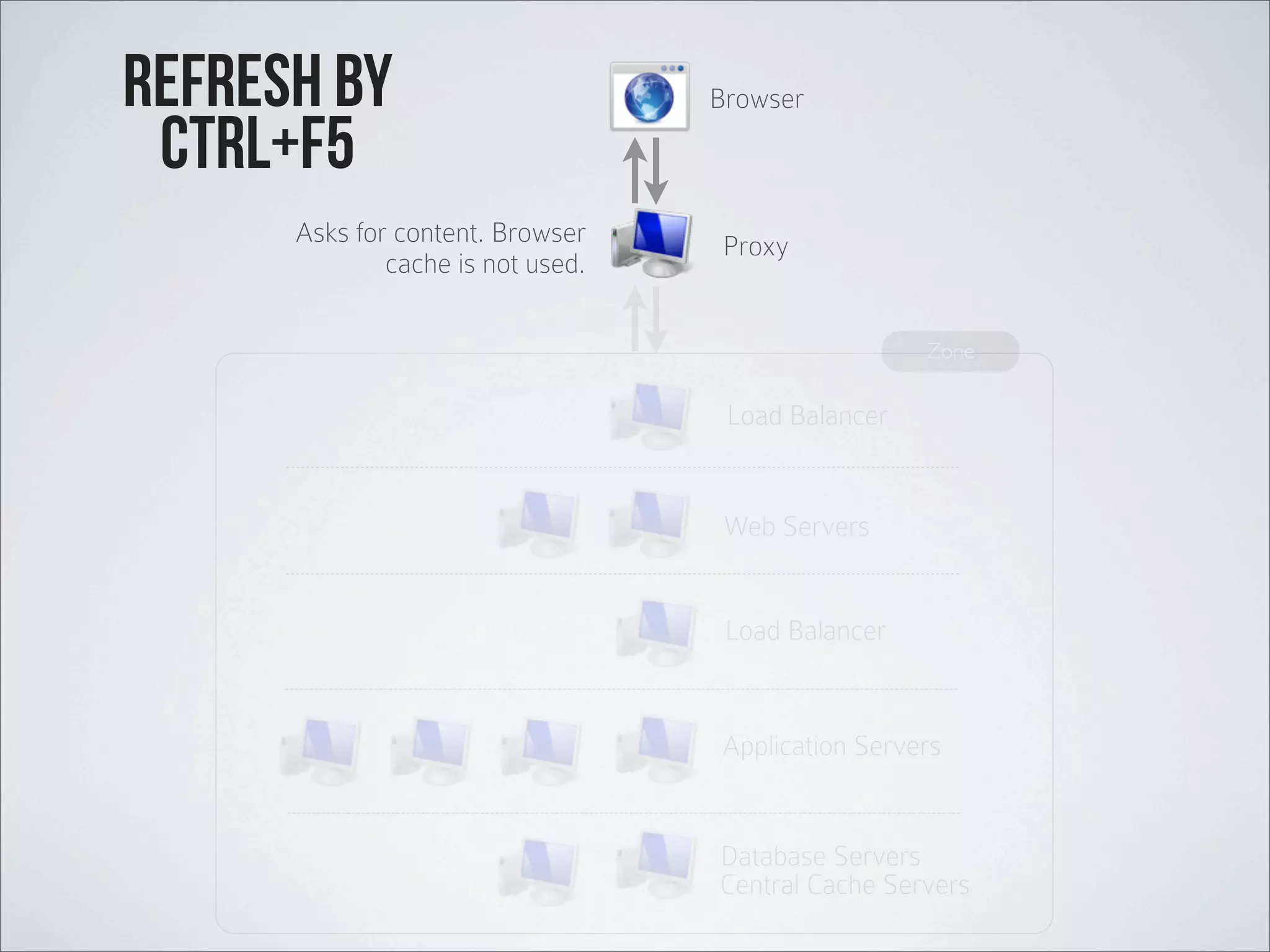

Refresh By
CTRL+f5
Asks for content. Browser
cache is not used.
Load Balancer
Web Servers
Load Balancer
Application Servers
Database Servers
Proxy
Browser
Zone
Central Cache Servers

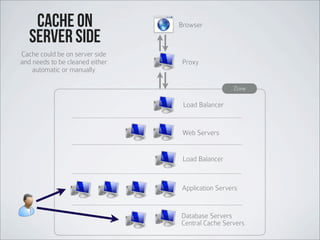

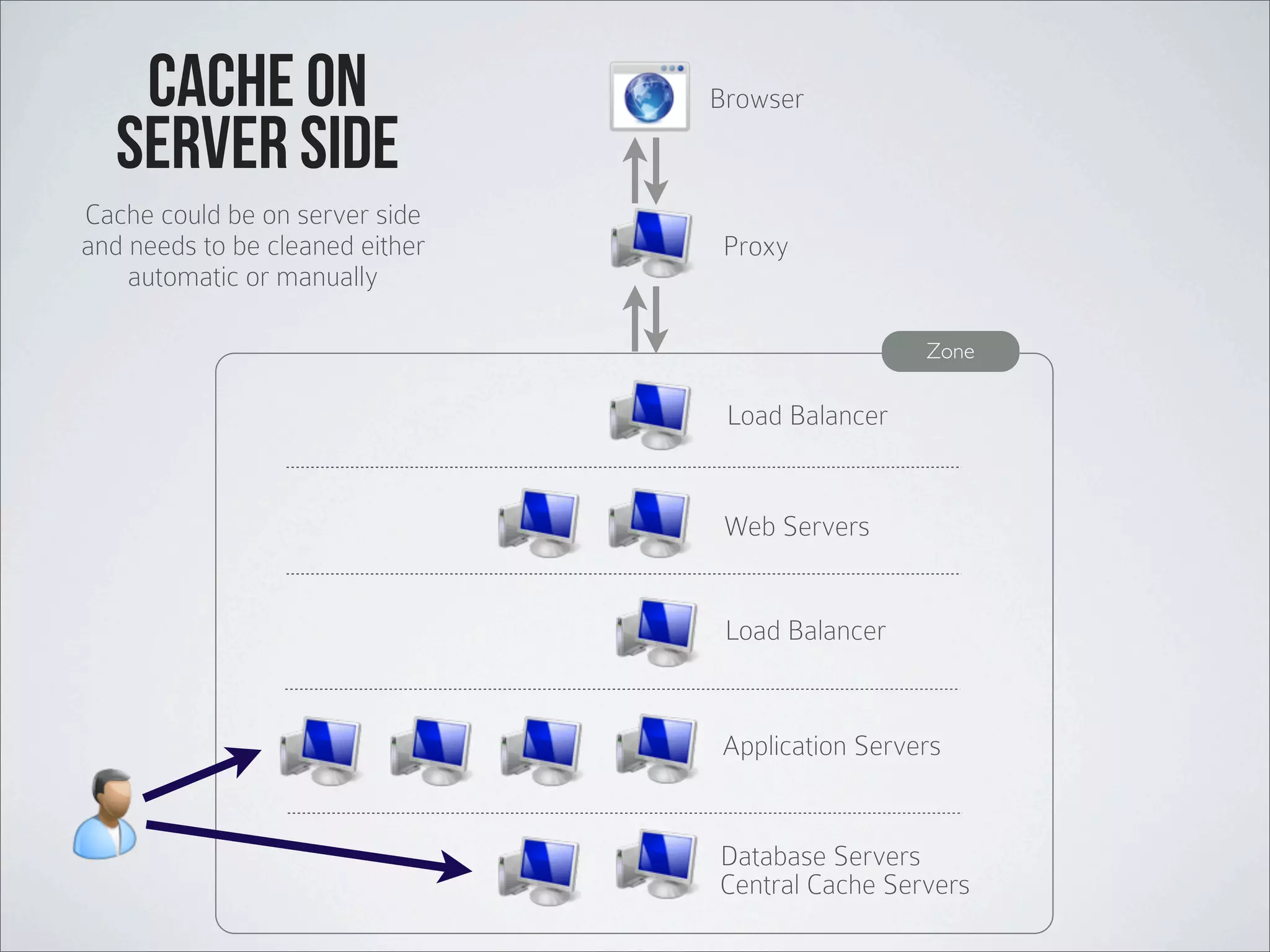

cache on
server side
Cache could be on server side
and needs to be cleaned either
automatic or manually

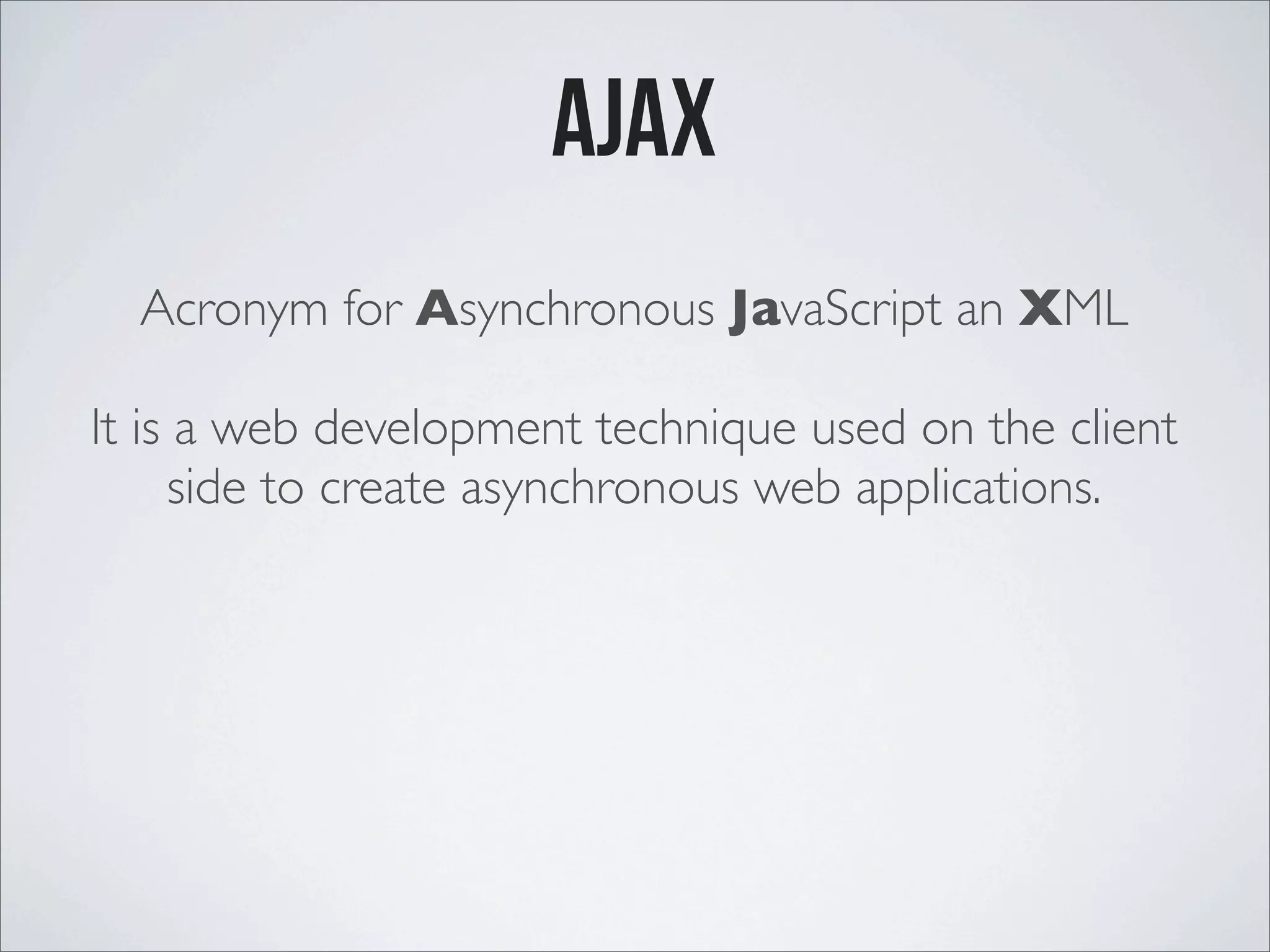

ajax
Acronym for Asynchronous JavaScript and XML
It is a web development technique used on the client
side to create asynchronous web applications.

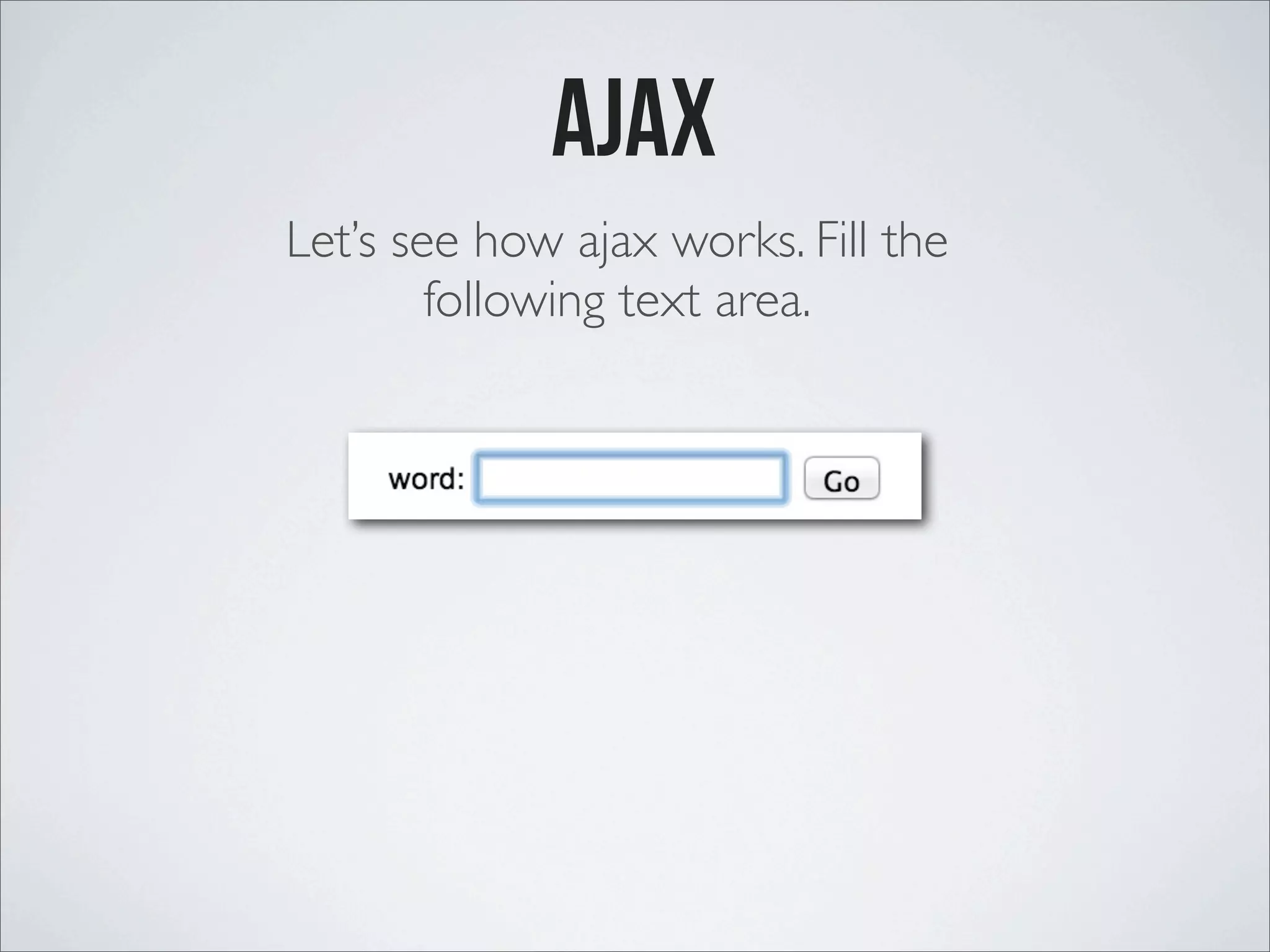

ajax

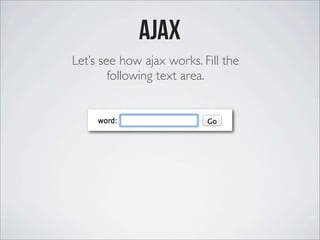

Let’s see how ajax works. Fill the
following text area.
ajax

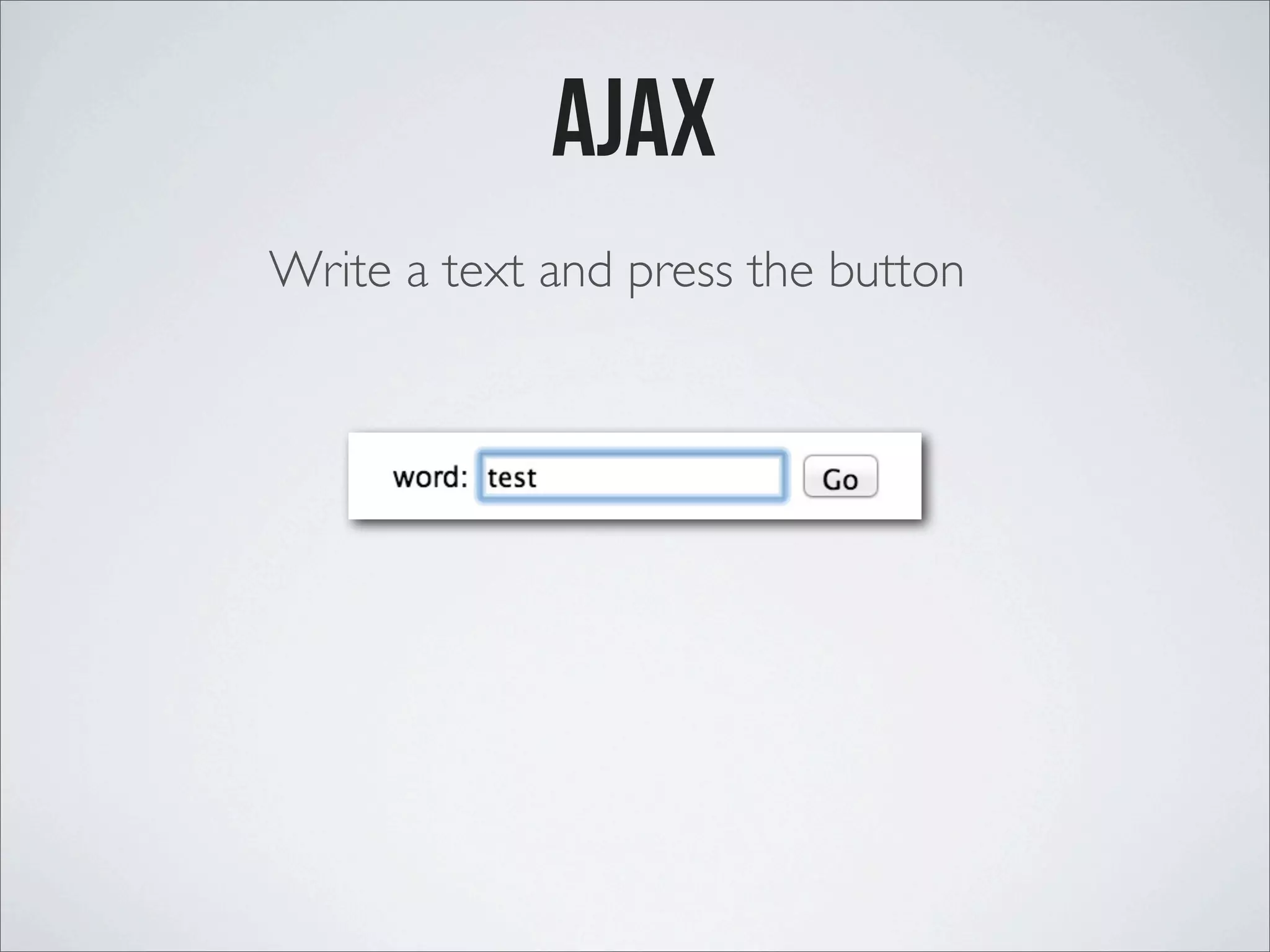

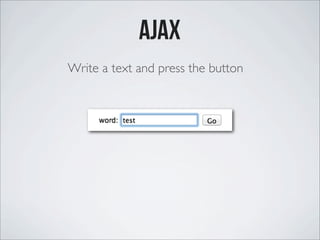

Write a text and press the button

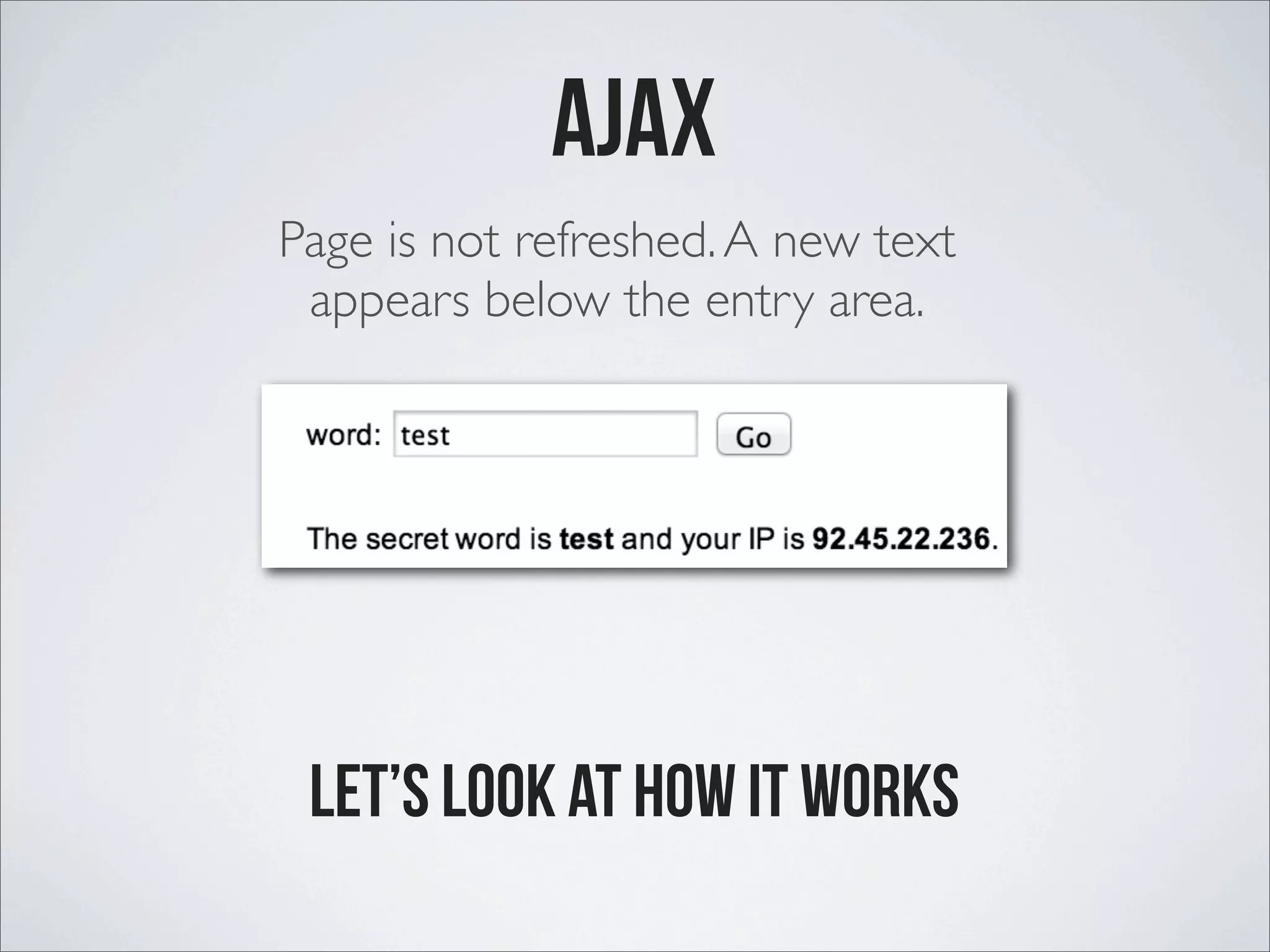

ajax
Page is not refreshed.A new text
appears below the entry area.
Let’s look at how it works

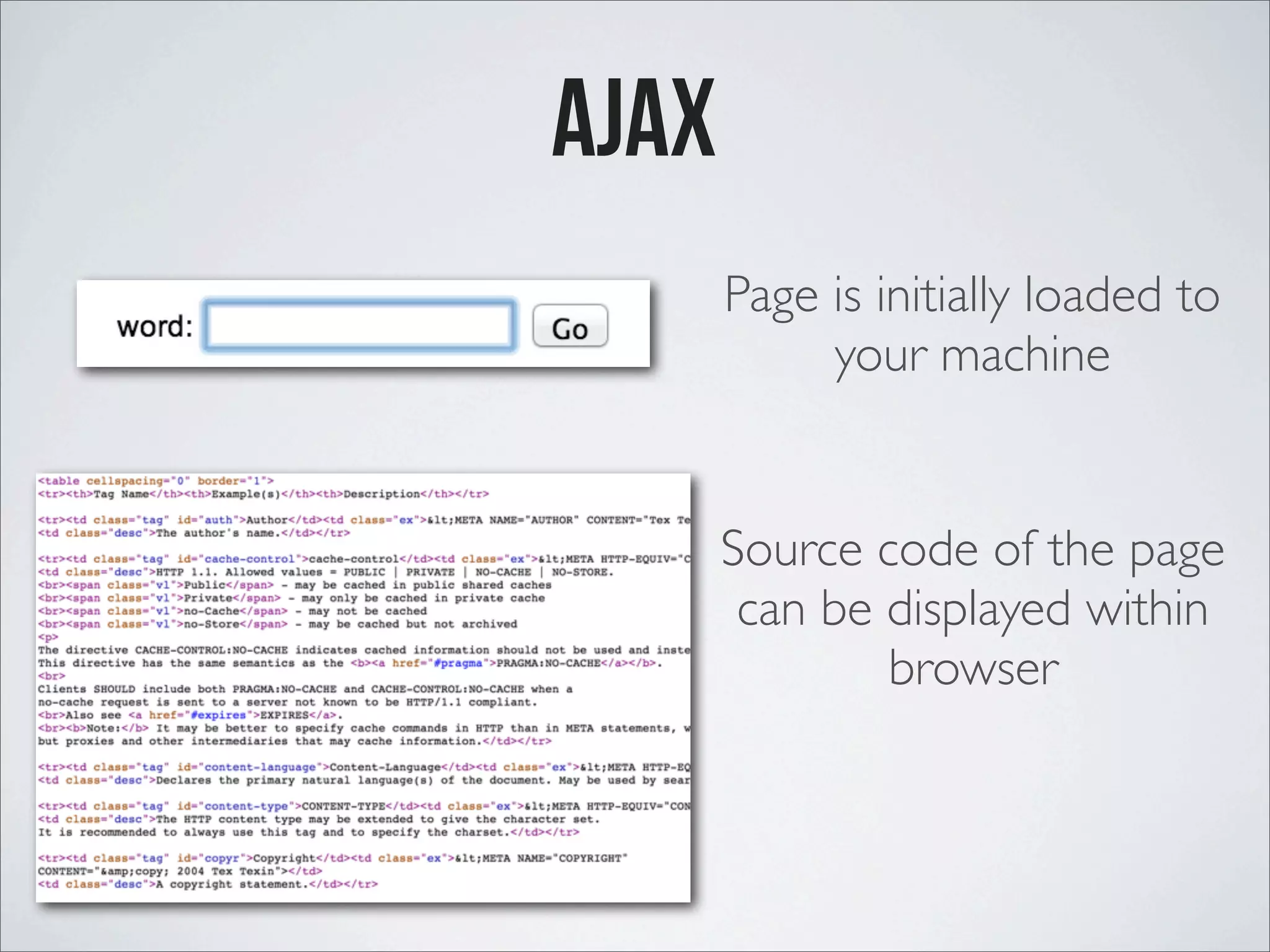

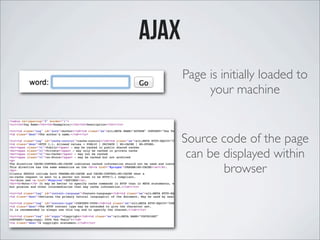

ajax
Page is initially loaded to
your machine
Source code of the page
can be displayed within
browser

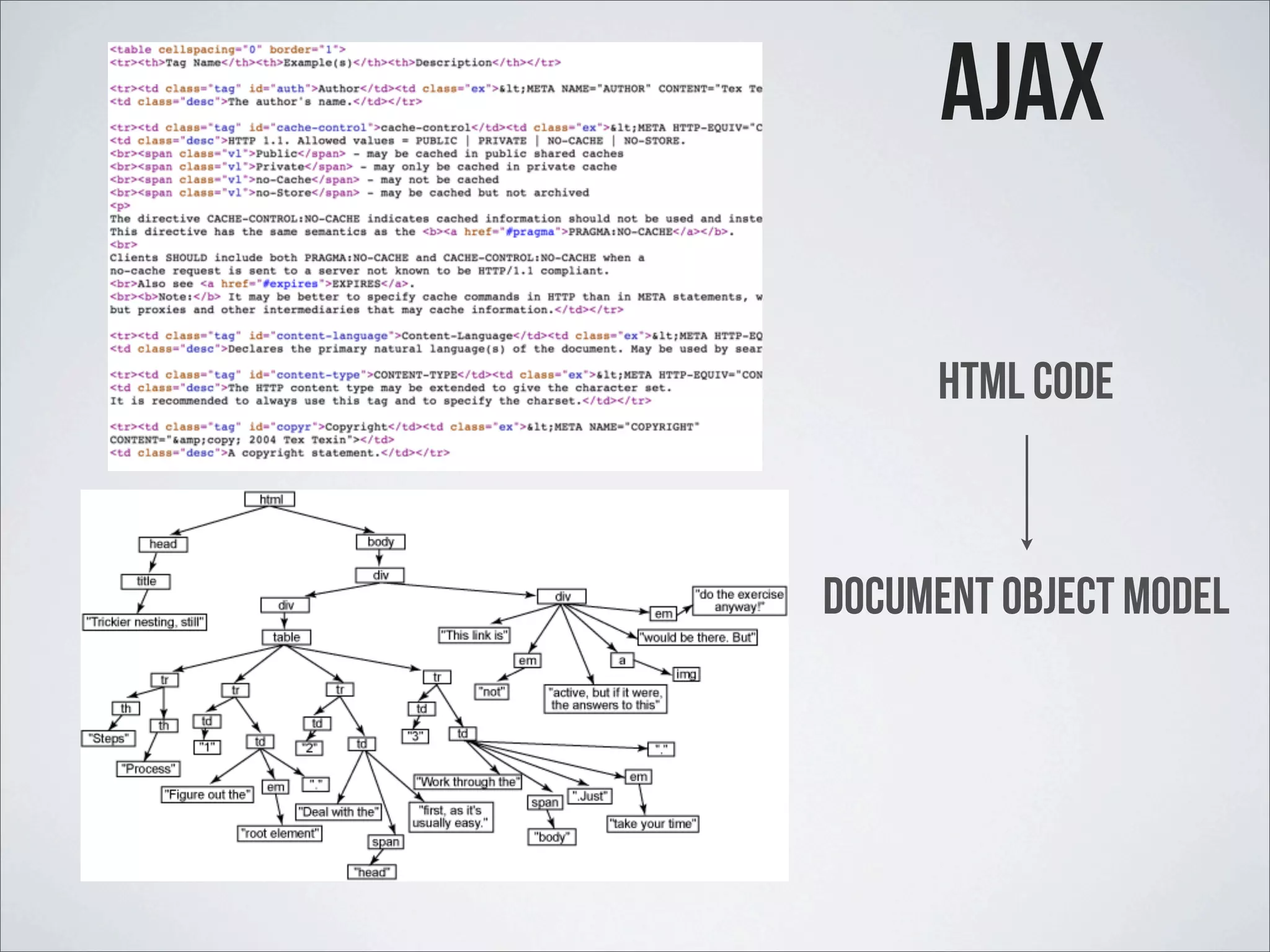

HTML Code
Document Object model
ajax

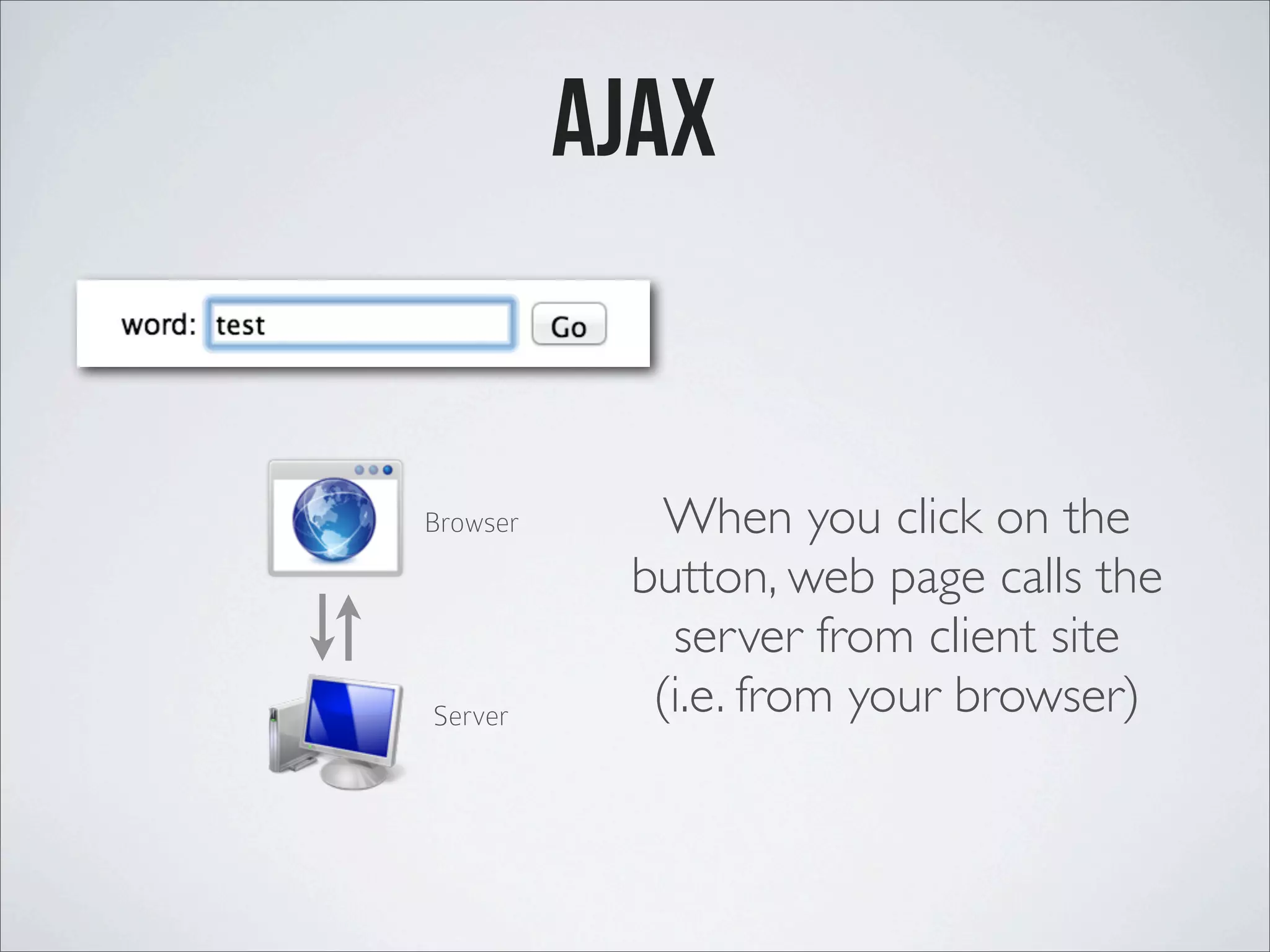

ajax
When you click on the
button, web page calls the
server from client site
(i.e. from your browser)Server
Browser
ajax

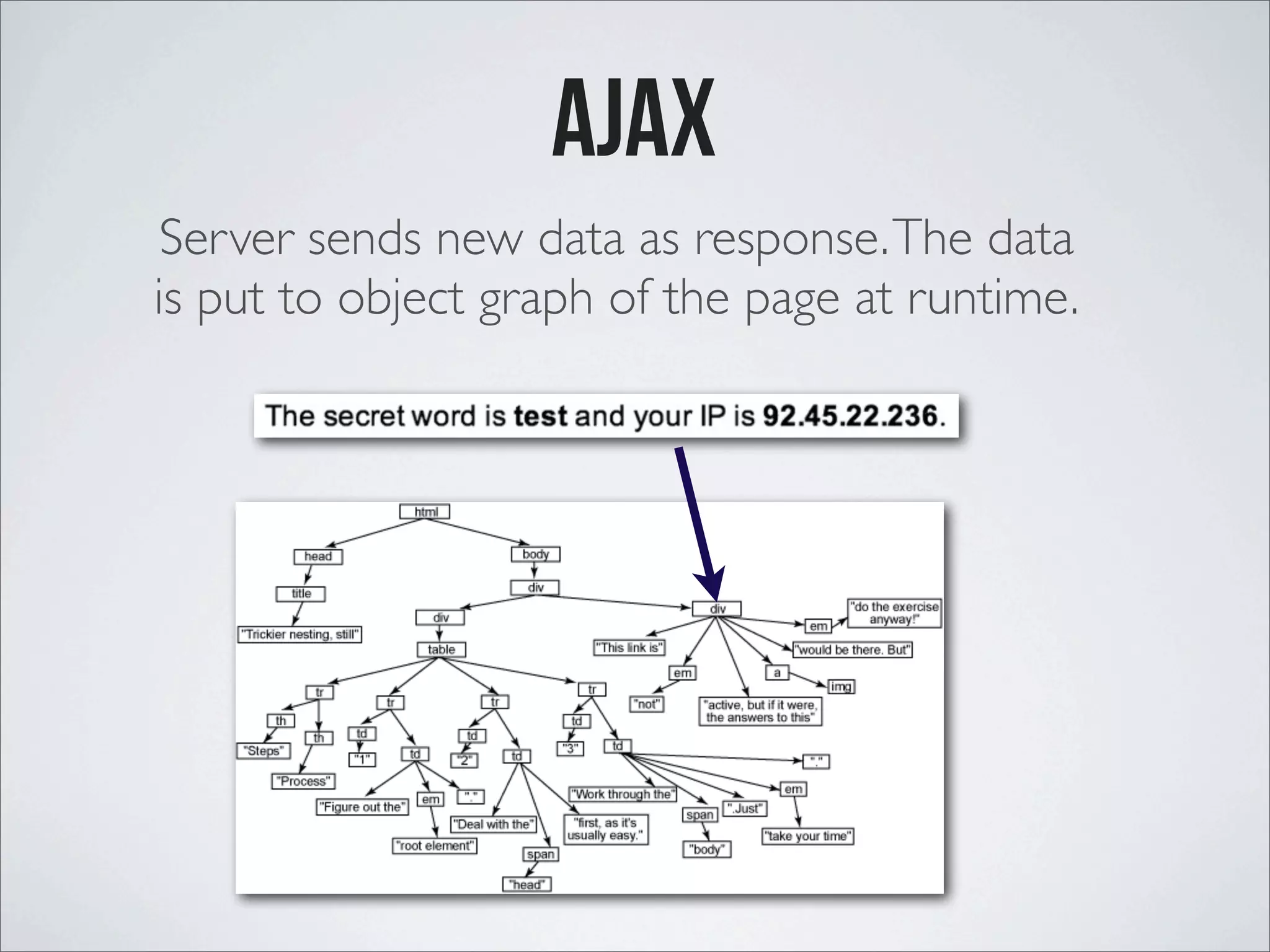

Server sends new data as response.The data
is put to object graph of the page at runtime.

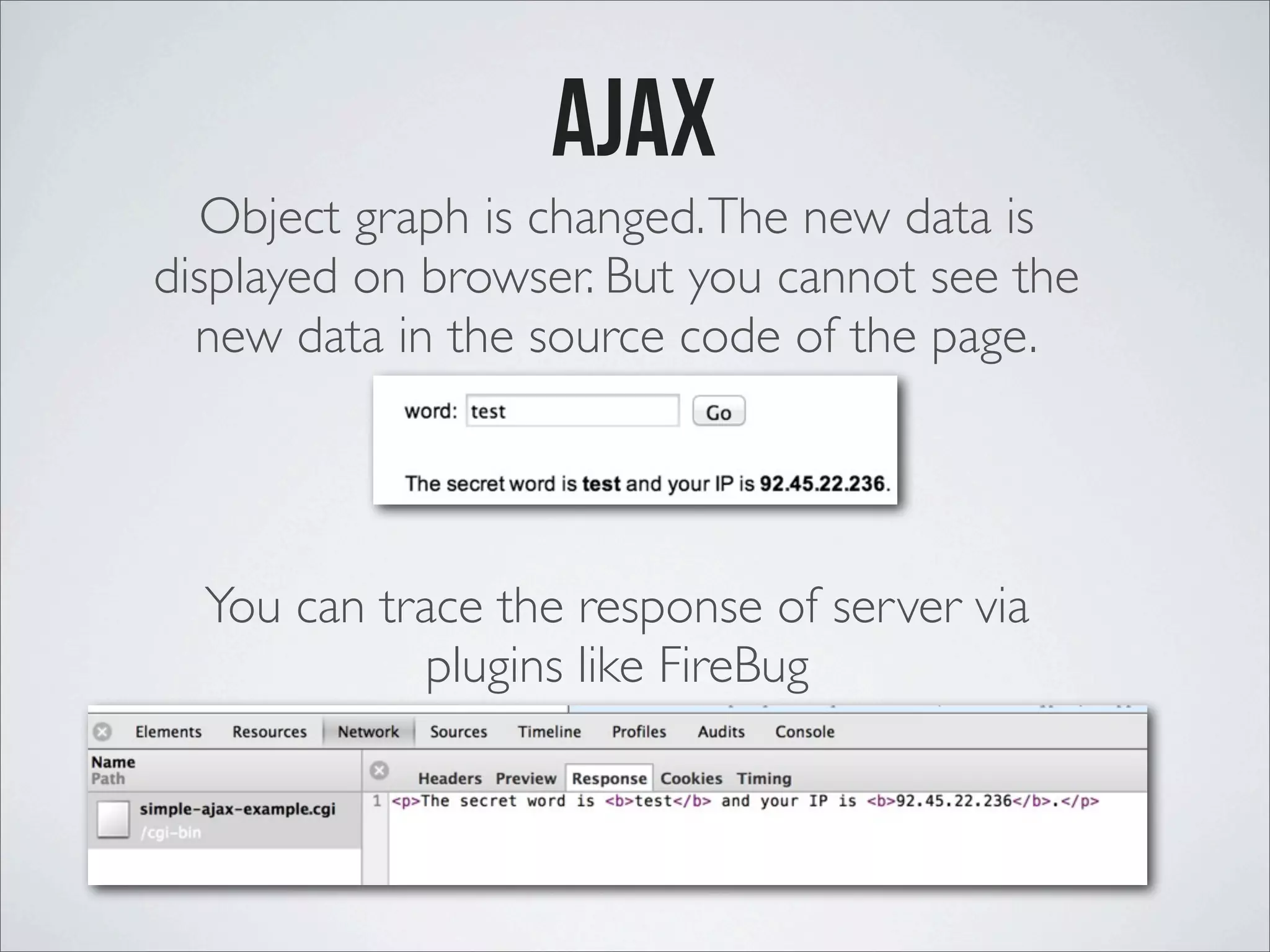

ajax
Object graph is changed.The new data is
displayed on browser. But you cannot see the
new data in the source code of the page.
You can trace the response of server via
plugins like FireBug

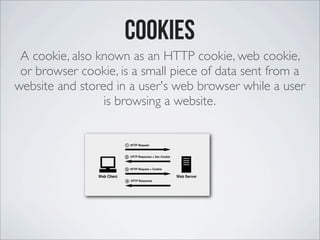

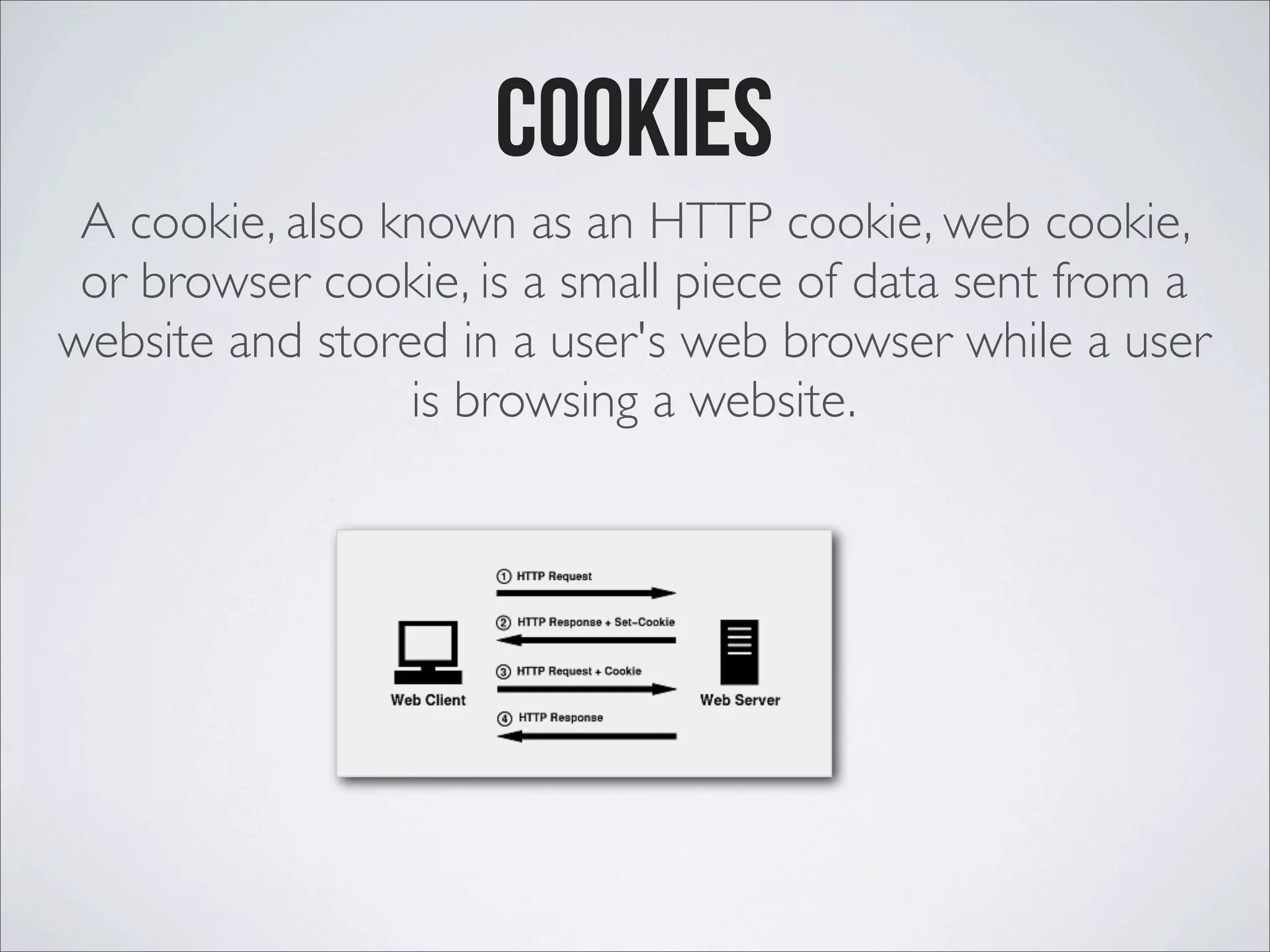

Cookies
A cookie, also known as an HTTP cookie, web cookie,
or browser cookie, is a small piece of data sent from a
website and stored in a user's web browser while a user
is browsing a website.

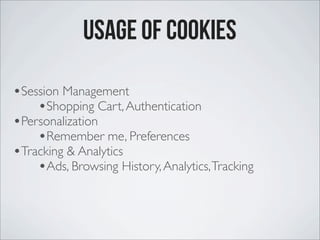

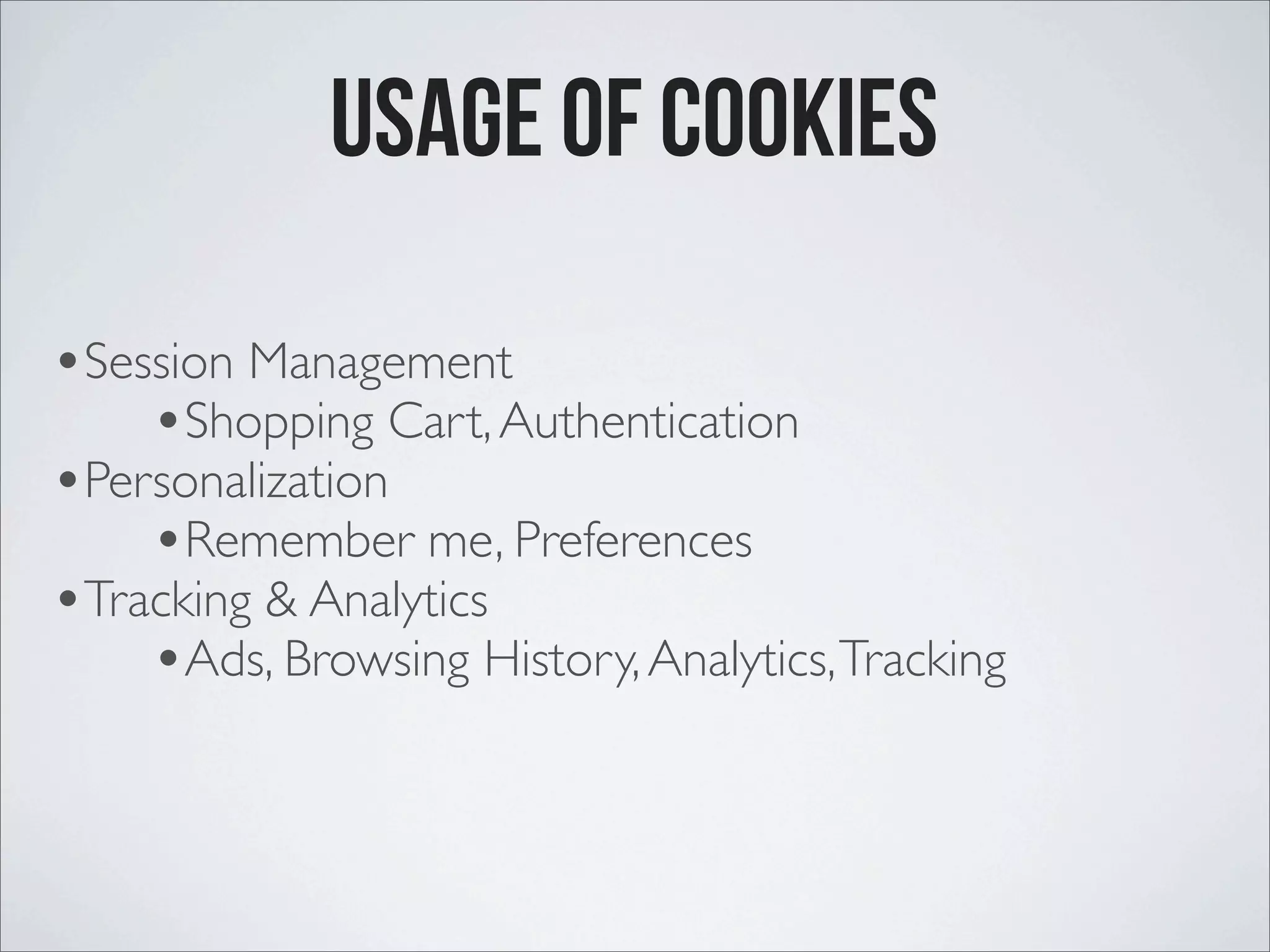

Usage of Cookies
•Session Management
•Shopping Cart,Authentication
•Personalization
•Remember me, Preferences
•Tracking & Analytics
•Ads, Browsing History,Analytics,Tracking

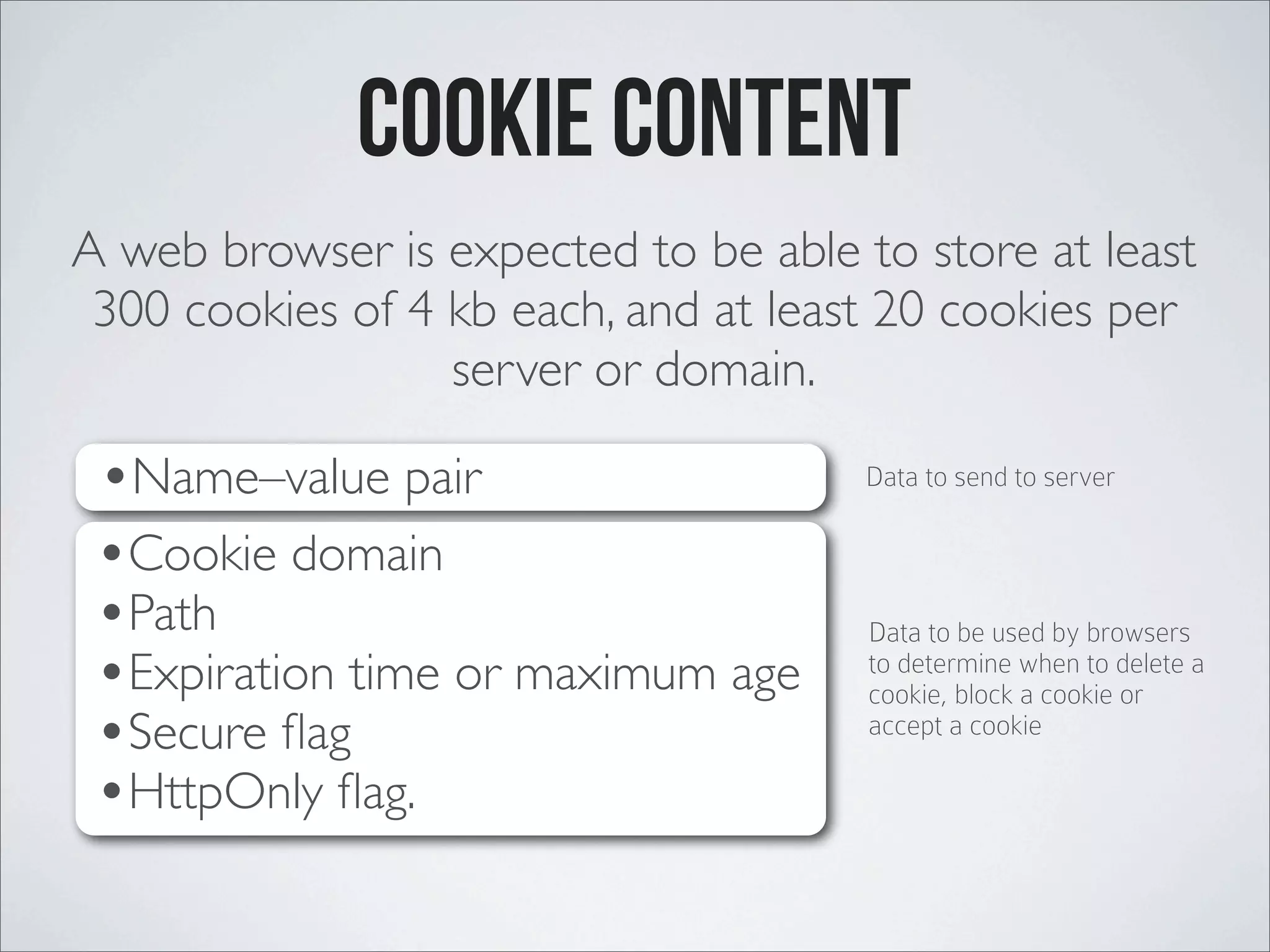

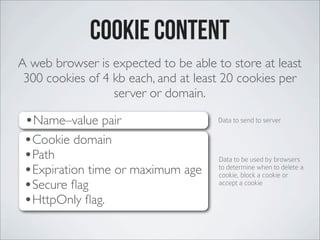

Cookie Content
A web browser is expected to be able to store at least
300 cookies of 4 kb each, and at least 20 cookies per
server or domain.
•Cookie domain
•Path
•Expiration time or maximum age
•Secure flag
•HttpOnly flag.
•Name–value pair Data to send to server
Data to be used by browsers
to determine when to delete a
cookie, block a cookie or
accept a cookie

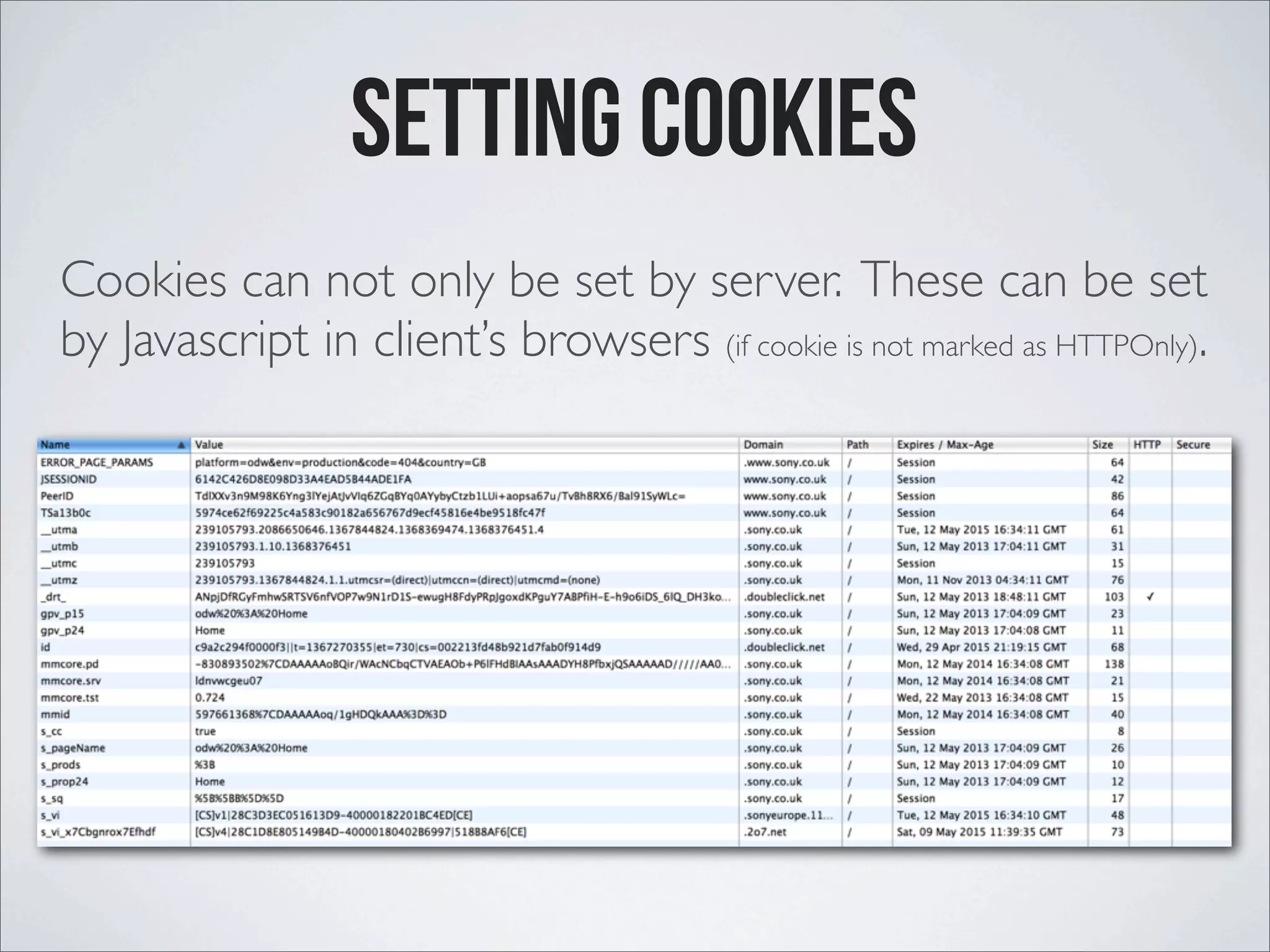

Setting Cookies
Cookies can not only be set by server. These can be set
by Javascript in client’s browsers (if cookie is not marked as HTTPOnly).

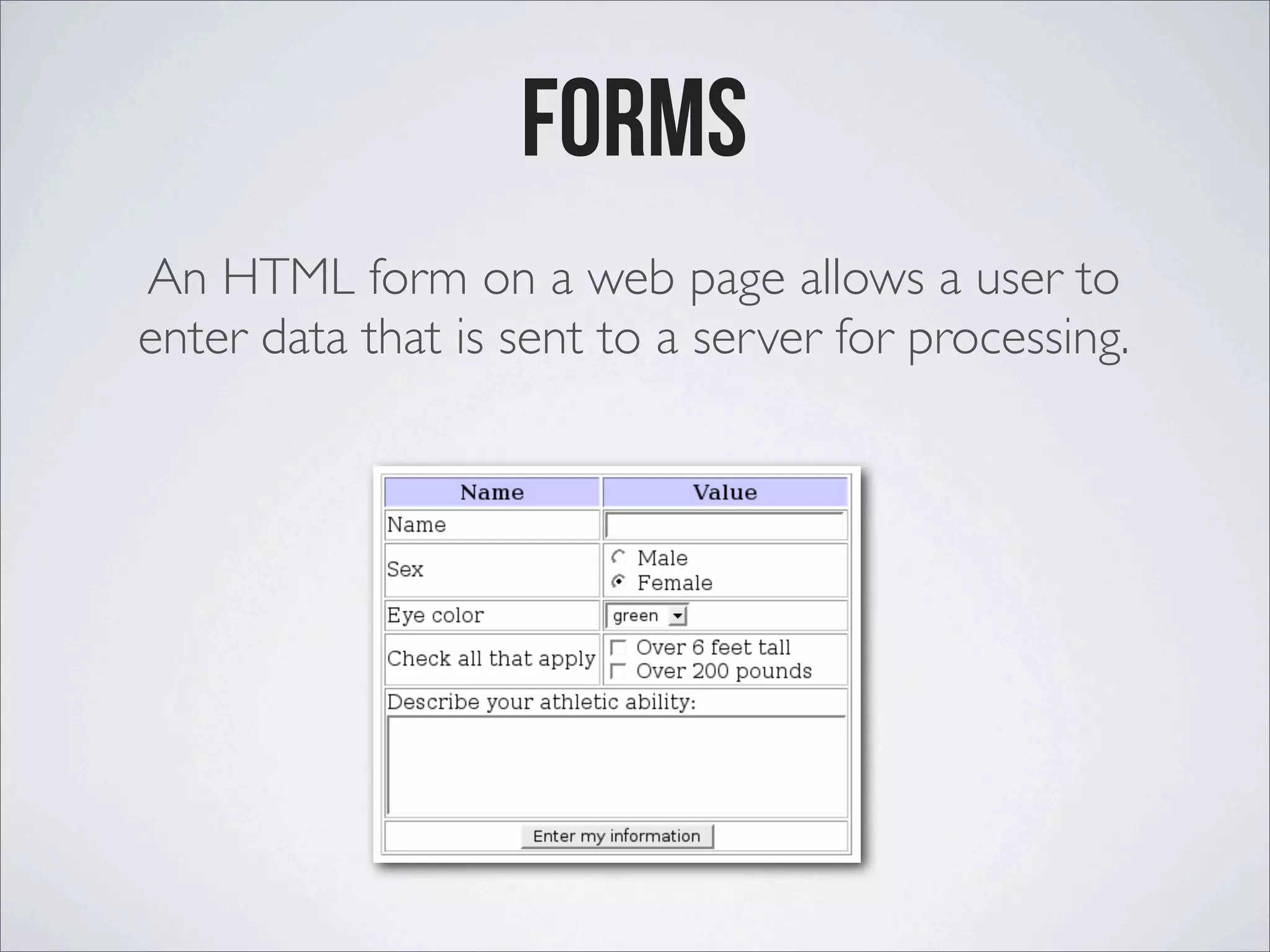

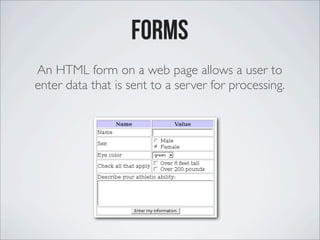

Forms
An HTML form on a web page allows a user to
enter data that is sent to a server for processing.

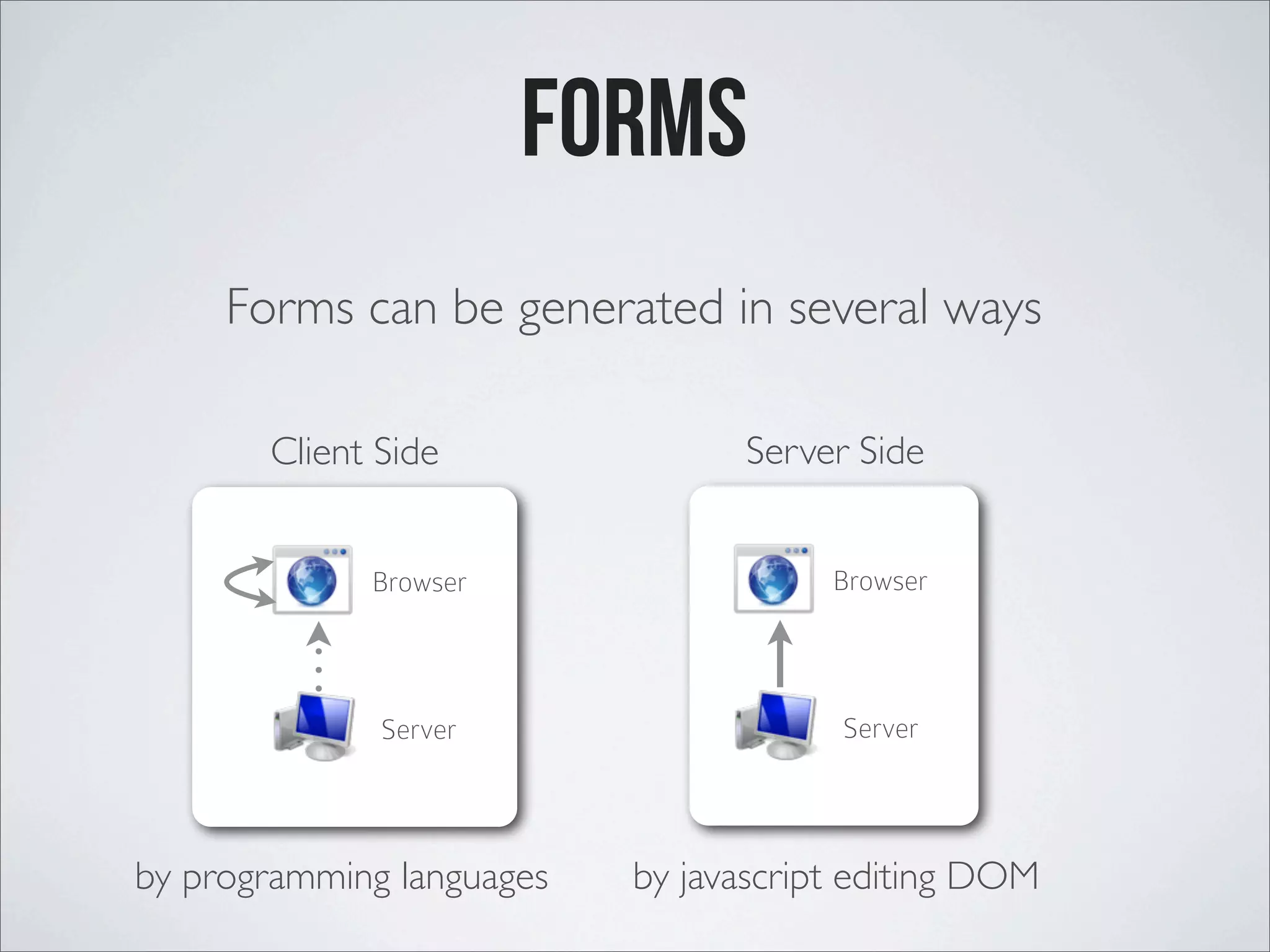

Forms
Forms can be generated in several ways
Server
Browser
Client Side
Server
Browser
Server Side
by programming languagesby javascript editing DOM

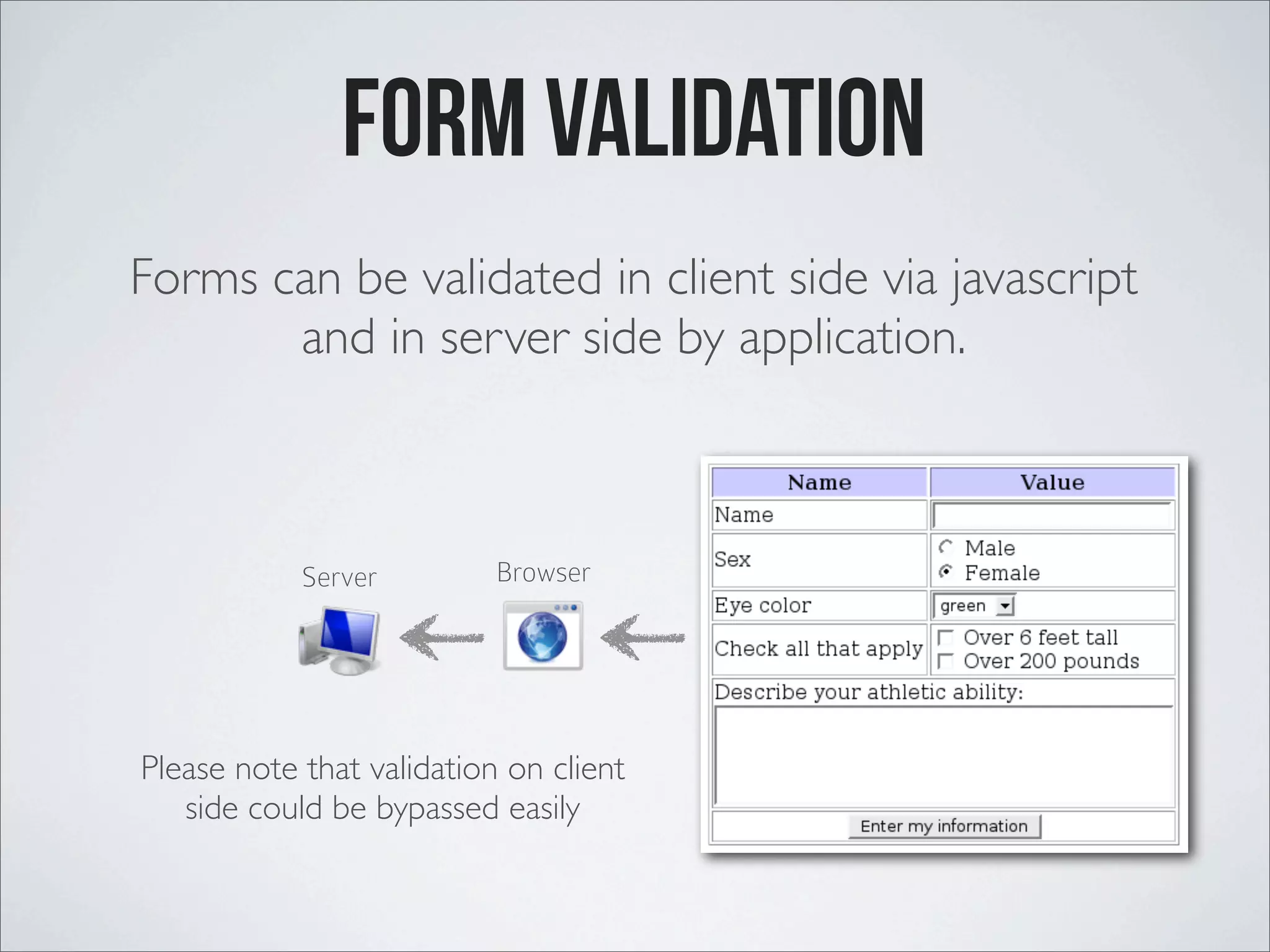

Form Validation
Forms can be validated in client side via javascript
and in server side by application.
Server Browser
Please note that validation on client
side could be bypassed easily

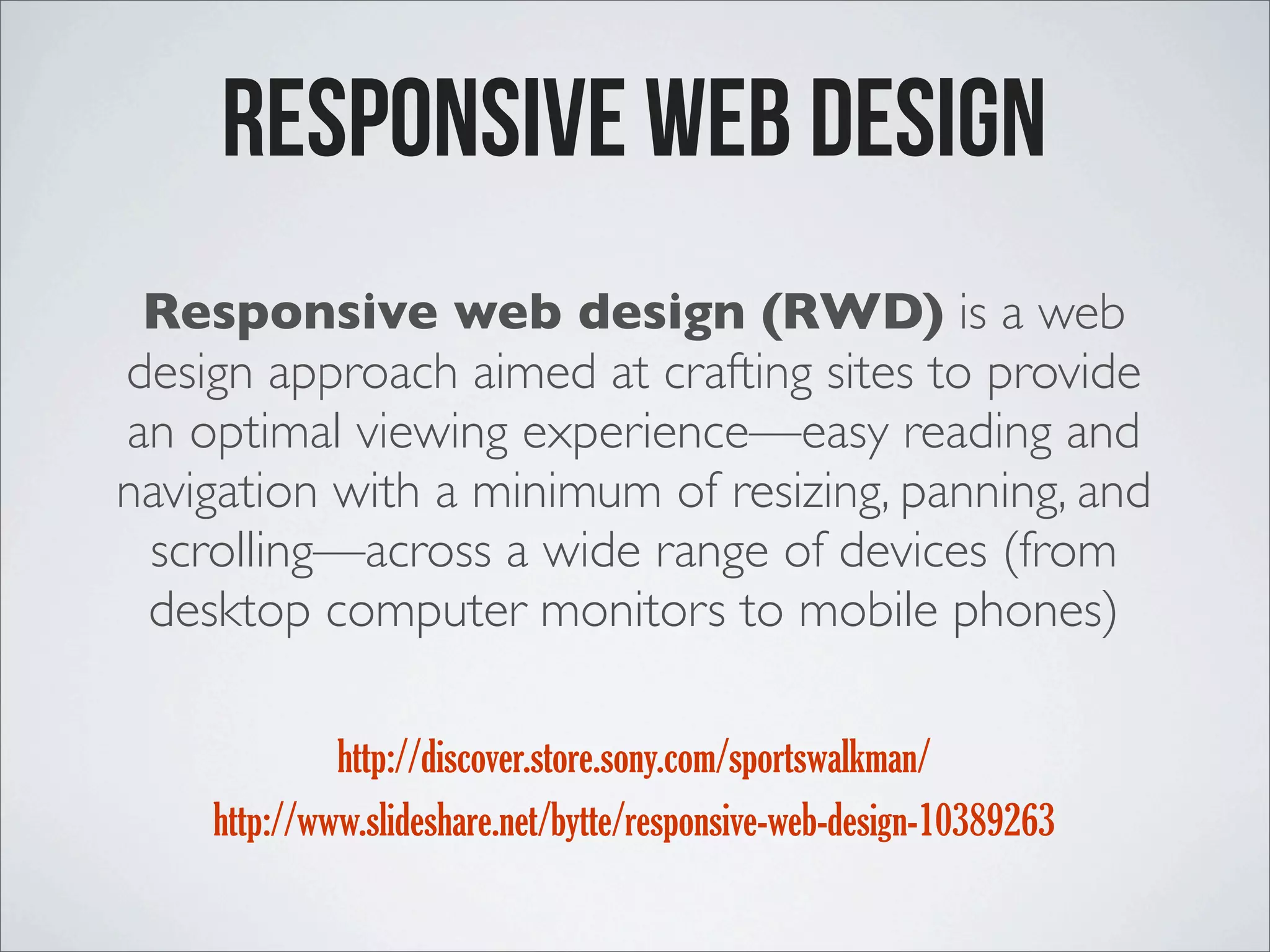

Responsive web design
Responsive web design (RWD) is a web
design approach aimed at crafting sites to provide
an optimal viewing experience—easy reading and
navigation with a minimum of resizing, panning, and
scrolling—across a wide range of devices (from
desktop computer monitors to mobile phones)
http://discover.store.sony.com/sportswalkman/
http://www.slideshare.net/bytte/responsive-web-design-10389263

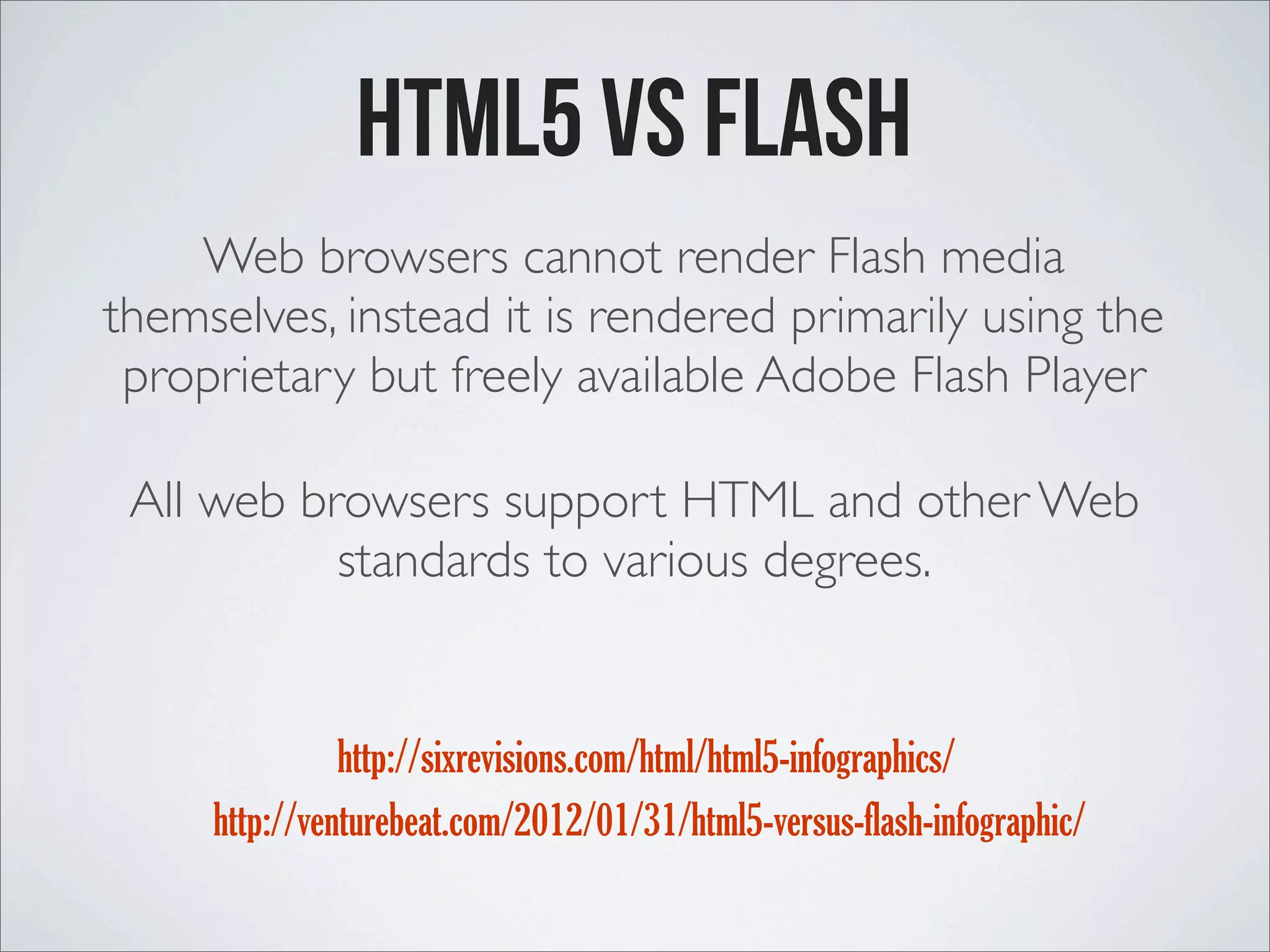

HTML5 vs FLASH
Web browsers cannot render Flash media
themselves, instead it is rendered primarily using the
proprietary but freely available Adobe Flash Player
http://sixrevisions.com/html/html5-infographics/
http://venturebeat.com/2012/01/31/html5-versus-flash-infographic/
All web browsers support HTML and other Web
standards to various degrees.

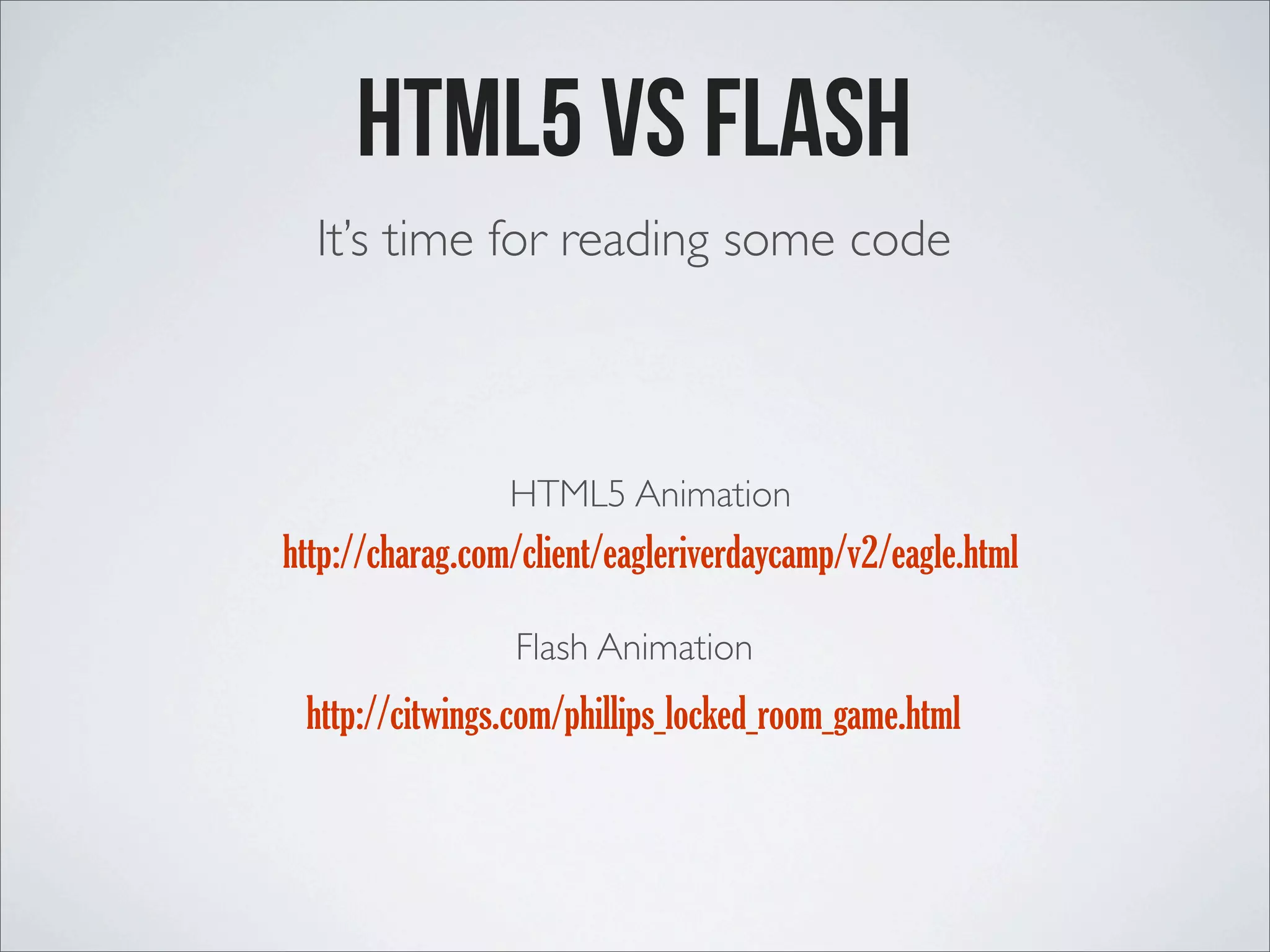

HTML5 vs FLASH
It’s time for reading some code
http://charag.com/client/eagleriverdaycamp/v2/eagle.html
http://citwings.com/phillips_locked_room_game.html
HTML5 Animation
Flash Animation

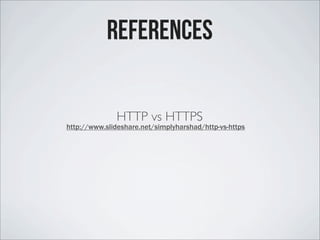

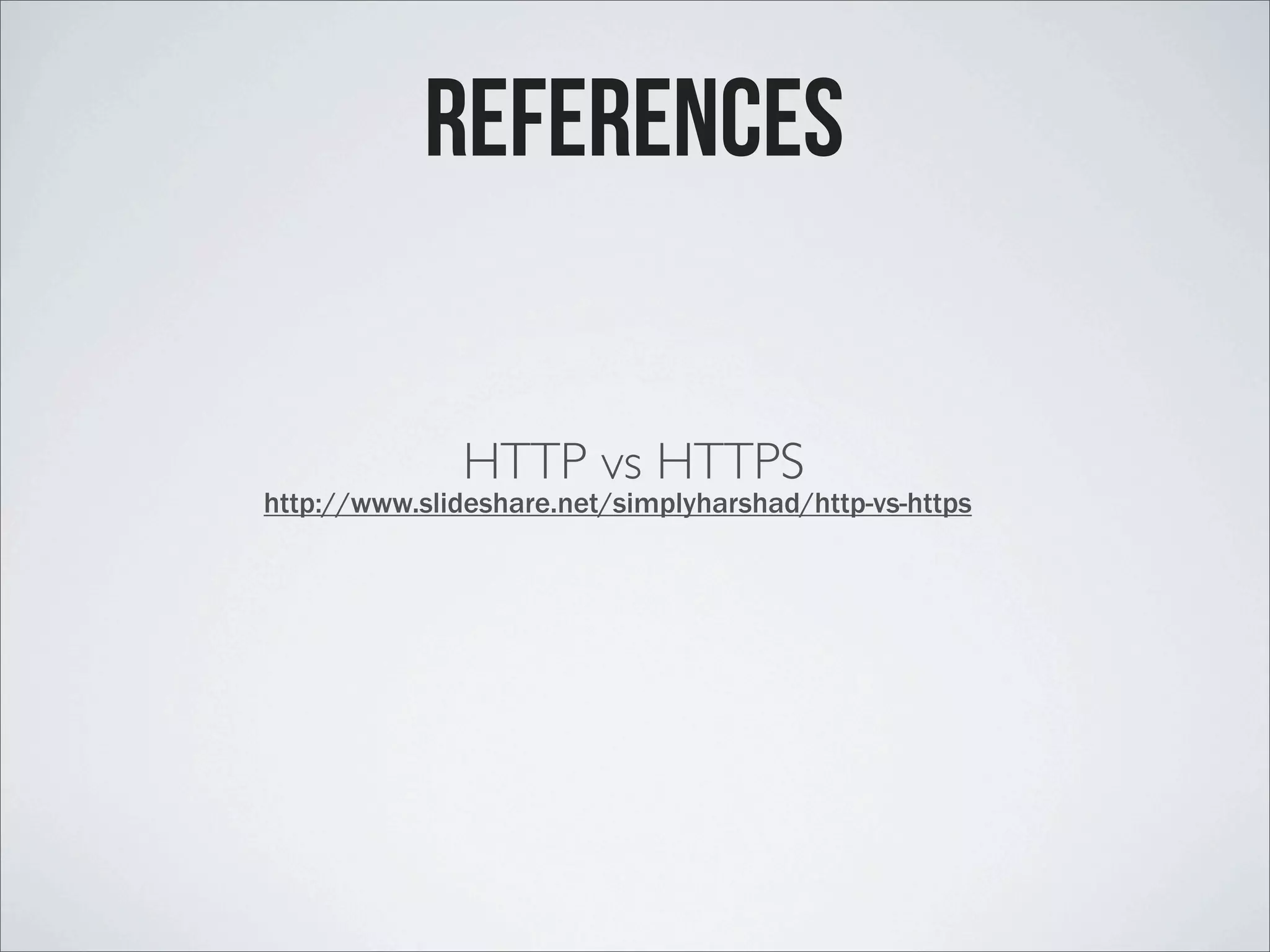

References
http://www.slideshare.net/simplyharshad/http-vs-https
HTTP vs HTTPS
Lemİ orhan ergİn
lemiorhan@agilistanbul.com
@lemiorhan
@lemiorhan
agilistanbul.com
@lemiorhan
LINKEDINTWITTERSLIDESHAREBLOGGER
Principal Software Engineer @ Sony
Founder & Author @ agilistanbul.com

More Related Content

What's hot

Ajax.ppt
Ajax.pptAjax.ppt
Hypertext transfer protocol (http)
Hypertext transfer protocol (http)Hypertext transfer protocol (http)
Hypertext transfer protocol (http)
Shimona Agarwal

IT2255 Web Essentials - Unit I Website Basics
IT2255 Web Essentials - Unit I  Website BasicsIT2255 Web Essentials - Unit I  Website Basics
IT2255 Web Essentials - Unit I Website Basics
pkaviya

jQuery for beginners
jQuery for beginnersjQuery for beginners
jQuery for beginners
Arulmurugan Rajaraman

Introduction to SOAP/WSDL Web Services and RESTful Web Services
Introduction to SOAP/WSDL Web Services and RESTful Web ServicesIntroduction to SOAP/WSDL Web Services and RESTful Web Services
Introduction to SOAP/WSDL Web Services and RESTful Web Services
ecosio GmbH

Introduction to HTML5
Introduction to HTML5Introduction to HTML5
Introduction to HTML5
Gil Fink

Javascript basics
Javascript basicsJavascript basics
Javascript basics
shreesenthil

JQuery introduction
JQuery introductionJQuery introduction
JQuery introduction
NexThoughts Technologies

CSS Basics
CSS BasicsCSS Basics
CSS Basics
WordPress Memphis

Introduction to Web Development
Introduction to Web DevelopmentIntroduction to Web Development
Introduction to Web Development
Parvez Mahbub

PHP variables
PHP  variablesPHP  variables
PHP variables
Siddique Ibrahim

JavaScript - An Introduction
JavaScript - An IntroductionJavaScript - An Introduction
JavaScript - An Introduction
Manvendra Singh

JavaScript - Chapter 3 - Introduction
 JavaScript - Chapter 3 - Introduction JavaScript - Chapter 3 - Introduction
JavaScript - Chapter 3 - Introduction
WebStackAcademy

Data types in php
Data types in phpData types in php
Data types in php
ilakkiya

Javascript
JavascriptJavascript
Javascript
Sun Technlogies

Threads in python
Threads in pythonThreads in python
JavaScript - Chapter 8 - Objects
 JavaScript - Chapter 8 - Objects JavaScript - Chapter 8 - Objects
JavaScript - Chapter 8 - Objects
WebStackAcademy

Web Development with HTML5, CSS3 & JavaScript
Web Development with HTML5, CSS3 & JavaScriptWeb Development with HTML5, CSS3 & JavaScript
Web Development with HTML5, CSS3 & JavaScript
Edureka!

Ajax
AjaxAjax
Javascript event handler
Javascript event handlerJavascript event handler
Javascript event handler
Jesus Obenita Jr.


What's hot (20)

Ajax.ppt
Ajax.pptAjax.ppt
Ajax.ppt

Hypertext transfer protocol (http)
Hypertext transfer protocol (http)Hypertext transfer protocol (http)
Hypertext transfer protocol (http)

IT2255 Web Essentials - Unit I Website Basics
IT2255 Web Essentials - Unit I  Website BasicsIT2255 Web Essentials - Unit I  Website Basics
IT2255 Web Essentials - Unit I Website Basics

jQuery for beginners
jQuery for beginnersjQuery for beginners
jQuery for beginners

Introduction to SOAP/WSDL Web Services and RESTful Web Services
Introduction to SOAP/WSDL Web Services and RESTful Web ServicesIntroduction to SOAP/WSDL Web Services and RESTful Web Services
Introduction to SOAP/WSDL Web Services and RESTful Web Services

Introduction to HTML5
Introduction to HTML5Introduction to HTML5
Introduction to HTML5

Javascript basics
Javascript basicsJavascript basics
Javascript basics

JQuery introduction
JQuery introductionJQuery introduction
JQuery introduction

CSS Basics
CSS BasicsCSS Basics
CSS Basics

Introduction to Web Development
Introduction to Web DevelopmentIntroduction to Web Development
Introduction to Web Development

PHP variables
PHP  variablesPHP  variables
PHP variables

JavaScript - An Introduction
JavaScript - An IntroductionJavaScript - An Introduction
JavaScript - An Introduction

JavaScript - Chapter 3 - Introduction
 JavaScript - Chapter 3 - Introduction JavaScript - Chapter 3 - Introduction
JavaScript - Chapter 3 - Introduction

Data types in php
Data types in phpData types in php
Data types in php

Javascript
JavascriptJavascript
Javascript

Threads in python
Threads in pythonThreads in python
Threads in python

JavaScript - Chapter 8 - Objects
 JavaScript - Chapter 8 - Objects JavaScript - Chapter 8 - Objects
JavaScript - Chapter 8 - Objects

Web Development with HTML5, CSS3 & JavaScript
Web Development with HTML5, CSS3 & JavaScriptWeb Development with HTML5, CSS3 & JavaScript
Web Development with HTML5, CSS3 & JavaScript

Ajax
AjaxAjax
Ajax

Javascript event handler
Javascript event handlerJavascript event handler
Javascript event handler


Viewers also liked

Fundamentals of Web Development For Non-Developers
Fundamentals of Web Development For Non-DevelopersFundamentals of Web Development For Non-Developers
Fundamentals of Web Development For Non-Developers
Lemi Orhan Ergin

Web Application Development Fundamentals
Web Application Development FundamentalsWeb Application Development Fundamentals
Web Application Development Fundamentals
Mohammed Makhlouf

What the Hell is the Internet Anyway? - A History of the Web
What the Hell is the Internet Anyway? - A History of the Web What the Hell is the Internet Anyway? - A History of the Web
What the Hell is the Internet Anyway? - A History of the Web
Vimi.co Ltd - Bangkok Web Agency

Basic Web Concepts
Basic Web ConceptsBasic Web Concepts
Basic Web Concepts
Cherry Ann Labandero

Ppt of web development
Ppt of web developmentPpt of web development
Ppt of web development
bethanygfair

Basic fundamentals of web application development
Basic fundamentals of web application developmentBasic fundamentals of web application development
Basic fundamentals of web application development
sofyjohnson18

Let The Elephants Leave The Room - Remove Waste in Software Development - Bos...
Let The Elephants Leave The Room - Remove Waste in Software Development - Bos...Let The Elephants Leave The Room - Remove Waste in Software Development - Bos...
Let The Elephants Leave The Room - Remove Waste in Software Development - Bos...
Lemi Orhan Ergin

Web 3.0 The Semantic Web
Web 3.0 The Semantic WebWeb 3.0 The Semantic Web
Web 3.0 The Semantic Web
Hatem Mahmoud

Introduction to Web Architecture
Introduction to Web ArchitectureIntroduction to Web Architecture
Introduction to Web Architecture
Chamnap Chhorn

Architecture of a Modern Web App
Architecture of a Modern Web AppArchitecture of a Modern Web App
Architecture of a Modern Web App
scothis

Test Driven Design - GDG DevFest Istanbul 2016
Test Driven Design - GDG DevFest Istanbul 2016Test Driven Design - GDG DevFest Istanbul 2016
Test Driven Design - GDG DevFest Istanbul 2016
Lemi Orhan Ergin

Finding more people like you
Finding more people like youFinding more people like you
Finding more people like you
arunv

Web development
Web developmentWeb development
Web development
baskysmail

Web Fundamentals
Web FundamentalsWeb Fundamentals
Web Fundamentals
arunv

Presentational jQuery
Presentational jQueryPresentational jQuery
Presentational jQuery
Doug Neiner

Intro to Front-End Web Devlopment
Intro to Front-End Web DevlopmentIntro to Front-End Web Devlopment
Intro to Front-End Web Devlopment
damonras

Website design and devlopment
Website design and devlopmentWebsite design and devlopment
Website design and devlopment
PX Media

Web Issues
Web IssuesWeb Issues
Web Issues
tterrill

Web Fundamental
Web FundamentalWeb Fundamental

Viewers also liked (19)

Fundamentals of Web Development For Non-Developers
Fundamentals of Web Development For Non-DevelopersFundamentals of Web Development For Non-Developers
Fundamentals of Web Development For Non-Developers

Web Application Development Fundamentals
Web Application Development FundamentalsWeb Application Development Fundamentals
Web Application Development Fundamentals

What the Hell is the Internet Anyway? - A History of the Web
What the Hell is the Internet Anyway? - A History of the Web What the Hell is the Internet Anyway? - A History of the Web
What the Hell is the Internet Anyway? - A History of the Web

Basic Web Concepts
Basic Web ConceptsBasic Web Concepts
Basic Web Concepts

Ppt of web development
Ppt of web developmentPpt of web development
Ppt of web development

Basic fundamentals of web application development
Basic fundamentals of web application developmentBasic fundamentals of web application development
Basic fundamentals of web application development

Let The Elephants Leave The Room - Remove Waste in Software Development - Bos...
Let The Elephants Leave The Room - Remove Waste in Software Development - Bos...Let The Elephants Leave The Room - Remove Waste in Software Development - Bos...
Let The Elephants Leave The Room - Remove Waste in Software Development - Bos...

Web 3.0 The Semantic Web
Web 3.0 The Semantic WebWeb 3.0 The Semantic Web
Web 3.0 The Semantic Web

Introduction to Web Architecture
Introduction to Web ArchitectureIntroduction to Web Architecture
Introduction to Web Architecture

Architecture of a Modern Web App
Architecture of a Modern Web AppArchitecture of a Modern Web App
Architecture of a Modern Web App

Test Driven Design - GDG DevFest Istanbul 2016
Test Driven Design - GDG DevFest Istanbul 2016Test Driven Design - GDG DevFest Istanbul 2016
Test Driven Design - GDG DevFest Istanbul 2016

Finding more people like you
Finding more people like youFinding more people like you
Finding more people like you

Web development
Web developmentWeb development
Web development

Web Fundamentals
Web FundamentalsWeb Fundamentals
Web Fundamentals

Presentational jQuery
Presentational jQueryPresentational jQuery
Presentational jQuery

Intro to Front-End Web Devlopment
Intro to Front-End Web DevlopmentIntro to Front-End Web Devlopment
Intro to Front-End Web Devlopment

Website design and devlopment
Website design and devlopmentWebsite design and devlopment
Website design and devlopment

Web Issues
Web IssuesWeb Issues
Web Issues

Web Fundamental
Web FundamentalWeb Fundamental
Web Fundamental


Similar to Fundamentals of Web for Non-Developers

Introductiontowebarchitecture 090922221506-phpapp01
Introductiontowebarchitecture 090922221506-phpapp01Introductiontowebarchitecture 090922221506-phpapp01
Introductiontowebarchitecture 090922221506-phpapp01
Maisha Price

21. Application Development and Administration in DBMS
21. Application Development and Administration in DBMS21. Application Development and Administration in DBMS
21. Application Development and Administration in DBMS
koolkampus

World wide web architecture presentation
World wide web architecture presentationWorld wide web architecture presentation
World wide web architecture presentation
ImMe Khan

Evolution Of The Web Platform & Browser Security
Evolution Of The Web Platform & Browser SecurityEvolution Of The Web Platform & Browser Security
Evolution Of The Web Platform & Browser Security
Sanjeev Verma, PhD

Basics of the Web Platform
Basics of the Web PlatformBasics of the Web Platform
Basics of the Web Platform
Sanjeev Verma, PhD

WP Chap 1 & 2.pptx
WP Chap 1 & 2.pptxWP Chap 1 & 2.pptx
WP Chap 1 & 2.pptx
AnkitaChauhan79

WEB-DBMS A quick reference
WEB-DBMS A quick referenceWEB-DBMS A quick reference
WEB-DBMS A quick reference
Marc Dy

Configuring the Apache Web Server
Configuring the Apache Web ServerConfiguring the Apache Web Server
Configuring the Apache Web Server
webhostingguy

Web Server Hardware and Software
Web Server Hardware and SoftwareWeb Server Hardware and Software
Web Server Hardware and Software
webhostingguy

Web Database
Web DatabaseWeb Database
Web Database
idroos7

web devs ppt.ppsx
web devs ppt.ppsxweb devs ppt.ppsx
web devs ppt.ppsx
AsendraChauhan1

Wt unit 1 ppts web development process
Wt unit 1 ppts web development processWt unit 1 ppts web development process
Wt unit 1 ppts web development process
PUNE VIDYARTHI GRIHA'S COLLEGE OF ENGINEERING, NASHIK

web development process WT
web development process WTweb development process WT
Intro webapps
Intro webappsIntro webapps
Intro webapps
Howard Mao

Ch-1_.ppt
Ch-1_.pptCh-1_.ppt
Ch-1_.ppt
berihunmolla2

Web Development Presentation
Web Development PresentationWeb Development Presentation
Web Development Presentation
TurnToTech

05.m3 cms list-ofwebserver
05.m3 cms list-ofwebserver05.m3 cms list-ofwebserver
05.m3 cms list-ofwebserver
tarensi

0_Leksion_Web_Servers (1).pdf
0_Leksion_Web_Servers (1).pdf0_Leksion_Web_Servers (1).pdf
0_Leksion_Web_Servers (1).pdf
Zani10

01 - Web Programming Intro.pptx
01 - Web Programming Intro.pptx01 - Web Programming Intro.pptx
01 - Web Programming Intro.pptx
Karina González

Choice of programming language for web developing.
Choice of programming language for web developing.Choice of programming language for web developing.
Choice of programming language for web developing.
Mohammad Kamrul Hasan


Similar to Fundamentals of Web for Non-Developers (20)

Introductiontowebarchitecture 090922221506-phpapp01
Introductiontowebarchitecture 090922221506-phpapp01Introductiontowebarchitecture 090922221506-phpapp01
Introductiontowebarchitecture 090922221506-phpapp01

21. Application Development and Administration in DBMS
21. Application Development and Administration in DBMS21. Application Development and Administration in DBMS
21. Application Development and Administration in DBMS

World wide web architecture presentation
World wide web architecture presentationWorld wide web architecture presentation
World wide web architecture presentation

Evolution Of The Web Platform & Browser Security
Evolution Of The Web Platform & Browser SecurityEvolution Of The Web Platform & Browser Security
Evolution Of The Web Platform & Browser Security

Basics of the Web Platform
Basics of the Web PlatformBasics of the Web Platform
Basics of the Web Platform

WP Chap 1 & 2.pptx
WP Chap 1 & 2.pptxWP Chap 1 & 2.pptx
WP Chap 1 & 2.pptx

WEB-DBMS A quick reference
WEB-DBMS A quick referenceWEB-DBMS A quick reference
WEB-DBMS A quick reference

Configuring the Apache Web Server
Configuring the Apache Web ServerConfiguring the Apache Web Server
Configuring the Apache Web Server

Web Server Hardware and Software
Web Server Hardware and SoftwareWeb Server Hardware and Software
Web Server Hardware and Software

Web Database
Web DatabaseWeb Database
Web Database

web devs ppt.ppsx
web devs ppt.ppsxweb devs ppt.ppsx
web devs ppt.ppsx

Wt unit 1 ppts web development process
Wt unit 1 ppts web development processWt unit 1 ppts web development process
Wt unit 1 ppts web development process

web development process WT
web development process WTweb development process WT
web development process WT

Intro webapps
Intro webappsIntro webapps
Intro webapps

Ch-1_.ppt
Ch-1_.pptCh-1_.ppt
Ch-1_.ppt

Web Development Presentation
Web Development PresentationWeb Development Presentation
Web Development Presentation

05.m3 cms list-ofwebserver
05.m3 cms list-ofwebserver05.m3 cms list-ofwebserver
05.m3 cms list-ofwebserver

0_Leksion_Web_Servers (1).pdf
0_Leksion_Web_Servers (1).pdf0_Leksion_Web_Servers (1).pdf
0_Leksion_Web_Servers (1).pdf

01 - Web Programming Intro.pptx
01 - Web Programming Intro.pptx01 - Web Programming Intro.pptx
01 - Web Programming Intro.pptx

Choice of programming language for web developing.
Choice of programming language for web developing.Choice of programming language for web developing.
Choice of programming language for web developing.


More from Lemi Orhan Ergin

Clean Software Design: The Practices to Make The Design Simple
Clean Software Design: The Practices to Make The Design SimpleClean Software Design: The Practices to Make The Design Simple
Clean Software Design: The Practices to Make The Design Simple
Lemi Orhan Ergin

Unwritten Manual for Pair Programming
Unwritten Manual for Pair ProgrammingUnwritten Manual for Pair Programming
Unwritten Manual for Pair Programming
Lemi Orhan Ergin

10 Faulty Behaviors of Code Review - Developer Summit Istanbul 2018
10 Faulty Behaviors of Code Review - Developer Summit Istanbul 201810 Faulty Behaviors of Code Review - Developer Summit Istanbul 2018
10 Faulty Behaviors of Code Review - Developer Summit Istanbul 2018
Lemi Orhan Ergin

Yeni Nesil Yazılım Kültürü: Daha İyi Profesyoneller, Daha Kaliteli Yazılım, D...
Yeni Nesil Yazılım Kültürü: Daha İyi Profesyoneller, Daha Kaliteli Yazılım, D...Yeni Nesil Yazılım Kültürü: Daha İyi Profesyoneller, Daha Kaliteli Yazılım, D...
Yeni Nesil Yazılım Kültürü: Daha İyi Profesyoneller, Daha Kaliteli Yazılım, D...
Lemi Orhan Ergin

Irresponsible Disclosure: Short Handbook of an Ethical Developer
Irresponsible Disclosure: Short Handbook of an Ethical DeveloperIrresponsible Disclosure: Short Handbook of an Ethical Developer
Irresponsible Disclosure: Short Handbook of an Ethical Developer
Lemi Orhan Ergin

Scrum Events and Artifacts in Action
Scrum Events and Artifacts in ActionScrum Events and Artifacts in Action
Scrum Events and Artifacts in Action
Lemi Orhan Ergin

DevOps & Technical Agility: From Theory to Practice
DevOps & Technical Agility: From Theory to PracticeDevOps & Technical Agility: From Theory to Practice
DevOps & Technical Agility: From Theory to Practice
Lemi Orhan Ergin

Fighting with Waste Driven Development - XP Days Ukraine 2017
Fighting with Waste Driven Development - XP Days Ukraine 2017Fighting with Waste Driven Development - XP Days Ukraine 2017
Fighting with Waste Driven Development - XP Days Ukraine 2017
Lemi Orhan Ergin

Git Anti Patterns - XP Days Ukraine 2017
Git Anti Patterns - XP Days Ukraine 2017Git Anti Patterns - XP Days Ukraine 2017
Git Anti Patterns - XP Days Ukraine 2017
Lemi Orhan Ergin

Waste Driven Development - Agile Coaching Serbia Meetup
Waste Driven Development - Agile Coaching Serbia MeetupWaste Driven Development - Agile Coaching Serbia Meetup
Waste Driven Development - Agile Coaching Serbia Meetup
Lemi Orhan Ergin

Git Anti-Patterns - Extended Version With 28 Common Anti-Patterns) - SCTurkey...
Git Anti-Patterns - Extended Version With 28 Common Anti-Patterns) - SCTurkey...Git Anti-Patterns - Extended Version With 28 Common Anti-Patterns) - SCTurkey...
Git Anti-Patterns - Extended Version With 28 Common Anti-Patterns) - SCTurkey...
Lemi Orhan Ergin

Git Anti-Patterns: How To Mess Up With Git and Love it Again - DevoxxPL 2017
Git Anti-Patterns: How To Mess Up With Git and Love it Again - DevoxxPL 2017Git Anti-Patterns: How To Mess Up With Git and Love it Again - DevoxxPL 2017
Git Anti-Patterns: How To Mess Up With Git and Love it Again - DevoxxPL 2017
Lemi Orhan Ergin

Yazılım Geliştirme Kültürünün Kodları: Motivasyon, Teknik Mükemmellik ve İnov...
Yazılım Geliştirme Kültürünün Kodları: Motivasyon, Teknik Mükemmellik ve İnov...Yazılım Geliştirme Kültürünün Kodları: Motivasyon, Teknik Mükemmellik ve İnov...
Yazılım Geliştirme Kültürünün Kodları: Motivasyon, Teknik Mükemmellik ve İnov...
Lemi Orhan Ergin

Git Anti-Patterns: How To Mess Up With Git and Love it Again
Git Anti-Patterns: How To Mess Up With Git and Love it AgainGit Anti-Patterns: How To Mess Up With Git and Love it Again
Git Anti-Patterns: How To Mess Up With Git and Love it Again
Lemi Orhan Ergin

Clean Software Design - DevNot Summit Istanbul 2017
Clean Software Design - DevNot Summit Istanbul 2017Clean Software Design - DevNot Summit Istanbul 2017
Clean Software Design - DevNot Summit Istanbul 2017
Lemi Orhan Ergin

Happy Developer's Guide to the Galaxy: Thinking About Motivation of Developers
Happy Developer's Guide to the Galaxy: Thinking About Motivation of DevelopersHappy Developer's Guide to the Galaxy: Thinking About Motivation of Developers
Happy Developer's Guide to the Galaxy: Thinking About Motivation of Developers
Lemi Orhan Ergin

Git - Bildiğiniz Gibi Değil
Git - Bildiğiniz Gibi DeğilGit - Bildiğiniz Gibi Değil
Git - Bildiğiniz Gibi Değil
Lemi Orhan Ergin

Code Your Agility - Tips for Boosting Technical Agility in Your Organization
Code Your Agility - Tips for Boosting Technical Agility in Your OrganizationCode Your Agility - Tips for Boosting Technical Agility in Your Organization
Code Your Agility - Tips for Boosting Technical Agility in Your Organization
Lemi Orhan Ergin

Lost in Motivation in an Agile World
Lost in Motivation in an Agile WorldLost in Motivation in an Agile World
Lost in Motivation in an Agile World
Lemi Orhan Ergin

TDD - Inevitable Challenge for Software Developers (phpkonf15 keynote)
TDD - Inevitable Challenge for Software Developers (phpkonf15 keynote)TDD - Inevitable Challenge for Software Developers (phpkonf15 keynote)
TDD - Inevitable Challenge for Software Developers (phpkonf15 keynote)
Lemi Orhan Ergin


More from Lemi Orhan Ergin (20)

Clean Software Design: The Practices to Make The Design Simple
Clean Software Design: The Practices to Make The Design SimpleClean Software Design: The Practices to Make The Design Simple
Clean Software Design: The Practices to Make The Design Simple

Unwritten Manual for Pair Programming
Unwritten Manual for Pair ProgrammingUnwritten Manual for Pair Programming
Unwritten Manual for Pair Programming

10 Faulty Behaviors of Code Review - Developer Summit Istanbul 2018
10 Faulty Behaviors of Code Review - Developer Summit Istanbul 201810 Faulty Behaviors of Code Review - Developer Summit Istanbul 2018
10 Faulty Behaviors of Code Review - Developer Summit Istanbul 2018

Yeni Nesil Yazılım Kültürü: Daha İyi Profesyoneller, Daha Kaliteli Yazılım, D...
Yeni Nesil Yazılım Kültürü: Daha İyi Profesyoneller, Daha Kaliteli Yazılım, D...Yeni Nesil Yazılım Kültürü: Daha İyi Profesyoneller, Daha Kaliteli Yazılım, D...
Yeni Nesil Yazılım Kültürü: Daha İyi Profesyoneller, Daha Kaliteli Yazılım, D...

Irresponsible Disclosure: Short Handbook of an Ethical Developer
Irresponsible Disclosure: Short Handbook of an Ethical DeveloperIrresponsible Disclosure: Short Handbook of an Ethical Developer
Irresponsible Disclosure: Short Handbook of an Ethical Developer

Scrum Events and Artifacts in Action
Scrum Events and Artifacts in ActionScrum Events and Artifacts in Action
Scrum Events and Artifacts in Action

DevOps & Technical Agility: From Theory to Practice
DevOps & Technical Agility: From Theory to PracticeDevOps & Technical Agility: From Theory to Practice
DevOps & Technical Agility: From Theory to Practice

Fighting with Waste Driven Development - XP Days Ukraine 2017
Fighting with Waste Driven Development - XP Days Ukraine 2017Fighting with Waste Driven Development - XP Days Ukraine 2017
Fighting with Waste Driven Development - XP Days Ukraine 2017

Git Anti Patterns - XP Days Ukraine 2017
Git Anti Patterns - XP Days Ukraine 2017Git Anti Patterns - XP Days Ukraine 2017
Git Anti Patterns - XP Days Ukraine 2017

Waste Driven Development - Agile Coaching Serbia Meetup
Waste Driven Development - Agile Coaching Serbia MeetupWaste Driven Development - Agile Coaching Serbia Meetup
Waste Driven Development - Agile Coaching Serbia Meetup

Git Anti-Patterns - Extended Version With 28 Common Anti-Patterns) - SCTurkey...
Git Anti-Patterns - Extended Version With 28 Common Anti-Patterns) - SCTurkey...Git Anti-Patterns - Extended Version With 28 Common Anti-Patterns) - SCTurkey...
Git Anti-Patterns - Extended Version With 28 Common Anti-Patterns) - SCTurkey...

Git Anti-Patterns: How To Mess Up With Git and Love it Again - DevoxxPL 2017
Git Anti-Patterns: How To Mess Up With Git and Love it Again - DevoxxPL 2017Git Anti-Patterns: How To Mess Up With Git and Love it Again - DevoxxPL 2017
Git Anti-Patterns: How To Mess Up With Git and Love it Again - DevoxxPL 2017

Yazılım Geliştirme Kültürünün Kodları: Motivasyon, Teknik Mükemmellik ve İnov...
Yazılım Geliştirme Kültürünün Kodları: Motivasyon, Teknik Mükemmellik ve İnov...Yazılım Geliştirme Kültürünün Kodları: Motivasyon, Teknik Mükemmellik ve İnov...
Yazılım Geliştirme Kültürünün Kodları: Motivasyon, Teknik Mükemmellik ve İnov...

Git Anti-Patterns: How To Mess Up With Git and Love it Again
Git Anti-Patterns: How To Mess Up With Git and Love it AgainGit Anti-Patterns: How To Mess Up With Git and Love it Again
Git Anti-Patterns: How To Mess Up With Git and Love it Again

Clean Software Design - DevNot Summit Istanbul 2017
Clean Software Design - DevNot Summit Istanbul 2017Clean Software Design - DevNot Summit Istanbul 2017
Clean Software Design - DevNot Summit Istanbul 2017

Happy Developer's Guide to the Galaxy: Thinking About Motivation of Developers
Happy Developer's Guide to the Galaxy: Thinking About Motivation of DevelopersHappy Developer's Guide to the Galaxy: Thinking About Motivation of Developers
Happy Developer's Guide to the Galaxy: Thinking About Motivation of Developers

Git - Bildiğiniz Gibi Değil
Git - Bildiğiniz Gibi DeğilGit - Bildiğiniz Gibi Değil
Git - Bildiğiniz Gibi Değil

Code Your Agility - Tips for Boosting Technical Agility in Your Organization
Code Your Agility - Tips for Boosting Technical Agility in Your OrganizationCode Your Agility - Tips for Boosting Technical Agility in Your Organization
Code Your Agility - Tips for Boosting Technical Agility in Your Organization

Lost in Motivation in an Agile World
Lost in Motivation in an Agile WorldLost in Motivation in an Agile World
Lost in Motivation in an Agile World

TDD - Inevitable Challenge for Software Developers (phpkonf15 keynote)
TDD - Inevitable Challenge for Software Developers (phpkonf15 keynote)TDD - Inevitable Challenge for Software Developers (phpkonf15 keynote)
TDD - Inevitable Challenge for Software Developers (phpkonf15 keynote)


Recently uploaded

Wound healing PPT
Wound healing PPTWound healing PPT
Wound healing PPT
Jyoti Chand

Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptx
Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptxBeyond Degrees - Empowering the Workforce in the Context of Skills-First.pptx
Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptx
EduSkills OECD

Andreas Schleicher presents PISA 2022 Volume III - Creative Thinking - 18 Jun...
Andreas Schleicher presents PISA 2022 Volume III - Creative Thinking - 18 Jun...Andreas Schleicher presents PISA 2022 Volume III - Creative Thinking - 18 Jun...
Andreas Schleicher presents PISA 2022 Volume III - Creative Thinking - 18 Jun...
EduSkills OECD

Nutrition Inc FY 2024, 4 - Hour Training
Nutrition Inc FY 2024, 4 - Hour TrainingNutrition Inc FY 2024, 4 - Hour Training
Nutrition Inc FY 2024, 4 - Hour Training
melliereed

THE SACRIFICE HOW PRO-PALESTINE PROTESTS STUDENTS ARE SACRIFICING TO CHANGE T...
THE SACRIFICE HOW PRO-PALESTINE PROTESTS STUDENTS ARE SACRIFICING TO CHANGE T...THE SACRIFICE HOW PRO-PALESTINE PROTESTS STUDENTS ARE SACRIFICING TO CHANGE T...
THE SACRIFICE HOW PRO-PALESTINE PROTESTS STUDENTS ARE SACRIFICING TO CHANGE T...
indexPub

BIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptx
BIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptxBIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptx
BIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptx
RidwanHassanYusuf

Geography as a Discipline Chapter 1 __ Class 11 Geography NCERT _ Class Notes...
Geography as a Discipline Chapter 1 __ Class 11 Geography NCERT _ Class Notes...Geography as a Discipline Chapter 1 __ Class 11 Geography NCERT _ Class Notes...
Geography as a Discipline Chapter 1 __ Class 11 Geography NCERT _ Class Notes...
ImMuslim

Benner "Expanding Pathways to Publishing Careers"
Benner "Expanding Pathways to Publishing Careers"Benner "Expanding Pathways to Publishing Careers"
Benner "Expanding Pathways to Publishing Careers"
National Information Standards Organization (NISO)

Bossa N’ Roll Records by Ismael Vazquez.
Bossa N’ Roll Records by Ismael Vazquez.Bossa N’ Roll Records by Ismael Vazquez.
Bossa N’ Roll Records by Ismael Vazquez.
IsmaelVazquez38

spot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skillsspot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skills
haiqairshad

REASIGNACION 2024 UGEL CHUPACA 2024 UGEL CHUPACA.pdf
REASIGNACION 2024 UGEL CHUPACA 2024 UGEL CHUPACA.pdfREASIGNACION 2024 UGEL CHUPACA 2024 UGEL CHUPACA.pdf
REASIGNACION 2024 UGEL CHUPACA 2024 UGEL CHUPACA.pdf
giancarloi8888

Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptxPrésentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
siemaillard

Chapter wise All Notes of First year Basic Civil Engineering.pptx
Chapter wise All Notes of First year Basic Civil Engineering.pptxChapter wise All Notes of First year Basic Civil Engineering.pptx
Chapter wise All Notes of First year Basic Civil Engineering.pptx
Denish Jangid

Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) Curriculum
Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) CurriculumPhilippine Edukasyong Pantahanan at Pangkabuhayan (EPP) Curriculum
Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) Curriculum
MJDuyan

skeleton System.pdf (skeleton system wow)
skeleton System.pdf (skeleton system wow)skeleton System.pdf (skeleton system wow)
skeleton System.pdf (skeleton system wow)
Mohammad Al-Dhahabi

NEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptx
NEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptxNEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptx
NEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptx
iammrhaywood

Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"
Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"
Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"
National Information Standards Organization (NISO)

Educational Technology in the Health Sciences
Educational Technology in the Health SciencesEducational Technology in the Health Sciences
Educational Technology in the Health Sciences
Iris Thiele Isip-Tan

The basics of sentences session 7pptx.pptx
The basics of sentences session 7pptx.pptxThe basics of sentences session 7pptx.pptx
The basics of sentences session 7pptx.pptx
heathfieldcps1

A Visual Guide to 1 Samuel | A Tale of Two Hearts
A Visual Guide to 1 Samuel | A Tale of Two HeartsA Visual Guide to 1 Samuel | A Tale of Two Hearts
A Visual Guide to 1 Samuel | A Tale of Two Hearts
Steve Thomason


Recently uploaded (20)

Wound healing PPT
Wound healing PPTWound healing PPT
Wound healing PPT

Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptx
Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptxBeyond Degrees - Empowering the Workforce in the Context of Skills-First.pptx
Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptx

Andreas Schleicher presents PISA 2022 Volume III - Creative Thinking - 18 Jun...
Andreas Schleicher presents PISA 2022 Volume III - Creative Thinking - 18 Jun...Andreas Schleicher presents PISA 2022 Volume III - Creative Thinking - 18 Jun...
Andreas Schleicher presents PISA 2022 Volume III - Creative Thinking - 18 Jun...

Nutrition Inc FY 2024, 4 - Hour Training
Nutrition Inc FY 2024, 4 - Hour TrainingNutrition Inc FY 2024, 4 - Hour Training
Nutrition Inc FY 2024, 4 - Hour Training

THE SACRIFICE HOW PRO-PALESTINE PROTESTS STUDENTS ARE SACRIFICING TO CHANGE T...
THE SACRIFICE HOW PRO-PALESTINE PROTESTS STUDENTS ARE SACRIFICING TO CHANGE T...THE SACRIFICE HOW PRO-PALESTINE PROTESTS STUDENTS ARE SACRIFICING TO CHANGE T...
THE SACRIFICE HOW PRO-PALESTINE PROTESTS STUDENTS ARE SACRIFICING TO CHANGE T...

BIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptx
BIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptxBIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptx
BIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptx

Geography as a Discipline Chapter 1 __ Class 11 Geography NCERT _ Class Notes...
Geography as a Discipline Chapter 1 __ Class 11 Geography NCERT _ Class Notes...Geography as a Discipline Chapter 1 __ Class 11 Geography NCERT _ Class Notes...
Geography as a Discipline Chapter 1 __ Class 11 Geography NCERT _ Class Notes...

Benner "Expanding Pathways to Publishing Careers"
Benner "Expanding Pathways to Publishing Careers"Benner "Expanding Pathways to Publishing Careers"
Benner "Expanding Pathways to Publishing Careers"

Bossa N’ Roll Records by Ismael Vazquez.
Bossa N’ Roll Records by Ismael Vazquez.Bossa N’ Roll Records by Ismael Vazquez.
Bossa N’ Roll Records by Ismael Vazquez.

spot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skillsspot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skills

REASIGNACION 2024 UGEL CHUPACA 2024 UGEL CHUPACA.pdf
REASIGNACION 2024 UGEL CHUPACA 2024 UGEL CHUPACA.pdfREASIGNACION 2024 UGEL CHUPACA 2024 UGEL CHUPACA.pdf
REASIGNACION 2024 UGEL CHUPACA 2024 UGEL CHUPACA.pdf

Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptxPrésentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx

Chapter wise All Notes of First year Basic Civil Engineering.pptx
Chapter wise All Notes of First year Basic Civil Engineering.pptxChapter wise All Notes of First year Basic Civil Engineering.pptx
Chapter wise All Notes of First year Basic Civil Engineering.pptx

Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) Curriculum
Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) CurriculumPhilippine Edukasyong Pantahanan at Pangkabuhayan (EPP) Curriculum
Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) Curriculum

skeleton System.pdf (skeleton system wow)
skeleton System.pdf (skeleton system wow)skeleton System.pdf (skeleton system wow)
skeleton System.pdf (skeleton system wow)

NEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptx
NEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptxNEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptx
NEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptx

Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"
Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"
Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"

Educational Technology in the Health Sciences
Educational Technology in the Health SciencesEducational Technology in the Health Sciences
Educational Technology in the Health Sciences

The basics of sentences session 7pptx.pptx
The basics of sentences session 7pptx.pptxThe basics of sentences session 7pptx.pptx
The basics of sentences session 7pptx.pptx

A Visual Guide to 1 Samuel | A Tale of Two Hearts
A Visual Guide to 1 Samuel | A Tale of Two HeartsA Visual Guide to 1 Samuel | A Tale of Two Hearts
A Visual Guide to 1 Samuel | A Tale of Two Hearts


Fundamentals of Web for Non-Developers

  • 1. Fundamentals of WebHigh level overview of web concepts Lemİ Orhan Ergİn Principal software Engineer @ Sony guide for non-developers
  • 2. The aim of this training is to let you •know concepts of web and web applications •understand how web based software works •understand the technical discussions better •and answer your questions:)
  • 3. agenda •Web Concepts Http/Https, Cookies, Caches, Forms, Html, Javascript, CSS, Request/ Response, Responsive Web Design •Infrastructure Servers, Databases, Load Balancers
  • 5. The Internet is a global system of interconnected computer networks www, email, social networking, file transfer, online chat, commerce, game playing, teleconferencing, VoIP, video on demand etc. Internet is tangible network of computers sharing/exchanging information with the help of PROTOCOLS. Internet
  • 6. Protocol Protocol is a form of etiquette. Internet Protocols are the standards, designed to specify how computers interact and exchange messages over internet. Protocols usually specifies: The format of the messages & how to handle errors
  • 7. Open systems ınter-connection (OSI) model is a conceptual model that describes the internal architecture of a communications system by splitting its components into abstraction layers.
  • 8. tcp model This model is a condensed version of the OSI model and only has four layers. It is considered as standard around internet.
  • 9. http model It stands for HypertextTransfer Protocol. HTTP provides a set of rules and standards that govern how information is transmitted on the World Wide Web. http://www.sony.co.uk
  • 10. http model HTTP is a client-server protocol by which two machines communicate using a reliable, connection- oriented transport service such as theTCP. Opens a tcp/ip connection via sockets Transmits the request for a document Waits for a reply from the server Once the response is arrived, the socket is closed Request Response
  • 11. http model There is no memory between client connections. Pure HTTP server treats every request as if it was brand-new (i.e. Stateless) To load faster, Http pages are stored in your computer and internet caches.You don’t have control over some caches like the ones in proxies.
  • 12. PORT NUMBERS A port is an endpoint to a logical connection and the way a client program specifies a specific server program on a computer in a network Port numbers range from 0 to 65536, but the first 1024 are reserved for privileged services. The other ports could be used by any application. HTTP: 80 SSH: 22 TELNET: 23
  • 13. Privacy: Anyone can see the content Integrity: Anyone can alter the content Authentication: Authentication is sent in clear form Stateless: Need to maintain information across multiple request-responses http Limitations
  • 14. HTTPS stands for HypertextTransfer Protocol over Secure Socket Layer, or HTTP over SSL. SSL acts like a sub layer under regular HTTP application layering. HTTPS encrypts an HTTP message prior to transmission and decrypts a message upon arrival. httPS
  • 15. HTTPS by default uses port 443 as opposed to the standard HTTP port of 80. URL's beginning with HTTPS indicate that the connection between client and browser is encrypted using SSL SSL transactions are negotiated by means of a key based encryption algorithm between the client and the server, this key is usually either 40 or 128 bits in strength (the higher the number of bits the more secure the transaction). httPS https://login.yahoo.com/config/login_verify?src=ym
  • 17. HTTP server is implemented by servers Each client-server transaction consists of 3 main parts: 1) Request/Response line 2) Header information 3)The body http model
  • 18. there are several ways to send a request GET POST PUT DELETE HEAD OPTIONS TRACE CONNECT
  • 19. HTTP METHOD: GET •Retrieval of information •Server sends a representation of a resource to client
  • 20. HTTP METHOD: POST •The body of the request is accepted as a resource •Mainly the data of forms are submitted by post
  • 21. Web Content Scripts (javascript) Styles (css) Pages (html) Images (jpg, png, gif) Web content is sent from server and browsers renders and displays that is programmed. Data* (xml, json)
  • 22. Web Content: HTML HyperText Markup Language (HTML) is the main markup language for creating web pages and other information that can be displayed in a web browser.
  • 23. Web Content: Javascripts JavaScript (JS) is an interpreted computer programming language. It was originally implemented as part of web browsers so that client-side scripts could interact with the user, control the browser, communicate asynchronously, and alter the document content that was displayed.
  • 24. Web Content: CSS Cascading Style Sheets (CSS) is a style sheet language used for describing the presentation semantics (the look and formatting) of a document written in a markup language.
  • 25. Web Content: IMAGES Any image could be displayed in an html page. It is important to keep the size of images small for the sake of performance.
  • 26. Web Content: XML Extensible Markup Language (XML) is a markup language that defines a set of rules for encoding documents in a format that is both human-readable and machine-readable.
  • 27. Web Content: JSON JavaScript Object Notation (JSON), is a text-based open standard designed for human-readable data interchange
  • 29. Load Balancer Web Servers Load Balancer Application Servers Database Servers Proxy Browser Servers in the same zone do not interact over proxy Zone The content can be cached in any of the levels Central Cache Servers The infrastructure could be simpler than here Server infrastructure could be much more complex too
  • 30. Client request - response You request a web page and get data Server Client Browser caches the content ServerCache 200 Client You request the same web page with last modified date of the cached content Server 304 Client Since server says “content has not changed”, the data in cache is loaded ServerCache 1 2 3 4 Server does not return content. It just returns status code 304 Server returns content with code 200
  • 31. Caching Any content can be cached in any infrastructural node •Scripts (javascript) •Styles (css) •Pages (http pages) •Images •Animations (flash)
  • 32. Load Balancer Web Servers Load Balancer Application Servers Database Servers Proxy Browser Zone Central Cache Servers Returns cached scripts, styles and content from browser cacheRefresh By f5 Cache-­‐Control:  no-­‐cache  //  HTTP  1.1 Pragma:  no-­‐cache  //  HTTP  1.0 Expires:  Sat,  26  Jul  1988  05:00:00  GMT  //  in  past Asks for content if cache is not set
  • 33. Load Balancer Web Servers Load Balancer Application Servers Database Servers Proxy Browser Zone Central Cache Servers Refresh By CTRL+f5 Asks for content. Browser cache is not used.
  • 34. Load Balancer Web Servers Load Balancer Application Servers Database Servers Proxy Browser Zone Central Cache Servers cache on server side Cache could be on server side and needs to be cleaned either automatic or manually
  • 35. ajax Acronym for Asynchronous JavaScript and XML It is a web development technique used on the client side to create asynchronous web applications.
  • 36. ajax Let’s see how ajax works. Fill the following text area.
  • 37. ajax Write a text and press the button
  • 38. ajax Page is not refreshed.A new text appears below the entry area. Let’s look at how it works
  • 39. ajax Page is initially loaded to your machine Source code of the page can be displayed within browser
  • 41. ajax When you click on the button, web page calls the server from client site (i.e. from your browser)Server Browser
  • 42. ajax Server sends new data as response.The data is put to object graph of the page at runtime.
  • 43. ajax Object graph is changed.The new data is displayed on browser. But you cannot see the new data in the source code of the page. You can trace the response of server via plugins like FireBug
  • 44. Cookies A cookie, also known as an HTTP cookie, web cookie, or browser cookie, is a small piece of data sent from a website and stored in a user's web browser while a user is browsing a website.
  • 45. Usage of Cookies •Session Management •Shopping Cart,Authentication •Personalization •Remember me, Preferences •Tracking & Analytics •Ads, Browsing History,Analytics,Tracking
  • 46. Cookie Content A web browser is expected to be able to store at least 300 cookies of 4 kb each, and at least 20 cookies per server or domain. •Cookie domain •Path •Expiration time or maximum age •Secure flag •HttpOnly flag. •Name–value pair Data to send to server Data to be used by browsers to determine when to delete a cookie, block a cookie or accept a cookie
  • 47. Setting Cookies Cookies can not only be set by server. These can be set by Javascript in client’s browsers (if cookie is not marked as HTTPOnly).
  • 48. Forms An HTML form on a web page allows a user to enter data that is sent to a server for processing.
  • 49. Forms Forms can be generated in several ways Server Browser Client Side Server Browser Server Side by programming languagesby javascript editing DOM
  • 50. Form Validation Forms can be validated in client side via javascript and in server side by application. Server Browser Please note that validation on client side could be bypassed easily
  • 51. Responsive web design Responsive web design (RWD) is a web design approach aimed at crafting sites to provide an optimal viewing experience—easy reading and navigation with a minimum of resizing, panning, and scrolling—across a wide range of devices (from desktop computer monitors to mobile phones) http://discover.store.sony.com/sportswalkman/ http://www.slideshare.net/bytte/responsive-web-design-10389263
  • 52. HTML5 vs FLASH Web browsers cannot render Flash media themselves, instead it is rendered primarily using the proprietary but freely available Adobe Flash Player http://sixrevisions.com/html/html5-infographics/ http://venturebeat.com/2012/01/31/html5-versus-flash-infographic/ All web browsers support HTML and other Web standards to various degrees.
  • 53. HTML5 vs FLASH It’s time for reading some code http://charag.com/client/eagleriverdaycamp/v2/eagle.html http://citwings.com/phillips_locked_room_game.html HTML5 Animation Flash Animation
