1. Traffic Volume
Analysis
Submitted To :- Prof. Nagaarjuna
Submitted By :- Arjun ,Anshal,
Atindra ,Vivek,
Neeraj

2. Basic Terminology :-

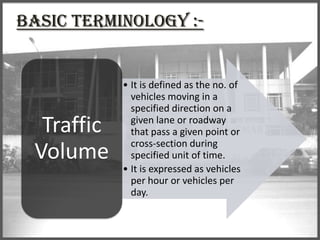

Traffic
Volume
• It is defined as the no. of
vehicles moving in a
specified direction on a
given lane or roadway
that pass a given point or
cross-section during
specified unit of time.
• It is expressed as vehicles
per hour or vehicles per
day.

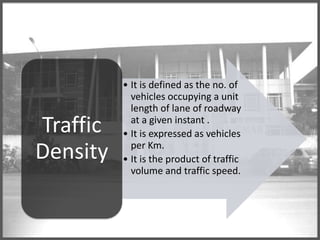

3. Traffic
Density
• It is defined as the no. of
vehicles occupying a unit
length of lane of roadway
at a given instant .
• It is expressed as vehicles
per Km.
• It is the product of traffic
volume and traffic speed.

4. OBJECTIVE:•To Calculate the total PCU valve for Mixed traffic Data
•To analysi the traffic volume using the PCU method

5. STUDY AREA
• Name of the roadBalewadi – MITCON Road
• Connecting Pune Banglore
National Highway.
• Two lane road

6. LANDMARKS
MITCON
NICMAR
MOSE COLLEGE

7. Location Map :-
Apt
Mitcon
NH
MIT
NH
G1
Nicmar
G2

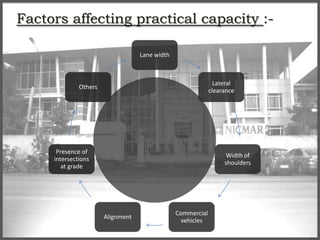

8. Factors affecting practical capacity :Lane width
Lateral
clearance
Others
Presence of
intersections
at grade
Width of
shoulders
Alignment
Commercial
vehicles

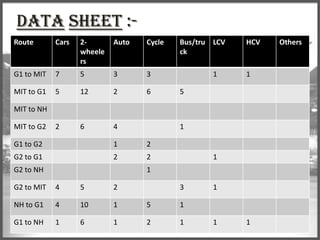

9. Data Sheet :Route
Cars
2wheele
rs
Auto
Cycle
G1 to MIT
7
5
3
3
MIT to G1
5
12
2
6
2
6
4
Bus/tru LCV
ck
1
HCV
1
5
MIT to NH
MIT to G2
1
G1 to G2
1
2
G2 to G1
2
2
G2 to NH
1
1
G2 to MIT
4
5
2
3
NH to G1
4
10
1
5
1
G1 to NH
1
6
1
2
1
1
1
1
Others

10. Passenger Car unit (PCU) :It is a common practice to consider the passenger
car as the standard vehicle unit to convert the
other vehicle classes and this unit is called
Passenger car unit or PCU.
Thus in mixed traffic flow, the traffic volume &
capacity are generally expressed as PCU per hour
or PCU/lane/hour & the traffic density as PCU per
kilometer length of lane.

11. Passenger Car unit (PCU) :S.No.
Vehicle Class
Urban roads,
mid-block
sections
1
Car
1.0
2
Bus & Truck
3.0
3
Auto Rickshaw
0.5
4
Two wheeler automobile
0.4
5
Pedal cycle
0.7
6
Construction Vehicles
5.0

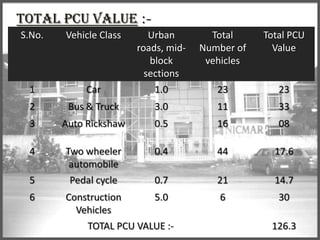

12. TOTAL PCU VALUE :S.No.
Vehicle Class
Total
Number of
vehicles
Total PCU
Value
Car
Urban
roads, midblock
sections
1.0
1
23
23
2
Bus & Truck
3.0
11
33
3
Auto Rickshaw
0.5
16
08
4
Two wheeler
automobile
Pedal cycle
0.4
44
17.6
0.7
21
14.7
6
30
5
6
Construction
5.0
Vehicles
TOTAL PCU VALUE :-
126.3
