ScaleS
Q1. Define R.F.?
Ans: Representative Fraction (R.F.) is measure of reduction
or enlargement of dimensions of an object while drawing. It
is defined as ratio of Length of drawing to Actual length of
object, both measured in same units. Being a ratio, R.F. is
unit less.
Q2. How will you find L.O.S?
Ans: Length of Scale (L.O.S) is calculated by multiplying R.F.
with maximum length. Length of scale will bear same unit as
that of maximum length.
Q3. How many types of scales are used in Engineering
Drawing?
Ans. The scales generally used in Engineering Drawing are
1. Plain Scale
2. Diagonal scale
3. vernier Scale
4. Scale of chords
Some other scales are
1. Isometric Scale
2. Logarithmic Scale etc.
Q4. What is the difference between Plain Scale and Diagonal
Scale?
Ans. A Plain scale represents two consecutive units, where
as diagonal scale represents three consecutive units.
Q5. What is scale of chords and why it is called so?
Ans. Scale of chord is the scale drawn to measure angles. It
is used to draw and measure angles without using
protractor. It is called so because we draw a series of chords
which subtend known angle at the centre of circle of known
diameter.
Q6. What is RF of scale of chords?
Ans. It is unity.
Q7. How will you measure given angle using scale of
chords?
Ans. First we have to draw an arc of radius equal to that of
scale of chord, with vertex as centre. Then we have to take
intercept in the divider and compare it with the known
chords to find the measurement of given angle.
Q8. How will you draw given angle using scale of chords?
Ans. First we have to draw a line segment of any arbitrary
length. We have to mark one of its end as vertex for
drawing the angle. Then we have to set radius equal to
length of 60º chord in the rounder, and to draw an arc with
vertex as centre. Measure the chord of angle to be drawn
and mark it on the arc. Join the ends of chords with the
vertex.

curveS
Q1. What are conic sections and why are they called so?

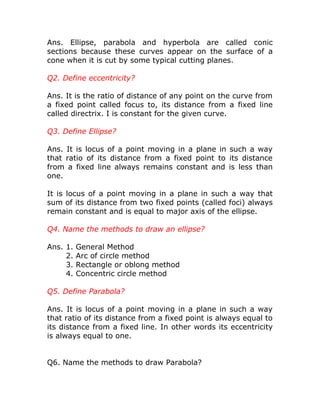

Ans. Ellipse, parabola and hyperbola are called conic
sections because these curves appear on the surface of a
cone when it is cut by some typical cutting planes.
Q2. Define eccentricity?
Ans. It is the ratio of distance of any point on the curve from
a fixed point called focus to, its distance from a fixed line
called directrix. I is constant for the given curve.
Q3. Define Ellipse?
Ans. It is locus of a point moving in a plane in such a way
that ratio of its distance from a fixed point to its distance
from a fixed line always remains constant and is less than
one.
It is locus of a point moving in a plane in such a way that
sum of its distance from two fixed points (called foci) always
remain constant and is equal to major axis of the ellipse.
Q4. Name the methods to draw an ellipse?
Ans. 1.
2.
3.
4.

General Method
Arc of circle method
Rectangle or oblong method
Concentric circle method

Q5. Define Parabola?
Ans. It is locus of a point moving in a plane in such a way
that ratio of its distance from a fixed point is always equal to
its distance from a fixed line. In other words its eccentricity
is always equal to one.
Q6. Name the methods to draw Parabola?
Ans. 1. General Method
2. Rectangle method
3. Tangent or triangle method
Q7. Define Hyperbola?
Ans. It is locus of a point moving in a plane in such a way
that ratio of its distance from a fixed point to its distance
from a fixed line always remains constant and is greater
than one.
It is locus of a point moving in a plane in such a way that
difference of its distance from two fixed points (called foci)
always remains constant and is equal to transverse axis of
the hyperbola.
Q8. Name the methods to draw Hyperbola?
Ans. 1. General Method
2. Arc of circle method
3. orthogonal asymptotes method
Q9. What is rectangular Hyperbola?
Ans. When the asymptotes of the hyperbola are at right
angles to each other it is called rectangular Hyperbola.
Eccentricity of rectangular hyperbola is √2.
Q10. What is the significance of normal and tangent on a
curve?
Ans. When force is applied on any point of the curve, we are
more concerned with its two components, perpendicular to
the curve and along the curve. That’s why we are interested
in normal and tangent on the curve.
Q11. What are the methods to draw normal and tangent on
conics?

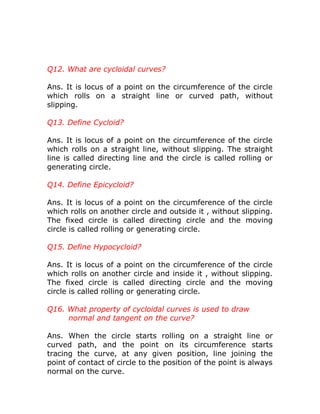

Q12. What are cycloidal curves?
Ans. It is locus of a point on the circumference of the circle
which rolls on a straight line or curved path, without
slipping.
Q13. Define Cycloid?
Ans. It is locus of a point on the circumference of the circle
which rolls on a straight line, without slipping. The straight
line is called directing line and the circle is called rolling or
generating circle.
Q14. Define Epicycloid?
Ans. It is locus of a point on the circumference of the circle
which rolls on another circle and outside it , without slipping.
The fixed circle is called directing circle and the moving
circle is called rolling or generating circle.
Q15. Define Hypocycloid?
Ans. It is locus of a point on the circumference of the circle
which rolls on another circle and inside it , without slipping.
The fixed circle is called directing circle and the moving
circle is called rolling or generating circle.
Q16. What property of cycloidal curves is used to draw
normal and tangent on the curve?
Ans. When the circle starts rolling on a straight line or
curved path, and the point on its circumference starts
tracing the curve, at any given position, line joining the
point of contact of circle to the position of the point is always
normal on the curve.

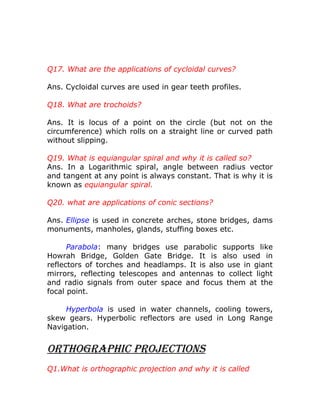

Q17. What are the applications of cycloidal curves?
Ans. Cycloidal curves are used in gear teeth profiles.
Q18. What are trochoids?
Ans. It is locus of a point on the circle (but not on the
circumference) which rolls on a straight line or curved path
without slipping.
Q19. What is equiangular spiral and why it is called so?
Ans. In a Logarithmic spiral, angle between radius vector
and tangent at any point is always constant. That is why it is
known as equiangular spiral.
Q20. what are applications of conic sections?
Ans. Ellipse is used in concrete arches, stone bridges, dams
monuments, manholes, glands, stuffing boxes etc.
Parabola: many bridges use parabolic supports like
Howrah Bridge, Golden Gate Bridge. It is also used in
reflectors of torches and headlamps. It is also use in giant
mirrors, reflecting telescopes and antennas to collect light
and radio signals from outer space and focus them at the
focal point.
Hyperbola is used in water channels, cooling towers,
skew gears. Hyperbolic reflectors are used in Long Range
Navigation.

OrthOgraphic prOjectiOns

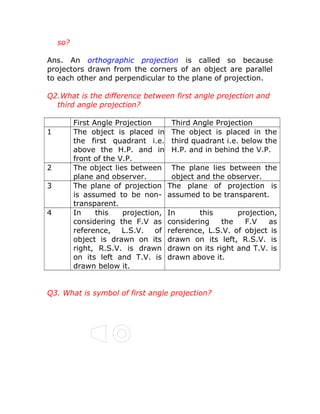

Q1.What is orthographic projection and why it is called
so?
Ans. An orthographic projection is called so because
projectors drawn from the corners of an object are parallel
to each other and perpendicular to the plane of projection.
Q2.What is the difference between first angle projection and
third angle projection?

1

2
3
4

First Angle Projection
The object is placed in
the first quadrant i.e.
above the H.P. and in
front of the V.P.
The object lies between
plane and observer.
The plane of projection
is assumed to be nontransparent.
In
this
projection,
considering the F.V as
reference,
L.S.V.
of
object is drawn on its
right, R.S.V. is drawn
on its left and T.V. is
drawn below it.

Third Angle Projection
The object is placed in the
third quadrant i.e. below the
H.P. and in behind the V.P.
The plane
object and
The plane
assumed to

lies between the
the observer.
of projection is
be transparent.

In
this
projection,
considering
the
F.V
as
reference, L.S.V. of object is
drawn on its left, R.S.V. is
drawn on its right and T.V. is
drawn above it.

Q3. What is symbol of first angle projection?
Q4 What is symbol of third angle projection?

Q5 What do you mean by elevation?
Ans. Elevation means front view.
Q6 What do you mean by plan?
Ans. Plan means Top view.

Projection of Straight LineS
Q1. What are traces of a straight line and how are they
located?
Ans. The points of intersection of the straight line with the
principal planes (H.P. and V.P.), on extension or without
extension are known as the Horizontal Trace and Vertical
Trace respectively.
They are located by extending the F.V. and T.V ( if
required). The point of intersection of the F.V. with xy line
gives the F.V. (h’) of the H.T. Intersection of the projector
of the h’ with the T.V. of the line or its extension gives the
h.
Similarly, the point of intersection of the T.V. with xy
line gives the T.V. (v) of the V.T. Intersection of the
projector of the v with the F.V. of the line or its extension
gives the v’
Q2. What is the difference between true inclination and
apparent inclination?

Projection of PLaneS
Q1. What do you mean by oblique plane?
Ans. If
Q2. Describe the strategy to draw projections of an oblique
plane?
Q3. What is auxiliary plane?
Q4. How will you classify auxiliary planes?
Q5. What do you mean by A.I.P.?
Q6. What do you mean by A.V.P.?
Q7. What do you mean by P.P.?
Q8. How auxiliary planes are represented?
Projection of solids
Q1. What is the difference between frustum of solid and
truncated solid?
Q2. What do you mean by right solid?
Q3. What is the difference between prism and pyramid?
Section of Solids
Q1. How cutting planes are represented?
Q2. What is the significance of section of solid?
Development of surfaces of solids
Q1. What do you mean by Development of solid?
Q2. Classify the methods of development of solids?
Q3. What are the methods for development of sphere?
Q4. What do you mean by Antidevelopment?
Q5. What is parallel line method and when it is used?
Q6. What is radial line method and when it is used?
Q7. What is triangulation method and when it is used?
Q8. what are approximate methods and on which solids
these are used?

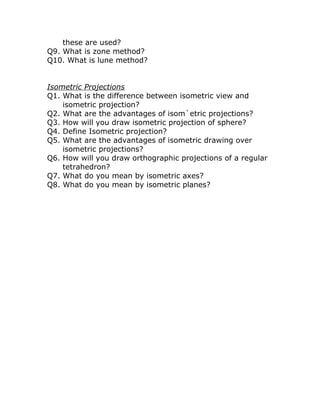

Q9. What is zone method?
Q10. What is lune method?
Isometric Projections
Q1. What is the difference between isometric view and
isometric projection?
Q2. What are the advantages of isom`etric projections?
Q3. How will you draw isometric projection of sphere?
Q4. Define Isometric projection?
Q5. What are the advantages of isometric drawing over
isometric projections?
Q6. How will you draw orthographic projections of a regular
tetrahedron?
Q7. What do you mean by isometric axes?
Q8. What do you mean by isometric planes?

More Related Content

What's hot

Development of surfaces of solids
Development of surfaces of solidsDevelopment of surfaces of solids
Development of surfaces of solids
Kashyap Shah

Projection of Lines
Projection of LinesProjection of Lines
Projection of Lines
shubham kanungo

Projection of solids
Projection of solidsProjection of solids
Projection of solids
shubham kanungo

Drawing ellipse by eccentricity method
Drawing ellipse by eccentricity methodDrawing ellipse by eccentricity method
Drawing ellipse by eccentricity method
Prof. S.Rajendiran

Projections of solids
Projections of solidsProjections of solids
Projections of solids
Kunduru Srinivasulu Reddy

Section of solids
Section of solidsSection of solids
Section of solids
Sumit Chandak

Types of projections
Types of projectionsTypes of projections
Types of projections
Muhammad Umair Akram

Unit ii projection of planes
Unit  ii projection of planesUnit  ii projection of planes
Unit ii projection of planes
ganesasmoorthy raju

Projection of lines
Projection of linesProjection of lines
Projection of lines
Kashyap Shah

Section of solids - ENGINEERING DRAWING/GRAPHICS
Section of solids - ENGINEERING DRAWING/GRAPHICSSection of solids - ENGINEERING DRAWING/GRAPHICS
Section of solids - ENGINEERING DRAWING/GRAPHICS
Abhishek Kandare

Projection of points
Projection of pointsProjection of points
Projection of points
Suraj Meshram

Scales in Engineering
Scales in EngineeringScales in Engineering
Scales in Engineering
Kushal Patel

BE sem 1 Engineering Graphics(E.G.) full course ppt
BE sem 1 Engineering Graphics(E.G.) full course pptBE sem 1 Engineering Graphics(E.G.) full course ppt
BE sem 1 Engineering Graphics(E.G.) full course ppt
Dhruv Parekh

Unit 1 engineering curves
Unit 1 engineering curvesUnit 1 engineering curves
Unit 1 engineering curves
Vagalla Reddy

DEVELOPMENT OF SURFACES.docx
DEVELOPMENT OF SURFACES.docxDEVELOPMENT OF SURFACES.docx
DEVELOPMENT OF SURFACES.docx
Ganesamoorthy14

Unit ii projection of lines
Unit  ii projection of linesUnit  ii projection of lines
Unit ii projection of lines
ganesasmoorthy raju

Sections of Solids
Sections of SolidsSections of Solids
Sections of Solids
ANIKET SURYAWANSHI

oblique planes
oblique planesoblique planes
oblique planes
sweety13696

Projection of planes
Projection of planesProjection of planes
Projection of planes
Kashyap Shah

Projectile motion of a particle
Projectile motion of a particleProjectile motion of a particle
Projectile motion of a particle
KhanSaif2


What's hot (20)

Development of surfaces of solids
Development of surfaces of solidsDevelopment of surfaces of solids
Development of surfaces of solids

Projection of Lines
Projection of LinesProjection of Lines
Projection of Lines

Projection of solids
Projection of solidsProjection of solids
Projection of solids

Drawing ellipse by eccentricity method
Drawing ellipse by eccentricity methodDrawing ellipse by eccentricity method
Drawing ellipse by eccentricity method

Projections of solids
Projections of solidsProjections of solids
Projections of solids

Section of solids
Section of solidsSection of solids
Section of solids

Types of projections
Types of projectionsTypes of projections
Types of projections

Unit ii projection of planes
Unit  ii projection of planesUnit  ii projection of planes
Unit ii projection of planes

Projection of lines
Projection of linesProjection of lines
Projection of lines

Section of solids - ENGINEERING DRAWING/GRAPHICS
Section of solids - ENGINEERING DRAWING/GRAPHICSSection of solids - ENGINEERING DRAWING/GRAPHICS
Section of solids - ENGINEERING DRAWING/GRAPHICS

Projection of points
Projection of pointsProjection of points
Projection of points

Scales in Engineering
Scales in EngineeringScales in Engineering
Scales in Engineering

BE sem 1 Engineering Graphics(E.G.) full course ppt
BE sem 1 Engineering Graphics(E.G.) full course pptBE sem 1 Engineering Graphics(E.G.) full course ppt
BE sem 1 Engineering Graphics(E.G.) full course ppt

Unit 1 engineering curves
Unit 1 engineering curvesUnit 1 engineering curves
Unit 1 engineering curves

DEVELOPMENT OF SURFACES.docx
DEVELOPMENT OF SURFACES.docxDEVELOPMENT OF SURFACES.docx
DEVELOPMENT OF SURFACES.docx

Unit ii projection of lines
Unit  ii projection of linesUnit  ii projection of lines
Unit ii projection of lines

Sections of Solids
Sections of SolidsSections of Solids
Sections of Solids

oblique planes
oblique planesoblique planes
oblique planes

Projection of planes
Projection of planesProjection of planes
Projection of planes

Projectile motion of a particle
Projectile motion of a particleProjectile motion of a particle
Projectile motion of a particle


Similar to Viva questions

Questions VIVA VOCE
Questions VIVA VOCEQuestions VIVA VOCE
Questions VIVA VOCE
shubham kanungo

Surveying short question answers
Surveying short question answersSurveying short question answers
Surveying short question answers
Saurabh Pare

Curve generation %a1 v involute and evolute
Curve generation %a1 v involute and evoluteCurve generation %a1 v involute and evolute
Curve generation %a1 v involute and evolute
Tanuj Parikh

Theodolite seting up.pdf
Theodolite seting up.pdfTheodolite seting up.pdf
Theodolite seting up.pdf
AlwandBarzani

drawing geometry
drawing geometrydrawing geometry
drawing geometry
rana bilal

Curves
CurvesCurves
chapter 4angle.pdf
chapter 4angle.pdfchapter 4angle.pdf
chapter 4angle.pdf
sandipanpaul16

1. circles and theorems - introduction
1. circles and theorems - introduction1. circles and theorems - introduction
1. circles and theorems - introduction
LiveOnlineClassesInd

Book 1 definition
Book 1 definitionBook 1 definition
Book 1 definition
Raman Choubay

Mappingthesphere 121121234343-phpapp02
Mappingthesphere 121121234343-phpapp02Mappingthesphere 121121234343-phpapp02
Mappingthesphere 121121234343-phpapp02
Casmir Senior

Fundamentals of Physics "ROTATION"
Fundamentals of Physics "ROTATION"Fundamentals of Physics "ROTATION"
Fundamentals of Physics "ROTATION"
Muhammad Faizan Musa

angle ppt.pptx
angle ppt.pptxangle ppt.pptx
angle ppt.pptx
BelvinEmmanuel

Ce6304 surveying i-2015_07_16_10_57_06_997
Ce6304 surveying i-2015_07_16_10_57_06_997Ce6304 surveying i-2015_07_16_10_57_06_997
Ce6304 surveying i-2015_07_16_10_57_06_997
Massanja Tollah

1 Reflaction Of Light
1 Reflaction Of Light1 Reflaction Of Light
1 Reflaction Of Light
Hamsiah Dahalan

Parallel projection
Parallel projectionParallel projection
Parallel projection
Prince Shahu

Mapping the sphere
Mapping the sphereMapping the sphere
Mapping the sphere
Tarun Gehlot

Geom 7point2and3
Geom 7point2and3Geom 7point2and3
Geom 7point2and3
herbison

CHAPTER -10 CIRCLE 9TH CLASS NCERT
CHAPTER -10  CIRCLE 9TH CLASS NCERT CHAPTER -10  CIRCLE 9TH CLASS NCERT
CHAPTER -10 CIRCLE 9TH CLASS NCERT
anzarshah43

Maths PPT on parabola Class 11.pptx
Maths PPT on parabola Class 11.pptxMaths PPT on parabola Class 11.pptx
Maths PPT on parabola Class 11.pptx
Home

Lec-3(CE3209) Horizontal Curves.pptx
Lec-3(CE3209) Horizontal Curves.pptxLec-3(CE3209) Horizontal Curves.pptx
Lec-3(CE3209) Horizontal Curves.pptx
ShaheerRizwan1


Similar to Viva questions (20)

Questions VIVA VOCE
Questions VIVA VOCEQuestions VIVA VOCE
Questions VIVA VOCE

Surveying short question answers
Surveying short question answersSurveying short question answers
Surveying short question answers

Curve generation %a1 v involute and evolute
Curve generation %a1 v involute and evoluteCurve generation %a1 v involute and evolute
Curve generation %a1 v involute and evolute

Theodolite seting up.pdf
Theodolite seting up.pdfTheodolite seting up.pdf
Theodolite seting up.pdf

drawing geometry
drawing geometrydrawing geometry
drawing geometry

Curves
CurvesCurves
Curves

chapter 4angle.pdf
chapter 4angle.pdfchapter 4angle.pdf
chapter 4angle.pdf

1. circles and theorems - introduction
1. circles and theorems - introduction1. circles and theorems - introduction
1. circles and theorems - introduction

Book 1 definition
Book 1 definitionBook 1 definition
Book 1 definition

Mappingthesphere 121121234343-phpapp02
Mappingthesphere 121121234343-phpapp02Mappingthesphere 121121234343-phpapp02
Mappingthesphere 121121234343-phpapp02

Fundamentals of Physics "ROTATION"
Fundamentals of Physics "ROTATION"Fundamentals of Physics "ROTATION"
Fundamentals of Physics "ROTATION"

angle ppt.pptx
angle ppt.pptxangle ppt.pptx
angle ppt.pptx

Ce6304 surveying i-2015_07_16_10_57_06_997
Ce6304 surveying i-2015_07_16_10_57_06_997Ce6304 surveying i-2015_07_16_10_57_06_997
Ce6304 surveying i-2015_07_16_10_57_06_997

1 Reflaction Of Light
1 Reflaction Of Light1 Reflaction Of Light
1 Reflaction Of Light

Parallel projection
Parallel projectionParallel projection
Parallel projection

Mapping the sphere
Mapping the sphereMapping the sphere
Mapping the sphere

Geom 7point2and3
Geom 7point2and3Geom 7point2and3
Geom 7point2and3

CHAPTER -10 CIRCLE 9TH CLASS NCERT
CHAPTER -10  CIRCLE 9TH CLASS NCERT CHAPTER -10  CIRCLE 9TH CLASS NCERT
CHAPTER -10 CIRCLE 9TH CLASS NCERT

Maths PPT on parabola Class 11.pptx
Maths PPT on parabola Class 11.pptxMaths PPT on parabola Class 11.pptx
Maths PPT on parabola Class 11.pptx

Lec-3(CE3209) Horizontal Curves.pptx
Lec-3(CE3209) Horizontal Curves.pptxLec-3(CE3209) Horizontal Curves.pptx
Lec-3(CE3209) Horizontal Curves.pptx


More from Sumit Chandak

Ortographic projection
Ortographic projectionOrtographic projection
Ortographic projection
Sumit Chandak

Intersection
IntersectionIntersection
Intersection
Sumit Chandak

Cad notes
Cad notesCad notes
Cad notes
Sumit Chandak

St line(new)
St line(new)St line(new)
St line(new)
Sumit Chandak

Scales
ScalesScales
Projection of solids
Projection of solidsProjection of solids
Projection of solids
Sumit Chandak

Projection of planes
Projection of planesProjection of planes
Projection of planes
Sumit Chandak

Development of surfaces of solids
Development of surfaces of solidsDevelopment of surfaces of solids
Development of surfaces of solids
Sumit Chandak

Curves2
Curves2Curves2
Curves2
Sumit Chandak

Curve1
Curve1Curve1

More from Sumit Chandak (10)

Ortographic projection
Ortographic projectionOrtographic projection
Ortographic projection

Intersection
IntersectionIntersection
Intersection

Cad notes
Cad notesCad notes
Cad notes

St line(new)
St line(new)St line(new)
St line(new)

Scales
ScalesScales
Scales

Projection of solids
Projection of solidsProjection of solids
Projection of solids

Projection of planes
Projection of planesProjection of planes
Projection of planes

Development of surfaces of solids
Development of surfaces of solidsDevelopment of surfaces of solids
Development of surfaces of solids

Curves2
Curves2Curves2
Curves2

Curve1
Curve1Curve1
Curve1


Recently uploaded

Your Skill Boost Masterclass: Strategies for Effective Upskilling
Your Skill Boost Masterclass: Strategies for Effective UpskillingYour Skill Boost Masterclass: Strategies for Effective Upskilling
Your Skill Boost Masterclass: Strategies for Effective Upskilling
Excellence Foundation for South Sudan

Assessment and Planning in Educational technology.pptx
Assessment and Planning in Educational technology.pptxAssessment and Planning in Educational technology.pptx
Assessment and Planning in Educational technology.pptx
Kavitha Krishnan

How to Fix the Import Error in the Odoo 17
How to Fix the Import Error in the Odoo 17How to Fix the Import Error in the Odoo 17
How to Fix the Import Error in the Odoo 17
Celine George

DRUGS AND ITS classification slide share
DRUGS AND ITS classification slide shareDRUGS AND ITS classification slide share
DRUGS AND ITS classification slide share
taiba qazi

The History of Stoke Newington Street Names
The History of Stoke Newington Street NamesThe History of Stoke Newington Street Names
The History of Stoke Newington Street Names
History of Stoke Newington

Lapbook sobre os Regimes Totalitários.pdf
Lapbook sobre os Regimes Totalitários.pdfLapbook sobre os Regimes Totalitários.pdf
Lapbook sobre os Regimes Totalitários.pdf
Jean Carlos Nunes Paixão

How to Manage Your Lost Opportunities in Odoo 17 CRM
How to Manage Your Lost Opportunities in Odoo 17 CRMHow to Manage Your Lost Opportunities in Odoo 17 CRM
How to Manage Your Lost Opportunities in Odoo 17 CRM
Celine George

Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...
Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...
Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...
Dr. Vinod Kumar Kanvaria

Digital Artifact 1 - 10VCD Environments Unit
Digital Artifact 1 - 10VCD Environments UnitDigital Artifact 1 - 10VCD Environments Unit
Digital Artifact 1 - 10VCD Environments Unit
chanes7

Types of Herbal Cosmetics its standardization.
Types of Herbal Cosmetics its standardization.Types of Herbal Cosmetics its standardization.
Types of Herbal Cosmetics its standardization.
Ashokrao Mane college of Pharmacy Peth-Vadgaon

ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...
ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...
ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...
PECB

The simplified electron and muon model, Oscillating Spacetime: The Foundation...
The simplified electron and muon model, Oscillating Spacetime: The Foundation...The simplified electron and muon model, Oscillating Spacetime: The Foundation...
The simplified electron and muon model, Oscillating Spacetime: The Foundation...
RitikBhardwaj56

A Independência da América Espanhola LAPBOOK.pdf
A Independência da América Espanhola LAPBOOK.pdfA Independência da América Espanhola LAPBOOK.pdf
A Independência da América Espanhola LAPBOOK.pdf
Jean Carlos Nunes Paixão

The basics of sentences session 6pptx.pptx
The basics of sentences session 6pptx.pptxThe basics of sentences session 6pptx.pptx
The basics of sentences session 6pptx.pptx
heathfieldcps1

MARY JANE WILSON, A “BOA MÃE” .
MARY JANE WILSON, A “BOA MÃE”           .MARY JANE WILSON, A “BOA MÃE”           .
MARY JANE WILSON, A “BOA MÃE” .
Colégio Santa Teresinha

Main Java[All of the Base Concepts}.docx
Main Java[All of the Base Concepts}.docxMain Java[All of the Base Concepts}.docx
Main Java[All of the Base Concepts}.docx
adhitya5119

How to Build a Module in Odoo 17 Using the Scaffold Method
How to Build a Module in Odoo 17 Using the Scaffold MethodHow to Build a Module in Odoo 17 Using the Scaffold Method
How to Build a Module in Odoo 17 Using the Scaffold Method
Celine George

Chapter 4 - Islamic Financial Institutions in Malaysia.pptx
Chapter 4 - Islamic Financial Institutions in Malaysia.pptxChapter 4 - Islamic Financial Institutions in Malaysia.pptx
Chapter 4 - Islamic Financial Institutions in Malaysia.pptx
Mohd Adib Abd Muin, Senior Lecturer at Universiti Utara Malaysia

Smart-Money for SMC traders good time and ICT
Smart-Money for SMC traders good time and ICTSmart-Money for SMC traders good time and ICT
Smart-Money for SMC traders good time and ICT
simonomuemu

Digital Artefact 1 - Tiny Home Environmental Design
Digital Artefact 1 - Tiny Home Environmental DesignDigital Artefact 1 - Tiny Home Environmental Design
Digital Artefact 1 - Tiny Home Environmental Design
amberjdewit93


Recently uploaded (20)

Your Skill Boost Masterclass: Strategies for Effective Upskilling
Your Skill Boost Masterclass: Strategies for Effective UpskillingYour Skill Boost Masterclass: Strategies for Effective Upskilling
Your Skill Boost Masterclass: Strategies for Effective Upskilling

Assessment and Planning in Educational technology.pptx
Assessment and Planning in Educational technology.pptxAssessment and Planning in Educational technology.pptx
Assessment and Planning in Educational technology.pptx

How to Fix the Import Error in the Odoo 17
How to Fix the Import Error in the Odoo 17How to Fix the Import Error in the Odoo 17
How to Fix the Import Error in the Odoo 17

DRUGS AND ITS classification slide share
DRUGS AND ITS classification slide shareDRUGS AND ITS classification slide share
DRUGS AND ITS classification slide share

The History of Stoke Newington Street Names
The History of Stoke Newington Street NamesThe History of Stoke Newington Street Names
The History of Stoke Newington Street Names

Lapbook sobre os Regimes Totalitários.pdf
Lapbook sobre os Regimes Totalitários.pdfLapbook sobre os Regimes Totalitários.pdf
Lapbook sobre os Regimes Totalitários.pdf

How to Manage Your Lost Opportunities in Odoo 17 CRM
How to Manage Your Lost Opportunities in Odoo 17 CRMHow to Manage Your Lost Opportunities in Odoo 17 CRM
How to Manage Your Lost Opportunities in Odoo 17 CRM

Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...
Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...
Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...

Digital Artifact 1 - 10VCD Environments Unit
Digital Artifact 1 - 10VCD Environments UnitDigital Artifact 1 - 10VCD Environments Unit
Digital Artifact 1 - 10VCD Environments Unit

Types of Herbal Cosmetics its standardization.
Types of Herbal Cosmetics its standardization.Types of Herbal Cosmetics its standardization.
Types of Herbal Cosmetics its standardization.

ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...
ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...
ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...

The simplified electron and muon model, Oscillating Spacetime: The Foundation...
The simplified electron and muon model, Oscillating Spacetime: The Foundation...The simplified electron and muon model, Oscillating Spacetime: The Foundation...
The simplified electron and muon model, Oscillating Spacetime: The Foundation...

A Independência da América Espanhola LAPBOOK.pdf
A Independência da América Espanhola LAPBOOK.pdfA Independência da América Espanhola LAPBOOK.pdf
A Independência da América Espanhola LAPBOOK.pdf

The basics of sentences session 6pptx.pptx
The basics of sentences session 6pptx.pptxThe basics of sentences session 6pptx.pptx
The basics of sentences session 6pptx.pptx

MARY JANE WILSON, A “BOA MÃE” .
MARY JANE WILSON, A “BOA MÃE”           .MARY JANE WILSON, A “BOA MÃE”           .
MARY JANE WILSON, A “BOA MÃE” .

Main Java[All of the Base Concepts}.docx
Main Java[All of the Base Concepts}.docxMain Java[All of the Base Concepts}.docx
Main Java[All of the Base Concepts}.docx

How to Build a Module in Odoo 17 Using the Scaffold Method
How to Build a Module in Odoo 17 Using the Scaffold MethodHow to Build a Module in Odoo 17 Using the Scaffold Method
How to Build a Module in Odoo 17 Using the Scaffold Method

Chapter 4 - Islamic Financial Institutions in Malaysia.pptx
Chapter 4 - Islamic Financial Institutions in Malaysia.pptxChapter 4 - Islamic Financial Institutions in Malaysia.pptx
Chapter 4 - Islamic Financial Institutions in Malaysia.pptx

Smart-Money for SMC traders good time and ICT
Smart-Money for SMC traders good time and ICTSmart-Money for SMC traders good time and ICT
Smart-Money for SMC traders good time and ICT

Digital Artefact 1 - Tiny Home Environmental Design
Digital Artefact 1 - Tiny Home Environmental DesignDigital Artefact 1 - Tiny Home Environmental Design
Digital Artefact 1 - Tiny Home Environmental Design


Viva questions

  • 1. ScaleS Q1. Define R.F.? Ans: Representative Fraction (R.F.) is measure of reduction or enlargement of dimensions of an object while drawing. It is defined as ratio of Length of drawing to Actual length of object, both measured in same units. Being a ratio, R.F. is unit less. Q2. How will you find L.O.S? Ans: Length of Scale (L.O.S) is calculated by multiplying R.F. with maximum length. Length of scale will bear same unit as that of maximum length. Q3. How many types of scales are used in Engineering Drawing? Ans. The scales generally used in Engineering Drawing are 1. Plain Scale 2. Diagonal scale 3. vernier Scale 4. Scale of chords Some other scales are 1. Isometric Scale 2. Logarithmic Scale etc. Q4. What is the difference between Plain Scale and Diagonal Scale? Ans. A Plain scale represents two consecutive units, where as diagonal scale represents three consecutive units.
  • 2. Q5. What is scale of chords and why it is called so? Ans. Scale of chord is the scale drawn to measure angles. It is used to draw and measure angles without using protractor. It is called so because we draw a series of chords which subtend known angle at the centre of circle of known diameter. Q6. What is RF of scale of chords? Ans. It is unity. Q7. How will you measure given angle using scale of chords? Ans. First we have to draw an arc of radius equal to that of scale of chord, with vertex as centre. Then we have to take intercept in the divider and compare it with the known chords to find the measurement of given angle. Q8. How will you draw given angle using scale of chords? Ans. First we have to draw a line segment of any arbitrary length. We have to mark one of its end as vertex for drawing the angle. Then we have to set radius equal to length of 60º chord in the rounder, and to draw an arc with vertex as centre. Measure the chord of angle to be drawn and mark it on the arc. Join the ends of chords with the vertex. curveS Q1. What are conic sections and why are they called so?
  • 3. Ans. Ellipse, parabola and hyperbola are called conic sections because these curves appear on the surface of a cone when it is cut by some typical cutting planes. Q2. Define eccentricity? Ans. It is the ratio of distance of any point on the curve from a fixed point called focus to, its distance from a fixed line called directrix. I is constant for the given curve. Q3. Define Ellipse? Ans. It is locus of a point moving in a plane in such a way that ratio of its distance from a fixed point to its distance from a fixed line always remains constant and is less than one. It is locus of a point moving in a plane in such a way that sum of its distance from two fixed points (called foci) always remain constant and is equal to major axis of the ellipse. Q4. Name the methods to draw an ellipse? Ans. 1. 2. 3. 4. General Method Arc of circle method Rectangle or oblong method Concentric circle method Q5. Define Parabola? Ans. It is locus of a point moving in a plane in such a way that ratio of its distance from a fixed point is always equal to its distance from a fixed line. In other words its eccentricity is always equal to one. Q6. Name the methods to draw Parabola?
  • 4. Ans. 1. General Method 2. Rectangle method 3. Tangent or triangle method Q7. Define Hyperbola? Ans. It is locus of a point moving in a plane in such a way that ratio of its distance from a fixed point to its distance from a fixed line always remains constant and is greater than one. It is locus of a point moving in a plane in such a way that difference of its distance from two fixed points (called foci) always remains constant and is equal to transverse axis of the hyperbola. Q8. Name the methods to draw Hyperbola? Ans. 1. General Method 2. Arc of circle method 3. orthogonal asymptotes method Q9. What is rectangular Hyperbola? Ans. When the asymptotes of the hyperbola are at right angles to each other it is called rectangular Hyperbola. Eccentricity of rectangular hyperbola is √2. Q10. What is the significance of normal and tangent on a curve? Ans. When force is applied on any point of the curve, we are more concerned with its two components, perpendicular to the curve and along the curve. That’s why we are interested in normal and tangent on the curve. Q11. What are the methods to draw normal and tangent on conics?
  • 5. Q12. What are cycloidal curves? Ans. It is locus of a point on the circumference of the circle which rolls on a straight line or curved path, without slipping. Q13. Define Cycloid? Ans. It is locus of a point on the circumference of the circle which rolls on a straight line, without slipping. The straight line is called directing line and the circle is called rolling or generating circle. Q14. Define Epicycloid? Ans. It is locus of a point on the circumference of the circle which rolls on another circle and outside it , without slipping. The fixed circle is called directing circle and the moving circle is called rolling or generating circle. Q15. Define Hypocycloid? Ans. It is locus of a point on the circumference of the circle which rolls on another circle and inside it , without slipping. The fixed circle is called directing circle and the moving circle is called rolling or generating circle. Q16. What property of cycloidal curves is used to draw normal and tangent on the curve? Ans. When the circle starts rolling on a straight line or curved path, and the point on its circumference starts tracing the curve, at any given position, line joining the point of contact of circle to the position of the point is always normal on the curve.
  • 6. Q17. What are the applications of cycloidal curves? Ans. Cycloidal curves are used in gear teeth profiles. Q18. What are trochoids? Ans. It is locus of a point on the circle (but not on the circumference) which rolls on a straight line or curved path without slipping. Q19. What is equiangular spiral and why it is called so? Ans. In a Logarithmic spiral, angle between radius vector and tangent at any point is always constant. That is why it is known as equiangular spiral. Q20. what are applications of conic sections? Ans. Ellipse is used in concrete arches, stone bridges, dams monuments, manholes, glands, stuffing boxes etc. Parabola: many bridges use parabolic supports like Howrah Bridge, Golden Gate Bridge. It is also used in reflectors of torches and headlamps. It is also use in giant mirrors, reflecting telescopes and antennas to collect light and radio signals from outer space and focus them at the focal point. Hyperbola is used in water channels, cooling towers, skew gears. Hyperbolic reflectors are used in Long Range Navigation. OrthOgraphic prOjectiOns Q1.What is orthographic projection and why it is called
  • 7. so? Ans. An orthographic projection is called so because projectors drawn from the corners of an object are parallel to each other and perpendicular to the plane of projection. Q2.What is the difference between first angle projection and third angle projection? 1 2 3 4 First Angle Projection The object is placed in the first quadrant i.e. above the H.P. and in front of the V.P. The object lies between plane and observer. The plane of projection is assumed to be nontransparent. In this projection, considering the F.V as reference, L.S.V. of object is drawn on its right, R.S.V. is drawn on its left and T.V. is drawn below it. Third Angle Projection The object is placed in the third quadrant i.e. below the H.P. and in behind the V.P. The plane object and The plane assumed to lies between the the observer. of projection is be transparent. In this projection, considering the F.V as reference, L.S.V. of object is drawn on its left, R.S.V. is drawn on its right and T.V. is drawn above it. Q3. What is symbol of first angle projection?
  • 8. Q4 What is symbol of third angle projection? Q5 What do you mean by elevation? Ans. Elevation means front view. Q6 What do you mean by plan? Ans. Plan means Top view. Projection of Straight LineS Q1. What are traces of a straight line and how are they located? Ans. The points of intersection of the straight line with the principal planes (H.P. and V.P.), on extension or without extension are known as the Horizontal Trace and Vertical Trace respectively. They are located by extending the F.V. and T.V ( if required). The point of intersection of the F.V. with xy line gives the F.V. (h’) of the H.T. Intersection of the projector of the h’ with the T.V. of the line or its extension gives the h. Similarly, the point of intersection of the T.V. with xy line gives the T.V. (v) of the V.T. Intersection of the projector of the v with the F.V. of the line or its extension gives the v’ Q2. What is the difference between true inclination and
  • 9. apparent inclination? Projection of PLaneS Q1. What do you mean by oblique plane? Ans. If Q2. Describe the strategy to draw projections of an oblique plane? Q3. What is auxiliary plane? Q4. How will you classify auxiliary planes? Q5. What do you mean by A.I.P.? Q6. What do you mean by A.V.P.? Q7. What do you mean by P.P.? Q8. How auxiliary planes are represented? Projection of solids Q1. What is the difference between frustum of solid and truncated solid? Q2. What do you mean by right solid? Q3. What is the difference between prism and pyramid? Section of Solids Q1. How cutting planes are represented? Q2. What is the significance of section of solid? Development of surfaces of solids Q1. What do you mean by Development of solid? Q2. Classify the methods of development of solids? Q3. What are the methods for development of sphere? Q4. What do you mean by Antidevelopment? Q5. What is parallel line method and when it is used? Q6. What is radial line method and when it is used? Q7. What is triangulation method and when it is used? Q8. what are approximate methods and on which solids
  • 10. these are used? Q9. What is zone method? Q10. What is lune method? Isometric Projections Q1. What is the difference between isometric view and isometric projection? Q2. What are the advantages of isom`etric projections? Q3. How will you draw isometric projection of sphere? Q4. Define Isometric projection? Q5. What are the advantages of isometric drawing over isometric projections? Q6. How will you draw orthographic projections of a regular tetrahedron? Q7. What do you mean by isometric axes? Q8. What do you mean by isometric planes?
