Margie Morgan, PhD, MT(ASCP),
D(ABMM)

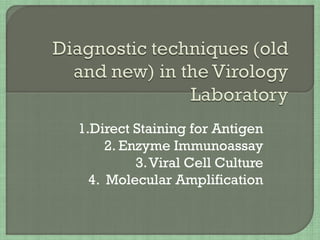

1.Direct Staining for Antigen
2. Enzyme Immunoassay
3.Viral Cell Culture
4. Molecular Amplification

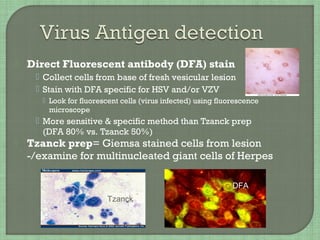

 Direct Fluorescent antibody (DFA) stain
 Collect cells from base of fresh vesicular lesion
 Stain with DFA specific for HSV and/or VZV
 Look for fluorescent cells (virus infected) using fluorescence
microscope
 More sensitive & specific method than Tzanck prep
(DFA 80% vs. Tzanck 50%)
 Tzanck prep= Giemsa stained cells from lesion
-/examine for multinucleated giant cells of Herpes
Tzanck
Tzanck
DFA

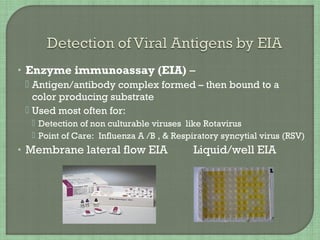

• Enzyme immunoassay (EIA) –
 Antigen/antibody complex formed – then bound to a
color producing substrate
 Used most often for:
 Detection of non culturable viruses like Rotavirus
 Point of Care: Influenza A /B , & Respiratory syncytial virus (RSV)
• Membrane lateral flow EIA Liquid/well EIA

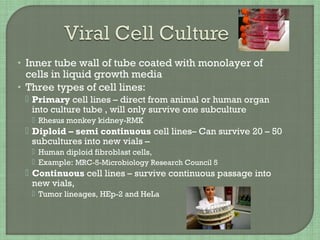

• Inner tube wall of tube coated with monolayer of
cells in liquid growth media
• Three types of cell lines:
 Primary cell lines – direct from animal or human organ
into culture tube , will only survive one subculture
 Rhesus monkey kidney-RMK
 Diploid – semi continuous cell lines– Can survive 20 – 50
subcultures into new vials –
 Human diploid fibroblast cells,
 Example: MRC-5-Microbiology Research Council 5
 Continuous cell lines – survive continuous passage into
new vials,
 Tumor lineages, HEp-2 and HeLa

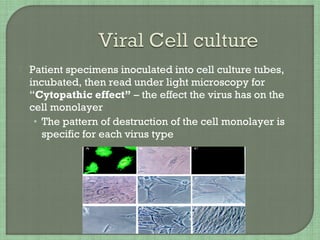

 Patient specimens inoculated into cell culture tubes,
incubated, then read under light microscopy for
“Cytopathic effect” – the effect the virus has on the
cell monolayer
• The pattern of destruction of the cell monolayer is
specific for each virus type

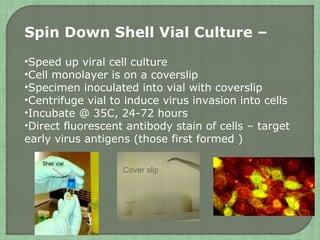

Spin Down Shell Vial Culture –
•Speed up viral cell culture
•Cell monolayer is on a coverslip
•Specimen inoculated into vial with coverslip
•Centrifuge vial to induce virus invasion into cells
•Incubate @ 35C, 24-72 hours
•Direct fluorescent antibody stain of cells – target
early virus antigens (those first formed )
Cover slip

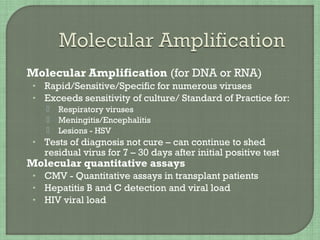

 Molecular Amplification (for DNA or RNA)
• Rapid/Sensitive/Specific for numerous viruses
• Exceeds sensitivity of culture/ Standard of Practice for:
 Respiratory viruses
 Meningitis/Encephalitis
 Lesions - HSV
• Tests of diagnosis not cure – can continue to shed
residual virus for 7 – 30 days after initial positive test
 Molecular quantitative assays
• CMV - Quantitative assays in transplant patients
• Hepatitis B and C detection and viral load
• HIV viral load

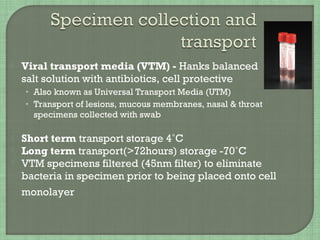

 Viral transport media (VTM) - Hanks balanced
salt solution with antibiotics, cell protective
• Also known as Universal Transport Media (UTM)
• Transport of lesions, mucous membranes, nasal & throat
specimens collected with swab
 Short term transport storage 4˚C
 Long term transport(>72hours) storage -70˚C
 VTM specimens filtered (45nm filter) to eliminate
bacteria in specimen prior to being placed onto cell
monolayer

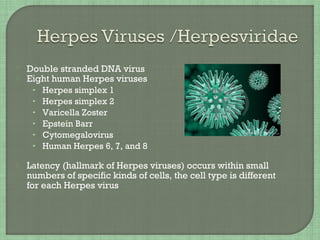

 Double stranded DNA virus
 Eight human Herpes viruses
• Herpes simplex 1
• Herpes simplex 2
• Varicella Zoster
• Epstein Barr
• Cytomegalovirus
• Human Herpes 6, 7, and 8
 Latency (hallmark of Herpes viruses) occurs within small
numbers of specific kinds of cells, the cell type is different
for each Herpes virus

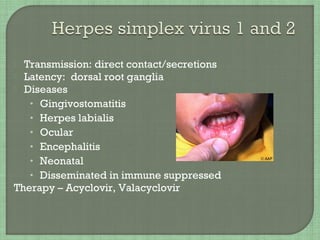

 Transmission: direct contact/secretions
 Latency: dorsal root ganglia
 Diseases
• Gingivostomatitis
• Herpes labialis
• Ocular
• Encephalitis
• Neonatal
• Disseminated in immune suppressed
Therapy – Acyclovir, Valacyclovir
 Herpes simplex 1 & 2
• Produce CPE within 24-48 hrs
• Human diploid fibroblast (MRC-5)
• Observe for characteristic CPE
Negative
fibroblast
Cell line
HSV CPE – cell
rounding starting on the
edge of the monolayer.
Histology/Cytology
Multinucleated Giant Cells
Cannot Differentiate from VZV
Molecular Amplification
Serology – best for past
infections

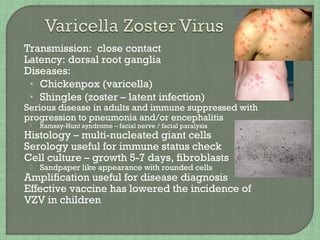

 Transmission: close contact
 Latency: dorsal root ganglia
 Diseases:
• Chickenpox (varicella)
• Shingles (zoster – latent infection)
 Serious disease in adults and immune suppressed with
progression to pneumonia and/or encephalitis
 Ramsay-Hunt syndrome – facial nerve / facial paralysis
 Histology – multi-nucleated giant cells
 Serology useful for immune status check
 Cell culture – growth 5-7 days, fibroblasts
 Sandpaper like appearance with rounded cells
 Amplification useful for disease diagnosis
 Effective vaccine has lowered the incidence of
VZV in children
 Transmitted by blood transfusion , vertical and
horizontal transmission to fetus, or close contact
 Latency: Macrophages
 Disease: Infection asymptomatic in most individuals
• Congenital – most common cause of TORCH
• Perinatal
• Immunocompromised – 1° disease most serious than recurrent
 Laboratory Diagnosis:
• Cell culture CPE (Human diploid fibroblast)
• PCR and quantitative PCR (best method)
 Due to persistent shedding - do quantitative PCR
to detect high viral loads, most consistent
with ongoing infection
• Histopathology – Intranuclear and
intracytoplasmic inclusions (Owl eye)
 Treatment: ganciclovir, foscarnet, cidofovir

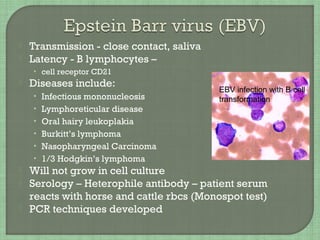

 Transmission - close contact, saliva
 Latency - B lymphocytes –
• cell receptor CD21
 Diseases include:
• Infectious mononucleosis
• Lymphoreticular disease
• Oral hairy leukoplakia
• Burkitt’s lymphoma
• Nasopharyngeal Carcinoma
• 1/3 Hodgkin’s lymphoma
 Will not grow in cell culture
 Serology – Heterophile antibody – patient serum
reacts with horse and cattle rbcs (Monospot test)
 PCR techniques developed
EBV infection with B cell
transformation
VCA IgM VCA IgG EBNA-1 IgG
Negative Negative Negative No immunity
Positive Negative Negative Acute infection
Positive Positive Negative Acute infection
Negative Positive Positive Past infection
Negative Positive Negative Acute or past infection
Positive Positive Positive Late primary infection
Negative Negative Positive Past infection
VCA = viral capsid antibody
Serologic Diagnosis of EBV

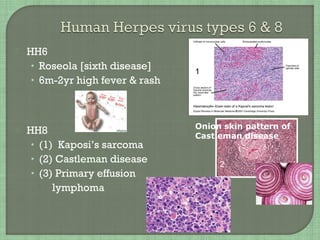

 HH6
• Roseola [sixth disease]
• 6m-2yr high fever & rash
 HH8
• (1) Kaposi’s sarcoma
• (2) Castleman disease
• (3) Primary effusion
lymphoma
Onion skin pattern of
Castleman disease
1
1
1
2
3

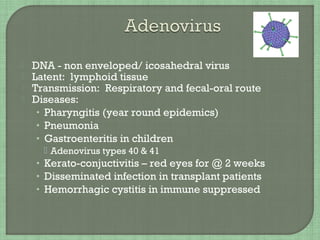

 DNA - non enveloped/ icosahedral virus
 Latent: lymphoid tissue
 Transmission: Respiratory and fecal-oral route
 Diseases:
• Pharyngitis (year round epidemics)
• Pneumonia
• Gastroenteritis in children
 Adenovirus types 40 & 41
• Kerato-conjuctivitis – red eyes for @ 2 weeks
• Disseminated infection in transplant patients
• Hemorrhagic cystitis in immune suppressed

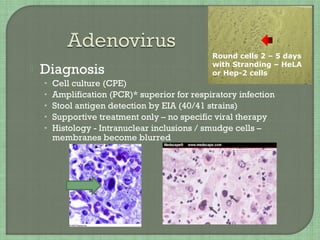

 Diagnosis
• Cell culture (CPE)
• Amplification (PCR)* superior for respiratory infection
• Stool antigen detection by EIA (40/41 strains)
• Supportive treatment only – no specific viral therapy
• Histology - Intranuclear inclusions / smudge cells –
membranes become blurred
Round cells 2 – 5 days
with Stranding – HeLA
or Hep-2 cells

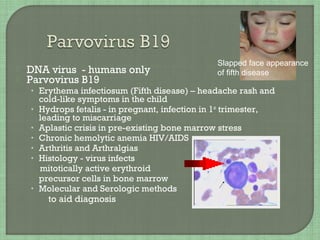

 DNA virus - humans only
 Parvovirus B19
• Erythema infectiosum (Fifth disease) – headache rash and
cold-like symptoms in the child
• Hydrops fetalis - in pregnant, infection in 1st
trimester,
leading to miscarriage
• Aplastic crisis in pre-existing bone marrow stress
• Chronic hemolytic anemia HIV/AIDS
• Arthritis and Arthralgias
• Histology - virus infects
mitotically active erythroid
precursor cells in bone marrow
• Molecular and Serologic methods
to aid diagnosis
Slapped face appearance
of fifth disease

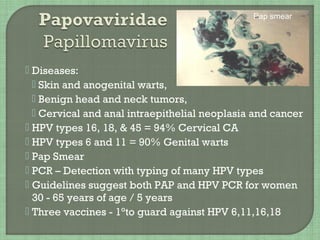

 Diseases:
 Skin and anogenital warts,
 Benign head and neck tumors,
 Cervical and anal intraepithelial neoplasia and cancer
 HPV types 16, 18, & 45 = 94% Cervical CA
 HPV types 6 and 11 = 90% Genital warts
 Pap Smear
 PCR – Detection with typing of many HPV types
 Guidelines suggest both PAP and HPV PCR for women
30 - 65 years of age / 5 years
 Three vaccines - 1°to guard against HPV 6,11,16,18
Pap smear

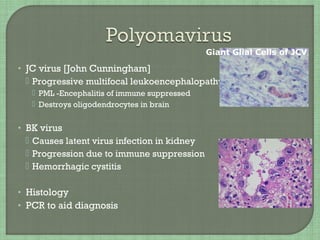

• JC virus [John Cunningham]
 Progressive multifocal leukoencephalopathy -
 PML -Encephalitis of immune suppressed
 Destroys oligodendrocytes in brain
• BK virus
 Causes latent virus infection in kidney
 Progression due to immune suppression
 Hemorrhagic cystitis
• Histology
• PCR to aid diagnosis
Giant Glial Cells of JCV

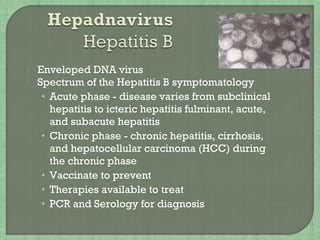

 Enveloped DNA virus
 Spectrum of the Hepatitis B symptomatology
• Acute phase - disease varies from subclinical
hepatitis to icteric hepatitis fulminant, acute,
and subacute hepatitis
• Chronic phase - chronic hepatitis, cirrhosis,
and hepatocellular carcinoma (HCC) during
the chronic phase
• Vaccinate to prevent
• Therapies available to treat
• PCR and Serology for diagnosis

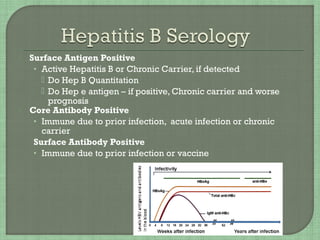

 Surface Antigen Positive
• Active Hepatitis B or Chronic Carrier, if detected
 Do Hep B Quantitation
 Do Hep e antigen – if positive, Chronic carrier and worse
prognosis
 Core Antibody Positive
• Immune due to prior infection, acute infection or chronic
carrier
Surface Antibody Positive
• Immune due to prior infection or vaccine

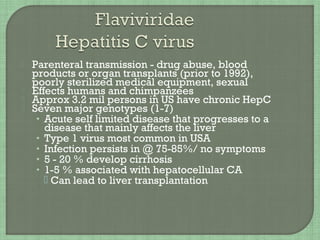

 Parenteral transmission - drug abuse, blood
products or organ transplants (prior to 1992),
poorly sterilized medical equipment, sexual
 Effects humans and chimpanzees
 Approx 3.2 mil persons in US have chronic HepC
 Seven major genotypes (1-7)
• Acute self limited disease that progresses to a
disease that mainly affects the liver
• Type 1 virus most common in USA
• Infection persists in @ 75-85%/ no symptoms
• 5 - 20 % develop cirrhosis
• 1-5 % associated with hepatocellular CA
 Can lead to liver transplantation

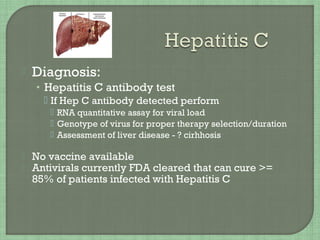

 Diagnosis:
• Hepatitis C antibody test
 If Hep C antibody detected perform
 RNA quantitative assay for viral load
 Genotype of virus for proper therapy selection/duration
 Assessment of liver disease - ? cirhhosis
 No vaccine available
 Antivirals currently FDA cleared that can cure >=
85% of patients infected with Hepatitis C

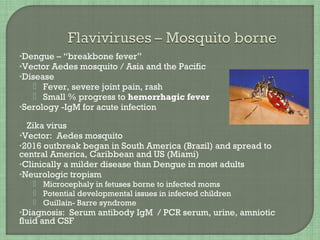

•Dengue – “breakbone fever”
•Vector Aedes mosquito / Asia and the Pacific
•Disease
 Fever, severe joint pain, rash
 Small % progress to hemorrhagic fever
•Serology -IgM for acute infection
 Zika virus
•Vector: Aedes mosquito
•2016 outbreak began in South America (Brazil) and spread to
central America, Caribbean and US (Miami)
•Clinically a milder disease than Dengue in most adults
•Neurologic tropism
 Microcephaly in fetuses borne to infected moms
 Potential developmental issues in infected children
 Guillain- Barre syndrome
•Diagnosis: Serum antibody IgM / PCR serum, urine, amniotic
fluid and CSF

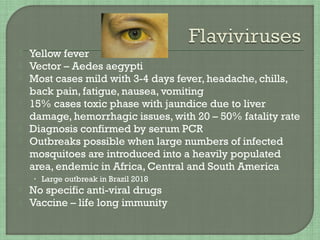

 Yellow fever
 Vector – Aedes aegypti
 Most cases mild with 3-4 days fever, headache, chills,
back pain, fatigue, nausea, vomiting
 15% cases toxic phase with jaundice due to liver
damage, hemorrhagic issues, with 20 – 50% fatality rate
 Diagnosis confirmed by serum PCR
 Outbreaks possible when large numbers of infected
mosquitoes are introduced into a heavily populated
area, endemic in Africa, Central and South America
• Large outbreak in Brazil 2018
 No specific anti-viral drugs
 Vaccine – life long immunity

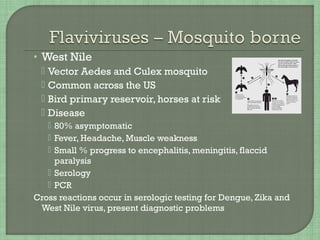

• West Nile
 Vector Aedes and Culex mosquito
 Common across the US
 Bird primary reservoir, horses at risk
 Disease
 80% asymptomatic
 Fever, Headache, Muscle weakness
 Small % progress to encephalitis, meningitis, flaccid
paralysis
 Serology
 PCR
Cross reactions occur in serologic testing for Dengue, Zika and
West Nile virus, present diagnostic problems

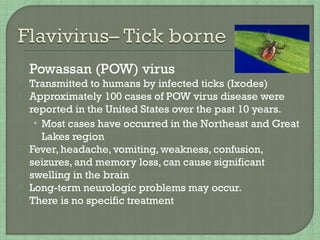

 Powassan (POW) virus
 Transmitted to humans by infected ticks (Ixodes)
 Approximately 100 cases of POW virus disease were
reported in the United States over the past 10 years.
• Most cases have occurred in the Northeast and Great
Lakes region
 Fever, headache, vomiting, weakness, confusion,
seizures, and memory loss, can cause significant
swelling in the brain
 Long-term neurologic problems may occur.
 There is no specific treatment
 Chikungunya virus
 Vector Aedes mosquito
 Origin in Asia and African continents with recent
migration to the Caribbean and SE USA
 Acute febrile illness with rash followed by extreme joint
pain,
 No hemorrhagic phase
 When screening for ZIKA – need to rule out infection
with Dengue and Chikungunya. Similar diseases
with very different sequelae

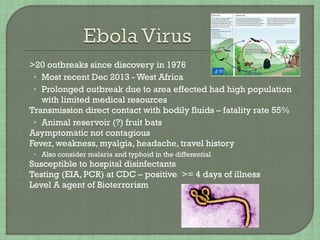

 >20 outbreaks since discovery in 1976
• Most recent Dec 2013 - West Africa
• Prolonged outbreak due to area effected had high population
with limited medical resources
 Transmission direct contact with bodily fluids – fatality rate 55%
• Animal reservoir (?) fruit bats
 Asymptomatic not contagious
 Fever, weakness, myalgia, headache, travel history
• Also consider malaria and typhoid in the differential
 Susceptible to hospital disinfectants
 Testing (EIA, PCR) at CDC – positive >= 4 days of illness
 Level A agent of Bioterrorism

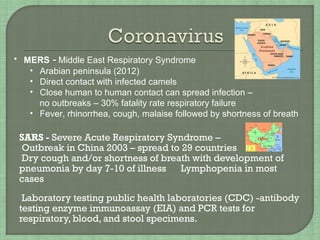

SARS - Severe Acute Respiratory Syndrome –
Outbreak in China 2003 – spread to 29 countries
Dry cough and/or shortness of breath with development of
pneumonia by day 7-10 of illness Lymphopenia in most
cases
Laboratory testing public health laboratories (CDC) -antibody
testing enzyme immunoassay (EIA) and PCR tests for
respiratory, blood, and stool specimens.
• MERS - Middle East Respiratory Syndrome
• Arabian peninsula (2012)
• Direct contact with infected camels
• Close human to human contact can spread infection –
no outbreaks – 30% fatality rate respiratory failure
• Fever, rhinorrhea, cough, malaise followed by shortness of breath
 Diverse group of > 60 viruses – SS RNA
• Infections occur most often in summer and fall
• Polio virus - paralysis
 Salk vaccine Inactive Polio Vaccine (IPV)** recommended
• Coxsackie A – Herpangina – vesicular oral lesions
• Coxsackie B – Pericarditis/Myocarditis
• Enterovirus – Aseptic meningitis in children, hemorrhagic
conjunctivitis, Acute flaccid myelitis EV-D68
• Echovirus – various infections, intestine
• Rhinoviruses – common cold
 Grow in cell culture * 5-7 days
• Teardrop or kite like cells formed
 PCR superior for diagnosis
 Fecal – oral transmission, contaminated food or person to person
 Traveler’s disease
 Recent outbreaks in homeless populations without adequate
sanitary facilities
 80% develop symptoms – jaundice & elevated aminotransferases
 Usually – short incubation (15- 50 days), abrupt onset, low
mortality, no carrier state
 Diagnosis – serology, IgM positive in early infection to differ from
other Hepatitis viruses
 Antibody is protective and lasts for life
 Vaccine available

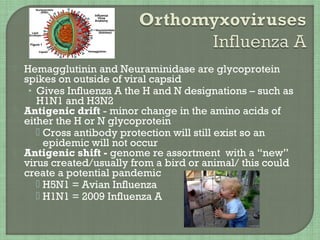

 Hemagglutinin and Neuraminidase are glycoprotein
spikes on outside of viral capsid
• Gives Influenza A the H and N designations – such as
H1N1 and H3N2
 Antigenic drift - minor change in the amino acids of
either the H or N glycoprotein
 Cross antibody protection will still exist so an
epidemic will not occur
 Antigenic shift - genome re assortment with a “new”
virus created/usually from a bird or animal/ this could
create a potential pandemic
 H5N1 = Avian Influenza
 H1N1 = 2009 Influenza A

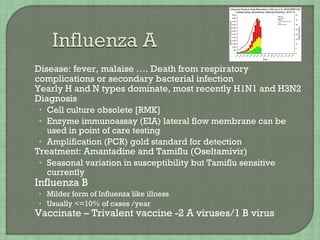

 Disease: fever, malaise …. Death from respiratory
complications or secondary bacterial infection
 Yearly H and N types dominate, most recently H1N1 and H3N2
 Diagnosis
• Cell culture obsolete [RMK]
• Enzyme immunoassay (EIA) lateral flow membrane can be
used in point of care testing
• Amplification (PCR) gold standard for detection
 Treatment: Amantadine and Tamiflu (Oseltamivir)
• Seasonal variation in susceptibility but Tamiflu sensitive
currently
 Influenza B
• Milder form of Influenza like illness
• Usually <=10% of cases /year
 Vaccinate – Trivalent vaccine -2 A viruses/1 B virus

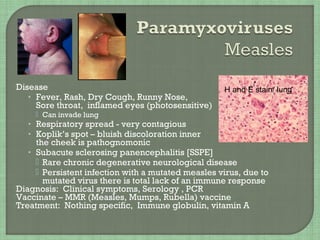

Disease
• Fever, Rash, Dry Cough, Runny Nose,
Sore throat, inflamed eyes (photosensitive)
 Can invade lung
• Respiratory spread - very contagious
• Koplik’s spot – bluish discoloration inner lining of
the cheek is pathognomonic
• Subacute sclerosing panencephalitis [SSPE]
 Rare chronic degenerative neurological disease
 Persistent infection with a mutated measles virus, due to
mutated virus there is total lack of an immune response
Diagnosis: Clinical symptoms, Serology , PCR
Vaccinate – MMR (Measles, Mumps, Rubella) vaccine
Treatment: Nothing specific, Immune globulin, vitamin A
H and E stain/ lung

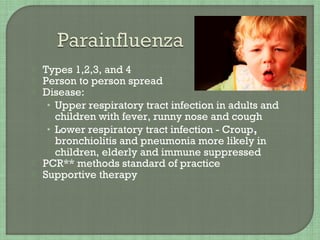

 Types 1,2,3, and 4
 Person to person spread
 Disease:
• Upper respiratory tract infection in adults and
children with fever, runny nose and cough
• Lower respiratory tract infection - Croup,
bronchiolitis and pneumonia more likely in
children, elderly and immune suppressed
 PCR** methods standard of practice
 Supportive therapy
 Person to person contact
 Parotitis, other sites less common:
Testes/ovaries, Eye, Inner ear, CNS
 Diagnosis: clinical symptoms and
serologic tests
 Prevention: MMR vaccine
 No specific therapy, supportive

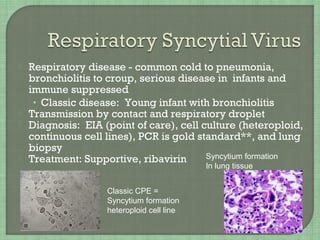

 Respiratory disease - common cold to pneumonia,
bronchiolitis to croup, serious disease in infants and
immune suppressed
• Classic disease: Young infant with bronchiolitis
 Transmission by contact and respiratory droplet
 Diagnosis: EIA (point of care), cell culture (heteroploid,
continuous cell lines), PCR is gold standard**, and lung
biopsy
 Treatment: Supportive, ribavirin
Classic CPE =
Syncytium formation
heteroploid cell line
Syncytium formation
In lung tissue

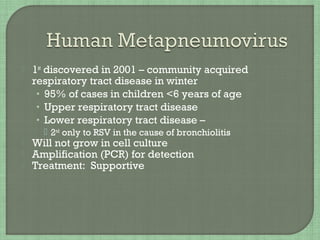

 1st
discovered in 2001 – community acquired
respiratory tract disease in winter
• 95% of cases in children <6 years of age
• Upper respiratory tract disease
• Lower respiratory tract disease –
 2nd
only to RSV in the cause of bronchiolitis
 Will not grow in cell culture
 Amplification (PCR) for detection
 Treatment: Supportive

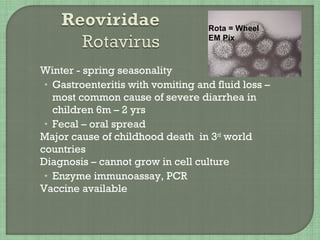

 Winter - spring seasonality
• Gastroenteritis with vomiting and fluid loss –
most common cause of severe diarrhea in
children 6m – 2 yrs
• Fecal – oral spread
 Major cause of childhood death in 3rd
world
countries
 Diagnosis – cannot grow in cell culture
• Enzyme immunoassay, PCR
 Vaccine available
Rota = Wheel
EM Pix
 Spread by contaminated food and water, feces &
vomitus – takes <=20 virus particles to spread
infection – so highly contagious
 Tagged the “Cruise line virus” – numerous reported
food borne outbreaks aboard cruise liners
 Leading cause of epidemic gastroenteritis –
worldwide on land or sea
• Fluid loss from vomiting can be debilitating
 Disease course usually limited, 24-48 hours
 PCR for diagnosis
• Cannot be grown in cell culture

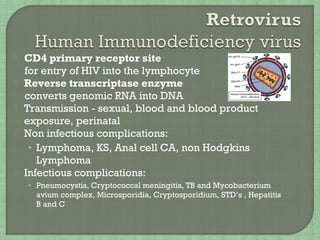

 CD4 primary receptor site
for entry of HIV into the lymphocyte
 Reverse transcriptase enzyme
converts genomic RNA into DNA
 Transmission - sexual, blood and blood product
exposure, perinatal
 Non infectious complications:
• Lymphoma, KS, Anal cell CA, non Hodgkins
Lymphoma
 Infectious complications:
• Pneumocystis, Cryptococcal meningitis, TB and Mycobacterium
avium complex, Microsporidia, Cryptosporidium, STD’s , Hepatitis
B and C

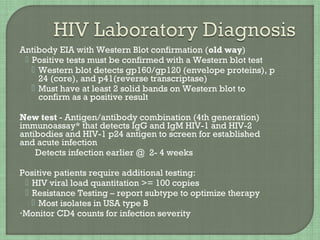

Antibody EIA with Western Blot confirmation (old way)
 Positive tests must be confirmed with a Western blot test
 Western blot detects gp160/gp120 (envelope proteins), p
24 (core), and p41(reverse transcriptase)
 Must have at least 2 solid bands on Western blot to
confirm as a positive result
New test - Antigen/antibody combination (4th generation)
immunoassay* that detects IgG and IgM HIV-1 and HIV-2
antibodies and HIV-1 p24 antigen to screen for established
and acute infection
Detects infection earlier @ 2- 4 weeks
Positive patients require additional testing:
 HIV viral load quantitation >= 100 copies
 Resistance Testing – report subtype to optimize therapy
 Most isolates in USA type B
•Monitor CD4 counts for infection severity

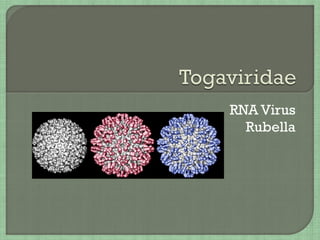

RNA Virus
Rubella
Known as the “Three day measles” or German measles
Rash, low grade fever, cervical lymphadenopathy
Respiratory transmission
Congenital rubella –
• occurs in a developing fetus of a pregnant women
who has contracted Rubella, highest % (50%) in the
first trimester pregnancy
• Prior to Zika it was the neurotropic virus of the fetus
 Deafness, eye abnormalities, congenital heart disease
Diagnosis - Serology in combination with clinical
symptoms
Live attenuated vaccine (MMR) to prevent
Hantavirus
 1993 - Outbreak on Indian reservation in the four
corner states (NM,AZ,CO,UT) brought attention to
this virus
 Source - urine and secretions of wild deer mouse
and cotton rat
 Recent outbreak from transmission from pet rats to
humans
 Myalgia, headache, cough and respiratory failure
 Found in states west of the Mississippi River
 Diagnosis by serology
 Supportive therapy

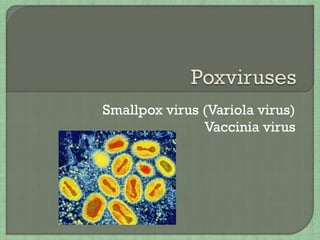

Smallpox virus (Variola virus)
Vaccinia virus

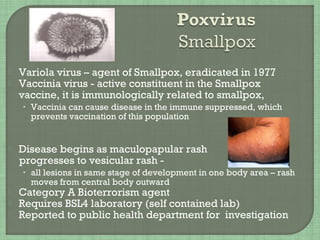

 Variola virus – agent of Smallpox, eradicated in 1977
 Vaccinia virus - active constituent in the Smallpox
vaccine, it is immunologically related to smallpox,
• Vaccinia can cause disease in the immune suppressed, which
prevents vaccination of this population
 Disease begins as maculopapular rash
progresses to vesicular rash -
• all lesions in same stage of development in one body area – rash
moves from central body outward
 Category A Bioterrorism agent
 Requires BSL4 laboratory (self contained lab)
 Reported to public health department for investigation
Rabies virus

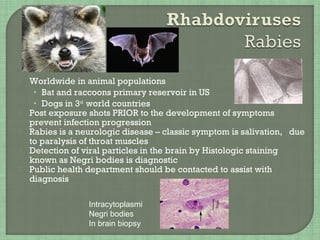

 Worldwide in animal populations
• Bat and raccoons primary reservoir in US
• Dogs in 3rd
world countries
 Post exposure shots PRIOR to the development of symptoms
prevent infection progression
 Rabies is a neurologic disease – classic symptom is salivation, due
to paralysis of throat muscles
 Detection of viral particles in the brain by Histologic staining
known as Negri bodies is diagnostic
 Public health department should be contacted to assist with
diagnosis
Intracytoplasmi
Negri bodies
In brain biopsy

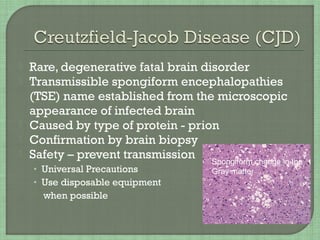

 Rare, degenerative fatal brain disorder
 Transmissible spongiform encephalopathies
(TSE) name established from the microscopic
appearance of infected brain
 Caused by type of protein - prion
 Confirmation by brain biopsy
 Safety – prevent transmission
• Universal Precautions
• Use disposable equipment
when possible
Spongiform change in the
Gray matter

More Related Content

What's hot

Website mycobacteriology 2017 update
Website  mycobacteriology 2017 updateWebsite  mycobacteriology 2017 update
Website mycobacteriology 2017 update
Margie Morgan

Bacteriology 2018 Update
Bacteriology 2018 UpdateBacteriology 2018 Update
Bacteriology 2018 Update
Margie Morgan

Virology 2014
Virology 2014Virology 2014
Virology 2014
Margie Morgan

Mycology 2018 Update
Mycology 2018 UpdateMycology 2018 Update
Mycology 2018 Update
Margie Morgan

Bacteriology
BacteriologyBacteriology
Bacteriology
Margie Morgan

Mycobacteriology 2020
Mycobacteriology 2020Mycobacteriology 2020
Mycobacteriology 2020
Margie Morgan

Bacteriology Update 2019
Bacteriology Update 2019Bacteriology Update 2019
Bacteriology Update 2019
Margie Morgan

Mycobacteriology 2016
Mycobacteriology 2016Mycobacteriology 2016
Mycobacteriology 2016
Margie Morgan

Parasitology 2020
Parasitology 2020Parasitology 2020
Parasitology 2020
Margie Morgan

Mycology Update 2017
Mycology Update 2017Mycology Update 2017
Mycology Update 2017
Margie Morgan

Virology 2016
Virology 2016Virology 2016
Virology 2016
Margie Morgan

Mycology Update 2021
Mycology Update 2021Mycology Update 2021
Mycology Update 2021
Margie Morgan

Parasitology Update 2018
Parasitology Update 2018Parasitology Update 2018
Parasitology Update 2018
Margie Morgan

Parasitology Review 2019
Parasitology Review 2019Parasitology Review 2019
Parasitology Review 2019
Margie Morgan

Mycology 2016
Mycology 2016Mycology 2016
Mycology 2016
Margie Morgan

Parasitology Review
Parasitology ReviewParasitology Review
Parasitology Review
Margie Morgan

Bacteriology Update 2020
Bacteriology Update 2020Bacteriology Update 2020
Bacteriology Update 2020
Margie Morgan

Mycobacteriology 2022
Mycobacteriology 2022Mycobacteriology 2022
Mycobacteriology 2022
Margie Morgan

Mycobacteriology
MycobacteriologyMycobacteriology
Mycobacteriology
Margie Morgan

Antibiotic Sensitivity Testing 2020 Update
Antibiotic Sensitivity Testing 2020 Update Antibiotic Sensitivity Testing 2020 Update
Antibiotic Sensitivity Testing 2020 Update
Margie Morgan


What's hot (20)

Website mycobacteriology 2017 update
Website  mycobacteriology 2017 updateWebsite  mycobacteriology 2017 update
Website mycobacteriology 2017 update

Bacteriology 2018 Update
Bacteriology 2018 UpdateBacteriology 2018 Update
Bacteriology 2018 Update

Virology 2014
Virology 2014Virology 2014
Virology 2014

Mycology 2018 Update
Mycology 2018 UpdateMycology 2018 Update
Mycology 2018 Update

Bacteriology
BacteriologyBacteriology
Bacteriology

Mycobacteriology 2020
Mycobacteriology 2020Mycobacteriology 2020
Mycobacteriology 2020

Bacteriology Update 2019
Bacteriology Update 2019Bacteriology Update 2019
Bacteriology Update 2019

Mycobacteriology 2016
Mycobacteriology 2016Mycobacteriology 2016
Mycobacteriology 2016

Parasitology 2020
Parasitology 2020Parasitology 2020
Parasitology 2020

Mycology Update 2017
Mycology Update 2017Mycology Update 2017
Mycology Update 2017

Virology 2016
Virology 2016Virology 2016
Virology 2016

Mycology Update 2021
Mycology Update 2021Mycology Update 2021
Mycology Update 2021

Parasitology Update 2018
Parasitology Update 2018Parasitology Update 2018
Parasitology Update 2018

Parasitology Review 2019
Parasitology Review 2019Parasitology Review 2019
Parasitology Review 2019

Mycology 2016
Mycology 2016Mycology 2016
Mycology 2016

Parasitology Review
Parasitology ReviewParasitology Review
Parasitology Review

Bacteriology Update 2020
Bacteriology Update 2020Bacteriology Update 2020
Bacteriology Update 2020

Mycobacteriology 2022
Mycobacteriology 2022Mycobacteriology 2022
Mycobacteriology 2022

Mycobacteriology
MycobacteriologyMycobacteriology
Mycobacteriology

Antibiotic Sensitivity Testing 2020 Update
Antibiotic Sensitivity Testing 2020 Update Antibiotic Sensitivity Testing 2020 Update
Antibiotic Sensitivity Testing 2020 Update


Similar to Virology 2018

Virology 2024 | Microbes with Morgan 2024
Virology 2024 | Microbes with Morgan 2024Virology 2024 | Microbes with Morgan 2024
Virology 2024 | Microbes with Morgan 2024
Margie Morgan

VIROLOGY REVIEW 2023
VIROLOGY REVIEW 2023VIROLOGY REVIEW 2023
VIROLOGY REVIEW 2023
Margie Morgan

Virology Review
Virology ReviewVirology Review
Virology Review
Margie Morgan

Human cmv in immuncompromised and congential patients 2019
Human cmv in immuncompromised and congential patients  2019Human cmv in immuncompromised and congential patients  2019
Human cmv in immuncompromised and congential patients 2019
Mohammed AL toubi

Hepatitis ppt final
Hepatitis ppt finalHepatitis ppt final
Hepatitis ppt final
deepak deshkar

Blood borne pathogens
Blood borne pathogensBlood borne pathogens
Blood borne pathogens
IAU Dent

PrecriptionPiont - 2.ppt
PrecriptionPiont - 2.pptPrecriptionPiont - 2.ppt
PrecriptionPiont - 2.ppt
RajKumarSingha5

Hiv in pregnancy
Hiv in pregnancyHiv in pregnancy
Hiv in pregnancy
Archana Verma

Herpesviruses
HerpesvirusesHerpesviruses
Herpesviruses
Hugo Sousa

Hepatitis A, D, E & G
Hepatitis A, D, E & GHepatitis A, D, E & G
Hepatitis A, D, E & G
Mary Mwinga

AIDS
AIDSAIDS
EPIDEMIOLOGY OF HIV.pptx
EPIDEMIOLOGY OF HIV.pptxEPIDEMIOLOGY OF HIV.pptx
EPIDEMIOLOGY OF HIV.pptx
sharadapriyadarshiSw

viral hepatitis.pdf
viral hepatitis.pdfviral hepatitis.pdf
viral hepatitis.pdf
AkhilThomas74

human papilloma Virus ,measles,HIV and hepatitis viruses
human papilloma Virus ,measles,HIV and hepatitis viruseshuman papilloma Virus ,measles,HIV and hepatitis viruses
human papilloma Virus ,measles,HIV and hepatitis viruses
Ikram Ullah

human papilloma Virus ,measles,HIV and hepatitis viruses
human papilloma Virus ,measles,HIV and hepatitis viruseshuman papilloma Virus ,measles,HIV and hepatitis viruses
human papilloma Virus ,measles,HIV and hepatitis viruses
Ikram Ullah

HEPATITIS.ppt
HEPATITIS.pptHEPATITIS.ppt
HEPATITIS.ppt
shwetaSidhwani

Hepatitispptfinal anoop k r
Hepatitispptfinal anoop k rHepatitispptfinal anoop k r
Hepatitispptfinal anoop k r
anoop k r

Paediatric HIV.ppt
Paediatric HIV.pptPaediatric HIV.ppt
Paediatric HIV.ppt
Mr Barasa

Hiv 140123032347-phpapp02
Hiv 140123032347-phpapp02Hiv 140123032347-phpapp02
Hiv 140123032347-phpapp02
Krupa Meet Patel

Pedi HIV (1).pptx
Pedi HIV (1).pptxPedi HIV (1).pptx
Pedi HIV (1).pptx
Yomif3


Similar to Virology 2018 (20)

Virology 2024 | Microbes with Morgan 2024
Virology 2024 | Microbes with Morgan 2024Virology 2024 | Microbes with Morgan 2024
Virology 2024 | Microbes with Morgan 2024

VIROLOGY REVIEW 2023
VIROLOGY REVIEW 2023VIROLOGY REVIEW 2023
VIROLOGY REVIEW 2023

Virology Review
Virology ReviewVirology Review
Virology Review

Human cmv in immuncompromised and congential patients 2019
Human cmv in immuncompromised and congential patients  2019Human cmv in immuncompromised and congential patients  2019
Human cmv in immuncompromised and congential patients 2019

Hepatitis ppt final
Hepatitis ppt finalHepatitis ppt final
Hepatitis ppt final

Blood borne pathogens
Blood borne pathogensBlood borne pathogens
Blood borne pathogens

PrecriptionPiont - 2.ppt
PrecriptionPiont - 2.pptPrecriptionPiont - 2.ppt
PrecriptionPiont - 2.ppt

Hiv in pregnancy
Hiv in pregnancyHiv in pregnancy
Hiv in pregnancy

Herpesviruses
HerpesvirusesHerpesviruses
Herpesviruses

Hepatitis A, D, E & G
Hepatitis A, D, E & GHepatitis A, D, E & G
Hepatitis A, D, E & G

AIDS
AIDSAIDS
AIDS

EPIDEMIOLOGY OF HIV.pptx
EPIDEMIOLOGY OF HIV.pptxEPIDEMIOLOGY OF HIV.pptx
EPIDEMIOLOGY OF HIV.pptx

viral hepatitis.pdf
viral hepatitis.pdfviral hepatitis.pdf
viral hepatitis.pdf

human papilloma Virus ,measles,HIV and hepatitis viruses
human papilloma Virus ,measles,HIV and hepatitis viruseshuman papilloma Virus ,measles,HIV and hepatitis viruses
human papilloma Virus ,measles,HIV and hepatitis viruses

human papilloma Virus ,measles,HIV and hepatitis viruses
human papilloma Virus ,measles,HIV and hepatitis viruseshuman papilloma Virus ,measles,HIV and hepatitis viruses
human papilloma Virus ,measles,HIV and hepatitis viruses

HEPATITIS.ppt
HEPATITIS.pptHEPATITIS.ppt
HEPATITIS.ppt

Hepatitispptfinal anoop k r
Hepatitispptfinal anoop k rHepatitispptfinal anoop k r
Hepatitispptfinal anoop k r

Paediatric HIV.ppt
Paediatric HIV.pptPaediatric HIV.ppt
Paediatric HIV.ppt

Hiv 140123032347-phpapp02
Hiv 140123032347-phpapp02Hiv 140123032347-phpapp02
Hiv 140123032347-phpapp02

Pedi HIV (1).pptx
Pedi HIV (1).pptxPedi HIV (1).pptx
Pedi HIV (1).pptx


More from Margie Morgan

Susceptibility Update 2024 | Microbes with Morgan
Susceptibility Update 2024 | Microbes with MorganSusceptibility Update 2024 | Microbes with Morgan
Susceptibility Update 2024 | Microbes with Morgan
Margie Morgan

WEB BACTERIOLOGY 2024 | Microbes With Morgan
WEB BACTERIOLOGY 2024 | Microbes With MorganWEB BACTERIOLOGY 2024 | Microbes With Morgan
WEB BACTERIOLOGY 2024 | Microbes With Morgan
Margie Morgan

Parasitology 2024 | Microbes with Morgan
Parasitology 2024 | Microbes with MorganParasitology 2024 | Microbes with Morgan
Parasitology 2024 | Microbes with Morgan
Margie Morgan

Mycobacteriology update 2024 Margie Morgan.ppt
Mycobacteriology update 2024 Margie Morgan.pptMycobacteriology update 2024 Margie Morgan.ppt
Mycobacteriology update 2024 Margie Morgan.ppt
Margie Morgan

Mycology Update February 2024 Microbes with Morgan
Mycology Update February 2024 Microbes with MorganMycology Update February 2024 Microbes with Morgan
Mycology Update February 2024 Microbes with Morgan
Margie Morgan

Web Bacteriology 2023
Web Bacteriology 2023Web Bacteriology 2023
Web Bacteriology 2023
Margie Morgan

Gram Stain 2023
Gram Stain 2023Gram Stain 2023
Gram Stain 2023
Margie Morgan

Susceptibility 2023
Susceptibility 2023Susceptibility 2023
Susceptibility 2023
Margie Morgan

Mycology Update 2023
Mycology Update 2023Mycology Update 2023
Mycology Update 2023
Margie Morgan

Mycobacteriology Update 2023
Mycobacteriology Update 2023Mycobacteriology Update 2023
Mycobacteriology Update 2023
Margie Morgan

Bacteriology Update 2021 (Part 2.)
Bacteriology Update 2021 (Part 2.)Bacteriology Update 2021 (Part 2.)
Bacteriology Update 2021 (Part 2.)
Margie Morgan

Gram Stains 2021
Gram Stains 2021Gram Stains 2021
Gram Stains 2021
Margie Morgan

Mycobacteriology 2021
Mycobacteriology 2021Mycobacteriology 2021
Mycobacteriology 2021
Margie Morgan

Mycology 2020
Mycology 2020Mycology 2020
Mycology 2020
Margie Morgan


More from Margie Morgan (14)

Susceptibility Update 2024 | Microbes with Morgan
Susceptibility Update 2024 | Microbes with MorganSusceptibility Update 2024 | Microbes with Morgan
Susceptibility Update 2024 | Microbes with Morgan

WEB BACTERIOLOGY 2024 | Microbes With Morgan
WEB BACTERIOLOGY 2024 | Microbes With MorganWEB BACTERIOLOGY 2024 | Microbes With Morgan
WEB BACTERIOLOGY 2024 | Microbes With Morgan

Parasitology 2024 | Microbes with Morgan
Parasitology 2024 | Microbes with MorganParasitology 2024 | Microbes with Morgan
Parasitology 2024 | Microbes with Morgan

Mycobacteriology update 2024 Margie Morgan.ppt
Mycobacteriology update 2024 Margie Morgan.pptMycobacteriology update 2024 Margie Morgan.ppt
Mycobacteriology update 2024 Margie Morgan.ppt

Mycology Update February 2024 Microbes with Morgan
Mycology Update February 2024 Microbes with MorganMycology Update February 2024 Microbes with Morgan
Mycology Update February 2024 Microbes with Morgan

Web Bacteriology 2023
Web Bacteriology 2023Web Bacteriology 2023
Web Bacteriology 2023

Gram Stain 2023
Gram Stain 2023Gram Stain 2023
Gram Stain 2023

Susceptibility 2023
Susceptibility 2023Susceptibility 2023
Susceptibility 2023

Mycology Update 2023
Mycology Update 2023Mycology Update 2023
Mycology Update 2023

Mycobacteriology Update 2023
Mycobacteriology Update 2023Mycobacteriology Update 2023
Mycobacteriology Update 2023

Bacteriology Update 2021 (Part 2.)
Bacteriology Update 2021 (Part 2.)Bacteriology Update 2021 (Part 2.)
Bacteriology Update 2021 (Part 2.)

Gram Stains 2021
Gram Stains 2021Gram Stains 2021
Gram Stains 2021

Mycobacteriology 2021
Mycobacteriology 2021Mycobacteriology 2021
Mycobacteriology 2021

Mycology 2020
Mycology 2020Mycology 2020
Mycology 2020


Recently uploaded

Evidence of Jet Activity from the Secondary Black Hole in the OJ 287 Binary S...
Evidence of Jet Activity from the Secondary Black Hole in the OJ 287 Binary S...Evidence of Jet Activity from the Secondary Black Hole in the OJ 287 Binary S...
Evidence of Jet Activity from the Secondary Black Hole in the OJ 287 Binary S...
Sérgio Sacani

Methods of grain storage Structures in India.pdf
Methods of grain storage Structures in India.pdfMethods of grain storage Structures in India.pdf
Methods of grain storage Structures in India.pdf
PirithiRaju

Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...
Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...
Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...
frank0071

Mechanisms and Applications of Antiviral Neutralizing Antibodies - Creative B...
Mechanisms and Applications of Antiviral Neutralizing Antibodies - Creative B...Mechanisms and Applications of Antiviral Neutralizing Antibodies - Creative B...
Mechanisms and Applications of Antiviral Neutralizing Antibodies - Creative B...
Creative-Biolabs

Clinical periodontology and implant dentistry 2003.pdf
Clinical periodontology and implant dentistry 2003.pdfClinical periodontology and implant dentistry 2003.pdf
Clinical periodontology and implant dentistry 2003.pdf
RAYMUNDONAVARROCORON

MICROBIAL INTERACTION PPT/ MICROBIAL INTERACTION AND THEIR TYPES // PLANT MIC...
MICROBIAL INTERACTION PPT/ MICROBIAL INTERACTION AND THEIR TYPES // PLANT MIC...MICROBIAL INTERACTION PPT/ MICROBIAL INTERACTION AND THEIR TYPES // PLANT MIC...
MICROBIAL INTERACTION PPT/ MICROBIAL INTERACTION AND THEIR TYPES // PLANT MIC...
ABHISHEK SONI NIMT INSTITUTE OF MEDICAL AND PARAMEDCIAL SCIENCES , GOVT PG COLLEGE NOIDA

Embracing Deep Variability For Reproducibility and Replicability
Embracing Deep Variability For Reproducibility and ReplicabilityEmbracing Deep Variability For Reproducibility and Replicability
Embracing Deep Variability For Reproducibility and Replicability
University of Rennes, INSA Rennes, Inria/IRISA, CNRS

fermented food science of sauerkraut.pptx
fermented food science of sauerkraut.pptxfermented food science of sauerkraut.pptx
fermented food science of sauerkraut.pptx
ananya23nair

Holsinger, Bruce W. - Music, body and desire in medieval culture [2001].pdf
Holsinger, Bruce W. - Music, body and desire in medieval culture [2001].pdfHolsinger, Bruce W. - Music, body and desire in medieval culture [2001].pdf
Holsinger, Bruce W. - Music, body and desire in medieval culture [2001].pdf
frank0071

Microbiology of Central Nervous System INFECTIONS.pdf
Microbiology of Central Nervous System INFECTIONS.pdfMicrobiology of Central Nervous System INFECTIONS.pdf
Microbiology of Central Nervous System INFECTIONS.pdf
sammy700571

cathode ray oscilloscope and its applications
cathode ray oscilloscope and its applicationscathode ray oscilloscope and its applications
cathode ray oscilloscope and its applications
sandertein

Farming systems analysis: what have we learnt?.pptx
Farming systems analysis: what have we learnt?.pptxFarming systems analysis: what have we learnt?.pptx
Farming systems analysis: what have we learnt?.pptx
Frédéric Baudron

gastroretentive drug delivery system-PPT.pptx
gastroretentive drug delivery system-PPT.pptxgastroretentive drug delivery system-PPT.pptx
gastroretentive drug delivery system-PPT.pptx
Shekar Boddu

The cost of acquiring information by natural selection
The cost of acquiring information by natural selectionThe cost of acquiring information by natural selection
The cost of acquiring information by natural selection
Carl Bergstrom

SDSS1335+0728: The awakening of a ∼ 106M⊙ black hole⋆
SDSS1335+0728: The awakening of a ∼ 106M⊙ black hole⋆SDSS1335+0728: The awakening of a ∼ 106M⊙ black hole⋆
SDSS1335+0728: The awakening of a ∼ 106M⊙ black hole⋆
Sérgio Sacani

Quality assurance B.pharm 6th semester BP606T UNIT 5
Quality assurance B.pharm 6th semester BP606T UNIT 5Quality assurance B.pharm 6th semester BP606T UNIT 5
Quality assurance B.pharm 6th semester BP606T UNIT 5
vimalveerammal

Mending Clothing to Support Sustainable Fashion_CIMaR 2024.pdf
Mending Clothing to Support Sustainable Fashion_CIMaR 2024.pdfMending Clothing to Support Sustainable Fashion_CIMaR 2024.pdf
Mending Clothing to Support Sustainable Fashion_CIMaR 2024.pdf
Selcen Ozturkcan

seed production, Nursery & Gardening.pdf
seed production, Nursery & Gardening.pdfseed production, Nursery & Gardening.pdf
seed production, Nursery & Gardening.pdf
Nistarini College, Purulia (W.B) India

Anti-Universe And Emergent Gravity and the Dark Universe
Anti-Universe And Emergent Gravity and the Dark UniverseAnti-Universe And Emergent Gravity and the Dark Universe
Anti-Universe And Emergent Gravity and the Dark Universe
Sérgio Sacani

Post translation modification by Suyash Garg
Post translation modification by Suyash GargPost translation modification by Suyash Garg
Post translation modification by Suyash Garg
suyashempire


Recently uploaded (20)

Evidence of Jet Activity from the Secondary Black Hole in the OJ 287 Binary S...
Evidence of Jet Activity from the Secondary Black Hole in the OJ 287 Binary S...Evidence of Jet Activity from the Secondary Black Hole in the OJ 287 Binary S...
Evidence of Jet Activity from the Secondary Black Hole in the OJ 287 Binary S...

Methods of grain storage Structures in India.pdf
Methods of grain storage Structures in India.pdfMethods of grain storage Structures in India.pdf
Methods of grain storage Structures in India.pdf

Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...
Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...
Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...

Mechanisms and Applications of Antiviral Neutralizing Antibodies - Creative B...
Mechanisms and Applications of Antiviral Neutralizing Antibodies - Creative B...Mechanisms and Applications of Antiviral Neutralizing Antibodies - Creative B...
Mechanisms and Applications of Antiviral Neutralizing Antibodies - Creative B...

Clinical periodontology and implant dentistry 2003.pdf
Clinical periodontology and implant dentistry 2003.pdfClinical periodontology and implant dentistry 2003.pdf
Clinical periodontology and implant dentistry 2003.pdf

MICROBIAL INTERACTION PPT/ MICROBIAL INTERACTION AND THEIR TYPES // PLANT MIC...
MICROBIAL INTERACTION PPT/ MICROBIAL INTERACTION AND THEIR TYPES // PLANT MIC...MICROBIAL INTERACTION PPT/ MICROBIAL INTERACTION AND THEIR TYPES // PLANT MIC...
MICROBIAL INTERACTION PPT/ MICROBIAL INTERACTION AND THEIR TYPES // PLANT MIC...

Embracing Deep Variability For Reproducibility and Replicability
Embracing Deep Variability For Reproducibility and ReplicabilityEmbracing Deep Variability For Reproducibility and Replicability
Embracing Deep Variability For Reproducibility and Replicability

fermented food science of sauerkraut.pptx
fermented food science of sauerkraut.pptxfermented food science of sauerkraut.pptx
fermented food science of sauerkraut.pptx

Holsinger, Bruce W. - Music, body and desire in medieval culture [2001].pdf
Holsinger, Bruce W. - Music, body and desire in medieval culture [2001].pdfHolsinger, Bruce W. - Music, body and desire in medieval culture [2001].pdf
Holsinger, Bruce W. - Music, body and desire in medieval culture [2001].pdf

Microbiology of Central Nervous System INFECTIONS.pdf
Microbiology of Central Nervous System INFECTIONS.pdfMicrobiology of Central Nervous System INFECTIONS.pdf
Microbiology of Central Nervous System INFECTIONS.pdf

cathode ray oscilloscope and its applications
cathode ray oscilloscope and its applicationscathode ray oscilloscope and its applications
cathode ray oscilloscope and its applications

Farming systems analysis: what have we learnt?.pptx
Farming systems analysis: what have we learnt?.pptxFarming systems analysis: what have we learnt?.pptx
Farming systems analysis: what have we learnt?.pptx

gastroretentive drug delivery system-PPT.pptx
gastroretentive drug delivery system-PPT.pptxgastroretentive drug delivery system-PPT.pptx
gastroretentive drug delivery system-PPT.pptx

The cost of acquiring information by natural selection
The cost of acquiring information by natural selectionThe cost of acquiring information by natural selection
The cost of acquiring information by natural selection

SDSS1335+0728: The awakening of a ∼ 106M⊙ black hole⋆
SDSS1335+0728: The awakening of a ∼ 106M⊙ black hole⋆SDSS1335+0728: The awakening of a ∼ 106M⊙ black hole⋆
SDSS1335+0728: The awakening of a ∼ 106M⊙ black hole⋆

Quality assurance B.pharm 6th semester BP606T UNIT 5
Quality assurance B.pharm 6th semester BP606T UNIT 5Quality assurance B.pharm 6th semester BP606T UNIT 5
Quality assurance B.pharm 6th semester BP606T UNIT 5

Mending Clothing to Support Sustainable Fashion_CIMaR 2024.pdf
Mending Clothing to Support Sustainable Fashion_CIMaR 2024.pdfMending Clothing to Support Sustainable Fashion_CIMaR 2024.pdf
Mending Clothing to Support Sustainable Fashion_CIMaR 2024.pdf

seed production, Nursery & Gardening.pdf
seed production, Nursery & Gardening.pdfseed production, Nursery & Gardening.pdf
seed production, Nursery & Gardening.pdf

Anti-Universe And Emergent Gravity and the Dark Universe
Anti-Universe And Emergent Gravity and the Dark UniverseAnti-Universe And Emergent Gravity and the Dark Universe
Anti-Universe And Emergent Gravity and the Dark Universe

Post translation modification by Suyash Garg
Post translation modification by Suyash GargPost translation modification by Suyash Garg
Post translation modification by Suyash Garg


Virology 2018

  • 1. Margie Morgan, PhD, MT(ASCP), D(ABMM)
  • 2. 1.Direct Staining for Antigen 2. Enzyme Immunoassay 3.Viral Cell Culture 4. Molecular Amplification
  • 3.  Direct Fluorescent antibody (DFA) stain  Collect cells from base of fresh vesicular lesion  Stain with DFA specific for HSV and/or VZV  Look for fluorescent cells (virus infected) using fluorescence microscope  More sensitive & specific method than Tzanck prep (DFA 80% vs. Tzanck 50%)  Tzanck prep= Giemsa stained cells from lesion -/examine for multinucleated giant cells of Herpes Tzanck Tzanck DFA
  • 4. • Enzyme immunoassay (EIA) –  Antigen/antibody complex formed – then bound to a color producing substrate  Used most often for:  Detection of non culturable viruses like Rotavirus  Point of Care: Influenza A /B , & Respiratory syncytial virus (RSV) • Membrane lateral flow EIA Liquid/well EIA
  • 5. • Inner tube wall of tube coated with monolayer of cells in liquid growth media • Three types of cell lines:  Primary cell lines – direct from animal or human organ into culture tube , will only survive one subculture  Rhesus monkey kidney-RMK  Diploid – semi continuous cell lines– Can survive 20 – 50 subcultures into new vials –  Human diploid fibroblast cells,  Example: MRC-5-Microbiology Research Council 5  Continuous cell lines – survive continuous passage into new vials,  Tumor lineages, HEp-2 and HeLa
  • 6.  Patient specimens inoculated into cell culture tubes, incubated, then read under light microscopy for “Cytopathic effect” – the effect the virus has on the cell monolayer • The pattern of destruction of the cell monolayer is specific for each virus type
  • 7. Spin Down Shell Vial Culture – •Speed up viral cell culture •Cell monolayer is on a coverslip •Specimen inoculated into vial with coverslip •Centrifuge vial to induce virus invasion into cells •Incubate @ 35C, 24-72 hours •Direct fluorescent antibody stain of cells – target early virus antigens (those first formed ) Cover slip
  • 8.  Molecular Amplification (for DNA or RNA) • Rapid/Sensitive/Specific for numerous viruses • Exceeds sensitivity of culture/ Standard of Practice for:  Respiratory viruses  Meningitis/Encephalitis  Lesions - HSV • Tests of diagnosis not cure – can continue to shed residual virus for 7 – 30 days after initial positive test  Molecular quantitative assays • CMV - Quantitative assays in transplant patients • Hepatitis B and C detection and viral load • HIV viral load
  • 9.  Viral transport media (VTM) - Hanks balanced salt solution with antibiotics, cell protective • Also known as Universal Transport Media (UTM) • Transport of lesions, mucous membranes, nasal & throat specimens collected with swab  Short term transport storage 4˚C  Long term transport(>72hours) storage -70˚C  VTM specimens filtered (45nm filter) to eliminate bacteria in specimen prior to being placed onto cell monolayer
  • 10.
  • 11.  Double stranded DNA virus  Eight human Herpes viruses • Herpes simplex 1 • Herpes simplex 2 • Varicella Zoster • Epstein Barr • Cytomegalovirus • Human Herpes 6, 7, and 8  Latency (hallmark of Herpes viruses) occurs within small numbers of specific kinds of cells, the cell type is different for each Herpes virus
  • 12.  Transmission: direct contact/secretions  Latency: dorsal root ganglia  Diseases • Gingivostomatitis • Herpes labialis • Ocular • Encephalitis • Neonatal • Disseminated in immune suppressed Therapy – Acyclovir, Valacyclovir
  • 13.  Herpes simplex 1 & 2 • Produce CPE within 24-48 hrs • Human diploid fibroblast (MRC-5) • Observe for characteristic CPE Negative fibroblast Cell line HSV CPE – cell rounding starting on the edge of the monolayer. Histology/Cytology Multinucleated Giant Cells Cannot Differentiate from VZV Molecular Amplification Serology – best for past infections
  • 14.  Transmission: close contact  Latency: dorsal root ganglia  Diseases: • Chickenpox (varicella) • Shingles (zoster – latent infection)  Serious disease in adults and immune suppressed with progression to pneumonia and/or encephalitis  Ramsay-Hunt syndrome – facial nerve / facial paralysis  Histology – multi-nucleated giant cells  Serology useful for immune status check  Cell culture – growth 5-7 days, fibroblasts  Sandpaper like appearance with rounded cells  Amplification useful for disease diagnosis  Effective vaccine has lowered the incidence of VZV in children
  • 15.  Transmitted by blood transfusion , vertical and horizontal transmission to fetus, or close contact  Latency: Macrophages  Disease: Infection asymptomatic in most individuals • Congenital – most common cause of TORCH • Perinatal • Immunocompromised – 1° disease most serious than recurrent  Laboratory Diagnosis: • Cell culture CPE (Human diploid fibroblast) • PCR and quantitative PCR (best method)  Due to persistent shedding - do quantitative PCR to detect high viral loads, most consistent with ongoing infection • Histopathology – Intranuclear and intracytoplasmic inclusions (Owl eye)  Treatment: ganciclovir, foscarnet, cidofovir
  • 16.  Transmission - close contact, saliva  Latency - B lymphocytes – • cell receptor CD21  Diseases include: • Infectious mononucleosis • Lymphoreticular disease • Oral hairy leukoplakia • Burkitt’s lymphoma • Nasopharyngeal Carcinoma • 1/3 Hodgkin’s lymphoma  Will not grow in cell culture  Serology – Heterophile antibody – patient serum reacts with horse and cattle rbcs (Monospot test)  PCR techniques developed EBV infection with B cell transformation
  • 17. VCA IgM VCA IgG EBNA-1 IgG Negative Negative Negative No immunity Positive Negative Negative Acute infection Positive Positive Negative Acute infection Negative Positive Positive Past infection Negative Positive Negative Acute or past infection Positive Positive Positive Late primary infection Negative Negative Positive Past infection VCA = viral capsid antibody Serologic Diagnosis of EBV
  • 18.  HH6 • Roseola [sixth disease] • 6m-2yr high fever & rash  HH8 • (1) Kaposi’s sarcoma • (2) Castleman disease • (3) Primary effusion lymphoma Onion skin pattern of Castleman disease 1 1 1 2 3
  • 19.  DNA - non enveloped/ icosahedral virus  Latent: lymphoid tissue  Transmission: Respiratory and fecal-oral route  Diseases: • Pharyngitis (year round epidemics) • Pneumonia • Gastroenteritis in children  Adenovirus types 40 & 41 • Kerato-conjuctivitis – red eyes for @ 2 weeks • Disseminated infection in transplant patients • Hemorrhagic cystitis in immune suppressed
  • 20.  Diagnosis • Cell culture (CPE) • Amplification (PCR)* superior for respiratory infection • Stool antigen detection by EIA (40/41 strains) • Supportive treatment only – no specific viral therapy • Histology - Intranuclear inclusions / smudge cells – membranes become blurred Round cells 2 – 5 days with Stranding – HeLA or Hep-2 cells
  • 21.  DNA virus - humans only  Parvovirus B19 • Erythema infectiosum (Fifth disease) – headache rash and cold-like symptoms in the child • Hydrops fetalis - in pregnant, infection in 1st trimester, leading to miscarriage • Aplastic crisis in pre-existing bone marrow stress • Chronic hemolytic anemia HIV/AIDS • Arthritis and Arthralgias • Histology - virus infects mitotically active erythroid precursor cells in bone marrow • Molecular and Serologic methods to aid diagnosis Slapped face appearance of fifth disease
  • 22.  Diseases:  Skin and anogenital warts,  Benign head and neck tumors,  Cervical and anal intraepithelial neoplasia and cancer  HPV types 16, 18, & 45 = 94% Cervical CA  HPV types 6 and 11 = 90% Genital warts  Pap Smear  PCR – Detection with typing of many HPV types  Guidelines suggest both PAP and HPV PCR for women 30 - 65 years of age / 5 years  Three vaccines - 1°to guard against HPV 6,11,16,18 Pap smear
  • 23. • JC virus [John Cunningham]  Progressive multifocal leukoencephalopathy -  PML -Encephalitis of immune suppressed  Destroys oligodendrocytes in brain • BK virus  Causes latent virus infection in kidney  Progression due to immune suppression  Hemorrhagic cystitis • Histology • PCR to aid diagnosis Giant Glial Cells of JCV
  • 24.  Enveloped DNA virus  Spectrum of the Hepatitis B symptomatology • Acute phase - disease varies from subclinical hepatitis to icteric hepatitis fulminant, acute, and subacute hepatitis • Chronic phase - chronic hepatitis, cirrhosis, and hepatocellular carcinoma (HCC) during the chronic phase • Vaccinate to prevent • Therapies available to treat • PCR and Serology for diagnosis
  • 25.  Surface Antigen Positive • Active Hepatitis B or Chronic Carrier, if detected  Do Hep B Quantitation  Do Hep e antigen – if positive, Chronic carrier and worse prognosis  Core Antibody Positive • Immune due to prior infection, acute infection or chronic carrier Surface Antibody Positive • Immune due to prior infection or vaccine
  • 26.  Parenteral transmission - drug abuse, blood products or organ transplants (prior to 1992), poorly sterilized medical equipment, sexual  Effects humans and chimpanzees  Approx 3.2 mil persons in US have chronic HepC  Seven major genotypes (1-7) • Acute self limited disease that progresses to a disease that mainly affects the liver • Type 1 virus most common in USA • Infection persists in @ 75-85%/ no symptoms • 5 - 20 % develop cirrhosis • 1-5 % associated with hepatocellular CA  Can lead to liver transplantation
  • 27.  Diagnosis: • Hepatitis C antibody test  If Hep C antibody detected perform  RNA quantitative assay for viral load  Genotype of virus for proper therapy selection/duration  Assessment of liver disease - ? cirhhosis  No vaccine available  Antivirals currently FDA cleared that can cure >= 85% of patients infected with Hepatitis C
  • 28. •Dengue – “breakbone fever” •Vector Aedes mosquito / Asia and the Pacific •Disease  Fever, severe joint pain, rash  Small % progress to hemorrhagic fever •Serology -IgM for acute infection  Zika virus •Vector: Aedes mosquito •2016 outbreak began in South America (Brazil) and spread to central America, Caribbean and US (Miami) •Clinically a milder disease than Dengue in most adults •Neurologic tropism  Microcephaly in fetuses borne to infected moms  Potential developmental issues in infected children  Guillain- Barre syndrome •Diagnosis: Serum antibody IgM / PCR serum, urine, amniotic fluid and CSF
  • 29.  Yellow fever  Vector – Aedes aegypti  Most cases mild with 3-4 days fever, headache, chills, back pain, fatigue, nausea, vomiting  15% cases toxic phase with jaundice due to liver damage, hemorrhagic issues, with 20 – 50% fatality rate  Diagnosis confirmed by serum PCR  Outbreaks possible when large numbers of infected mosquitoes are introduced into a heavily populated area, endemic in Africa, Central and South America • Large outbreak in Brazil 2018  No specific anti-viral drugs  Vaccine – life long immunity
  • 30. • West Nile  Vector Aedes and Culex mosquito  Common across the US  Bird primary reservoir, horses at risk  Disease  80% asymptomatic  Fever, Headache, Muscle weakness  Small % progress to encephalitis, meningitis, flaccid paralysis  Serology  PCR Cross reactions occur in serologic testing for Dengue, Zika and West Nile virus, present diagnostic problems
  • 31.  Powassan (POW) virus  Transmitted to humans by infected ticks (Ixodes)  Approximately 100 cases of POW virus disease were reported in the United States over the past 10 years. • Most cases have occurred in the Northeast and Great Lakes region  Fever, headache, vomiting, weakness, confusion, seizures, and memory loss, can cause significant swelling in the brain  Long-term neurologic problems may occur.  There is no specific treatment
  • 32.  Chikungunya virus  Vector Aedes mosquito  Origin in Asia and African continents with recent migration to the Caribbean and SE USA  Acute febrile illness with rash followed by extreme joint pain,  No hemorrhagic phase  When screening for ZIKA – need to rule out infection with Dengue and Chikungunya. Similar diseases with very different sequelae
  • 33.  >20 outbreaks since discovery in 1976 • Most recent Dec 2013 - West Africa • Prolonged outbreak due to area effected had high population with limited medical resources  Transmission direct contact with bodily fluids – fatality rate 55% • Animal reservoir (?) fruit bats  Asymptomatic not contagious  Fever, weakness, myalgia, headache, travel history • Also consider malaria and typhoid in the differential  Susceptible to hospital disinfectants  Testing (EIA, PCR) at CDC – positive >= 4 days of illness  Level A agent of Bioterrorism
  • 34. SARS - Severe Acute Respiratory Syndrome – Outbreak in China 2003 – spread to 29 countries Dry cough and/or shortness of breath with development of pneumonia by day 7-10 of illness Lymphopenia in most cases Laboratory testing public health laboratories (CDC) -antibody testing enzyme immunoassay (EIA) and PCR tests for respiratory, blood, and stool specimens. • MERS - Middle East Respiratory Syndrome • Arabian peninsula (2012) • Direct contact with infected camels • Close human to human contact can spread infection – no outbreaks – 30% fatality rate respiratory failure • Fever, rhinorrhea, cough, malaise followed by shortness of breath
  • 35.
  • 36.  Diverse group of > 60 viruses – SS RNA • Infections occur most often in summer and fall • Polio virus - paralysis  Salk vaccine Inactive Polio Vaccine (IPV)** recommended • Coxsackie A – Herpangina – vesicular oral lesions • Coxsackie B – Pericarditis/Myocarditis • Enterovirus – Aseptic meningitis in children, hemorrhagic conjunctivitis, Acute flaccid myelitis EV-D68 • Echovirus – various infections, intestine • Rhinoviruses – common cold  Grow in cell culture * 5-7 days • Teardrop or kite like cells formed  PCR superior for diagnosis
  • 37.  Fecal – oral transmission, contaminated food or person to person  Traveler’s disease  Recent outbreaks in homeless populations without adequate sanitary facilities  80% develop symptoms – jaundice & elevated aminotransferases  Usually – short incubation (15- 50 days), abrupt onset, low mortality, no carrier state  Diagnosis – serology, IgM positive in early infection to differ from other Hepatitis viruses  Antibody is protective and lasts for life  Vaccine available
  • 38.  Hemagglutinin and Neuraminidase are glycoprotein spikes on outside of viral capsid • Gives Influenza A the H and N designations – such as H1N1 and H3N2  Antigenic drift - minor change in the amino acids of either the H or N glycoprotein  Cross antibody protection will still exist so an epidemic will not occur  Antigenic shift - genome re assortment with a “new” virus created/usually from a bird or animal/ this could create a potential pandemic  H5N1 = Avian Influenza  H1N1 = 2009 Influenza A
  • 39.  Disease: fever, malaise …. Death from respiratory complications or secondary bacterial infection  Yearly H and N types dominate, most recently H1N1 and H3N2  Diagnosis • Cell culture obsolete [RMK] • Enzyme immunoassay (EIA) lateral flow membrane can be used in point of care testing • Amplification (PCR) gold standard for detection  Treatment: Amantadine and Tamiflu (Oseltamivir) • Seasonal variation in susceptibility but Tamiflu sensitive currently  Influenza B • Milder form of Influenza like illness • Usually <=10% of cases /year  Vaccinate – Trivalent vaccine -2 A viruses/1 B virus
  • 40. Disease • Fever, Rash, Dry Cough, Runny Nose, Sore throat, inflamed eyes (photosensitive)  Can invade lung • Respiratory spread - very contagious • Koplik’s spot – bluish discoloration inner lining of the cheek is pathognomonic • Subacute sclerosing panencephalitis [SSPE]  Rare chronic degenerative neurological disease  Persistent infection with a mutated measles virus, due to mutated virus there is total lack of an immune response Diagnosis: Clinical symptoms, Serology , PCR Vaccinate – MMR (Measles, Mumps, Rubella) vaccine Treatment: Nothing specific, Immune globulin, vitamin A H and E stain/ lung
  • 41.  Types 1,2,3, and 4  Person to person spread  Disease: • Upper respiratory tract infection in adults and children with fever, runny nose and cough • Lower respiratory tract infection - Croup, bronchiolitis and pneumonia more likely in children, elderly and immune suppressed  PCR** methods standard of practice  Supportive therapy
  • 42.  Person to person contact  Parotitis, other sites less common: Testes/ovaries, Eye, Inner ear, CNS  Diagnosis: clinical symptoms and serologic tests  Prevention: MMR vaccine  No specific therapy, supportive
  • 43.  Respiratory disease - common cold to pneumonia, bronchiolitis to croup, serious disease in infants and immune suppressed • Classic disease: Young infant with bronchiolitis  Transmission by contact and respiratory droplet  Diagnosis: EIA (point of care), cell culture (heteroploid, continuous cell lines), PCR is gold standard**, and lung biopsy  Treatment: Supportive, ribavirin Classic CPE = Syncytium formation heteroploid cell line Syncytium formation In lung tissue
  • 44.  1st discovered in 2001 – community acquired respiratory tract disease in winter • 95% of cases in children <6 years of age • Upper respiratory tract disease • Lower respiratory tract disease –  2nd only to RSV in the cause of bronchiolitis  Will not grow in cell culture  Amplification (PCR) for detection  Treatment: Supportive
  • 45.  Winter - spring seasonality • Gastroenteritis with vomiting and fluid loss – most common cause of severe diarrhea in children 6m – 2 yrs • Fecal – oral spread  Major cause of childhood death in 3rd world countries  Diagnosis – cannot grow in cell culture • Enzyme immunoassay, PCR  Vaccine available Rota = Wheel EM Pix
  • 46.  Spread by contaminated food and water, feces & vomitus – takes <=20 virus particles to spread infection – so highly contagious  Tagged the “Cruise line virus” – numerous reported food borne outbreaks aboard cruise liners  Leading cause of epidemic gastroenteritis – worldwide on land or sea • Fluid loss from vomiting can be debilitating  Disease course usually limited, 24-48 hours  PCR for diagnosis • Cannot be grown in cell culture
  • 47.  CD4 primary receptor site for entry of HIV into the lymphocyte  Reverse transcriptase enzyme converts genomic RNA into DNA  Transmission - sexual, blood and blood product exposure, perinatal  Non infectious complications: • Lymphoma, KS, Anal cell CA, non Hodgkins Lymphoma  Infectious complications: • Pneumocystis, Cryptococcal meningitis, TB and Mycobacterium avium complex, Microsporidia, Cryptosporidium, STD’s , Hepatitis B and C
  • 48. Antibody EIA with Western Blot confirmation (old way)  Positive tests must be confirmed with a Western blot test  Western blot detects gp160/gp120 (envelope proteins), p 24 (core), and p41(reverse transcriptase)  Must have at least 2 solid bands on Western blot to confirm as a positive result New test - Antigen/antibody combination (4th generation) immunoassay* that detects IgG and IgM HIV-1 and HIV-2 antibodies and HIV-1 p24 antigen to screen for established and acute infection Detects infection earlier @ 2- 4 weeks Positive patients require additional testing:  HIV viral load quantitation >= 100 copies  Resistance Testing – report subtype to optimize therapy  Most isolates in USA type B •Monitor CD4 counts for infection severity
  • 50. Known as the “Three day measles” or German measles Rash, low grade fever, cervical lymphadenopathy Respiratory transmission Congenital rubella – • occurs in a developing fetus of a pregnant women who has contracted Rubella, highest % (50%) in the first trimester pregnancy • Prior to Zika it was the neurotropic virus of the fetus  Deafness, eye abnormalities, congenital heart disease Diagnosis - Serology in combination with clinical symptoms Live attenuated vaccine (MMR) to prevent
  • 52.  1993 - Outbreak on Indian reservation in the four corner states (NM,AZ,CO,UT) brought attention to this virus  Source - urine and secretions of wild deer mouse and cotton rat  Recent outbreak from transmission from pet rats to humans  Myalgia, headache, cough and respiratory failure  Found in states west of the Mississippi River  Diagnosis by serology  Supportive therapy
  • 53. Smallpox virus (Variola virus) Vaccinia virus
  • 54.  Variola virus – agent of Smallpox, eradicated in 1977  Vaccinia virus - active constituent in the Smallpox vaccine, it is immunologically related to smallpox, • Vaccinia can cause disease in the immune suppressed, which prevents vaccination of this population  Disease begins as maculopapular rash progresses to vesicular rash - • all lesions in same stage of development in one body area – rash moves from central body outward  Category A Bioterrorism agent  Requires BSL4 laboratory (self contained lab)  Reported to public health department for investigation
  • 56.  Worldwide in animal populations • Bat and raccoons primary reservoir in US • Dogs in 3rd world countries  Post exposure shots PRIOR to the development of symptoms prevent infection progression  Rabies is a neurologic disease – classic symptom is salivation, due to paralysis of throat muscles  Detection of viral particles in the brain by Histologic staining known as Negri bodies is diagnostic  Public health department should be contacted to assist with diagnosis Intracytoplasmi Negri bodies In brain biopsy
  • 57.  Rare, degenerative fatal brain disorder  Transmissible spongiform encephalopathies (TSE) name established from the microscopic appearance of infected brain  Caused by type of protein - prion  Confirmation by brain biopsy  Safety – prevent transmission • Universal Precautions • Use disposable equipment when possible Spongiform change in the Gray matter
