This document contains Verilog code for several basic digital logic components: a 4:1 multiplexer, JK flip-flop, 4-to-2 encoder, 2-to-4 decoder, 1:4 demultiplexer, asynchronous counter that counts from 0-3 repeatedly, and a skipping counter that counts 0-1-3-0 repeatedly. Each component is defined in a separate module with inputs, outputs, and logic assignments to implement the desired function.

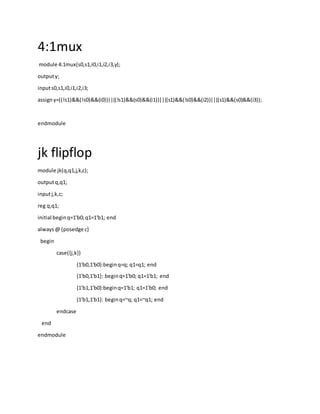

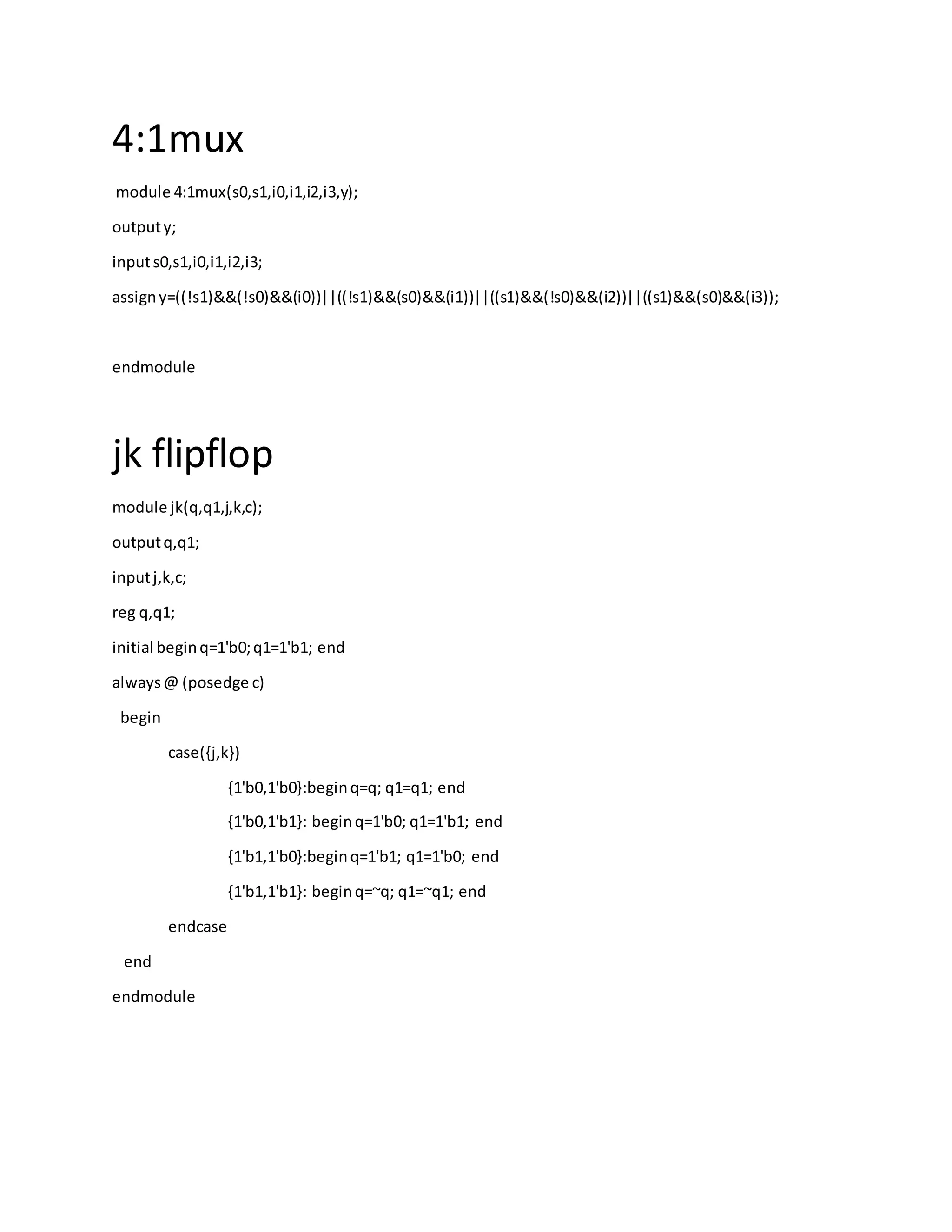

1. 4:1mux
module 4:1mux(s0,s1,i0,i1,i2,i3,y);
outputy;
inputs0,s1,i0,i1,i2,i3;
assigny=((!s1)&&(!s0)&&(i0))||((!s1)&&(s0)&&(i1))||((s1)&&(!s0)&&(i2))||((s1)&&(s0)&&(i3));
endmodule
jk flipflop
module jk(q,q1,j,k,c);
outputq,q1;
inputj,k,c;
reg q,q1;
initial beginq=1'b0;q1=1'b1; end
always@ (posedge c)
begin
case({j,k})
{1'b0,1'b0}:beginq=q; q1=q1; end
{1'b0,1'b1}: beginq=1'b0; q1=1'b1; end
{1'b1,1'b0}:beginq=1'b1; q1=1'b0; end
{1'b1,1'b1}: beginq=~q; q1=~q1; end
endcase
end
endmodule

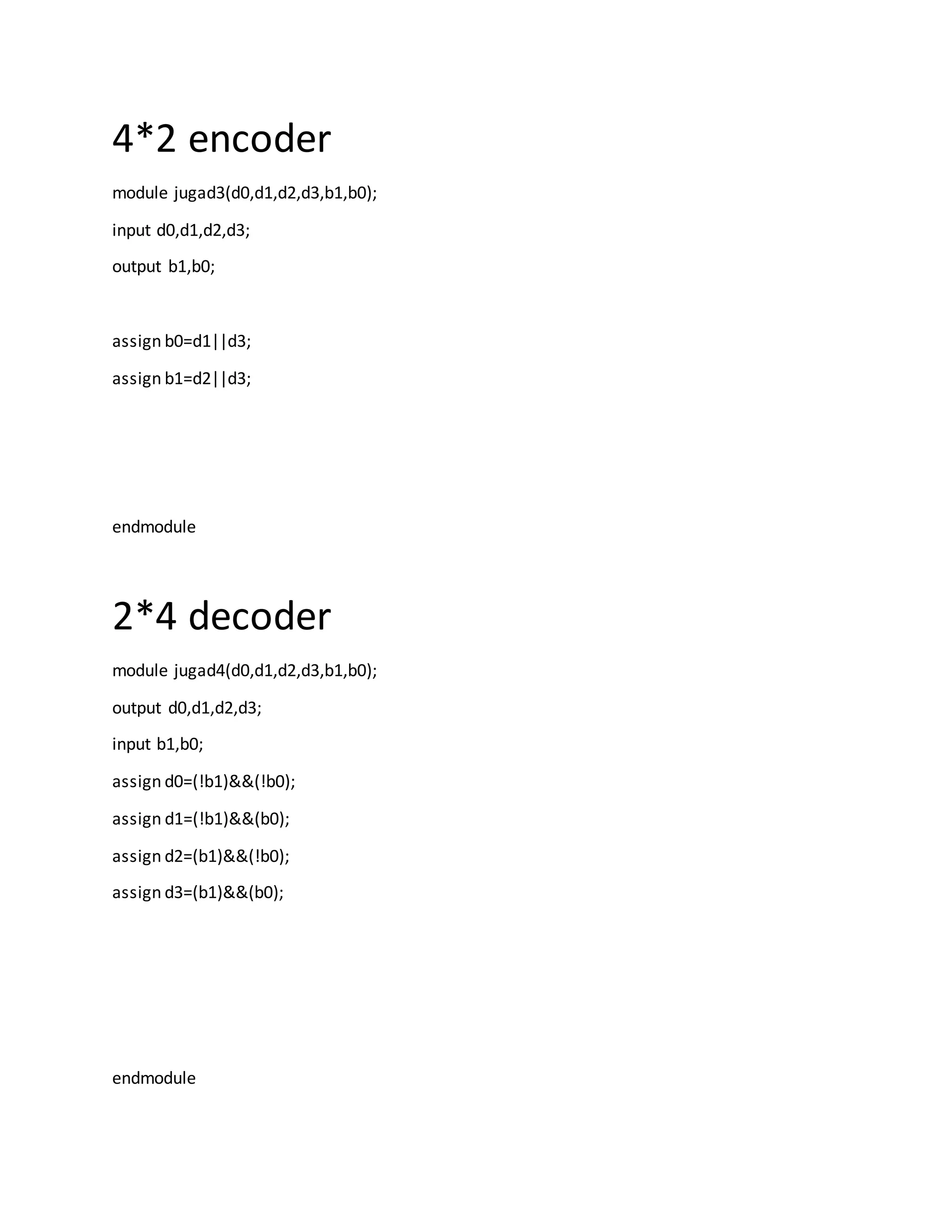

2. 4*2 encoder
module jugad3(d0,d1,d2,d3,b1,b0);
input d0,d1,d2,d3;
output b1,b0;
assign b0=d1||d3;
assign b1=d2||d3;
endmodule
2*4 decoder
module jugad4(d0,d1,d2,d3,b1,b0);
output d0,d1,d2,d3;
input b1,b0;
assign d0=(!b1)&&(!b0);
assign d1=(!b1)&&(b0);
assign d2=(b1)&&(!b0);
assign d3=(b1)&&(b0);
endmodule

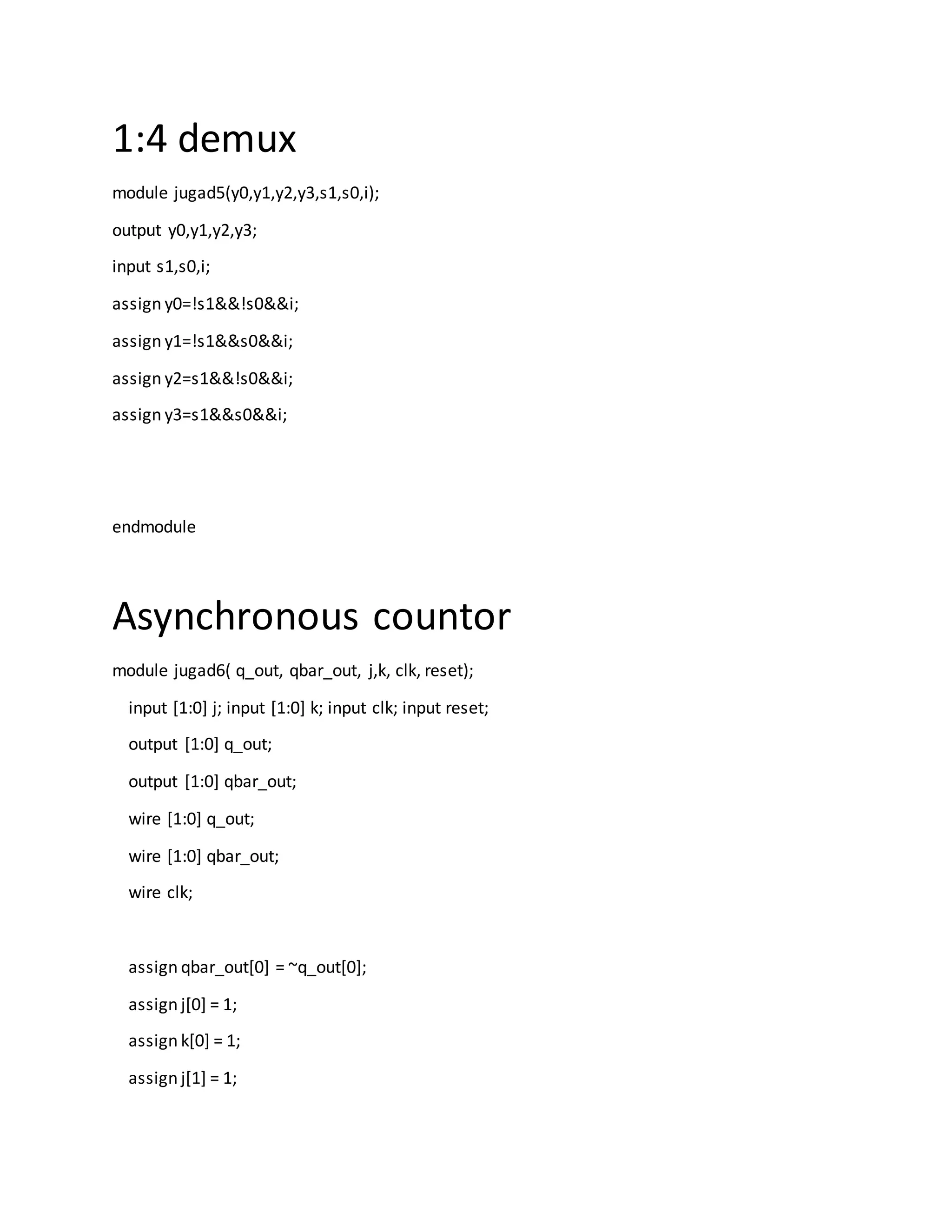

3. 1:4 demux
module jugad5(y0,y1,y2,y3,s1,s0,i);
output y0,y1,y2,y3;
input s1,s0,i;
assign y0=!s1&&!s0&&i;
assign y1=!s1&&s0&&i;
assign y2=s1&&!s0&&i;
assign y3=s1&&s0&&i;
endmodule
Asynchronous countor
module jugad6( q_out, qbar_out, j,k, clk, reset);
input [1:0] j; input [1:0] k; input clk; input reset;
output [1:0] q_out;
output [1:0] qbar_out;
wire [1:0] q_out;
wire [1:0] qbar_out;
wire clk;
assign qbar_out[0] = ~q_out[0];
assign j[0] = 1;
assign k[0] = 1;
assign j[1] = 1;

4. assign k[1] = 1;
jkff M1(q_out[0], qbar_out[0], j[0], k[0], clk, reset);
jkff M2(q_out[1], qbar_out[1], j[1], k[1], qbar_out[0]);
endmodule
module jkff(output q_out, output qbar_out,
input j, input k, input clk, input reset);
reg q;
assign q_out = q;
assign qbar_out = ~q;
initial begin
q = 1'b0;
end
always @(posedge clk)
begin
case({j,k})
{1'b0, 1'b0}: begin
q = q;
end
{1'b0, 1'b1}: begin
q = 1'b0;
end
{1'b1, 1'b0}: begin

5. q = 1'b1;
end
{1'b1, 1'b1}: begin
q = ~q;
end
endcase
end
always @(posedge reset)
begin
q = 1'b0;
end
endmodule
skipping counter(0->1->3->0)
module jugad7( q_out, qbar_out, j,k, clk, reset);
input [1:0] j; input [1:0] k; input clk; input reset;
output [1:0] q_out;
output [1:0] qbar_out;
wire [1:0] q_out;
wire [1:0] qbar_out;
wire clk;
assign qbar_out[0] = ~q_out[0];
assign j[0]=!q_out[1];
assign j[1]=q_out[0];
assign k[0] =q_out[1];

6. assign k[1] =1;
jkff M1(q_out[0], qbar_out[0], j[0], k[0], clk, reset);
jkff M2(q_out[1], qbar_out[1], j[1], k[1], clk,reset);
endmodule
module jkff(output q_out, output qbar_out,
input j, input k, input clk, input reset);
reg q;
assign q_out = q;
assign qbar_out = ~q;
initial begin
q = 1'b0;
end
always @(posedge clk)
begin
case({j,k})
{1'b0, 1'b0}: begin
q = q;
end
{1'b0, 1'b1}: begin
q = 1'b0;
end

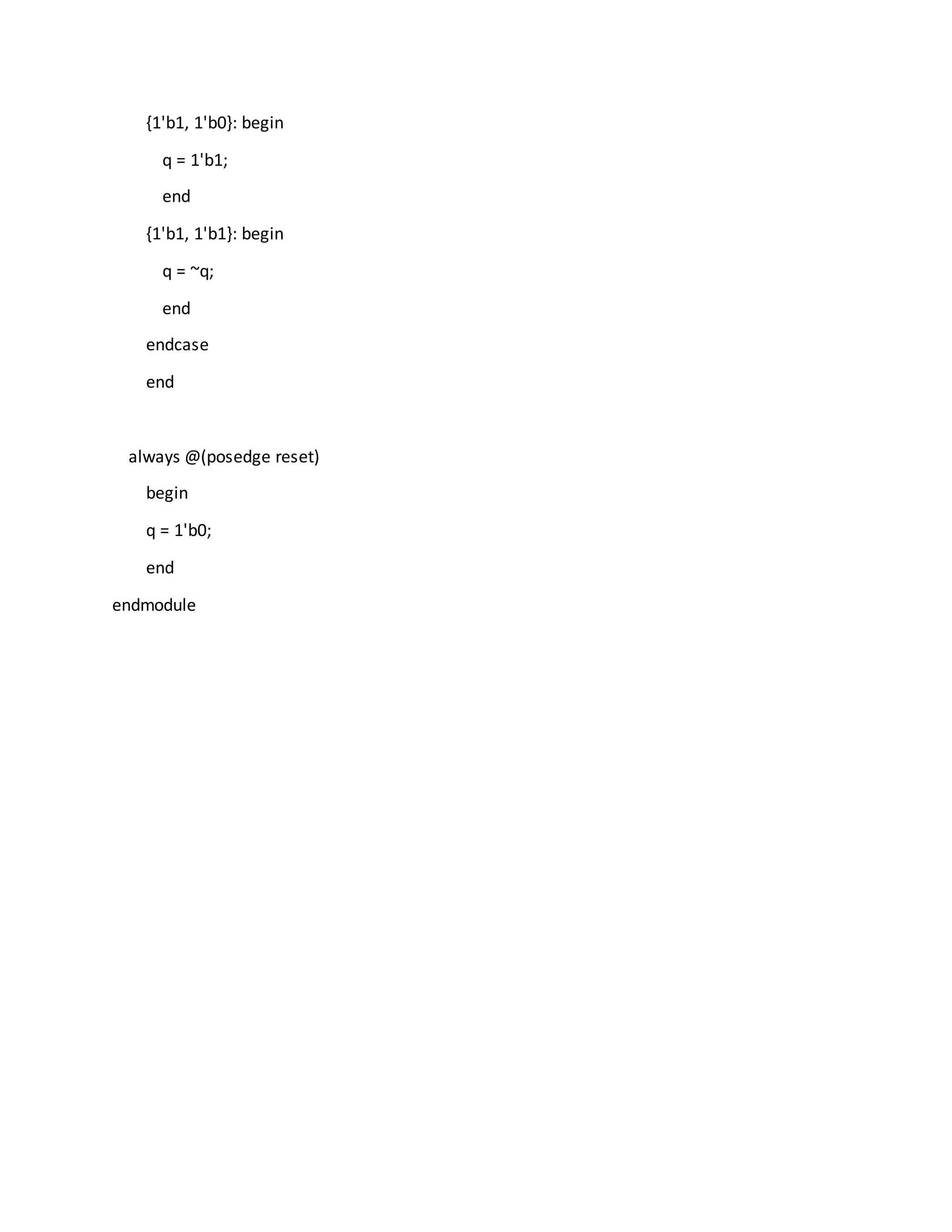

7. {1'b1, 1'b0}: begin
q = 1'b1;
end
{1'b1, 1'b1}: begin
q = ~q;
end
endcase
end
always @(posedge reset)
begin
q = 1'b0;
end
endmodule
