Using skeleton models allows for top-down assembly design that provides a well-structured, logical design. Skeleton models define skeletal properties that can be used to define geometry of other components. The document demonstrates creating a rolling chair assembly using skeleton models, where key properties like the number of wheels or shaft diameter can be modified and the changes will propagate downwards. A skeleton model is created for the top-level assembly and each subassembly to define key surfaces that other components reference without external dependencies. This allows easy modification as the design evolves.
Pro/ENGINEER is feature-based, associative solid modeling software that runs on the Microsoft Windows platform. It provides capabilities for solid modeling, assembly modeling, drafting, finite element analysis, and NC and tooling functions for mechanical engineers. Creo Elements/Pro is the updated name for Pro/ENGINEER. The document then provides brief descriptions of computer-aided design (CAD) and computer-aided manufacturing (CAM). CAD is used by engineers to create 2D and 3D drawings, while CAM uses computer control for manufacturing objects from those drawings.
This document provides tips and tricks for using Creo Parametric 3.0. It discusses options for customizing the user interface and environment, creating mapkeys for commands, leveraging advanced part and assembly modeling techniques, managing large assemblies, using the mechanism application, and working efficiently in drawings. Specific tips covered include customizing system colors, using intent references to make features more robust, controlling assembly constraint behavior, displaying set datums, and sorting BOM tables by assembly sequence.
This document provides a quick start guide for using Creo Parametric 2.0 software to create a basic 3D model. It guides the user through sketching a rectangular block with a hole, creating a pin part that fits in the hole, assembling the parts, and creating an engineering drawing. The guide explains how to navigate the software interface, sketch and extrude shapes, modify part dimensions, change appearance colors, and view and manipulate 3D models. It aims to get users started with basic modeling tasks in Creo Parametric.
The document introduces Creo Elements/ProE, a 3D CAD software developed by PTC. It discusses the history and versions of ProE, from its launch in 1988 up to the current Creo Elements/ProE 5.0. The key benefits of Creo Elements are listed as fast/accurate design, powerful tools, ease of use, simulation, and analysis capabilities. Modeling techniques covered include sketching, part design, assembly, surface modeling, sheet metal, and drafting.
This document provides tips and tricks for using Creo Parametric. It discusses how to set background colors, create mapkeys, manage large assemblies, use mechanism connections, and improve dimensioning in drawings. Specific tips include using advanced selection methods, assigning mass to assembly components, leveraging intent references, and various configuration options to control system behavior. The document aims to increase efficiency and robustness when working in Creo.
The document provides details on enhancements made in Creo Parametric 3.0. It lists over 100 enhancements organized by product extension and functional area. Key enhancements include improved workflows for measuring, dynamic dimensioning in 2D and 3D drawings, new blending tools, multi-level subdivision, and expanded NC programming capabilities such as new toolpaths for chamfer/round milling and improved roughing strategies.
With the growing popularity of Model Based Definition there has also been a growing need for fast and thorough validation of our CAD designs WITHIN the CAD environment rather than after the fact. While PTC's Expert Model Analysis (XMA) is the latest in model validation and metrics for the Enterprise, ModelCHECK is still the tool for end-users to run regular checks on individual designs. However, it is still one of the most under-utilized tools for Pro/E and Creo users. If configured for YOUR company and YOUR standards, ModelCHECK can save countless hours of rework in all phases of your design process.
If you are currently using ModelCHECK or would like to start using it, the included presentation will help you get started and maximize your out-of-the-gate model quality.
This document provides a tutorial on creating a basic mold project in CimatronE 8.5. The tutorial covers:
1. Starting a new mold project and placing a workpart in the layout.
2. Splitting the workpart into two sets using quick split.
3. Creating internal parting curves and faces between the split sets.
4. Defining and creating active cavity and core parts from the split sets.
5. Stitching, cutting and removing parting geometry from the active parts to complete the mold design.
Pro/ENGINEER is feature-based, associative solid modeling software that runs on the Microsoft Windows platform. It provides capabilities for solid modeling, assembly modeling, drafting, finite element analysis, and NC and tooling functions for mechanical engineers. Creo Elements/Pro is the updated name for Pro/ENGINEER. The document then provides brief descriptions of computer-aided design (CAD) and computer-aided manufacturing (CAM). CAD is used by engineers to create 2D and 3D drawings, while CAM uses computer control for manufacturing objects from those drawings.
This document provides tips and tricks for using Creo Parametric 3.0. It discusses options for customizing the user interface and environment, creating mapkeys for commands, leveraging advanced part and assembly modeling techniques, managing large assemblies, using the mechanism application, and working efficiently in drawings. Specific tips covered include customizing system colors, using intent references to make features more robust, controlling assembly constraint behavior, displaying set datums, and sorting BOM tables by assembly sequence.
This document provides a quick start guide for using Creo Parametric 2.0 software to create a basic 3D model. It guides the user through sketching a rectangular block with a hole, creating a pin part that fits in the hole, assembling the parts, and creating an engineering drawing. The guide explains how to navigate the software interface, sketch and extrude shapes, modify part dimensions, change appearance colors, and view and manipulate 3D models. It aims to get users started with basic modeling tasks in Creo Parametric.
The document introduces Creo Elements/ProE, a 3D CAD software developed by PTC. It discusses the history and versions of ProE, from its launch in 1988 up to the current Creo Elements/ProE 5.0. The key benefits of Creo Elements are listed as fast/accurate design, powerful tools, ease of use, simulation, and analysis capabilities. Modeling techniques covered include sketching, part design, assembly, surface modeling, sheet metal, and drafting.
This document provides tips and tricks for using Creo Parametric. It discusses how to set background colors, create mapkeys, manage large assemblies, use mechanism connections, and improve dimensioning in drawings. Specific tips include using advanced selection methods, assigning mass to assembly components, leveraging intent references, and various configuration options to control system behavior. The document aims to increase efficiency and robustness when working in Creo.
The document provides details on enhancements made in Creo Parametric 3.0. It lists over 100 enhancements organized by product extension and functional area. Key enhancements include improved workflows for measuring, dynamic dimensioning in 2D and 3D drawings, new blending tools, multi-level subdivision, and expanded NC programming capabilities such as new toolpaths for chamfer/round milling and improved roughing strategies.
With the growing popularity of Model Based Definition there has also been a growing need for fast and thorough validation of our CAD designs WITHIN the CAD environment rather than after the fact. While PTC's Expert Model Analysis (XMA) is the latest in model validation and metrics for the Enterprise, ModelCHECK is still the tool for end-users to run regular checks on individual designs. However, it is still one of the most under-utilized tools for Pro/E and Creo users. If configured for YOUR company and YOUR standards, ModelCHECK can save countless hours of rework in all phases of your design process.
If you are currently using ModelCHECK or would like to start using it, the included presentation will help you get started and maximize your out-of-the-gate model quality.
This document provides a tutorial on creating a basic mold project in CimatronE 8.5. The tutorial covers:
1. Starting a new mold project and placing a workpart in the layout.
2. Splitting the workpart into two sets using quick split.
3. Creating internal parting curves and faces between the split sets.
4. Defining and creating active cavity and core parts from the split sets.
5. Stitching, cutting and removing parting geometry from the active parts to complete the mold design.
CATIA started as an in-house CAD software developed by Dassault Aviation in 1977. It supports multiple stages of product development including conceptualization, design, engineering, and manufacturing. CATIA facilitates collaborative engineering across disciplines through its 3DEXPERIENCE platform. Key applications within CATIA include part design, assembly design, sketching, drafting, surfacing, finite element analysis, and manufacturing.
NX is a 3D CAD/CAM software initially released in 1973. It simplifies complex product designs through modeling, assembly, drafting and other environments. In the modeling environment, users can create solid models using 2D sketching, extrude, revolve, sweep, boolean operations, and advanced tools like holes, patterns, and mirrors. Assemblies bring together component parts using alignment, concentric, distance and other geometric constraints. NX is commonly used in aerospace and automotive industries for mechanical designs.
Vishal Singh submitted a report on experiments conducted using CATIA V5 computer-aided design software. The report included 8 experiments where sketches and parts were modeled in CATIA based on given guidelines. The basic features of CATIA were studied initially, followed by experiments creating sketches, 2D profiles, and 3D parts with pads, pockets, slots and other features. Screenshots were provided of the sketches and parts modeled in CATIA for each experiment.
This document provides a tutorial for creating a multi-cavity mold project in CimatronE 8.5. It describes steps to start a new project, define split directions for the mold parts, mirror and copy assemblies, add sliders, load a mold base, export faces to a fixed side part, update parts after changes, and add main and local parting surface parts. The tutorial explains how to handle common modifications that may occur during a mold design project, such as geometric, transformation, and face assignment changes, and how these affect the exported parts.
Commonly referred to as a 3D Product Lifecycle Management software suite, CATIA supports multiple stages of product development (CAx), including conceptualization, design (CAD), engineering (CAE) and manufacturing (CAM). CATIA facilitates collaborative engineering across disciplines around its 3D EXPERIENCE platform, including surfacing & shape design, electrical, fluid and electronic systems design, mechanical engineering and systems engineering.
The document provides instructions for using CimatronE's DieDesign software to design a basic die. It describes setting up a new die assembly using the DieDesign Wizard and importing master parts. It then explains how to create forming shapes by operations like unfolding, bending, and unbending master parts. It also describes designing the strip layout by nesting, setting strip dimensions, and adding punch/trim operations. The overall process involves designing forming shapes, designing the strip, and then designing the actual die assembly.
The document provides instructions for modeling various mechanical parts and assemblies using Creo Parametric. It includes descriptions of extrusion, revolve, rib, shell, and assembly features. The objectives are to model parts like a flange coupling and plummer block, assemble them, and create drawings with bills of materials. Steps provided include sketching profiles, adding dimensions, extruding, revolving, assembling components, and generating orthographic views and a BOM table. The document aims to teach modeling, assembly, and drawing creation skills in Creo Parametric.
SIEMENS NX7.5 : CAD
Lesson 1
1.1 STARTING NX7.5
1.2 SAVING AND CLOSING PART FILES
1.3 Open a Part File
1.4 TOOL BARS
1.5 Using the mouse
1.6 Graphics window view manipulation
1.7 Selecting objects
1.8 The User Interface option
1.9 USING LAYERS
1.10 Coordinate systems
1.11 MOVE OBJECT
Lesson 2
2.1 SKETCHING FOR CREATING MODELS
2.2 Types of constraints
2.3 Sketch dimension types
2.4 Continuous Auto Dimensioning
2.5 Sketch curve functions
Lesson 3
3.1 Types of swept features
3.2 Internal and external sketches
3.3 Boolean Operations
........ and more...........
This document provides an overview of CATIA software and its modules. It discusses the sketcher, part design, wireframe and surface design modules. For each module, it describes the key tools and functions. For sketcher, it outlines the profile, constraint, and other toolbars. For part design, it discusses the sketch-based features, dress-up features, and transformation features toolbars. It then provides details on creating wireframe elements and surfaces in the wireframe and surface design module.
The document provides instructions for creating multiple views of a fan_housing part in a Pro/ENGINEER drawing. It describes three methods for placing and orienting a front view of the part: 1) selecting from a list of predefined model views, 2) selecting reference planes, and 3) specifying view angles. It then instructs how to create top, bottom, and right side projection views linked to the placed front view using the projection view tool.
This document provides an evaluation report of computer aided engineering (CAE) software and techniques. It discusses parametric modeling, assembly, finite element analysis, drafting, curves and surfaces capabilities. Parametric modeling allows creating relationships between design parameters. Assembly connects different parts. Finite element analysis tests component strength. Drafting creates technical drawings. Curves and surfaces are used to model complex shapes. Overall, the document evaluates the capabilities of CAE software for modeling, analysis, and documentation of engineering designs.
What’s New in Creo Parametric 2.0? Up to Double Your Design Productivity comp...Design World
The latest version of PTC’s Creo family of design software is here! Come see what’s new inside Creo Parametric 2.0 and how you can double your design productivity! In this webcast, we introduce, demonstrate, compare, and contrast all the major new Creo Parametric capabilities against Pro/ENGINEER Wildfire 5.0.
If you’re an existing Pro/ENGINEER or Creo 1.0 user, see for yourself all these new capabilities, including the new modern user experience, streamlined workflows, new surfacing capabilities called Freestyle, improved sketching, working with large assemblies, sheet metal design and much more available in Creo Parametric.
In this webinar you will learn:
Creo 2.0’s new functionalities and benefits
Head-to head comparisons of Pro/Engineer, Wildfire 5.0 and Creo Parametric
Question and answer session with Creo product expert, Todd Kraft
This document provides an overview of structural analysis software and modeling capabilities in Solid Edge. It discusses parametric modeling, assemblies, finite element analysis, drafting, curves and surfaces, and other tools. The author uses a steering wheel design project to demonstrate various Solid Edge features for parametric modeling, assemblies, FEA optimization, and drafting technical drawings.
Tutorial for design of foundations using safeAsaye Dilbo
This document provides a tutorial on designing foundations using the CSI-SAFE software. It outlines how to model isolated, combined and mat foundations. Specifically, it describes how to design a square isolated footing from the built-in model by inputting dimensions, loads and material properties. It also mentions how to model rectangular and circular footings using grids or importing from AutoCAD. The tutorial is intended for readers familiar with shallow foundation design theory.
1. A plane frame structure was modeled in GSA Suite software and analyzed under full factored loading. Bending moment diagrams were generated which identified maximum and minimum bending moments.
2. Hand calculations were shown to determine the global stiffness matrix partitions for the frame based on its degrees of freedom. The local stiffness matrix for a member was transformed to the global matrix.
3. Further analysis of the bending moment diagrams identified the locations of zero bending moments. For linear members, graphs were plotted and linear equations solved. Members with parabolic bending followed a quadratic equation to find two zero points.
The document provides instructions on how to use the Pattern Feature command in NX to create various types of patterns from features. Key points include:
- Pattern Feature can be used to create linear, circular, polygon, spiral, along, general, and reference patterns of features with options to define boundaries, orientation, clocking, and variance.
- Both simple and variational pattern methods are supported, with variational allowing more complex features and control over references.
- Examples are provided for creating linear patterns in two directions, circular concentric patterns, patterns along a truncated cone, and editing patterns using variance and clocking.
- Reusing references from input features allows control over the shape of patterned features.
This document provides information about a course in Siemens NX Basics including:
- A 3 credit hour course exploring solid modeling techniques for product design and manufacturing using Siemens NX software.
- Course objectives of providing knowledge and experience in 3D CAD modeling of parts, assemblies, and creating mechanical drawings from models.
- An evaluation scale and breakdown of points awarded for exercises, exams, labs, and projects completed during the course.
- An outline of weekly topics covered including modeling techniques like revolved features, sweeps, patterns, assemblies, and drawings as well as a schedule of exercises and labs.
This document introduces the basic steps for creating a 3D part in CATIA:
1) Start a new part file and select the xy plane to sketch in.
2) Use the sketching tools to draw 2D profiles like squares and constrain dimensions.
3) Exit the sketcher to enter the 3D environment where the 2D profile takes on an isometric orientation.
4) Use tools like pad to extrude the 2D profile into a 3D solid part.
This document provides an introduction and overview of Lesson 1 of the CATIA V5 Workbook, which teaches how to use the Sketcher Work Bench to create a simple "L-shaped extrusion" part. The lesson objectives are to start CATIA, select the Sketcher workbench, create a sketch using sketch tools, apply and modify constraints, create an extruded pad, and save the part file. The document describes the various toolbars and tools in the Sketcher workbench used for sketching, including profiles, circles, splines, conics, and lines.
The document provides instructions for basic drawing, dimensioning, and symbol usage in ZWCAD MECHANICAL. It covers how to set up a drawing frame, draw contours of parts including holes, shafts, and chamfers. It also explains how to add dimensions, including intelligent, leader, and symbol dimensions. Finally, it demonstrates how to add section lines and views to a drawing. The key steps covered include setting the drawing scale, using tools for shapes, offsetting, breaking and mirroring lines, and setting up dimensions in various formats like diameter, radius, and surface text symbols.
The whole manual is divided into three part: Beginning, Intermediate and Expert. Under Beginning part the Basic Geometry- co-ordinate system, loading, supporting, defining and Analysis will be shown for various types of structure; when under Intermediate part both analysis and design will be shown for various types of structure in static linear method. Under Expert part dynamic analysis method will be discussed with sequence. Remember one thing that learning a StaadPro analysis software is a practice work whereas this manual will act as a guideline.
Engr. Yousuf Dinar
Assistant Structural Engineer, Tropical Limited
Lecturer, ATI Training and Consultants
Email: Yousufdinar2012@gmail.com,
Cell: 01675585448.. for inquiry and training service
Assembly modeling involves bringing together component models to define larger, more complex product representations in a hierarchical structure. Components are constrained together using various mating conditions like concentric, coincident, parallel etc. Assembly models can be constructed using bottom-up, top-down or mixed approaches and represented using graph structures that show relationships between parts. Assembly modeling facilitates collaboration across design, analysis, manufacturing and other functions.
CATIA started as an in-house CAD software developed by Dassault Aviation in 1977. It supports multiple stages of product development including conceptualization, design, engineering, and manufacturing. CATIA facilitates collaborative engineering across disciplines through its 3DEXPERIENCE platform. Key applications within CATIA include part design, assembly design, sketching, drafting, surfacing, finite element analysis, and manufacturing.
NX is a 3D CAD/CAM software initially released in 1973. It simplifies complex product designs through modeling, assembly, drafting and other environments. In the modeling environment, users can create solid models using 2D sketching, extrude, revolve, sweep, boolean operations, and advanced tools like holes, patterns, and mirrors. Assemblies bring together component parts using alignment, concentric, distance and other geometric constraints. NX is commonly used in aerospace and automotive industries for mechanical designs.
Vishal Singh submitted a report on experiments conducted using CATIA V5 computer-aided design software. The report included 8 experiments where sketches and parts were modeled in CATIA based on given guidelines. The basic features of CATIA were studied initially, followed by experiments creating sketches, 2D profiles, and 3D parts with pads, pockets, slots and other features. Screenshots were provided of the sketches and parts modeled in CATIA for each experiment.
This document provides a tutorial for creating a multi-cavity mold project in CimatronE 8.5. It describes steps to start a new project, define split directions for the mold parts, mirror and copy assemblies, add sliders, load a mold base, export faces to a fixed side part, update parts after changes, and add main and local parting surface parts. The tutorial explains how to handle common modifications that may occur during a mold design project, such as geometric, transformation, and face assignment changes, and how these affect the exported parts.
Commonly referred to as a 3D Product Lifecycle Management software suite, CATIA supports multiple stages of product development (CAx), including conceptualization, design (CAD), engineering (CAE) and manufacturing (CAM). CATIA facilitates collaborative engineering across disciplines around its 3D EXPERIENCE platform, including surfacing & shape design, electrical, fluid and electronic systems design, mechanical engineering and systems engineering.
The document provides instructions for using CimatronE's DieDesign software to design a basic die. It describes setting up a new die assembly using the DieDesign Wizard and importing master parts. It then explains how to create forming shapes by operations like unfolding, bending, and unbending master parts. It also describes designing the strip layout by nesting, setting strip dimensions, and adding punch/trim operations. The overall process involves designing forming shapes, designing the strip, and then designing the actual die assembly.
The document provides instructions for modeling various mechanical parts and assemblies using Creo Parametric. It includes descriptions of extrusion, revolve, rib, shell, and assembly features. The objectives are to model parts like a flange coupling and plummer block, assemble them, and create drawings with bills of materials. Steps provided include sketching profiles, adding dimensions, extruding, revolving, assembling components, and generating orthographic views and a BOM table. The document aims to teach modeling, assembly, and drawing creation skills in Creo Parametric.
SIEMENS NX7.5 : CAD
Lesson 1
1.1 STARTING NX7.5
1.2 SAVING AND CLOSING PART FILES
1.3 Open a Part File
1.4 TOOL BARS
1.5 Using the mouse
1.6 Graphics window view manipulation
1.7 Selecting objects
1.8 The User Interface option
1.9 USING LAYERS
1.10 Coordinate systems
1.11 MOVE OBJECT
Lesson 2
2.1 SKETCHING FOR CREATING MODELS
2.2 Types of constraints
2.3 Sketch dimension types
2.4 Continuous Auto Dimensioning
2.5 Sketch curve functions
Lesson 3
3.1 Types of swept features
3.2 Internal and external sketches
3.3 Boolean Operations
........ and more...........
This document provides an overview of CATIA software and its modules. It discusses the sketcher, part design, wireframe and surface design modules. For each module, it describes the key tools and functions. For sketcher, it outlines the profile, constraint, and other toolbars. For part design, it discusses the sketch-based features, dress-up features, and transformation features toolbars. It then provides details on creating wireframe elements and surfaces in the wireframe and surface design module.
The document provides instructions for creating multiple views of a fan_housing part in a Pro/ENGINEER drawing. It describes three methods for placing and orienting a front view of the part: 1) selecting from a list of predefined model views, 2) selecting reference planes, and 3) specifying view angles. It then instructs how to create top, bottom, and right side projection views linked to the placed front view using the projection view tool.
This document provides an evaluation report of computer aided engineering (CAE) software and techniques. It discusses parametric modeling, assembly, finite element analysis, drafting, curves and surfaces capabilities. Parametric modeling allows creating relationships between design parameters. Assembly connects different parts. Finite element analysis tests component strength. Drafting creates technical drawings. Curves and surfaces are used to model complex shapes. Overall, the document evaluates the capabilities of CAE software for modeling, analysis, and documentation of engineering designs.
What’s New in Creo Parametric 2.0? Up to Double Your Design Productivity comp...Design World
The latest version of PTC’s Creo family of design software is here! Come see what’s new inside Creo Parametric 2.0 and how you can double your design productivity! In this webcast, we introduce, demonstrate, compare, and contrast all the major new Creo Parametric capabilities against Pro/ENGINEER Wildfire 5.0.
If you’re an existing Pro/ENGINEER or Creo 1.0 user, see for yourself all these new capabilities, including the new modern user experience, streamlined workflows, new surfacing capabilities called Freestyle, improved sketching, working with large assemblies, sheet metal design and much more available in Creo Parametric.
In this webinar you will learn:
Creo 2.0’s new functionalities and benefits
Head-to head comparisons of Pro/Engineer, Wildfire 5.0 and Creo Parametric
Question and answer session with Creo product expert, Todd Kraft
This document provides an overview of structural analysis software and modeling capabilities in Solid Edge. It discusses parametric modeling, assemblies, finite element analysis, drafting, curves and surfaces, and other tools. The author uses a steering wheel design project to demonstrate various Solid Edge features for parametric modeling, assemblies, FEA optimization, and drafting technical drawings.
Tutorial for design of foundations using safeAsaye Dilbo
This document provides a tutorial on designing foundations using the CSI-SAFE software. It outlines how to model isolated, combined and mat foundations. Specifically, it describes how to design a square isolated footing from the built-in model by inputting dimensions, loads and material properties. It also mentions how to model rectangular and circular footings using grids or importing from AutoCAD. The tutorial is intended for readers familiar with shallow foundation design theory.
1. A plane frame structure was modeled in GSA Suite software and analyzed under full factored loading. Bending moment diagrams were generated which identified maximum and minimum bending moments.
2. Hand calculations were shown to determine the global stiffness matrix partitions for the frame based on its degrees of freedom. The local stiffness matrix for a member was transformed to the global matrix.
3. Further analysis of the bending moment diagrams identified the locations of zero bending moments. For linear members, graphs were plotted and linear equations solved. Members with parabolic bending followed a quadratic equation to find two zero points.
The document provides instructions on how to use the Pattern Feature command in NX to create various types of patterns from features. Key points include:
- Pattern Feature can be used to create linear, circular, polygon, spiral, along, general, and reference patterns of features with options to define boundaries, orientation, clocking, and variance.
- Both simple and variational pattern methods are supported, with variational allowing more complex features and control over references.
- Examples are provided for creating linear patterns in two directions, circular concentric patterns, patterns along a truncated cone, and editing patterns using variance and clocking.
- Reusing references from input features allows control over the shape of patterned features.
This document provides information about a course in Siemens NX Basics including:
- A 3 credit hour course exploring solid modeling techniques for product design and manufacturing using Siemens NX software.
- Course objectives of providing knowledge and experience in 3D CAD modeling of parts, assemblies, and creating mechanical drawings from models.
- An evaluation scale and breakdown of points awarded for exercises, exams, labs, and projects completed during the course.
- An outline of weekly topics covered including modeling techniques like revolved features, sweeps, patterns, assemblies, and drawings as well as a schedule of exercises and labs.
This document introduces the basic steps for creating a 3D part in CATIA:
1) Start a new part file and select the xy plane to sketch in.
2) Use the sketching tools to draw 2D profiles like squares and constrain dimensions.
3) Exit the sketcher to enter the 3D environment where the 2D profile takes on an isometric orientation.
4) Use tools like pad to extrude the 2D profile into a 3D solid part.
This document provides an introduction and overview of Lesson 1 of the CATIA V5 Workbook, which teaches how to use the Sketcher Work Bench to create a simple "L-shaped extrusion" part. The lesson objectives are to start CATIA, select the Sketcher workbench, create a sketch using sketch tools, apply and modify constraints, create an extruded pad, and save the part file. The document describes the various toolbars and tools in the Sketcher workbench used for sketching, including profiles, circles, splines, conics, and lines.
The document provides instructions for basic drawing, dimensioning, and symbol usage in ZWCAD MECHANICAL. It covers how to set up a drawing frame, draw contours of parts including holes, shafts, and chamfers. It also explains how to add dimensions, including intelligent, leader, and symbol dimensions. Finally, it demonstrates how to add section lines and views to a drawing. The key steps covered include setting the drawing scale, using tools for shapes, offsetting, breaking and mirroring lines, and setting up dimensions in various formats like diameter, radius, and surface text symbols.
The whole manual is divided into three part: Beginning, Intermediate and Expert. Under Beginning part the Basic Geometry- co-ordinate system, loading, supporting, defining and Analysis will be shown for various types of structure; when under Intermediate part both analysis and design will be shown for various types of structure in static linear method. Under Expert part dynamic analysis method will be discussed with sequence. Remember one thing that learning a StaadPro analysis software is a practice work whereas this manual will act as a guideline.
Engr. Yousuf Dinar
Assistant Structural Engineer, Tropical Limited
Lecturer, ATI Training and Consultants
Email: Yousufdinar2012@gmail.com,
Cell: 01675585448.. for inquiry and training service
Assembly modeling involves bringing together component models to define larger, more complex product representations in a hierarchical structure. Components are constrained together using various mating conditions like concentric, coincident, parallel etc. Assembly models can be constructed using bottom-up, top-down or mixed approaches and represented using graph structures that show relationships between parts. Assembly modeling facilitates collaboration across design, analysis, manufacturing and other functions.
This document provides tips and tricks for using Creo Parametric. It discusses how to set background colors, create mapkeys, manage large assemblies, work with configurations, leverage advanced selection methods, dimension drawings, and more. Config.pro options are also covered that can improve performance when working with large models, assemblies, and drawings.
This document provides instructions for using skeleton modeling in Autodesk Inventor. Skeleton modeling allows for centralized design criteria and top-down assembly design. The key steps are:
1. Create a master skeleton part file containing layout sketches that reflect the positions of assembly components.
2. Establish critical parameters in the skeleton part and link them to a spreadsheet for input control.
3. Derive new part files from the skeleton sketches to create assembly components. The components will be grounded at the assembly origin.
4. Assemble the derived components in a new assembly file. Changes to the skeleton sketches will update all derived components.
The document discusses modeling structural framing in Autodesk Revit. It describes how to add individual beams, beam systems, bracing, and make framing element adjustments. Key steps include placing beams between columns using grids or sketching, creating automatic or sketched beam systems, copying framing between levels, and adding diagonal bracing between beams and columns. The learning objectives are to learn how to add different structural framing elements, make framing adjustments, add trusses, and copy framing between levels in Revit.
The document discusses modeling structural framing in Autodesk Revit. It describes how to add individual beams, beam systems, bracing, and make framing element adjustments. Key steps include placing beams between columns using grids or sketching, creating automatic or sketched beam systems, copying framing between levels, and adding diagonal bracing between beams and columns. The learning objectives are to learn how to add different structural framing elements, make framing connection adjustments, and add trusses to support long roof spans.
UNIVERSITY OF NORTHAMPTONFACULTY OF SCIENCE TECHNOLOGY SCH.docxdickonsondorris
This document provides instructions for a CAD assignment to model parts of a two-stroke engine and create assembly drawings. Students must create solid models of 7 engine parts, assemble them with constraints, and produce a drawing of the engine block with dimensions and tolerances. They must also create an assembly drawing showing the engine at top and bottom dead center, with a bill of materials and exploded view. The report requires images from the solid models and assembly that demonstrate the work, along with a history tree of the engine block. Students have approximately 15 hours to complete the assignment.
En dassault-systems generative-assembly_structural_analysisdo anh
This document provides an overview of the basic tasks that can be performed in the Generative Assembly Structural Analysis workbench. It describes how to create different types of analysis connections, such as face-face connections, distant connections, and welding point connections. It also explains how to add property connections to specify the physical interaction between connected parts, including fastened, slider, contact, pressure fitting, bolt tightening, rigid, and smooth connections. The document emphasizes that analysis connections allow connecting geometry in ways that standard assembly design constraints do not, and properties are then added to simulate the physical behavior of different types of connections.
The document describes a final project for a class where the student designed a swing table assembly using Solidworks CAD software. It summarizes the process of designing each individual part of the assembly, including the base, trunnion stud, table, bolts, nuts, washers, and set screw. It then discusses assembling the parts together and creating detailed drawings of the assembly and its components, following dimensioning guidelines. The overall goal was to use CAD software to design all aspects of the swing table from individual parts to full assembly to detailed drawings for manufacturing.
The document provides release notes for STRUDS 2005 software. Major updates include:
1) Complete integration of all modules (pre/post-processing, analysis, design) allowing toggling between modes within a single file.
2) Introduction of L-shaped and T-shaped column design and analysis as well as shear wall design/analysis.
3) Enhancements to the preprocessor including load definition and a collapsible tree menu for entity creation/editing.
This document provides an overview of a training workshop on using STAAD Pro V8i structural analysis software to model and analyze vertical building structures. The objectives are to introduce basic STAAD commands for modeling simple buildings and provide an alternative design tool for structural engineers. The training covers starting a project, defining the structure type and geometry, applying loads, performing analysis, and reviewing output. It emphasizes modeling framed buildings using nodes, members, and assigning properties and load cases for design.
The document provides an overview of the NX7.5 basic training course, including how to get started with NX7.5, create and save part files, use the modeling interface, select and manipulate objects, create sketches, apply geometric and dimensional constraints, and perform basic extrude and revolve swept features. It describes the key interface elements and commands for navigating the software and constructing 3D models.
The document provides an overview of the Project View window in ETAP software. It contains 5 key folders: Presentations, Configurations, Study Cases, Libraries, and Components. Presentations include one-line diagrams, star views for coordination studies, underground raceway systems, ground grid systems, cable pulling systems, GIS presentations, and control system diagrams. The document describes how to create, view, rename, and delete presentations within each folder type. It also provides examples of different presentation types.
The document evaluates CAE tools in Solid Edge using the example of designing a steering wheel. It discusses parametric modelling which allows dimensions to change and regenerate the model. Assemblies can be created using relationships and exploded for visualization. Finite element analysis is used to simulate stresses and optimize designs. Curves are drawn using techniques like Bezier and B-splines to approximate shapes.
This document describes the design of a wood picnic table in CATIA. It discusses the process of sketching each individual part like the bottom stand connector, top stand connector, seat bench wood, and table stand. The steps include entering the sketcher workbench, using profiles and constraints to sketch the parts, extruding the sketches to create solid parts, and using operations like mirror to create symmetrical parts. The document concludes that this project exposes students to using CATIA software to design complex assemblies from individual parts and helps develop their CAD/CAM skills for future engineering careers.
This document provides an overview of engineering graphics and Creo software. It discusses topics such as views, scales, projections, orthographic and isometric views, section views, assembly views, sheet metal features, rendering, drafting, dimensions, and more. Creo is used to create parts, assemblies, sheet metal parts, and drawings. It has tools for extruding, revolving, sweeping, blending, hole creation, drafting, rendering, and more. The document aims to introduce the basics of engineering graphics and the capabilities of Creo software.
The document provides instructions for creating a mold for a telephone handset model in SOLIDWORKS. It describes adding mounting bosses, checking for draft and undercuts, adding draft as needed, applying scaling to account for shrinkage, generating parting lines to separate the core and cavity, and adding shut-off surfaces to close holes. The goal is to prepare the model properly before creating the core and cavity surfaces that will make up the mold tooling.
The Pennsylvania State University Department of Civi.docxssusera34210
The Pennsylvania State University
Department of Civil Engineering
CE 321: Highway Engineering
Dr. Venky Shankar, Professor
Jung Yeol Hong, TA.
Preliminary Rural Collector Design,
Connecting SR 20 and SR3
Spring 2015
Section [#]
[Your Name Here]
Due Date: April 24, 2015
1. Introduction
Introduction and Project objectives
1. Alignments analysis
· Analysis of geographical information, topography/surface
· Criteria used in design (horizontal alignment, vertical alignment, cross section, etc.)
· Horizontal and vertical alignment characteristics, impacts displayed by the footprint (effects on forest, roads, waterways, etc.)
· Compare all alignment attributes: length, earthwork volumes, foot print area, environmental impacts, and houses displaced
· Show the 5 separate costs and total cost for each alignment and discuss cost effects
1. Earthwork
1. Safety
1. Pavement
1. Right of Way Acquisition
1. Habitat
1. Total cost for each alignment
Refer to the table
Design Analysis Summary
· Discuss the qualitative performance measures (traffic operation, safety, environment)
Which alternative is predicted safer? Why?
Is delay going to be an issue on either or both alternatives?
Do these performance measures weigh on the final decision?
1. Conclusion
As a result of the comparison, recommend the “best” alternative and describe the reasons
Note:
· Must use the Contour map and Existing Features from ANGEL in this semester (Spring 2015) –CAD drawing, and use this word file for the summary report
· Use bold print section titles
· Report must be written in third person (Do not use I)
· Include page numbers (not necessary for appendices and drawings)
· Refer to all tables or figures that are discussed in the text. There should not be a Table or Figure that is included that is not discussed and called out in the text.
· Minimum 3 pages text
· Please bind report (Cover, text, Appendix A, B, C, and 7 CAD drawings)
Appendix A
(Horizontal Curve Reports)
The horizontal curve report generation function in Civil 3D does not work in this version. Instead of generating a report like you do for the Vertical Curves, copy the information from the “grid view” under “Edit Alignment Geometry.”
· Select the alignment you want to generate a report for
· Right click and select “Edit Alignment Geometry”
· Click the “Alignment Grid View” icon as shown below
· Right click in any cell and select “Copy All”
· Paste table to a new Excel file
· You can delete the following columns
· Start Point
· End Point
· Center Point
· Pass Through Point
· Direction at Through Point1
· Direction at Through Point2
· Attainment Method
· Curve Group Index
· Curve Group Sub-Entity Index
· Pi Point
· Use the remaining table as your Horizontal Curve Report
· Do this for East and West, make sure they are labeled and include them in this appendix
Appendix B
(Vertical Curve Reports)
To generate Vertical Curve Reports:
· G ...
This Arena tutorial aims to provide beginners with a guide to get started using Arena simulation software. It discusses installing Arena, describes the overall features and interface of Arena including the model window, modules, and project bar. It then provides a step-by-step example of building a simulation model of a single server queueing system, defining the necessary data and flowchart modules, setting the run conditions, running the simulation, and reviewing the output reports.
Similar to Using skeleton models_to_achieve_top-down_assembly_design (20)
Charging and Fueling Infrastructure Grant: Round 2 by Brandt HertensteinForth
Brandt Hertenstein, Program Manager of the Electrification Coalition gave this presentation at the Forth and Electrification Coalition CFI Grant Program - Overview and Technical Assistance webinar on June 12, 2024.
EV Charging at MFH Properties by Whitaker JamiesonForth
Whitaker Jamieson, Senior Specialist at Forth, gave this presentation at the Forth Addressing The Challenges of Charging at Multi-Family Housing webinar on June 11, 2024.
Charging Fueling & Infrastructure (CFI) Program Resources by Cat PleinForth
Cat Plein, Development & Communications Director of Forth, gave this presentation at the Forth and Electrification Coalition CFI Grant Program - Overview and Technical Assistance webinar on June 12, 2024.
Expanding Access to Affordable At-Home EV Charging by Vanessa WarheitForth
Vanessa Warheit, Co-Founder of EV Charging for All, gave this presentation at the Forth Addressing The Challenges of Charging at Multi-Family Housing webinar on June 11, 2024.
Understanding Catalytic Converter Theft:
What is a Catalytic Converter?: Learn about the function of catalytic converters in vehicles and why they are targeted by thieves.
Why are They Stolen?: Discover the valuable metals inside catalytic converters (such as platinum, palladium, and rhodium) that make them attractive to criminals.
Steps to Prevent Catalytic Converter Theft:
Parking Strategies: Tips on where and how to park your vehicle to reduce the risk of theft, such as parking in well-lit areas or secure garages.
Protective Devices: Overview of various anti-theft devices available, including catalytic converter locks, shields, and alarms.
Etching and Marking: The benefits of etching your vehicle’s VIN on the catalytic converter or using a catalytic converter marking kit to make it traceable and less appealing to thieves.
Surveillance and Monitoring: Recommendations for using security cameras and motion-sensor lights to deter thieves.
Statistics and Insights:
Theft Rates by Borough: Analysis of data to determine which borough in NYC experiences the highest rate of catalytic converter thefts.
Recent Trends: Current trends and patterns in catalytic converter thefts to help you stay aware of emerging hotspots and tactics used by thieves.
Benefits of This Presentation:
Awareness: Increase your awareness about catalytic converter theft and its impact on vehicle owners.
Practical Tips: Gain actionable insights and tips to effectively prevent catalytic converter theft.
Local Insights: Understand the specific risks in different NYC boroughs, helping you take targeted preventive measures.
This presentation aims to equip you with the knowledge and tools needed to protect your vehicle from catalytic converter theft, ensuring you are prepared and proactive in safeguarding your property.
Dahua provides a comprehensive guide on how to install their security camera systems. Learn about the different types of cameras and system components, as well as the installation process.
Charging Fueling & Infrastructure (CFI) Program by Kevin MillerForth
Kevin Miller, Senior Advisor, Business Models of the Joint Office of Energy and Transportation gave this presentation at the Forth and Electrification Coalition CFI Grant Program - Overview and Technical Assistance webinar on June 12, 2024.
Implementing ELDs or Electronic Logging Devices is slowly but surely becoming the norm in fleet management. Why? Well, integrating ELDs and associated connected vehicle solutions like fleet tracking devices lets businesses and their in-house fleet managers reap several benefits. Check out the post below to learn more.
EV Charging at Multifamily Properties by Kevin Donnelly
Using skeleton models_to_achieve_top-down_assembly_design
1. Using Skeleton Models to Achieve Top-Down Assembly Design
http://www.ptc.com/cs/cs_26/howto/aba986/aba986.htm[7/25/2011 5:17:55 PM]
Suggested Technique for Using Skeleton Models to Achieve Top-Down Assembly Design
Pro/ENGINEER incorporates top-down design tools that allow for the creation of a well-structured, logical design which provides a more concurrent
working environment and minimizes the creation of unwanted external references. These tools include advanced component creation tools, assembly
skeleton models, copied geometric and datum references, and reference control and investigation utilities.
Advanced component creation tools provide the ability to create components in the context of an assembly. With this approach, the assembly
structure can be created using empty components. Part components, subassemblies, and subcomponents (components of subassemblies) can
be created to any degree required (any level of assembly) before any geometry is actually created. Once this structure is defined, the
component geometry can be defined by selecting the part or assembly from the Model Tree and clicking Edit > Activate.
Skeleton models are specialized components of an assembly that define skeletal, space claim, and other physical properties that may be used
to define geometry of components. Users can make use of skeleton models for managing external references by making all other components
(at that level of assembly; not necessarily subcomponents) reference only skeleton geometry, though this is not mandatory. Typically quilt
features and datum features are created (including curves and planes) in the skeleton part and are then used as references to act as the behind
the scenes backbone of the assembly. [Note: to help further differentiate specifically skeleton geometry from normal part geometry, the
config.pro option, "skeleton_model_default_color", can be used to configure the color of quilt features and solid geometry (if any) in the skeleton
part.]
Copy Geometry features provide the ability to copy geometric and datum references from any other component (including skeletons) into a
selected skeleton or a regular part being modified, while preserving not only the names, colors, line styles, and other properties assigned to the
original parent entities, but also the relative positions of these entities based on the assembled positions of the components. Each Copy Geom
feature may only copy references from a single skeleton or regular part, but multiple occurrences of these features may be created in a single
model. Note: Although not discussed in the context of this document, external copy geometry features can also be used for copying geometric
information.
Reference control and investigation tools, including the Global Reference Viewer provide the ability to trace and easily understand the
references that are made among features in a design. Specifically, these tools clarify the external reference relationships that exist among
models in an assembly.
In this example, a rolling desk chair will be started: the chair assembly structure will be defined in the model tree, but only portions of the base
subassembly will actually be created in this article. Since it is early in the design stage, certain important pieces of information about the model are
still undecided. For example, the chair may have five wheels or six, or perhaps the diameter of the central shaft may change. A skeleton model will
be constructed that simulates the overall shape of the model, and allows for modifications to the overall design to propagate downwards to the
individual components of the assembly.
Procedure
1. Create an empty part called start.prt to act as the start model for the components (do not use the default template). The part will consist of
three default datum planes and a datum axis between DTM1 and DTM2. Store the file to disk by clicking File > Save. Create an empty
assembly (again, not using any templates) called chair.asm, and then create two empty subassemblies, base.asm, and seat.asm. These
subassemblies can be created by clicking . This will open the Component Create dialog box. Enter the name of the object, click the
Subassembly and Standard radio buttons in the Type and Sub-Type sections as shown in Figure 1. Next, click Empty > OK from the
Creation Method section of the "Creation Options" dialog box as shown in Figure 2.
Home > Support SHARE
Store EN My Account Logout
Products Solutions Consulting & Training Partners Communities About PTC Support
Search PTC.com
2. Using Skeleton Models to Achieve Top-Down Assembly Design
http://www.ptc.com/cs/cs_26/howto/aba986/aba986.htm[7/25/2011 5:17:55 PM]

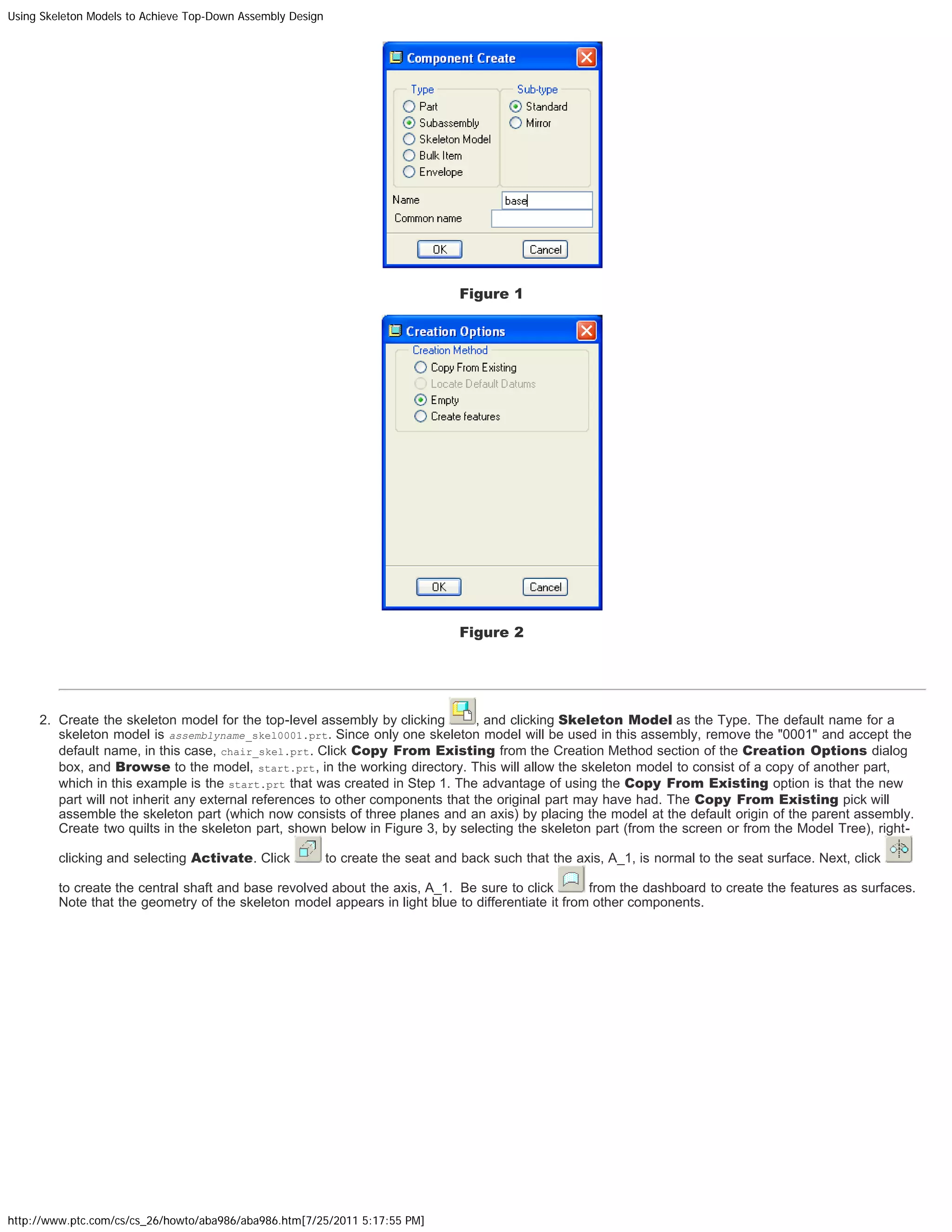

Figure 1
Figure 2
2. Create the skeleton model for the top-level assembly by clicking , and clicking Skeleton Model as the Type. The default name for a
skeleton model is assemblyname_skel0001.prt. Since only one skeleton model will be used in this assembly, remove the "0001" and accept the
default name, in this case, chair_skel.prt. Click Copy From Existing from the Creation Method section of the Creation Options dialog
box, and Browse to the model, start.prt, in the working directory. This will allow the skeleton model to consist of a copy of another part,
which in this example is the start.prt that was created in Step 1. The advantage of using the Copy From Existing option is that the new
part will not inherit any external references to other components that the original part may have had. The Copy From Existing pick will
assemble the skeleton part (which now consists of three planes and an axis) by placing the model at the default origin of the parent assembly.
Create two quilts in the skeleton part, shown below in Figure 3, by selecting the skeleton part (from the screen or from the Model Tree), right-
clicking and selecting Activate. Click to create the seat and back such that the axis, A_1, is normal to the seat surface. Next, click
to create the central shaft and base revolved about the axis, A_1. Be sure to click from the dashboard to create the features as surfaces.
Note that the geometry of the skeleton model appears in light blue to differentiate it from other components.
3. Using Skeleton Models to Achieve Top-Down Assembly Design
http://www.ptc.com/cs/cs_26/howto/aba986/aba986.htm[7/25/2011 5:17:55 PM]
Figure 3
Figure 4 shows the skeleton model in the Model Tree. Note that the icon for skeleton models is different from the icons for regular parts.
Figure 4
3. The skeleton model created in step 2 is a very crude representation of what the finished chair will look like, but it occupies roughly the same
space, and will serve as a reference for how the final geometry should look. The base.asm subassembly will consist of the central shaft, legs,
spurs, and wheels. In the top-level skeleton model, it is represented entirely by one feature, a revolved protrusion. Information about the
geometry representing these areas can be copied from the top-level skeleton model, and be used to define the components of the
subassembly. Create a skeleton model for the base.asm subassembly by activating the base.asm and clicking . Create a new, empty skeleton
part, named base_skel.prt. Next, activate base_skel.prt and click Insert > Shared Data > Copy Geometry. Click to de-activate the
Publish Geometry collector. Select all the surfaces produced by the revolved surface in the chair_skel.prt.
Next, click References from the dashboard and click in the References collector to activate the selection of datum references. Select axis,
A_1, from chair_skel.prt as shown in Figure 5. Finally, click to complete the feature. This will create a copy geometry feature in the
skeleton model of base.asm which contains surface copies of the central shaft, axis, and the disk that represents the legs, spurs, and wheels.
These surfaces can now be used as a reference to build the components within the base.asm subassembly. If any geometry in those
components directly reference these surfaces, that geometry will update if the surfaces are modified in the top-level skeleton model. For more
4. Using Skeleton Models to Achieve Top-Down Assembly Design
http://www.ptc.com/cs/cs_26/howto/aba986/aba986.htm[7/25/2011 5:17:55 PM]
information on the copy geometry feature, refer to Suggested Technique for Copying Geometric and Datum References.
Figure 5
4. With base_skel.prt still active, insert a sketched datum curve -- -- on top of the disk to represent one leg, spur, and wheel. Constrain one
endpoint to axis, A_1 and the other endpoint to the outer edge of the disk surface; make sure that there is an angular dimension for later radial
patterning (HINT: to sketch the curve, select either datum plane DTM1 or DTM2 as the Reference plane for sketching). Next, insert a datum
axis passing through the outer end/vertex of the curve and normal to the flat circular surface (these should be the only two references necessary
to create the feature). Lastly, insert a datum plane through axis, A_1, and through the axis just created. Select the datum curve, axis, and plane
just created, group them together by right-clicking and selecting Group, and rename the group "leg." Finally, pattern this group: with the group
still selected, right-click and select Pattern, select the angular dimension for the curve and enter a suitable dimension increment and number
of instances (in the example, 60 degrees was the increment with 6 instances). The assembly is shown in Figure 6 below (the datum point
display is turned off in the image).
Figure 6
5. Activate base.asm in the Model Tree, and insert a new part called leg.prt; click Copy From Existing from the Creation Method section of the
Creation Options dialog box. Again, Browse to start.prt in the working directory. This will bring up the start part (consisting of the three
default datum planes and a datum axis) in the assembly window, and will allow it to be assembled into the base.asm assembly. Mate DTM3 in
leg.prt against the flat circular surface in base_skel.prt, Align axis A_1 in leg.prt with the axis in the pattern leader Group LEG in
base_skel.prt, and Align DTM1 in leg.prt to the plane in the pattern leader Group LEG in base_skel.prt. This will assemble leg.prt as shown
5. Using Skeleton Models to Achieve Top-Down Assembly Design
http://www.ptc.com/cs/cs_26/howto/aba986/aba986.htm[7/25/2011 5:17:55 PM]
in Figure 7 (the datum planes in base_skel.prt are blanked in the image), and later, leg.prt will be able to be reference patterned to every
Group LEG in the skeleton model. For more information about reference patterning components, refer to Suggested Technique for Using
Reference Patterns to Assemble Components.
Figure 7
6. Activate leg.prt, select and sketch the extruded protrusion shown below in Figure 8. Sketch the feature on DTM3 of leg.prt, and use
DTM2 as the Reference plane for sketching. While sketching the feature, the round at the tip of the part should be concentric to axis A_1 in
leg.prt, and the arc on the inner portion of the part (which curves to match the profile of the center shaft) should be concentric to the center
axis of the skeleton model, body_skel.prt, and should be aligned to the circular surface of the central shaft (HINT: specifically select the central
shaft surfaces from the Copy Geometry feature in body_skel.prt, not the revolved surface in chair_skel.prt). Lastly, the depth should be ,
and the bottom surface of the Copy Geometry feature in base_skel.prt (not the bottom of the revolved surface in chair_skel.prt) should be
selected. Note that this (and aligning the inner arc of the sketch to the central shaft Copy Geometry surfaces) creates a dependency, or external
reference, in the protrusion to the skeleton model, which in this case is desired because now, if the diameter of the central shaft changes, the
size of the leg will update to match that size. Next, create the coaxial hole shown at the tip of the leg using axis A_1 in leg.prt. Finally,
Reference pattern the component around the base of the chair. This will place a leg at each location of the Group LEG in the skeleton model.
Figure 8

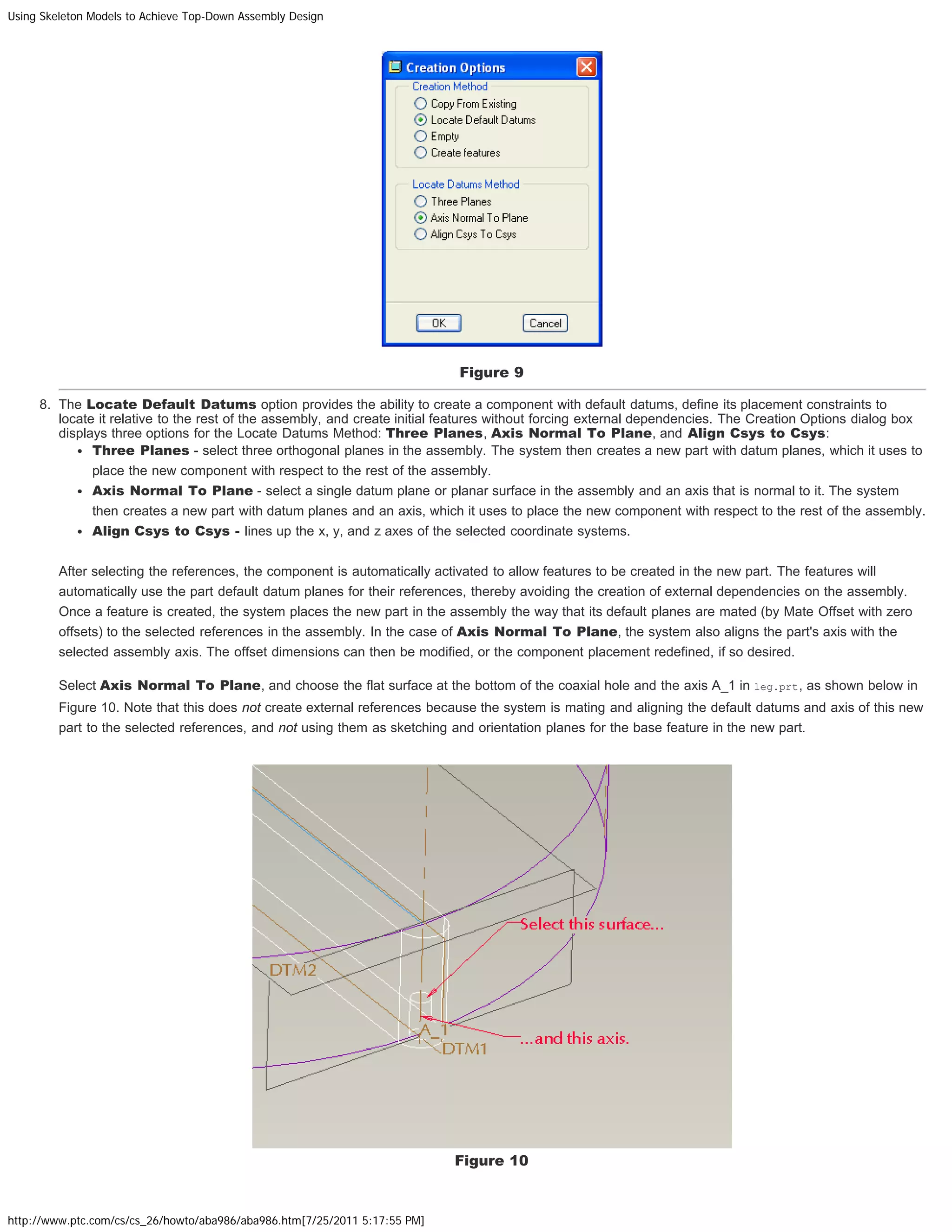

7. Create a new part within base.asm called "spur", and click the Locate Default Datums and Axis Normal To Plane radio buttons from
the Creation Options dialog box, as shown below in Figure 9.
6. Using Skeleton Models to Achieve Top-Down Assembly Design
http://www.ptc.com/cs/cs_26/howto/aba986/aba986.htm[7/25/2011 5:17:55 PM]
Figure 9
8. The Locate Default Datums option provides the ability to create a component with default datums, define its placement constraints to
locate it relative to the rest of the assembly, and create initial features without forcing external dependencies. The Creation Options dialog box
displays three options for the Locate Datums Method: Three Planes, Axis Normal To Plane, and Align Csys to Csys:
Three Planes - select three orthogonal planes in the assembly. The system then creates a new part with datum planes, which it uses to
place the new component with respect to the rest of the assembly.
Axis Normal To Plane - select a single datum plane or planar surface in the assembly and an axis that is normal to it. The system
then creates a new part with datum planes and an axis, which it uses to place the new component with respect to the rest of the assembly.
Align Csys to Csys - lines up the x, y, and z axes of the selected coordinate systems.
After selecting the references, the component is automatically activated to allow features to be created in the new part. The features will
automatically use the part default datum planes for their references, thereby avoiding the creation of external dependencies on the assembly.
Once a feature is created, the system places the new part in the assembly the way that its default planes are mated (by Mate Offset with zero
offsets) to the selected references in the assembly. In the case of Axis Normal To Plane, the system also aligns the part's axis with the
selected assembly axis. The offset dimensions can then be modified, or the component placement redefined, if so desired.
Select Axis Normal To Plane, and choose the flat surface at the bottom of the coaxial hole and the axis A_1 in leg.prt, as shown below in
Figure 10. Note that this does not create external references because the system is mating and aligning the default datums and axis of this new
part to the selected references, and not using them as sketching and orientation planes for the base feature in the new part.
Figure 10
7. Using Skeleton Models to Achieve Top-Down Assembly Design
http://www.ptc.com/cs/cs_26/howto/aba986/aba986.htm[7/25/2011 5:17:55 PM]

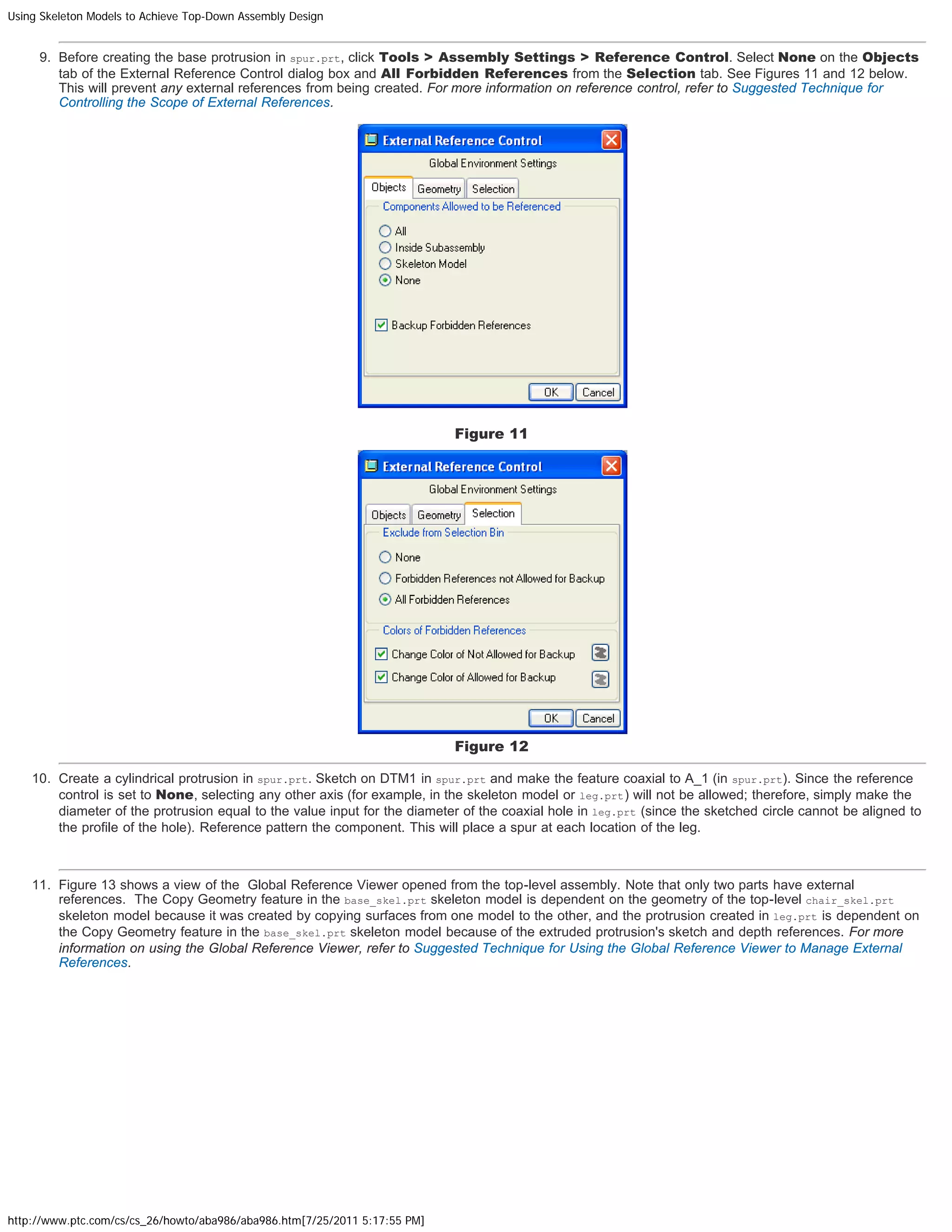

9. Before creating the base protrusion in spur.prt, click Tools > Assembly Settings > Reference Control. Select None on the Objects
tab of the External Reference Control dialog box and All Forbidden References from the Selection tab. See Figures 11 and 12 below.
This will prevent any external references from being created. For more information on reference control, refer to Suggested Technique for
Controlling the Scope of External References.
Figure 11
Figure 12
10. Create a cylindrical protrusion in spur.prt. Sketch on DTM1 in spur.prt and make the feature coaxial to A_1 (in spur.prt). Since the reference
control is set to None, selecting any other axis (for example, in the skeleton model or leg.prt) will not be allowed; therefore, simply make the
diameter of the protrusion equal to the value input for the diameter of the coaxial hole in leg.prt (since the sketched circle cannot be aligned to
the profile of the hole). Reference pattern the component. This will place a spur at each location of the leg.

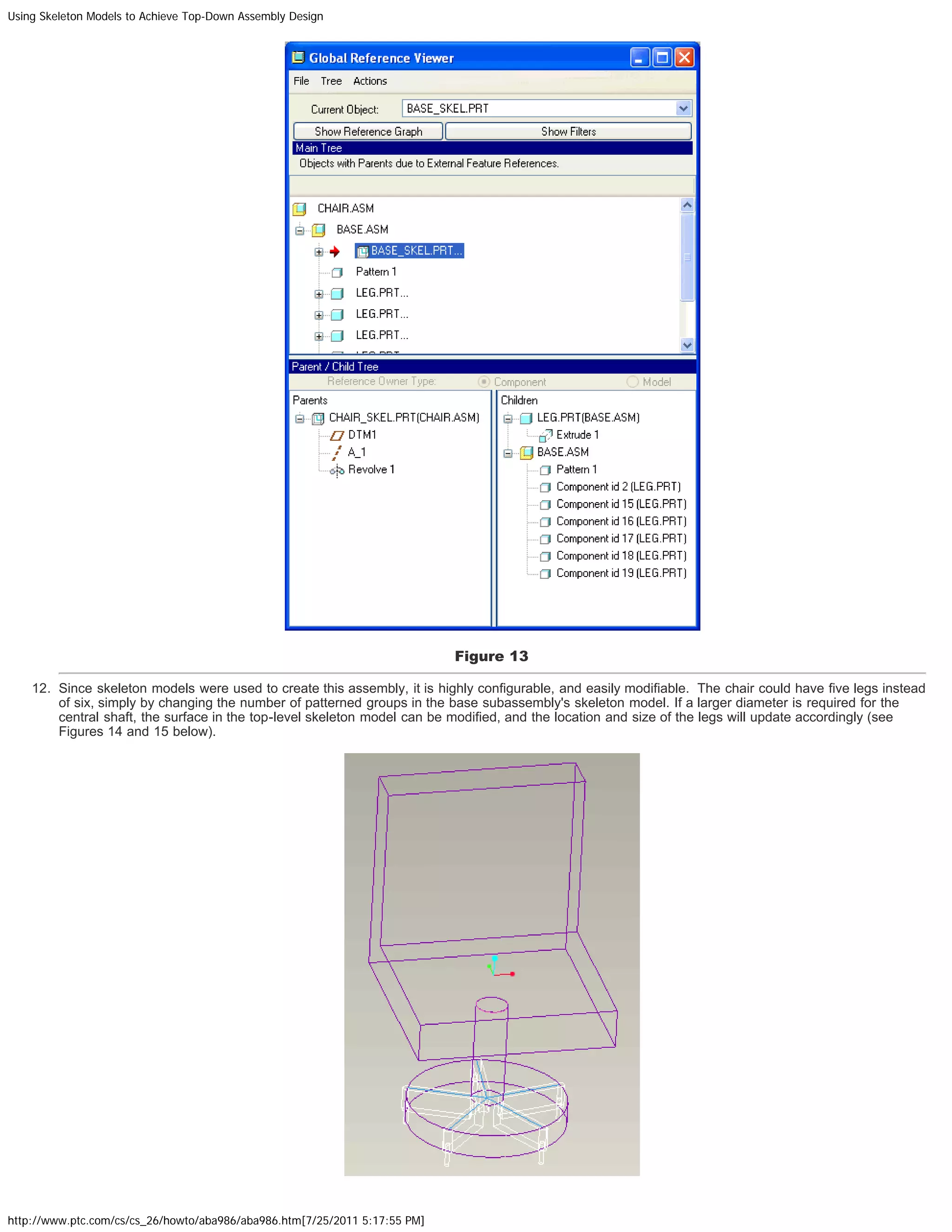

11. Figure 13 shows a view of the Global Reference Viewer opened from the top-level assembly. Note that only two parts have external
references. The Copy Geometry feature in the base_skel.prt skeleton model is dependent on the geometry of the top-level chair_skel.prt
skeleton model because it was created by copying surfaces from one model to the other, and the protrusion created in leg.prt is dependent on
the Copy Geometry feature in the base_skel.prt skeleton model because of the extruded protrusion's sketch and depth references. For more
information on using the Global Reference Viewer, refer to Suggested Technique for Using the Global Reference Viewer to Manage External
References.
8. Using Skeleton Models to Achieve Top-Down Assembly Design
http://www.ptc.com/cs/cs_26/howto/aba986/aba986.htm[7/25/2011 5:17:55 PM]
Figure 13

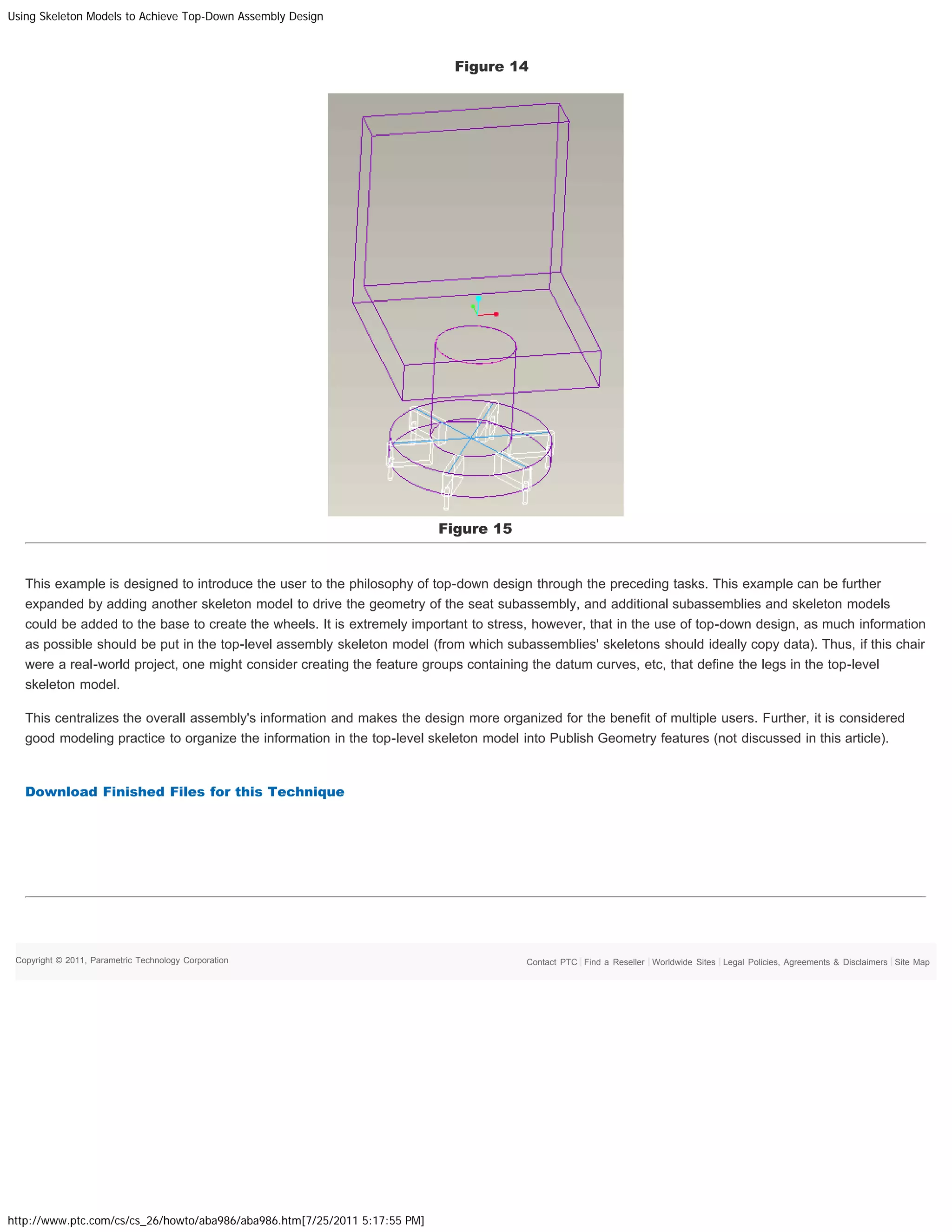

12. Since skeleton models were used to create this assembly, it is highly configurable, and easily modifiable. The chair could have five legs instead
of six, simply by changing the number of patterned groups in the base subassembly's skeleton model. If a larger diameter is required for the
central shaft, the surface in the top-level skeleton model can be modified, and the location and size of the legs will update accordingly (see
Figures 14 and 15 below).
