Using ArcGIS with OAuth 2.0 - Esri DevSummit Dubai 2013
The document provides an overview of OAuth 2.0 authentication and authorization when using ArcGIS. It discusses the problems with traditional password authentication, defines key concepts like resource owner, server, and client. It then covers the different OAuth 2.0 grant types like authorization code for web servers, implicit for browsers and mobile, and client credentials for applications. It provides examples of implementing each grant type and making API requests with the returned access and refresh tokens.
More Related Content
Similar to Using ArcGIS with OAuth 2.0 - Esri DevSummit Dubai 2013
Using ArcGIS with OAuth 2.0 - Esri DevSummit Dubai 2013
- 1. Using ArcGIS with OAuth2.0 Aaron Parecki @aaronpk CTO, Esri R&D Center Portland

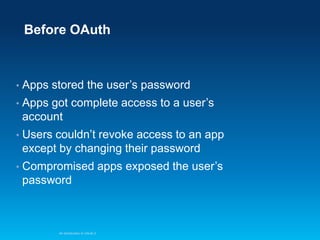

- 2. Before OAuth • Apps storedthe user’s password • Apps got complete access to a user’s account • Users couldn’t revoke access to an app except by changing their password • Compromised apps exposed the user’s password An Introduction to OAuth 2

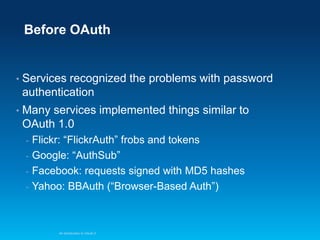

- 3. Before OAuth • Services recognizedthe problems with password authentication • Many services implemented things similar to OAuth 1.0 Flickr: “FlickrAuth” frobs and tokens - Google: “AuthSub” - Facebook: requests signed with MD5 hashes - Yahoo: BBAuth (“Browser-Based Auth”) - An Introduction to OAuth 2
- 4. The OAuth 2.0Spec http://oauth.net/2/

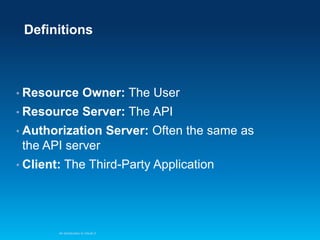

- 5. Definitions • Resource Owner: TheUser • Resource Server: The API • Authorization Server: Often the same as the API server • Client: The Third-Party Application An Introduction to OAuth 2

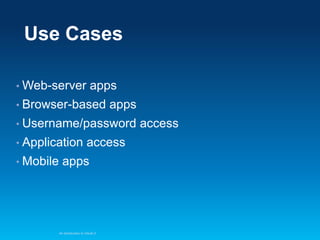

- 6. Use Cases • Web-server apps •Browser-based apps • Username/password • Application • Mobile access apps An Introduction to OAuth 2 access
- 7. Use Cases –Grant Types • Web-server apps – authorization_code • Browser-based apps – implicit • Username/password • Application • Mobile access – password access – client_credentials apps – implicit An Introduction to OAuth 2

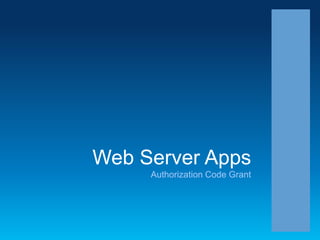

- 8. Web Server Apps AuthorizationCode Grant

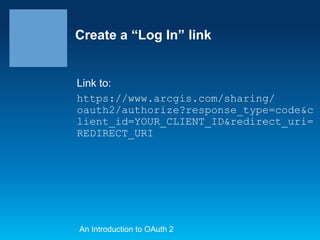

- 9. Create a “LogIn” link Link to: https://www.arcgis.com/sharing/ oauth2/authorize?response_type=code&c lient_id=YOUR_CLIENT_ID&redirect_uri= REDIRECT_URI An Introduction to OAuth 2
- 10. Create a “LogIn” link Link to: https://www.arcgis.com/sharing/oauth2 /authorize?response_type=code&client_ id=YOUR_CLIENT_ID&redirect_uri=REDIRE CT_URI An Introduction to OAuth 2
- 11. Create a “LogIn” link Link to: https://www.arcgis.com/sharing/oauth2 /authorize?response_type=code&client_ id=YOUR_CLIENT_ID&redirect_uri=REDIRE CT_URI An Introduction to OAuth 2
- 12. Create a “LogIn” link Link to: https://www.arcgis.com/sharing/oauth2 /authorize?response_type=code&client_ id=YOUR_CLIENT_ID&redirect_uri=REDIRE CT_URI An Introduction to OAuth 2
- 13. User visits theauthorization page https://www.arcgis.com/sharing/oauth2/autho rize?response_type=code&client_id=YOUR_CLIE NT_ID&redirect_uri=REDIRECT_URI An Introduction to OAuth 2
- 14. On success, useris redirected back to your site with auth code https://example.com/auth?code=AUTH_CODE_HERE On error, user is redirected back to your site with error code https://example.com/auth?error=access_denied An Introduction to OAuth 2

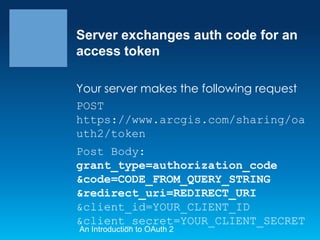

- 15. Server exchanges authcode for an access token Your server makes the following request POST https://www.arcgis.com/sharing/oa uth2/token Post Body: grant_type=authorization_code &code=CODE_FROM_QUERY_STRING &redirect_uri=REDIRECT_URI &client_id=YOUR_CLIENT_ID &client_secret=YOUR_CLIENT_SECRET An Introduction to OAuth 2

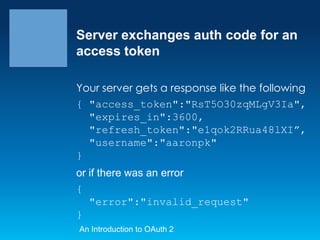

- 16. Server exchanges authcode for an access token Your server gets a response like the following { "access_token":"RsT5O30zqMLgV3Ia", "expires_in":3600, "refresh_token":"e1qok2RRua48lXI”, "username":"aaronpk" } or if there was an error { "error":"invalid_request" } An Introduction to OAuth 2

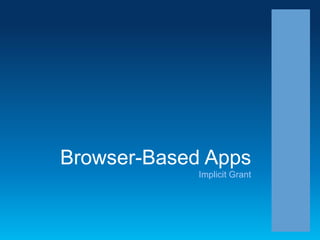

- 17.
- 18. Create a “LogIn” link Link to: https://www.arcgis.com/sharing/ oauth2/authorize?response_type=token& client_id=YOUR_CLIENT_ID&redirect_uri =REDIRECT_URI An Introduction to OAuth 2

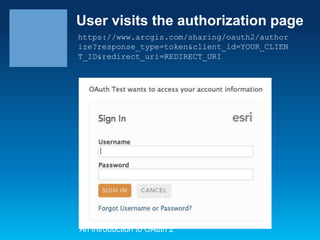

- 19. User visits theauthorization page https://www.arcgis.com/sharing/oauth2/author ize?response_type=token&client_id=YOUR_CLIEN T_ID&redirect_uri=REDIRECT_URI An Introduction to OAuth 2

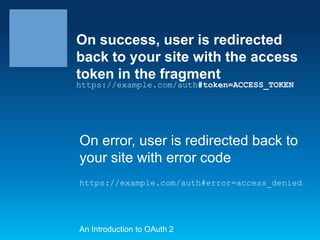

- 20. On success, useris redirected back to your site with the access token in the fragment https://example.com/auth#token=ACCESS_TOKEN On error, user is redirected back to your site with error code https://example.com/auth#error=access_denied An Introduction to OAuth 2

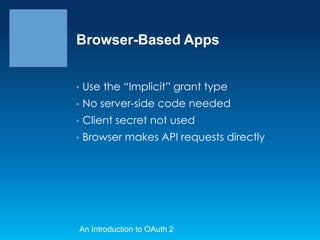

- 21. Browser-Based Apps • Use the“Implicit” grant type • No server-side code needed • Client secret not used • Browser makes API requests directly An Introduction to OAuth 2
- 22.

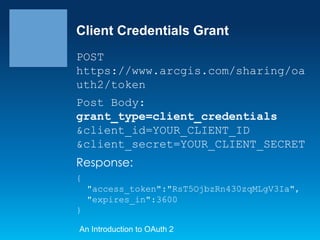

- 23. Client Credentials Grant POST https://www.arcgis.com/sharing/oa uth2/token PostBody: grant_type=client_credentials &client_id=YOUR_CLIENT_ID &client_secret=YOUR_CLIENT_SECRET Response: { "access_token":"RsT5OjbzRn430zqMLgV3Ia", "expires_in":3600 } An Introduction to OAuth 2

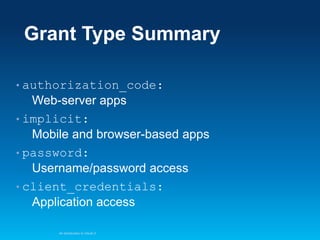

- 24. Grant Type Summary •authorization_code: Web-server apps • implicit: Mobile and browser-based apps • password: Username/password access • client_credentials: Application access An Introduction to OAuth 2

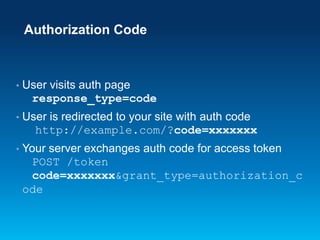

- 25. Authorization Code • User visitsauth page response_type=code • User is redirected to your site with auth code http://example.com/?code=xxxxxxx • Your server exchanges auth code for access token POST /token code=xxxxxxx&grant_type=authorization_c ode

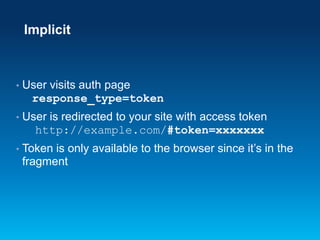

- 26. Implicit • User visits authpage response_type=token • User is redirected to your site with access token http://example.com/#token=xxxxxxx • Token is only available to the browser since it’s in the fragment

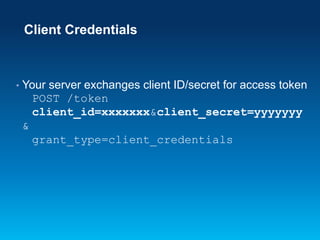

- 27. Client Credentials • Your serverexchanges client ID/secret for access token POST /token client_id=xxxxxxx&client_secret=yyyyyyy & grant_type=client_credentials

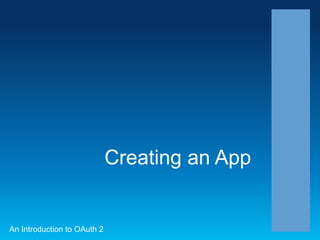

- 28. Creating an App AnIntroduction to OAuth 2
- 29.

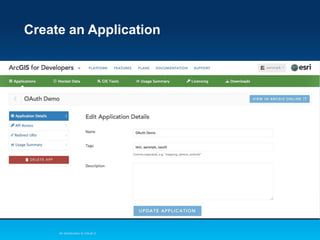

- 30. Create an Application AnIntroduction to OAuth 2
- 31. Get your app’sclient_id An Introduction to OAuth 2
- 32. Set the redirect_uri AnIntroduction to OAuth 2

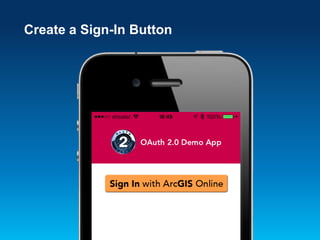

- 33. Create a Sign-InButton

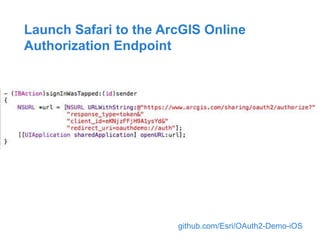

- 34. Launch Safari tothe ArcGIS Online Authorization Endpoint github.com/Esri/OAuth2-Demo-iOS

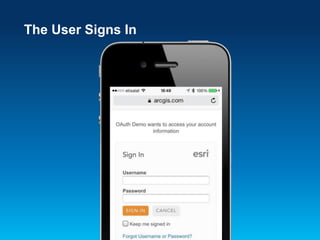

- 35.

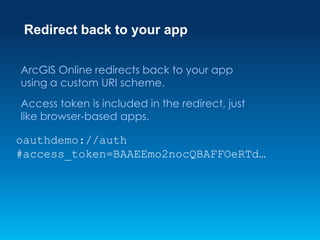

- 36. Redirect back toyour app ArcGIS Online redirects back to your app using a custom URI scheme. Access token is included in the redirect, just like browser-based apps. oauthdemo://auth #access_token=BAAEEmo2nocQBAFFOeRTd…

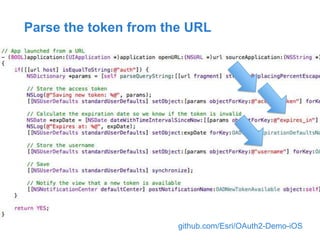

- 37. Parse the tokenfrom the URL github.com/Esri/OAuth2-Demo-iOS
- 38. The User isSigned In!

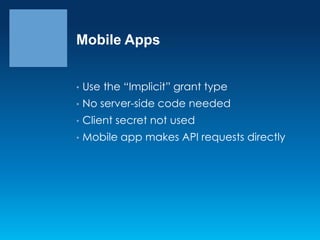

- 39. Mobile Apps • Use the“Implicit” grant type • No server-side code needed • Client secret not used • Mobile app makes API requests directly
- 40. Accessing Resources So youhave an access token. Now what?
- 41. Use the accesstoken to make requests Now you can make requests using the access token. GET http://www.arcgis.com/sharing/rest/portals/self ?token=RsT5OjbzRn430zqMLgV3Ia An Introduction to OAuth 2

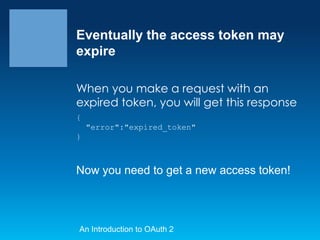

- 42. Eventually the accesstoken may expire When you make a request with an expired token, you will get this response { "error":"expired_token" } Now you need to get a new access token! An Introduction to OAuth 2
- 43. Get a newaccess token using a refresh token Your server makes the following request POST https://www.arcgis.com/sharing/oauth2/t oken grant_type=refresh_token &reresh_token=e1qoXg7Ik2RRua48lXIV &client_id=YOUR_CLIENT_ID &client_secret=YOUR_CLIENT_SECRET Your server gets a similar response as the original call to oauth/token with new tokens. { "access_token":"RsT5OjbzRn430zqMLgV3Ia", "expires_in":3600, "username":"aaronpk" } Introduction to OAuth 2 An
- 44.
- 45.
- 46.
- 47.
