OAuth 2.0 is a framework for authorization that separates clients from resource owners, enabling the secure granting of access to protected resources without sharing passwords. It introduces roles such as resource owner, client, and authorization server while detailing access and refresh tokens, client types, and grant methods. The framework supports features like OpenID Connect for enhanced user identity management, but is also criticized for security vulnerabilities, necessitating careful implementation and security assessments.

1. OAuth 2.0
Technical Overview For Common Flows
info@gooddoglabs.com
www.gooddoglabs.com

2. Internet Security - Identity & Access
Management

3. OAuth 2.0
Is first and foremost a framework
May be reviewed here : http://tools.ietf.org/html/rfc6749
Is primarily an authorization framework
Which separates the role of client from the resource owner, and how
resources are accessed
Basically, the client obtains an access token (scope, lifespan, and access
attributes) from an authorization server, after authorized from the resource
owner to access protected resources on a resource server
And; It is NOT Compatible with OAuth 1.0 and shares few details with OAuth
1.0; but OAuth 2.0 forms the baseline for OpenID Connect, more on this later
Example use case from the IETF OAuth 2.0 Working Group;
“An end-user (resource owner) can grant a printing service (client) access to her
protected photos stored at a photo sharing service (resource server), without
sharing her username and password with the printing service. Instead, she
authenticates directly with a server trusted by the photo sharing service
(authorization server), which issues the printing service delegation- specific
credentials (access token).”

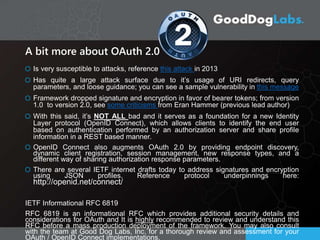

4. A bit more about OAuth 2.0
Is very susceptible to attacks, reference this attack in 2013
Has quite a large attack surface due to it’s usage of URI redirects, query
parameters, and loose guidance; you can see a sample vulnerability in this message
Framework dropped signature and encryption in favor of bearer tokens; from version
1.0 to version 2.0, see some criticisms from Eran Hammer (previous lead author)
With this said, it’s NOT ALL bad and it serves as a foundation for a new Identity
Layer protocol (OpenID Connect), which allows clients to identify the end user
based on authentication performed by an authorization server and share profile
information in a REST based manner.
OpenID Connect also augments OAuth 2.0 by providing endpoint discovery,
dynamic client registration, session management, new response types, and a
different way of sharing authorization response parameters.
There are several IETF internet drafts today to address signatures and encryption
using JSON profiles. Reference protocol underpinnings here:
http://openid.net/connect/
IETF Informational RFC 6819
RFC 6819 is an informational RFC which provides additional security details and
considerations for OAuth and It is highly recommended to review and understand this
RFC before a mass production deployment of the framework. You may also consult
with the team at Good Dog Labs, Inc. for a thorough review and assessment for your
OAuth / OpenID Connect implementations.

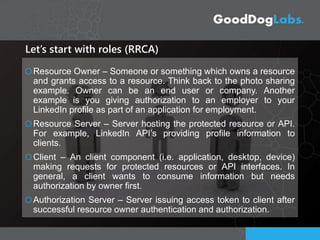

5. Let’s start with roles (RRCA)
Resource Owner – Someone or something which owns a resource
and grants access to a resource. Think back to the photo sharing
example. Owner can be an end user or company. Another
example is you giving authorization to an employer to your
LinkedIn profile as part of an application for employment.
Resource Server – Server hosting the protected resource or API.
For example, LinkedIn API’s providing profile information to
clients.
Client – An client component (i.e. application, desktop, device)
making requests for protected resources or API interfaces. In
general, a client wants to consume information but needs
authorization by owner first.
Authorization Server – Server issuing access token to client after
successful resource owner authentication and authorization.

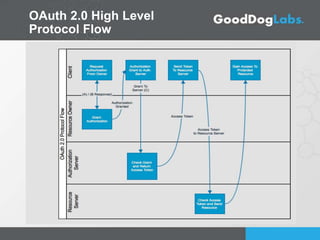

6. OAuth 2.0 High Level
Protocol Flow
Authorization Grant Type Agnostic

7. Let’s clarify some things about the flow
The previous slide describes the “authorization grant agnostic” flow
and is not specific to client types or authentication schemes. You will
learn about the different grant types and associated flows in the
coming slides.
It’s preferred for the client to send an authorization request through
the authorization server (known as intermediary)
The client may receive an authorization grant (grant can be any of the
four grant types – see next slide) or use an extension grant
Client must authenticate to authorization server in order to receive an
access token for the requested resource
Client also must have a valid authorization grant as it’s checked by
the authorization server before it sends the access token. No
authorization grant, no token. This changes for implicit grants.
Finally, the resource server has final say for resource access by
validating the access token provided by client; and if valid, serves the
resource to the client (i.e. end user, browser, device)

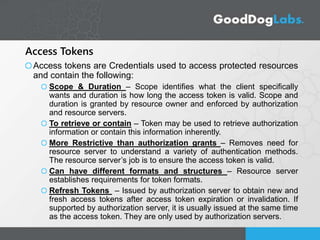

8. Access Tokens
Access tokens are Credentials used to access protected resources
and contain the following:
Scope & Duration – Scope identifies what the client specifically
wants and duration is how long the access token is valid. Scope and
duration is granted by resource owner and enforced by authorization
and resource servers.
To retrieve or contain – Token may be used to retrieve authorization
information or contain this information inherently.
More Restrictive than authorization grants – Removes need for
resource server to understand a variety of authentication methods.
The resource server’s job is to ensure the access token is valid.
Can have different formats and structures – Resource server
establishes requirements for token formats.
Refresh Tokens – Issued by authorization server to obtain new and
fresh access tokens after access token expiration or invalidation. If
supported by authorization server, it is usually issued at the same time
as the access token. They are only used by authorization servers.

9. Now, about Client Profiles
The OAuth 2.0 framework calls for three types:
Web Application – Typically a confidential client running on a
web/application server. Resource owner interacts with application.
Client credentials and access tokens are stored on the server and
used by the application.
User – Agent Based Application – A public client in which client
code such as java script is running within a user-agent such as a web
browser running on a device used by the resource owner. Protocol
credentials are easily accessible and visible to the resource owner. A
security vulnerability assessment is highly recommended and security
considerations MUST be taken into account.
Native Application – A public native application such as an iOS or
Android application running on a device used by the resource owner.
The assumption unless implemented otherwise is that the client
credentials are stored locally on the device and can be easily
extracted If not encrypted by native application. It’s highly
recommended to encrypt client metadata stored locally on device.

10. What about client registration?
This is out of Scope for the OAuth 2.0 Framework, but the following
applies:
Client Type – Client types may either be confidential or public;
confidential types maintain credential confidentiality by adhering to
authentication requirements set by authorization server. It’s important to
understand your assurance or exposure levels for credentials and apply
the appropriate strength. Also refer to slide 3 and 4.
Redirection URI – Redirection URI the authorization server sets in the
resource owner’s user-agent in order to redirect back to the client.
Other Client Properties – Client registrant may provide application
name, logo, and terms and conditions.
Client Identifier – Authorization server issues a unique identifier (see the
Google sample in next slide) to each client that MUST not be used to
authenticate the client. It’s well known and available to resource owners.
Also, the size of the identifier is undefined in the RFC. This may provide
some challenges when creating client identifier schemes for your
implementation.
OpenID Connect Dynamic Client Registration
This specification defines how an OpenID Connect Relying Party (Client)
can dynamically register with the End-User's OpenID Provider (Authorization
Server), providing information about itself to the OpenID Provider, and

11. Client Authentication
The OAuth 2.0 framework calls for you to decide :
Confidential Clients – In this case, the authorization server and the
client agree on an authentication mechanism. This has to be
supported by both parties. User name and password (i.e. HTTP Basic
Authentication) combination is very popular today just like any other
protected resource.
Public Clients – Authentication scheme’s and agreements with
authorization servers are optional.
Request Body (not recommended) – Optionally, a client may send
authentication data in HTTP request body to authorization server. This
must be supported by both the client and the authorization server.
Client_id and client secret may be sent in request body to
authenticate client. See Google sample meta-data in slide 14.
Note: TLS and other standard security considerations must be taken into
account when performing client – authorization server request/response
interactions. The framework doesn’t account for unregistered clients for
example. Special security testing and penetration testing MUST be
performed before providing access to sensitive resource owner

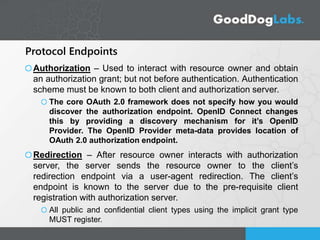

12. Protocol Endpoints
Authorization – Used to interact with resource owner and obtain
an authorization grant; but not before authentication. Authentication
scheme must be known to both client and authorization server.
The core OAuth 2.0 framework does not specify how you would
discover the authorization endpoint. OpenID Connect changes
this by providing a discovery mechanism for it’s OpenID
Provider. The OpenID Provider meta-data provides location of
OAuth 2.0 authorization endpoint.
Redirection – After resource owner interacts with authorization
server, the server sends the resource owner to the client’s
redirection endpoint via a user-agent redirection. The client’s
endpoint is known to the server due to the pre-requisite client
registration with authorization server.
All public and confidential client types using the implicit grant type
MUST register.

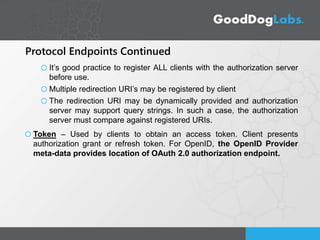

13. Protocol Endpoints Continued
It’s good practice to register ALL clients with the authorization server
before use.
Multiple redirection URI’s may be registered by client
The redirection URI may be dynamically provided and authorization
server may support query strings. In such a case, the authorization
server must compare against registered URIs.
Token – Used by clients to obtain an access token. Client presents
authorization grant or refresh token. For OpenID, the OpenID Provider
meta-data provides location of OAuth 2.0 authorization endpoint.

14. Access Tokens
Authorization & Token endpoints allow the client to set the scope of
the access token; in turn the endpoint uses the response
parameter to let the client know the scope of the access token
issued.
Scope – This is expressed as a space or comma delimited strings;
which are defined by the authorization server. Think of the
facebook example, in which scope may be limited to just your list of
friends.
The authorization server may choose to ignore scope requested by
client. Interesting huh? Well, think about it, should the authorization
server authorize the scope just because the client asked for it?
Thankfully you can set policy for this on the authorization server or
let the resource owner him/herself decide. If the scope differs from
what client requested, then server must issue a scope response
with the actual scope authorized.
You must make an implementation decision to create a default
scope and how you want to handle exceptions when clients make a

15. Google OAuth2 JSON output - Endpoints, Client Info, and
Consent screen
{"web":{"auth_uri":"https://accounts.google.co
m/o/oauth2/auth","client_secret":"ATX1LGjJC
D-
acURsf","token_uri":"https://accounts.google.
com/o/oauth2/token","client_email":”00000000
000@developer.gserviceaccount.com","client_
x509_cert_url":"https://www.googleapis.com/r
obot/v1/metadata/x509/00000000000@develo
per.gserviceaccount.com","client_id":”000000
00000.apps.googleusercontent.com","auth_pr
ovider_x509_cert_url":"https://www.googleapis
.com/oauth2/v1/certs"}}
Google OAuth 2.0 Client
Example

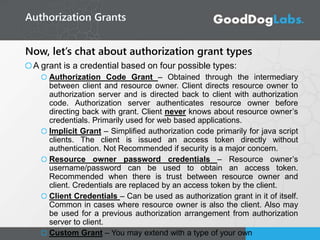

16. Now, let’s chat about authorization grant types
A grant is a credential based on four possible types:
Authorization Code Grant – Obtained through the intermediary
between client and resource owner. Client directs resource owner to
authorization server and is directed back to client with authorization
code. Authorization server authenticates resource owner before
directing back with grant. Client never knows about resource owner’s
credentials. Primarily used for web based applications.
Implicit Grant – Simplified authorization code primarily for java script
clients. The client is issued an access token directly without
authentication. Not Recommended if security is a major concern.
Resource owner password credentials – Resource owner’s
username/password can be used to obtain an access token.
Recommended when there is trust between resource owner and
client. Credentials are replaced by an access token by the client.
Client Credentials – Can be used as authorization grant in it of itself.
Common in cases where resource owner is also the client. Also may
be used for a previous authorization arrangement from authorization
server to client.
Custom Grant – You may extend with a type of your own
Authorization Grants

17. Authorization Code Grant Flow

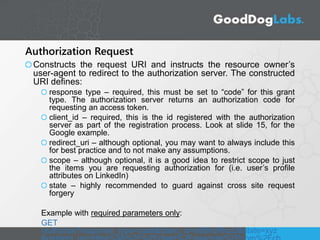

18. Authorization Request
Constructs the request URI and instructs the resource owner’s
user-agent to redirect to the authorization server. The constructed
URI defines:
response type – required, this must be set to “code” for this grant
type. The authorization server returns an authorization code for
requesting an access token.
client_id – required, this is the id registered with the authorization
server as part of the registration process. Look at slide 15, for the
Google example.
redirect_uri – although optional, you may want to always include this
for best practice and to not make any assumptions.
scope – although optional, it is a good idea to restrict scope to just
the items you are requesting authorization for (i.e. user’s profile
attributes on LinkedIn)
state – highly recommended to guard against cross site request
forgery
Example with required parameters only:
GET
/authorize?response_type=code&client_id=s6BhdRkqt3&state=xyz

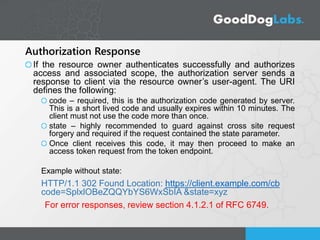

19. Authorization Response
If the resource owner authenticates successfully and authorizes
access and associated scope, the authorization server sends a
response to client via the resource owner’s user-agent. The URI
defines the following:
code – required, this is the authorization code generated by server.
This is a short lived code and usually expires within 10 minutes. The
client must not use the code more than once.
state – highly recommended to guard against cross site request
forgery and required if the request contained the state parameter.
Once client receives this code, it may then proceed to make an
access token request from the token endpoint.
Example without state:
HTTP/1.1 302 Found Location: https://client.example.com/cb
code=SplxlOBeZQQYbYS6WxSbIA &state=xyz
For error responses, review section 4.1.2.1 of RFC 6749.

20. Access Token Request
After getting a valid authorization grant, client makes HTTP request to
token endpoint including the following in the request body:
grant_type – required, this must be set to “password”, You may also use
“client_credentials” if your client was issued credentials and can be
identified by authorization server.
username – required, this is the resource owner’s user name.
Password - required, this is the resource owner’s password.
scope – although optional, it is a good idea to restrict scope to just the
items you are requesting authorization for (i.e. user’s profile attributes on
LinkedIn)
If client type is confidential and has been issued credentials (e.g.
password or public/private key pair) or there is another authentication
scheme in use, authorization server must support this scheme before
proceeding and request body will look different. See parameters in
Google example in slide 15.
Example of access token request with the resource owner’s credentials:
POST /token HTTP/1.1 Host: server.example.com Authorization:
Basic czZCaGRSa3F0MzpnWDFmQmF0M2JW Content-Type:
application/x-www-form-urlencoded
grant_type=authorization_code&code=SplxlOBeZQQYbYS6Wx
SbIA
&redirect_uri=https%3A%2F%2Fclient%2Eexample%2Ecom%2

21. Access Token Response
If the access token request is valid and authorized, the server
issues an access token and an optional refresh token. Once client
receives this token, it may proceed to make requests for the
protected resources.
An example response below:
HTTP/1.1 200 OK Content-Type: application/json;charset=UTF-8
Cache-Control: no-store Pragma: no-cache {
"access_token":"2YotnFZFEjr1zCsicMWpAA", "token_type":"example",
"expires_in":3600, "refresh_token":"tGzv3JOkF0XG5Qx2TlKWIA",
"example_parameter":"example_value" }
Example without state:
For error responses, review section 5.2 of RFC 6749.

22. Implicit Grant Flow

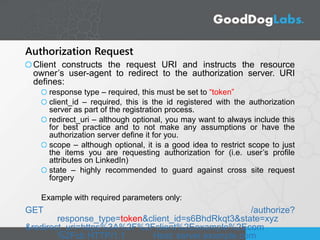

23. Authorization Request
Client constructs the request URI and instructs the resource
owner’s user-agent to redirect to the authorization server. URI
defines:
response type – required, this must be set to “token”
client_id – required, this is the id registered with the authorization
server as part of the registration process.
redirect_uri – although optional, you may want to always include this
for best practice and to not make any assumptions or have the
authorization server define it for you.
scope – although optional, it is a good idea to restrict scope to just
the items you are requesting authorization for (i.e. user’s profile
attributes on LinkedIn)
state – highly recommended to guard against cross site request
forgery
Example with required parameters only:
GET /authorize?
response_type=token&client_id=s6BhdRkqt3&state=xyz
&redirect_uri=https%3A%2F%2Fclient%2Eexample%2Ecom
%2Fcb HTTP/1.1 Host: server.example.com

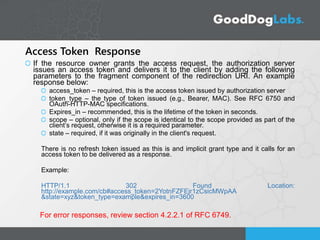

24. Access Token Response
If the resource owner grants the access request, the authorization server
issues an access token and delivers it to the client by adding the following
parameters to the fragment component of the redirection URI. An example
response below:
access_token – required, this is the access token issued by authorization server
token_type – the type of token issued (e.g., Bearer, MAC). See RFC 6750 and
OAuth-HTTP-MAC specifications.
Expires_in – recommended, this is the lifetime of the token in seconds.
scope – optional, only if the scope is identical to the scope provided as part of the
client’s request, otherwise it is a required parameter.
state – required, if it was originally in the client's request.
There is no refresh token issued as this is and implicit grant type and it calls for an
access token to be delivered as a response.
Example:
HTTP/1.1 302 Found Location:
http://example.com/cb#access_token=2YotnFZFEjr1zCsicMWpAA
&state=xyz&token_type=example&expires_in=3600
For error responses, review section 4.2.2.1 of RFC 6749.

25. Not Exactly, OAuth 2.0 alone will yield multiple implementation
variations, refer to section 1.8 of RFC 6749 which states that the
framework is “likely to produce a wide range of non-interoperable
implementations”.
The Web vs. Enterprise divide. Ever changing systems and access
flows vs. stagnant enterprise systems favoring only one protocol
(SAML). In addition, the lack of provider discovery and dynamic
client registration make it difficult to scale.
The Enterprise calls for extensibility and requires solutions for
complex scenarios.
Enter Connect .. Stay
Tuned for the OpenID Connect overview
Sounds good so far right?

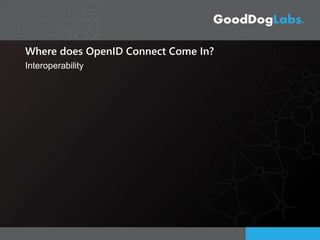

26. Where does OpenID Connect Come In?
Interoperability

27. For additional discussion, contact the team @ GoodDogLabs.
info@gooddoglabs.com
