1. Software Usability Implications
in Requirements and Design
Natalia Juristo
Universidad Politécnica de Madrid
Bolzano, April 12 2005

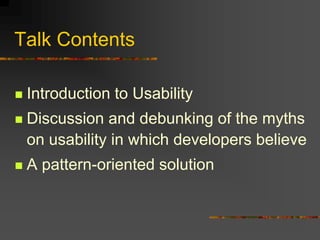

2. Talk Contents
 Introduction to Usability
 Discussion and debunking of the myths
on usability in which developers believe
 A pattern-oriented solution

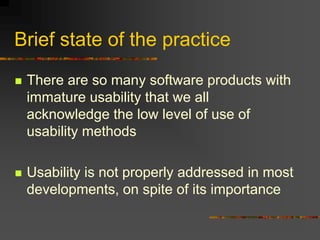

3. Brief state of the practice
 There are so many software products with
immature usability that we all
acknowledge the low level of use of
usability methods
 Usability is not properly addressed in most
developments, on spite of its importance

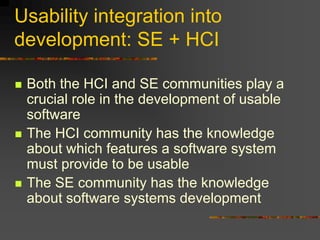

4. Usability integration into
development: SE + HCI
 Both the HCI and SE communities play a
crucial role in the development of usable
software
 The HCI community has the knowledge
about which features a software system
must provide to be usable
 The SE community has the knowledge
about software systems development

5. Usability integration into
development: Difficulties
 Different viewpoints between usability
people and software developers
 Specialist skills required
Integration of usability into the software
development process is not easy and
obvious at all

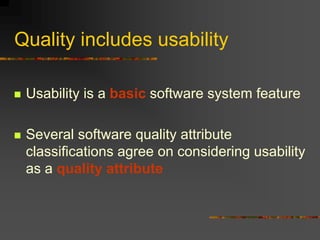

6. Quality includes usability
 Usability is a basic software system feature
 Several software quality attribute
classifications agree on considering usability
as a quality attribute

7. Usability definition
 Usability can be seen as Quality in Use
 Usability reflects
 Learnability
 Efficiency of use
 Reliability in use
 Satisfaction

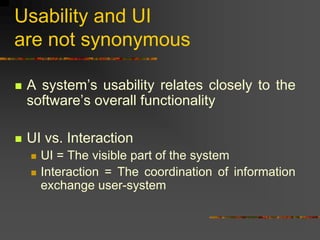

8. Usability and UI
are not synonymous
 A system’s usability relates closely to the
software’s overall functionality
 UI vs. Interaction
 UI = The visible part of the system
 Interaction = The coordination of information
exchange user-system

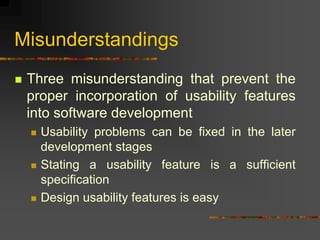

9. Misunderstandings
 Three misunderstanding that prevent the
proper incorporation of usability features
into software development
 Usability problems can be fixed in the later
development stages
 Stating a usability feature is a sufficient
specification
 Design usability features is easy

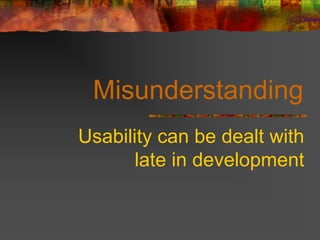

10. Misunderstanding
Usability can be dealt with
late in development

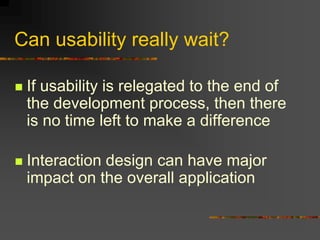

11. Can usability really wait?
 If usability is relegated to the end of
the development process, then there
is no time left to make a difference
 Interaction design can have major
impact on the overall application

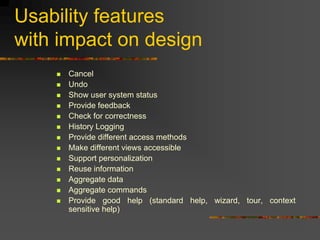

12. Usability features
with impact on design
 Cancel
 Undo
 Show user system status
 Provide feedback
 Check for correctness
 History Logging
 Provide different access methods
 Make different views accessible
 Support personalization
 Reuse information
 Aggregate data
 Aggregate commands
 Provide good help (standard help, wizard, tour, context
sensitive help)

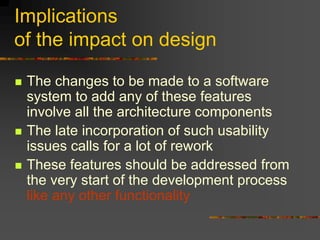

13. Implications
of the impact on design
 The changes to be made to a software
system to add any of these features
involve all the architecture components
 The late incorporation of such usability
issues calls for a lot of rework
 These features should be addressed from
the very start of the development process
like any other functionality

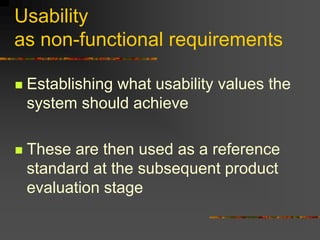

14. Usability
as non-functional requirements
 Establishing what usability values the
system should achieve
 These are then used as a reference
standard at the subsequent product
evaluation stage

15. Usability
as functional requirement
 Particular usability features represent
functionalities in a software system
 Then, usability has implications for
software functionality
 Therefore, it needs to be dealt with as
functional requirements

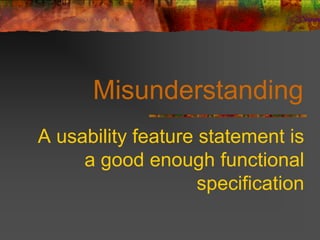

16. Misunderstanding
A usability feature statement is
a good enough functional
specification

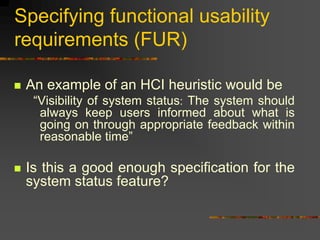

17. Specifying functional usability
requirements (FUR)
 An example of an HCI heuristic would be
“Visibility of system status: The system should
always keep users informed about what is
going on through appropriate feedback within
reasonable time”
 Is this a good enough specification for the
system status feature?

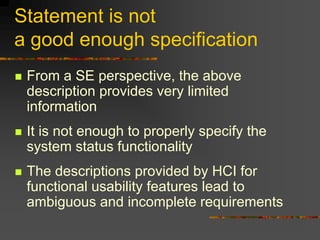

18. Statement is not
a good enough specification
 From a SE perspective, the above
description provides very limited
information
 It is not enough to properly specify the
system status functionality
 The descriptions provided by HCI for
functional usability features lead to
ambiguous and incomplete requirements

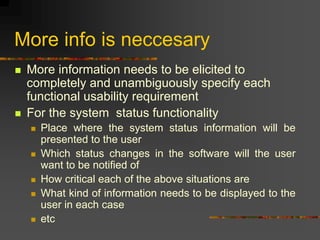

19. More info is neccesary
 More information needs to be elicited to
completely and unambiguously specify each
functional usability requirement
 For the system status functionality
 Place where the system status information will be
presented to the user
 Which status changes in the software will the user
want to be notified of
 How critical each of the above situations are
 What kind of information needs to be displayed to the
user in each case
 etc

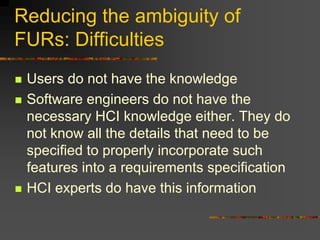

20. Reducing the ambiguity of
FURs: Difficulties
 Users do not have the knowledge
 Software engineers do not have the
necessary HCI knowledge either. They do
not know all the details that need to be
specified to properly incorporate such
features into a requirements specification
 HCI experts do have this information

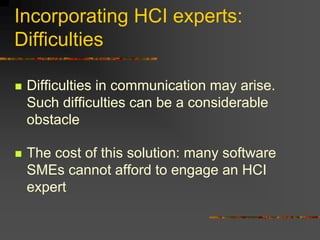

21. Incorporating HCI experts:
Difficulties
 Difficulties in communication may arise.
Such difficulties can be a considerable
obstacle
 The cost of this solution: many software
SMEs cannot afford to engage an HCI
expert

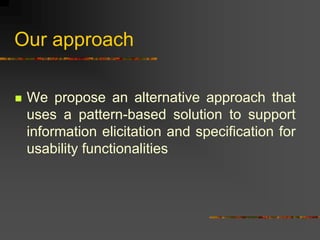

22. Our approach
 We propose an alternative approach that
uses a pattern-based solution to support
information elicitation and specification for
usability functionalities

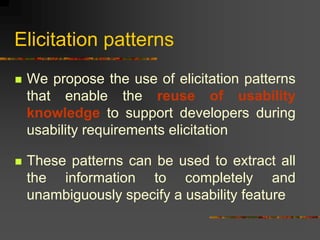

23. Elicitation patterns
 We propose the use of elicitation patterns
that enable the reuse of usability
knowledge to support developers during
usability requirements elicitation
 These patterns can be used to extract all
the information to completely and
unambiguously specify a usability feature

24. Features with elicitation patterns
Feature Usability Mechanism Goal
FEEDBACK System Status To inform users about the internal status of the system
Interaction To inform users that the system has registered a user interaction, that is, that the system
has heard users
Warning To inform users of any action with important consequences
Long Action Feedback To inform users that the system is processing an action that will take some time to
complete
UNDO/CANCEL Global Undo To undo system actions at several levels
Object-Specific Undo To undo several actions on an object
Abort Operation To cancel the execution of a command or an application
Go Back to a Safe State To go back to a particular state in a command execution sequence
FORM/FIELD
VALIDATION
Structured Text Entry To help prevent the user from making data input errors
WIZARD Step-by-Step Execution To help do tasks that require different steps with user input
USER PROFILE Preferences To record each user's options for working with the system at the functional level
Personal Object Space To record each user's options for working with the system at the interface level.
Favourites To record certain places of interest for the user
HELP Multilevel Help To provide different help levels for different users

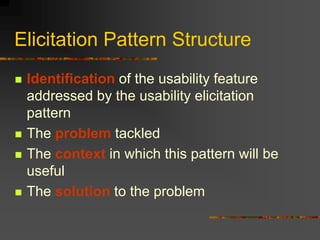

25. Elicitation Pattern Structure
 Identification of the usability feature
addressed by the usability elicitation
pattern
 The problem tackled
 The context in which this pattern will be
useful
 The solution to the problem

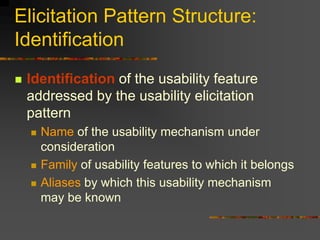

26. Elicitation Pattern Structure:
Identification
 Identification of the usability feature
addressed by the usability elicitation
pattern
 Name of the usability mechanism under
consideration
 Family of usability features to which it belongs
 Aliases by which this usability mechanism
may be known

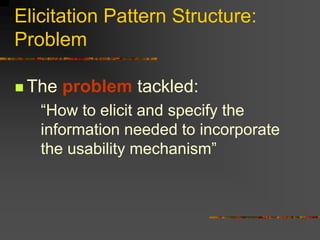

27. Elicitation Pattern Structure:
Problem
 The problem tackled:
“How to elicit and specify the
information needed to incorporate
the usability mechanism”

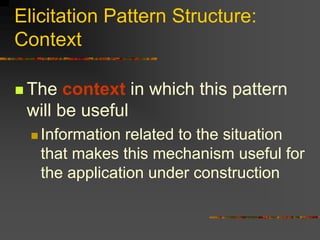

28. Elicitation Pattern Structure:
Context
 The context in which this pattern
will be useful
 Information related to the situation
that makes this mechanism useful for
the application under construction

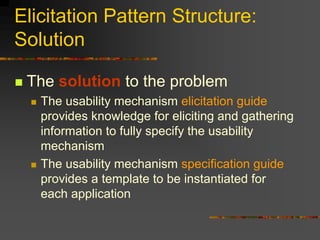

29. Elicitation Pattern Structure:
Solution
 The solution to the problem
 The usability mechanism elicitation guide
provides knowledge for eliciting and gathering
information to fully specify the usability
mechanism
 The usability mechanism specification guide
provides a template to be instantiated for
each application

30. Example:
System Status Feedback

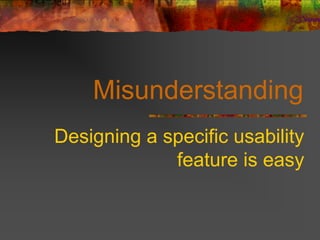

31. Misunderstanding
Designing a specific usability
feature is easy

32. Is specification enough?
 Some usability features require the far
from straightforward creation of special-
purpose components with responsibilities
 HCI literature pays no attention to the
design implications of incorporating
usability features into a system

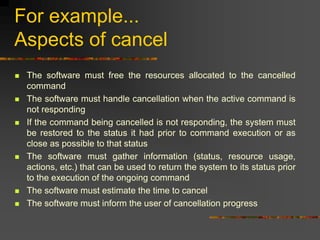

33. For example...
Aspects of cancel
 The software must free the resources allocated to the cancelled
command
 The software must handle cancellation when the active command is
not responding
 If the command being cancelled is not responding, the system must
be restored to the status it had prior to command execution or as
close as possible to that status
 The software must gather information (status, resource usage,
actions, etc.) that can be used to return the system to its status prior
to the execution of the ongoing command
 The software must estimate the time to cancel
 The software must inform the user of cancellation progress

34. Need to provide design support:
Experiment
 Experiment run under three different
circumstances
1) Just a detailed description of the cancel feature,
including the particular commands that could be
cancelled (with no design information at all)
2) Same information as the previous group, plus a list
of responsibilities that any software system with a
cancel feature should satisfy
3) The above information, plus a sample solution

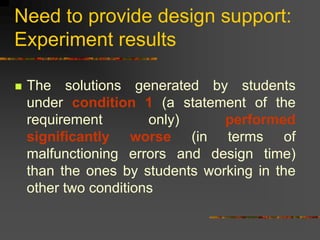

35. Need to provide design support:
Experiment results
 The solutions generated by students
under condition 1 (a statement of the
requirement only) performed
significantly worse (in terms of
malfunctioning errors and design time)
than the ones by students working in the
other two conditions

36. Our approach
 Provide mechanisms that allow software
developers to examine various facets of
the software solution to guide through
the incorporation of such solutions
into their designs

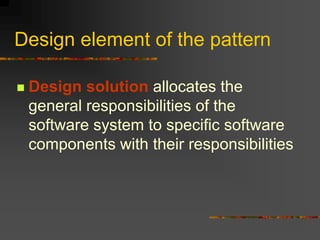

37. Design element of the pattern
 Design solution allocates the
general responsibilities of the
software system to specific software
components with their responsibilities

38. Design Solution
for System Status

39. Conclusions
 We need getting a better understanding of
what implications usability has for software
development
 It is necessary to provide developers with
support to satisfactorily deal with usability
features during the requirements and design
stages
 We proposed a pattern-based solution for
describing usability features

40. Software Usability Implications
in Requirements and Design
Natalia Juristo
Universidad Politécnica de Madrid
Bolzano, April 12 2005
