Uploaded byÓlafur Andri Ragnarsson
L11 Service Design and REST
This document provides an overview of service design and REST architectures. It discusses key concepts like microservices, APIs, service boundaries, and Conway's Law. It explains that services should be organized around business capabilities and have well-defined interfaces. REST architectural styles are also covered, including the Richardson Maturity Model levels and best practices like resources, uniform interfaces, and HATEOAS. Overall, the document is a useful introduction to designing and modeling service-oriented systems using REST principles.
More Related Content
Similar to L11 Service Design and REST
L11 Service Design and REST
- 1. HÖNNUN OG SMÍÐIHUGBÚNAÐAR 2015 L11 SERVICE DESIGN AND REST
- 2. Agenda How to OrganiseSystems APIs and Service Service Architecture How to Model Services REST
- 3. Reading Microservices Grein eftirMartin Fowler og James Lewis Martin Fowler - Microservices Youtube video, Martin Fowler REST+JSON API Design - Best Practices for Developers Youtube video, Les Hazlewood, CTO of Stormpath
- 4. How to OrganiseSystems
- 5. Conwey’s Law Organisations whichdesign systems ... are constrained to produce designs which are copies of the communication structures of these organizations Team A Team B Communication path: Team B needs services from team A API, documentation, and shared model
- 6. Conwey’s Law Priorities ofteams are not shared
- 7. Team Communications withother teams Two ways: Eliminate the communication path, possibly by changing the team structure Recognise that there is a communication path and establish way for people to work successfully
- 8. Remember Conway Responsibility ofTeams Teams must have complete responsibility and ownership of their services Must have all the required skill set to avoid dependence on Service architecture is very much a human thing
- 9.
- 10. Trends in Architecture ServiceOriented Architecture dates back to mid 1990s Web Services meaning XML and SOAP using an Enterprise Services Bus Confusions on terminology
- 11. Trends in Architecture SOAas in Web Services using SOAP
- 12. 1. All teamswill henceforth expose their data and functionality through service interfaces 2. Teams must communicate with each other through these interfaces 3. There will be no other form of interprocess communication allowed 4. It doesn't matter what technology they use 5. All service interfaces, without exception, must be designed from the ground up to be externalizable. No exceptions. 6. Anyone who doesn't do this will be fired. Bezos’ Mandate (from Yegge’s Rant)
- 13. Service Oriented Architecture SOAactually means that components of an application act as interoperable services, and can be used independently and recombined into other applications. Engineering Software as a Service by David Patterson and Armando Fox
- 14. Microservices In recent yearsa new term has emerged, Microservices: The microservice architectural style is an approach to developing a single application as a suite of small services, each running in its own process and communicating with lightweight mechanisms, often an HTTP resource API. From the Lewis & Fowler article
- 15. Martin Fowler -Microservices https://www.youtube.com/watch?v=2yko4TbC8cI Martin Fowler Microservices

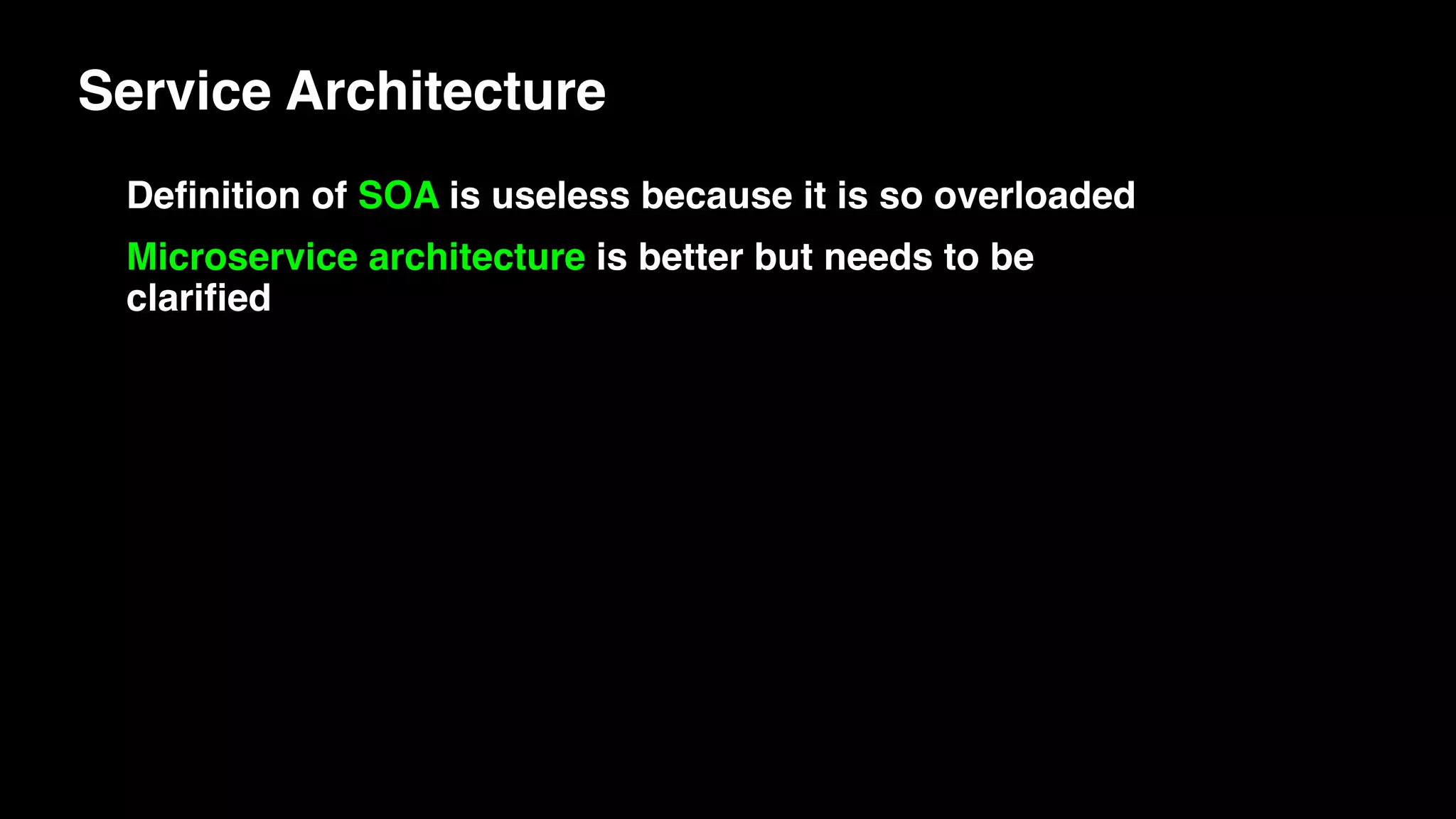

- 17. Definition of SOAis useless because it is so overloaded Microservice architecture is better but needs to be clarified Service Architecture
- 18. Each company shoulddefine what they mean by Service Architecture The Right Way Service Architecture
- 19. A component isa software building block that is independently replaceable independently upgradable Component
- 20. Service Architecture Service Architecturemeans that components of an application act as interoperable services, and can be used independently and recombined into other applications
- 21. Service is acomponent that the replaceable and independently upgradable Definition of a Service SERVICE Implementation Service API Service uses other service
- 22. Services are likethe Unix commands where output from one is in input to another SERVICE Implementation Service API SERVICE ImplementationJson Definition of a Service
- 23. Single Responsibility Principle Gathertogether those things that change for the same reason, and separate those things that change for different reasons Service boundaries focus on business boundaries
- 24. Separate Variations Principle Identifythe aspects of your application that vary and separate them from what stays the same
- 25. Service vs. Monolith Serviceis independently deployable Monolith application Single Deployment Unit Service application Multiple Deployment Unit
- 26. Scalability is providedwith multiple machines - Y scaling Possibility of better load management Service vs. Monolith Monoliths deployed on multiple machines X Scaling Multiple Services deployed on multiple machines Y Scaling
- 27.

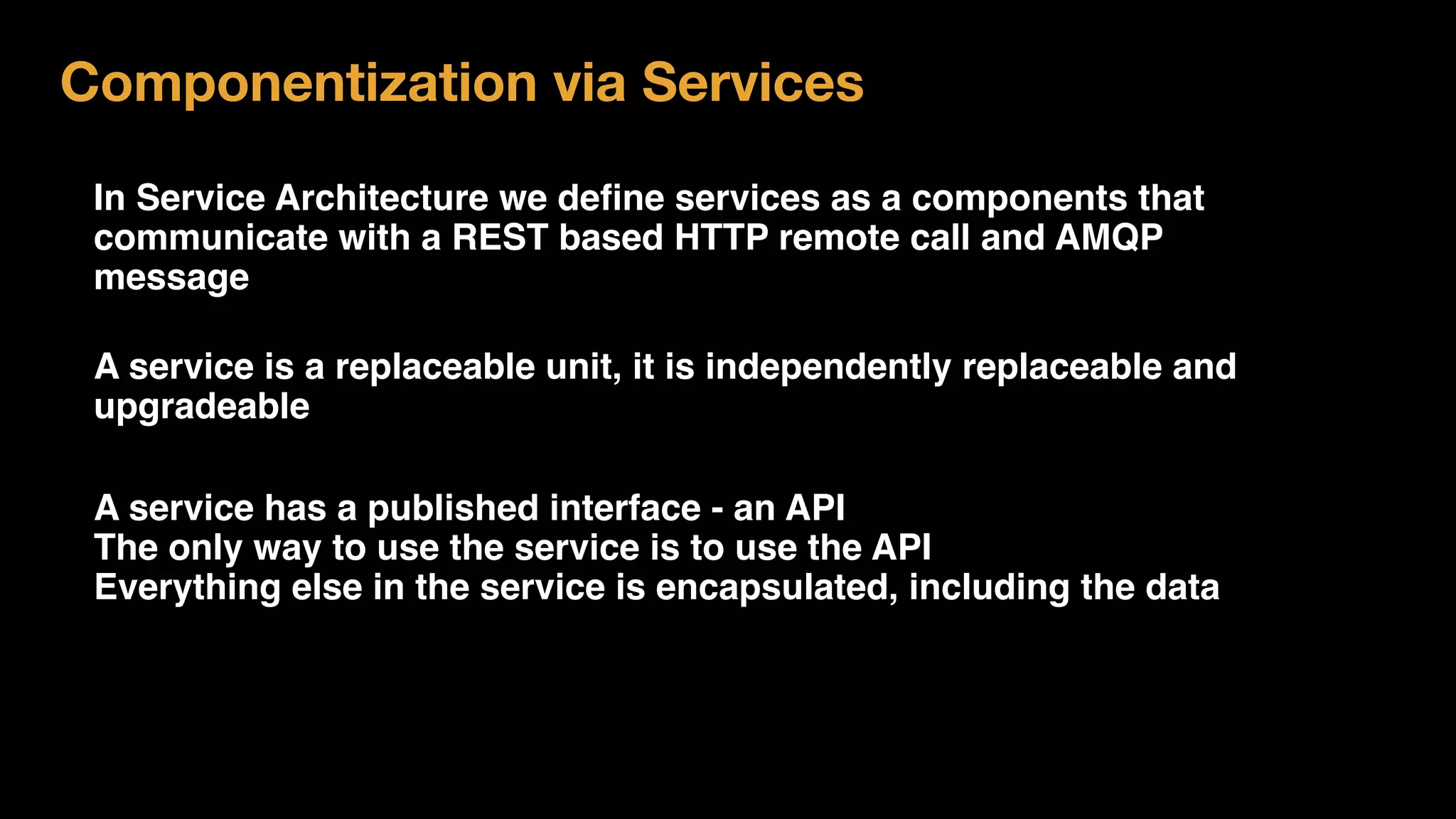

- 28. In Service Architecturewe define services as a components that communicate with a REST based HTTP remote call and AMQP message Componentization via Services A service is a replaceable unit, it is independently replaceable and upgradeable A service has a published interface - an API The only way to use the service is to use the API Everything else in the service is encapsulated, including the data
- 29. REST AMQP Level 2 or3 with JSon content Message Protocol Service API This is how teams communicate
- 30. Feature teams provide muchbetter knowledge in the domain Team owns the entire service from UI to DB Organised Around Business Capabilities
- 31. In monolith architecture itmakes sense to have front- end developers as a team and business logic people as another Monoliths can Organise Around Layers
- 32. Monoliths can OrganiseAround Layers Due to Conway’s Law this organisation leads to bad systems, with lots of duplication of effort
- 33. Monoliths can OrganiseAround Layers The only thing that is worse is to allow developers of one team to inherit classes that are the responsibility of another team Formula for disaster!
- 34. Organised Around BusinessCapabilities Communication paths should as few as possible - teams should be fairly independent Any problematic communication path needs to be address
- 35. Software can bedeveloped as projects, usually for others Software can be developed as products for B2C or B2B markets When building a product, a team is responsibility the whole production of the product. Writing it, testing it, deploying it, running it. Companies need to figure out the right way Products not Projects
- 36. The traditional SOAstyle applications favours using specific routing system to facilitate service communication, for example an Enterprise Service Bus (ESB) Service Architecture favours the microservice approach: smart endpoints and dumb pipes This means that services use REST API to communicate and each service is a dedicated business logic and output in form of JSon Smart endpoints and dumb pipes
- 37. Smart endpoints anddumb pipes System A System B System C Enterprise Service Bus Routing Logic Routing Logic Routing Logic System A System B System C Routing Logic Routing Logic Routing Logic Network
- 38. Each service canbe done in different programming language and with different database While such polyglot environments are more challenging to manage, the possibility of using the best technology for the given problem has true benefits The goal is to make teams more responsible for the code they write and test Teams are responsible for coding, testing and deploying their own services Decentralised Governance
- 39. Data management is partof service Possibilities of different data stores Possibilities of data scaling Decentralised Data Management
- 40. With multiple services,each deployable, the complexity of managing the software deployment and monitoring becomes harder The process of building, deploying and operating services needs further developed to meet continuous delivery One thing that must be looked into is to automate more tasks Infrastructure Automation
- 41. Services will dependon other services How to design if a dependant service is not available? We must look into fall-back routines and other mechanisms to build a robust systems Use latency and fault tolerance support Design for Failure
- 42. How to ModelServices

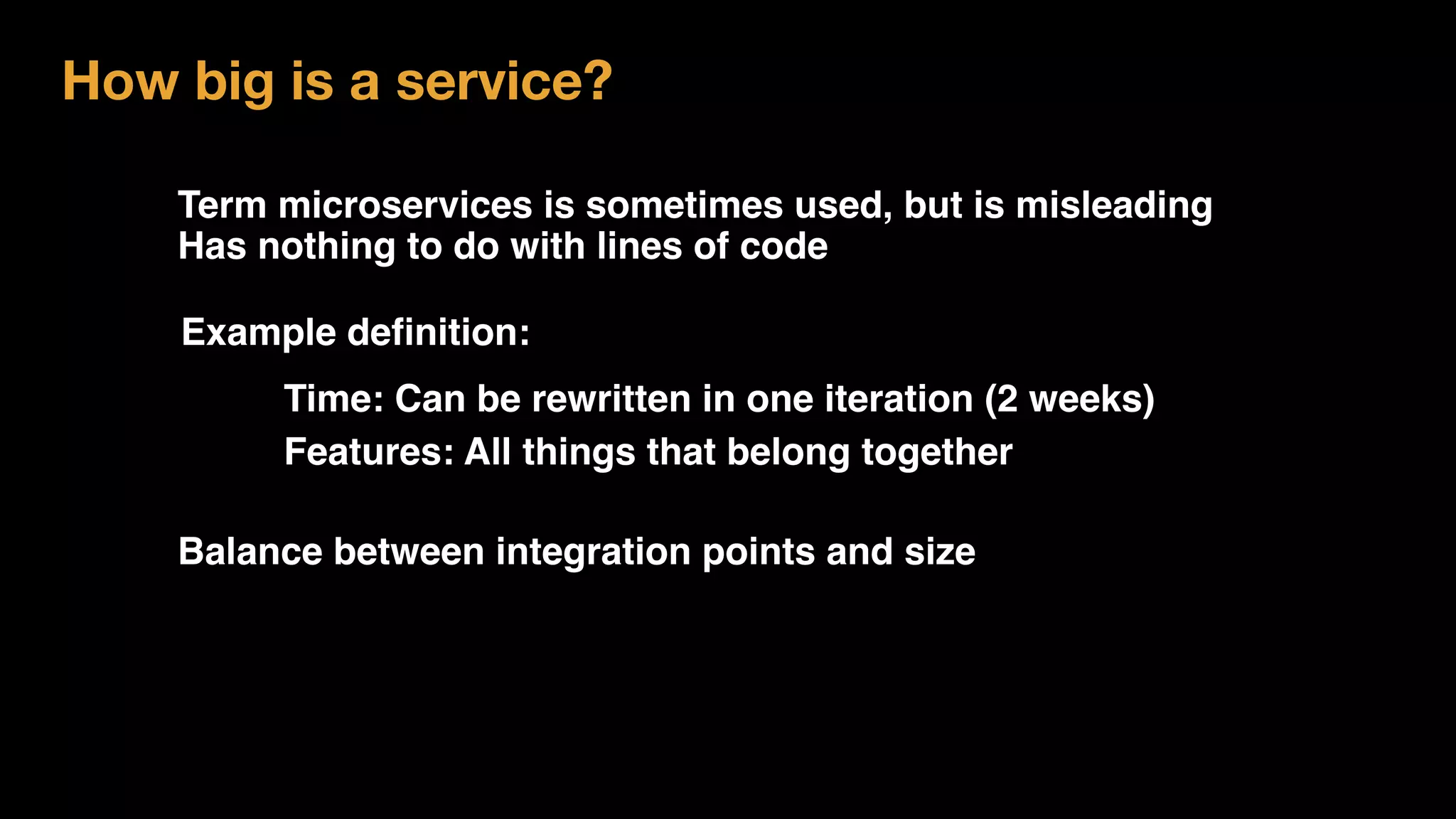

- 43. Term microservices issometimes used, but is misleading Has nothing to do with lines of code How big is a service? Example definition: Balance between integration points and size Time: Can be rewritten in one iteration (2 weeks) Features: All things that belong together
- 44. Loose Coupling When servicesare loosely coupled, a change in one service should not require a change in another A loosely coupled service knows as little about the services with which it collaborates Source: Building Microservices
- 45. High Cohesion We wantrelated behaviour to sit together, and unrelated to sit elsewhere Group together stuff the belongs together, as in SRP If you want to change something, it should change in one place, as in DRY Source: Building Microservices
- 46. Bounded Context Concept thatcomes from Domain-driven Design (DDD) Any given domain contains multiple bounded contexts, and within each are “models” or “things” (or “objects”) that do not need to be communicated outside that are shared with other bounded contexts The shared objects are define the explicit interface to the bounded context Source: Building Microservices
- 47. Bounded Context Source: MartinFowler, BoundedContext http://martinfowler.com/bliki/BoundedContext.html
- 48. Bounded Context Concept thatcomes from Domain-driven Design (DDD) Any given domain contains multiple bounded contexts, and within each are objects that do not need to be communicated outside objects that are shared with other bounded contexts The shared objects are define the explicit interface to the bounded context Source: Building Microservices (figure is from the book)
- 49.
- 50. What is REST? ▪An architectural style – Representational State Transfer ▪ REST is defined in Roy Fielding’s dissertation from 2000
- 51.
- 52. Why REST ▪ Scalability ▪Generality ▪ Independence ▪ Latency ▪ Security ▪ Encapsulation
- 53. Les Hazlewood, CTOof Stormpath REST+JSON API Design - Best Practices for Developers
- 55.
- 56. What is REST? ▪Quick and insufficient explanations: – REST is nothing more than Web Service with the fancy URIs – REST = CRUD – that is, – POST, GET, PUT, DELETE = Create, Read, Update, Delete – Almost but not quite
- 57. Better understanding ▪ RESTstands for Representational State Transfer it is an Architectural Style for distributed hypermedia systems – It has nothing to do with XML, Json, HTTP or the Web – Jason is one way to represent resources, but not the only way
- 58. Better understanding ▪ HTTP/1.1was built in a RESTful manner – The Web is the largest known implementation of a system conforming to the REST architectural style ▪ REST is not CRUD – There are some similarities, but ‘similar’ is far from ‘same’ – In best case CRUD is a subset of REST
- 59. Better understanding ▪ RepresentationalState Transfer Client gets information about the data from the SERVER CLIENT SERVER RESOURCE DATASESSION DATA URI REQUEST RESOURCE HYPERMEDIA Stateless
- 60. Uniform Interface ▪ RESTis defined by 4 interface constraints: 1. Identification of resources 2. Manipulation of resources through representations 3. Self-descriptive messages 4. Hypermedia as the engine of application state (HATEOAS)
- 61. Richardson Maturity Model(RMM) ▪ Level 0 – SOAP, XML RPC, POX – Single URI ▪ Level 1 – URI Tunnelling – Many URI, Single verb ▪ Level 2 – Many URIs, Many verbs – CRUD services ▪ Level 3 – Level 2 + Hypermedia – RESTful Services
- 62. Level 0 ▪ Everythingis packed in XML – Ignoring all HTTP features – SOAP envelope – Ignores all status codes – 55 codes (including “418 I’m a tepot”)

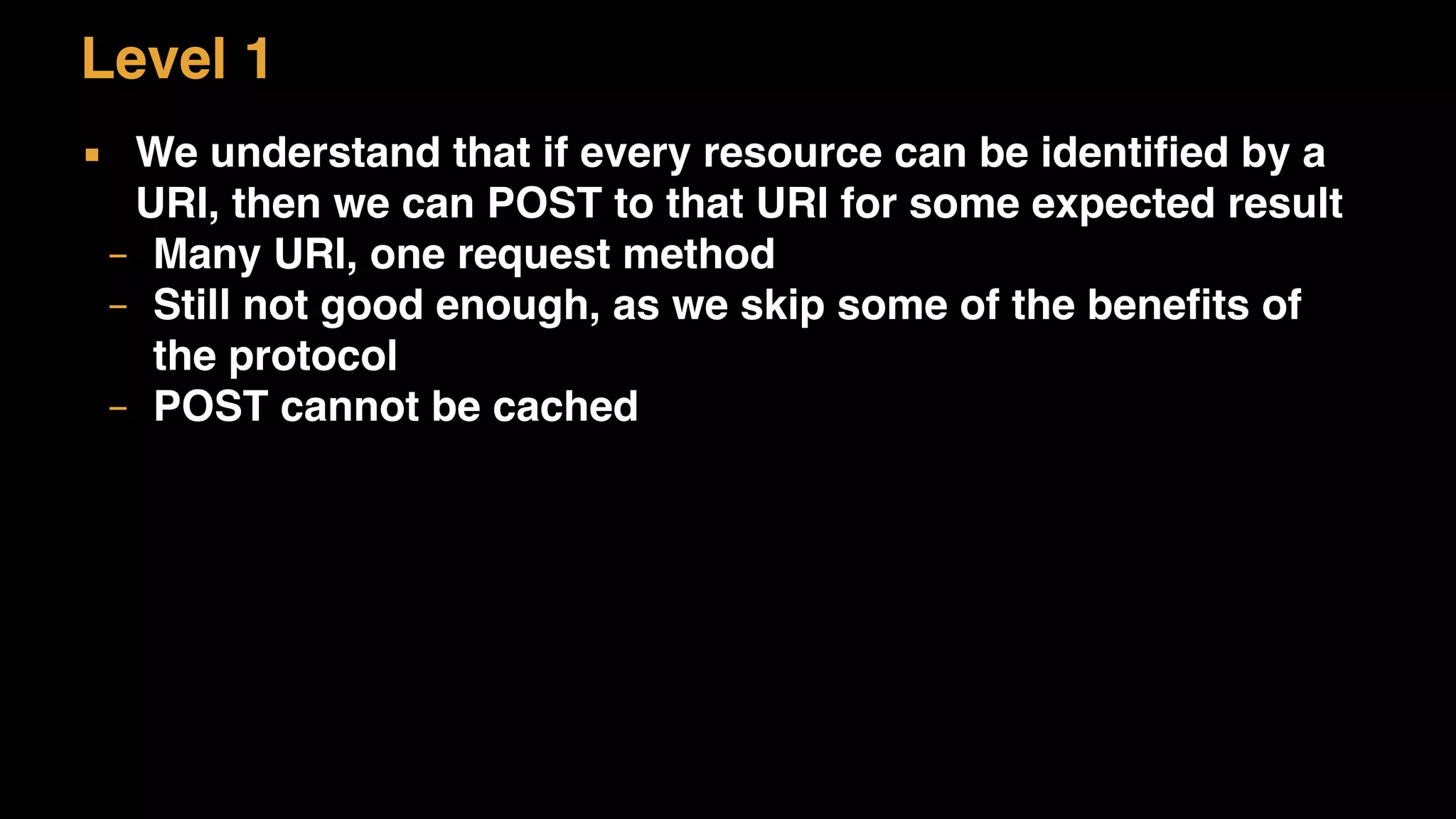

- 63. Level 1 ▪ Weunderstand that if every resource can be identified by a URI, then we can POST to that URI for some expected result – Many URI, one request method – Still not good enough, as we skip some of the benefits of the protocol – POST cannot be cached
- 64. Level 2 ▪ Differentverbs or request methods (GET, PUT, and DELETE) – and use them, as they were intended Safe Idempotent GET Yes Yes PUT No Yes DELETE No Yes POST No No
- 65. Level 3 ▪ HATEOAS– Hypermedia as the engine of Application State – Don’t hardcode your values, use the navigational aspect of the web – Hardcoding is easy and fast, but hard to change – in a distributed world, hard becomes ‘nearly impossible’ – With POJOs we don’t hardcode the memory address, we use pointers
- 66. Level 3 ▪ Whyuse the values of the second column if we can agree on the keys for these value – the actions? Action URI Add new comment to a blog POST /blog/17/comment/ Get all the comments for blog entry number 17 GET /blog/17/comment/ Get user 167671 GET /user/167671 Update a user number 167671 PUT /user/167671
- 67. Level 3 ▪ Theresponse of “get user 167671” will contain keys like “UPDATE” and the value is “http://example.is/user/167671” Action URI Add new comment to a blog POST /blog/17/comment/ Get all the comments for blog entry number 17 GET /blog/17/comment/ Get user 167671 GET /user/167671 Update a user number 167671 PUT /user/167671
- 68. Level 3 { "id": "98423808305", "from":{ "name": "Coca-Cola", "category": "Consumer_products”, "id": "40796308305" }, "name": "A spectacular artwork made solely from used aluminum cans has been unvei on top of the chalk cliffs of the Sussex coastline to mark the beginning of Recycle Week.", "picture": "http://photos-e.ak.fbcdn.net/hphotos-ak-snc1/ hs085.snc1/5041_98423808305_40796308305_1960517_6704612_s.jpg", "source": "http://sphotos.ak.fbcdn.net/hphotos-ak-snc1/ hs085.snc1/5041_98423808305_40796308305_1960517_6704612_n.jpg", "link": "http://www.facebook.com/photo.php?pid=1960517&id=40796308305", "comments": { "data": [ { "id": "98423808305_1152797", "from": { "name": "Caitlin Catherine Kennedy", "id": "1658825260" }, "paging": { "next": "https://graph.facebook.com/98423808305/comments?limit=25&offset=25" } }} HATEOAS
- 69. Resources ▪ Nouns, notverbs – Examples: Account, Group, Customer – Not behaviour ▪ Two types – Collection of resources – Instance of a resource /applications /applications/7828
- 70. REST Behaviour ▪ GETto get resource ▪ POST to add resource ▪ PUT to update resource ▪ DELETE to delete resource ▪ HEAD to get header information
- 71. GET someservice.com/api/customer/3829 POST someservice.com/api/customer/ RESTexamples PUT someservice.com/api/customer/3829 Getting Adding Updating
- 72. GET ▪ On theparent resource: collection GET /users 200 OK { “users”: [ { “username”: “olandri”, ... }, { “username”: … }
- 73. ▪ On theparent resource, give me a specific instance GET /users/789 200 OK { { “username”: “olandri”, ... } } GET
- 74. POST as Create ▪On the parent resource POST /users { “username”: “olandri”, “firstname”: “Ólafur Andri”, “lastname”: “Ragnarsson” } 201 Created Location: https://api.rufan.com/users/789
- 75. PUT as Update ▪On the parent resource – Allows partial updates, which is important for complex data type PUT /users/789 { “username”: “olandri”, } 200 OK
- 76. Endpoint considerations ▪ Forinternal use, you can use anything – http://www.foo.com/dev/api/ ▪ But if you want others to use – http://api.rufan.com/v1.0/
- 77. Versions ▪ Two ways ▪URL – https://api.rufan.com/v1 ▪ Media-Type – Application/json;application&v=1
- 78. JSON ▪ JS inJSON is JavaScript ▪ XML is also possible ▪ JSON is fits well with JavaScript manipulation ▪ Libraries make all this easier ▪ Maps well to objects like POJOs ▪ Compact format, much better space complexity than XML
- 79. Example { "firstName": "John", "lastName": "Smith", "isAlive":true, "age": 25, "height_cm": 167.6, "address": { "streetAddress": "21 2nd Street", "city": "New York", "state": "NY", "postalCode": "10021-3100" }, "phoneNumbers": [ { "type": "home", "number": "212 555-1234" }, { "type": "office", "number": "646 555-4567" } ], "children": [], "spouse": null }
- 80. Some design rules: Determinethe resources first Transparant as opposed to opaque Lowercase As Java package, domain specific with general terms closer to the root Design by intention of results Resource names are plural, customers not customer If /a/b is valid, so is /a Endpoint Design /customers/{id} /customers/117 Returns customer with id=117 Use { } for parameters
- 81. ▪ Example: School,Student, and Classes in their normal relationship – schools have zero or more students – schools have zero or more classes – students have zero or more classes – classes have zero or more students Resource Oriented Design
- 82. Resource Oriented Design http://example.com/lms/schools =>list of schools http://example.com/lms/schools/{school} => info about one school http://example.com/lms/schools/{school}/students => list of students http://example.com/lms/schools/{school}/students/{student} => info on one student http://example.com/lms/schools/{school}/students/{student}/courses => list of courses (as links, not full resources) student is enrolled in http://example.com/lms/schools/{school}/courses => list of courses http://example.com/lms/schools/{school}/courses/{course} => info on one course http://example.com/lms/schools/{school}/courses/{course}/students => list of students (as links, not full resources) enrolled in course
- 83. http://www.example.com/lms/students/123 { "ID" : 123, "name":"Name of Student", "SSN" : 123456789, "DateOfBirth" : "2001-01-01" } Resource Oriented Design
- 84. http://www.example.com√lms/students/123 { "Classes" : [ { "name" : ”History", "link" : " http://www.example.com/classes/117" }, { "name" : ”New Technology", "link" : " http://www.example.com/classes/118" } ] } Resource Oriented Design
- 85.
- 86. JavaScript calls REST API to get Json array
- 87. What REST isnot ▪ Silver bullet ▪ Not easy although simple ▪ Isn’t tied to the web ▪ Not perfect – Client holds application state – Latency – Integrity
- 88. Summary ▪ REST isHTTP done right ▪ Architecture style ▪ Not so easy to get right ▪ Trend is towards APIs
