Microservices: Yes or not?
The document discusses the evolution of software architecture from traditional n-tier applications to microservices, highlighting key differences such as service size, orchestration versus choreography, and deployment independence. It outlines essential principles, pitfalls, and the context for adopting microservices, emphasizing the need for a strong DevOps culture and robust infrastructure. Additionally, it compares microservices with SOA, covers the twelve-factor application methodology, and briefly introduces serverless architecture.
More Related Content
Similar to Microservices: Yes or not?
More from Eduard Tomàs
Microservices: Yes or not?
- 1. Microservices… Yes ornot? Eduard Tomàs – Dev @ Plain concepts @eiximenis http://geeks.ms/etomas #Gapand2017
- 2.
- 3.

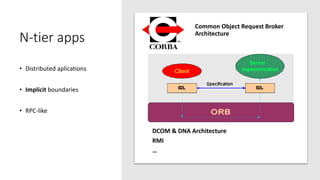

- 4. N-tier apps • Distributedaplications • Implicit boundaries • RPC-like Common Object Request Broker Architecture DCOM & DNA Architecture RMI …

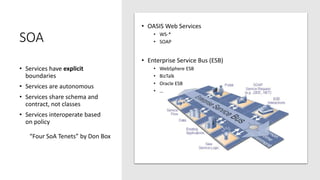

- 5. SOA • Services haveexplicit boundaries • Services are autonomous • Services share schema and contract, not classes • Services interoperate based on policy “Four SoA Tenets” by Don Box • OASIS Web Services • WS-* • SOAP • Enterprise Service Bus (ESB) • WebSphere ESB • BizTalk • Oracle ESB • …
- 6. Don Box @Teched 2001 (BCN)

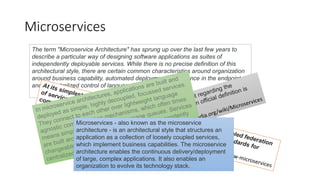

- 8. Microservices The term "MicroserviceArchitecture" has sprung up over the last few years to describe a particular way of designing software applications as suites of independently deployable services. While there is no precise definition of this architectural style, there are certain common characteristics around organization around business capability, automated deployment, intelligence in the endpoints, and decentralized control of languages and data. https://martinfowler.com/articles/microservices.html Microservices - also known as the microservice architecture - is an architectural style that structures an application as a collection of loosely coupled services, which implement business capabilities. The microservice architecture enables the continuous delivery/deployment of large, complex applications. It also enables an organization to evolve its technology stack.

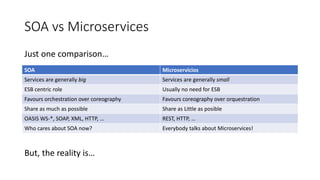

- 9. SOA vs Microservices SOAMicroservicios Services are generally big Services are generally small ESB centric role Usually no need for ESB Favours orchestration over coreography Favours coreography over orquestration Share as much as possible Share as Little as posible OASIS WS-*, SOAP, XML, HTTP, … REST, HTTP, … Who cares about SOA now? Everybody talks about Microservices! Just one comparison… But, the reality is…
- 10.

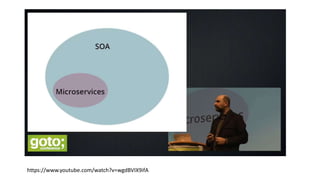

- 11. Microservices are away to do SOA
- 12. SOAP vs REST •Heavy message format: XML and <soap:Envelope> schema • RPC based: service -> method (i.e. doctorSvc->GetAllPatients) • Uses HTTP merely as transport protocol. Can use other transports. • Small messages. No format assumed • Resource based (i.e. /doctors/<id>/patients • Embraces HTTP semantics: use HTTP verbs and return codes

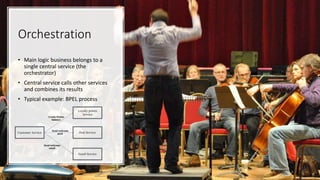

- 13. Orchestration • Main logicbusiness belongs to a single central service (the orchestrator) • Central service calls other services and combines its results • Typical example: BPEL process

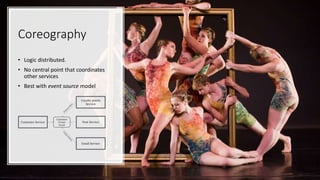

- 14. Coreography • Logic distributed. •No central point that coordinates other services • Best with event source model
- 15. The 8 keyaspects of Microservices (by Fowler) 1. Componentization via Services 2. Organized around Business Capabilities 3. Products not Projects 4. Smart endpoints and dumb pipes 5. Decentralized Governance 6. Decentralized Data Management 7. Infrastructure Automation 8. Design for failure https://martinfowler.com/articles/microservices.html

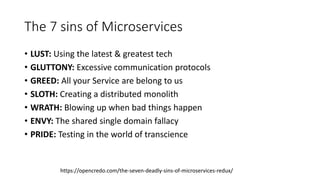

- 16. The 7 sinsof Microservices • LUST: Using the latest & greatest tech • GLUTTONY: Excessive communication protocols • GREED: All your Service are belong to us • SLOTH: Creating a distributed monolith • WRATH: Blowing up when bad things happen • ENVY: The shared single domain fallacy • PRIDE: Testing in the world of transcience https://opencredo.com/the-seven-deadly-sins-of-microservices-redux/

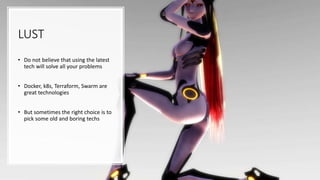

- 17. LUST • Do notbelieve that using the latest tech will solve all your problems • Docker, k8s, Terraform, Swarm are great technologies • But sometimes the right choice is to pick some old and boring techs

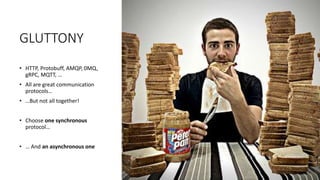

- 18. GLUTTONY • HTTP, Protobuff,AMQP, 0MQ, gRPC, MQTT, … • All are great communication protocols… • …But not all together! • Choose one synchronous protocol… • … And an asynchronous one
- 19. GREED • Organization needsto adapt a “microservices culture” • Each microservice belongs to specific team • Deployment, technologies & tools, processes… are team responsabilities

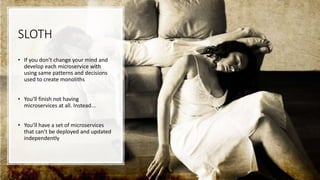

- 20. SLOTH • If youdon’t change your mind and develop each microservice with using same patterns and decisions used to create monoliths • You’ll finish not having microservices at all. Instead... • You’ll have a set of microservices that can’t be deployed and updated independently

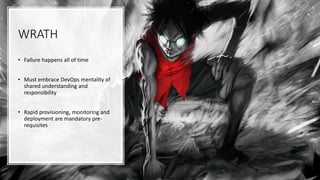

- 21. WRATH • Failure happensall of time • Must embrace DevOps mentality of shared understanding and responsibility • Rapid provisioning, monitoring and deployment are mandatory pre- requisites

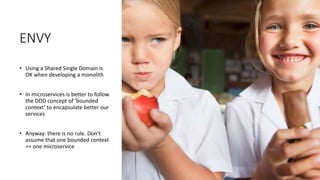

- 22. ENVY • Using aShared Single Domain is OK when developing a monolith • In microservices is better to follow the DDD concept of ‘bounded context’ to encapsulate better our services • Anyway: there is no rule. Don’t assume that one bounded context == one microservice

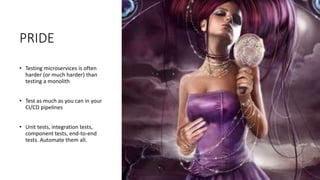

- 23. PRIDE • Testing microservicesis often harder (or much harder) than testing a monolith • Test as much as you can in your CI/CD pipelines • Unit tests, integration tests, component tests, end-to-end tests. Automate them all.
- 24.

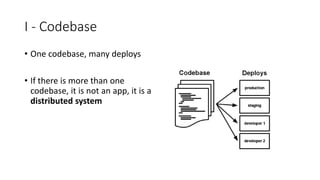

- 25. I - Codebase •One codebase, many deploys • If there is more than one codebase, it is not an app, it is a distributed system

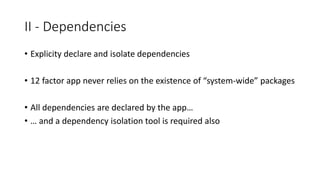

- 26. II - Dependencies •Explicity declare and isolate dependencies • 12 factor app never relies on the existence of “system-wide” packages • All dependencies are declared by the app… • … and a dependency isolation tool is required also

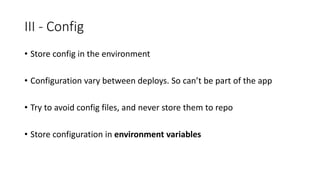

- 27. III - Config •Store config in the environment • Configuration vary between deploys. So can’t be part of the app • Try to avoid config files, and never store them to repo • Store configuration in environment variables

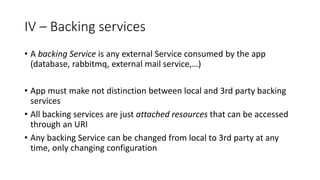

- 28. IV – Backingservices • A backing Service is any external Service consumed by the app (database, rabbitmq, external mail service,…) • App must make not distinction between local and 3rd party backing services • All backing services are just attached resources that can be accessed through an URI • Any backing Service can be changed from local to 3rd party at any time, only changing configuration

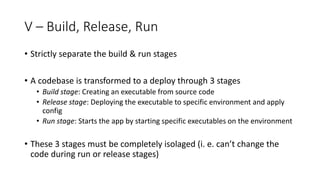

- 29. V – Build,Release, Run • Strictly separate the build & run stages • A codebase is transformed to a deploy through 3 stages • Build stage: Creating an executable from source code • Release stage: Deploying the executable to specific environment and apply config • Run stage: Starts the app by starting specific executables on the environment • These 3 stages must be completely isolaged (i. e. can’t change the code during run or release stages)

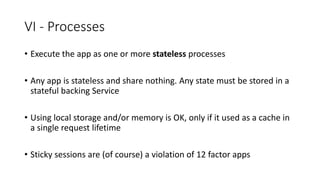

- 30. VI - Processes •Execute the app as one or more stateless processes • Any app is stateless and share nothing. Any state must be stored in a stateful backing Service • Using local storage and/or memory is OK, only if it used as a cache in a single request lifetime • Sticky sessions are (of course) a violation of 12 factor apps

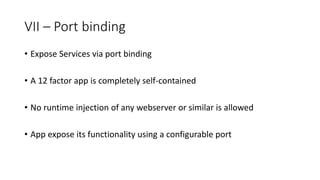

- 31. VII – Portbinding • Expose Services via port binding • A 12 factor app is completely self-contained • No runtime injection of any webserver or similar is allowed • App expose its functionality using a configurable port
- 32. VIII - Concurrency •Scale out via process model • In 12 factor apps process is a 1st class citizen • Scale using more processes, instead of any other way (like threads) • As 12 factor apps are stateless and share nothing, concurrency and scale using processes is a safe and simple operation

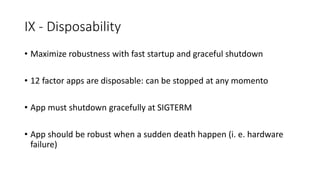

- 33. IX - Disposability •Maximize robustness with fast startup and graceful shutdown • 12 factor apps are disposable: can be stopped at any momento • App must shutdown gracefully at SIGTERM • App should be robust when a sudden death happen (i. e. hardware failure)

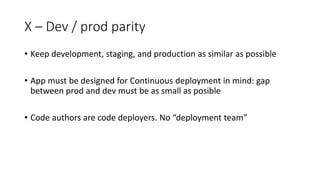

- 34. X – Dev/ prod parity • Keep development, staging, and production as similar as possible • App must be designed for Continuous deployment in mind: gap between prod and dev must be as small as posible • Code authors are code deployers. No “deployment team”

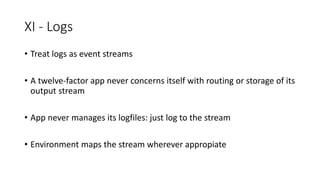

- 35. XI - Logs •Treat logs as event streams • A twelve-factor app never concerns itself with routing or storage of its output stream • App never manages its logfiles: just log to the stream • Environment maps the stream wherever appropiate

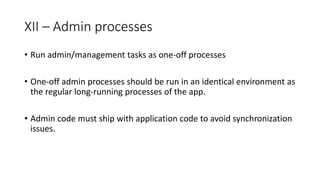

- 36. XII – Adminprocesses • Run admin/management tasks as one-off processes • One-off admin processes should be run in an identical environment as the regular long-running processes of the app. • Admin code must ship with application code to avoid synchronization issues.
- 37.

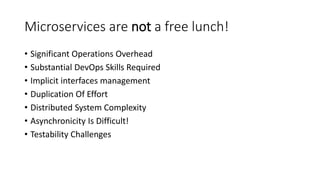

- 39. Microservices are nota free lunch! • Significant Operations Overhead • Substantial DevOps Skills Required • Implicit interfaces management • Duplication Of Effort • Distributed System Complexity • Asynchronicity Is Difficult! • Testability Challenges

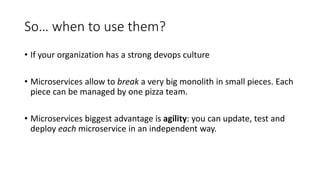

- 40. So… when touse them? • If your organization has a strong devops culture • Microservices allow to break a very big monolith in small pieces. Each piece can be managed by one pizza team. • Microservices biggest advantage is agility: you can update, test and deploy each microservice in an independent way.

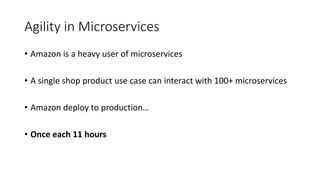

- 41. Agility in Microservices •Amazon is a heavy user of microservices • A single shop product use case can interact with 100+ microservices • Amazon deploy to production… • Once each 11 hours

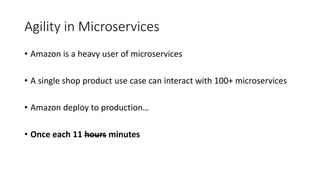

- 42. Agility in Microservices •Amazon is a heavy user of microservices • A single shop product use case can interact with 100+ microservices • Amazon deploy to production… • Once each 11 hours minutes
- 43. Agility in Microservices •Amazon is a heavy user of microservices • A single shop product use case can interact with 100+ microservices • Amazon deploy to production… • Once each 11 hours minutes seconds

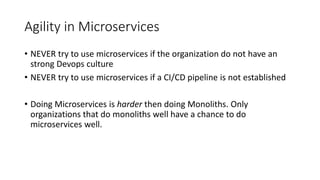

- 44. Agility in Microservices •NEVER try to use microservices if the organization do not have an strong Devops culture • NEVER try to use microservices if a CI/CD pipeline is not established • Doing Microservices is harder then doing Monoliths. Only organizations that do monoliths well have a chance to do microservices well.

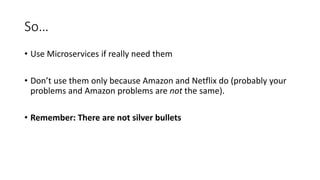

- 45. So… • Use Microservicesif really need them • Don’t use them only because Amazon and Netflix do (probably your problems and Amazon problems are not the same). • Remember: There are not silver bullets

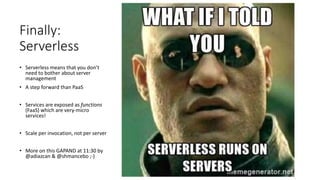

- 46. Finally: Serverless • Serverless meansthat you don’t need to bother about server management • A step forward than PaaS • Services are exposed as functions (FaaS) which are very-micro services! • Scale per invocation, not per server • More on this GAPAND at 11:30 by @adiazcan & @shmancebo ;-)
- 47. Thanks!!! Eduard Tomàs– Dev @ Plain concepts @eiximenis http://geeks.ms/etomas #Gapand2017
