The webinar by Konrad Malawski details Akka Streams, focusing on concepts such as back-pressure and asynchronous architectures. It explains the principles of reactive streams, the importance of avoiding unbounded buffering, and the integration of Akka Streams with HTTP and persistence. Additionally, it highlights the toolkit nature of Akka for various processing tasks, the challenges of implementing reactive streams, and the roadmap for future Akka developments.

1. WEBINAR
Understanding Akka Streams, Back Pressure
and Asynchronous Architectures
by Konrad Malawski (@ktosopl)

2. Konrad `ktoso` Malawski
Akka Team,
Reactive Streams TCK,
Persistence, HTTP

3. Konrad `@ktosopl` Malawski
akka.io
typesafe.com
geecon.org
Java.pl / KrakowScala.pl
sckrk.com
GDGKrakow.pl
lambdakrk.pl

5. “Stream”

6. “Stream”
What does it mean?!

7. Akka Streams
Akka Streams && Reactive Streams

8. Why back-pressure?
?

9. Why back-pressure?
So you’ve built your app and it’s awesome.

10. Why back-pressure?
Let’s not smash it horribly under load.

11. What is back-pressure?
?

12. What is back-pressure?

13. No no no…!
Not THAT Back-pressure!
No no no…!
Not THAT Back-pressure!
What is back-pressure?

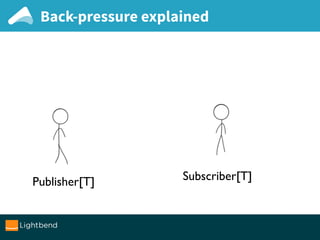

14. Publisher[T] Subscriber[T]
Back-pressure explained

15. Fast Publisher Slow Subscriber
Push model

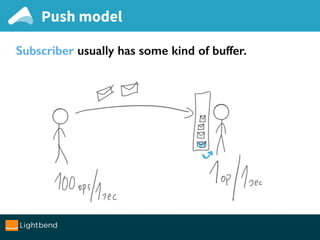

16. Subscriber usually has some kind of buffer.
Push model

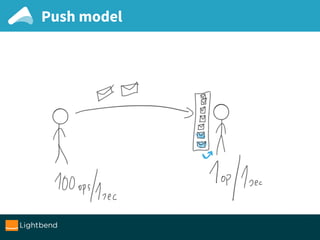

17. Push model

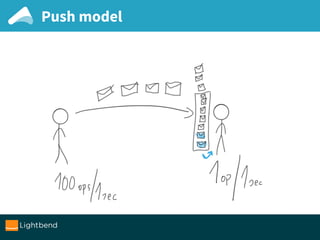

18. Push model

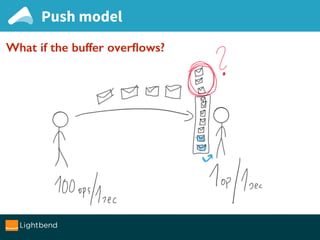

19. What if the buffer overflows?
Push model

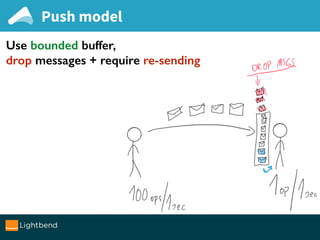

20. Use bounded buffer,
drop messages + require re-sending
Push model

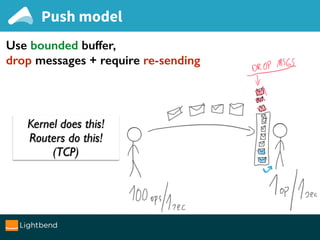

21. Kernel does this!
Routers do this!
(TCP)
Use bounded buffer,
drop messages + require re-sending
Push model

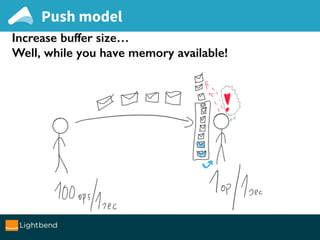

22. Increase buffer size…
Well, while you have memory available!
Push model

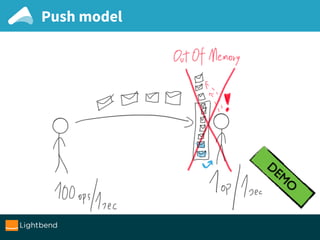

23. Push model
D
EM
O

24. Reactive Streams explained
Reactive Streams
explained in 1 slide

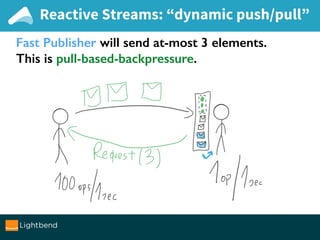

25. Fast Publisher will send at-most 3 elements.
This is pull-based-backpressure.
Reactive Streams: “dynamic push/pull”

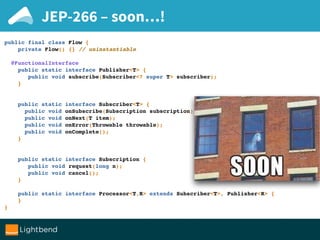

26. JEP-266 – soon…!
public final class Flow {
private Flow() {} // uninstantiable
@FunctionalInterface
public static interface Publisher<T> {
public void subscribe(Subscriber<? super T> subscriber);
}
public static interface Subscriber<T> {
public void onSubscribe(Subscription subscription);
public void onNext(T item);
public void onError(Throwable throwable);
public void onComplete();
}
public static interface Subscription {
public void request(long n);
public void cancel();
}
public static interface Processor<T,R> extends Subscriber<T>, Publisher<R> {
}
}

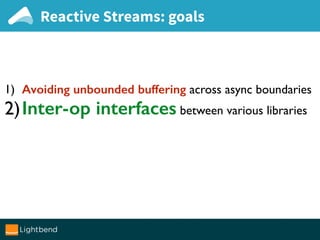

27. Reactive Streams: goals
1) Avoiding unbounded buffering across async boundaries
2)Inter-op interfaces between various libraries

28. Reactive Streams: goals
1) Avoiding unbounded buffering across async boundaries
2)Inter-op interfaces between various libraries
Argh, implementing a correct RS Publisher
or Subscriber is so hard!

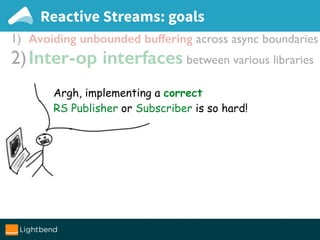

29. Reactive Streams: goals
1) Avoiding unbounded buffering across async boundaries
2)Inter-op interfaces between various libraries
Argh, implementing a correct
RS Publisher or Subscriber is so hard!

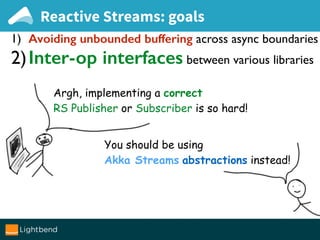

30. Reactive Streams: goals
1) Avoiding unbounded buffering across async boundaries
2)Inter-op interfaces between various libraries
Argh, implementing a correct
RS Publisher or Subscriber is so hard!
You should be using
Akka Streams abstractions instead!

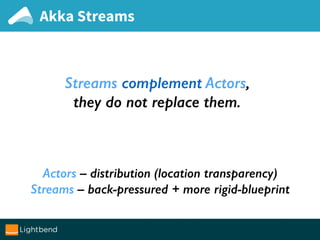

31. Akka Streams
Streams complement Actors,
they do not replace them.
Actors – distribution (location transparency)
Streams – back-pressured + more rigid-blueprint

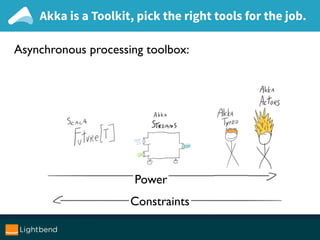

32. Akka is a Toolkit, pick the right tools for the job.
Runar’s excellent talk @ Scala.World 2015
Asynchronous processing toolbox:
Power
Constraints

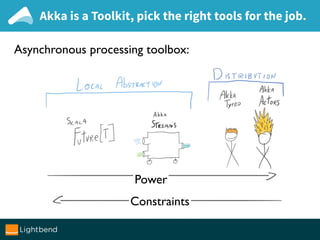

33. Akka is a Toolkit, pick the right tools for the job.
Asynchronous processing toolbox:
Constraints
Power

34. Akka is a Toolkit, pick the right tools for the job.
Single value, no streaming by definition.
Local abstraction.
Execution contexts.
Power
Constraints

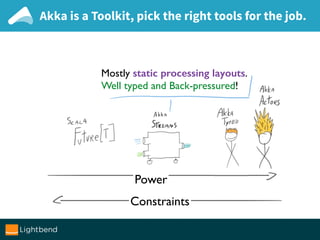

35. Akka is a Toolkit, pick the right tools for the job.
Mostly static processing layouts.
Well typed and Back-pressured!
Constraints
Power

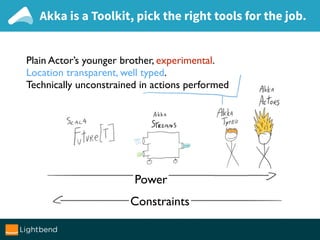

36. Akka is a Toolkit, pick the right tools for the job.
Plain Actor’s younger brother, experimental.
Location transparent, well typed.
Technically unconstrained in actions performed
Constraints
Power

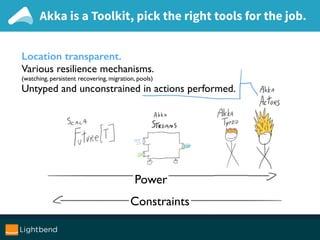

37. Akka is a Toolkit, pick the right tools for the job.
Runar’s excellent talk @ Scala.World 2015
Location transparent.
Various resilience mechanisms.
(watching, persistent recovering, migration, pools)
Untyped and unconstrained in actions performed.
Constraints
Power

38. Akka Streams
streams

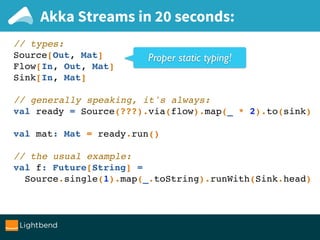

39. Akka Streams in 20 seconds:
// types:
Source[Out, Mat]
Flow[In, Out, Mat]
Sink[In, Mat]
// generally speaking, it's always:
val ready = Source(???).via(flow).map(_ * 2).to(sink)
val mat: Mat = ready.run()
// the usual example:
val f: Future[String] =
Source.single(1).map(_.toString).runWith(Sink.head)
Proper static typing!

40. Akka Streams in 20 seconds:
// types: _
Source[Int, Unit]
Flow[Int, String, Unit]
Sink[String, Future[String]]
Source.single(1).map(_.toString).runWith(Sink.head)

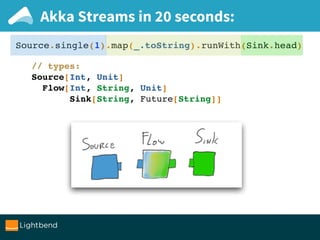

41. Akka Streams in 20 seconds:
// types: _
Source[Int, Unit]
Flow[Int, String, Unit]
Sink[String, Future[String]]
Source.single(1).map(_.toString).runWith(Sink.head)

42. Materialization
Gears from GeeCON.org, did I mention it’s an awesome conf?

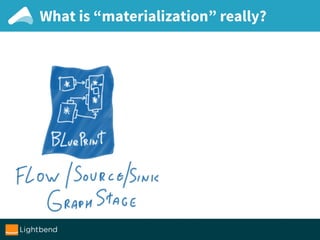

43. What is “materialization” really?

44. What is “materialization” really?

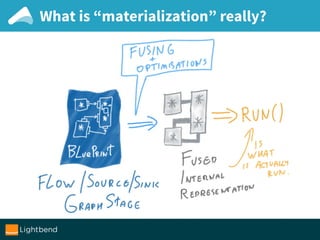

45. What is “materialization” really?

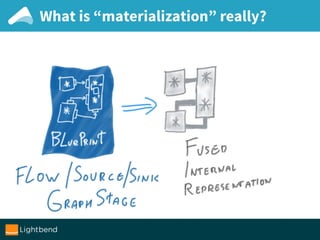

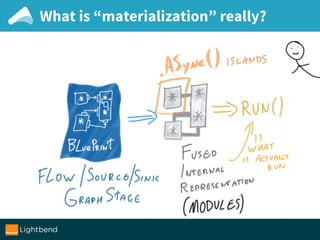

46. What is “materialization” really?

47. Akka Streams & HTTP
streams
& HTTP

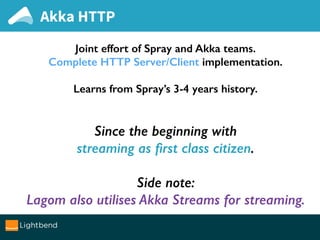

48. Akka HTTP
Joint effort of Spray and Akka teams.
Complete HTTP Server/Client implementation.
Learns from Spray’s 3-4 years history.
Since the beginning with
streaming as first class citizen.
Side note:
Lagom also utilises Akka Streams for streaming.

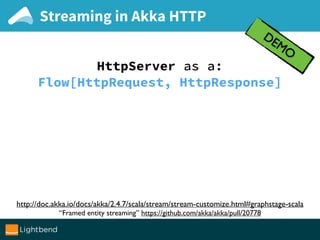

49. Streaming in Akka HTTP
DEMO
http://doc.akka.io/docs/akka/2.4.7/scala/stream/stream-customize.html#graphstage-scala
“Framed entity streaming” https://github.com/akka/akka/pull/20778
HttpServer as a:
Flow[HttpRequest, HttpResponse]

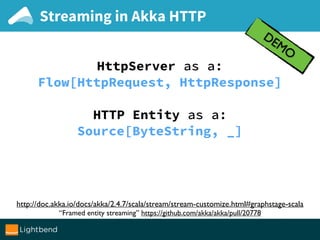

50. Streaming in Akka HTTP
DEMO
http://doc.akka.io/docs/akka/2.4.7/scala/stream/stream-customize.html#graphstage-scala
“Framed entity streaming” https://github.com/akka/akka/pull/20778
HttpServer as a:
Flow[HttpRequest, HttpResponse]
HTTP Entity as a:
Source[ByteString, _]

51. Streaming in Akka HTTP
DEMO
http://doc.akka.io/docs/akka/2.4.7/scala/stream/stream-customize.html#graphstage-scala
“Framed entity streaming” https://github.com/akka/akka/pull/20778
HttpServer as a:
Flow[HttpRequest, HttpResponse]
HTTP Entity as a:
Source[ByteString, _]
Websocket connection as a:
Flow[ws.Message, ws.Message]

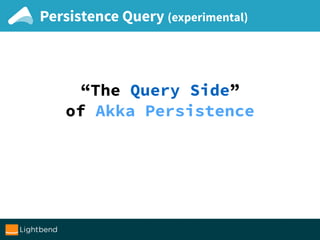

52. Persistence Query (experimental)
“The Query Side”
of Akka Persistence

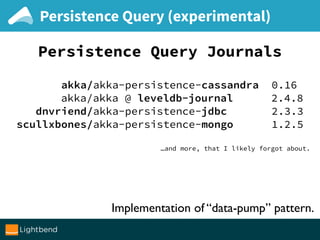

53. Persistence Query (experimental)
Persistence Query Journals
akka/akka-persistence-cassandra 0.16
akka/akka @ leveldb-journal 2.4.8
dnvriend/akka-persistence-jdbc 2.3.3
scullxbones/akka-persistence-mongo 1.2.5
…and more, that I likely forgot about.
Implementation of “data-pump” pattern.

54. Akka + Kafka = BFF
Reactive Kafka
+
Started by Krzysiek Ciesielski & Adam Warski @ SofwareMill.com

55. “ACKnowladged streams”
happy ACKing!

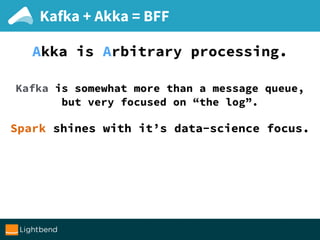

56. Kafka + Akka = BFF
Akka is Arbitrary processing.
Kafka is somewhat more than a message queue,
but very focused on “the log”.
Spark shines with it’s data-science focus.

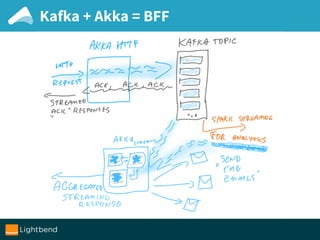

57. Kafka + Akka = BFF

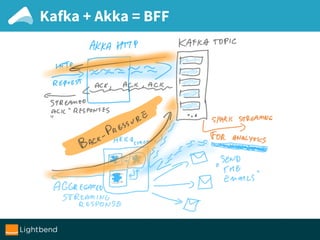

58. Kafka + Akka = BFF

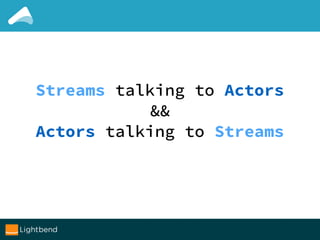

59. Streams talking to Actors
&&
Actors talking to Streams

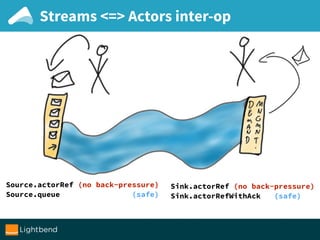

60. Streams <=> Actors inter-op
Source.actorRef (no back-pressure)
Source.queue (safe)
Sink.actorRef (no back-pressure)
Sink.actorRefWithAck (safe)

61. Exciting times ahead!

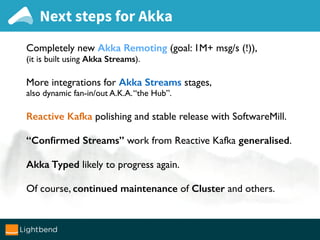

62. Next steps for Akka
Completely new Akka Remoting (goal: 1M+ msg/s (!)),
(it is built using Akka Streams).
More integrations for Akka Streams stages,
also dynamic fan-in/out A.K.A.“the Hub”.
Reactive Kafka polishing and stable release with SoftwareMill.
“Confirmed Streams” work from Reactive Kafka generalised.
Akka Typed likely to progress again.
Of course, continued maintenance of Cluster and others.

63. Upgrade your grey matter
Two free O’Reilly eBooks by Lightbend
DOWNLOAD NOWDOWNLOAD NOW

64. lightbend.com/pov
Reactive Roundtable
World Tour by Lightbend
lightbend.com/reactive-roundtable
Proof of Value Service
Accelerate Project Success

65. Q/A
ktoso @ lightbend.com
twitter: ktosopl
github: ktoso
team blog: letitcrash.com
home: akka.io
