Scala usergroup stockholm - reactive integrations with akka streams
This document discusses Akka Streams, which provide asynchronous back pressured stream processing in Akka. It describes key Akka Stream concepts like sources, sinks, and flows. It also discusses how Akka Streams integrate with other technologies like Reactive Streams, Kafka, HTTP servers and clients. Alpakka is mentioned as a community for developing Akka Stream connectors.
More Related Content
![[Tokyo Scala User Group] Akka Streams & Reactive Streams (0.7)](https://cdn.slidesharecdn.com/ss_thumbnails/2014-akka-streams-tokyo-140914201812-phpapp01-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Scala usergroup stockholm - reactive integrations with akka streams
![Introduction to Akka Streams [Part-I]](https://cdn.slidesharecdn.com/ss_thumbnails/babystepsinakkastreampart-i-171117070802-thumbnail.jpg?width=640&height=640&fit=bounds)
Scala usergroup stockholm - reactive integrations with akka streams
- 1. akka streams Reactive Integrationswith that just work™ Johan Andrén Scala Usergroup Stockholm 2016-10-18
- 2. Johan Andrén Akka Team StockholmScala User Group

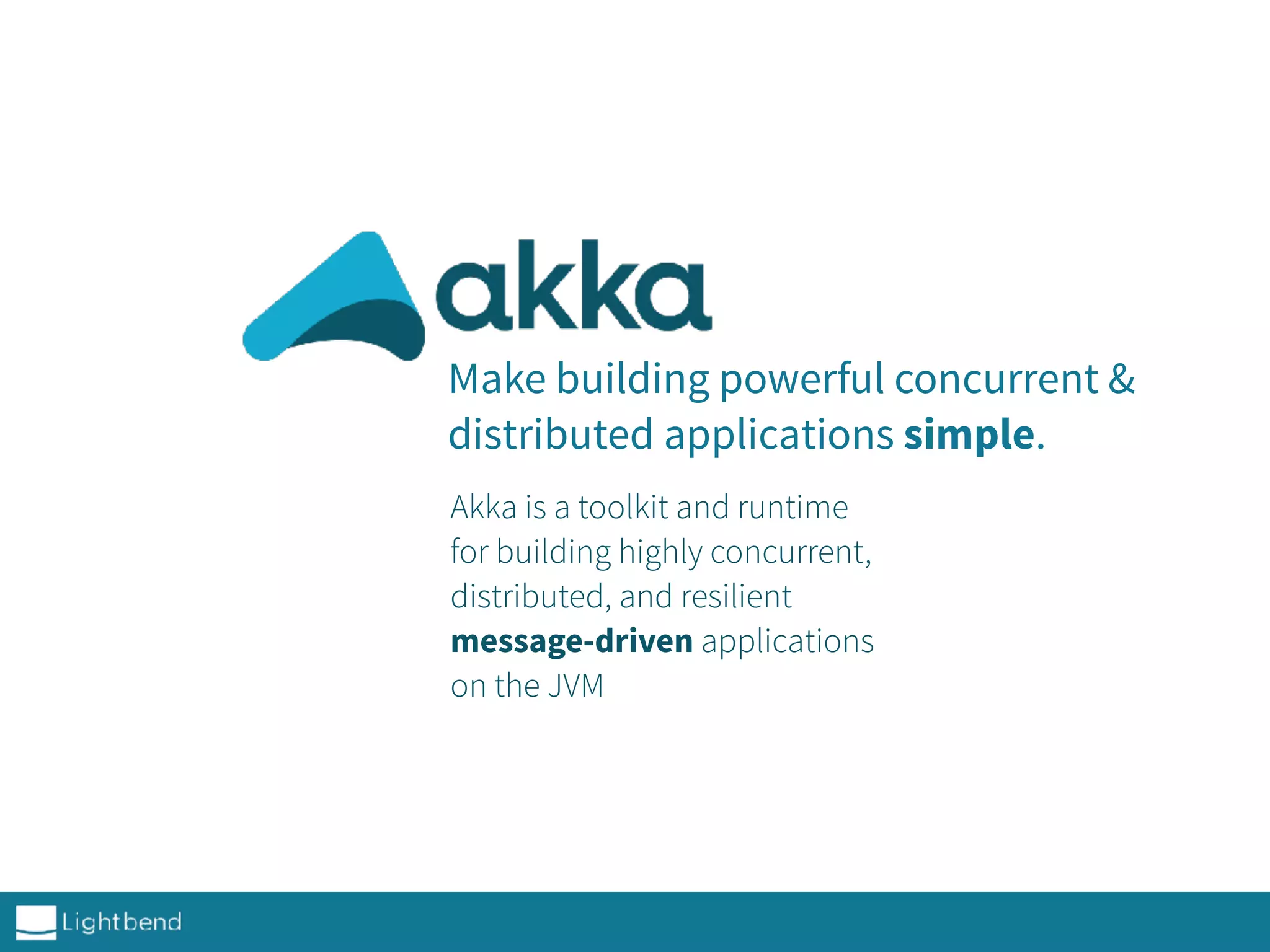

- 3. Make building powerfulconcurrent & distributed applications simple. Akka is a toolkit and runtime for building highly concurrent, distributed, and resilient message-driven applications on the JVM

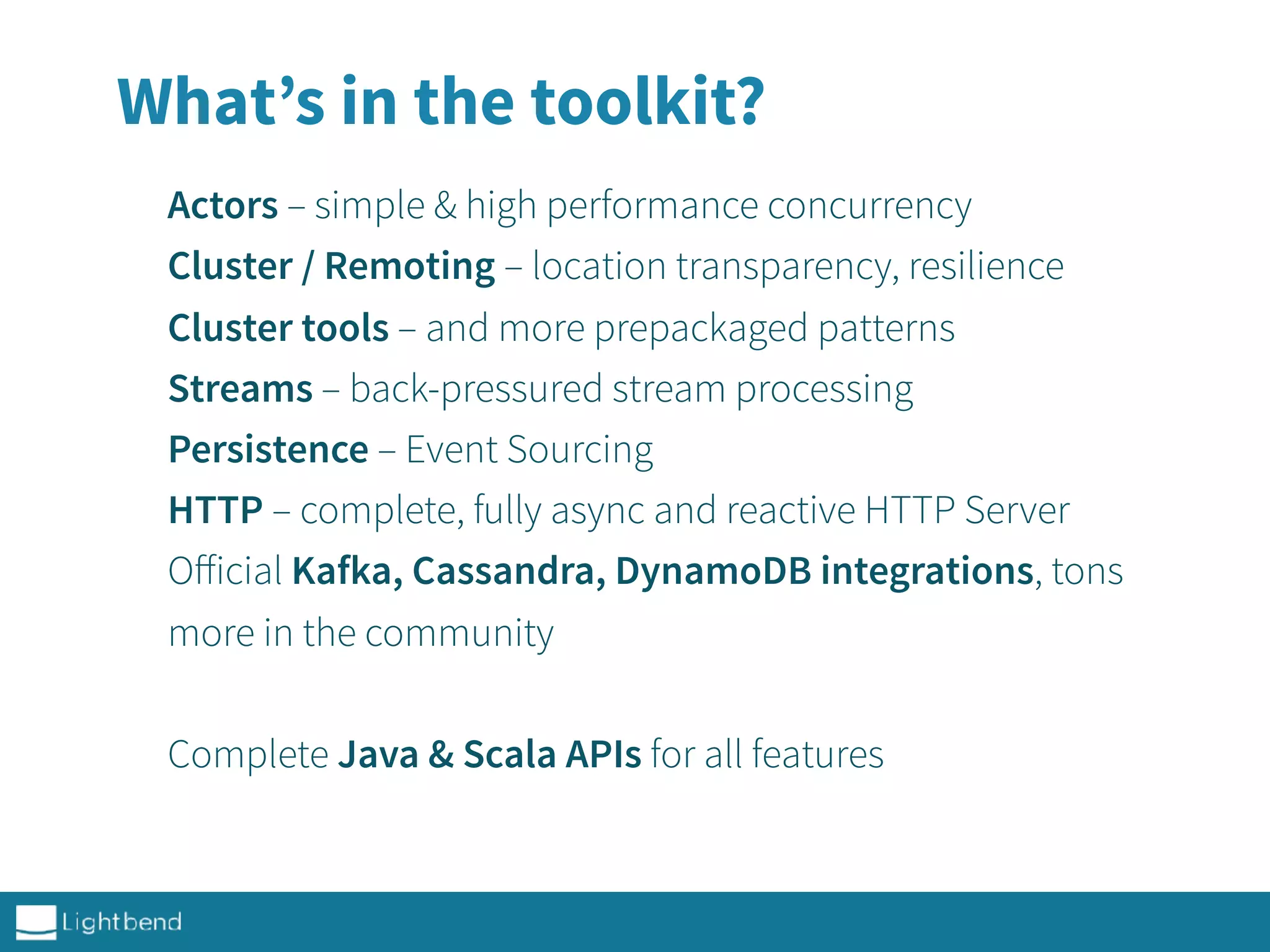

- 4. Actors – simple& high performance concurrency Cluster / Remoting – location transparency, resilience Cluster tools – and more prepackaged patterns Streams – back-pressured stream processing Persistence – Event Sourcing HTTP – complete, fully async and reactive HTTP Server Official Kafka, Cassandra, DynamoDB integrations, tons more in the community Complete Java & Scala APIs for all features What’s in the toolkit?
- 5.

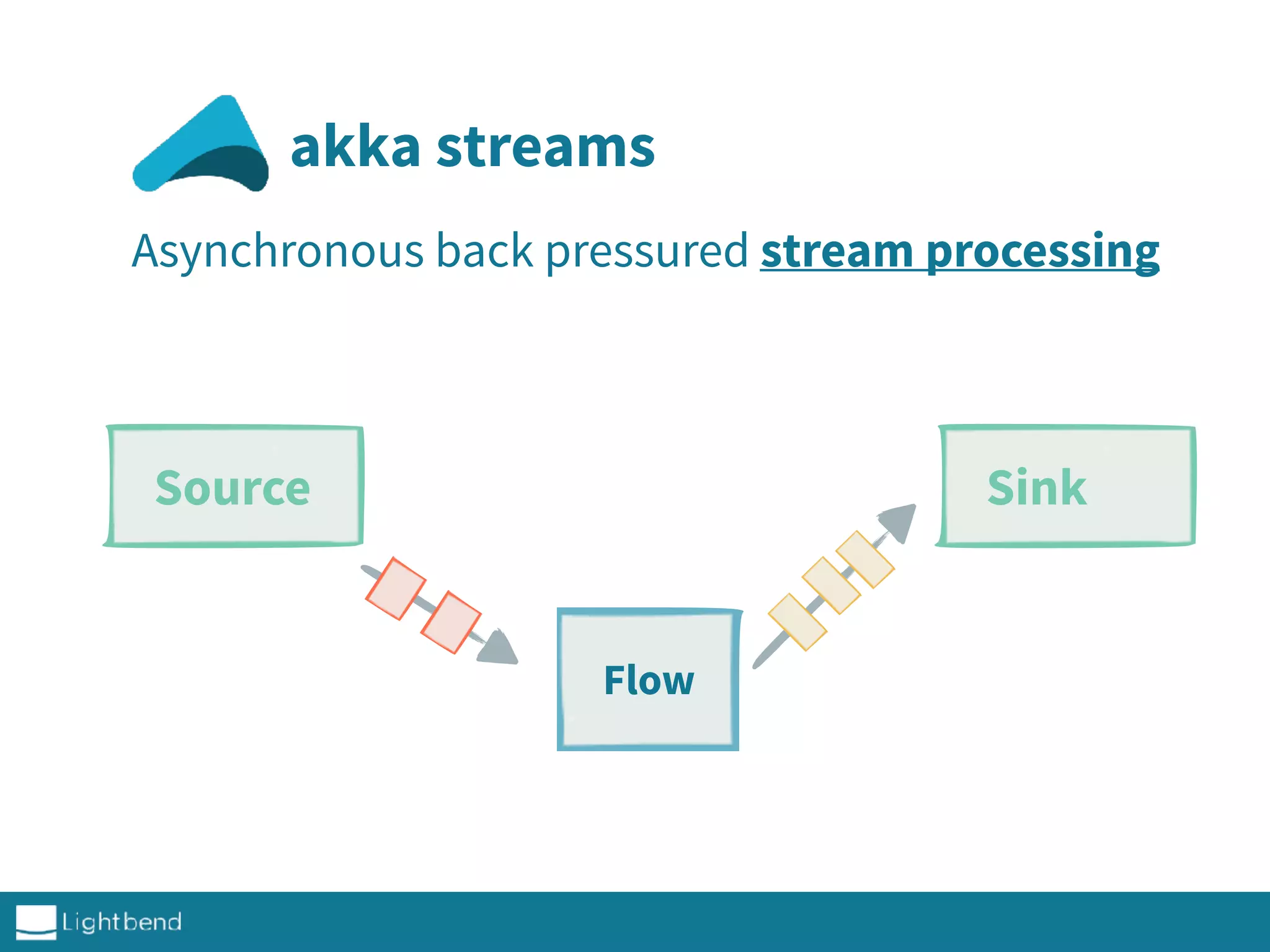

- 6. akka streams Asynchronous backpressured stream processing Source Sink Flow

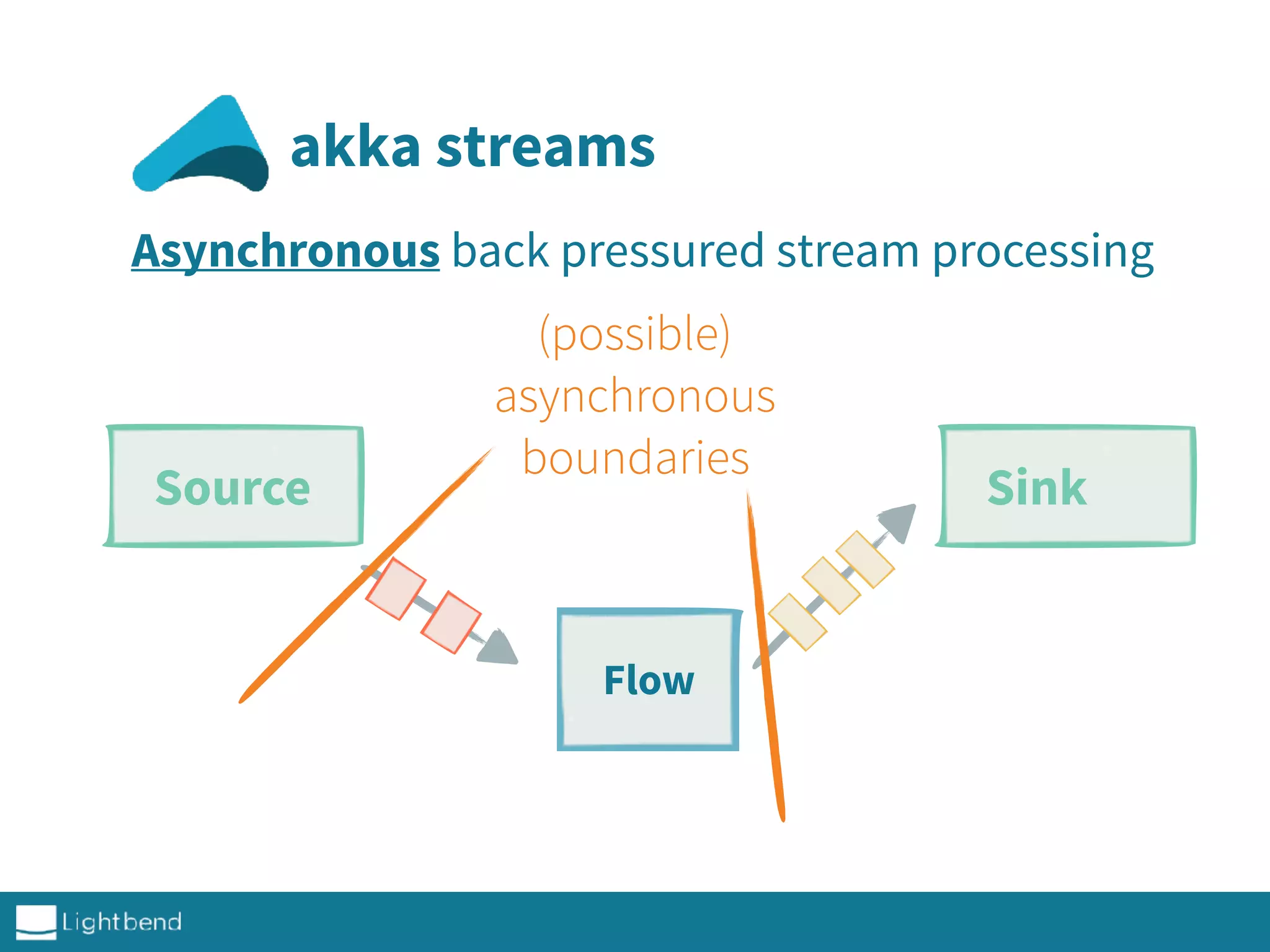

- 7. akka streams Asynchronous backpressured stream processing Source Sink (possible) asynchronous boundaries Flow
- 8. akka streams Asynchronous backpressured stream processing Source Sink 10 msg/s 1 msg/s OutOfMemoryError!! Flow

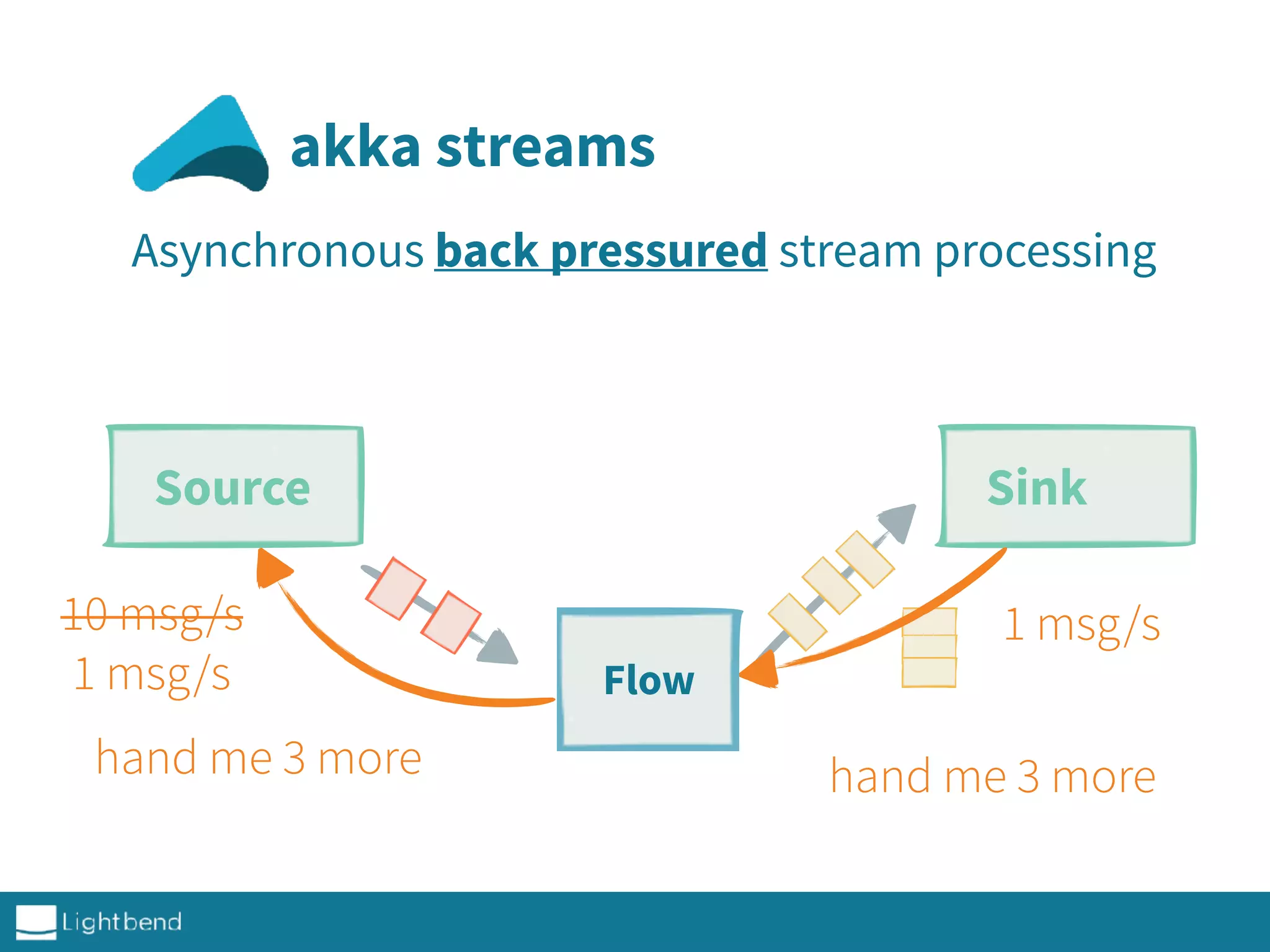

- 9. akka streams Asynchronous backpressured stream processing Source Sink 10 msg/s 1 msg/s hand me 3 morehand me 3 more 1 msg/s Flow

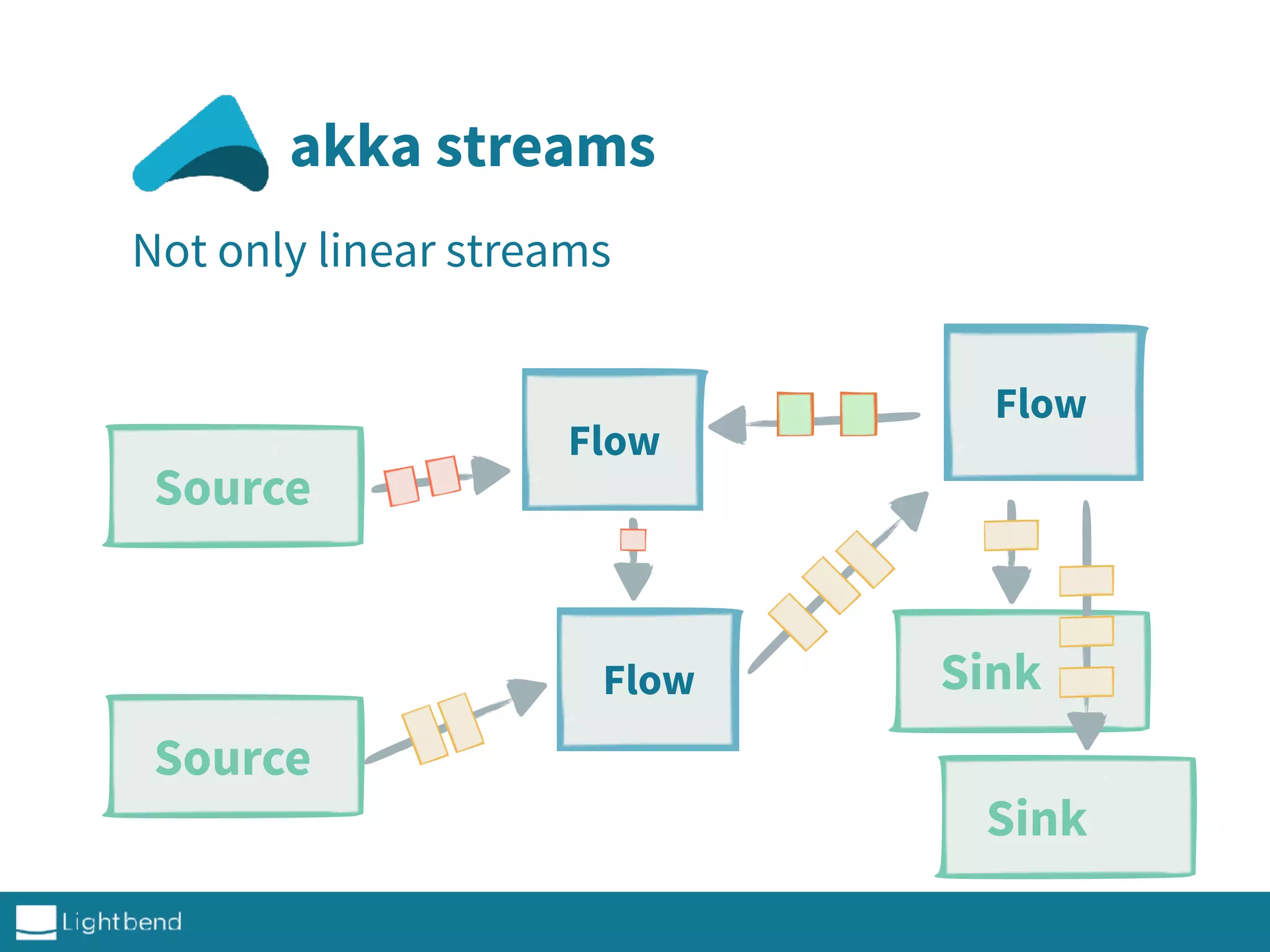

- 10. akka streams Not onlylinear streams Source SinkFlow Source Sink Flow Flow

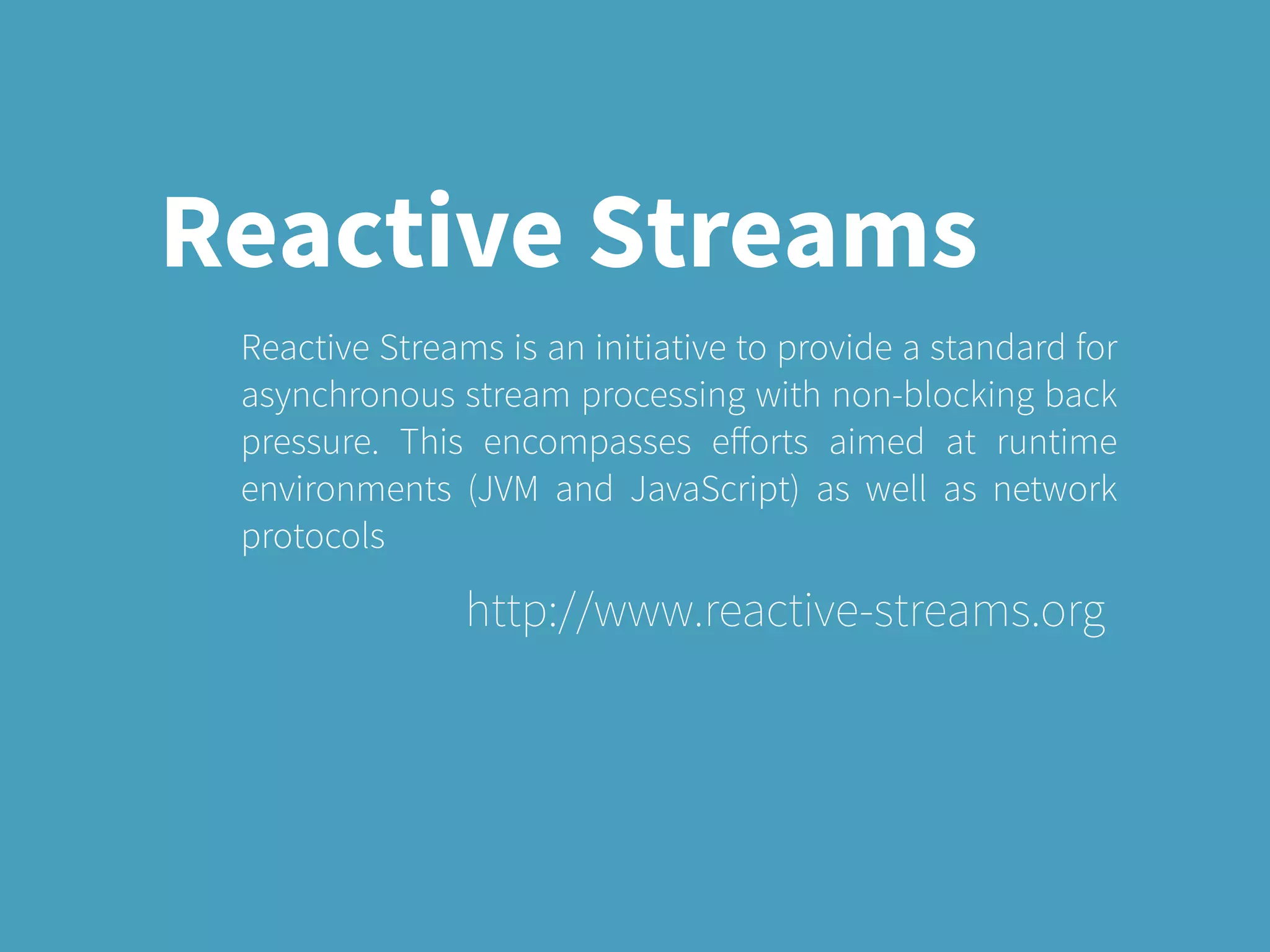

- 11. Reactive Streams Reactive Streamsis an initiative to provide a standard for asynchronous stream processing with non-blocking back pressure. This encompasses efforts aimed at runtime environments (JVM and JavaScript) as well as network protocols http://www.reactive-streams.org
- 12. Part of JDK9 java.util.concurrent.Flow

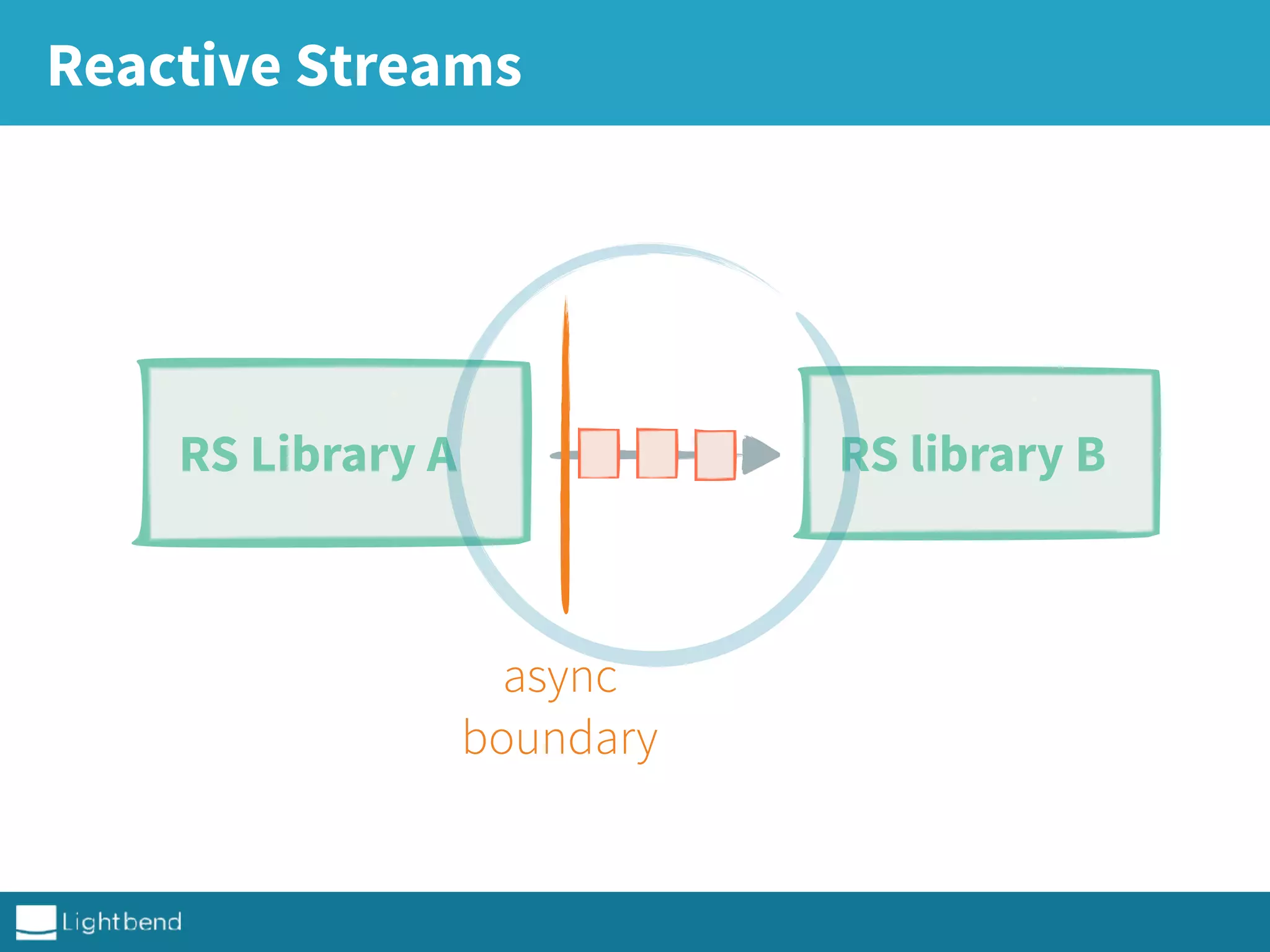

- 13. Reactive Streams RS LibraryA RS library B async boundary
- 14. Reactive Streams RS LibraryA RS library B async boundary Make building powerful concurrent & distributed applications simple.
- 15. The API Akka Streams Completeand awesome Java and Scala APIs (Just like everything in Akka)

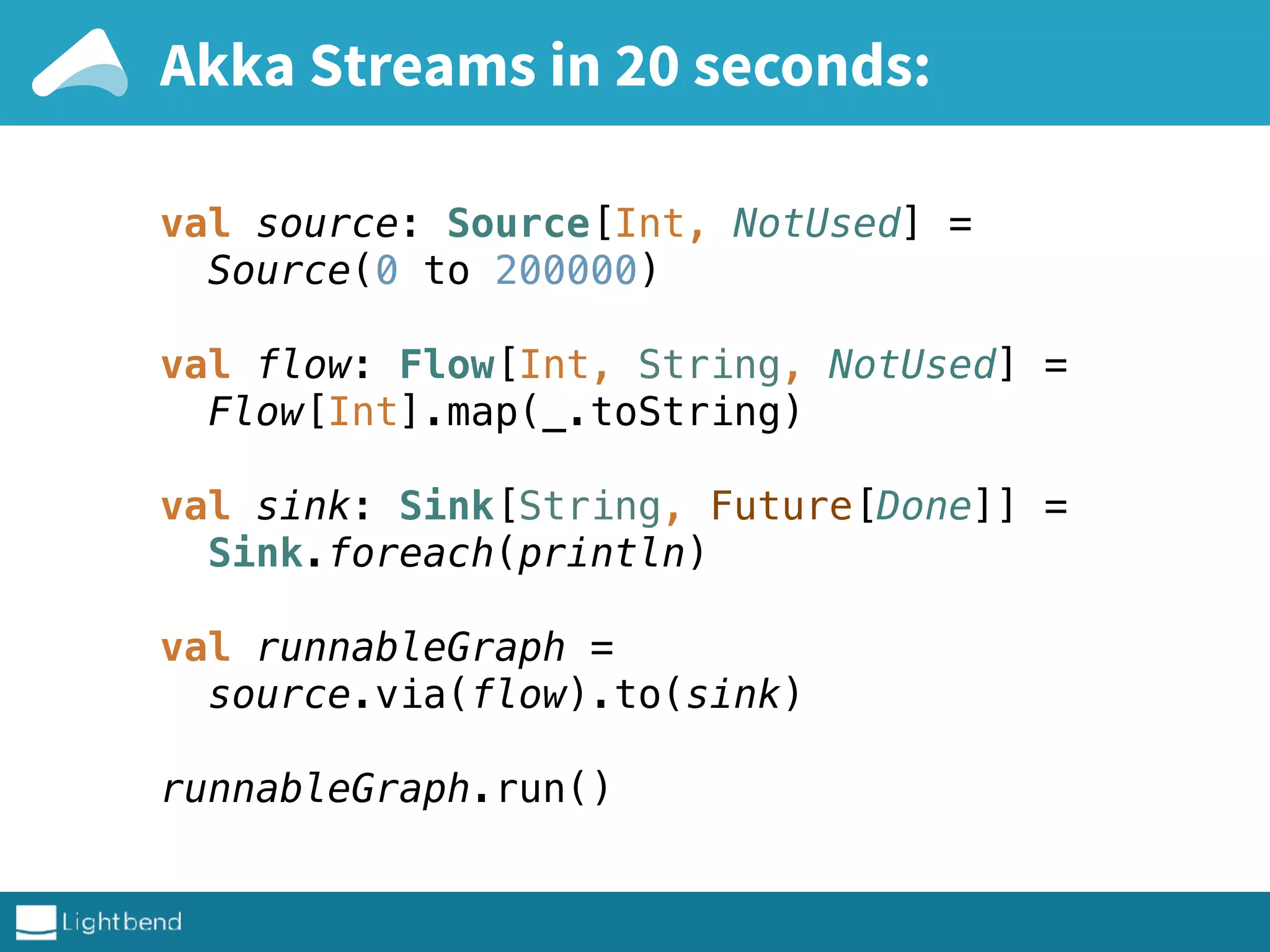

- 16. Akka Streams in20 seconds: val source: Source[Int, NotUsed] = Source(0 to 200000) val flow: Flow[Int, String, NotUsed] = Flow[Int].map(_.toString) val sink: Sink[String, Future[Done]] = Sink.foreach(println) val runnableGraph = source.via(flow).to(sink) runnableGraph.run()

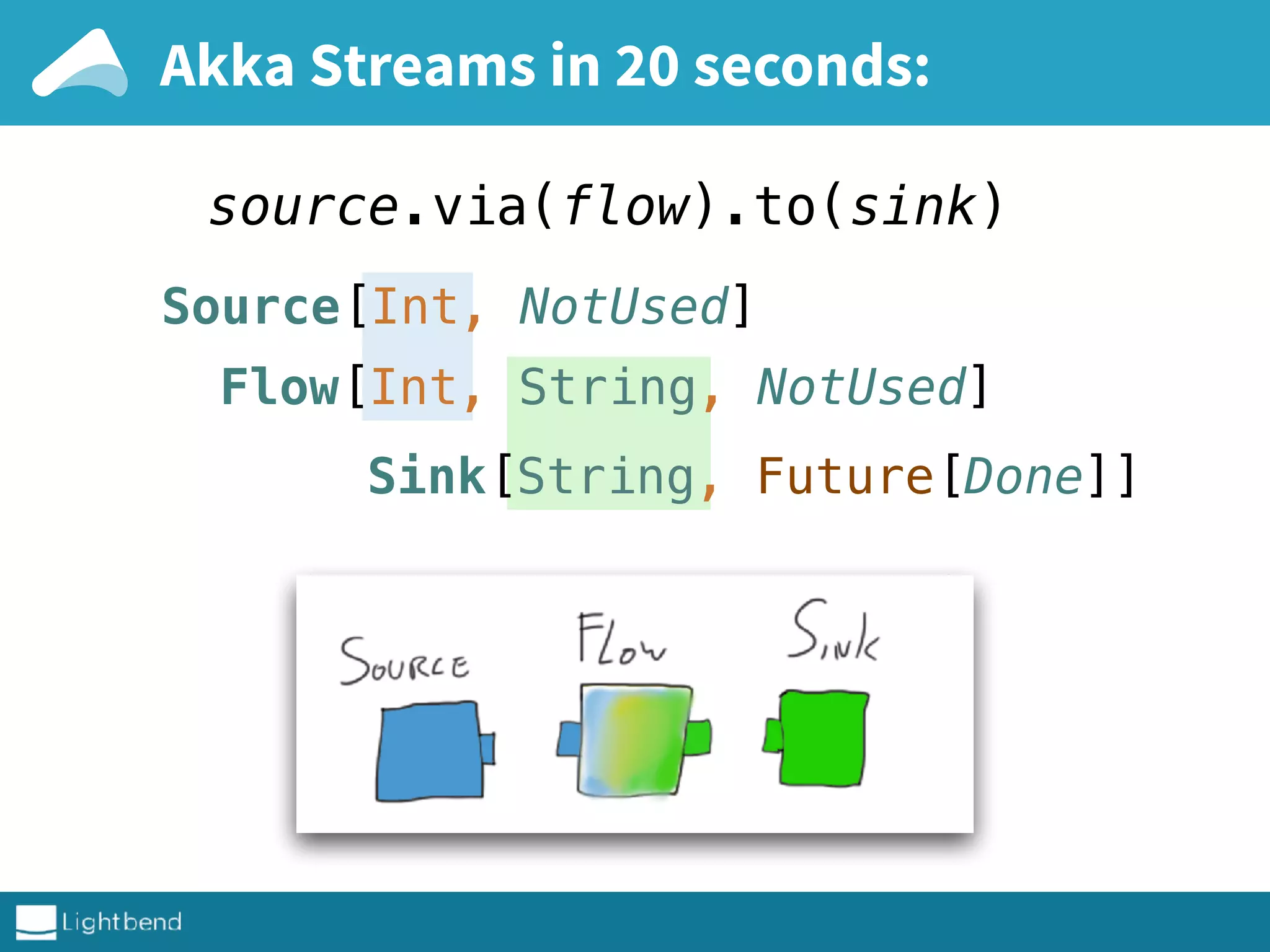

- 17. Akka Streams in20 seconds: source.via(flow).to(sink) Source[Int, NotUsed] Flow[Int, String, NotUsed] Sink[String, Future[Done]]
- 18. Materialization Gears from GeeCON.org,(it’san awesome conf)

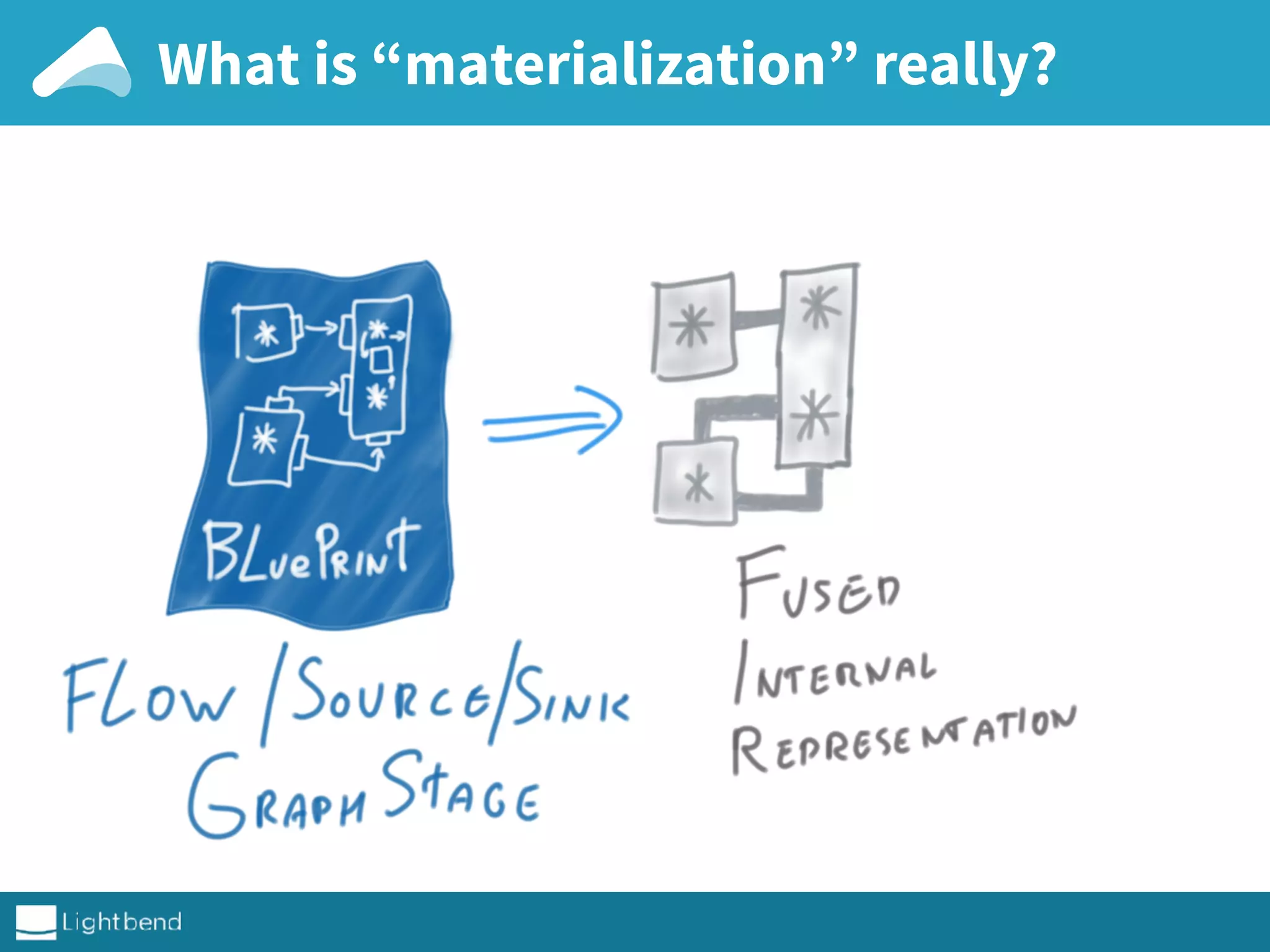

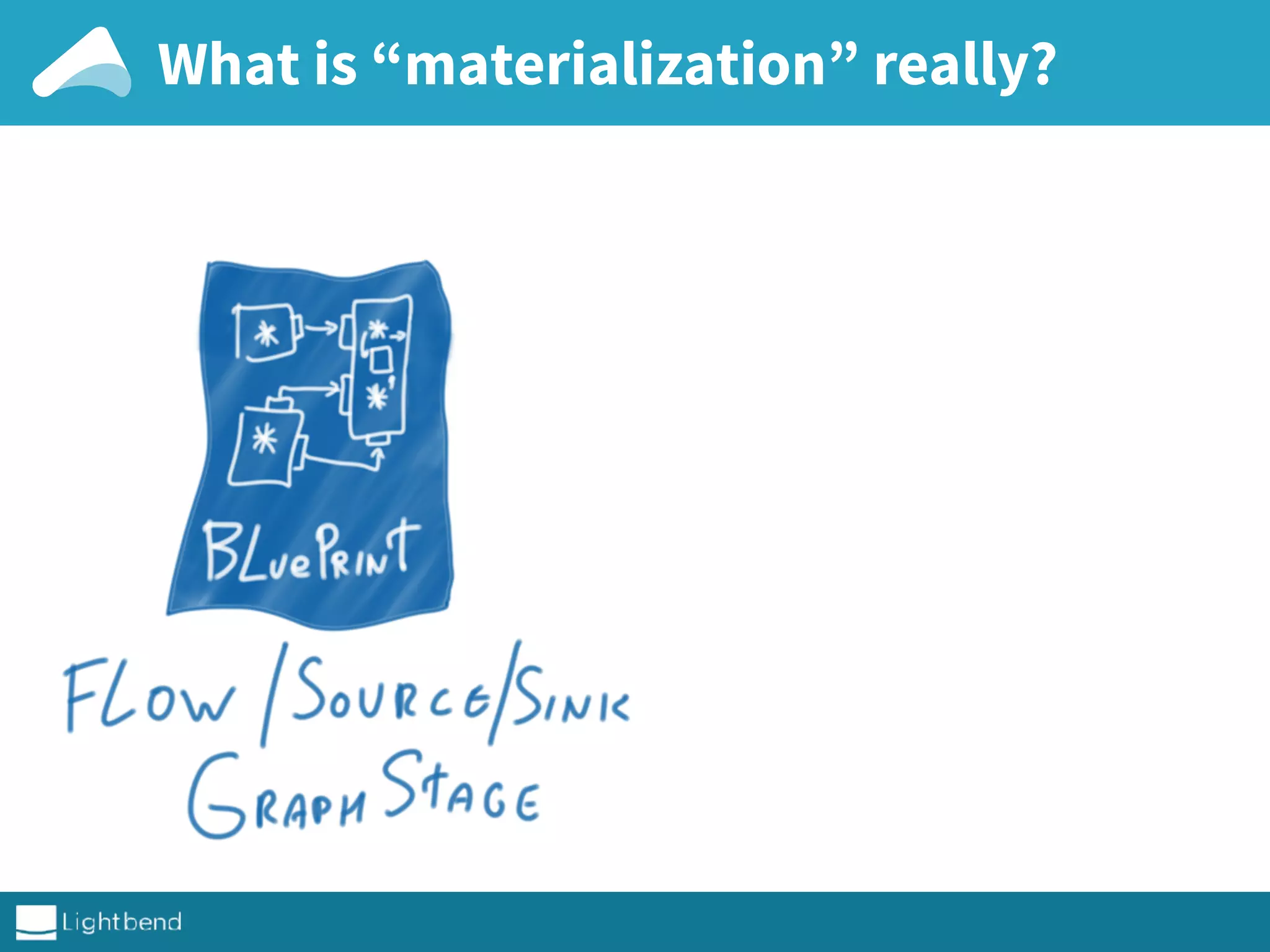

- 19. What is “materialization”really?
- 20. What is “materialization”really?

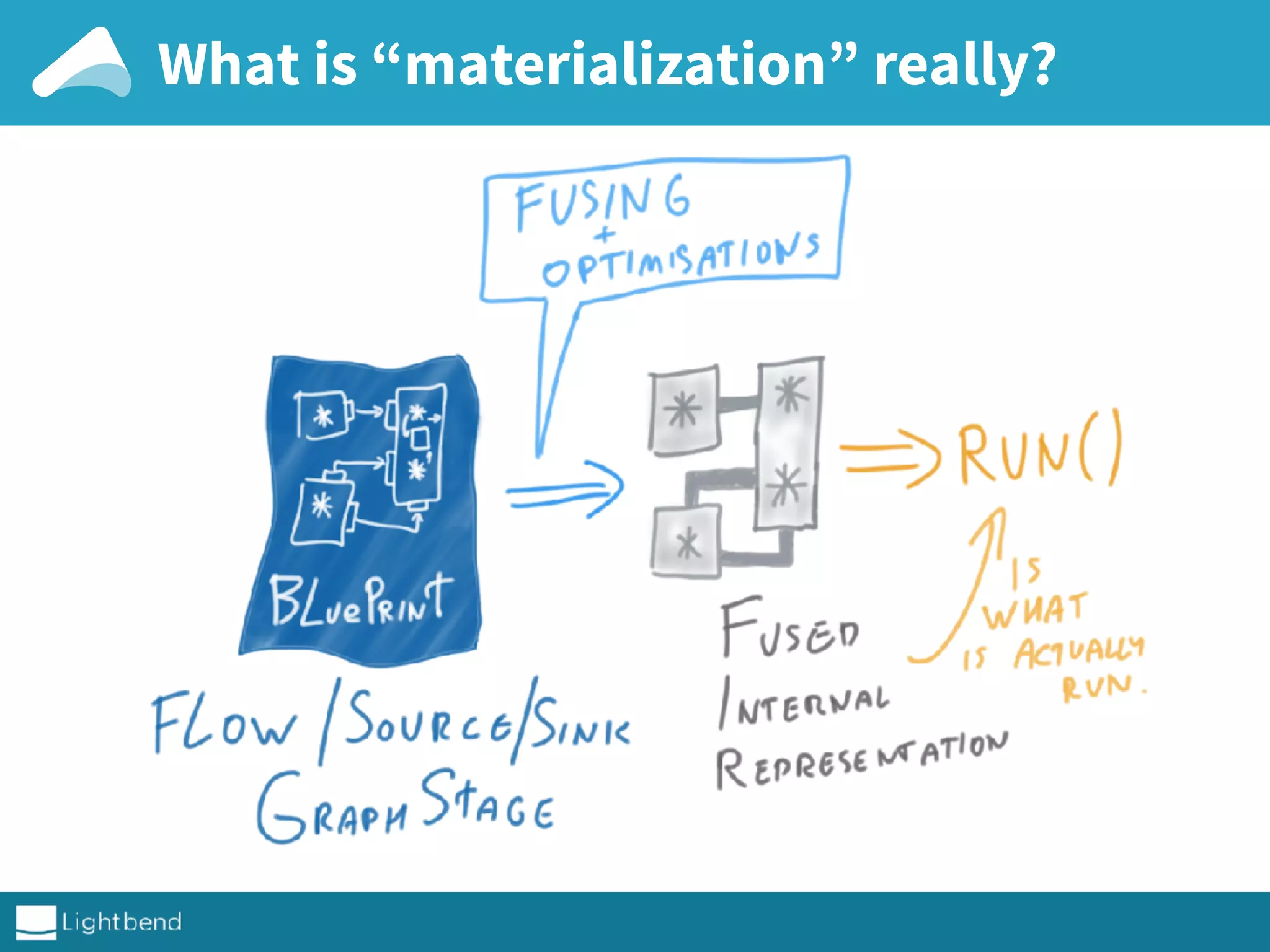

- 21. What is “materialization”really?

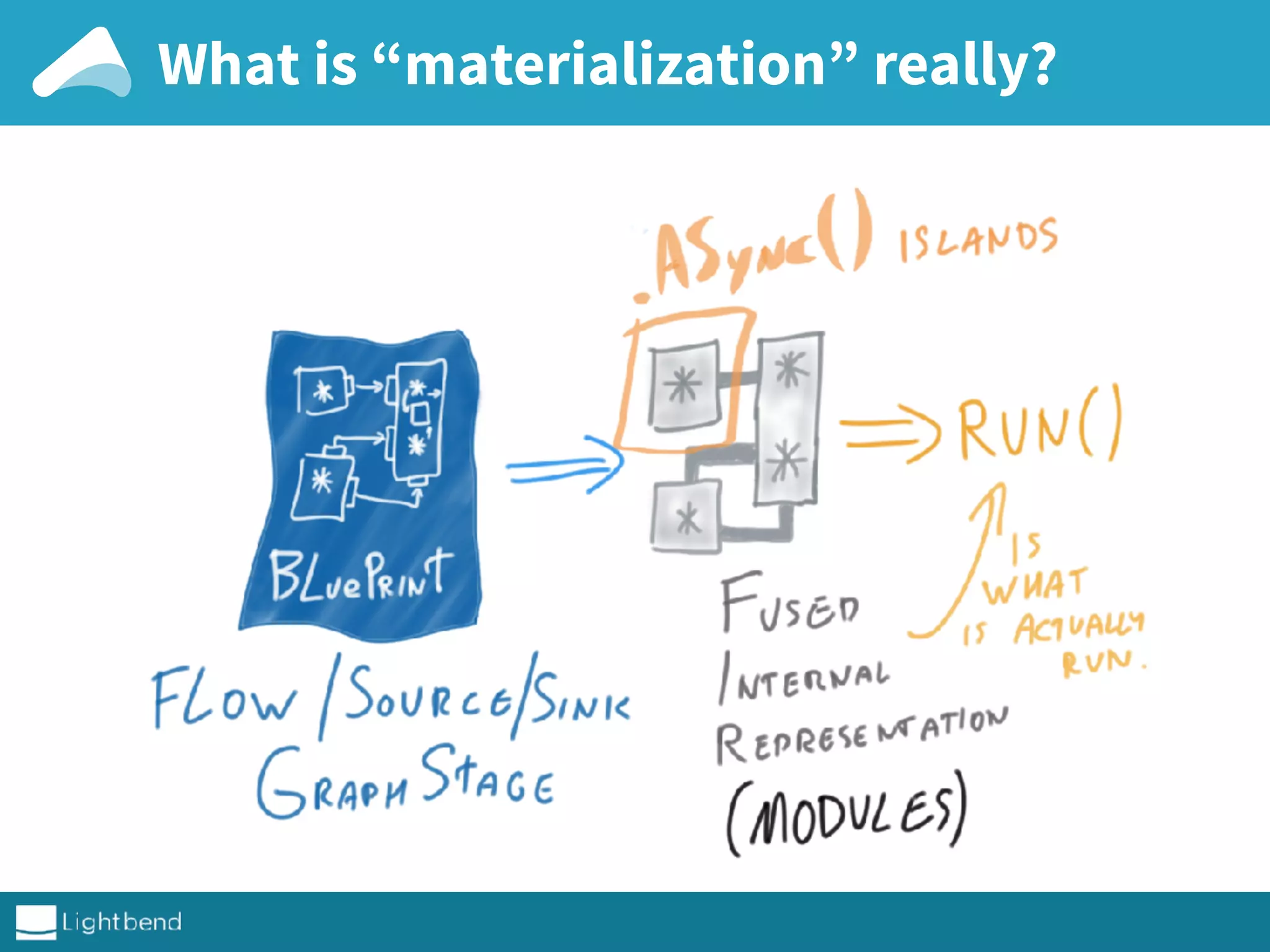

- 22. What is “materialization”really?
- 23. AlpakkaA community forStreams connectors http://blog.akka.io/integrations/2016/08/23/intro-alpakka

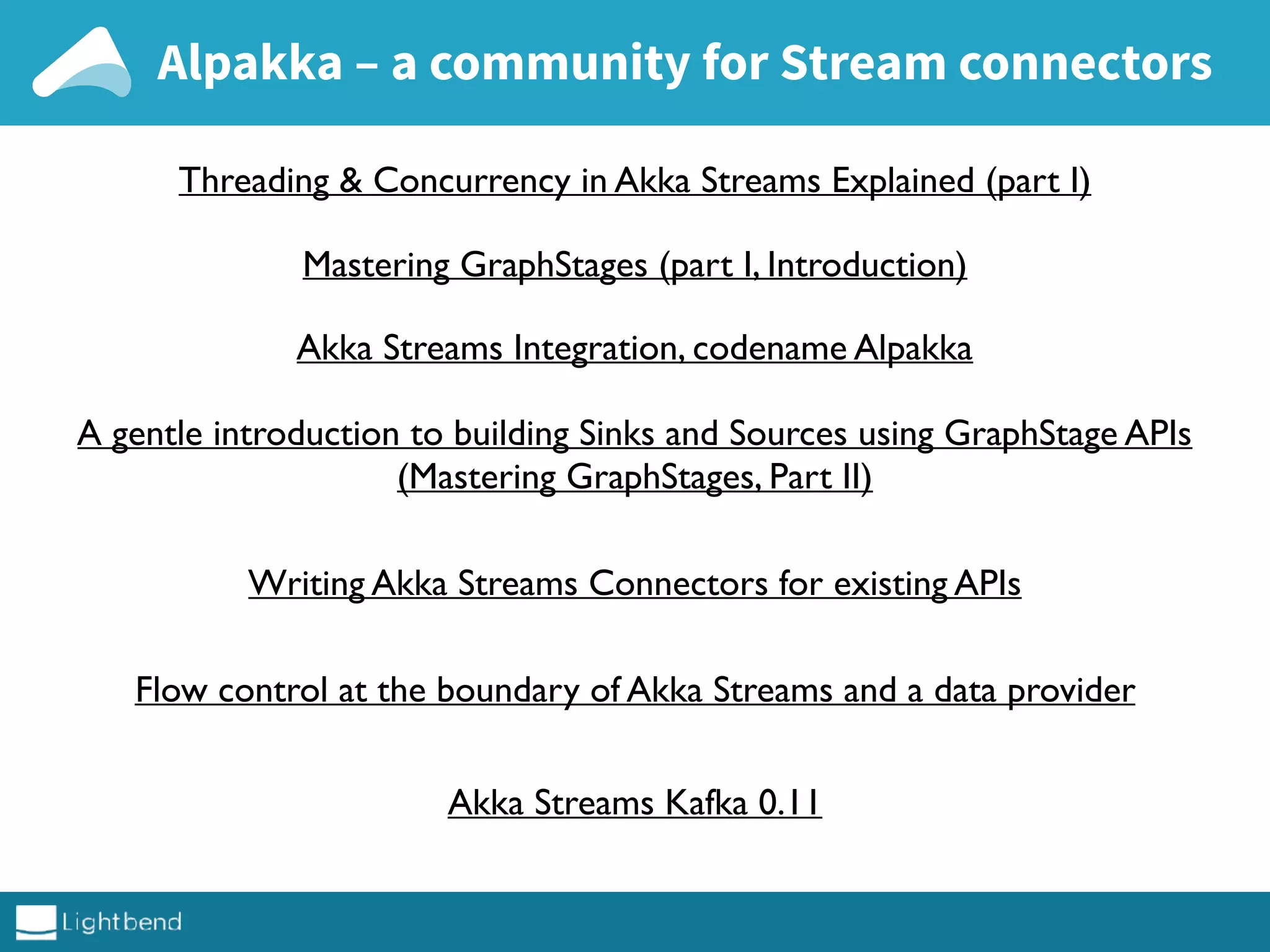

- 24. Alpakka – acommunity for Stream connectors Threading & Concurrency in Akka Streams Explained (part I) Mastering GraphStages (part I, Introduction) Akka Streams Integration, codename Alpakka A gentle introduction to building Sinks and Sources using GraphStage APIs (Mastering GraphStages, Part II) Writing Akka Streams Connectors for existing APIs Flow control at the boundary of Akka Streams and a data provider Akka Streams Kafka 0.11

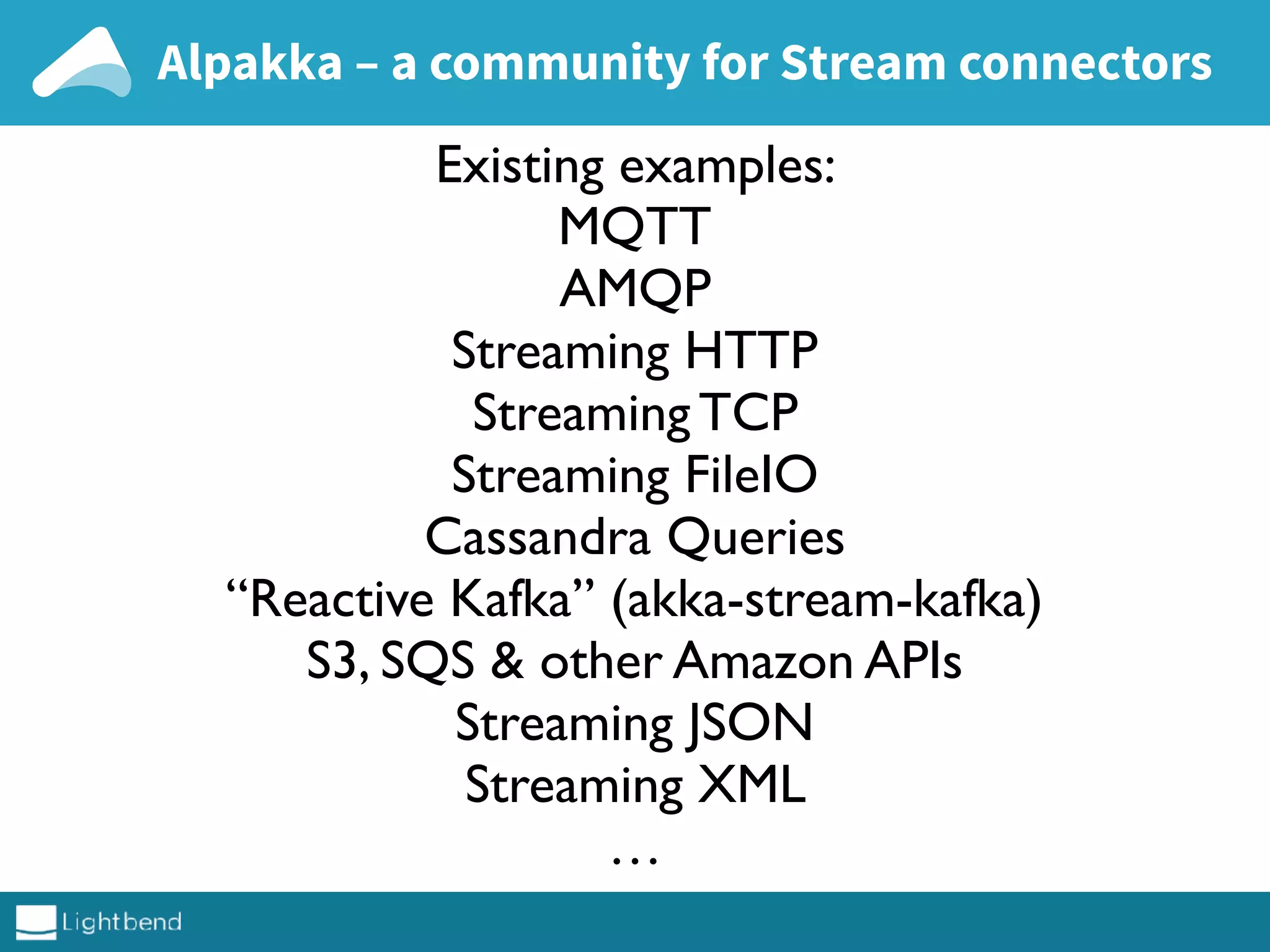

- 25. Alpakka – acommunity for Stream connectors Existing examples: MQTT AMQP Streaming HTTP Streaming TCP Streaming FileIO Cassandra Queries “Reactive Kafka” (akka-stream-kafka) S3, SQS & other Amazon APIs Streaming JSON Streaming XML …

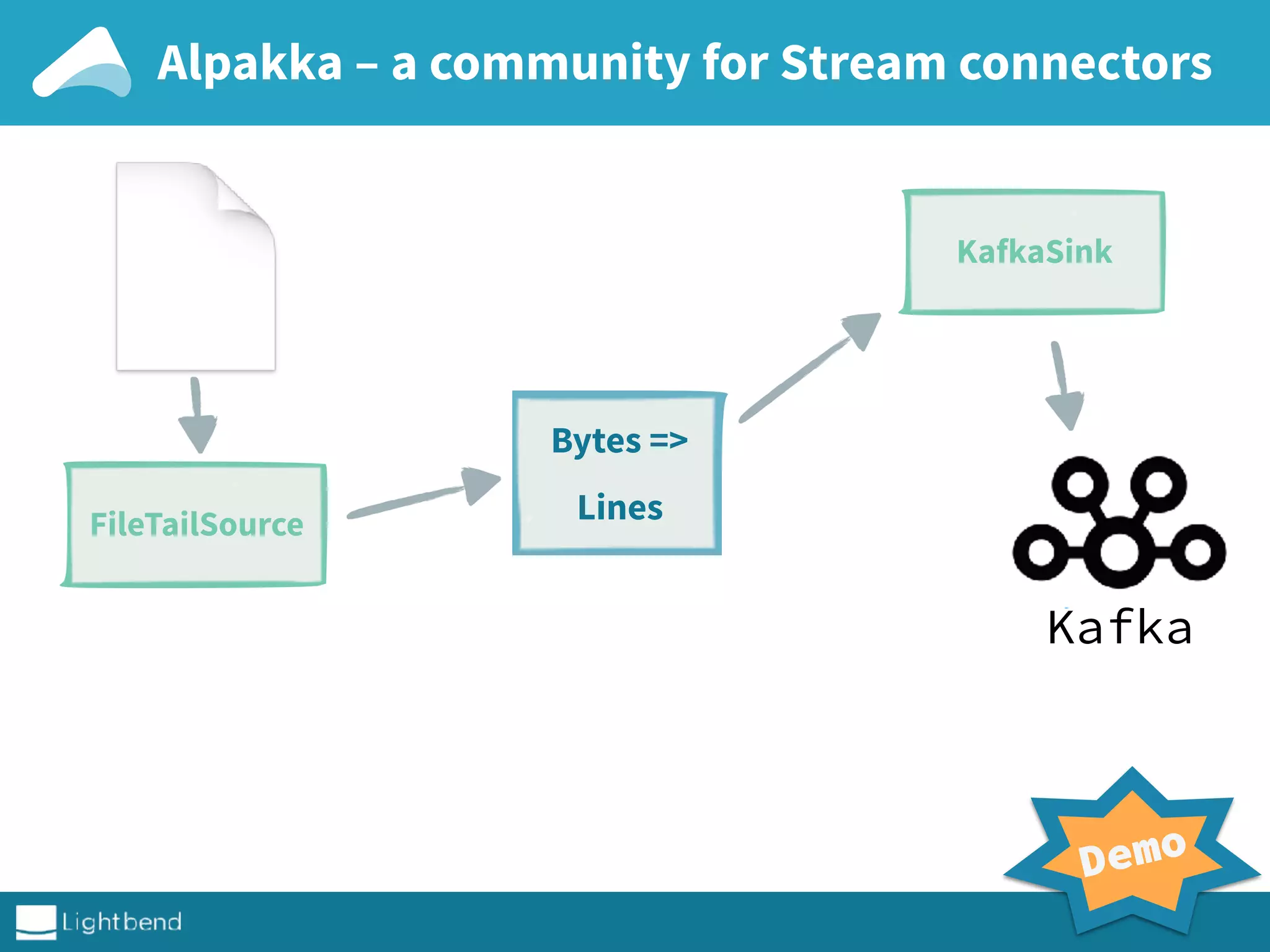

- 26. Alpakka – acommunity for Stream connectors Demo KafkaSink FileTailSource Kafka Bytes => Lines

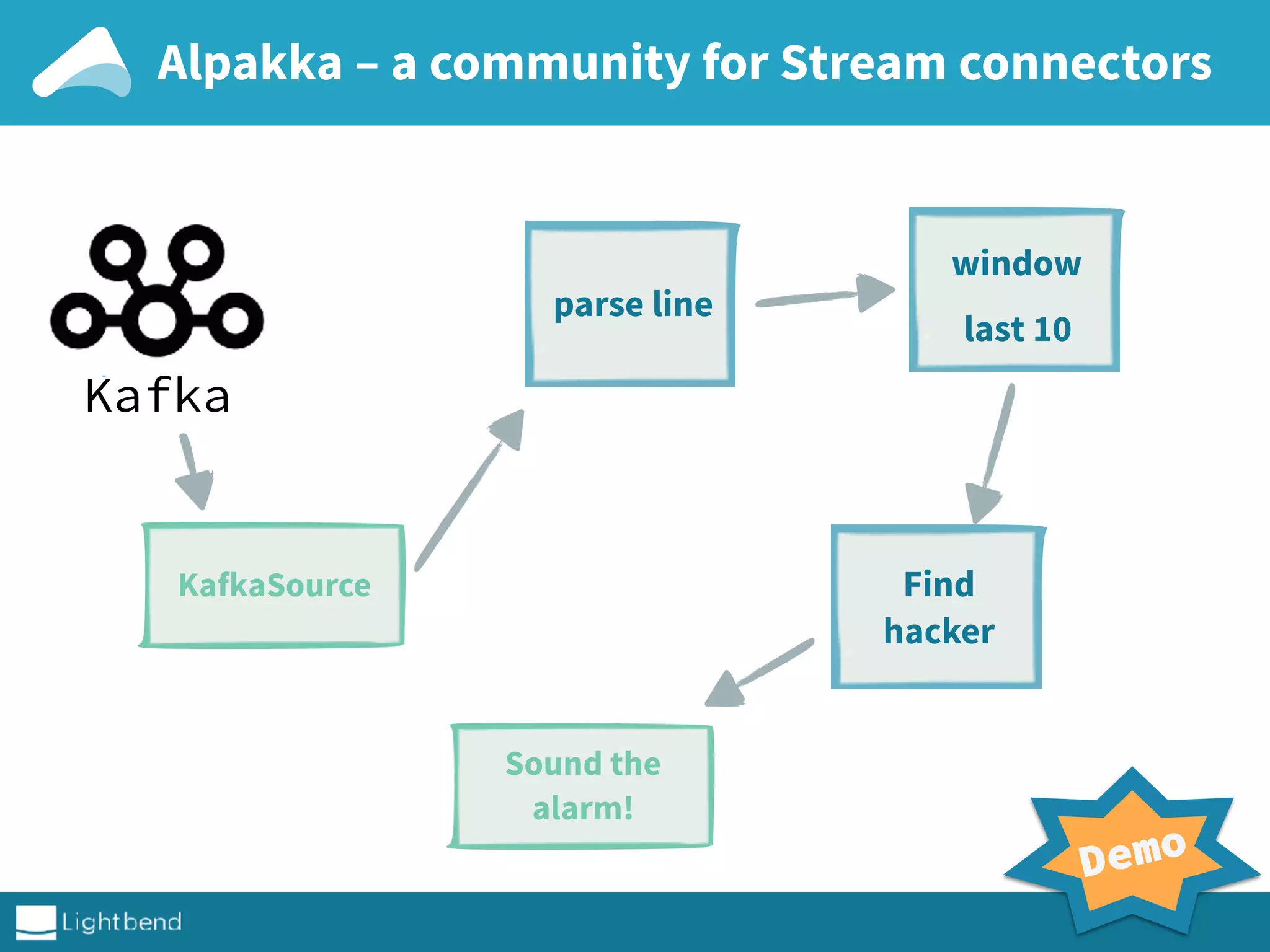

- 27. Alpakka – acommunity for Stream connectors Demo Kafka parse line window last 10 Find hacker KafkaSource Sound the alarm!

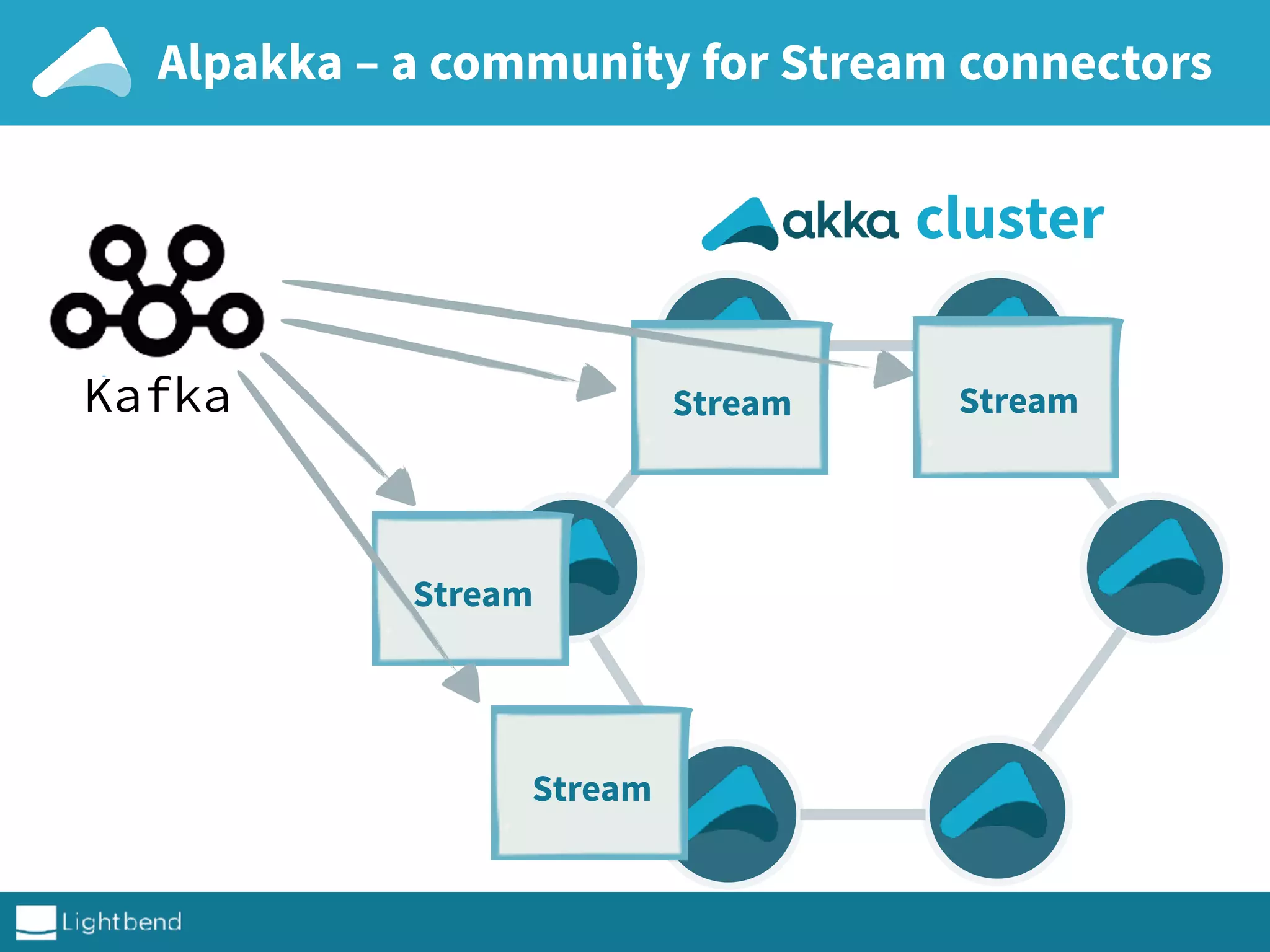

- 28. Alpakka – acommunity for Stream connectors Kafka Stream Stream Stream Stream cluster
- 29. Akka Streams &HTTP streams & HTTP
- 30. Akka Streams /HTTP Quiz time!

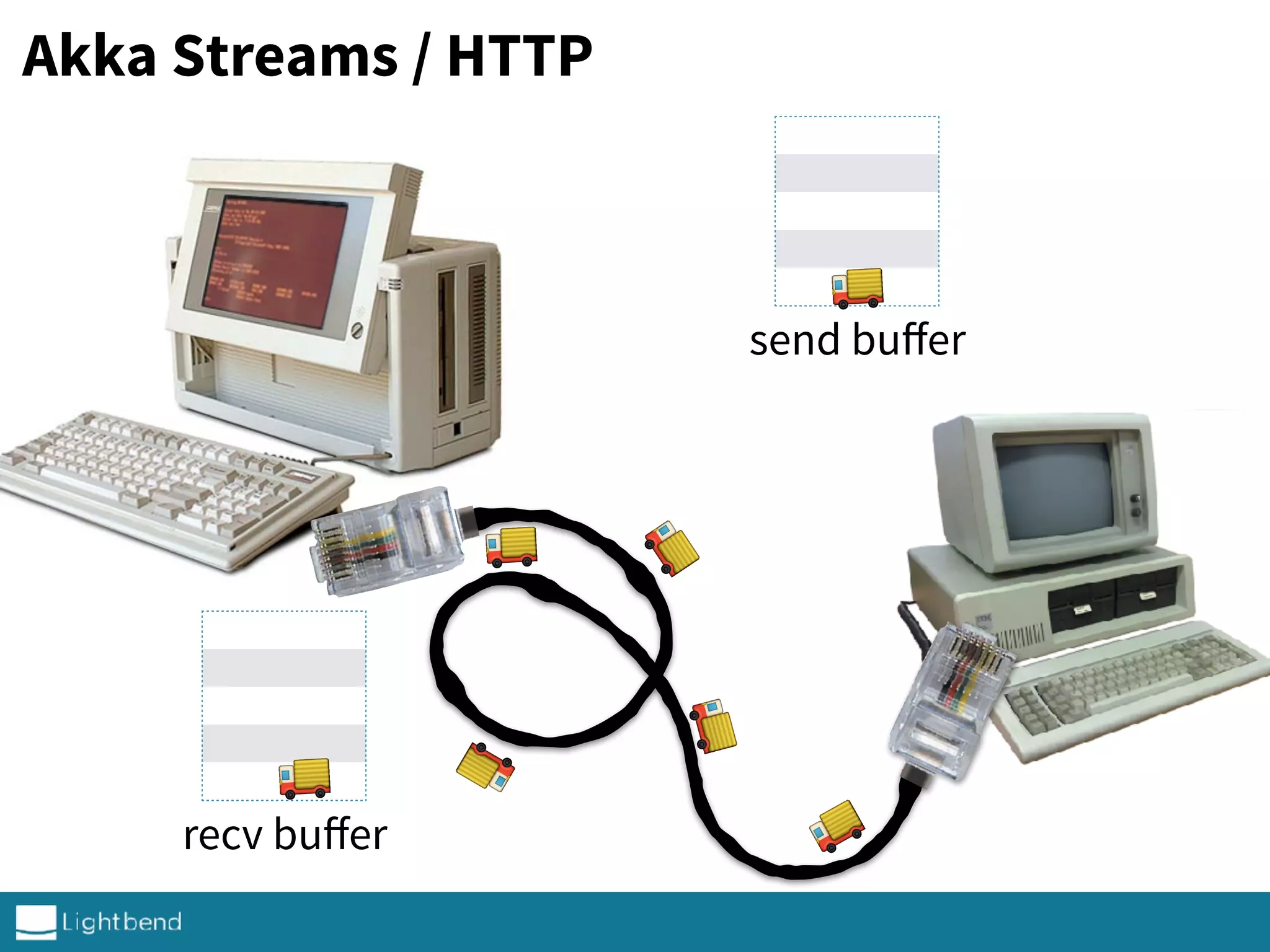

- 31. Akka Streams /HTTP recv buffer send buffer 🚚 🚚 🚚 🚚 🚚 🚚 🚚

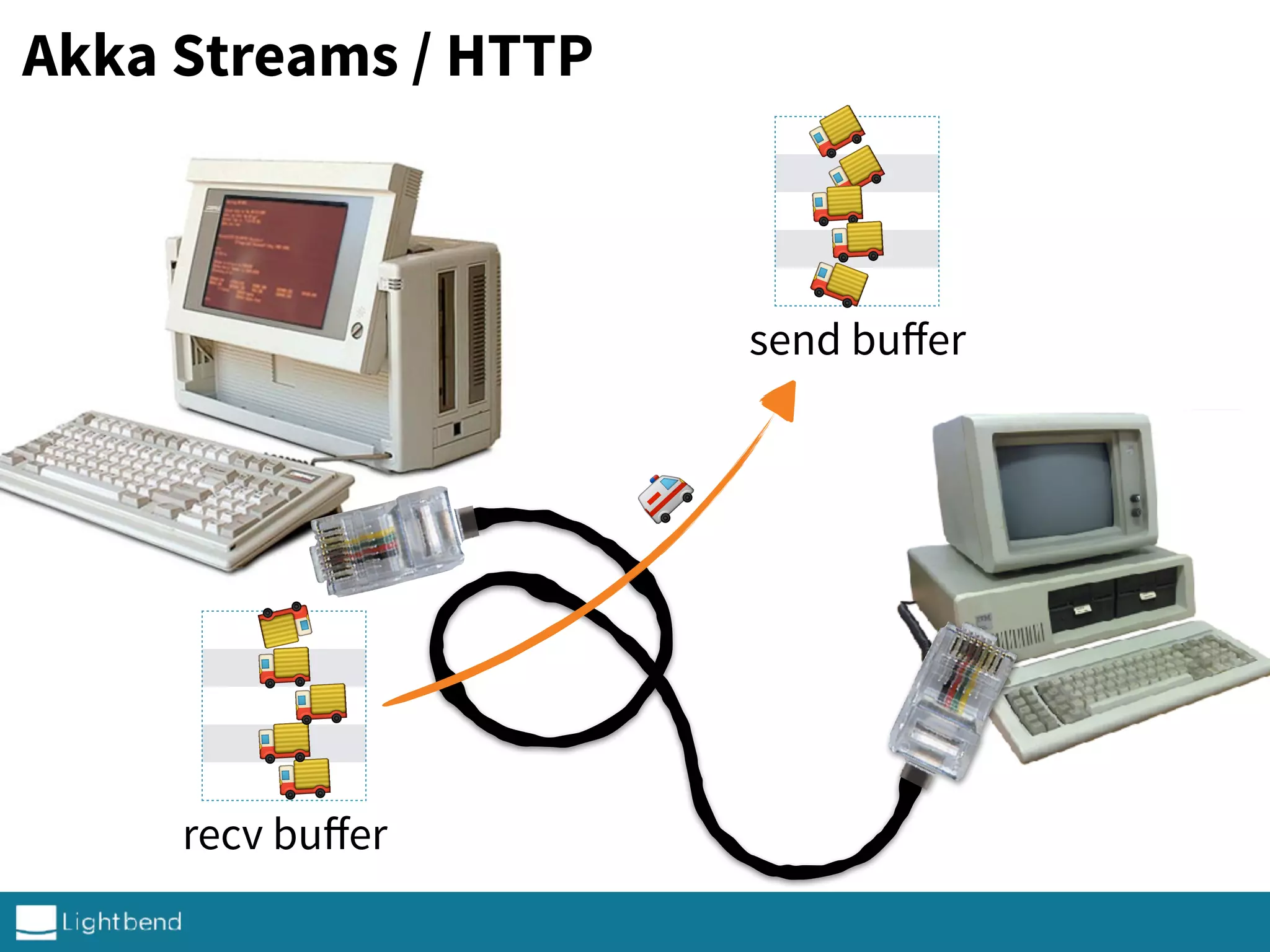

- 32. Akka Streams /HTTP recv buffer send buffer 🚚 🚚 🚚 🚚 🚚 🚚 🚚 🚚 🚚 🚚 🚑

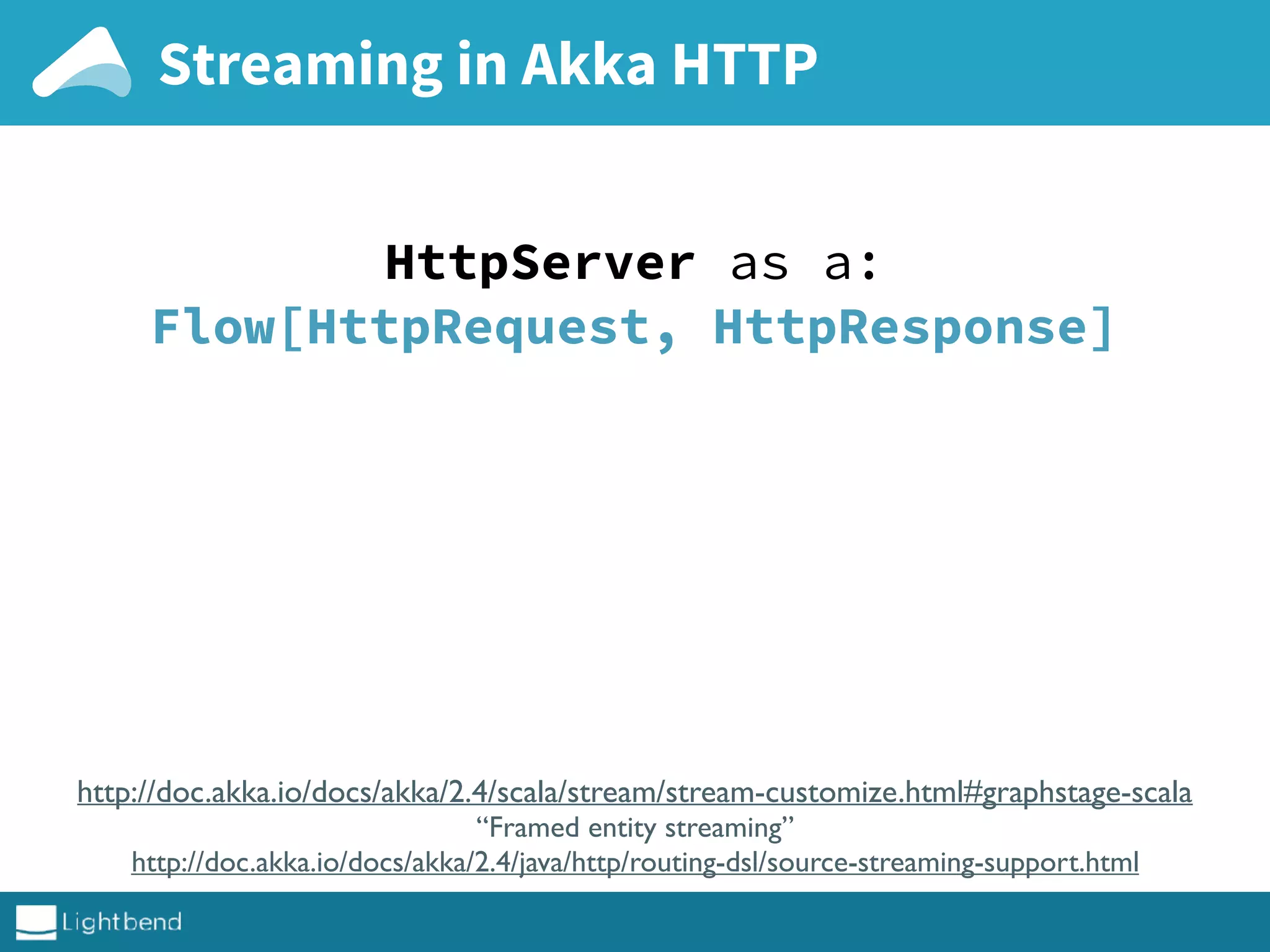

- 33. Streaming in AkkaHTTP http://doc.akka.io/docs/akka/2.4/scala/stream/stream-customize.html#graphstage-scala “Framed entity streaming” http://doc.akka.io/docs/akka/2.4/java/http/routing-dsl/source-streaming-support.html HttpServer as a: Flow[HttpRequest, HttpResponse]

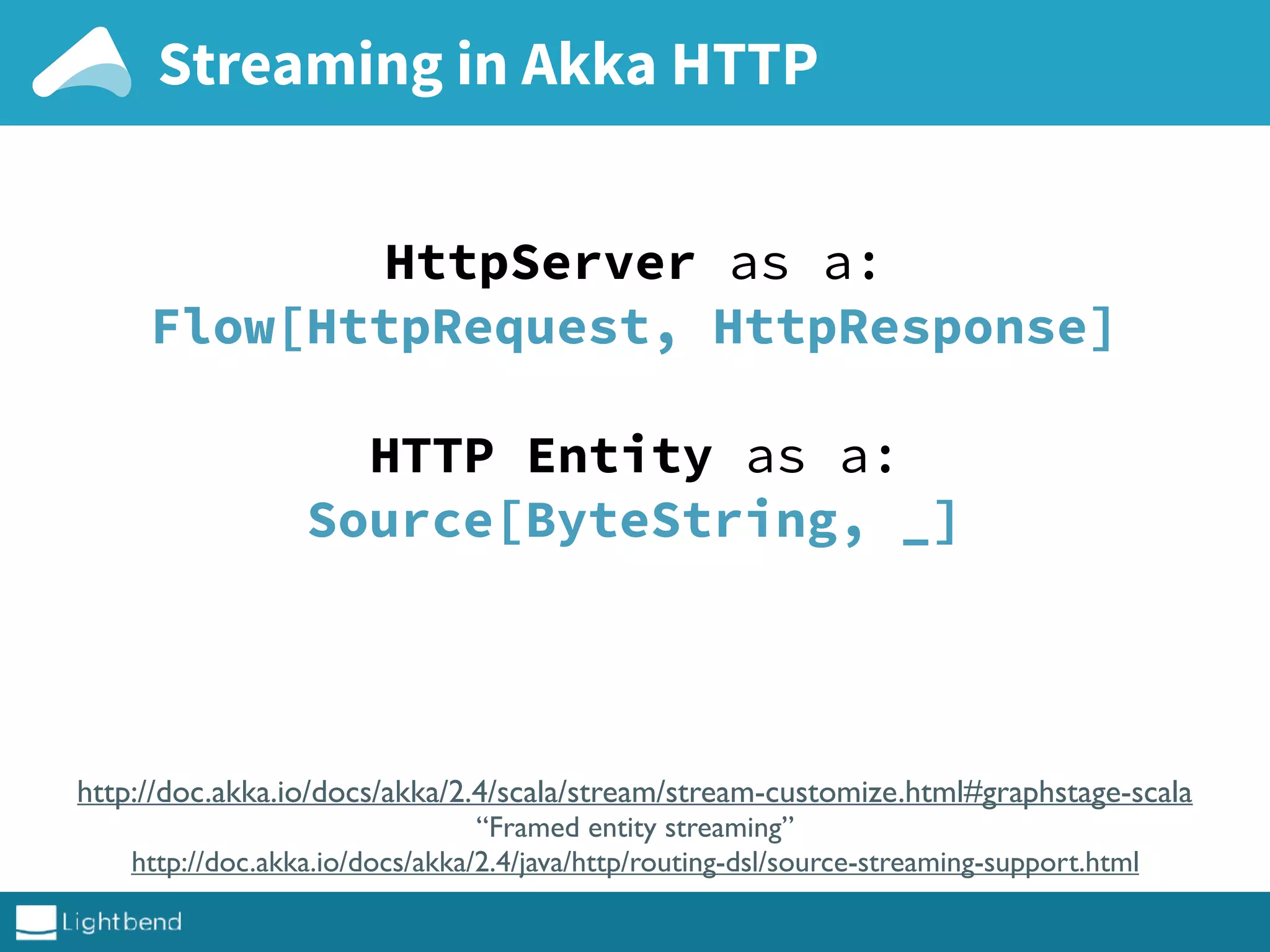

- 34. Streaming in AkkaHTTP HttpServer as a: Flow[HttpRequest, HttpResponse] HTTP Entity as a: Source[ByteString, _] http://doc.akka.io/docs/akka/2.4/scala/stream/stream-customize.html#graphstage-scala “Framed entity streaming” http://doc.akka.io/docs/akka/2.4/java/http/routing-dsl/source-streaming-support.html

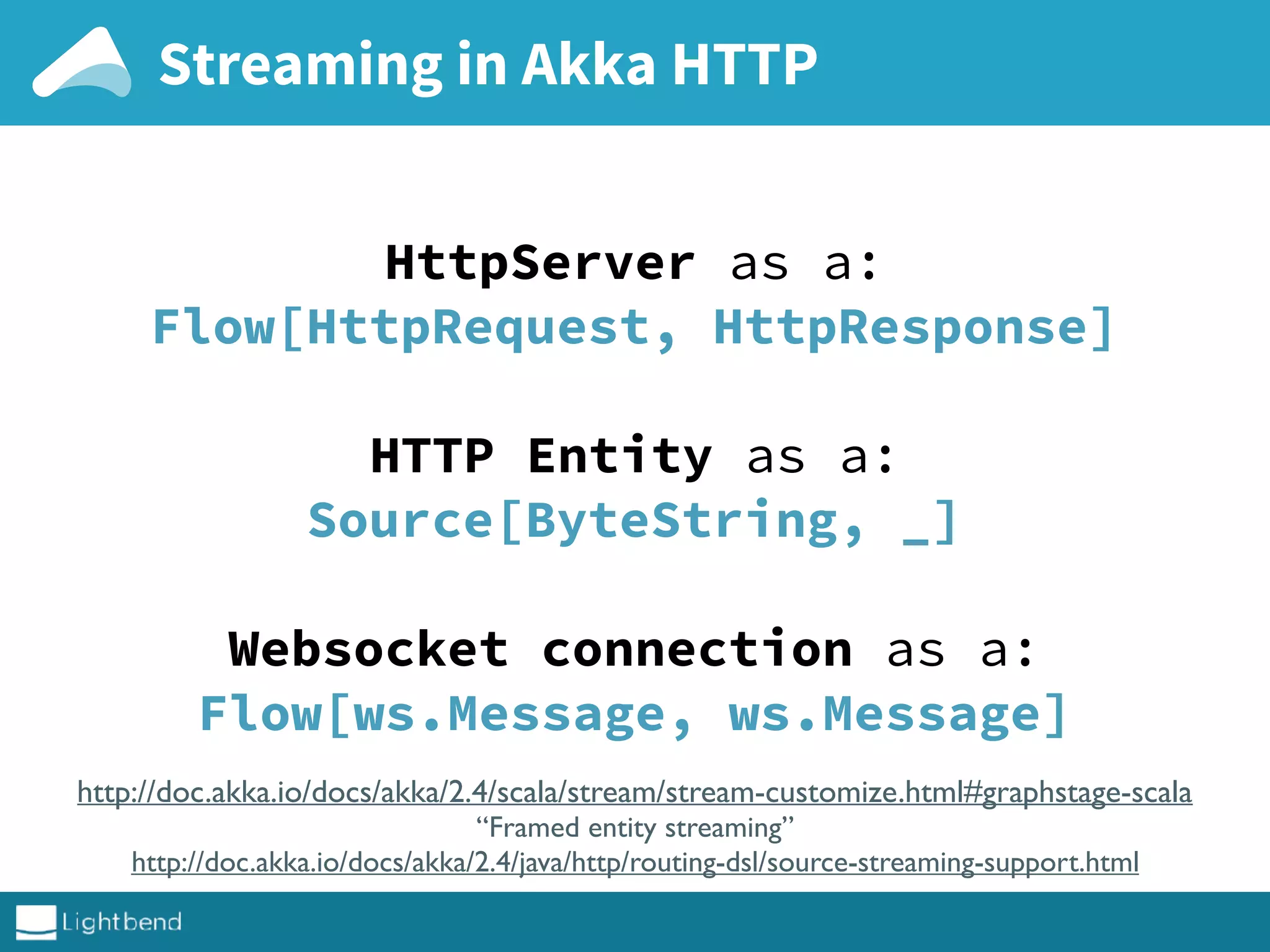

- 35. Streaming in AkkaHTTP HttpServer as a: Flow[HttpRequest, HttpResponse] HTTP Entity as a: Source[ByteString, _] Websocket connection as a: Flow[ws.Message, ws.Message] http://doc.akka.io/docs/akka/2.4/scala/stream/stream-customize.html#graphstage-scala “Framed entity streaming” http://doc.akka.io/docs/akka/2.4/java/http/routing-dsl/source-streaming-support.html

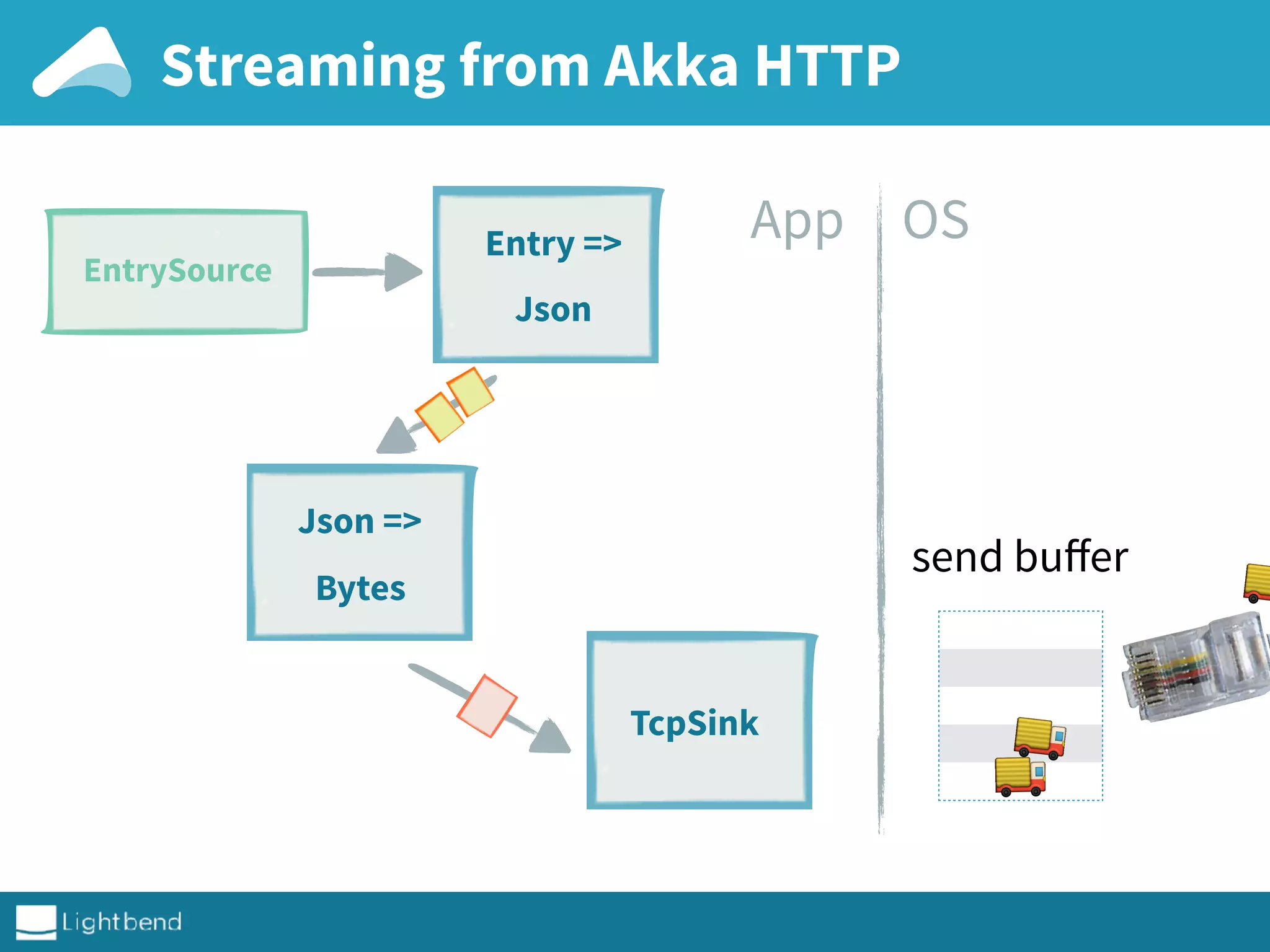

- 36. Streaming from AkkaHTTP send buffer 🚚 🚚 OSApp EntrySource Json => Bytes Entry => Json TcpSink

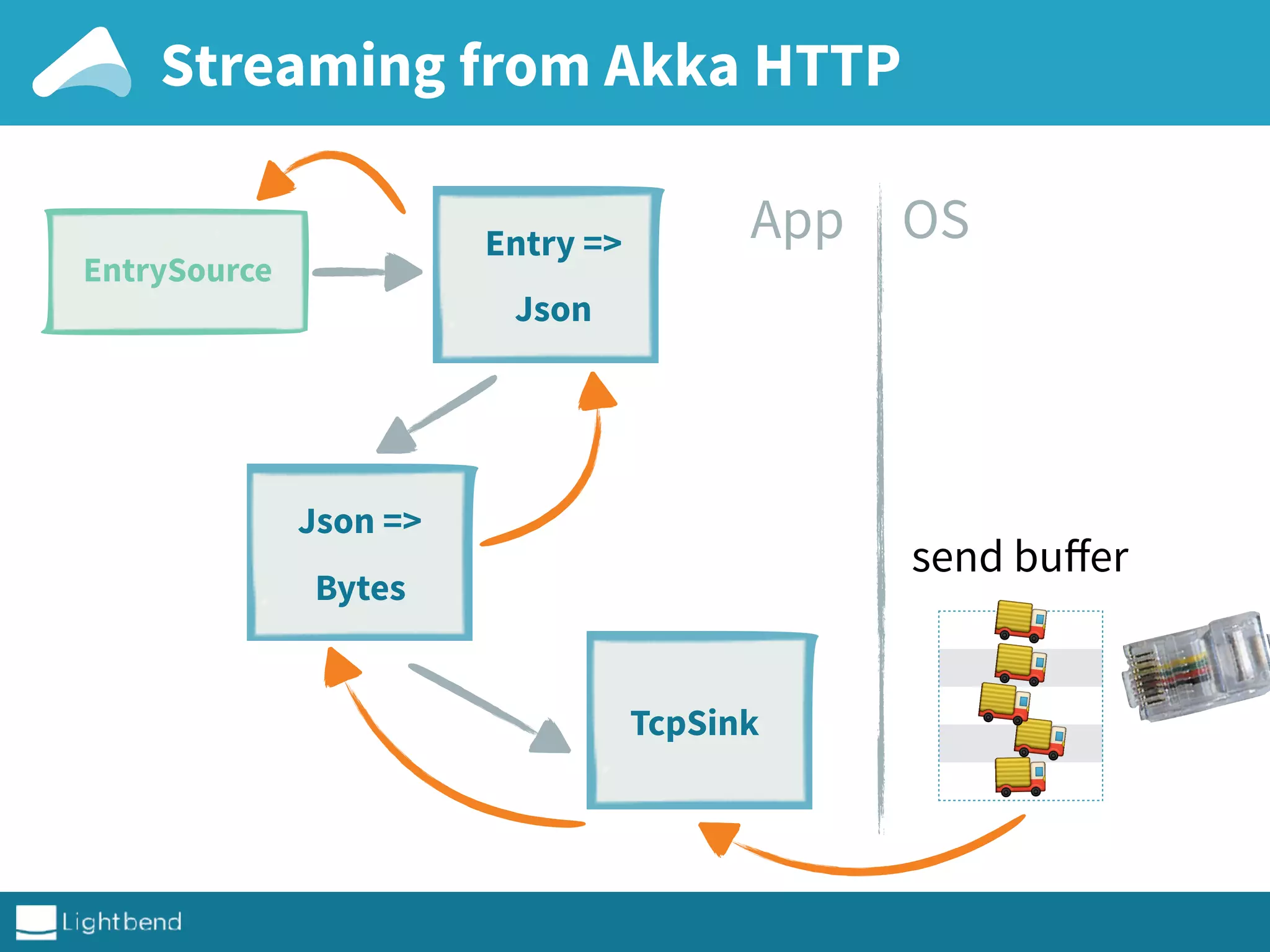

- 37. Streaming from AkkaHTTP send buffer 🚚 🚚 🚚 OSApp EntrySource Json => Bytes Entry => Json TcpSink 🚚 🚚

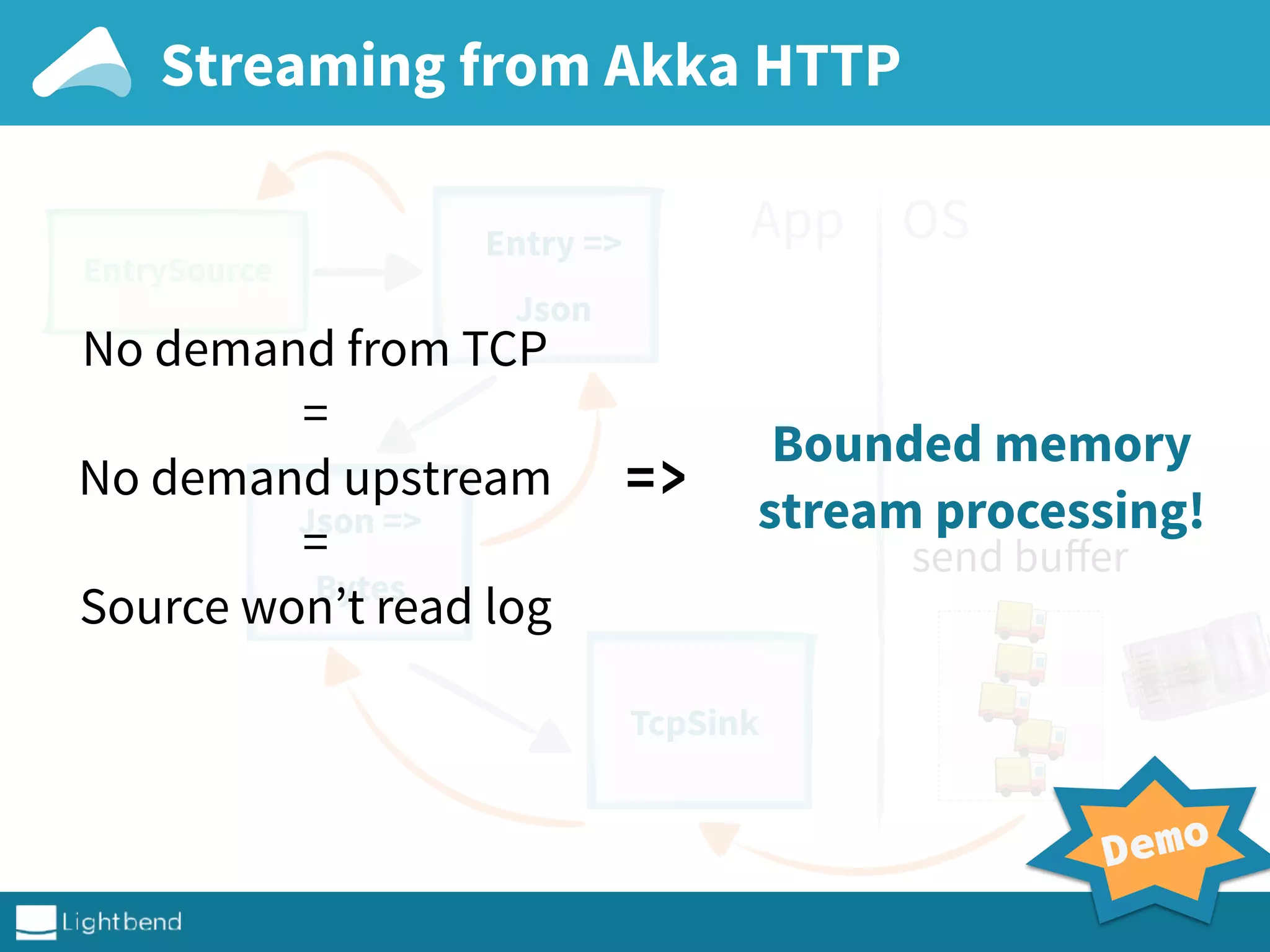

- 38. Streaming from AkkaHTTP send buffer 🚚 🚚 🚚 OSApp EntrySource Json => Bytes Entry => Json TcpSink 🚚 🚚 No demand from TCP = No demand upstream = Source won’t read log => Bounded memory stream processing! Demo

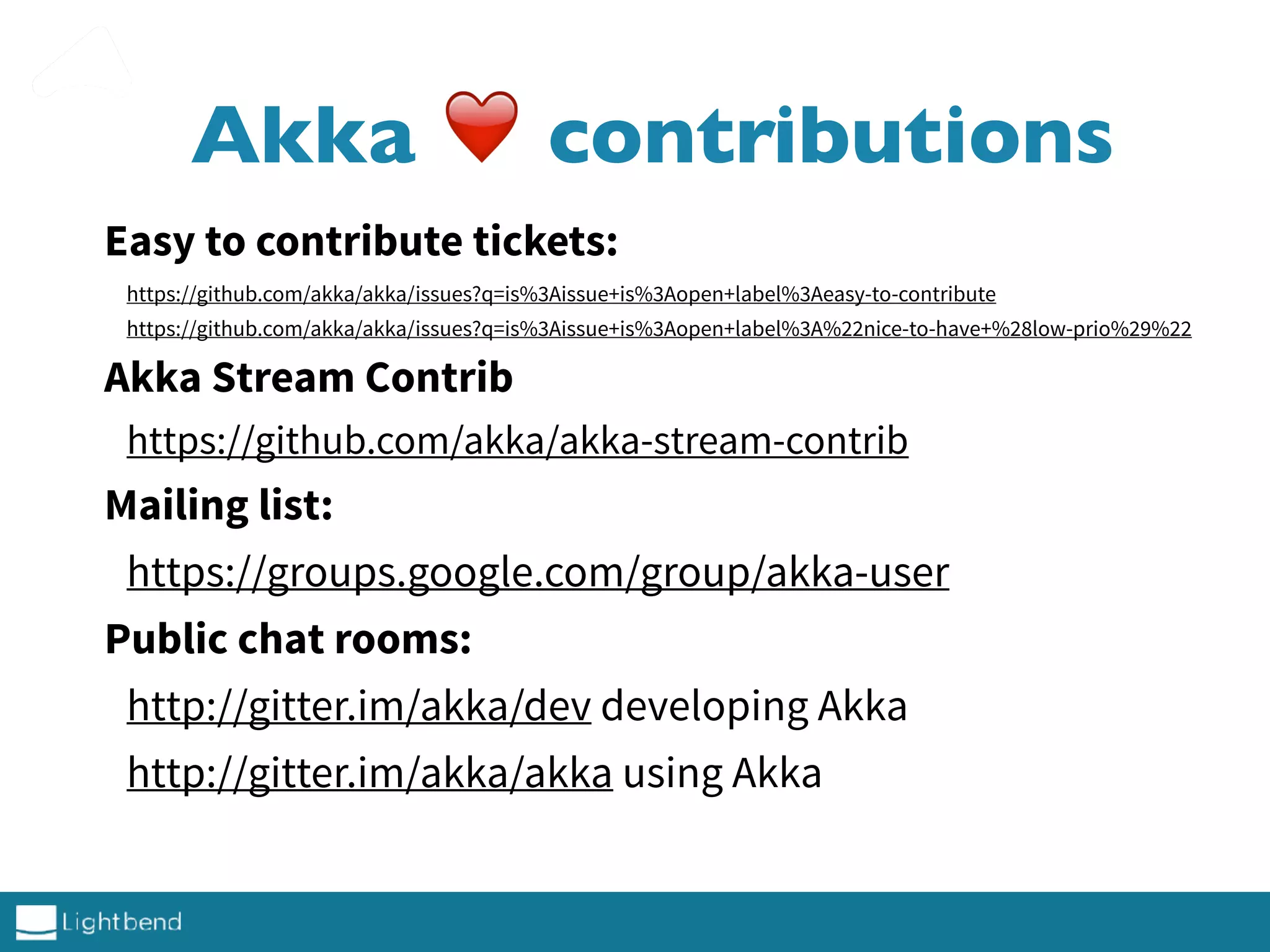

- 39. Akka ❤ contributions Easyto contribute tickets: https://github.com/akka/akka/issues?q=is%3Aissue+is%3Aopen+label%3Aeasy-to-contribute https://github.com/akka/akka/issues?q=is%3Aissue+is%3Aopen+label%3A%22nice-to-have+%28low-prio%29%22 Akka Stream Contrib https://github.com/akka/akka-stream-contrib Mailing list: https://groups.google.com/group/akka-user Public chat rooms: http://gitter.im/akka/dev developing Akka http://gitter.im/akka/akka using Akka
- 40. Thanks for listening! @apnylle johan.andren@lightbend.com Samplesources https://github.com/johanandren/akka-stream-samples/tree/scala-stockholm-2016-10
