1. Building a Reactive System
with Akka
Konrad Malawski (@ktosopl) - Akka Team
Henrik Engström (@h3nk3) - Telemetry Team
O’Reilly Software Architecture Conference, NYC - April 2016

2. Free e-book and printed report.
bit.ly/why-reactive
Covers what reactive actually is.
Implementing in existing architectures.
Thoughts from the team that’s building
reactive apps since more than 6 years.

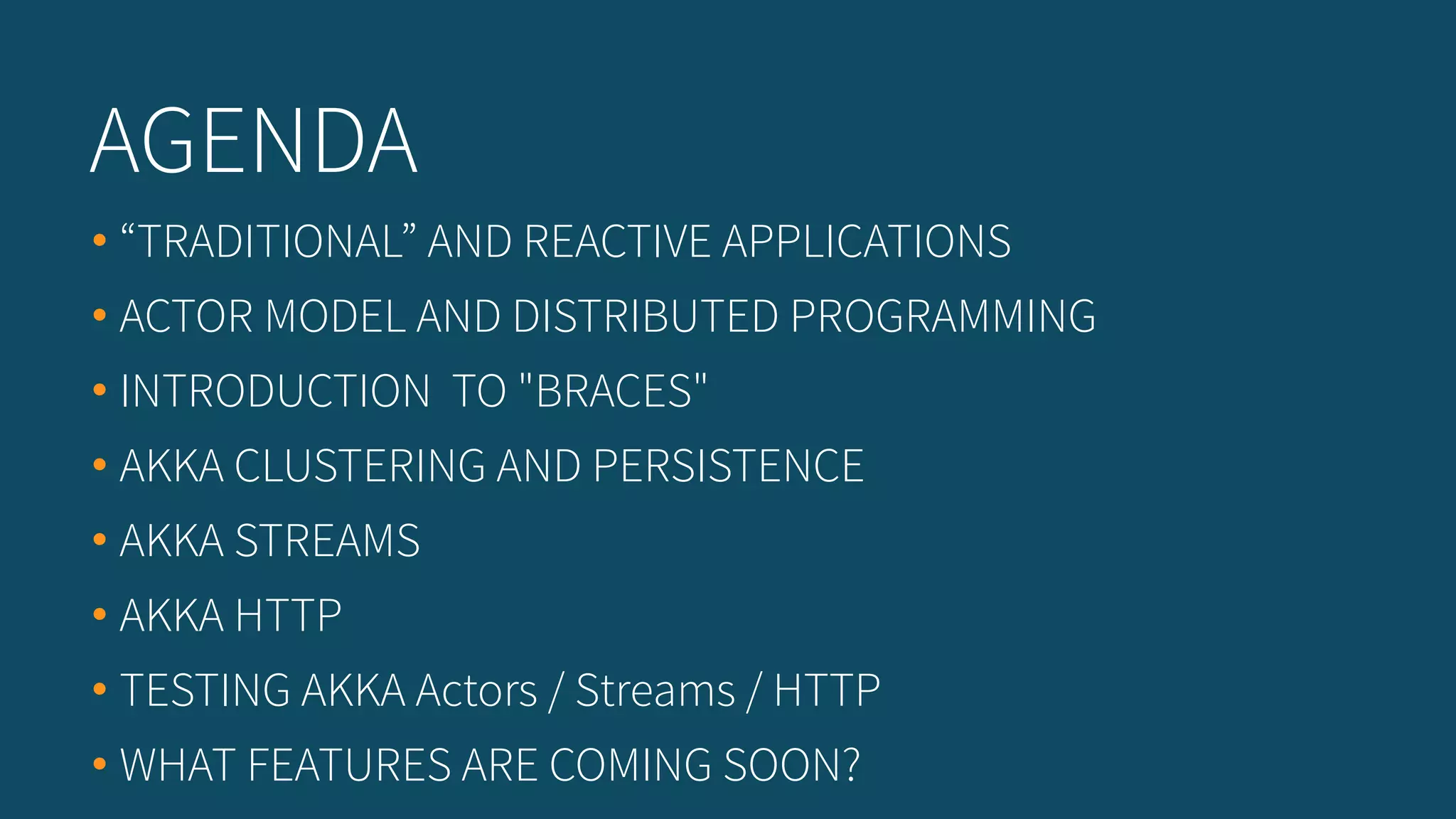

4. • “TRADITIONAL” AND REACTIVE APPLICATIONS
• ACTOR MODEL AND DISTRIBUTED PROGRAMMING
• INTRODUCTION TO "BRACES"
• AKKA CLUSTERING AND PERSISTENCE
• AKKA STREAMS
• AKKA HTTP
• TESTING AKKA Actors / Streams / HTTP

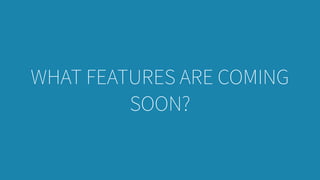

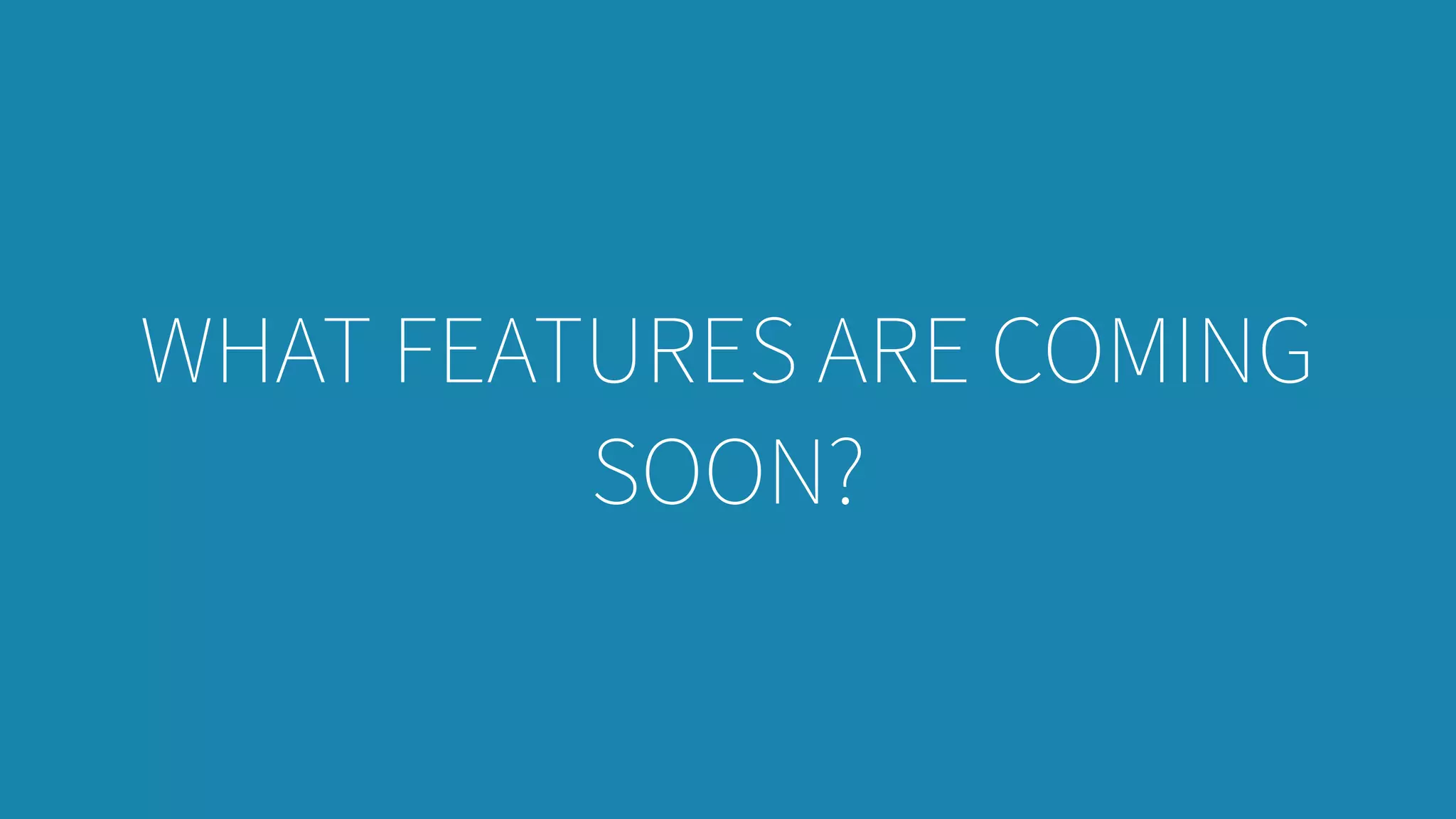

• WHAT FEATURES ARE COMING SOON?
AGENDA

5. “TRADITIONAL” AND REACTIVE
APPLICATIONS

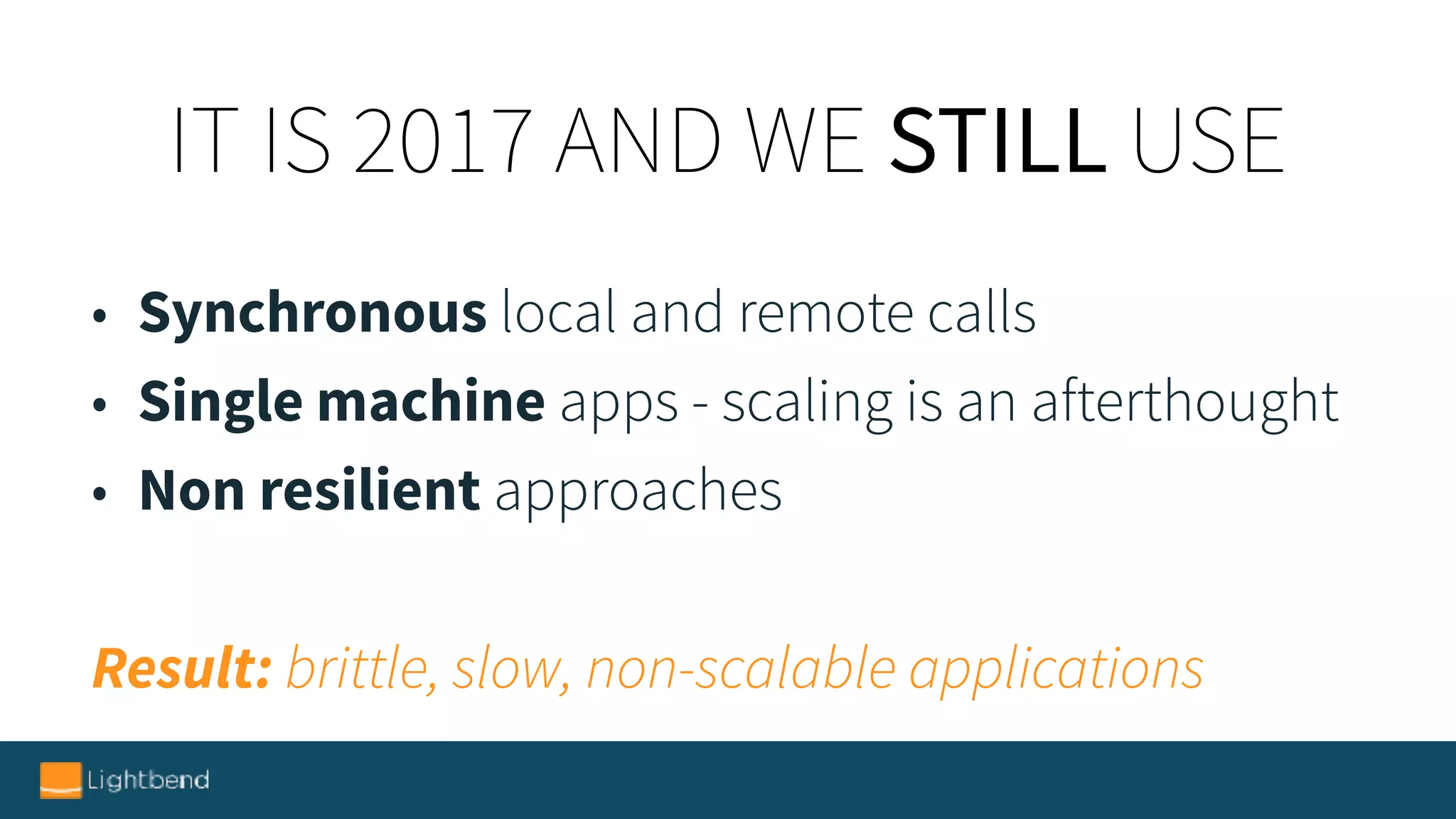

6. IT IS 2017 AND WE STILL USE
• Synchronous local and remote calls
• Single machine apps - scaling is an afterthought
• Non resilient approaches
Result: brittle, slow, non-scalable applications

7. WHAT CAN WE DO ABOUT IT?
Use message driven/asynchronous programming

8. PROBLEM SOLVED!?

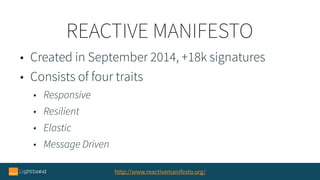

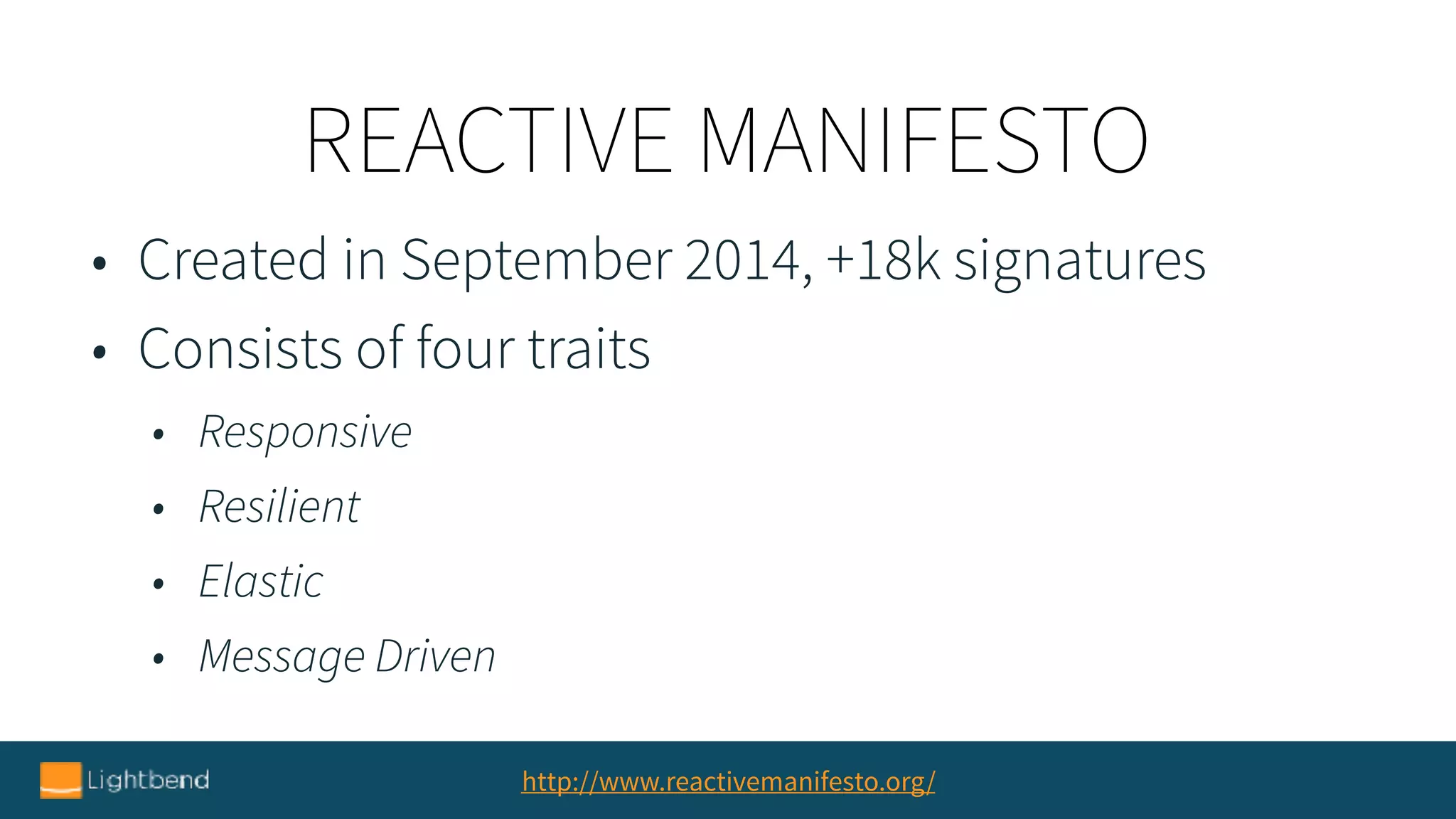

9. REACTIVE MANIFESTO
http://www.reactivemanifesto.org/
• Created in September 2014, +18k signatures
• Consists of four traits
• Responsive
• Resilient
• Elastic
• Message Driven

10. RESPONSIVE

11. RESILIENT

12. E L A S T I C

13. MESSAGE DRIVEN

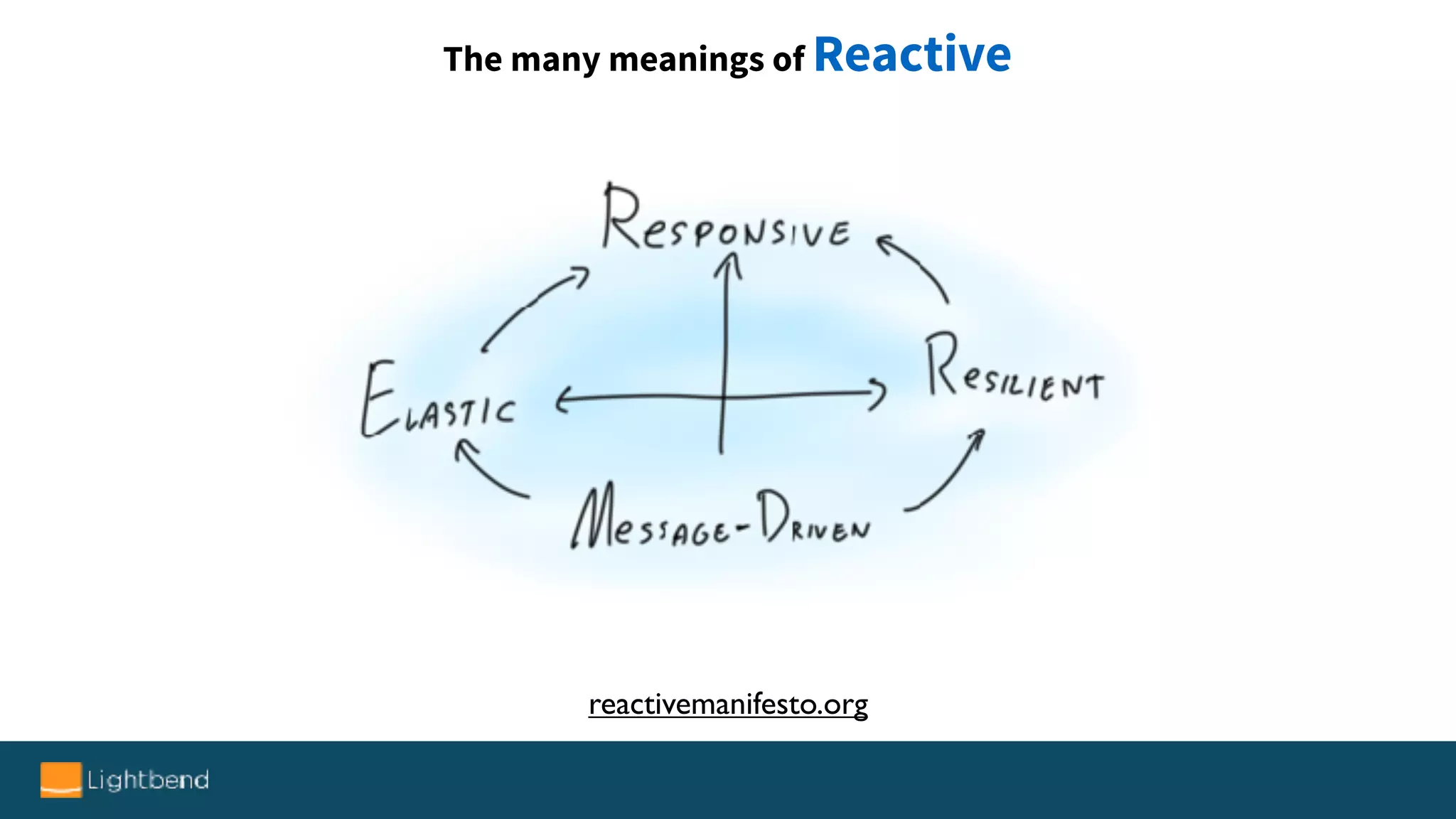

14. The many meanings of Reactive
reactivemanifesto.org

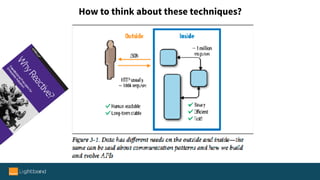

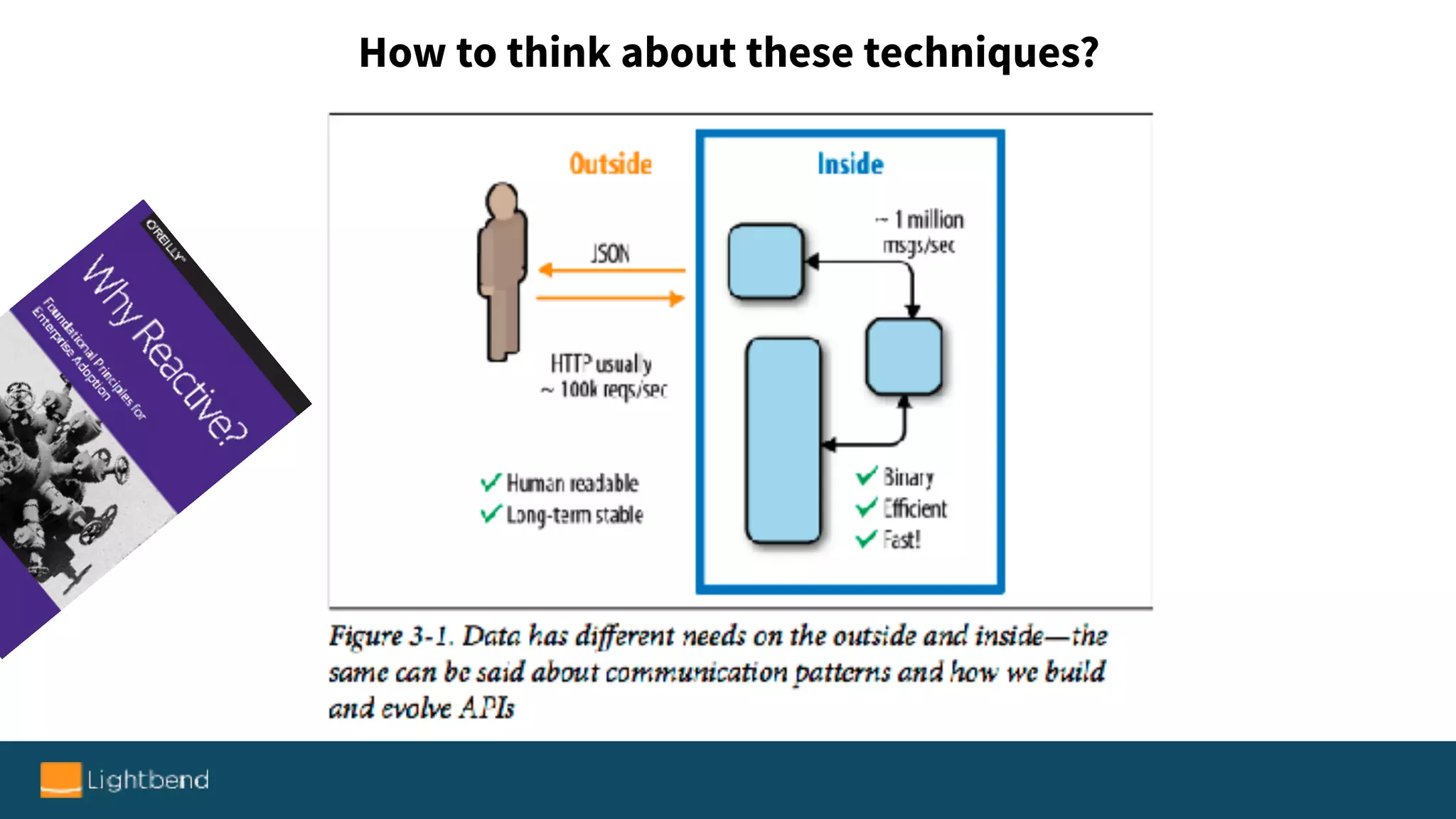

17. How to think about these techniques?
bit.ly/why-reactive

18. Akka

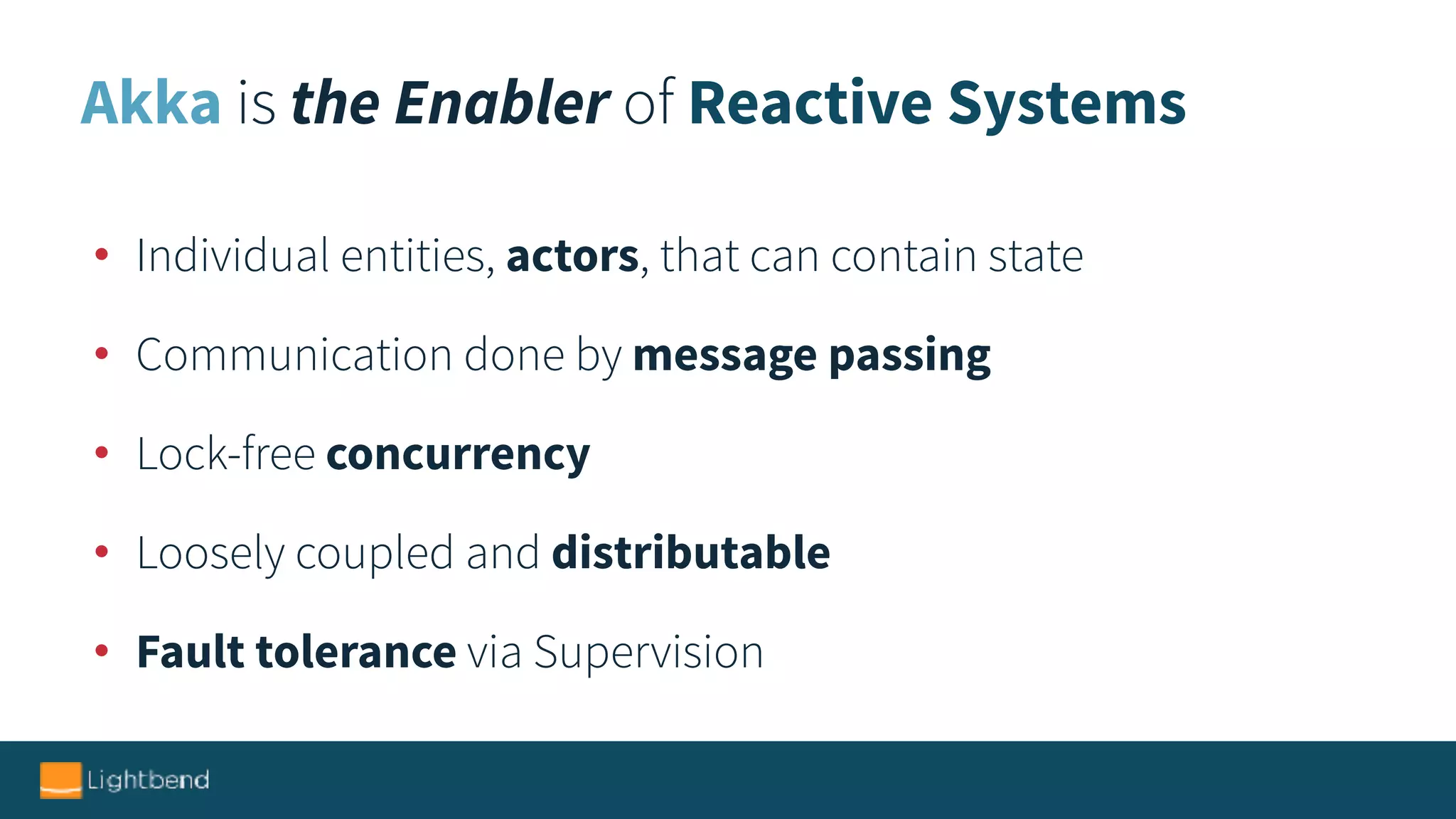

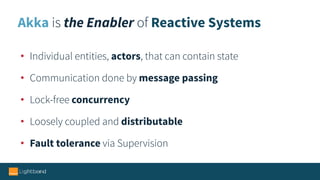

19. Akka is the Enabler of Reactive Systems
• Individual entities, actors, that can contain state
• Communication done by message passing
• Lock-free concurrency
• Loosely coupled and distributable
• Fault tolerance via Supervision

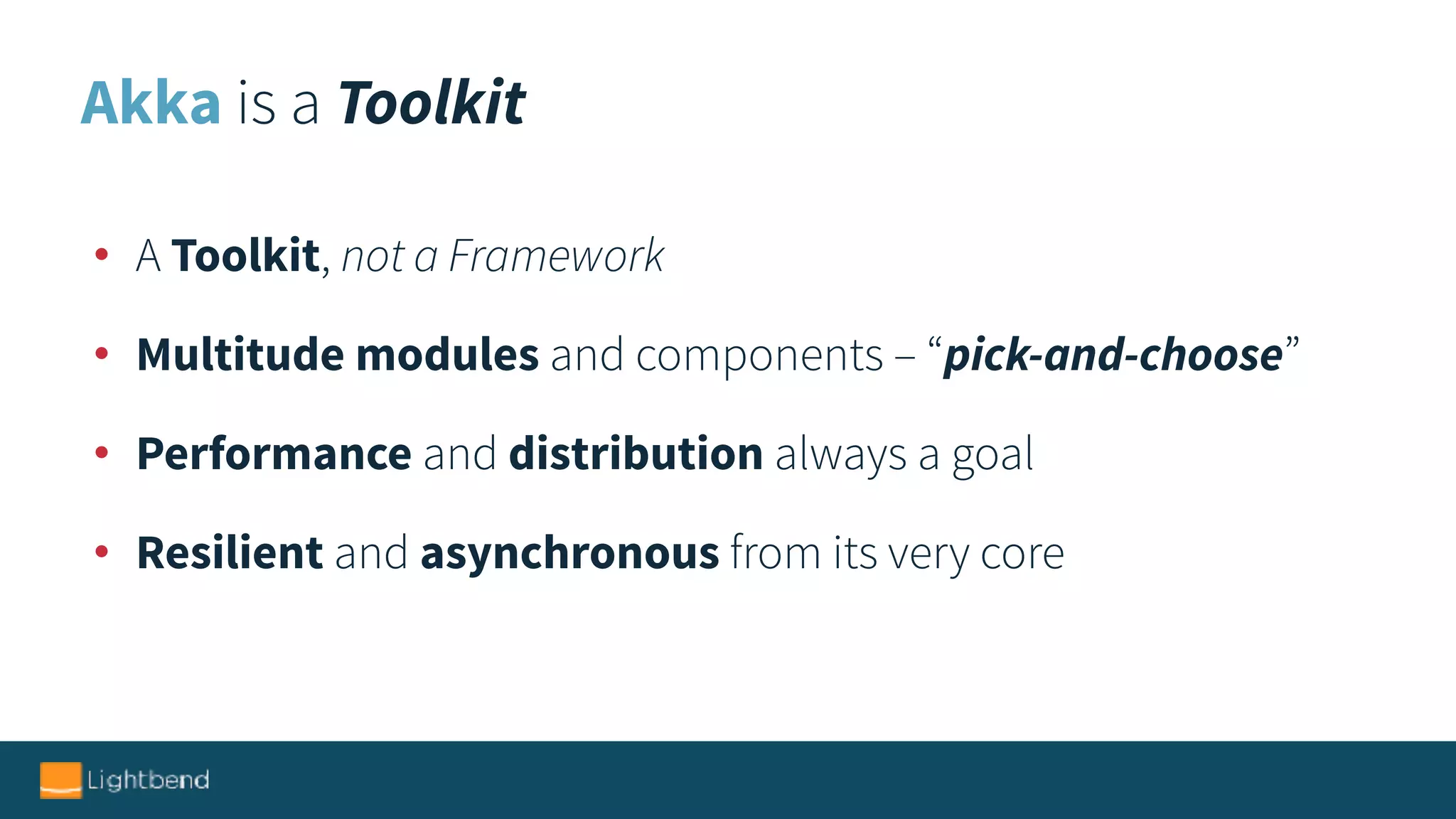

20. Akka is a Toolkit
• A Toolkit, not a Framework
• Multitude modules and components – “pick-and-choose”
• Performance and distribution always a goal
• Resilient and asynchronous from its very core

21. ACTOR MODEL
AND
DISTRIBUTED PROGRAMMING

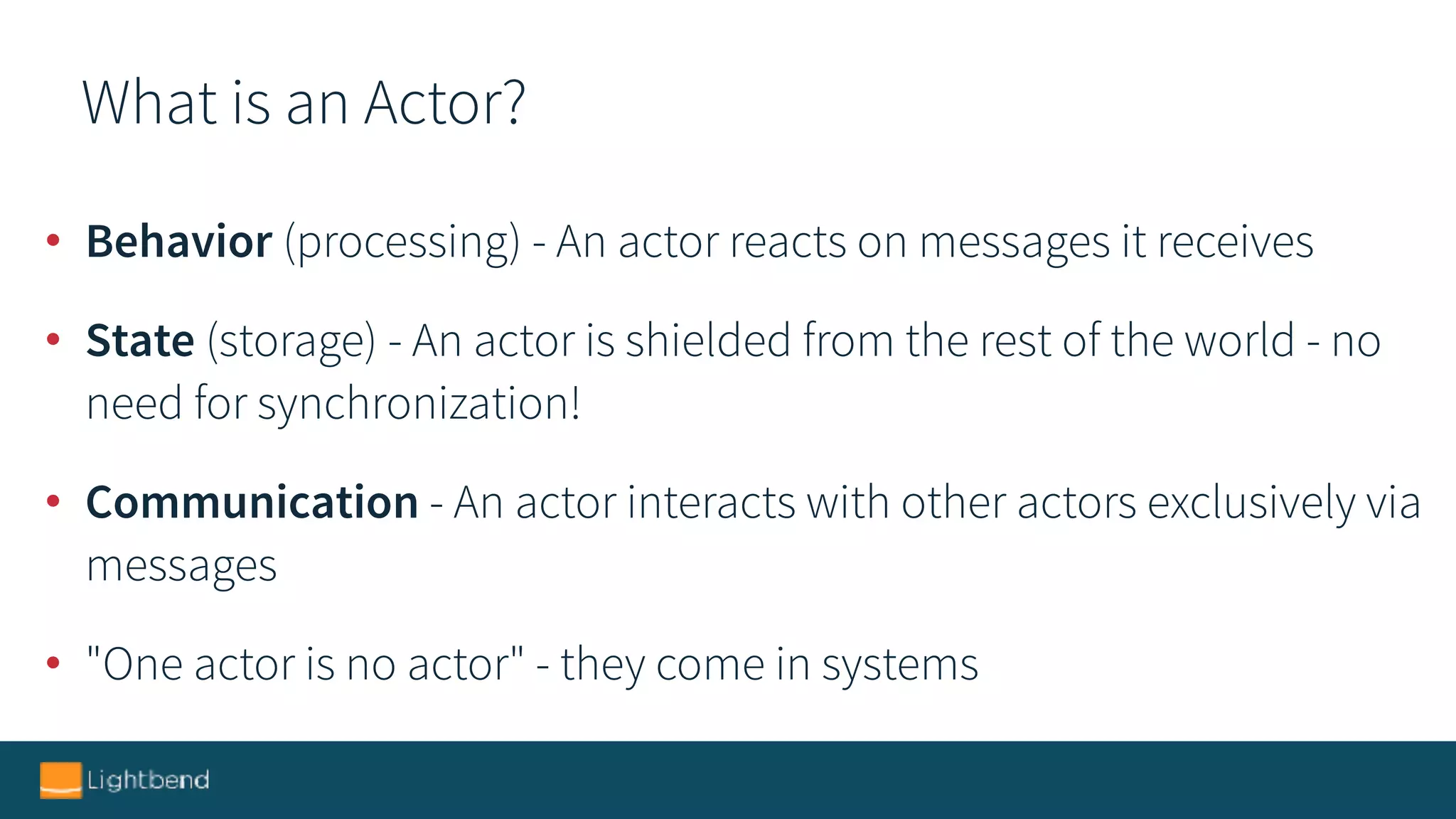

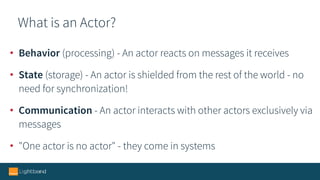

22. What is an Actor?
• Behavior (processing) - An actor reacts on messages it receives
• State (storage) - An actor is shielded from the rest of the world - no
need for synchronization!
• Communication - An actor interacts with other actors exclusively via
messages
• "One actor is no actor" - they come in systems

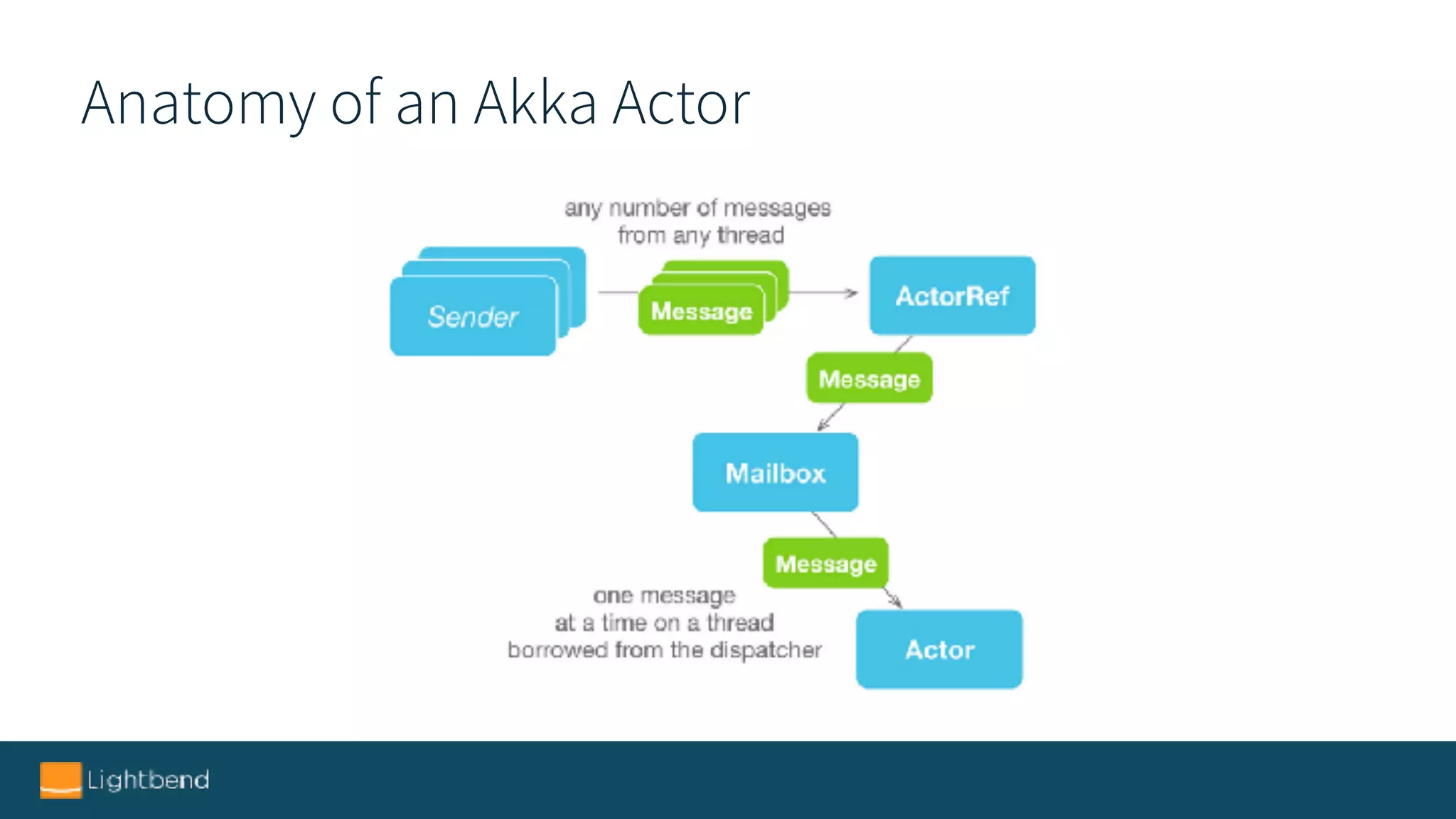

23. Anatomy of an Akka Actor

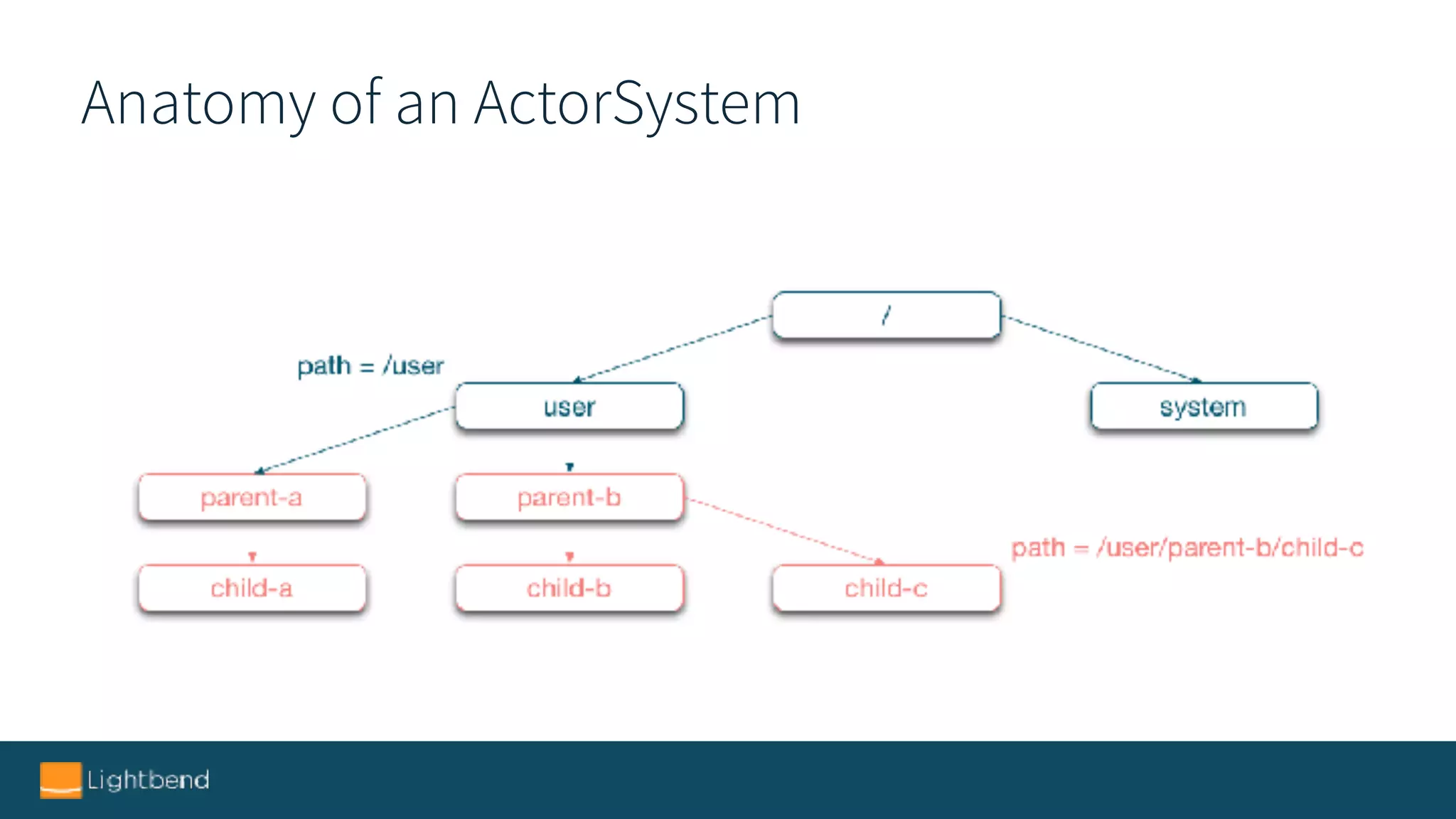

24. Anatomy of an ActorSystem

25. INTRODUCTION TO BRACES

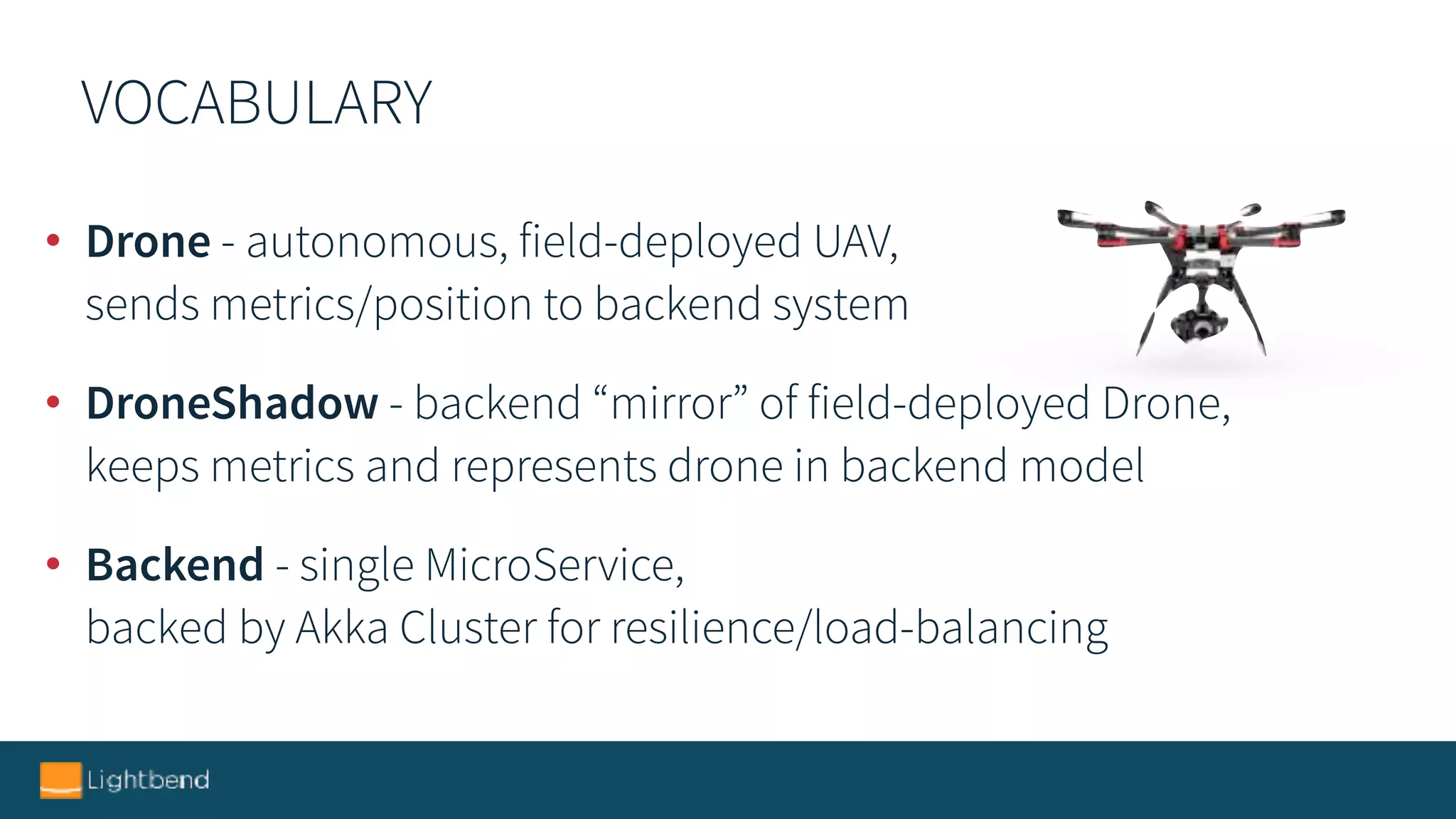

26. VOCABULARY
• Drone - autonomous, field-deployed UAV,
sends metrics/position to backend system
• DroneShadow - backend “mirror” of field-deployed Drone,
keeps metrics and represents drone in backend model
• Backend - single MicroService,
backed by Akka Cluster for resilience/load-balancing

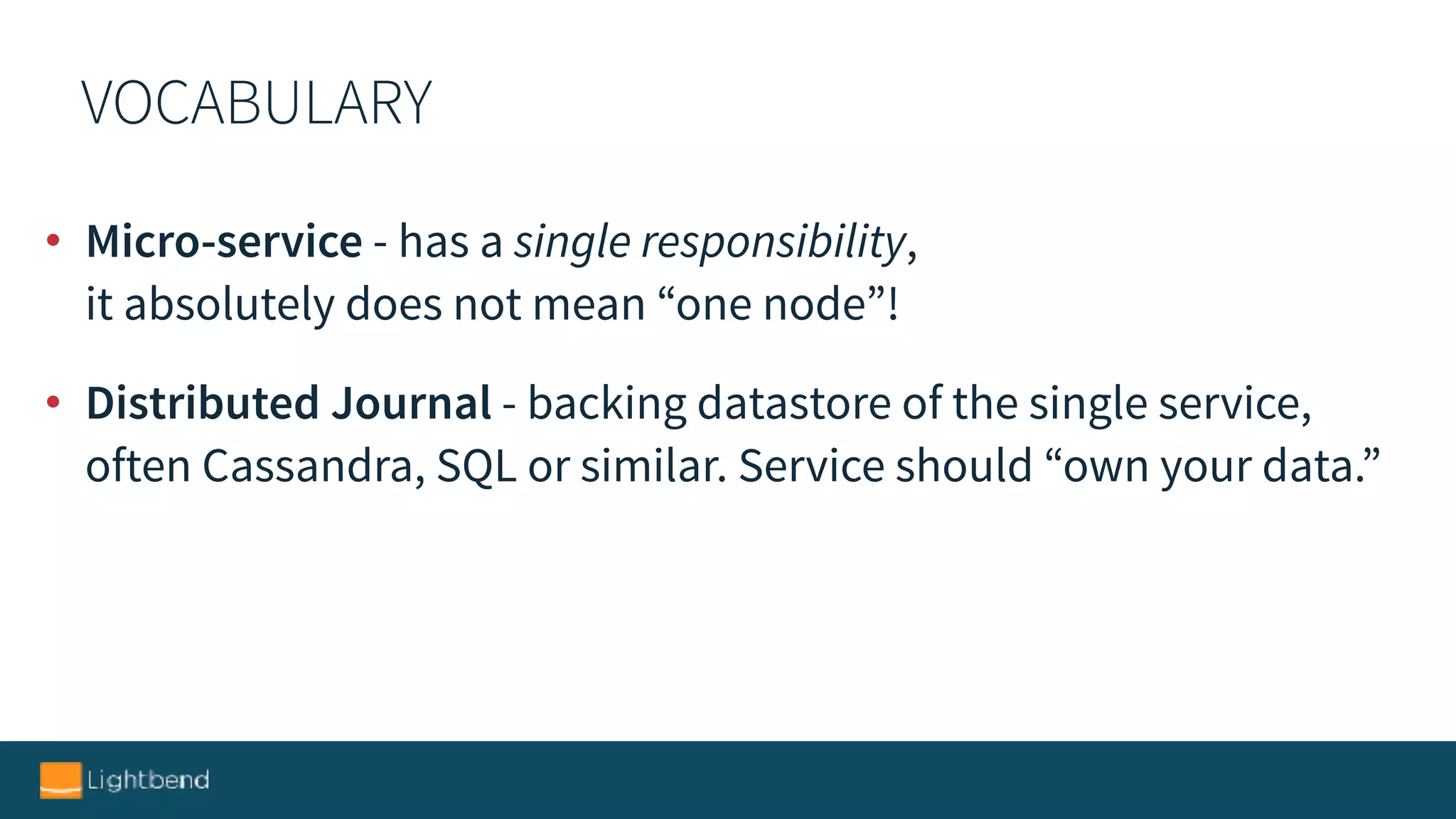

27. VOCABULARY
• Micro-service - has a single responsibility,
it absolutely does not mean “one node”!
• Distributed Journal - backing datastore of the single service,
often Cassandra, SQL or similar. Service should “own your data.”

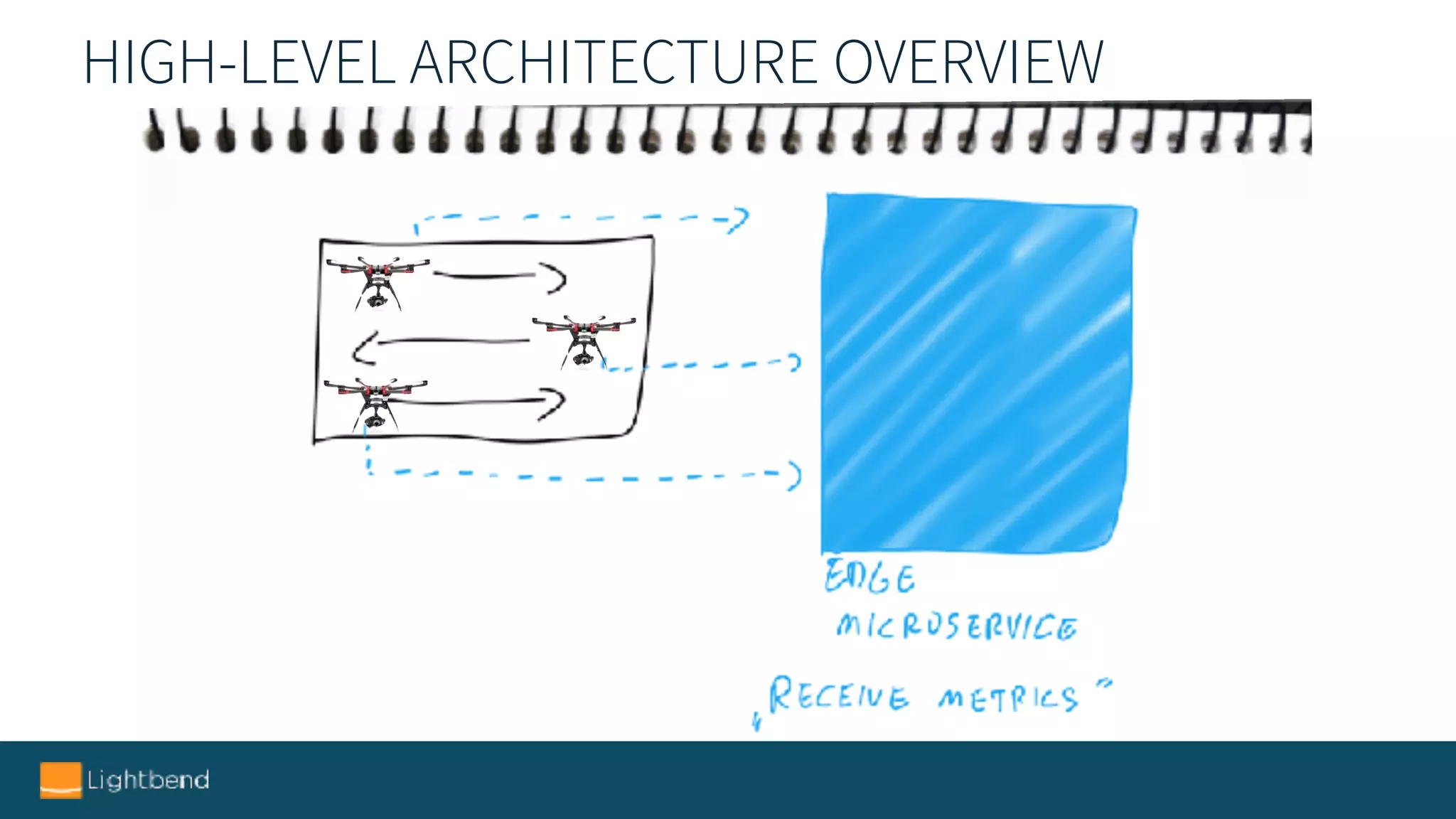

28. HIGH-LEVEL ARCHITECTURE OVERVIEW

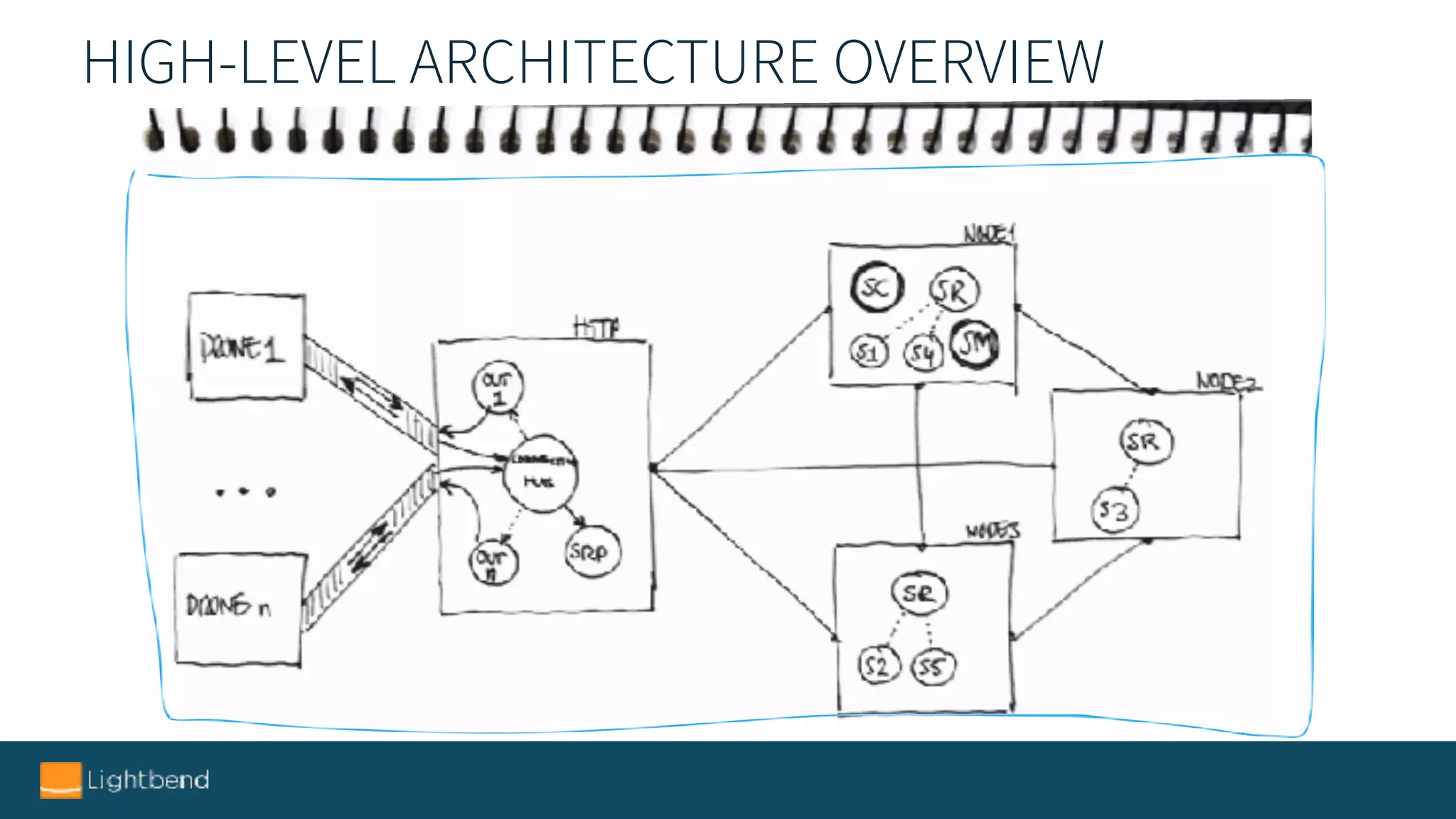

29. HIGH-LEVEL ARCHITECTURE OVERVIEW

30. AKKA ACTOR BASICS

31. LET’S CODE!

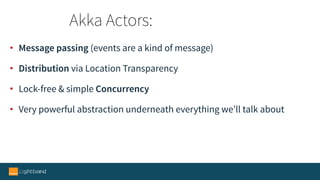

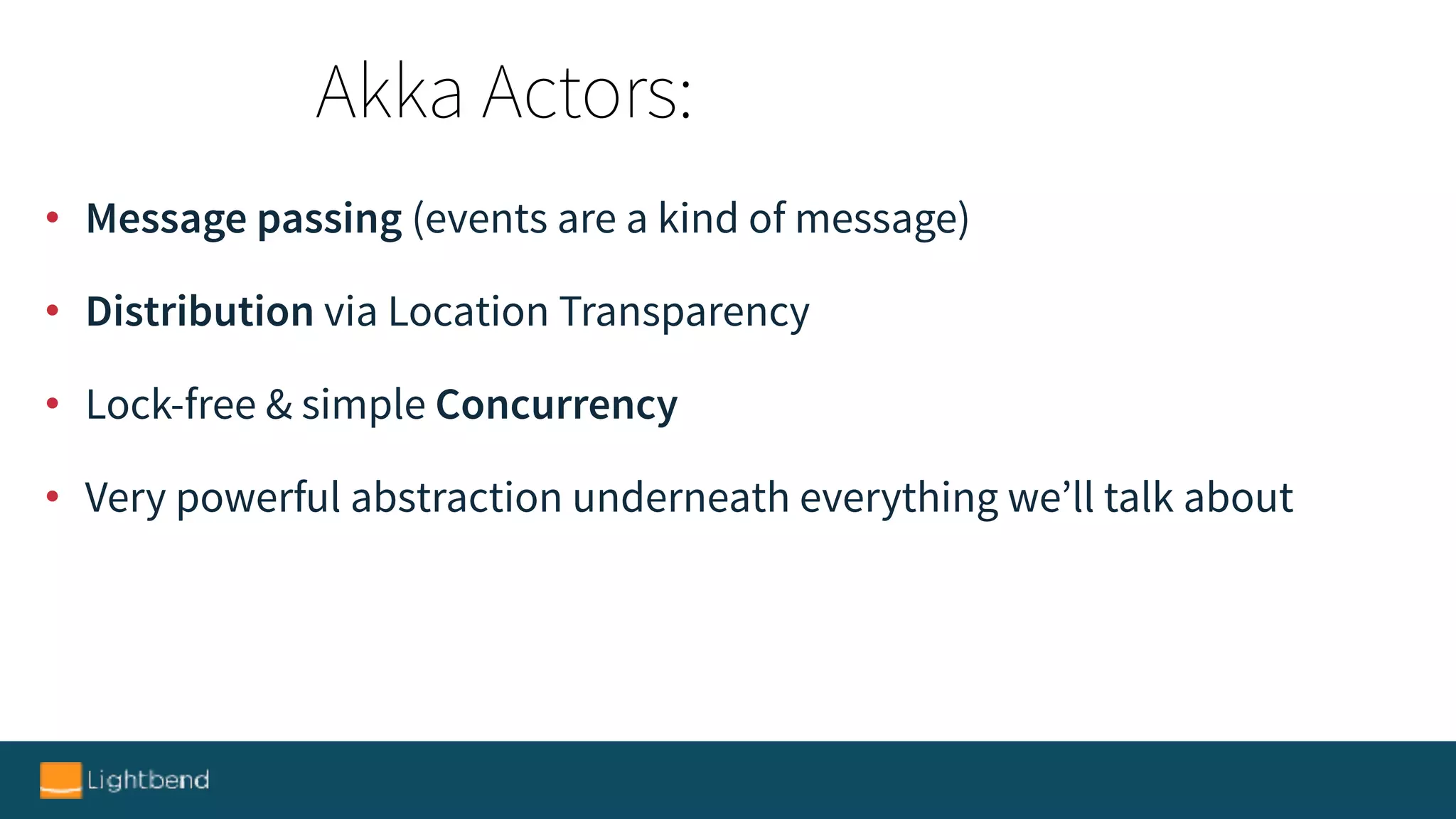

32. • Message passing (events are a kind of message)
• Distribution via Location Transparency
• Lock-free & simple Concurrency
• Very powerful abstraction underneath everything we’ll talk about
Akka Actors:

33. AKKA CLUSTERING AND
PERSISTENCE

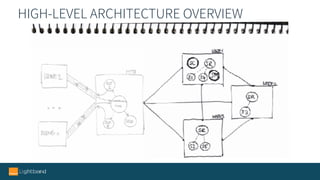

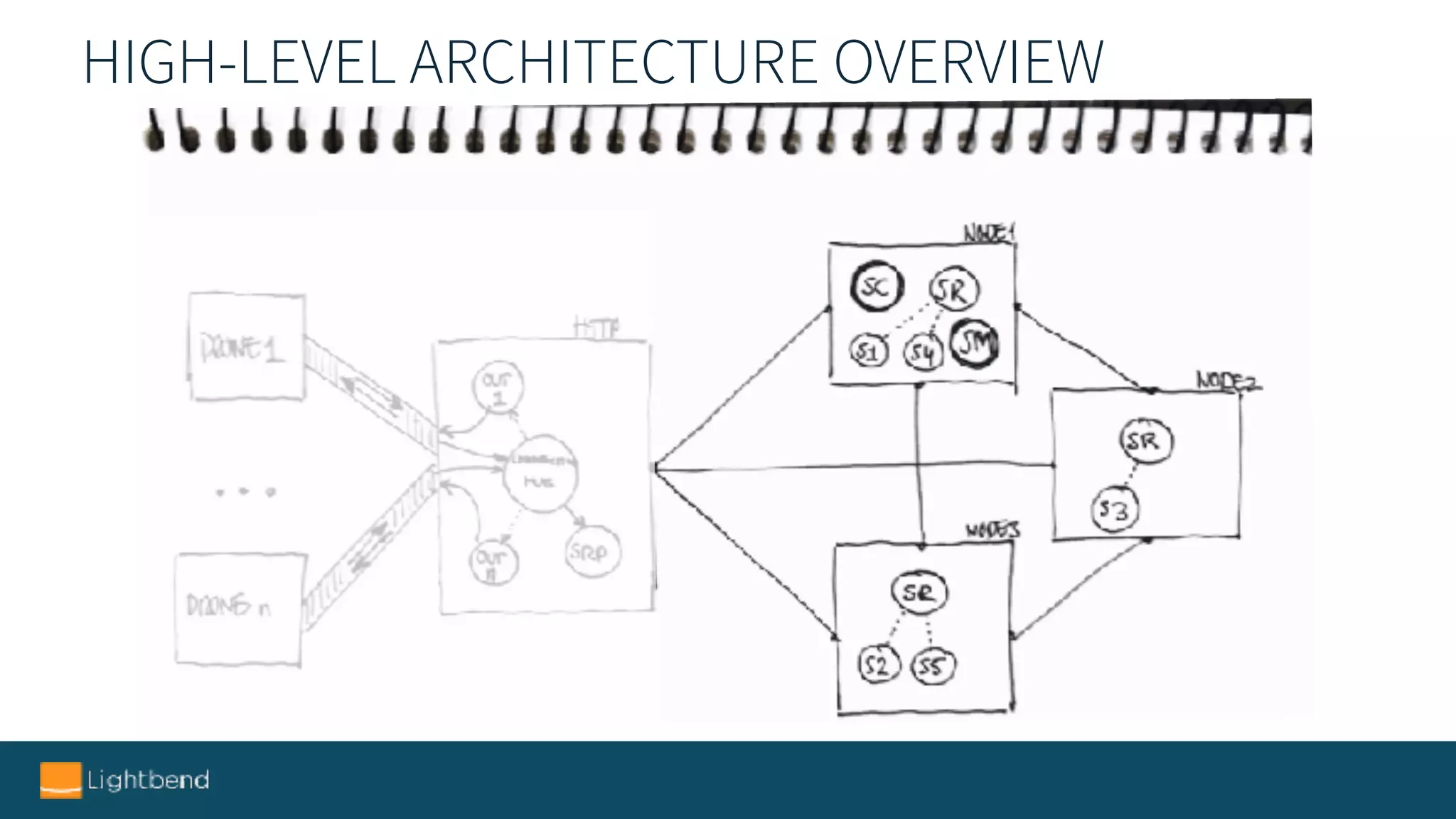

34. HIGH-LEVEL ARCHITECTURE OVERVIEW

35. LET’S CODE!

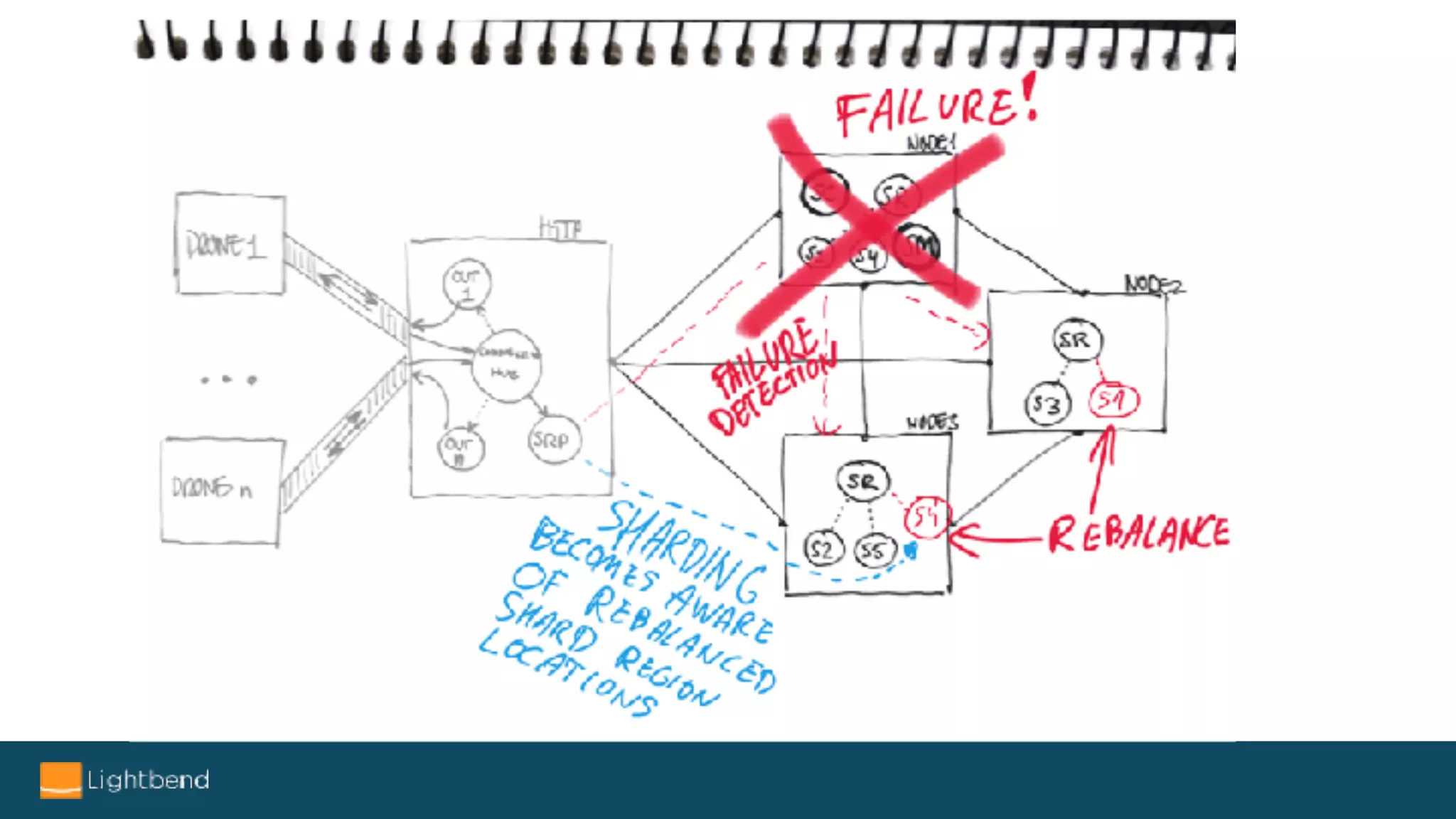

36. FAILURE SCENARIO:
Node Failure

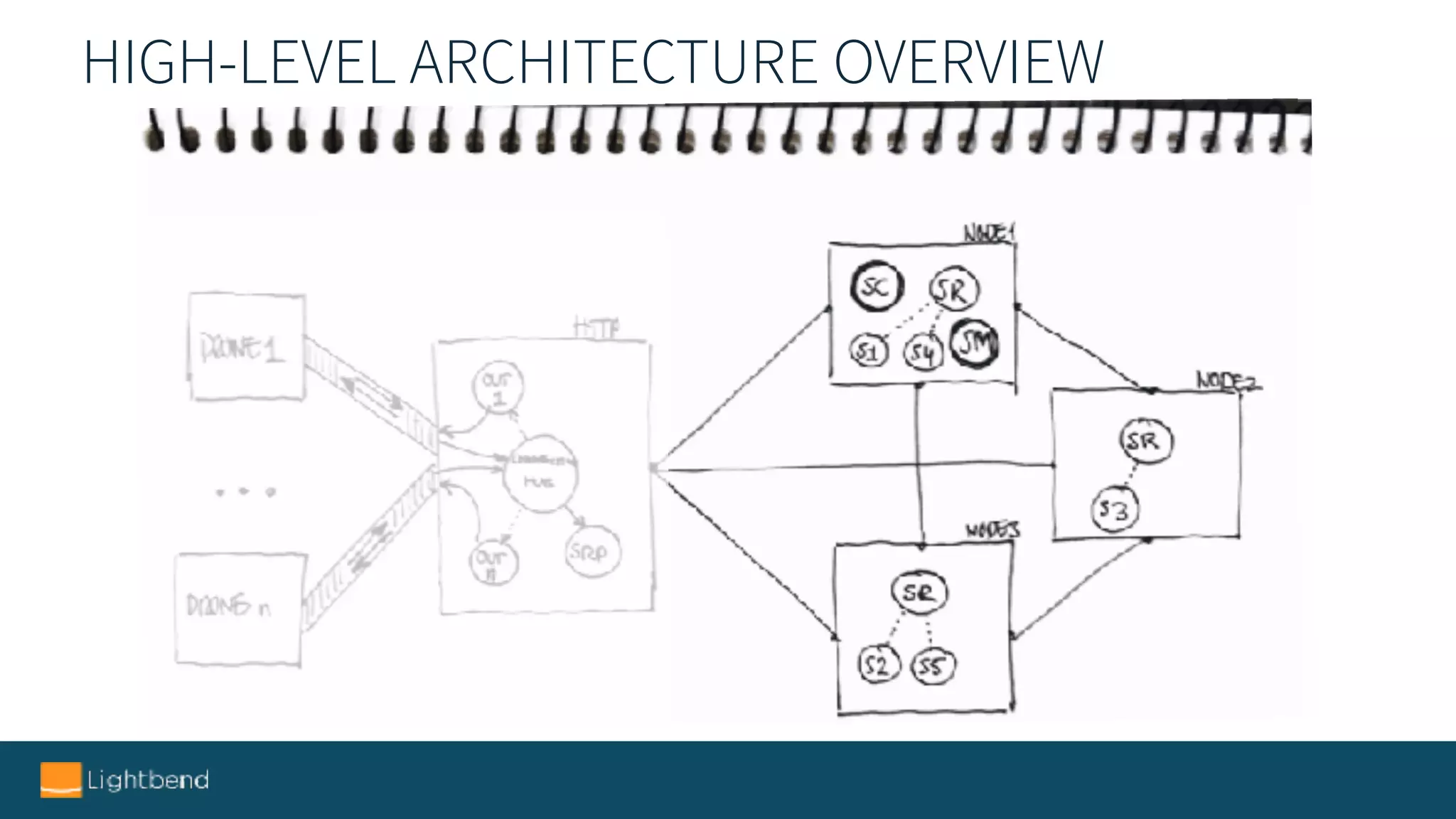

37. HIGH-LEVEL ARCHITECTURE OVERVIEW

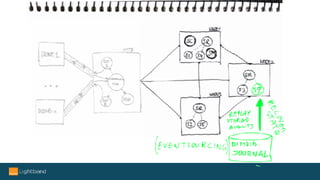

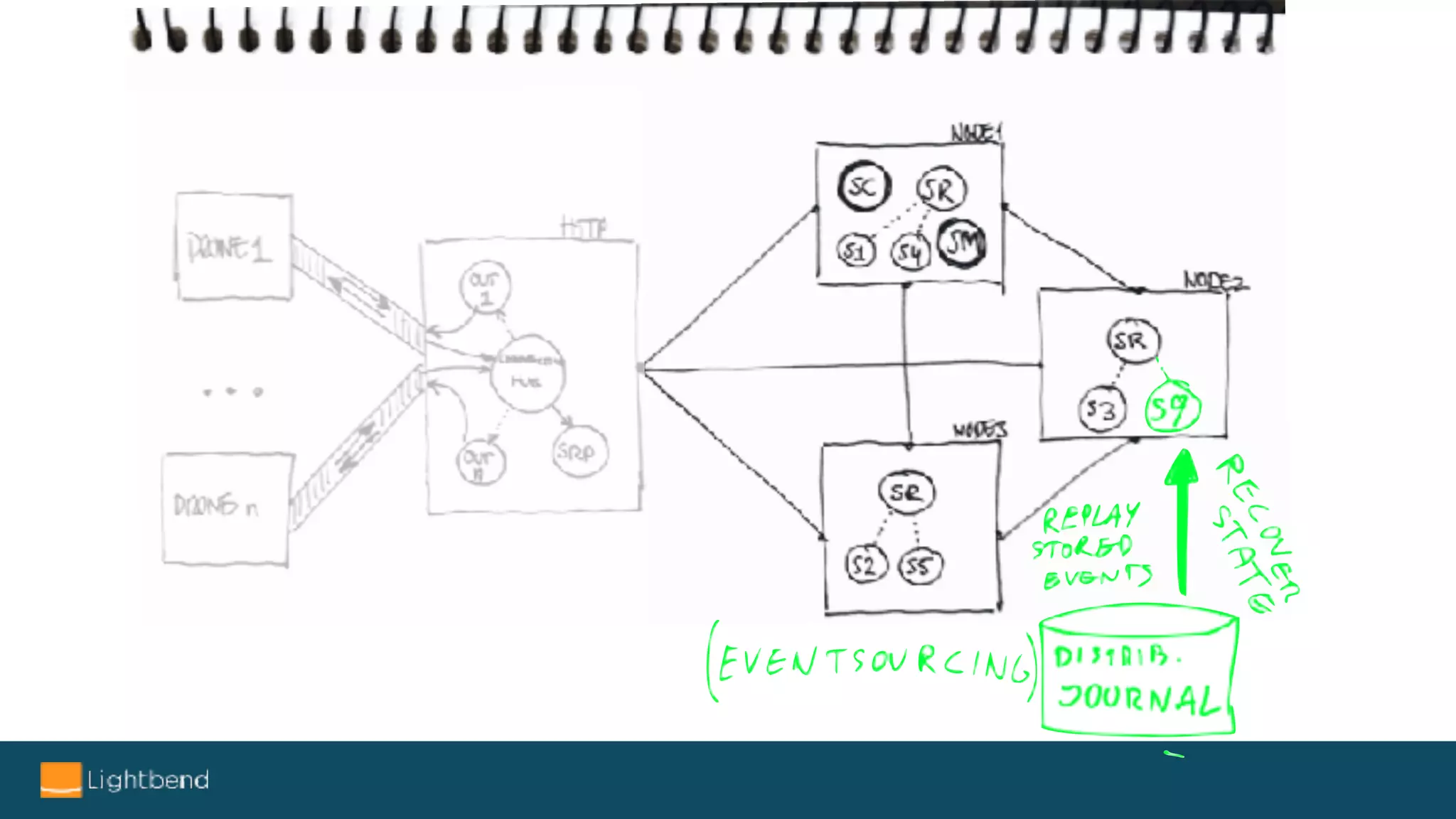

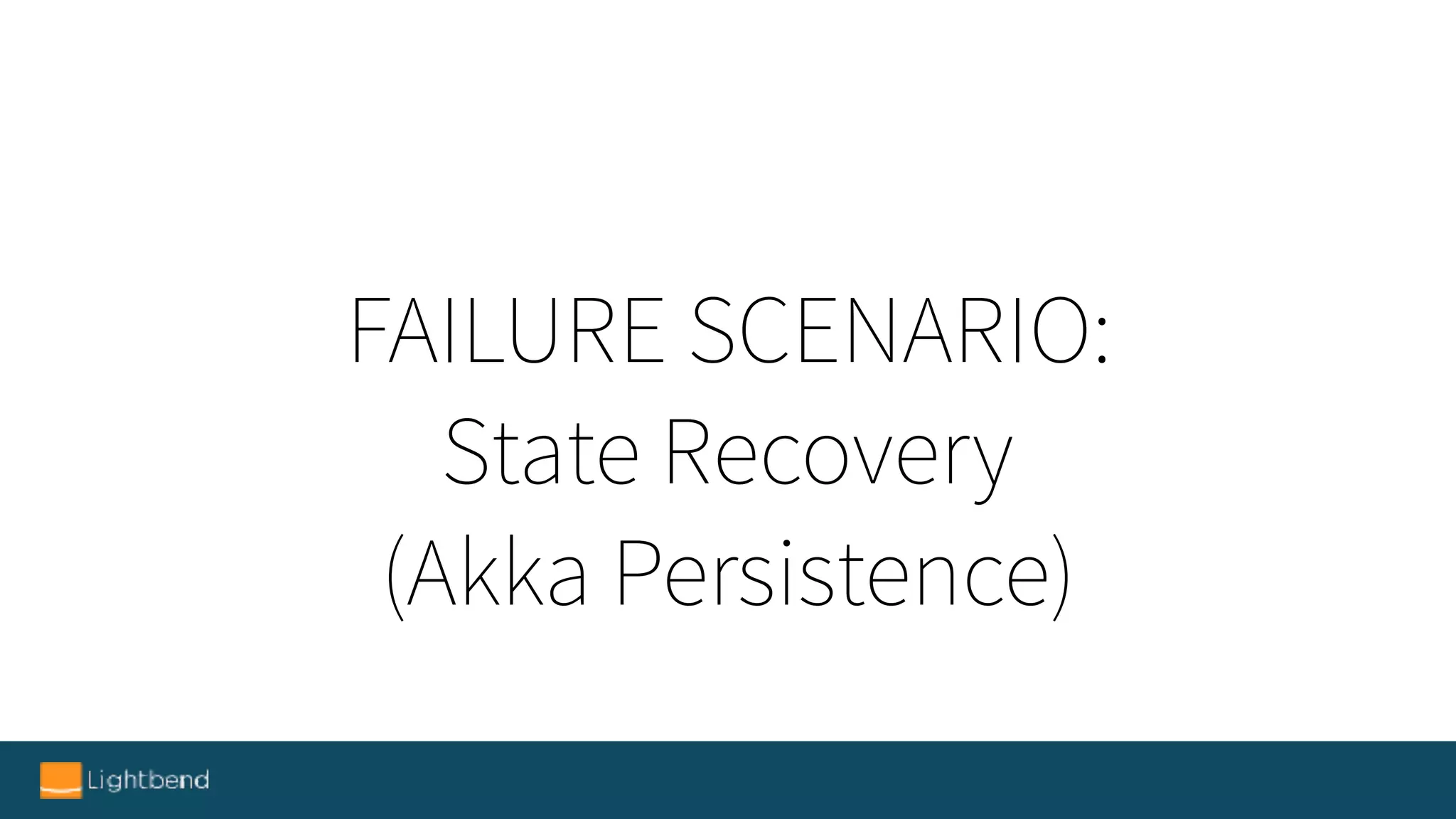

39. FAILURE SCENARIO:
State Recovery
(Akka Persistence)

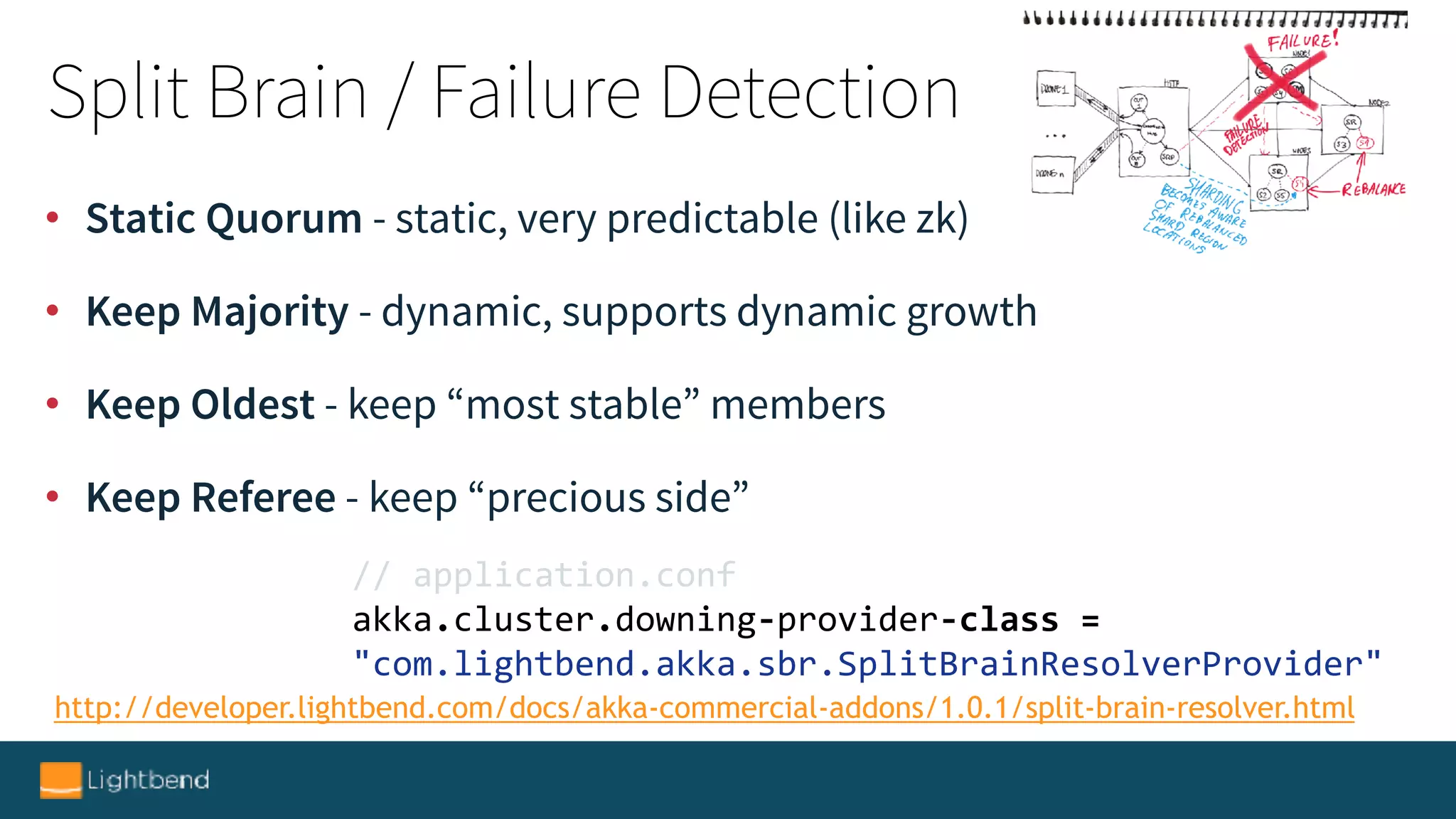

41. http://developer.lightbend.com/docs/akka-commercial-addons/1.0.1/split-brain-resolver.html
// application.conf
akka.cluster.downing-provider-class =
"com.lightbend.akka.sbr.SplitBrainResolverProvider"
• Static Quorum - static, very predictable (like zk)
• Keep Majority - dynamic, supports dynamic growth
• Keep Oldest - keep “most stable” members
• Keep Referee - keep “precious side”
Split Brain / Failure Detection

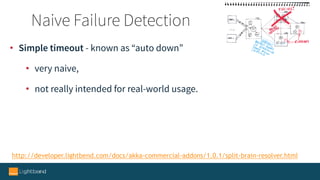

42. http://developer.lightbend.com/docs/akka-commercial-addons/1.0.1/split-brain-resolver.html
• Simple timeout - known as “auto down”
• very naive,
• not really intended for real-world usage.
Naive Failure Detection

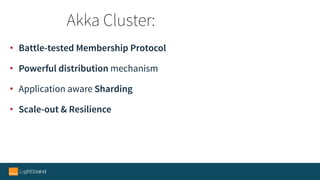

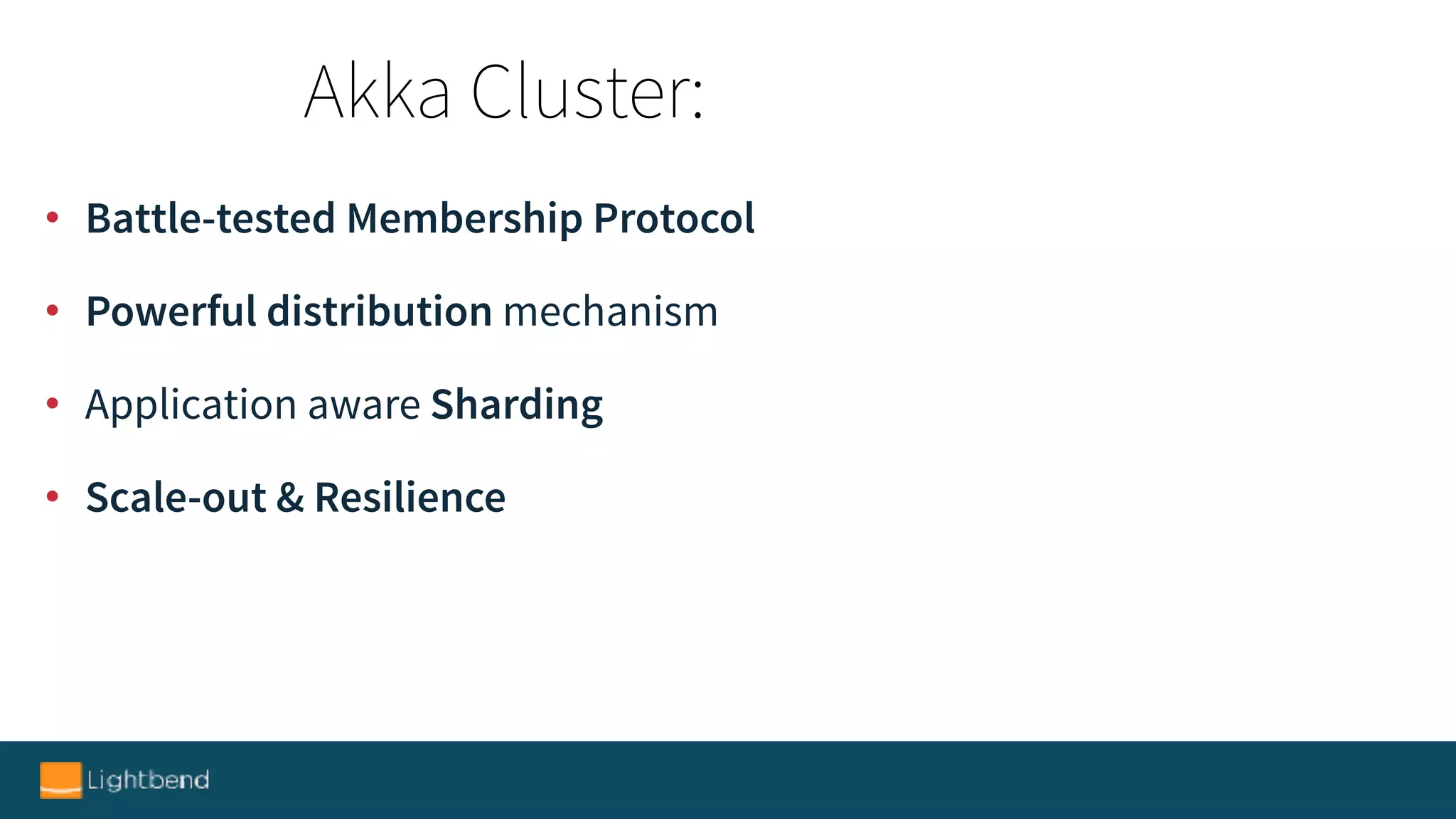

43. • Battle-tested Membership Protocol
• Powerful distribution mechanism
• Application aware Sharding
• Scale-out & Resilience
Akka Cluster:

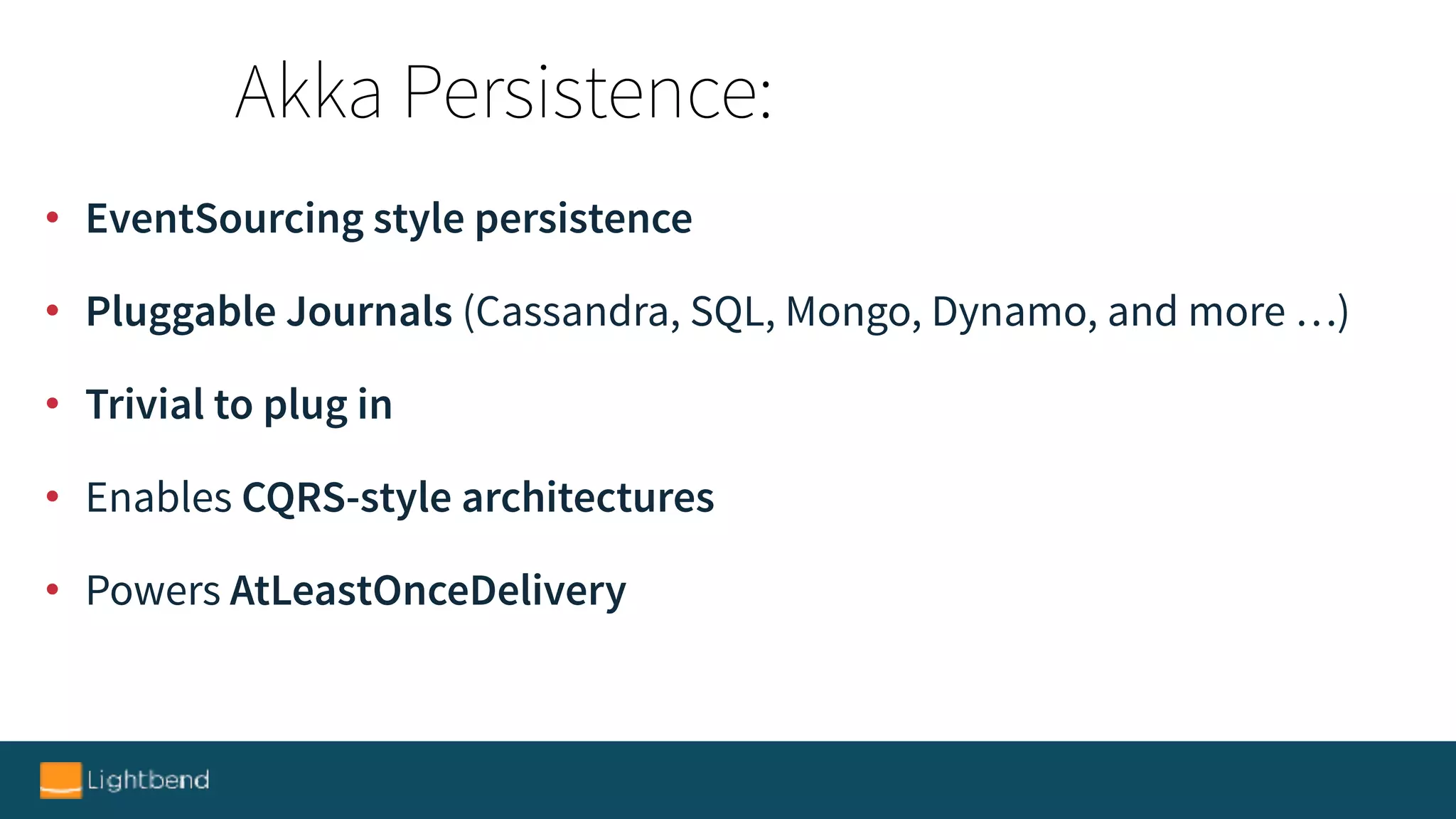

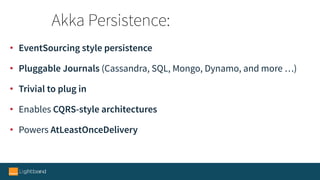

44. • EventSourcing style persistence
• Pluggable Journals (Cassandra, SQL, Mongo, Dynamo, and more …)
• Trivial to plug in
• Enables CQRS-style architectures
• Powers AtLeastOnceDelivery
Akka Persistence:

45. AKKA STREAMS

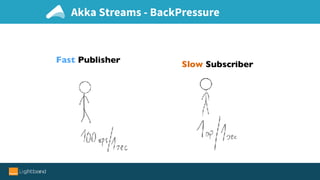

46. Fast Publisher
Slow Subscriber
Akka Streams - BackPressure

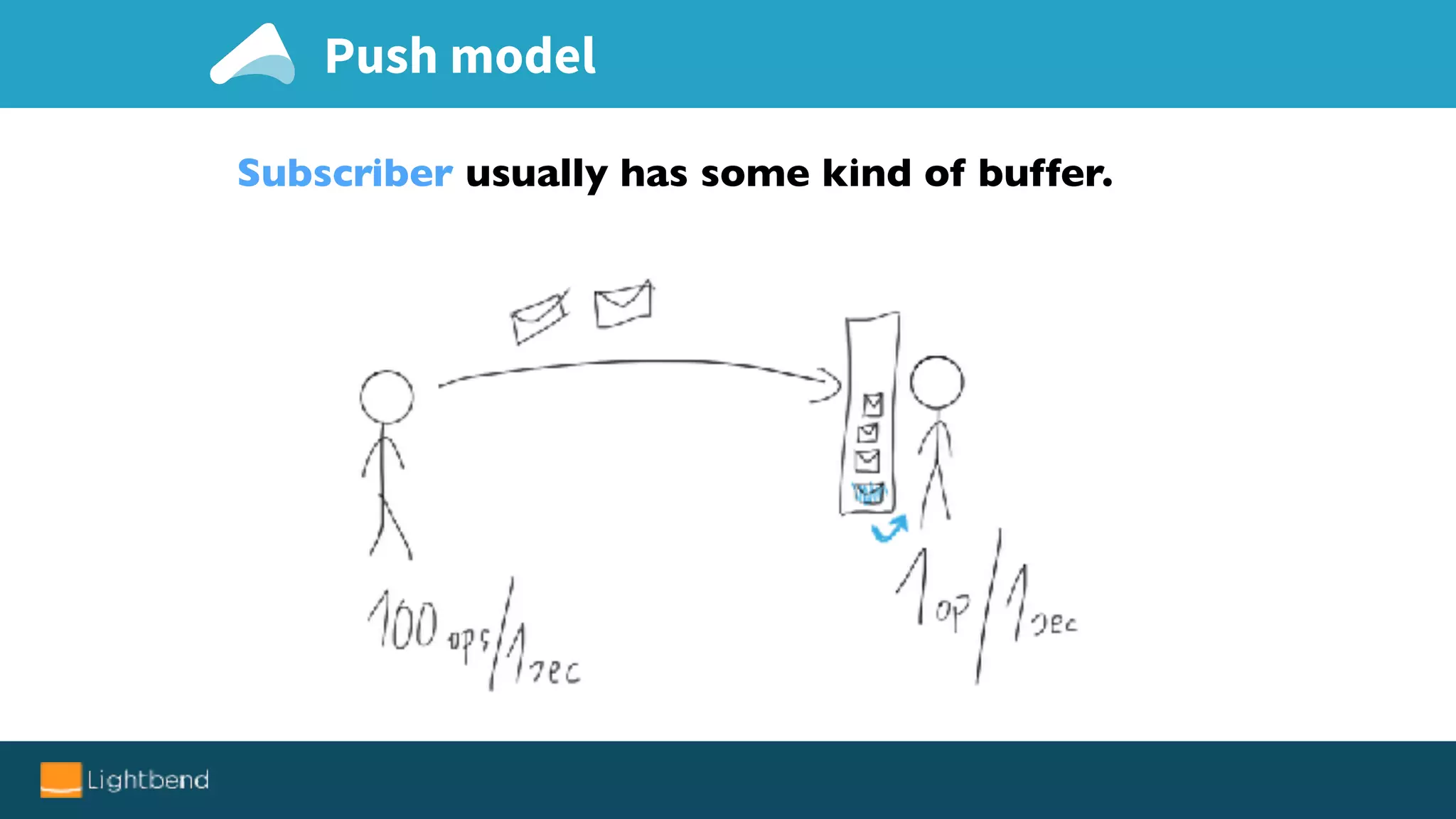

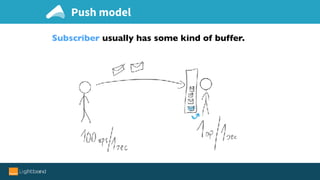

47. Subscriber usually has some kind of buffer.
Push model

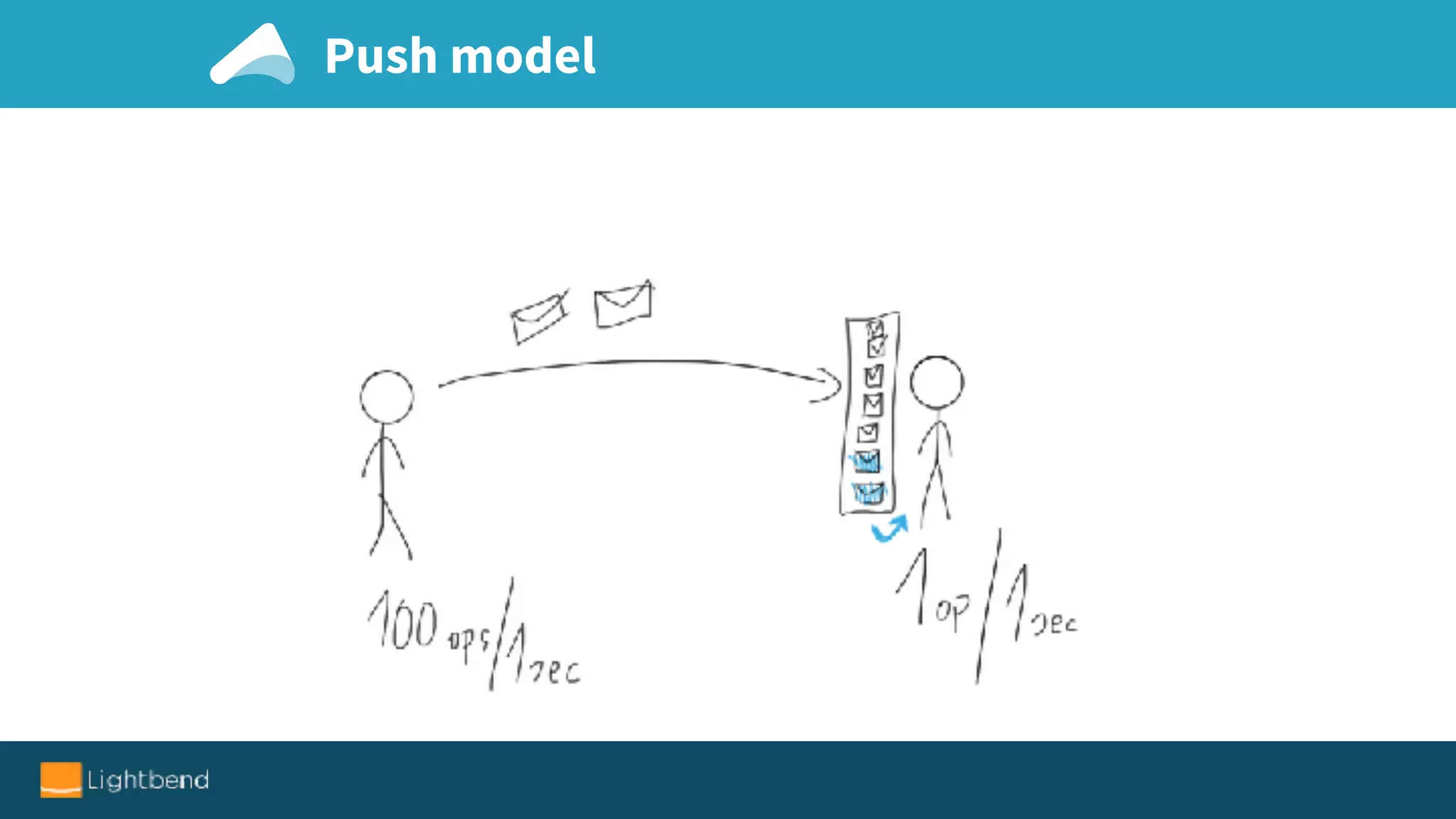

48. Push model

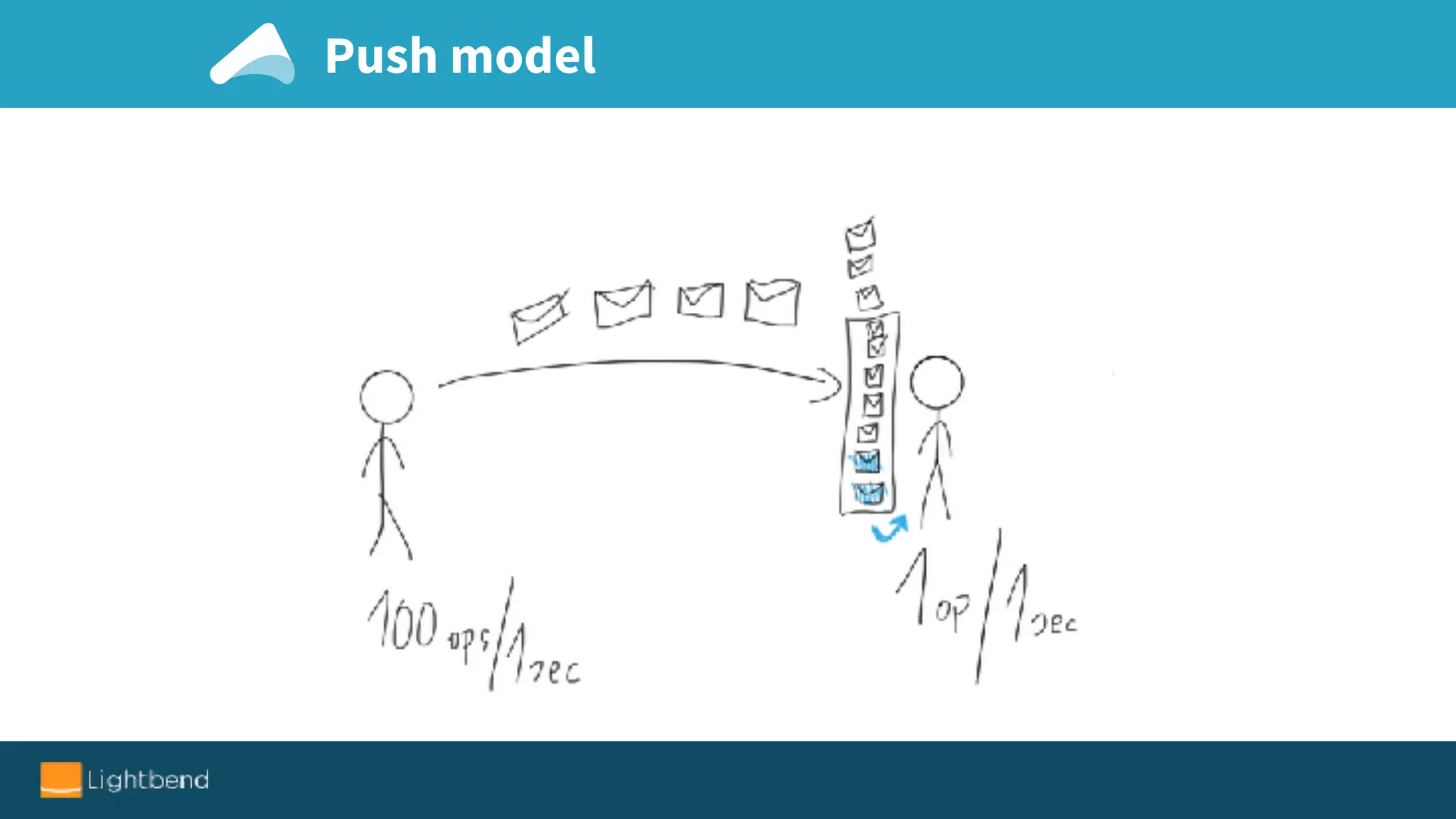

49. Push model

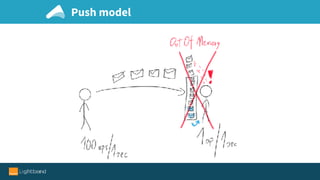

50. Push model

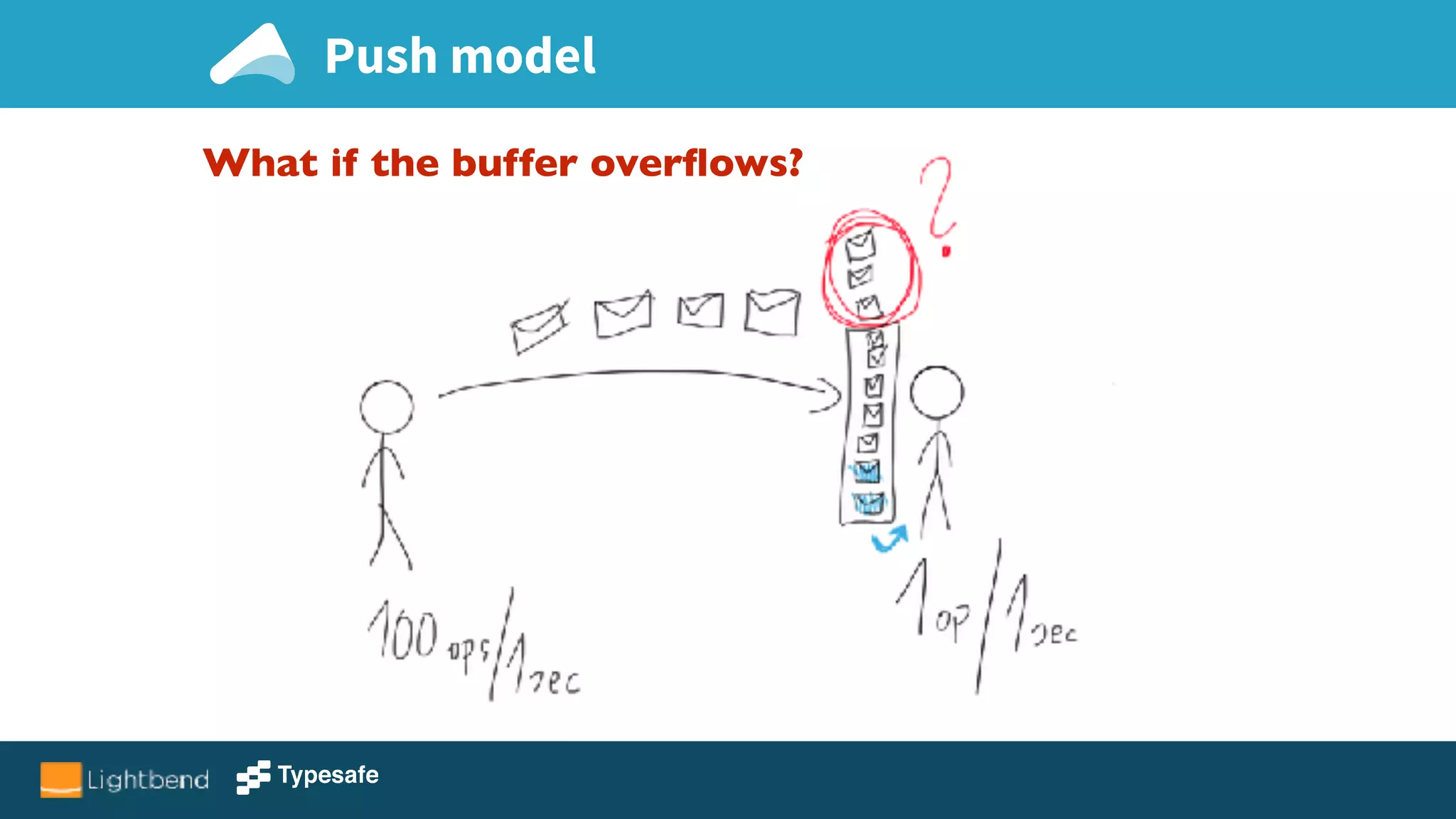

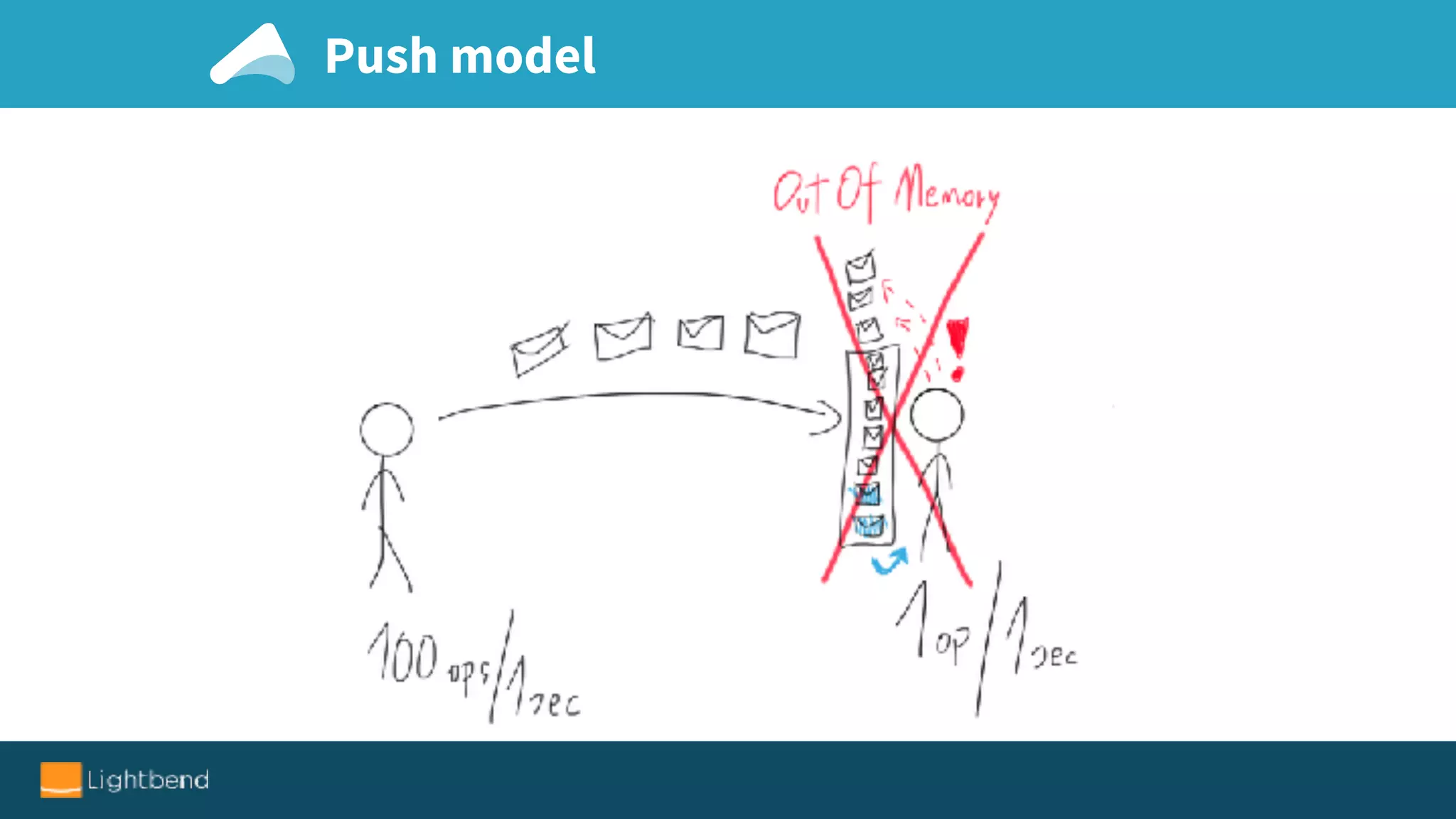

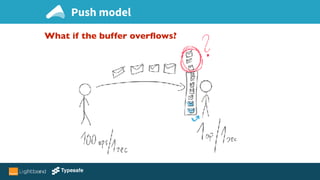

51. What if the buffer overflows?
Push model

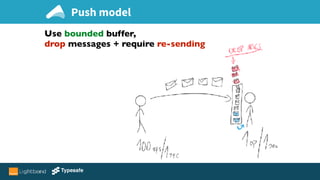

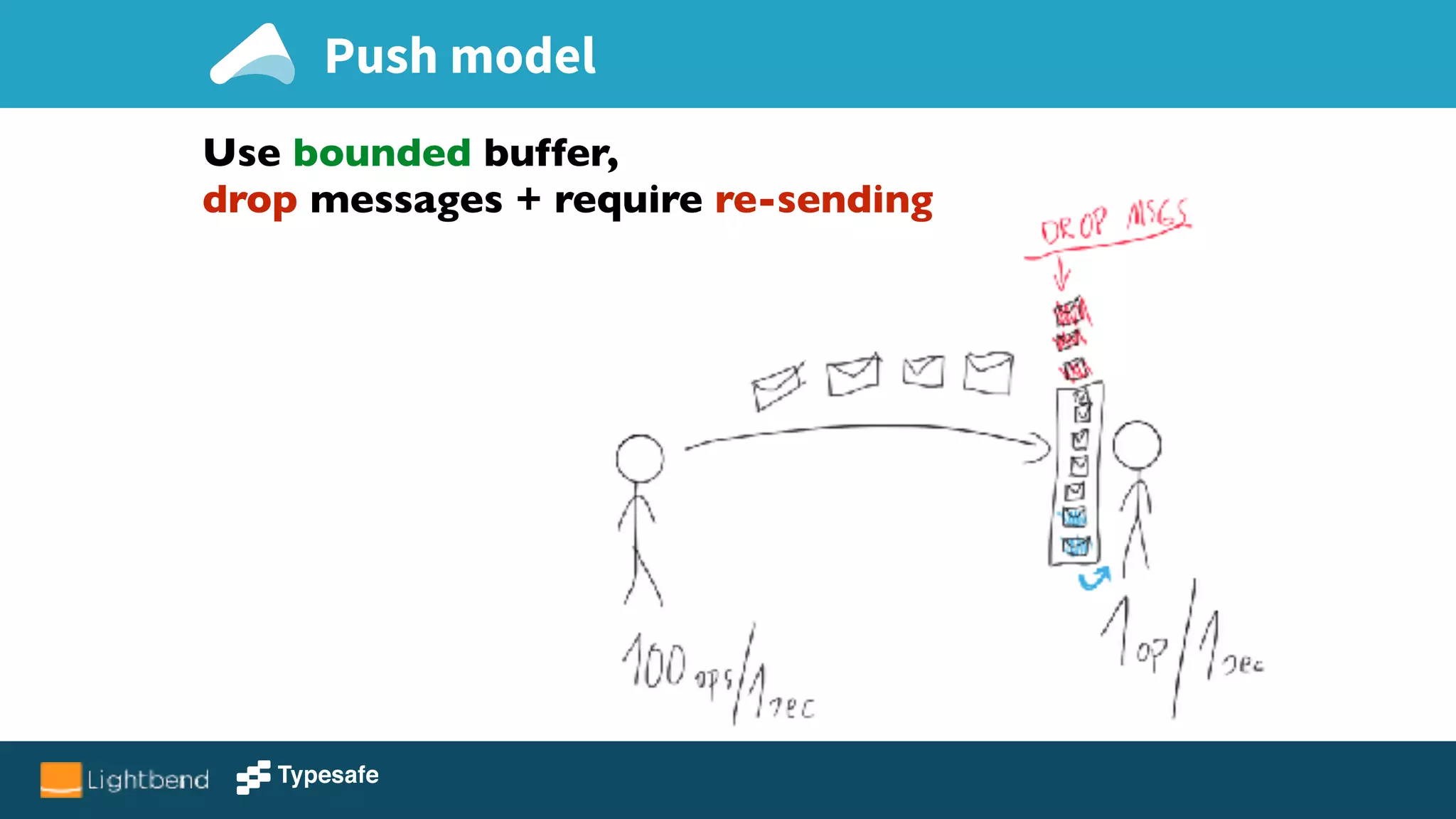

52. Use bounded buffer,
drop messages + require re-sending
Push model

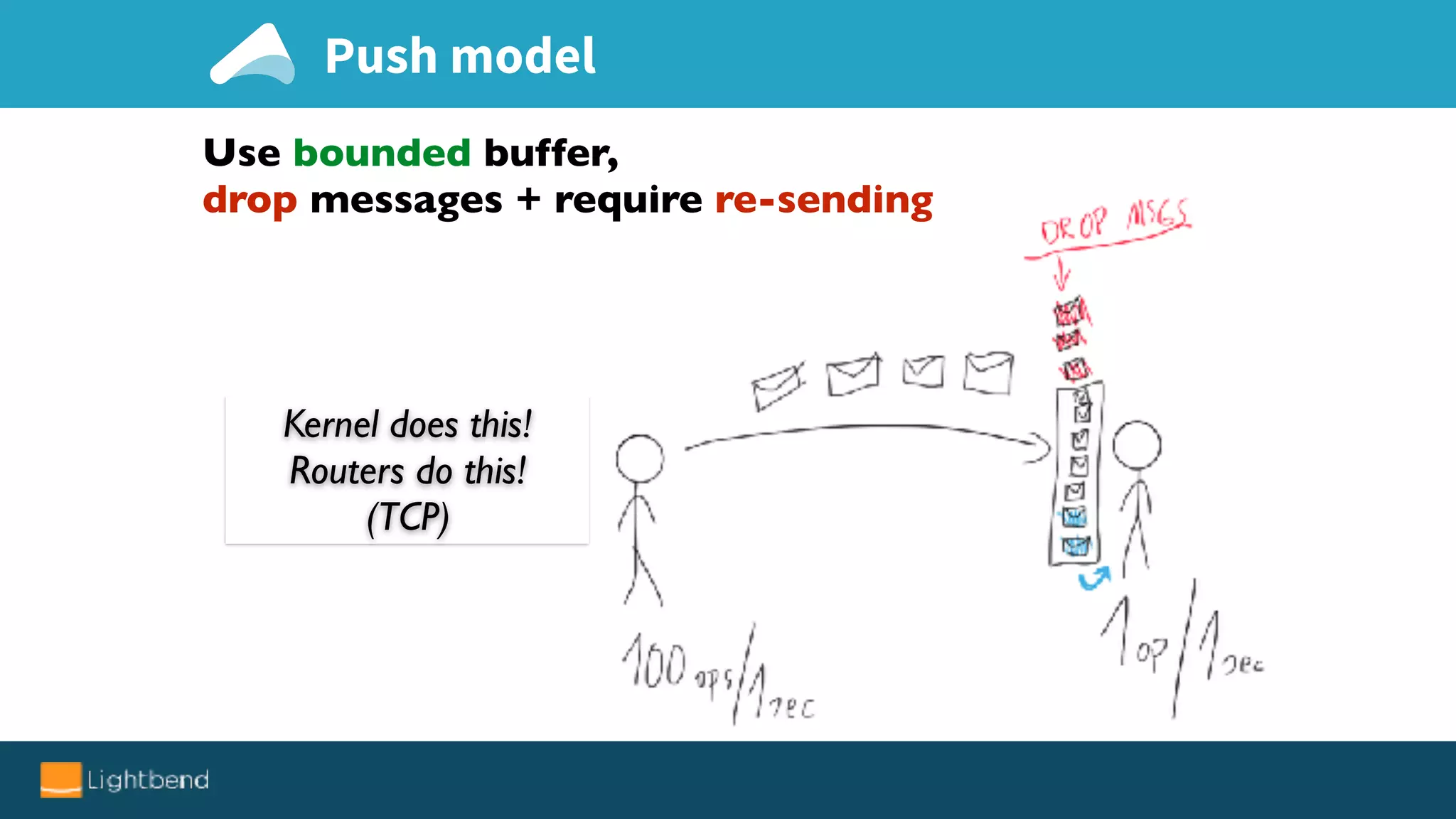

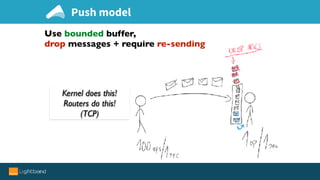

53. Kernel does this!
Routers do this!
(TCP)
Use bounded buffer,
drop messages + require re-sending
Push model

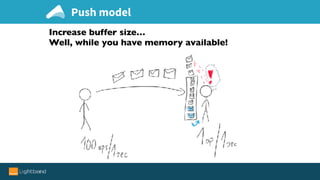

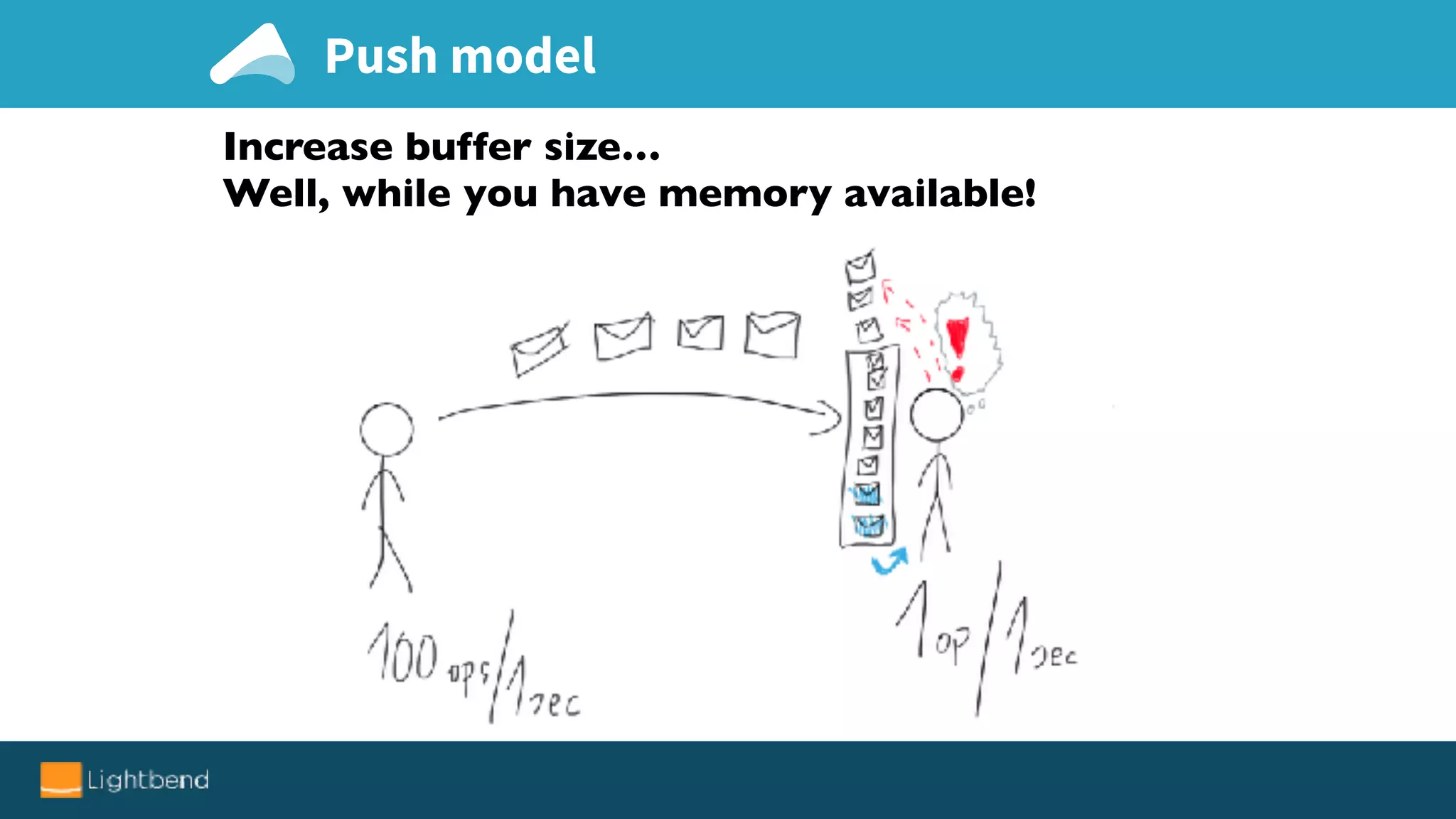

54. Increase buffer size…
Well, while you have memory available!
Push model

55. Reactive Streams explained
Reactive Streams
explained in 1 slide

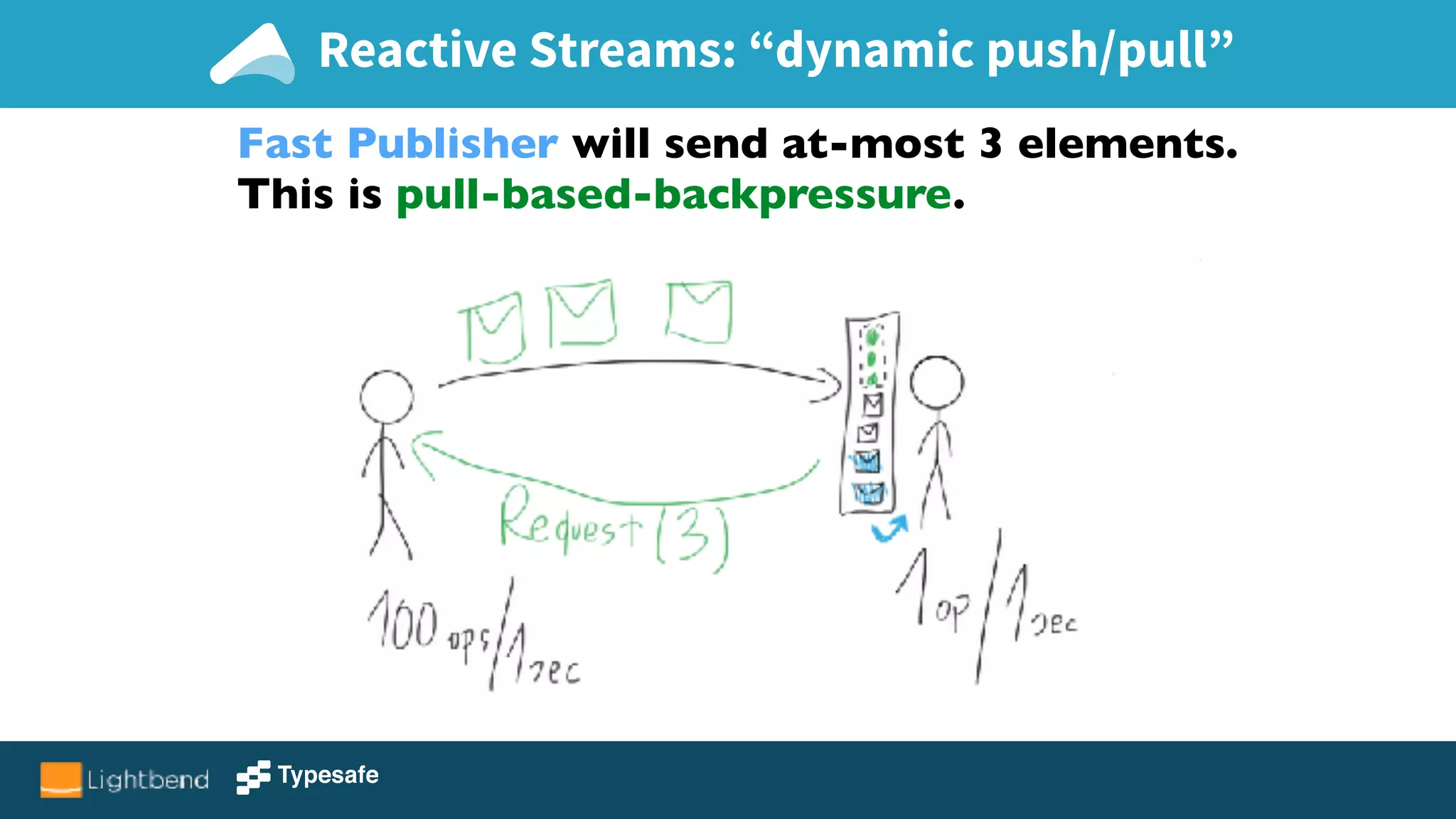

56. Fast Publisher will send at-most 3 elements.
This is pull-based-backpressure.
Reactive Streams: “dynamic push/pull”

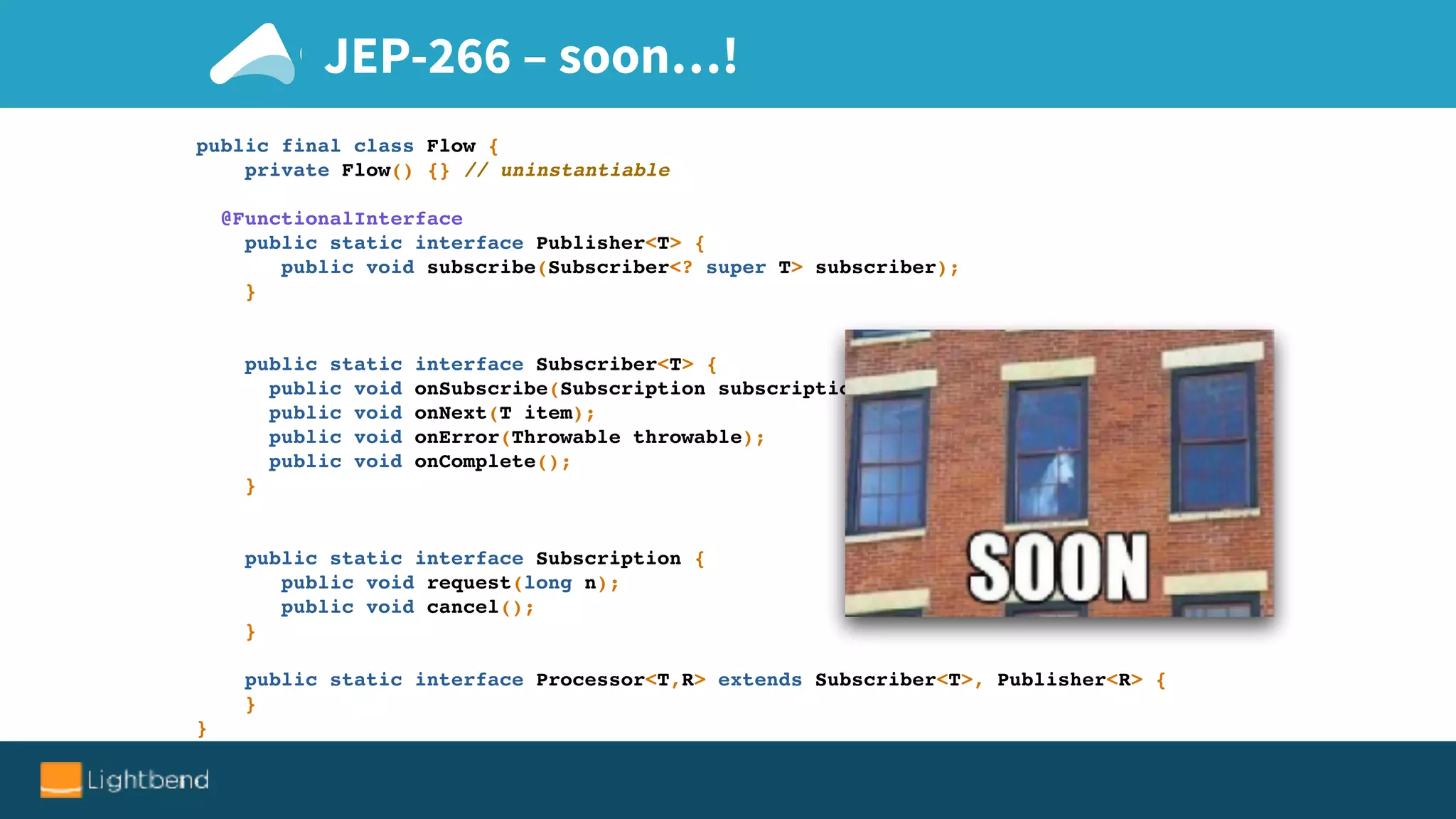

57. JEP-266 – soon…!
public final class Flow {
private Flow() {} // uninstantiable
@FunctionalInterface
public static interface Publisher<T> {
public void subscribe(Subscriber<? super T> subscriber);
}
public static interface Subscriber<T> {
public void onSubscribe(Subscription subscription);
public void onNext(T item);
public void onError(Throwable throwable);
public void onComplete();
}
public static interface Subscription {
public void request(long n);
public void cancel();
}
public static interface Processor<T,R> extends Subscriber<T>, Publisher<R> {
}
}

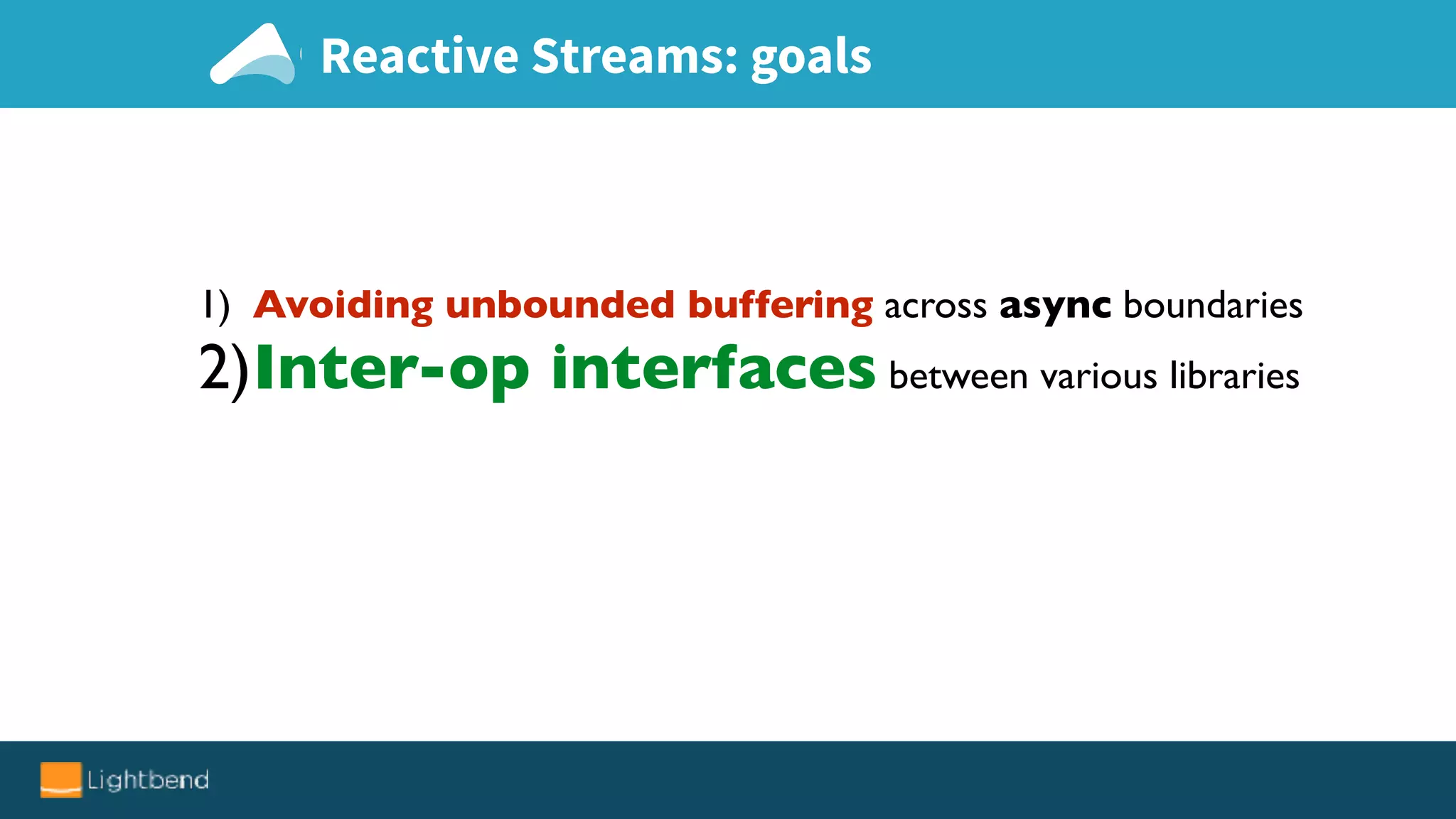

58. Reactive Streams: goals
1) Avoiding unbounded buffering across async boundaries
2)Inter-op interfaces between various libraries

59. Reactive Streams: goals
1) Avoiding unbounded buffering across async boundaries
2)Inter-op interfaces between various libraries
Argh, implementing a correct
RS Publisher or Subscriber is so hard!

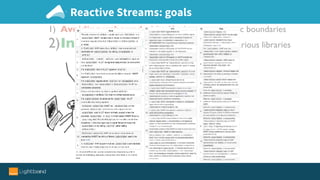

60. 1) Avoiding unbounded buffering across async boundaries
2)Inter-op interfaces between various libraries
Reactive Streams: goals
Argh, implementing a correct RS Publisher
or Subscriber is so hard!

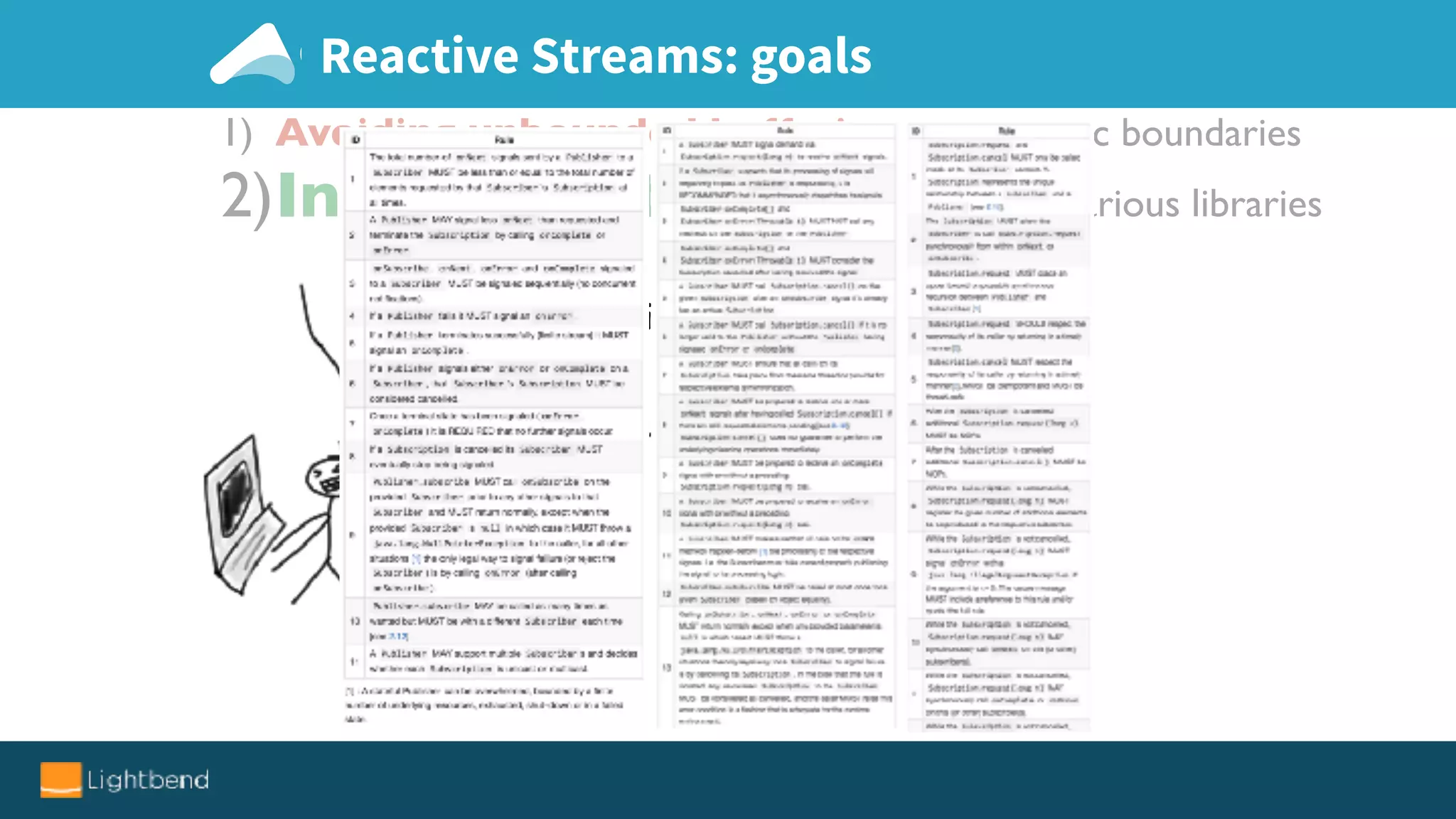

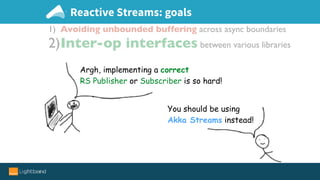

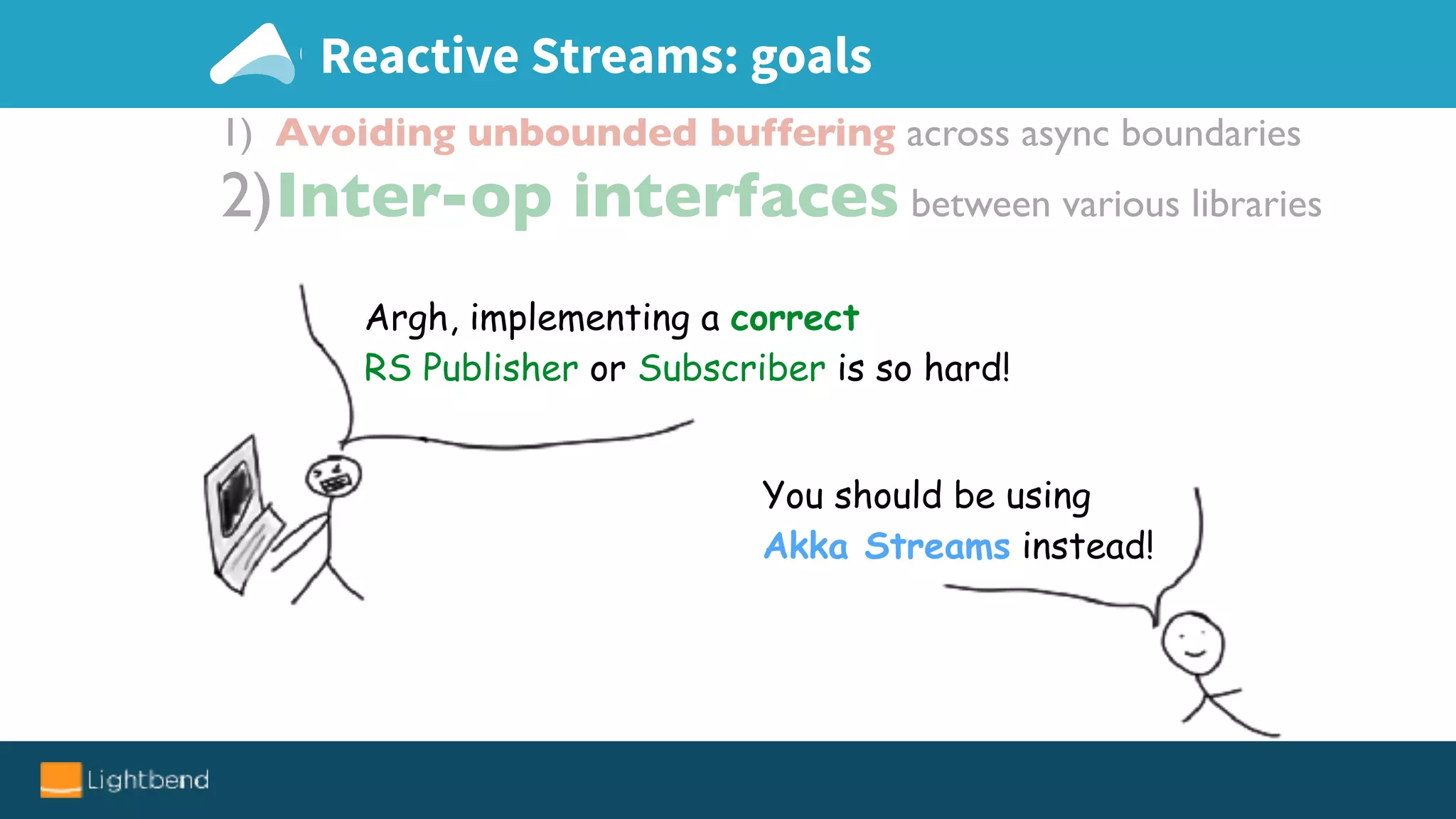

61. Reactive Streams: goals
Argh, implementing a correct
RS Publisher or Subscriber is so hard!
You should be using
Akka Streams instead!
1) Avoiding unbounded buffering across async boundaries
2)Inter-op interfaces between various libraries

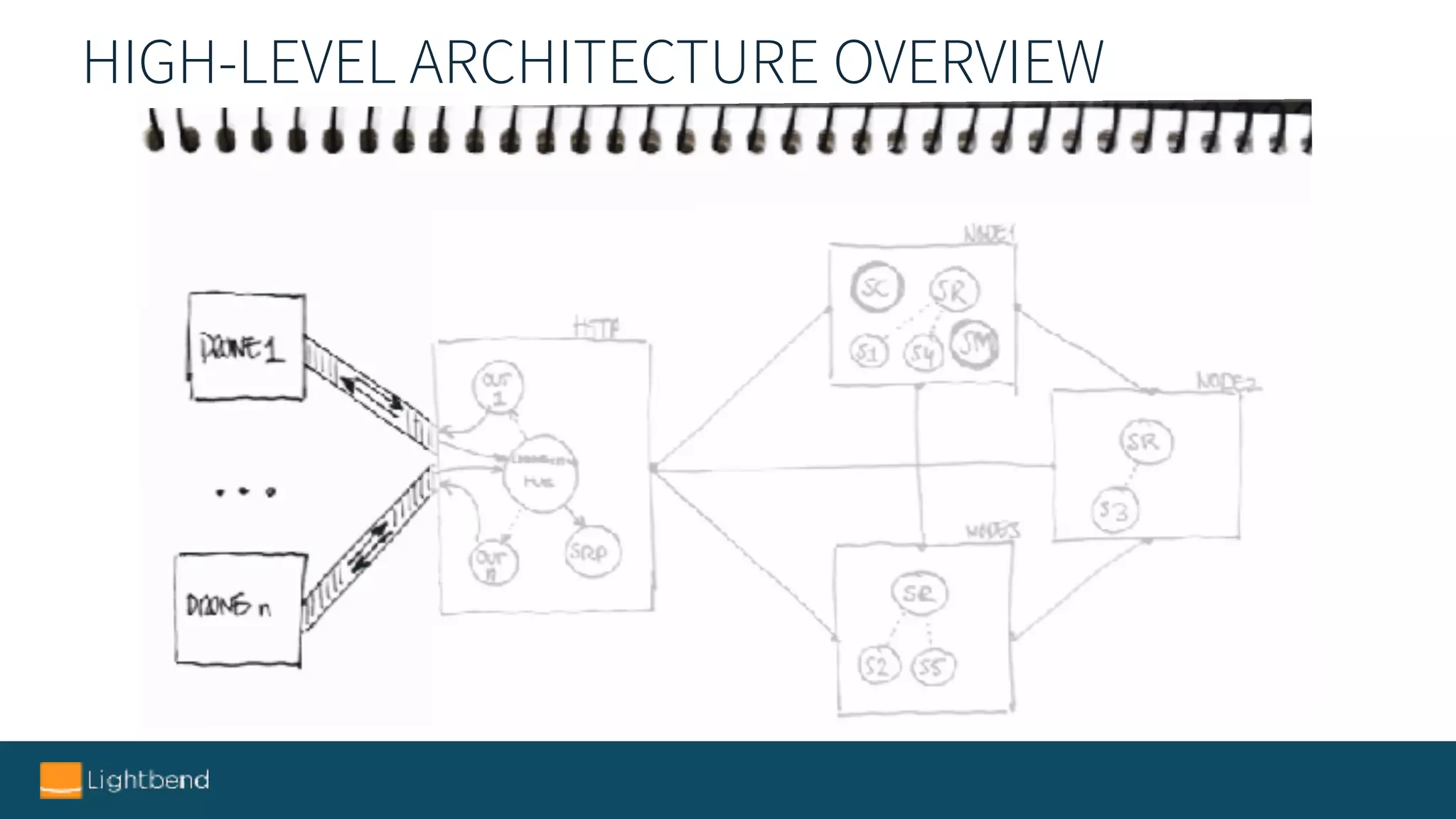

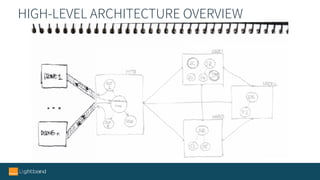

62. HIGH-LEVEL ARCHITECTURE OVERVIEW

63. LET’S CODE!

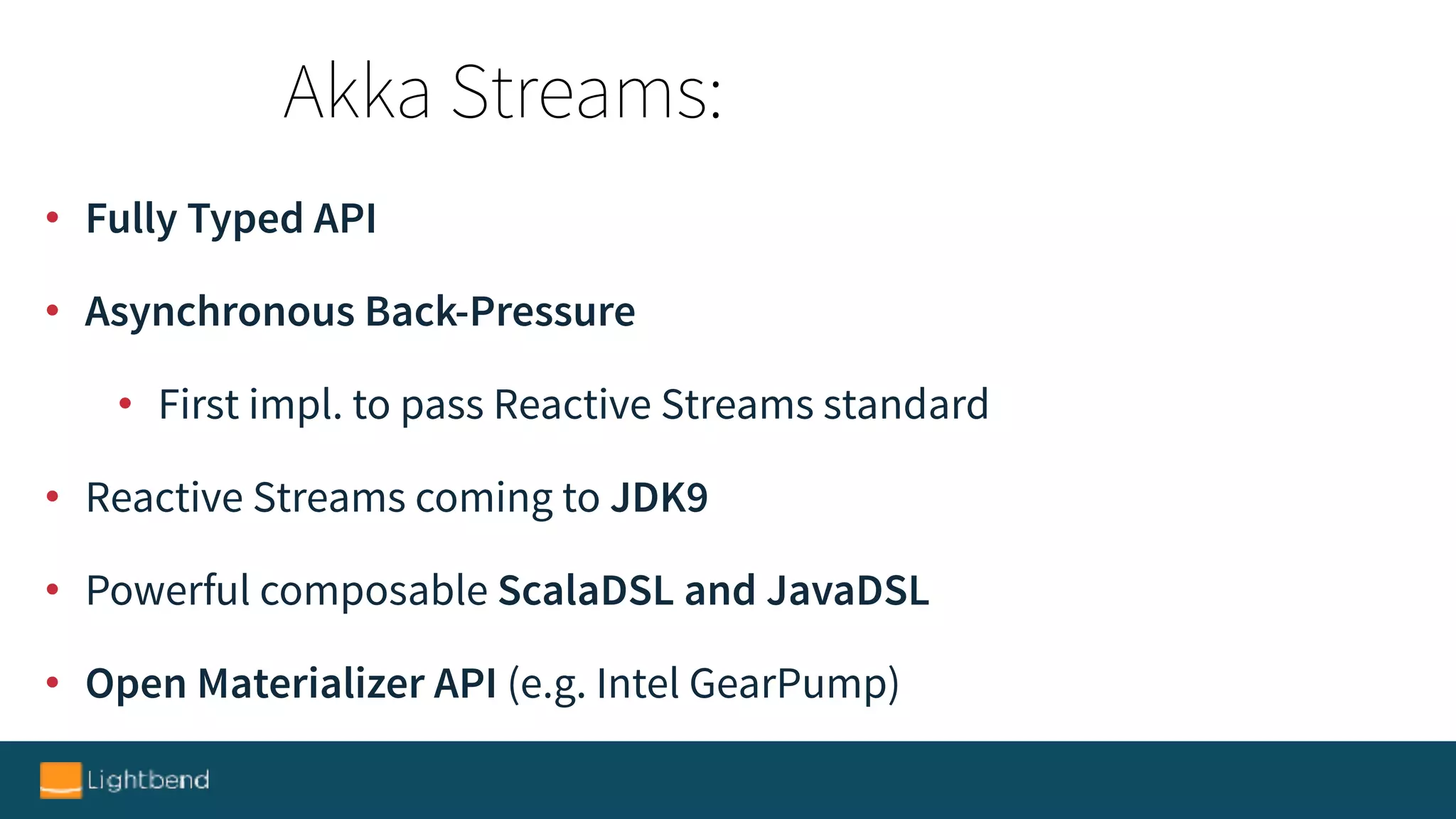

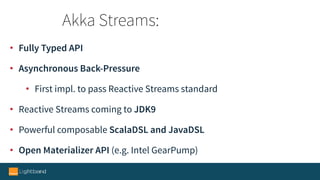

64. • Fully Typed API
• Asynchronous Back-Pressure
• First impl. to pass Reactive Streams standard
• Reactive Streams coming to JDK9
• Powerful composable ScalaDSL and JavaDSL
• Open Materializer API (e.g. Intel GearPump)
Akka Streams:

65. AKKA HTTP

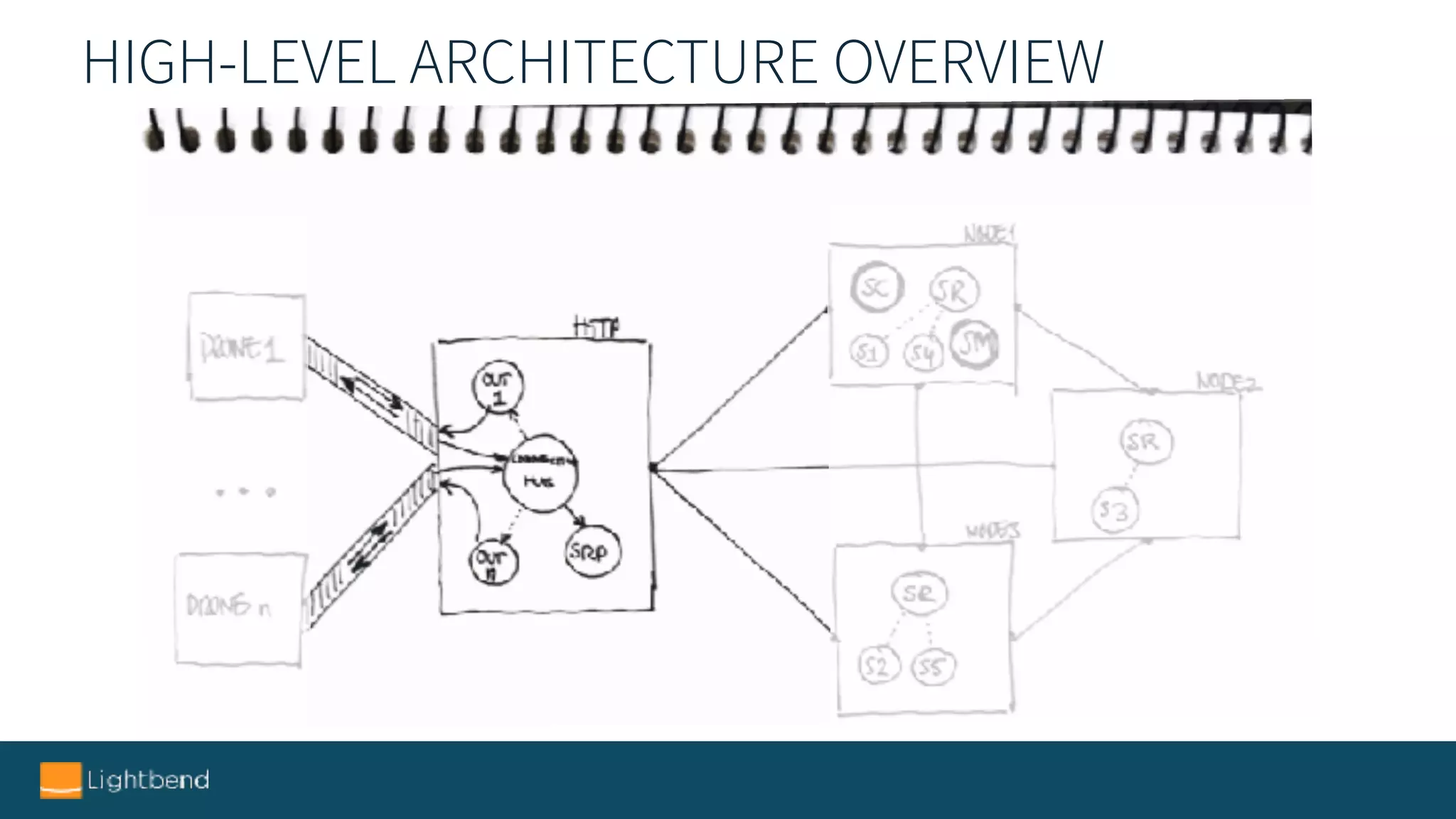

66. HIGH-LEVEL ARCHITECTURE OVERVIEW

67. A core feature not obvious to the untrained eye…!
Quiz time!
TCP is a ______ protocol?
Akka HTTP

68. A core feature not obvious to the untrained eye…!
Quiz time!
TCP is a STREAMING protocol!
Akka HTTP

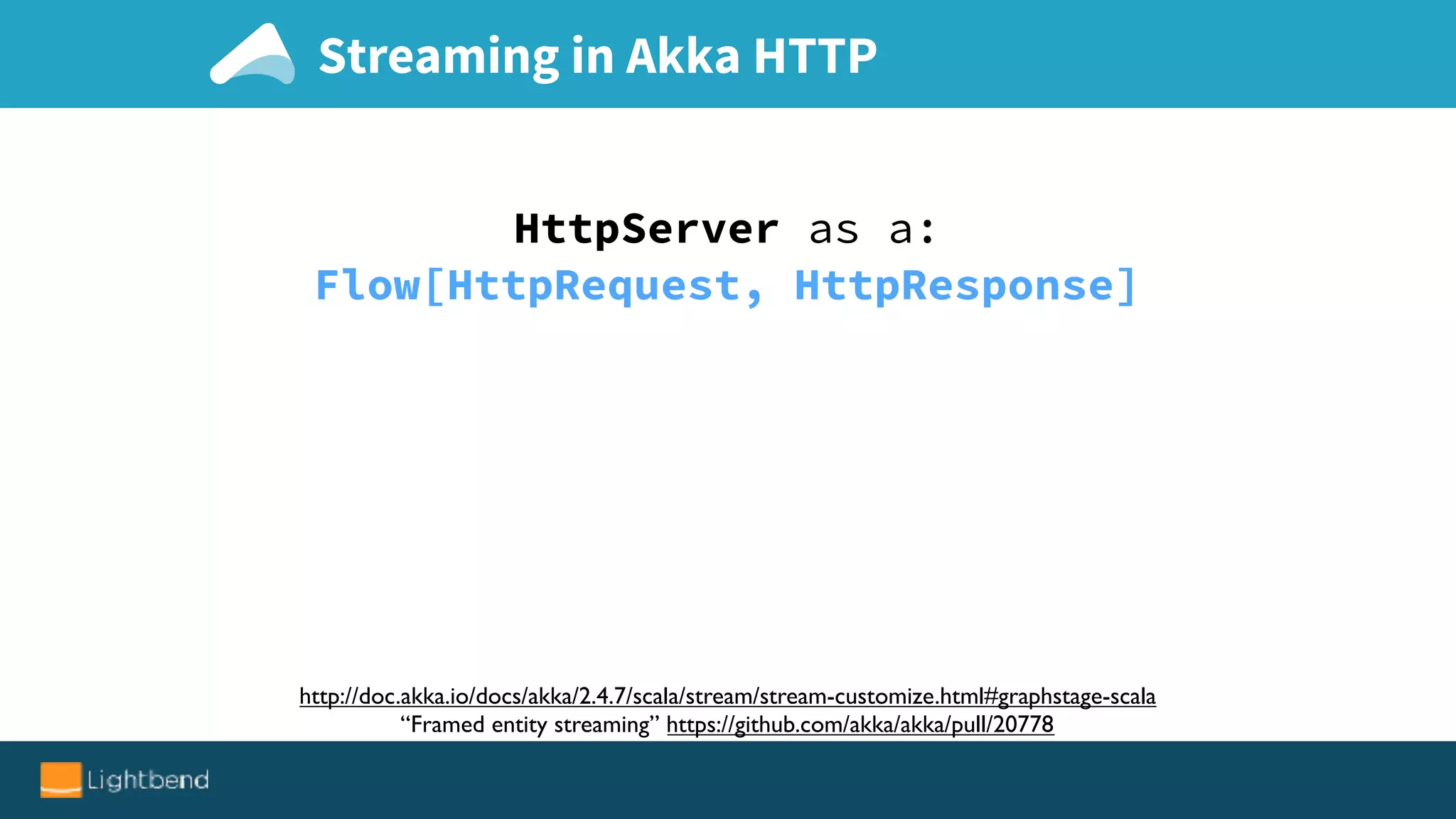

69. Streaming in Akka HTTP
http://doc.akka.io/docs/akka/2.4.7/scala/stream/stream-customize.html#graphstage-scala
“Framed entity streaming” https://github.com/akka/akka/pull/20778
HttpServer as a:
Flow[HttpRequest, HttpResponse]

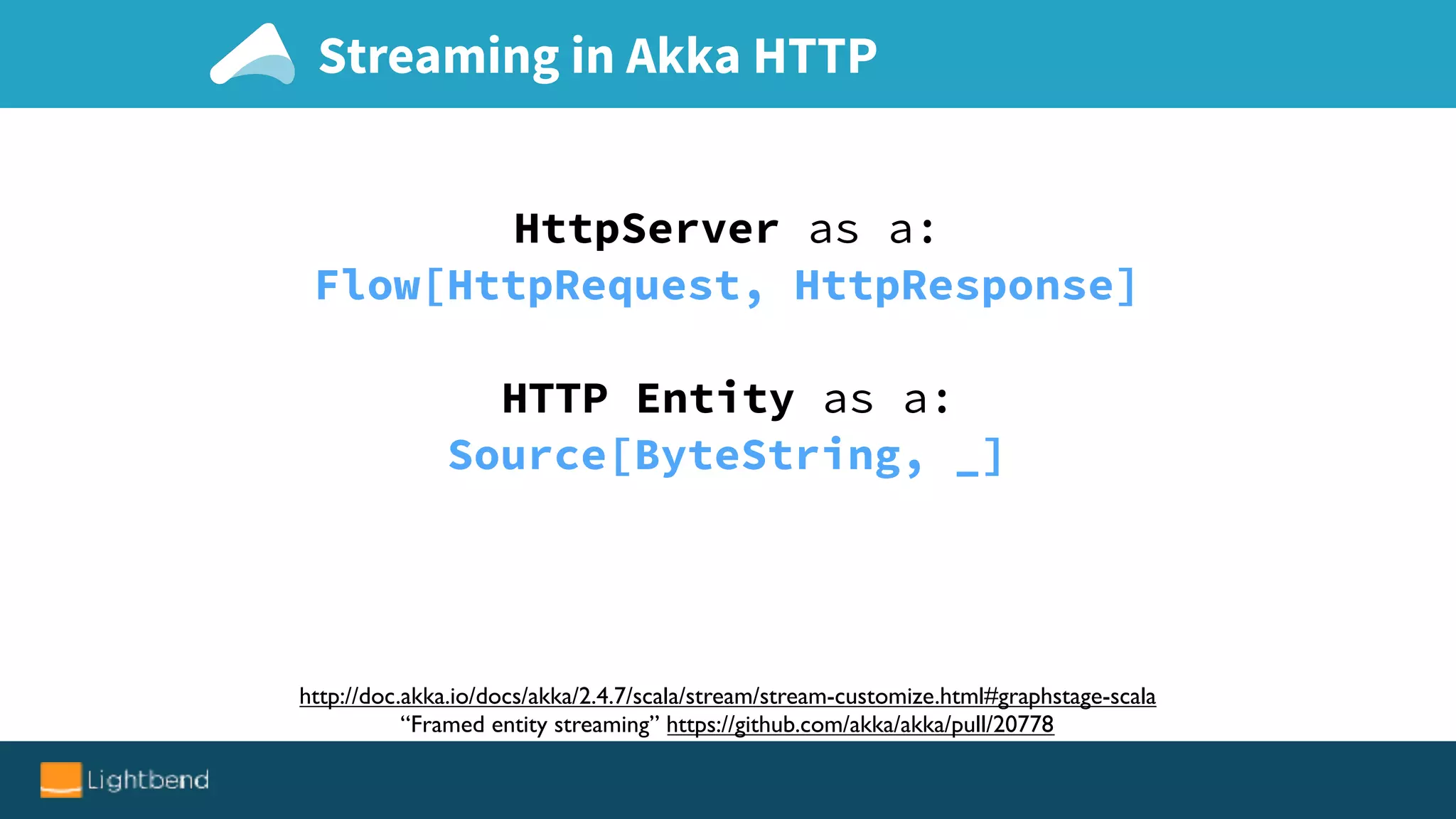

70. Streaming in Akka HTTP
http://doc.akka.io/docs/akka/2.4.7/scala/stream/stream-customize.html#graphstage-scala
“Framed entity streaming” https://github.com/akka/akka/pull/20778
HttpServer as a:
Flow[HttpRequest, HttpResponse]
HTTP Entity as a:
Source[ByteString, _]

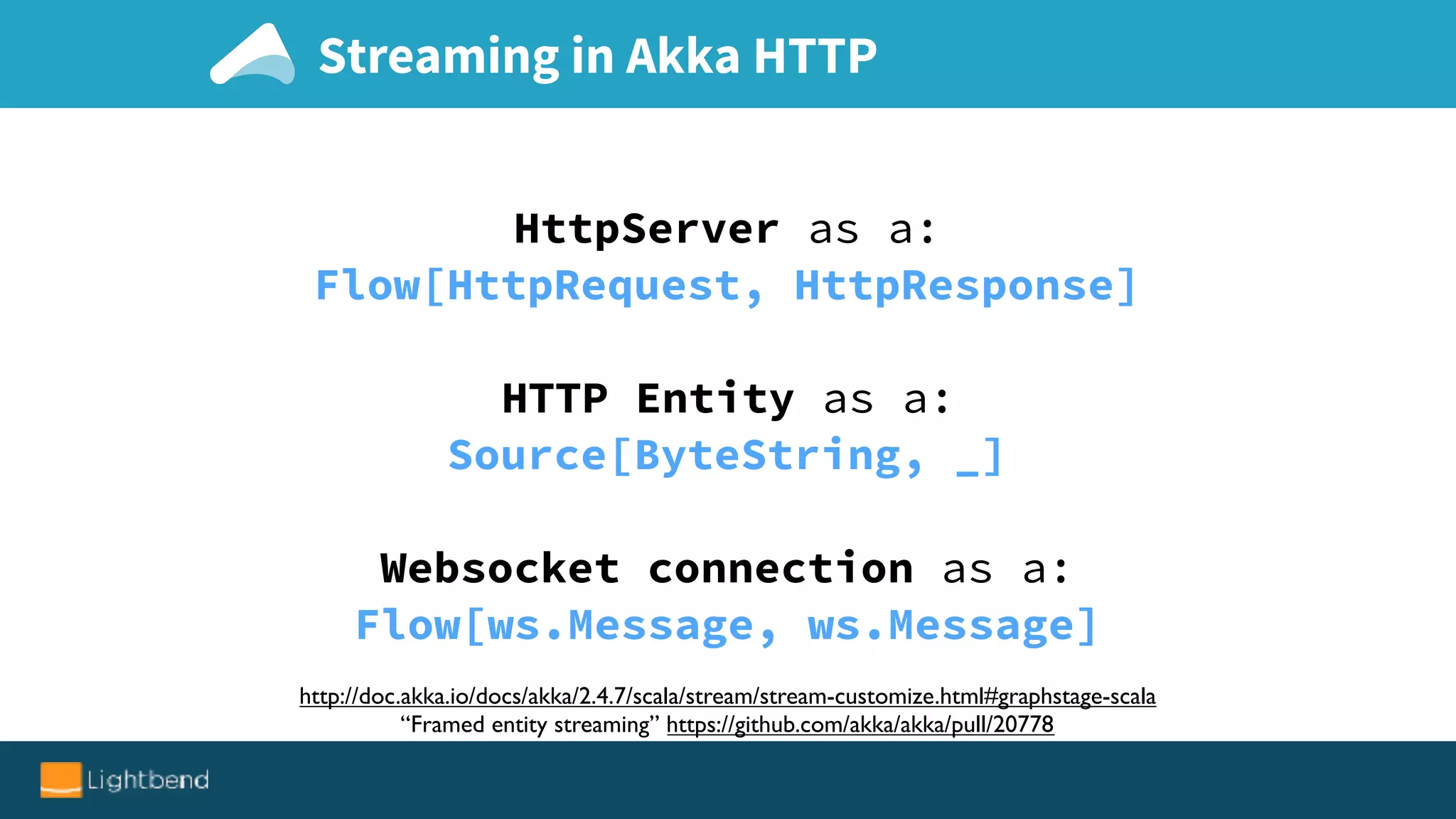

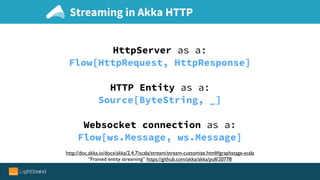

71. Streaming in Akka HTTP
http://doc.akka.io/docs/akka/2.4.7/scala/stream/stream-customize.html#graphstage-scala
“Framed entity streaming” https://github.com/akka/akka/pull/20778
HttpServer as a:
Flow[HttpRequest, HttpResponse]
HTTP Entity as a:
Source[ByteString, _]
Websocket connection as a:
Flow[ws.Message, ws.Message]

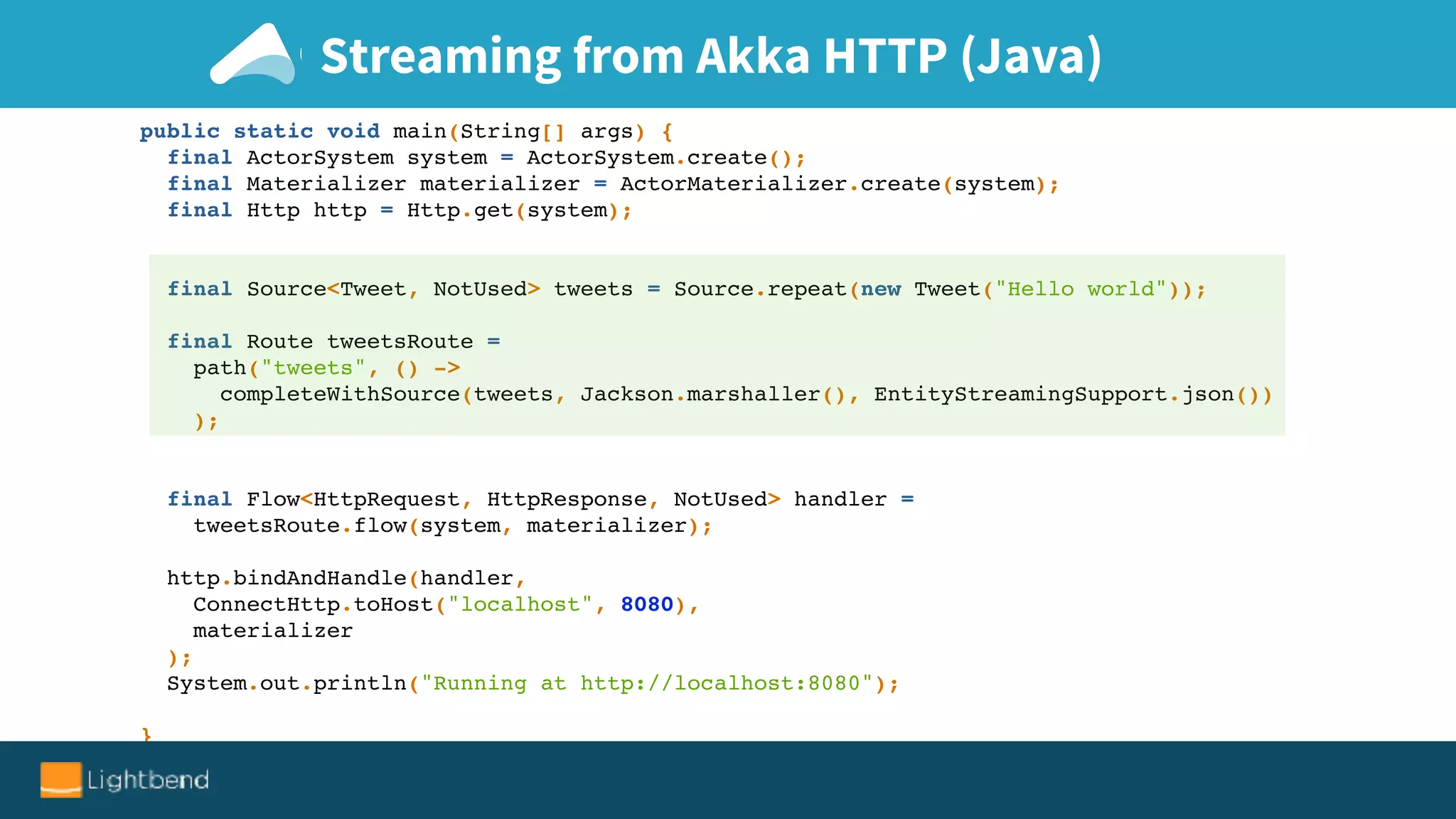

72. Streaming from Akka HTTP (Java)
public static void main(String[] args) {
final ActorSystem system = ActorSystem.create();
final Materializer materializer = ActorMaterializer.create(system);
final Http http = Http.get(system);
final Source<Tweet, NotUsed> tweets = Source.repeat(new Tweet("Hello world"));
final Route tweetsRoute =
path("tweets", () ->
completeWithSource(tweets, Jackson.marshaller(), EntityStreamingSupport.json())
);
final Flow<HttpRequest, HttpResponse, NotUsed> handler =
tweetsRoute.flow(system, materializer);
http.bindAndHandle(handler,
ConnectHttp.toHost("localhost", 8080),
materializer
);
System.out.println("Running at http://localhost:8080");
}

73. LET’S CODE!

74. It’s turtles buffers all the way down!

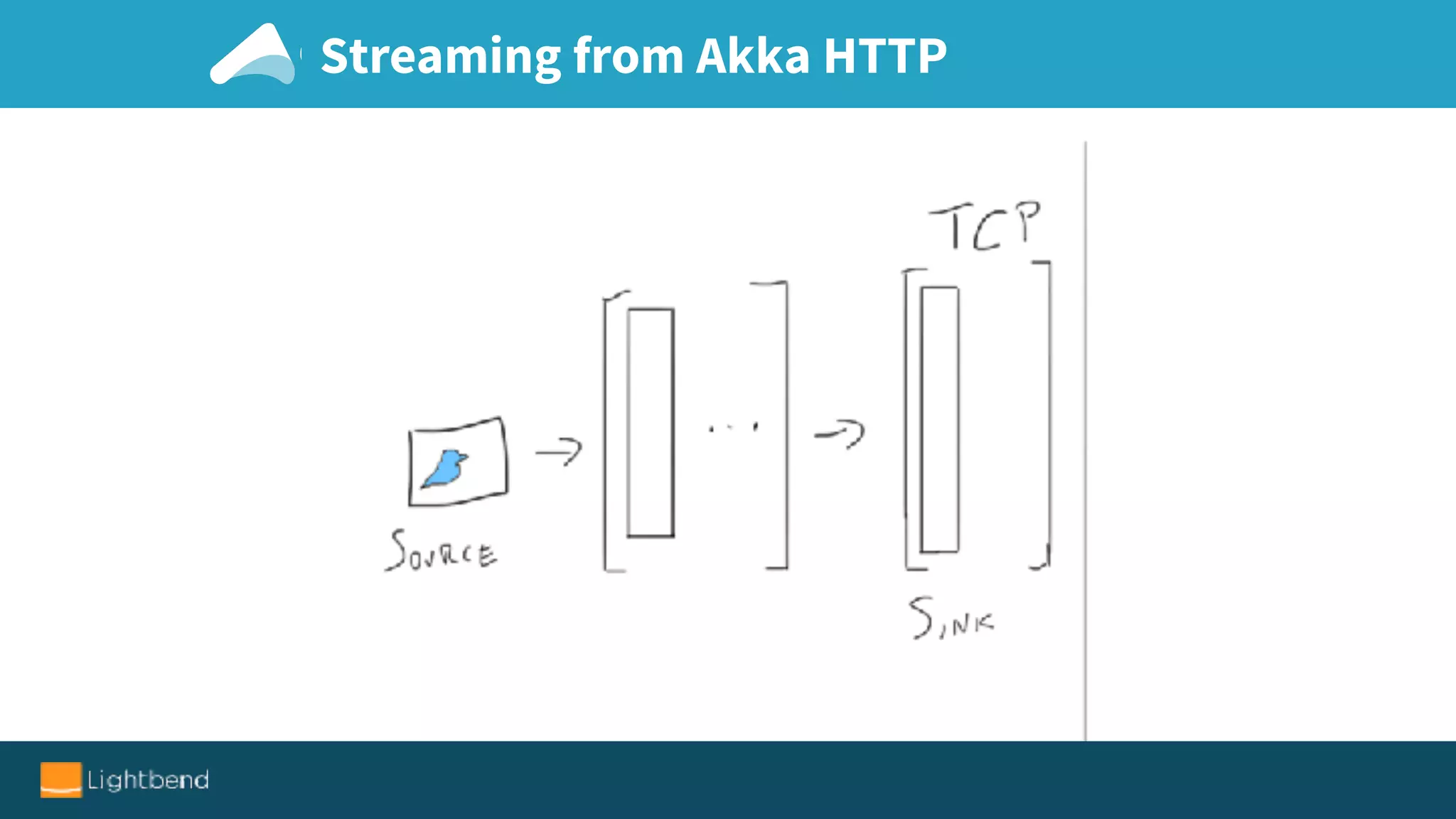

75. Streaming from Akka HTTP

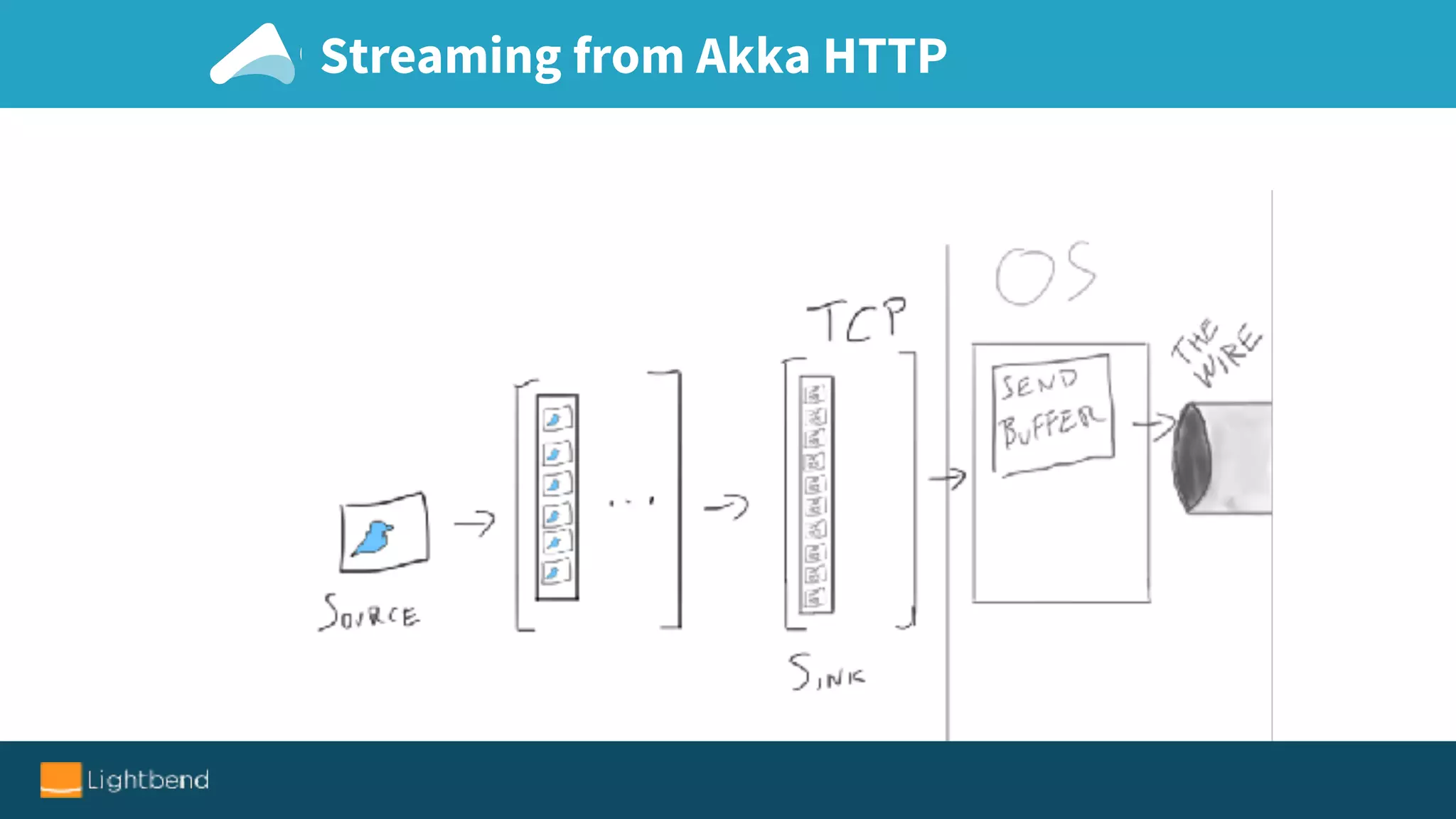

76. Streaming from Akka HTTP

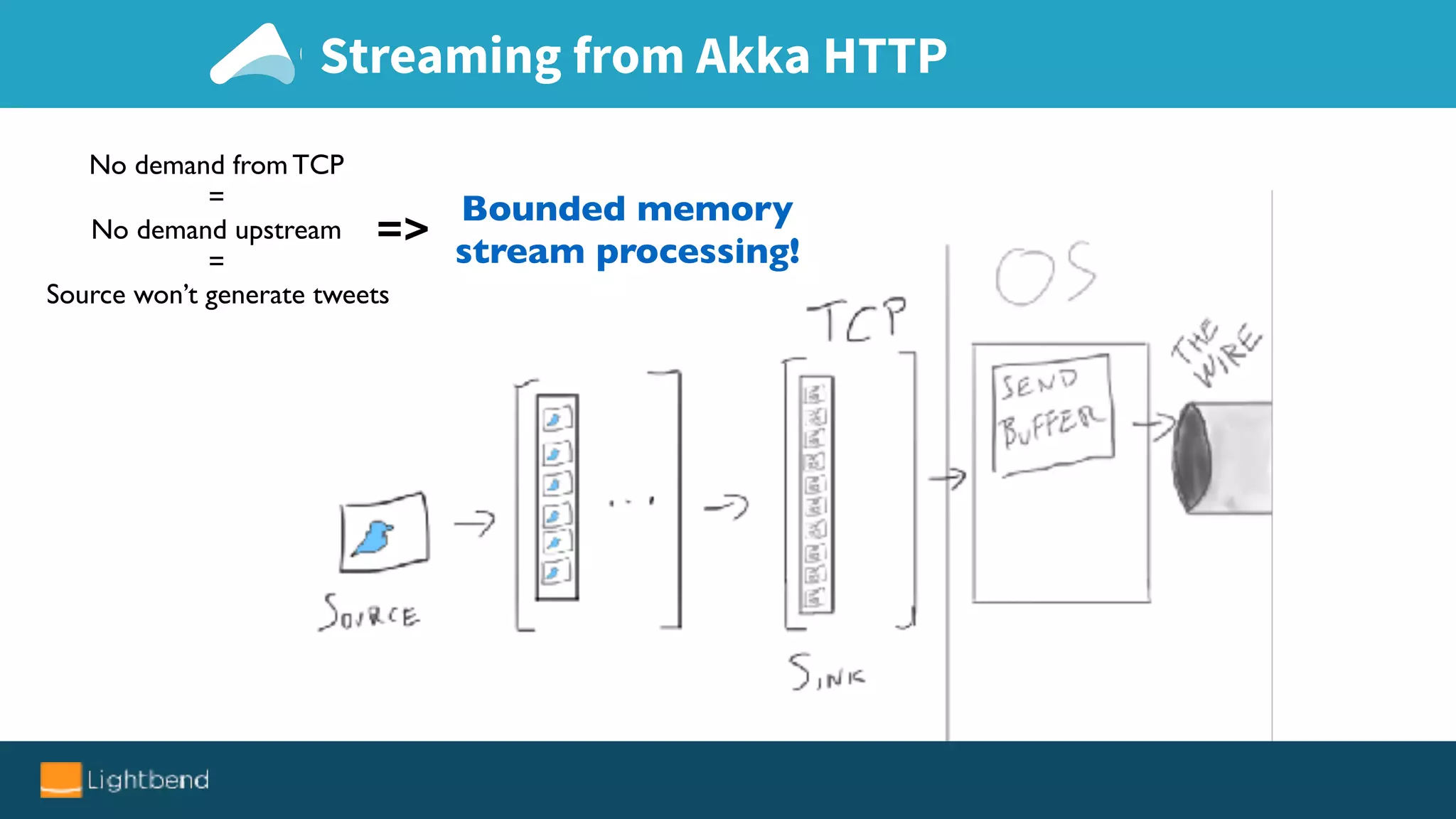

77. Streaming from Akka HTTP
No demand from TCP
=
No demand upstream
=
Source won’t generate tweets
=>
Bounded memory
stream processing!

78. FAILURE SCENARIO 1

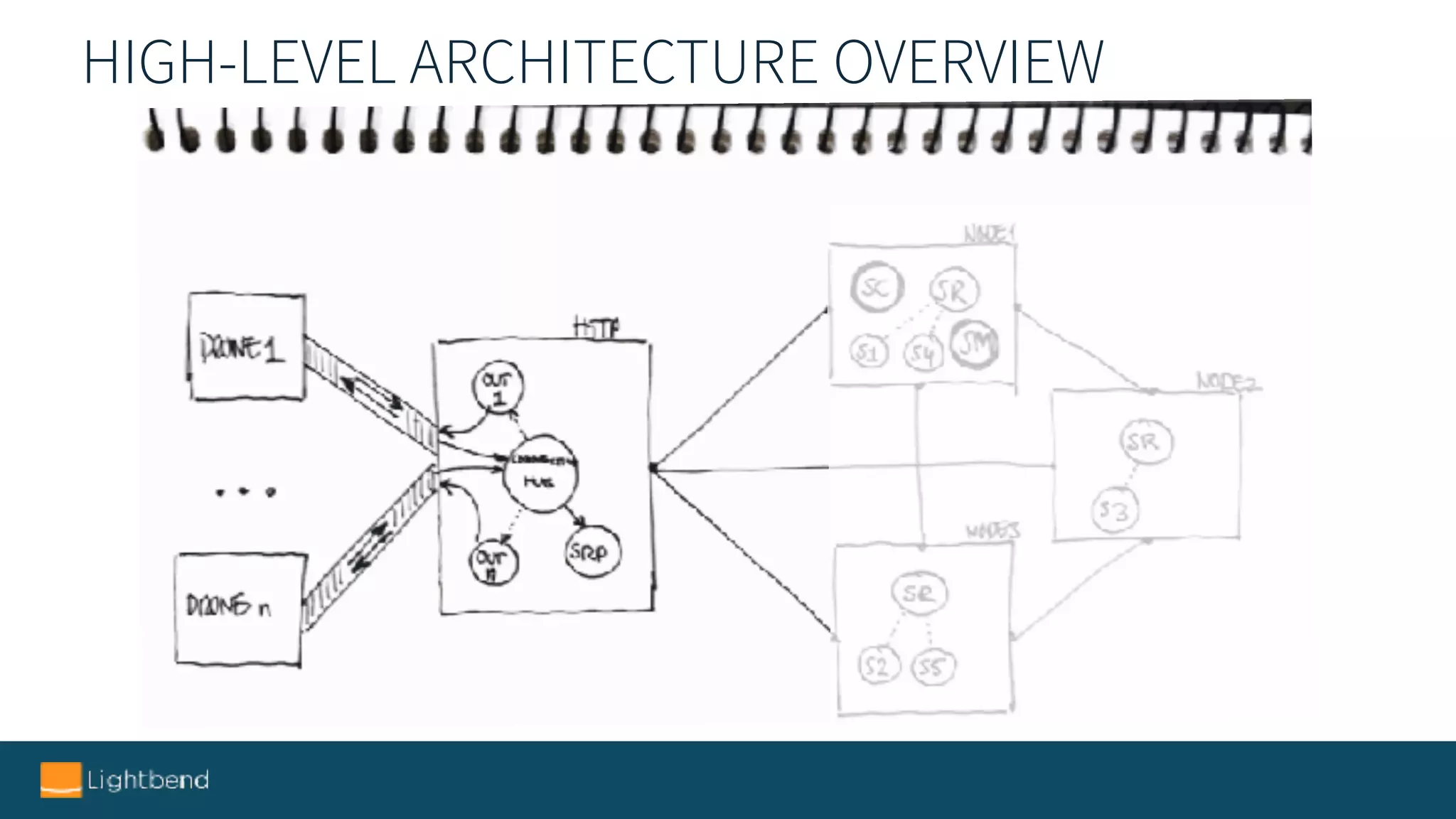

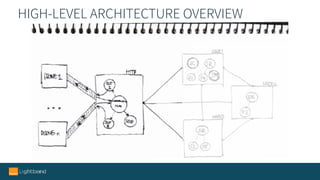

79. HIGH-LEVEL ARCHITECTURE OVERVIEW

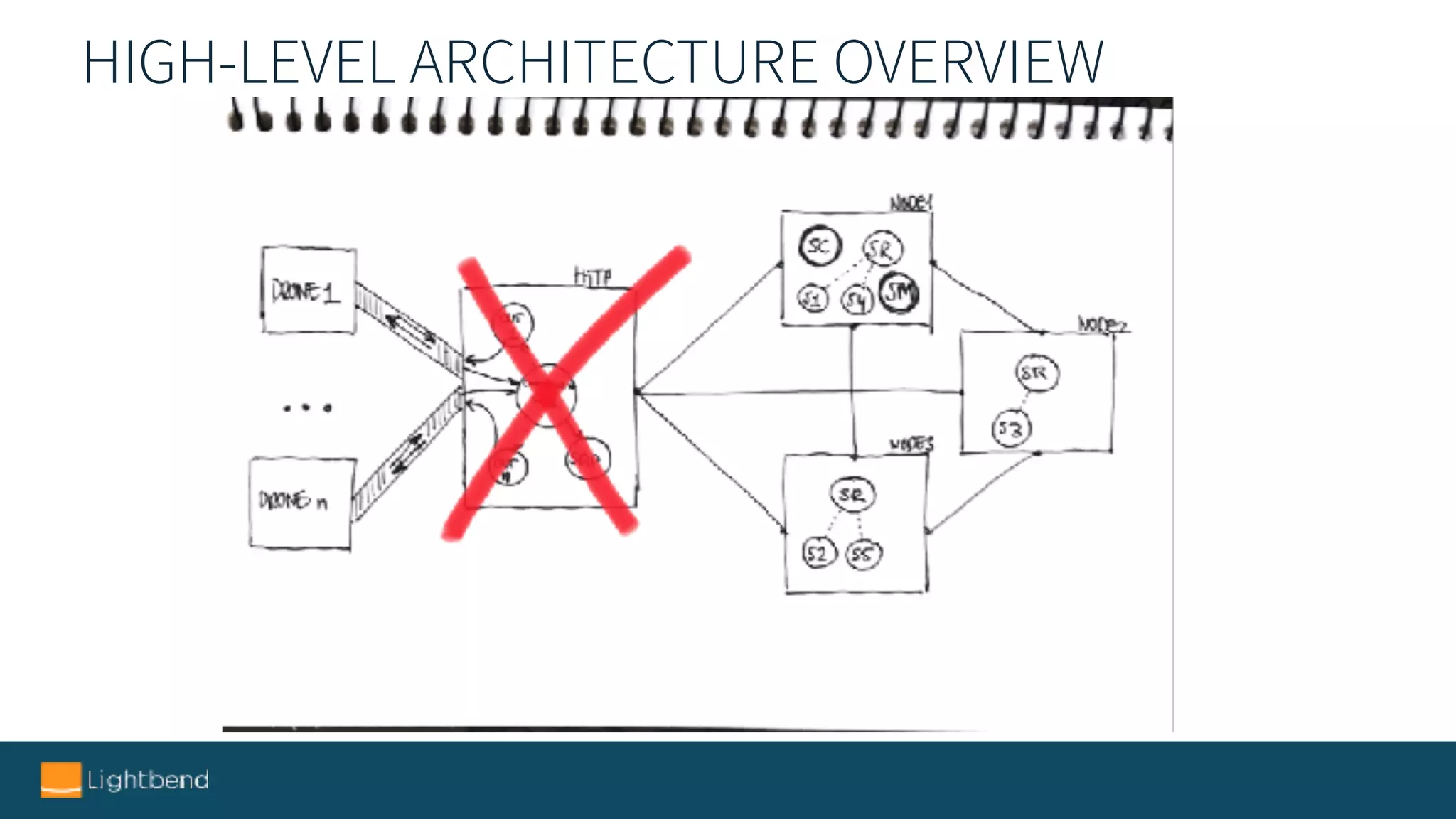

80. HIGH-LEVEL ARCHITECTURE OVERVIEW

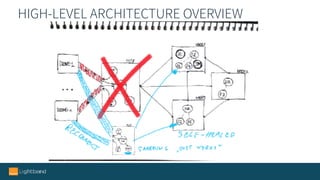

81. HIGH-LEVEL ARCHITECTURE OVERVIEW

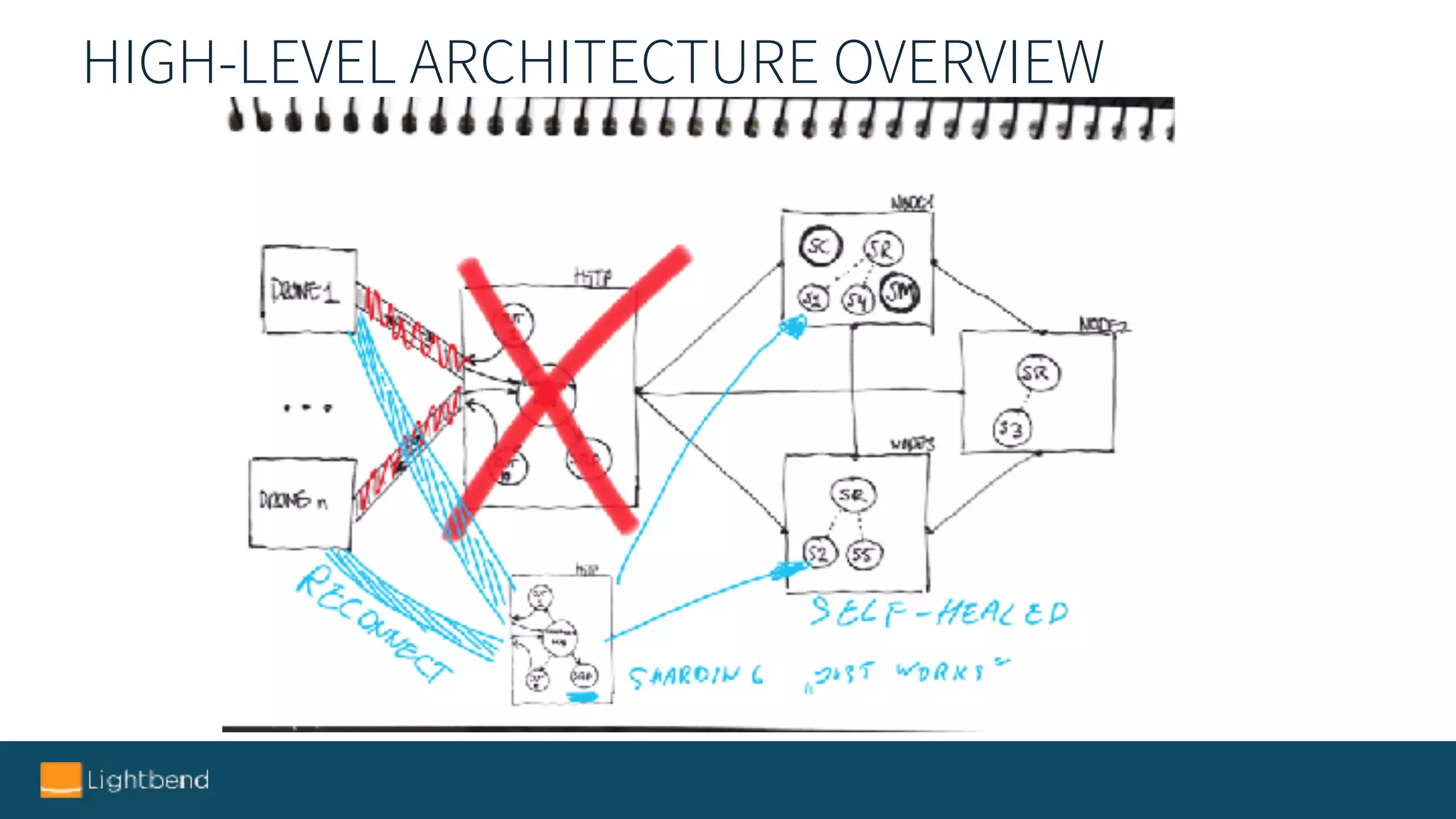

82. FAILURE SCENARIO 2

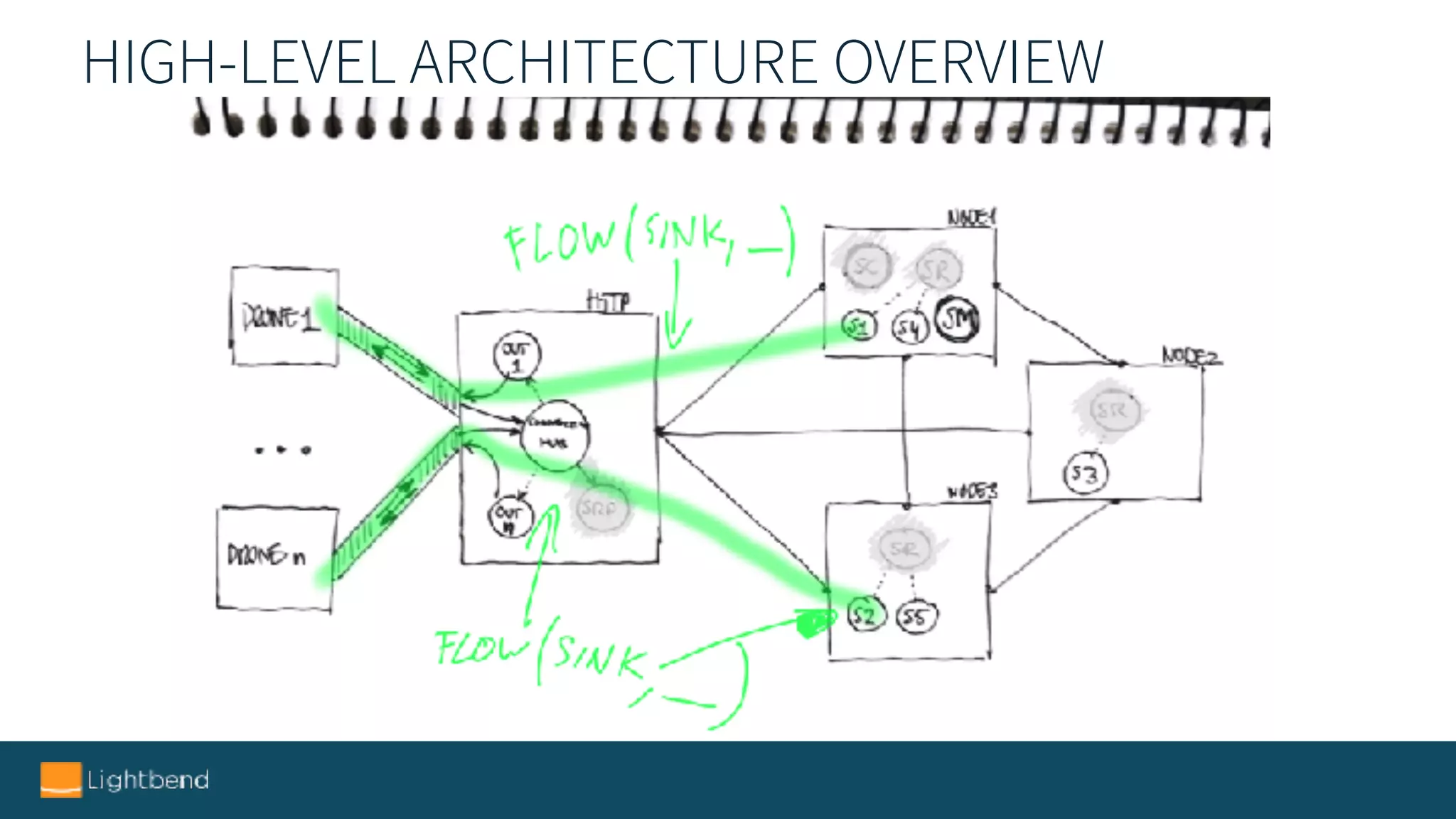

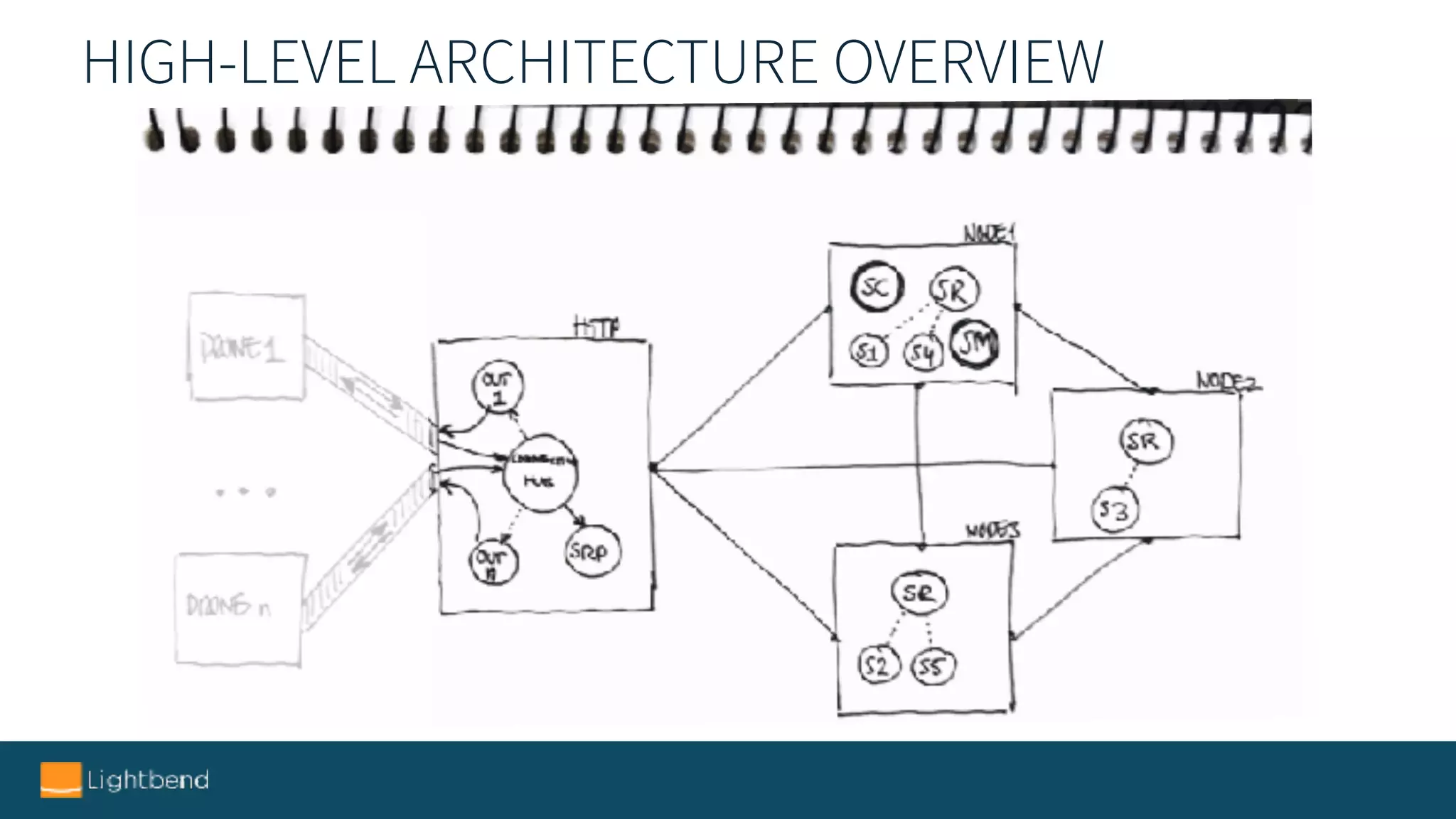

83. HIGH-LEVEL ARCHITECTURE OVERVIEW

84. HIGH-LEVEL ARCHITECTURE OVERVIEW

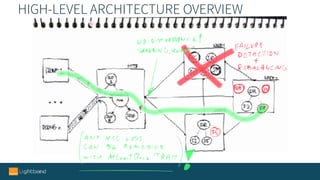

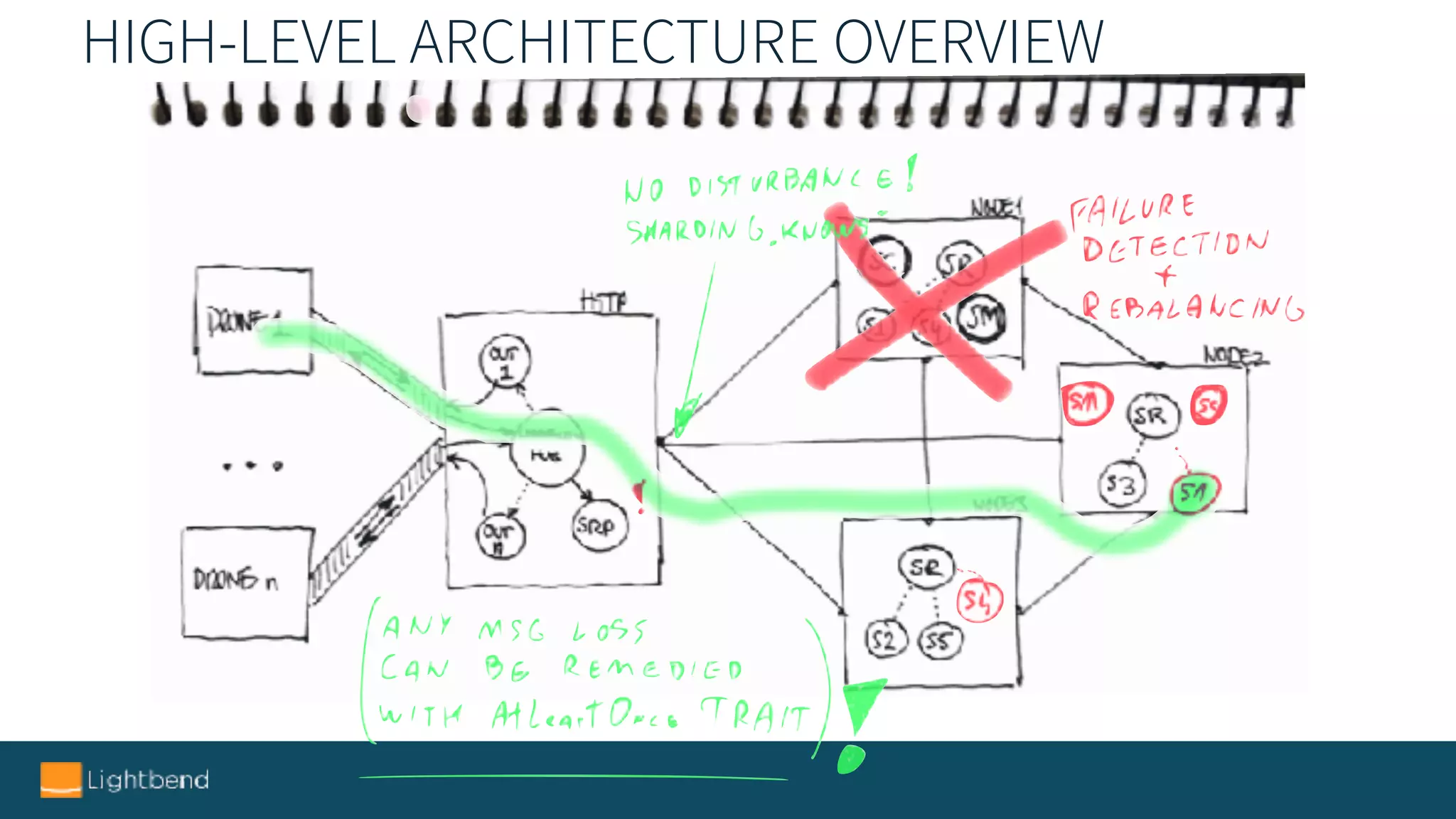

85. HIGH-LEVEL ARCHITECTURE OVERVIEW

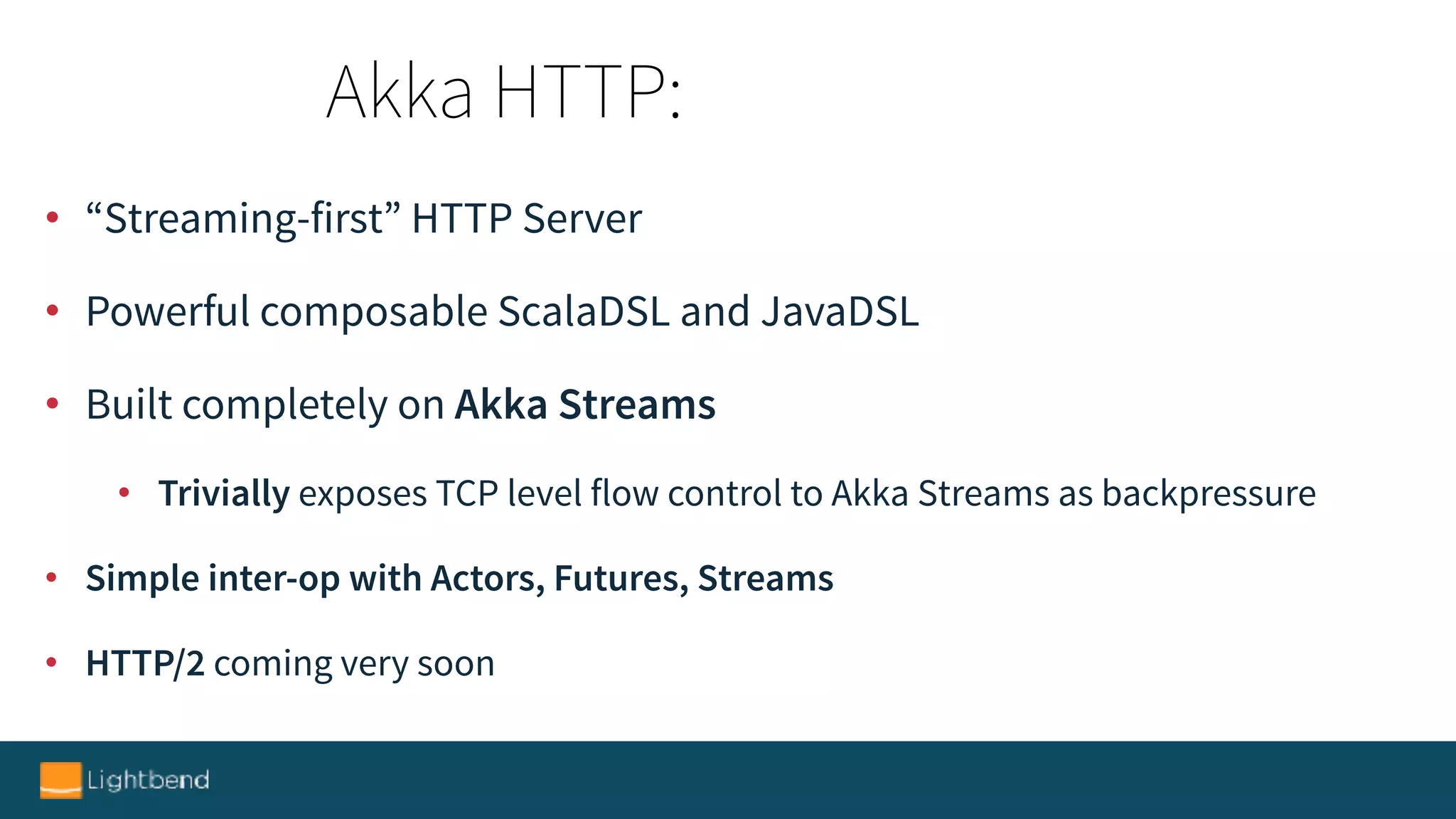

86. • “Streaming-first” HTTP Server
• Powerful composable ScalaDSL and JavaDSL
• Built completely on Akka Streams
• Trivially exposes TCP level flow control to Akka Streams as backpressure
• Simple inter-op with Actors, Futures, Streams
• HTTP/2 coming very soon
Akka HTTP:

87. TESTING ASYNCHRONOUS CODE
WITH AKKA

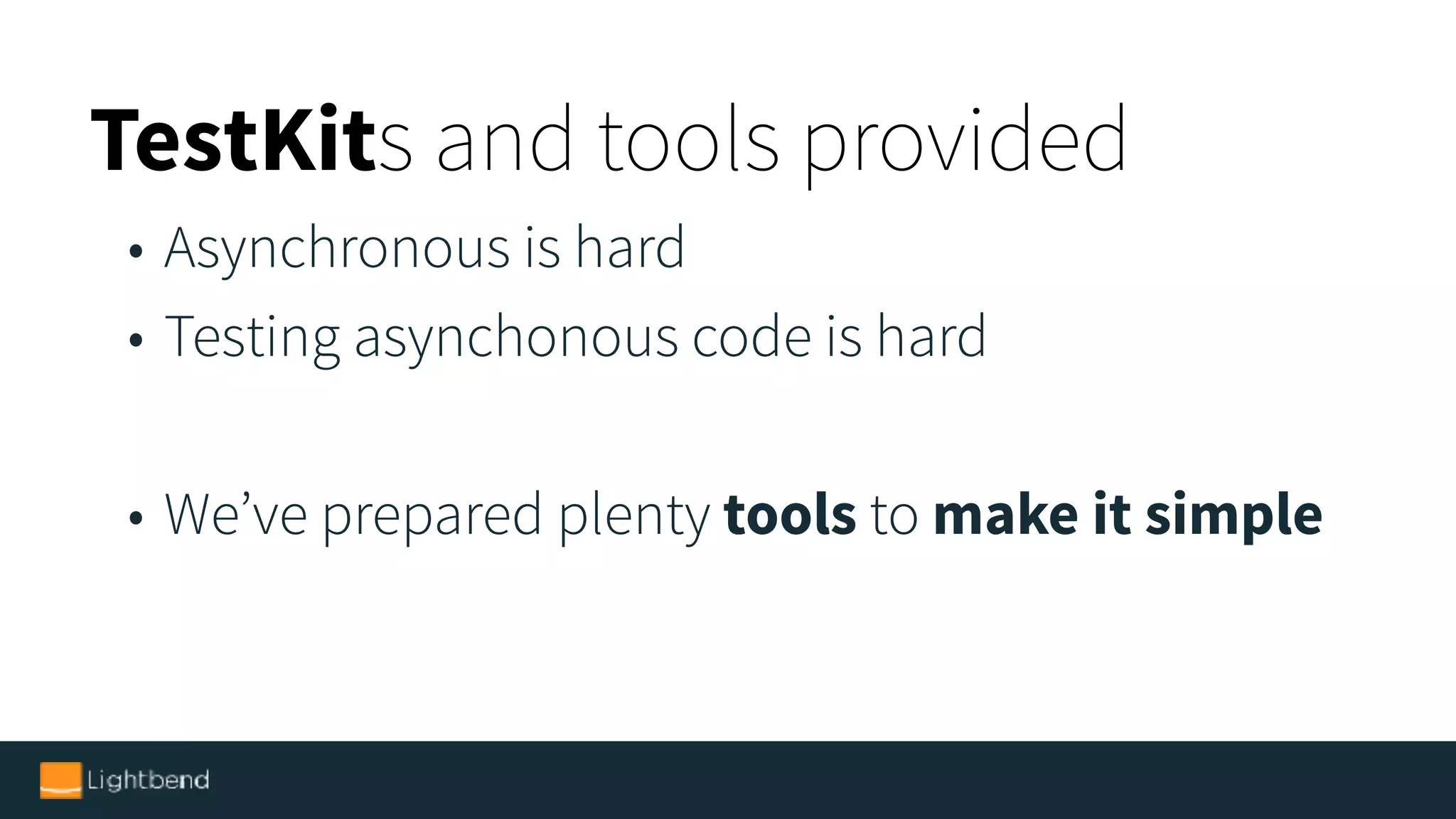

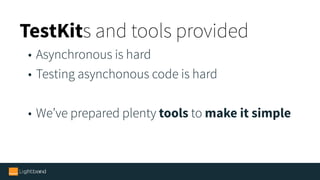

88. TestKits and tools provided
• Asynchronous is hard
• Testing asynchonous code is hard
• We’ve prepared plenty tools to make it simple

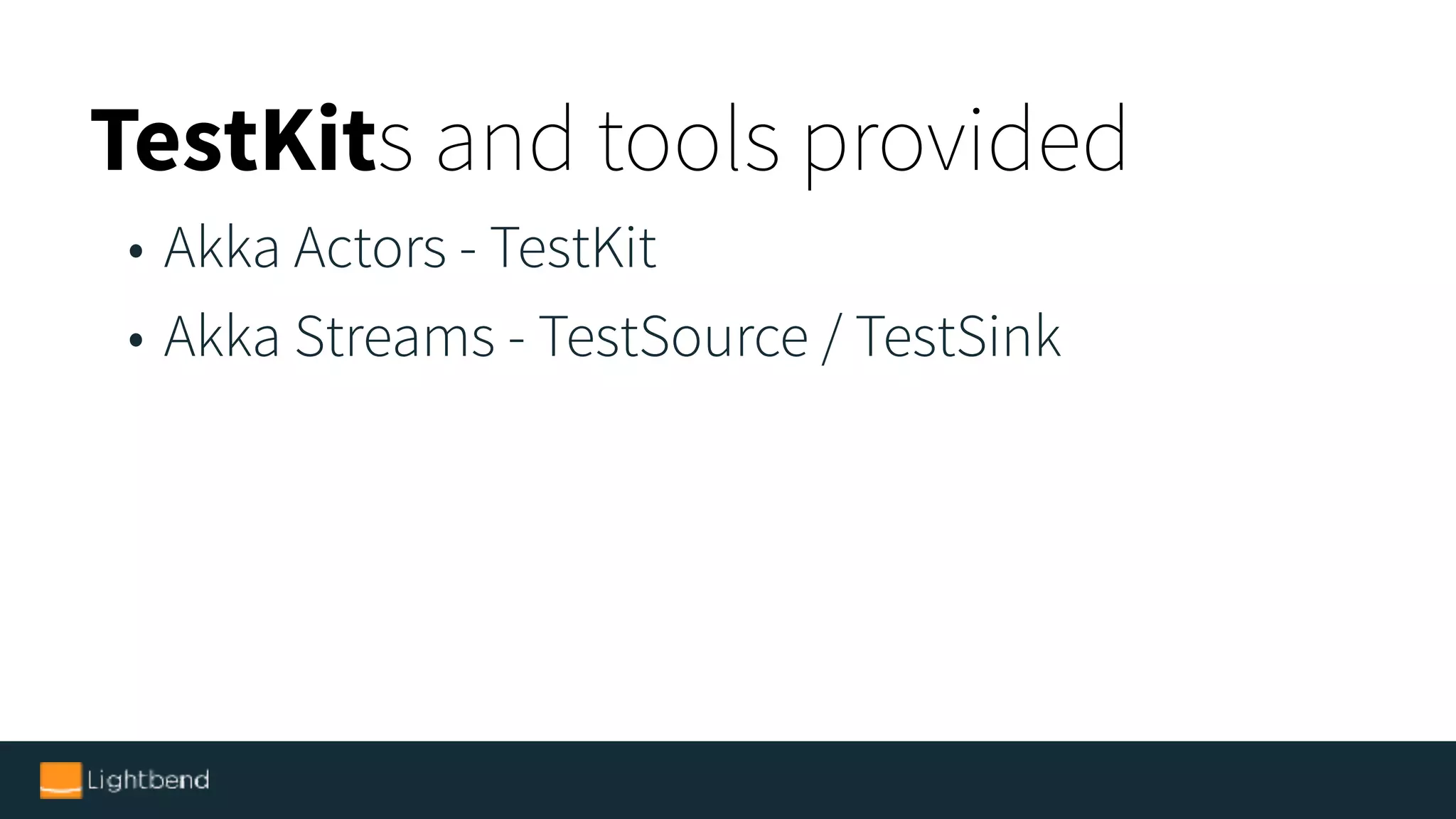

89. TestKits and tools provided
• Akka Actors - TestKit
• Akka Streams - TestSource / TestSink

90. LET’S CODE!

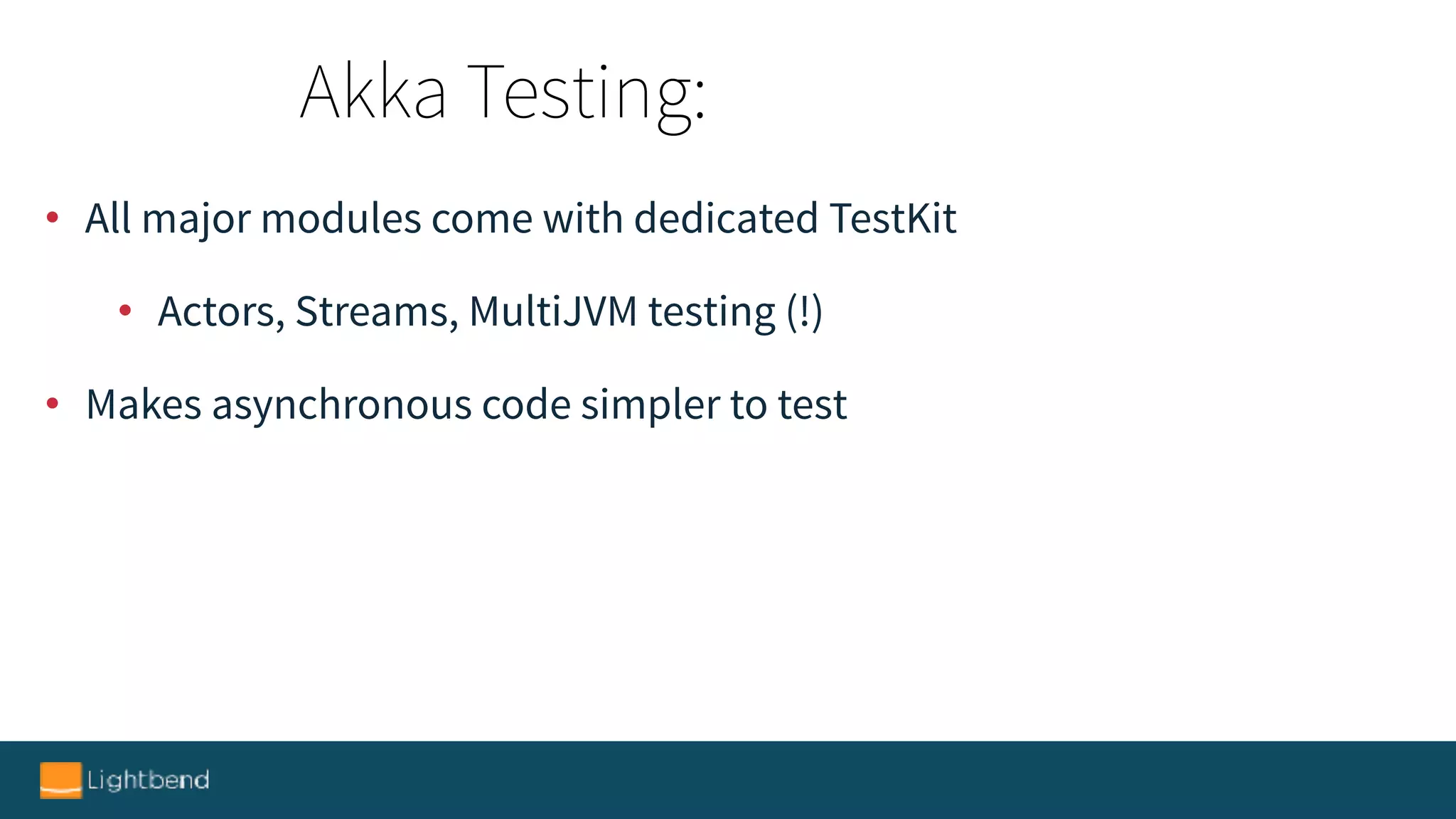

91. • All major modules come with dedicated TestKit
• Actors, Streams, MultiJVM testing (!)
• Makes asynchronous code simpler to test
Akka Testing:

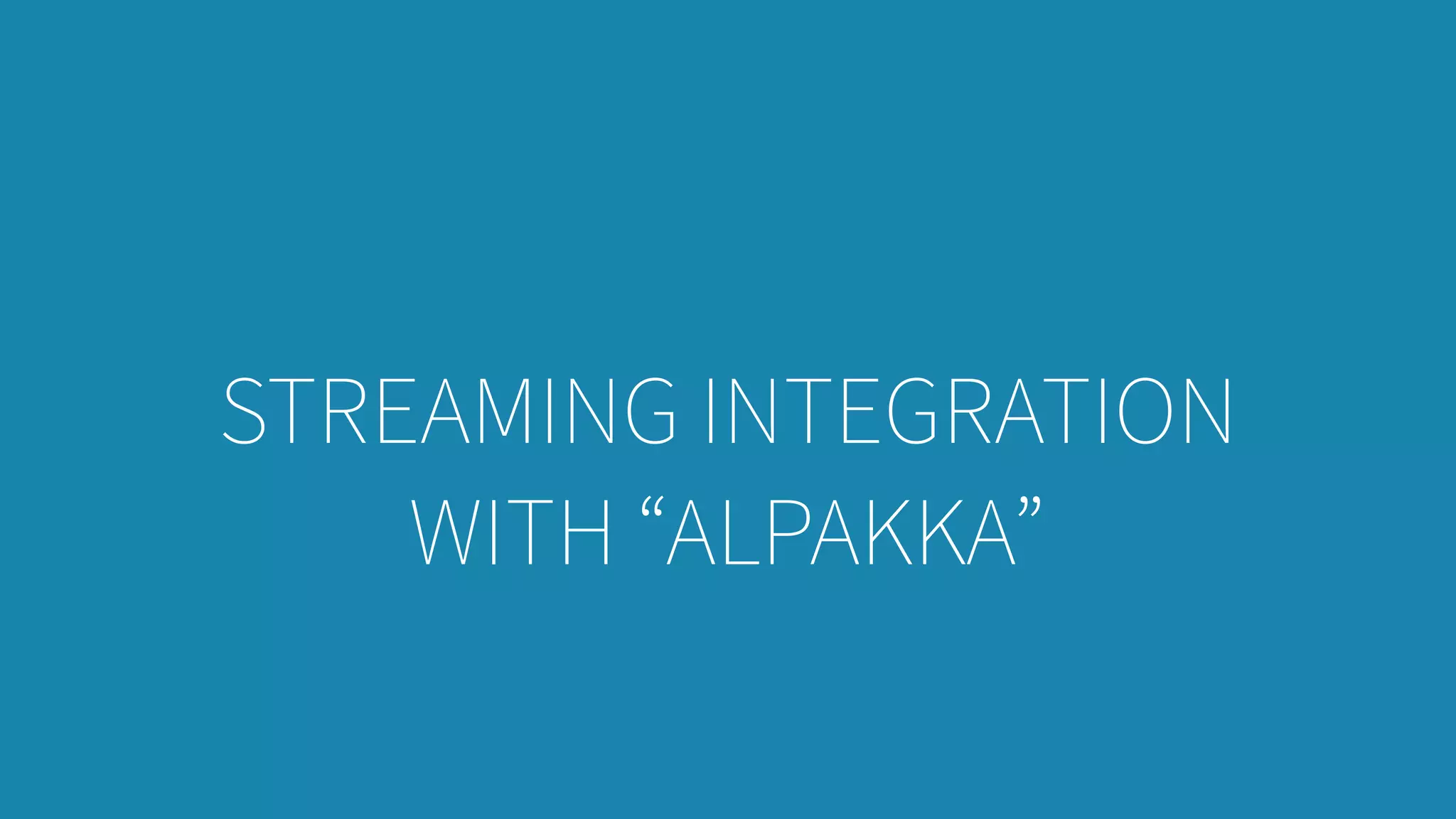

92. STREAMING INTEGRATION
WITH “ALPAKKA”

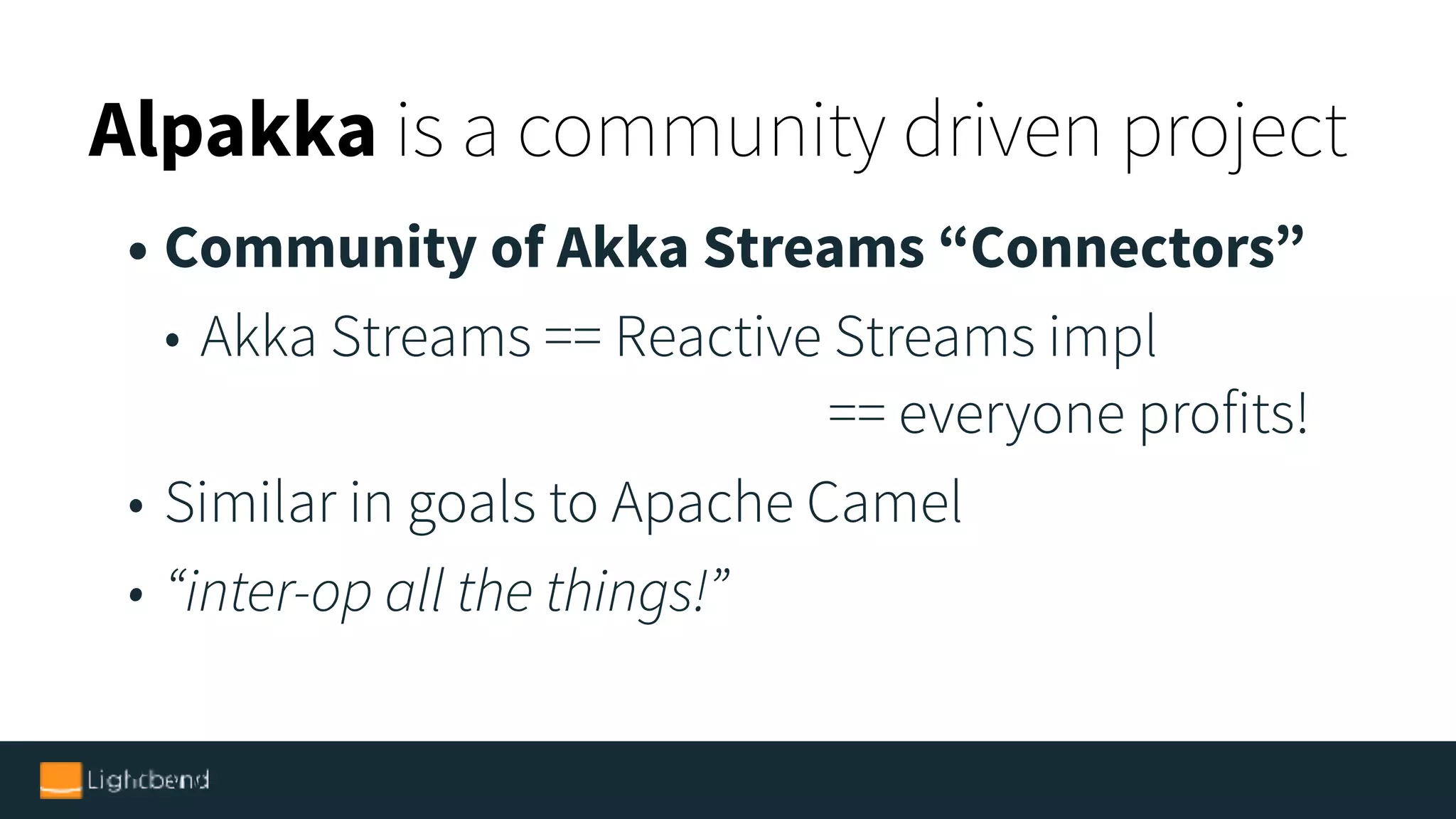

93. Alpakka is a community driven project
• Community of Akka Streams “Connectors”
• Akka Streams == Reactive Streams impl
== everyone profits!
• Similar in goals to Apache Camel
• “inter-op all the things!”
• We’ve prepared plenty tools to make it simple

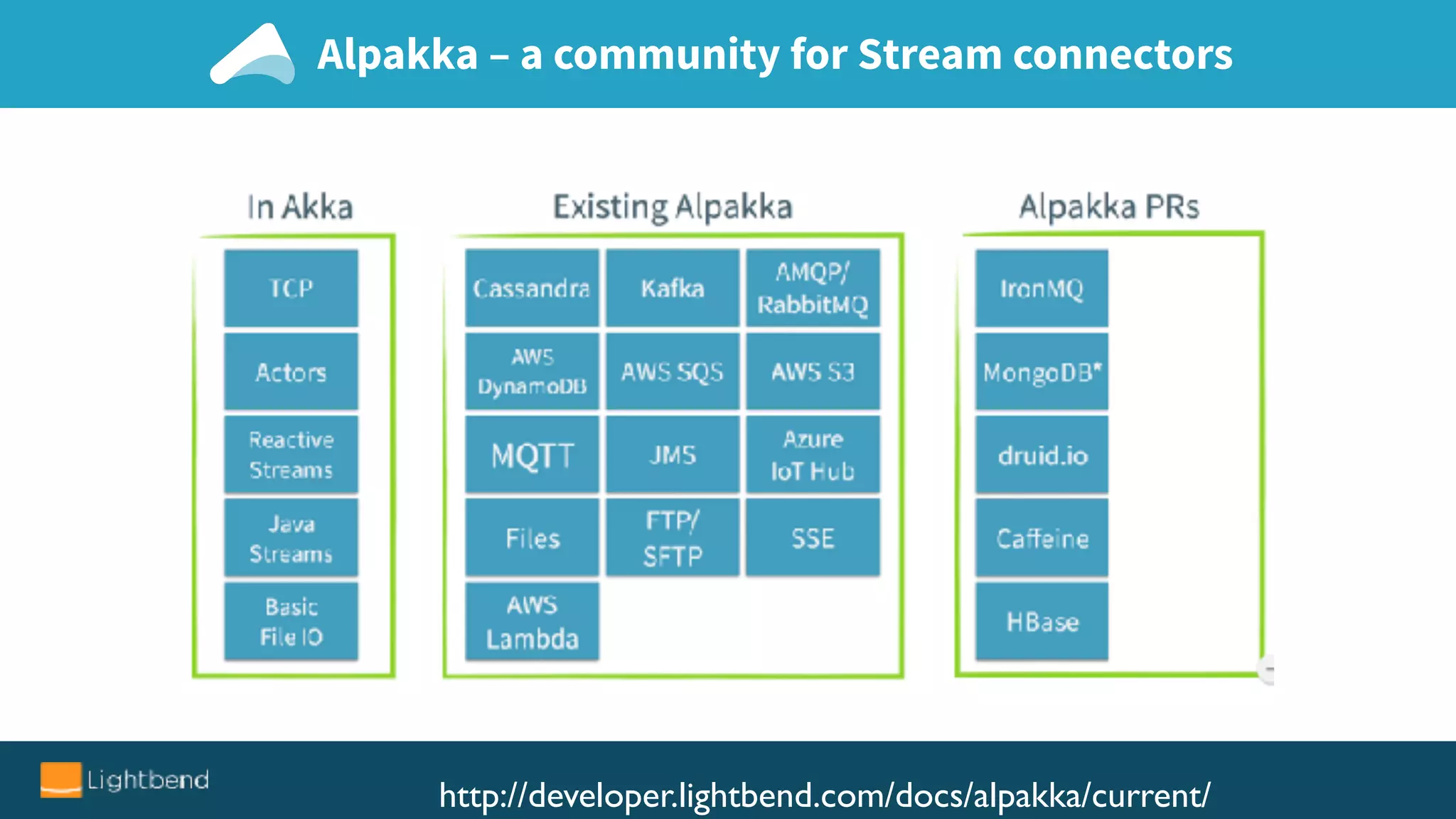

94. Alpakka – a community for Stream connectors
http://developer.lightbend.com/docs/alpakka/current/

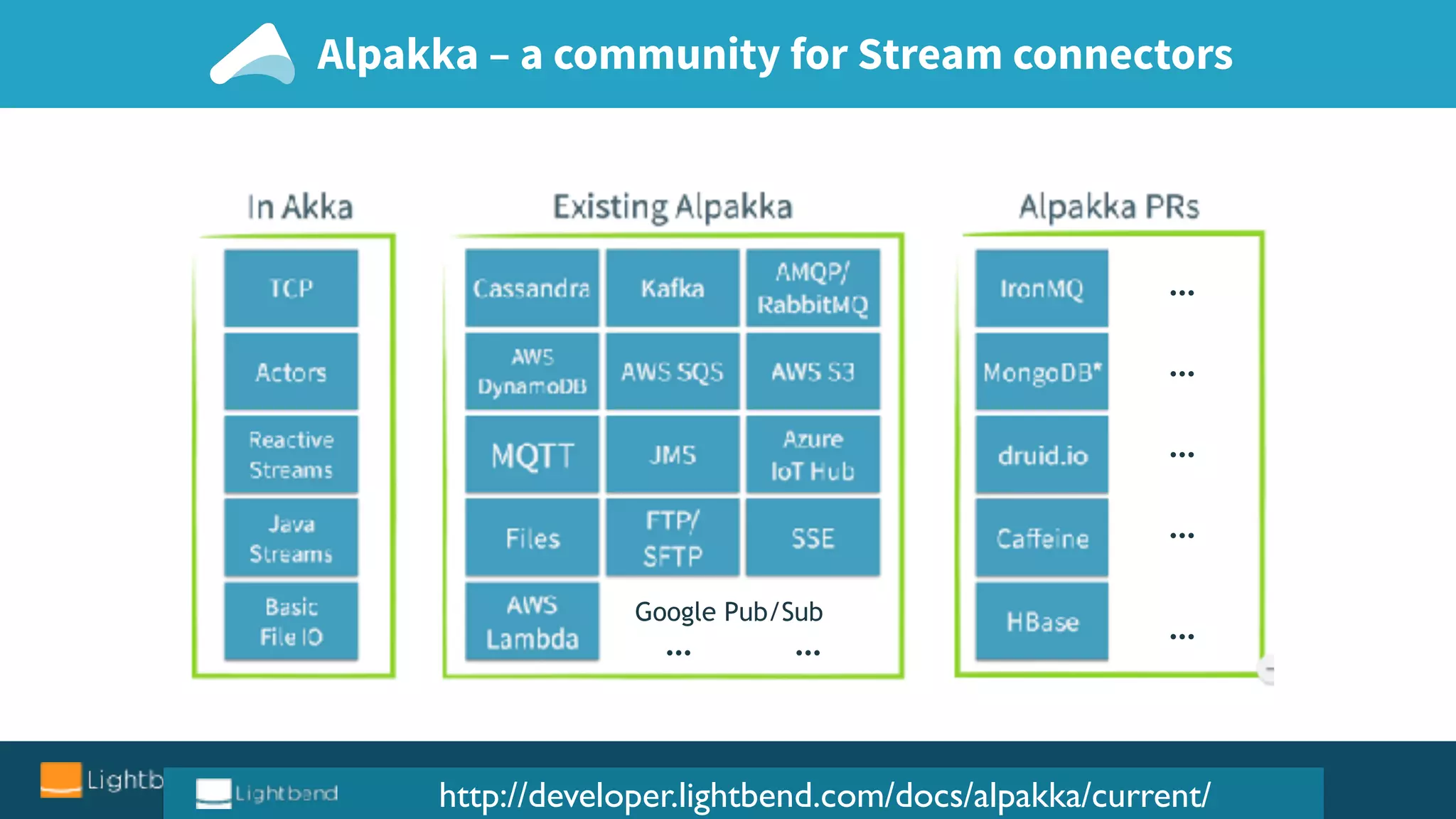

95. Alpakka – a community for Stream connectors
http://developer.lightbend.com/docs/alpakka/current/
Google Pub/Sub
…
…
…
…
…
……

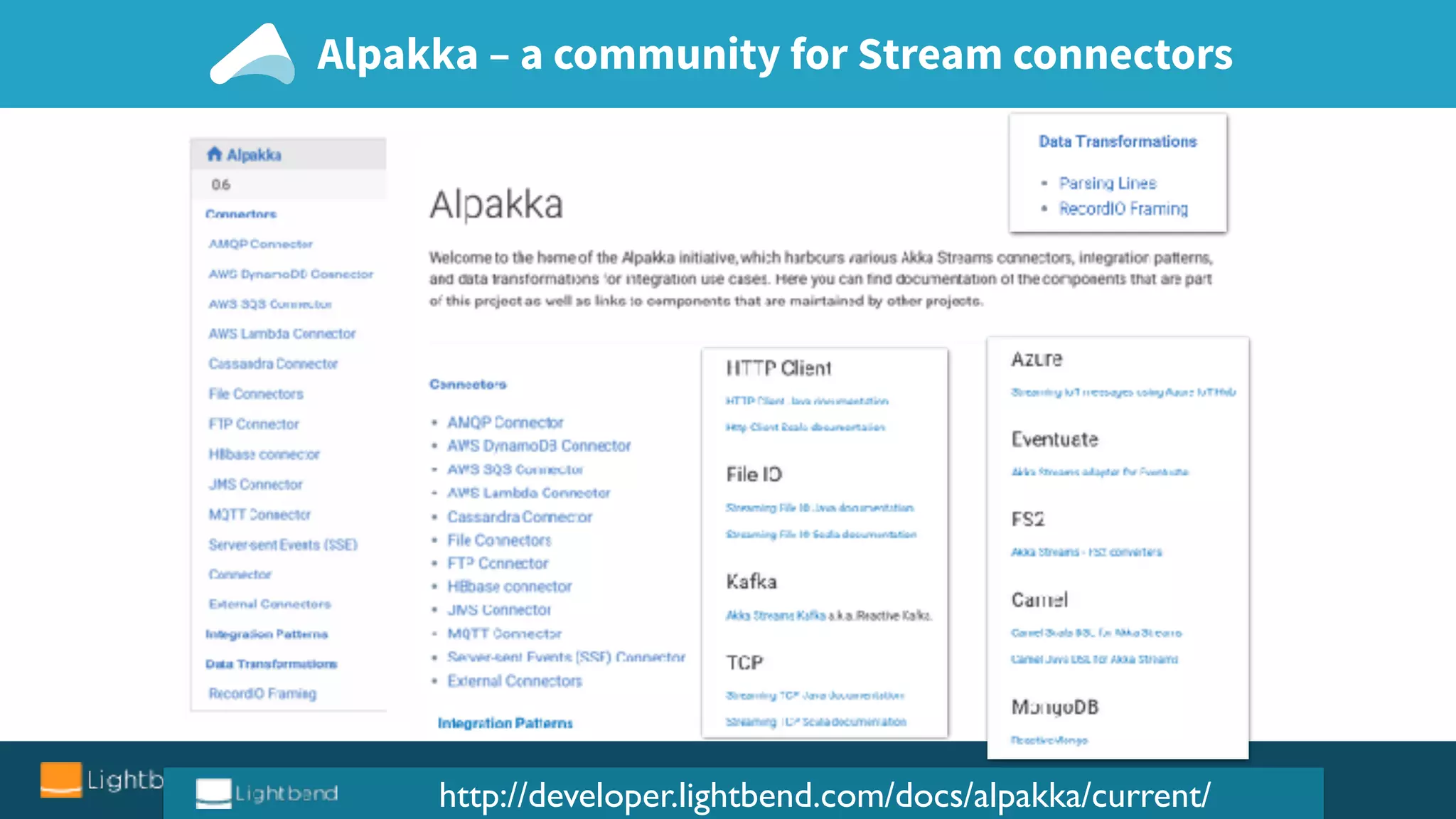

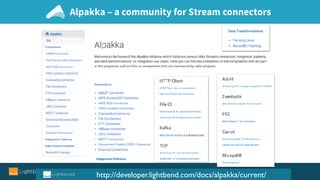

96. Alpakka – a community for Stream connectors
http://developer.lightbend.com/docs/alpakka/current/

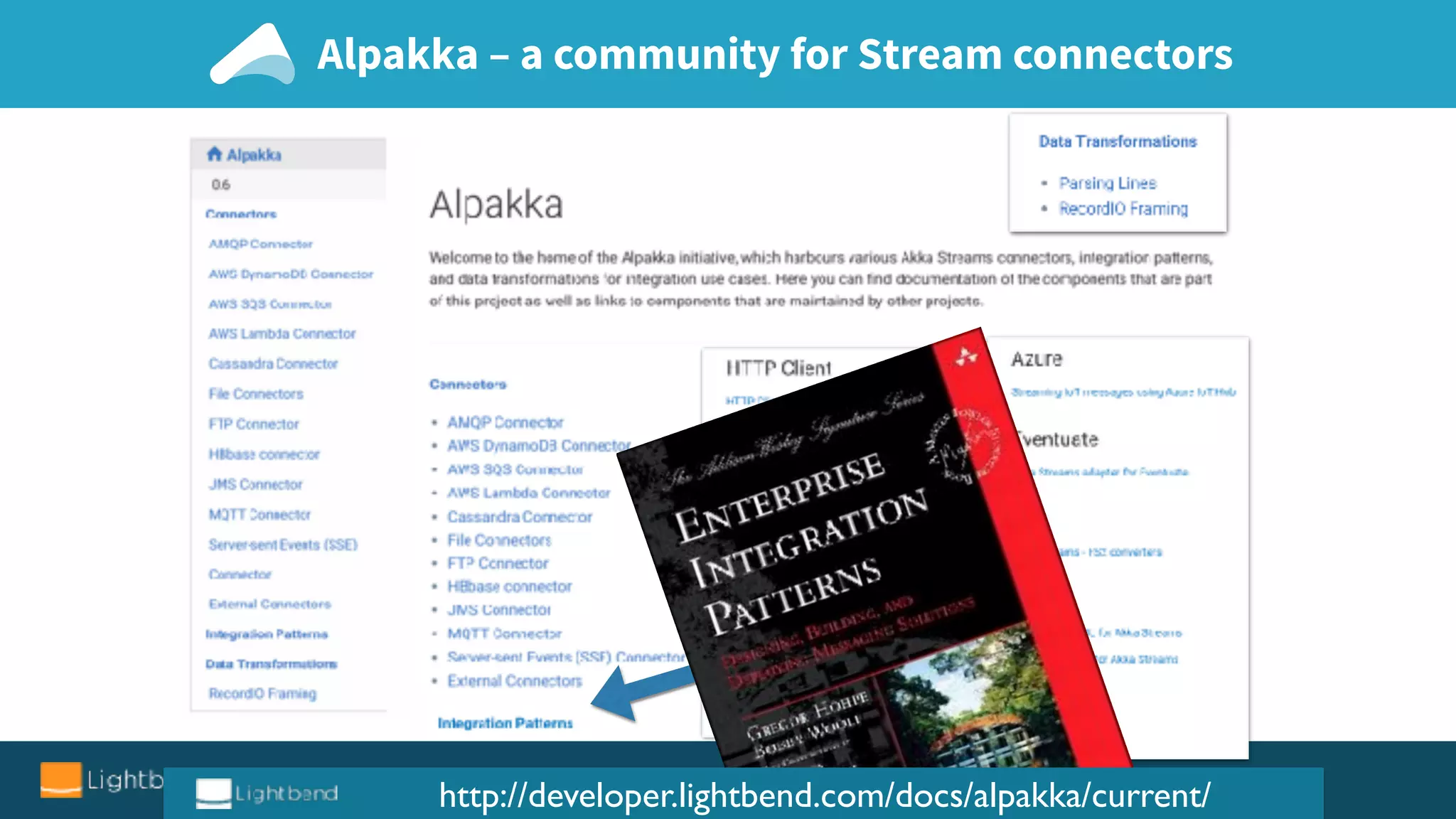

97. Alpakka – a community for Stream connectors
http://developer.lightbend.com/docs/alpakka/current/

98. LET’S CODE!

99. • Vibrant community of Akka Streams developers
• Tens of integrations already, more coming as-we-speak
• All fully Streaming and Back-pressure Aware and s
Akka “Alpakka”:

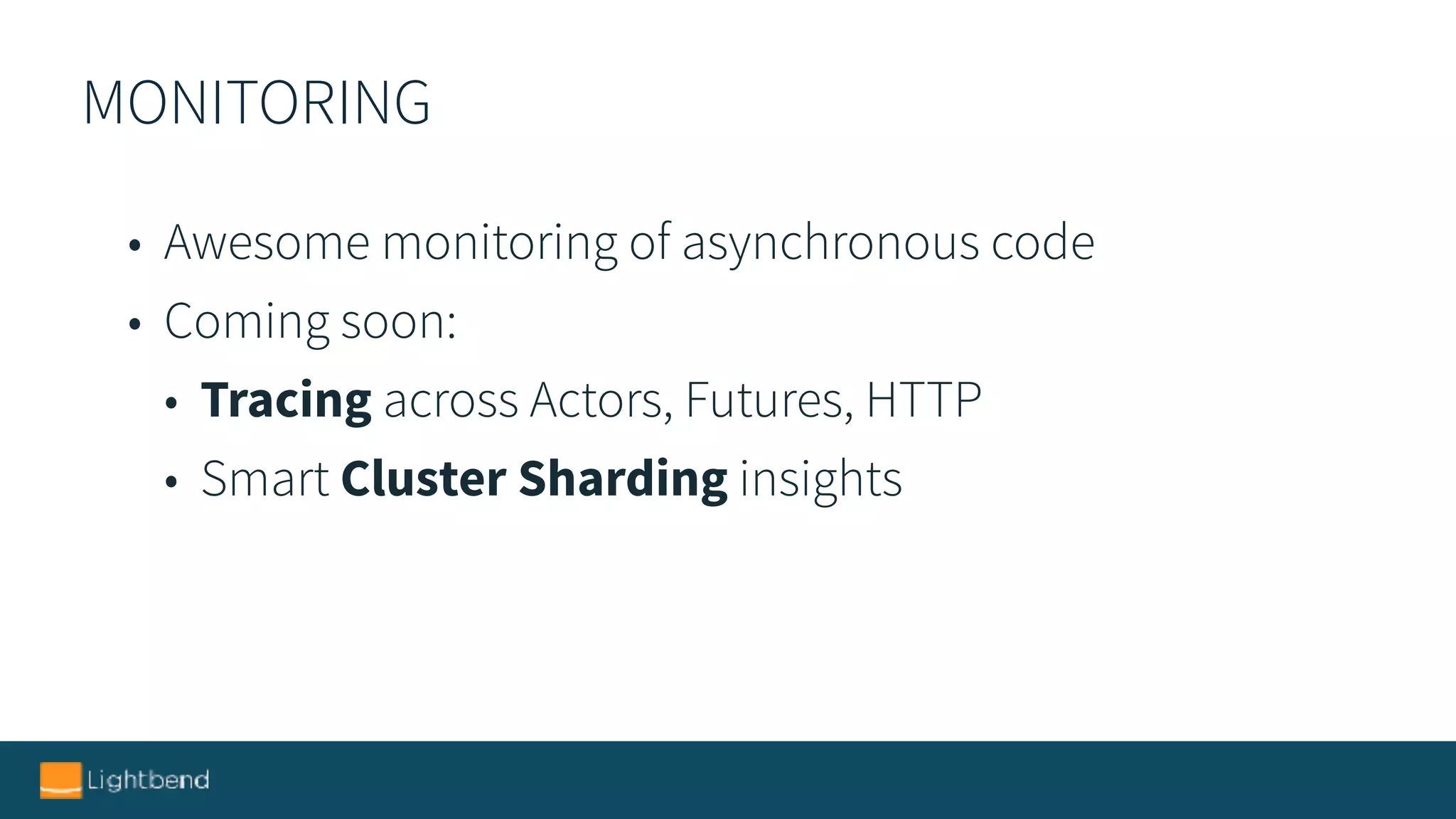

100. MONITORING

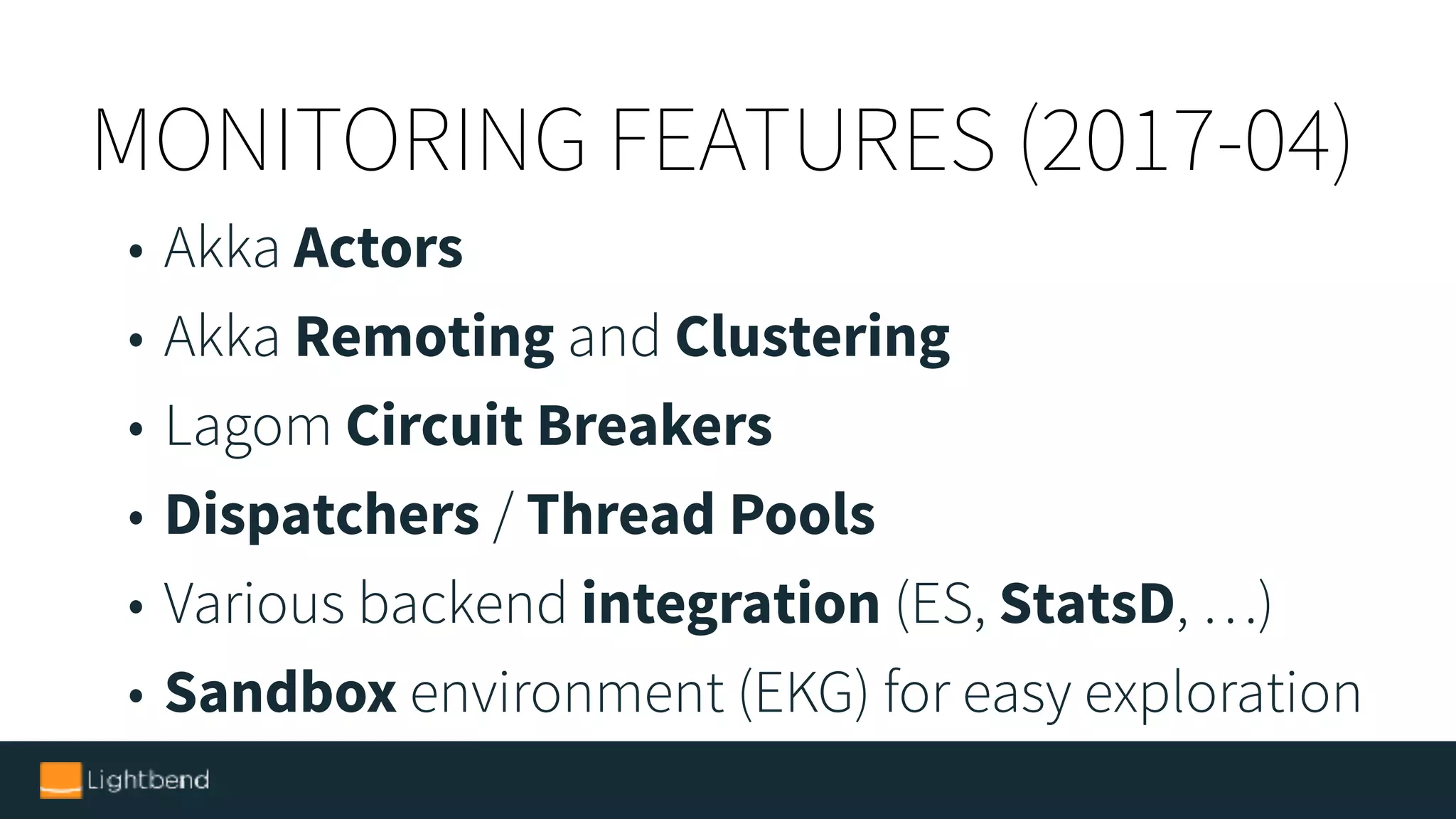

101. MONITORING FEATURES (2017-04)
• Akka Actors
• Akka Remoting and Clustering
• Lagom Circuit Breakers
• Dispatchers / Thread Pools
• Various backend integration (ES, StatsD, …)
• Sandbox environment (EKG) for easy exploration

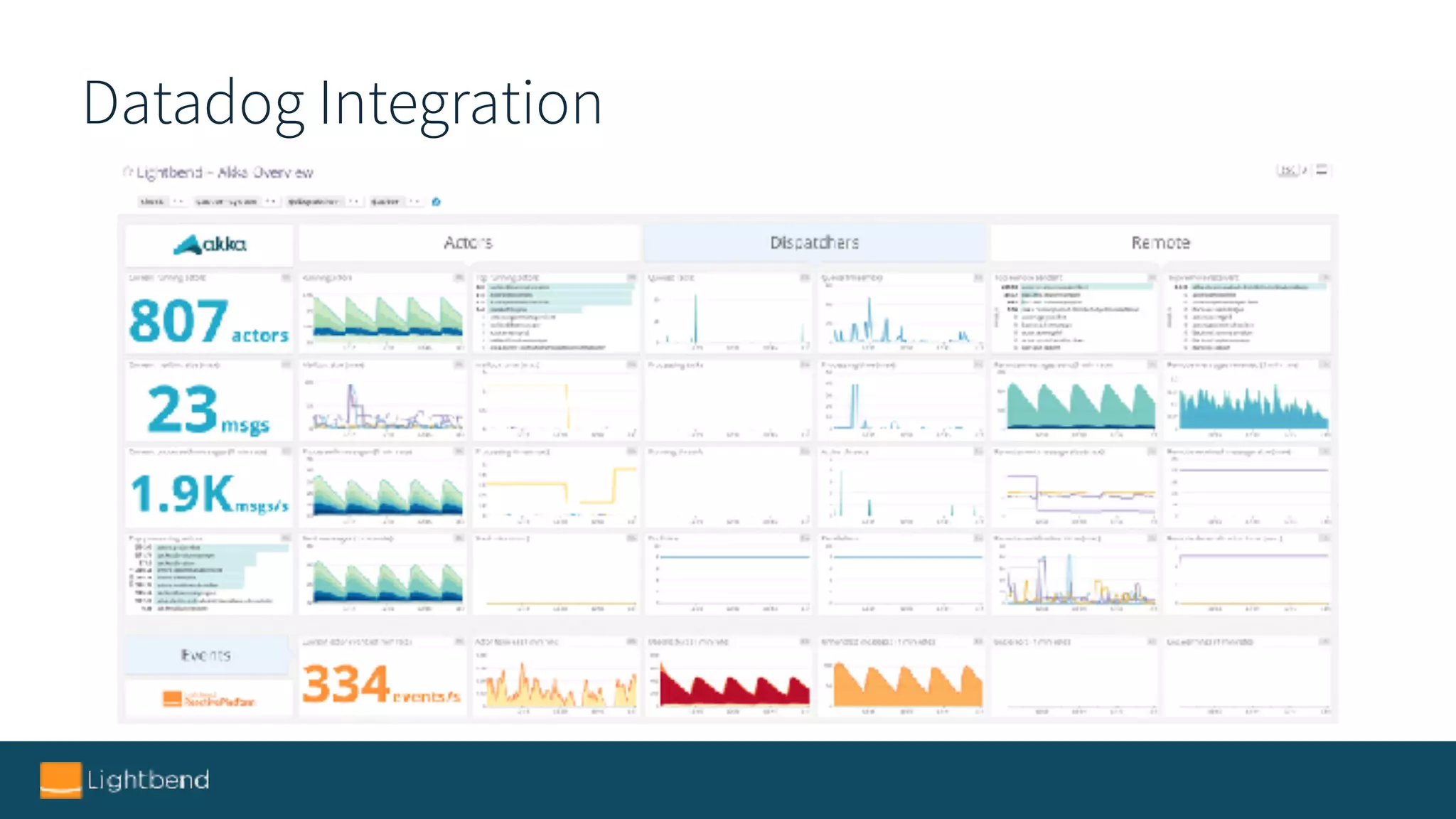

102. Datadog Integration

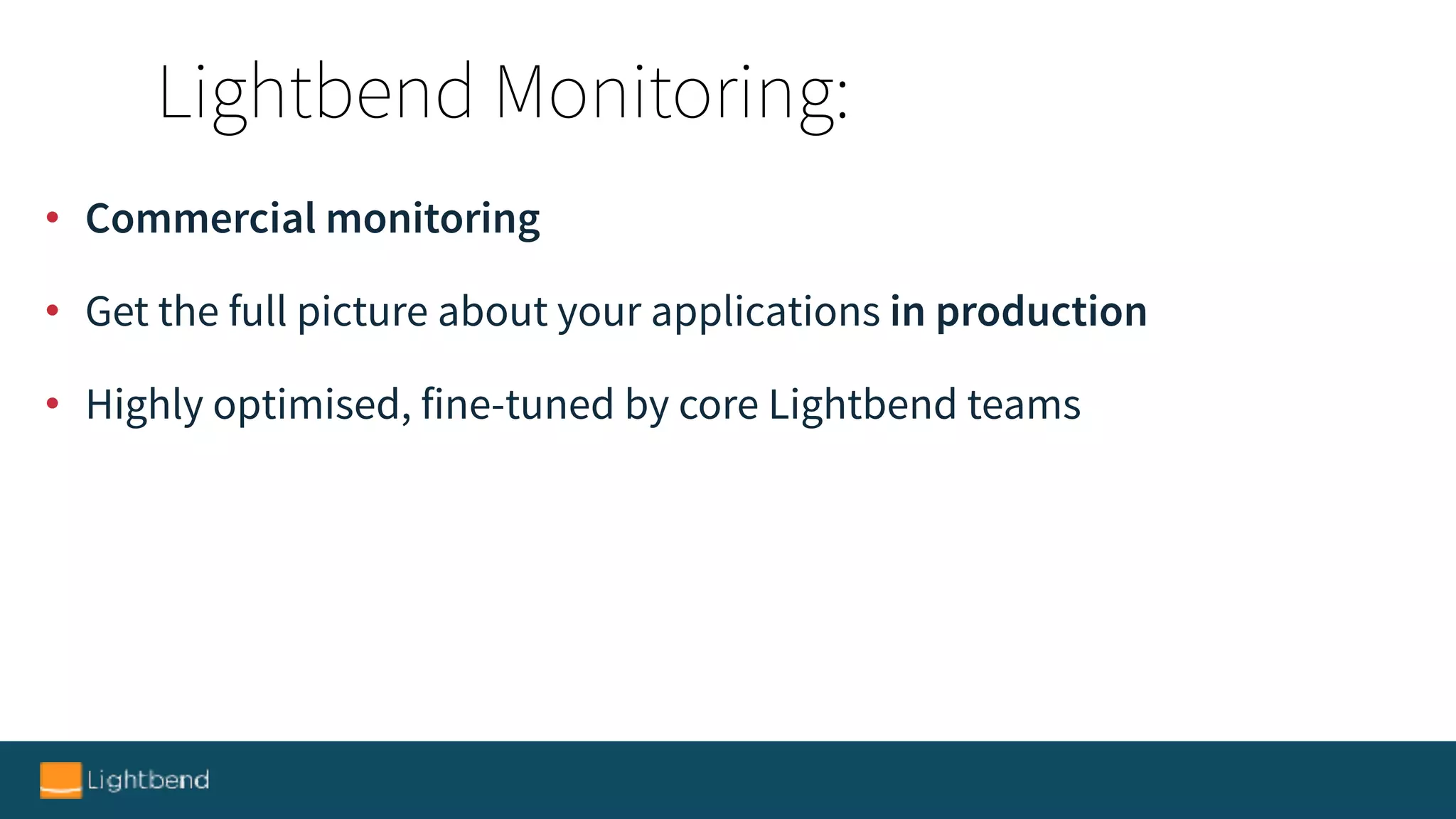

103. • Commercial monitoring
• Get the full picture about your applications in production
• Highly optimised, fine-tuned by core Lightbend teams
Lightbend Monitoring:

104. SUMMING UP

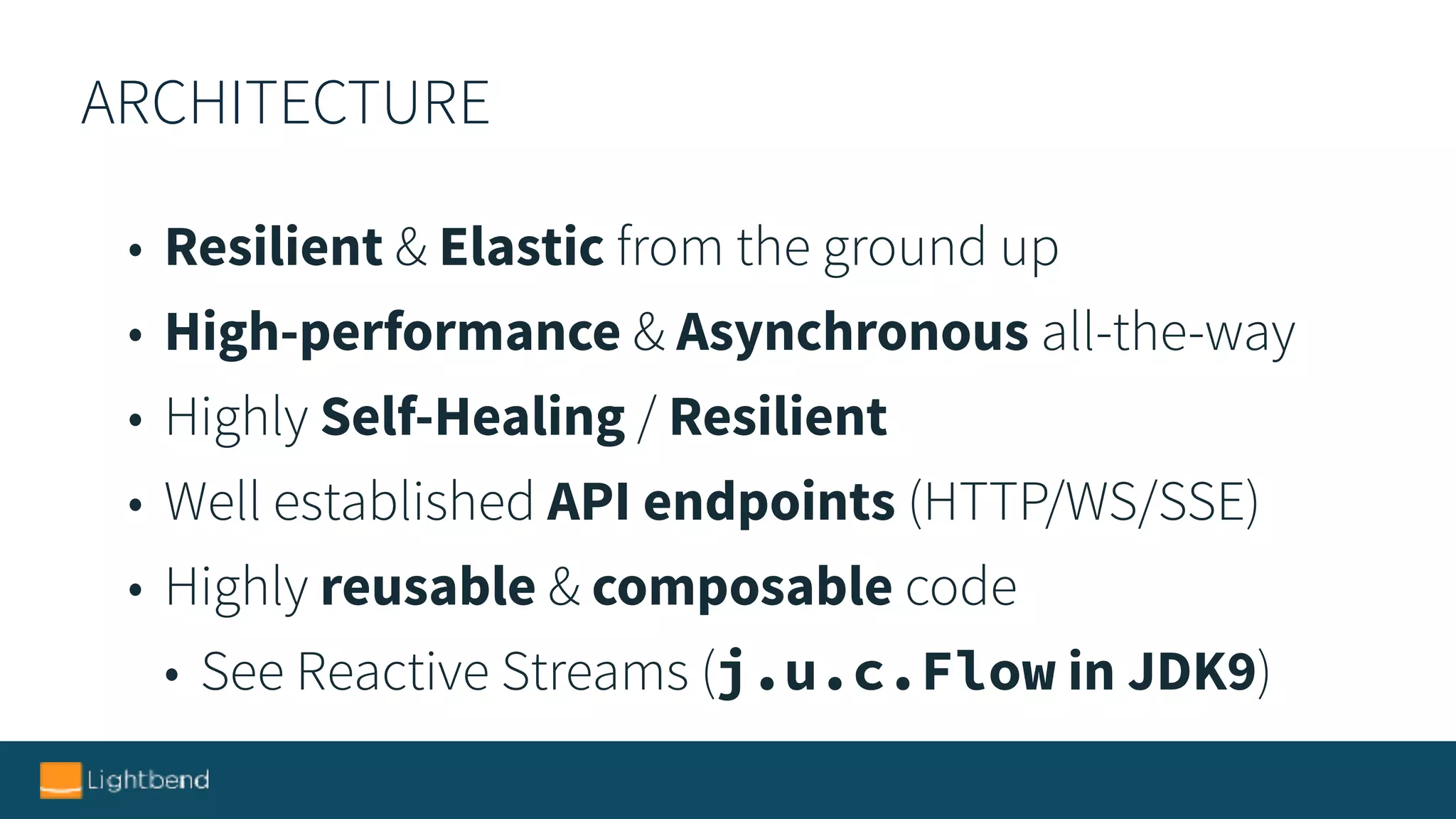

105. ARCHITECTURE
• Resilient & Elastic from the ground up
• High-performance & Asynchronous all-the-way
• Highly Self-Healing / Resilient
• Well established API endpoints (HTTP/WS/SSE)
• Highly reusable & composable code
• See Reactive Streams (j.u.c.Flow in JDK9)

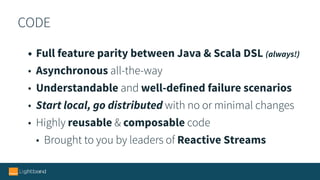

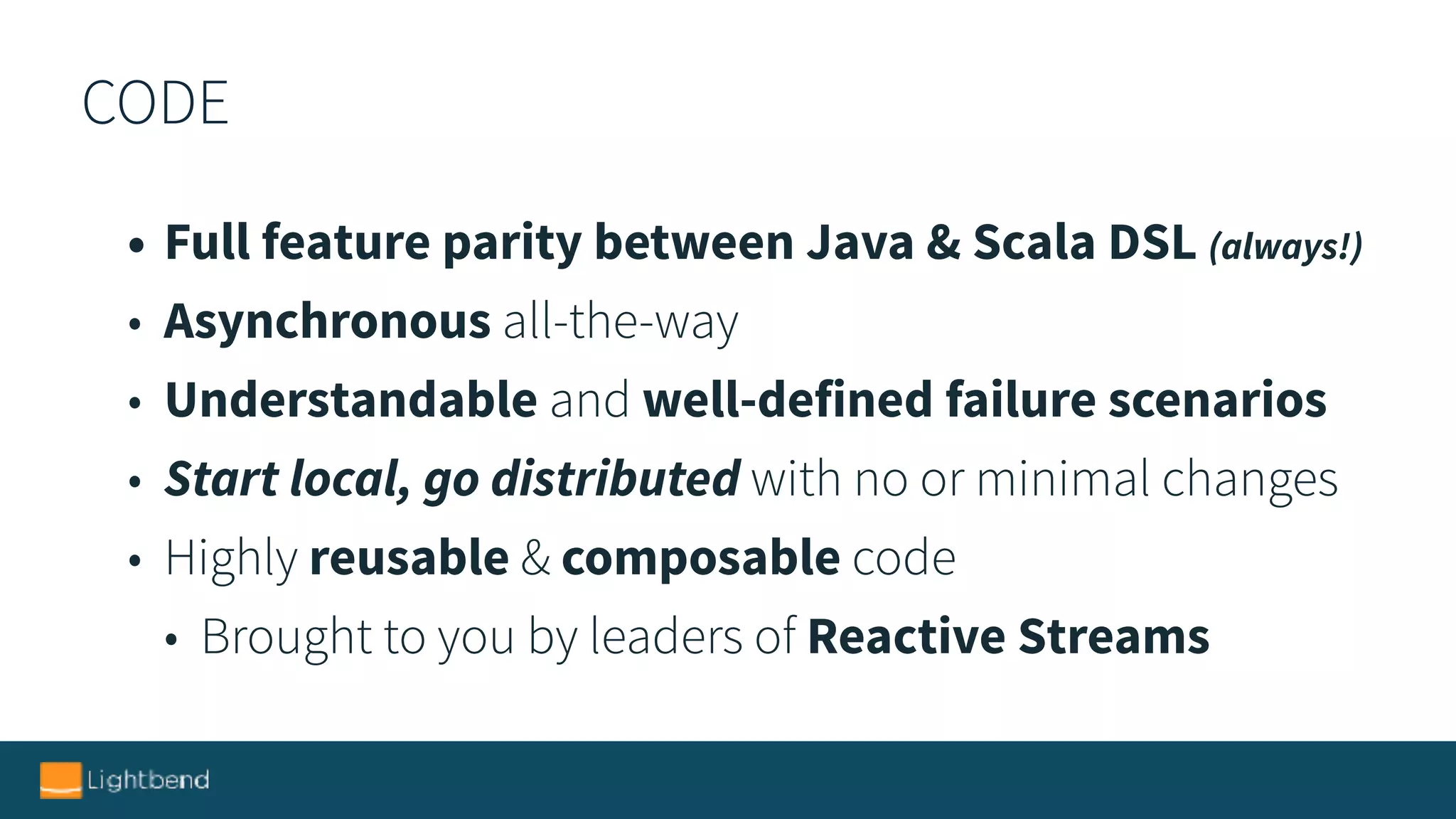

106. CODE
• Full feature parity between Java & Scala DSL (always!)
• Asynchronous all-the-way
• Understandable and well-defined failure scenarios
• Start local, go distributed with no or minimal changes
• Highly reusable & composable code
• Brought to you by leaders of Reactive Streams

107. MONITORING
• Awesome monitoring of asynchronous code
• Coming soon:
• Tracing across Actors, Futures, HTTP
• Smart Cluster Sharding insights

108. WHAT FEATURES ARE COMING
SOON?

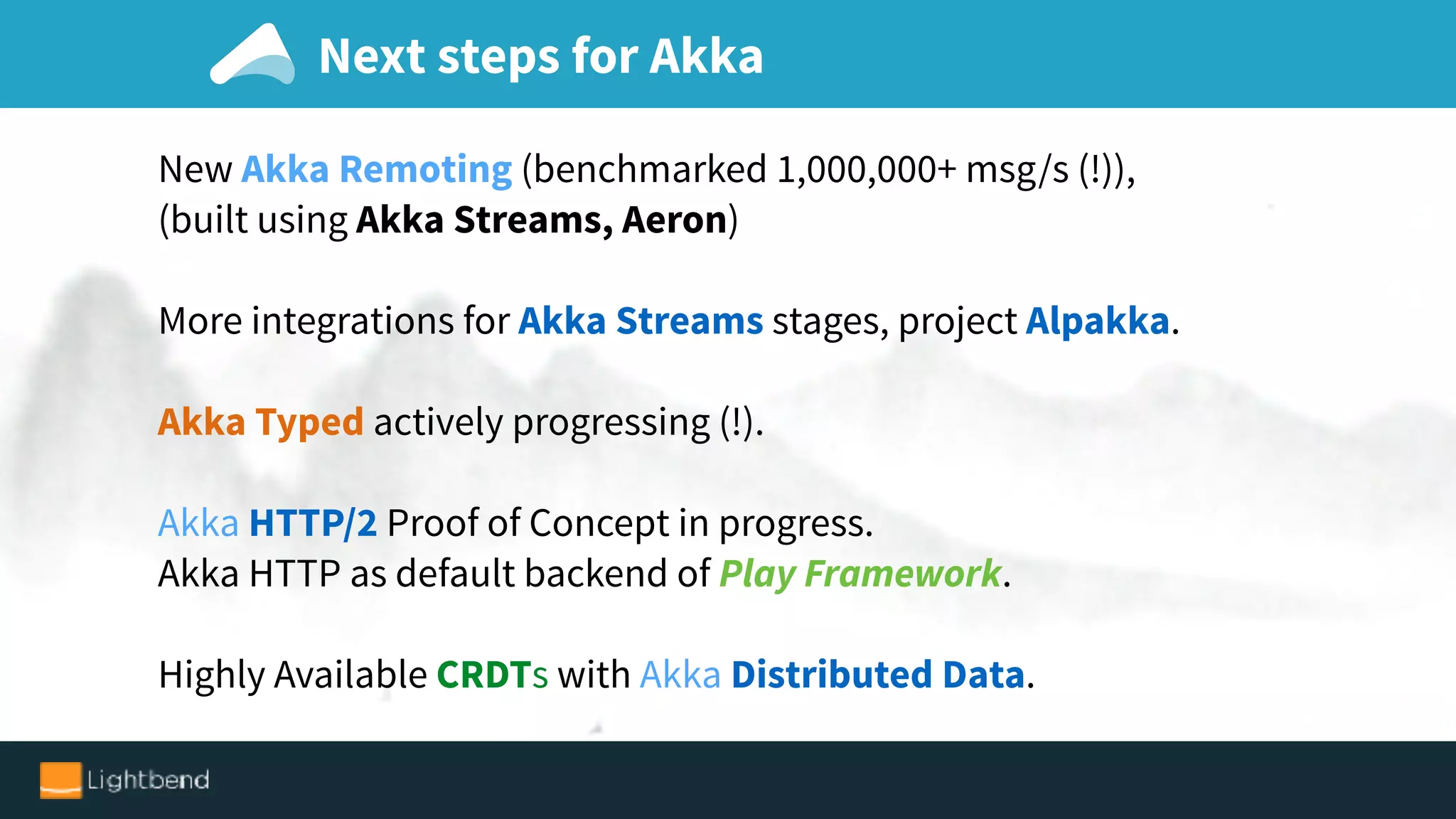

109. Next steps for Akka
New Akka Remoting (benchmarked 1,000,000+ msg/s (!)),
(built using Akka Streams, Aeron)
More integrations for Akka Streams stages, project Alpakka.
Akka Typed actively progressing (!).
Akka HTTP/2 Proof of Concept in progress.
Akka HTTP as default backend of Play Framework.
Highly Available CRDTs with Akka Distributed Data.

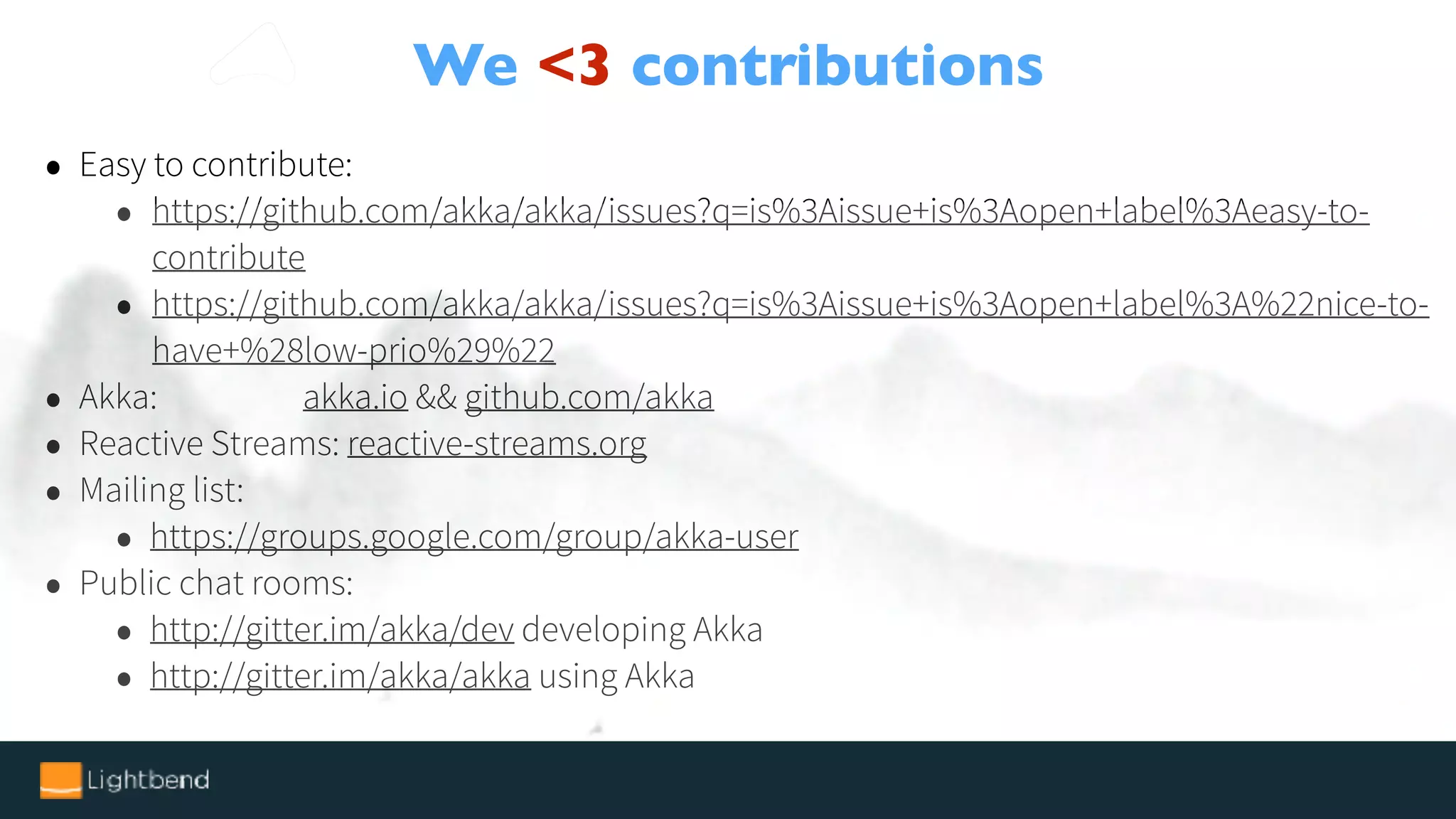

110. We <3 contributions
• Easy to contribute:
• https://github.com/akka/akka/issues?q=is%3Aissue+is%3Aopen+label%3Aeasy-to-
contribute
• https://github.com/akka/akka/issues?q=is%3Aissue+is%3Aopen+label%3A%22nice-to-
have+%28low-prio%29%22
• Akka: akka.io && github.com/akka
• Reactive Streams: reactive-streams.org
• Mailing list:
• https://groups.google.com/group/akka-user
• Public chat rooms:
• http://gitter.im/akka/dev developing Akka
• http://gitter.im/akka/akka using Akka

111. Lightbend booth / sponsor area
O’Reilly’s “Ask the Experts”
Henrik’s talk on Wednesday @ 4.50 pm…
Catch us here:Catch us here

112. EOF
Q/A
Konrad Malawski (@ktosopl) - Akka Team
Henrik Engström (@h3nk3) - Telemetry Team
