1. Stephan Ewen
@stephanewen
Streaming Analytics
with Apache Flink 1.0

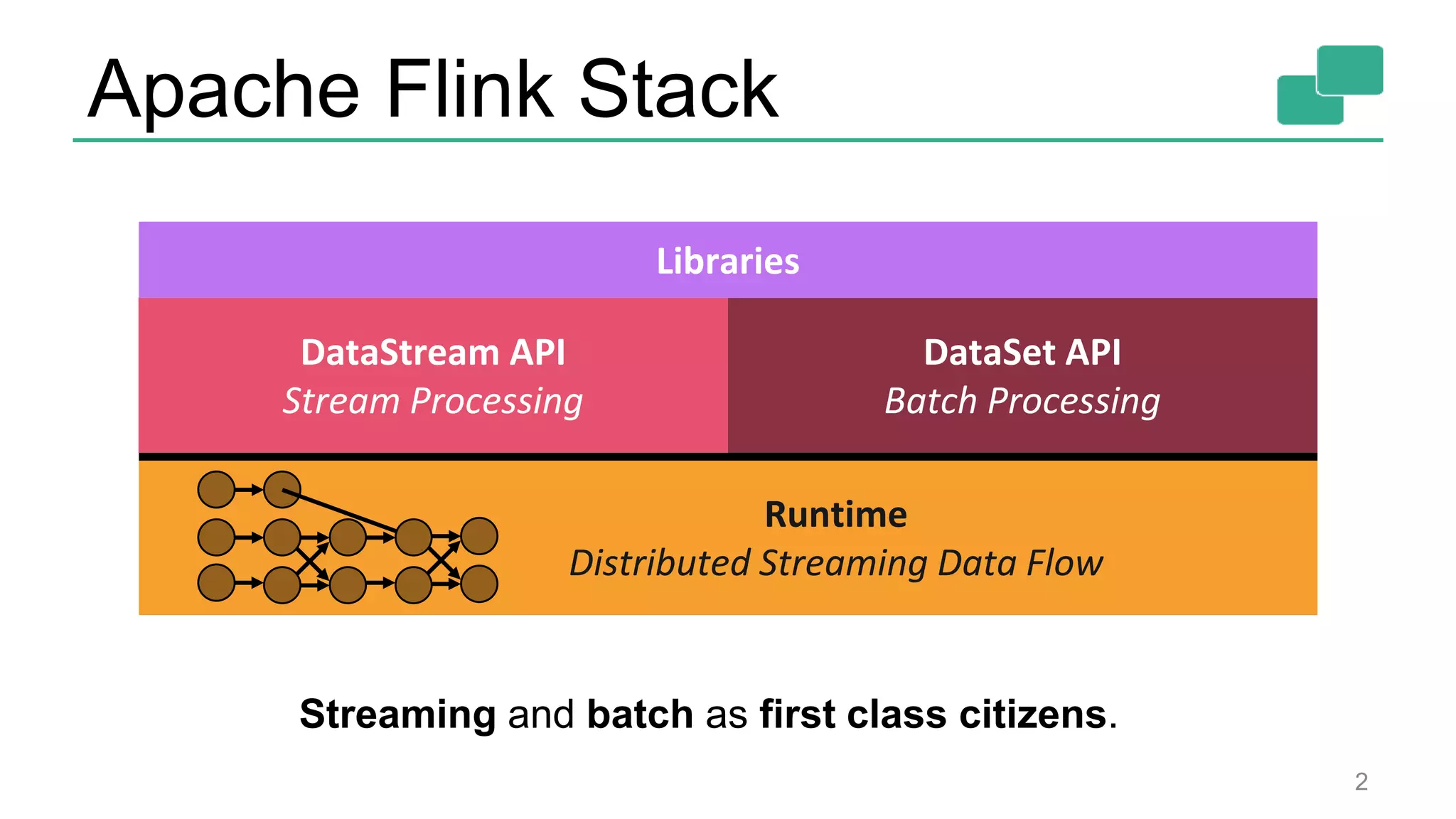

2. Apache Flink Stack
2
DataStream API
Stream Processing
DataSet API
Batch Processing
Runtime
Distributed Streaming Data Flow
Libraries
Streaming and batch as first class citizens.

3. Today
3
Streaming and batch as first class citizens.
DataStream API
Stream Processing
DataSet API
Batch Processing
Runtime
Distributed Streaming Data Flow
Libraries

4. 4
Streaming is the next programming paradigm
for data applications, and you need to start
thinking in terms of streams.

5. 5
Streaming technology is enabling the obvious:
continuous processing on data that is
continuously produced

6. Continuous Processing with Batch
 Continuous
ingestion
 Periodic (e.g.,
hourly) files
 Periodic batch
jobs
6

7. λ Architecture
 "Batch layer": what
we had before
 "Stream layer":
approximate early
results
7

8. A Stream Processing Pipeline
8
collect log analyze serve & store

9. A brief History of Flink
9
January ‘10 December ‘14
v0.5 v0.6 v0.7
March ‘16
Flink Project
Incubation
Top Level
Project
v0.8 v0.10
Release
1.0
Project
Stratosphere
(Flink precursor)
v0.9
April ‘14

10. A brief History of Flink
10
January ‘10 December ‘14
v0.5 v0.6 v0.7
March ‘16
Flink Project
Incubation
Top Level
Project
v0.8 v0.10
Release
1.0
Project
Stratosphere
(Flink precursor)
v0.9
April ‘14
The academia gap:
Reading/writing papers,
teaching, worrying about thesis
Realizing this might be
interesting to people
beyond academia
(even more so, actually)

11. Programs and Dataflows
11
Source
Transformation
Transformation
Sink
val lines: DataStream[String] = env.addSource(new FlinkKafkaConsumer09(…))
val events: DataStream[Event] = lines.map((line) => parse(line))
val stats: DataStream[Statistic] = stream
.keyBy("sensor")
.timeWindow(Time.seconds(5))
.sum(new MyAggregationFunction())
stats.addSink(new RollingSink(path))
Source
[1]
map()
[1]
keyBy()/
window()/
apply()
[1]
Sink
[1]
Source
[2]
map()
[2]
keyBy()/
window()/
apply()
[2]
Streaming
Dataflow

12. What makes Flink flink?
12
Low latency
High Throughput
Well-behaved
flow control
(back pressure)
Make more sense of data
Works on real-time
and historic data
True
Streaming
Event Time
APIs
Libraries
Stateful
Streaming
Globally consistent
savepoints
Exactly-once semantics
for fault tolerance
Windows &
user-defined state
Flexible windows
(time, count, session, roll-your own)
Complex Event Processing

13. Streaming Analytics by Example
13

14. Time-Windowed Aggregations
14
case class Event(sensor: String, measure: Double)
val env = StreamExecutionEnvironment.getExecutionEnvironment
val stream: DataStream[Event] = env.addSource(…)
stream
.keyBy("sensor")
.timeWindow(Time.seconds(5))
.sum("measure")

15. Time-Windowed Aggregations
15
case class Event(sensor: String, measure: Double)
val env = StreamExecutionEnvironment.getExecutionEnvironment
val stream: DataStream[Event] = env.addSource(…)
stream
.keyBy("sensor")
.timeWindow(Time.seconds(60), Time.seconds(5))
.sum("measure")

16. Session-Windowed Aggregations
16
case class Event(sensor: String, measure: Double)
val env = StreamExecutionEnvironment.getExecutionEnvironment
val stream: DataStream[Event] = env.addSource(…)
stream
.keyBy("sensor")
.window(EventTimeSessionWindows.withGap(Time.seconds(60)))
.max("measure")

17. Session-Windowed Aggregations
17
case class Event(sensor: String, measure: Double)
val env = StreamExecutionEnvironment.getExecutionEnvironment
val stream: DataStream[Event] = env.addSource(…)
stream
.keyBy("sensor")
.window(EventTimeSessionWindows.withGap(Time.seconds(60)))
.max("measure")
Flink 1.1 syntax

18. Pattern Detection
18
case class Event(producer: String, evtType: Int, msg: String)
case class Alert(msg: String)
val stream: DataStream[Event] = env.addSource(…)
stream
.keyBy("producer")
.flatMap(new RichFlatMapFuncion[Event, Alert]() {
lazy val state: ValueState[Int] = getRuntimeContext.getState(…)
def flatMap(event: Event, out: Collector[Alert]) = {
val newState = state.value() match {
case 0 if (event.evtType == 0) => 1
case 1 if (event.evtType == 1) => 0
case x => out.collect(Alert(event.msg, x)); 0
}
state.update(newState)
}
})

19. Pattern Detection
19
case class Event(producer: String, evtType: Int, msg: String)
case class Alert(msg: String)
val stream: DataStream[Event] = env.addSource(…)
stream
.keyBy("producer")
.flatMap(new RichFlatMapFuncion[Event, Alert]() {
lazy val state: ValueState[Int] = getRuntimeContext.getState(…)
def flatMap(event: Event, out: Collector[Alert]) = {
val newState = state.value() match {
case 0 if (event.evtType == 0) => 1
case 1 if (event.evtType == 1) => 0
case x => out.collect(Alert(event.msg, x)); 0
}
state.update(newState)
}
})
Embedded key/value
state store

20. Many more
 Joining streams (e.g. combine readings from sensor)
 Detecting Patterns (CEP)
 Applying (changing) rules or models to events
 Training and applying online machine learning
models
 …
20

21. (It's) About Time
21

22. 22
The biggest change in moving from
batch to streaming is
handling time explicitly

23. Example: Windowing by Time
23
case class Event(id: String, measure: Double, timestamp: Long)
val env = StreamExecutionEnvironment.getExecutionEnvironment
val stream: DataStream[Event] = env.addSource(…)
stream
.keyBy("id")
.timeWindow(Time.seconds(15), Time.seconds(5))
.sum("measure")

24. Example: Windowing by Time
24
case class Event(id: String, measure: Double, timestamp: Long)
val env = StreamExecutionEnvironment.getExecutionEnvironment
val stream: DataStream[Event] = env.addSource(…)
stream
.keyBy("id")
.timeWindow(Time.seconds(15), Time.seconds(5))
.sum("measure")

25. Different Notions of Time
25
Event Producer Message Queue
Flink
Data Source
Flink
Window Operator
partition 1
partition 2
Event
Time
Ingestion
Time
Window
Processing
Time

26. 1977 1980 1983 1999 2002 2005 2015
Processing Time
Episode
IV
Episode
V
Episode
VI
Episode
I
Episode
II
Episode
III
Episode
VII
Event Time
Event Time vs. Processing Time
26

27. Out of order Streams
27
Events occur on devices
Queue / Log
Events analyzed in
a
data streaming
system
Stream Analysis
Events stored in a log

28. Out of order Streams
28

29. Out of order Streams
29

30. Out of order Streams
30

31. Out of order Streams
31
Out of order !!!
First burst of events
Second burst of events

32. Out of order Streams
32
Event time windows
Arrival time windows
Instant event-at-a-time
First burst of events
Second burst of events

33. Processing Time
33
case class Event(id: String, measure: Double, timestamp: Long)
val env = StreamExecutionEnvironment.getExecutionEnvironment
env.setStreamTimeCharacteristic(ProcessingTime)
val stream: DataStream[Event] = env.addSource(…)
stream
.keyBy("id")
.timeWindow(Time.seconds(15), Time.seconds(5))
.sum("measure")
Window by operator's processing time

34. Ingestion Time
34
case class Event(id: String, measure: Double, timestamp: Long)
val env = StreamExecutionEnvironment.getExecutionEnvironment
env.setStreamTimeCharacteristic(IngestionTime)
val stream: DataStream[Event] = env.addSource(…)
stream
.keyBy("id")
.timeWindow(Time.seconds(15), Time.seconds(5))
.sum("measure")

35. Event Time
35
case class Event(id: String, measure: Double, timestamp: Long)
val env = StreamExecutionEnvironment.getExecutionEnvironment
env.setStreamTimeCharacteristic(EventTime)
val stream: DataStream[Event] = env.addSource(…)
stream
.keyBy("id")
.timeWindow(Time.seconds(15), Time.seconds(5))
.sum("measure")

36. Event Time
36
case class Event(id: String, measure: Double, timestamp: Long)
val env = StreamExecutionEnvironment.getExecutionEnvironment
env.setStreamTimeCharacteristic(EventTime)
val stream: DataStream[Event] = env.addSource(…)
val tsStream = stream.assignAscendingTimestamps(_.timestamp)
tsStream
.keyBy("id")
.timeWindow(Time.seconds(15), Time.seconds(5))
.sum("measure")

37. Event Time
37
case class Event(id: String, measure: Double, timestamp: Long)
val env = StreamExecutionEnvironment.getExecutionEnvironment
env.setStreamTimeCharacteristic(EventTime)
val stream: DataStream[Event] = env.addSource(…)
val tsStream = stream.assignTimestampsAndWatermarks(
new MyTimestampsAndWatermarkGenerator())
tsStream
.keyBy("id")
.timeWindow(Time.seconds(15), Time.seconds(5))
.sum("measure")

38. Watermarks
38
7
W(11)W(17)
11159121417122220 171921
Watermark
Event
Event timestamp
Stream (in order)
7
W(11)W(20)
Watermark
991011141517
Event
Event timestamp
1820 192123
Stream (out of order)

39. Watermarks in Parallel
39
Source
(1)
Source
(2)
map
(1)
map
(2)
window
(1)
window
(2)
29
29
17
14
14
29
14
14
W(33)
W(17)
W(17)
A|30B|31
C|30
D|15
E|30
F|15G|18H|20
K|35
Watermark
Event Time
at the operator
Event
[id|timestamp]
Event Time
at input streams
33
17
Watermark
Generation
M|39N|39Q|44
L|22O|23R|37

40. Mixing Event Time Processing Time
40
case class Event(id: String, measure: Double, timestamp: Long)
val env = StreamExecutionEnvironment.getExecutionEnvironment
env.setStreamTimeCharacteristic(EventTime)
val stream: DataStream[Event] = env.addSource(…)
val tsStream = stream.assignAscendingTimestamps(_.timestamp)
tsStream
.keyBy("id")
.window(SlidingEventTimeWindows.of(seconds(15), seconds(5))
.trigger(new MyTrigger())
.sum("measure")

41. Window Triggers
 React to any combination of
• Event Time
• Processing Time
• Event data
 Example of a mixed EventTime / Proc. Time Trigger:
• Trigger when event time reaches window end
OR
• When processing time reaches window end plus 30 secs.
41

42. Trigger example
42
.sum("measure")
public class EventTimeTrigger extends Trigger<Object, TimeWindow> {
public TriggerResult onElement(Object evt, long time,
TimeWindow window, TriggerContext ctx) {
ctx.registerEventTimeTimer(window.maxTimestamp());
ctx.registerProcessingTimeTimer(window.maxTimestamp() + 30000);
return TriggerResult.CONTINUE;
}
public TriggerResult onEventTime(long time, TimeWindow w, TriggerContext ctx) {
return TriggerResult.FIRE_AND_PURGE;
}
public TriggerResult onProcessingTime(long time, TimeWindow w, TriggerContext c) {
return TriggerResult.FIRE_AND_PURGE;
}

43. Trigger example
43
.sum("measure")
public class EventTimeTrigger extends Trigger<Object, TimeWindow> {
public TriggerResult onElement(Object evt, long time,
TimeWindow window, TriggerContext ctx) {
ctx.registerEventTimeTimer(window.maxTimestamp());
ctx.registerProcessingTimeTimer(window.maxTimestamp() + 30000);
return TriggerResult.CONTINUE;
}
public TriggerResult onEventTime(long time, TimeWindow w, TriggerContext ctx) {
return TriggerResult.FIRE_AND_PURGE;
}
public TriggerResult onProcessingTime(long time, TimeWindow w, TriggerContext c) {
return TriggerResult.FIRE_AND_CONTINUE;
}

44. Per Kafka Partition Watermarks
44
Source
(1)
Source
(2)
map
(1)
map
(2)
window
(1)
window
(2)
33
17
29
29
17
14
14
29
14
14
W(33)
W(17)
W(17)
A|30B|73
C|33
D|18
E|31
F|15G|91H|94
K|77
Watermark
Generation
L|35N|39
O|97 M|89
I|21Q|23
T|99 S|97

45. Per Kafka Partition Watermarks
45
val env = StreamExecutionEnvironment.getExecutionEnvironment
env.setStreamTimeCharacteristic(EventTime)
val kafka = new FlinkKafkaConsumer09(topic, schema, props)
kafka.assignTimestampsAndWatermarks(
new MyTimestampsAndWatermarkGenerator())
val stream: DataStream[Event] = env.addSource(kafka)
stream
.keyBy("id")
.timeWindow(Time.seconds(15), Time.seconds(5))
.sum("measure")

46. Matters of State
(Fault Tolerance, Reinstatements, etc)
46

47. Back to the Aggregation Example
47
case class Event(id: String, measure: Double, timestamp: Long)
val env = StreamExecutionEnvironment.getExecutionEnvironment
val stream: DataStream[Event] = env.addSource(
new FlinkKafkaConsumer09(topic, schema, properties))
stream
.keyBy("id")
.timeWindow(Time.seconds(15), Time.seconds(5))
.sum("measure")
Stateful

48. Fault Tolerance
 Prevent data loss (reprocess lost in-flight events)
 Recover state consistency (exactly-once semantics)
• Pending windows & user-defined (key/value) state
 Checkpoint based fault tolerance
• Periodicaly create checkpoints
• Recovery: resume from last completed checkpoint
• Async. Barrier Snapshots (ABS) Algorithm 
48

49. Checkpoints
49
data stream
event
newer records older records
State of the dataflow
at point Y
State of the dataflow
at point X

50. Checkpoint Barriers
 Markers, injected into the streams
50

51. Checkpoint Procedure
51

52. Checkpoint Procedure
52

53. Savepoints
 A "Checkpoint" is a globally consistent point-in-time snapshot
of the streaming program (point in stream, state)
 A "Savepoint" is a user-triggered retained checkpoint
 Streaming programs can start from a savepoint
53
Savepoint B Savepoint A

54. (Re)processing data (in batch)
 Re-processing data (what-if exploration, to correct bugs, etc.)
 Usually by running a batch job with a set of old files
 Tools that map files to times
54
2016-3-1
12:00 am
2016-3-1
1:00 am
2016-3-1
2:00 am
2016-3-11
11:00pm
2016-3-12
12:00am
2016-3-12
1:00am…
Collection of files, by ingestion time
2016-3-11
10:00pm
To the batch
processor

55. Unclear Batch Boundaries
55
2016-3-1
12:00 am
2016-3-1
1:00 am
2016-3-1
2:00 am
2016-3-11
11:00pm
2016-3-12
12:00am
2016-3-12
1:00am…
2016-3-11
10:00pm
To the batch
processor
?
?
What about sessions across batches?

56. (Re)processing data (streaming)
 Draw savepoints at times that you will want to start new jobs
from (daily, hourly, …)
 Reprocess by starting a new job from a savepoint
• Defines start position in stream (for example Kafka offsets)
• Initializes pending state (like partial sessions)
56
Savepoint
Run new streaming
program from savepoint

57. Continuous Data Sources
57
2016-3-1
12:00 am
2016-3-1
1:00 am
2016-3-1
2:00 am
2016-3-11
11:00pm
2016-3-12
12:00am
2016-3-12
1:00am
2016-3-11
10:00pm …
partition
partition
Savepoint
Savepoint
Stream of Kafka Partitions
Stream view over sequence of files
Kafka offsets +
Operator state
File mod timestamp +
File position +
Operator state
WIP (target: Flink 1.1)

58. Upgrading Programs
 A program starting from a savepoint can differ from the
program that created the savepoint
• Unique operator names match state and operator
 Mechanism be used to fix bugs in programs, to evolve
programs, parameters, libraries, …
58

59. State Backends
 Large state is a collection of key/value pairs
 State backend defines what data structure holds the
state, plus how it is snapshotted
 Most common choices
• Main memory – snapshots to master
• Main memory – snapshots to dist. filesystem
• RocksDB – snapshots to dist. filesystem
59

60. Complex Event Processing Primer
60

61. Example: Temperature Monitoring
 Receiving temperature an power events
from sensors
 Looking for temperatures repeatedly
exceeding thresholds within a
short time period (10 secs)
61

62. Event Types
62

63. Defining Patterns
63

64. Generating Alerts
64

65. An Outlook on Things to Come
65

66. Flink in the wild
66
30 billion events daily 2 billion events in
10 1Gb machines
data integration & distribution
platform
See talks by at

67. Roadmap
 Dynamic Scaling, Resource Elasticity
 Stream SQL
 CEP enhancements
 Incremental & asynchronous state snapshotting
 Mesos support
 More connectors, end-to-end exactly once
 API enhancements (e.g., joins, slowly changing inputs)
 Security (data encryption, Kerberos with Kafka)
67

68. 68
I stream, do you?
