The document discusses using Doubletake for virtual machine replication and disaster recovery. It describes how Doubletake works with VMware virtual infrastructure to provide real-time replication of virtual machines between sites. The replication occurs at the virtual disk level and supports failover of entire virtual machines within minutes in the event of a disaster at the primary site.

1. Business Continuity & DR with Virtualization & Doubletake A view at using Doubletake with VM’s in order to provide Continuity Ultan Kinahan MCITP, MCTS, MCSE, MCP [email_address] http://ultankinahan.spaces.live.com

2. So What Really Constitutes a Disaster? Some Examples; Fire, Flood, Power Loss, Hacker or any Natural Disaster

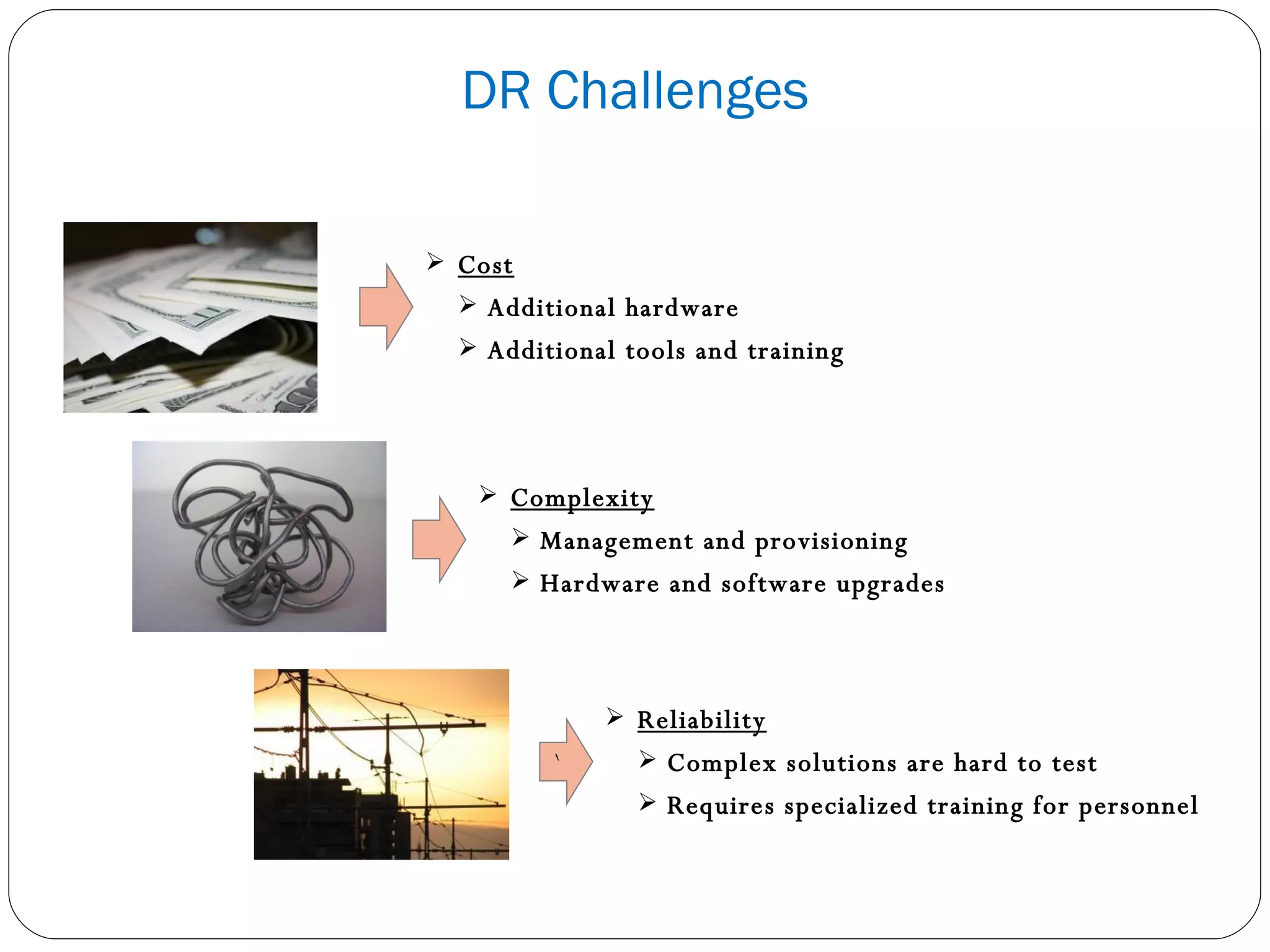

3. DR Challenges Complexity Management and provisioning Hardware and software upgrades Reliability Complex solutions are hard to test Requires specialized training for personnel Cost Additional hardware Additional tools and training `

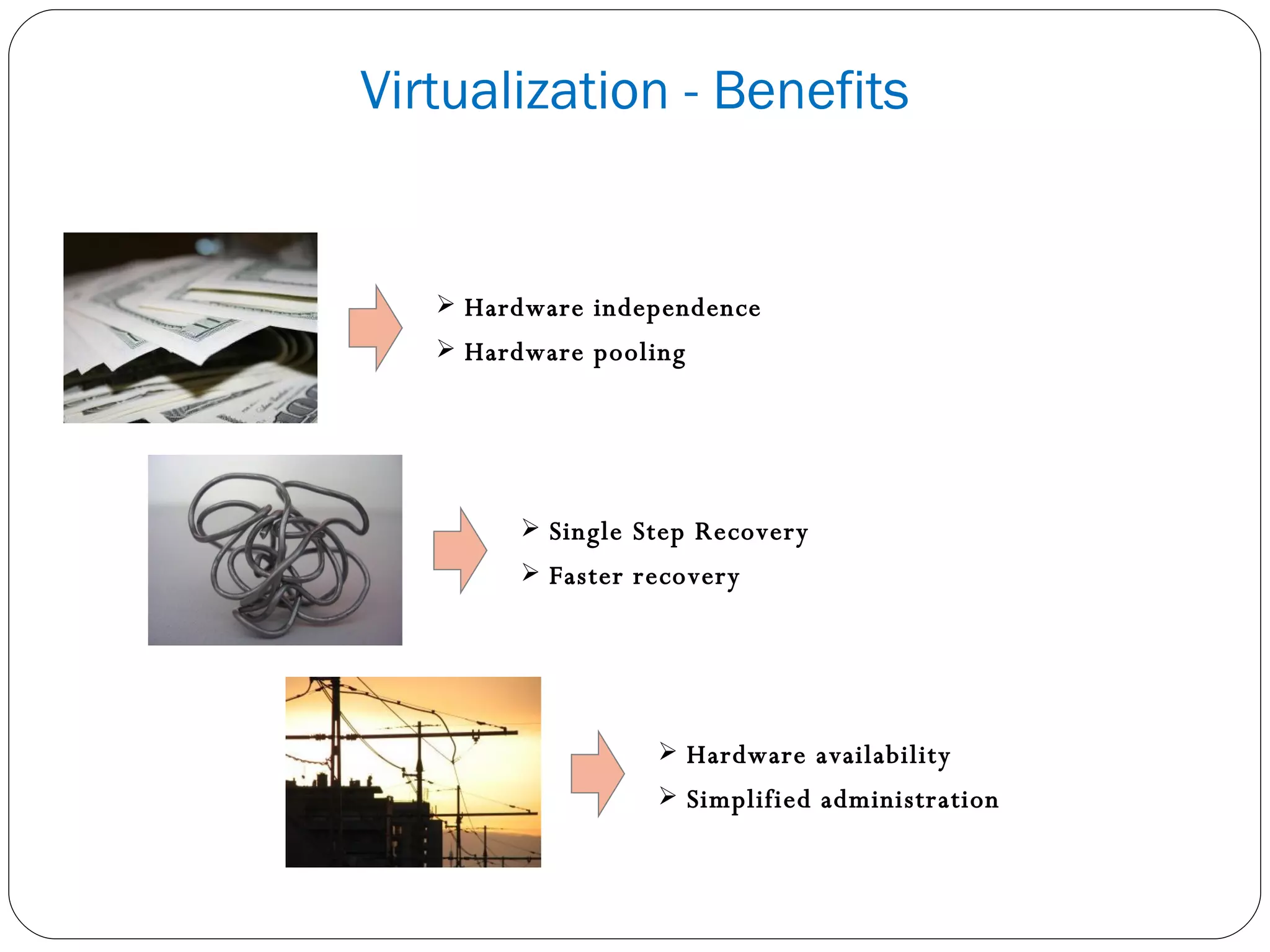

4. Virtualization - Benefits Hardware independence Hardware pooling Single Step Recovery Faster recovery Hardware availability Simplified administration

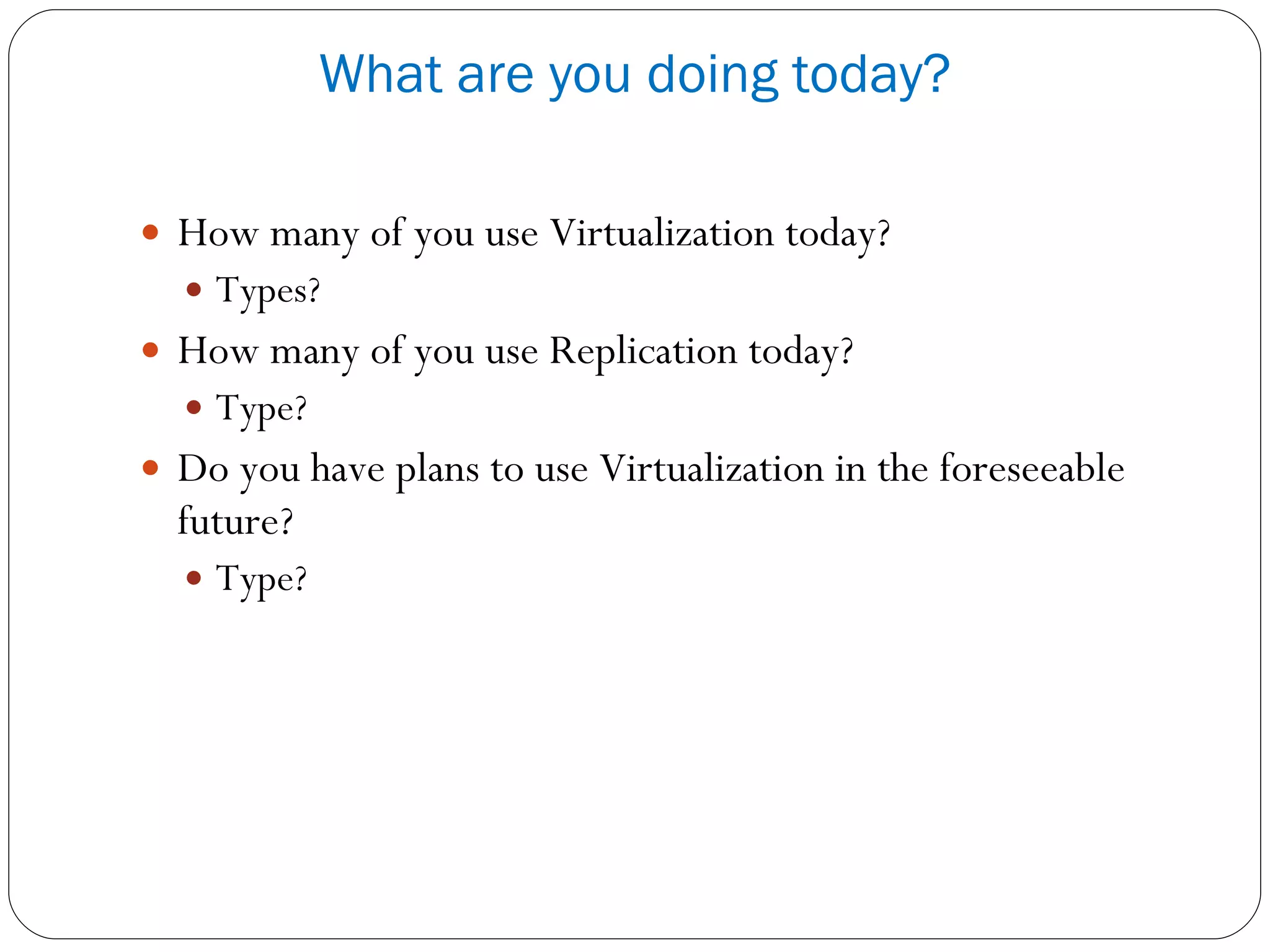

5. How many of you use Virtualization today? Types? How many of you use Replication today? Type? Do you have plans to use Virtualization in the foreseeable future? Type? What are you doing today?

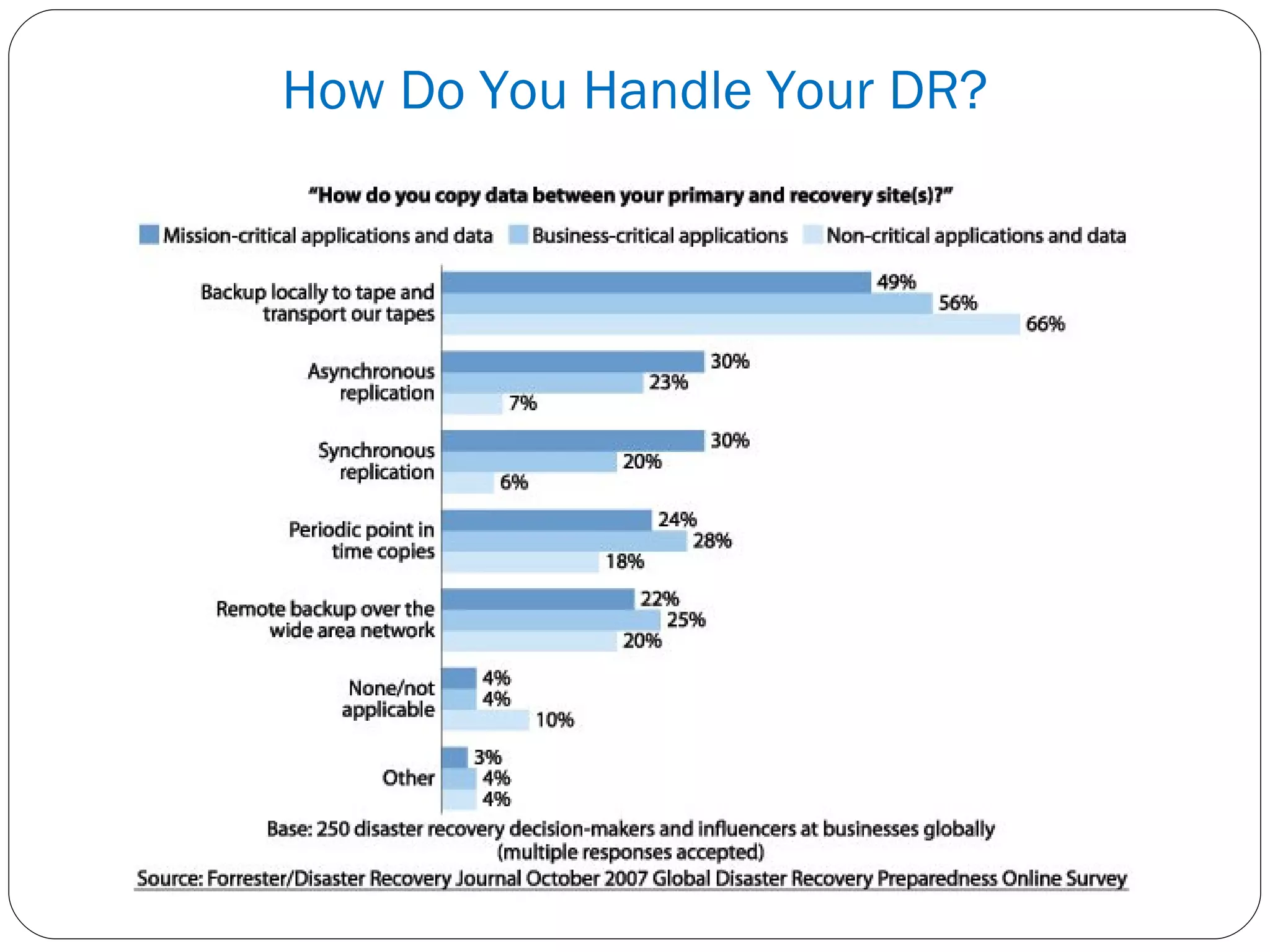

6. How Do You Handle Your DR?

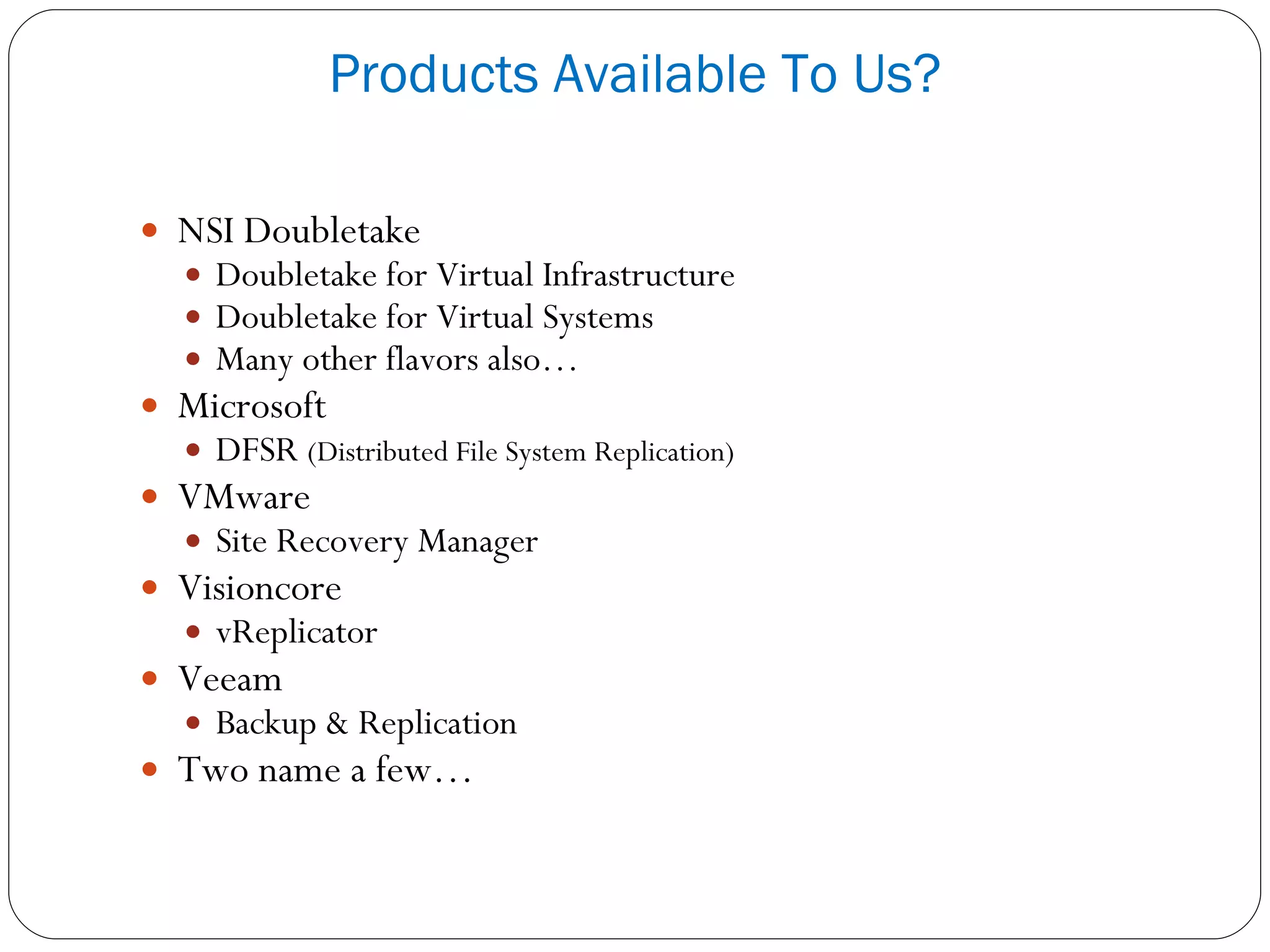

7. NSI Doubletake Doubletake for Virtual Infrastructure Doubletake for Virtual Systems Many other flavors also… Microsoft DFSR (Distributed File System Replication) VMware Site Recovery Manager Visioncore vReplicator Veeam Backup & Replication Two name a few… Products Available To Us?

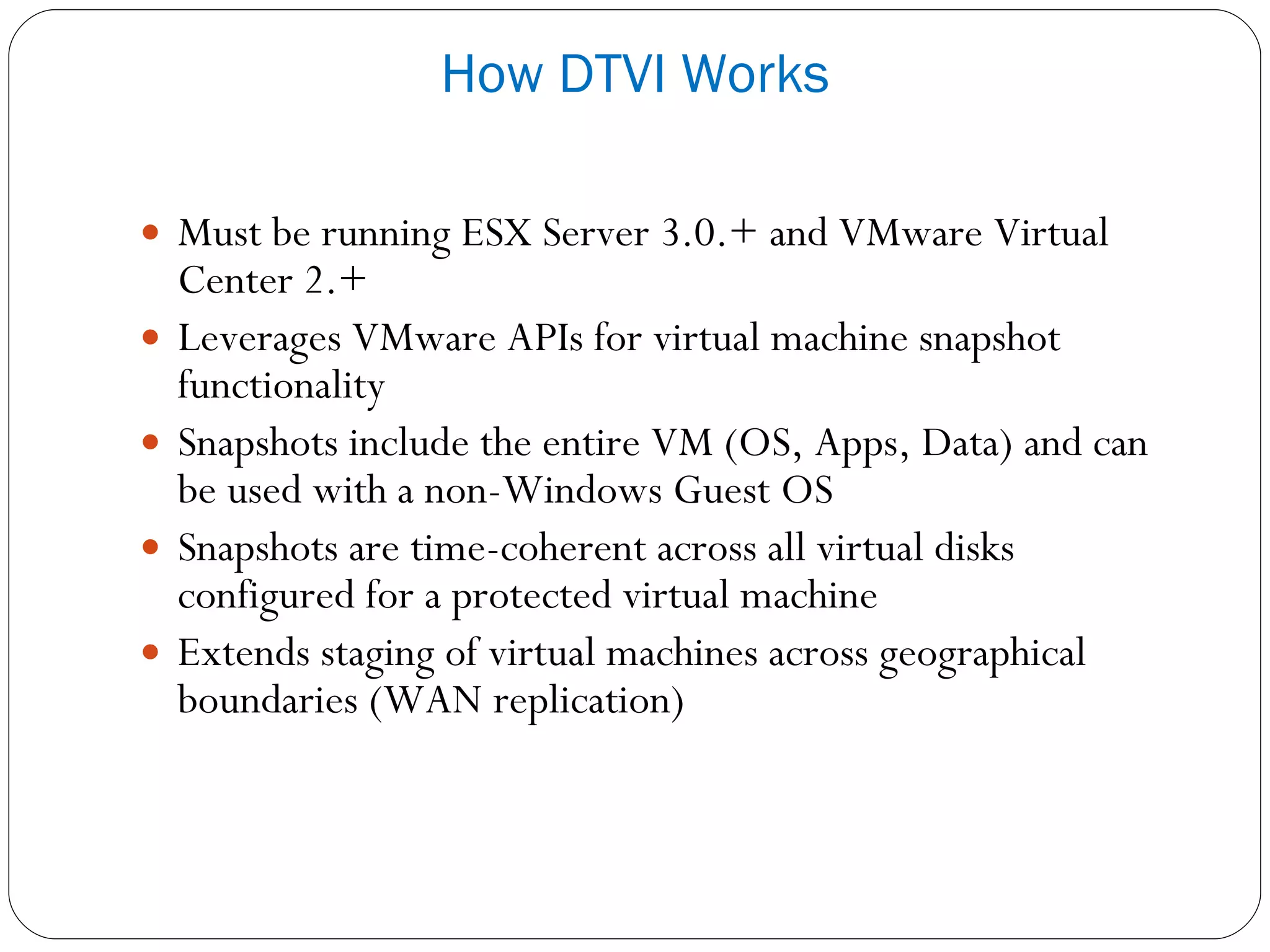

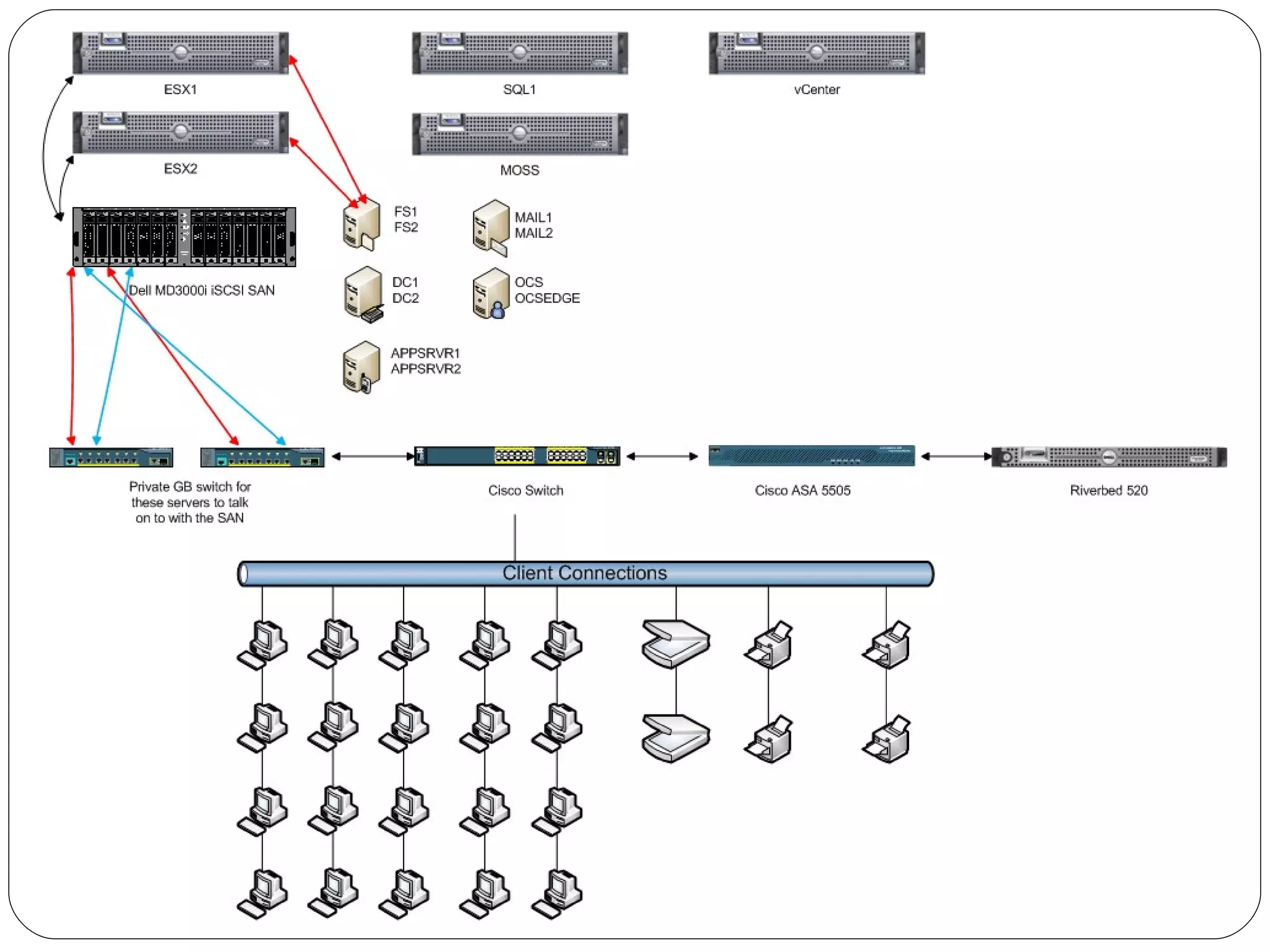

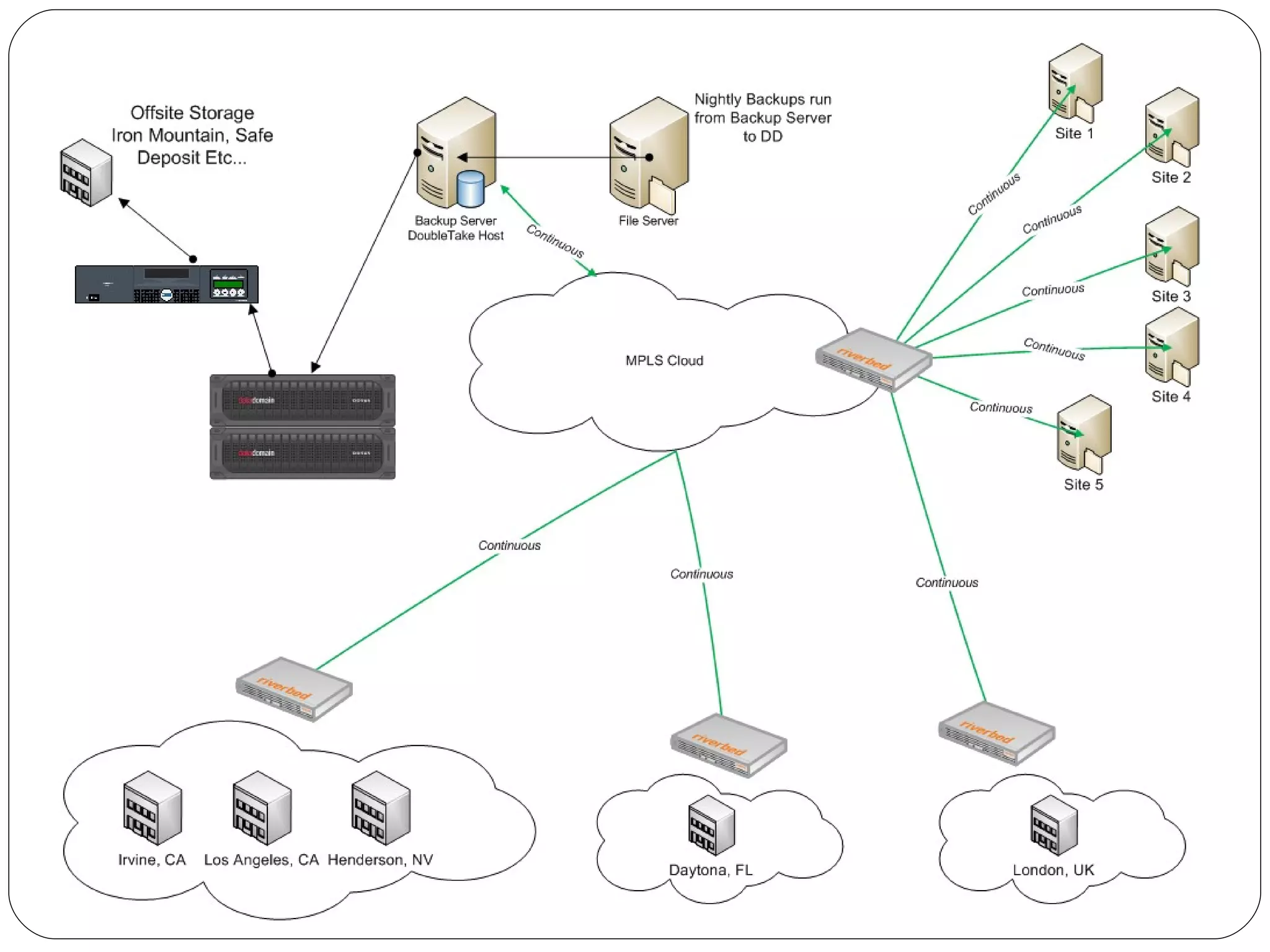

10. Must be running ESX Server 3.0.+ and VMware Virtual Center 2.+ Leverages VMware APIs for virtual machine snapshot functionality Snapshots include the entire VM (OS, Apps, Data) and can be used with a non-Windows Guest OS Snapshots are time-coherent across all virtual disks configured for a protected virtual machine Extends staging of virtual machines across geographical boundaries (WAN replication) How DTVI Works

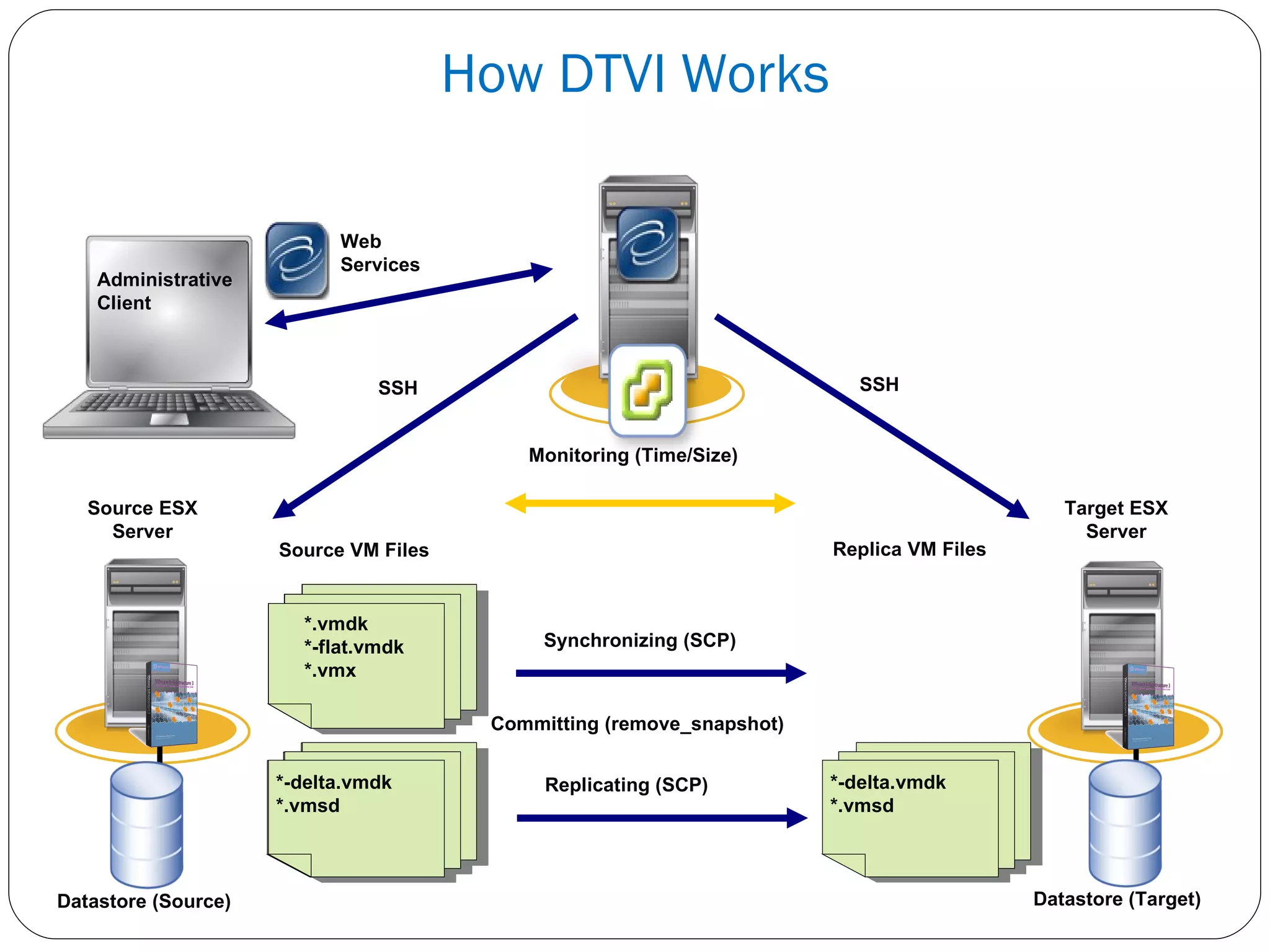

11. How DTVI Works Committing (remove_snapshot) Source VM Files Replica VM Files Administrative Client *-delta.vmdk *.vmsd *-delta.vmdk *.vmsd Replicating (SCP) *-delta.vmdk *.vmsd *.vmdk *-flat.vmdk *.vmx Synchronizing (SCP) Source ESX Server Datastore (Source) Target ESX Server Datastore (Target) SSH SSH Web Services *.vmdk *-flat.vmdk *.vmx Monitoring (Time/Size)

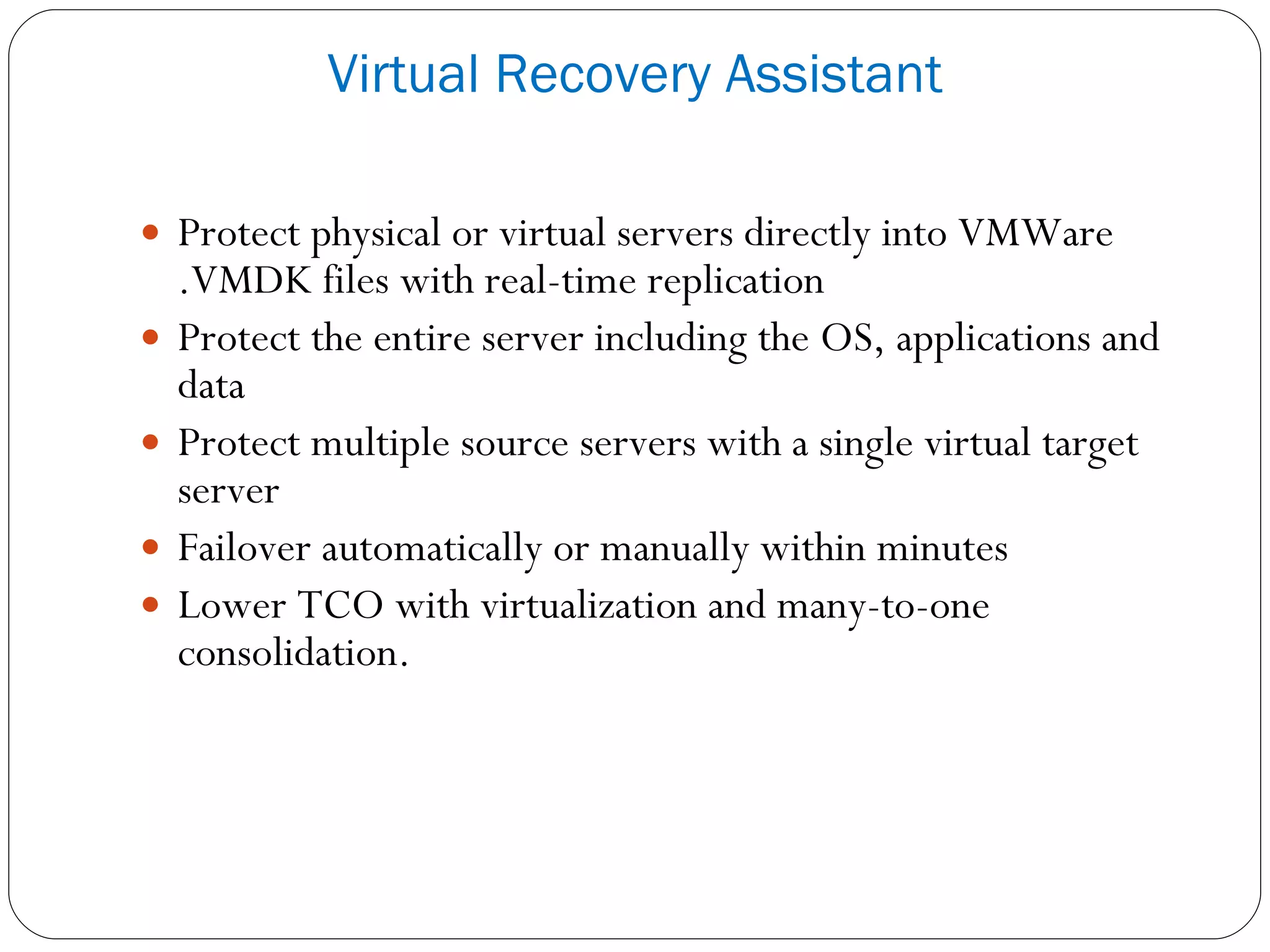

12. Protect physical or virtual servers directly into VMWare .VMDK files with real-time replication Protect the entire server including the OS, applications and data Protect multiple source servers with a single virtual target server Failover automatically or manually within minutes Lower TCO with virtualization and many-to-one consolidation. Virtual Recovery Assistant

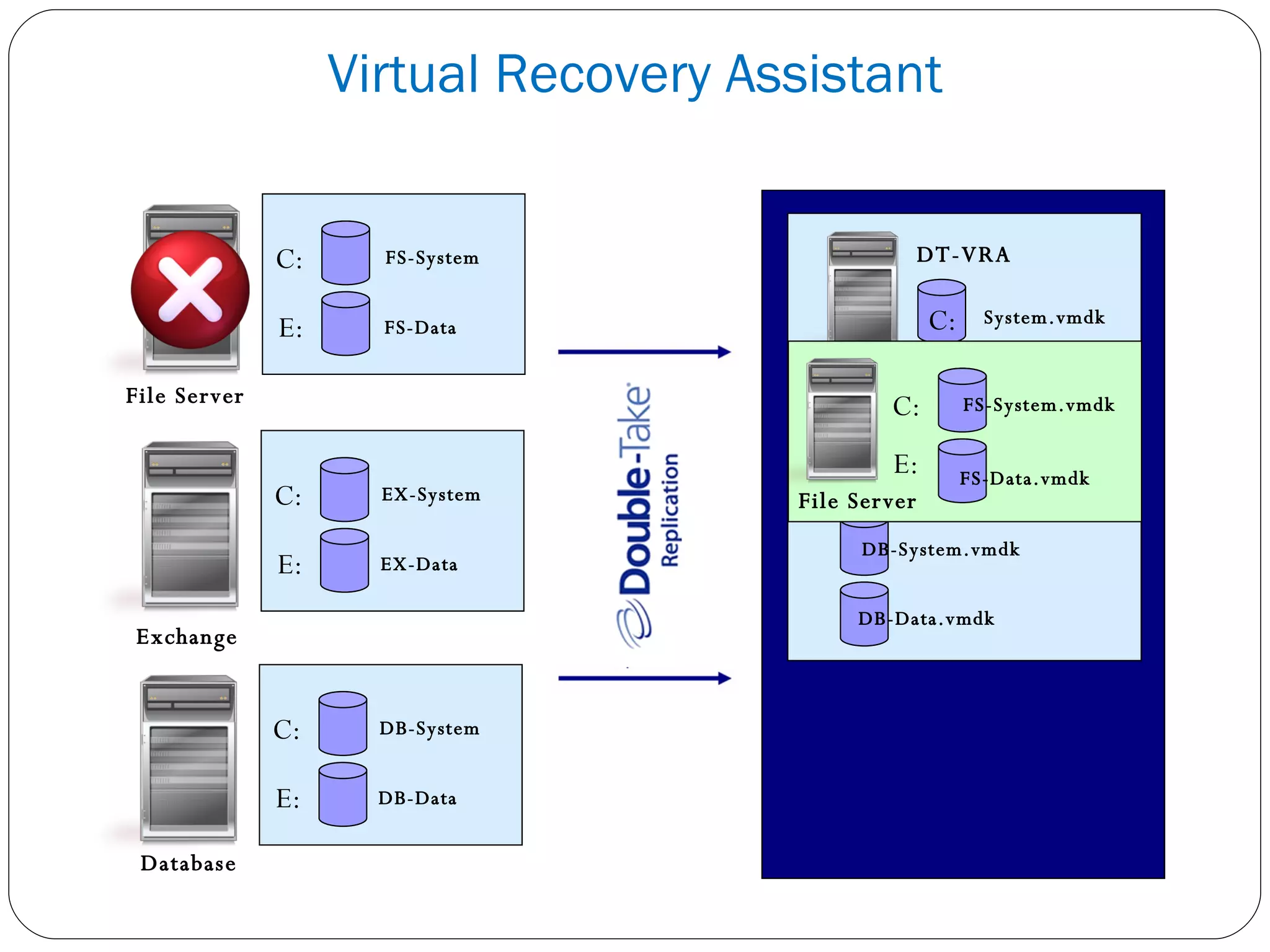

13. Virtual Recovery Assistant FS-System.vmdk FS-Data.vmdk EX-System.vmdk EX-Data.vmdk DB-System.vmdk DB-Data.vmdk C: System.vmdk DT-VRA FS-System FS-Data File Server Exchange Database C: E: EX-System.vmdk EX-Data.vmdk DB-System.vmdk DB-Data.vmdk C: System.vmdk DT-VRA FS-System.vmdk FS-Data.vmdk File Server C: E: EX-System EX-Data C: E: DB-System DB-Data C: E:

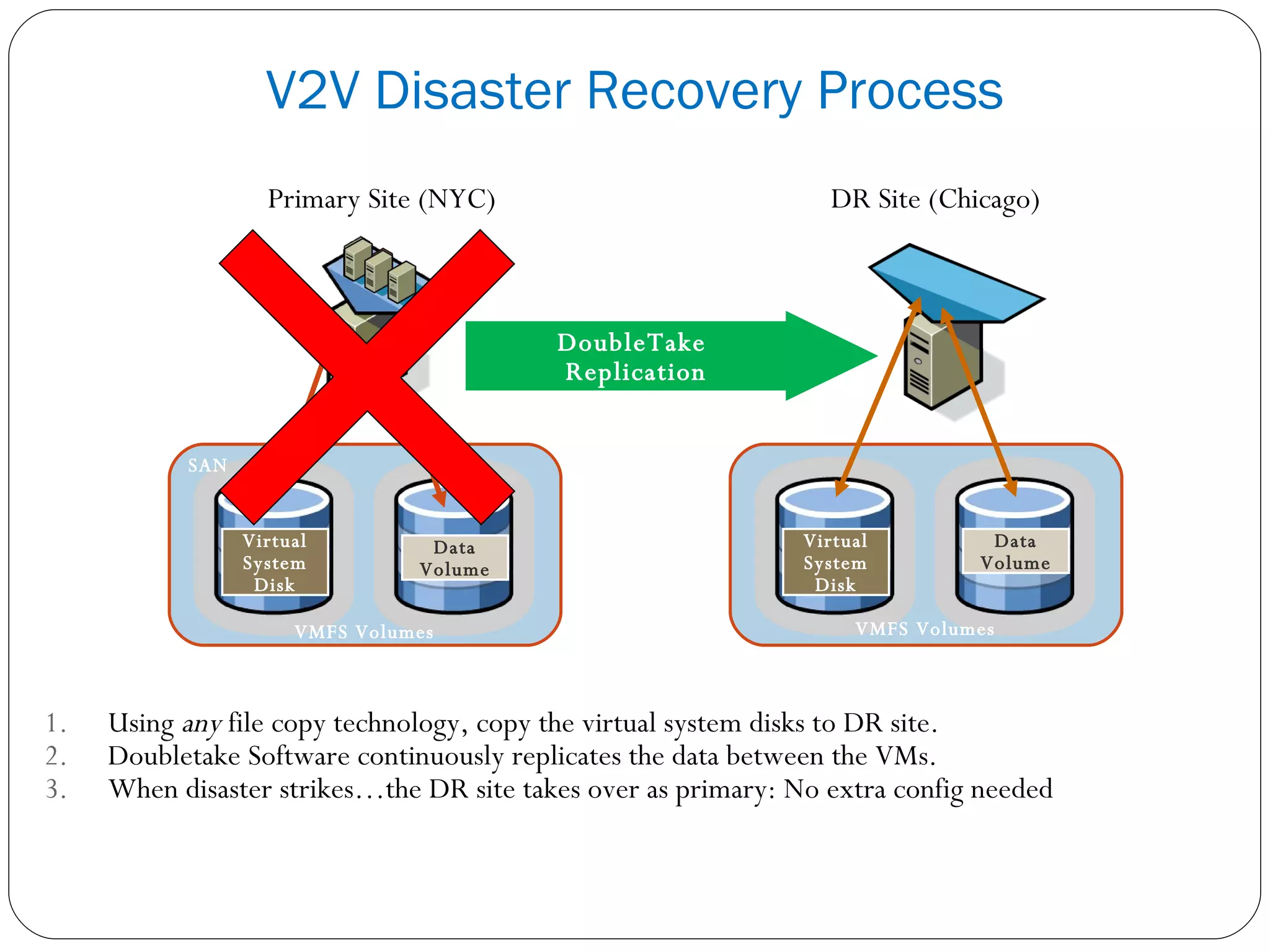

14. V2V Disaster Recovery Process Virtual System Disk Data Volume Primary Site Virtual System Disk Disaster Recovery Site VMFS Volumes SAN VMFS Volumes DoubleTake Replication Data Volume Using any file copy technology, copy the virtual system disks to DR site. Doubletake Software continuously replicates the data between the VMs. When disaster strikes…the DR site takes over as primary: No extra config needed Primary Site (NYC) DR Site (Chicago)

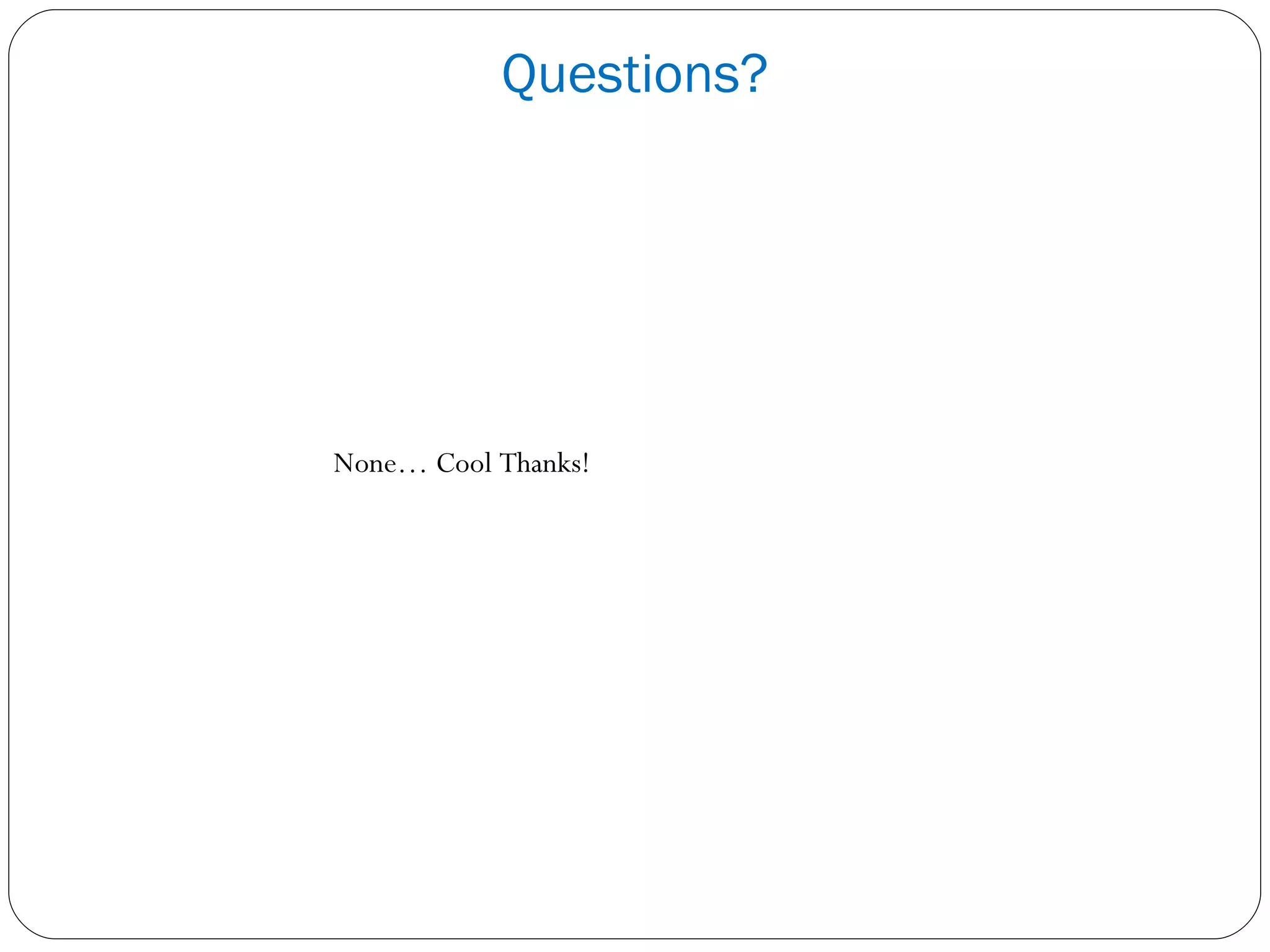

15. Questions? None… Cool Thanks!
