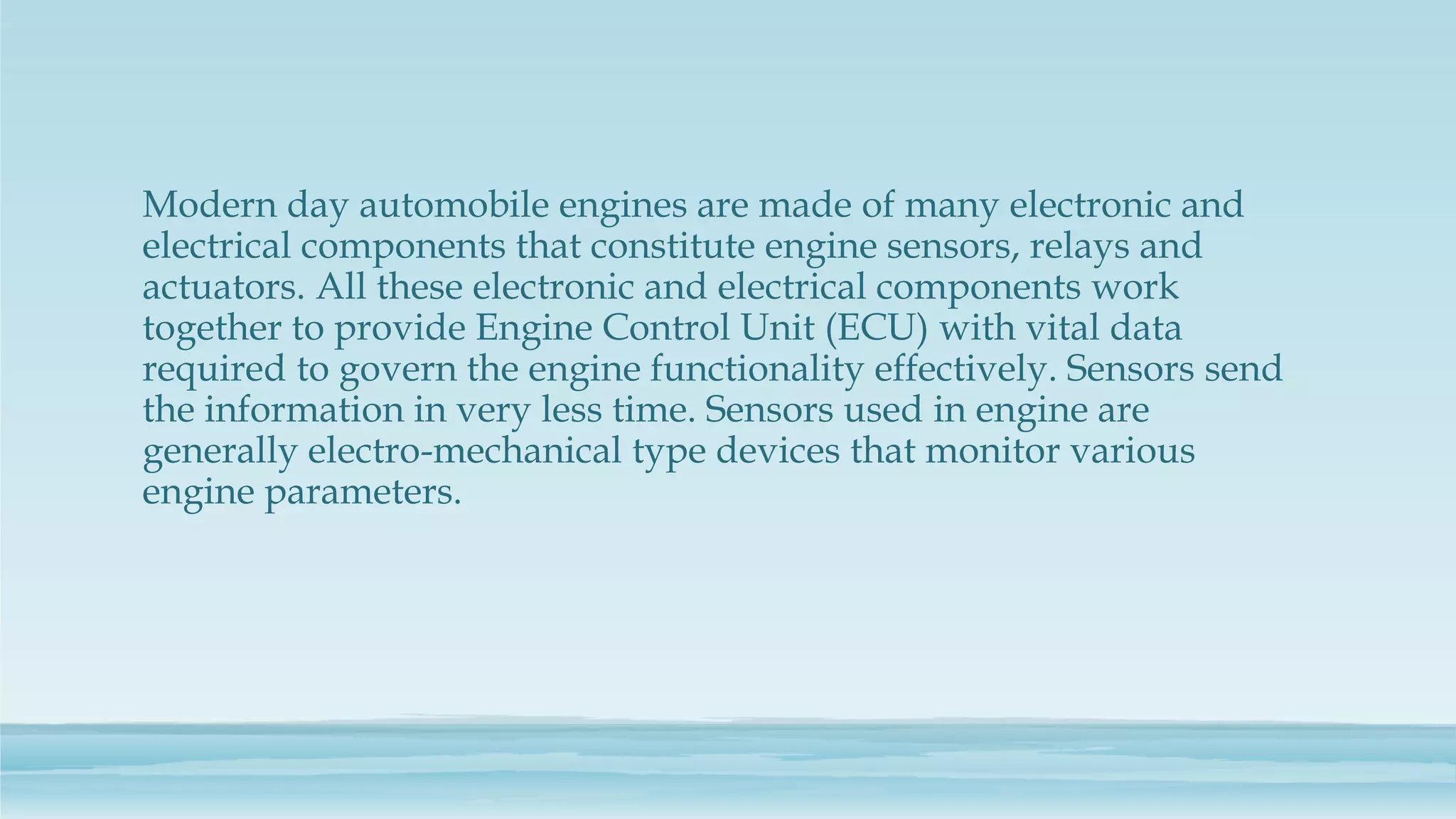

2. Modern day automobile engines are made of many electronic and
electrical components that constitute engine sensors, relays and
actuators. All these electronic and electrical components work
together to provide Engine Control Unit (ECU) with vital data
required to govern the engine functionality effectively. Sensors send
the information in very less time. Sensors used in engine are
generally electro-mechanical type devices that monitor various
engine parameters.
3. Delta Pressure Feedback EGR sensor (DPFE sensor)
EGR stands for Exhaust Gas Recirculation. The system mechanism involves
sucking of exhaust gases back into the engine to re-burn them. DPFE sensor
reads the changes in the pressure of the EGR system.
A vacuum line comes off the intake manifold to EGR actuator. The actuator
is an electric device which is controlled by power-train control module
(PCM) that monitors the vacuum pressure. From here, another hose goes to
the EGR valve. When vacuum pressure opens the EGR valve, letting
exhaust gases to be pulled from the exhaust, past the DPEF tubes, and then
again into exhaust manifold.
When the gas flows from EGR tube, the two tubes towards the DPEF sensor
get pressurized. There is a difference in pressure, where one of the tubes
has more pressure than the other. DPEF registers the pressure difference
and tells the amount of exhaust gas flowing through EGR.
4. Throttle position sensor (TPS)
Throttle shaft is attached with a potentiometer called TPS. This
sensor is supplied with voltage and a voltage of varying current
comes back. The voltage increases as the throttle opens. This variable
voltage and the MAP sensor determines the amount of air which
enters into the engine. This results in increase or decrease of the fuel
rate as required.
5. Cam position sensor
Cam position sensor monitors the position of camshaft and reports
data to ECU. The data from the cam position sensor is used by the
fuel injectors in engine and fire accordingly. This sensors is coupled
with crankshaft position sensor.
6. Ignition control module
Ignition control module controls the ignition coil's firing time. It is the
heart of an automobile ignition system. It regulates spark ignition
from inside the engine. It is dependent on the battery of automobile
for spark, that begins the ignition system. Ignition control module is
placed near automobile distributor and is insulated to protect its
electronic components.
7. DIS Coil (Distributorless Ignition System)
DIS coil works the same way as centrally loaded coils. DIS system
controls the transistor which breaks the ground side of circuit. DIS
systems use a waste spark where one coil fires a pair of spark plugs
which are opposite one another in firing order.
8. Other type of sensors
• Engine speed sensor: This sensor monitors the speed of engine.
• Crank position sensor: Crank position sensor monitors piston TDC position in engine.
• Knock sensor: Knock sensor detects the knocking which is occurred due to pre ignition.
• Coolant temperature sensor: This sensor measures the engine temperature.
• Manifold absolute pressure (MAP) sensor: Controls the fuel level of the engine.
• Mass air flow (MAF) sensor: Measures the mass of air entering the engine.
• Oxygen sensor: Oxygen sensor measures the amount of oxygen in the exhaust.
• Fuel pressure sensor: To measure fuel pressure in system.
• Vehicle speed sensor: To know the speed of the vehicle.
9. Sensors are very time sensitive and share information very fast.
Hence having a good sensor results in better and safer automobile.
10. Airtex Fuel Delivery Systems is the leading aftermarket supplier of
mechanical and electric fuel pumps and modular reservoir
assemblies (MRA). For over 50 years, the Airtex brand has been the
benchmark of fuel delivery and cooling system components. Airtex
fuel pump is an OE replacement pump. Airtex electric fuel pump and
mechanical pump models are available for old and new cars.
