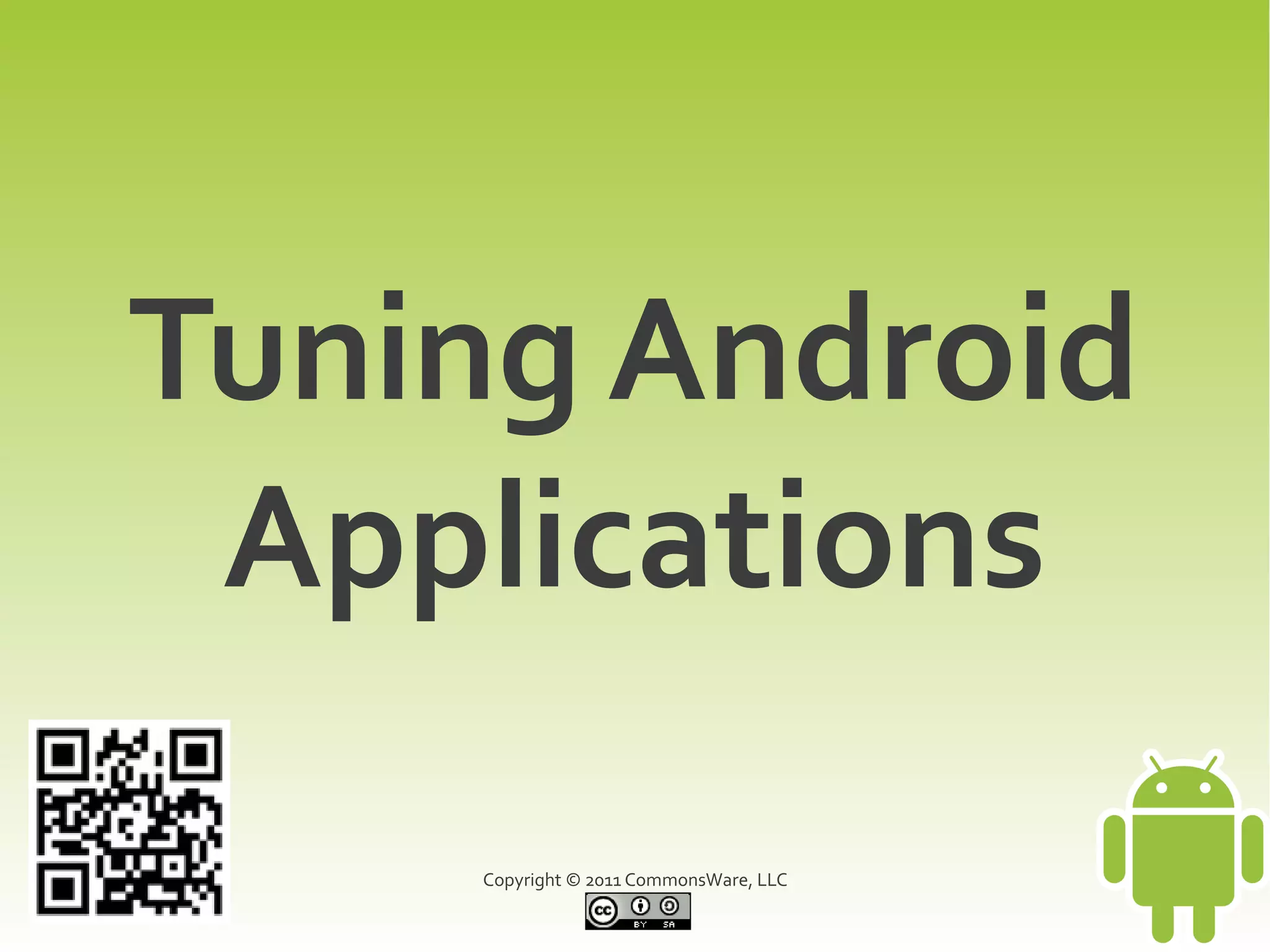

Tuning Android
 Applications
    Copyright © 2011 CommonsWare, LLC

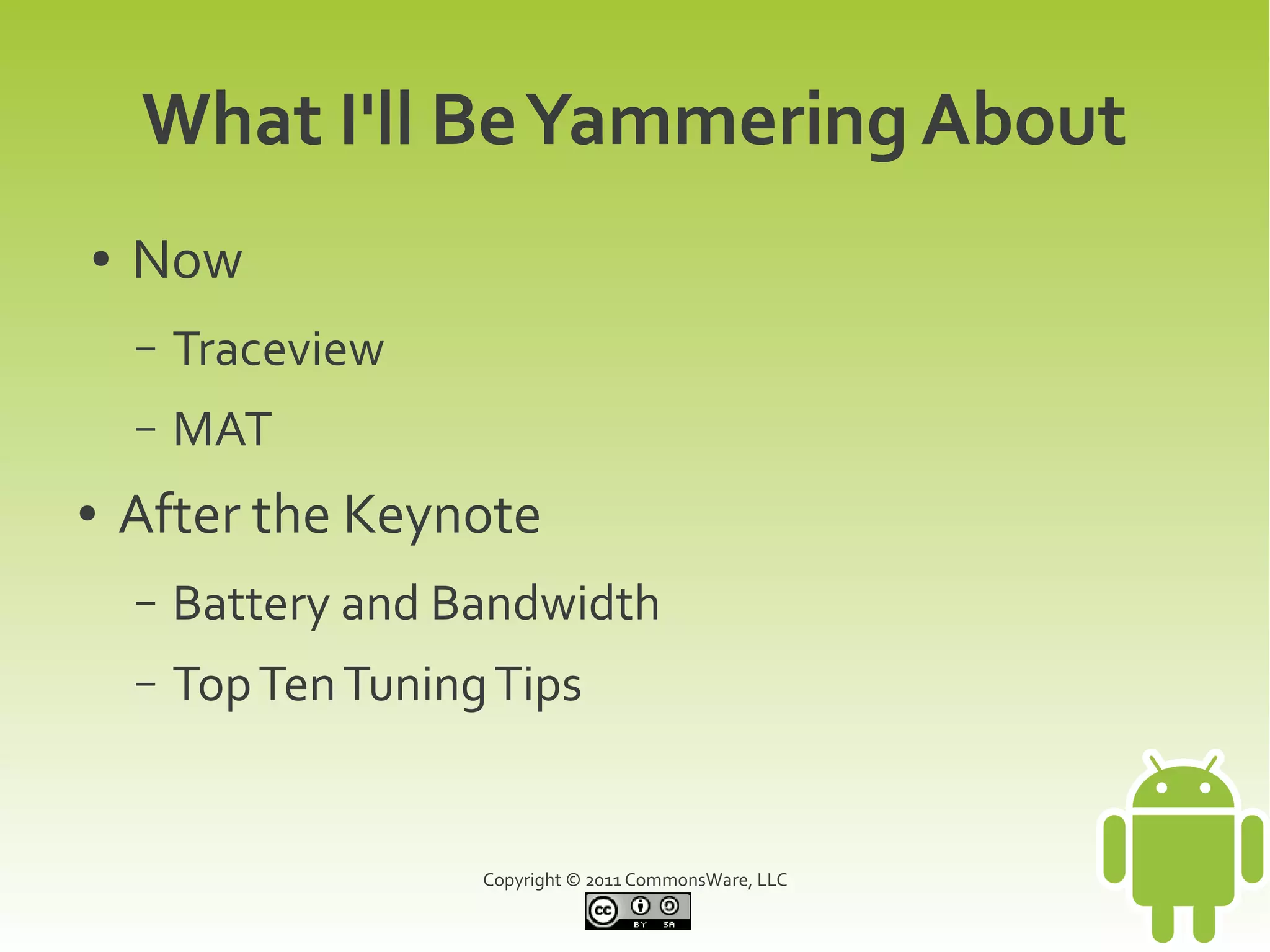

What I'll Be Yammering About
●   Now
    –   Traceview
    –   MAT
●   After the Keynote
    –   Battery and Bandwidth
    –   Top Ten Tuning Tips


                      Copyright © 2011 CommonsWare, LLC

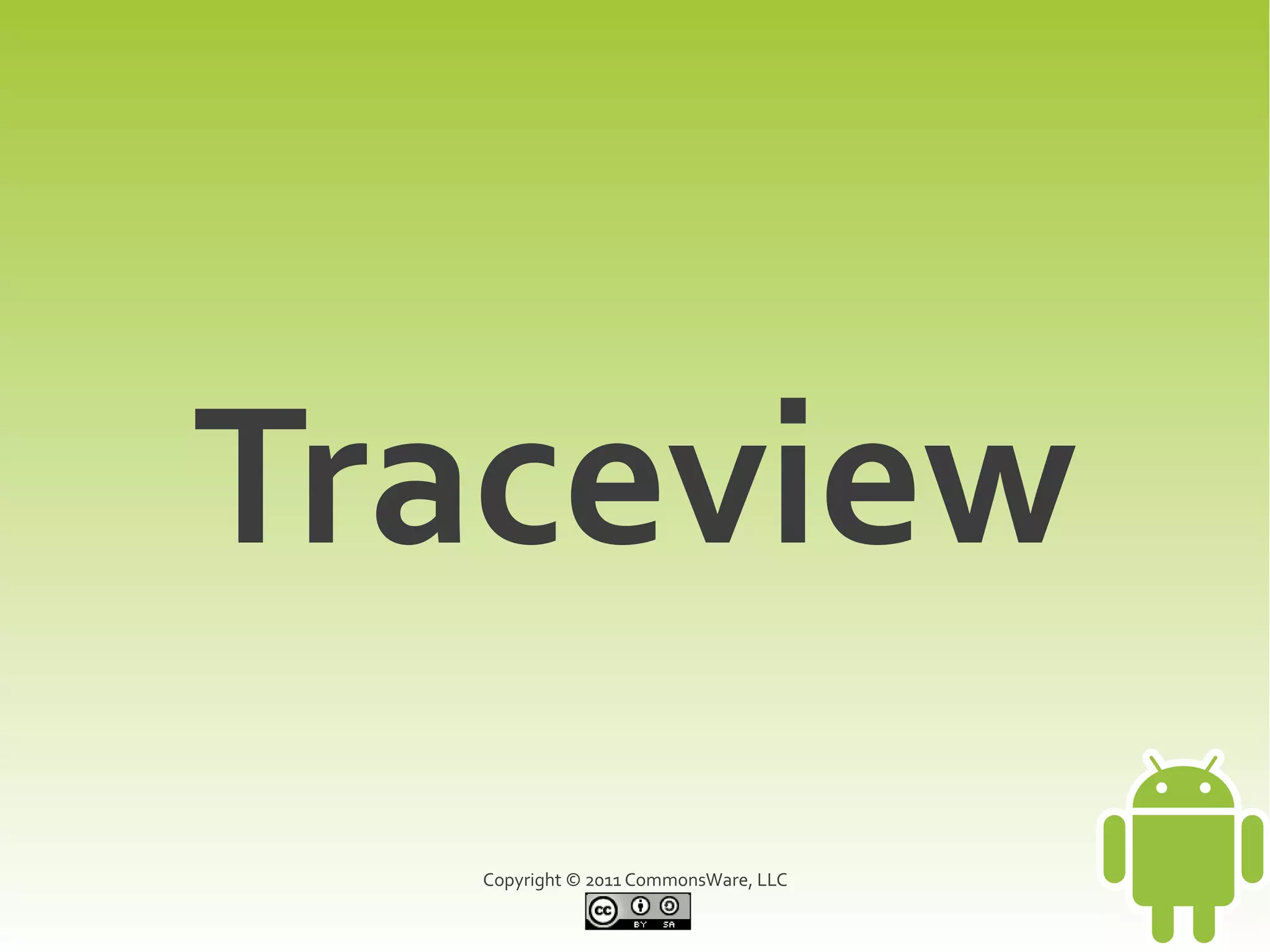

Traceview
  Copyright © 2011 CommonsWare, LLC

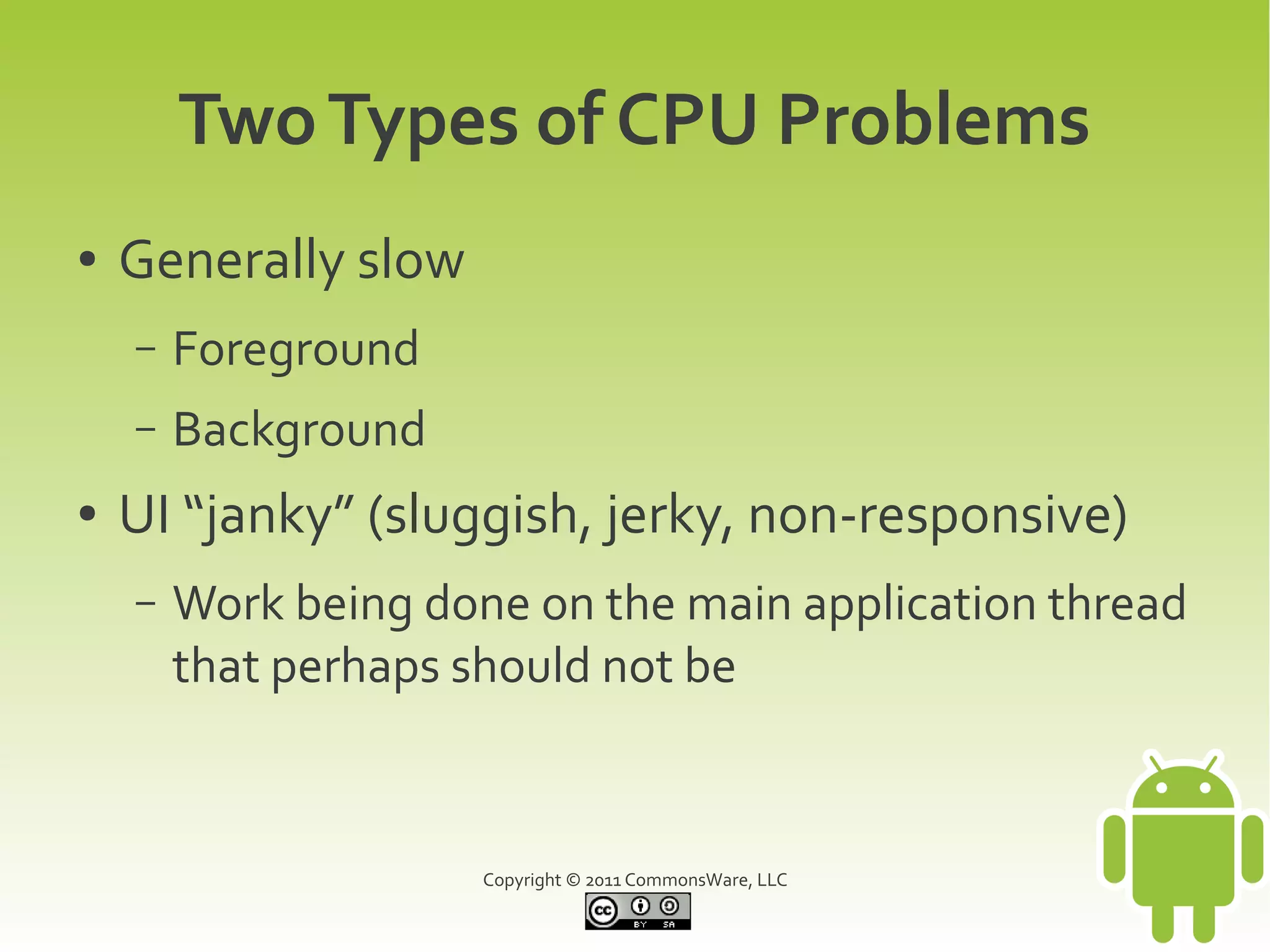

Two Types of CPU Problems
●   Generally slow
    –   Foreground
    –   Background
●   UI “janky” (sluggish, jerky, non-responsive)
    –   Work being done on the main application thread
        that perhaps should not be


                      Copyright © 2011 CommonsWare, LLC

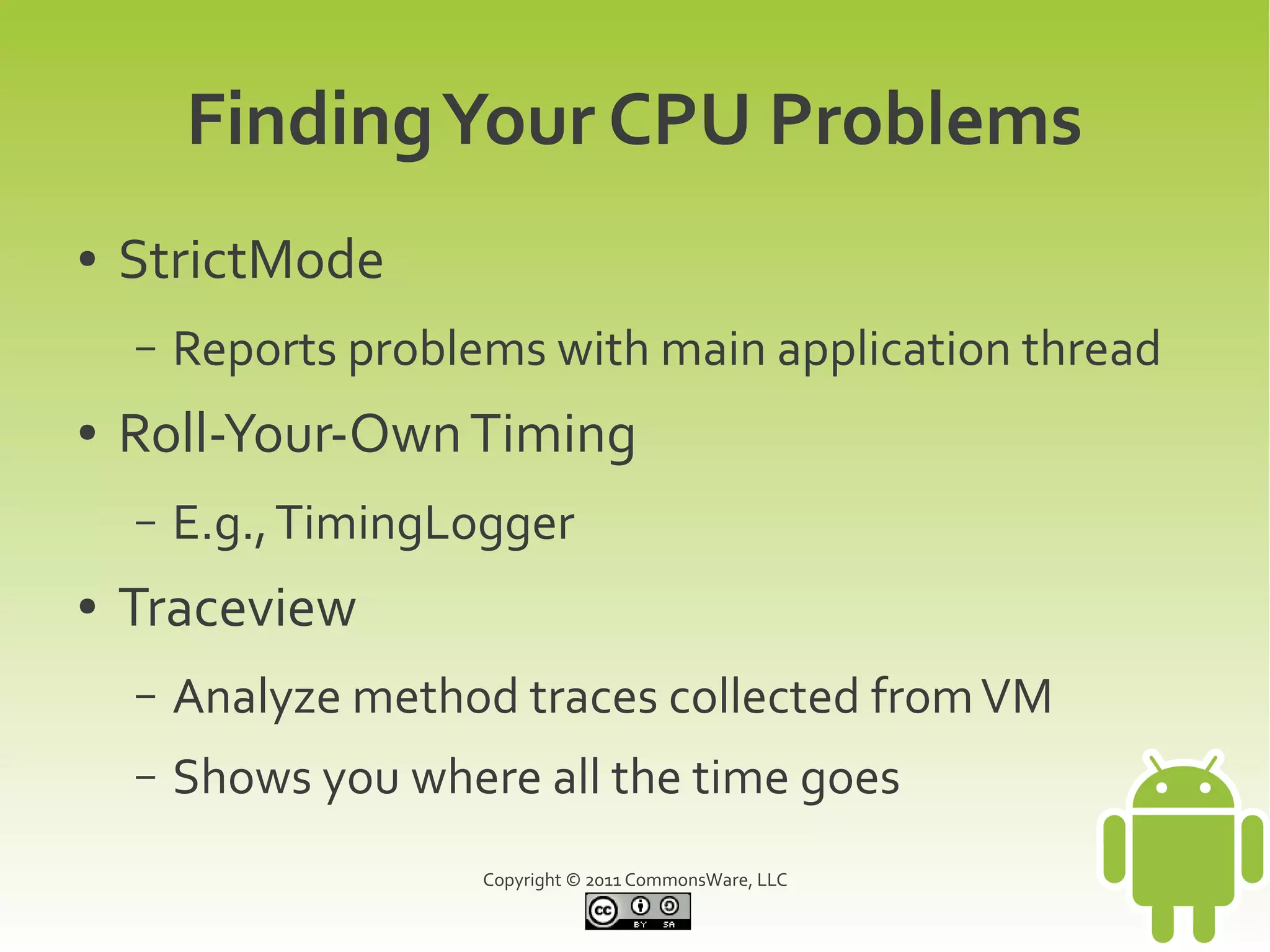

Finding Your CPU Problems
●   StrictMode
    –   Reports problems with main application thread
●   Roll-Your-Own Timing
    –   E.g., TimingLogger
●   Traceview
    –   Analyze method traces collected from VM
    –   Shows you where all the time goes
                      Copyright © 2011 CommonsWare, LLC

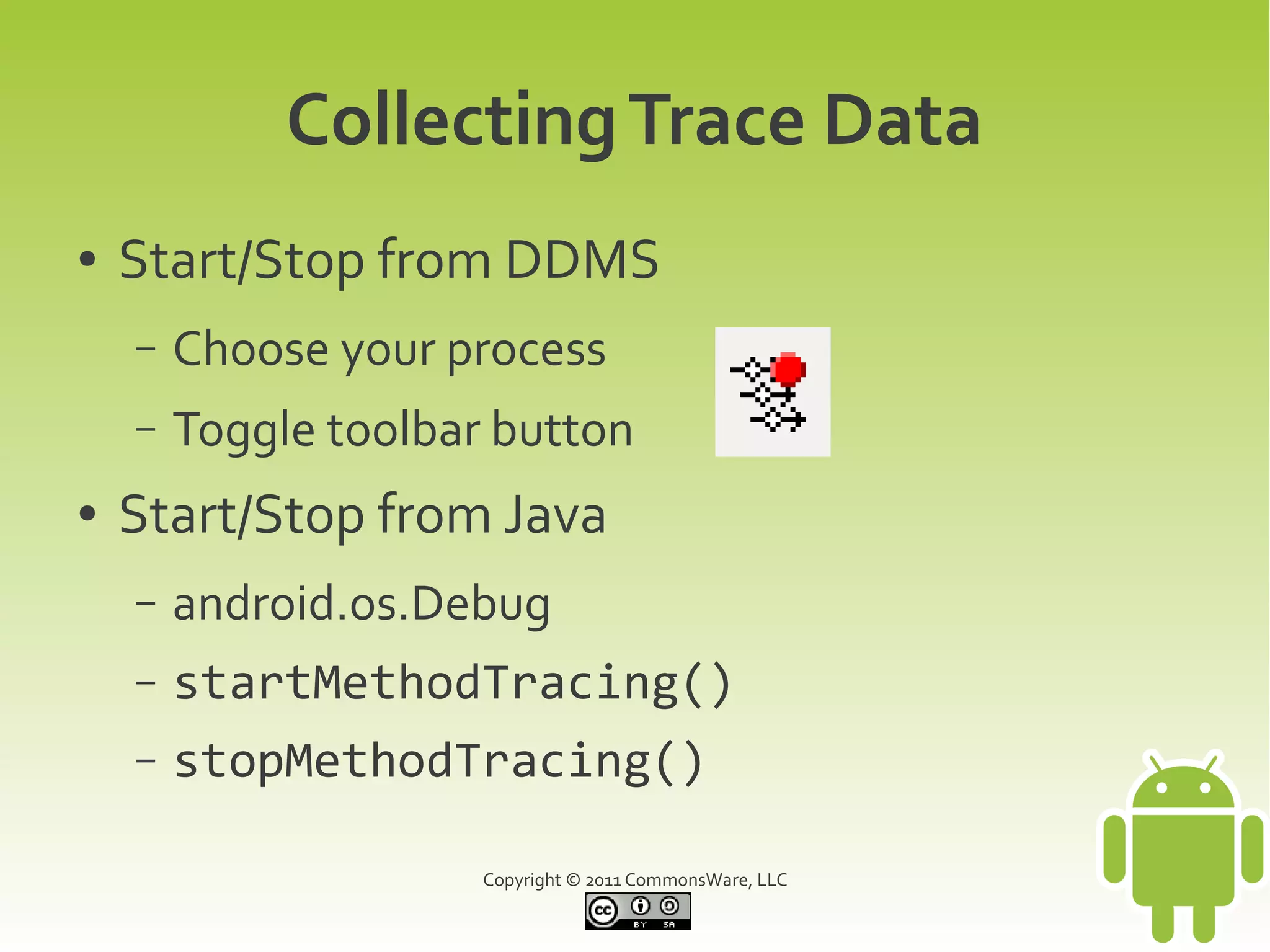

Collecting Trace Data
●   Start/Stop from DDMS
    –   Choose your process
    –   Toggle toolbar button
●   Start/Stop from Java
    –   android.os.Debug
    –   startMethodTracing()
    –   stopMethodTracing()

                      Copyright © 2011 CommonsWare, LLC
Loading Traceview
●   DDMS in Eclipse
    –   Stopping collection auto-loads Traceview
●   Standalone DDMS
    –   Stopping collection auto-loads standalone
        Traceview (Android 2.2+)
●   Trace-on-External-Storage
    –   Import into Eclipse
    –   Run traceview from command line
                      Copyright © 2011 CommonsWare, LLC

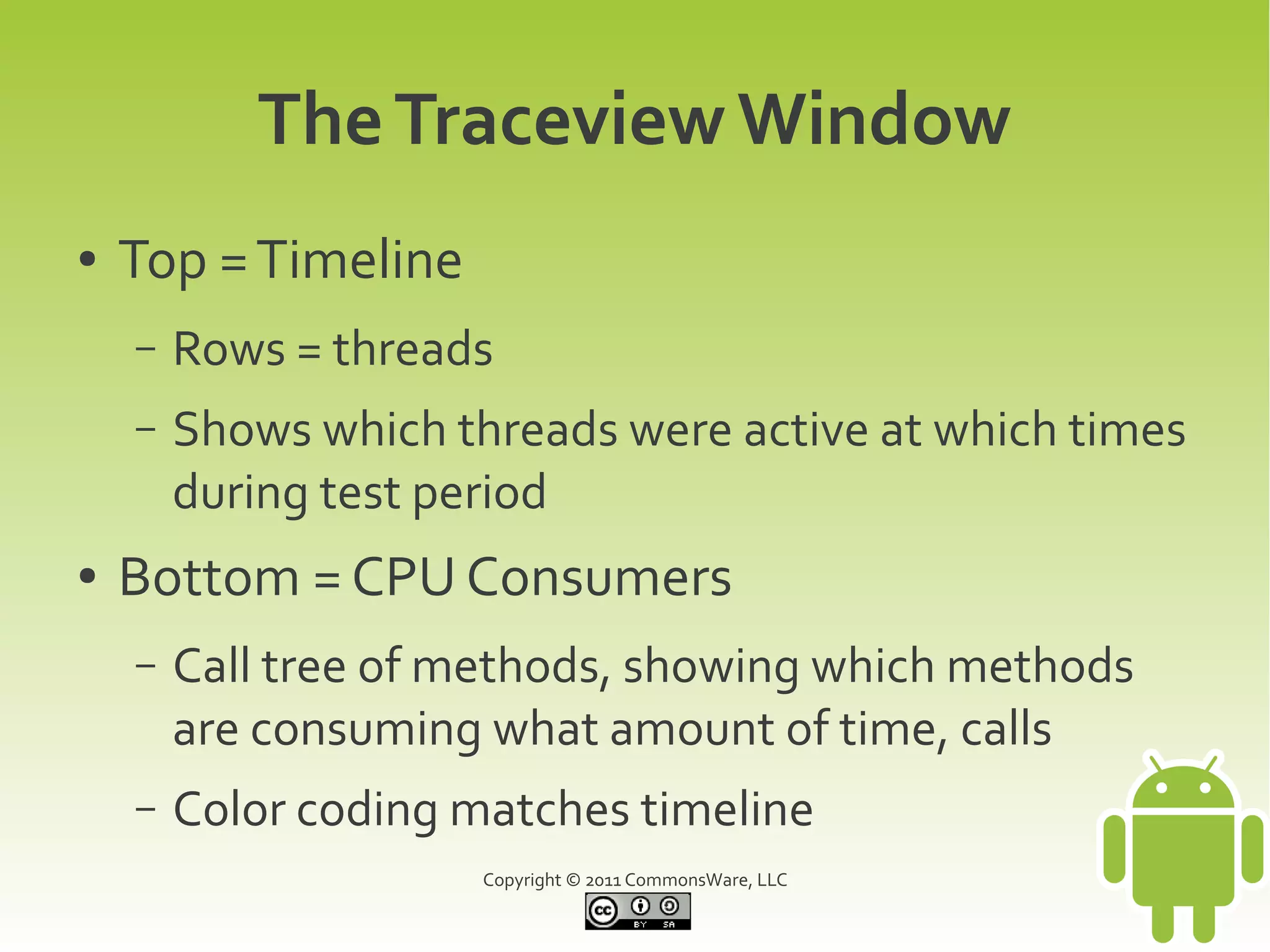

The Traceview Window
●   Top = Timeline
    –   Rows = threads
    –   Shows which threads were active at which times
        during test period
●   Bottom = CPU Consumers
    –   Call tree of methods, showing which methods
        are consuming what amount of time, calls
    –   Color coding matches timeline
                      Copyright © 2011 CommonsWare, LLC

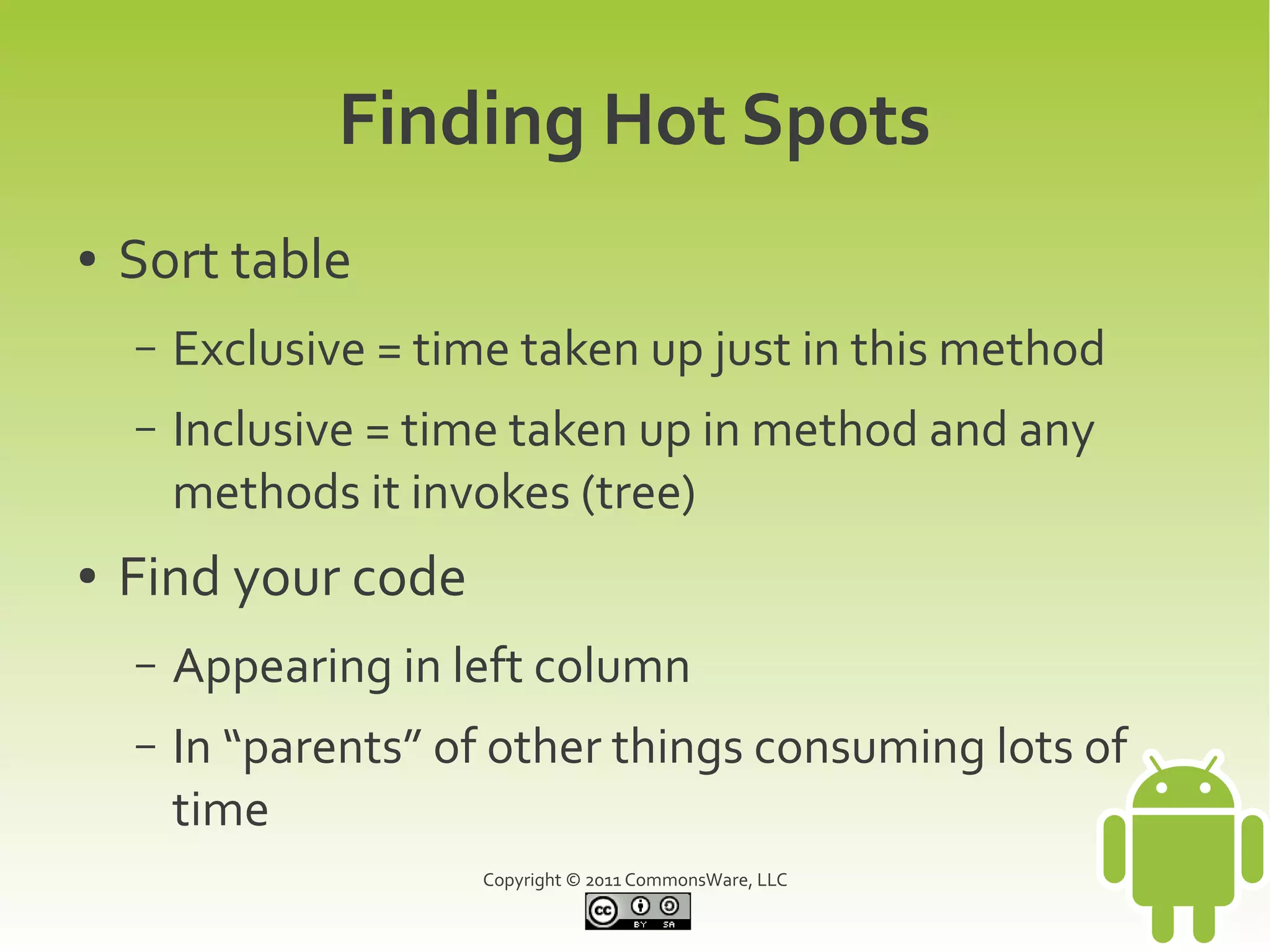

Finding Hot Spots
●   Sort table
    –   Exclusive = time taken up just in this method
    –   Inclusive = time taken up in method and any
        methods it invokes (tree)
●   Find your code
    –   Appearing in left column
    –   In “parents” of other things consuming lots of
        time
                      Copyright © 2011 CommonsWare, LLC

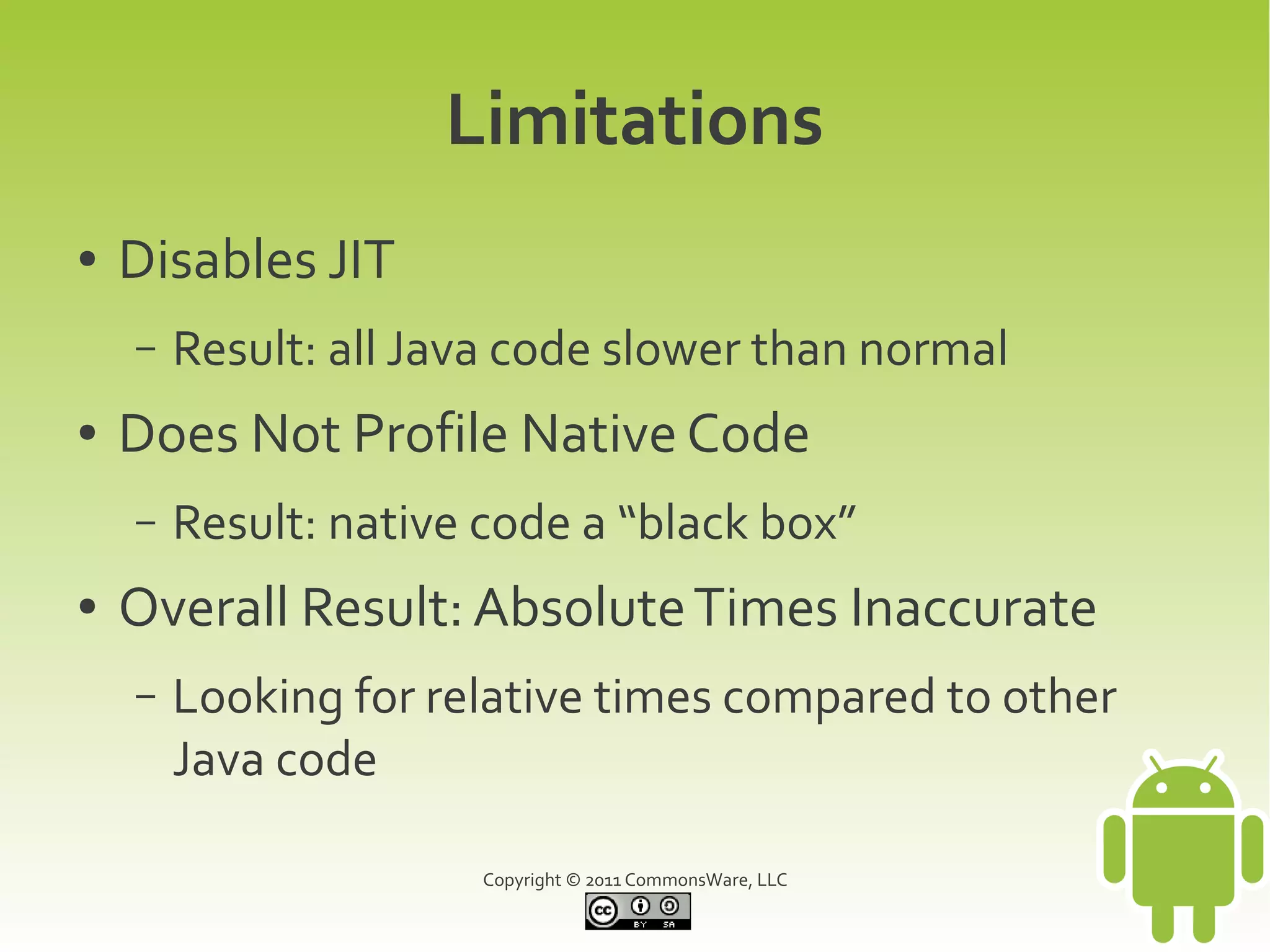

Limitations
●   Disables JIT
    –   Result: all Java code slower than normal
●   Does Not Profile Native Code
    –   Result: native code a “black box”
●   Overall Result: Absolute Times Inaccurate
    –   Looking for relative times compared to other
        Java code

                      Copyright © 2011 CommonsWare, LLC

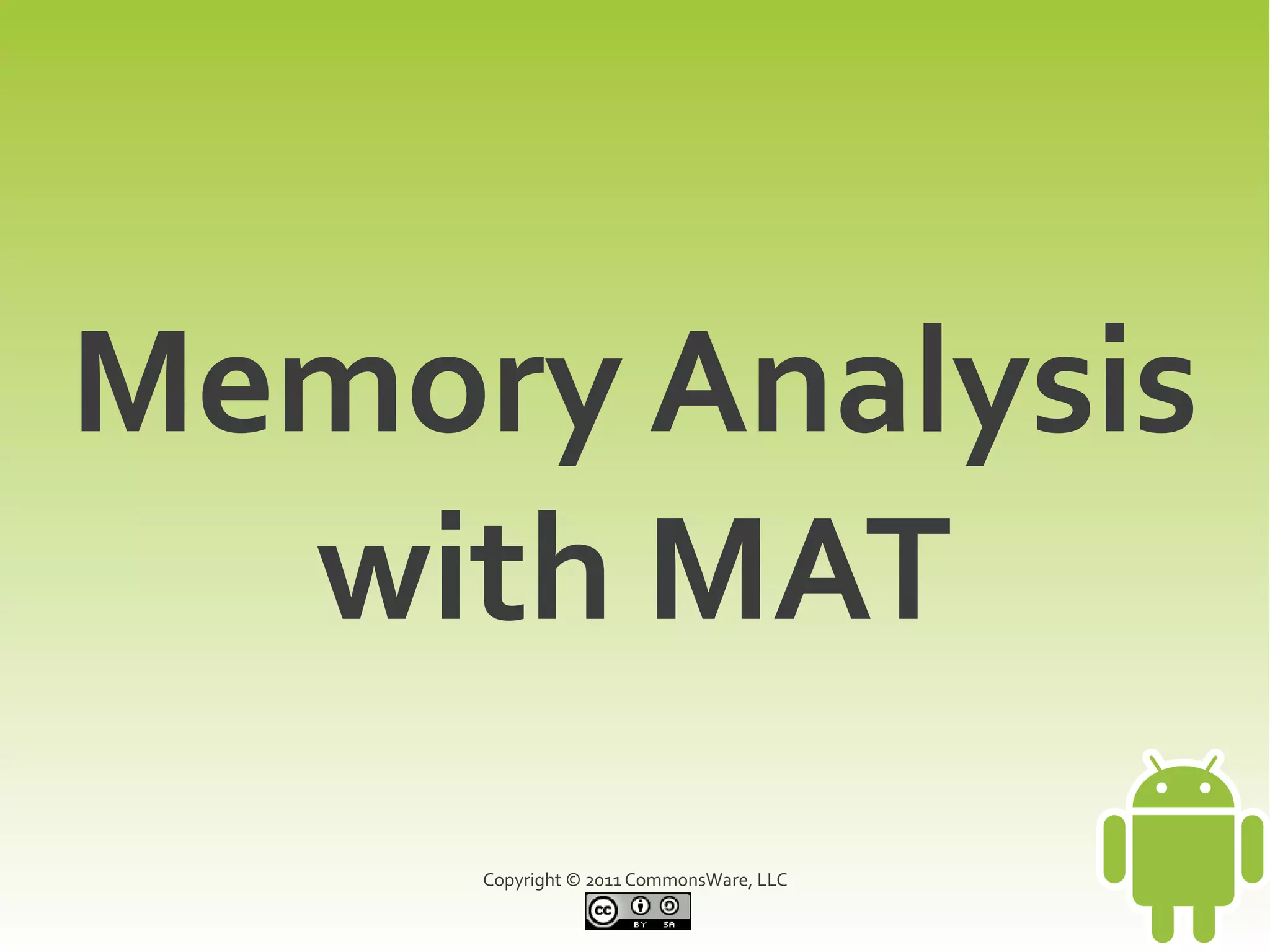

Memory Analysis
  with MAT
     Copyright © 2011 CommonsWare, LLC
Two Types of Memory Issues
●   Running out of heap
    –   OutOfMemoryError
●   Running out of stack
    –   StackOverflowError
    –   If stack trace shows mostly Android UI rendering
        code, use Hierarchy View to identify deepest
        portions of view hierachy, try to eliminate layers

                       Copyright © 2011 CommonsWare, LLC

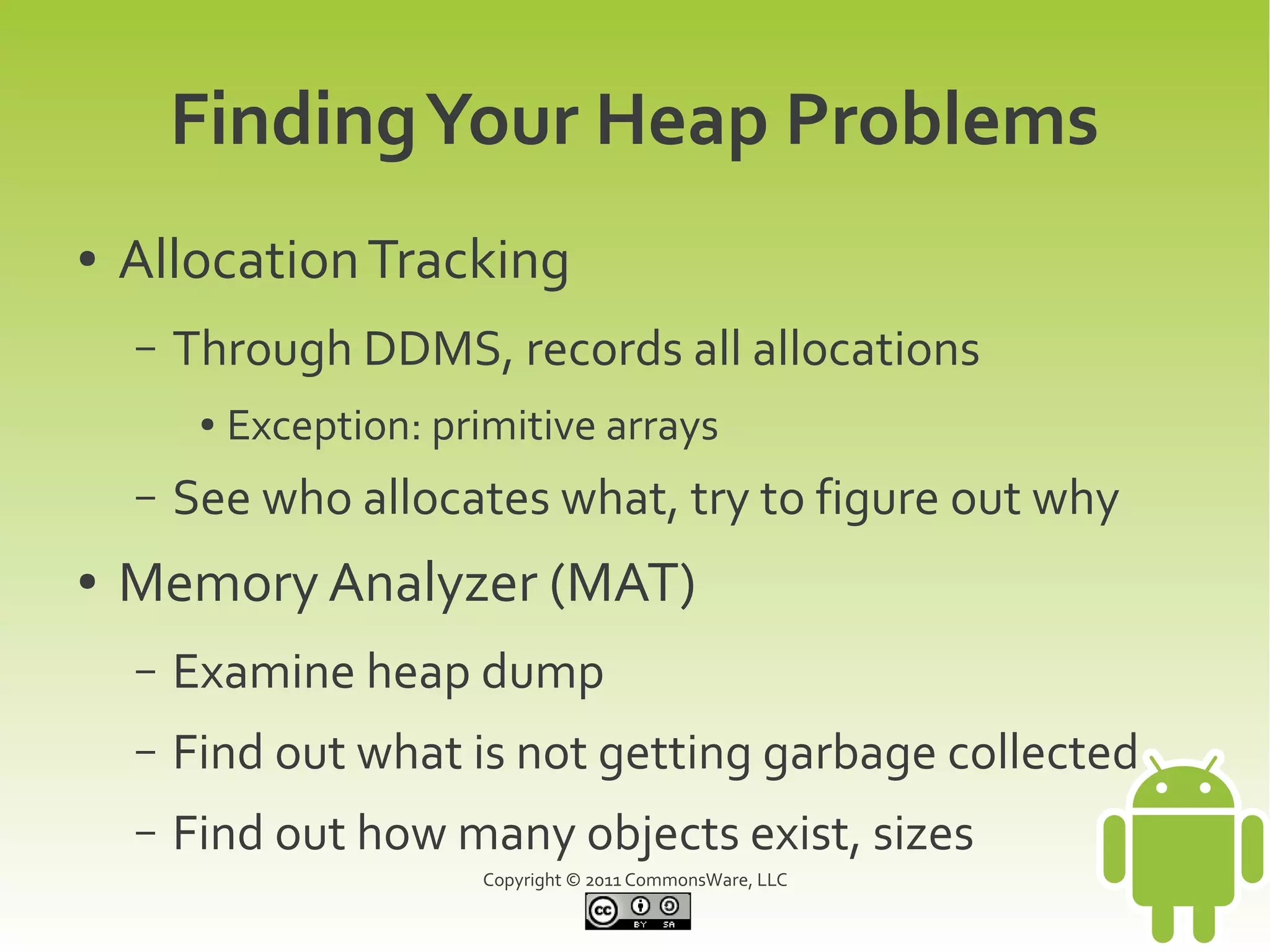

Finding Your Heap Problems
●   Allocation Tracking
    –   Through DDMS, records all allocations
         ●   Exception: primitive arrays
    –   See who allocates what, try to figure out why
●   Memory Analyzer (MAT)
    –   Examine heap dump
    –   Find out what is not getting garbage collected
    –   Find out how many objects exist, sizes
                           Copyright © 2011 CommonsWare, LLC

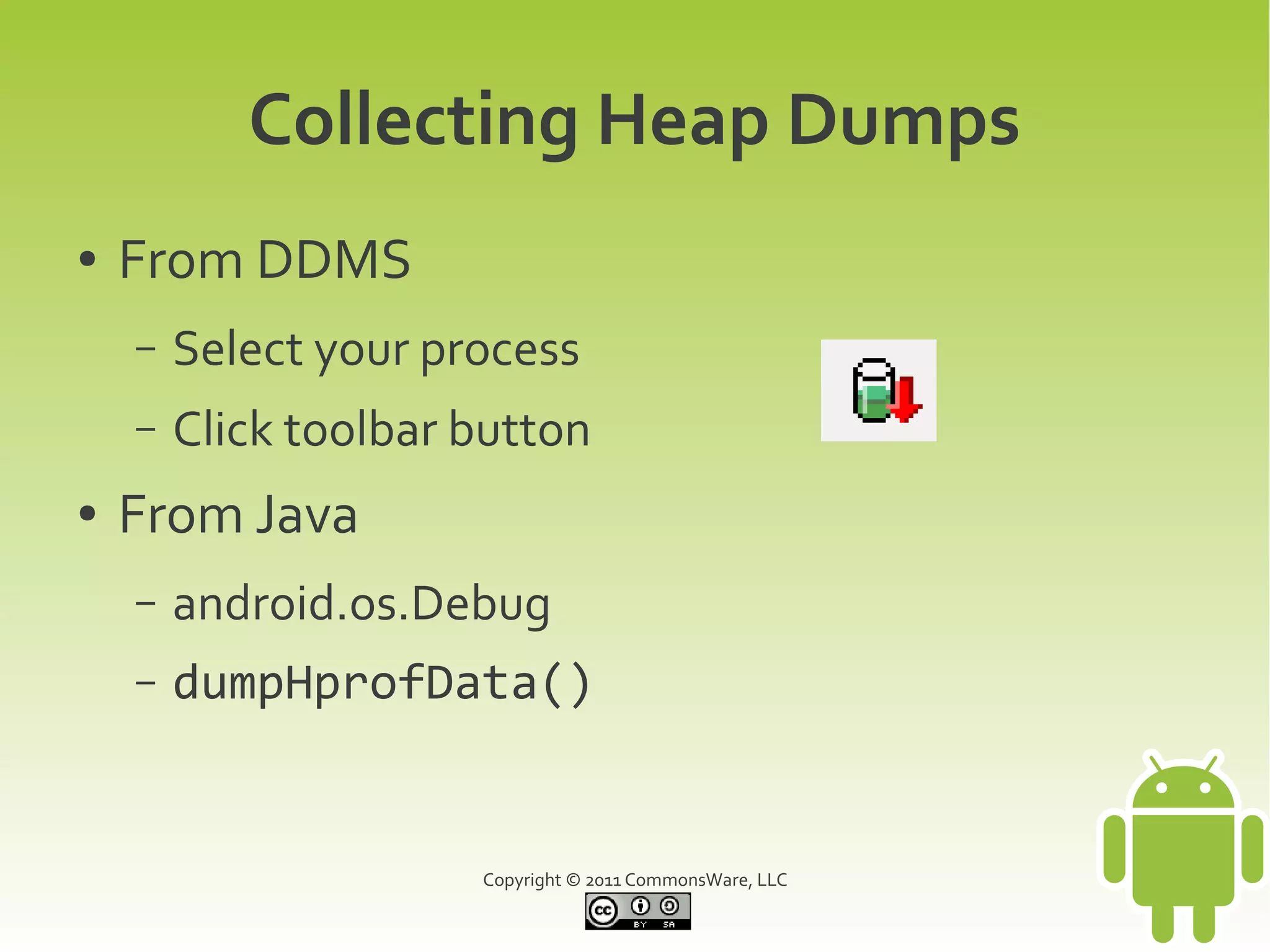

Collecting Heap Dumps
●   From DDMS
    –   Select your process
    –   Click toolbar button
●   From Java
    –   android.os.Debug
    –   dumpHprofData()


                      Copyright © 2011 CommonsWare, LLC
Loading MAT
●   DDMS/Eclipse
    –   Dump automatically loaded into MAT
●   Standalone DDMS
    –   Run hprof-conv on HPROF file, then open in
        MAT
●   Java
    –   Copy file from emulator, run hprof-conv,
        open
                     Copyright © 2011 CommonsWare, LLC

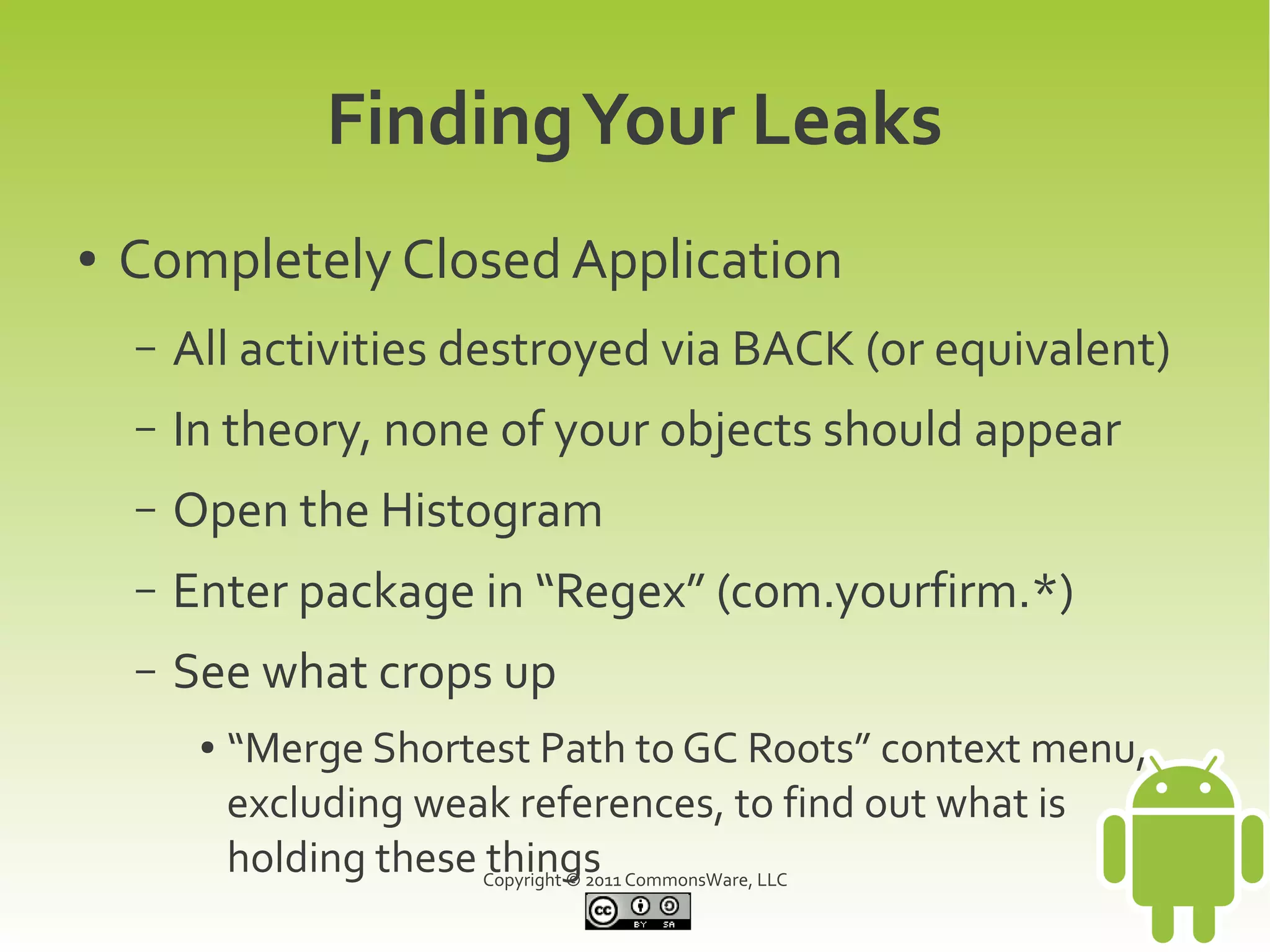

Finding Your Leaks
●   Completely Closed Application
    –   All activities destroyed via BACK (or equivalent)
    –   In theory, none of your objects should appear
    –   Open the Histogram
    –   Enter package in “Regex” (com.yourfirm.*)
    –   See what crops up
         ●   “Merge Shortest Path to GC Roots” context menu,
             excluding weak references, to find out what is
             holding these Copyright © 2011 CommonsWare, LLC
                           things

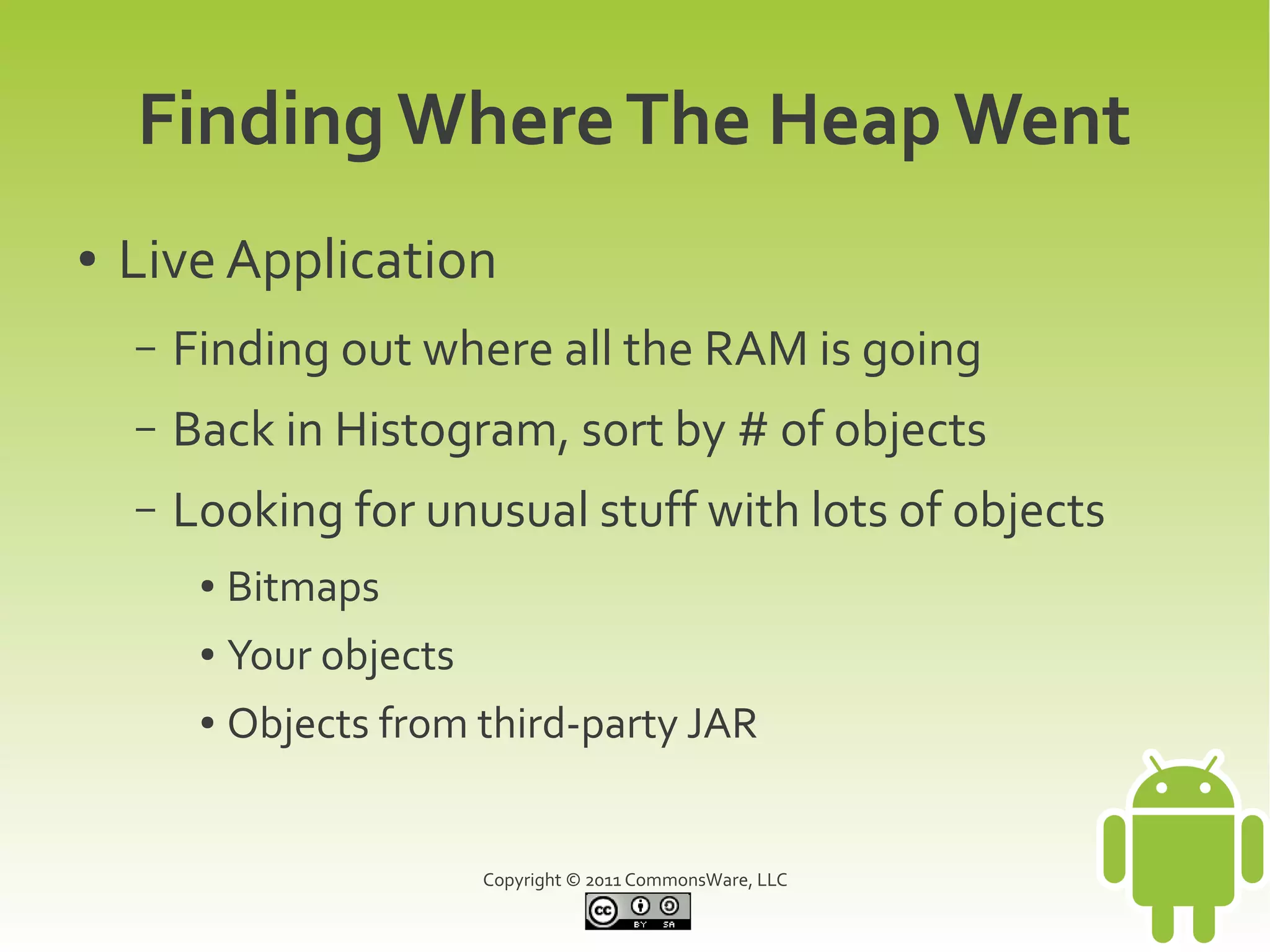

Finding Where The Heap Went
●   Live Application
    –   Finding out where all the RAM is going
    –   Back in Histogram, sort by # of objects
    –   Looking for unusual stuff with lots of objects
         ●   Bitmaps
         ●   Your objects
         ●   Objects from third-party JAR


                            Copyright © 2011 CommonsWare, LLC

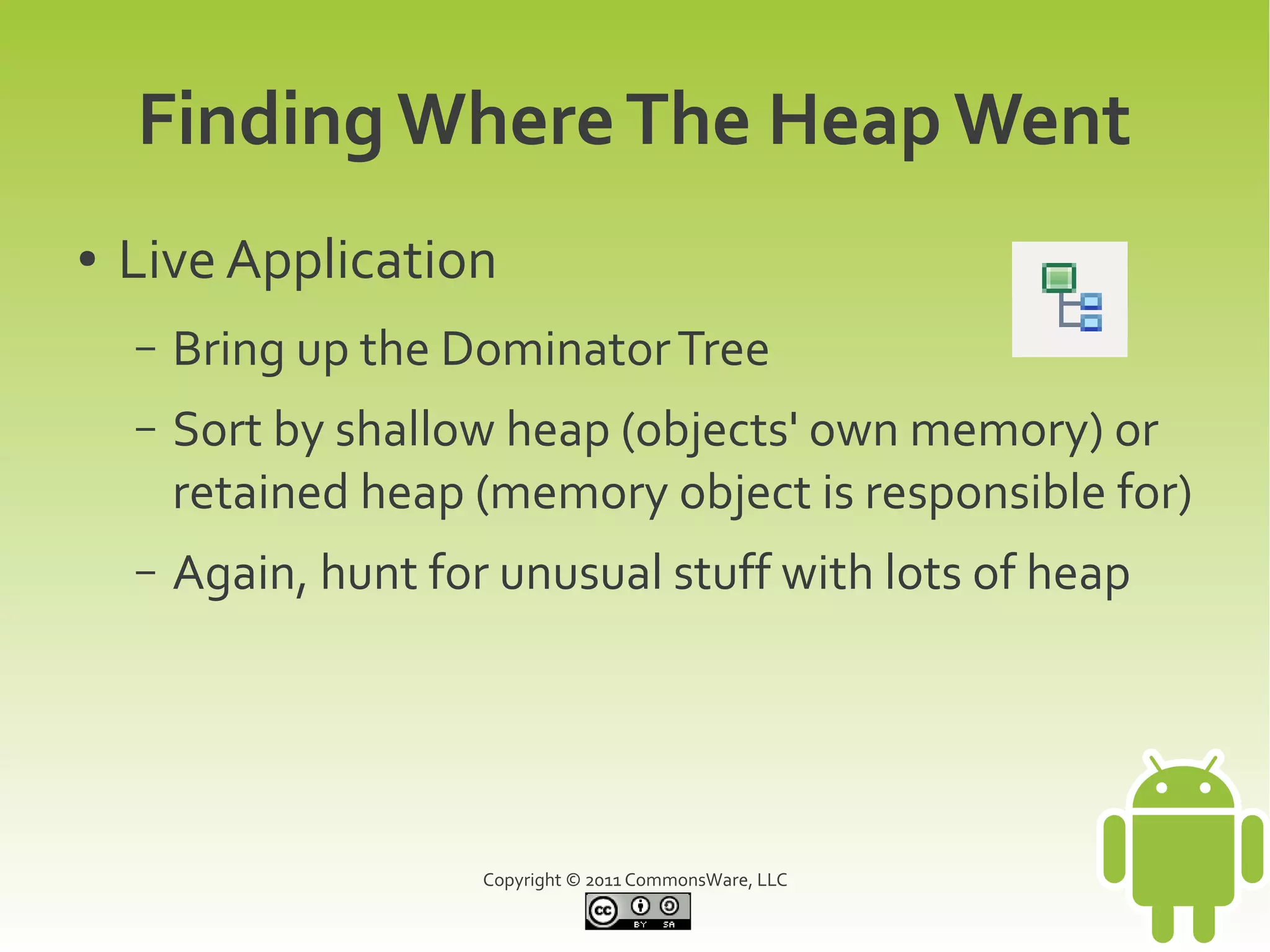

Finding Where The Heap Went
●   Live Application
    –   Bring up the Dominator Tree
    –   Sort by shallow heap (objects' own memory) or
        retained heap (memory object is responsible for)
    –   Again, hunt for unusual stuff with lots of heap




                       Copyright © 2011 CommonsWare, LLC
Limitations
●   Only Tracks Bitmaps on Honeycomb
    –   Previously was “native” memory, counted
        against heap but not visible to MAT
    –   Recommendation
         ●   Focus MAT use on Honeycomb
         ●   Secondary usage on earlier OS levels
