1. ECE 424
Embedded Systems
Design
Operating System Overview
Chapter 7
Ning Weng

2. Operating System

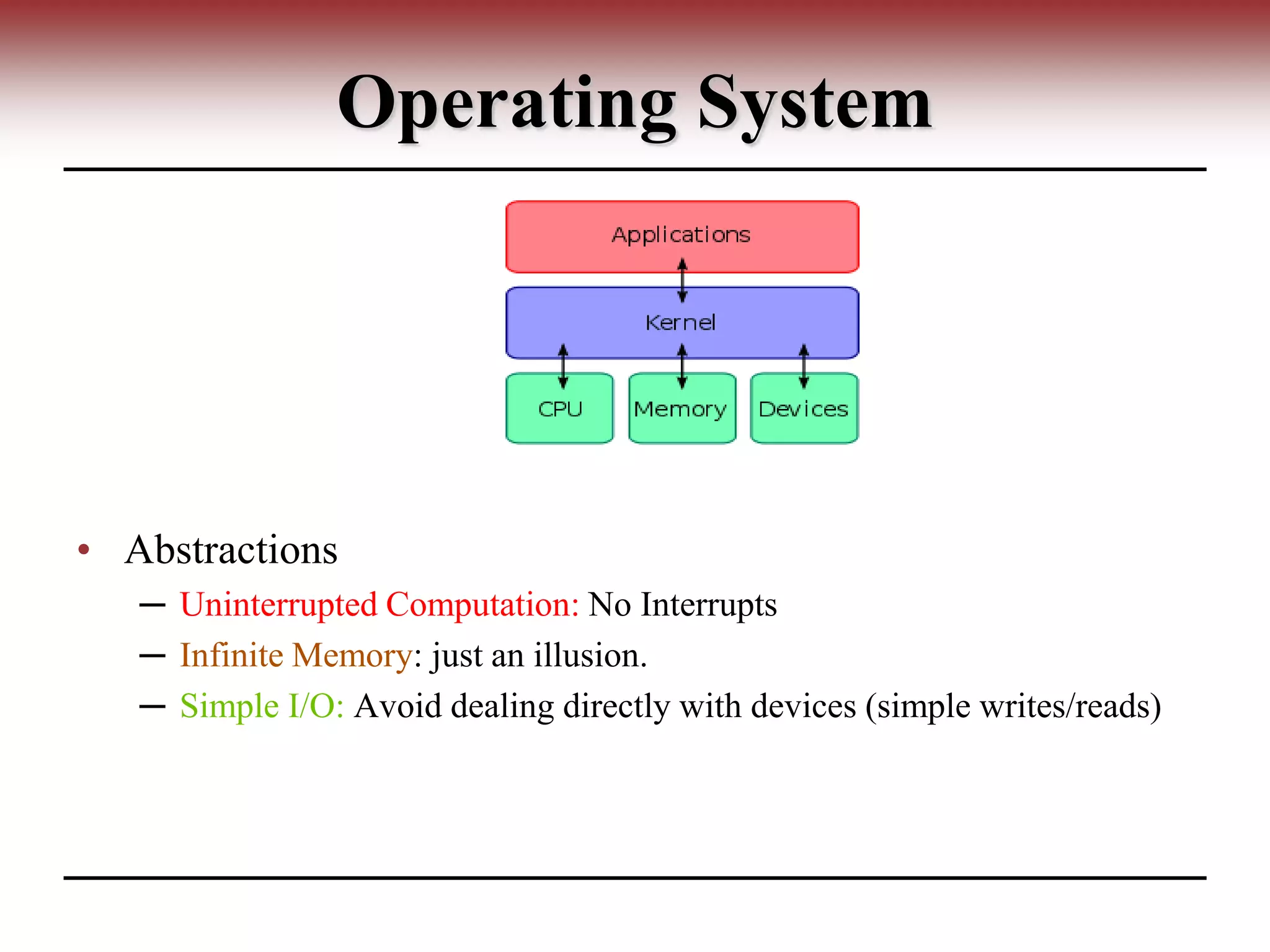

• Abstractions
─ Uninterrupted Computation: No Interrupts
─ Infinite Memory: just an illusion.
─ Simple I/O: Avoid dealing directly with devices (simple writes/reads)

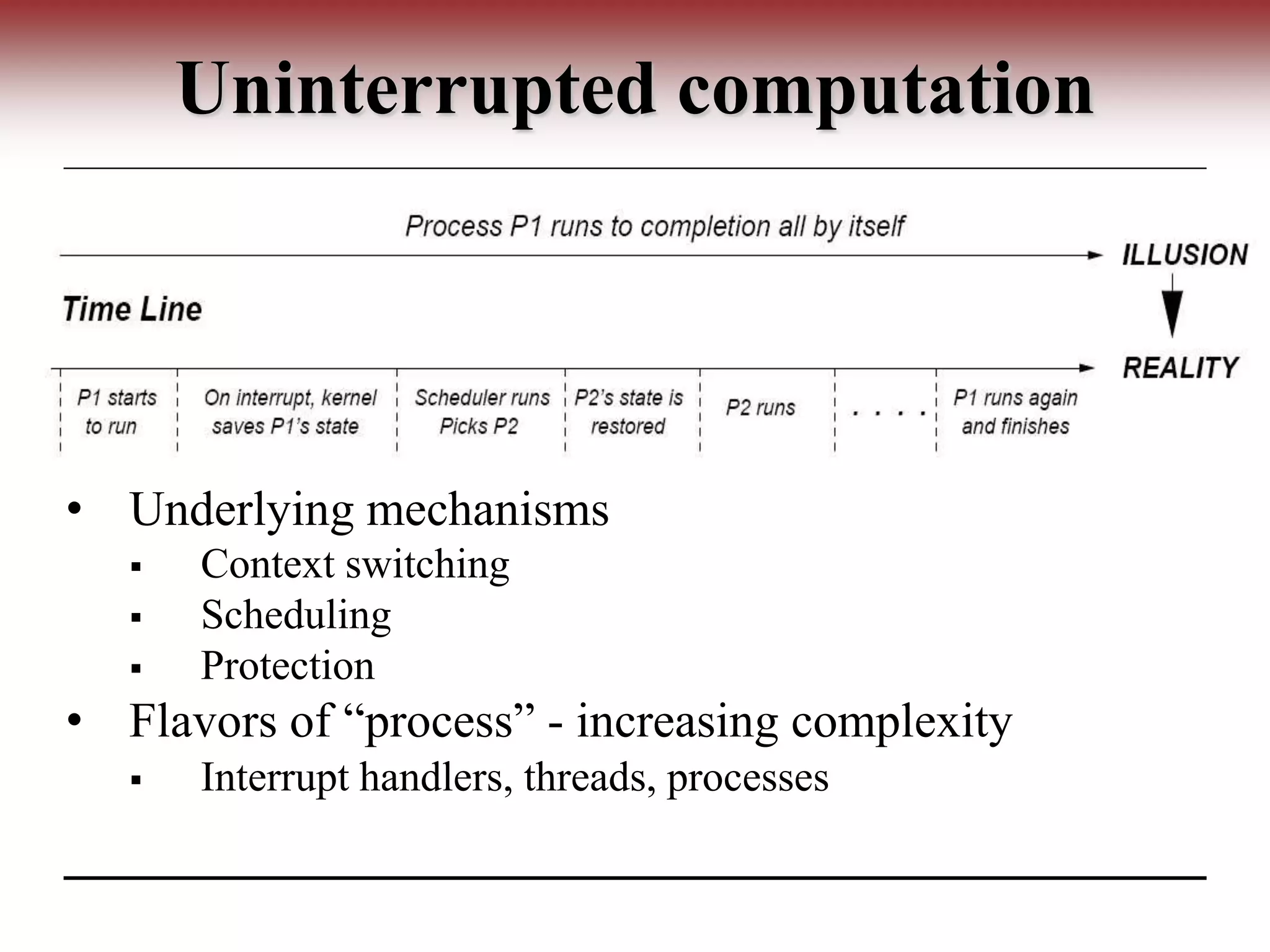

3. Uninterrupted computation
• Underlying mechanisms
 Context switching
 Scheduling
 Protection
• Flavors of “process” - increasing complexity
 Interrupt handlers, threads, processes

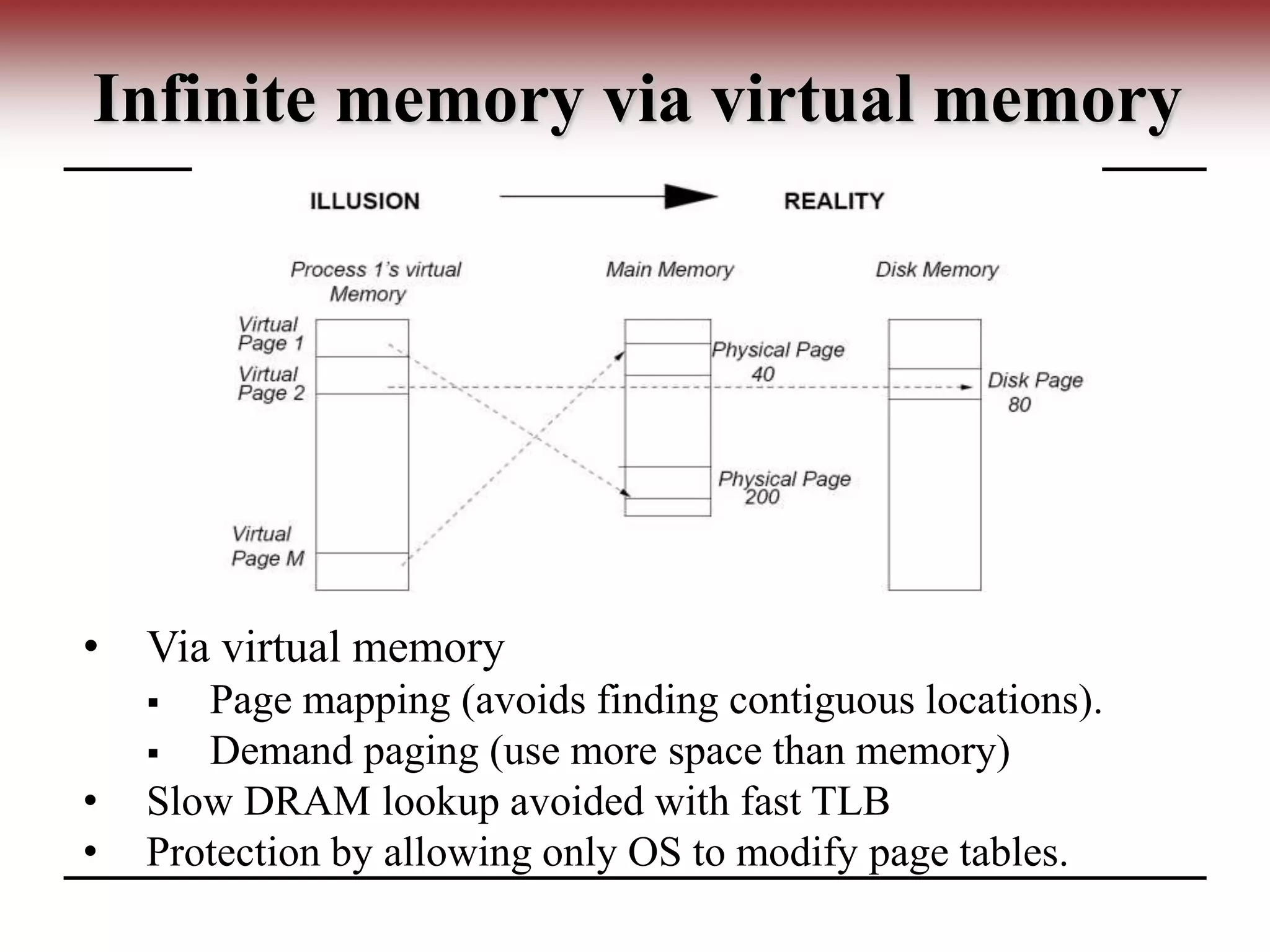

4. Infinite memory via virtual memory
• Via virtual memory
 Page mapping (avoids finding contiguous locations).
 Demand paging (use more space than memory)
• Slow DRAM lookup avoided with fast TLB
• Protection by allowing only OS to modify page tables.

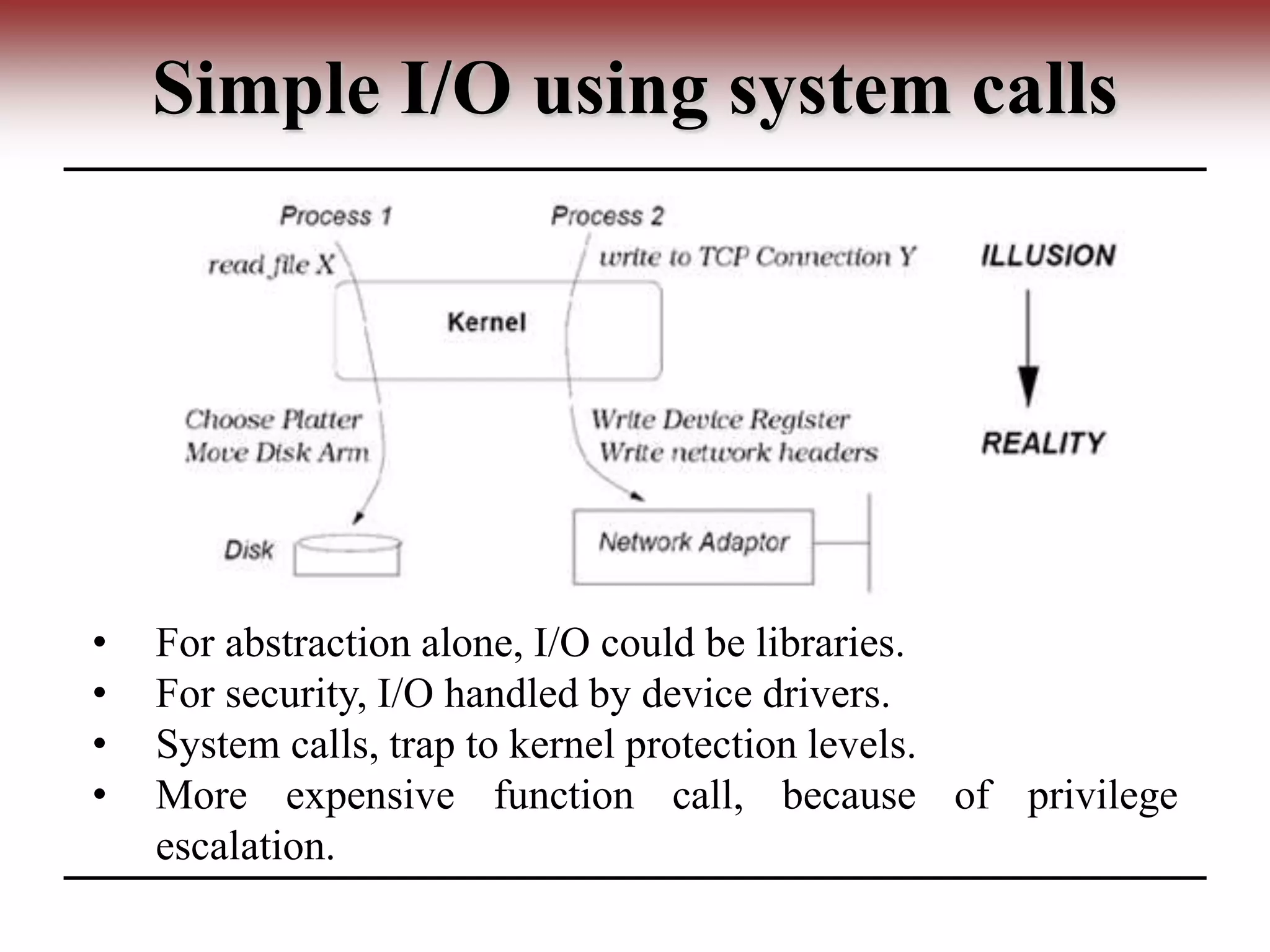

5. Simple I/O using system calls
• For abstraction alone, I/O could be libraries.
• For security, I/O handled by device drivers.
• System calls, trap to kernel protection levels.
• More expensive function call, because of privilege
escalation.

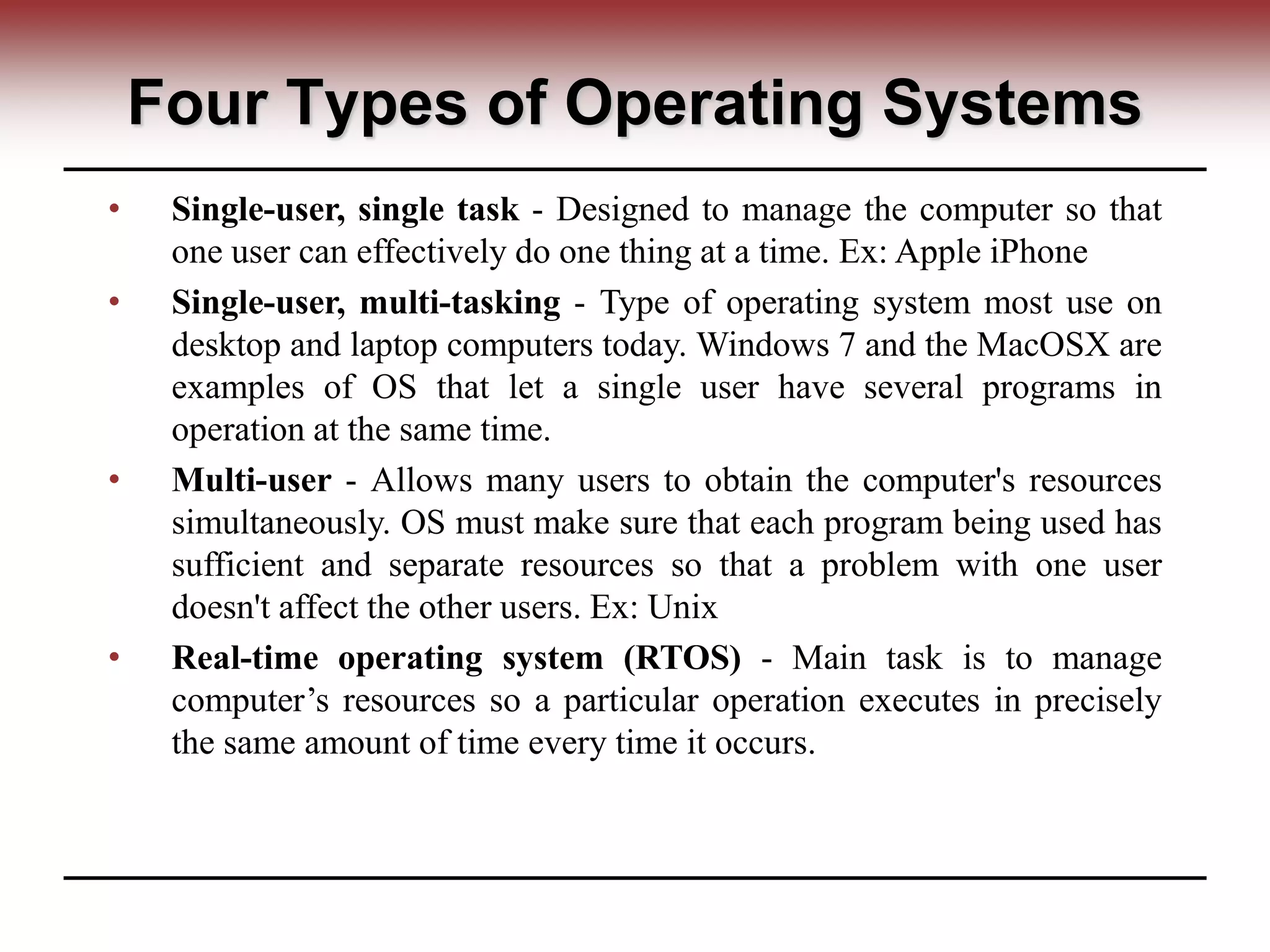

6. Four Types of Operating Systems
• Single-user, single task - Designed to manage the computer so that
one user can effectively do one thing at a time. Ex: Apple iPhone
• Single-user, multi-tasking - Type of operating system most use on
desktop and laptop computers today. Windows 7 and the MacOSX are
examples of OS that let a single user have several programs in
operation at the same time.
• Multi-user - Allows many users to obtain the computer's resources
simultaneously. OS must make sure that each program being used has
sufficient and separate resources so that a problem with one user
doesn't affect the other users. Ex: Unix
• Real-time operating system (RTOS) - Main task is to manage
computer’s resources so a particular operation executes in precisely
the same amount of time every time it occurs.

7. Embedded Operating Systems
Characteristics
• Designed to perform a dedicated function
• Real-Time Operating Systems (RTOS)
• Examples:
─ iOS, Android, Blackberry OS
─ VxWorks (Boeing 787 Dreamliner and many
spacecraft)

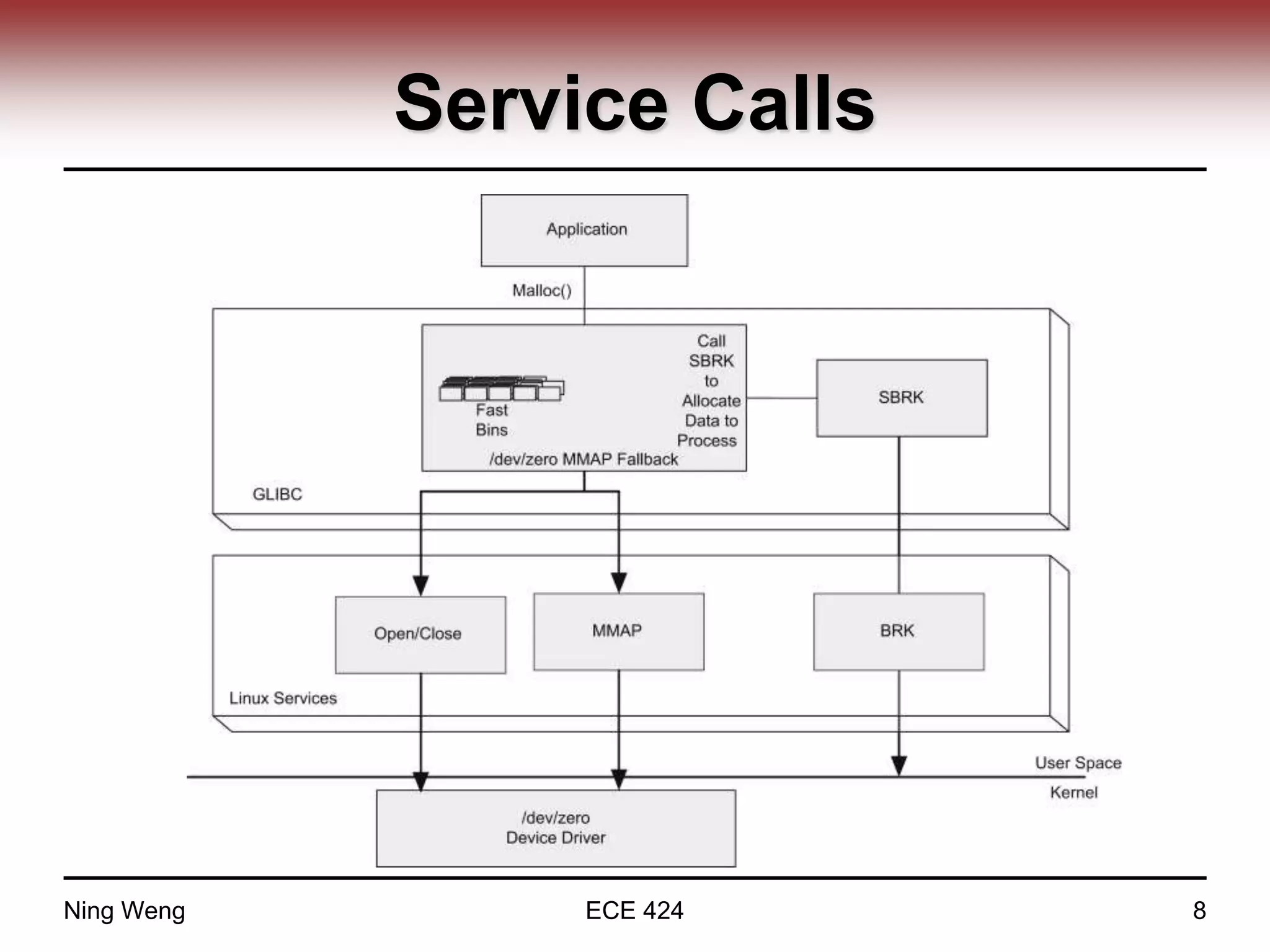

8. Service Calls
Ning Weng ECE 424 8

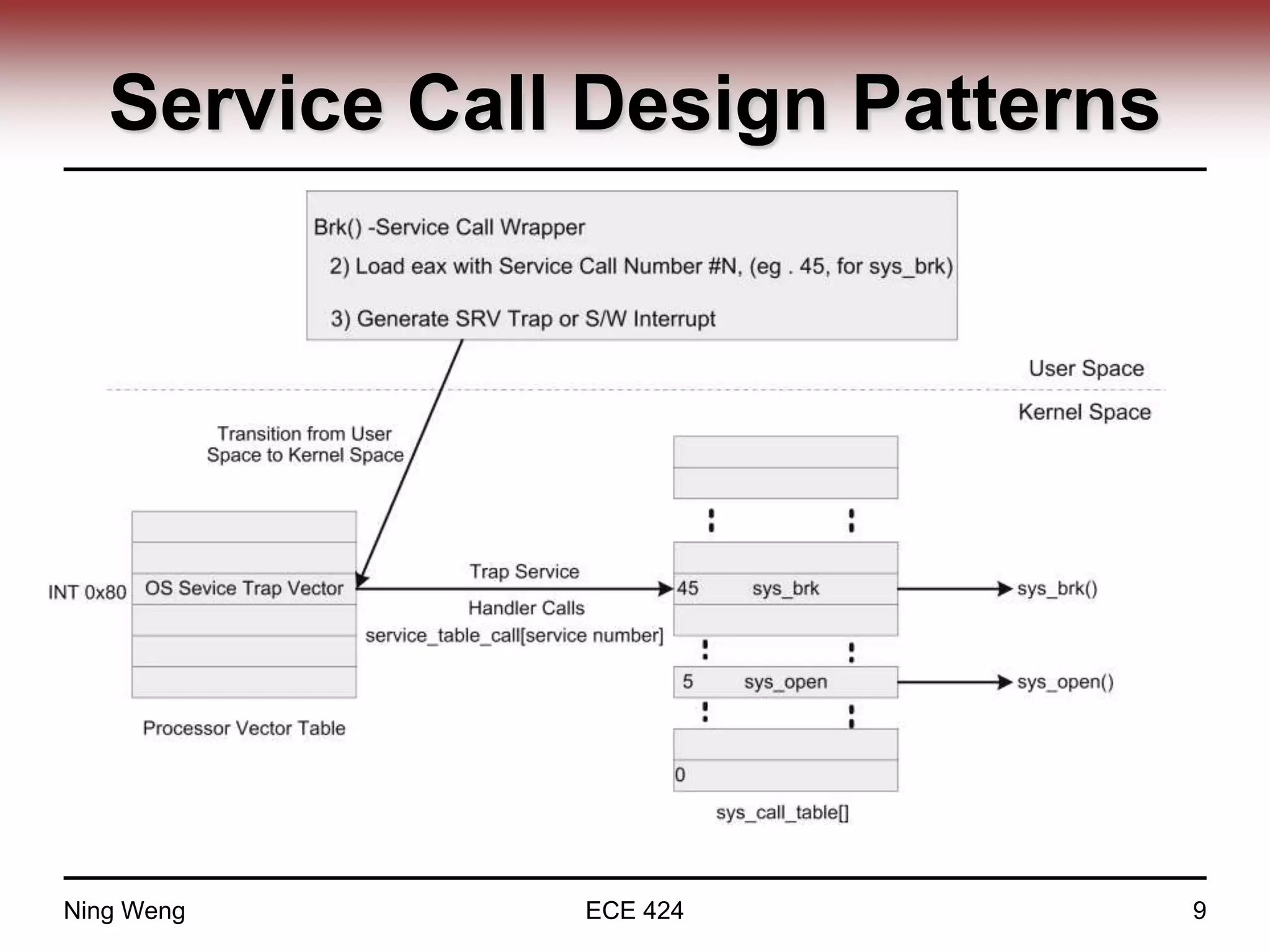

9. Service Call Design Patterns
Ning Weng ECE 424 9

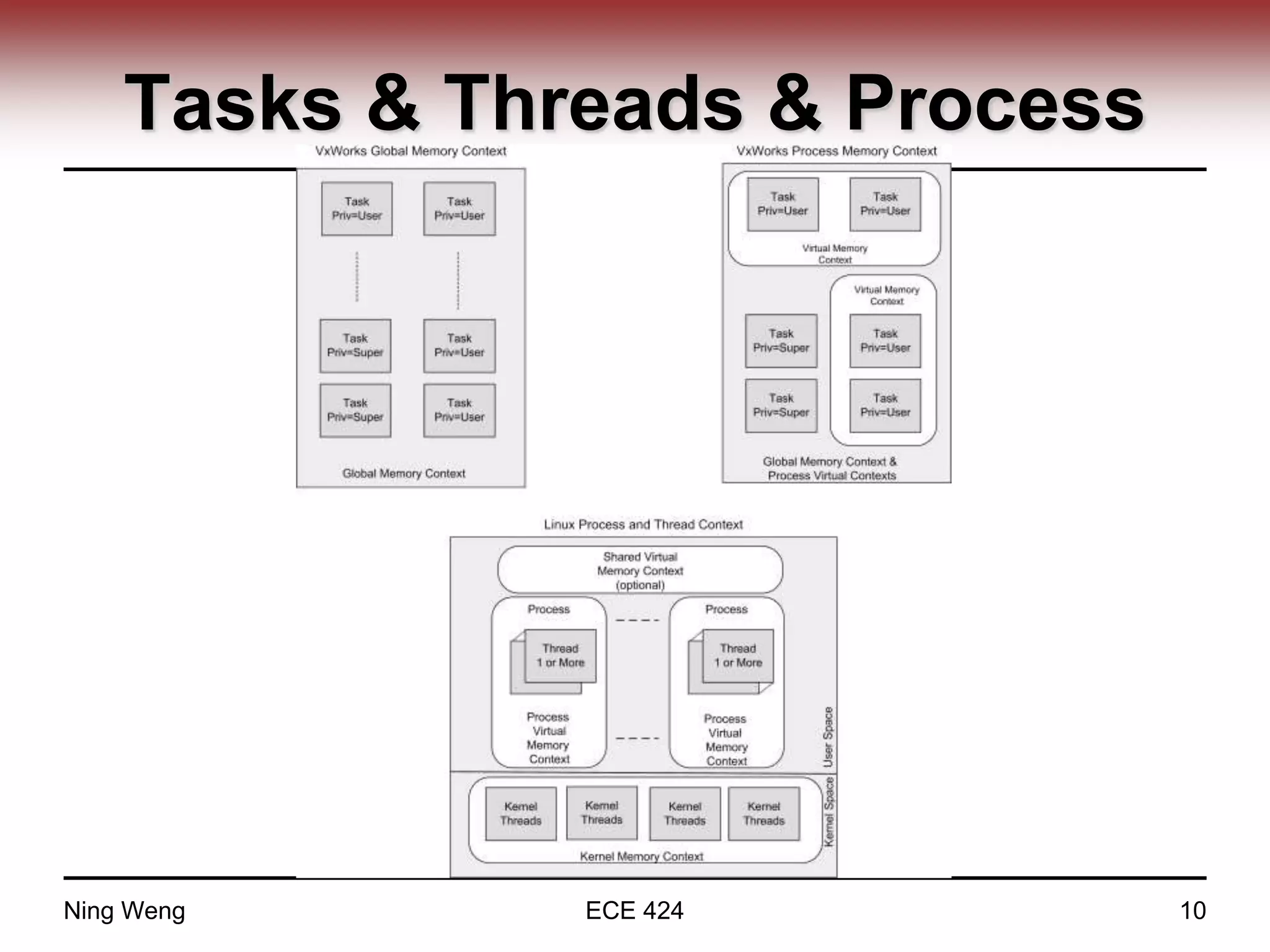

10. Tasks & Threads & Process
Ning Weng ECE 424 10

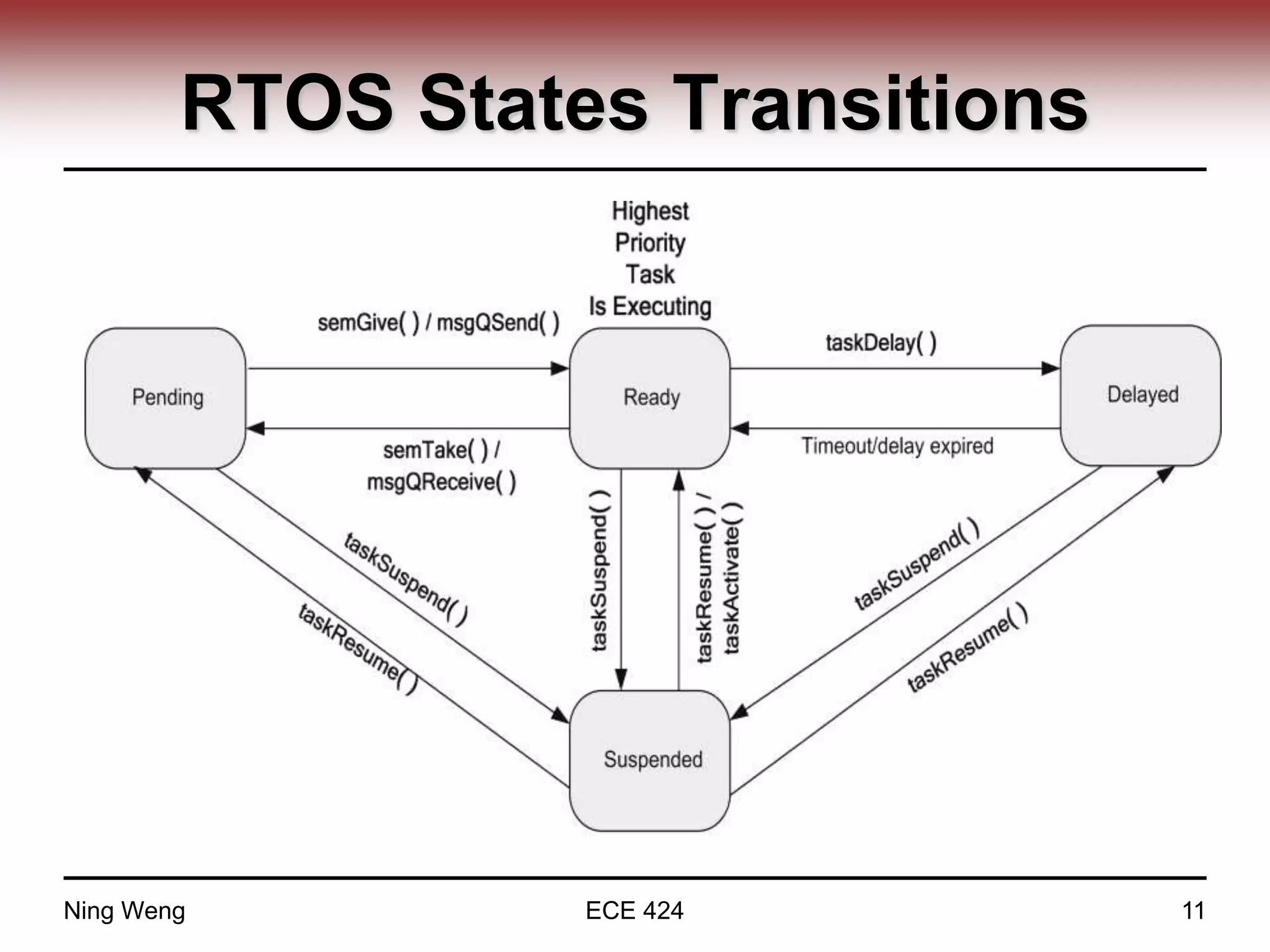

11. RTOS States Transitions
Ning Weng ECE 424 11

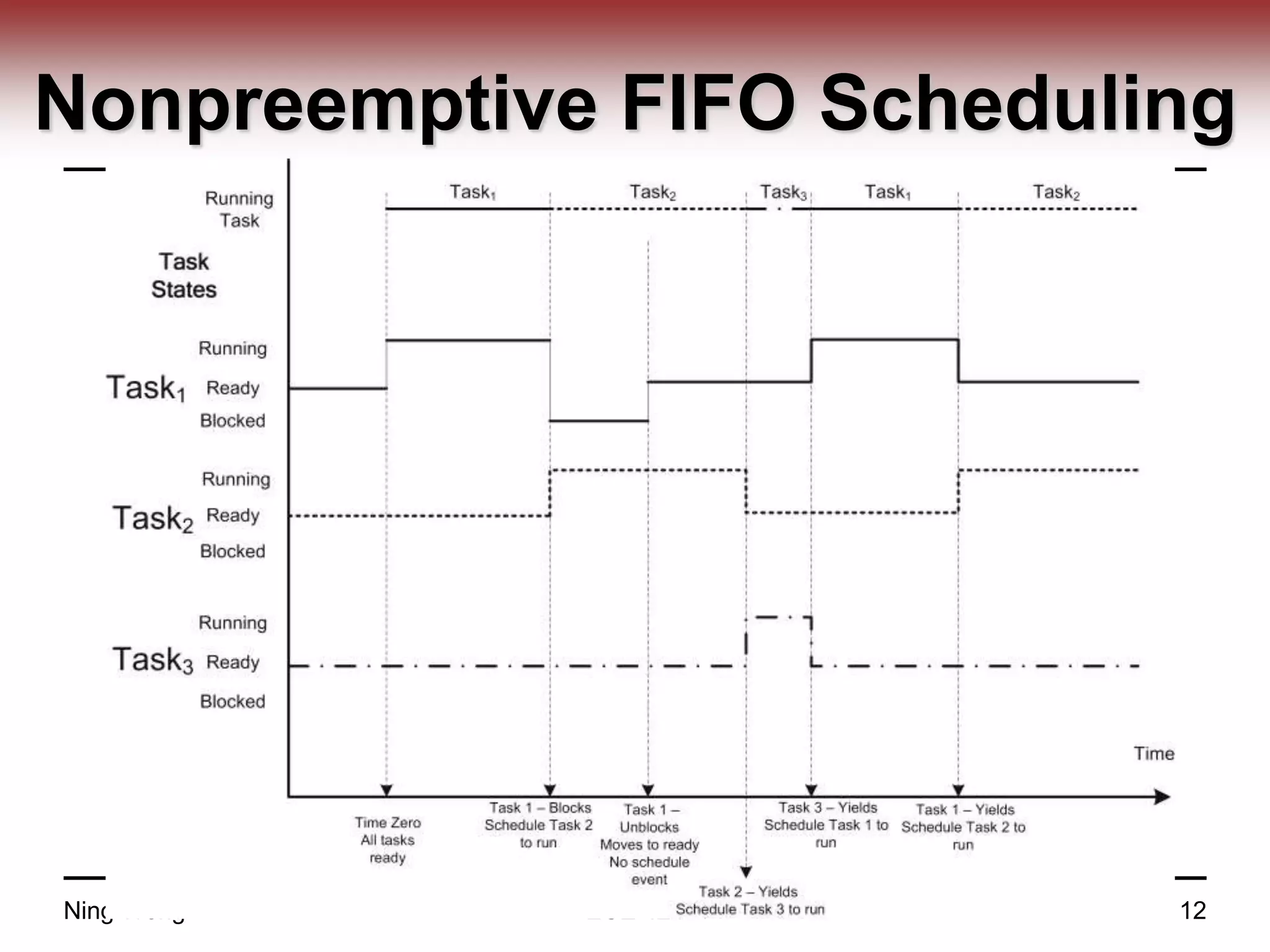

12. Nonpreemptive FIFO Scheduling
Ning Weng ECE 424 12

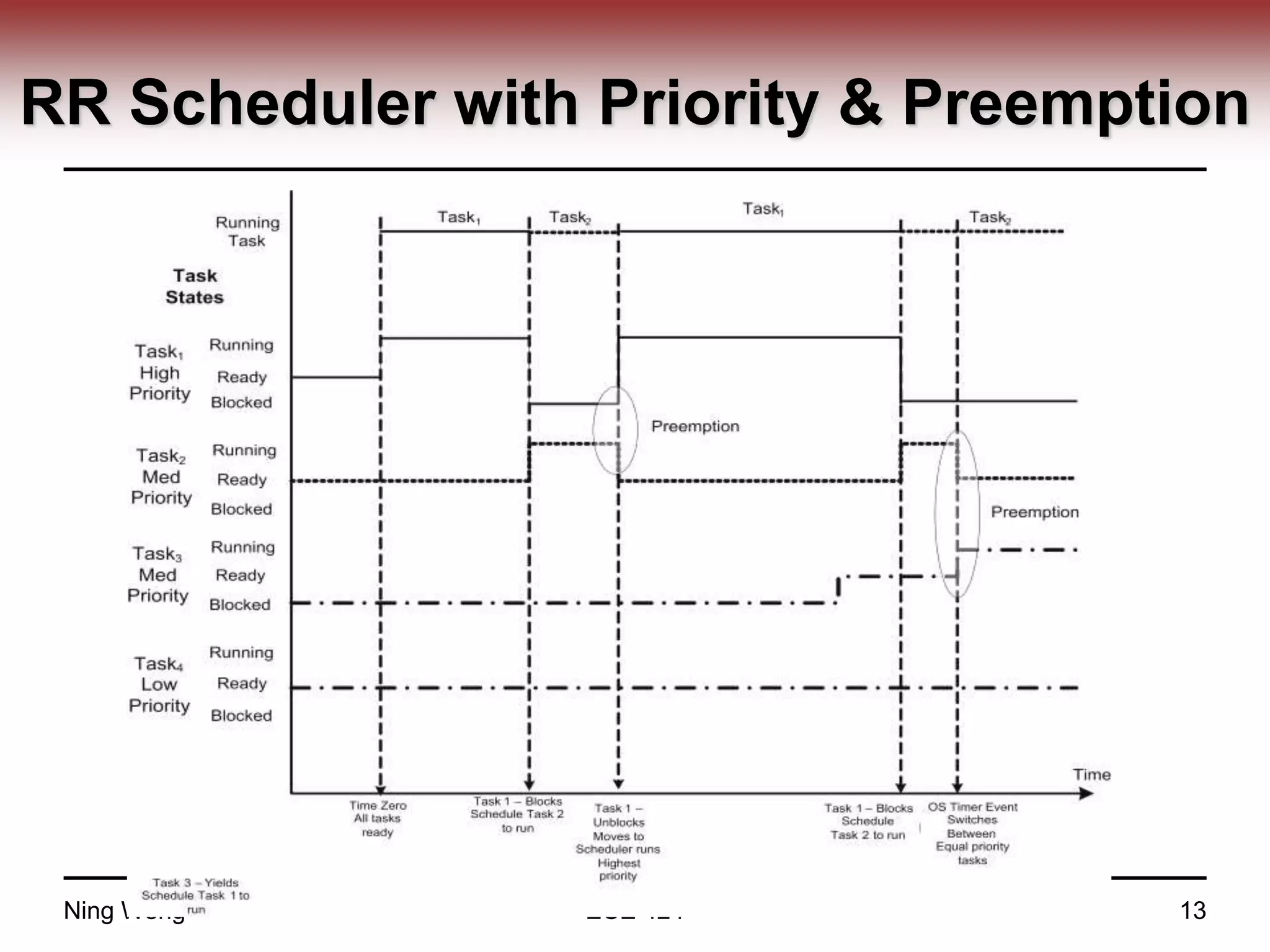

13. RR Scheduler with Priority & Preemption
Ning Weng ECE 424 13

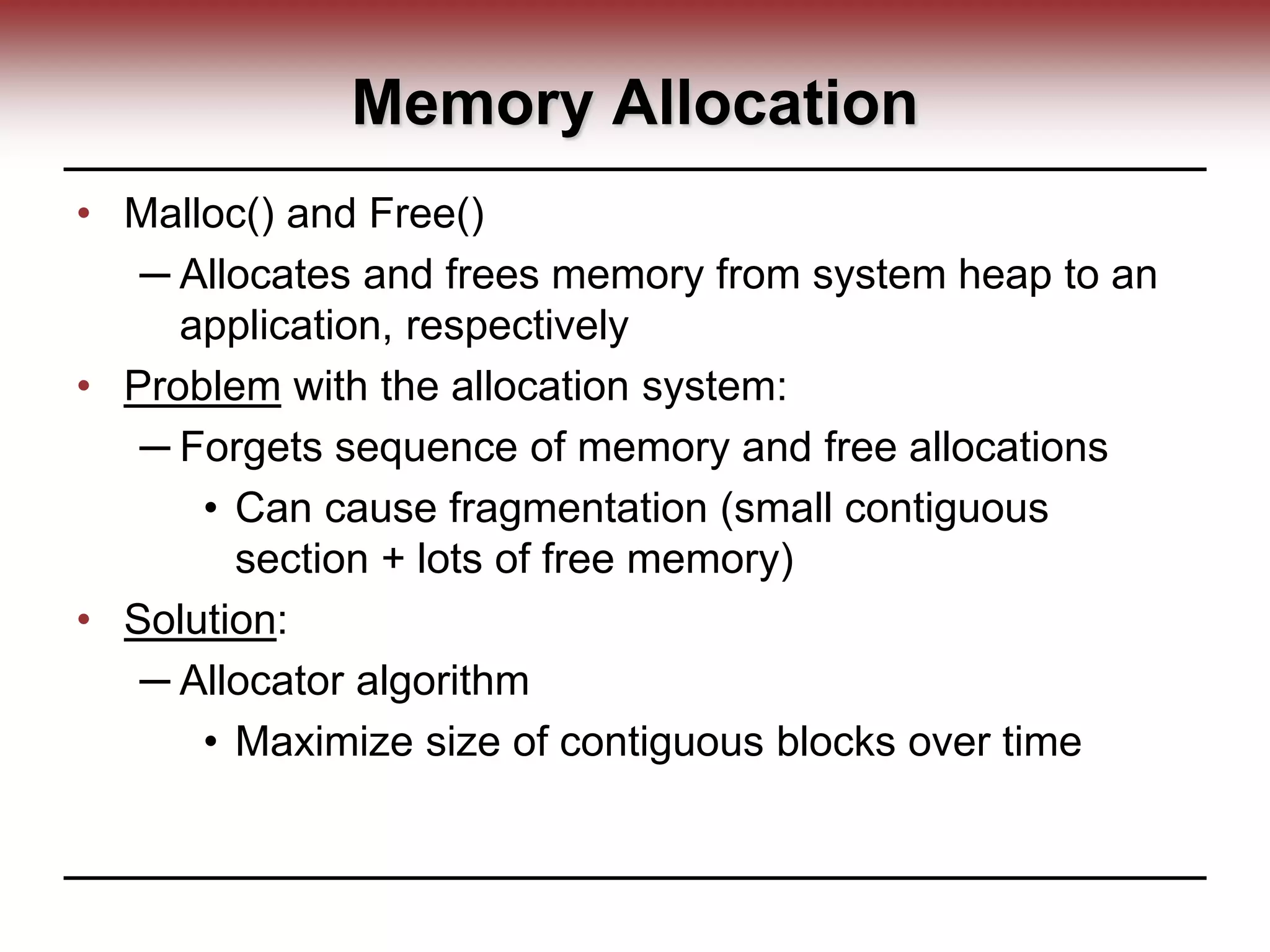

14. Memory Allocation
• Malloc() and Free()
─ Allocates and frees memory from system heap to an
application, respectively
• Problem with the allocation system:
─ Forgets sequence of memory and free allocations
• Can cause fragmentation (small contiguous
section + lots of free memory)
• Solution:
─ Allocator algorithm
• Maximize size of contiguous blocks over time

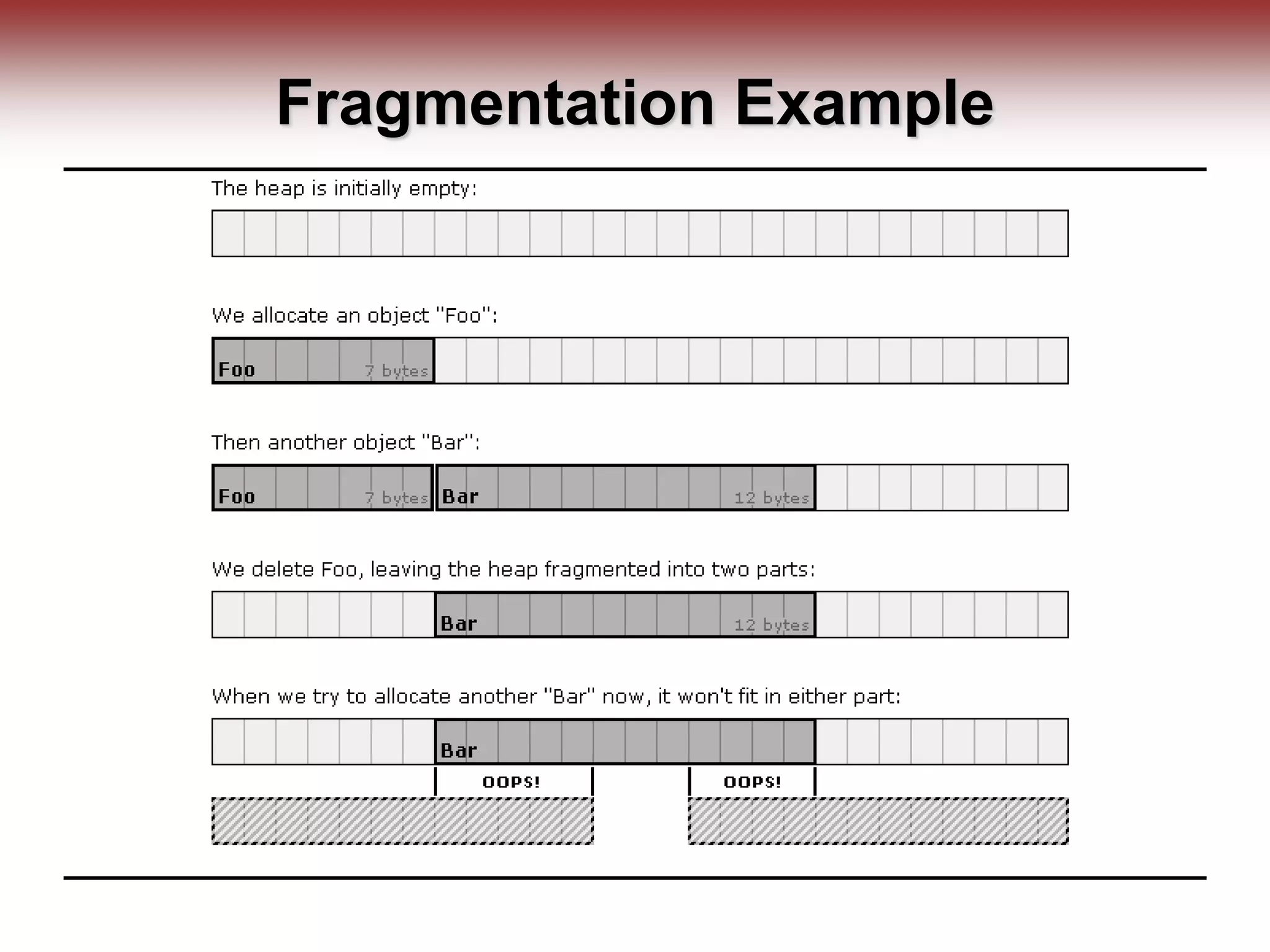

15. Fragmentation Example

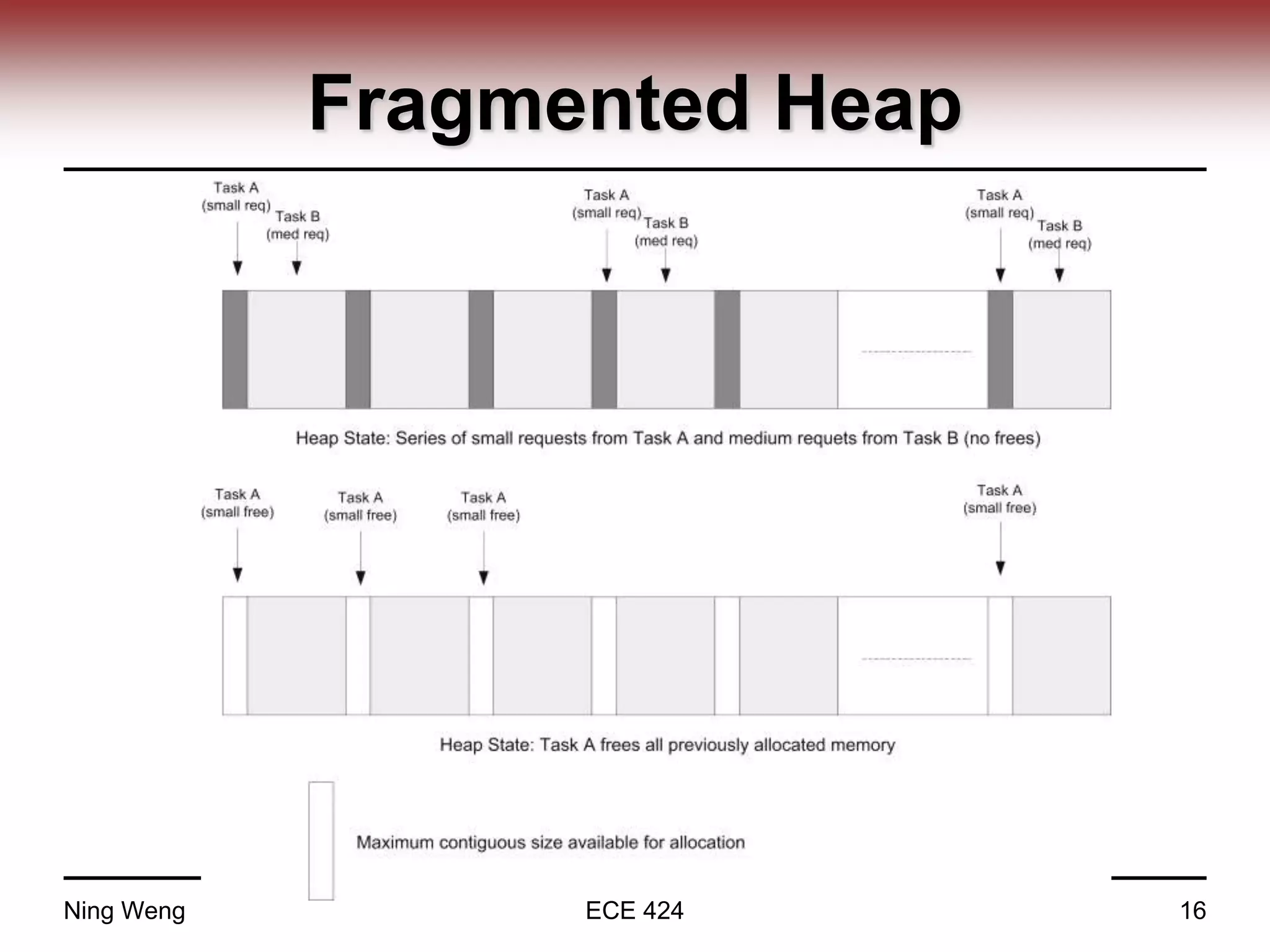

16. Fragmented Heap
Ning Weng ECE 424 16

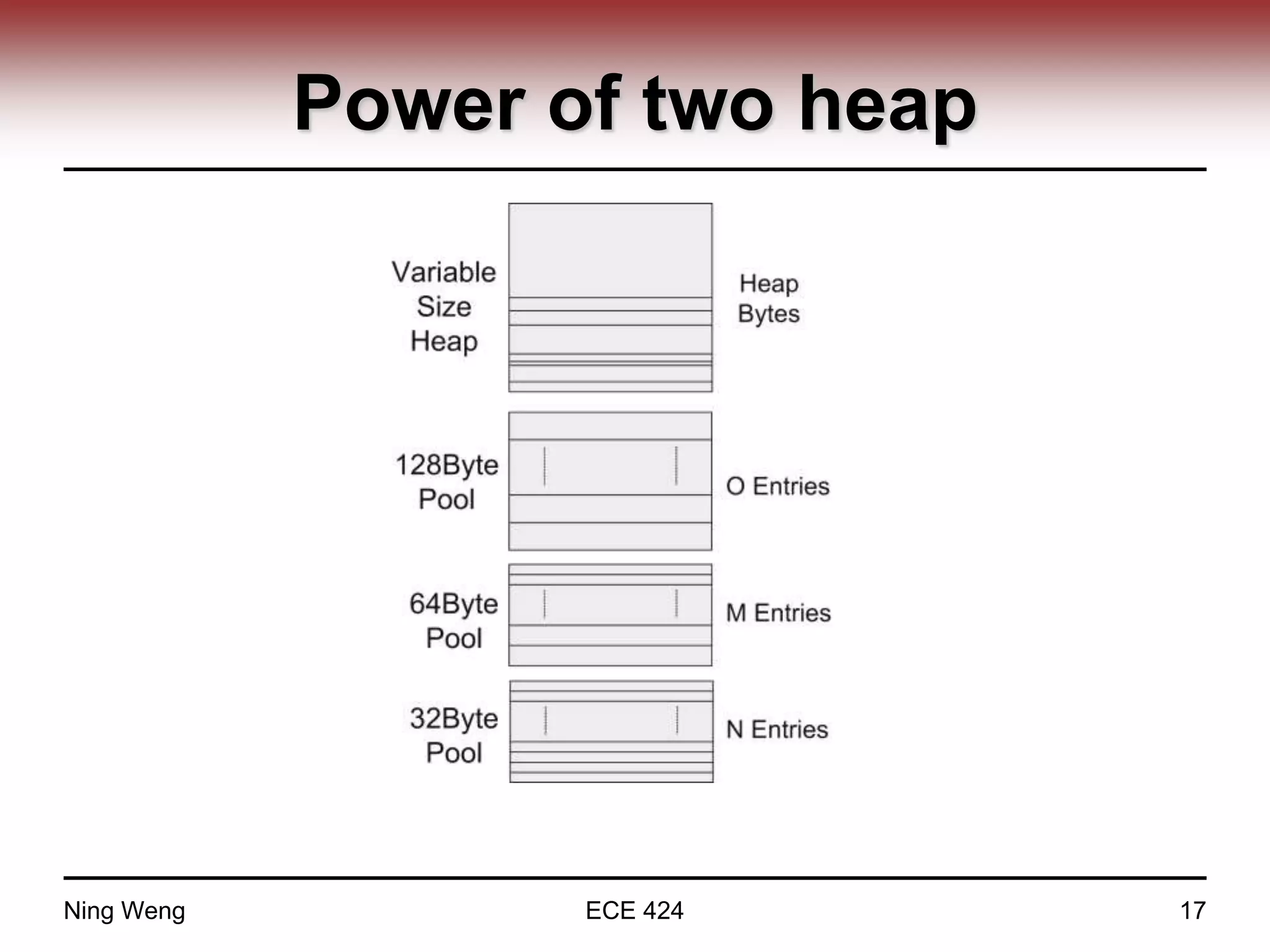

17. Power of two heap
Ning Weng ECE 424 17

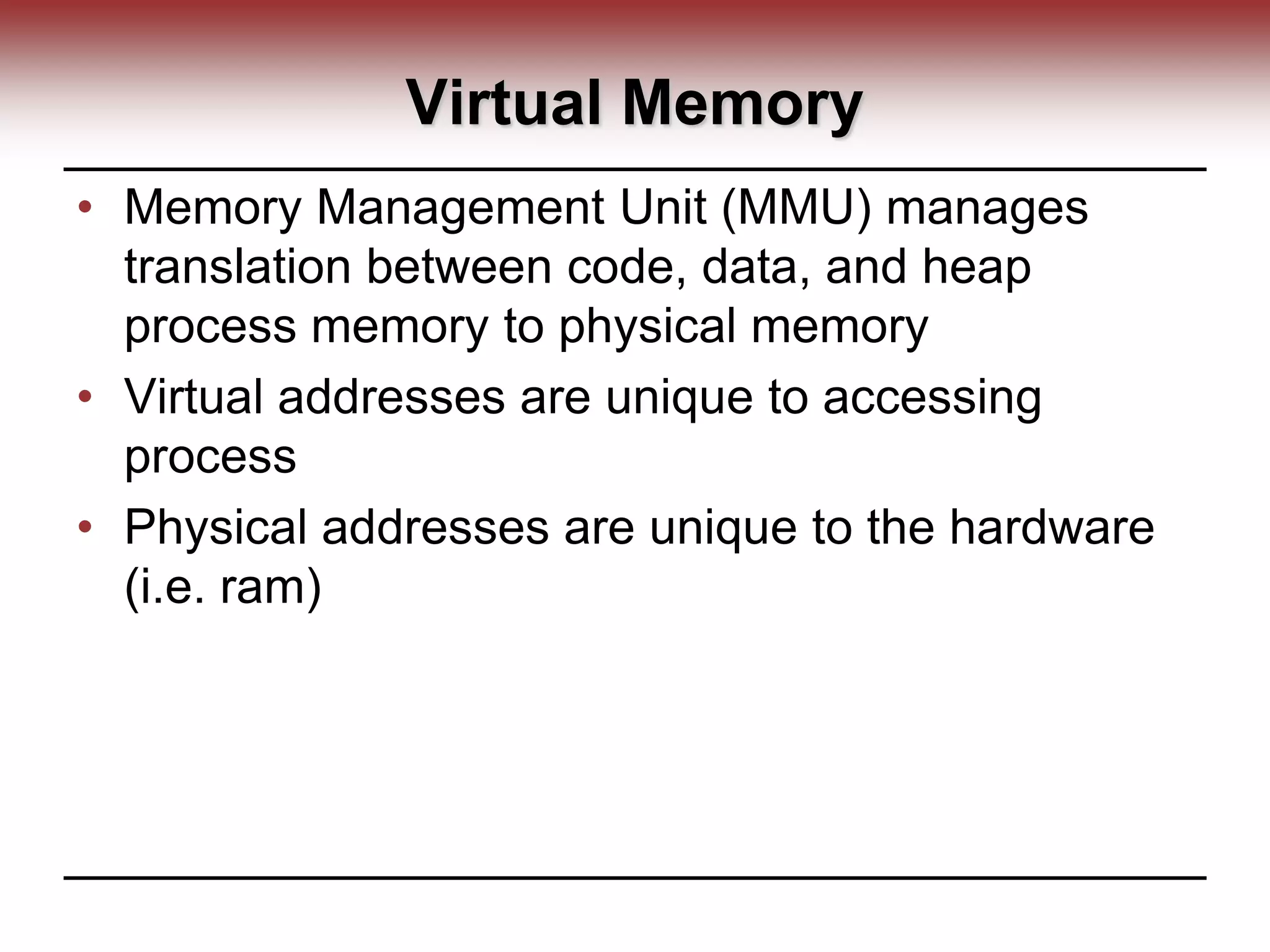

18. Virtual Memory
• Memory Management Unit (MMU) manages
translation between code, data, and heap
process memory to physical memory
• Virtual addresses are unique to accessing
process
• Physical addresses are unique to the hardware
(i.e. ram)

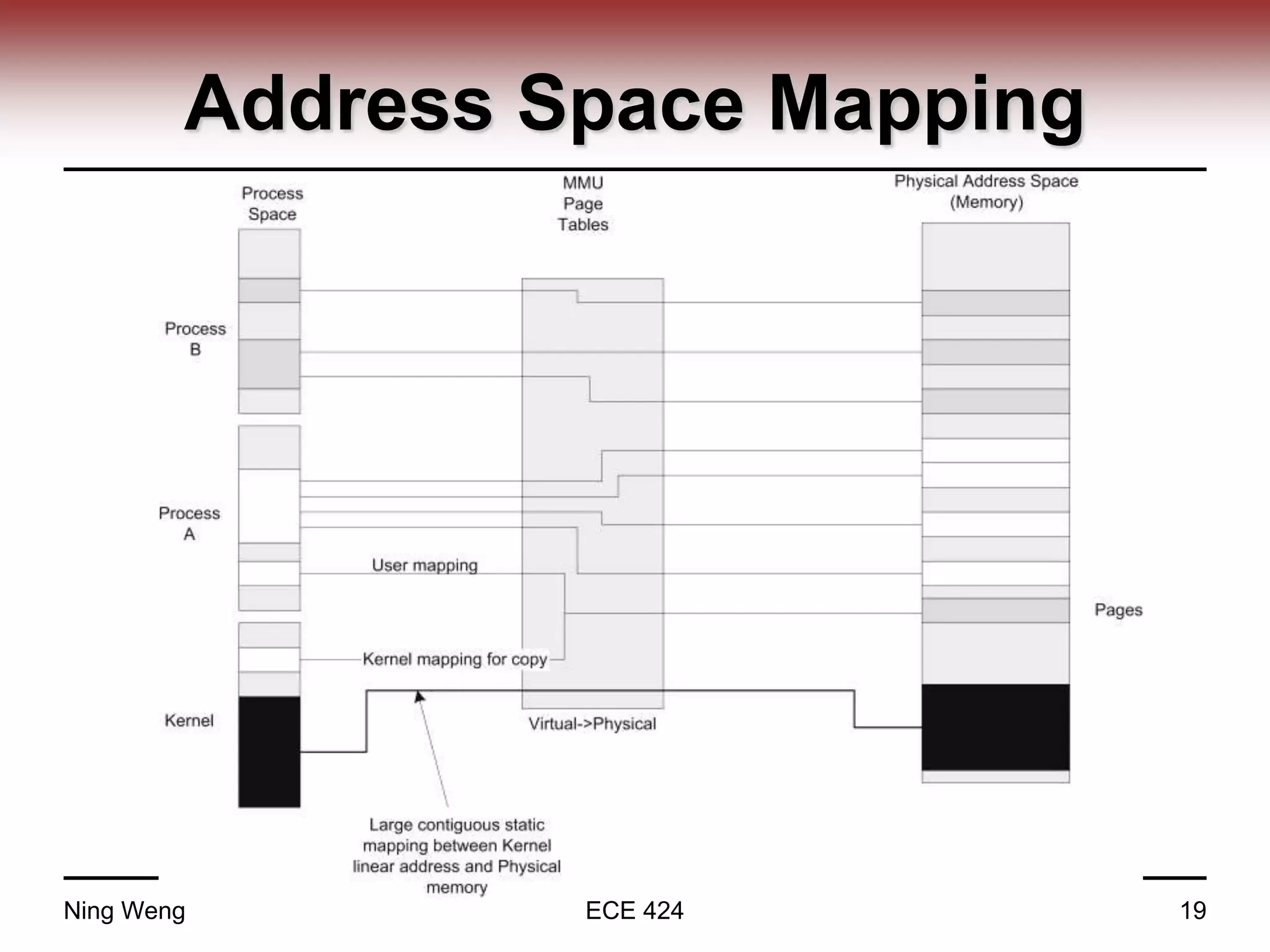

19. Address Space Mapping
Ning Weng ECE 424 19

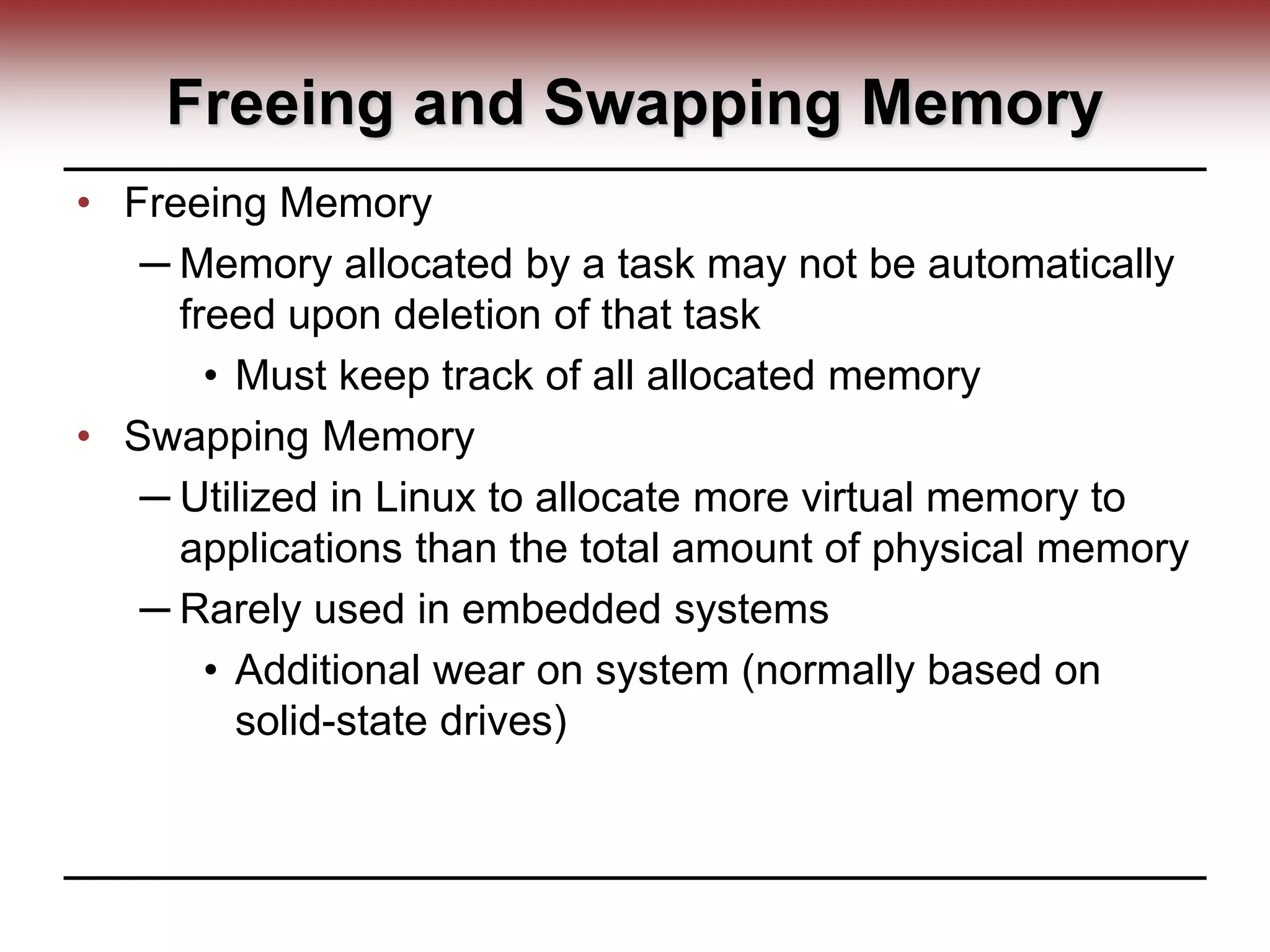

20. Freeing and Swapping Memory
• Freeing Memory
─ Memory allocated by a task may not be automatically
freed upon deletion of that task
• Must keep track of all allocated memory
• Swapping Memory
─ Utilized in Linux to allocate more virtual memory to
applications than the total amount of physical memory
─ Rarely used in embedded systems
• Additional wear on system (normally based on
solid-state drives)

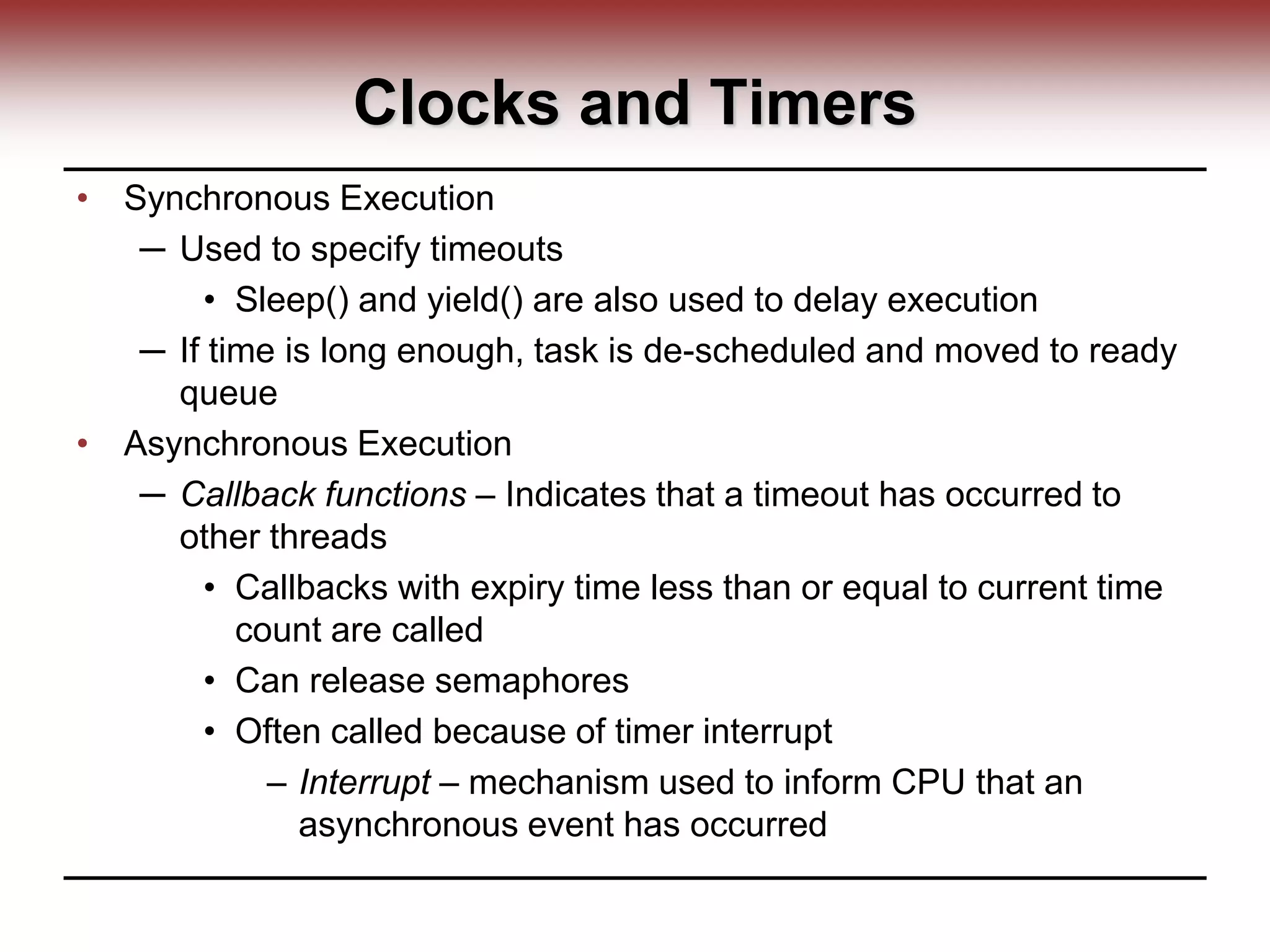

21. Clocks and Timers
• Synchronous Execution
─ Used to specify timeouts
• Sleep() and yield() are also used to delay execution
─ If time is long enough, task is de-scheduled and moved to ready
queue
• Asynchronous Execution
─ Callback functions – Indicates that a timeout has occurred to
other threads
• Callbacks with expiry time less than or equal to current time
count are called
• Can release semaphores
• Often called because of timer interrupt
– Interrupt – mechanism used to inform CPU that an
asynchronous event has occurred

22. Time of Today
• Time source
─ Real time Clock
• Hardware timer backup with battery
─ CPU when it is running
• Seed source
─ RTC
─ NTP (network time protocol)
─ Cellular radio network
Ning Weng ECE 424 22

23. Mutual Exclusion/Synchronization
• Goal: to serialized atomic access to share resources
Ning Weng ECE 424 23

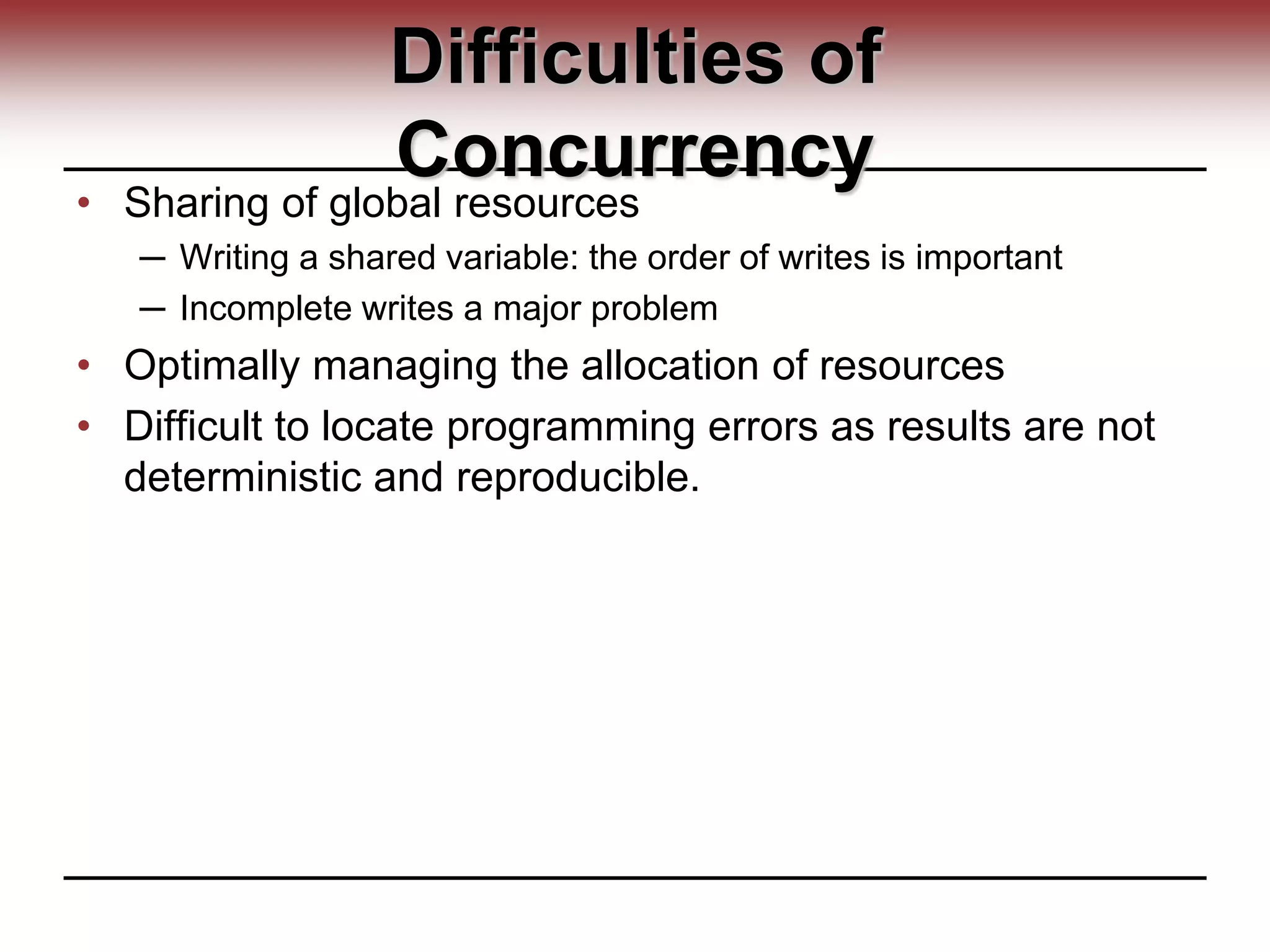

24. Difficulties of
Concurrency
• Sharing of global resources
─ Writing a shared variable: the order of writes is important
─ Incomplete writes a major problem
• Optimally managing the allocation of resources
• Difficult to locate programming errors as results are not
deterministic and reproducible.

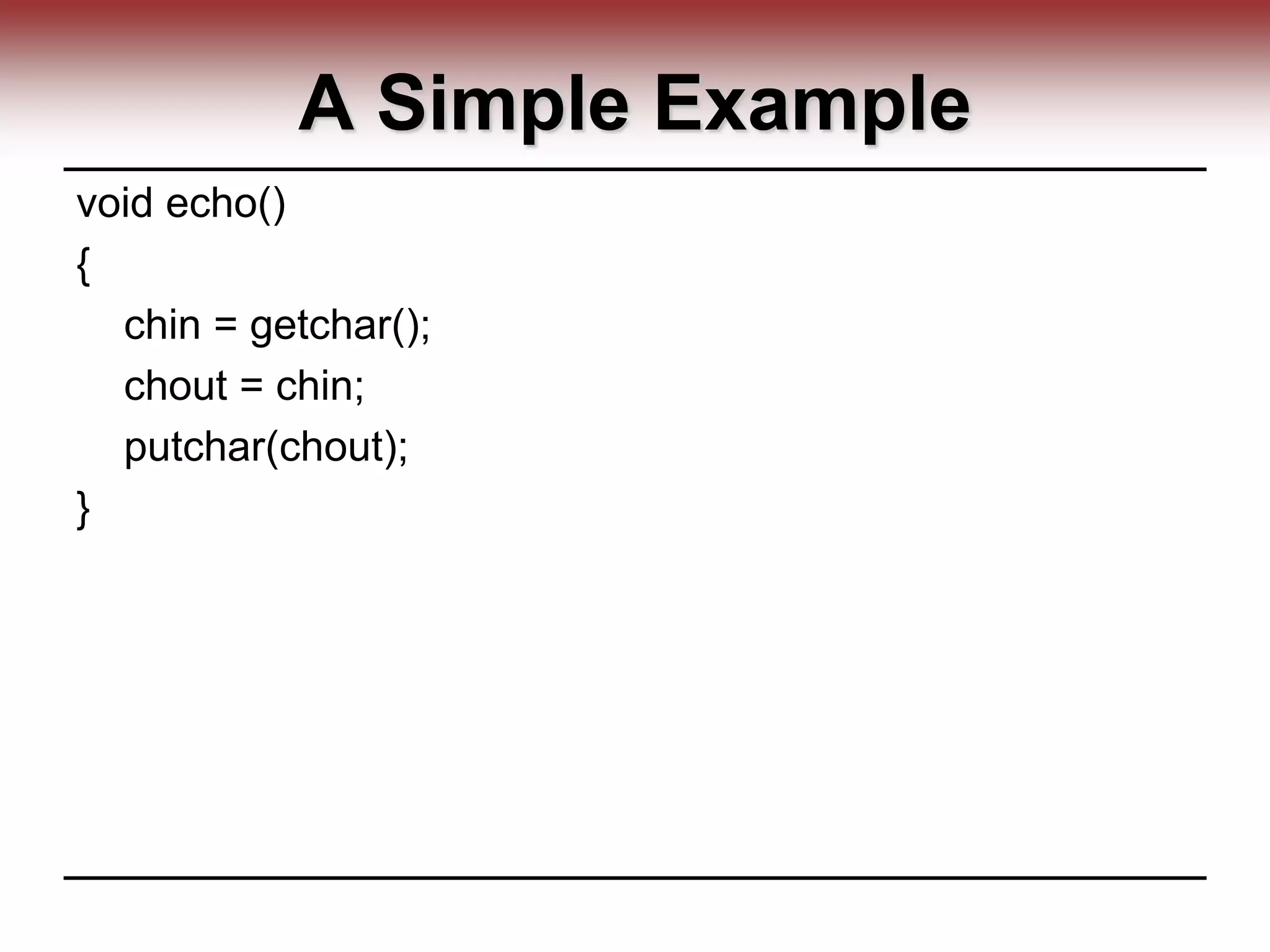

25. A Simple Example
void echo()
{
chin = getchar();
chout = chin;
putchar(chout);
}

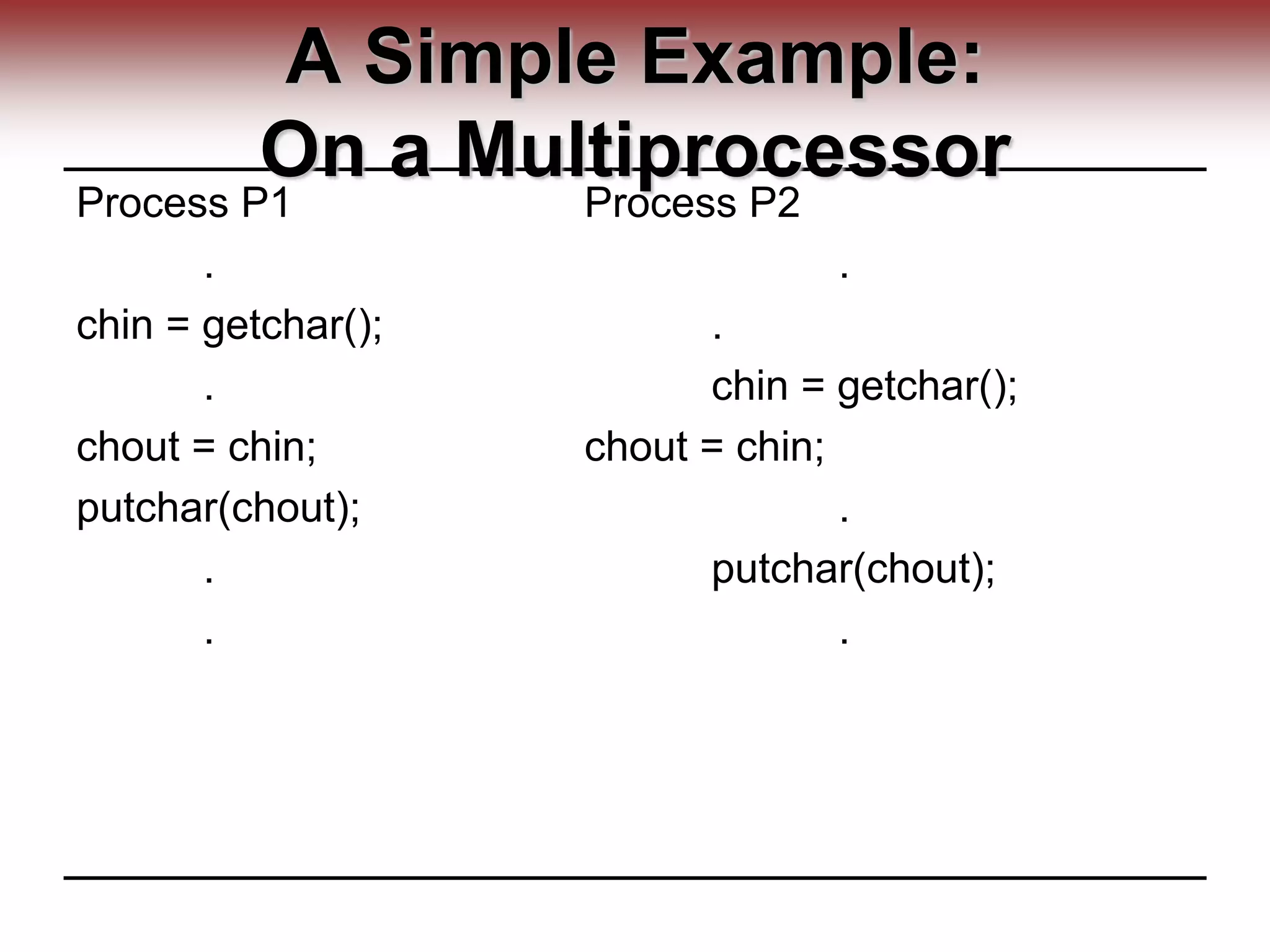

26. A Simple Example:
On a Multiprocessor
Process P1 Process P2
. .
chin = getchar(); .
. chin = getchar();
chout = chin; chout = chin;
putchar(chout); .
. putchar(chout);
. .

27. Competition among
Processes for Resources
Three main control problems:
• Need for Mutual Exclusion
─ Critical sections
• Deadlock
• Starvation

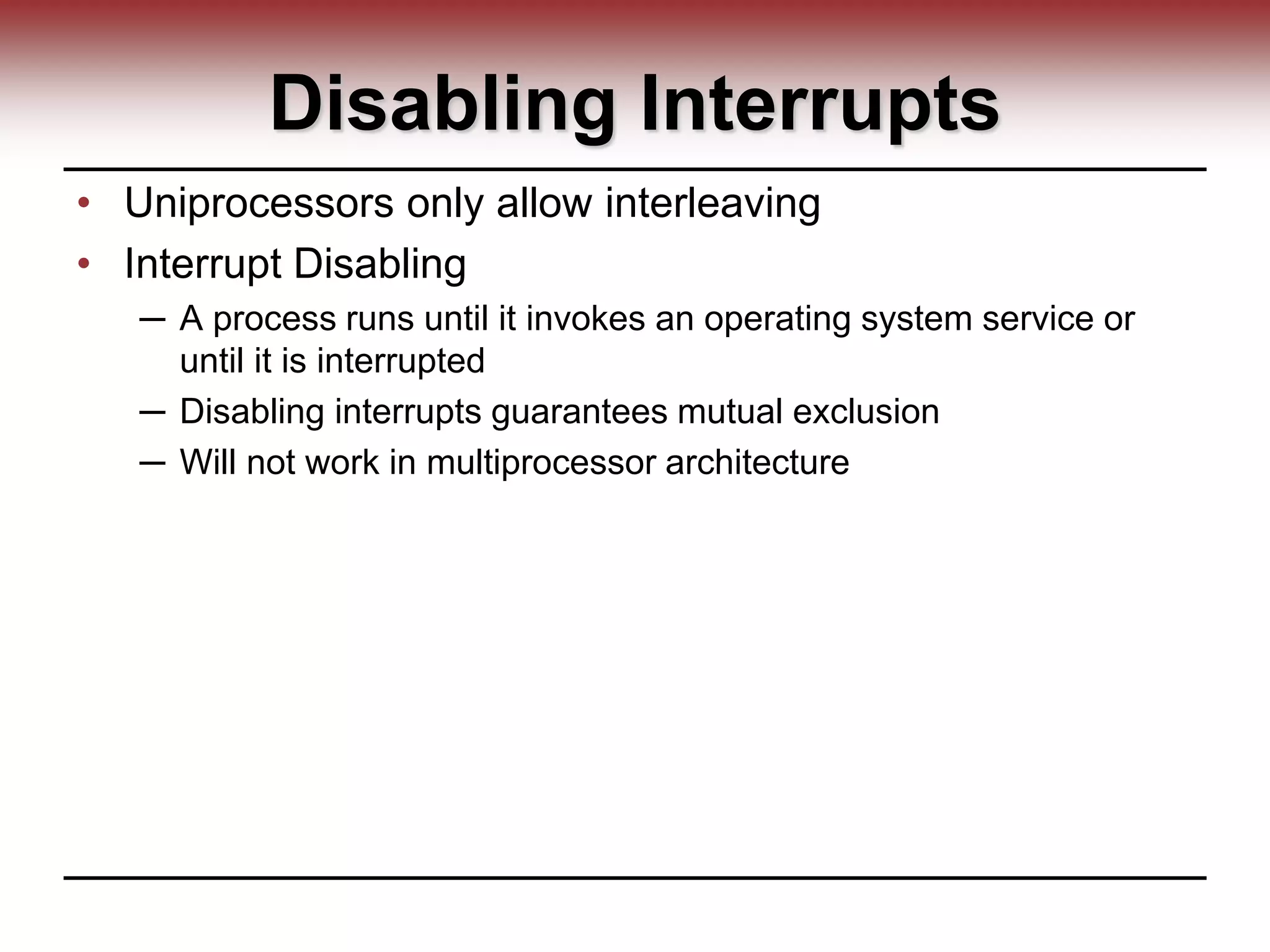

28. Disabling Interrupts
• Uniprocessors only allow interleaving
• Interrupt Disabling
─ A process runs until it invokes an operating system service or
until it is interrupted
─ Disabling interrupts guarantees mutual exclusion
─ Will not work in multiprocessor architecture

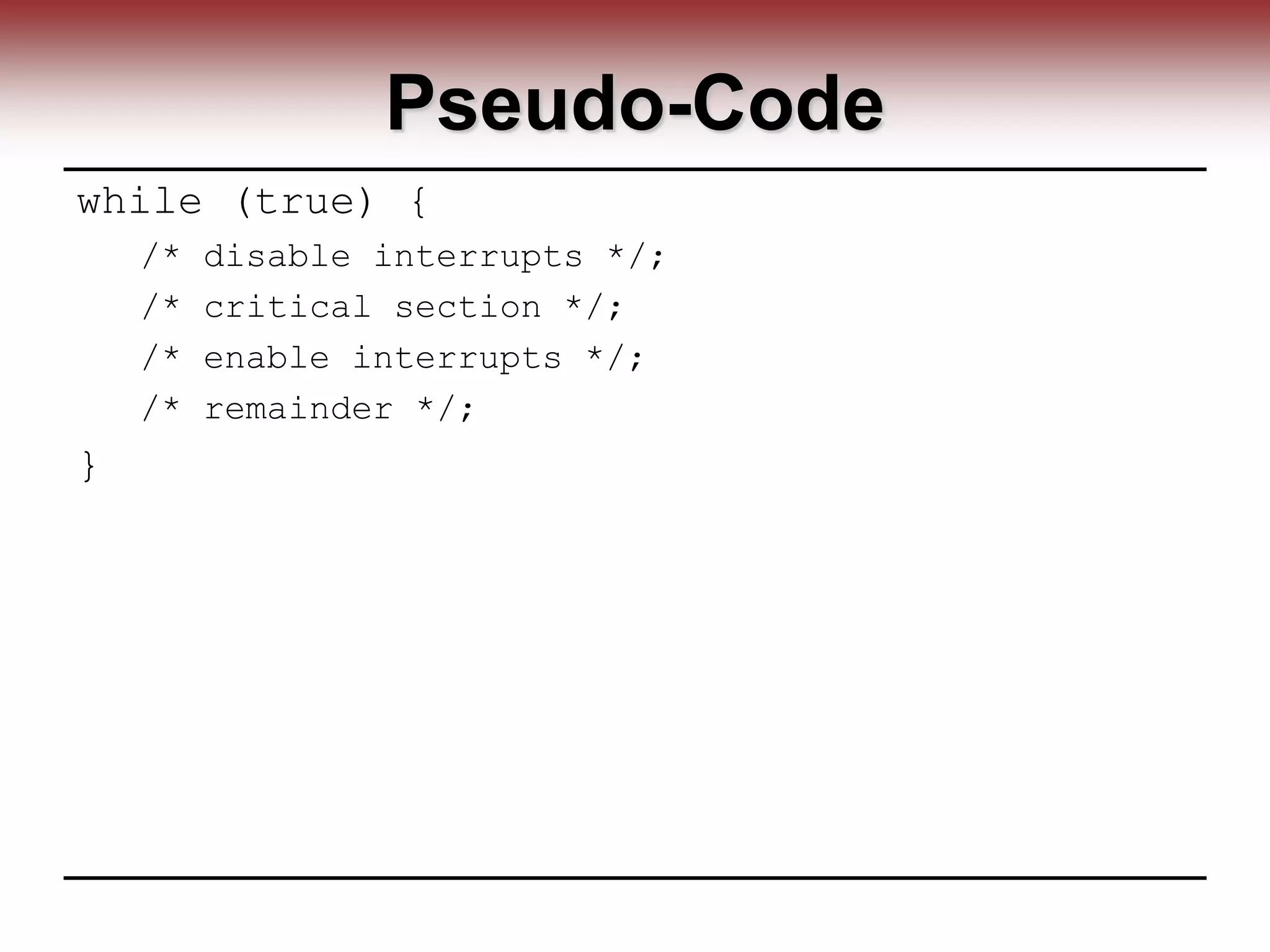

29. Pseudo-Code
while (true) {
/* disable interrupts */;
/* critical section */;
/* enable interrupts */;
/* remainder */;
}

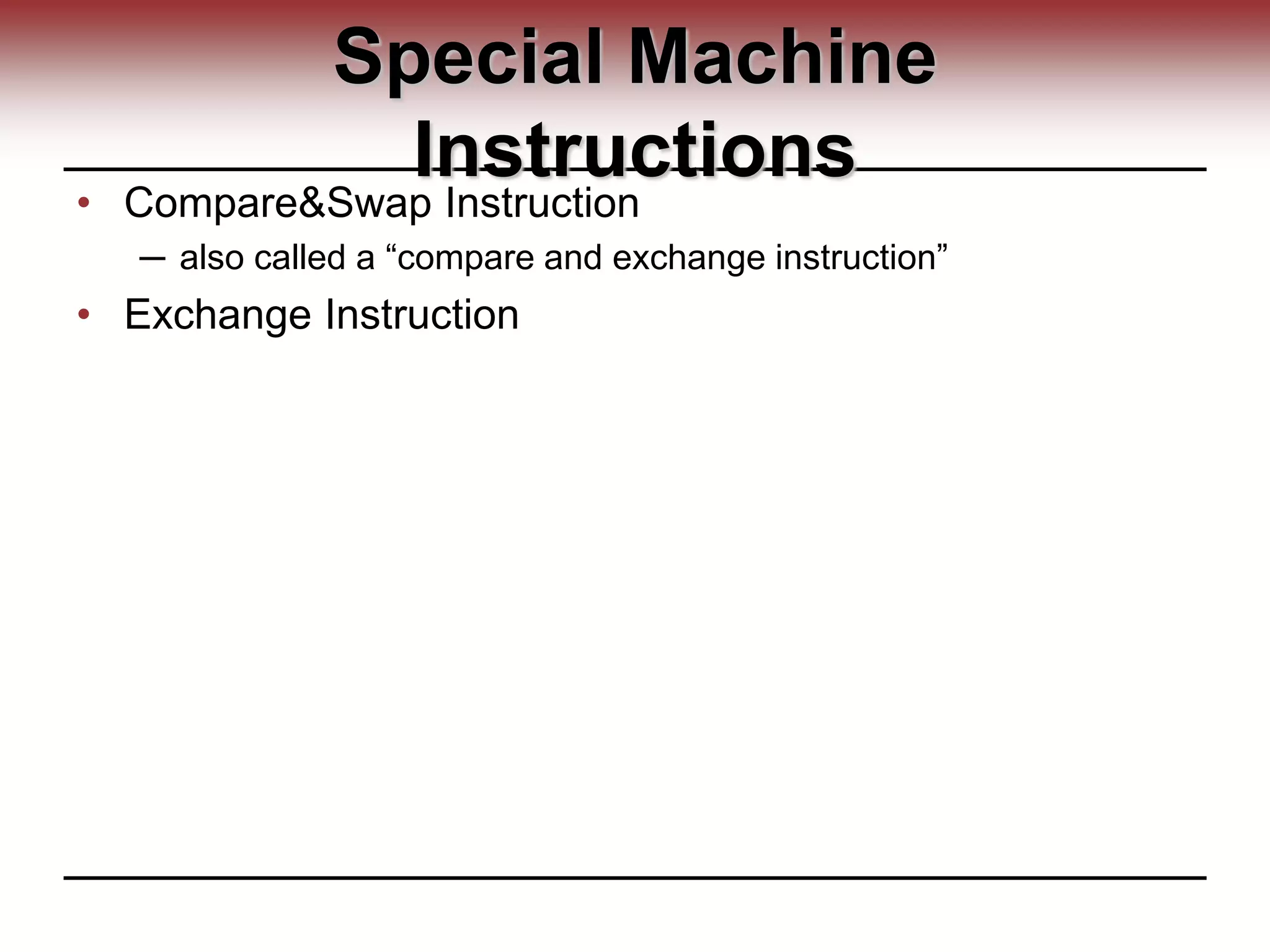

30. Special Machine
Instructions
• Compare&Swap Instruction
─ also called a “compare and exchange instruction”
• Exchange Instruction

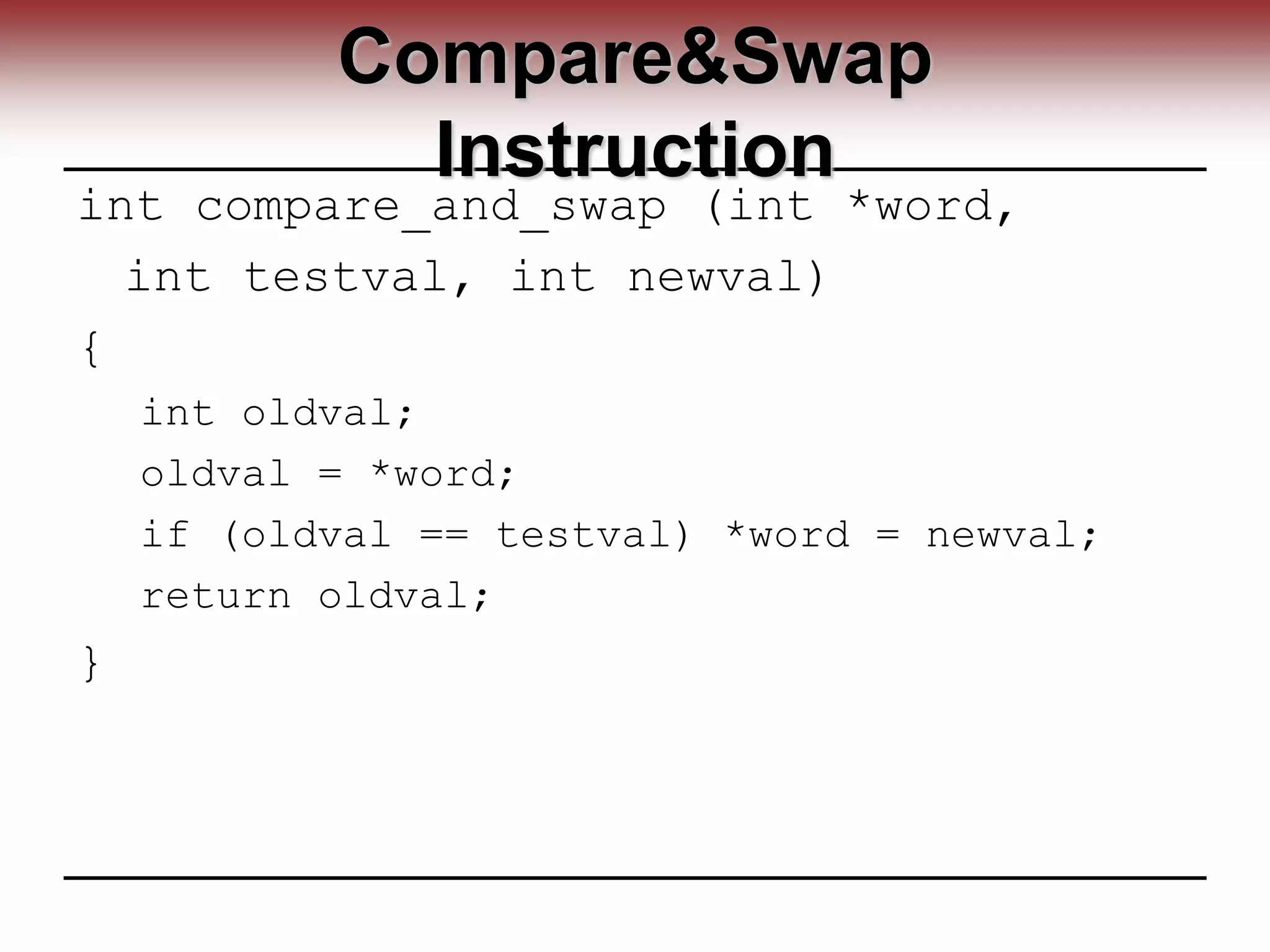

31. Compare&Swap
Instruction
int compare_and_swap (int *word,
int testval, int newval)
{
int oldval;
oldval = *word;
if (oldval == testval) *word = newval;
return oldval;
}

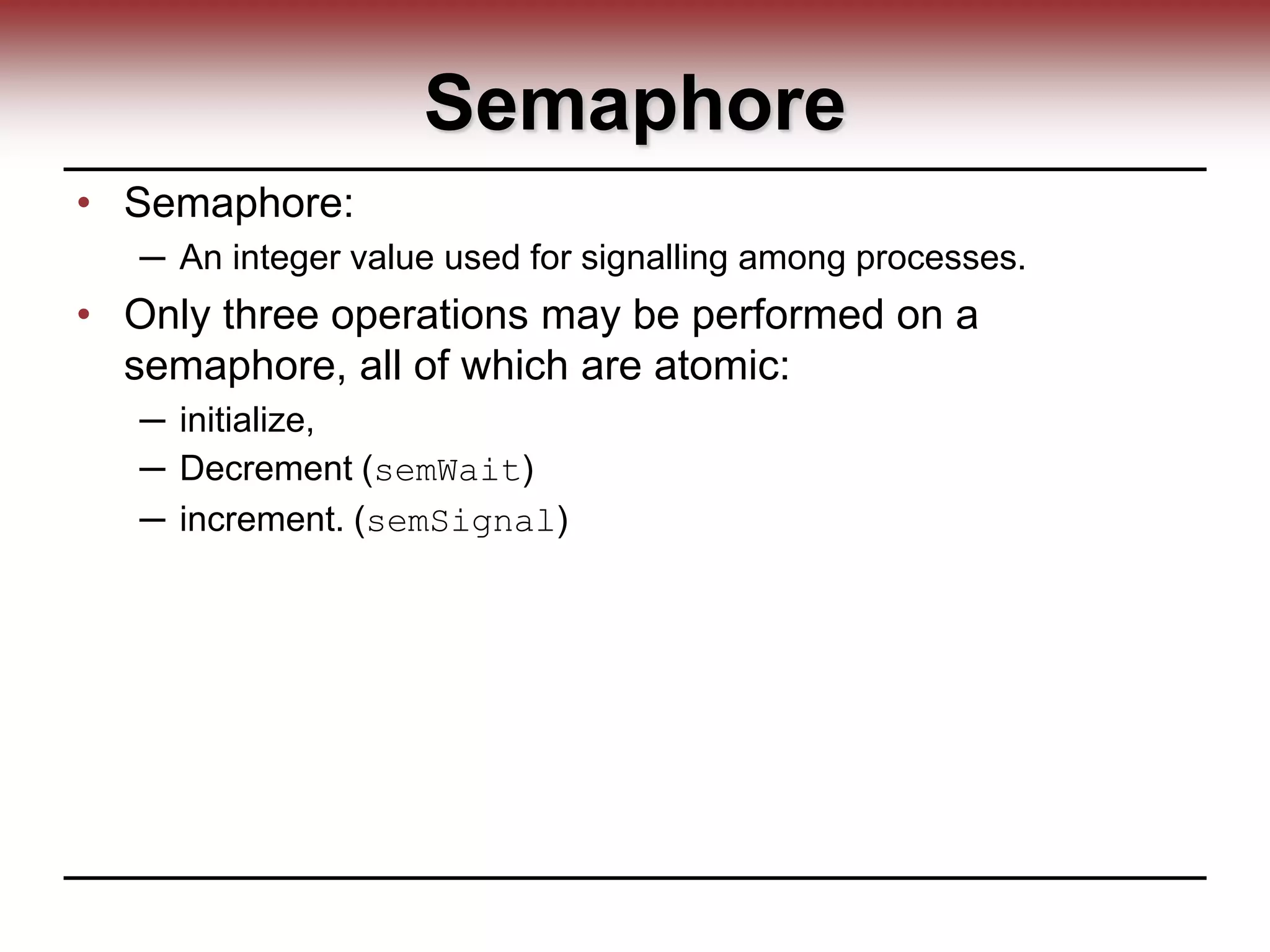

32. Semaphore
• Semaphore:
─ An integer value used for signalling among processes.
• Only three operations may be performed on a
semaphore, all of which are atomic:
─ initialize,
─ Decrement (semWait)
─ increment. (semSignal)

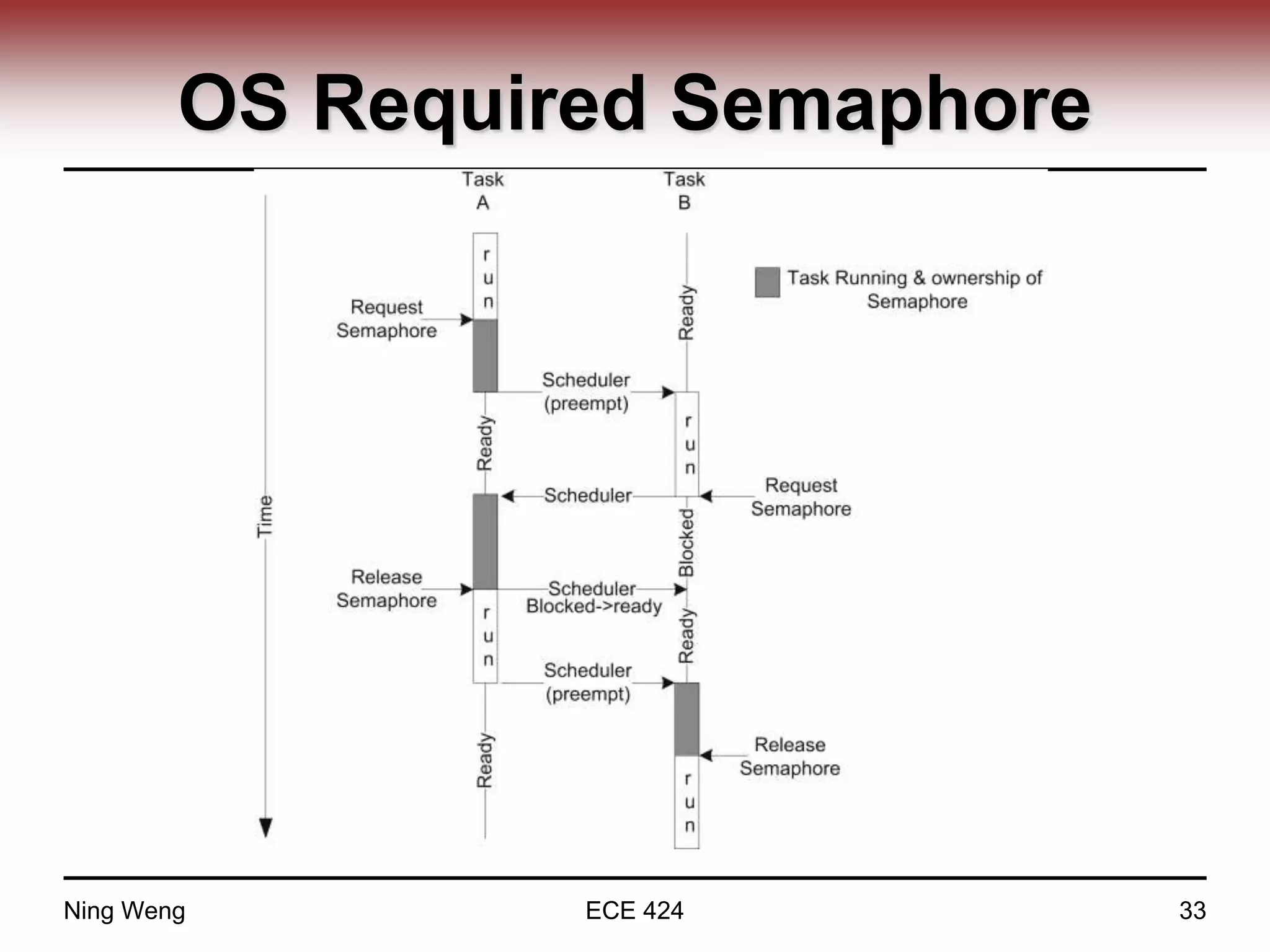

33. OS Required Semaphore
Ning Weng ECE 424 33

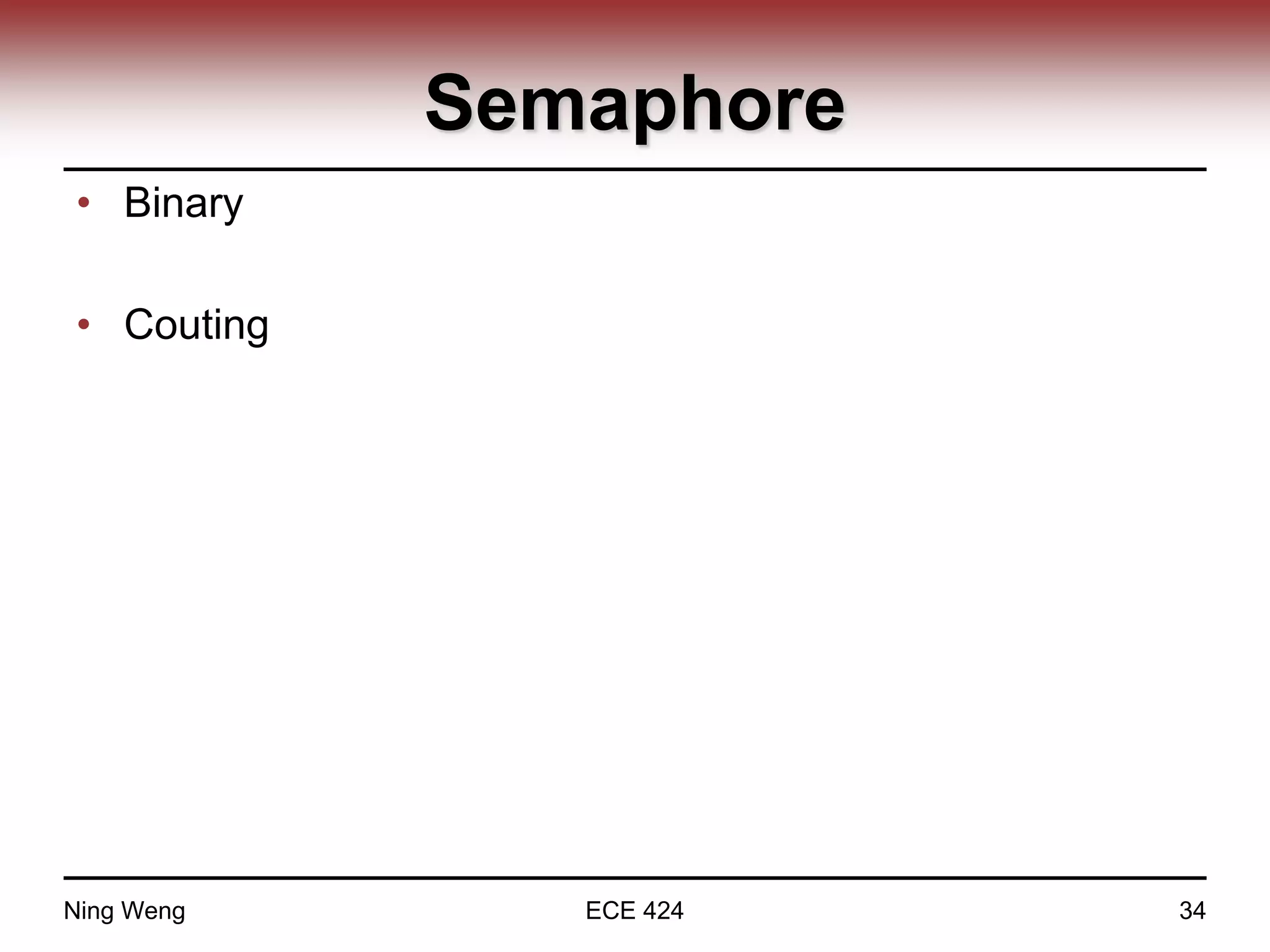

34. Semaphore
• Binary
• Couting
Ning Weng ECE 424 34

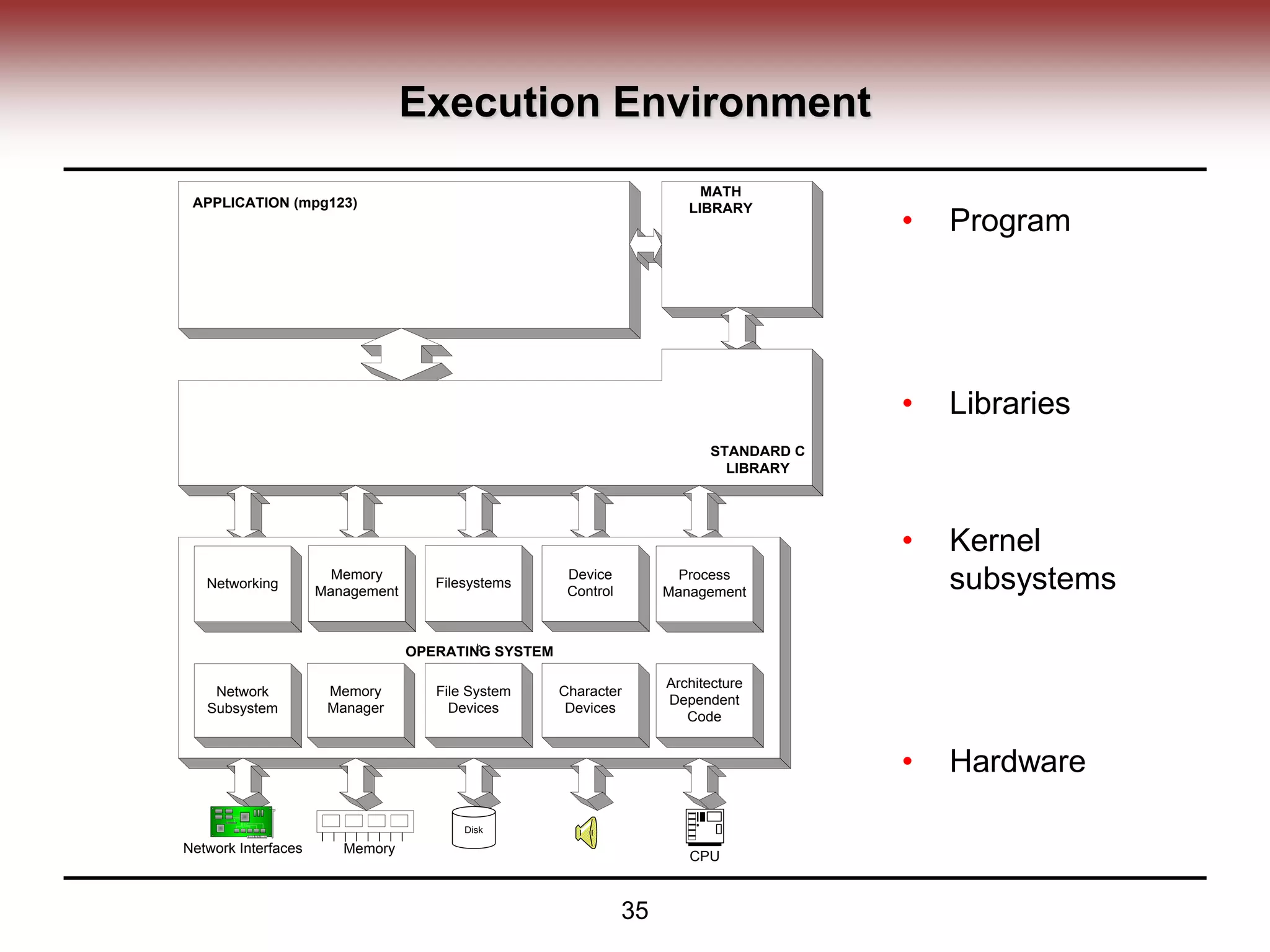

35. 35
Execution Environment
Memory
b
STANDARD C
LIBRARY
MATH
LIBRARY
APPLICATION (mpg123)
Memory
Management
Filesystems
Networking
Architecture
Dependent
Code
Memory
Manager
File System
Devices
Character
Devices
Network
Subsystem
OPERATING SYSTEM
Process
Management
Device
Control
Network Interfaces
CPU
Disk
• Program
• Libraries
• Kernel
subsystems
• Hardware

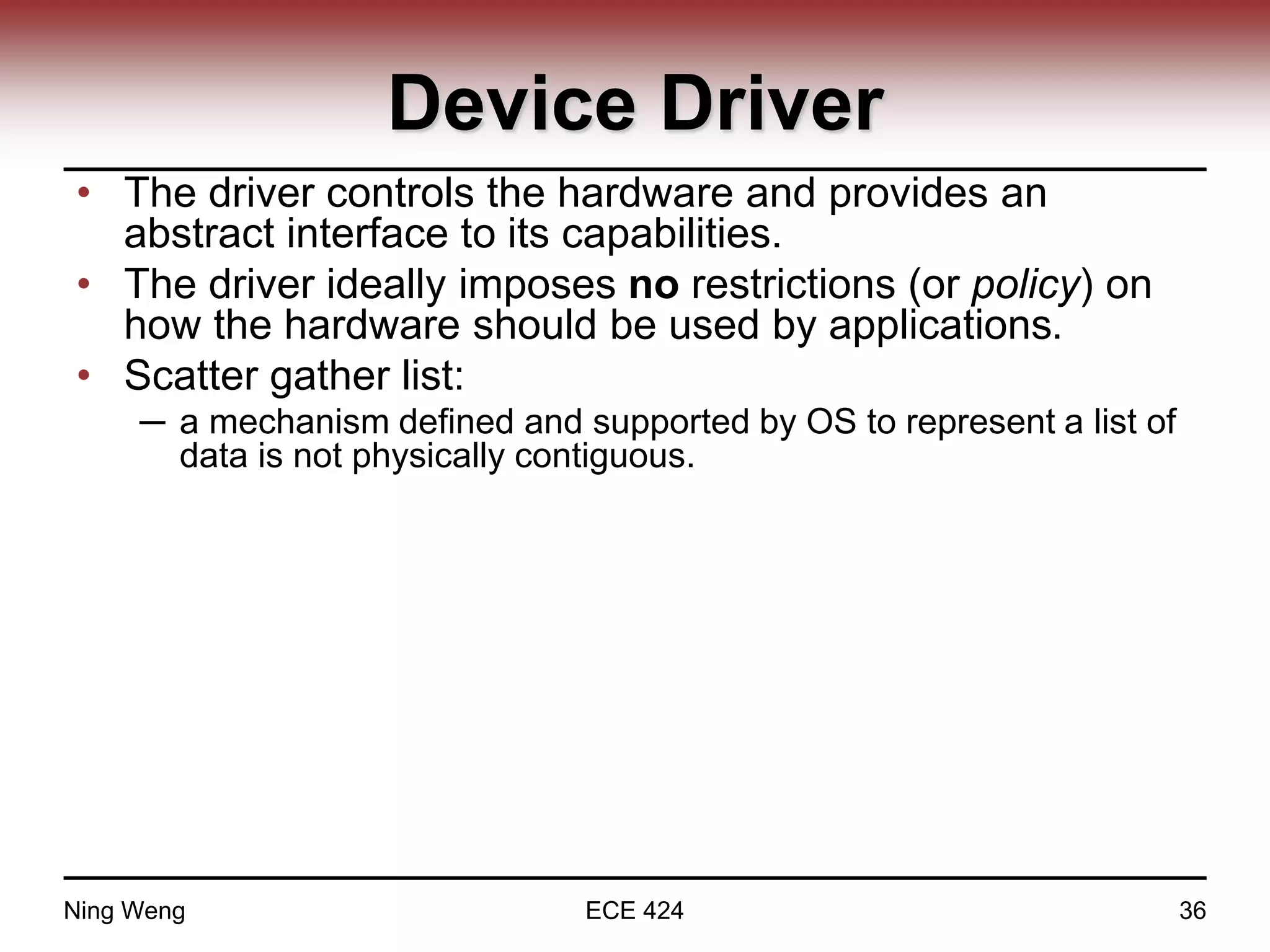

36. Device Driver
• The driver controls the hardware and provides an
abstract interface to its capabilities.
• The driver ideally imposes no restrictions (or policy) on
how the hardware should be used by applications.
• Scatter gather list:
─ a mechanism defined and supported by OS to represent a list of
data is not physically contiguous.
Ning Weng ECE 424 36

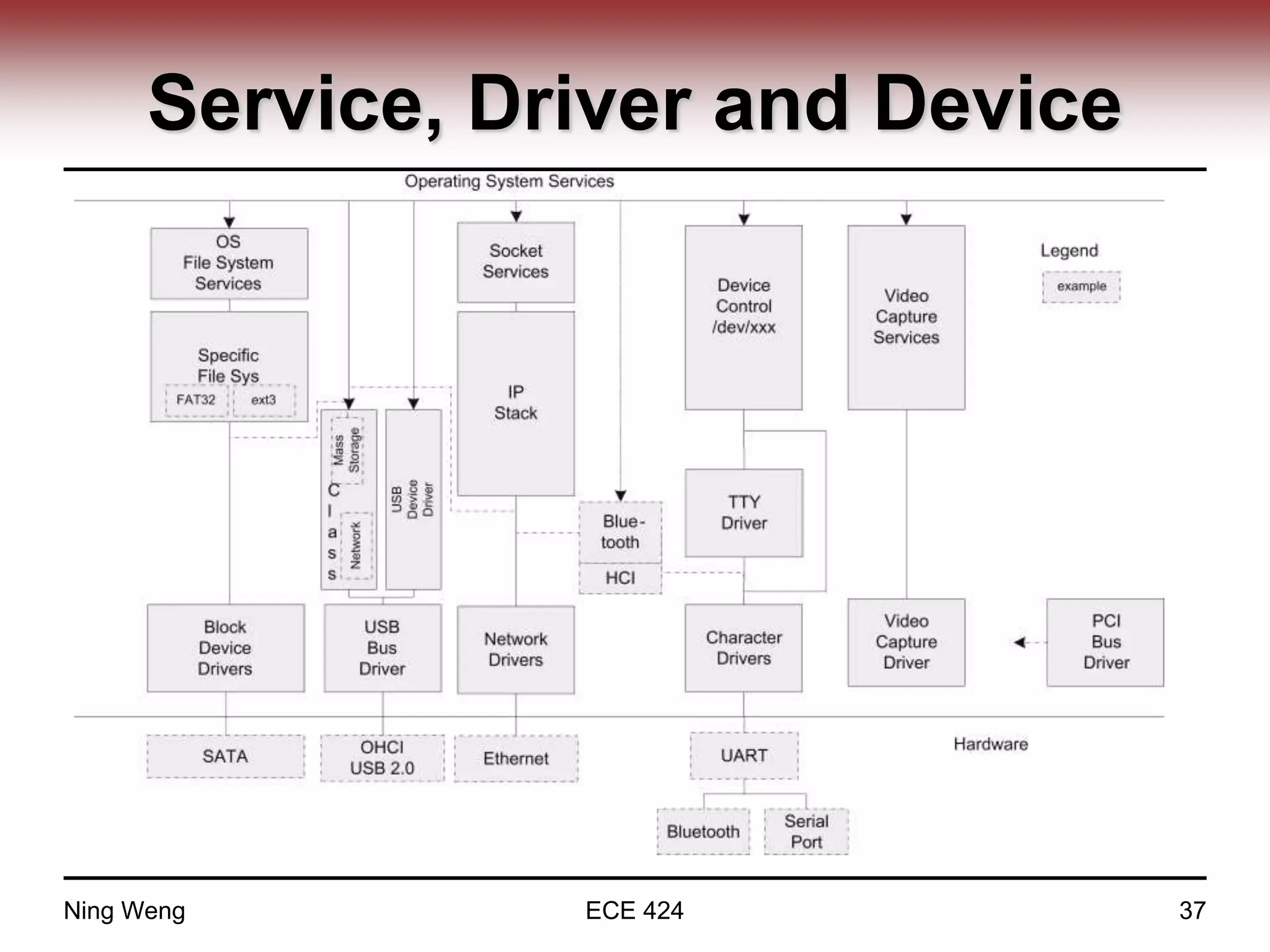

37. Service, Driver and Device
Ning Weng ECE 424 37

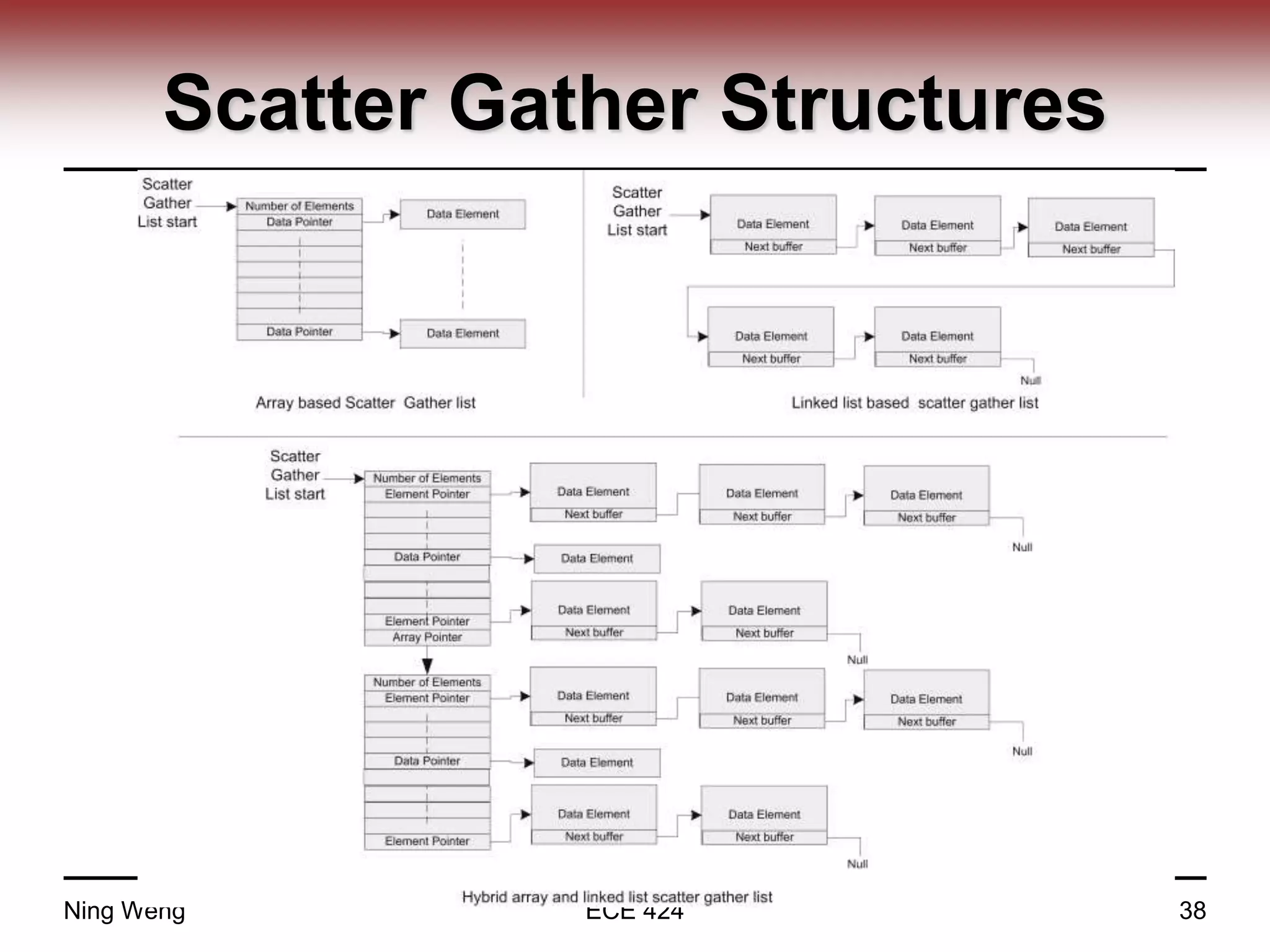

38. Scatter Gather Structures
Ning Weng ECE 424 38

39. Direct Memory Access (DMA)
• What, why and how/
Ning Weng ECE 424 39

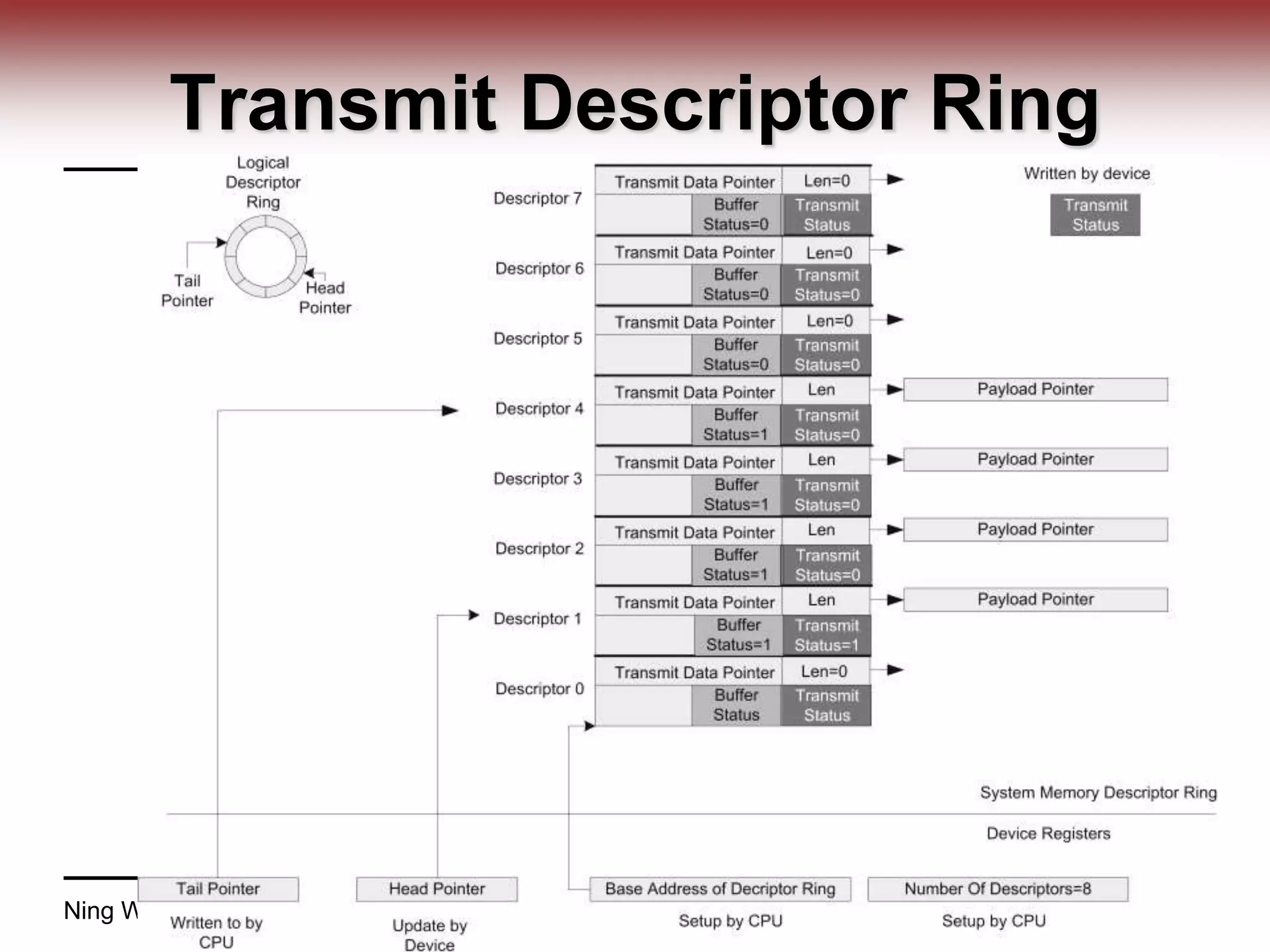

40. Transmit Descriptor Ring
Ning Weng ECE 424 40

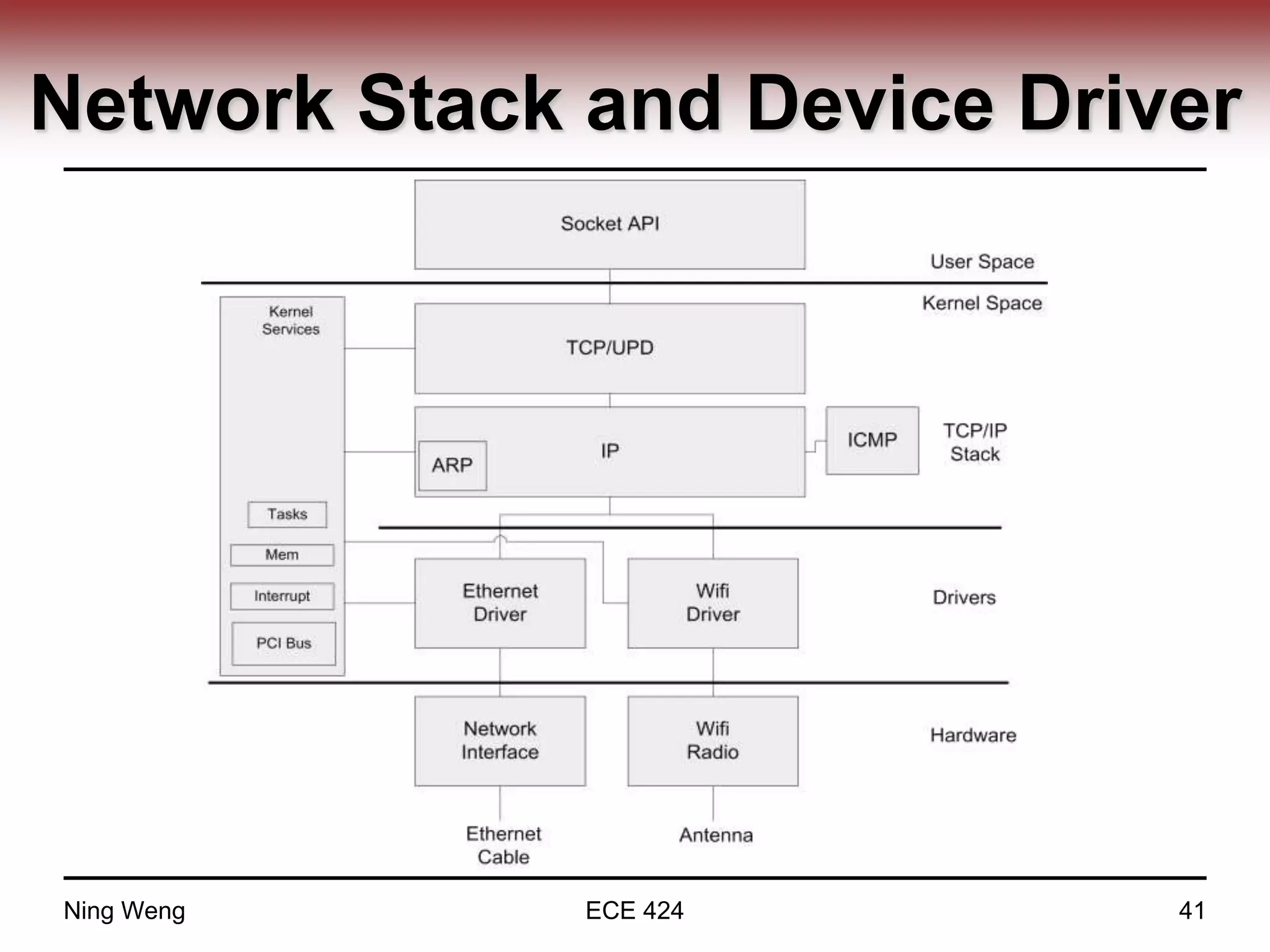

41. Network Stack and Device Driver
Ning Weng ECE 424 41

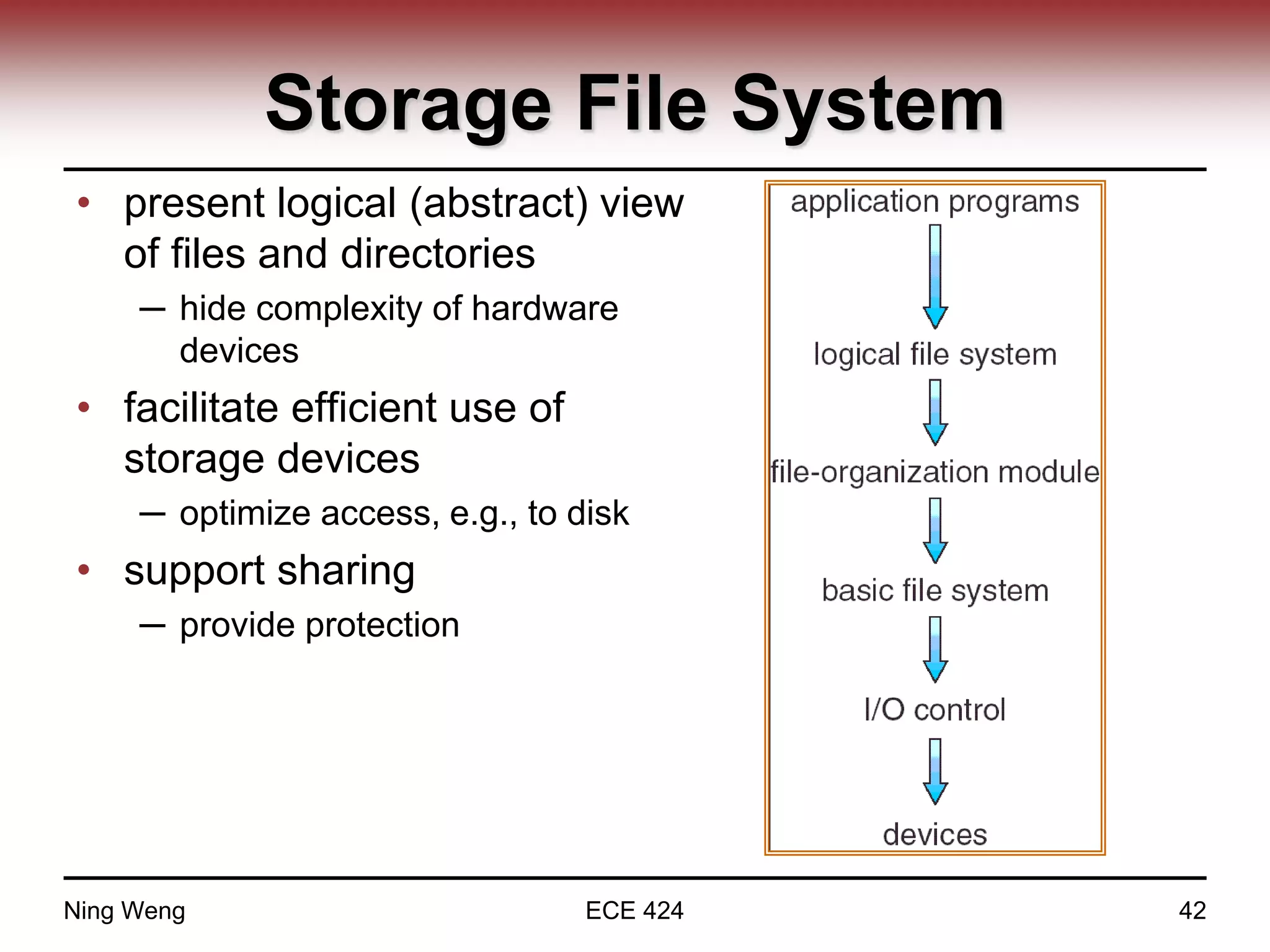

42. Storage File System
• present logical (abstract) view
of files and directories
─ hide complexity of hardware
devices
• facilitate efficient use of
storage devices
─ optimize access, e.g., to disk
• support sharing
─ provide protection
Ning Weng ECE 424 42

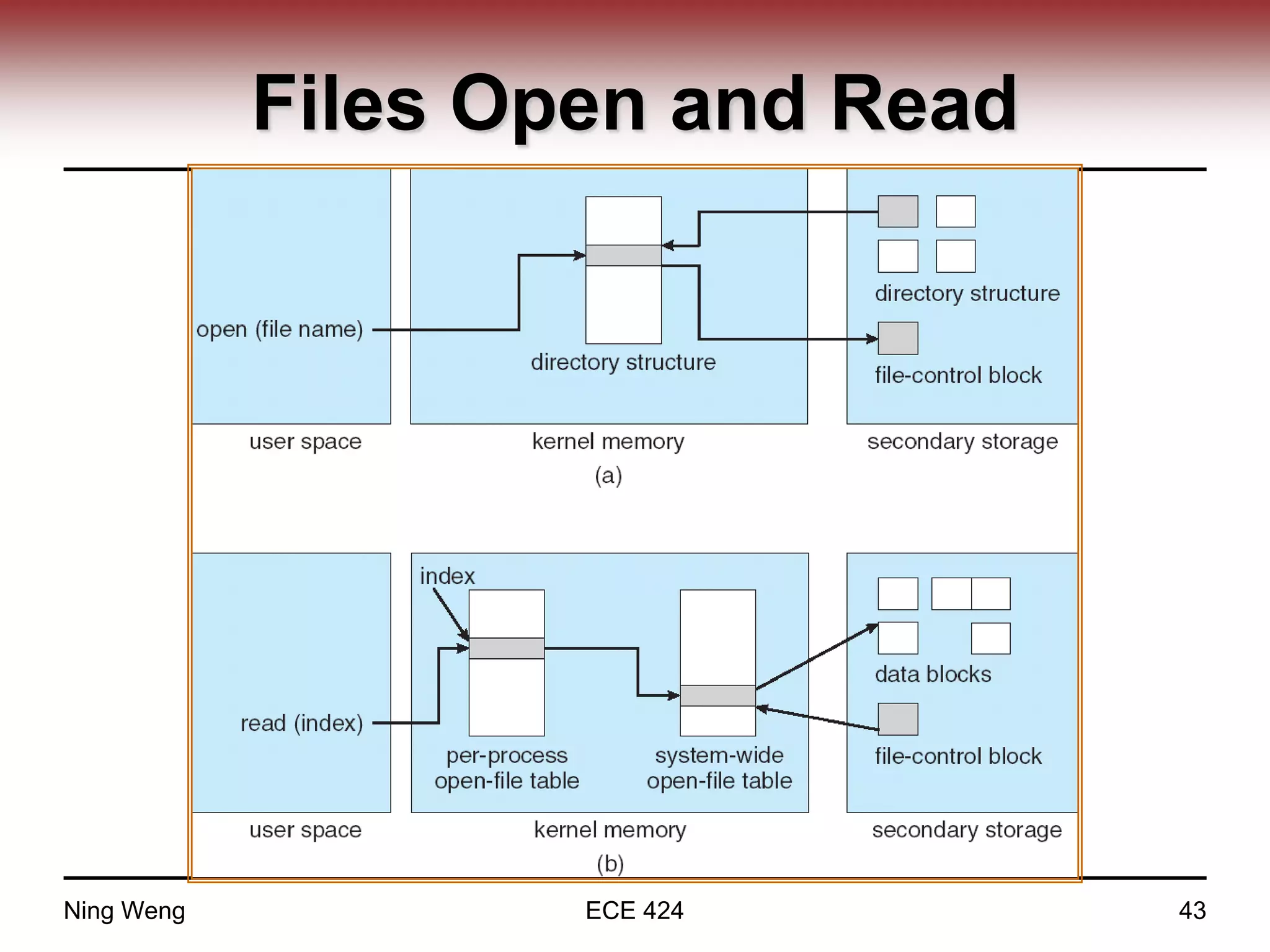

43. Files Open and Read
Ning Weng ECE 424 43

44. Synchronization File System
• File write is asynchronous
─ Write call function does not block
• Data may not have been in disk
• Consolidating and scheduling writing requests for
performance
• Synchronization is required before
─ Shut down, restart or disk removal
─ Example: Stop a USB disk (safe remove)
• Two challenges of power interactions
─ Un-notified power removal
• Large capacitor and sensing circuits
─ Brownout
• Voltage drop
Ning Weng ECE 424 44

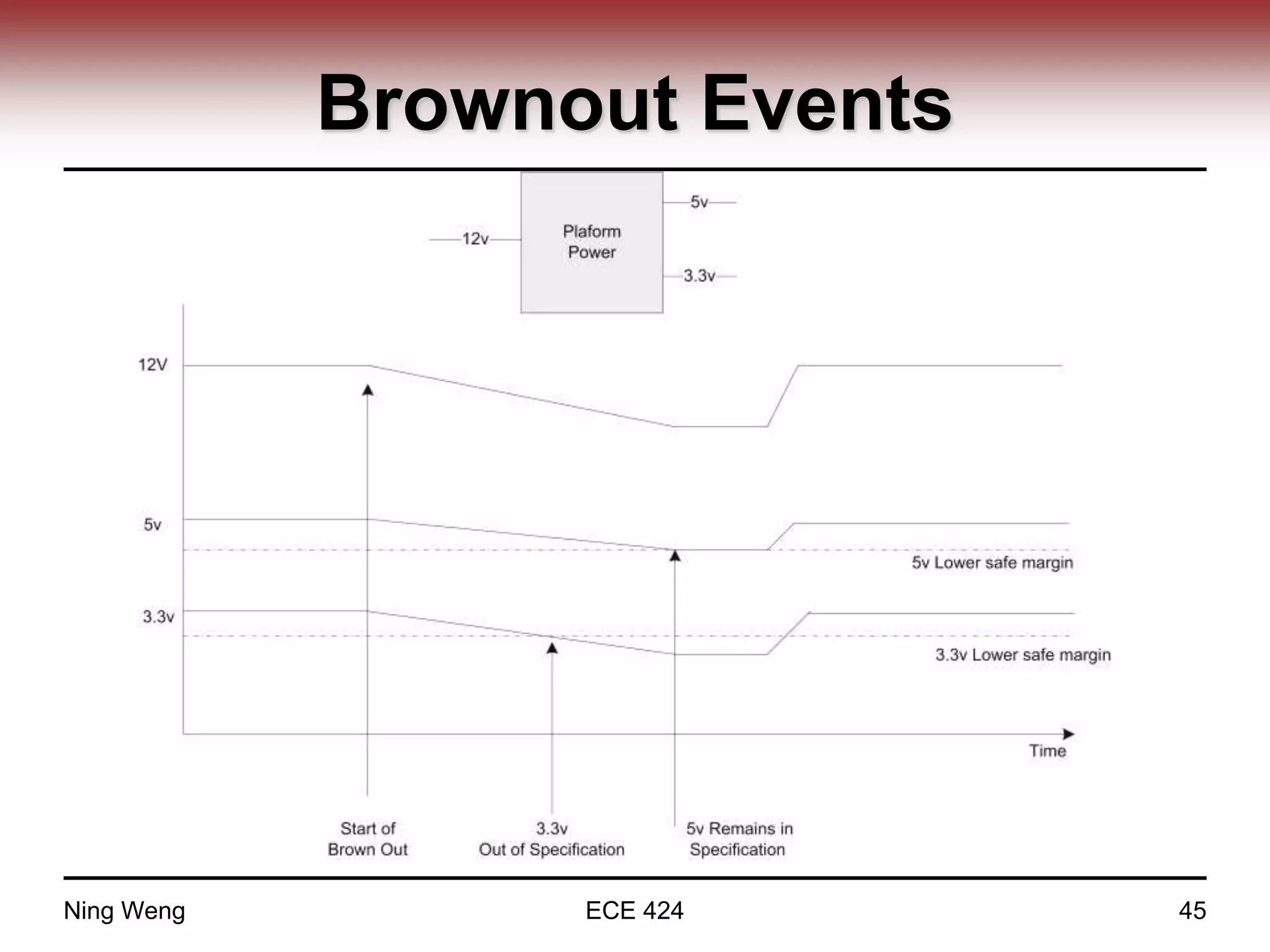

45. Brownout Events
Ning Weng ECE 424 45

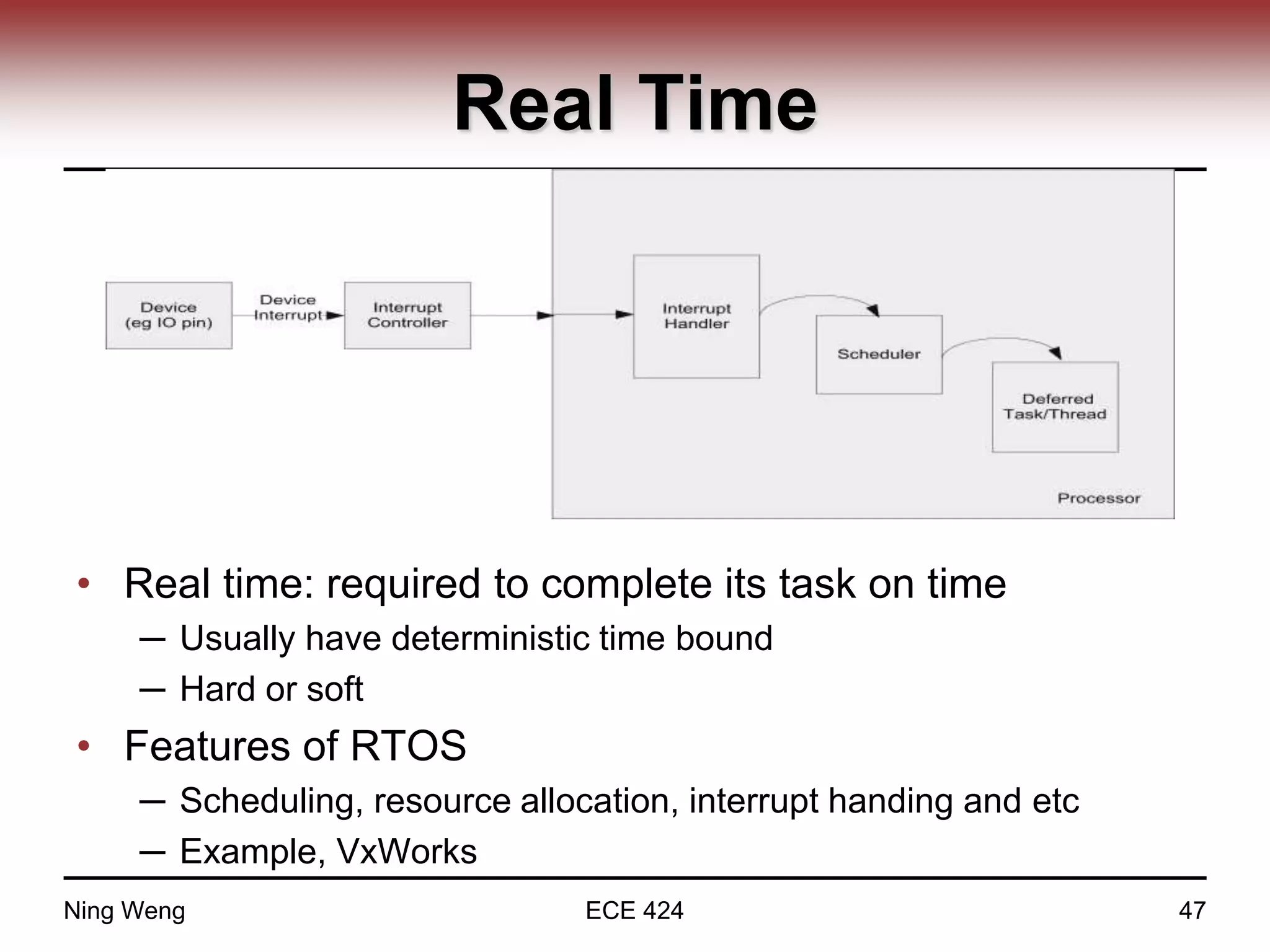

46. Real Time
Ning Weng ECE 424 46

47. Real Time
• Real time: required to complete its task on time
─ Usually have deterministic time bound
─ Hard or soft
• Features of RTOS
─ Scheduling, resource allocation, interrupt handing and etc
─ Example, VxWorks
Ning Weng ECE 424 47

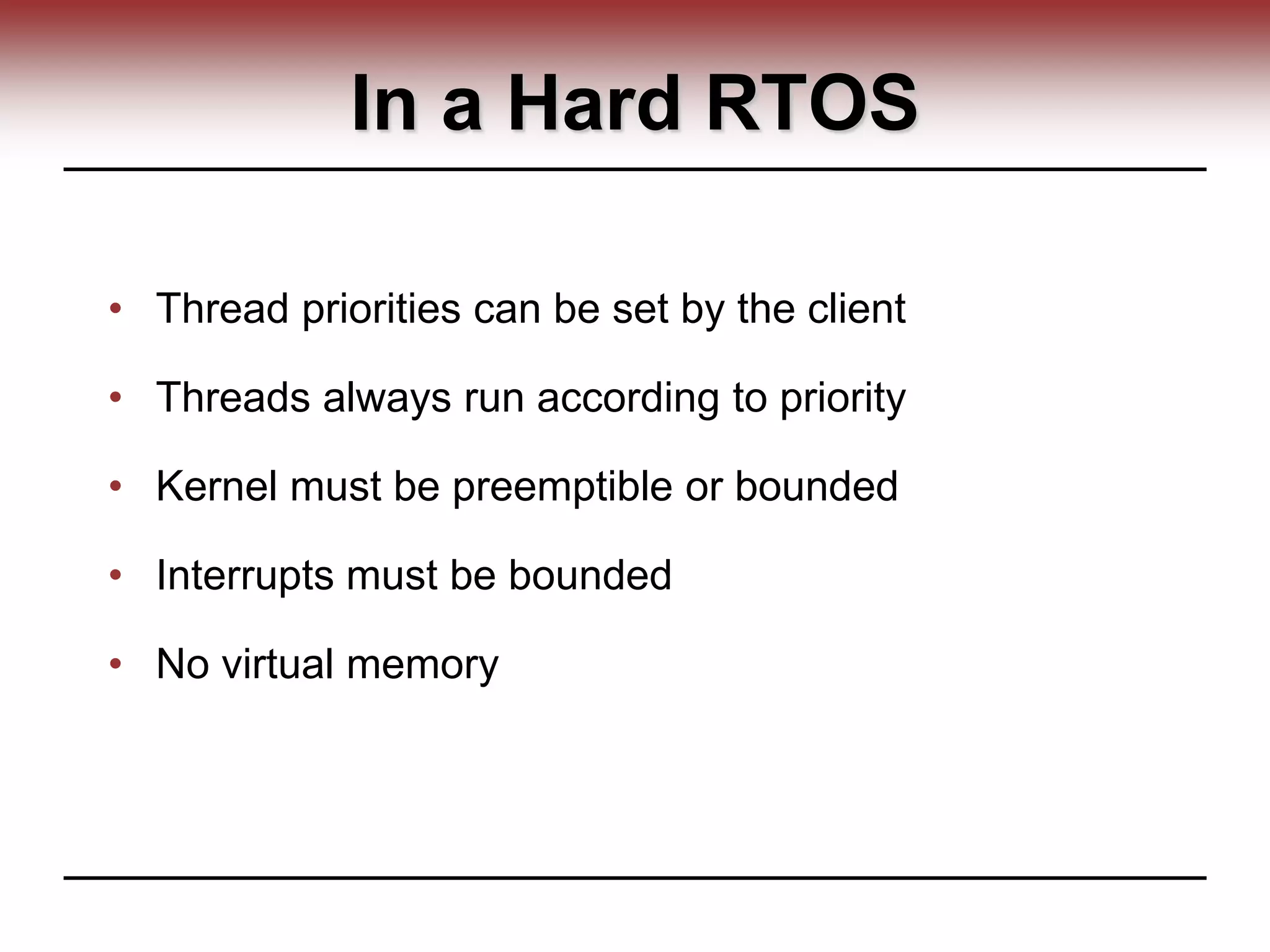

48. In a Hard RTOS
• Thread priorities can be set by the client
• Threads always run according to priority
• Kernel must be preemptible or bounded
• Interrupts must be bounded
• No virtual memory

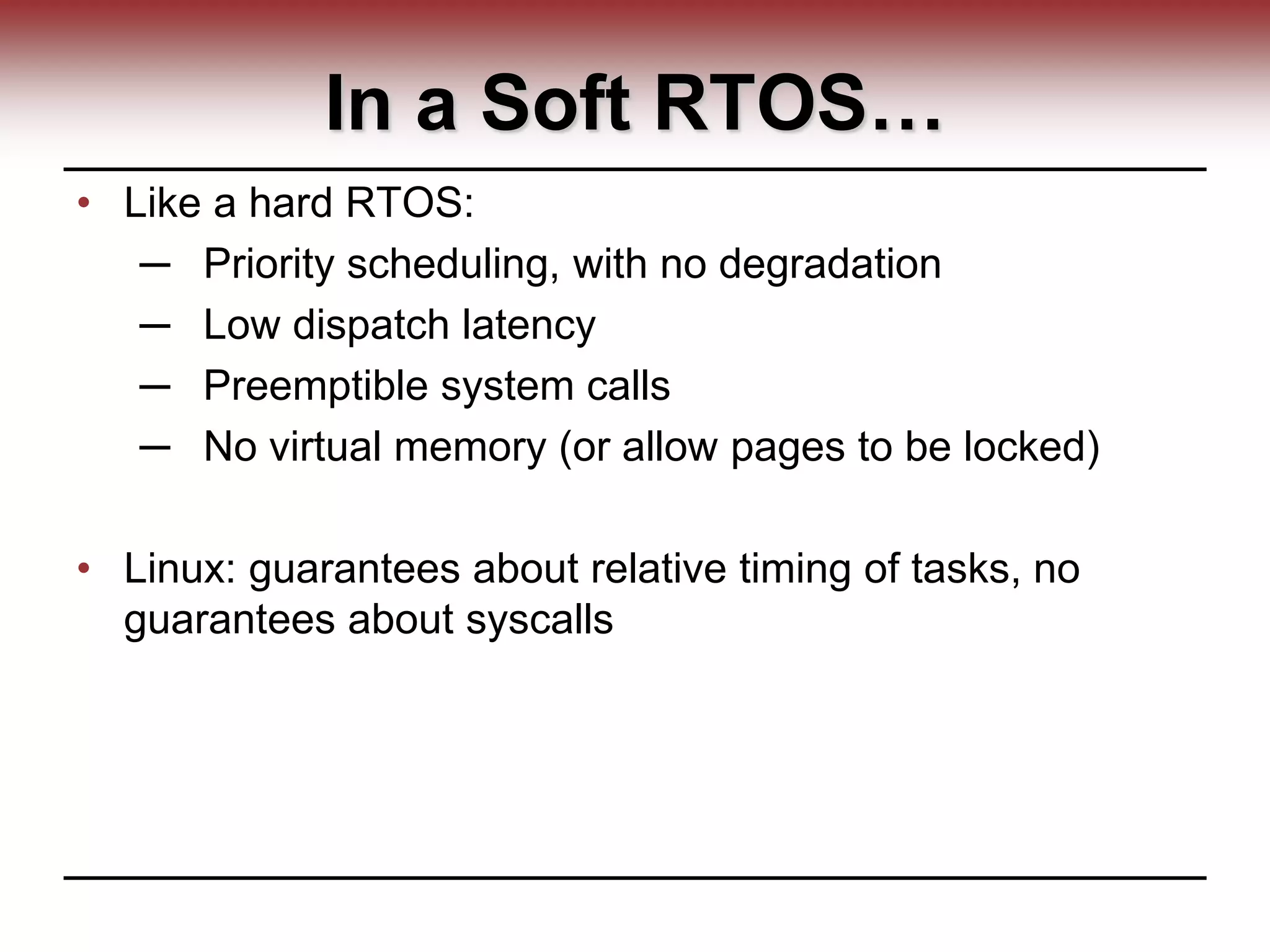

49. In a Soft RTOS…
• Like a hard RTOS:
─ Priority scheduling, with no degradation
─ Low dispatch latency
─ Preemptible system calls
─ No virtual memory (or allow pages to be locked)
• Linux: guarantees about relative timing of tasks, no
guarantees about syscalls
