App Integration (Revised and Updated)

App Integration:
Strategies and
Tactics
Copyright © 2012CommonsWare, LLC

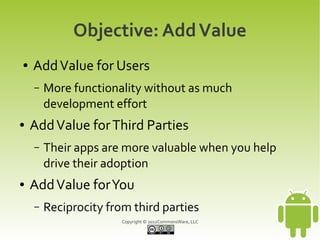

Objective: Add Value
● Add Value for Users
– More functionality without as much
development effort
● Add Value for Third Parties
– Their apps are more valuable when you help
drive their adoption
● Add Value for You
– Reciprocity from third parties

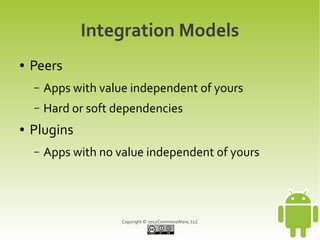

Integration Models
● Peers
– Apps with value independent of yours
– Hard or soft dependencies
● Plugins
– Apps with no value independent of yours


Difficulty Level:
One Red Bull

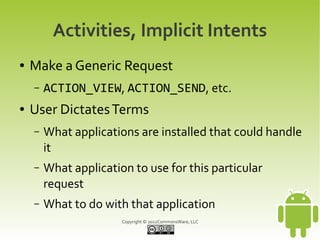

Activities, Implicit Intents
● Make a Generic Request
– ACTION_VIEW, ACTION_SEND, etc.
● User Dictates Terms
– What applications are installed that could handle
it
– What application to use for this particular
request
– What to do with that application

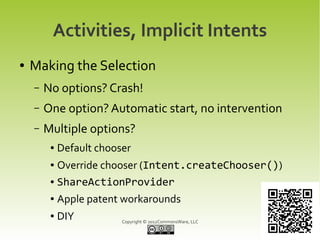

● Making the Selection
– No options? Crash!
– One option? Automatic start, no intervention
– Multiple options?
● Default chooser
● Override chooser (Intent.createChooser())
● ShareActionProvider

● Apple patent workarounds
● DIY Copyright © 2012CommonsWare, LLC

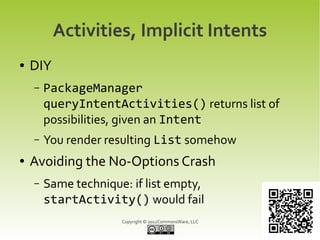

● DIY
– PackageManager
queryIntentActivities() returns list of
possibilities, given an Intent
– You render resulting List somehow
● Avoiding the No-Options Crash
– Same technique: if list empty,
startActivity() would fail

Activities, Explicit Intents
● Hard Dependency, Declared in Code
– Craft Intent that will only be handled by peer
application
– Use PackageManager
queryIntentActivities() to confirm it
exists (or handle the exception)
– Use with startActivity() /
startActivityForResult()

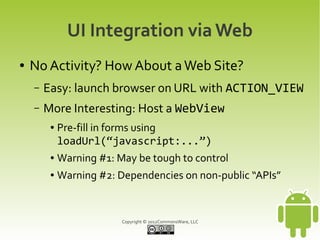

UI Integration via Web
● No Activity? How About a Web Site?
– Easy: launch browser on URL with ACTION_VIEW
– More Interesting: Host a WebView
● Pre-fill in forms using
loadUrl(“javascript:...”)
● Warning #1: May be tough to control
● Warning #2: Dependencies on non-public “APIs”


Difficulty Level:
Two Red Bulls

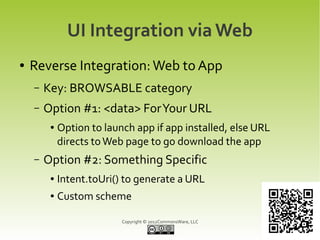

UI Integration via Web
● Reverse Integration: Web to App
– Key: BROWSABLE category
– Option #1: <data> For Your URL
● Option to launch app if app installed, else URL
directs to Web page to go download the app
– Option #2: Something Specific
● Intent.toUri() to generate a URL
● Custom scheme


Integrating Resources
● createPackageContext()
– Returns a Context that will resolve resources
from some other package
– Example Use: theme packs
● APK (possibly paid app) with res0urces representing
theme
● Detect existence using PackageManager
● Use createPackageContext() to retrieve
resources and apply to your UI

Integration by ContentProvider
● All You Need is a Uri
– And some idea of what the schema is, so you
know what to do with it
● Example: plugins implementing a standard schema
that you require
– Getting the Uri
● Well-known resource name
● Bootstrap API (e.g., broadcast, remote service)

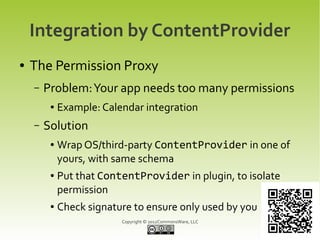

Integration by ContentProvider
● The Permission Proxy
– Problem: Your app needs too many permissions
● Example: Calendar integration
– Solution
● Wrap OS/third-party ContentProvider in one of
yours, with same schema
● Put that ContentProvider in plugin, to isolate
permission
● Check signature to ensure only used by you

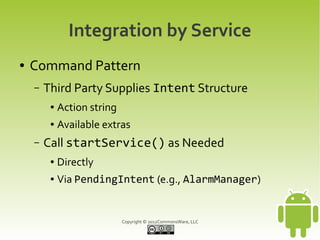

Integration by Service
● Command Pattern
– Third Party Supplies Intent Structure
● Action string
● Available extras
– Call startService() as Needed
● Directly
● Via PendingIntent (e.g., AlarmManager)

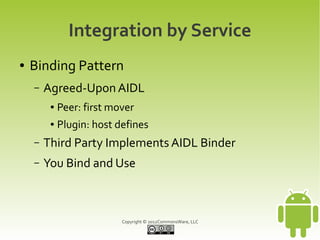

Integration by Service
● Binding Pattern
– Agreed-Upon AIDL
● Peer: first mover
● Plugin: host defines
– Third Party Implements AIDL Binder
– You Bind and Use

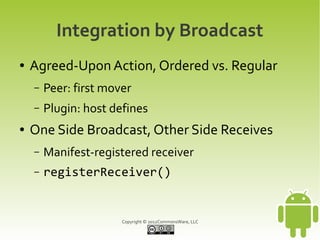

Integration by Broadcast
● Agreed-Upon Action, Ordered vs. Regular
– Peer: first mover
– Plugin: host defines
● One Side Broadcast, Other Side Receives
– Manifest-registered receiver
– registerReceiver()


Difficulty Level:
Case of Red Bulls

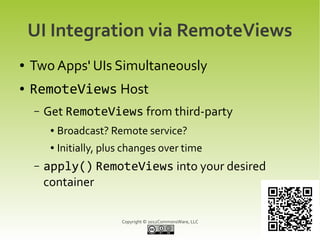

UI Integration via RemoteViews
● Two Apps' UIs Simultaneously
● RemoteViews Host
– Get RemoteViews from third-party
● Broadcast? Remote service?
● Initially, plus changes over time
– apply() RemoteViews into your desired
container

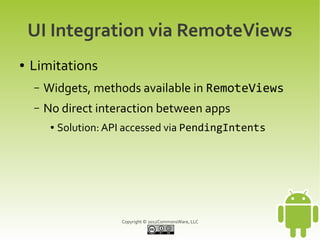

UI Integration via RemoteViews
● Limitations
– Widgets, methods available in RemoteViews
– No direct interaction between apps
● Solution: API accessed via PendingIntents


Difficulty Level:
Red Bull Bottling
Plant

UI Integration via Parcelable
● RemoteViews Got You Down? Roll Your Own!
– RemoteViews is a data structure representing
commands to build a UI
– Alternative: DIY RemoteViewsEx
– Limitations
● Still loosely coupled for events (PendingIntent,
Messenger, etc.)
● Effort proportional to the complexity of the UI
you wish to share

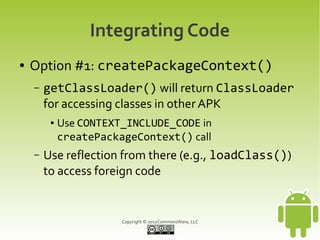

Integrating Code
● Option #1: createPackageContext()
– getClassLoader() will return ClassLoader
for accessing classes in other APK
● Use CONTEXT_INCLUDE_CODE in
createPackageContext() call
– Use reflection from there (e.g., loadClass())
to access foreign code

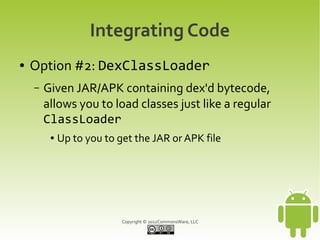

Integrating Code
● Option #2: DexClassLoader
– Given JAR/APK containing dex'd bytecode,
allows you to load classes just like a regular
ClassLoader
● Up to you to get the JAR or APK file

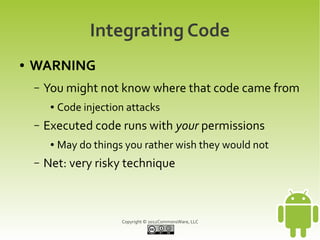

Integrating Code
● WARNING
– You might not know where that code came from
● Code injection attacks
– Executed code runs with your permissions
● May do things you rather wish they would not
– Net: very risky technique

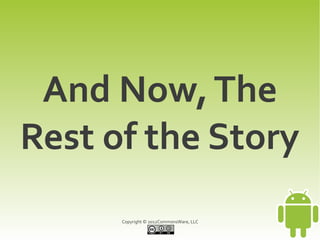

And Now, The
Rest of the Story

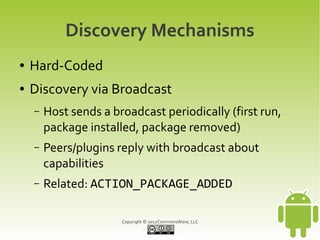

Discovery Mechanisms
● Hard-Coded
● Discovery via Broadcast
– Host sends a broadcast periodically (first run,
package installed, package removed)
– Peers/plugins reply with broadcast about
capabilities
– Related: ACTION_PACKAGE_ADDED


Discovery Mechanisms
● Discovery via Naming Convention
– Plugins go in com.myfirm.myapp.plugin.*
– Host uses PackageManager to identify
– Further Handshaking
● Well-known resource
● Well-known “narrowcast” via setPackage()

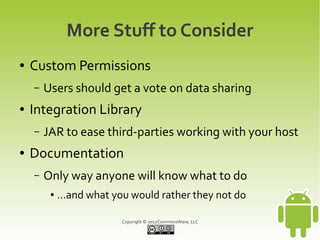

More Stuff to Consider
● Custom Permissions
– Users should get a vote on data sharing
● Integration Library
– JAR to ease third-parties working with your host
● Documentation
– Only way anyone will know what to do
● ...and what you would rather they not do


What the Ecosystem Needs
● Standards
– Community-driven implicit Intent actions
● Scaffolding
– Library projects, templates for creating these
structures
● End-User Discovery
– How do they know what can integrate?
