This document discusses transparent electronics using transparent conducting oxides (TCOs). It introduces TCOs such as indium tin oxide which allow for both optical transparency and electrical conductivity. This is achieved through degenerate doping and the Burstein-Moss shift. TCOs find applications in transparent thin-film transistors, resistors, capacitors and indutors which could enable see-through laptops, phones and solar panels. Further advances could lead to solar windows but also environmental challenges.

1. WELCOME

2. TRANSPARENT
ELECTRONICS

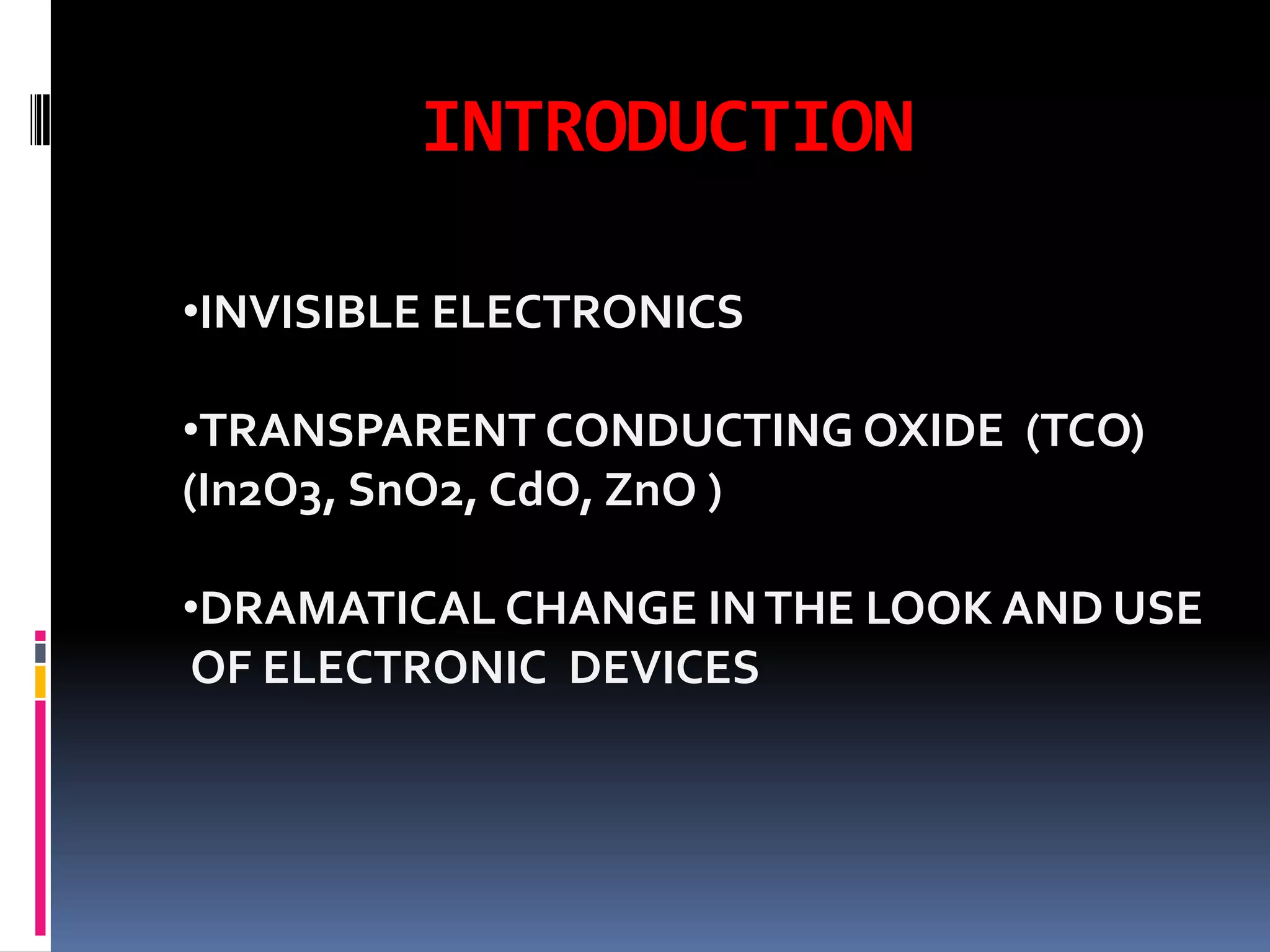

3. INTRODUCTION
•INVISIBLE ELECTRONICS
•TRANSPARENT CONDUCTING OXIDE (TCO)
(In2O3, SnO2, CdO, ZnO )
•DRAMATICAL CHANGE IN THE LOOK AND USE
OF ELECTRONIC DEVICES

4. COMBINING OPTICAL
TRANSPARENCY WITH ELECTRICAL
CONDUCTIVITY
•DEGENERATE DOPING
• BURSTEIN - MOSS(BM) SHIFT

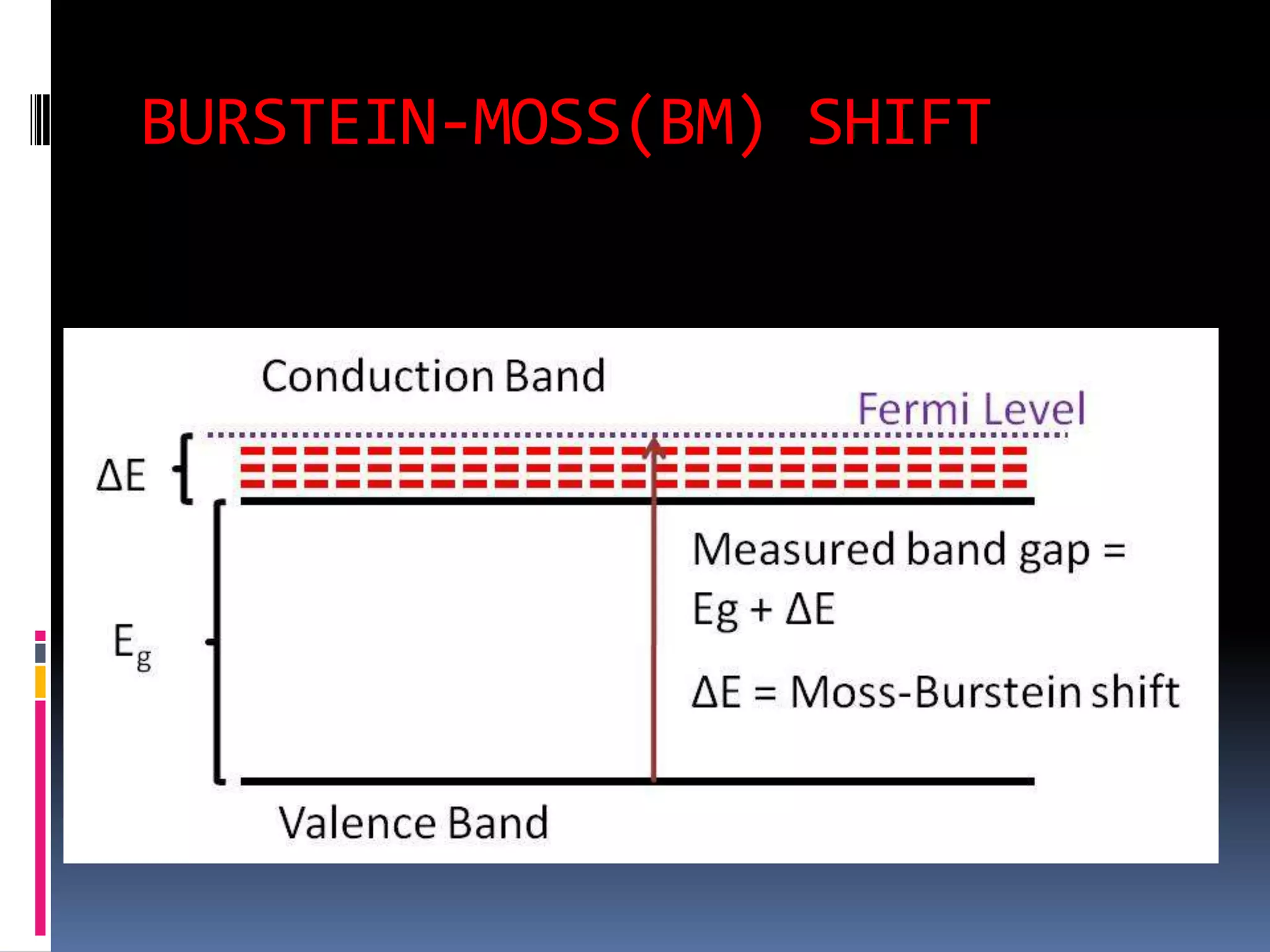

5. BURSTEIN-MOSS(BM) SHIFT

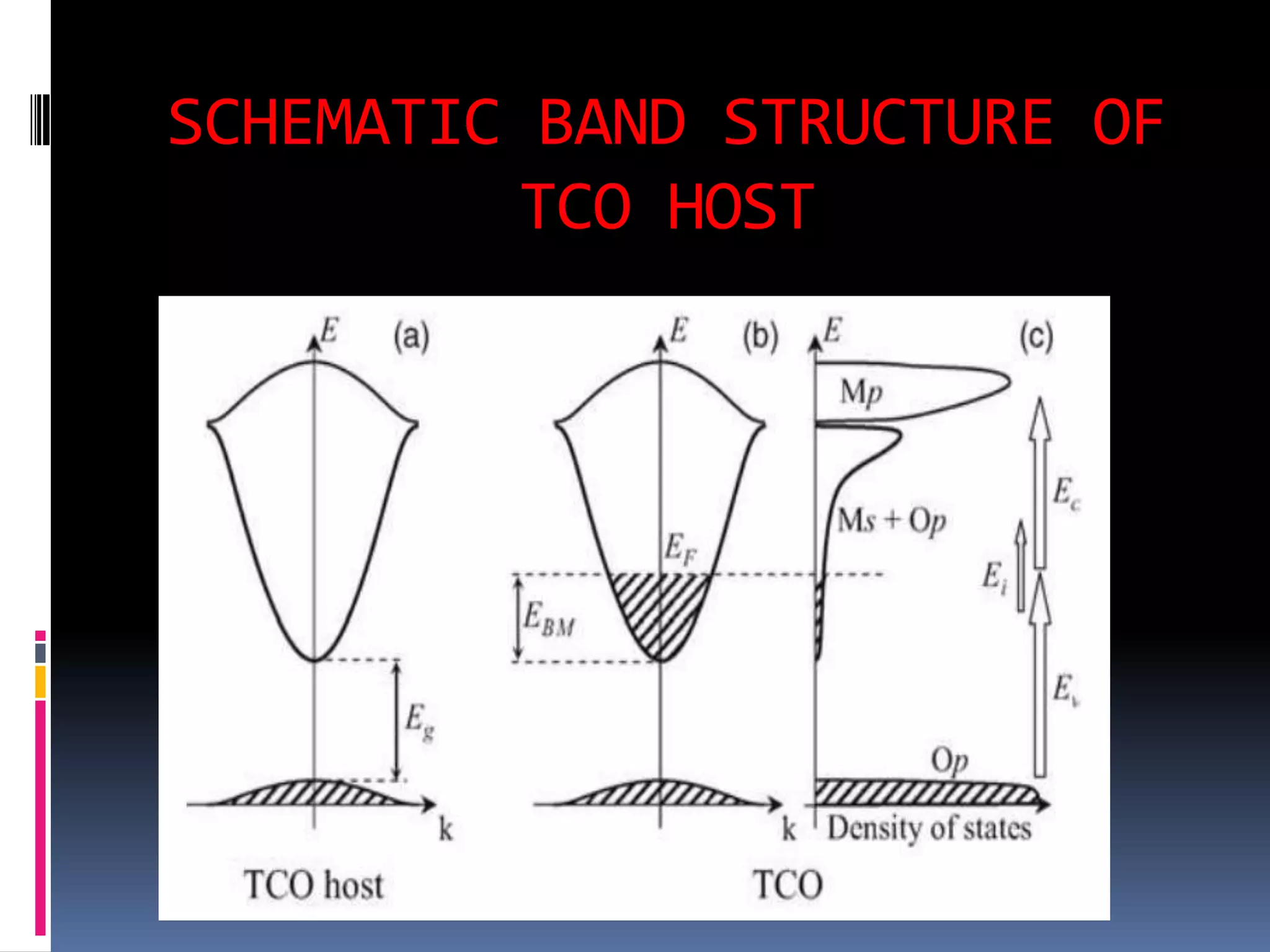

6. SCHEMATIC BAND STRUCTURE OF
TCO HOST

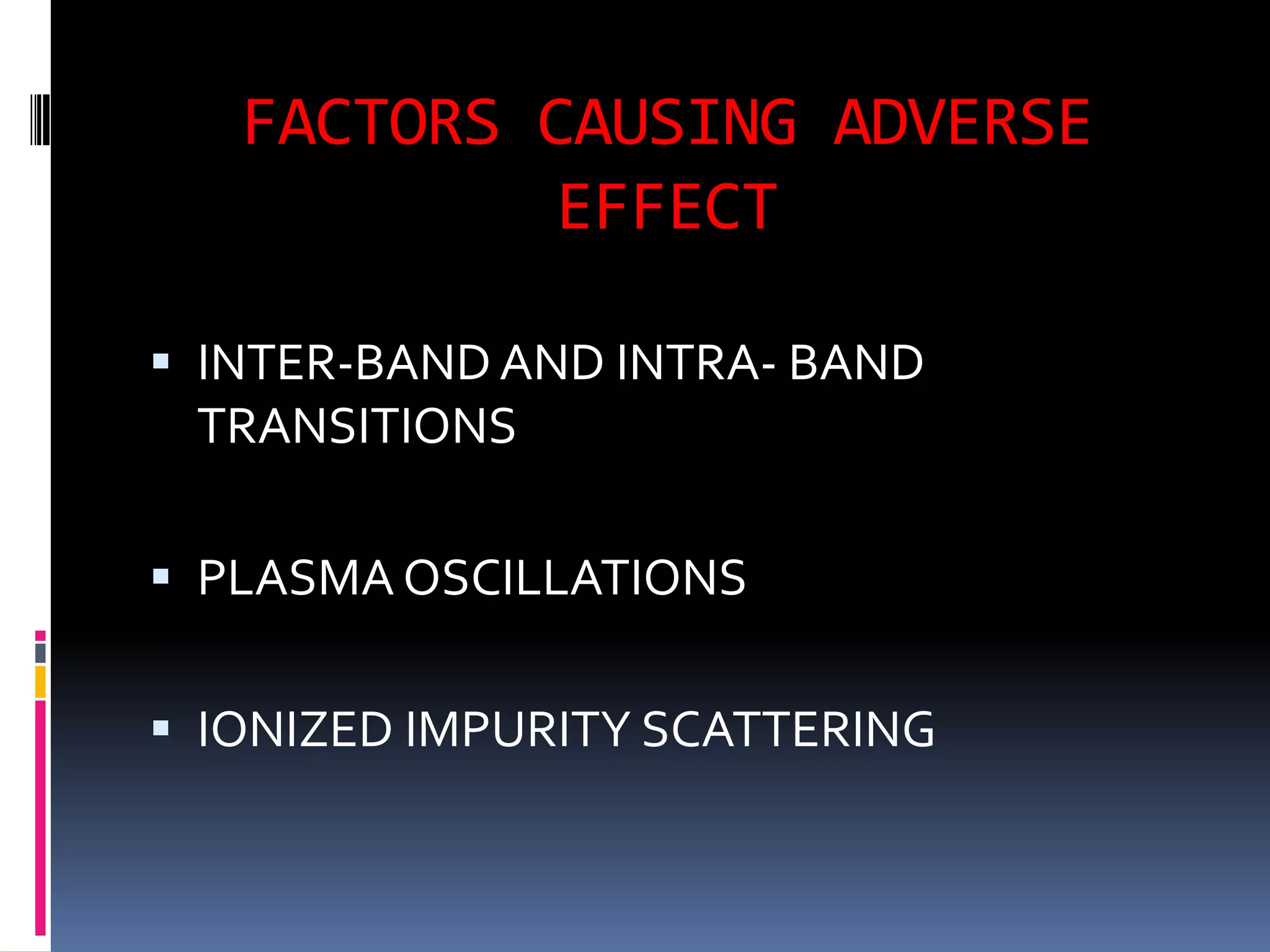

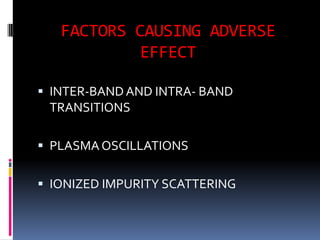

7. FACTORS CAUSING ADVERSE
EFFECT
 INTER-BAND AND INTRA- BAND
TRANSITIONS
 PLASMA OSCILLATIONS
 IONIZED IMPURITY SCATTERING

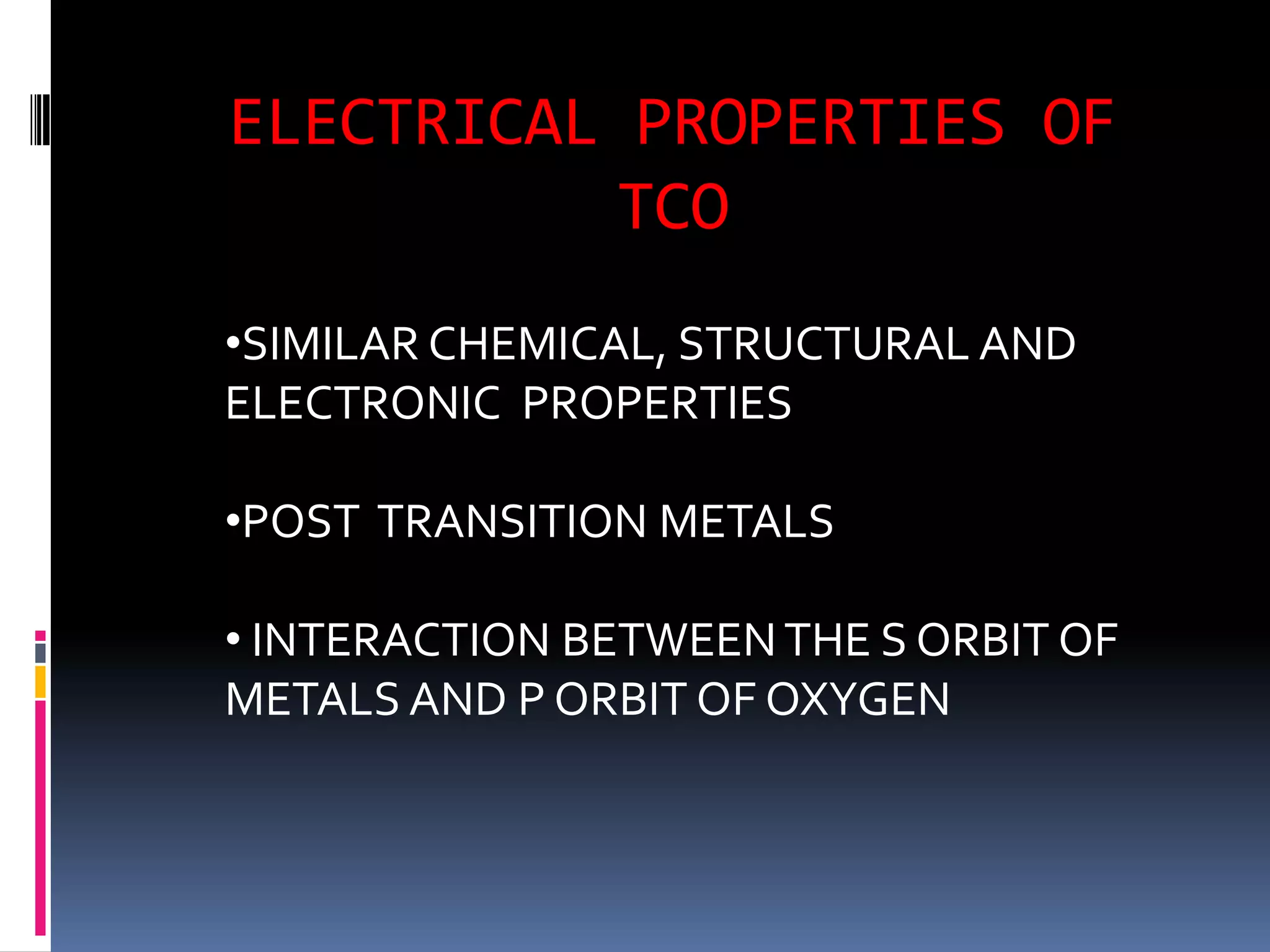

8. ELECTRICAL PROPERTIES OF
TCO
•SIMILAR CHEMICAL, STRUCTURAL AND
ELECTRONIC PROPERTIES
•POST TRANSITION METALS
• INTERACTION BETWEEN THE S ORBIT OF
METALS AND P ORBIT OF OXYGEN

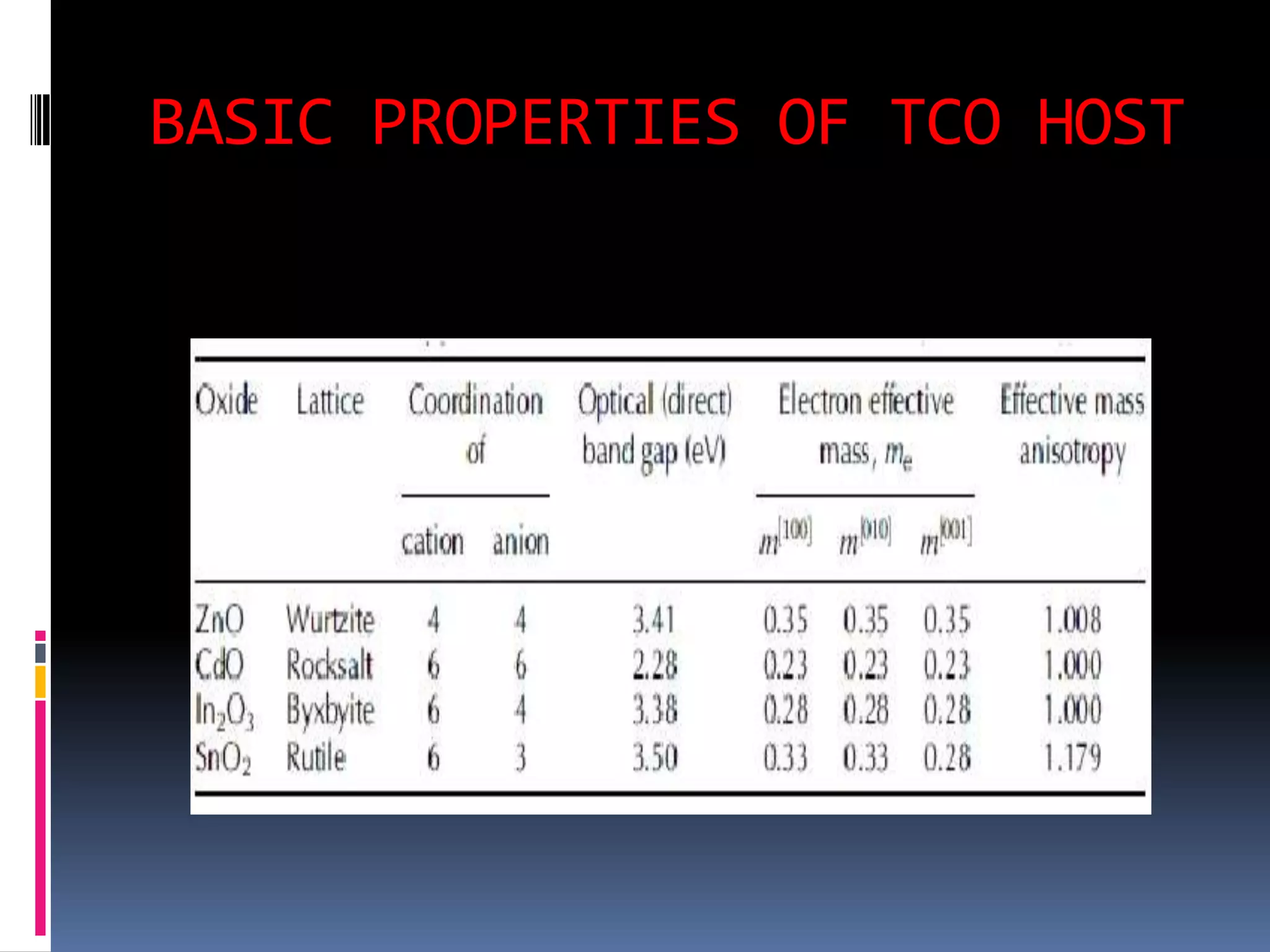

9. BASIC PROPERTIES OF TCO HOST

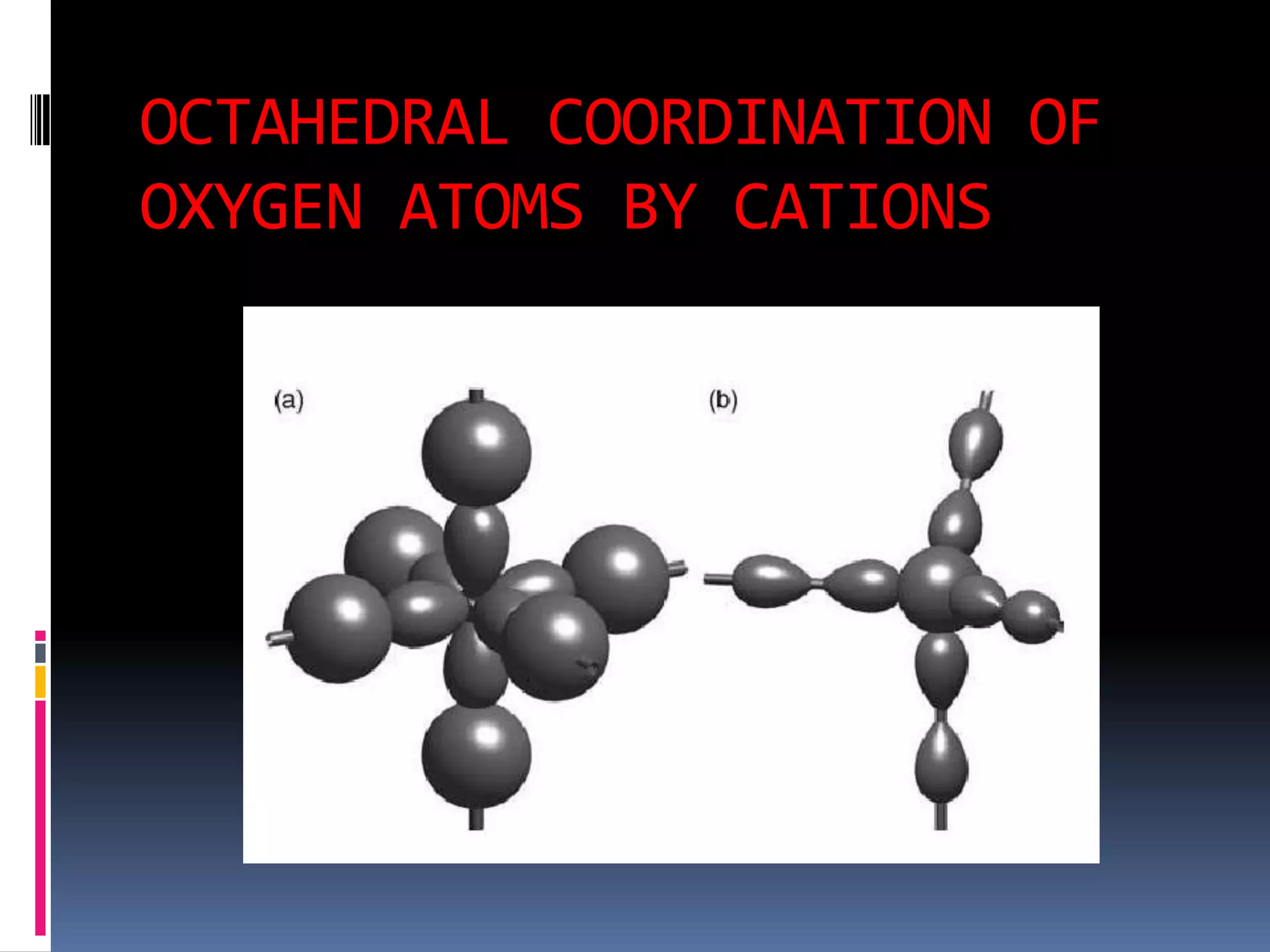

10. OCTAHEDRAL COORDINATION OF
OXYGEN ATOMS BY CATIONS

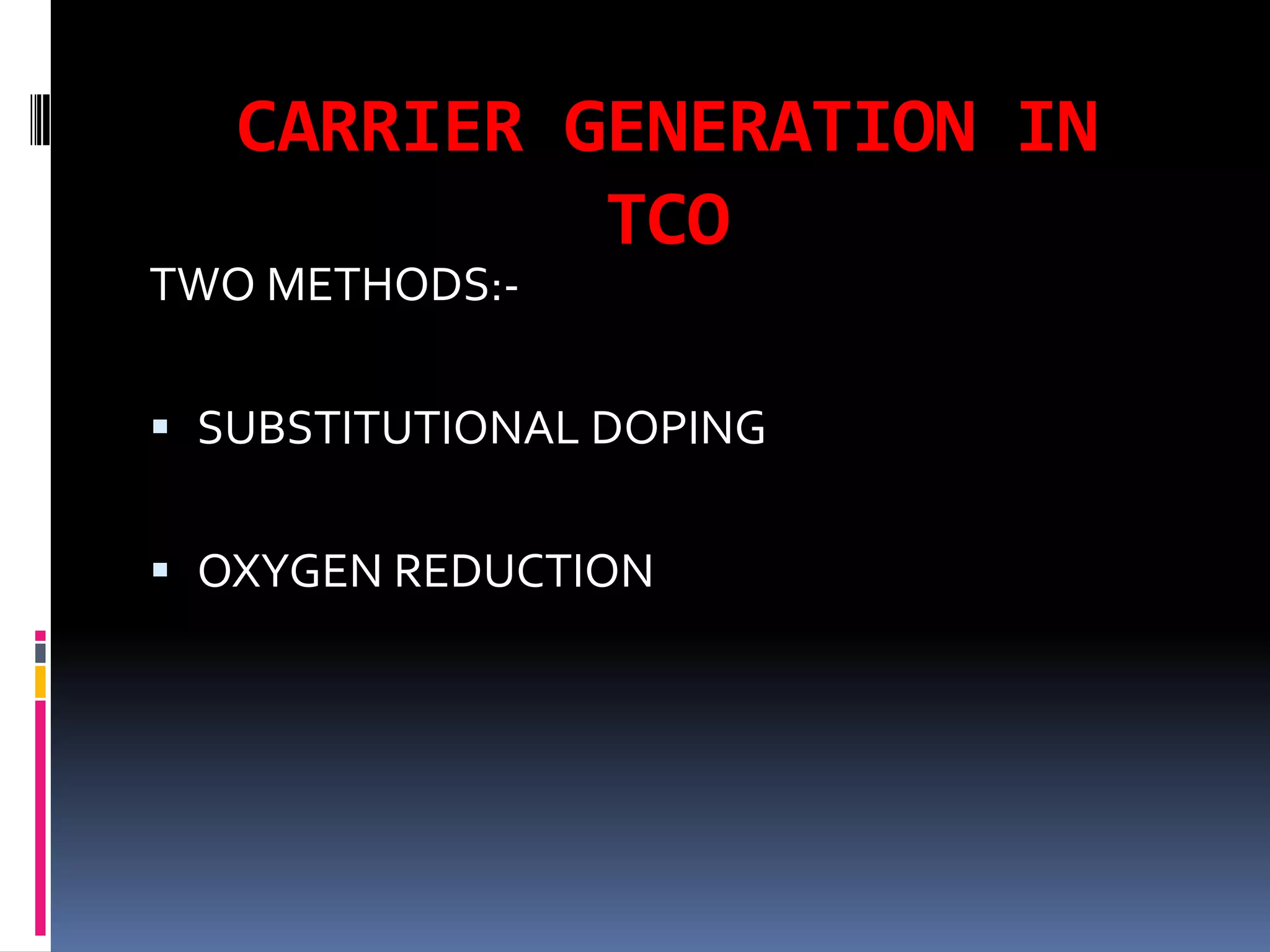

11. CARRIER GENERATION IN
TCO
TWO METHODS:-
 SUBSTITUTIONAL DOPING
 OXYGEN REDUCTION

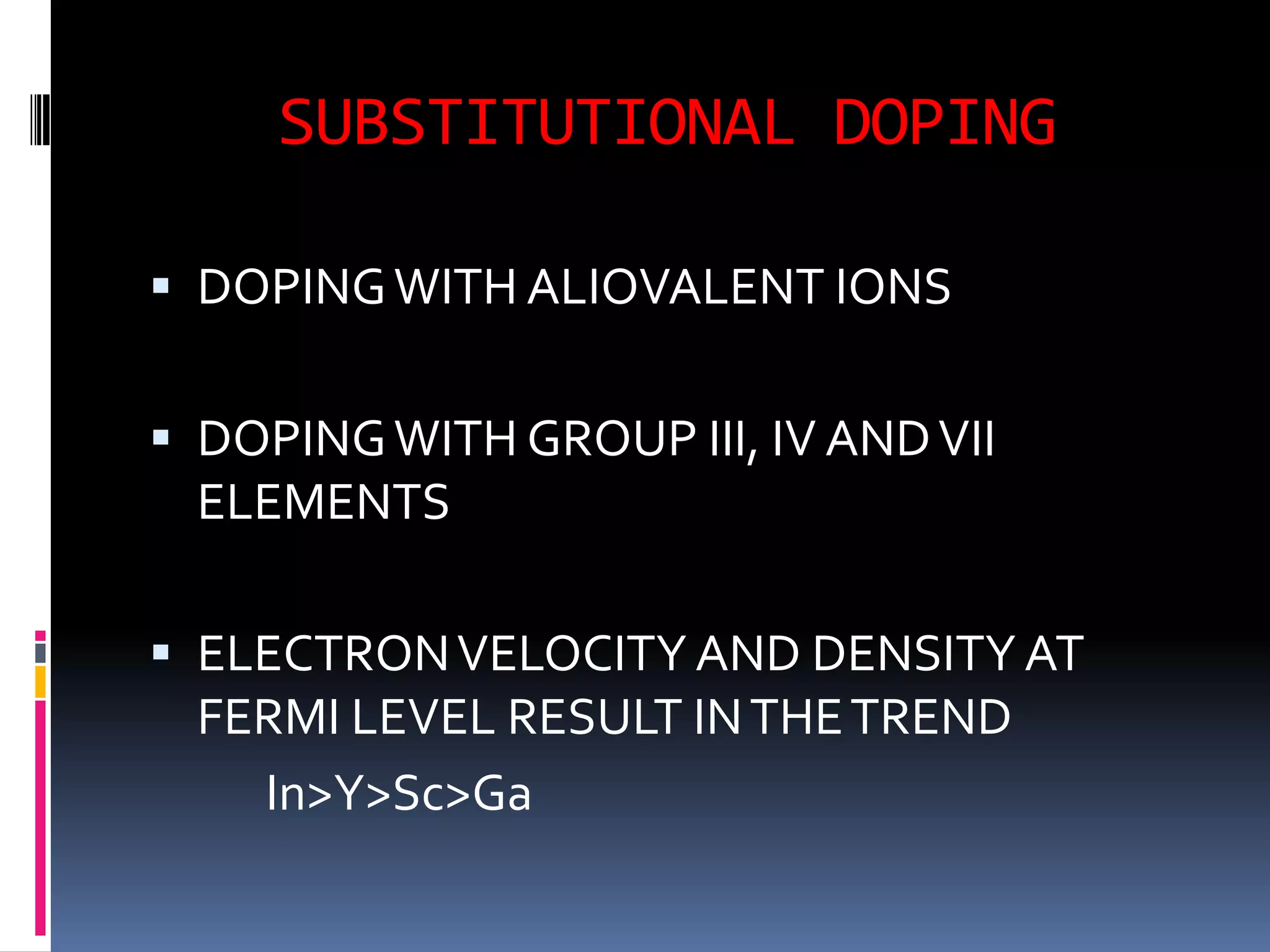

12. SUBSTITUTIONAL DOPING
 DOPING WITH ALIOVALENT IONS
 DOPING WITH GROUP III, IV AND VII
ELEMENTS
 ELECTRON VELOCITY AND DENSITY AT
FERMI LEVEL RESULT IN THE TREND
In>Y>Sc>Ga

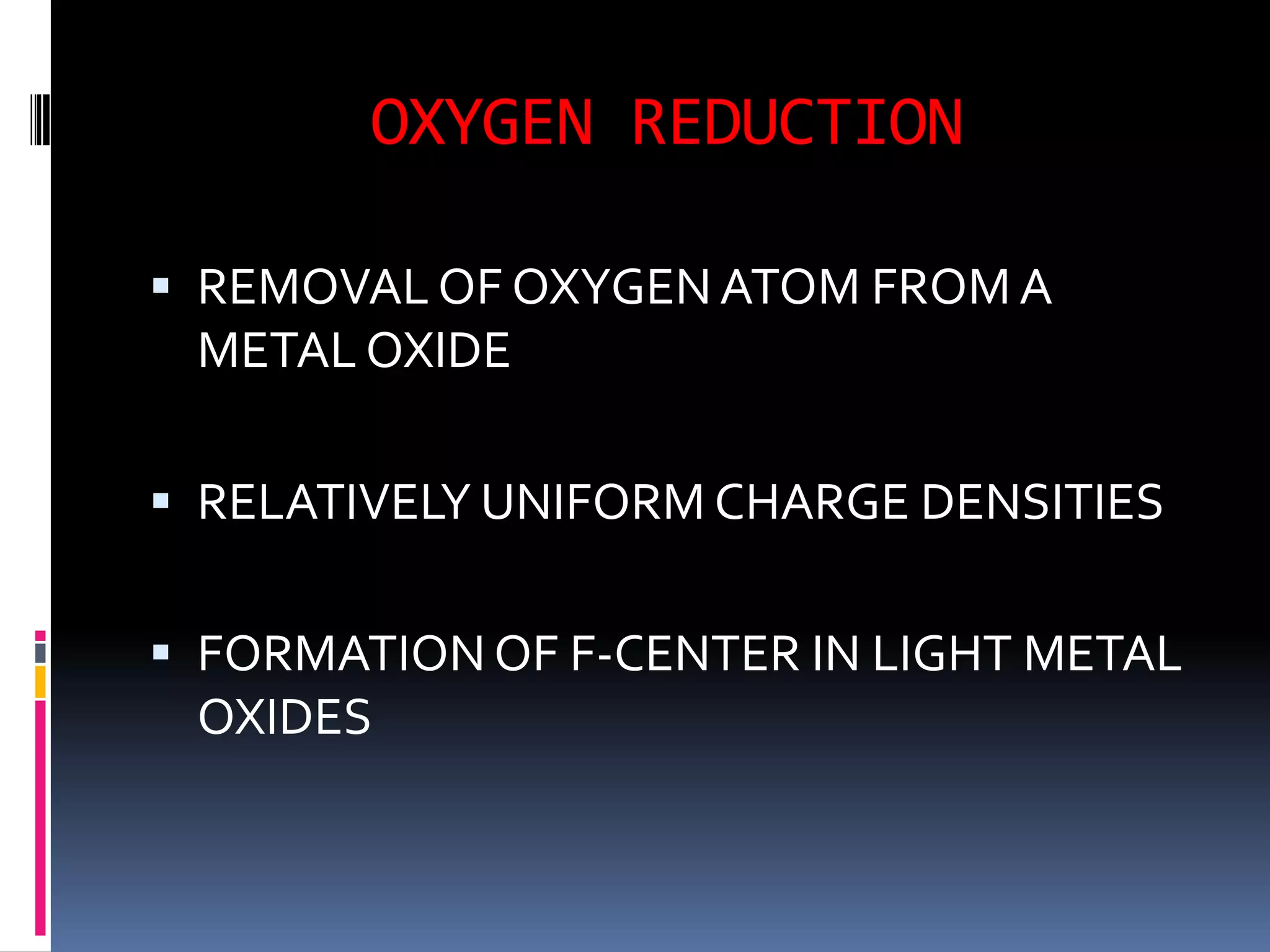

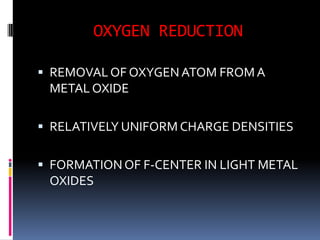

13. OXYGEN REDUCTION
 REMOVAL OF OXYGEN ATOM FROM A
METAL OXIDE
 RELATIVELY UNIFORM CHARGE DENSITIES
 FORMATION OF F-CENTER IN LIGHT METAL
OXIDES

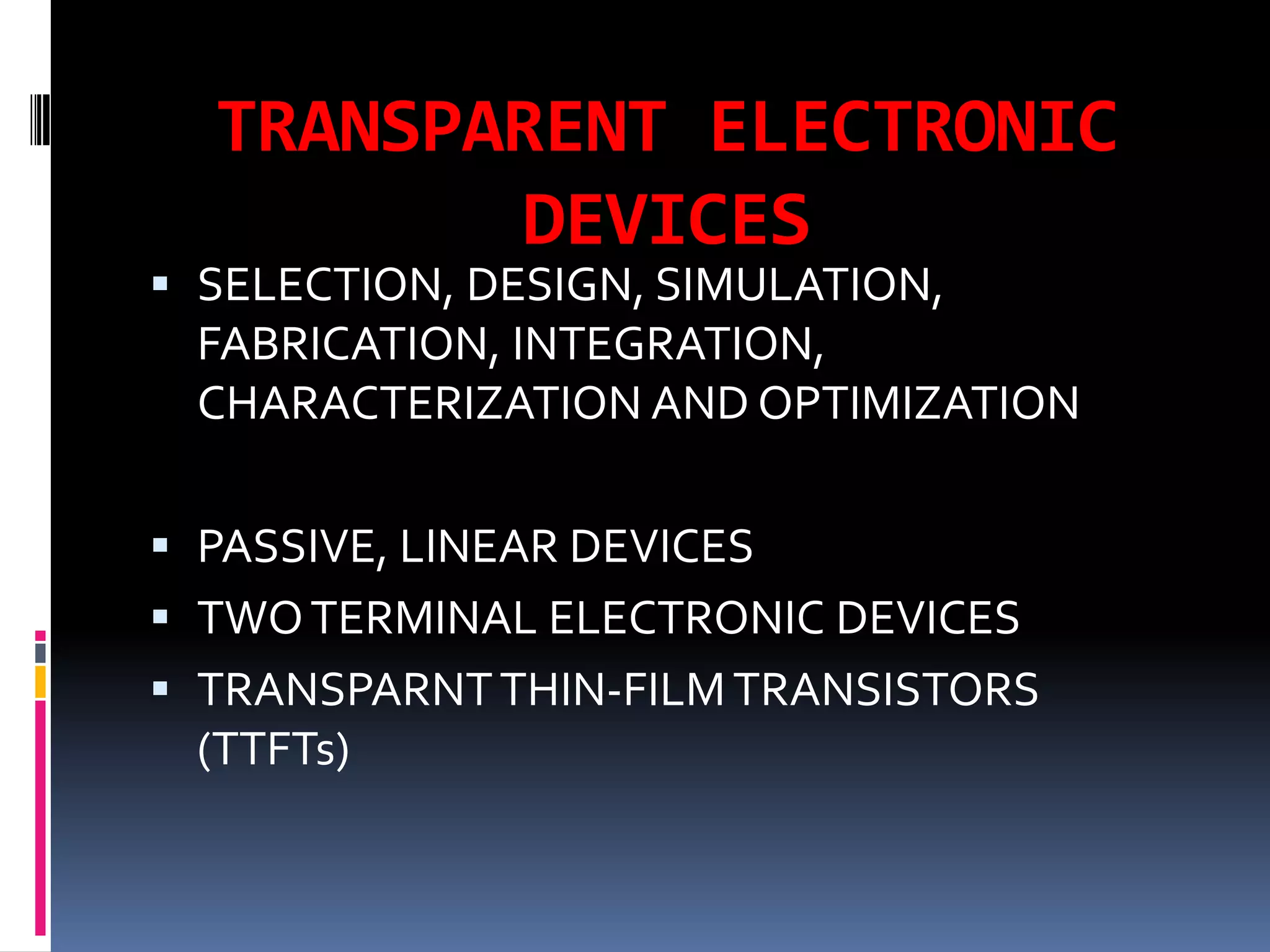

14. TRANSPARENT ELECTRONIC
DEVICES
 SELECTION, DESIGN, SIMULATION,
FABRICATION, INTEGRATION,
CHARACTERIZATION AND OPTIMIZATION
 PASSIVE, LINEAR DEVICES
 TWO TERMINAL ELECTRONIC DEVICES
 TRANSPARNT THIN-FILM TRANSISTORS
(TTFTs)

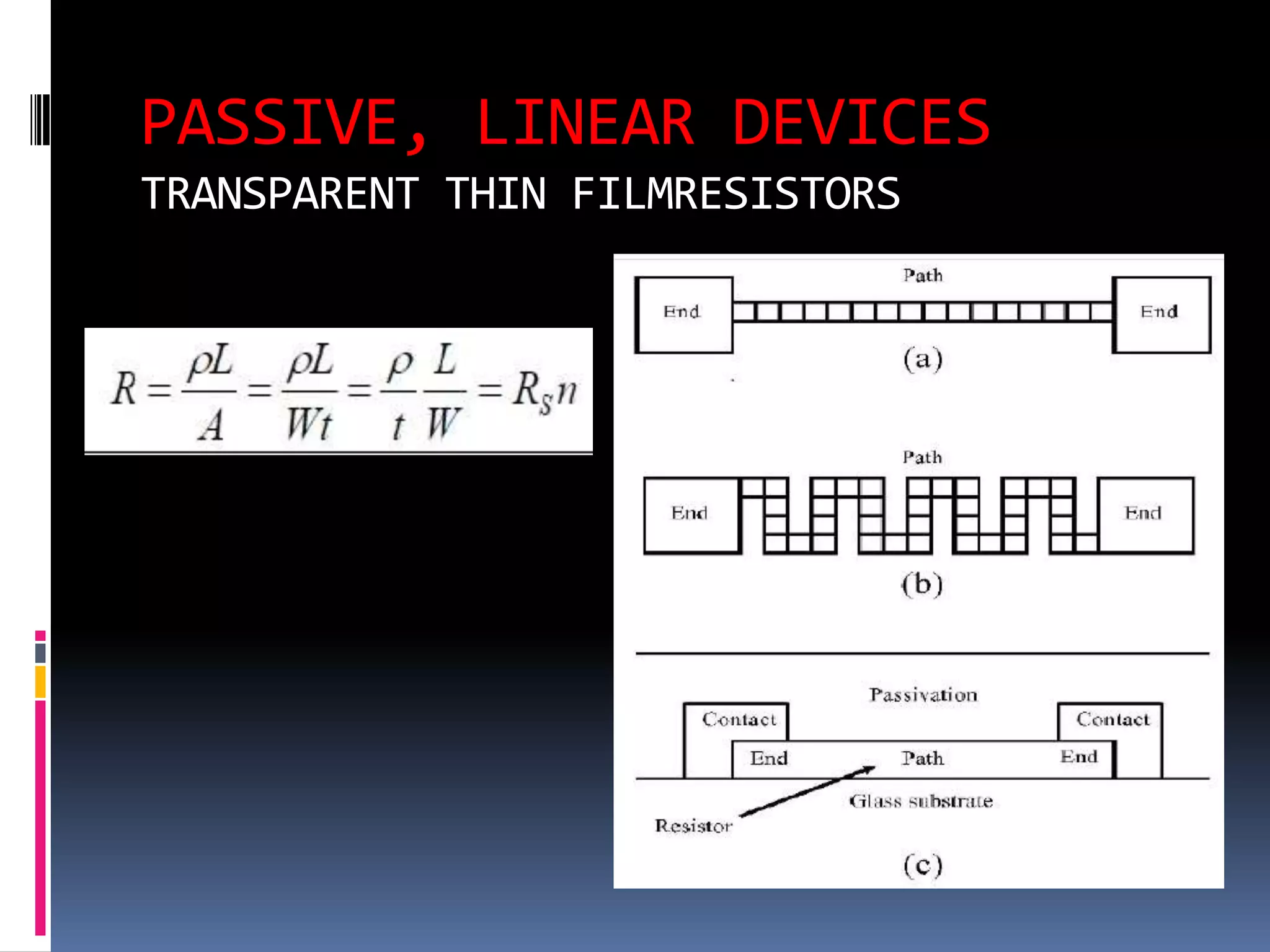

15. PASSIVE, LINEAR DEVICES
TRANSPARENT THIN FILMRESISTORS

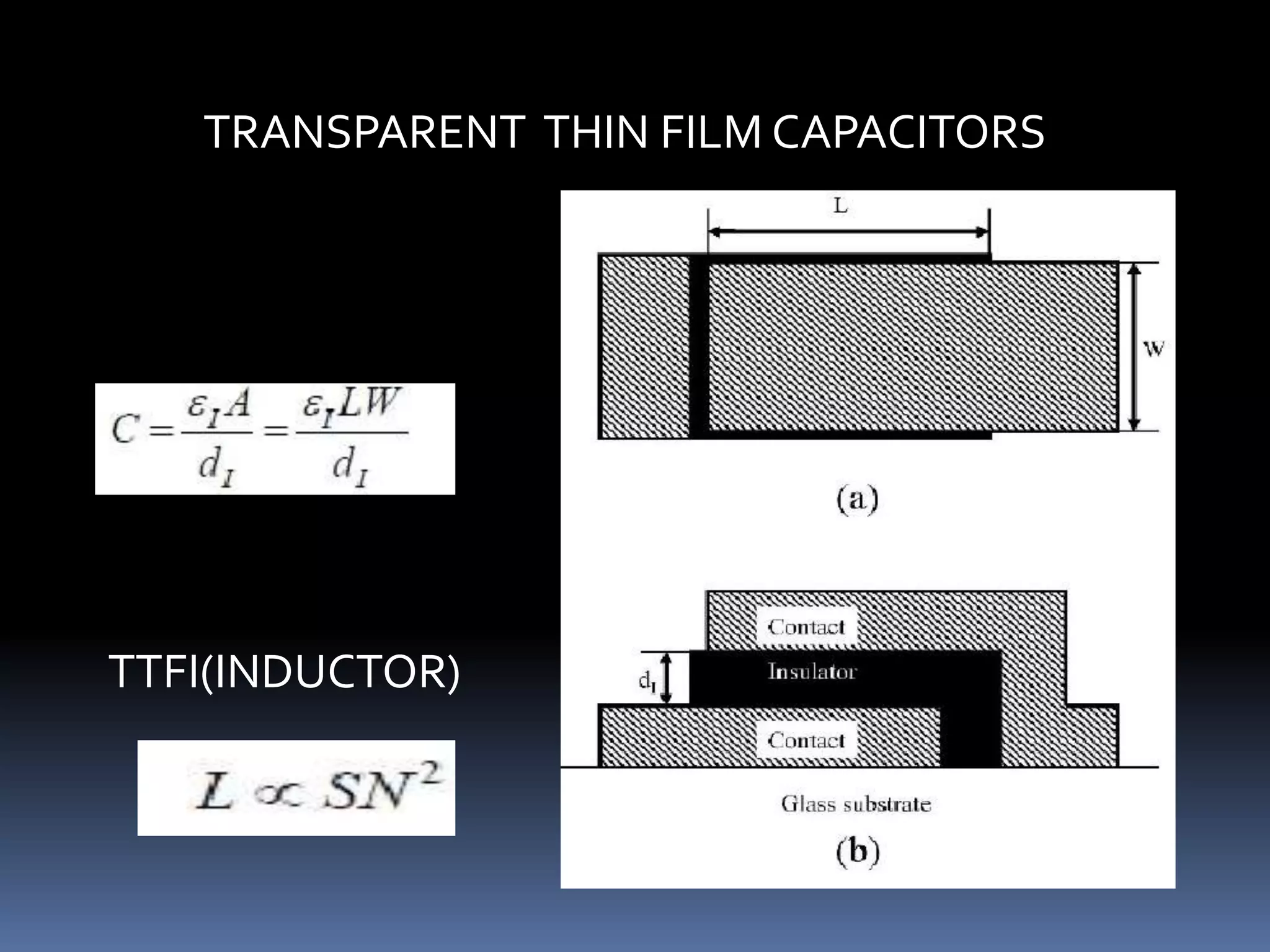

16. TRANSPARENT THIN FILM CAPACITORS
TTFI(INDUCTOR)

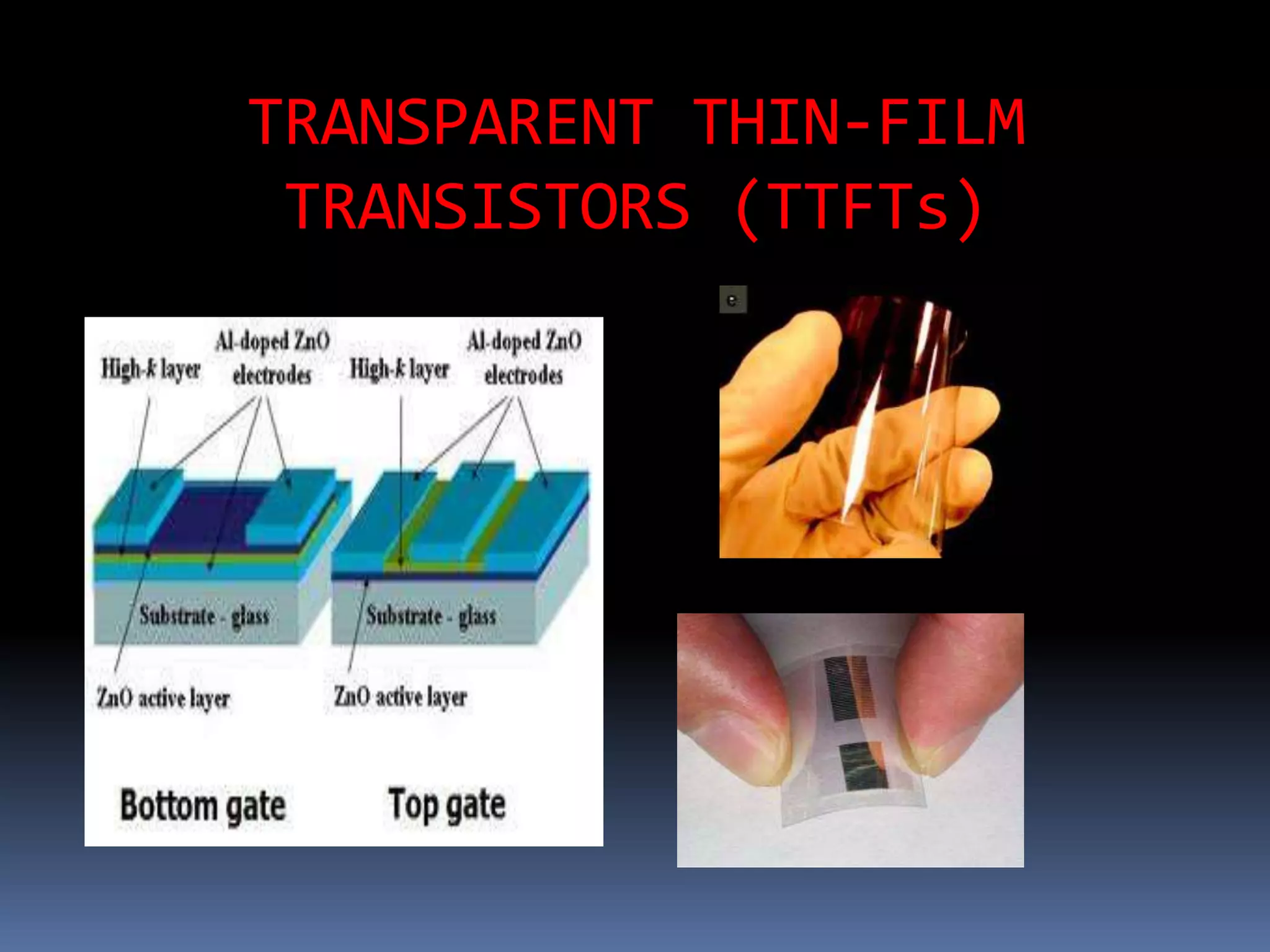

17. TRANSPARENT THIN-FILM
TRANSISTORS (TTFTs)

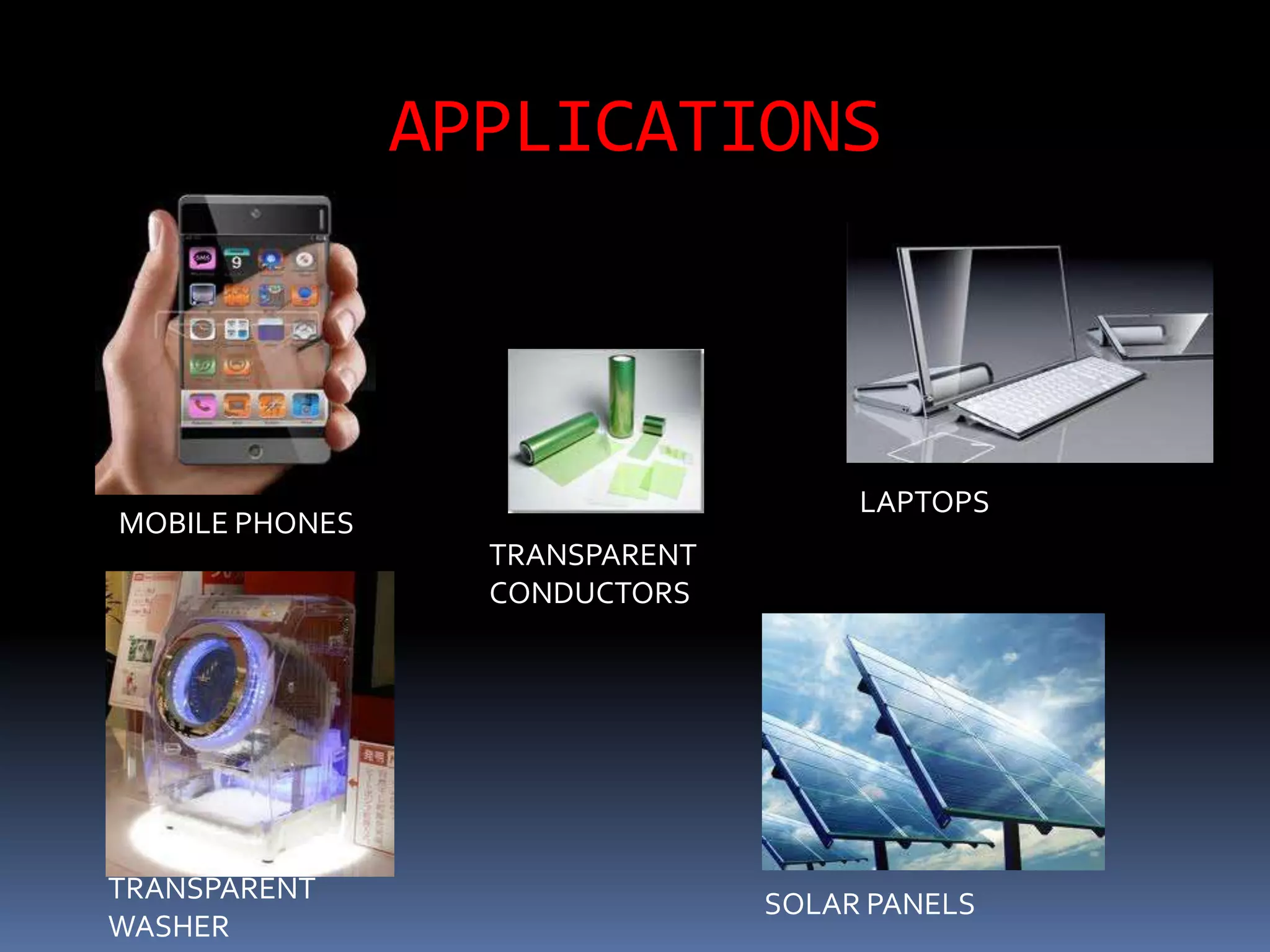

18. APPLICATIONS
LAPTOPS
MOBILE PHONES
TRANSPARENT
CONDUCTORS
TRANSPARENT SOLAR PANELS
WASHER

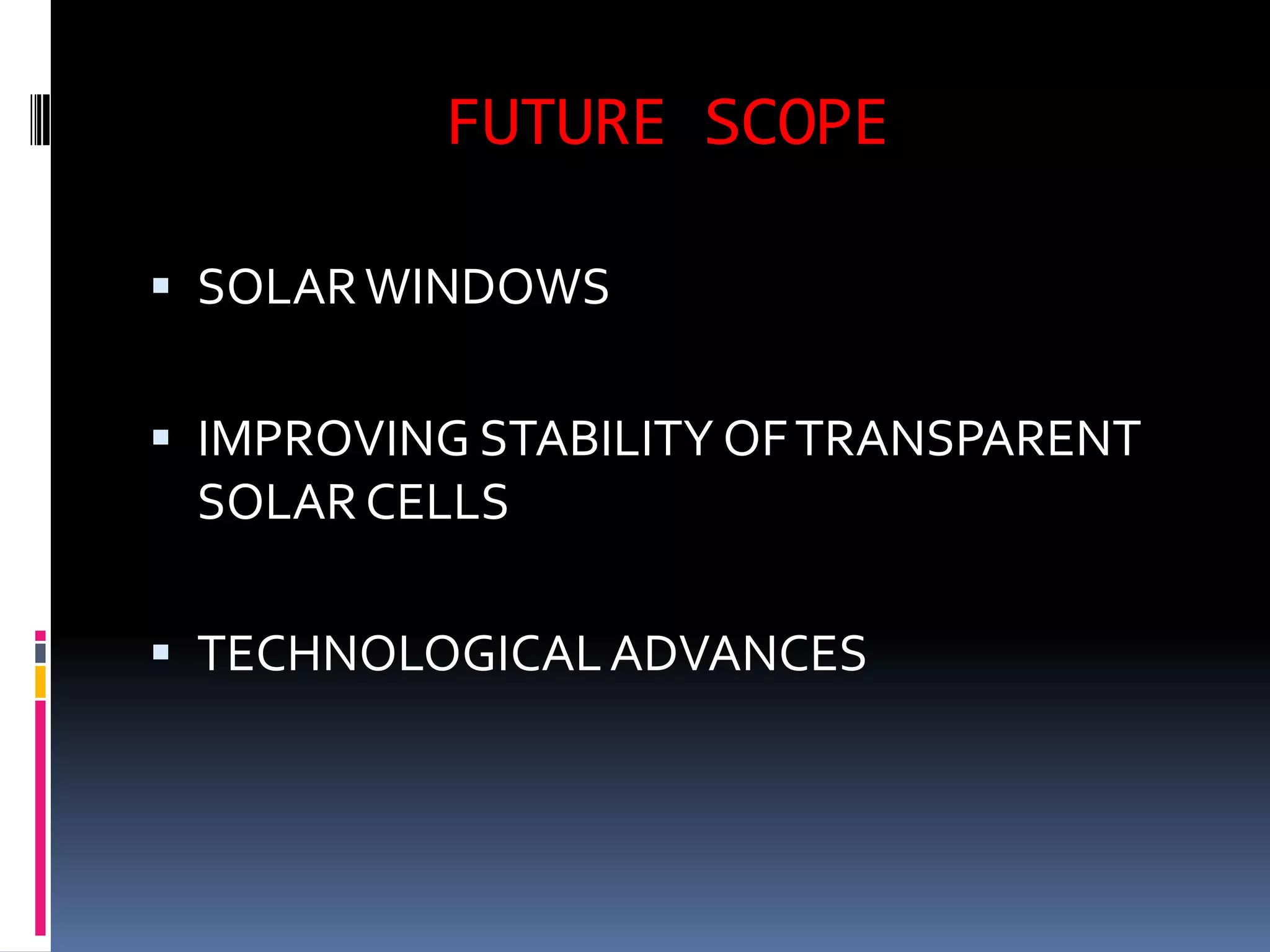

19. FUTURE SCOPE
 SOLAR WINDOWS
 IMPROVING STABILITY OF TRANSPARENT
SOLAR CELLS
 TECHNOLOGICAL ADVANCES

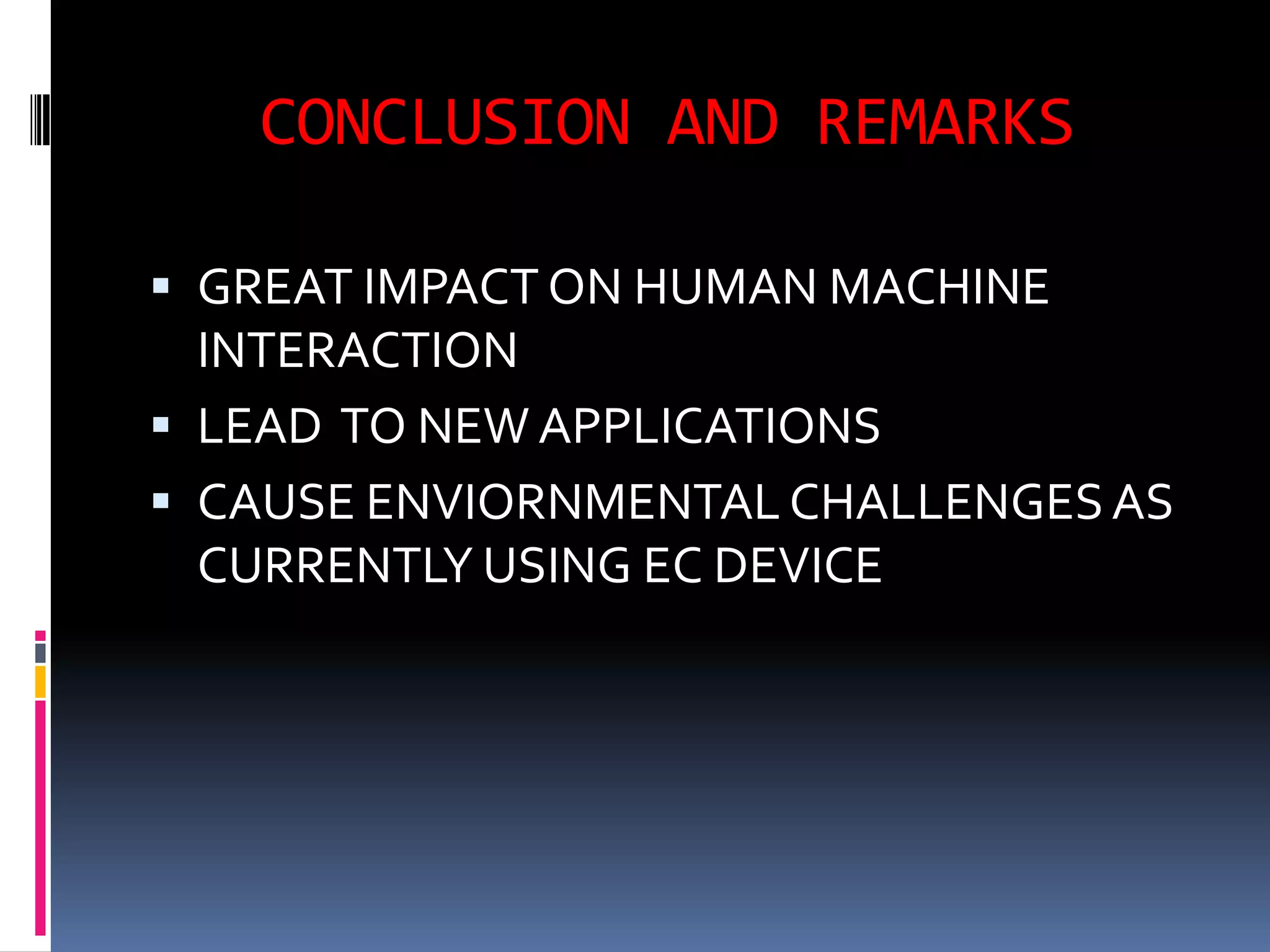

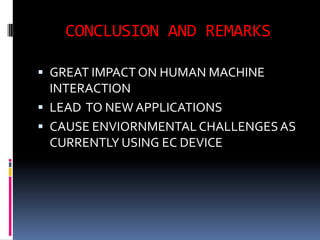

20. CONCLUSION AND REMARKS
 GREAT IMPACT ON HUMAN MACHINE
INTERACTION
 LEAD TO NEW APPLICATIONS
 CAUSE ENVIORNMENTAL CHALLENGES AS
CURRENTLY USING EC DEVICE
