The document discusses grid innovation and solutions for managing the evolving energy landscape. It notes that the grid of the future will have more renewable energy sources, smarter demand management, increased energy efficiency, and local generation. The document outlines TransGrid's iDemand program for monitoring solar generation, batteries, and consumption in real-time. It also discusses potential solutions like new transmission lines, phase shifting transformers, and batteries to address issues like outages and overloads on the grid. The goal is to share research and solutions to better understand challenges and enable a sustainable energy future through collaboration.

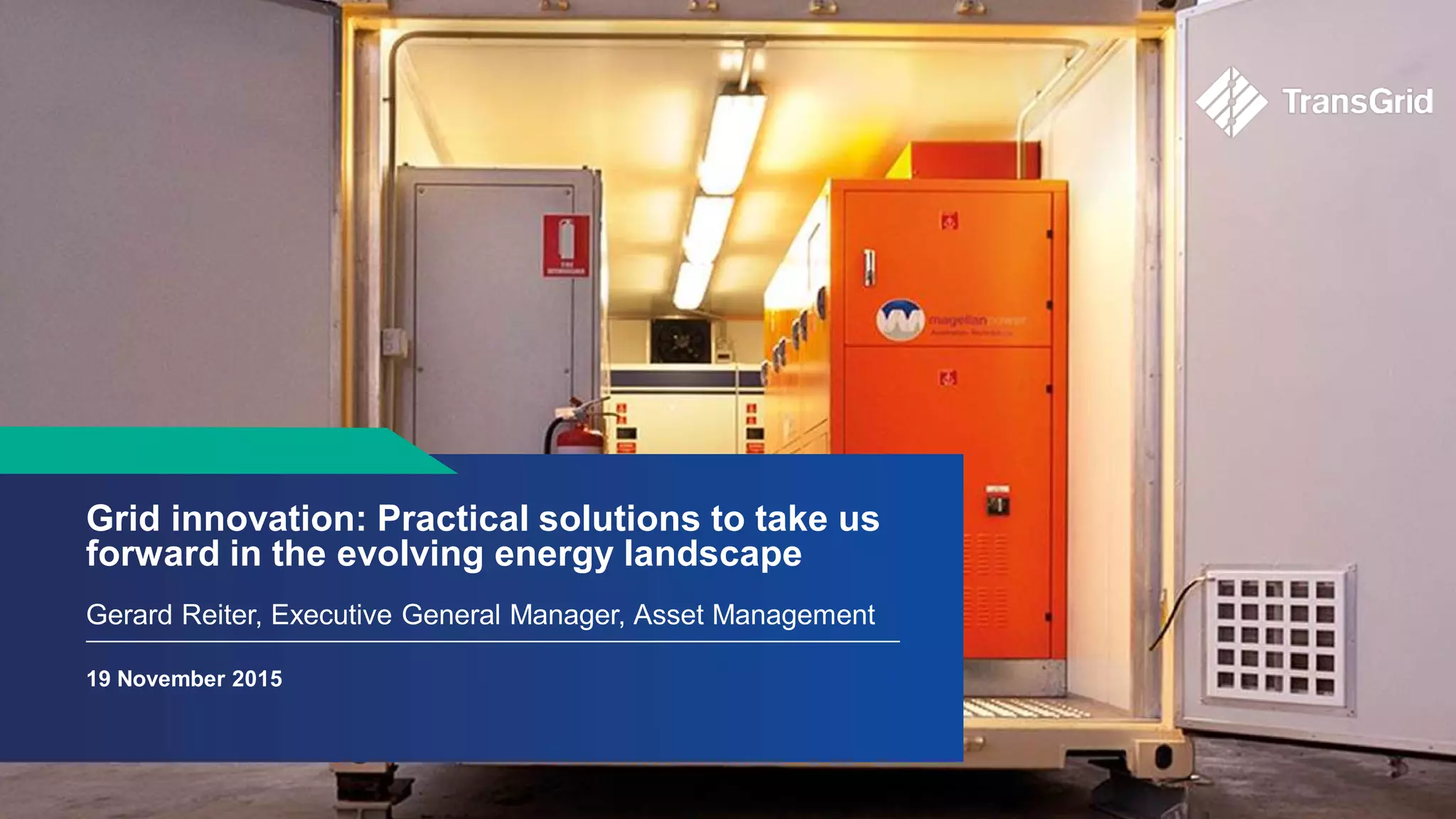

1. Grid innovation: Practical solutions to take us
forward in the evolving energy landscape
Gerard Reiter, Executive General Manager, Asset Management
19 November 2015

2. Grid innovation: the role of transmission in the evolving energy ecosystem2 /

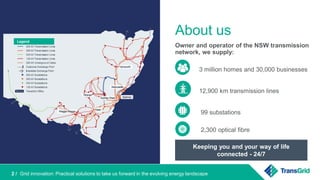

About us
Owner and operator of the NSW transmission
network, we supply:
3 million homes and 30,000 businesses
12,900 km transmission lines
99 substations
2,300 optical fibre
Keeping you and your way of life
connected - 24/7
2 / Grid innovation: the role of transmission in the evolving energy ecosystemGrid innovation: Practical solutions to take us forward in the evolving energy landscape2 /
Legend
Sydney

3. 3 /

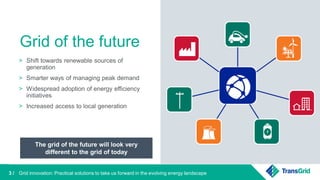

Grid of the future
˃ Shift towards renewable sources of
generation
˃ Smarter ways of managing peak demand
˃ Widespread adoption of energy efficiency
initiatives
˃ Increased access to local generation
The grid of the future will look very
different to the grid of today
Grid innovation: Practical solutions to take us forward in the evolving energy landscape

4. 4 /

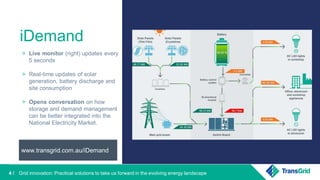

iDemand
˃ Live monitor (right) updates every
5 seconds
˃ Real-time updates of solar
generation, battery discharge and
site consumption
˃ Opens conversation on how
storage and demand management
can be better integrated into the
National Electricity Market.
www.transgrid.com.au/iDemand
Grid innovation: Practical solutions to take us forward in the evolving energy landscape

5. 5 /

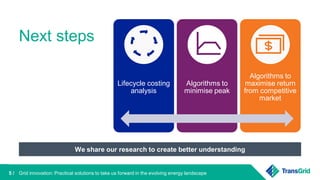

Next steps
We share our research to create better understanding
Lifecycle costing
analysis
Algorithms to
minimise peak
Algorithms to
maximise return
from competitive
market
Grid innovation: Practical solutions to take us forward in the evolving energy landscape

6. 6 /

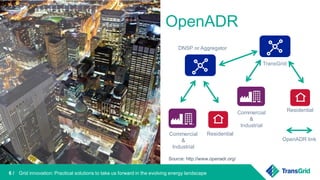

TransGrid
DNSP or Aggregator
OpenADR
Commercial
&
Industrial
Residential
OpenADR link
Grid innovation: Practical solutions to take us forward in the evolving energy landscape
ResidentialCommercial
&
Industrial
Source: http://www.openadr.org/

7. 7 /

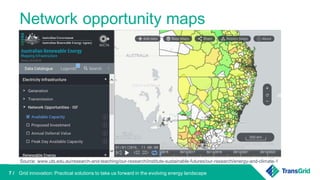

Network opportunity maps
Grid innovation: Practical solutions to take us forward in the evolving energy landscape
Source: www.uts.edu.au/research-and-teaching/our-research/institute-sustainable-futures/our-research/energy-and-climate-1

8. 8 /
Armidale TamworthMoreeInverell Boggabri
North/East
Narrabri Gunnedah
968
969
Base system
Normal operation without any outages and system within technical limits.
Grid innovation: Practical solutions to take us forward in the evolving energy landscape

9. 9 /
Armidale TamworthMoreeInverell Boggabri
North/East
Narrabri Gunnedah
968
969

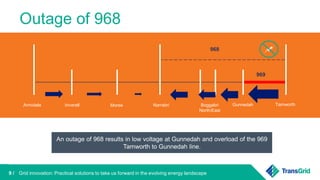

Outage of 968
An outage of 968 results in low voltage at Gunnedah and overload of the 969
Tamworth to Gunnedah line.
Grid innovation: Practical solutions to take us forward in the evolving energy landscape

10. 10 /
Armidale TamworthMoreeInverell Boggabri
North/East
Narrabri Gunnedah
968
969

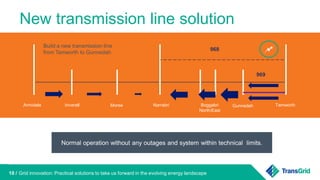

New transmission line solution
Normal operation without any outages and system within technical limits.
Grid innovation: Practical solutions to take us forward in the evolving energy landscape
Build a new transmission line
from Tamworth to Gunnedah

11. 11 /
Armidale TamworthMoreeInverell Boggabri
North/East
Narrabri Gunnedah
968
969

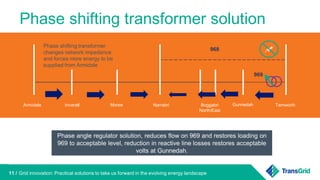

Phase shifting transformer solution
Phase angle regulator solution, reduces flow on 969 and restores loading on
969 to acceptable level, reduction in reactive line losses restores acceptable
volts at Gunnedah.
Grid innovation: Practical solutions to take us forward in the evolving energy landscape
Phase shifting transformer
changes network impedance
and forces more energy to be
supplied from Armidale

12. 12 /
Armidale TamworthMoreeInverell Boggabri
North/East
Narrabri Gunnedah
968
969

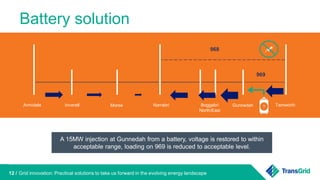

Battery solution
A 15MW injection at Gunnedah from a battery, voltage is restored to within
acceptable range, loading on 969 is reduced to acceptable level.
Grid innovation: Practical solutions to take us forward in the evolving energy landscape

13. 13 /
Armidale TamworthMoreeInverell Boggabri
North/East
Narrabri Gunnedah
968
969

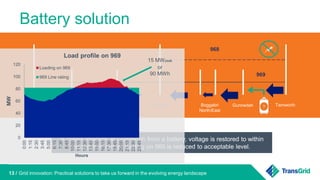

Battery solution
A 15MW injection at Gunnedah from a battery, voltage is restored to within
acceptable range, loading on 969 is reduced to acceptable level.
Grid innovation: Practical solutions to take us forward in the evolving energy landscape
0
20
40
60
80
100
120
0:00
1:15
2:30
3:45
5:00
6:15
7:30
8:45
10:00
11:15
12:30
13:45
15:00
16:15
17:30
18:45
20:00
21:15
22:30
23:45
MW
Hours
Load profile on 969
Loading on 969
969 Line rating
15 MWpeak
or
90 MWh

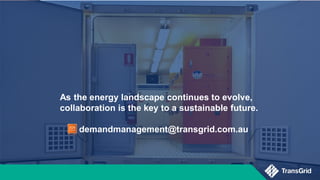

14. As the energy landscape continues to evolve,
collaboration is the key to a sustainable future.
