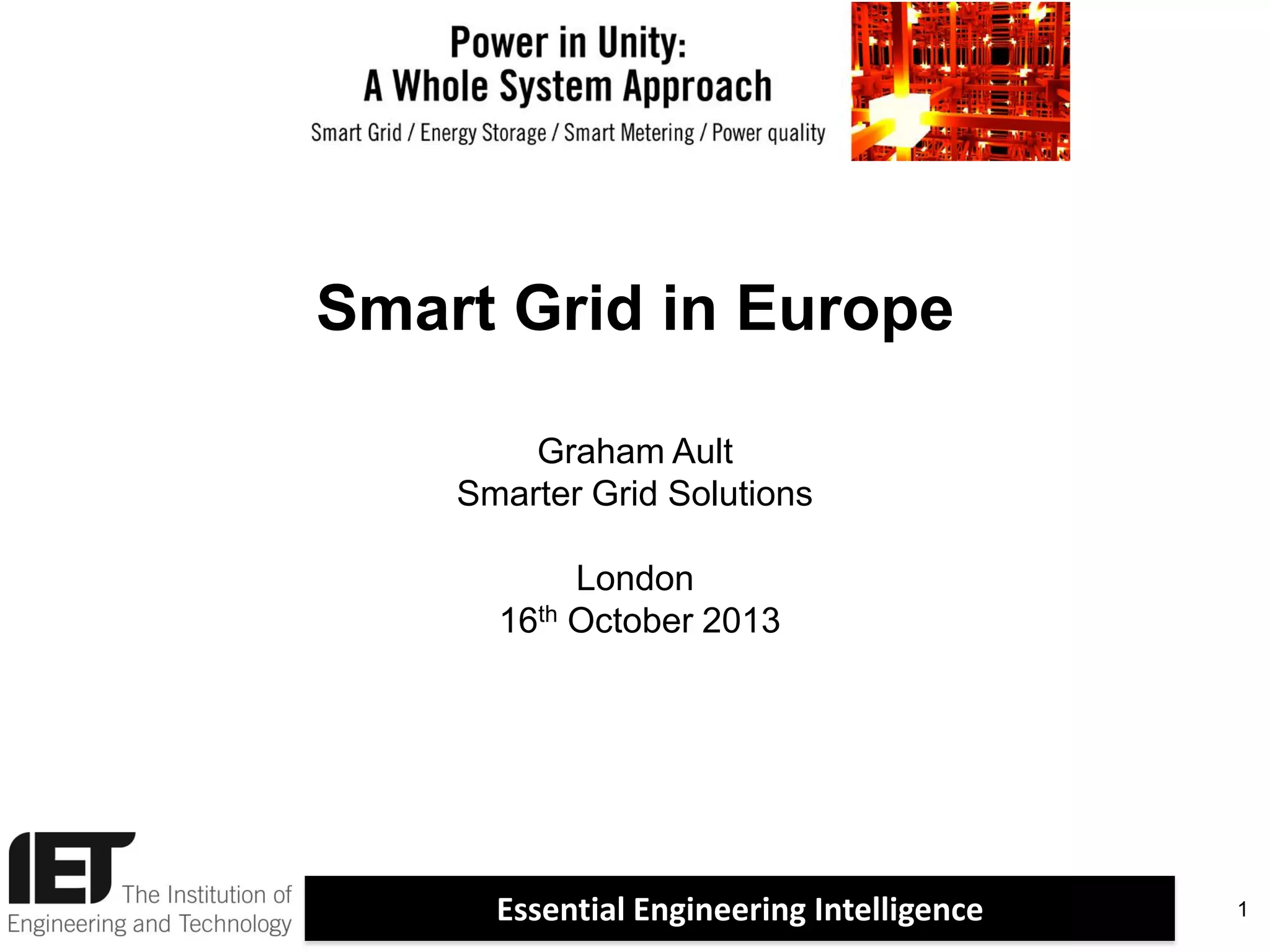

The document discusses smart grid developments across Europe. It outlines the European Electricity Grid Initiative (EEGI) which provides a vision and roadmap for smart grids. It also describes the Smart Grid Architecture Model (SGAM) which aims to standardize smart grid development. Specific smart grid projects in Ireland, the UK, and Belgium are examined that demonstrate whole system approaches involving transmission and distribution system operators collaborating to integrate distributed energy resources.
From fit&forget to #IoT driven distribution grids in @dream_smartgridGaspard Lebel
Presentation of @GrenobleINP #G2Elab & @dream_smartgrid regarding distribution grid automation and decentralization. Lecture proposed for Increase Summer School 2015, Gent July 15th
OPAL-RT RT14 Conference: Real-time simulator for power system studiesOPAL-RT TECHNOLOGIES
Using a Real Time Simulator for Power System Studies on Distribution Systems Operating Under a Large Penetration of Embedded Generation, McGill University and OPAL-RT
From fit&forget to #IoT driven distribution grids in @dream_smartgridGaspard Lebel
Presentation of @GrenobleINP #G2Elab & @dream_smartgrid regarding distribution grid automation and decentralization. Lecture proposed for Increase Summer School 2015, Gent July 15th
OPAL-RT RT14 Conference: Real-time simulator for power system studiesOPAL-RT TECHNOLOGIES
Using a Real Time Simulator for Power System Studies on Distribution Systems Operating Under a Large Penetration of Embedded Generation, McGill University and OPAL-RT
The Sate of Tamil Nadu has recently released new solar policy with highly ambitious target of 9GW by 2023. Gensol has highlighted key areas of focus & inferences with respect to incentives, energy accounting, wheeling of power etc.
Vehicle to grid ( V2G) technology ca n be defined as a system in which there is a capabilty to control, bi-directional flow of electric energy between a vehicle and the electrical grid. The integration of electric vehicles into the power grid is called the vehicle-to-grid system.
SEE MORE: https://goo.gl/DZvJcc
Unlocking the Innovation Hidden within Today’s Variable-Speed DrivesEMEX
It is more than 40 years since the technology of variable-speed drives (VSDs) entered the market. Yet despite electric motors accounting for some 65 percent of industrial energy consumption, only 5 percent of installed motors are speed controlled. While not all motors are suitable for speed control, there is still a large proportion that could be. Yet when asked what is the most effective way to reduce energy, UK business responded with “change energy supplier”. Without doubt the most effective way to get real energy savings is to install energy efficient motors and VSDs. In this presentation John Guthrie looks at the impact of VSDs on a diverse range of sectors, offering real examples from hospitals and swimming pools to data centres and car parks.
Clean power plans - the role of the smart gridPaul Alvarez
This presentation introduces the smart grid capabilities with the greatest CO2 reduction potential, the benefit-cost analysis associated with these capabilities, the ratemaking policies that discourage utilities from optimizing these capabilities, and potential solutions. To schedule a presentation for your state energy office or utility regulatory staff, please contact Wired Group President Paul Alvarez.
Patent Landscape Report on “Electric vehicles – Vehicle to Grid Technology” b...Caroline Charumathy
Vehicle to grid technology is widely used for reducing / handling peak loads on the grid. The most patented technologies under V2G are Charging control system, Billing and metering system, Communication and networking system, Wireless energy transfer system. This landscape report will help in understanding the patenting activity for V2G by different OEM's and identifying the key players in this technology.
To get in-depth analysis of specific technology areas and the competitive patent landscape similar to this, contact us.
Why Super Low Loss Amorphous Transformers are a Non-brainer for Britain’s Lea...EMEX
Supply transformers are a common piece of electrical infrastructure on campuses across the UK. Despite some major advancements in super low loss technology, old and inefficient transformers continue to waste thousands of pounds in avoidable electricity costs each year. This session will showcase energy saving capabilities of modern supply transformers and provide you with the opportunity to get best practice advice and first-hand experience from a senior engineer in the estates and environment department of one of Britain’s leading Universities.
Automated Network Management Solution enables your utility to increase the level of power grid automation for better quality of supply and asset optimization.
Based on field proven, commercially available technologies it has recently been validated by an independent smart grid research centre Tecnalia.
ISES 2013 - Day 2 - Tor-Eivind Moen (Technology Director, ABB) - Energy on N...Student Energy
Game-Changing Technologies In The Oil and Gas Industry
How does the shale gas situation in the world change energy markets, are oil sands a part of the future and can subsea help provide the future with energy?
Closing the gap between smart metering and distribution automation with trans...Landis+Gyr
- Real-time metering to improve transparency to medium and low voltage networks
- Utilizing metered quality data for network maintenance and investment planning
- Value of reference metering: identify and minimize technical and non-technical losses
Explaining recent renewable energy auction outcomes in Europe Leonardo ENERGY
Recent record-low auction prices for renewables in Europe have made the news. But what is behind them and why are there such differences between countries? This webinar analyses and compares recent auction outcomes for PV, wind onshore and wind offshore in different European Member States and discusses lessons learnt. The analysis builds on Ecofys market insights and country case studies conducted within the AURES project (Auctions for Renewable Energy Support in the EU).
This work focus on V2G technology as stated today and potential upgrades over the system in the near future. Particulalry investigating RES-E volatile production exploitation over congestion period and new frontieer of ancillary service market architecture
Addressing utility challenges with MV/LV Monitoring and Control SolutionLandis+Gyr
Introducing grid digitalization solutions
Designed to retrofit and digitalize your existing power distribution infrastructure in a cost-effective way, the modular MV/LV Monitoring and Control Solution enables your utility to improve business operations, network efficiency and quality of service.
The solution is realized through retrofitting sensors onto the existing medium and low voltage power cables, transformers and switch gear, and through the integration of already installed electric devices located at the substation level.
The Sate of Tamil Nadu has recently released new solar policy with highly ambitious target of 9GW by 2023. Gensol has highlighted key areas of focus & inferences with respect to incentives, energy accounting, wheeling of power etc.
Vehicle to grid ( V2G) technology ca n be defined as a system in which there is a capabilty to control, bi-directional flow of electric energy between a vehicle and the electrical grid. The integration of electric vehicles into the power grid is called the vehicle-to-grid system.
SEE MORE: https://goo.gl/DZvJcc
Unlocking the Innovation Hidden within Today’s Variable-Speed DrivesEMEX
It is more than 40 years since the technology of variable-speed drives (VSDs) entered the market. Yet despite electric motors accounting for some 65 percent of industrial energy consumption, only 5 percent of installed motors are speed controlled. While not all motors are suitable for speed control, there is still a large proportion that could be. Yet when asked what is the most effective way to reduce energy, UK business responded with “change energy supplier”. Without doubt the most effective way to get real energy savings is to install energy efficient motors and VSDs. In this presentation John Guthrie looks at the impact of VSDs on a diverse range of sectors, offering real examples from hospitals and swimming pools to data centres and car parks.
Clean power plans - the role of the smart gridPaul Alvarez
This presentation introduces the smart grid capabilities with the greatest CO2 reduction potential, the benefit-cost analysis associated with these capabilities, the ratemaking policies that discourage utilities from optimizing these capabilities, and potential solutions. To schedule a presentation for your state energy office or utility regulatory staff, please contact Wired Group President Paul Alvarez.
Patent Landscape Report on “Electric vehicles – Vehicle to Grid Technology” b...Caroline Charumathy
Vehicle to grid technology is widely used for reducing / handling peak loads on the grid. The most patented technologies under V2G are Charging control system, Billing and metering system, Communication and networking system, Wireless energy transfer system. This landscape report will help in understanding the patenting activity for V2G by different OEM's and identifying the key players in this technology.
To get in-depth analysis of specific technology areas and the competitive patent landscape similar to this, contact us.
Why Super Low Loss Amorphous Transformers are a Non-brainer for Britain’s Lea...EMEX
Supply transformers are a common piece of electrical infrastructure on campuses across the UK. Despite some major advancements in super low loss technology, old and inefficient transformers continue to waste thousands of pounds in avoidable electricity costs each year. This session will showcase energy saving capabilities of modern supply transformers and provide you with the opportunity to get best practice advice and first-hand experience from a senior engineer in the estates and environment department of one of Britain’s leading Universities.
Automated Network Management Solution enables your utility to increase the level of power grid automation for better quality of supply and asset optimization.
Based on field proven, commercially available technologies it has recently been validated by an independent smart grid research centre Tecnalia.
ISES 2013 - Day 2 - Tor-Eivind Moen (Technology Director, ABB) - Energy on N...Student Energy
Game-Changing Technologies In The Oil and Gas Industry
How does the shale gas situation in the world change energy markets, are oil sands a part of the future and can subsea help provide the future with energy?
Closing the gap between smart metering and distribution automation with trans...Landis+Gyr
- Real-time metering to improve transparency to medium and low voltage networks
- Utilizing metered quality data for network maintenance and investment planning
- Value of reference metering: identify and minimize technical and non-technical losses
Explaining recent renewable energy auction outcomes in Europe Leonardo ENERGY
Recent record-low auction prices for renewables in Europe have made the news. But what is behind them and why are there such differences between countries? This webinar analyses and compares recent auction outcomes for PV, wind onshore and wind offshore in different European Member States and discusses lessons learnt. The analysis builds on Ecofys market insights and country case studies conducted within the AURES project (Auctions for Renewable Energy Support in the EU).
This work focus on V2G technology as stated today and potential upgrades over the system in the near future. Particulalry investigating RES-E volatile production exploitation over congestion period and new frontieer of ancillary service market architecture
Addressing utility challenges with MV/LV Monitoring and Control SolutionLandis+Gyr
Introducing grid digitalization solutions
Designed to retrofit and digitalize your existing power distribution infrastructure in a cost-effective way, the modular MV/LV Monitoring and Control Solution enables your utility to improve business operations, network efficiency and quality of service.
The solution is realized through retrofitting sensors onto the existing medium and low voltage power cables, transformers and switch gear, and through the integration of already installed electric devices located at the substation level.
Ingeteam participates in round table on Power Transfer and ConversionIngeteam Wind Energy
Igor Larrazabal, our Medium Voltage Platform Manager, participated in the round table discussion on Power Transfer and Conversion in the 'Advanced Manufacturing for Energy Applications in Harsh Environments' workshop on Industrial Challenges & Technology Roadmap. Brussels, 27 January 2016. Download the presentation.
Application for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unitApplication for phasor measurement unit
Intervención de Tim Green, Imperial College, en el marco de la jornada técnica Smartgrids - The making of en colaboración con IMDEA.
3 de noviembre de 2010
http://www.eoi.es/portal/guest/eventos?EOI_id_evento=1296
Engage with...TPS | Driving the Electric Revolution WebinarKTN
Turbo Power Systems (TPS) provides innovative high-speed machines and power electronic solutions for the Transport, Energy and Industrial markets. In this webinar, Turbo Power Systems provided insights into the specific expertise and facilities they can bring to the design and deployment of PEMD solutions and critical supply chains, and possible opportunities for collaborative projects and relationships.
66kV Offshore Wind Farm - Wet Design for Higher Voltage Wind Farm ApplicationsTorben Haagh
Aida Reig Perez, System Design Engineer at Prysmian Group, discusses innovations in offshore cabling and how to optimise for higher voltage in wet design submarine cables by implementing 66kV arrays, as presented in the 66kV Offshore Wind Conference last year.
Read the complete presentation here: bit.ly/prysmianfull
This presentation by Westermo’s Technical Lead Engineer Dakota Diehl is an integral part of the Westermo webinar held on May 28th 2020, covering best practices for computer networking solutions for energy systems. During this presentation, protocols and certifications for the energy market are discussed as well as data communication solutions for different energy segments - from generation to supply.
Tune in the webinar session here: https://www.westermo.com/news-and-events/webinars/computer-networking-solutions-for-energy-systems
CIGRE Belgium presentation on Actively Managing Distribution Connected Genera...Smarter Grid Solutions
Joint presentation with SP Energy Networks (SPEN) at CIGRE conference, Belgium, with the full title, "Actively Managing Distribution Connected Generation Feeding Into Distribution and Transmission Constraints". The presentation used SPEN's Accelerating Renewable Connections project as a case study and looked at the implementation of an Active Network Management scheme supplied by Smarter Grid Solutions.
The conference theme was "Innovation for secure and efficient transmission grids".
Elevating Tactical DDD Patterns Through Object CalisthenicsDorra BARTAGUIZ
After immersing yourself in the blue book and its red counterpart, attending DDD-focused conferences, and applying tactical patterns, you're left with a crucial question: How do I ensure my design is effective? Tactical patterns within Domain-Driven Design (DDD) serve as guiding principles for creating clear and manageable domain models. However, achieving success with these patterns requires additional guidance. Interestingly, we've observed that a set of constraints initially designed for training purposes remarkably aligns with effective pattern implementation, offering a more ‘mechanical’ approach. Let's explore together how Object Calisthenics can elevate the design of your tactical DDD patterns, offering concrete help for those venturing into DDD for the first time!
PHP Frameworks: I want to break free (IPC Berlin 2024)Ralf Eggert
In this presentation, we examine the challenges and limitations of relying too heavily on PHP frameworks in web development. We discuss the history of PHP and its frameworks to understand how this dependence has evolved. The focus will be on providing concrete tips and strategies to reduce reliance on these frameworks, based on real-world examples and practical considerations. The goal is to equip developers with the skills and knowledge to create more flexible and future-proof web applications. We'll explore the importance of maintaining autonomy in a rapidly changing tech landscape and how to make informed decisions in PHP development.
This talk is aimed at encouraging a more independent approach to using PHP frameworks, moving towards a more flexible and future-proof approach to PHP development.
UiPath Test Automation using UiPath Test Suite series, part 3DianaGray10
Welcome to UiPath Test Automation using UiPath Test Suite series part 3. In this session, we will cover desktop automation along with UI automation.
Topics covered:
UI automation Introduction,
UI automation Sample
Desktop automation flow
Pradeep Chinnala, Senior Consultant Automation Developer @WonderBotz and UiPath MVP
Deepak Rai, Automation Practice Lead, Boundaryless Group and UiPath MVP
Le nuove frontiere dell'AI nell'RPA con UiPath Autopilot™UiPathCommunity
In questo evento online gratuito, organizzato dalla Community Italiana di UiPath, potrai esplorare le nuove funzionalità di Autopilot, il tool che integra l'Intelligenza Artificiale nei processi di sviluppo e utilizzo delle Automazioni.
📕 Vedremo insieme alcuni esempi dell'utilizzo di Autopilot in diversi tool della Suite UiPath:
Autopilot per Studio Web
Autopilot per Studio
Autopilot per Apps
Clipboard AI
GenAI applicata alla Document Understanding
👨🏫👨💻 Speakers:
Stefano Negro, UiPath MVPx3, RPA Tech Lead @ BSP Consultant
Flavio Martinelli, UiPath MVP 2023, Technical Account Manager @UiPath
Andrei Tasca, RPA Solutions Team Lead @NTT Data
Welocme to ViralQR, your best QR code generator.ViralQR
Welcome to ViralQR, your best QR code generator available on the market!
At ViralQR, we design static and dynamic QR codes. Our mission is to make business operations easier and customer engagement more powerful through the use of QR technology. Be it a small-scale business or a huge enterprise, our easy-to-use platform provides multiple choices that can be tailored according to your company's branding and marketing strategies.
Our Vision
We are here to make the process of creating QR codes easy and smooth, thus enhancing customer interaction and making business more fluid. We very strongly believe in the ability of QR codes to change the world for businesses in their interaction with customers and are set on making that technology accessible and usable far and wide.
Our Achievements
Ever since its inception, we have successfully served many clients by offering QR codes in their marketing, service delivery, and collection of feedback across various industries. Our platform has been recognized for its ease of use and amazing features, which helped a business to make QR codes.
Our Services
At ViralQR, here is a comprehensive suite of services that caters to your very needs:
Static QR Codes: Create free static QR codes. These QR codes are able to store significant information such as URLs, vCards, plain text, emails and SMS, Wi-Fi credentials, and Bitcoin addresses.
Dynamic QR codes: These also have all the advanced features but are subscription-based. They can directly link to PDF files, images, micro-landing pages, social accounts, review forms, business pages, and applications. In addition, they can be branded with CTAs, frames, patterns, colors, and logos to enhance your branding.
Pricing and Packages
Additionally, there is a 14-day free offer to ViralQR, which is an exceptional opportunity for new users to take a feel of this platform. One can easily subscribe from there and experience the full dynamic of using QR codes. The subscription plans are not only meant for business; they are priced very flexibly so that literally every business could afford to benefit from our service.
Why choose us?
ViralQR will provide services for marketing, advertising, catering, retail, and the like. The QR codes can be posted on fliers, packaging, merchandise, and banners, as well as to substitute for cash and cards in a restaurant or coffee shop. With QR codes integrated into your business, improve customer engagement and streamline operations.
Comprehensive Analytics
Subscribers of ViralQR receive detailed analytics and tracking tools in light of having a view of the core values of QR code performance. Our analytics dashboard shows aggregate views and unique views, as well as detailed information about each impression, including time, device, browser, and estimated location by city and country.
So, thank you for choosing ViralQR; we have an offer of nothing but the best in terms of QR code services to meet business diversity!
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdfPaige Cruz
Monitoring and observability aren’t traditionally found in software curriculums and many of us cobble this knowledge together from whatever vendor or ecosystem we were first introduced to and whatever is a part of your current company’s observability stack.
While the dev and ops silo continues to crumble….many organizations still relegate monitoring & observability as the purview of ops, infra and SRE teams. This is a mistake - achieving a highly observable system requires collaboration up and down the stack.
I, a former op, would like to extend an invitation to all application developers to join the observability party will share these foundational concepts to build on:
GraphRAG is All You need? LLM & Knowledge GraphGuy Korland
Guy Korland, CEO and Co-founder of FalkorDB, will review two articles on the integration of language models with knowledge graphs.
1. Unifying Large Language Models and Knowledge Graphs: A Roadmap.
https://arxiv.org/abs/2306.08302
2. Microsoft Research's GraphRAG paper and a review paper on various uses of knowledge graphs:
https://www.microsoft.com/en-us/research/blog/graphrag-unlocking-llm-discovery-on-narrative-private-data/

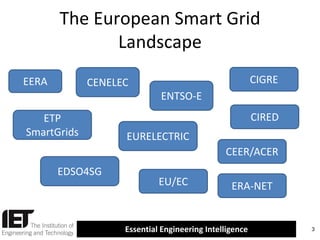

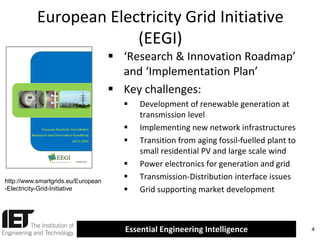

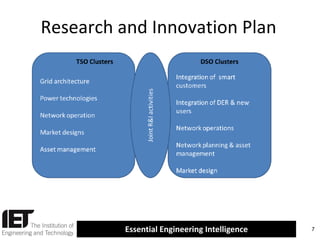

4. European Electricity Grid Initiative
(EEGI)
‘Research & Innovation Roadmap’
and ‘Implementation Plan’
Key challenges:
http://www.smartgrids.eu/European
-Electricity-Grid-Initiative
Development of renewable generation at
transmission level
Implementing new network infrastructures
Transition from aging fossil-fuelled plant to
small residential PV and large scale wind
Power electronics for generation and grid
Transmission-Distribution interface issues
Grid supporting market development
Essential Engineering Intelligence
4

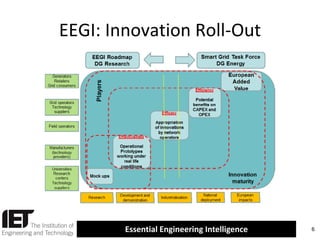

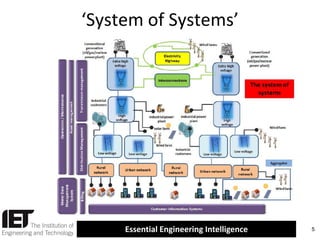

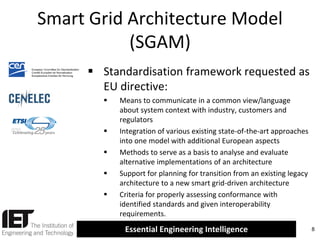

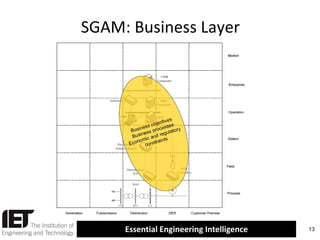

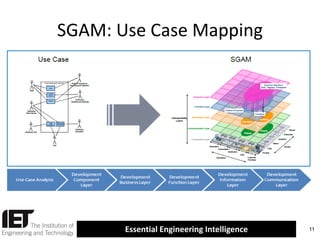

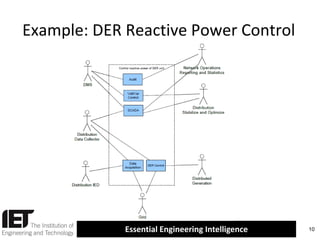

8. Smart Grid Architecture Model
(SGAM)
Standardisation framework requested as
EU directive:
Means to communicate in a common view/language
about system context with industry, customers and
regulators
Integration of various existing state-of-the-art approaches
into one model with additional European aspects
Methods to serve as a basis to analyse and evaluate
alternative implementations of an architecture
Support for planning for transition from an existing legacy
architecture to a new smart grid-driven architecture
Criteria for properly assessing conformance with
identified standards and given interoperability
requirements.
Essential Engineering Intelligence
8

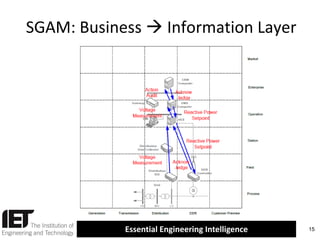

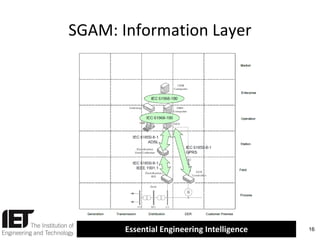

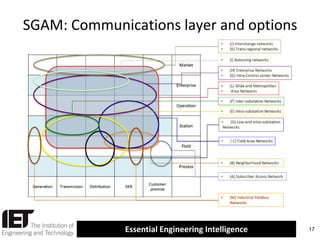

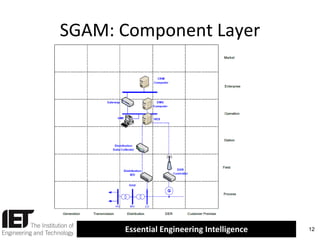

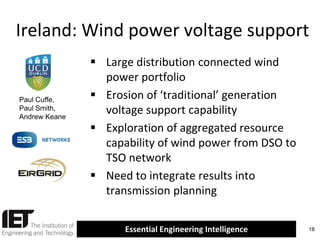

18. Ireland: Wind power voltage support
Paul Cuffe,
Paul Smith,
Andrew Keane
Large distribution connected wind
power portfolio
Erosion of ‘traditional’ generation
voltage support capability
Exploration of aggregated resource
capability of wind power from DSO to
TSO network
Need to integrate results into
transmission planning
Essential Engineering Intelligence
18

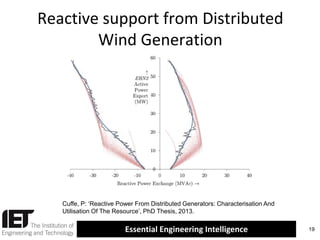

19. Reactive support from Distributed
Wind Generation
Cuffe, P: ‘Reactive Power From Distributed Generators: Characterisation And
Utilisation Of The Resource’, PhD Thesis, 2013.
Essential Engineering Intelligence
19

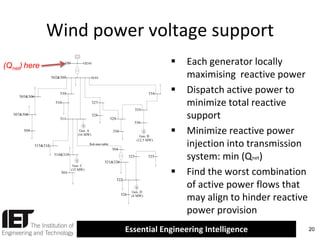

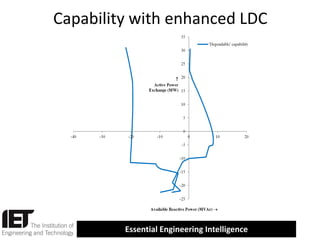

20. Wind power voltage support
(Qnet) here
Each generator locally
maximising reactive power
Dispatch active power to
minimize total reactive
support
Minimize reactive power
injection into transmission
system: min (Qnet)
Find the worst combination
of active power flows that
may align to hinder reactive
power provision
Essential Engineering Intelligence
20

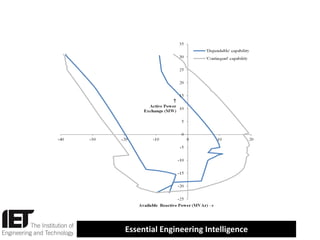

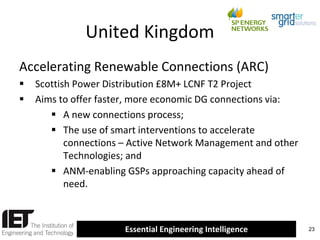

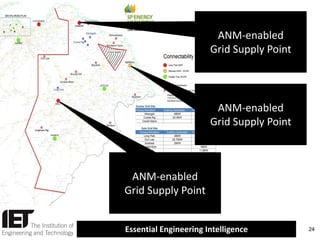

23. United Kingdom
Accelerating Renewable Connections (ARC)
Scottish Power Distribution £8M+ LCNF T2 Project
Aims to offer faster, more economic DG connections via:
A new connections process;
The use of smart interventions to accelerate
connections – Active Network Management and other
Technologies; and
ANM-enabling GSPs approaching capacity ahead of
need.
Essential Engineering Intelligence
23

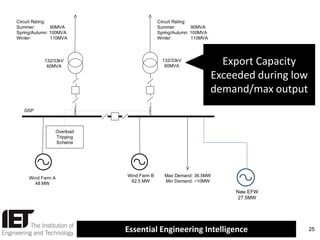

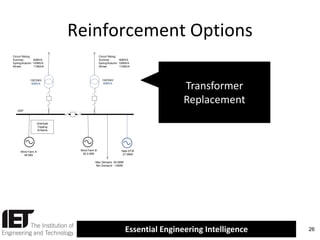

27. Reinforcement Options
Circuit Rating:
Summer:
160MVA
Circuit Rating:
Summer:
160MVA
132/33kV
60MVA
132/33kV
60MVA
GSP A Board
Wind Farm B
62.5 MW
50% Existing Demand
132/33kV
90MVA
Additional
Transformers
+
Reinforcement of
132kV
GSP B Board
Wind Farm A
48MW
New EFW
27.5MW
50% Existing Demand
Essential Engineering Intelligence
27

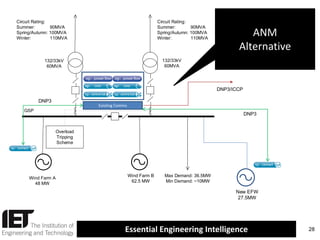

28. Circuit Rating:
Summer:
90MVA
Spring/Autumn: 100MVA
Winter:
110MVA
Circuit Rating:
Summer:
90MVA
Spring/Autumn: 100MVA
Winter:
110MVA
ANM
Alternative
132/33kV
60MVA
132/33kV
60MVA
DNP3/ICCP
DNP3
Existing Comms
GSP
DNP3
Overload
Tripping
Scheme
Wind Farm A
48 MW
Wind Farm B
62.5 MW
Max Demand: 36.5MW
Min Demand: ~10MW
New EFW
27.5MW
Essential Engineering Intelligence
28
29. ARC – Challenges at the
DNO/TO/SO Boundary
Multiple Stakeholders
New Commercial Agreements
Understanding the impact on system security
Understanding the visibility required by the SO
New Planning/Operational Planning tools required
Essential Engineering Intelligence
29

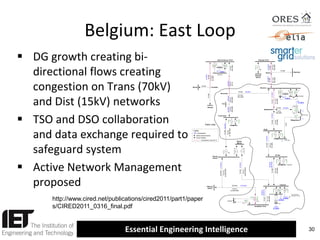

30. Belgium: East Loop
Comblain
62 MVA
70.360
62 MVA
70.359
84 MVA
0.9 km
298 AMS
30 MVA
10 MVA
20 MVA
T2A
3.9 km
93 AMS
11 MVA
15.7 kV
15.47
Bütgenbach
20 MVA
41 MVA
T2
15.7 kV
9.6 km
93 AMS
70.329
T1
110 MVA
T4
300 MVA
T1
T3
20 MVA
Amel
Brume
380 kV
90 MVA
33 MVA
7.3 km
148 AMS
70.330 41 MVA
13 MVA
13 MVA
70.325 160 MVA
T2
Overloaded circuit (N-1)
20 MVA
48 MVA
70.328 (55 MVA)
60 MVA
T11
T1
Essential Engineering Intelligence
T2
T1
22 MVA
40 MVA
40 MVA
T3
15.8 kV
Out of service
planned on 2015
15.1 km
148 AMS
15.8 kV
18.5 km
148 AMS
Cierreux
20 MVA
12 MVA
T2
15.6 kV
510 MVA
0.3 km
2x 298 AMS
48 MVA
70.327 (55 MVA)
220.504
22 km
1000 AluPRC
97 MVA
70.363
27.5 km
2x 298 AMS
220.504
510 MVA
T1
14 MVA
St Vith
Brume
220 kV
Villeroux
220 kV
18 MVA
T2B
0.8 km
2x 298 AMS
Hydroelectric
Switch (disconnector)
Circuit breaker
15.8 kV
HY
2.5 MVA
70.332
T1
East Loop
T3
10 MVA
Stephanshof
Trois-Ponts
Legend
10.1 km
93 AMS
Coo
T2
6 kV
HY
70.331
84 MVA
6.9 km
298 AMS
70.350
16.5 km
182 AMS
T1
18 MVA
41 MVA
62 MVA
Bronrome
Rimière
http://www.cired.net/publications/cired2011/part1/paper
s/CIRED2011_0316_final.pdf
Pepinster
Beverce
70.362
HY
70.360
24.1 km
182 AMS
Romsée
220 kV
36 MVA
6.4 km
48 Cu
70.351
T8
Soiron
15.6 kV
11.2 km
93 AMS
41 MVA
70.349
HY 5 MVA
Bomal
Romsée 70 kV
10.3 km
182 AMS
13 MVA
T1
6 kV
4.5 km
182 AMS
13 MVA
Heid de Goreux 70 kV
T2
127 MVA
DG growth creating bidirectional flows creating
congestion on Trans (70kV)
and Dist (15kV) networks
TSO and DSO collaboration
and data exchange required to
safeguard system
Active Network Management
proposed
TurboJet
IBV 18 MVA
25 MVA
6 kV
Houffalize 70 kV
Spanolux
8.4 MVA
30
31. Belgium: East Loop
Comblain
62 MVA
70.360
62 MVA
70.359
84 MVA
0.9 km
298 AMS
30 MVA
10 MVA
20 MVA
T2A
3.9 km
93 AMS
11 MVA
15.7 kV
15.47
Bütgenbach
20 MVA
41 MVA
T2
15.7 kV
9.6 km
93 AMS
70.329
T1
110 MVA
T4
300 MVA
T1
T3
20 MVA
Amel
Brume
380 kV
90 MVA
33 MVA
7.3 km
148 AMS
70.330 41 MVA
13 MVA
13 MVA
70.325 160 MVA
T2
Overloaded circuit (N-1)
20 MVA
48 MVA
70.328 (55 MVA)
60 MVA
T11
T1
T2
T1
22 MVA
40 MVA
40 MVA
T3
15.8 kV
Out of service
planned on 2015
15.1 km
148 AMS
15.8 kV
18.5 km
148 AMS
Cierreux
20 MVA
12 MVA
T2
15.6 kV
510 MVA
0.3 km
2x 298 AMS
48 MVA
70.327 (55 MVA)
220.504
22 km
1000 AluPRC
97 MVA
70.363
27.5 km
2x 298 AMS
220.504
510 MVA
T1
14 MVA
St Vith
Brume
220 kV
Villeroux
220 kV
18 MVA
T2B
0.8 km
2x 298 AMS
Hydroelectric
Switch (disconnector)
Circuit breaker
15.8 kV
HY
2.5 MVA
70.332
T1
East Loop
T3
10 MVA
Stephanshof
Trois-Ponts
Legend
10.1 km
93 AMS
Coo
Rimière
T2
6 kV
HY
70.331
84 MVA
6.9 km
298 AMS
16.5 km
182 AMS
T1
18 MVA
41 MVA
62 MVA
Bronrome
70.350
Pepinster
Beverce
70.362
HY
70.360
24.1 km
182 AMS
Romsée
220 kV
36 MVA
6.4 km
48 Cu
70.351
T8
Soiron
15.6 kV
11.2 km
93 AMS
41 MVA
70.349
HY 5 MVA
Bomal
Romsée 70 kV
10.3 km
182 AMS
13 MVA
T1
6 kV
4.5 km
182 AMS
13 MVA
Heid de Goreux 70 kV
T2
127 MVA
TSO takes lead in calculating
constraint actions
Control link planned between
DSO and TSO SCADA systems.
Grid Code changes required
Market and regulation
changes identified
Commercial arrangements
required: TSO, DSO, DG
TurboJet
IBV 18 MVA
25 MVA
6 kV
Houffalize 70 kV
Spanolux
8.4 MVA
Essential Engineering Intelligence
31

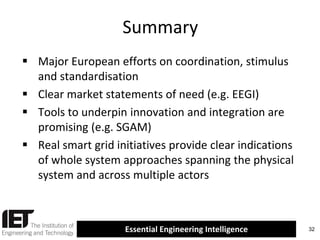

32. Summary
Major European efforts on coordination, stimulus
and standardisation
Clear market statements of need (e.g. EEGI)
Tools to underpin innovation and integration are
promising (e.g. SGAM)
Real smart grid initiatives provide clear indications
of whole system approaches spanning the physical
system and across multiple actors
Essential Engineering Intelligence
32
