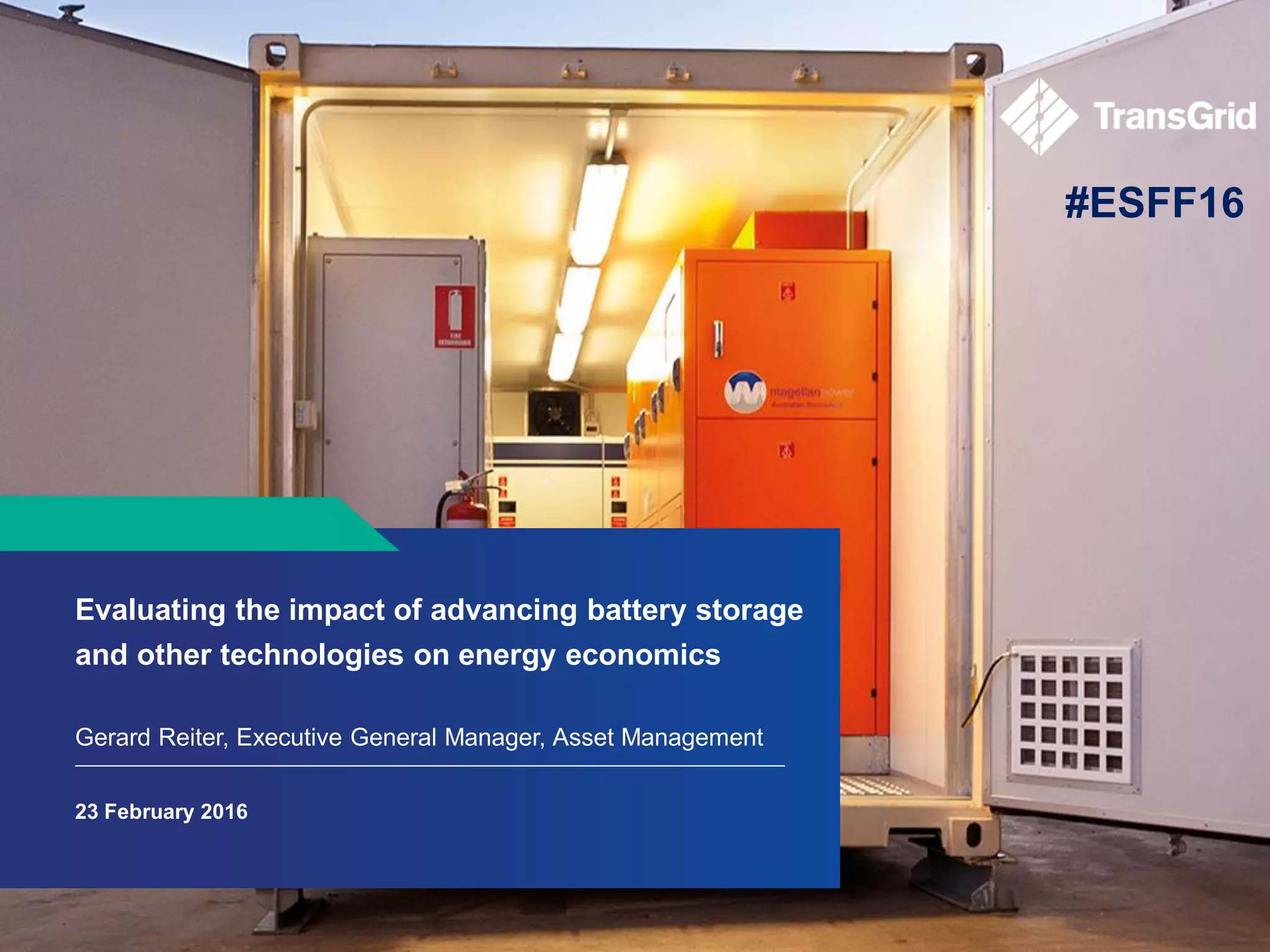

1. Evaluating the impact of advancing battery storage
and other technologies on energy economics
Gerard Reiter, Executive General Manager, Asset Management
23 February 2016
#ESFF16

2. About us

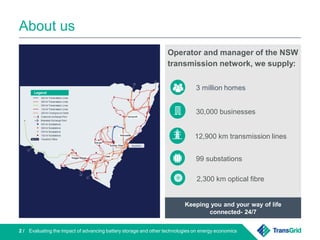

Evaluating the impact of advancing battery storage and other technologies on energy economics2 /
Sydney
Legend
Operator and manager of the NSW
transmission network, we supply:
3 million homes
30,000 businesses
12,900 km transmission lines
99 substations
2,300 km optical fibre
Keeping you and your way of life
connected- 24/7

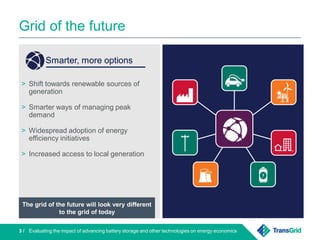

3. Grid of the future
Evaluating the impact of advancing battery storage and other technologies on energy economics3 /
˃ Shift towards renewable sources of
generation
˃ Smarter ways of managing peak
demand
˃ Widespread adoption of energy
efficiency initiatives
˃ Increased access to local generation
The grid of the future will look very different
to the grid of today
Smarter, more options

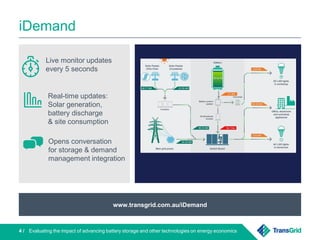

4. Evaluating the impact of advancing battery storage and other technologies on energy economics4 /
iDemand
www.transgrid.com.au/iDemand
Live monitor updates
every 5 seconds
Real-time updates:
Solar generation,
battery discharge
& site consumption
Opens conversation
for storage & demand
management integration

5. Evaluating the impact of advancing battery storage and other technologies on energy economics5 /
Next steps
We share our research to create better understanding

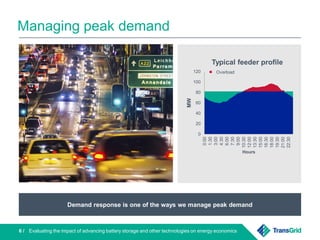

6. Evaluating the impact of advancing battery storage and other technologies on energy economics6 /
Managing peak demand
0
20
40
60
80
100
120
0:00
1:30
3:00
4:30
6:00
7:30
9:00
10:30
12:00
13:30
15:00
16:30
18:00
19:30
21:00
22:30
MW
Hours
Typical feeder profile
Loading on 969Overload
Demand response is one of the ways we manage peak demand

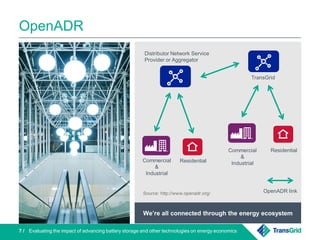

7. Evaluating the impact of advancing battery storage and other technologies on energy economics7 /
OpenADR
Distributor Network Service
Provider or Aggregator
TransGrid
Commercial
&
Industrial
Commercial
&
Industrial
Residential
OpenADR linkSource: http://www.openadr.org/
Residential
We’re all connected through the energy ecosystem

8. Managing energy
Evaluating the impact of advancing battery storage and other technologies on energy economics8 /
Peak shaving for a 1.0MW, 2.0MWh based on
existing tariffs approx. $100,000 per year
?
Latent energy

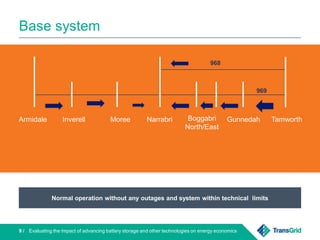

9. Base system
Evaluating the impact of advancing battery storage and other technologies on energy economics9 /
Normal operation without any outages and system within technical limits
Armidale Inverell Moree Narrabri Boggabri
North/East
Gunnedah Tamworth
968
969

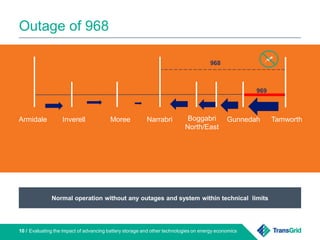

10. Outage of 968
Evaluating the impact of advancing battery storage and other technologies on energy economics10 /
Normal operation without any outages and system within technical limits
Armidale Inverell Moree Narrabri Boggabri
North/East
Gunnedah Tamworth
968
969

11. New transmission line solution
Evaluating the impact of advancing battery storage and other technologies on energy economics11 /
Normal operation without any outages and system within technical limits
Armidale Inverell Moree Narrabri Boggabri
North/East
Gunnedah Tamworth
968
969

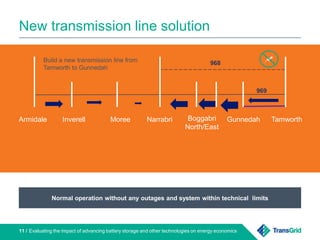

Build a new transmission line from
Tamworth to Gunnedah

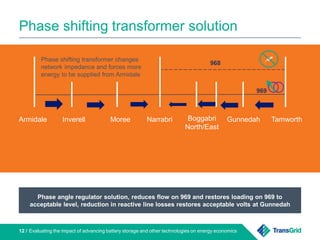

12. Phase shifting transformer solution
Evaluating the impact of advancing battery storage and other technologies on energy economics12 /
Phase angle regulator solution, reduces flow on 969 and restores loading on 969 to
acceptable level, reduction in reactive line losses restores acceptable volts at Gunnedah
Armidale Inverell Moree Narrabri Boggabri
North/East
Gunnedah Tamworth
968
969
Phase shifting transformer changes
network impedance and forces more
energy to be supplied from Armidale

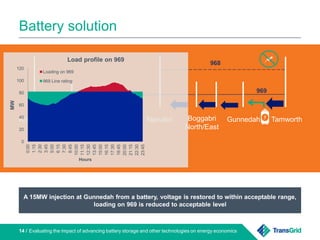

13. Battery solution
Evaluating the impact of advancing battery storage and other technologies on energy economics13 /

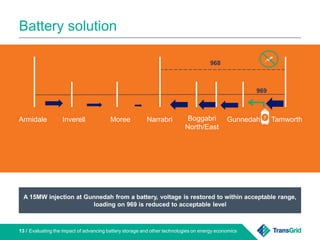

A 15MW injection at Gunnedah from a battery, voltage is restored to within acceptable range,
loading on 969 is reduced to acceptable level
Armidale Inverell Moree Narrabri Boggabri
North/East
Gunnedah Tamworth
968
969

14. Battery solution
Evaluating the impact of advancing battery storage and other technologies on energy economics14 /
A 15MW injection at Gunnedah from a battery, voltage is restored to within acceptable range,
loading on 969 is reduced to acceptable level
Armidale Inverell Moree Narrabri Boggabri
North/East
Gunnedah Tamworth
968
969
0
20
40
60
80
100
120
0:00
1:15
2:30
3:45
5:00
6:15
7:30
8:45
10:00
11:15
12:30
13:45
15:00
16:15
17:30
18:45
20:00
21:15
22:30
23:45
MW
Hours
Load profile on 969
Loading on 969
969 Line rating

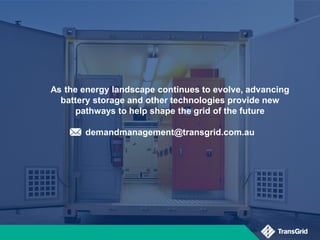

15. As the energy landscape continues to evolve, advancing
battery storage and other technologies provide new
pathways to help shape the grid of the future
