1. Transforming Private 5G
Networks
Greg Wahl – District Sales Manager
Cloud-IoT Group, Advantech

2. Agenda
1. Quick Glance at 5G Landscape
2. Case Study 1:
Private Enterprise 5G Mobile Network
Solution in Manufacturing
3. Case Study 2:
Private LTE/5G Network in Utility Company
4. Advantech Value:
Software Investment
Hardware Flexibility
Advantech DNA

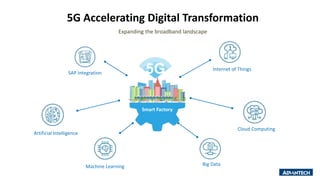

3. SAP Integration
Artificial Intelligence
Machine Learning
Internet of Things
Cloud Computing
Big Data
Smart Factory
5G
5G Accelerating Digital Transformation
Expanding the broadband landscape

4. More Data, More Opportunities!
AVG.INTERNET USER
1.5 GB
OF TRAFFIC / DAC
AUTONOMOUS VEHICLES
4 TB
OF TRAFFIC / DAC
CONNECTED AIRPLANE
5 TB
OF TRAFFIC / DAC
SMART FACTORY
1 PB
OF TRAFFIC / DAC
CLOUD VIDEO PROVIDERS
750 PB
OF TRAFFIC / DAC
2020 data usage will have tremendous increase

5. Fixed and Mobile Convergence
Enterprise / IoT Access / Edge Core Cloud / Data center
Fixed Mobile Convergence driven by Central Office
transformation (NGCO)
MEC: New Services that
land on the Network Edge
Mobile Core: Transforming with NFV
(vBNG, vCMTS, vEPC, 5G CUPS)
IT Cloud: Firewalls, Load Balancers,
CDN and Security functions
uCPE, SD-WAN
On-premise Edge
Industrial
Enterprise
Residential
Enterprise
private network
Intelligent edge
compute
Immersive
media
vRAN, multi-
access edge
computing
Next generation
central office
Wireless base
stations wireline
access
Router Backbone
Advantech partner with software eco systems – RAN, Firewall, and EPC

6. The Ability of Private 5G Network
3
Enable edge
services
Enterprise
& cloud CPE Wireless access
Multi-access
edge computing Edge central offices Core
2
Enable network
functions
1
uCPE-Enterprise 5G-NFVi Infra HPC
Private 5G
Network
Private Cloud
Live broadcast Cloud gaming Industrial
automation
Smart retail Smart stadium
Building blocks to accelerating the network transformation journey
Deliver edge
optimized
platforms

7. Private 5G Network for Industrial Automation
Container ports Oil refineries Manufacturing Construction
Mines Warehouses Wind farms Oil rigs
Increasing production where it counts

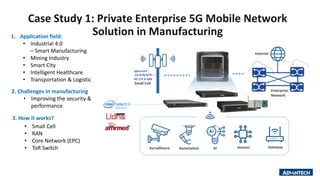

8. Case Study 1: Private Enterprise 5G Mobile Network
Solution in Manufacturing1. Application field:
• Industrial 4.0
– Smart Manufacturing
• Mining Industry
• Smart City
• Intelligent Healthcare
• Transportation & Logistic
3. How it works?
• Small Cell
• RAN
• Core Network (EPC)
• ToR Switch
Spectrum :
5G N78/N79 +
4G LTE-A b48
Small Cell
Internet
Enterprise
Network
Survallience Automation AI Sensors Gateway
2. Challenges in manufacturing
• Improving the security &
performance

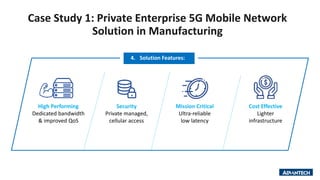

9. Case Study 1: Private Enterprise 5G Mobile Network
Solution in Manufacturing
Mission Critical
Ultra-reliable
low latency
Security
Private managed,
cellular access
Cost Effective
Lighter
infrastructure
High Performing
Dedicated bandwidth
& improved QoS
4. Solution Features:

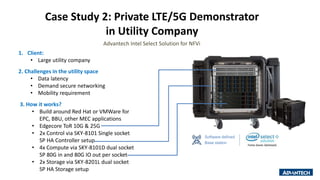

10. Software defined
Base station
Case Study 2: Private LTE/5G Demonstrator
in Utility Company
2. Challenges in the utility space
• Data latency
• Demand secure networking
• Mobility requirement
3. How it works?
• Build around Red Hat or VMWare for
EPC, BBU, other MEC applications
• Edgecore ToR 10G & 25G
• 2x Control via SKY-8101 Single socket
SP HA Controller setup
• 4x Compute via SKY-8101D dual socket
SP 80G in and 80G IO out per socket
• 2x Storage via SKY-8201L dual socket
SP HA Storage setup
1. Client:
• Large utility company
Advantech Intel Select Solution for NFVi

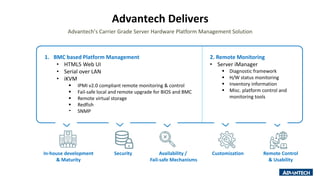

11. Advantech Delivers
1. BMC based Platform Management
• HTML5 Web UI
• Serial over LAN
• iKVM
 IPMI v2.0 compliant remote monitoring & control
 Fail-safe local and remote upgrade for BIOS and BMC
 Remote virtual storage
 Redfish
 SNMP
2. Remote Monitoring
• Server iManager
 Diagnostic framework
 H/W status monitoring
 Inventory information
 Misc. platform control and
monitoring tools
Advantech’s Carrier Grade Server Hardware Platform Management Solution
In-house development
& Maturity
Availability /
Fail-safe Mechanisms
Security Remote Control
& Usability
Customization

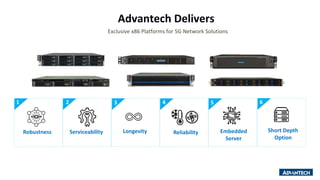

12. ReliabilityServiceability Embedded
Server
Robustness Longevity Short Depth
Option
Advantech Delivers
Exclusive x86 Platforms for 5G Network Solutions
1 2 3 4 5 6

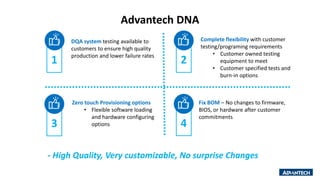

13. 1
Advantech DNA
Zero touch Provisioning options
• Flexible software loading
and hardware configuring
options
- High Quality, Very customizable, No surprise Changes
DQA system testing available to
customers to ensure high quality
production and lower failure rates
Fix BOM – No changes to firmware,
BIOS, or hardware after customer
commitments
Complete flexibility with customer
testing/programing requirements
• Customer owned testing
equipment to meet
• Customer specified tests and
burn-in options
2
