1. TRANSFORMATIONS-I
(TRANSLATIONS, ROTATIONS,
REFLECTIONS, AND DILATIONS)
Math 103
GEOMETRY
Dr. Farhana Shaheen

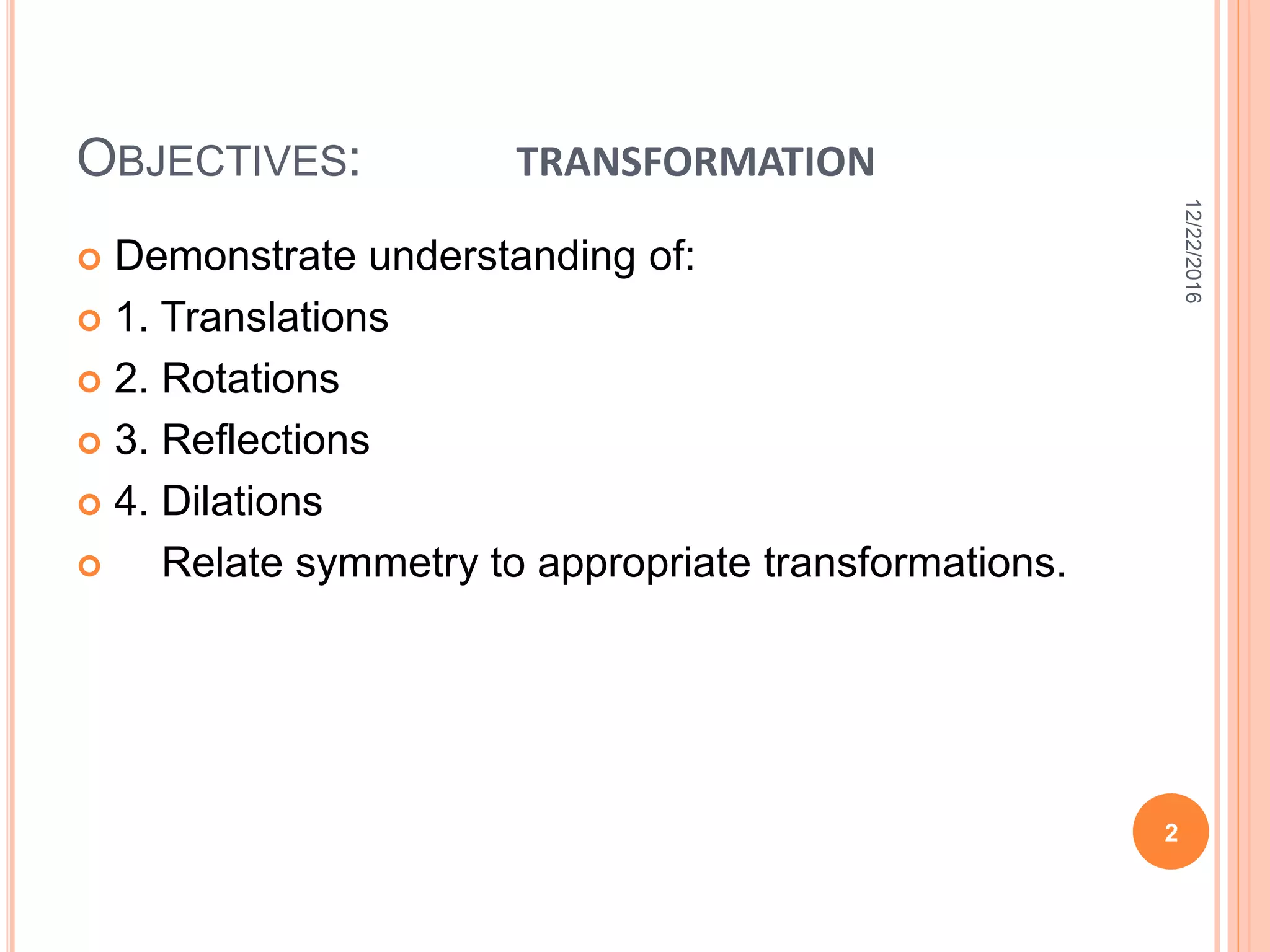

2. OBJECTIVES: TRANSFORMATION
 Demonstrate understanding of:
 1. Translations
 2. Rotations
 3. Reflections
 4. Dilations
 Relate symmetry to appropriate transformations.
12/22/2016
2

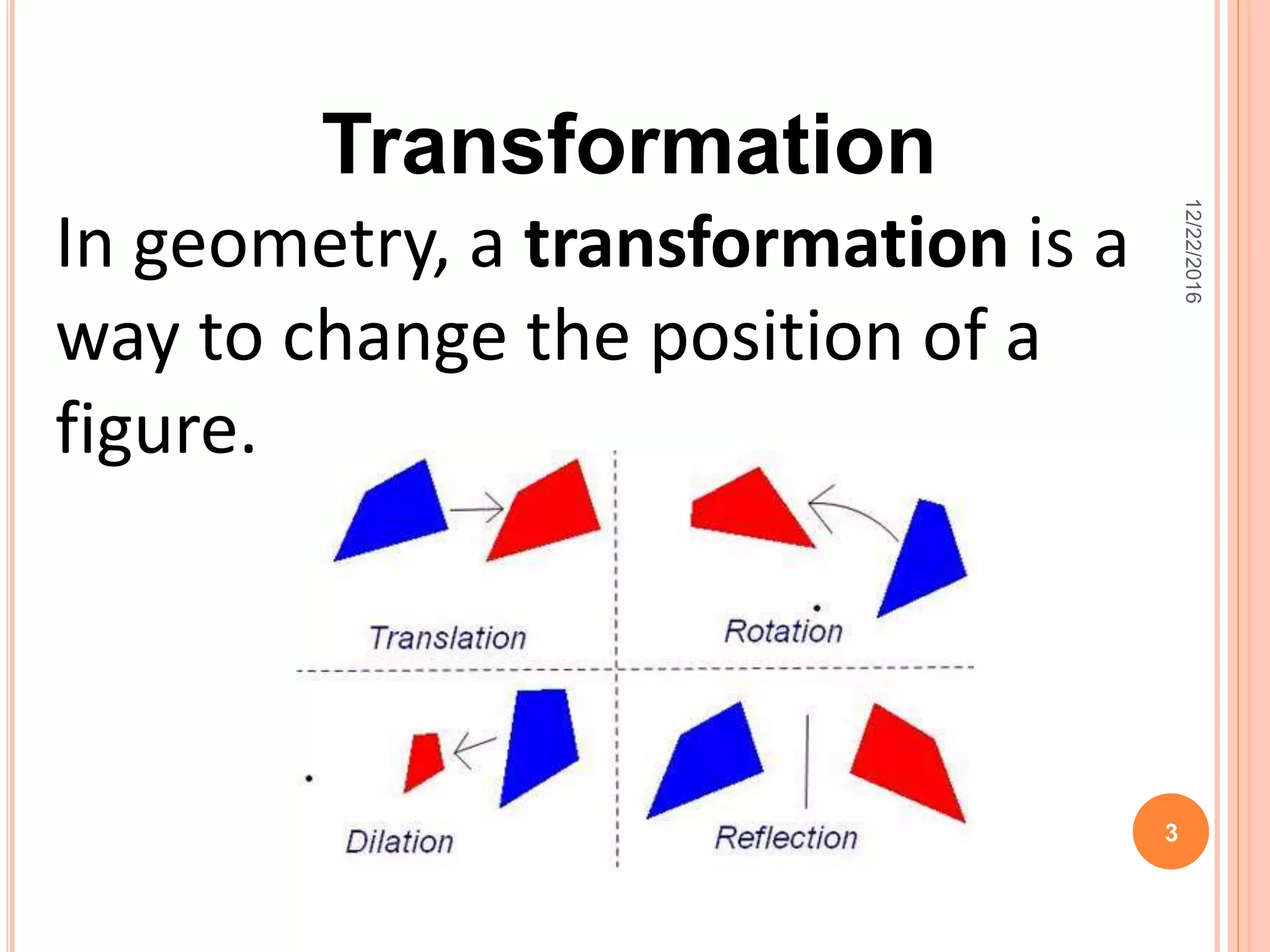

3. In geometry, a transformation is a
way to change the position of a
figure.
Transformation
12/22/2016
3

4. 12/22/2016
4

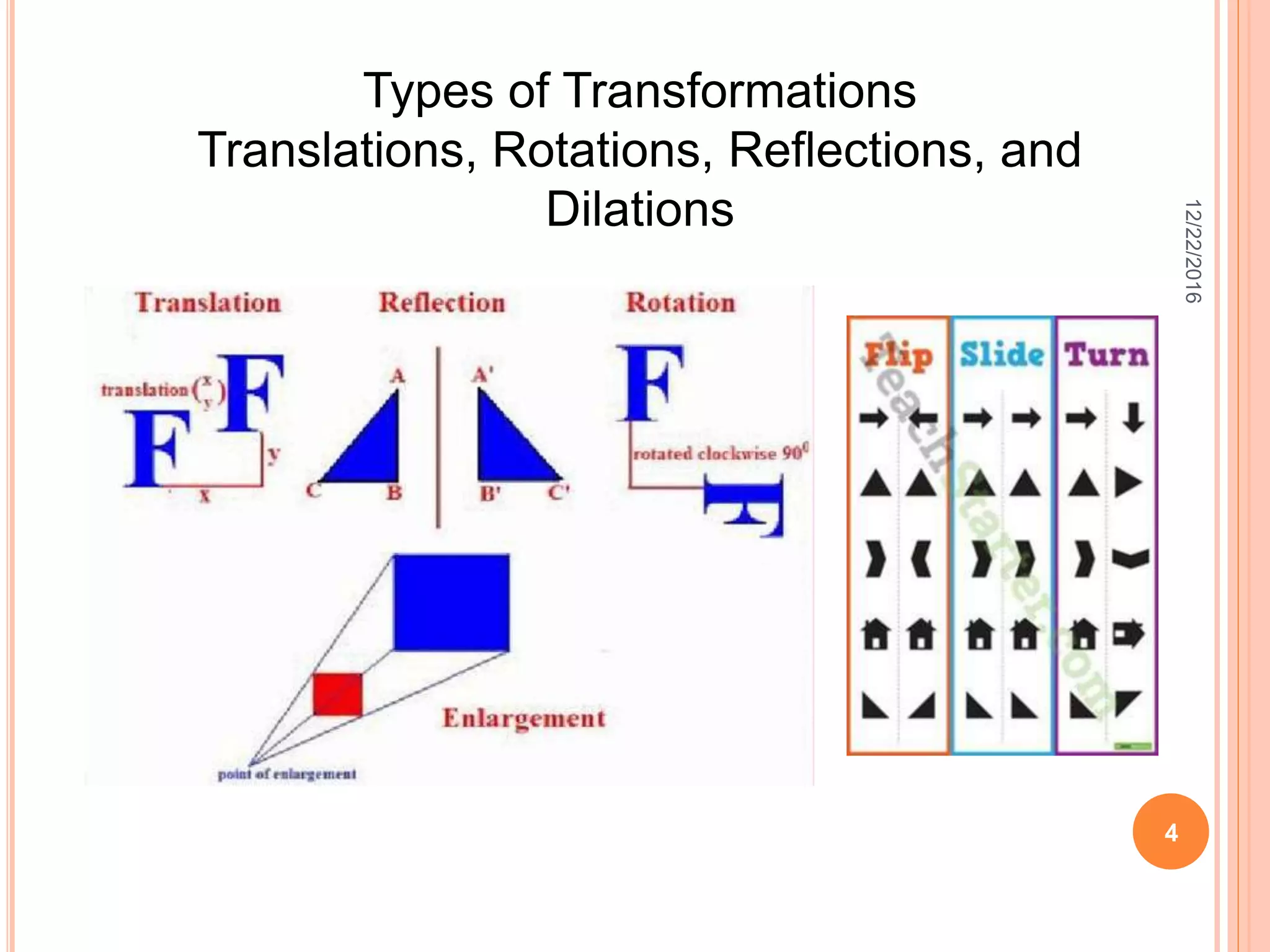

Types of Transformations
Translations, Rotations, Reflections, and
Dilations

5. Transformation is a way to change.
Transformation in Real life
12/22/2016
5

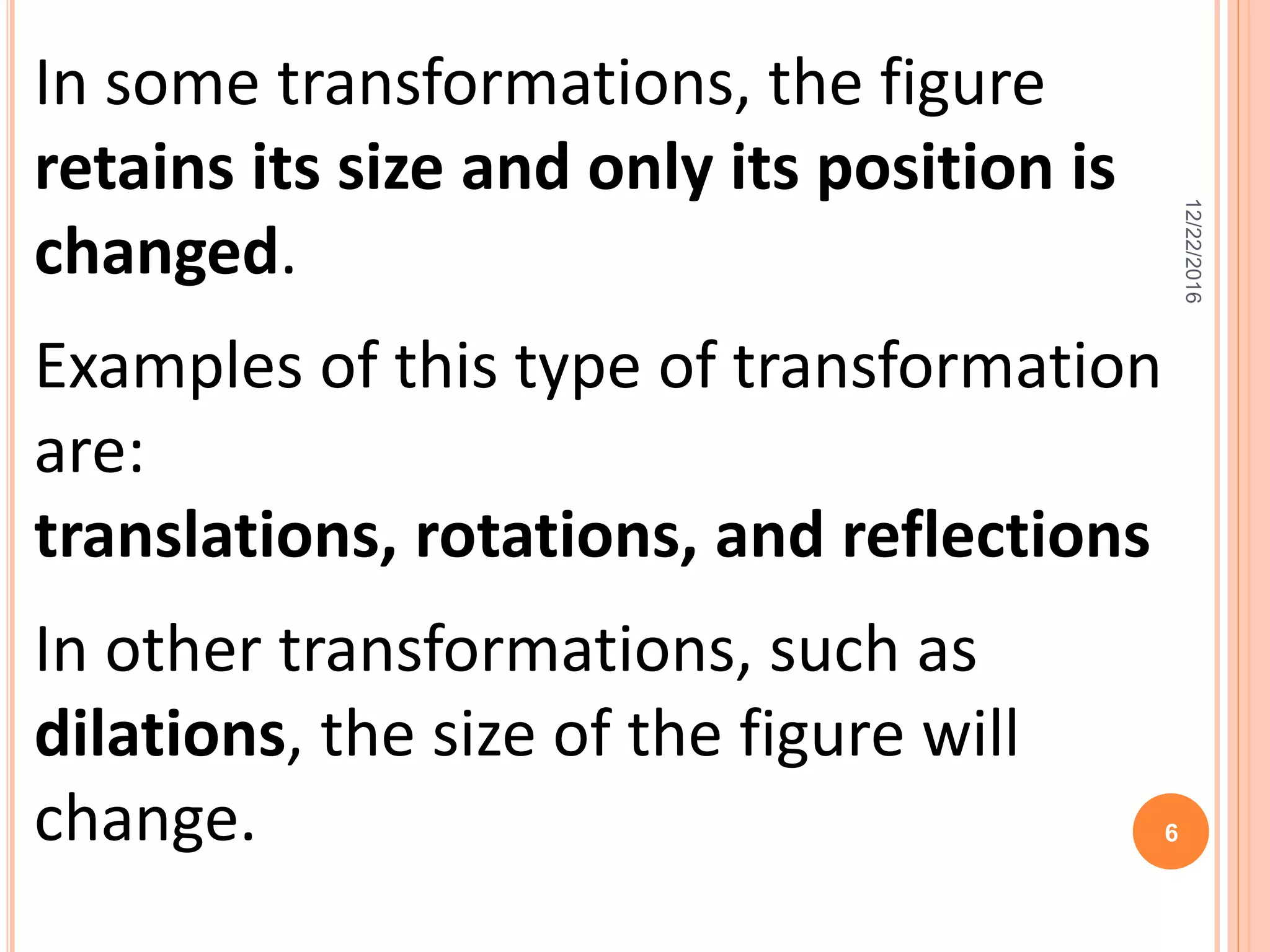

6. In some transformations, the figure
retains its size and only its position is
changed.
Examples of this type of transformation
are:
translations, rotations, and reflections
In other transformations, such as
dilations, the size of the figure will
change.
12/22/2016
6

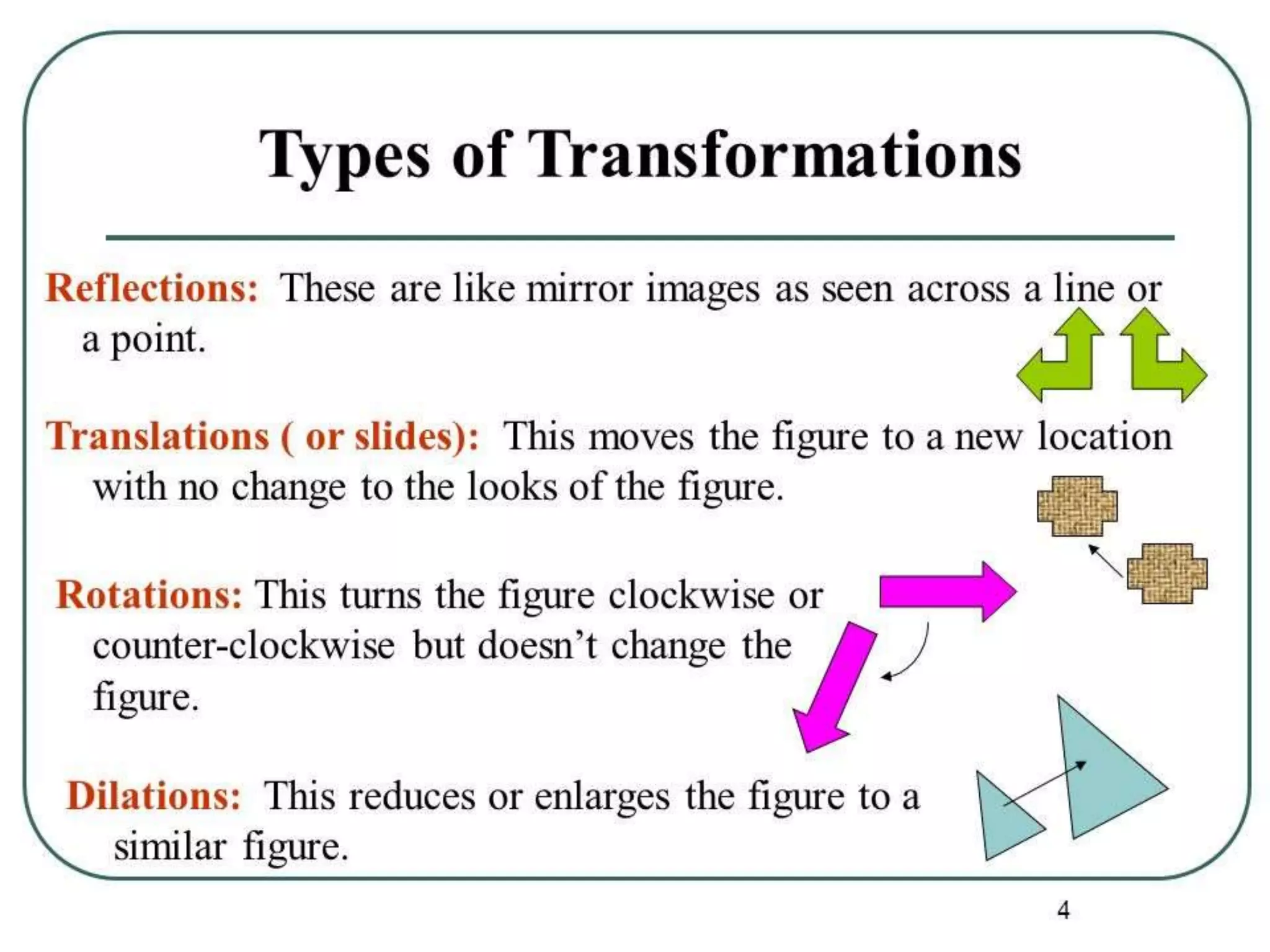

7. 12/22/2016
7

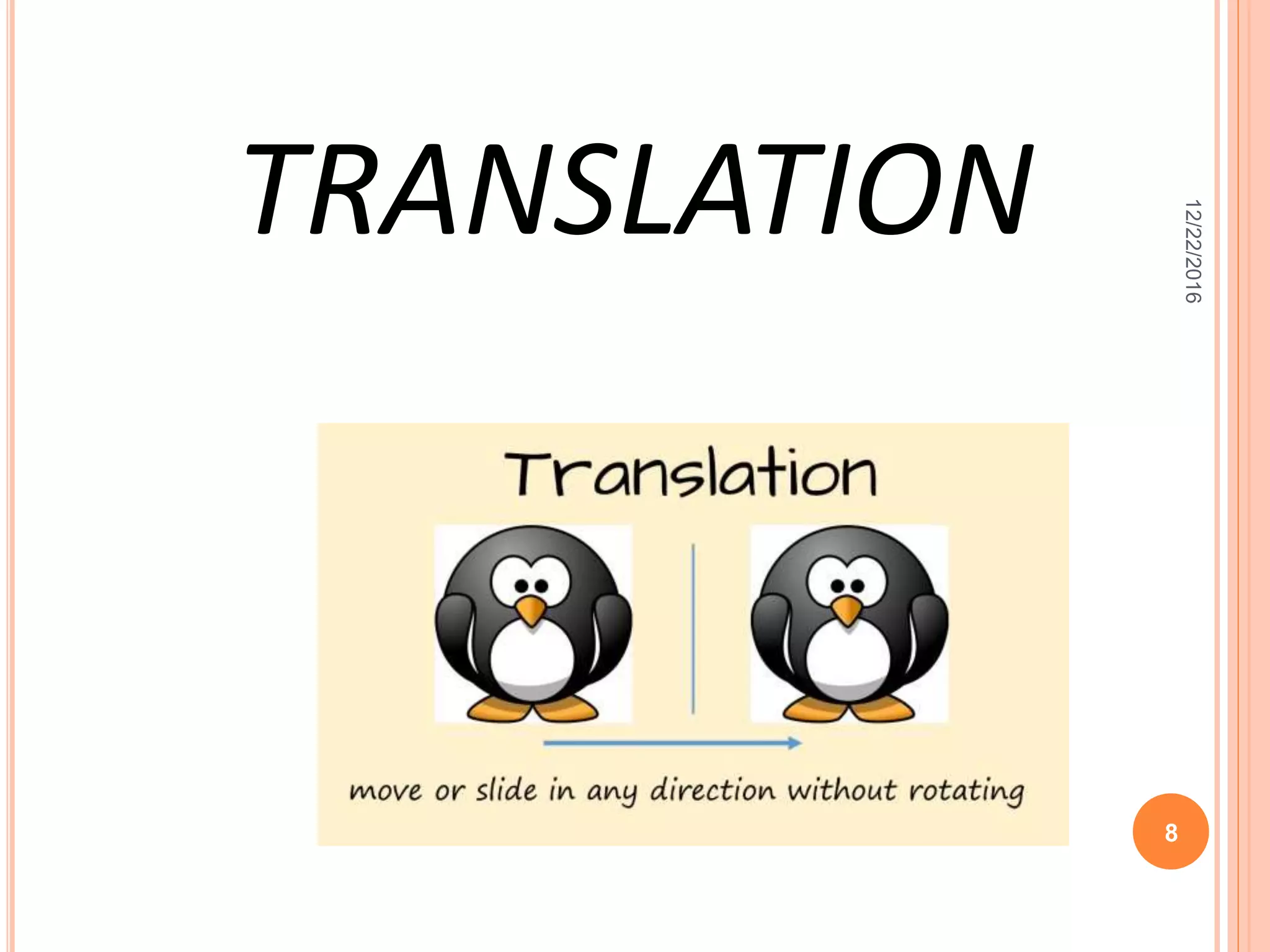

8. TRANSLATION
12/22/2016
8

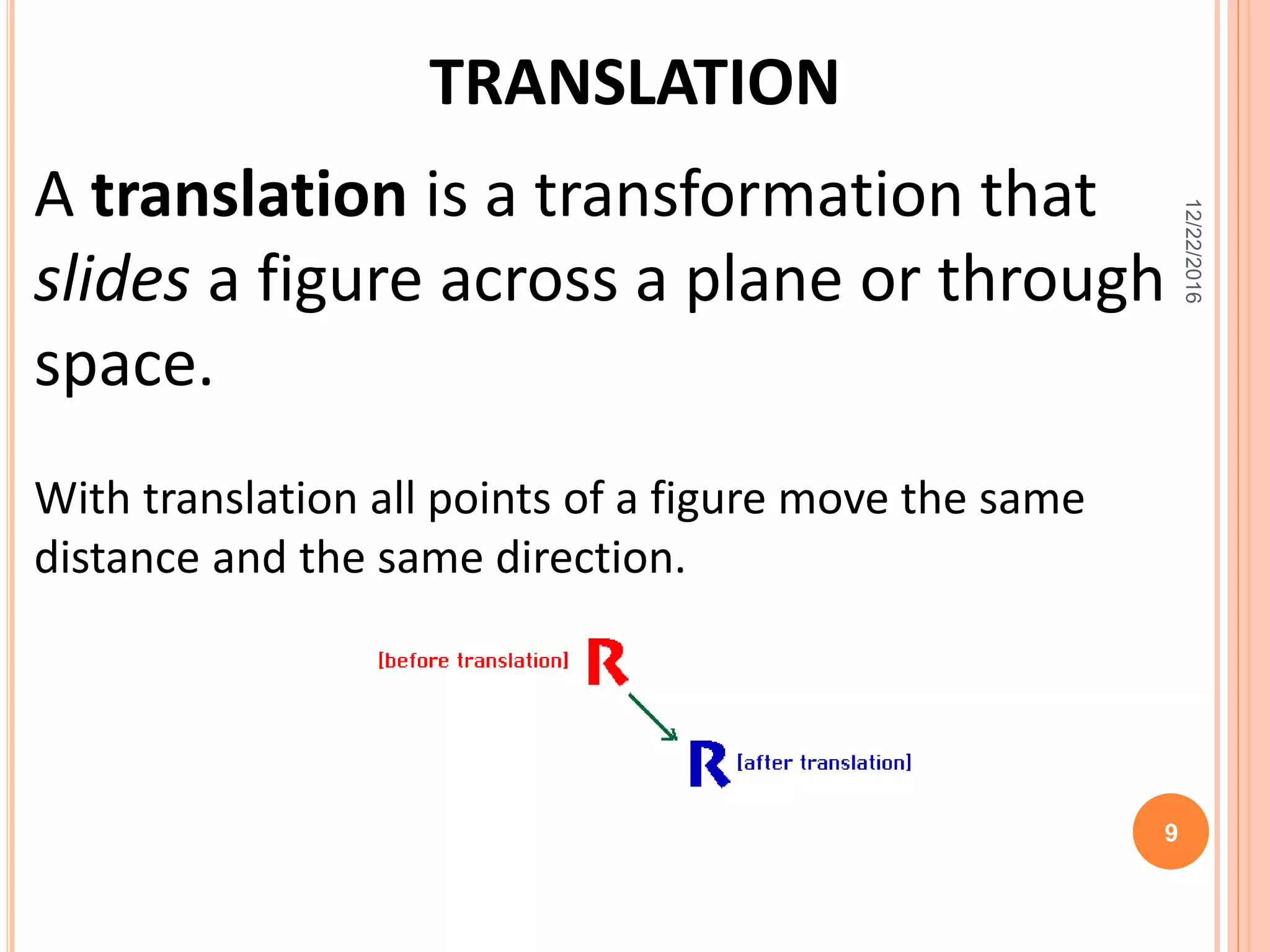

9. TRANSLATION
A translation is a transformation that
slides a figure across a plane or through
space.
With translation all points of a figure move the same
distance and the same direction.
12/22/2016
9

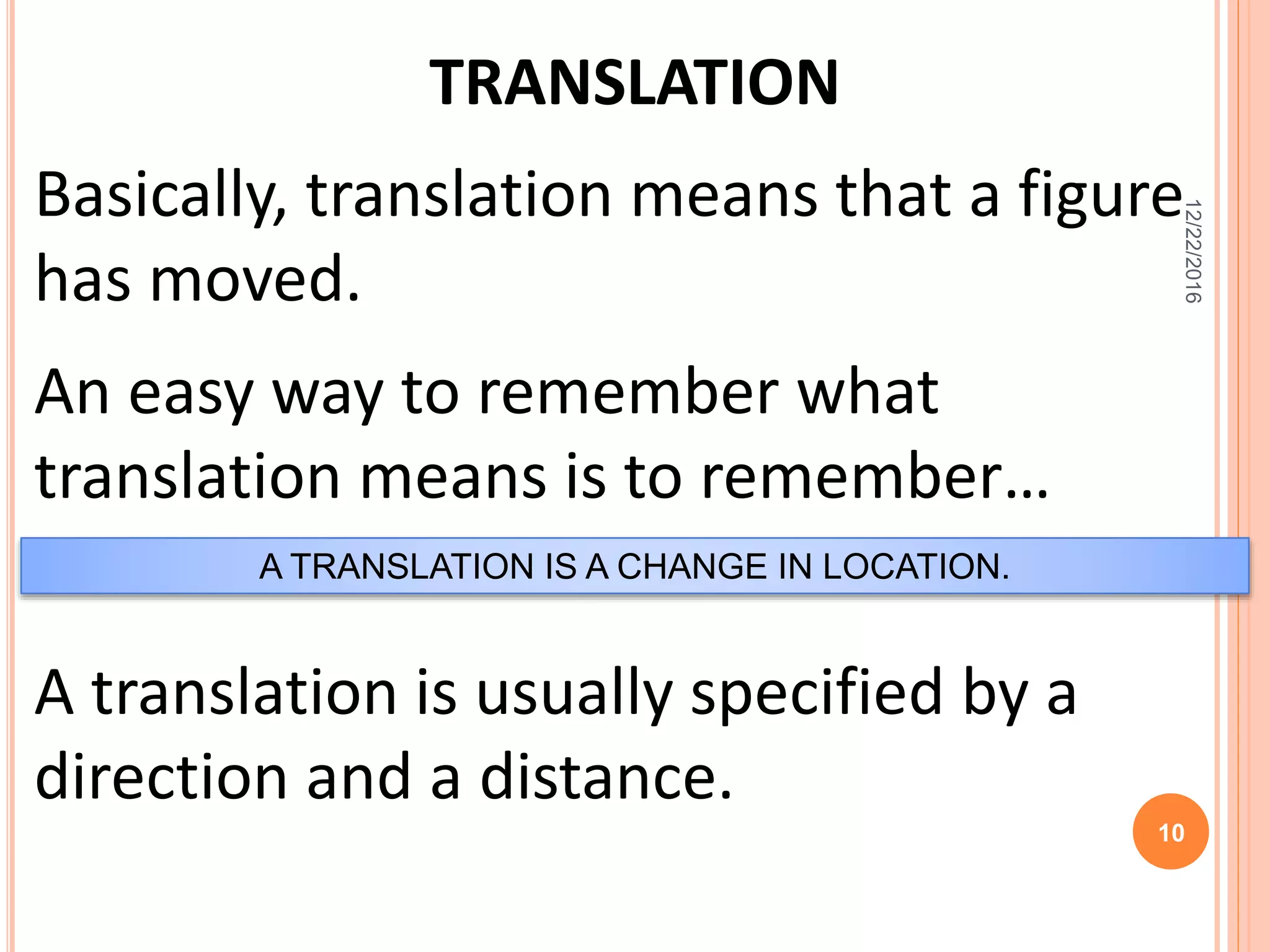

10. TRANSLATION
Basically, translation means that a figure
has moved.
An easy way to remember what
translation means is to remember…
A TRANSLATION IS A CHANGE IN LOCATION.
A translation is usually specified by a
direction and a distance.
12/22/2016
10

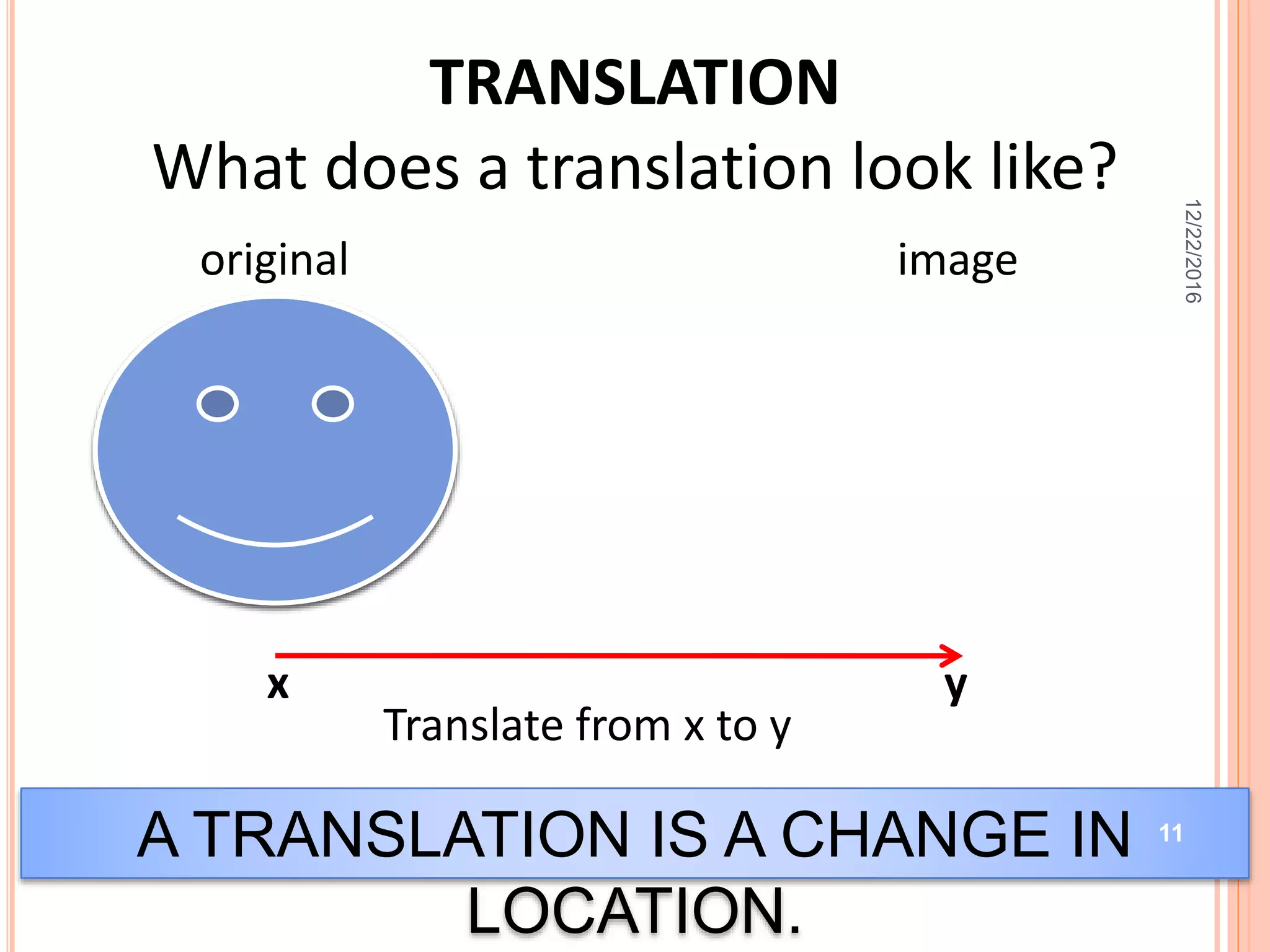

11. TRANSLATION
What does a translation look like?
A TRANSLATION IS A CHANGE IN
LOCATION.
x y
Translate from x to y
original image
12/22/2016
11

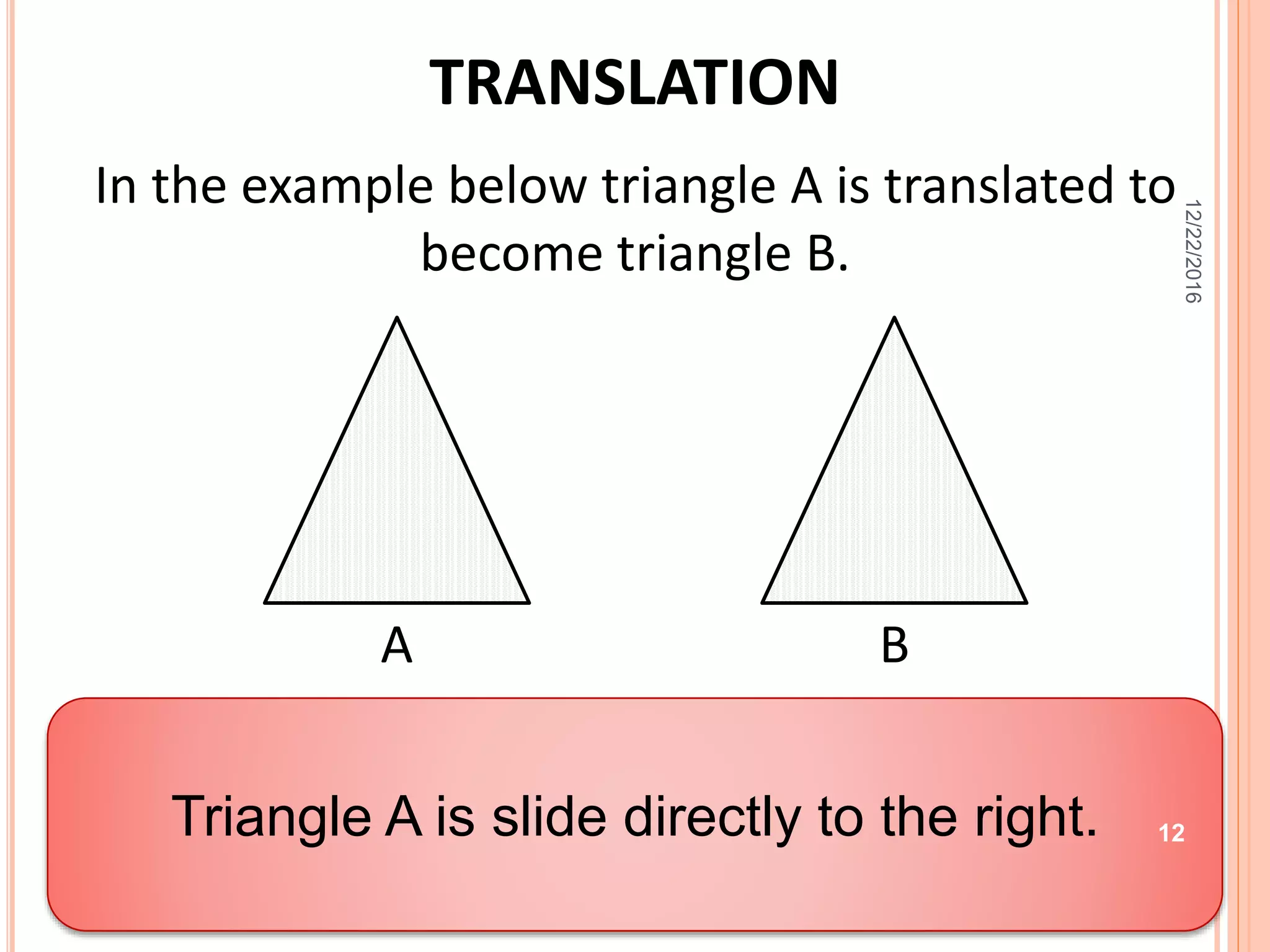

12. TRANSLATION
In the example below triangle A is translated to
become triangle B.
A B
Describe the translation.
Triangle A is slide directly to the right.
12/22/2016
12

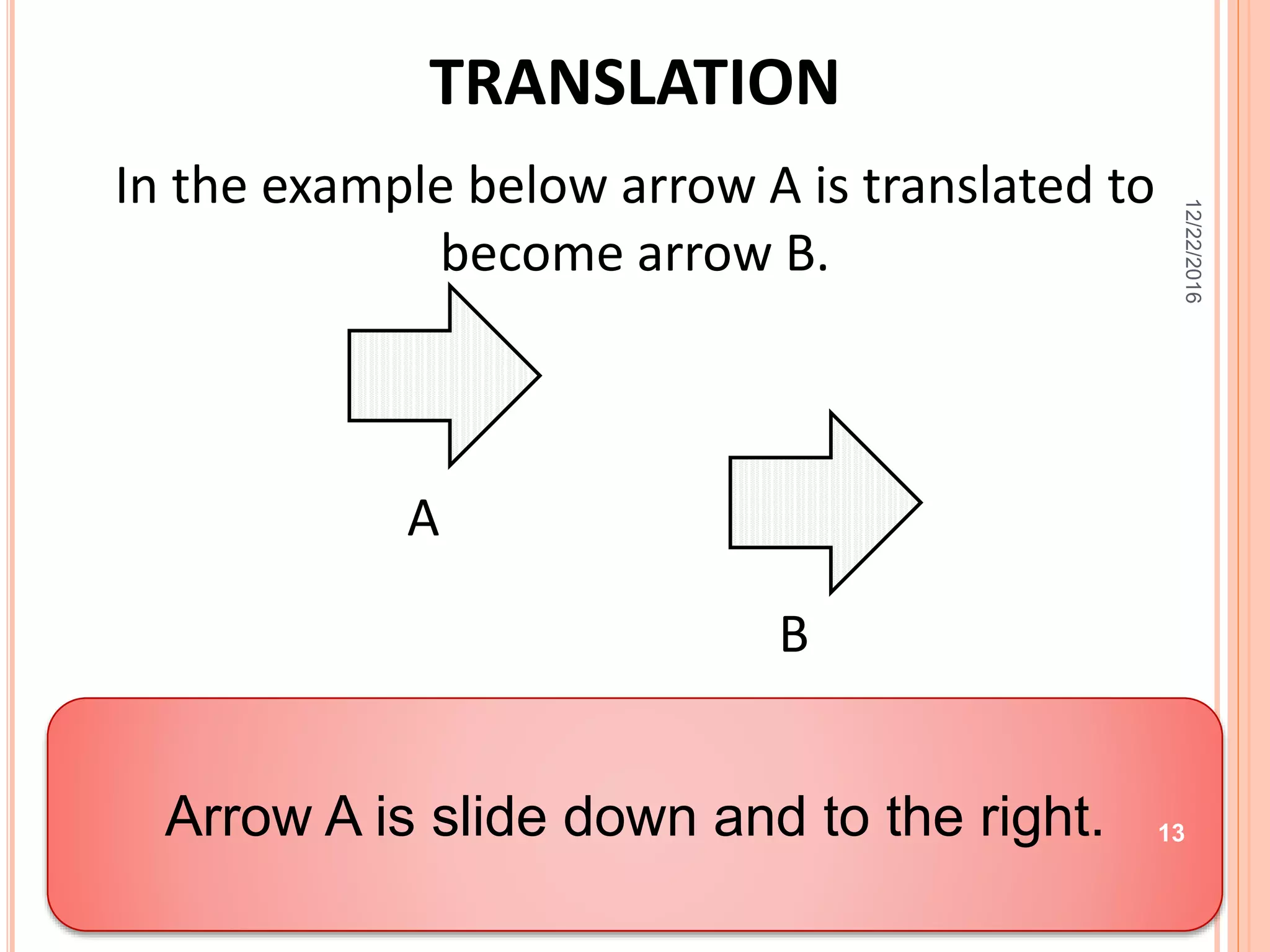

13. TRANSLATION
In the example below arrow A is translated to
become arrow B.
Describe the translation.
Arrow A is slide down and to the right.
A
B
12/22/2016
13

14. 12/22/2016
14

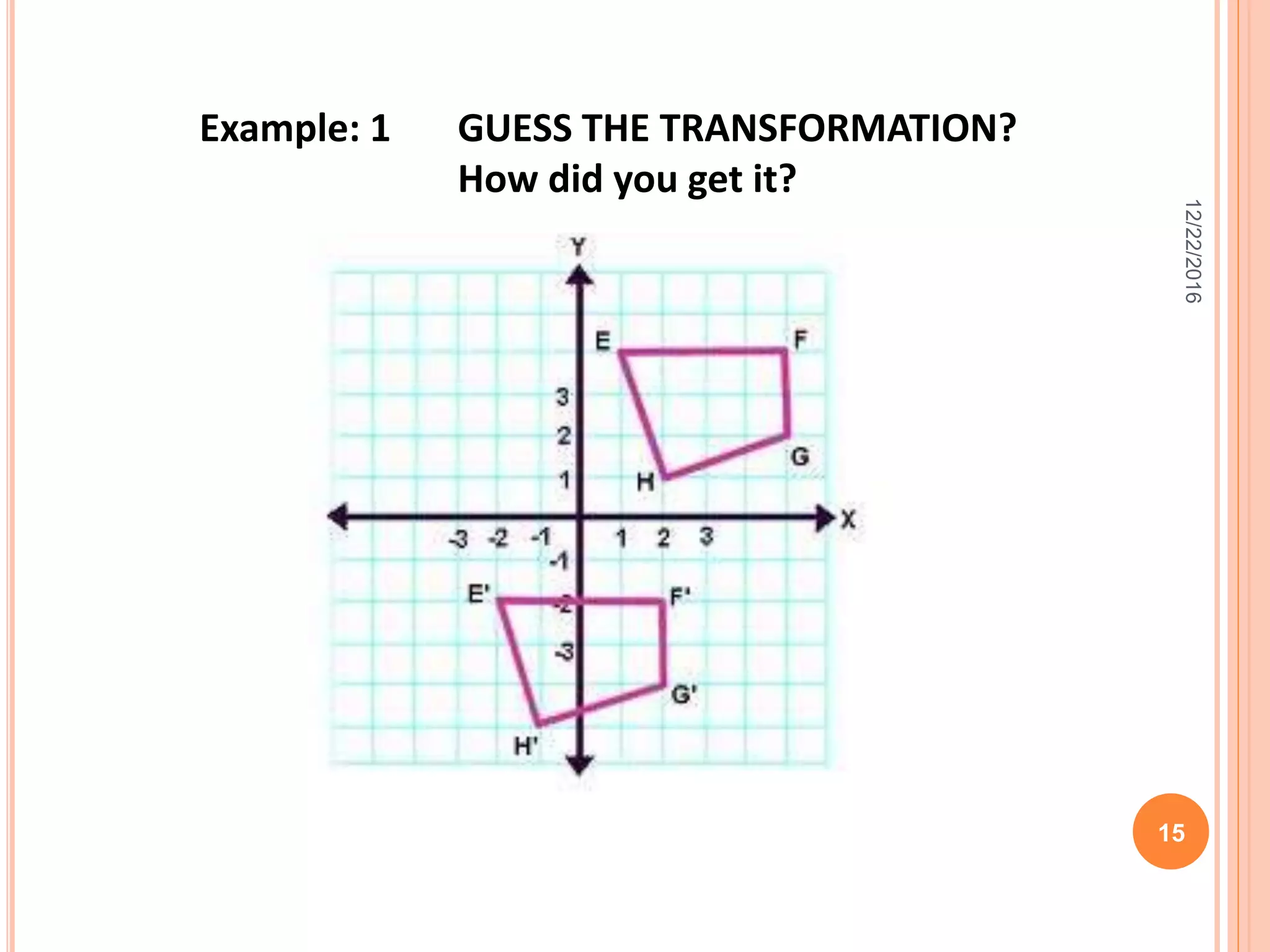

15. Example: 1 GUESS THE TRANSFORMATION?
How did you get it?
12/22/2016
15

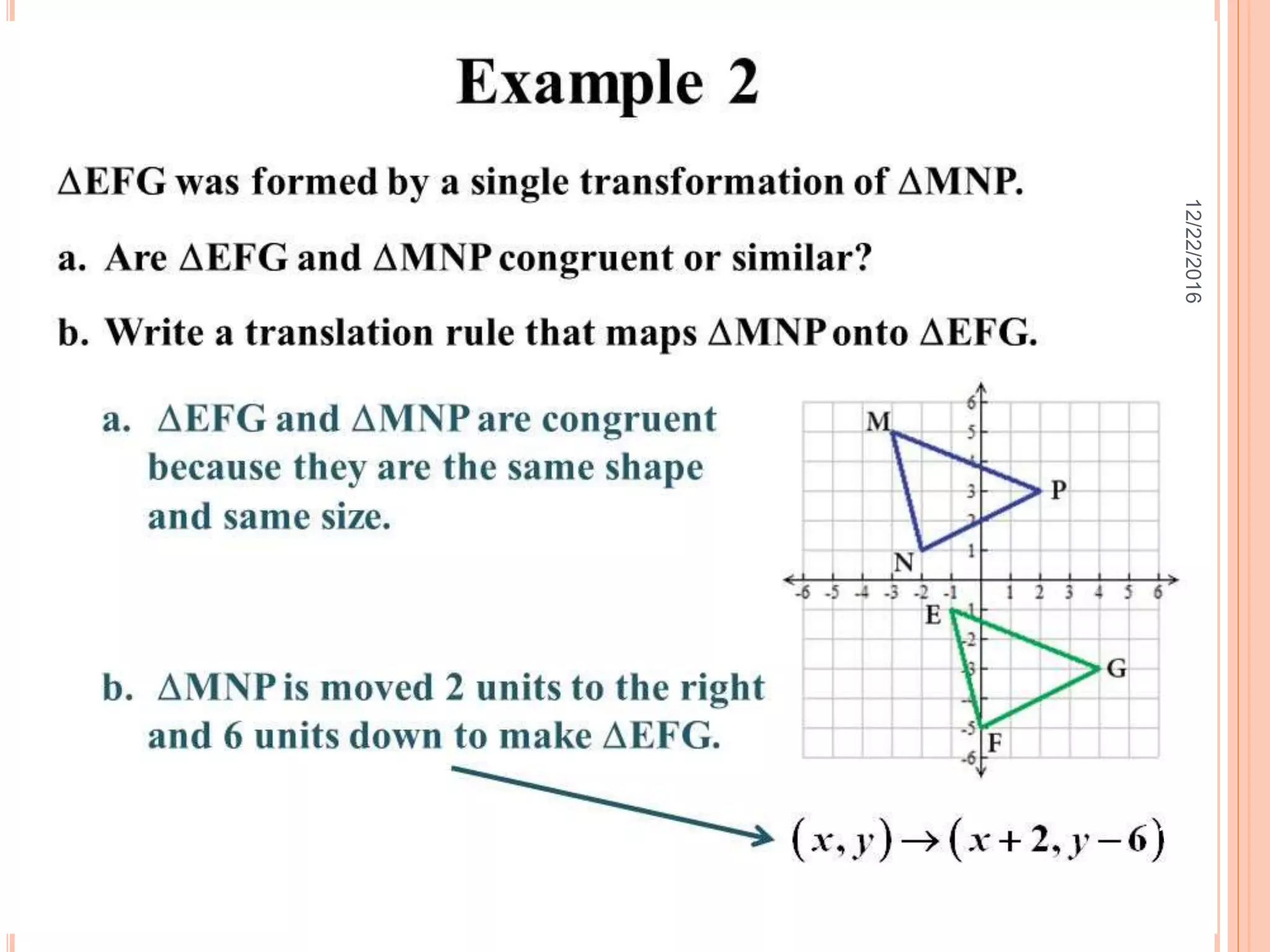

16. 12/22/2016
16

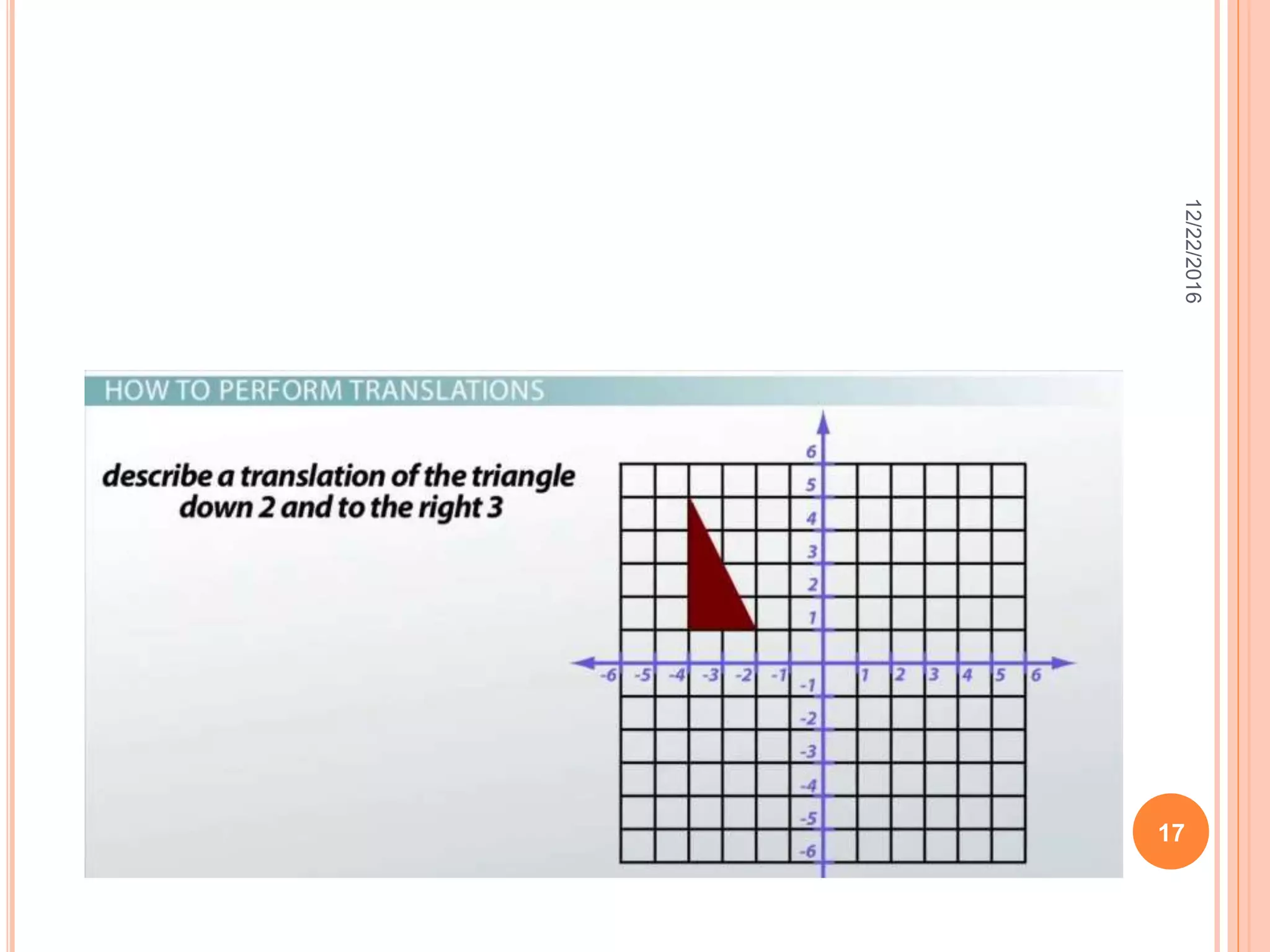

17. 12/22/2016
17

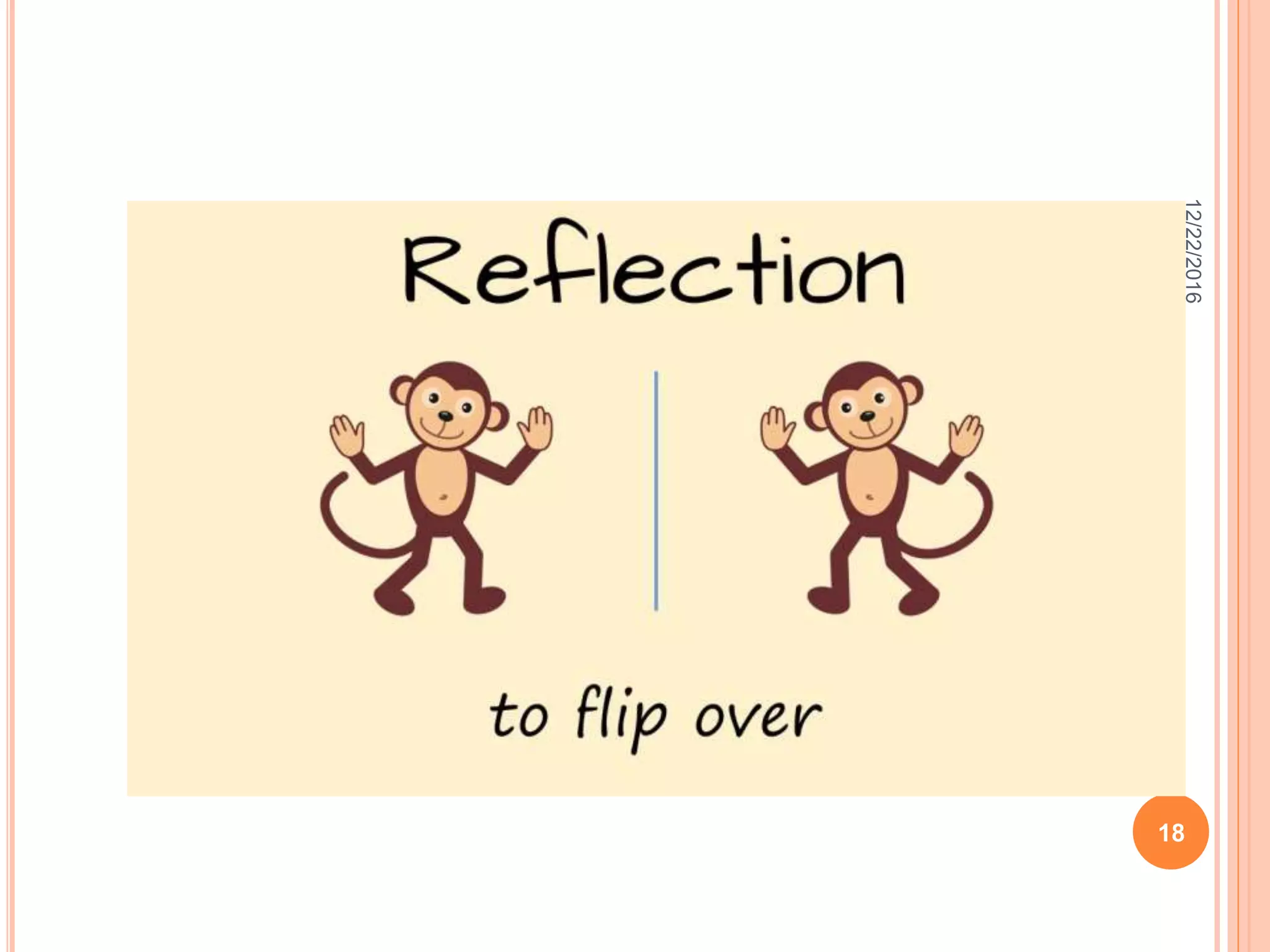

18. 12/22/2016
18

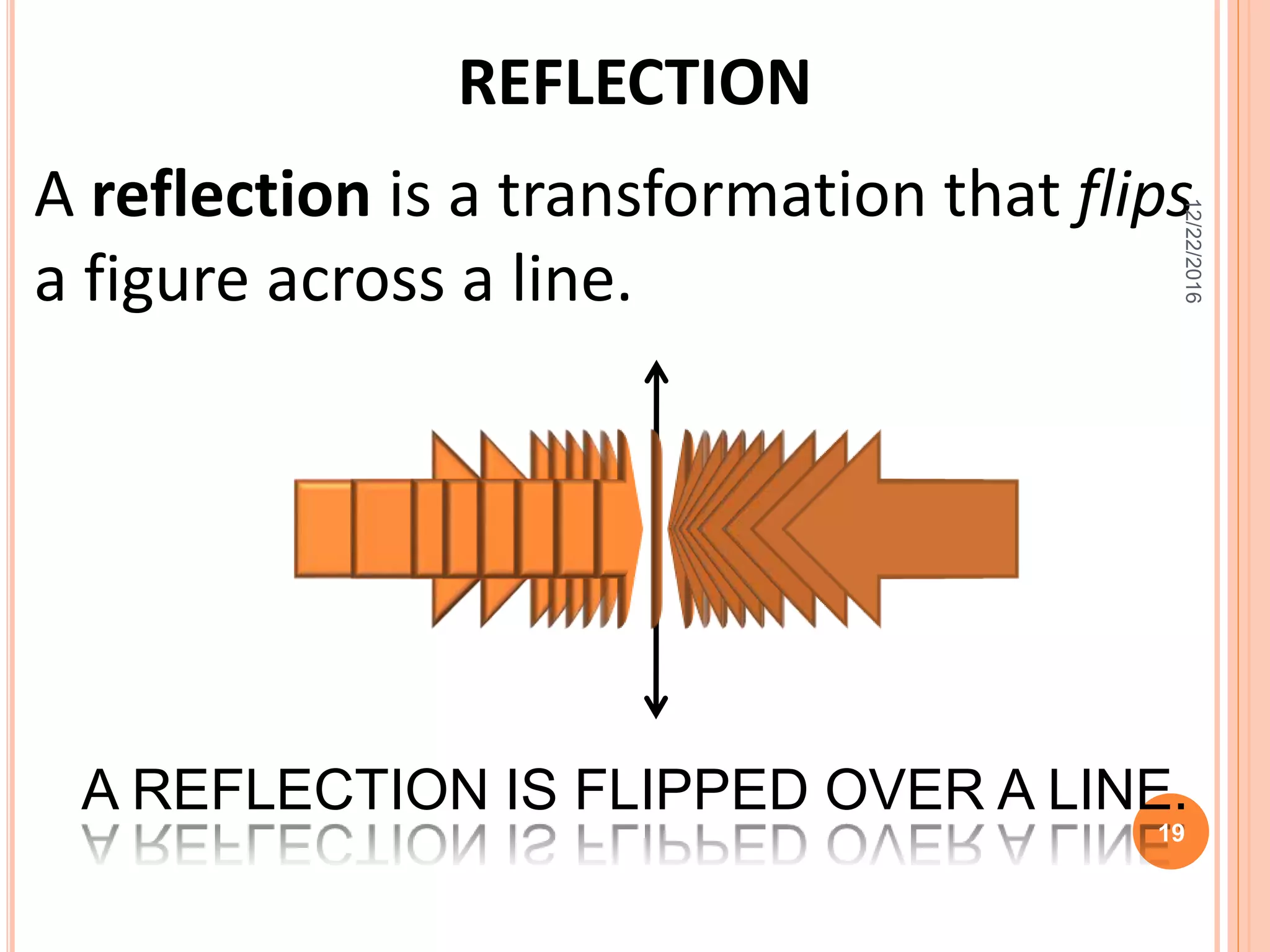

19. REFLECTION
A REFLECTION IS FLIPPED OVER A LINE.
A reflection is a transformation that flips
a figure across a line.
12/22/2016
19

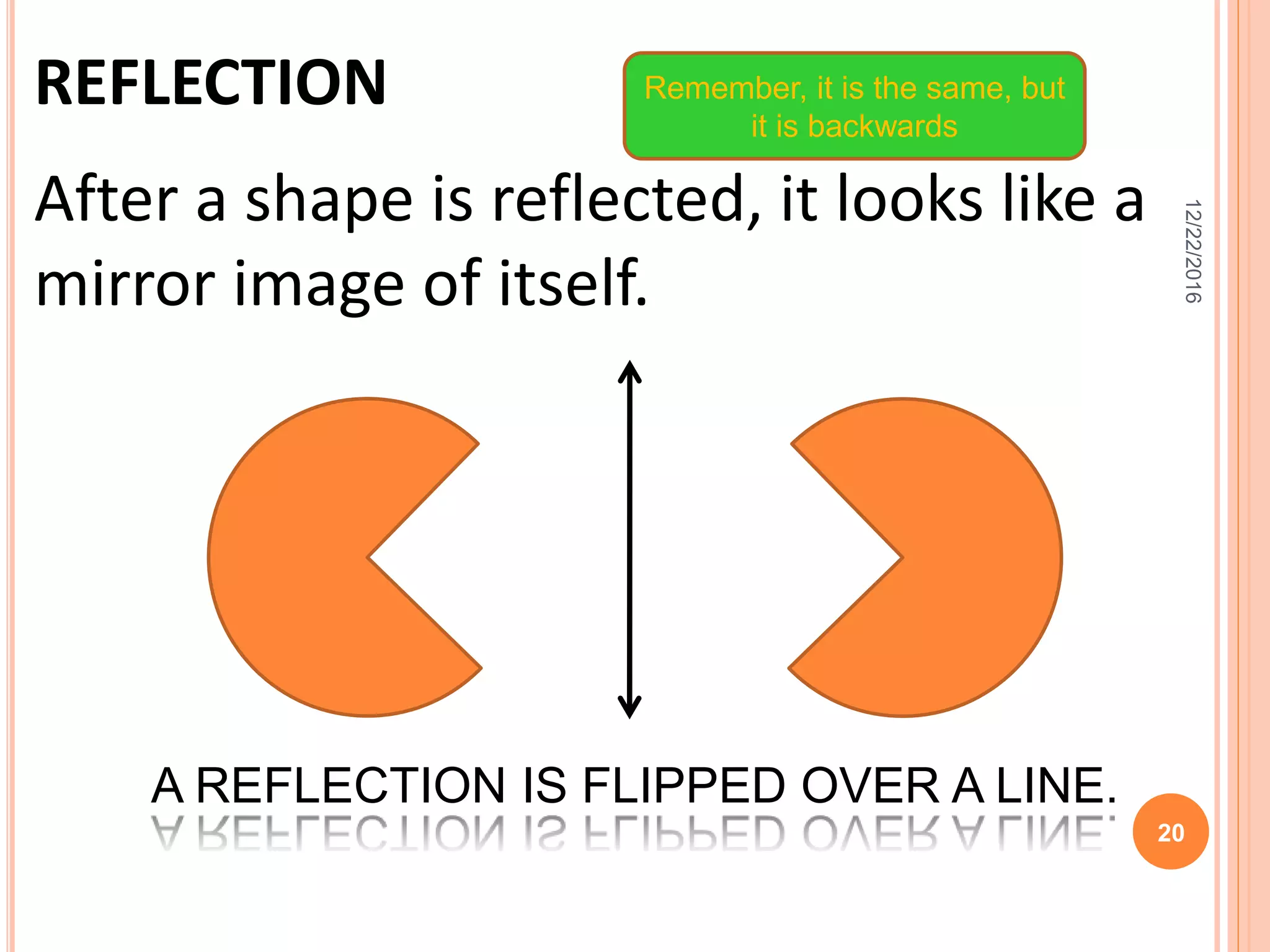

20. REFLECTION
A REFLECTION IS FLIPPED OVER A LINE.
After a shape is reflected, it looks like a
mirror image of itself.
Remember, it is the same, but
it is backwards
12/22/2016
20

21. 12/22/2016
21
REFLECTION

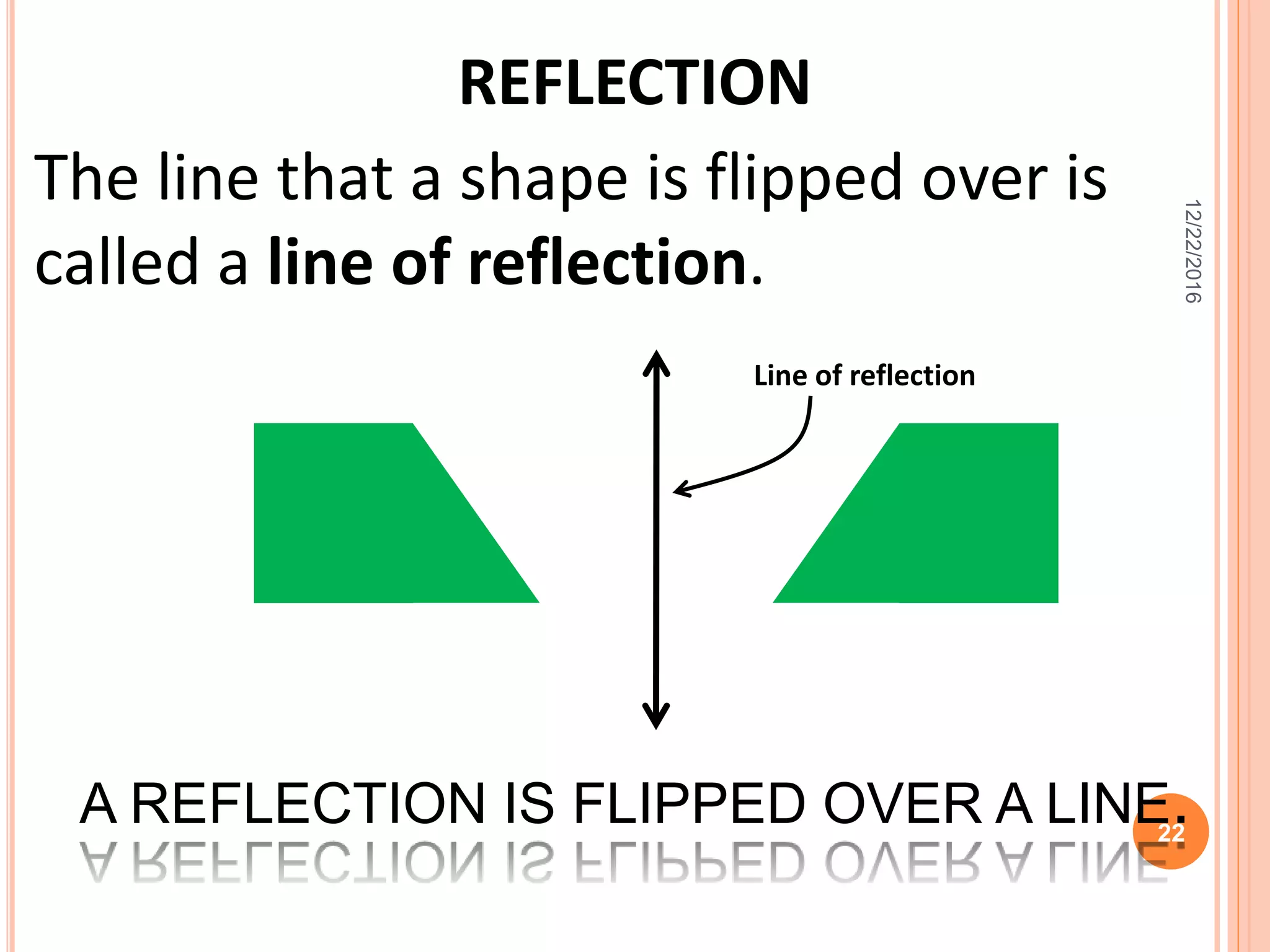

22. REFLECTION
The line that a shape is flipped over is
called a line of reflection.
A REFLECTION IS FLIPPED OVER A LINE.
Line of reflection
12/22/2016
22

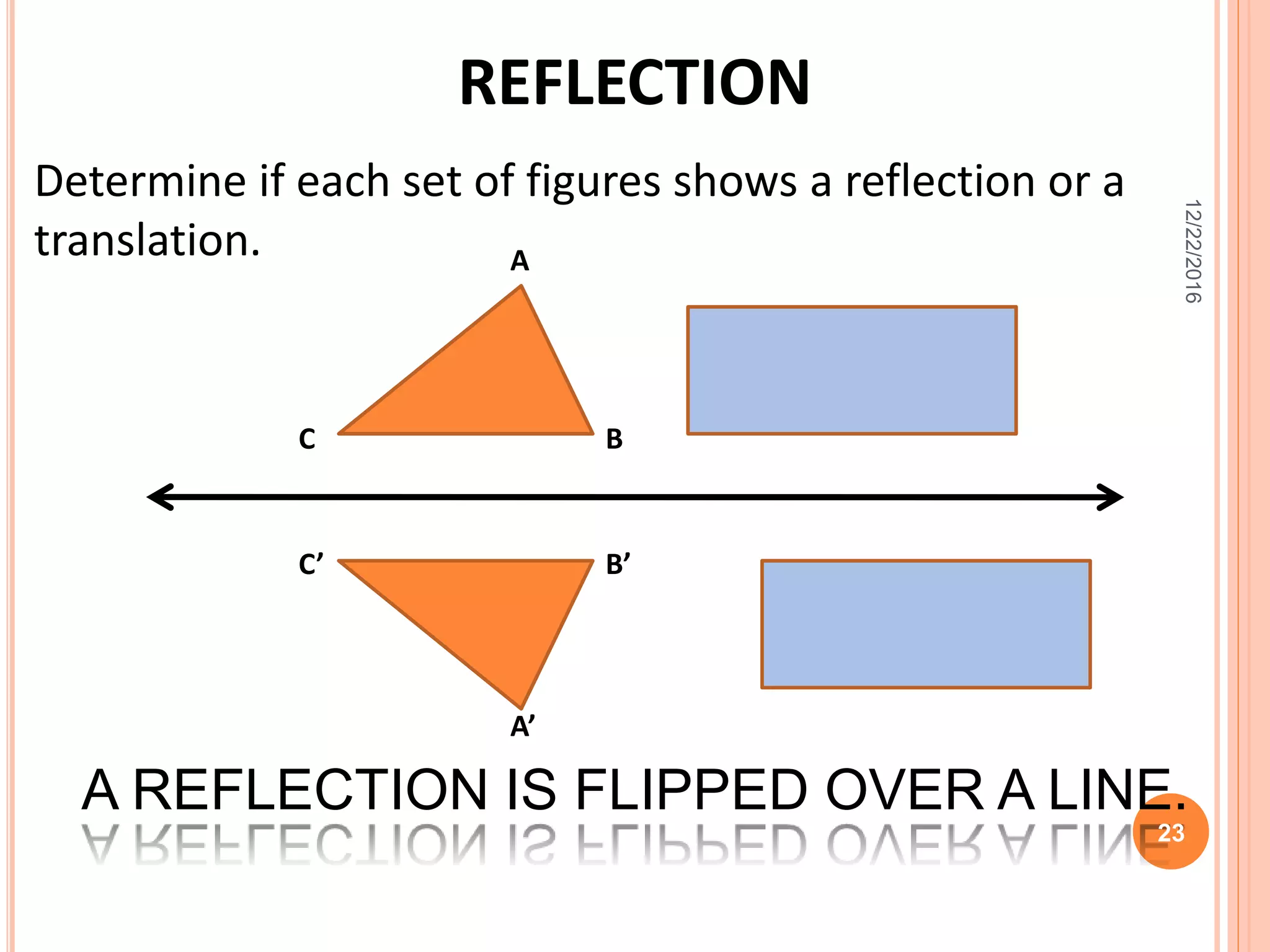

23. REFLECTION
Determine if each set of figures shows a reflection or a
translation.
A REFLECTION IS FLIPPED OVER A LINE.
A
BC
A’
B’C’
12/22/2016
23

24. 12/22/2016
24

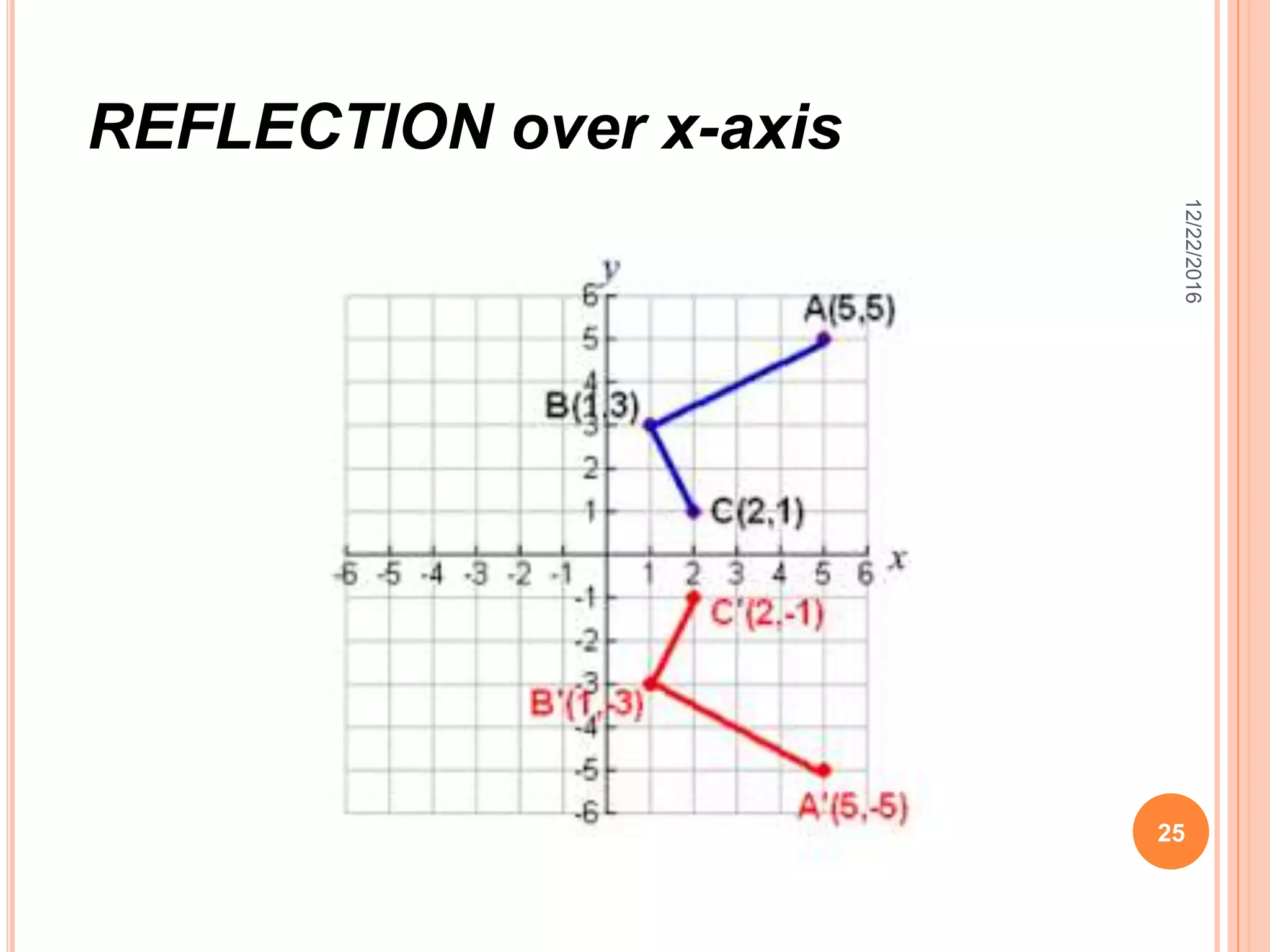

25. 12/22/2016
25

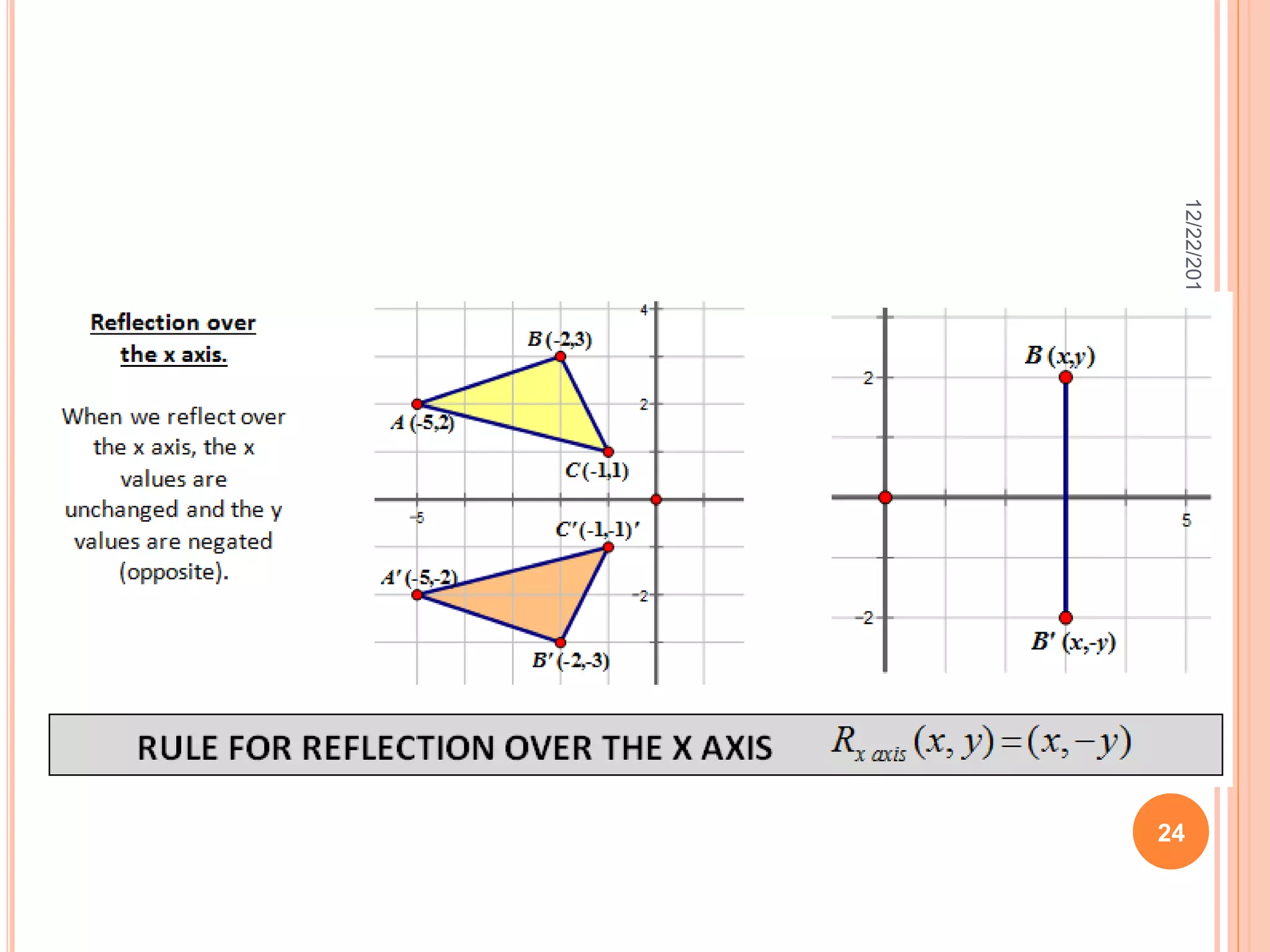

REFLECTION over x-axis

26. 12/22/2016
26

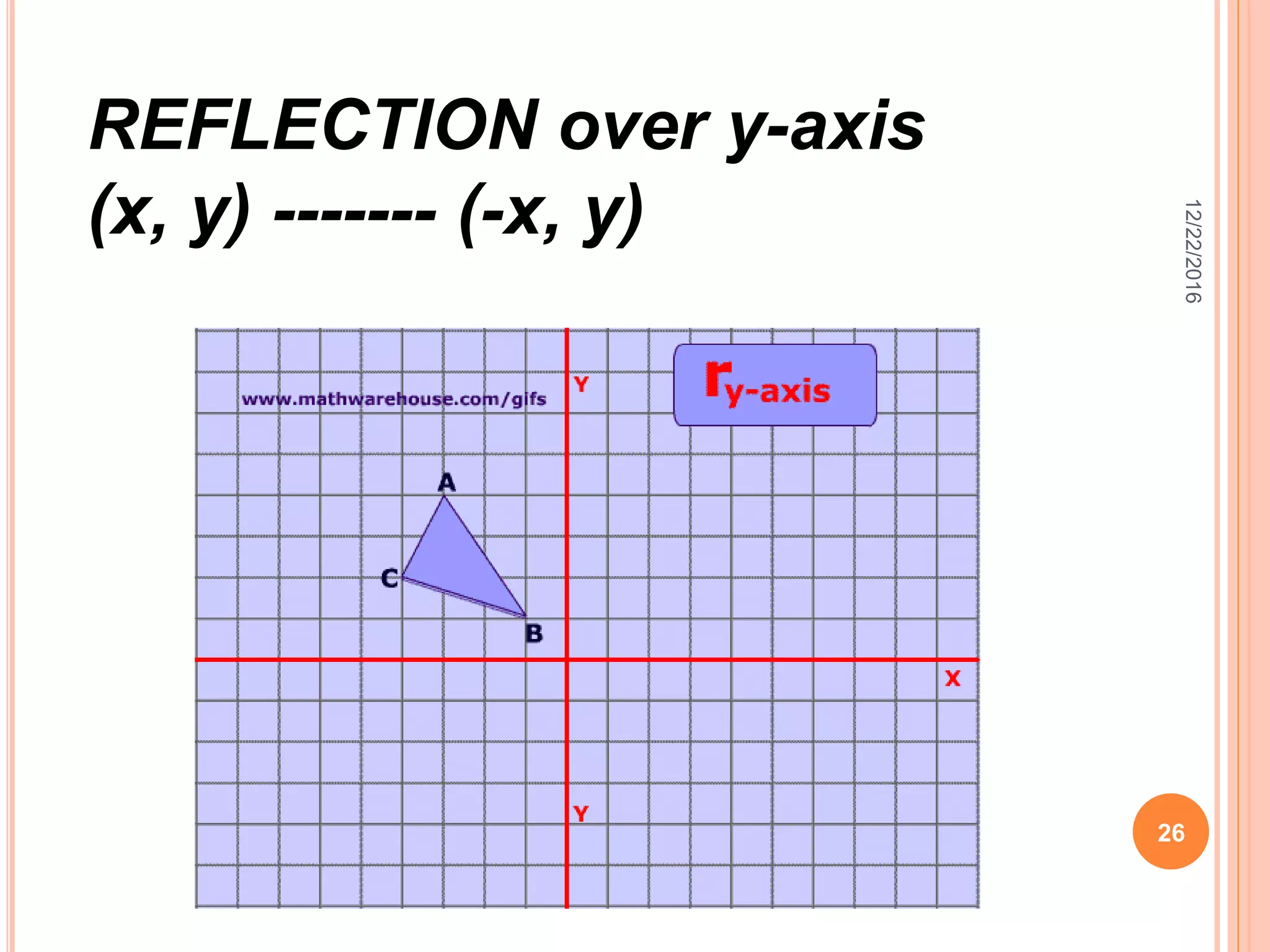

REFLECTION over y-axis
(x, y) ------- (-x, y)

27. 12/22/2016
27

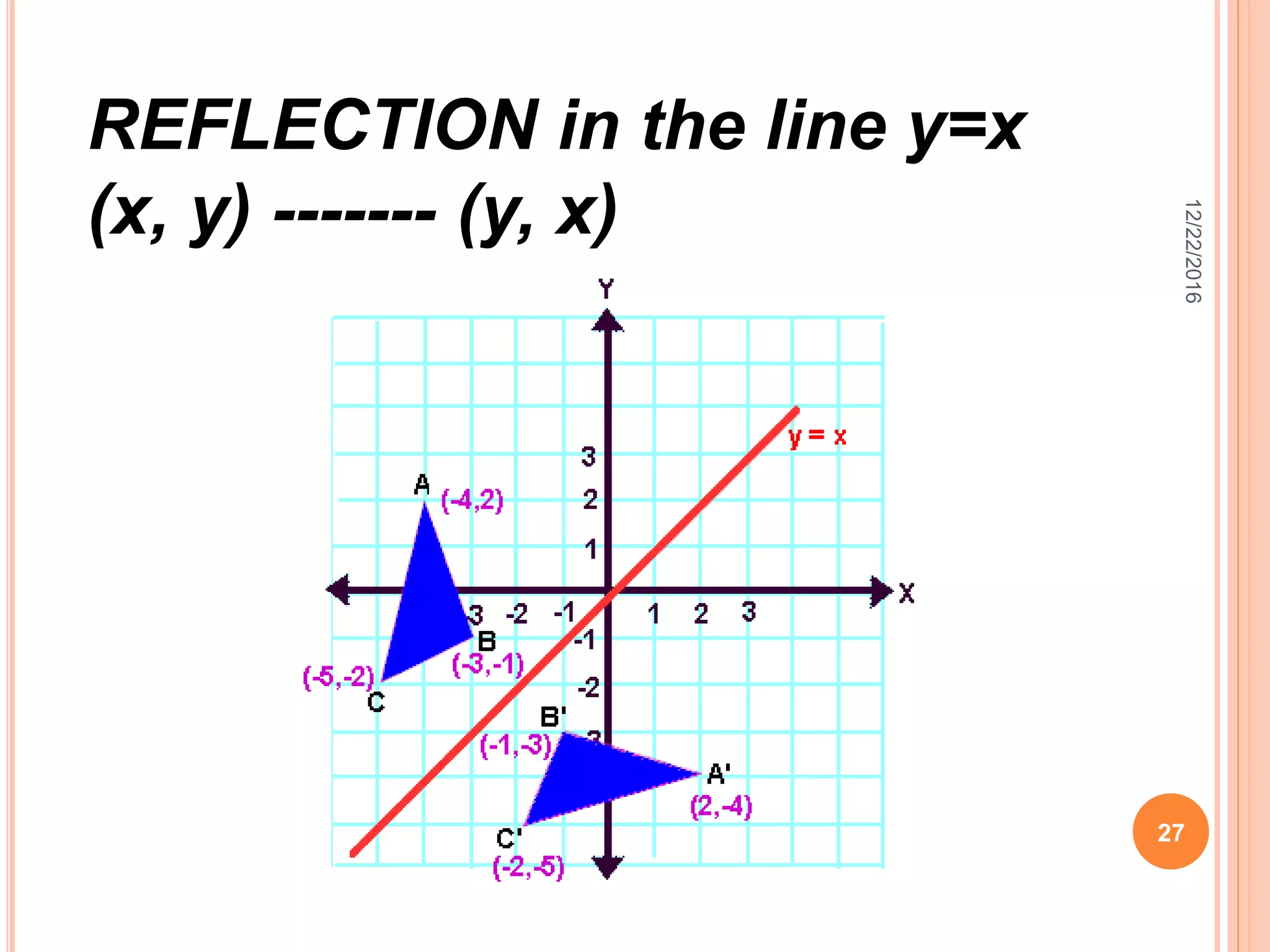

REFLECTION in the line y=x
(x, y) ------- (y, x)

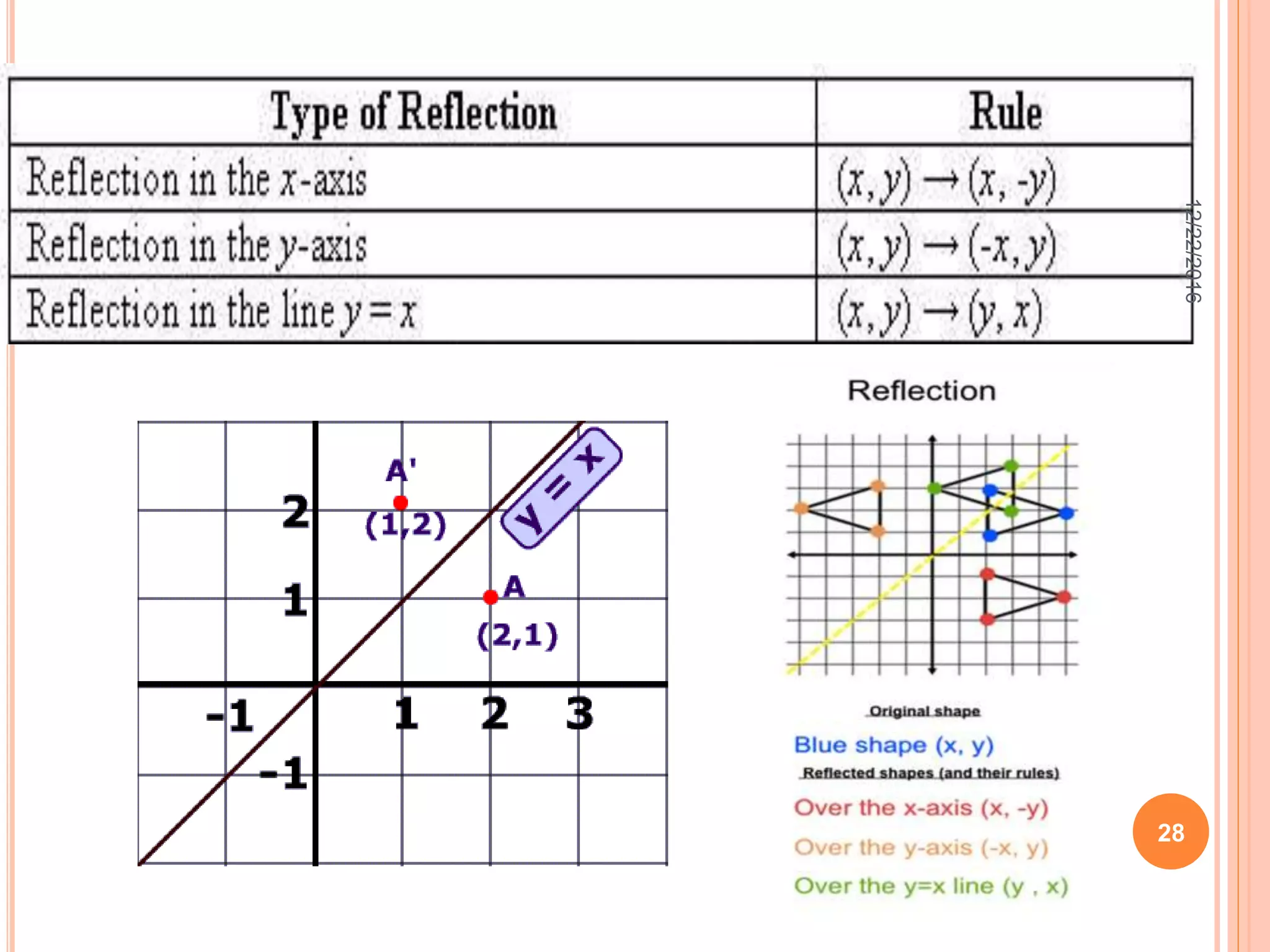

28. 12/22/2016
28

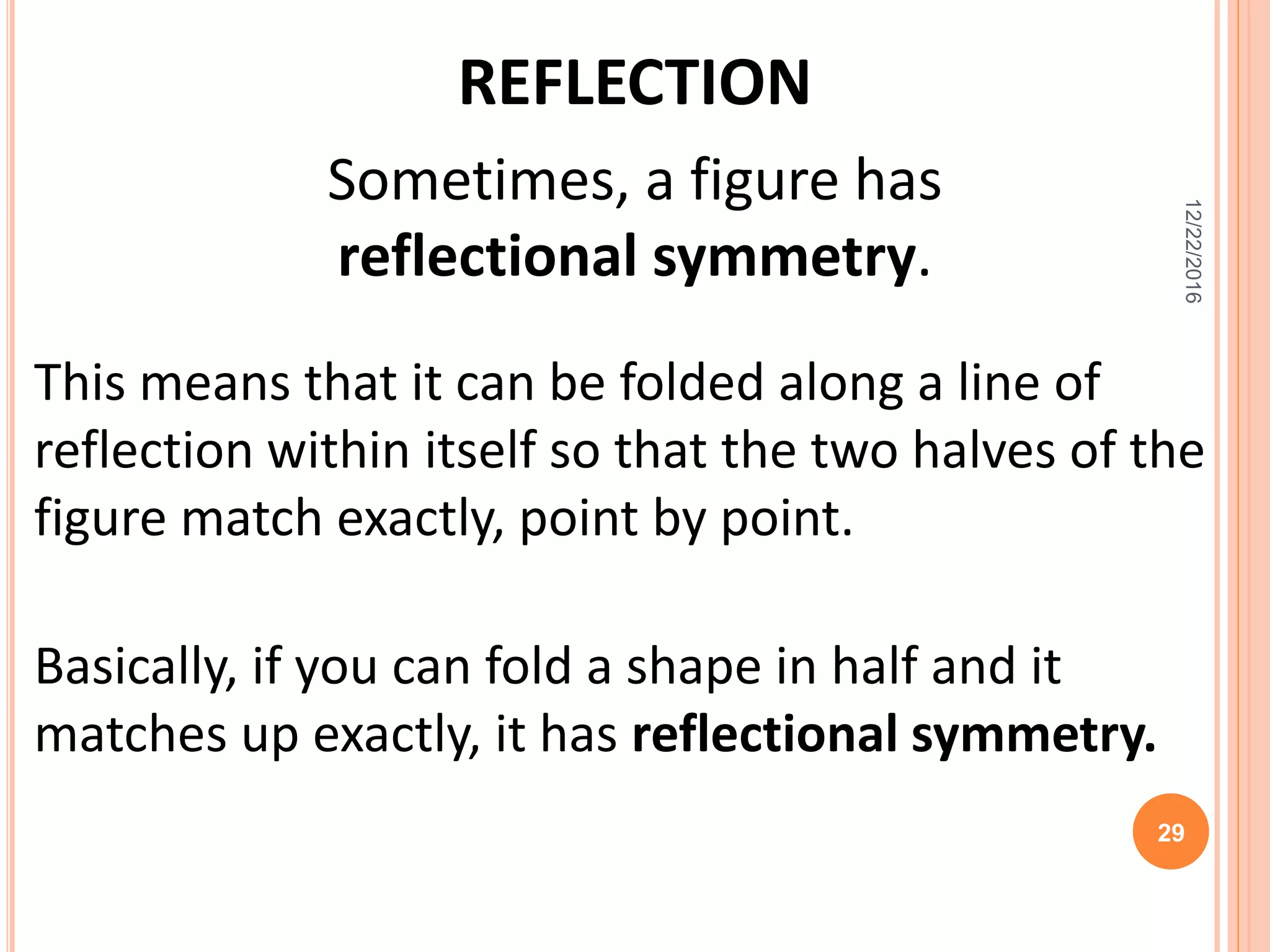

29. REFLECTION
Sometimes, a figure has
reflectional symmetry.
This means that it can be folded along a line of
reflection within itself so that the two halves of the
figure match exactly, point by point.
Basically, if you can fold a shape in half and it
matches up exactly, it has reflectional symmetry.
12/22/2016
29

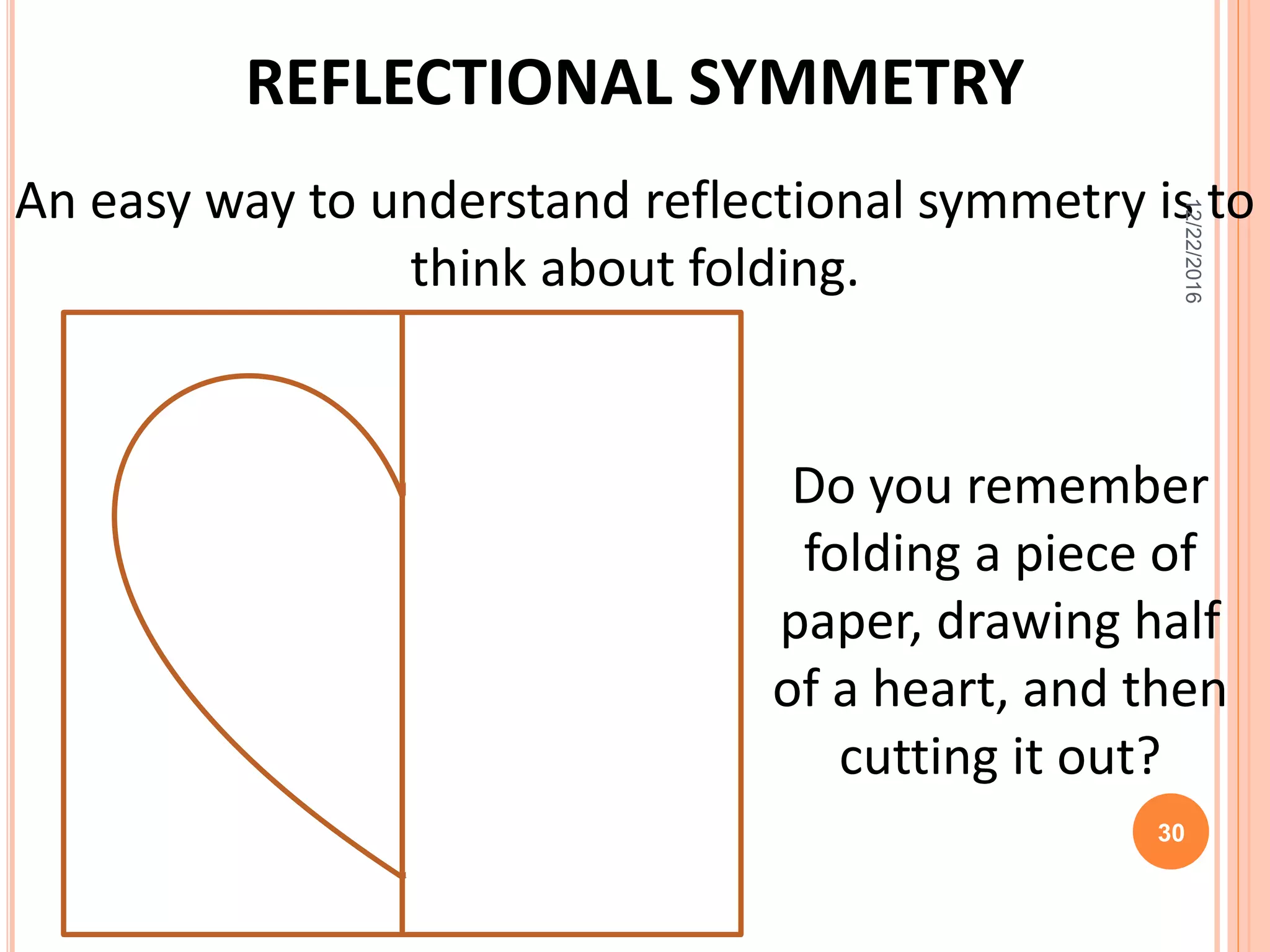

30. REFLECTIONAL SYMMETRY
An easy way to understand reflectional symmetry is to
think about folding.
Do you remember
folding a piece of
paper, drawing half
of a heart, and then
cutting it out?
12/22/2016
30

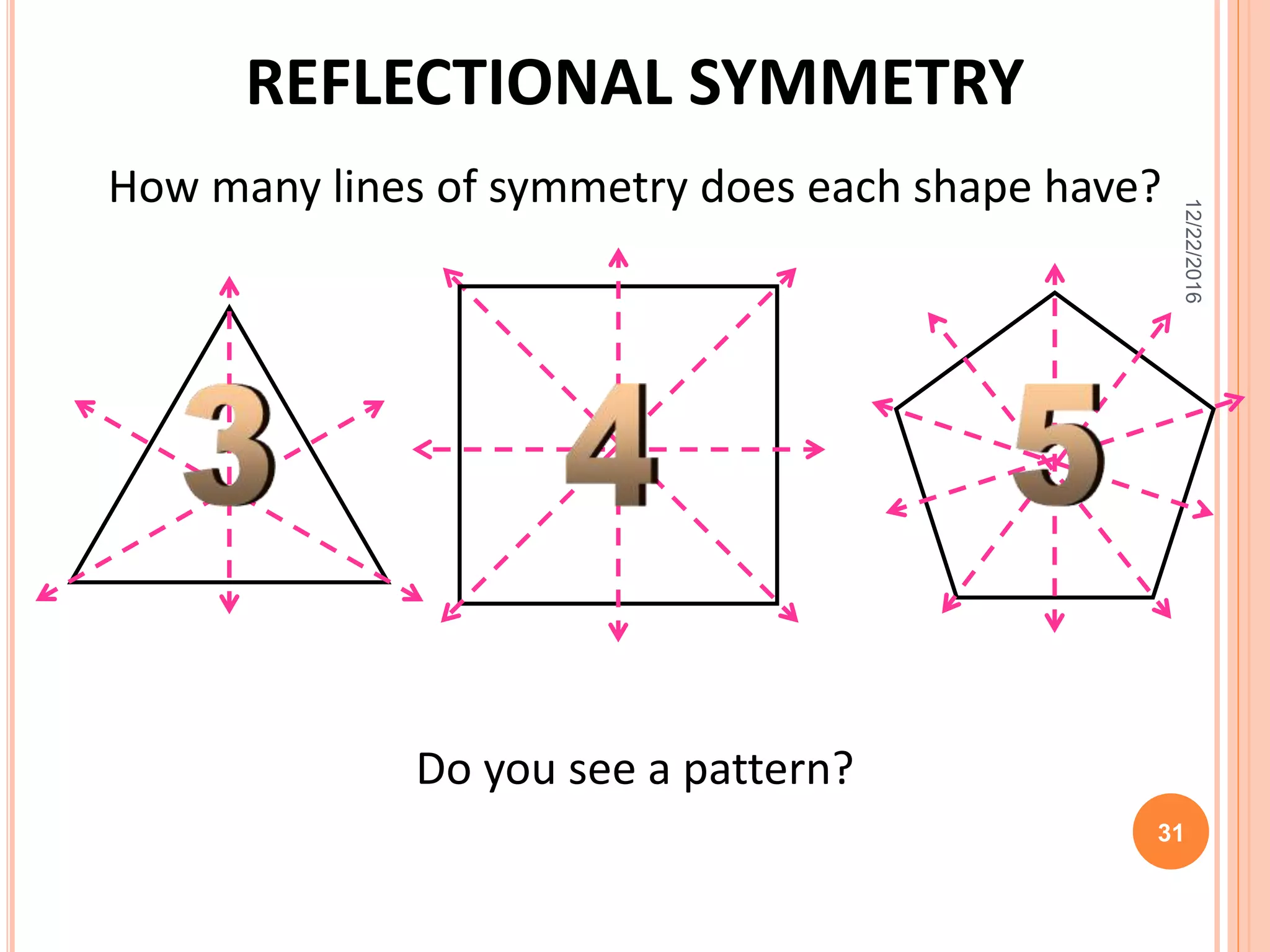

31. REFLECTIONAL SYMMETRY
How many lines of symmetry does each shape have?
Do you see a pattern?
12/22/2016
31

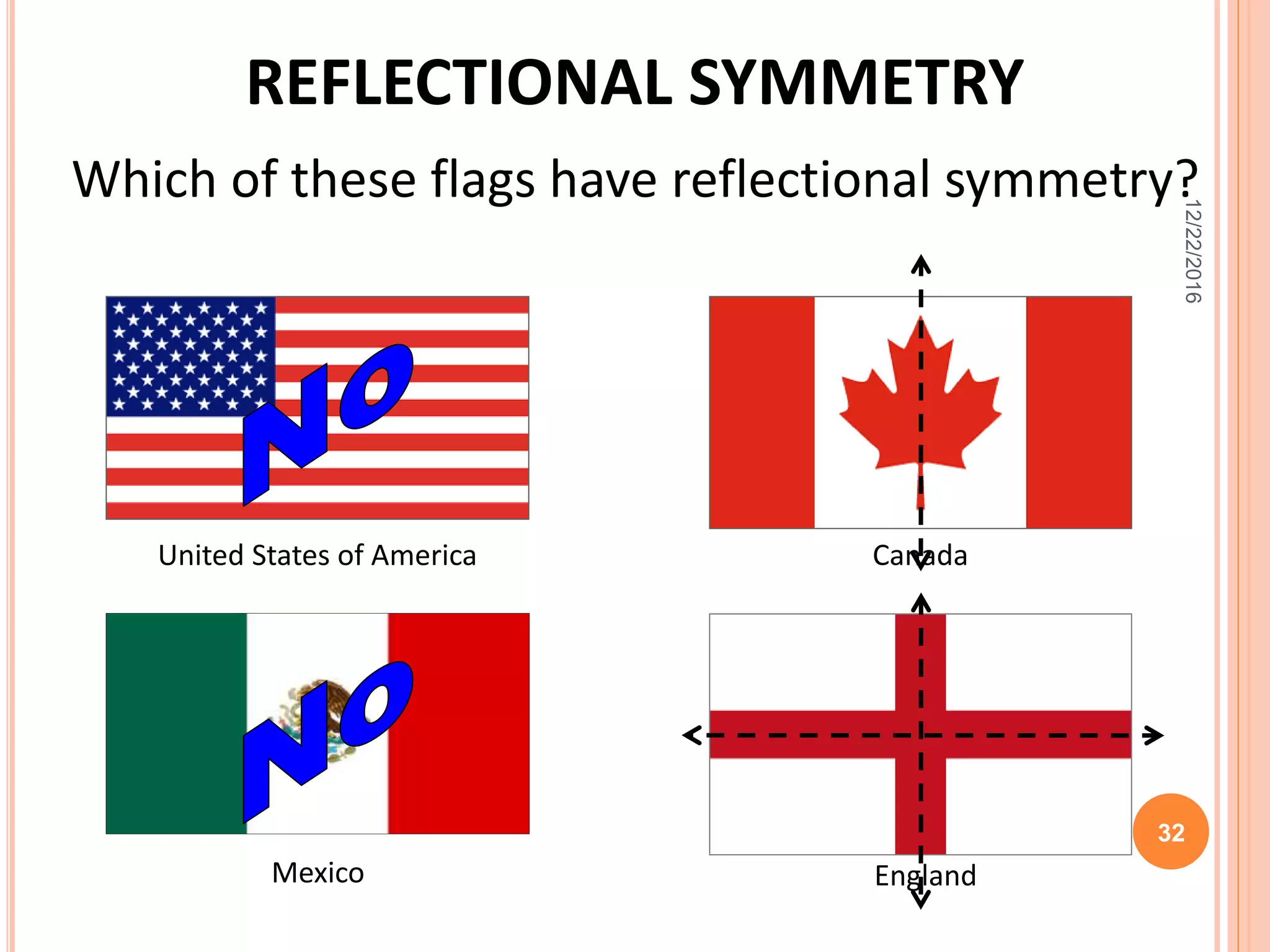

32. REFLECTIONAL SYMMETRY
Which of these flags have reflectional symmetry?
United States of America
Mexico
Canada
England
12/22/2016
32

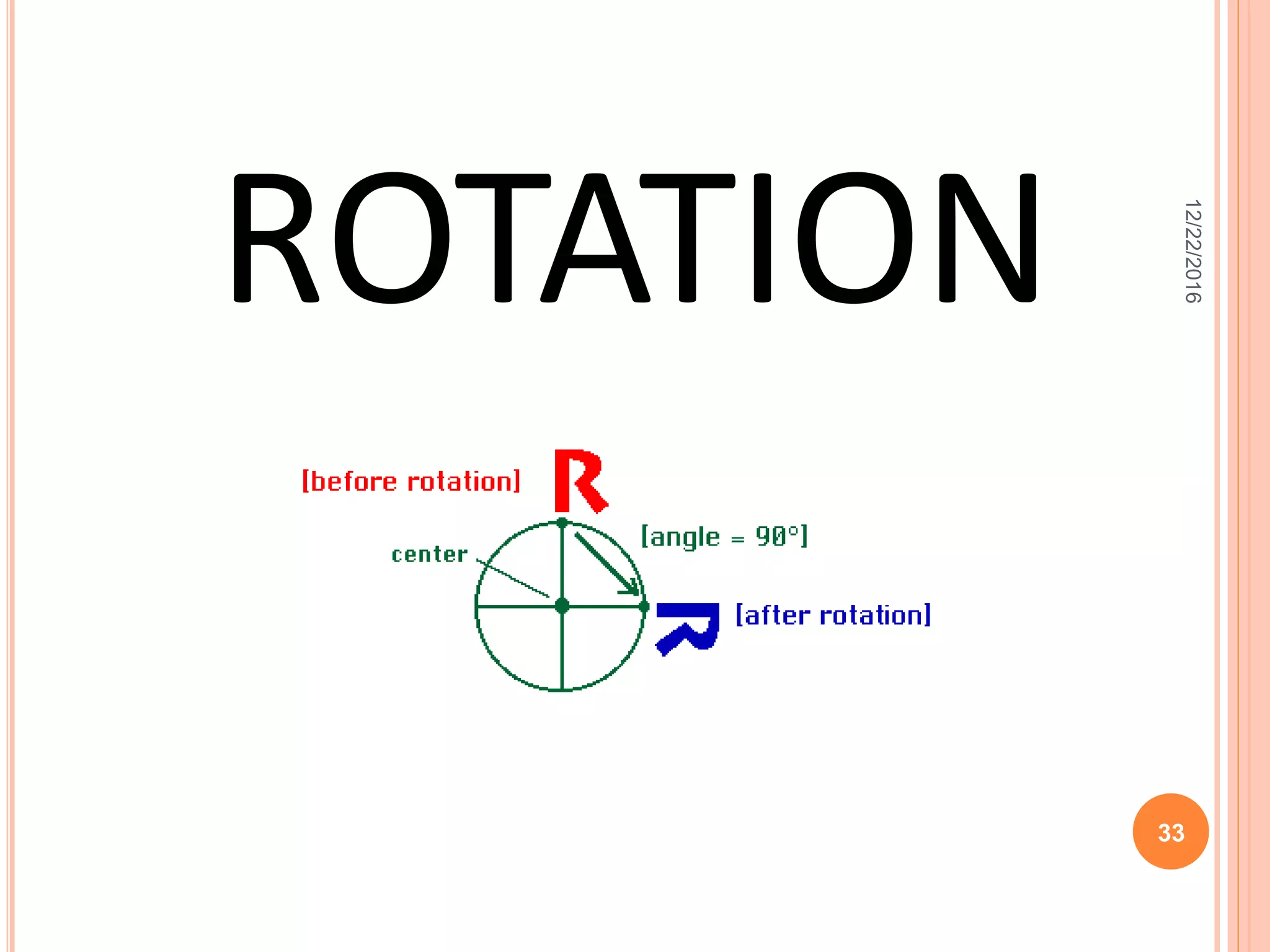

33. ROTATION
12/22/2016
33

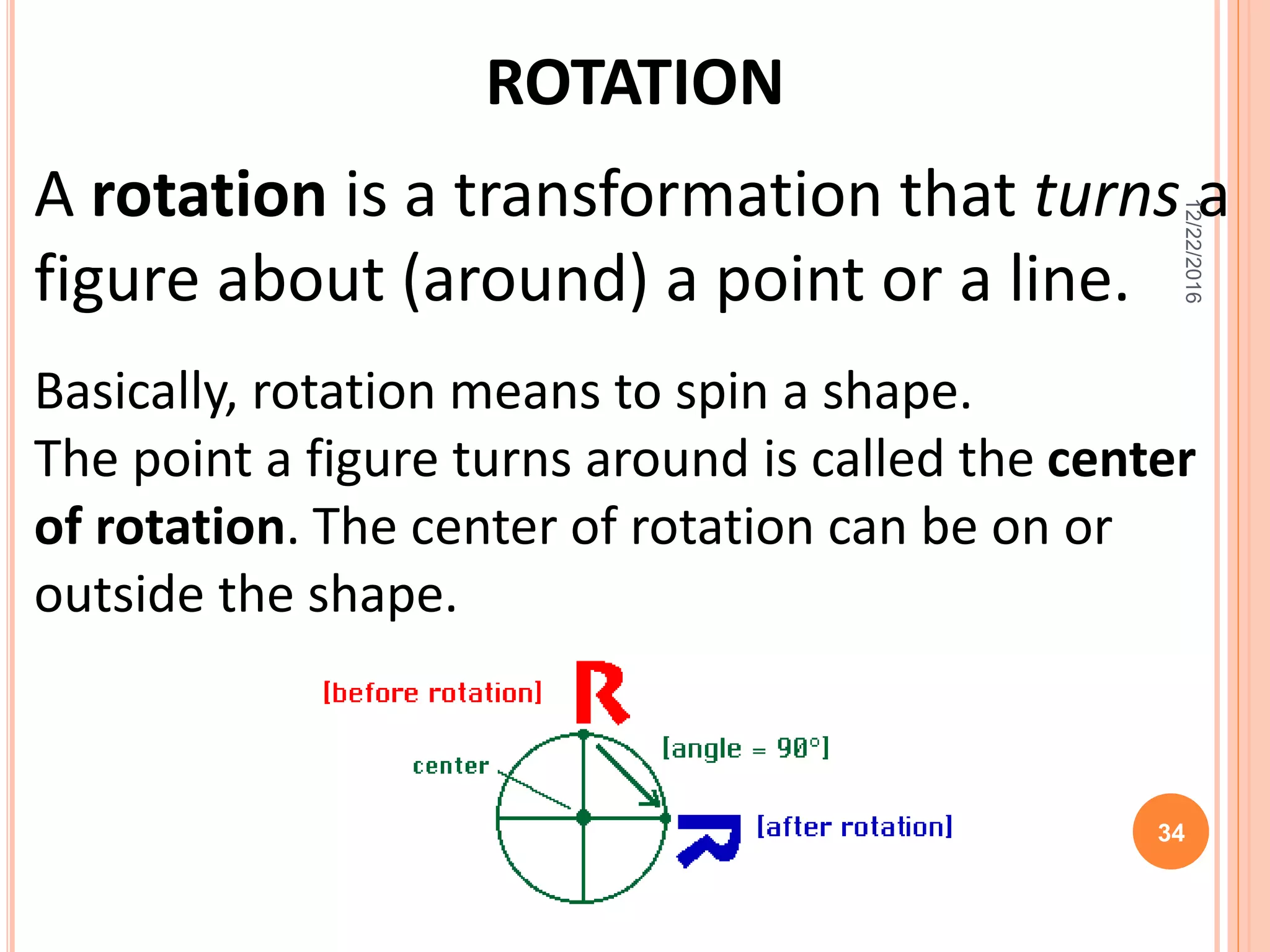

34. ROTATION
A rotation is a transformation that turns a
figure about (around) a point or a line.
Basically, rotation means to spin a shape.
The point a figure turns around is called the center
of rotation. The center of rotation can be on or
outside the shape.
12/22/2016
34

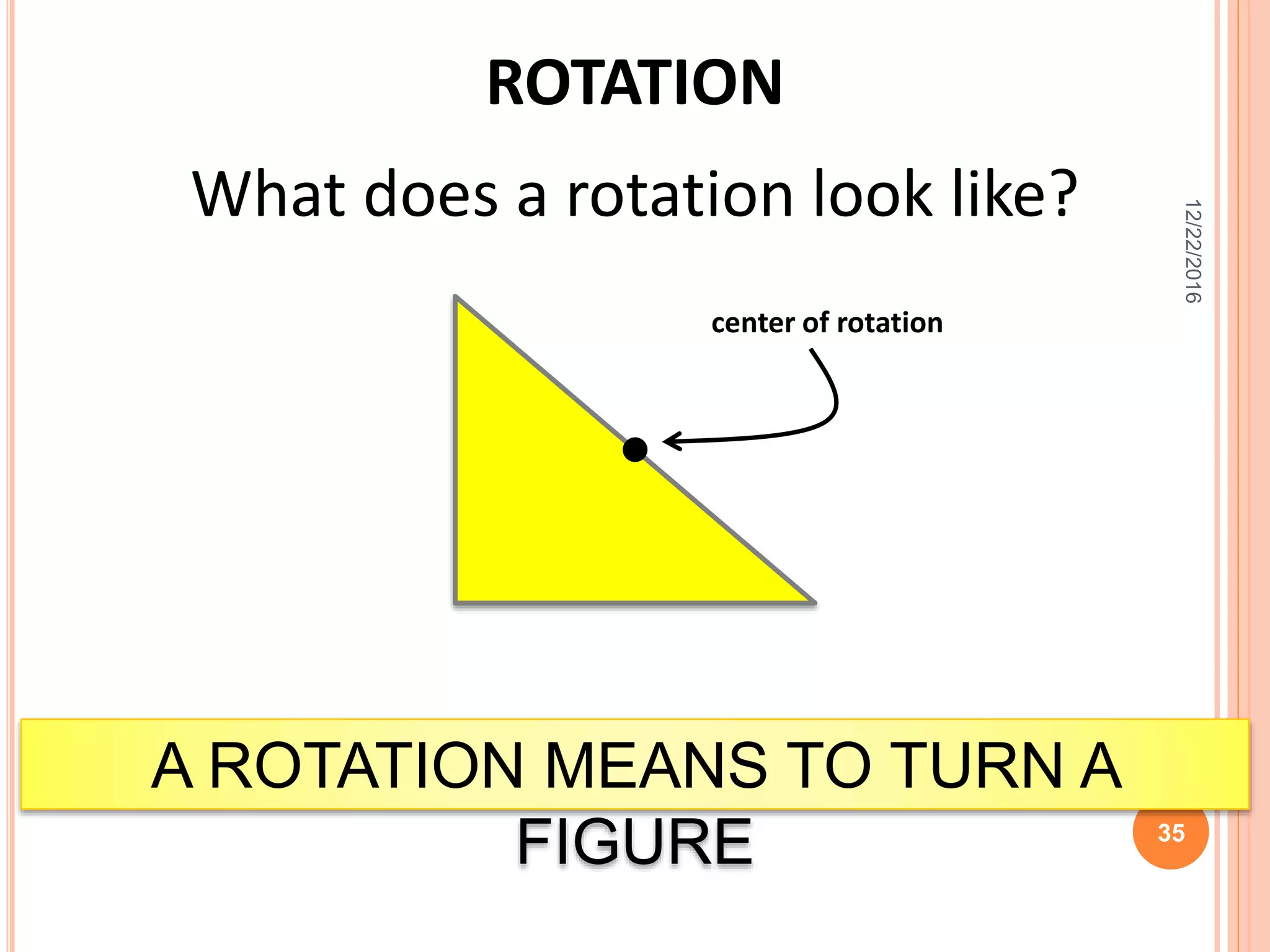

35. ROTATION
What does a rotation look like?
A ROTATION MEANS TO TURN A
FIGURE
center of rotation
12/22/2016
35

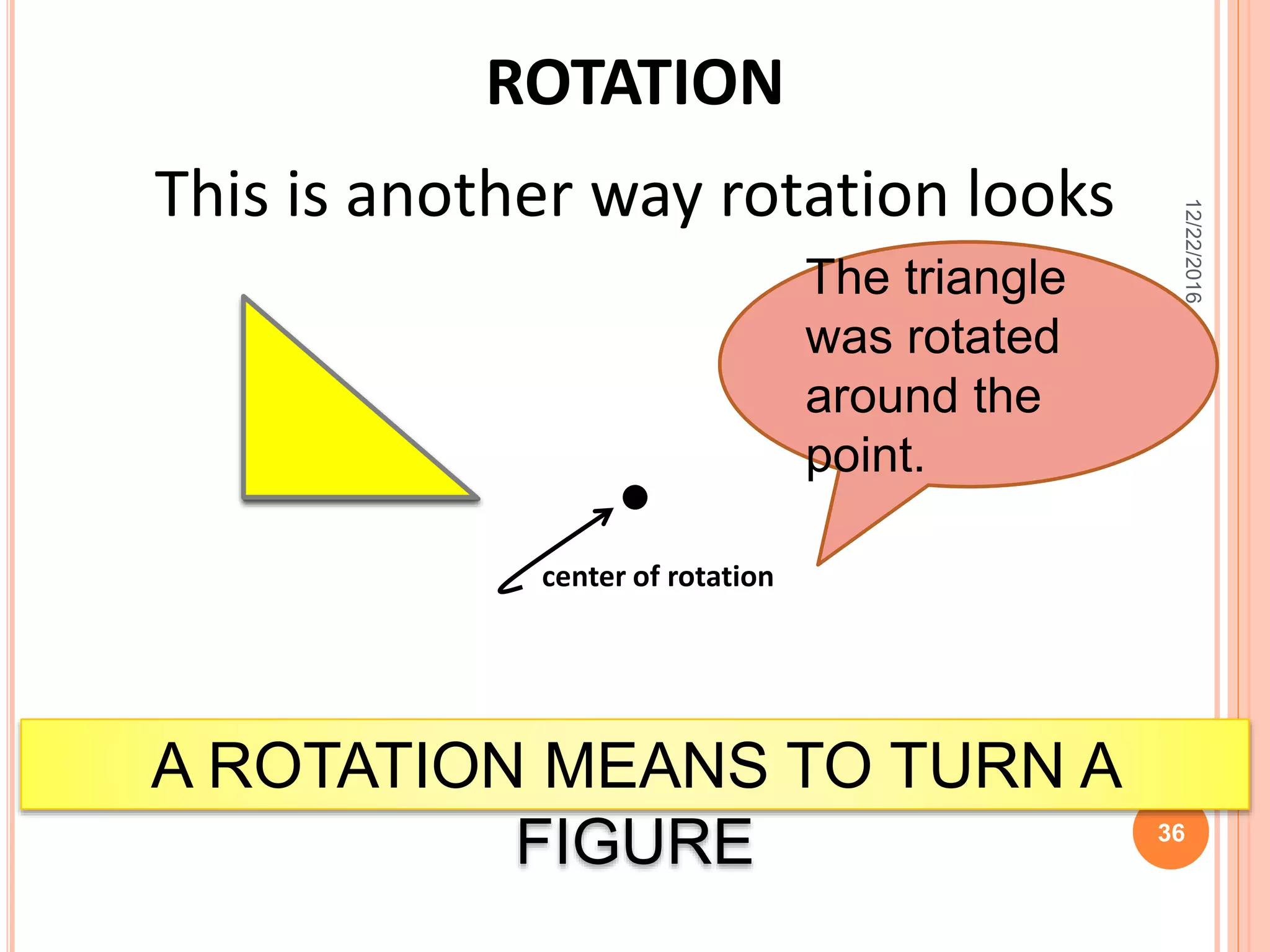

36. ROTATION
This is another way rotation looks
A ROTATION MEANS TO TURN A
FIGURE
The triangle
was rotated
around the
point.
center of rotation
12/22/2016
36

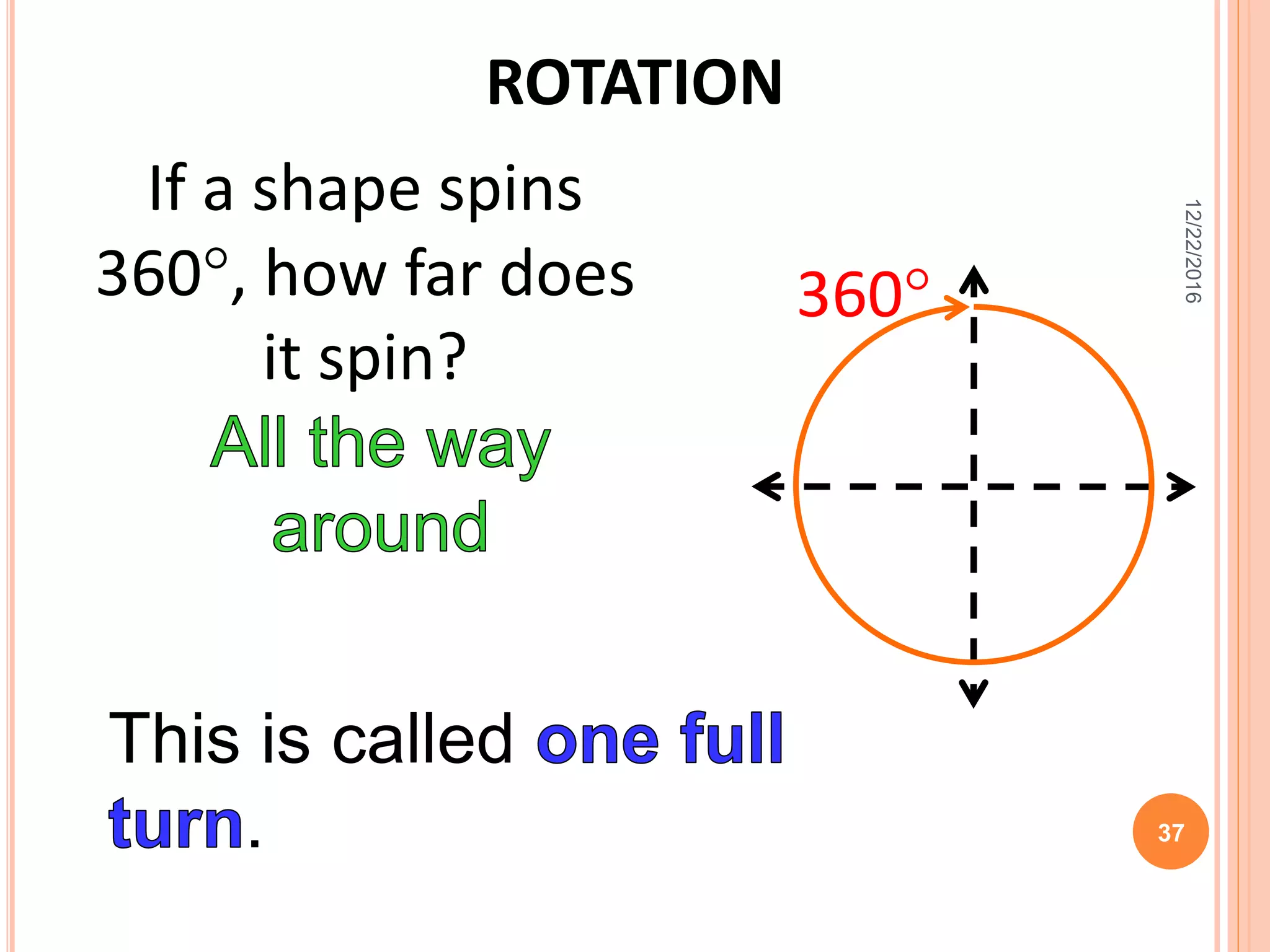

37. ROTATION
If a shape spins
360, how far does
it spin?
This is called
.
360
12/22/2016
37

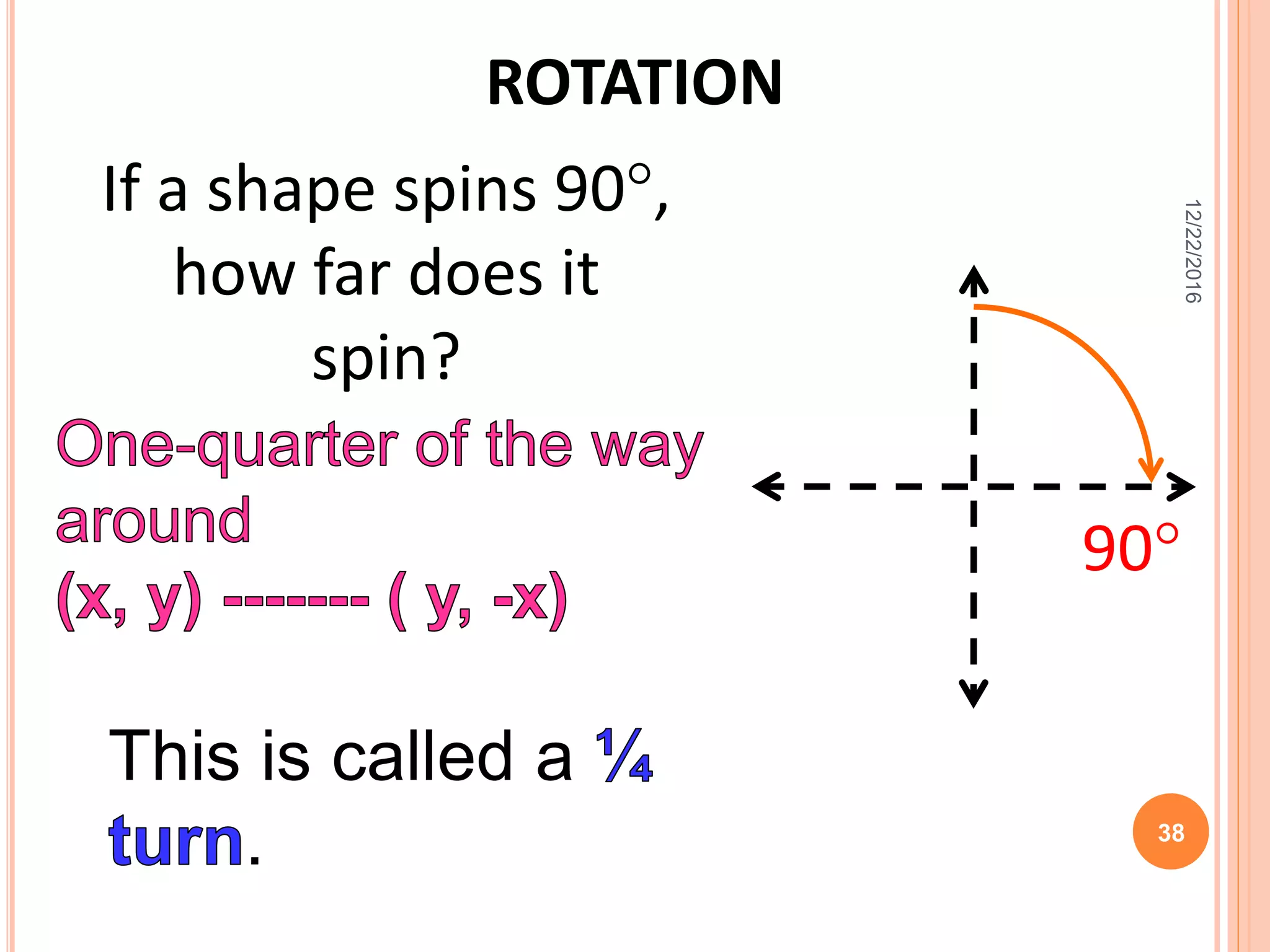

38. ROTATION
If a shape spins 90,
how far does it
spin?
This is called a
.
90
12/22/2016
38

39. 12/22/2016
39

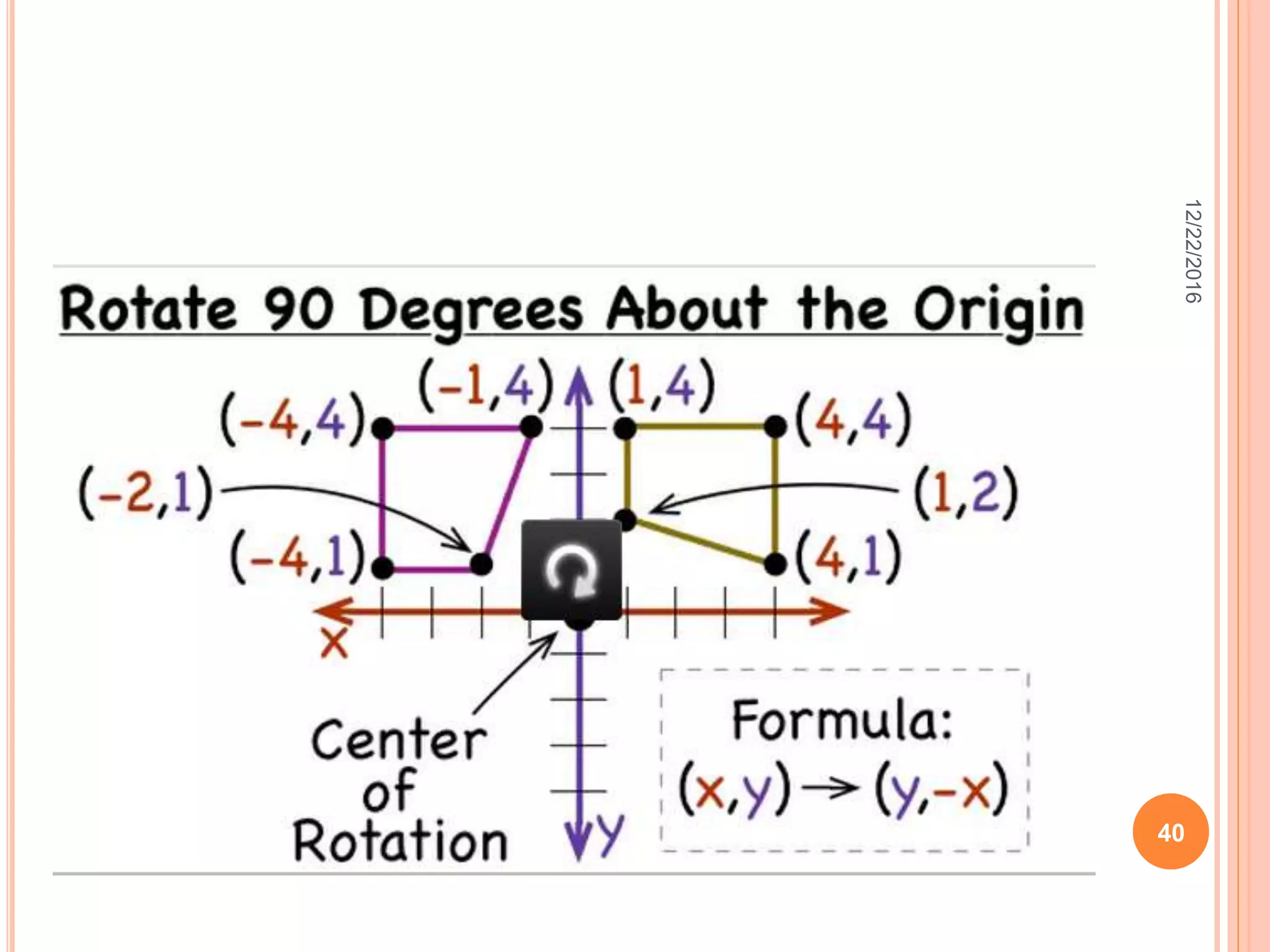

40. 12/22/2016
40

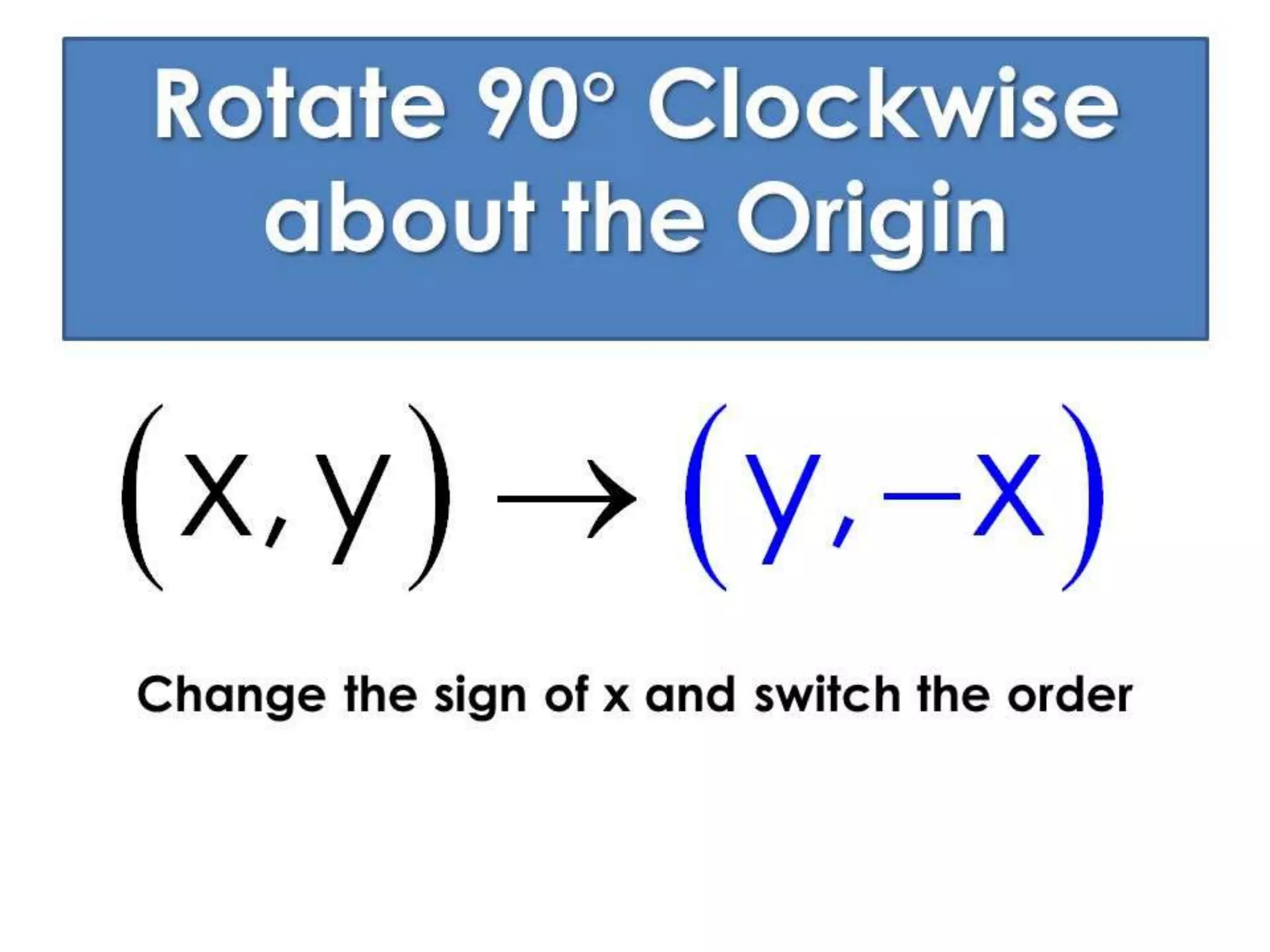

41. 12/22/2016
41

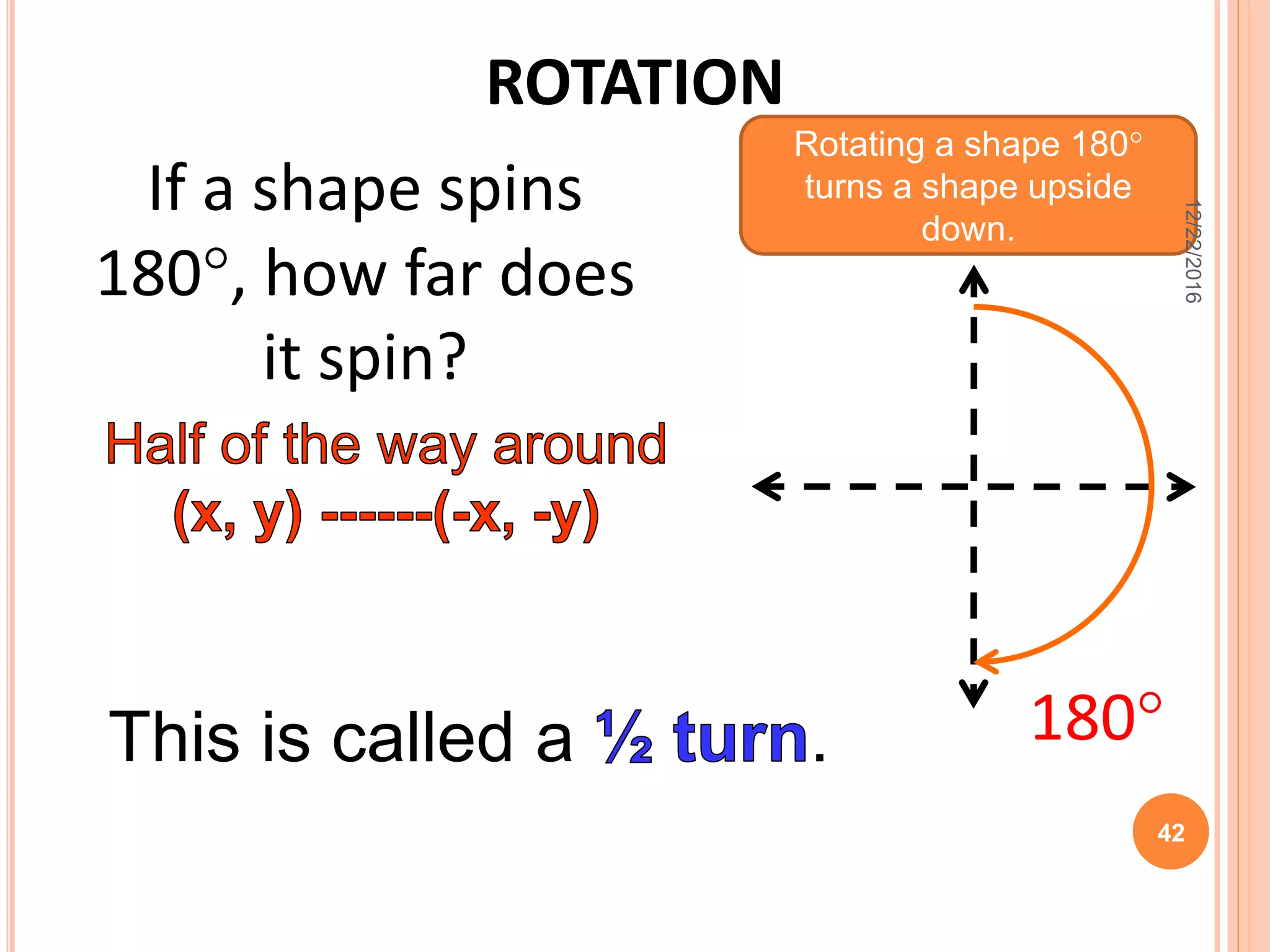

42. ROTATION
If a shape spins
180, how far does
it spin?
This is called a . 180
Rotating a shape 180
turns a shape upside
down.
12/22/2016
42

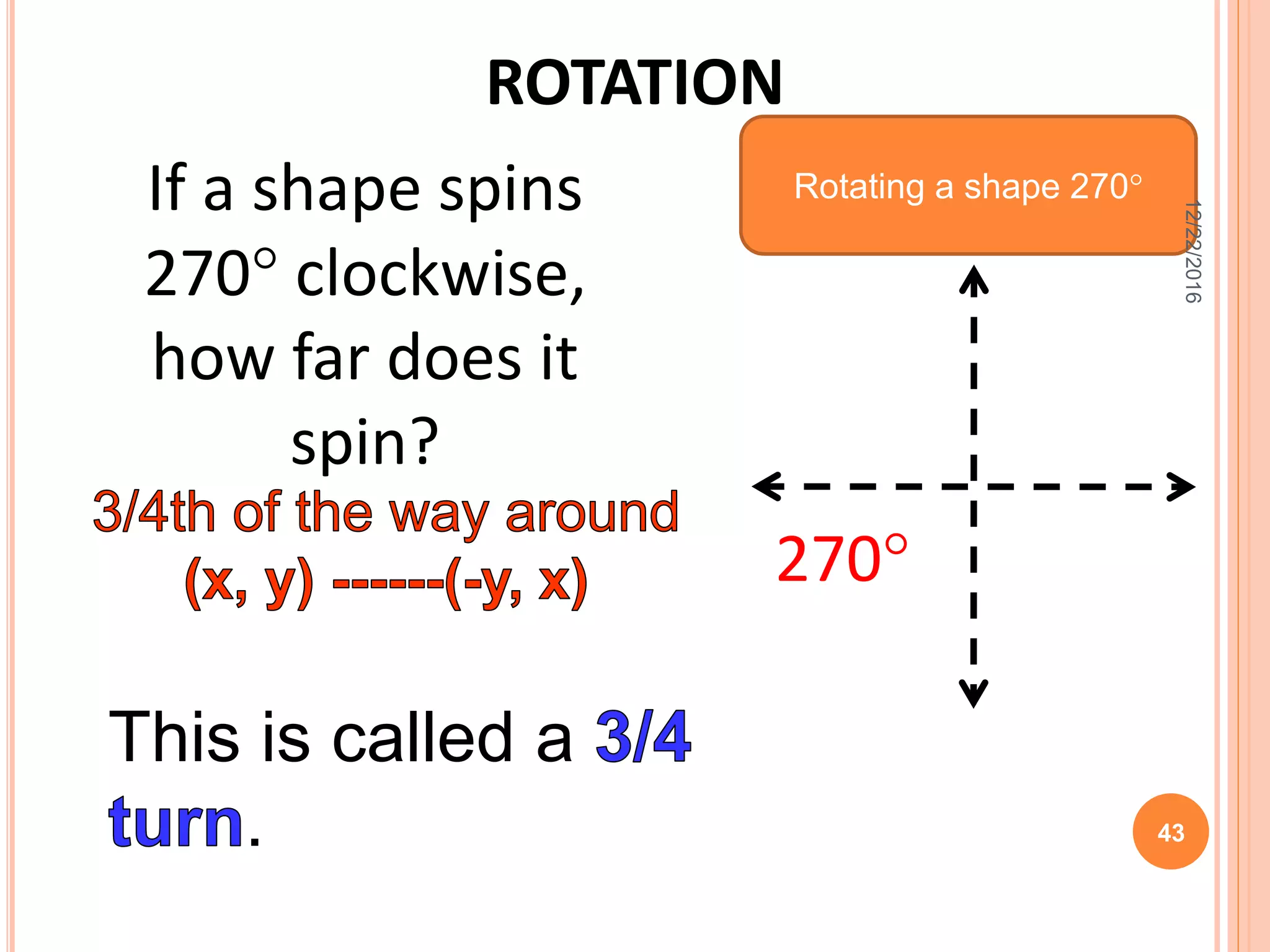

43. ROTATION
If a shape spins
270 clockwise,
how far does it
spin?
This is called a
.
270
Rotating a shape 270
12/22/2016
43

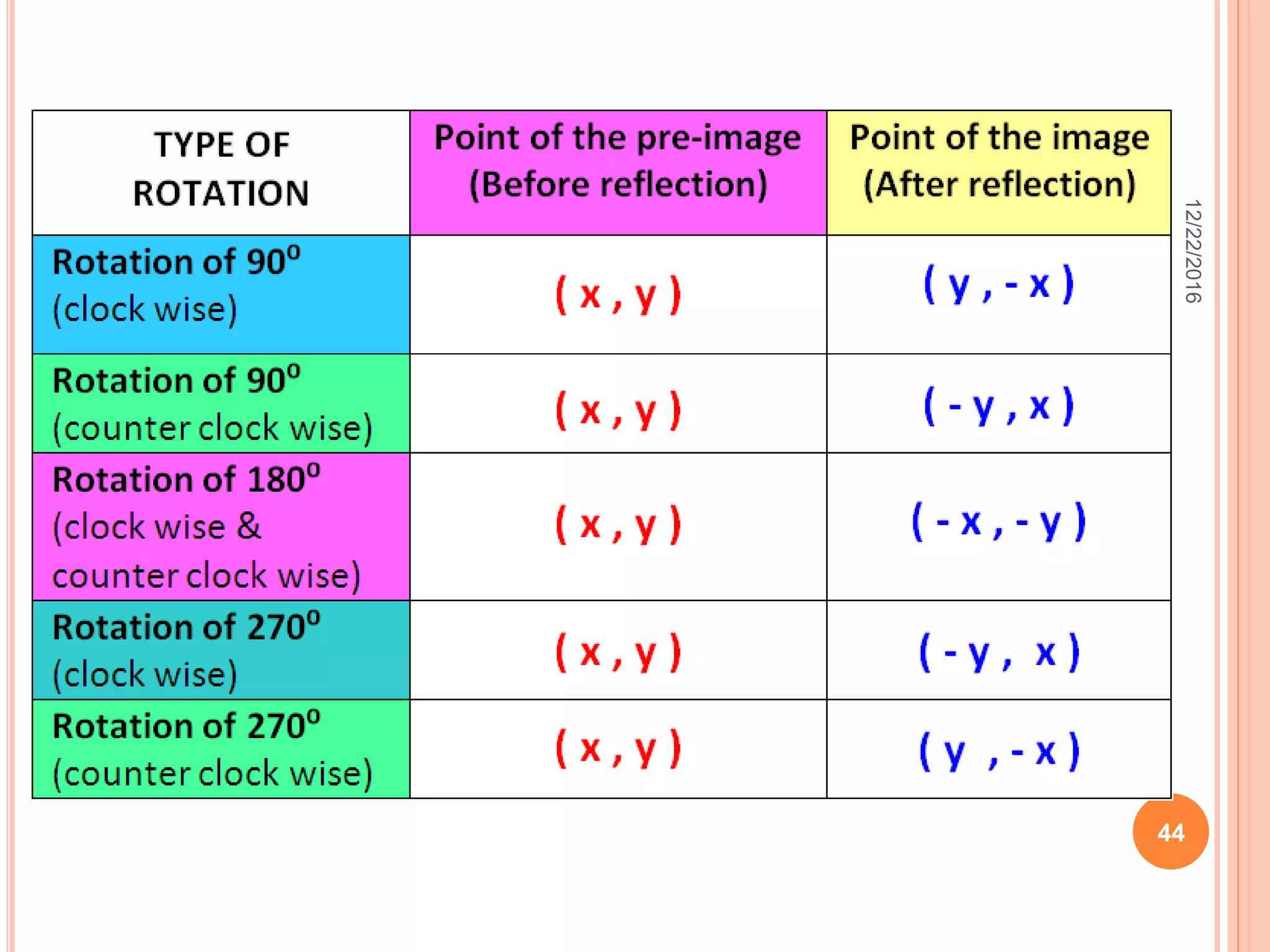

44. 12/22/2016
44

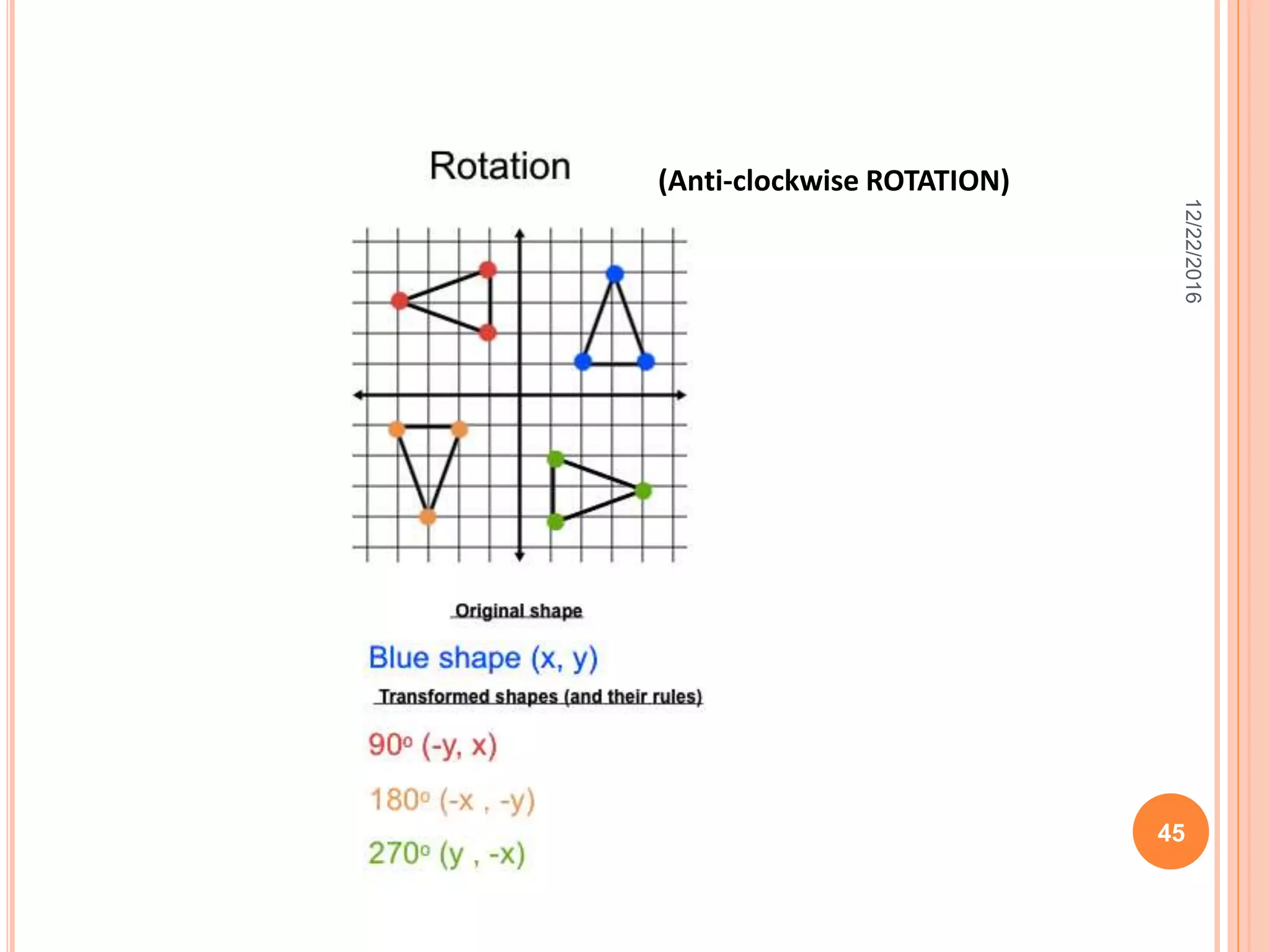

45. 12/22/2016
45
(Anti-clockwise ROTATION)

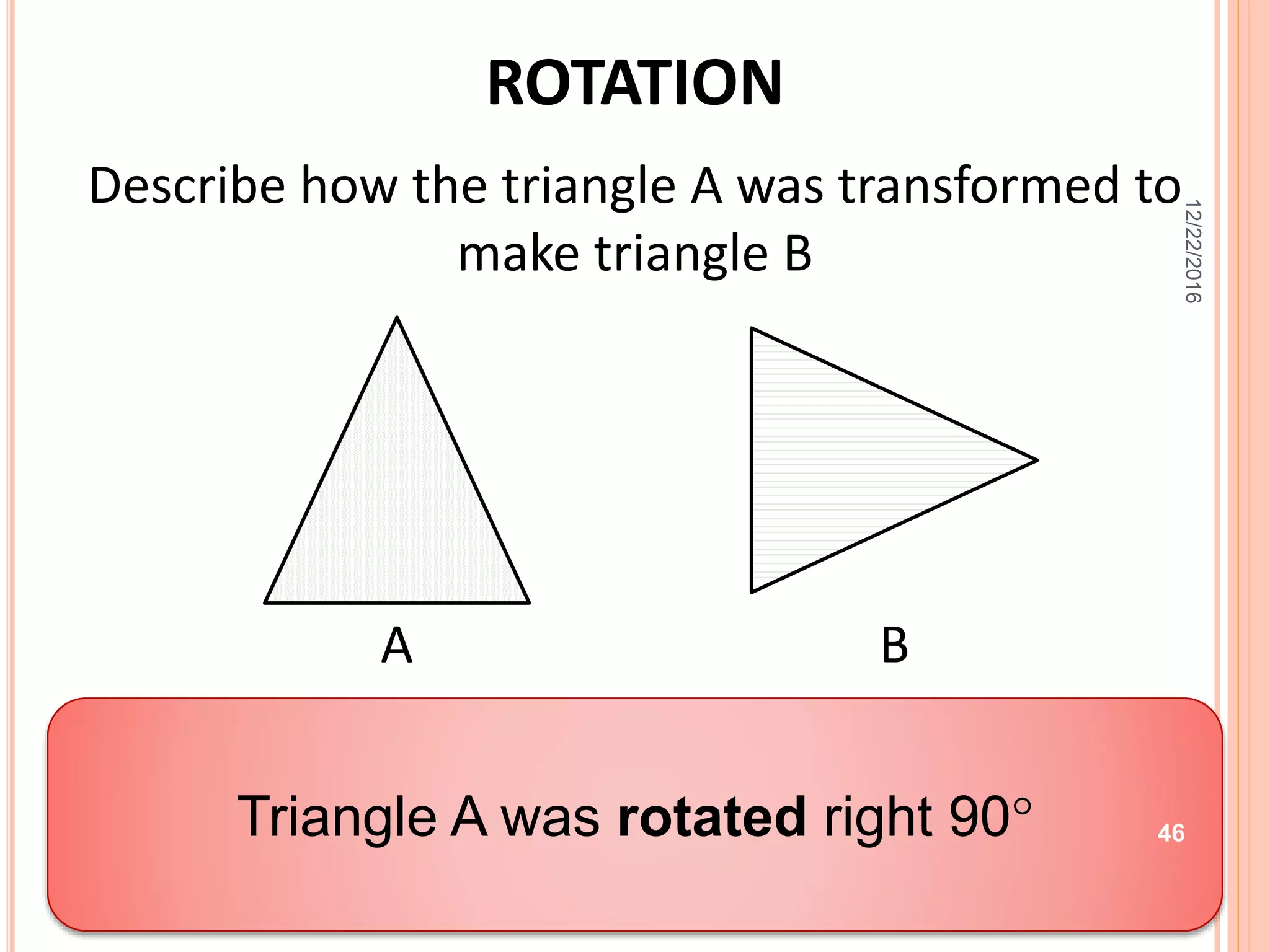

46. ROTATION
Describe how the triangle A was transformed to
make triangle B
A B
Describe the translation.
Triangle A was rotated right 90
12/22/2016
46

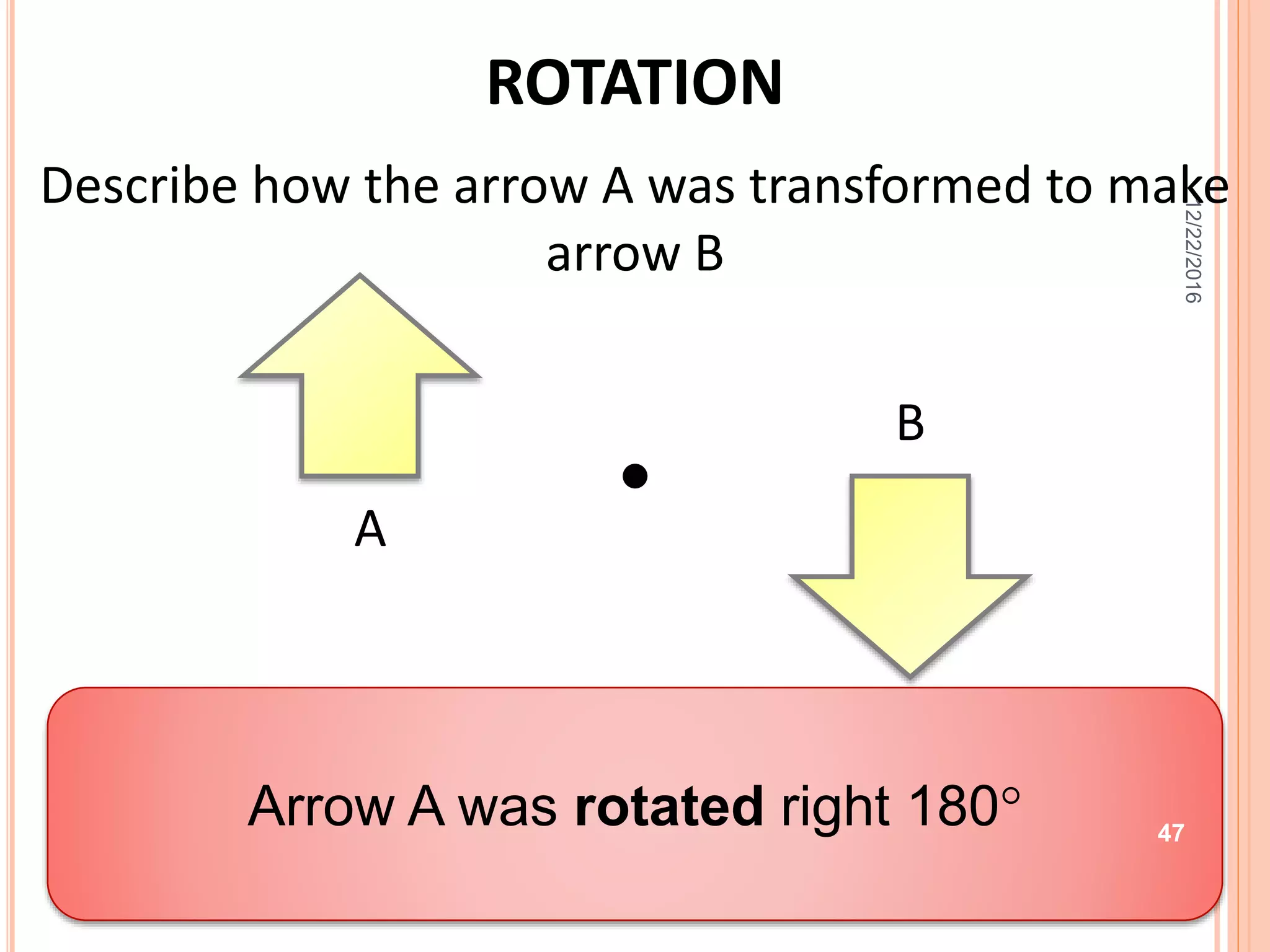

47. ROTATION
Describe how the arrow A was transformed to make
arrow B
Arrow A was rotated right 180
A
B
12/22/2016
47

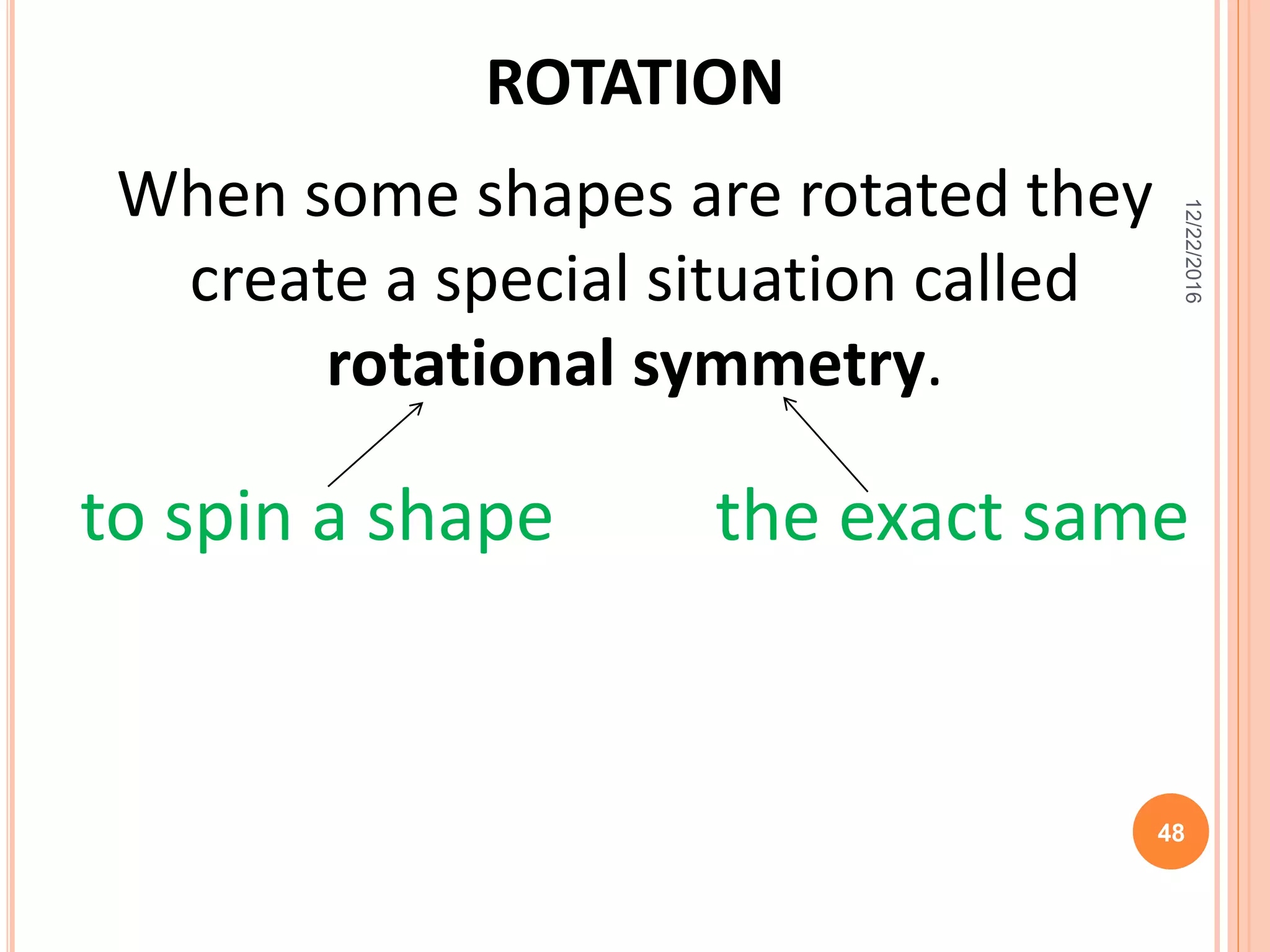

48. ROTATION
When some shapes are rotated they
create a special situation called
rotational symmetry.
to spin a shape the exact same
12/22/2016
48

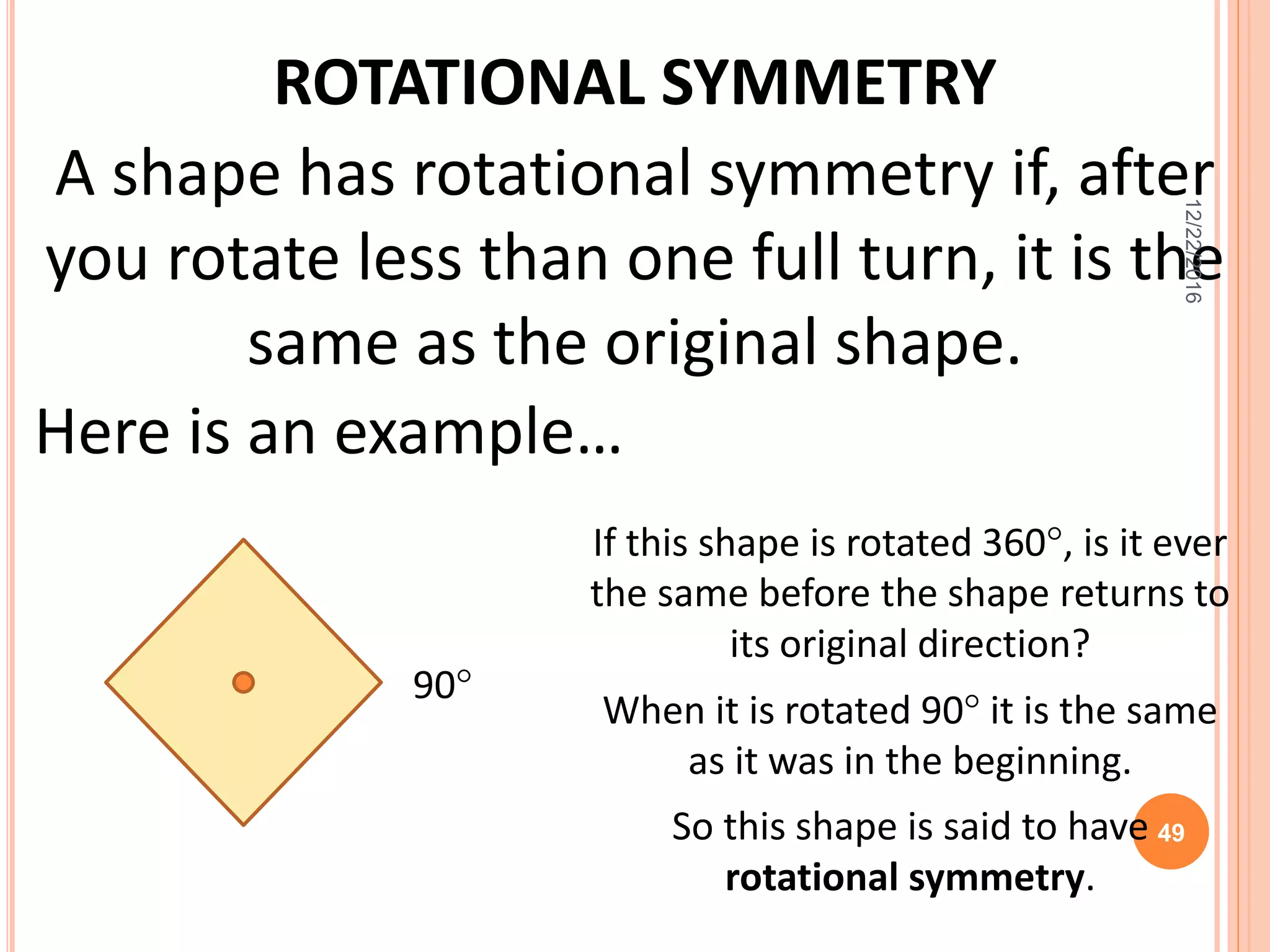

49. ROTATIONAL SYMMETRY
A shape has rotational symmetry if, after
you rotate less than one full turn, it is the
same as the original shape.
Here is an example…
If this shape is rotated 360, is it ever
the same before the shape returns to
its original direction?
When it is rotated 90 it is the same
as it was in the beginning.
So this shape is said to have
rotational symmetry.
90
12/22/2016
49

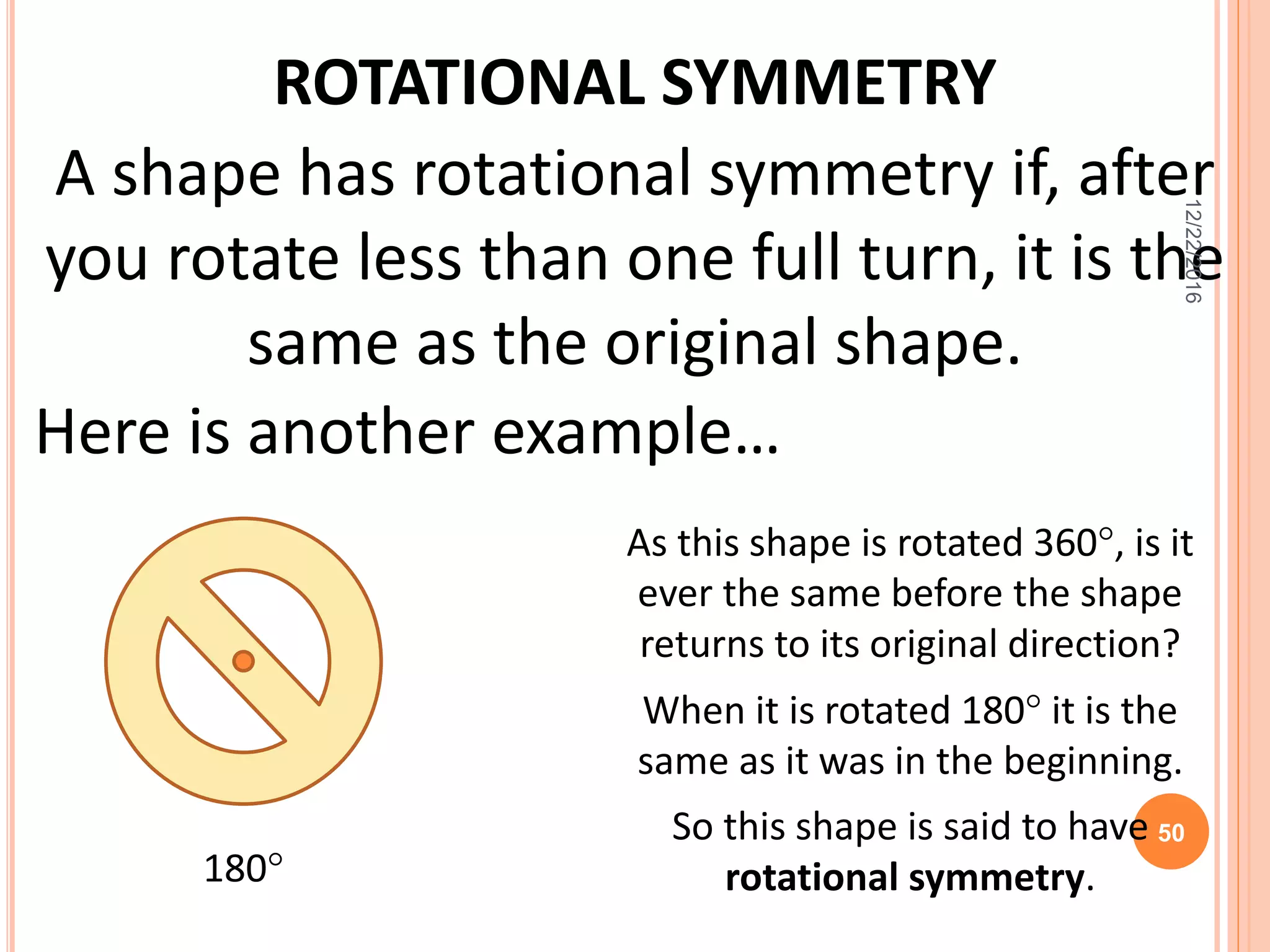

50. ROTATIONAL SYMMETRY
Here is another example…
As this shape is rotated 360, is it
ever the same before the shape
returns to its original direction?
When it is rotated 180 it is the
same as it was in the beginning.
So this shape is said to have
rotational symmetry.180
A shape has rotational symmetry if, after
you rotate less than one full turn, it is the
same as the original shape.
12/22/2016
50

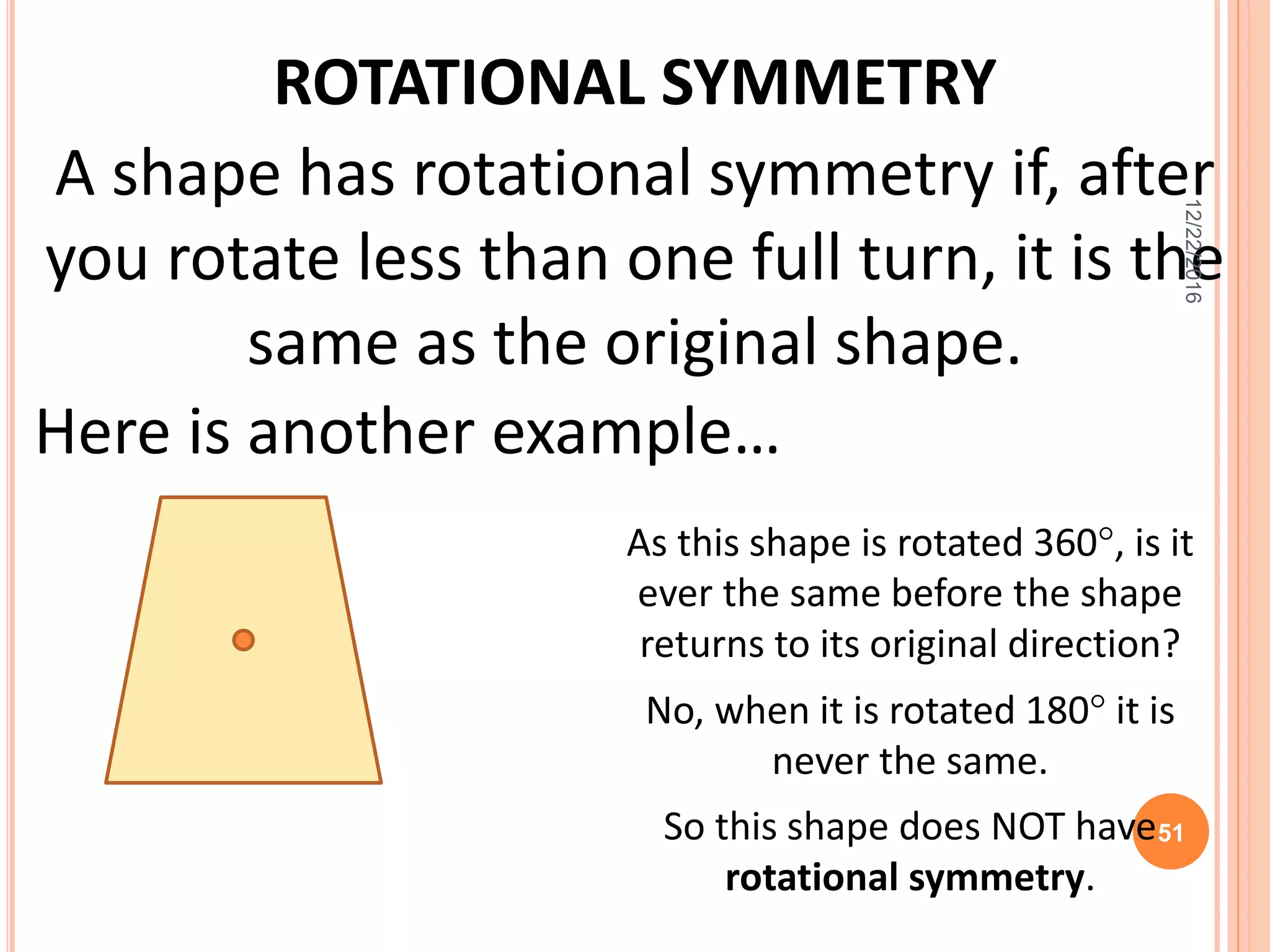

51. ROTATIONAL SYMMETRY
Here is another example…
As this shape is rotated 360, is it
ever the same before the shape
returns to its original direction?
No, when it is rotated 180 it is
never the same.
So this shape does NOT have
rotational symmetry.
A shape has rotational symmetry if, after
you rotate less than one full turn, it is the
same as the original shape.
12/22/2016
51

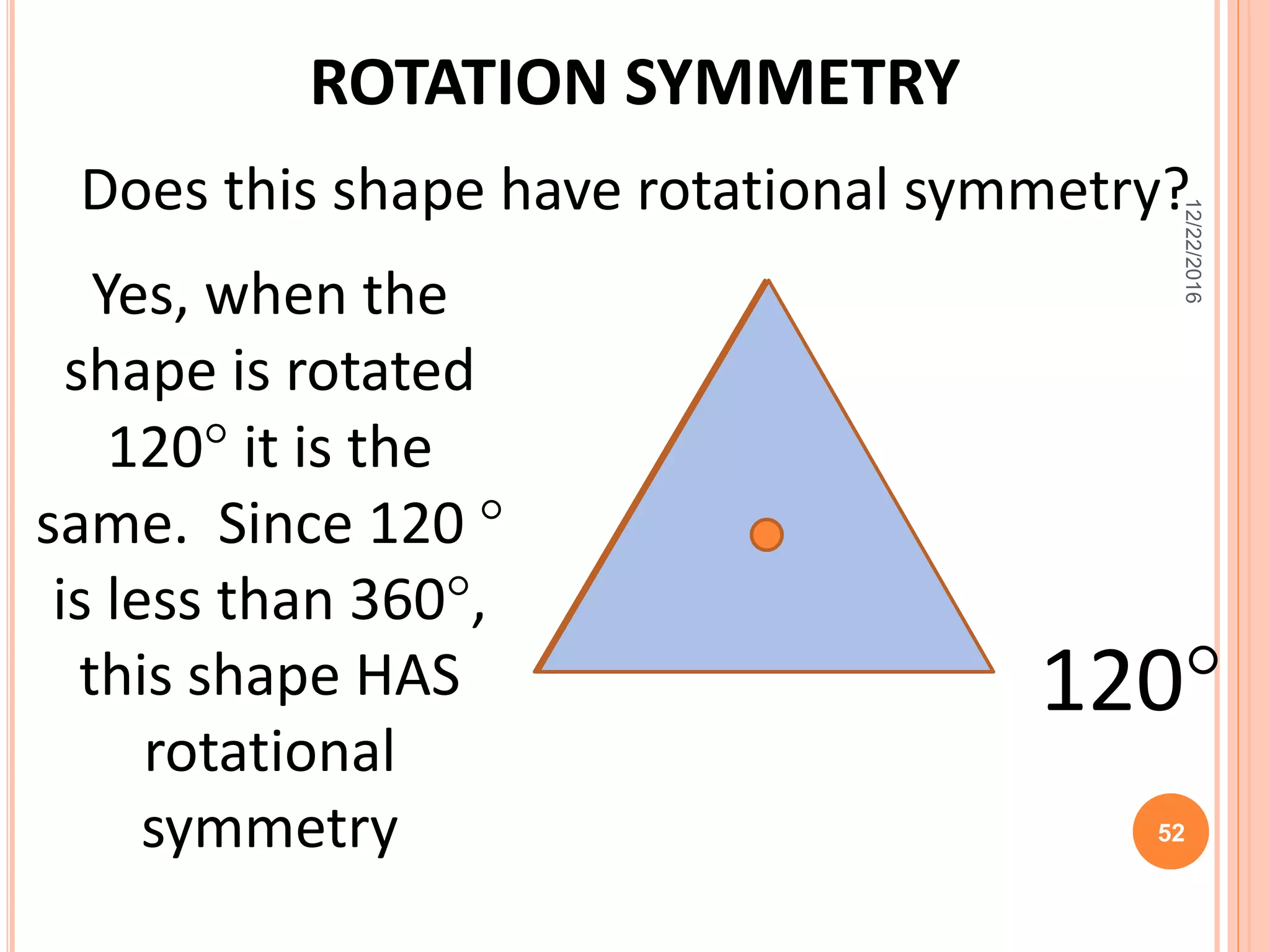

52. ROTATION SYMMETRY
Does this shape have rotational symmetry?
120
Yes, when the
shape is rotated
120 it is the
same. Since 120 
is less than 360,
this shape HAS
rotational
symmetry
12/22/2016
52

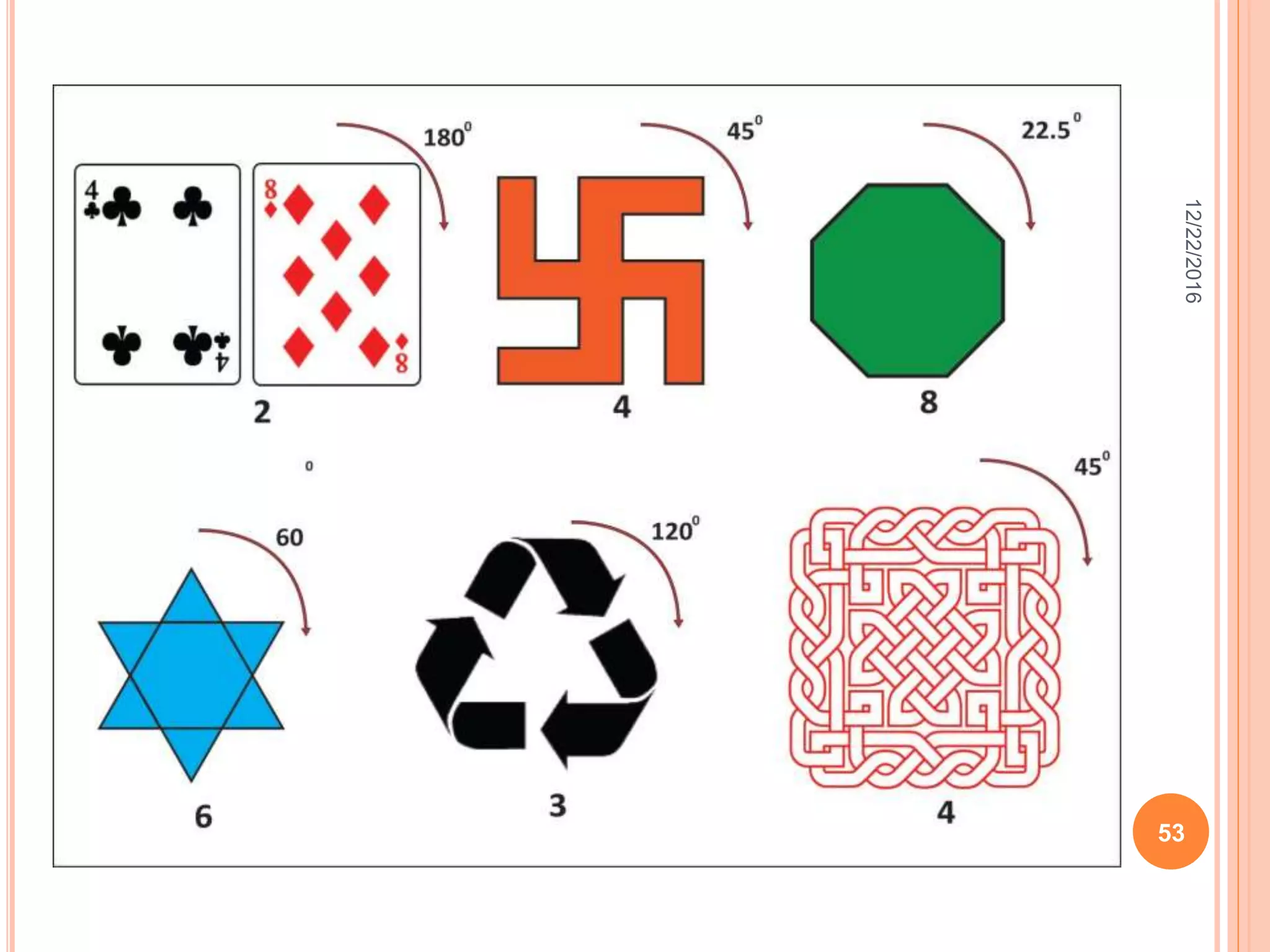

53. 12/22/2016
53

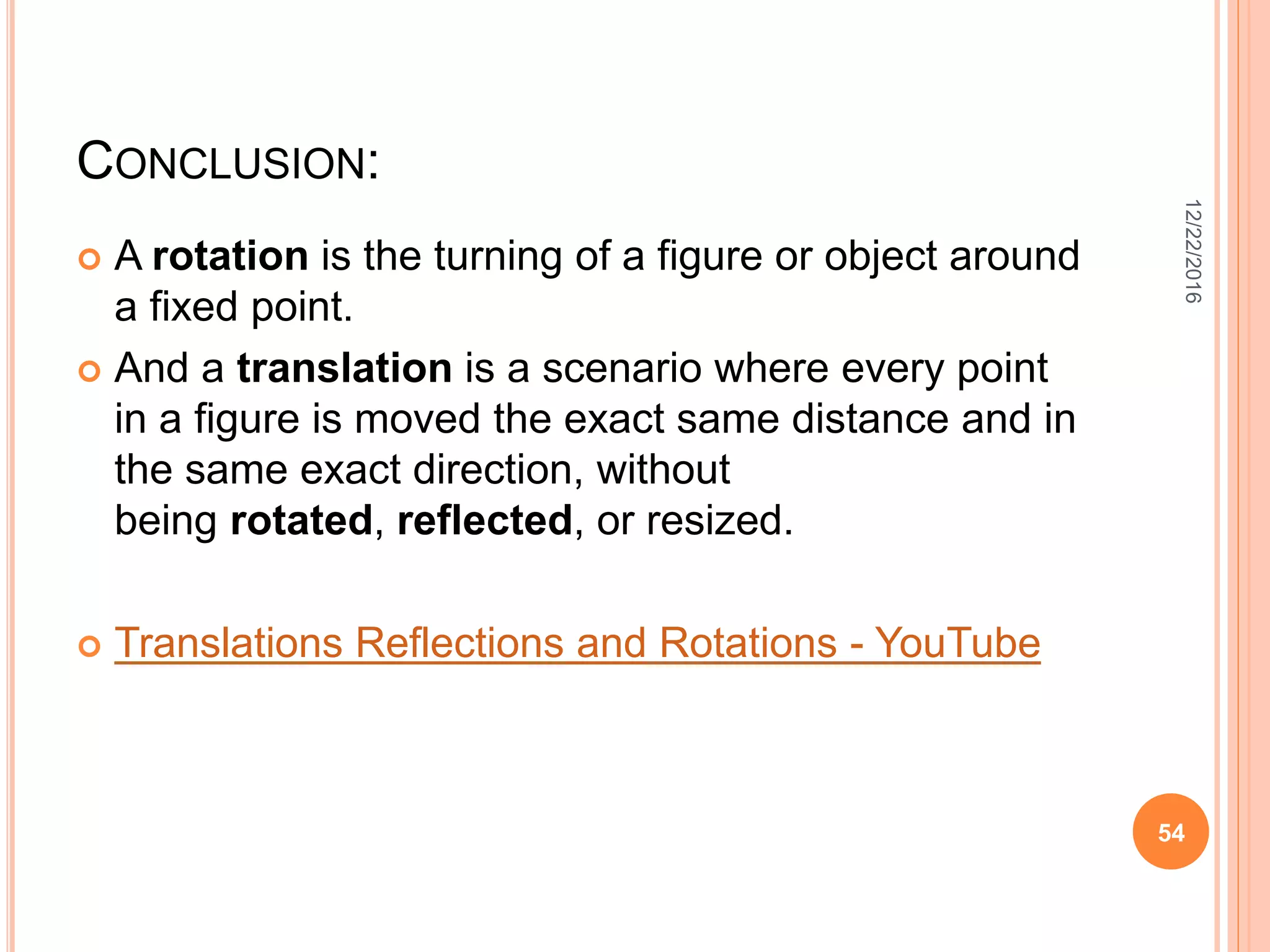

54. CONCLUSION:
 A rotation is the turning of a figure or object around
a fixed point.
 And a translation is a scenario where every point
in a figure is moved the exact same distance and in
the same exact direction, without
being rotated, reflected, or resized.
 Translations Reflections and Rotations - YouTube
12/22/2016
54

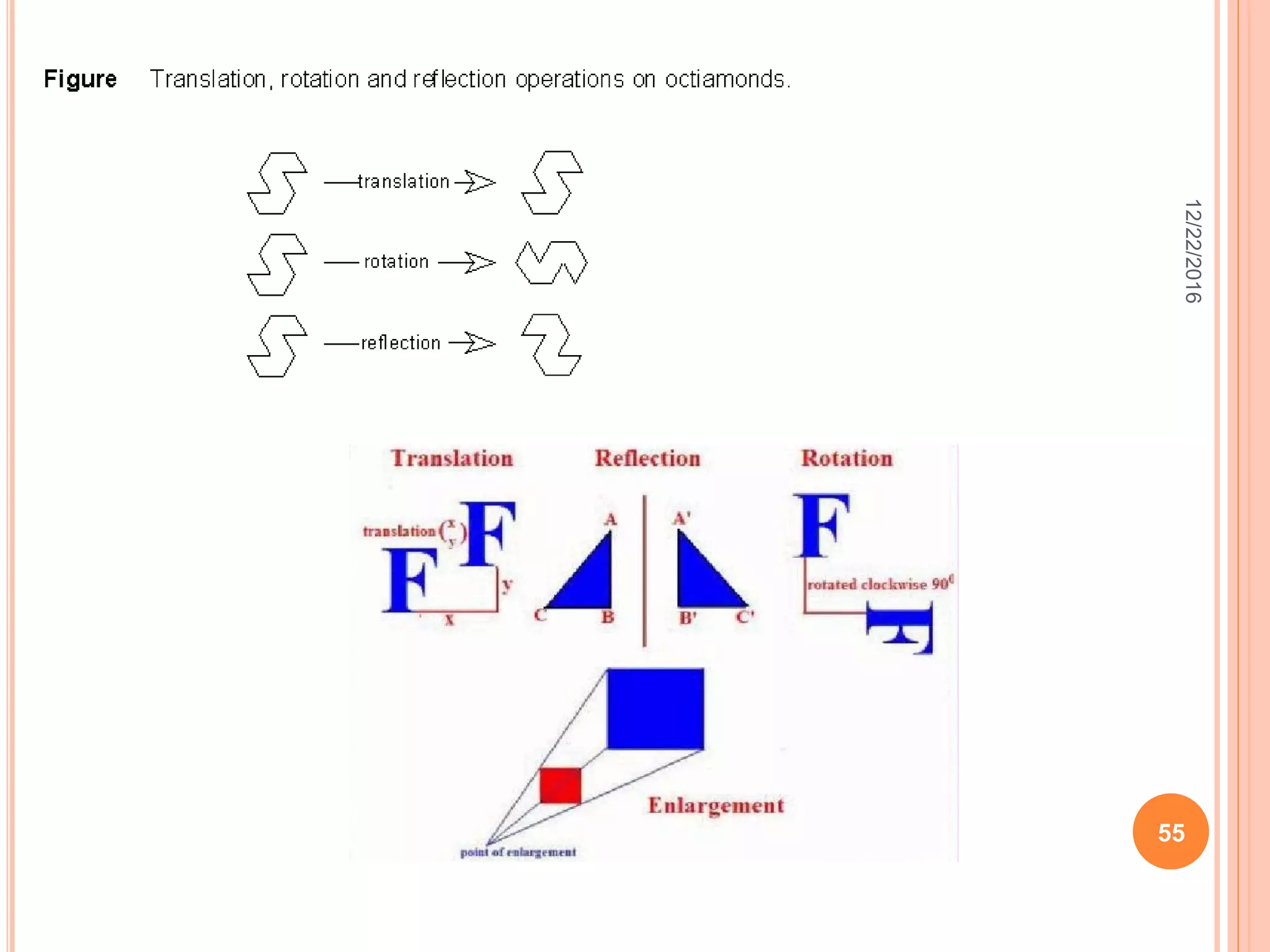

55. 12/22/2016
55

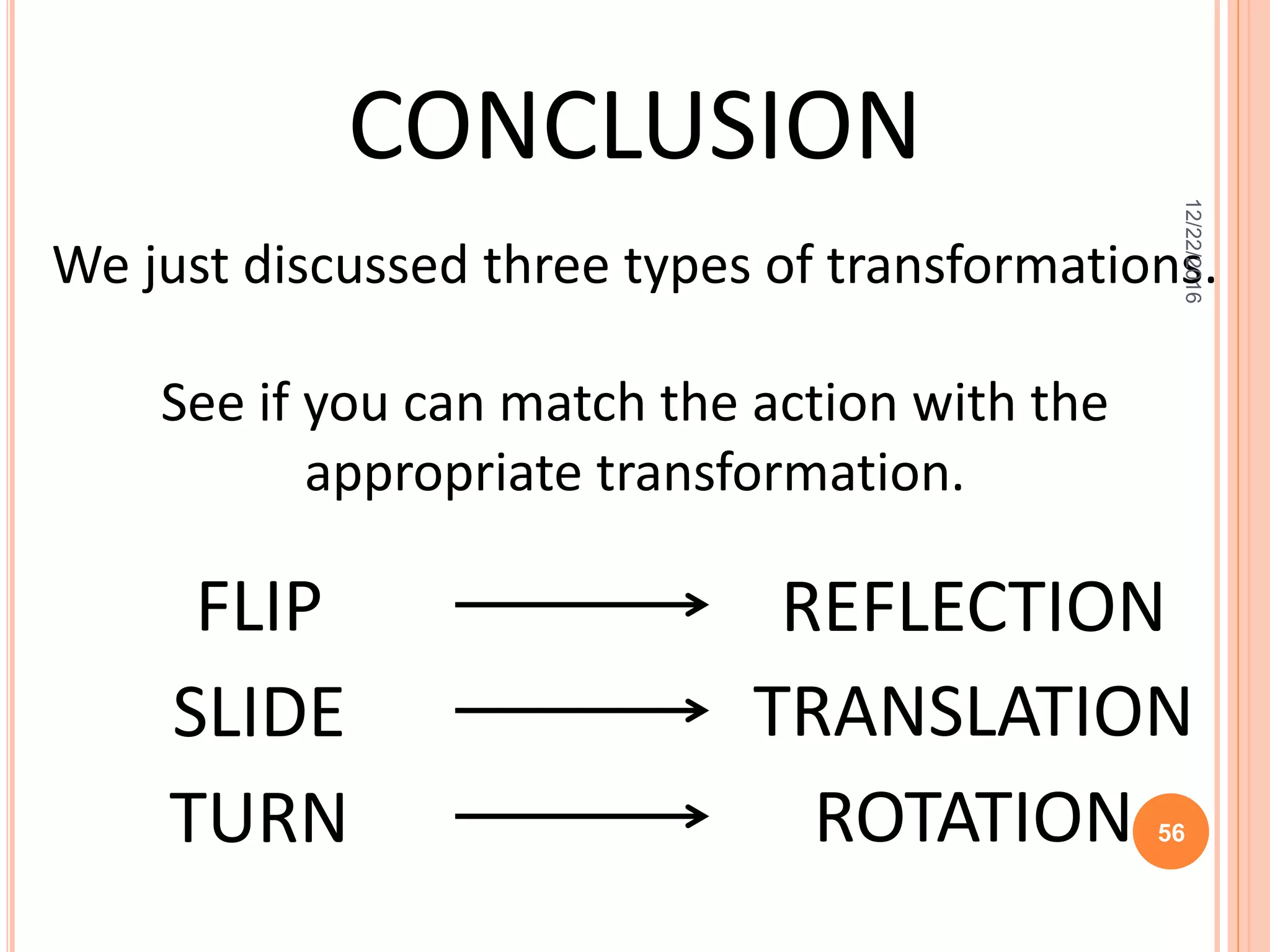

56. CONCLUSION
We just discussed three types of transformations.
See if you can match the action with the
appropriate transformation.
FLIP
SLIDE
TURN
REFLECTION
TRANSLATION
ROTATION
