"Towards a Science of Reproducible Science?" DPRMA Workshop talk at JCDL 2013, Indianapolis, 25th July 2013. Workshop website is http://dprma.oerc.ox.ac.uk/ Paper is David De Roure. 2013. Towards computational research objects. In Proceedings of the 1st International Workshop on Digital Preservation of Research Methods and Artefacts (DPRMA '13). ACM, New York, NY, USA, 16-19. DOI=10.1145/2499583.2499590 http://doi.acm.org/10.1145/2499583.2499590

1. Towards Computational
Research Objects
David De Roure
Indianapolis Edition

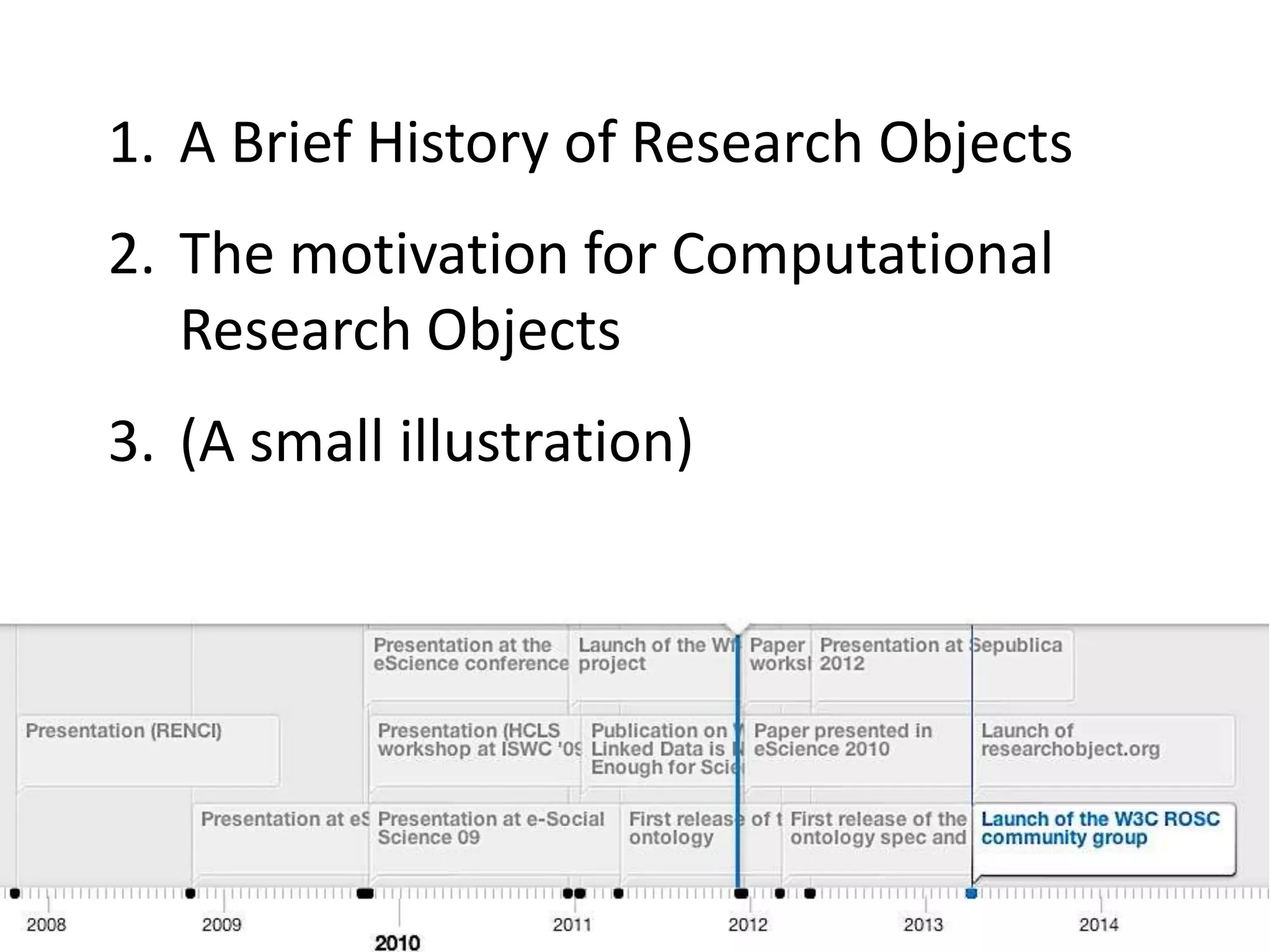

2. 1. A Brief History of Research Objects
2. The motivation for Computational
Research Objects
3. (A small illustration)

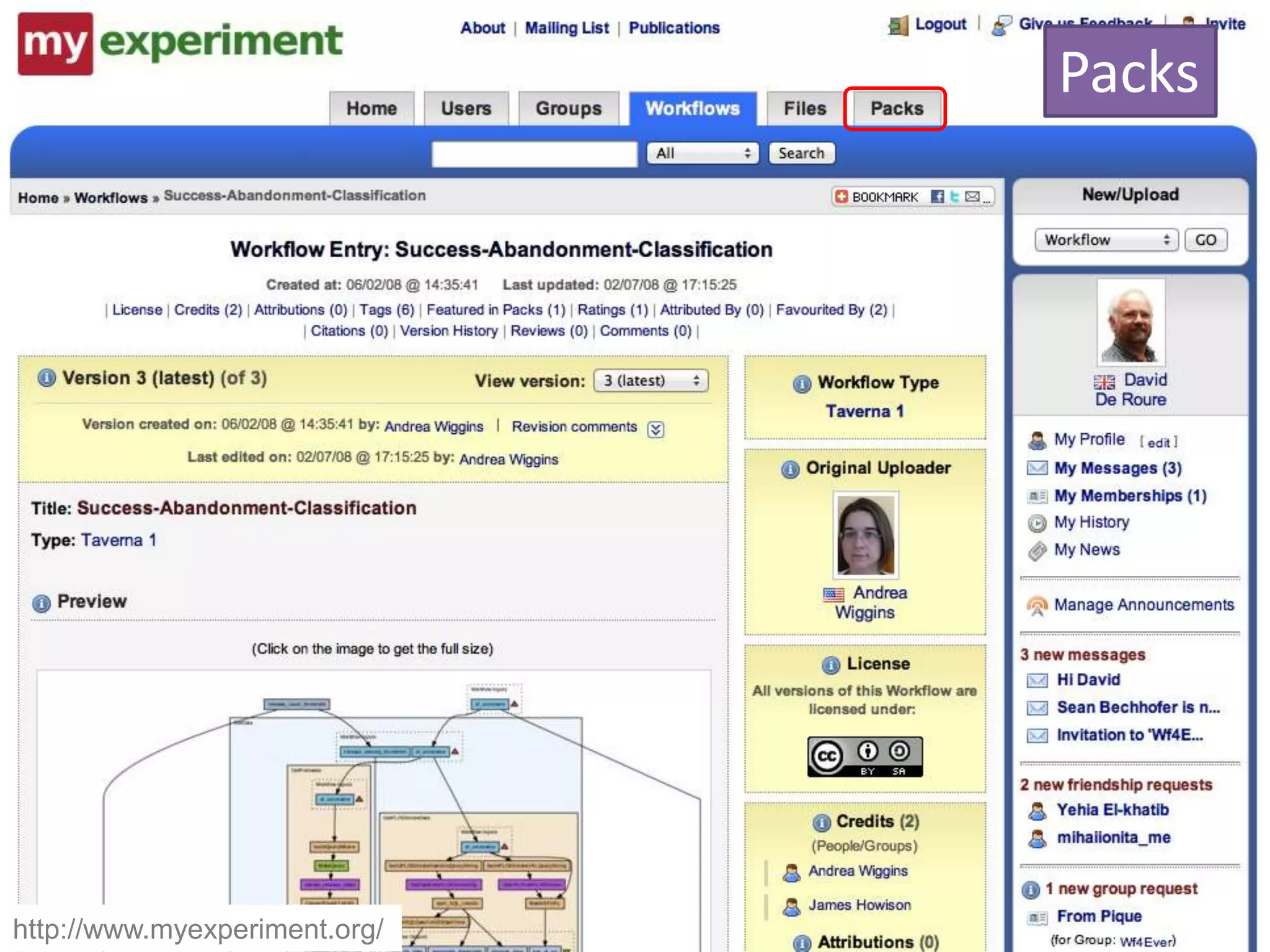

3. http://www.myexperiment.org/
Packs

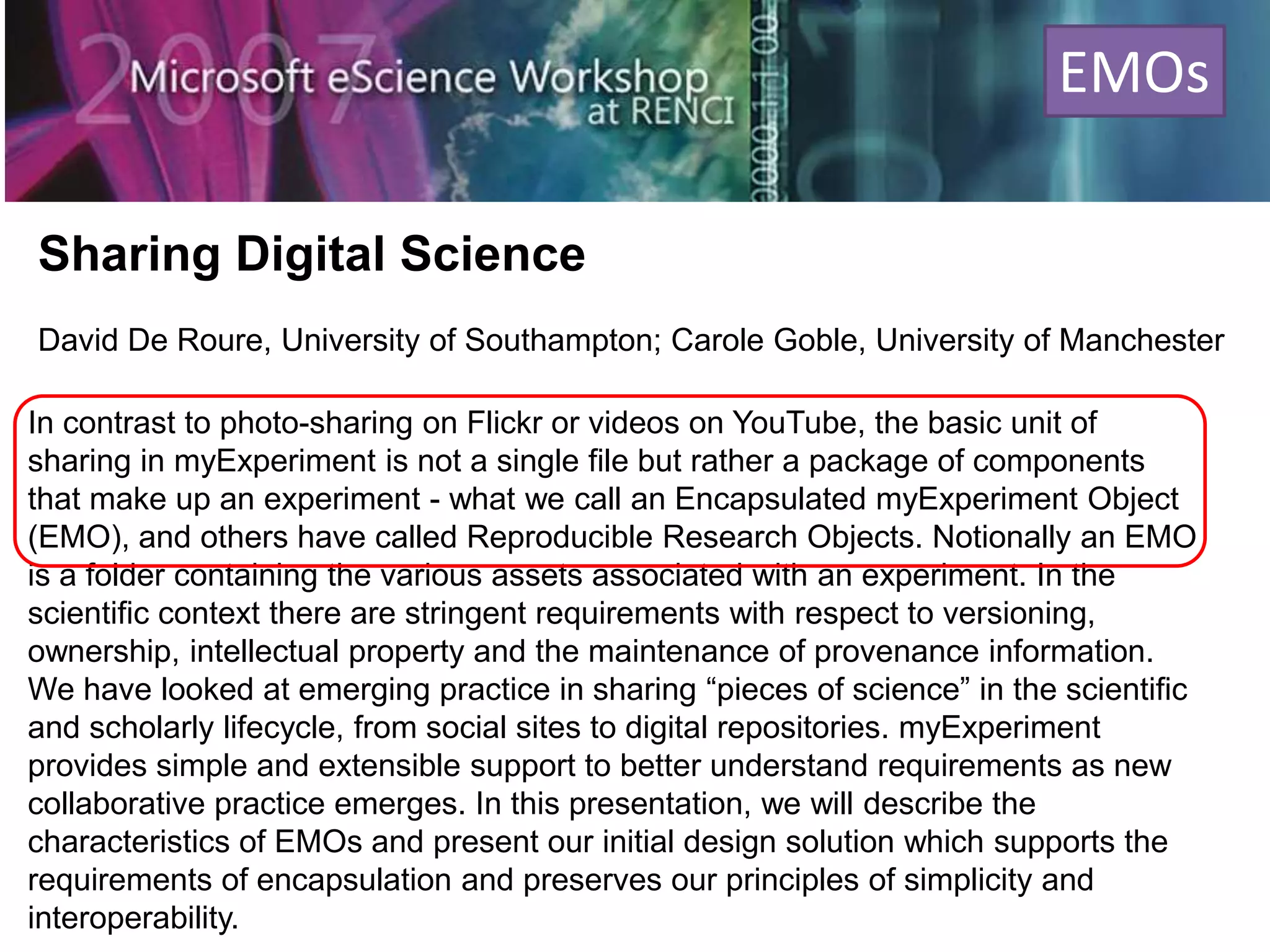

4. In contrast to photo-sharing on Flickr or videos on YouTube, the basic unit of
sharing in myExperiment is not a single file but rather a package of components
that make up an experiment - what we call an Encapsulated myExperiment Object
(EMO), and others have called Reproducible Research Objects. Notionally an EMO
is a folder containing the various assets associated with an experiment. In the
scientific context there are stringent requirements with respect to versioning,
ownership, intellectual property and the maintenance of provenance information.
We have looked at emerging practice in sharing “pieces of science” in the scientific
and scholarly lifecycle, from social sites to digital repositories. myExperiment
provides simple and extensible support to better understand requirements as new
collaborative practice emerges. In this presentation, we will describe the
characteristics of EMOs and present our initial design solution which supports the
requirements of encapsulation and preserves our principles of simplicity and
interoperability.
Sharing Digital Science
David De Roure, University of Southampton; Carole Goble, University of Manchester
EMOs

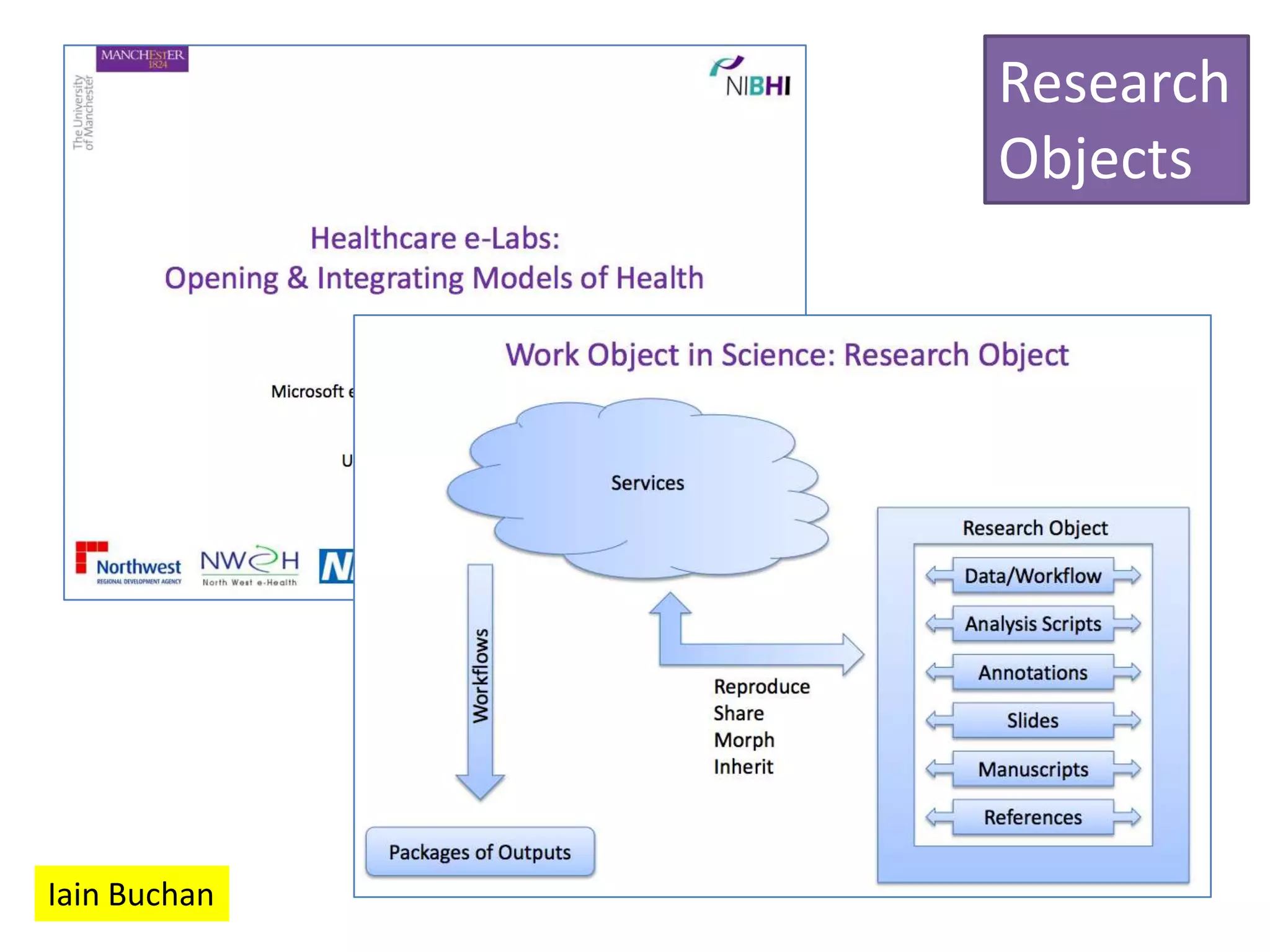

5. Iain Buchan
Research
Objects

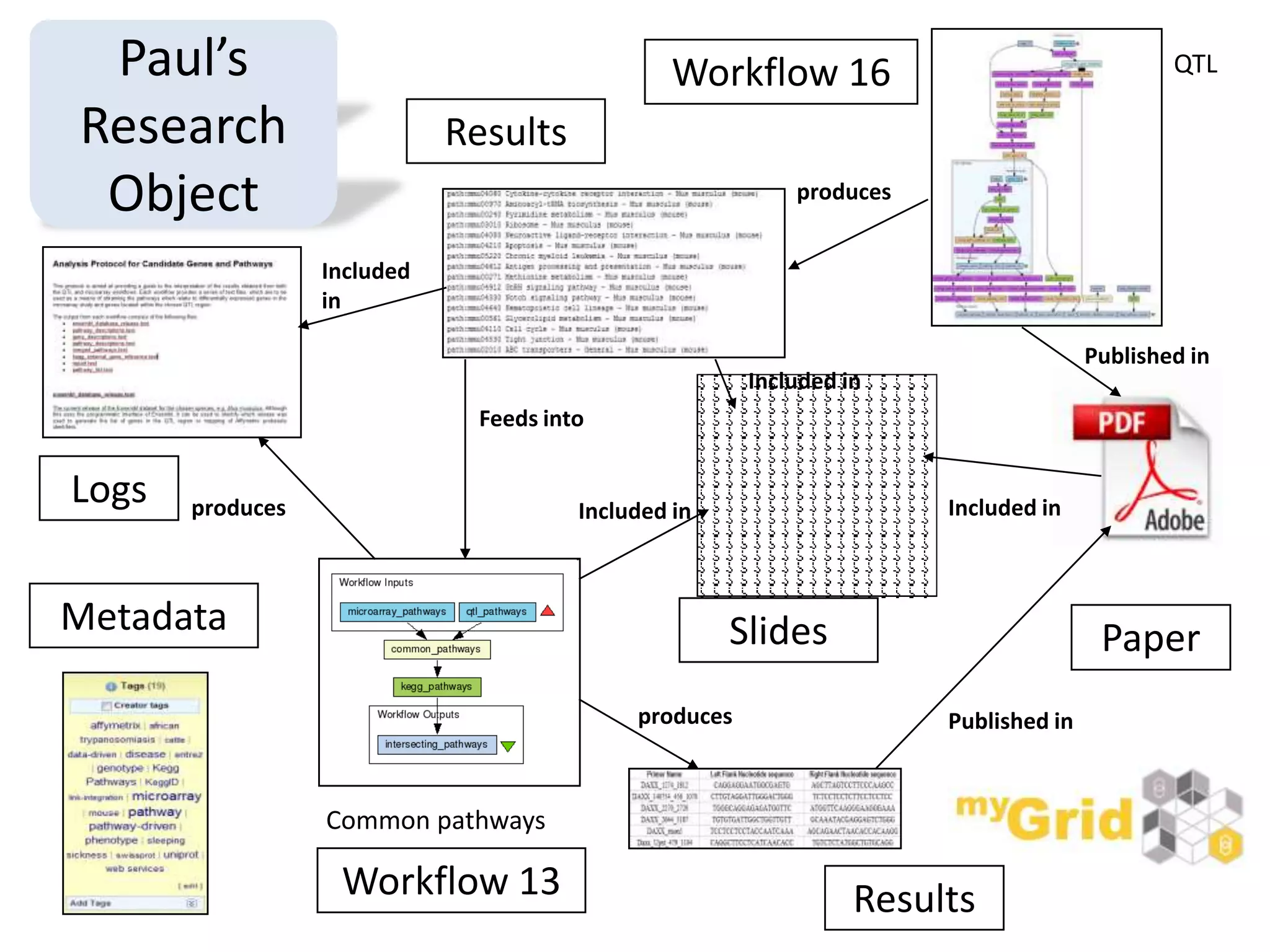

6. Results
Logs
Results
Metadata
PaperSlides
Feeds into
produces
Included
in
produces Published in
produces
Included in
Included in Included in
Published in
Workflow 16
Workflow 13
Common pathways
QTL
Paul’s PackPaul’s
Research
Object

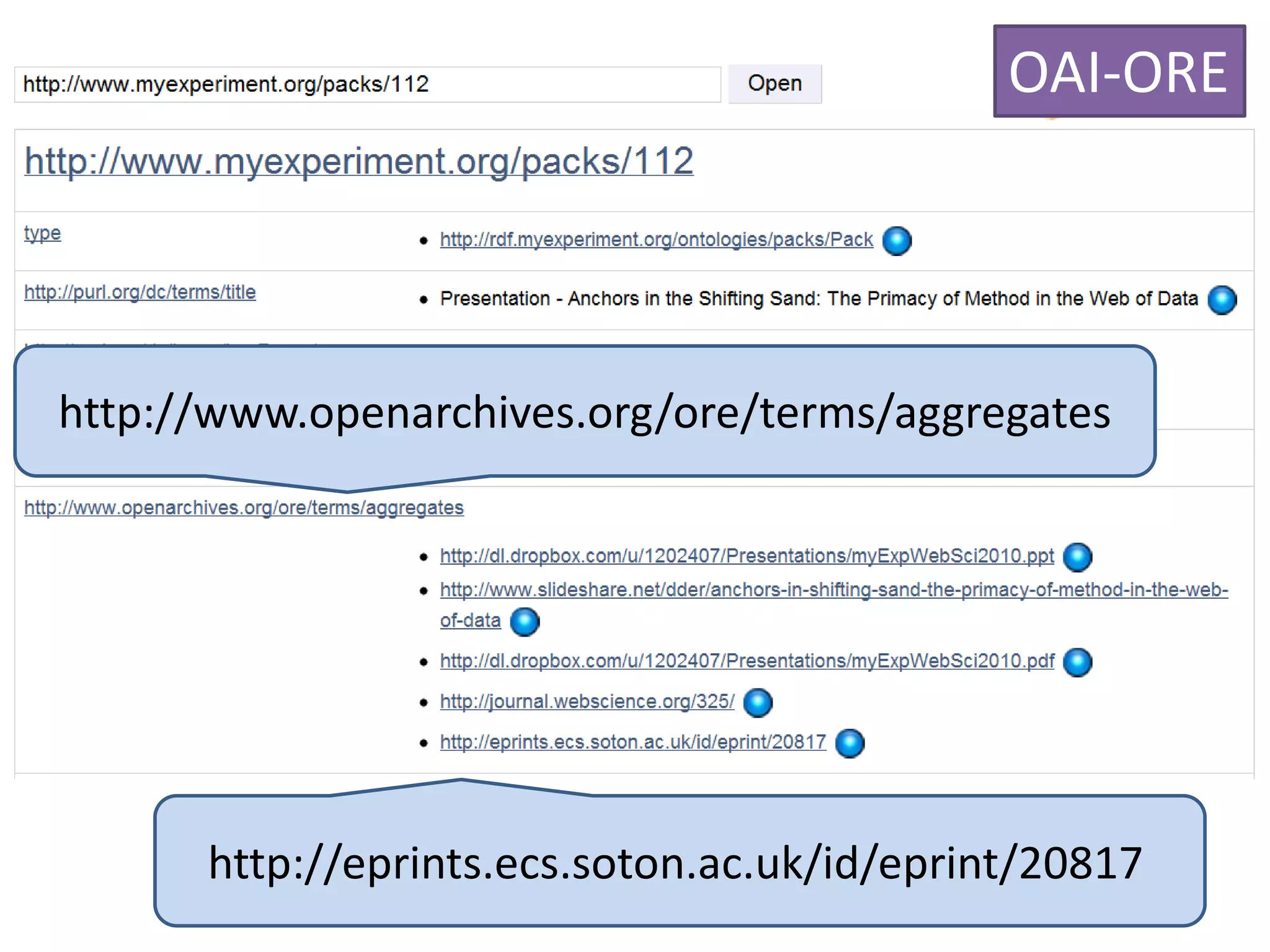

7. http://www.openarchives.org/ore/terms/aggregates
http://eprints.ecs.soton.ac.uk/id/eprint/20817
OAI-ORE

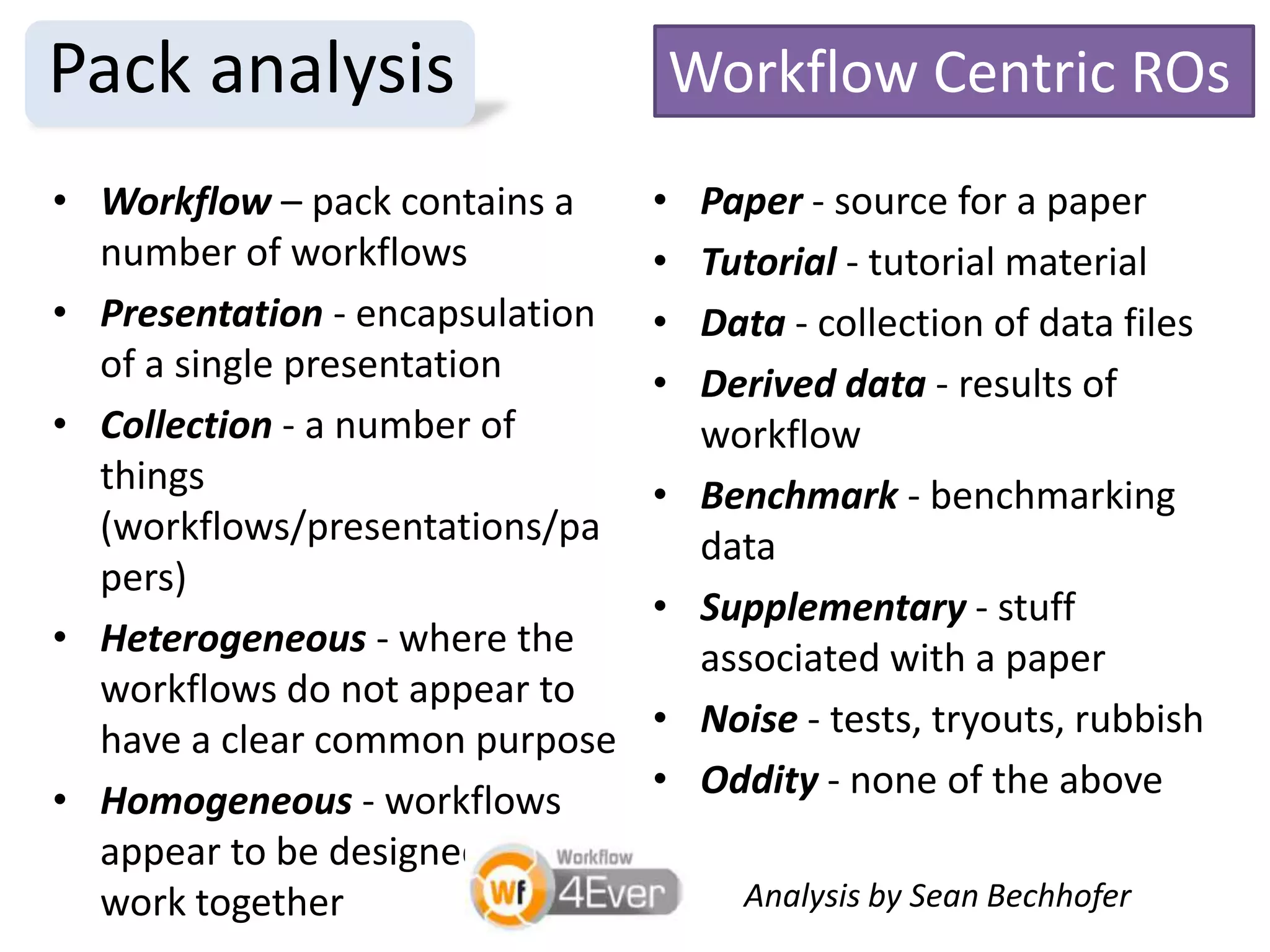

8. • Workflow – pack contains a
number of workflows
• Presentation - encapsulation
of a single presentation
• Collection - a number of
things
(workflows/presentations/pa
pers)
• Heterogeneous - where the
workflows do not appear to
have a clear common purpose
• Homogeneous - workflows
appear to be designed to
work together
• Paper - source for a paper
• Tutorial - tutorial material
• Data - collection of data files
• Derived data - results of
workflow
• Benchmark - benchmarking
data
• Supplementary - stuff
associated with a paper
• Noise - tests, tryouts, rubbish
• Oddity - none of the above
Analysis by Sean Bechhofer
Pack analysis Workflow Centric ROs

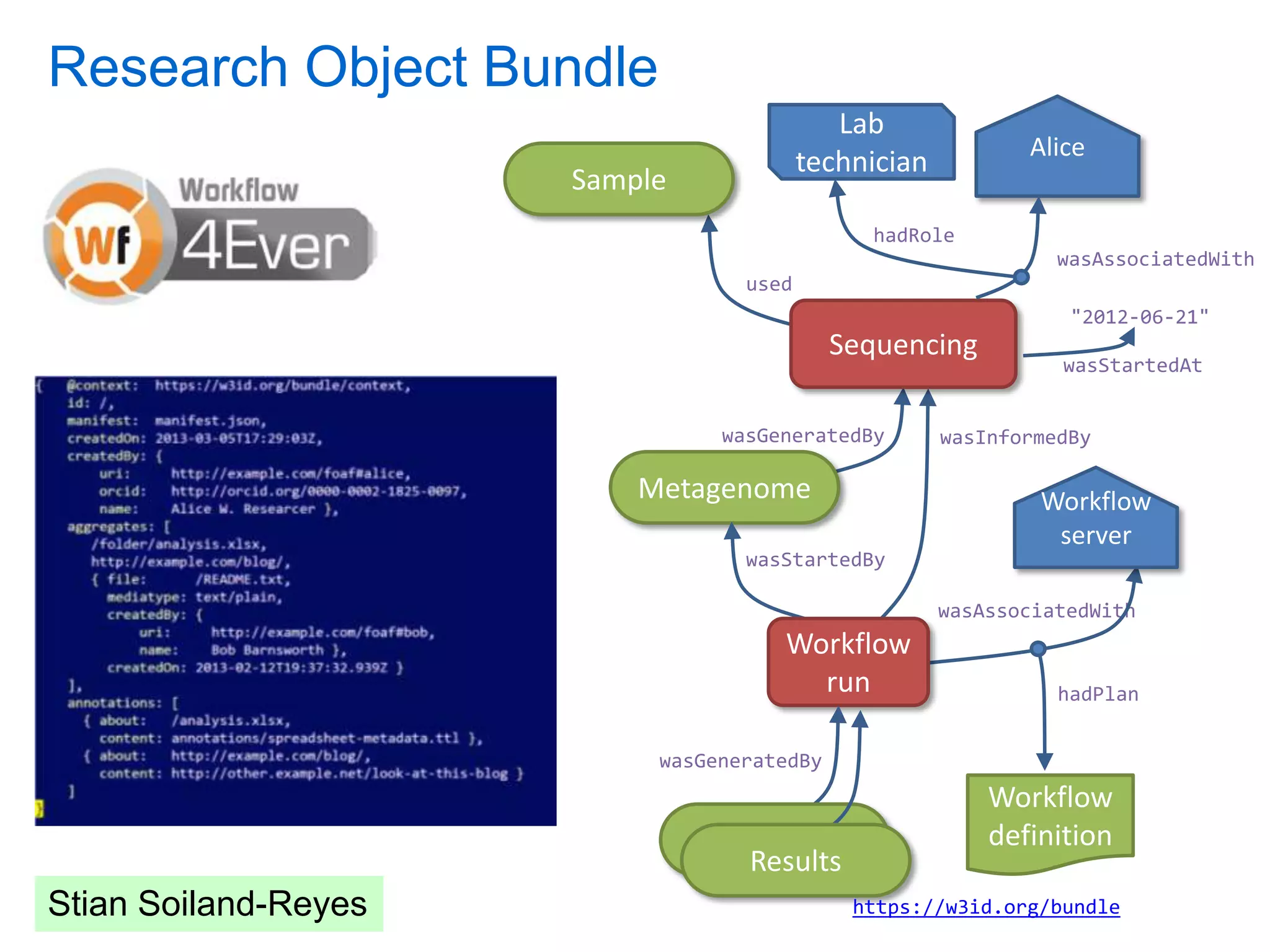

9. used
wasGeneratedBy
wasStartedAt
"2012-06-21"
Metagenome
Sample
wasAssociatedWith
Workflow
server
wasInformedBy
wasStartedBy
Workflow
run
wasGeneratedBy
Results
Sequencing
wasAssociatedWith
Alice
hadPlan
Workflow
definition
hadRole
Lab
technician
Results
https://w3id.org/bundleStian Soiland-Reyes
Research Object Bundle

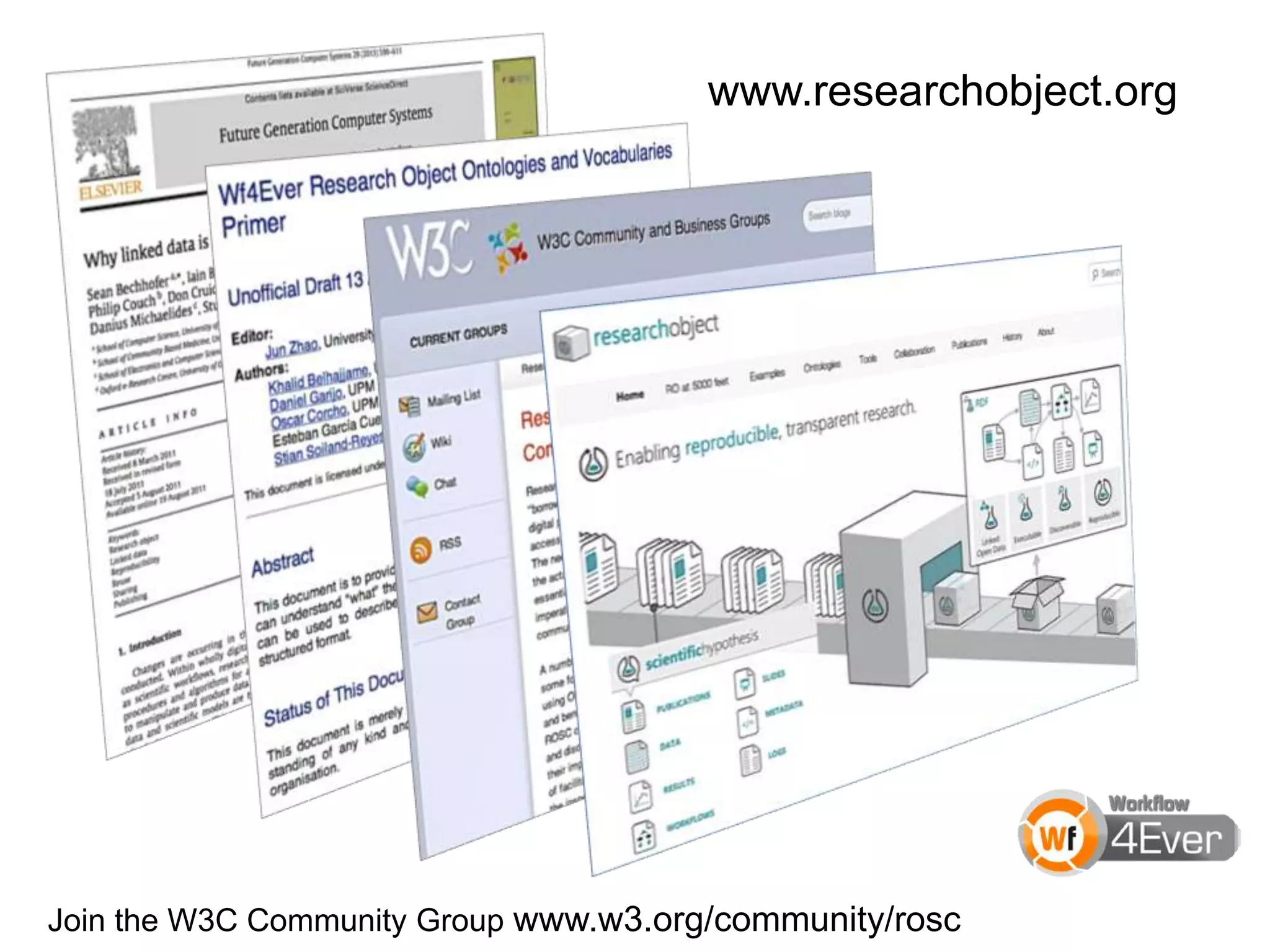

10. Join the W3C Community Group www.w3.org/community/rosc
www.researchobject.org

11. Notifications and automatic re-runs
Machines are users too
Autonomic
Curation
Self-repair
New research?

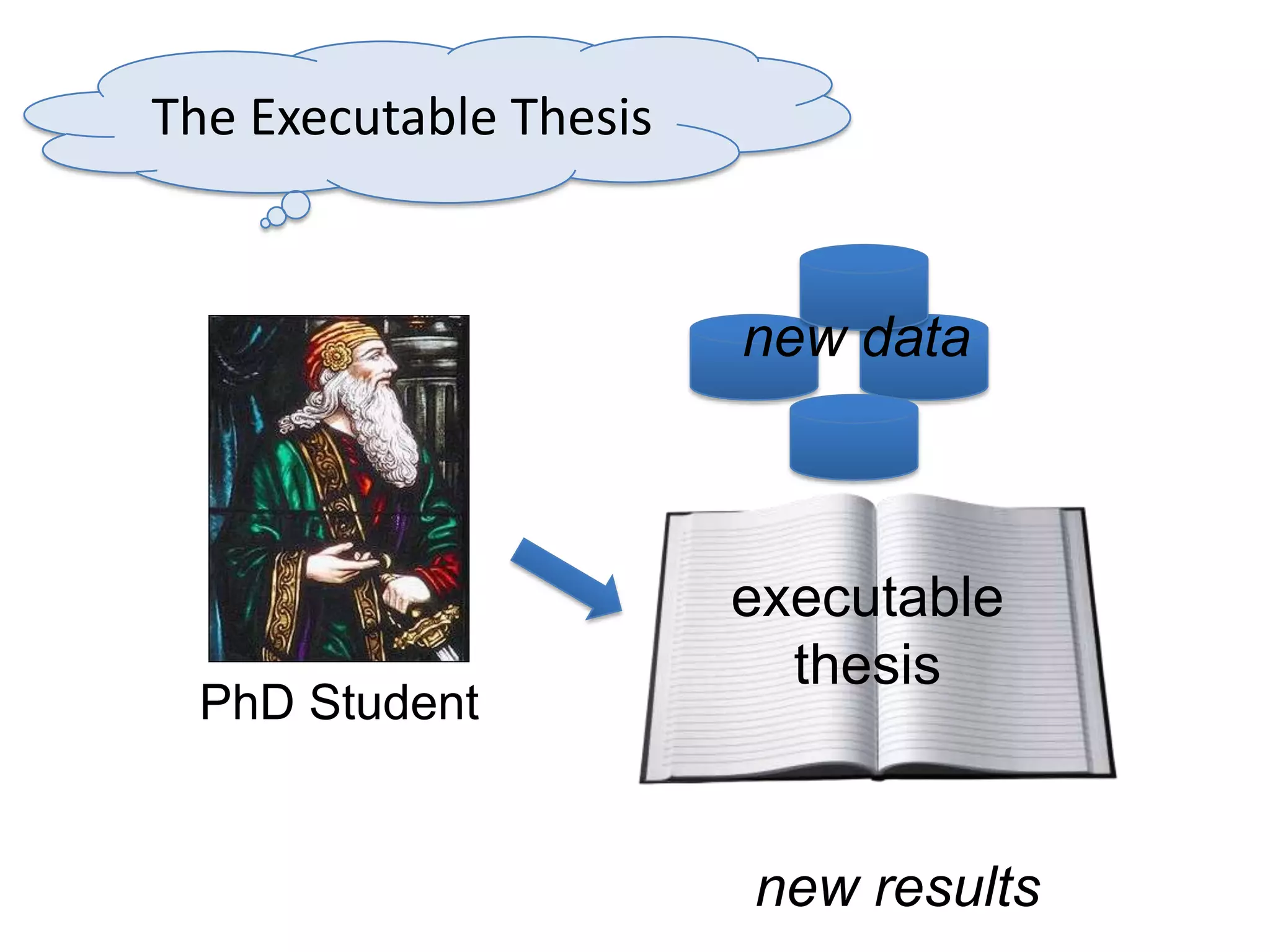

12. The Executable Thesis
new data
new results
executable
thesis
PhD Student

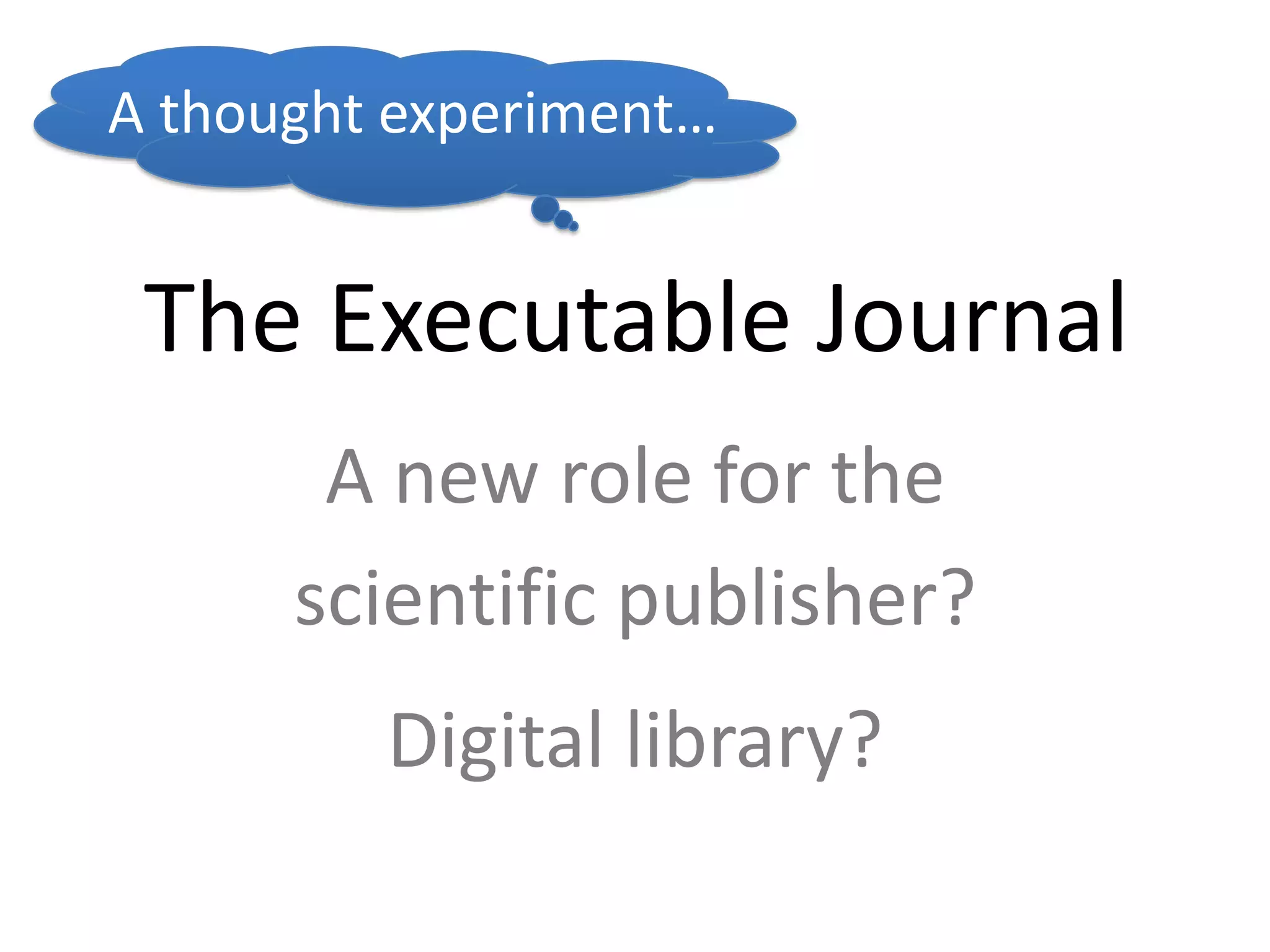

13. A new role for the
scientific publisher?
Digital library?
The Executable Journal
A thought experiment…

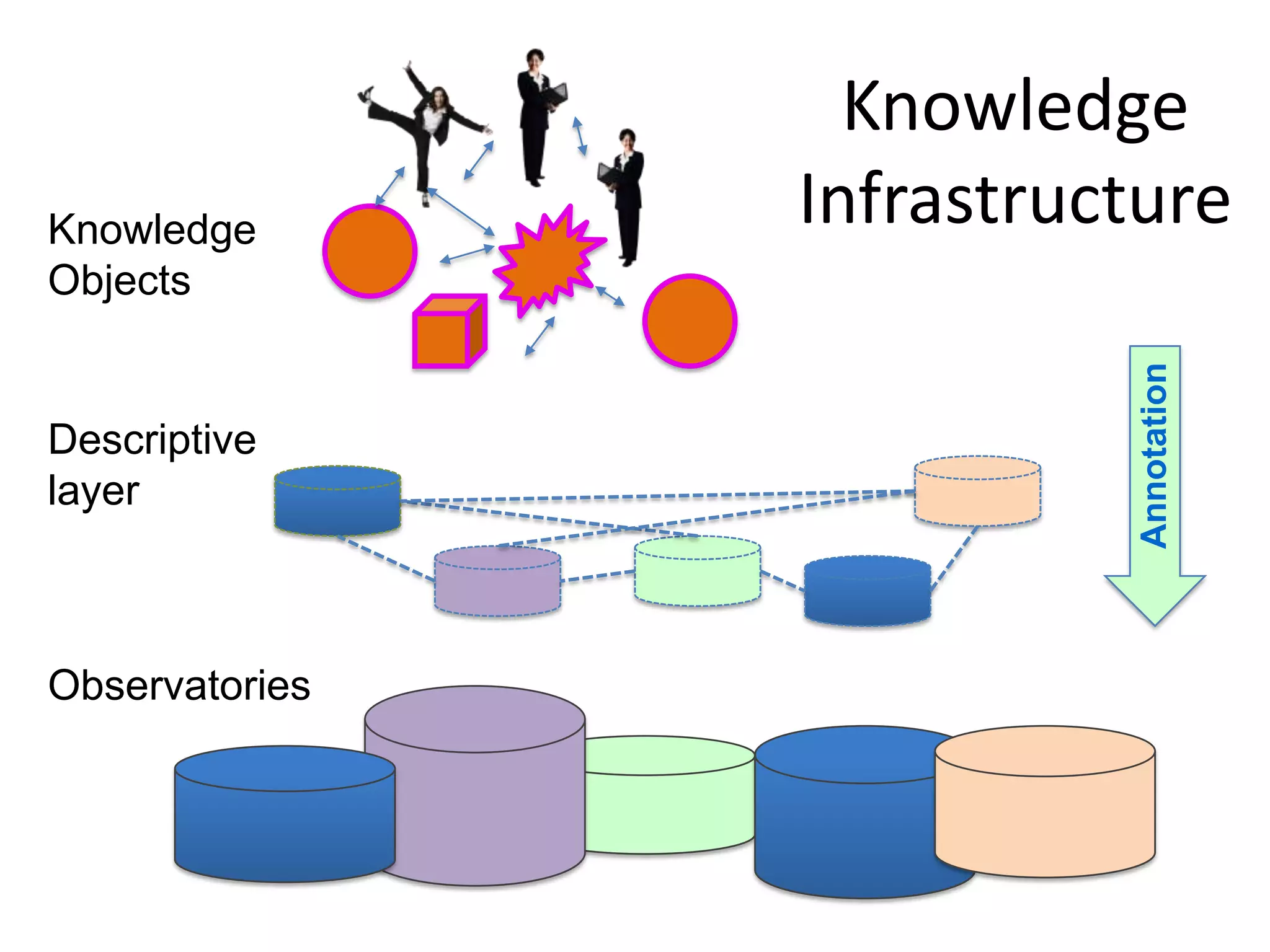

14. Knowledge
InfrastructureKnowledge
Objects
Descriptive
layer
Observatories
Annotation

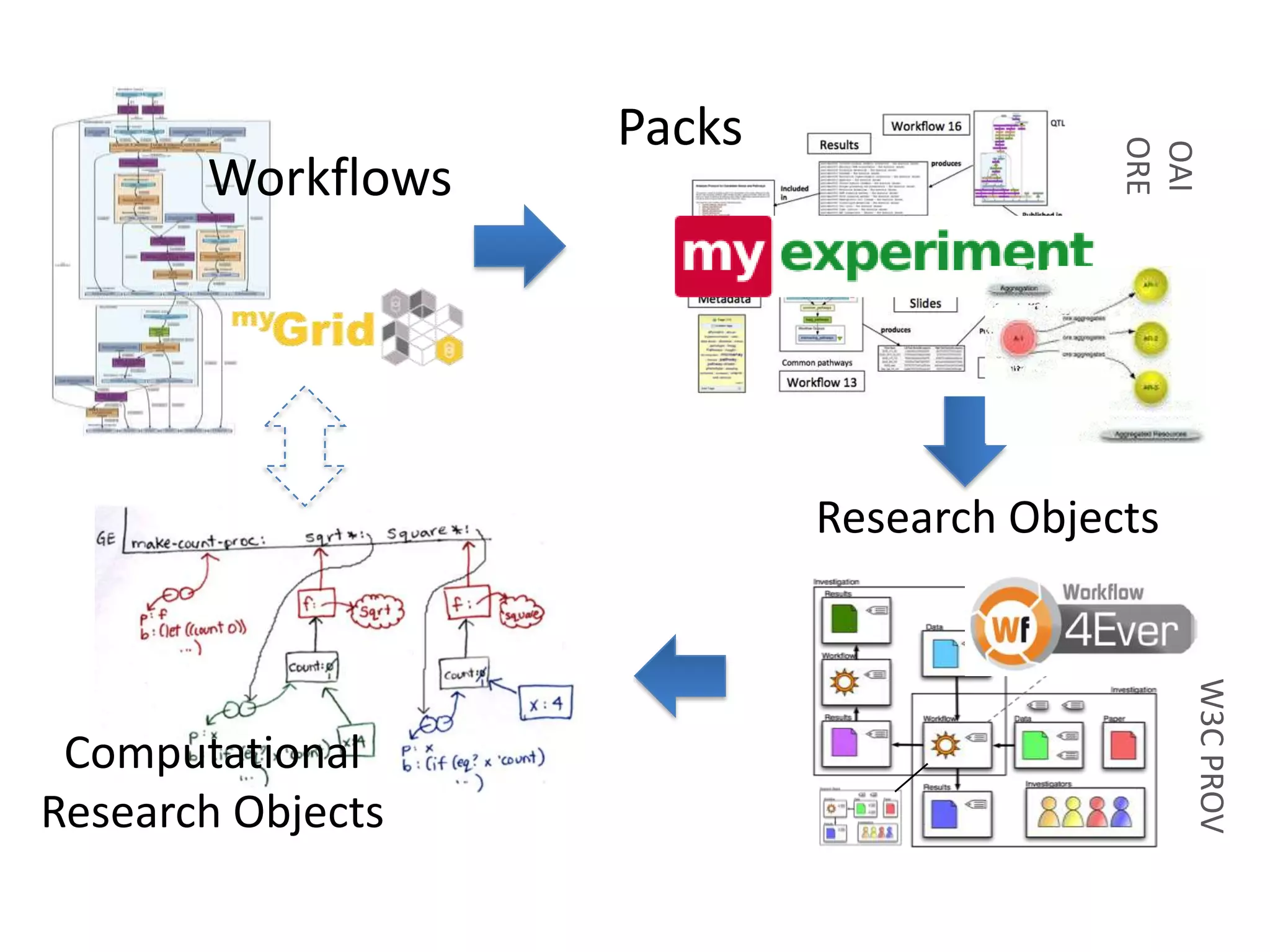

15. Research Objects
Computational
Research Objects
Workflows
Packs
OAI
ORE
W3CPROV

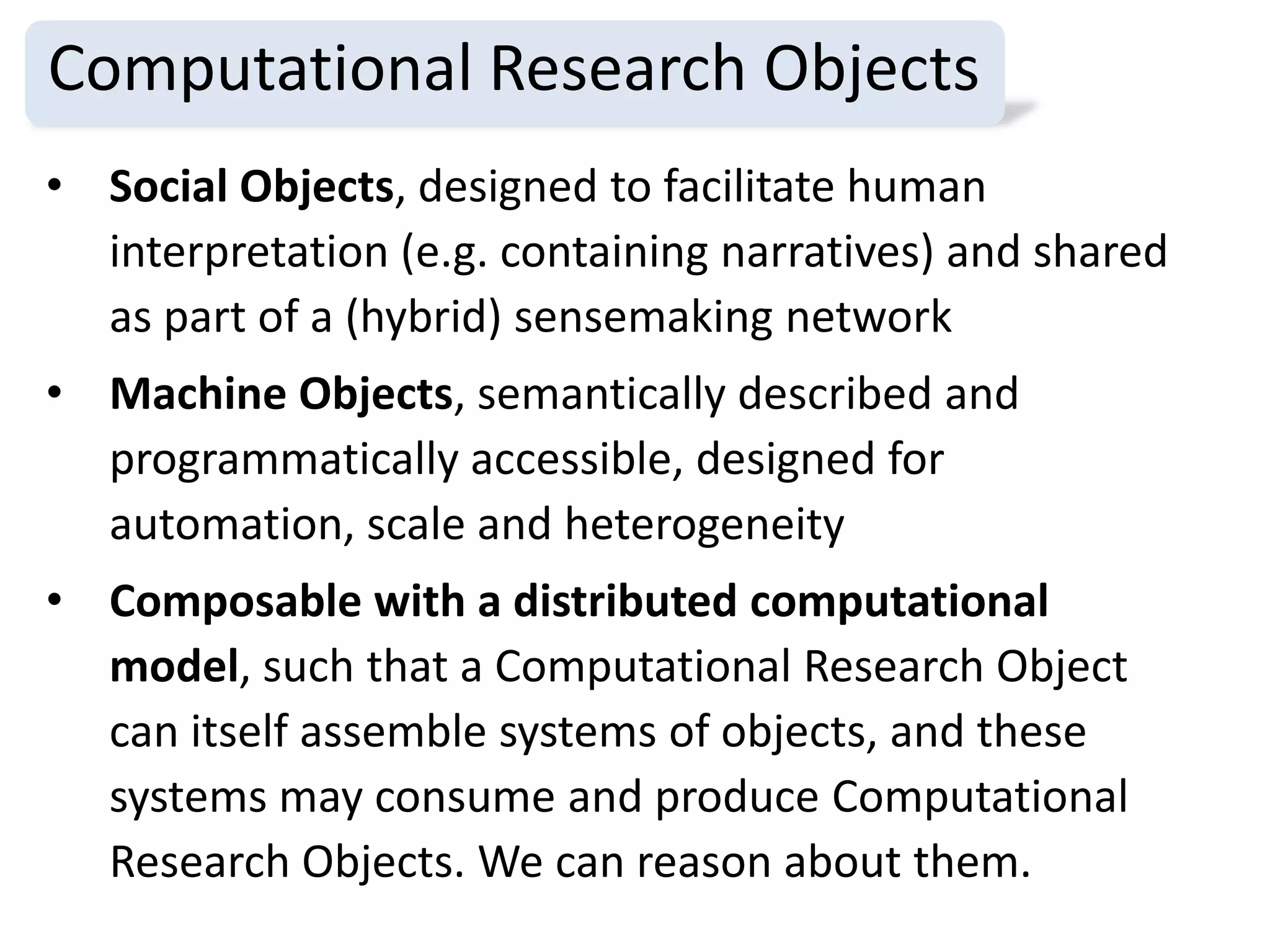

16. • Social Objects, designed to facilitate human
interpretation (e.g. containing narratives) and shared
as part of a (hybrid) sensemaking network
• Machine Objects, semantically described and
programmatically accessible, designed for
automation, scale and heterogeneity
• Composable with a distributed computational
model, such that a Computational Research Object
can itself assemble systems of objects, and these
systems may consume and produce Computational
Research Objects. We can reason about them.
Computational Research Objects

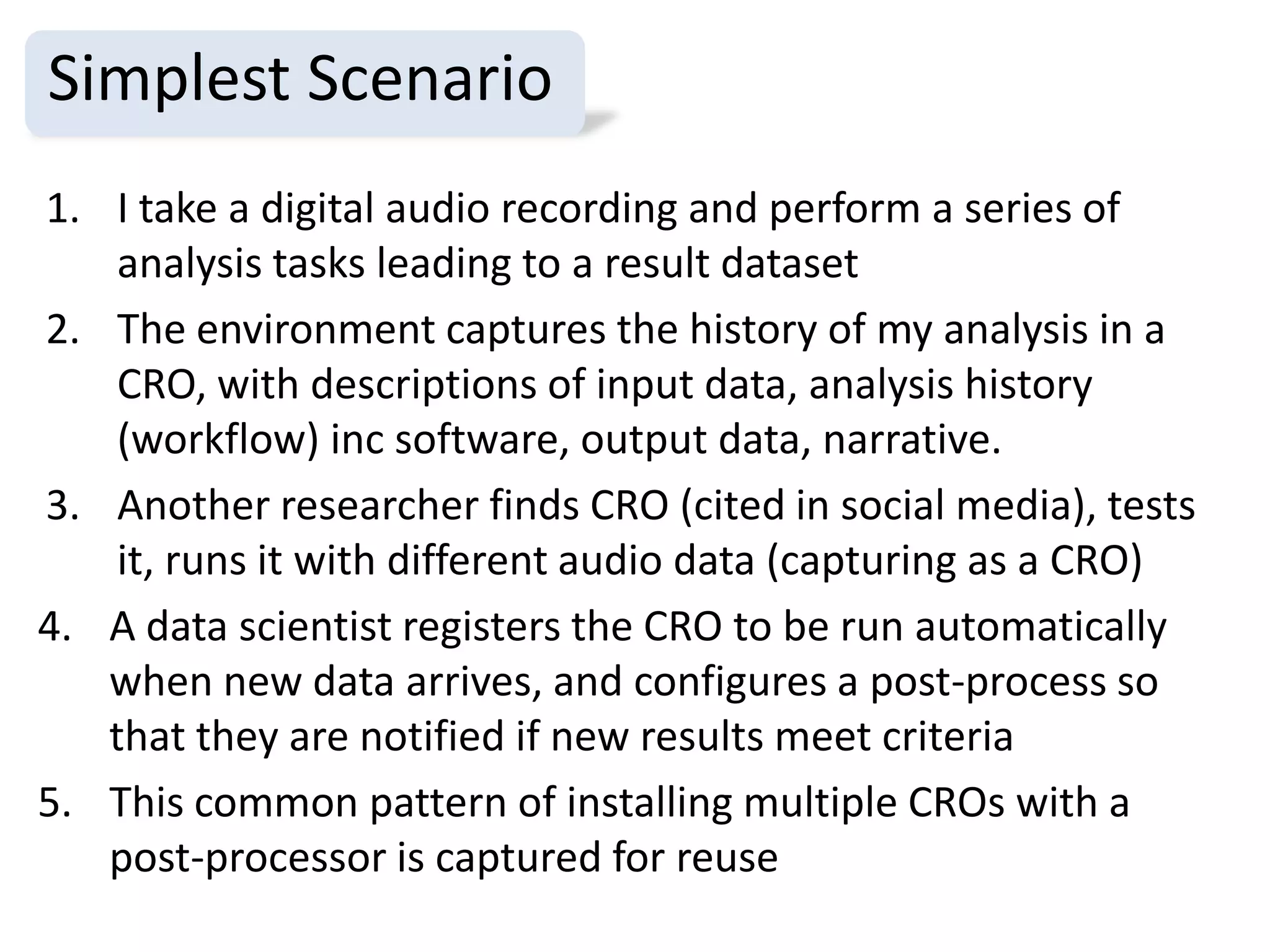

17. 1. I take a digital audio recording and perform a series of
analysis tasks leading to a result dataset
2. The environment captures the history of my analysis in a
CRO, with descriptions of input data, analysis history
(workflow) inc software, output data, narrative.
3. Another researcher finds CRO (cited in social media), tests
it, runs it with different audio data (capturing as a CRO)
4. A data scientist registers the CRO to be run automatically
when new data arrives, and configures a post-process so
that they are notified if new results meet criteria
5. This common pattern of installing multiple CROs with a
post-processor is captured for reuse
Simplest Scenario

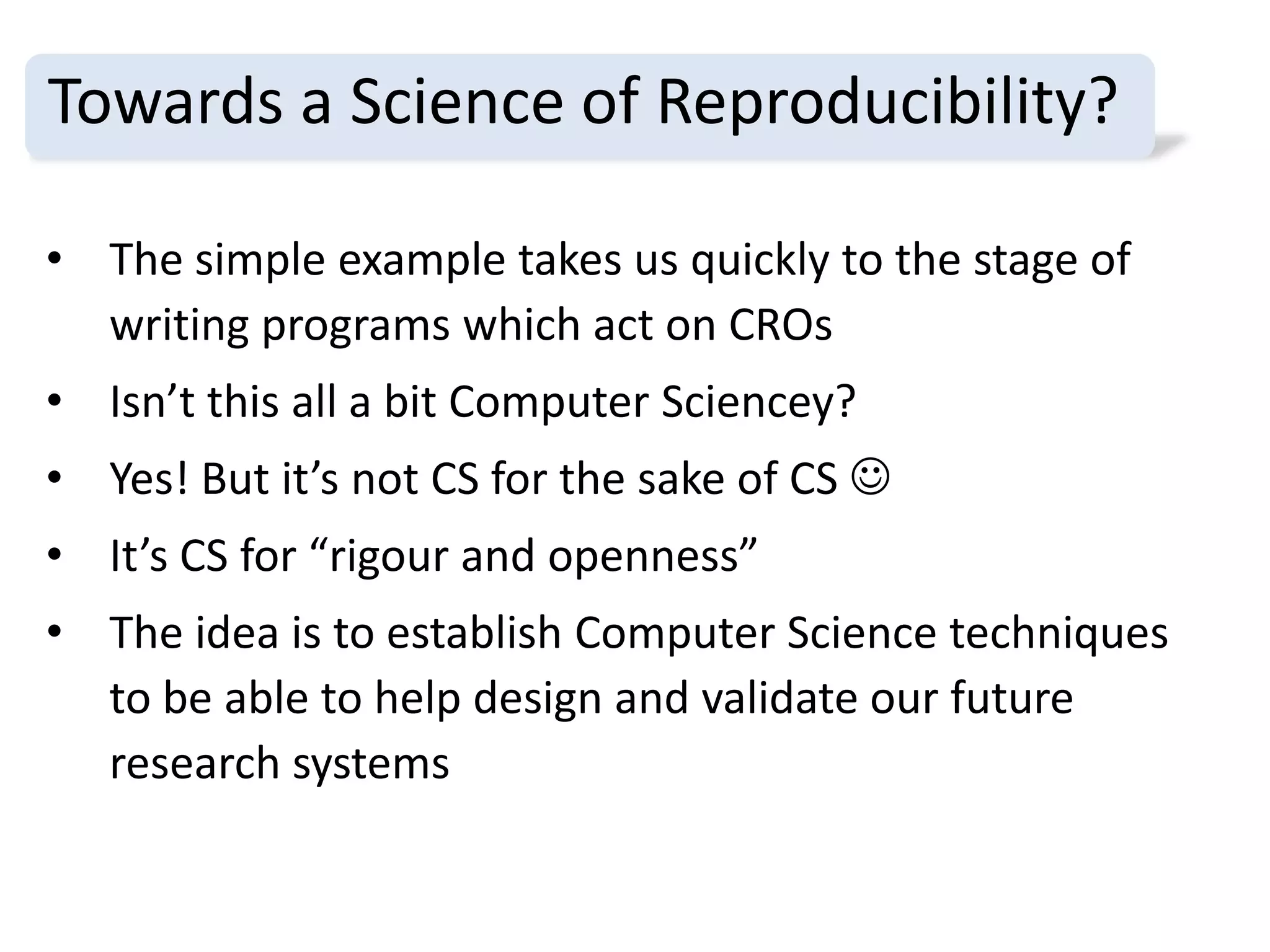

18. • The simple example takes us quickly to the stage of
writing programs which act on CROs
• Isn’t this all a bit Computer Sciencey?
• Yes! But it’s not CS for the sake of CS 
• It’s CS for “rigour and openness”
• The idea is to establish Computer Science techniques
to be able to help design and validate our future
research systems
Towards a Science of Reproducibility?

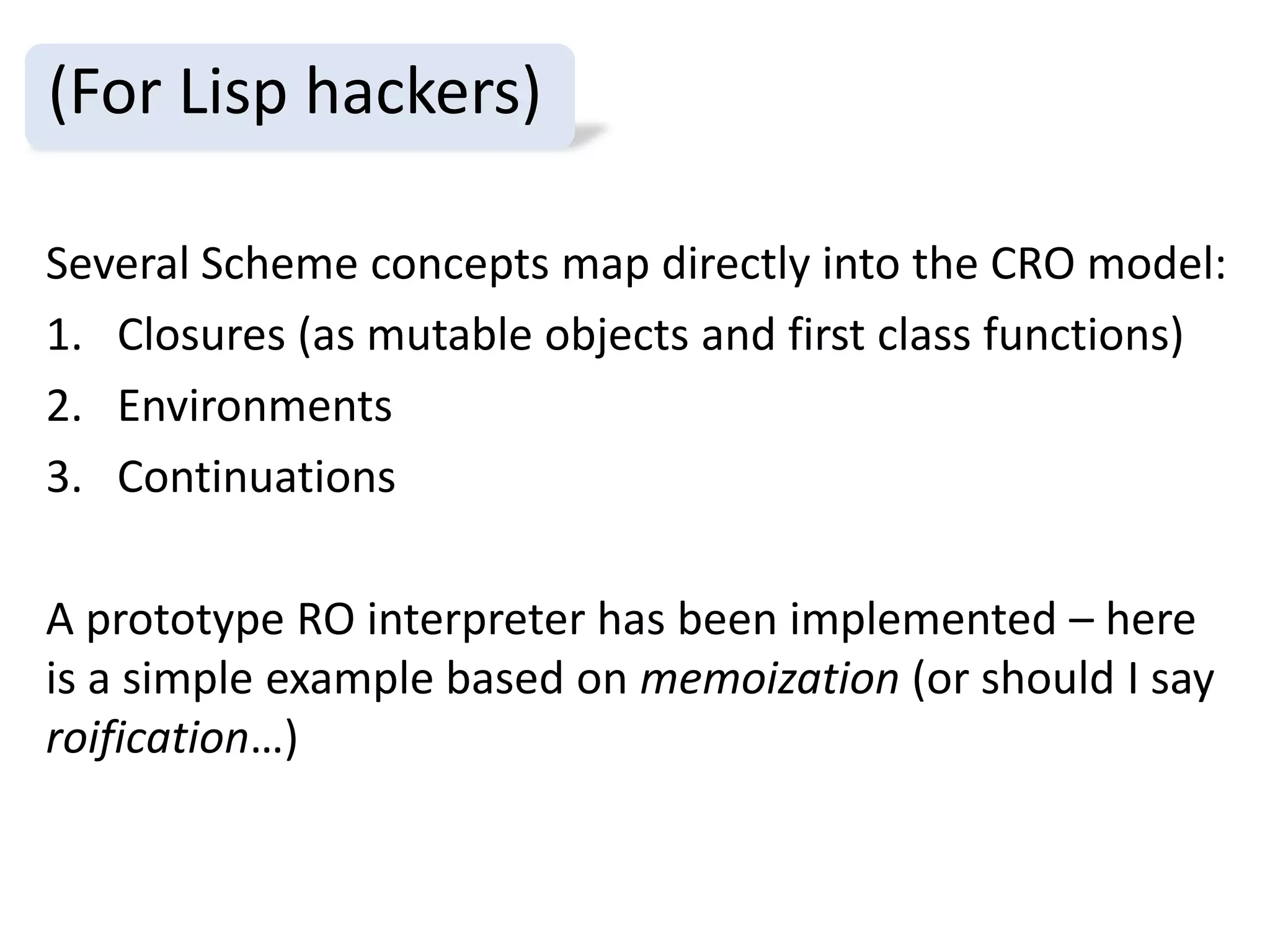

19. Several Scheme concepts map directly into the CRO model:
1. Closures (as mutable objects and first class functions)
2. Environments
3. Continuations
A prototype RO interpreter has been implemented – here
is a simple example based on memoization (or should I say
roification…)
(For Lisp hackers)

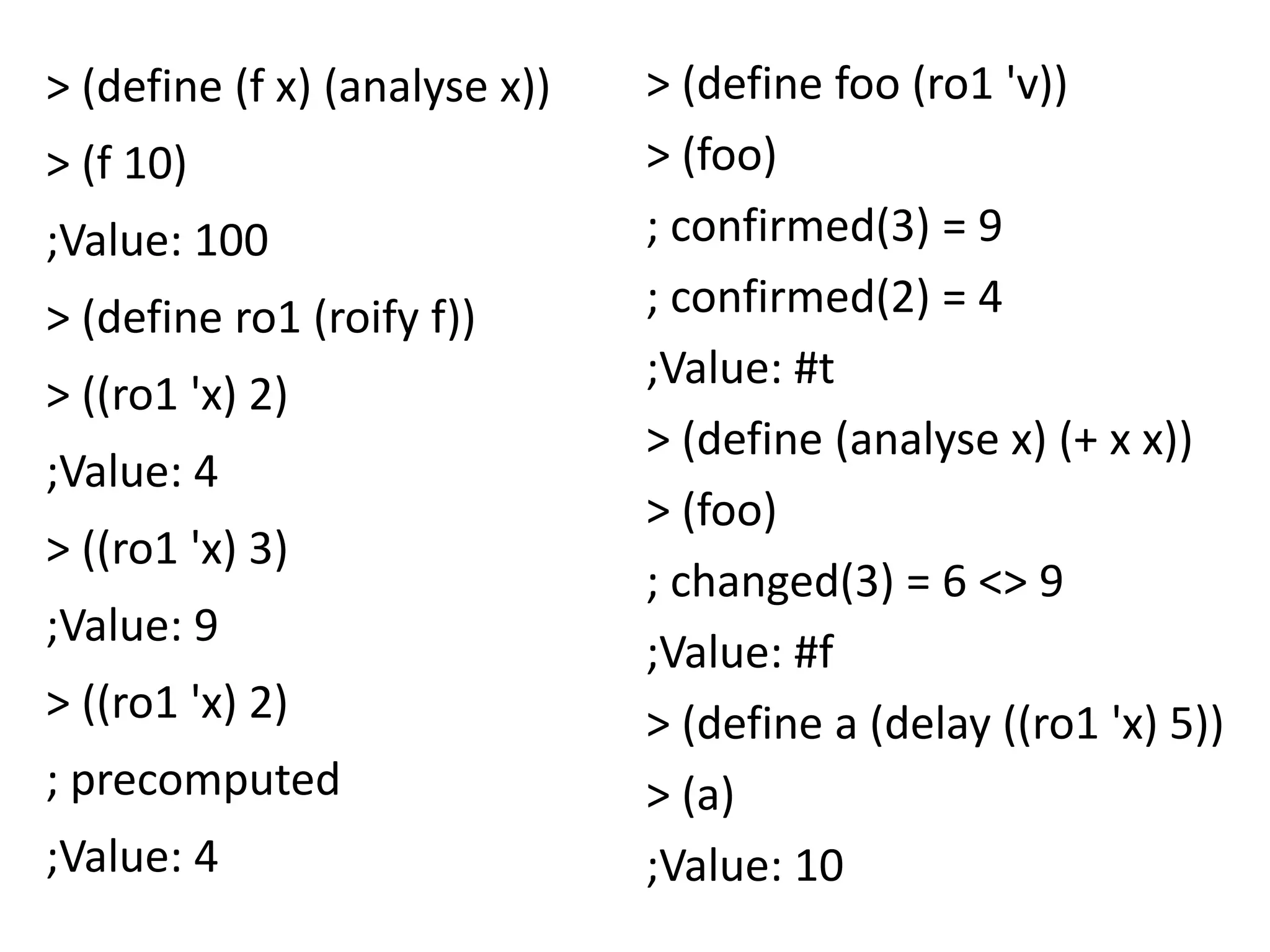

20. > (define (f x) (analyse x))
> (f 10)
;Value: 100
> (define ro1 (roify f))
> ((ro1 'x) 2)
;Value: 4
> ((ro1 'x) 3)
;Value: 9
> ((ro1 'x) 2)
; precomputed
;Value: 4
> (define foo (ro1 'v))
> (foo)
; confirmed(3) = 9
; confirmed(2) = 4
;Value: #t
> (define (analyse x) (+ x x))
> (foo)
; changed(3) = 6 <> 9
;Value: #f
> (define a (delay ((ro1 'x) 5))
> (a)
;Value: 10

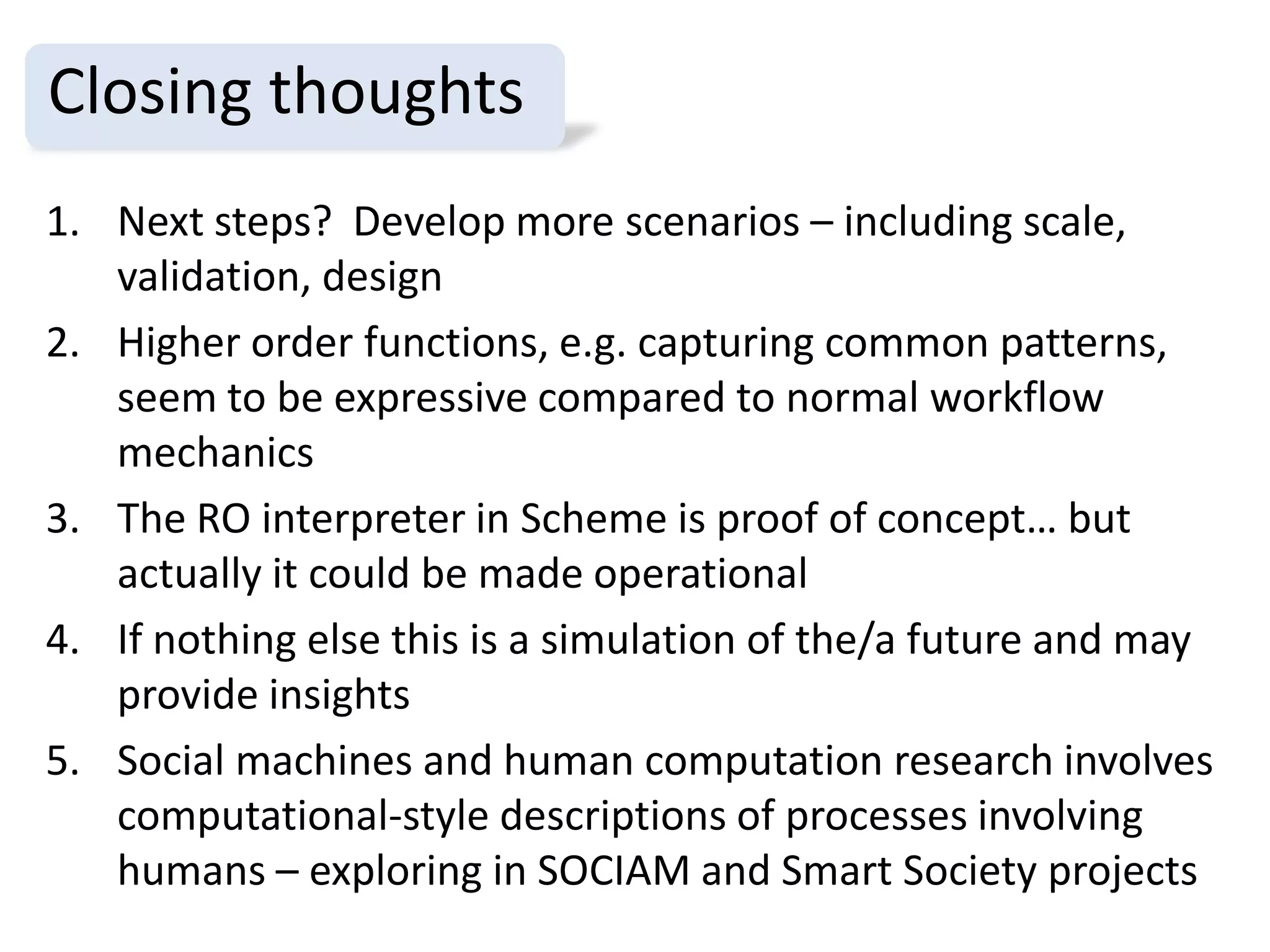

21. 1. Next steps? Develop more scenarios – including scale,
validation, design
2. Higher order functions, e.g. capturing common patterns,
seem to be expressive compared to normal workflow
mechanics
3. The RO interpreter in Scheme is proof of concept… but
actually it could be made operational
4. If nothing else this is a simulation of the/a future and may
provide insights
5. Social machines and human computation research involves
computational-style descriptions of processes involving
humans – exploring in SOCIAM and Smart Society projects
Closing thoughts

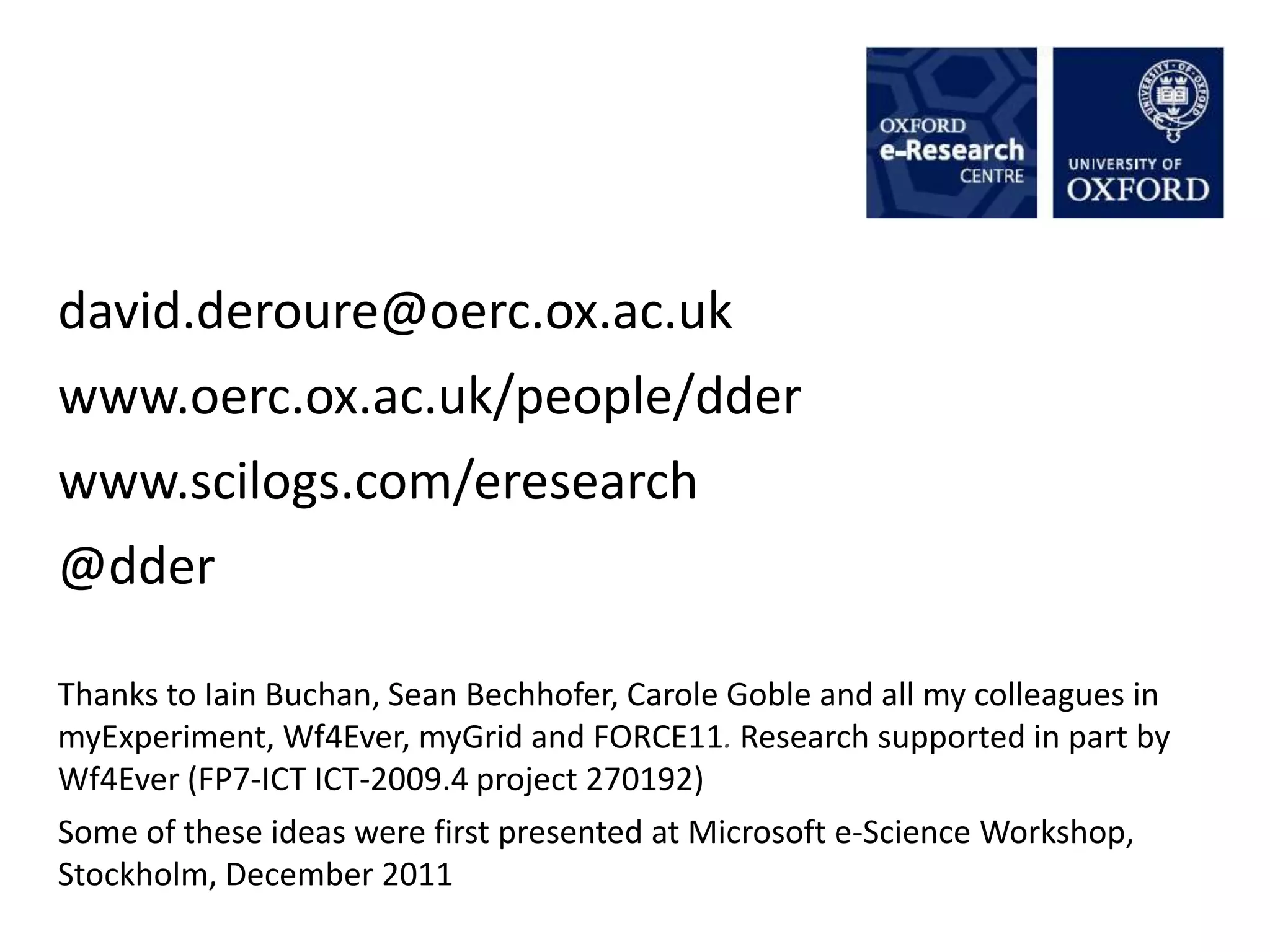

22. david.deroure@oerc.ox.ac.uk
www.oerc.ox.ac.uk/people/dder
www.scilogs.com/eresearch
@dder
Thanks to Iain Buchan, Sean Bechhofer, Carole Goble and all my colleagues in
myExperiment, Wf4Ever, myGrid and FORCE11. Research supported in part by
Wf4Ever (FP7-ICT ICT-2009.4 project 270192)
Some of these ideas were first presented at Microsoft e-Science Workshop,
Stockholm, December 2011
