1. Theory of Computation
CSE 2233
Mohammad Imam Hossain | Lecturer, Dept. of CSE | UIU

2. CFG – Context-free Grammar
2
A Context-free Grammar is a 4 tuple (V, 𝛴, R, S), where
▸ V is a finite set called the variables
▸ Σ is a finite set, disjoint from V, called the terminals
▸ R is a finite set of rules, with each rule being a variable and a string of variables and terminals
▸ S ϵ V is the start variable
Example:
Grammar, G1 = ( { S }, { a, b }, R, S )
V = { S }
Σ = { a, b }
R is,
S → aSb | SS | ε
Example:
Grammar, G2 = ( V, Σ, R, <EXPR> )
V = { <EXPR>, <TERM>, <FACTOR> }
Σ = { a, +, x, (, ) }
R is,
<EXPR> → <EXPR> + <TERM> | <TERM>
<TERM> → <TERM> x <FACTOR> | <FACTOR>
<FACTOR> → ( <EXPR> ) | a
Mohammad Imam Hossain | Lecturer, Dept. of CSE | UIU

3. CFL – Context-free Language
3
Context-free Language:
– The collection of languages generated by some context-free grammars are called Context-free Languages.
– They include all the regular languages and many additional(recursive structure) languages.
Mohammad Imam Hossain | Lecturer, Dept. of CSE | UIU

4. CFG >> Terminologies – yields, derives, derivation
4
▸ If u, v, w are strings of variables and terminals, and A → w is a rule of the grammar, we say that
uAv ⟹ uwv i.e. uAv yields uwv
▸ We say u derives v, written as
- if u = v or
- if a sequence u1, u2, u3, … … … , uk exists for k >= 0 and u ⟹ u1 ⟹ u2 ⟹ u3 ⟹ … … ⟹ uk ⟹ v
▸ A word is a string of terminals and the language of the grammar is { w ∈ 𝛴* | S =*> w }
▸ A derivation of a word w from a CFG G = ( V, 𝛴, R, S ) is a sequence of strings over V U 𝛴 ,
S = s0 => s1 => s2 => … … … => sk = w
where
- s0 = S is the start variable of G
- For each 1 <= i <= k,
si is obtained by activating a single production rule of G on one of the variables of si-1
vu
*

Mohammad Imam Hossain | Lecturer, Dept. of CSE | UIU

5. CFG >> Derivation
5
Derivation – you can apply rules to any variables, no order is maintained. [single rules at a time]
For example, a + a x a
<EXPR>
⇒ <EXPR> + <TERM>
⇒ <TERM> + <TERM>
⇒ <TERM> + <TERM> x <FACTOR>
⇒ <TERM> + <TERM> x a
⇒ <FACTOR>+ <TERM> x a
⇒ a + <TERM> x a
⇒ a + <FACTOR> x a
⇒ a + a x a
Mohammad Imam Hossain | Lecturer, Dept. of CSE | UIU
G = ( V, Σ, R, <EXPR> )
Where,
V = { <EXPR>, <TERM>, <FACTOR> }
Σ = { a, +, x, (, ) }
R={
<EXPR> → <EXPR> + <TERM> | <TERM>
<TERM> → <TERM> x <FACTOR> | <FACTOR>
<FACTOR> → ( <EXPR> ) | a
}

6. CFG >> Leftmost Derivation
6
Leftmost Derivation – A derivation of a string w in a grammar G is a leftmost derivation
if at every step the leftmost remaining variable is the one replaced.
For example, a + a x a
<EXPR>
⇒ <EXPR> + <TERM>
⇒ <TERM> + <TERM>
⇒ <FACTOR> + <TERM>
⇒ a + <TERM>
⇒ a + <TERM> x <FACTOR>
⇒ a + <FACTOR> x <FACTOR>
⇒ a + a x <FACTOR>
⇒ a + a x a
Mohammad Imam Hossain | Lecturer, Dept. of CSE | UIU
G = ( V, Σ, R, <EXPR> )
Where,
V = { <EXPR>, <TERM>, <FACTOR> }
Σ = { a, +, x, (, ) }
R={
<EXPR> → <EXPR> + <TERM> | <TERM>
<TERM> → <TERM> x <FACTOR> | <FACTOR>
<FACTOR> → ( <EXPR> ) | a
}

7. CFG >> Rightmost Derivation
7
Rightmost Derivation – A derivation of a string w in a grammar G is a rightmost derivation
if at every step the rightmost remaining variable is the one replaced.
For example, a + a x a
<EXPR>
⇒ <EXPR> + <TERM>
⇒ <EXPR> + <TERM> x <FACTOR>
⇒ <EXPR> + <TERM> x a
⇒ <EXPR> + <FACTOR> x a
⇒ <EXPR> + a X a
⇒ <TERM> + a X a
⇒ <FACTOR> + a X a
⇒ a + a X a
Mohammad Imam Hossain | Lecturer, Dept. of CSE | UIU
G = ( V, Σ, R, <EXPR> )
Where,
V = { <EXPR>, <TERM>, <FACTOR> }
Σ = { a, +, x, (, ) }
R={
<EXPR> → <EXPR> + <TERM> | <TERM>
<TERM> → <TERM> x <FACTOR> | <FACTOR>
<FACTOR> → ( <EXPR> ) | a
}

8. CFG >> Leftmost vs Rightmost Derivation
8
G = ( V, Σ, R, S )
Where,
V = { S }
Σ = { (, ) }
R={
S → SS | ( S ) | 𝜀
}
Leftmost derivation of “( ) ( )”: S ⇒ SS ⇒ ( S ) S ⇒ ( ) S ⇒ ( ) ( S ) ⇒ ( ) ( )
Rightmost derivation of “( ) ( )”: S => SS => S ( S ) => S ( ) => ( S ) ( ) => ( ) ( )
Mohammad Imam Hossain | Lecturer, Dept. of CSE | UIU

9. CFG >> Parse Tree
9
Root – must be labeled by the start variable
Leaves – labeled by a terminal or 𝜀
Interior nodes – labeled by a variable
Yield – the concatenation of the labels of the leaves in left to right order
For example, S → SS | ( S ) | ( )
yields ( ( ) ) ( )
Mohammad Imam Hossain | Lecturer, Dept. of CSE | UIU

10. CFG >> Example 1
10
▸ Let, CFG G = ( V, Σ, R, <EXPR> )
where V = { <EXPR>, <TERM>, <FACTOR> }
Σ = { a, +, x, (, ) }
R={
<EXPR> → <EXPR> + <TERM> | <TERM>
<TERM> → <TERM> x <FACTOR> | <FACTOR>
<FACTOR> → ( <EXPR> ) | a
}
▸ Derive the following strings
- a + a x a
- ( a + a ) x a
Mohammad Imam Hossain | Lecturer, Dept. of CSE | UIU

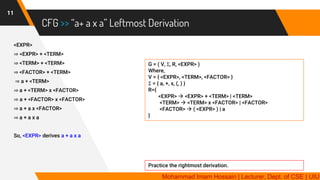

11. CFG >> “a+ a x a” Leftmost Derivation
11
<EXPR>
⇒ <EXPR> + <TERM>
⇒ <TERM> + <TERM>
⇒ <FACTOR> + <TERM>
⇒ a + <TERM>
⇒ a + <TERM> x <FACTOR>
⇒ a + <FACTOR> x <FACTOR>
⇒ a + a x <FACTOR>
⇒ a + a x a
So, <EXPR> derives a + a x a
Mohammad Imam Hossain | Lecturer, Dept. of CSE | UIU
Practice the rightmost derivation.
G = ( V, Σ, R, <EXPR> )
Where,
V = { <EXPR>, <TERM>, <FACTOR> }
Σ = { a, +, x, (, ) }
R={
<EXPR> → <EXPR> + <TERM> | <TERM>
<TERM> → <TERM> x <FACTOR> | <FACTOR>
<FACTOR> → ( <EXPR> ) | a
}

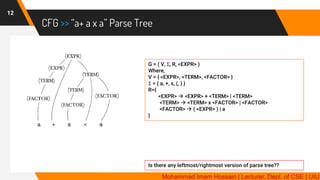

12. CFG >> “a+ a x a” Parse Tree
12
Mohammad Imam Hossain | Lecturer, Dept. of CSE | UIU
G = ( V, Σ, R, <EXPR> )
Where,
V = { <EXPR>, <TERM>, <FACTOR> }
Σ = { a, +, x, (, ) }
R={
<EXPR> → <EXPR> + <TERM> | <TERM>
<TERM> → <TERM> x <FACTOR> | <FACTOR>
<FACTOR> → ( <EXPR> ) | a
}
Is there any leftmost/rightmost version of parse tree??

13. CFG >> “( a+ a ) x a” Leftmost Derivation
13
<EXPR>
⇒ <TERM>
⇒ <TERM> x <FACTOR>
⇒ <FACTOR> x <FACTOR>
⇒ ( <EXPR> ) x <FACTOR>
⇒ ( <EXPR> + <TERM> ) x <FACTOR>
⇒ ( <TERM> + <TERM> ) x <FACTOR>
⇒ ( <FACTOR> + <TERM> ) x <FACTOR>
⇒ ( a + <TERM> ) x <FACTOR>
⇒ ( a + <FACTOR> ) x <FACTOR>
⇒ ( a + a ) x <FACTOR>
⇒ ( a + a ) x a
So, <EXPR> derives ( a + a ) x a
Mohammad Imam Hossain | Lecturer, Dept. of CSE | UIU
G = ( V, Σ, R, <EXPR> )
Where,
V = { <EXPR>, <TERM>, <FACTOR> }
Σ = { a, +, x, (, ) }
R={
<EXPR> → <EXPR> + <TERM> | <TERM>
<TERM> → <TERM> x <FACTOR> | <FACTOR>
<FACTOR> → ( <EXPR> ) | a
}

14. CFG >> “( a+ a ) x a” Parse Tree
14
Mohammad Imam Hossain | Lecturer, Dept. of CSE | UIU
G = ( V, Σ, R, <EXPR> )
Where,
V = { <EXPR>, <TERM>, <FACTOR> }
Σ = { a, +, x, (, ) }
R={
<EXPR> → <EXPR> + <TERM> | <TERM>
<TERM> → <TERM> x <FACTOR> | <FACTOR>
<FACTOR> → ( <EXPR> ) | a
}

15. CFG >> Practice 1
15
▸ Let, CFG G = ( V, Σ, R, <EXPR> )
where V = { <EXPR>, <TERM>, <FACTOR> }
Σ = { a, b, +, x, (, ) }
R={
<EXPR> → <EXPR> + <TERM> | <TERM>
<TERM> → <TERM> x <FACTOR> | <FACTOR>
<FACTOR> → ( <EXPR> ) | a | b
}
▸ Derive the following strings:
- ( a + b ) x a
- a + b x a
Mohammad Imam Hossain | Lecturer, Dept. of CSE | UIU

16. CFG >> Practice 2
16
▸ Let us consider a CFG with the following production rules,
<SENTENCE> → <NOUN-PHRASE> <VERB-PHRASE>
<NOUN-PHRASE> → <CMPLX-NOUN> | <CMPLX-NOUN> <PREP-PHRASE>
<VERB-PHRASE> → <CMPLX-VERB> | <CMPLX-VERB> <PREP-PHRASE>
<PREP-PHRASE> → <PREP> <CMPLX-NOUN>
<CMPLX-NOUN> → <ARTICLE> <NOUN>
<CMPLX-VERB> → <VERB> | <VERB> <NOUN-PHRASE>
<ARTICLE> → a | the
<NOUN> → boy | girl | flower
<VERB> → touches | likes | sees
<PREP> → with
▸ Now derive the following strings:
- a boy sees
- The boy sees a flower
- a girl with a flower likes the boy
Mohammad Imam Hossain | Lecturer, Dept. of CSE | UIU

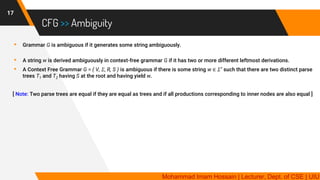

17. CFG >> Ambiguity
17
▸ Grammar G is ambiguous if it generates some string ambiguously.
▸ A string w is derived ambiguously in context-free grammar G if it has two or more different leftmost derivations.
▸ A Context Free Grammar G = ( V, 𝛴, R, S ) is ambiguous if there is some string w ∈ 𝛴* such that there are two distinct parse
trees T1 and T2 having S at the root and having yield w.
[ Note: Two parse trees are equal if they are equal as trees and if all productions corresponding to inner nodes are also equal ]
Mohammad Imam Hossain | Lecturer, Dept. of CSE | UIU

18. CFG >> Ambiguity – Example 1
18
CFG G = ( V, Σ, R, <EXPR> )
Where,
V = { <EXPR> }
Σ = { a, +, x, (, ) }
R={
<EXPR> → <EXPR> + <EXPR> | <EXPR> X <EXPR> | ( <EXPR> ) | a
}
Now derive the string : a + a x a
Mohammad Imam Hossain | Lecturer, Dept. of CSE | UIU

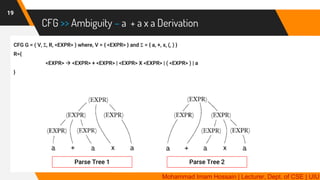

19. CFG >> Ambiguity – a + a x a Derivation
19
CFG G = ( V, Σ, R, <EXPR> ) where, V = { <EXPR> } and Σ = { a, +, x, (, ) }
R={
<EXPR> → <EXPR> + <EXPR> | <EXPR> X <EXPR> | ( <EXPR> ) | a
}
Mohammad Imam Hossain | Lecturer, Dept. of CSE | UIU
Parse Tree 1 Parse Tree 2

20. CFG >> Ambiguity – Practice 1
20
CFG G = ( V, Σ, R, <EXPR> )
Where,
V = { <EXPR>, <TERM>, <FACTOR> }
Σ = { a, b, +, x }
R={
<EXPR> → <EXPR> + <EXPR> | <EXPR> X <EXPR> | a | b
}
Does the grammar generate the string “a + b x a” ambiguously???
Mohammad Imam Hossain | Lecturer, Dept. of CSE | UIU

21. CFG >> Ambiguity – Practice 2
21
CFG G = ( V, Σ, R, S )
Where,
V = { S }
Σ = { (, ) }
R={
S → SS | ( S ) | ( )
}
Does the grammar generate the string “( )( )( )” ambiguously???
Mohammad Imam Hossain | Lecturer, Dept. of CSE | UIU

22. CFG >> Ambiguity – Practice 3
22
CFG G = ( V, Σ, R, S )
Where,
V = { S, A, B, C, D }
Σ = { 0, 1, 2 }
R={
S → AB | CD
A → 0A1 | 01
B → 2B | 2
C → 0C | 0
D → 1D2 | 12
}
Does the grammar generate the string “012” or, “001122” ambiguously???
Mohammad Imam Hossain | Lecturer, Dept. of CSE | UIU

23. a)
S → AB | C
A → aAb | ab
B → cBd | cd
C → aCd | aD
D → bDc | bc
b)
S → ABA
A → Aa | eps
B → bB | eps
CFG >> Ambiguity – Practice 4
23
Mohammad Imam Hossain | Lecturer, Dept. of CSE | UIU
▪ Can the string ‘aabbccdd’ be derived from the above CFG? If yes, show the
leftmost and rightmost derivation.
▪ Is the leftmost derivation unique? If not, show the other leftmost derivation.
▪ Is the grammar ambiguous? Justify your answer with a suitable example.

24. a)
E → E + T | T
T → T x F | F
F → (E) | a
b)
S → S + S | S * S | A | B
A → aA | 1
B → bB | 2
CFG >> Ambiguity – Practice 5
24
Mohammad Imam Hossain | Lecturer, Dept. of CSE | UIU
Now give parse trees and elft-most derivations for each of the following:
▪ a + a
▪ a x a + a
▪ ((a))
▪ Show a leftmost derivation of the string: aa1 + bb2 * a1
▪ Show whether the string, bbb2 + aa1 + b2, makes the grammar ambiguous

25. a)
E → E + E | E – E | ( E ) | V
V → x | y | z | A
A → A * A | A % A | C
C → 0 | 1
b)
E → E + E | E * E | ( E ) | N
N → 0N | 1N | 0 | 1
CFG >> Ambiguity – Practice 6
25
Mohammad Imam Hossain | Lecturer, Dept. of CSE | UIU
▪ Find out if the following grammar is ambiguous or not, using the string
x+(0*1%0).
▪ If the grammar is ambiguous, show two different parse trees for this string.
▪ Show a leftmost derivation and rightmost derivation for the string:
( 1 + 10 ) * 1

26. a)
E → E + E | E * E | ( E ) | a | b | c
b)
S → WX | Y
W → aWb | ab
X → cXd | cd
Y → aYd | aZc
Z → aZb | bb
CFG >> Ambiguity – Practice 7
26
Mohammad Imam Hossain | Lecturer, Dept. of CSE | UIU
▪ Show the rightmost derivation and the leftmost derivation for the input string
a + ( b + c ) * c
▪ Determine whether the following CFG is ambiguous or not with the help of
following input string ‘aabbcd’

27. 27
References:
Chapter 2(section 2.1), Introduction to the Theory of Computation, 3rd Edition by Michael Sipser
THANKS!
Any questions?
You can find me at imam@cse.uiu.ac.bd
