This document discusses the anatomy of several thoracic structures including the sympathetic chain, autonomic plexuses, lymphatic drainage, thoracic duct, and esophagus. It describes the course, branches, and relations of the thoracic sympathetic chain. It also outlines the locations and tributaries of the main autonomic plexuses in the thorax, pathways of thoracic lymphatic drainage, course and tributaries of the thoracic duct, as well as the parts, curves, relations, and blood supply of the esophagus.

1. Thoracic Part of
Sympathetic Chain
(Page 128)
Dr.Sherif Fahmy

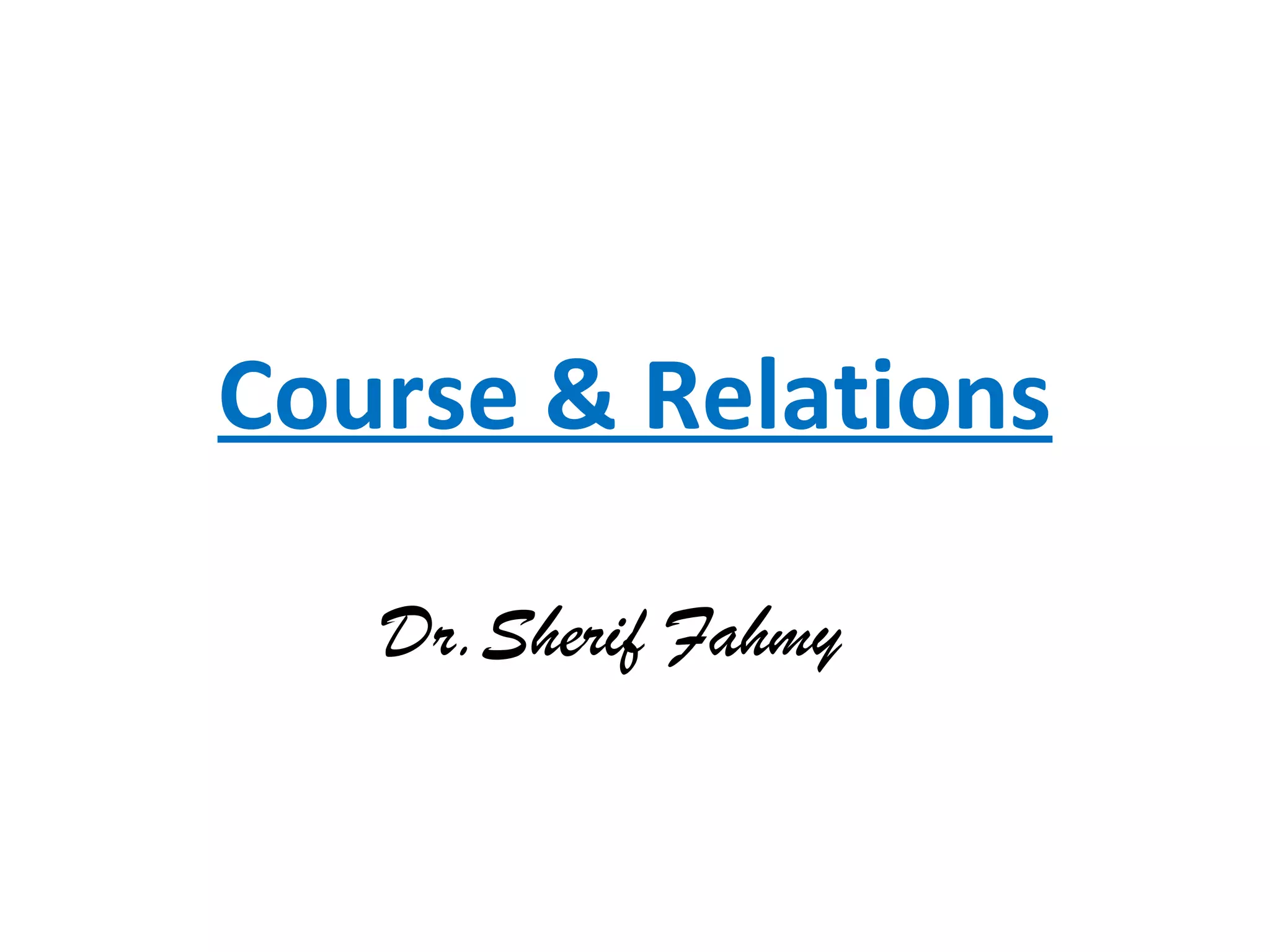

2. Course & Relations
Dr.Sherif Fahmy

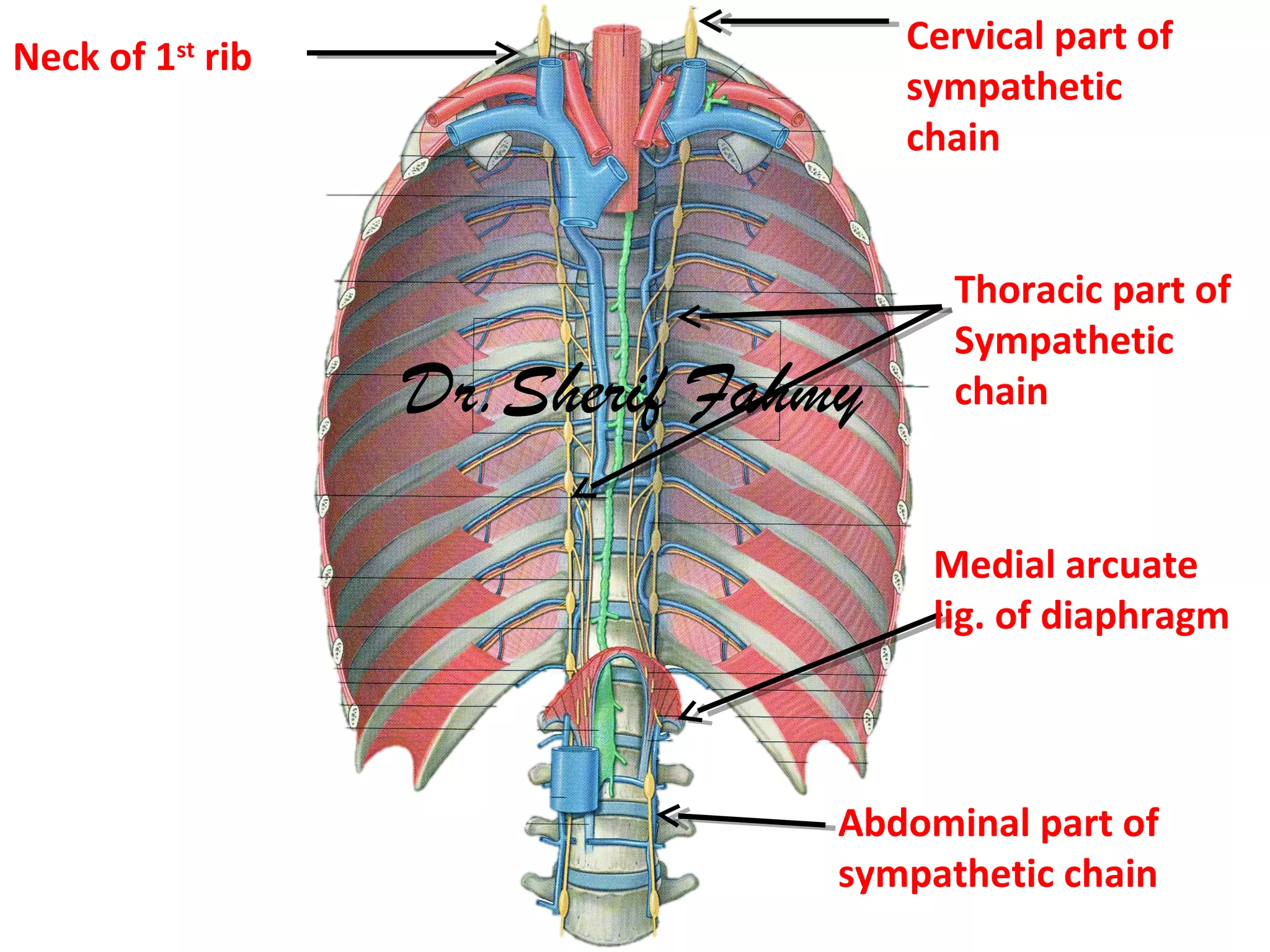

3. Thoracic part of
Sympathetic
chain
Cervical part of
sympathetic
chain
Medial arcuate
lig. of diaphragm
Abdominal part of
sympathetic chain
Neck of 1st
rib
Dr.Sherif Fahmy

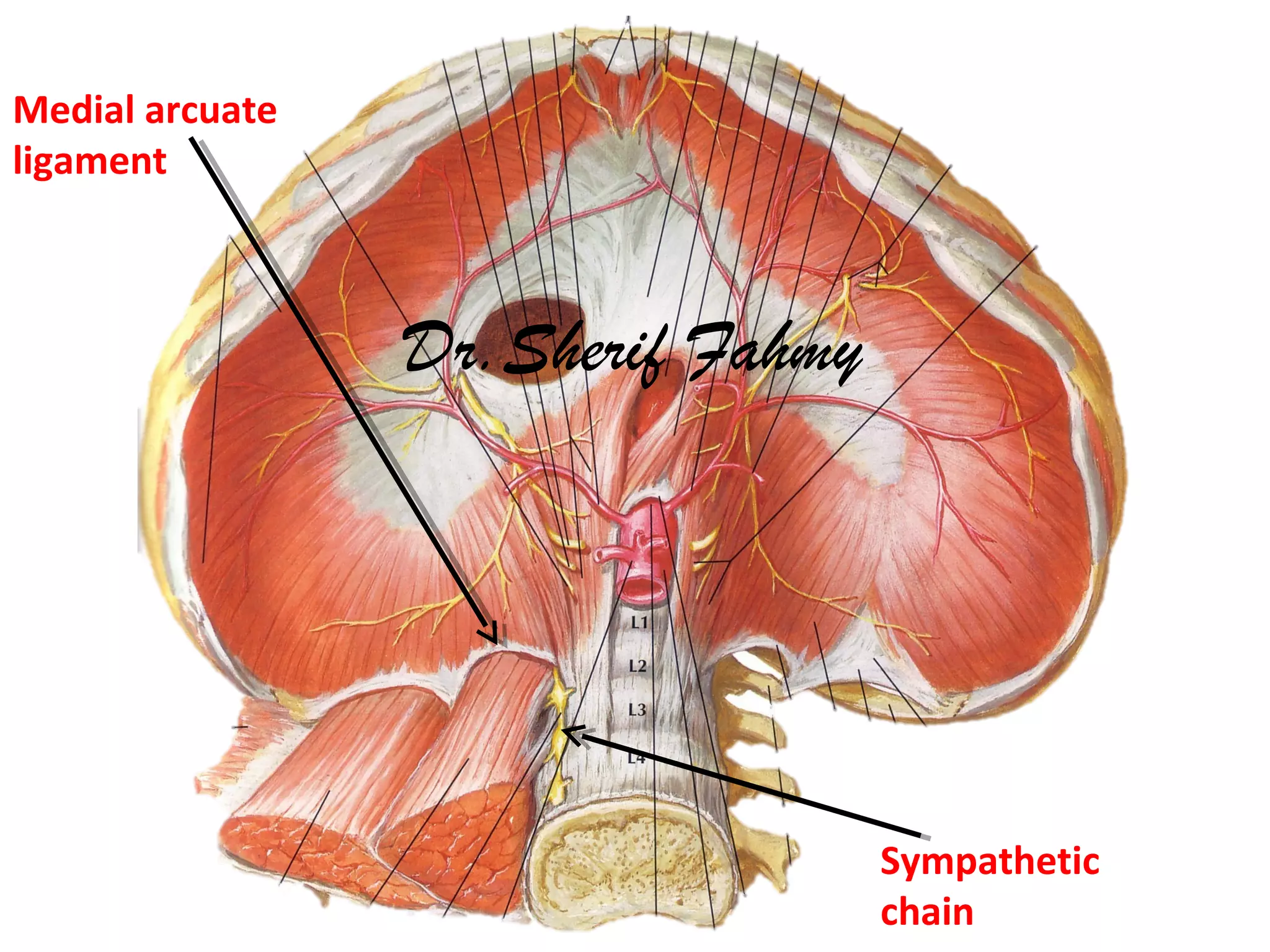

4. Sympathetic
chain
Medial arcuate
ligament
Dr.Sherif Fahmy

5. Structure
Dr.Sherif Fahmy

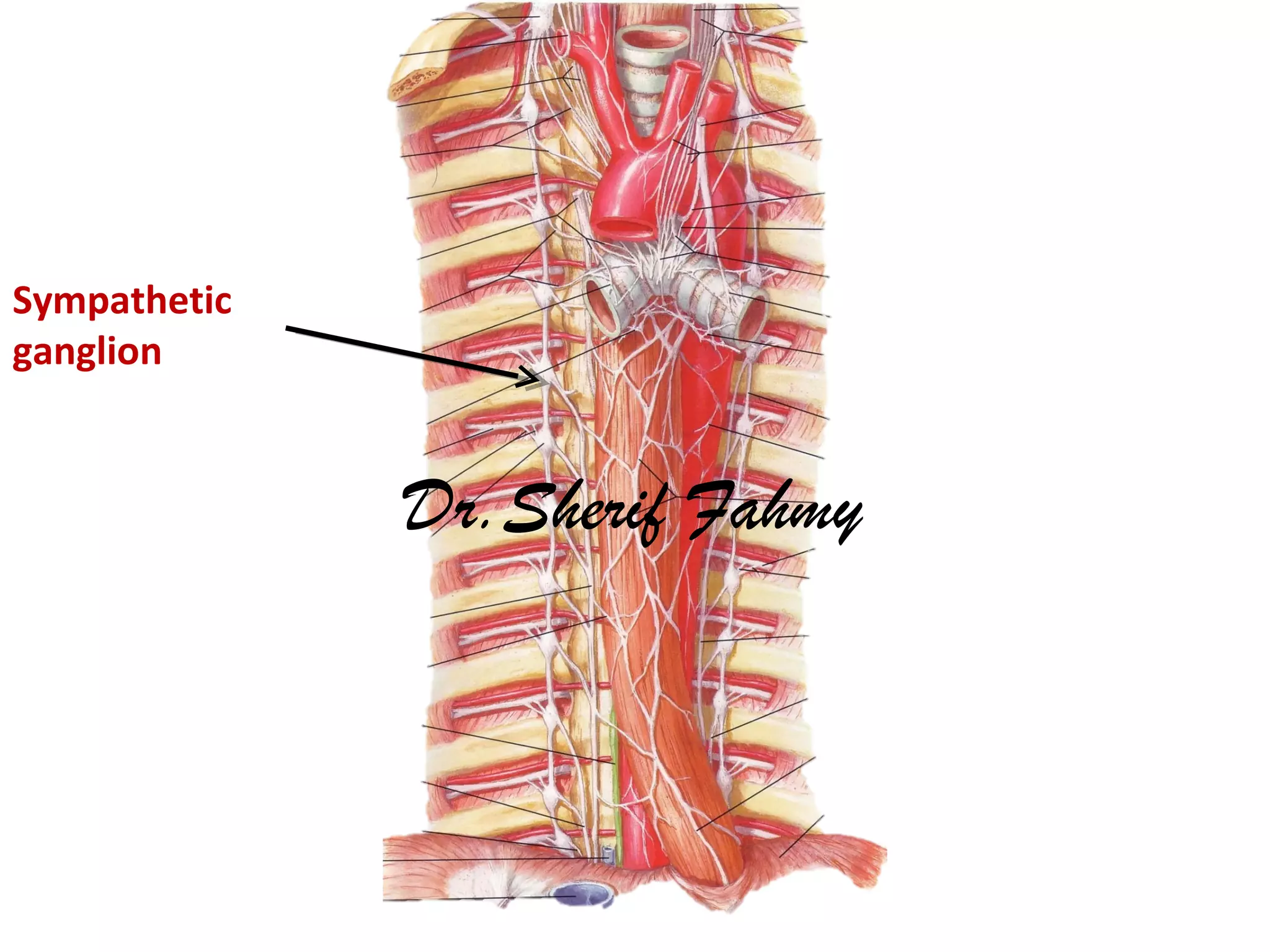

6. Sympathetic
ganglion
Dr.Sherif Fahmy

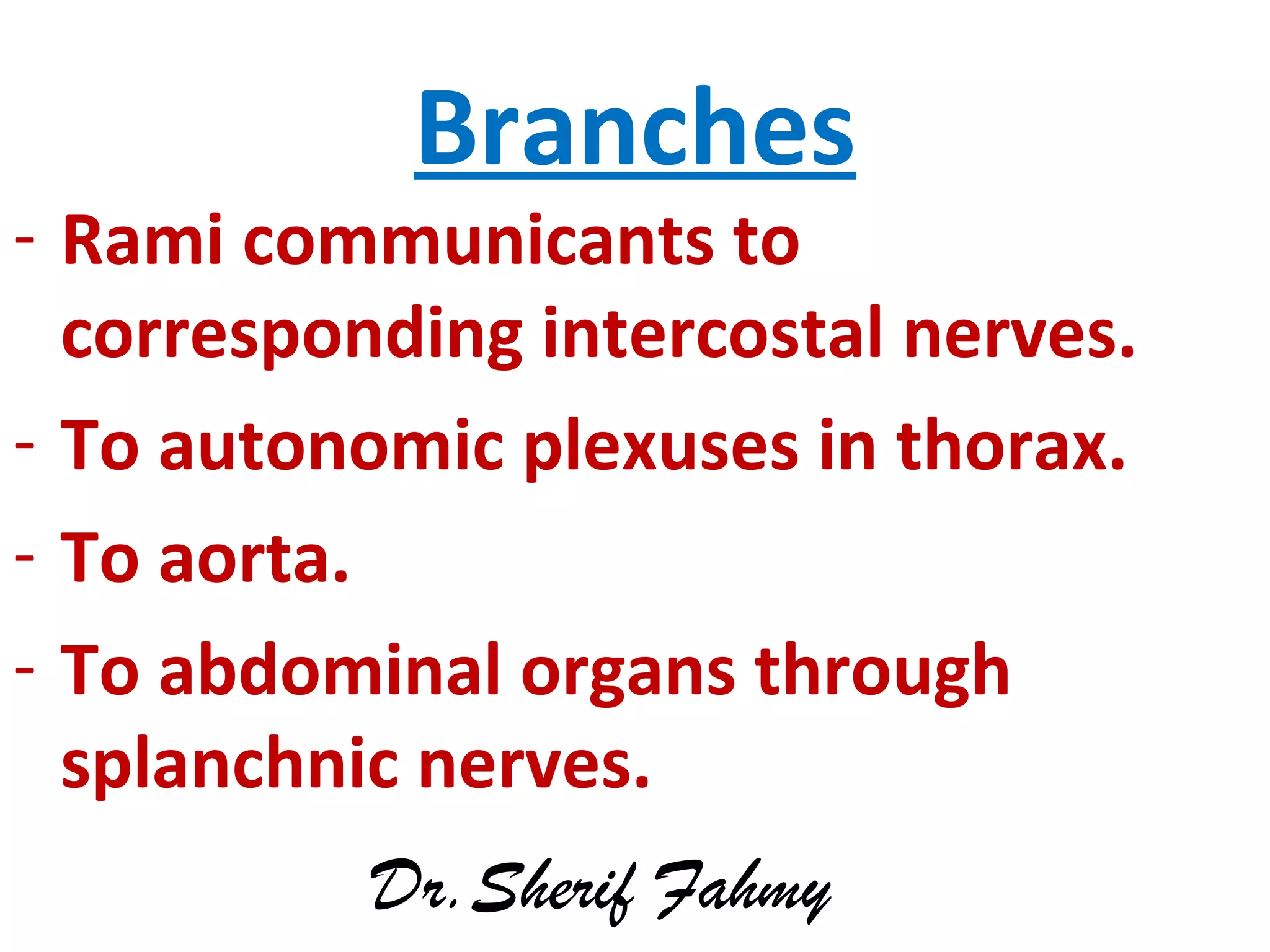

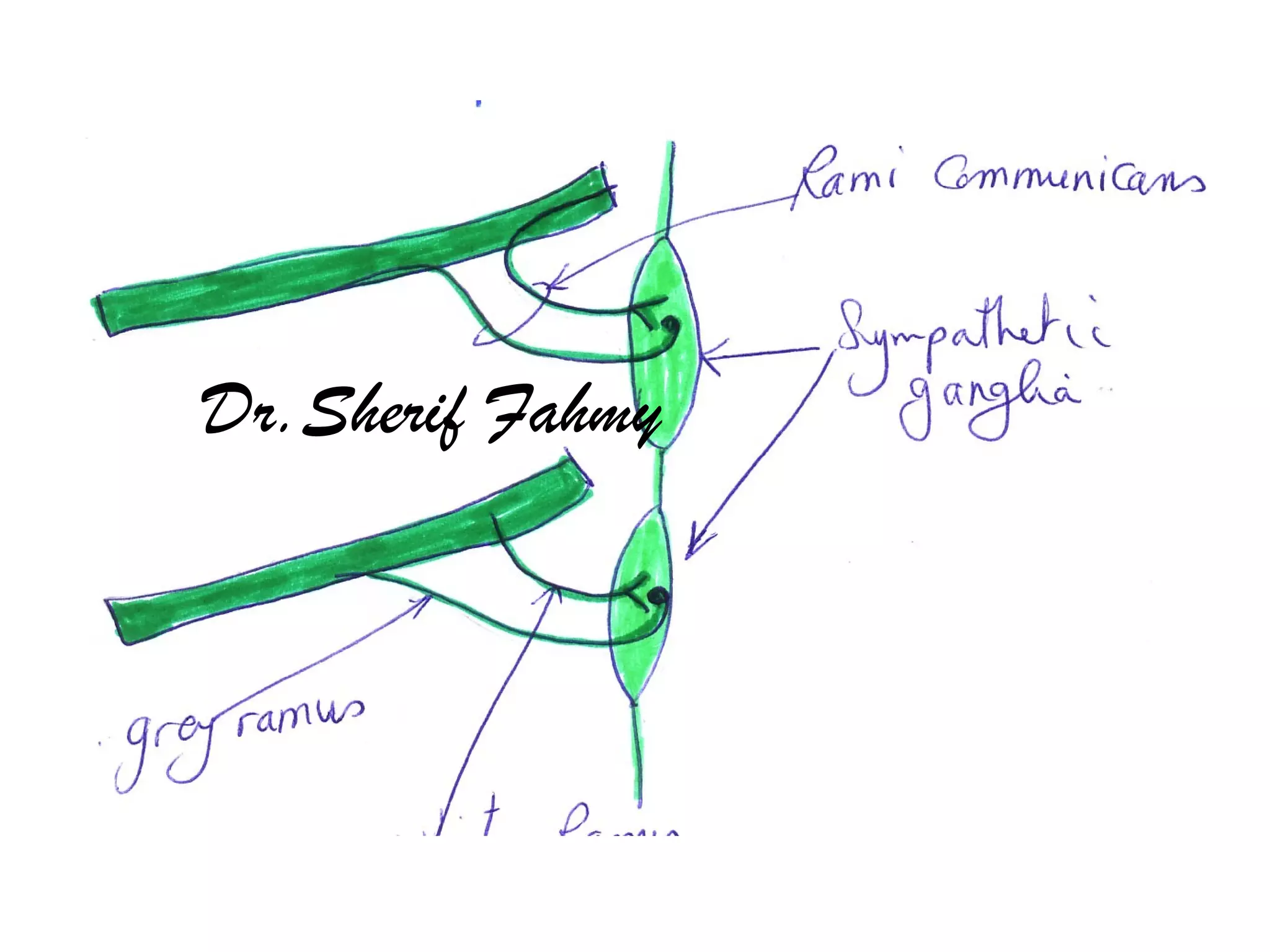

7. Branches
- Rami communicants to
corresponding intercostal nerves.
- To autonomic plexuses in thorax.
- To aorta.
- To abdominal organs through
splanchnic nerves.
Dr.Sherif Fahmy

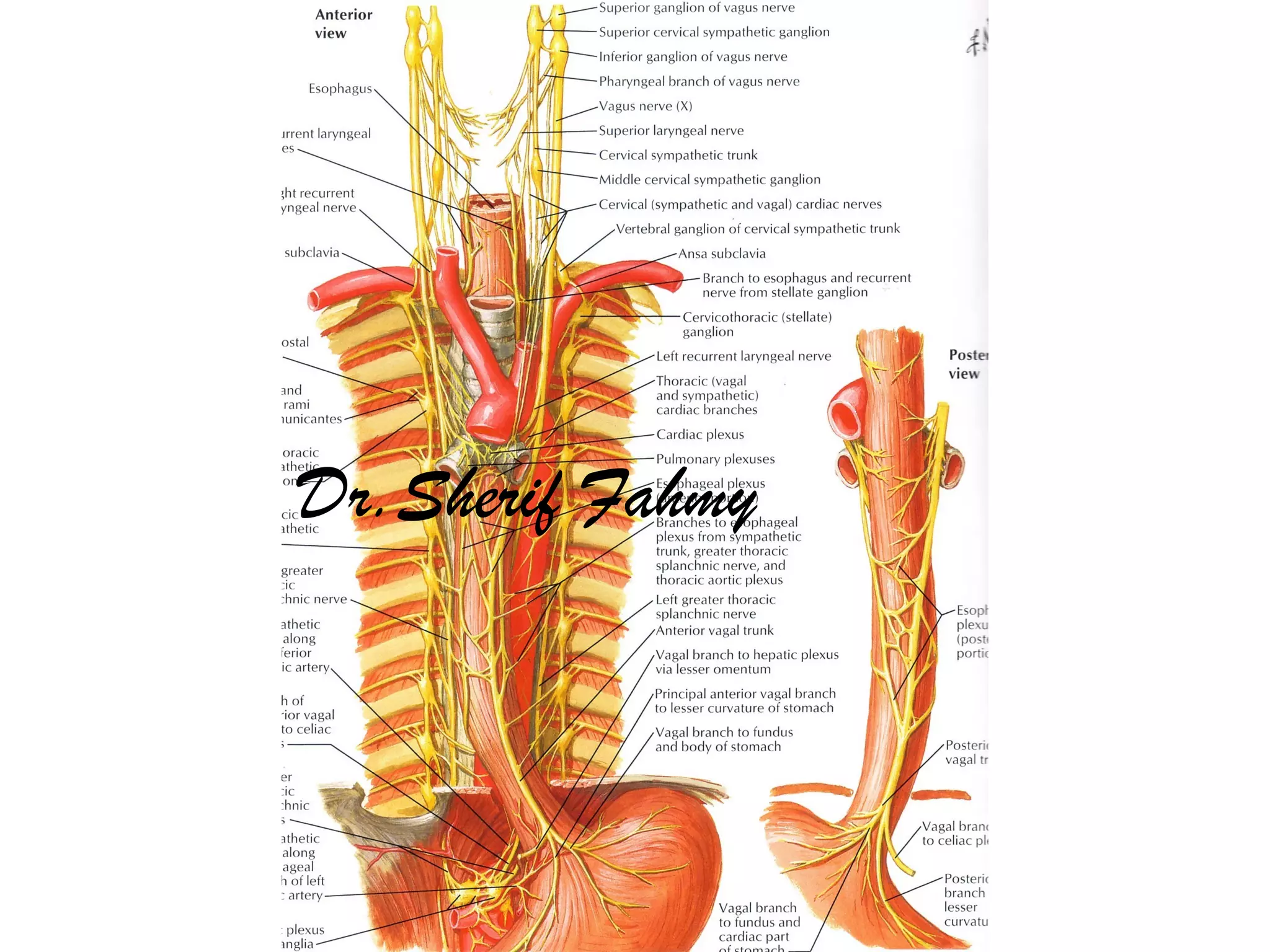

8. Dr.Sherif Fahmy

9. Dr.Sherif Fahmy

10. Dr.Sherif Fahmy

11. Dr.Sherif Fahmy

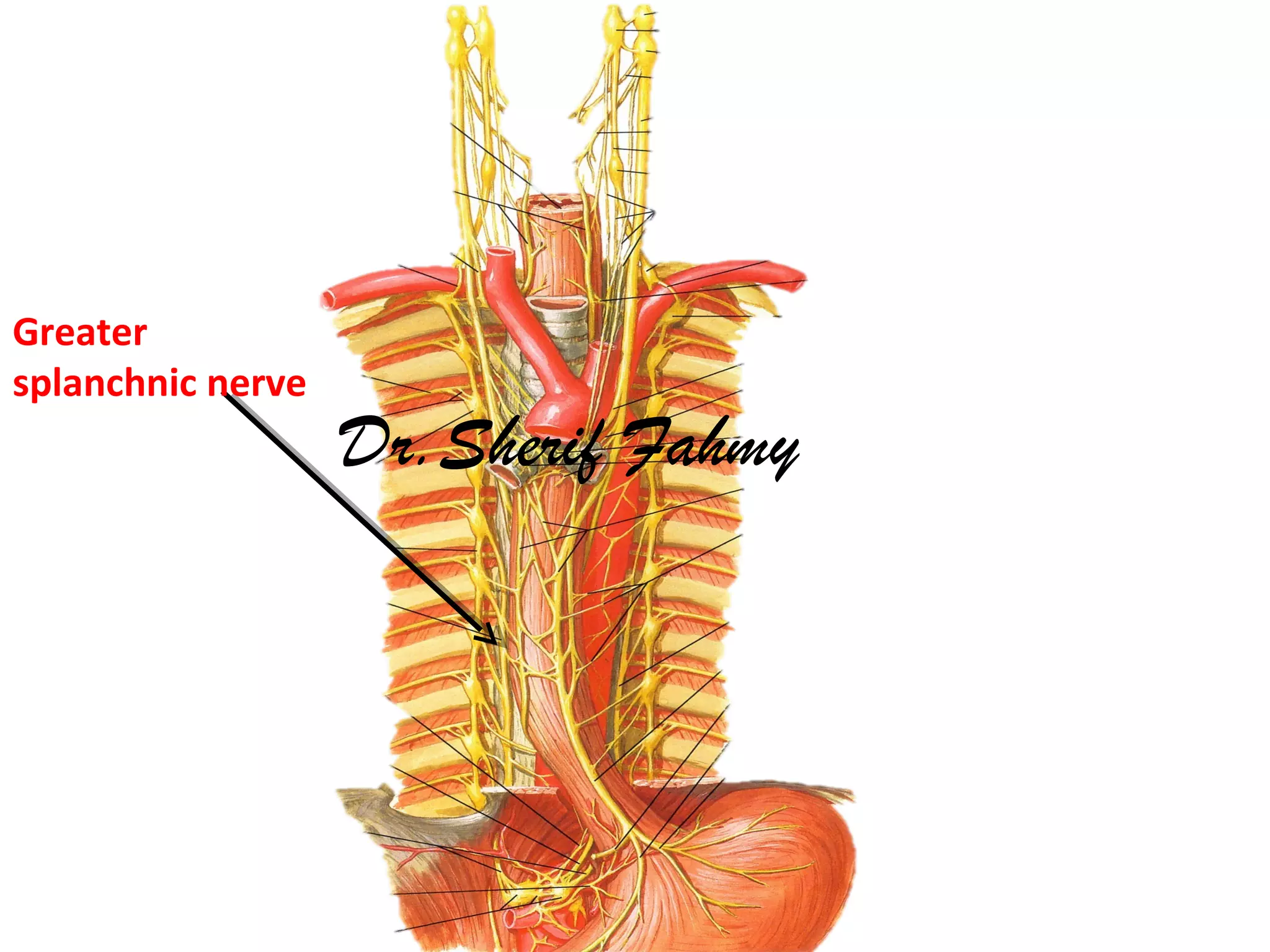

12. Greater
splanchnic nerve
Dr.Sherif Fahmy

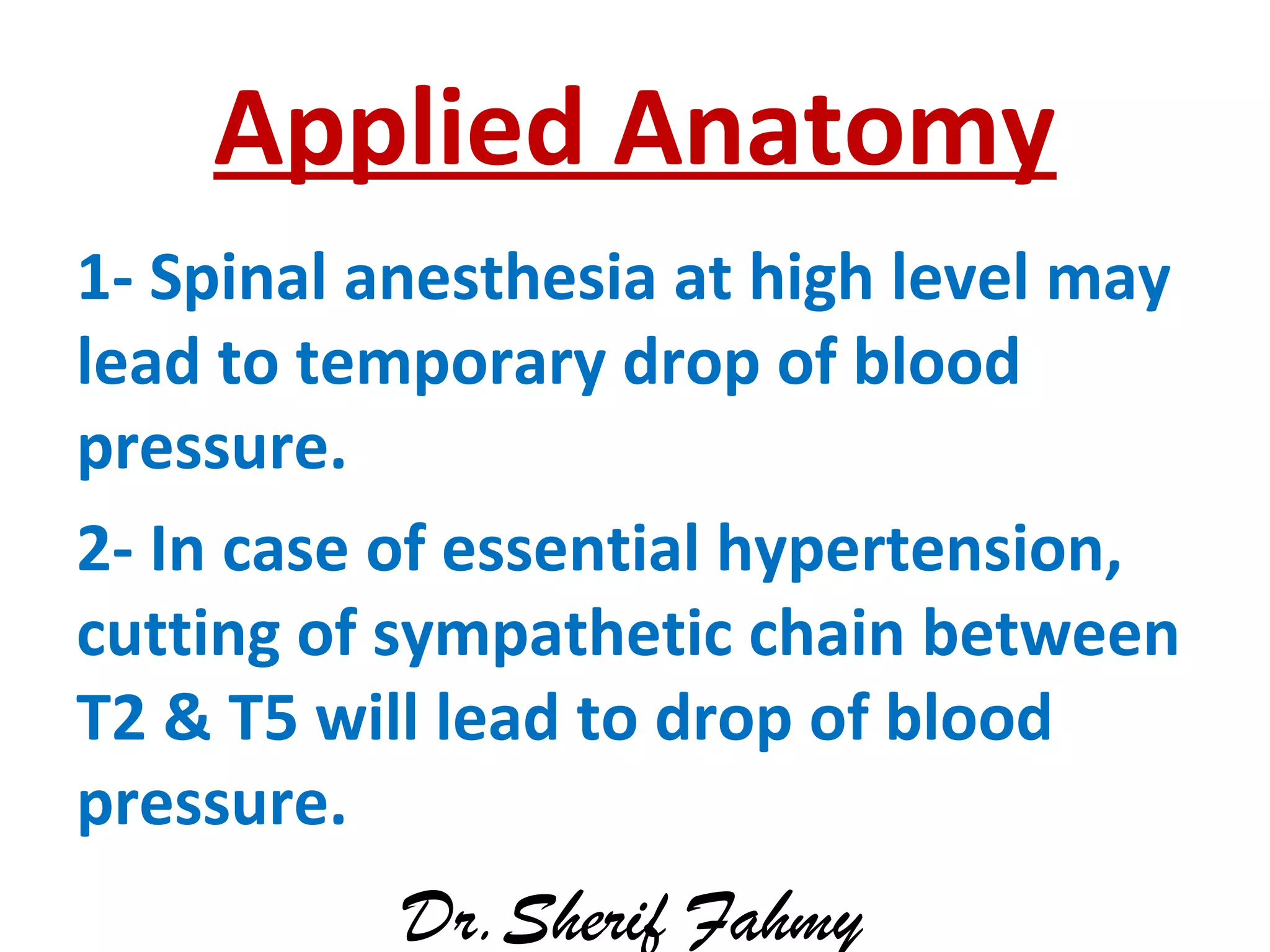

13. Applied Anatomy
1- Spinal anesthesia at high level may
lead to temporary drop of blood
pressure.
2- In case of essential hypertension,
cutting of sympathetic chain between
T2 & T5 will lead to drop of blood
pressure.
Dr.Sherif Fahmy

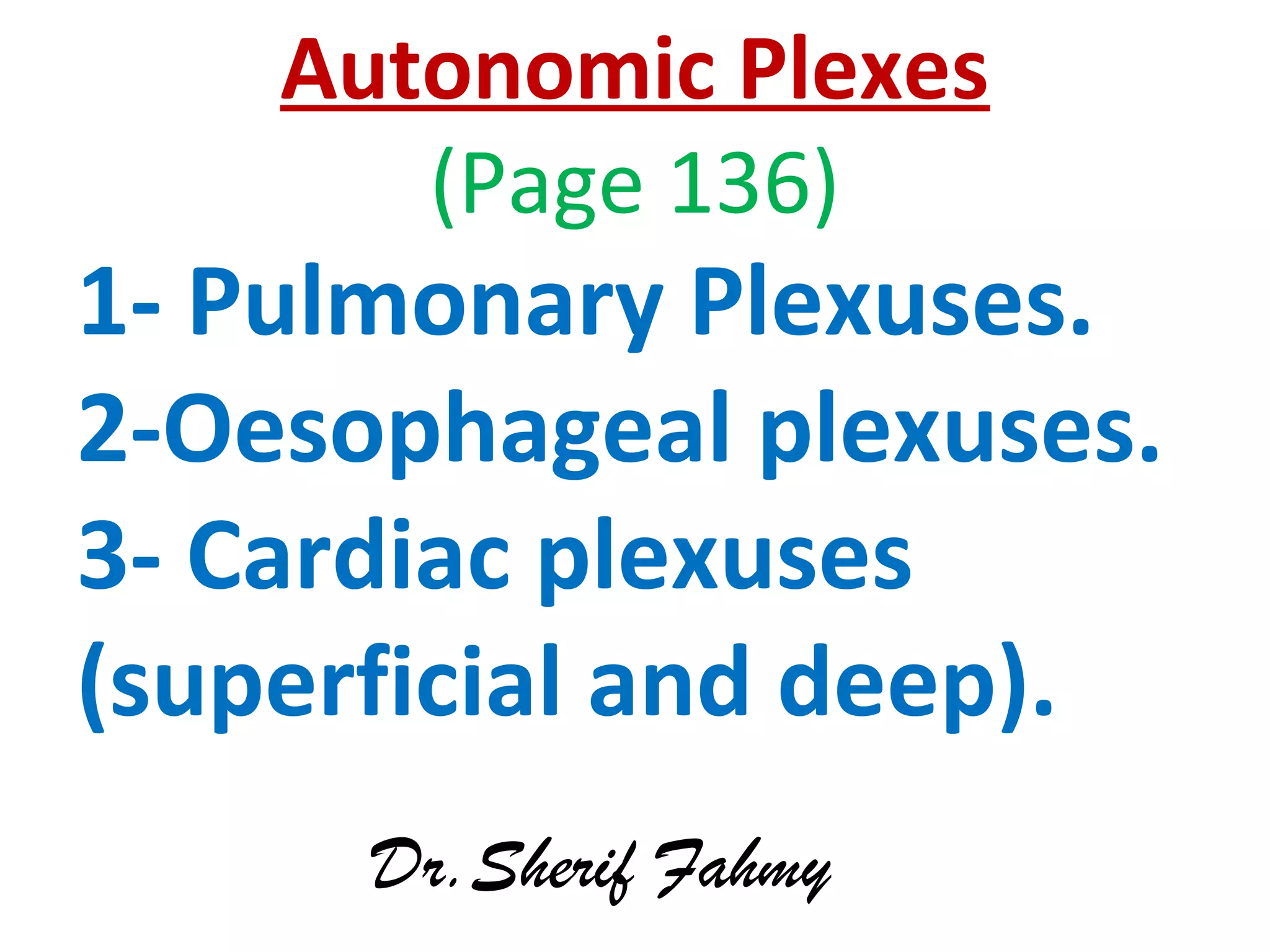

14. Autonomic Plexes
(Page 136)
1- Pulmonary Plexuses.
2-Oesophageal plexuses.
3- Cardiac plexuses
(superficial and deep).
Dr.Sherif Fahmy

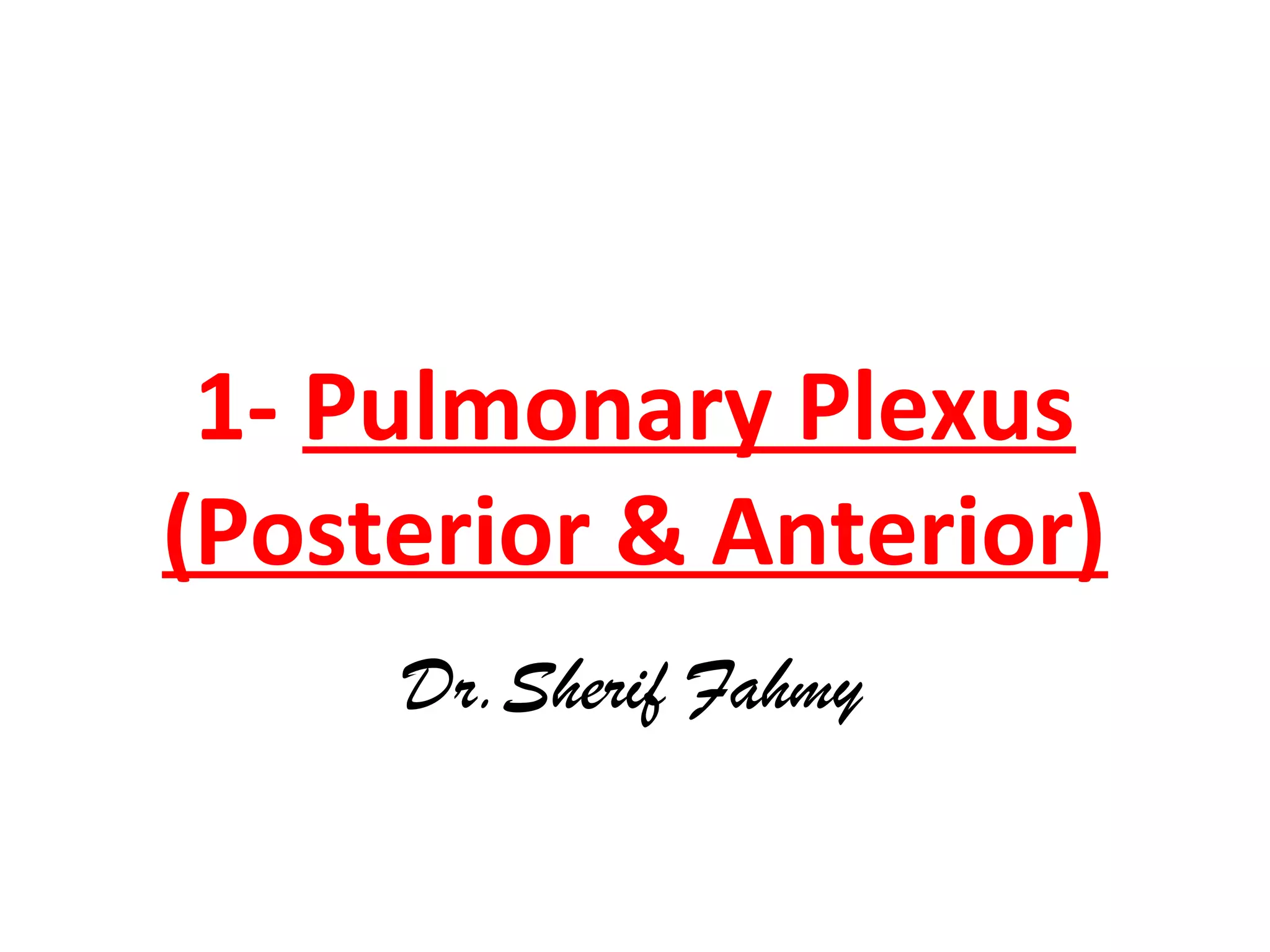

15. 1- Pulmonary Plexus
(Posterior & Anterior)
Dr.Sherif Fahmy

16. Dr.Sherif Fahmy

17. Dr.Sherif Fahmy

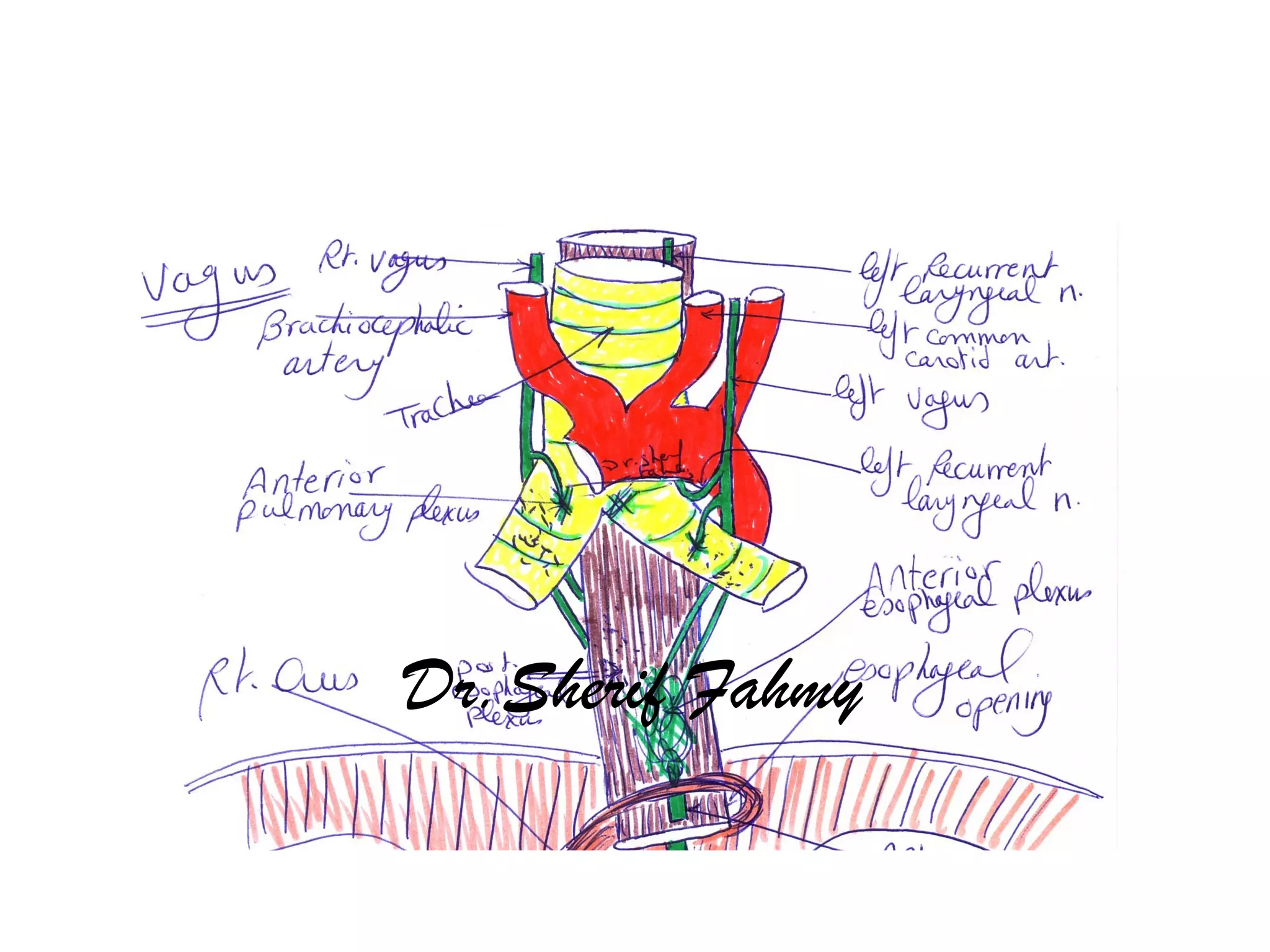

18. 2- Oesophageal Plexus
(Anterior & Posterior)
Dr.Sherif Fahmy

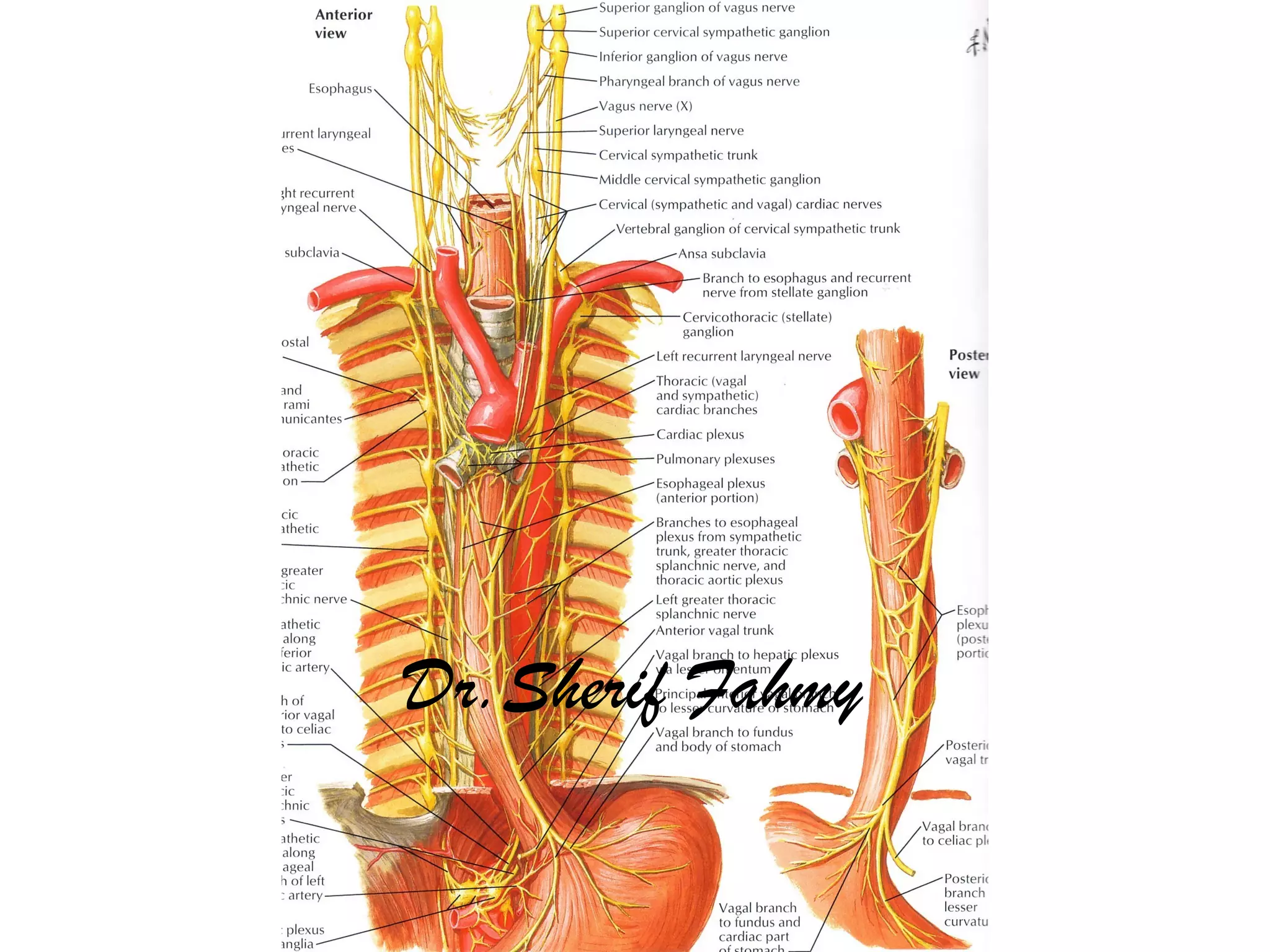

19. Dr.Sherif Fahmy

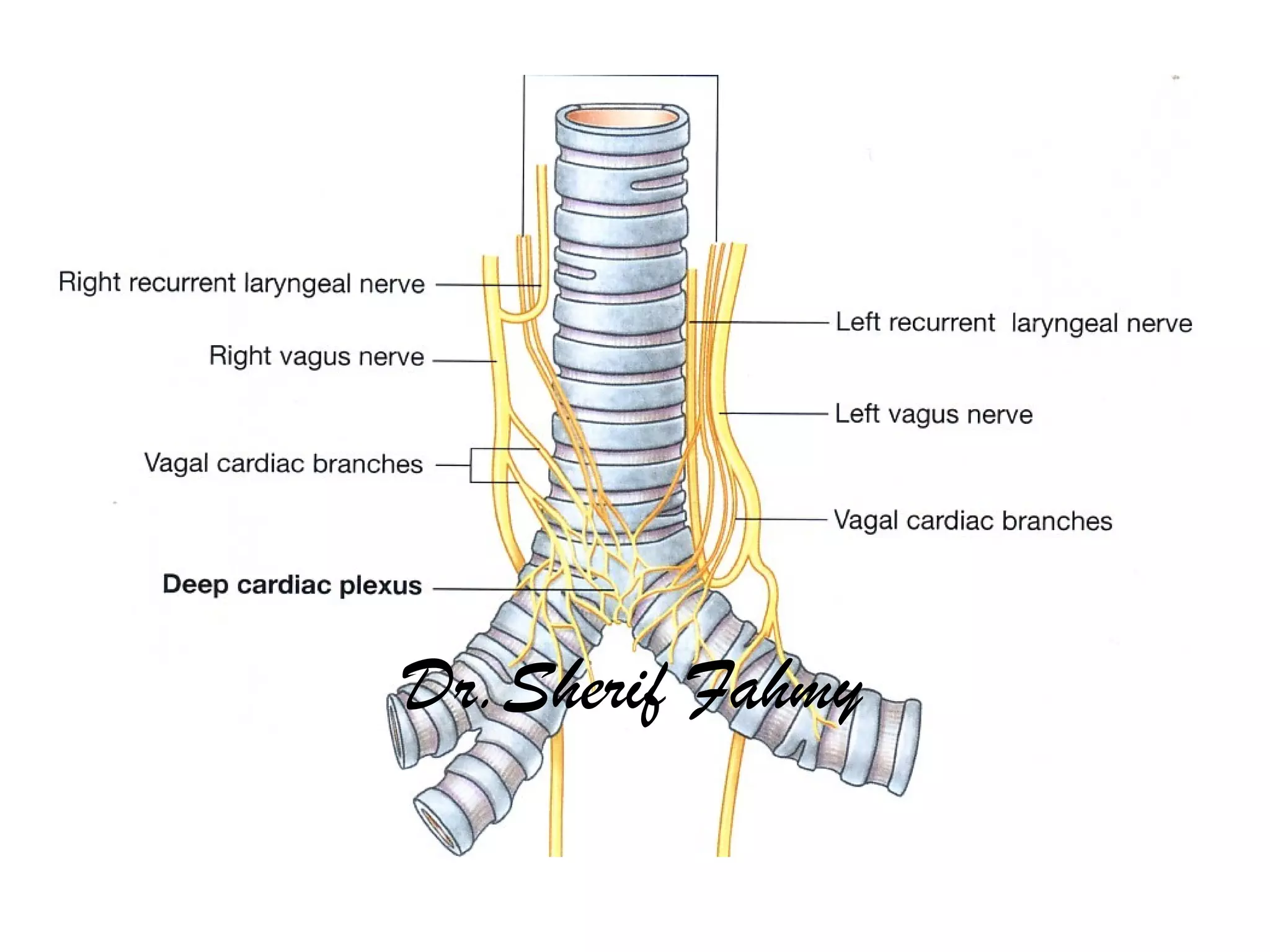

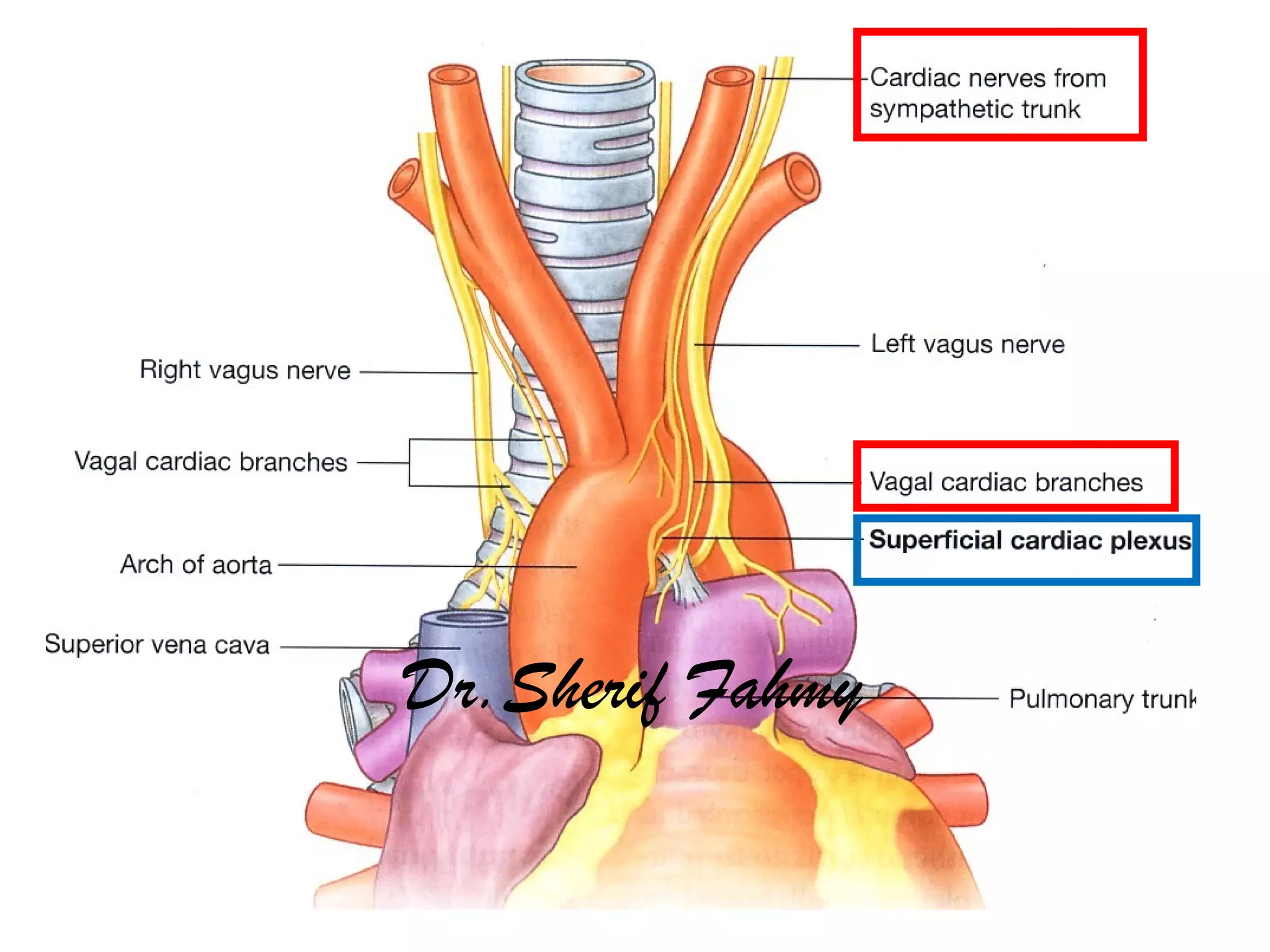

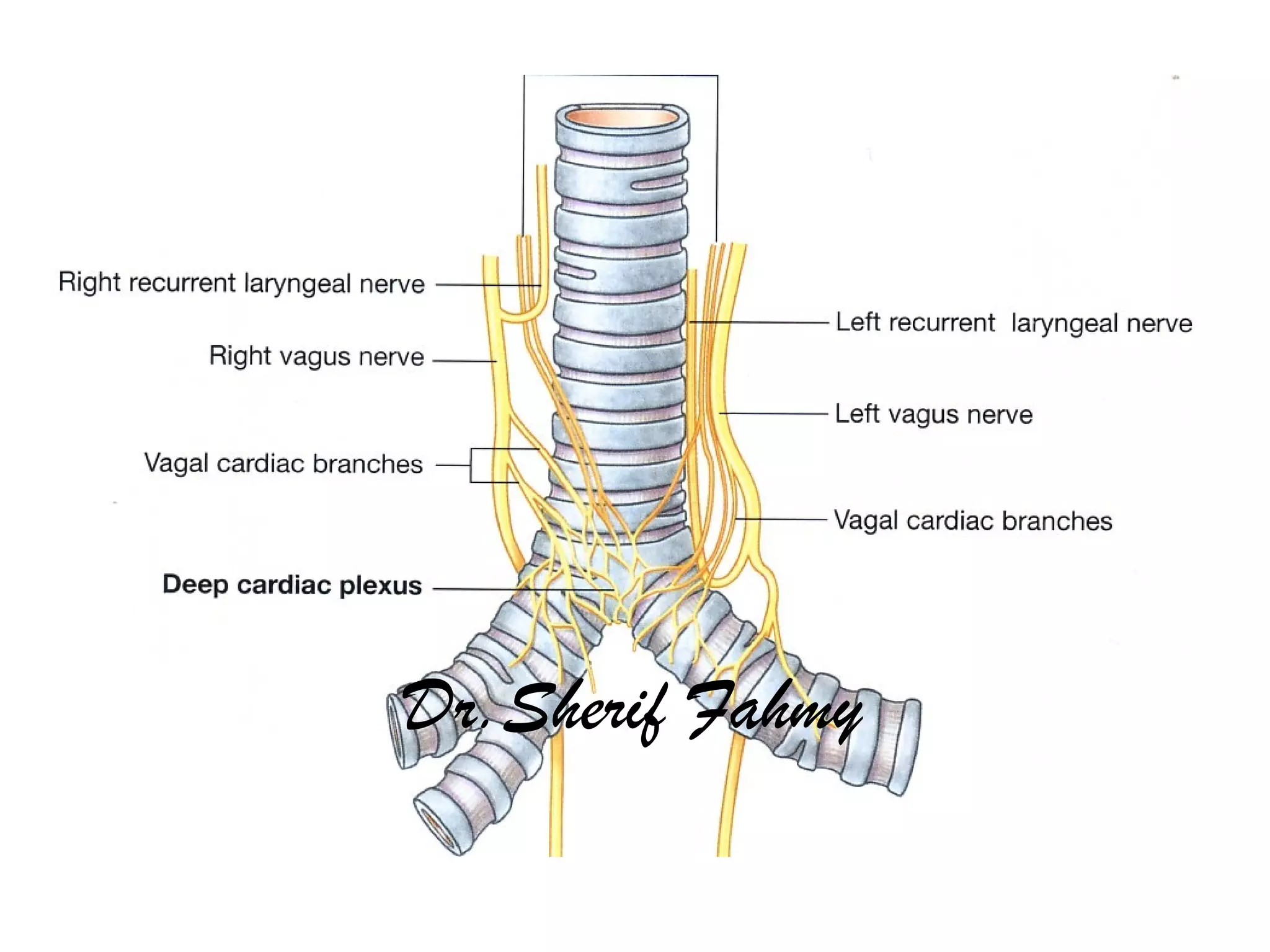

20. 3- Cardiac Plexus
(Superficial & Deep)
Dr.Sherif Fahmy

21. Dr.Sherif Fahmy

22. Dr.Sherif Fahmy

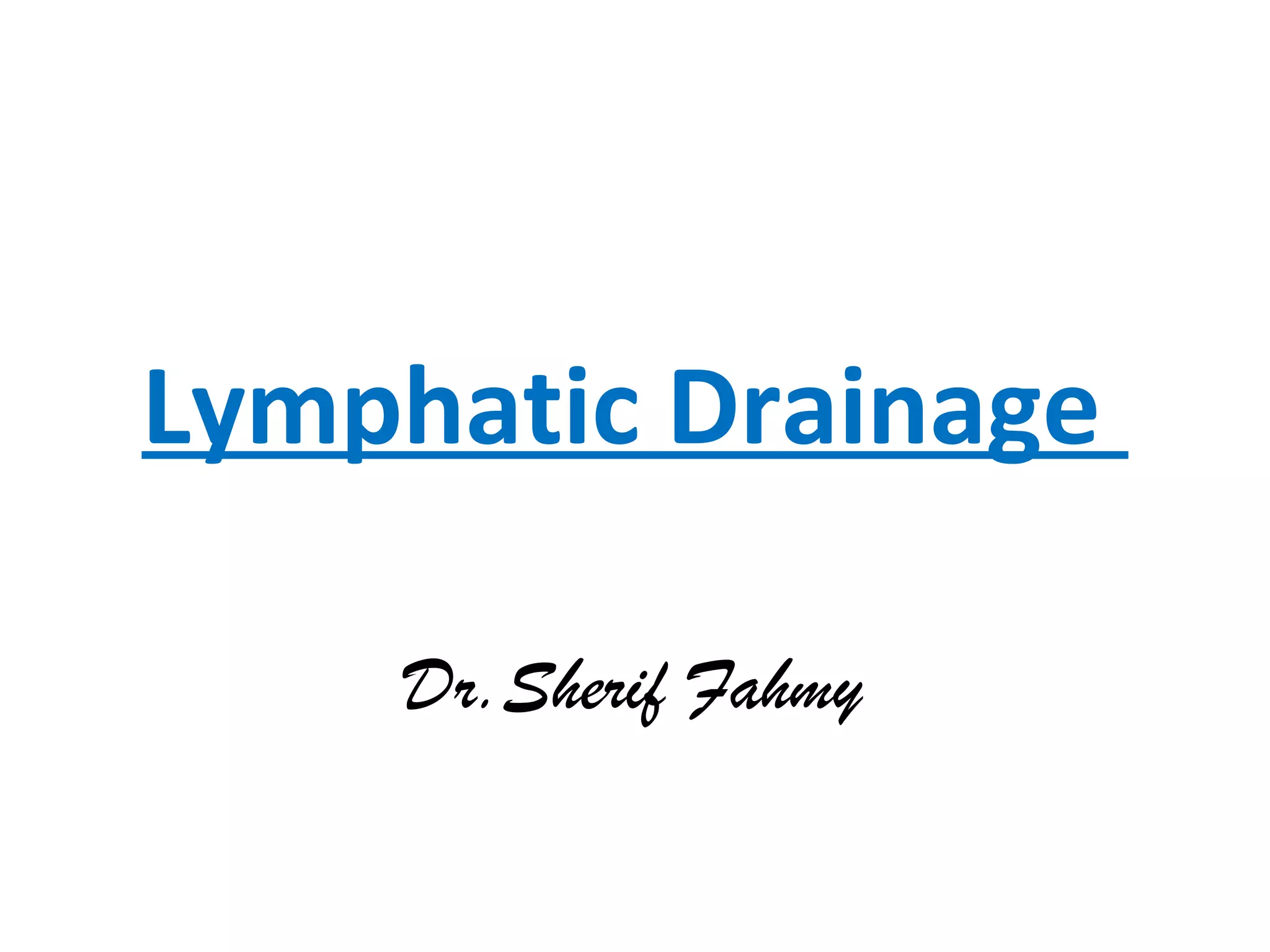

23. Lymphatic Drainage
Dr.Sherif Fahmy

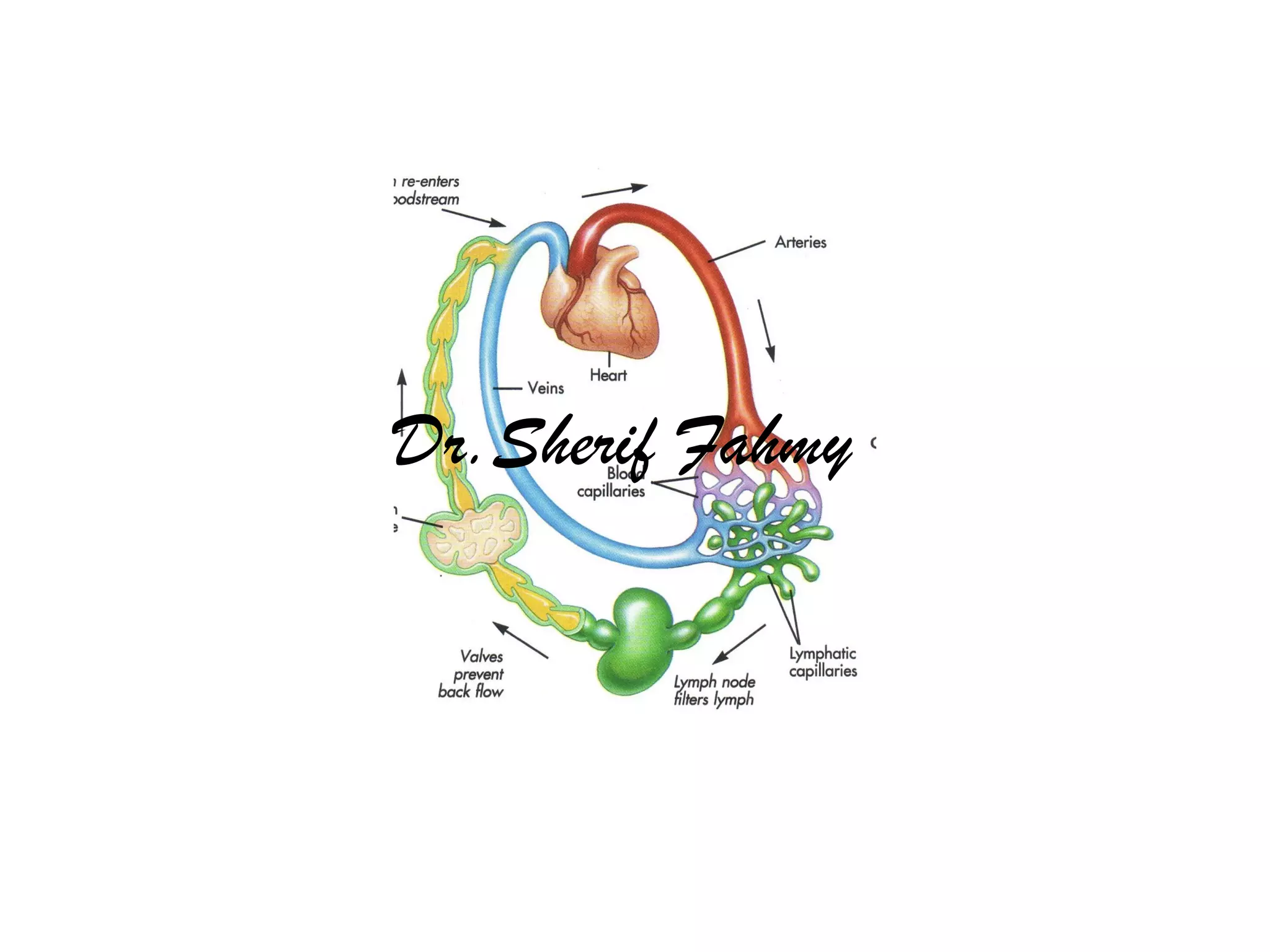

24. Dr.Sherif Fahmy

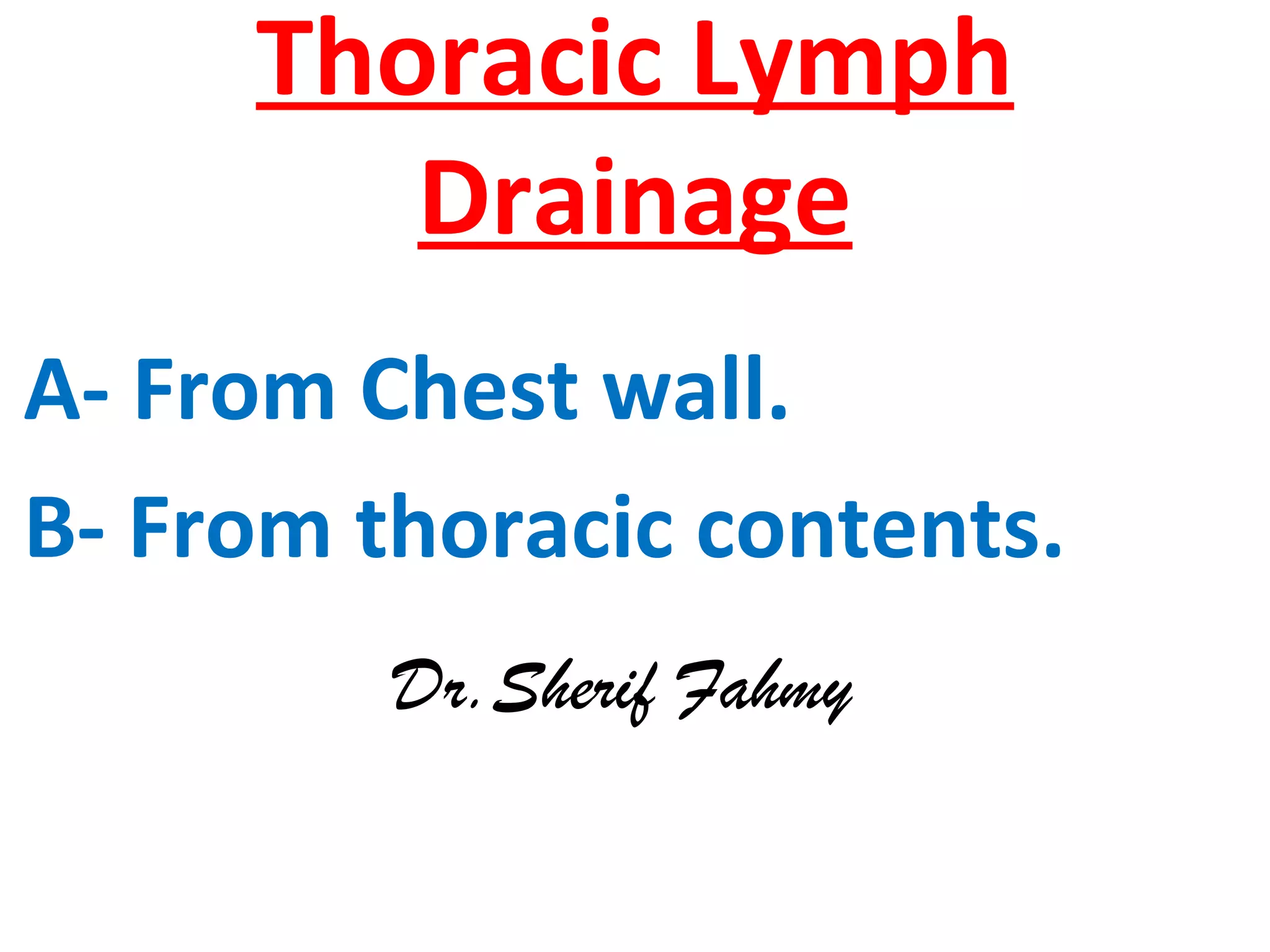

25. Thoracic Lymph
Drainage
A- From Chest wall.
B- From thoracic contents.
Dr.Sherif Fahmy

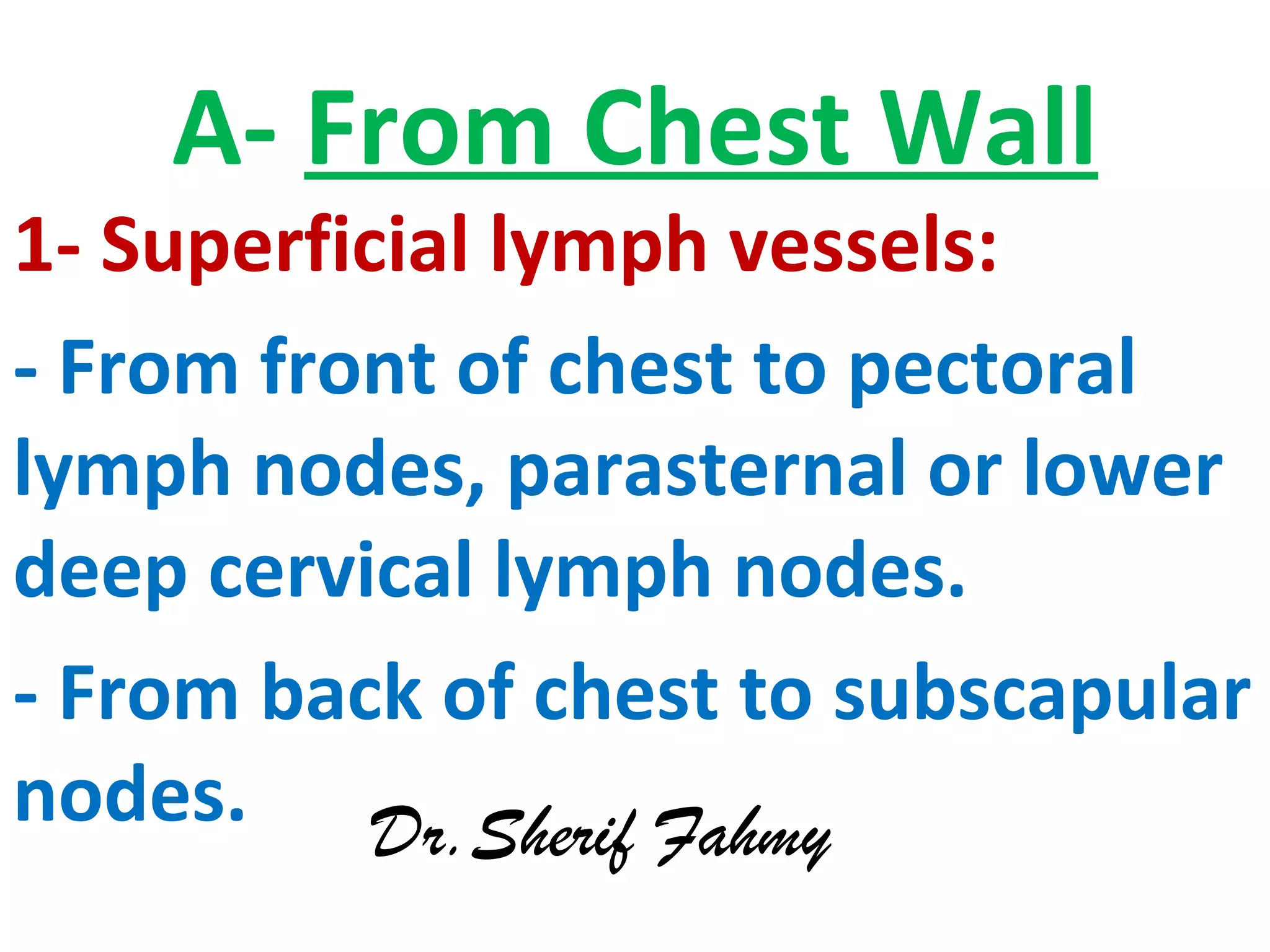

26. A- From Chest Wall
1- Superficial lymph vessels:
- From front of chest to pectoral
lymph nodes, parasternal or lower
deep cervical lymph nodes.
- From back of chest to subscapular
nodes. Dr.Sherif Fahmy

27. 2- Deep lymph vessels:
A- From anterior chest wall to
parasternal nodes.
B- Posterior part of chest wall to
intercostal lymph nodes (opposite
neck of ribs).
C- Four diaphragmatic nodes
(anterior, posterior and 2 lateral)
which drain diaphragm and liver.
Dr.Sherif Fahmy

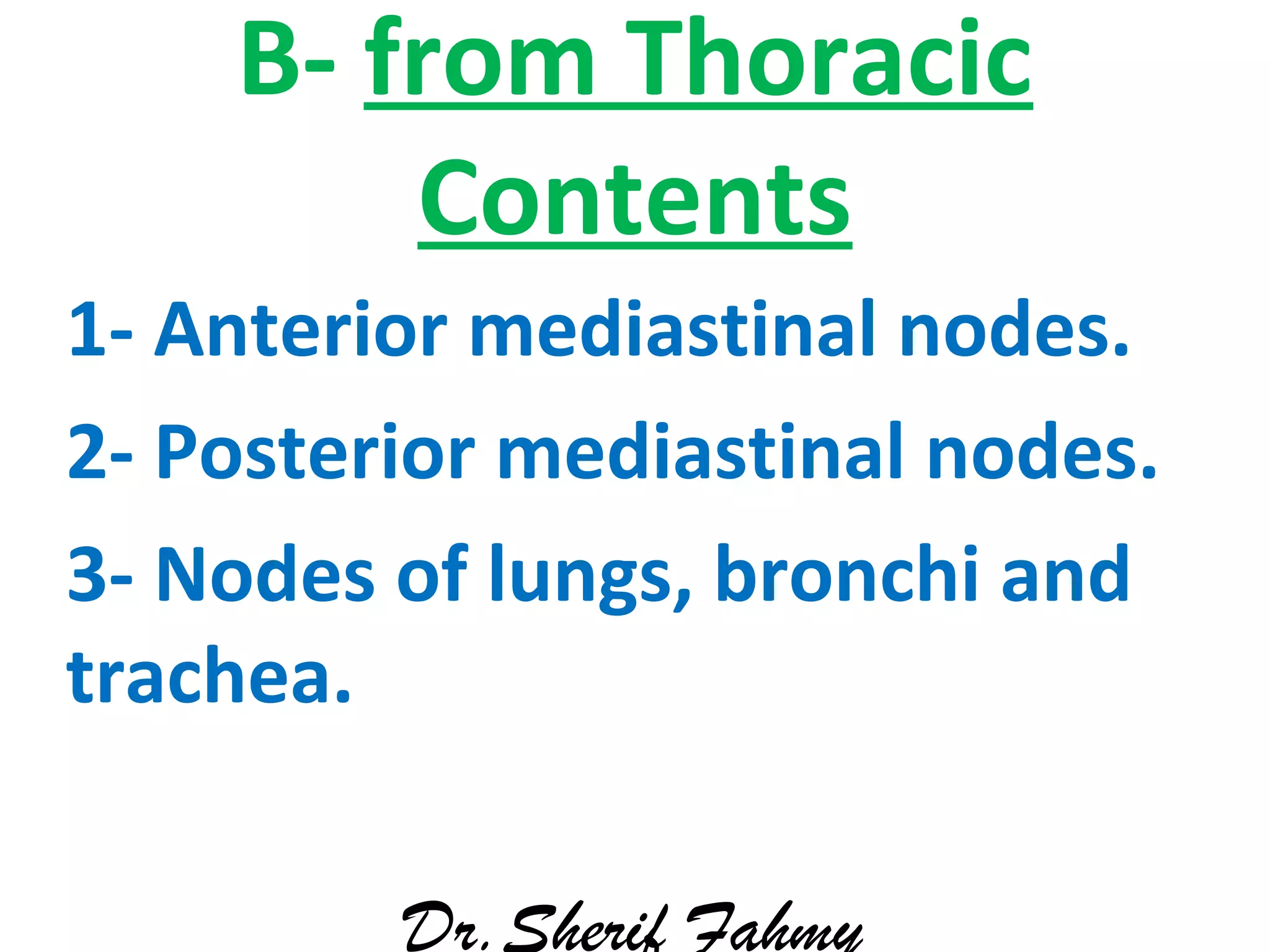

28. B- from Thoracic
Contents
1- Anterior mediastinal nodes.
2- Posterior mediastinal nodes.
3- Nodes of lungs, bronchi and
trachea.
Dr.Sherif Fahmy

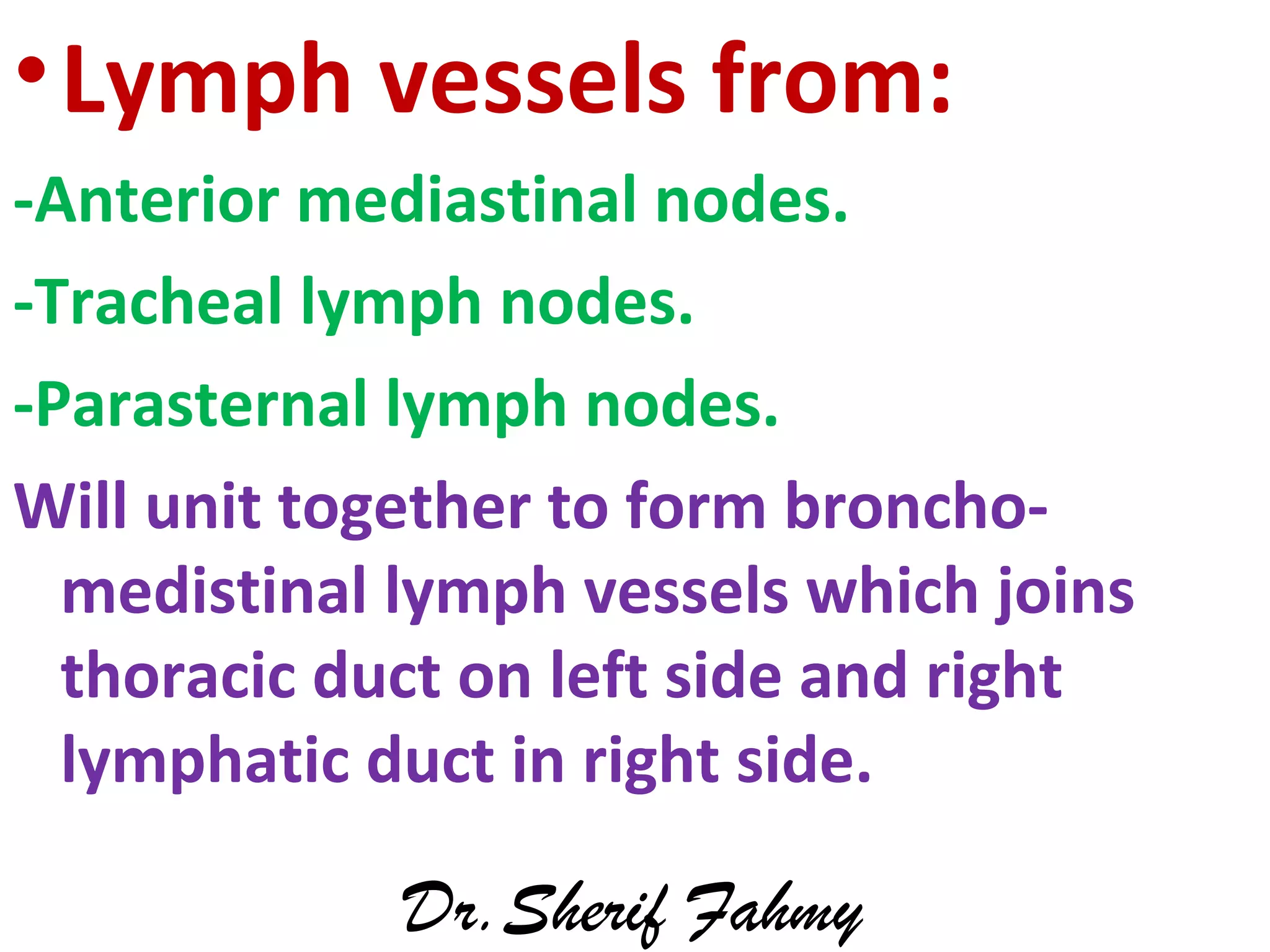

29. •Lymph vessels from:
-Anterior mediastinal nodes.
-Tracheal lymph nodes.
-Parasternal lymph nodes.
Will unit together to form broncho-
medistinal lymph vessels which joins
thoracic duct on left side and right
lymphatic duct in right side.
Dr.Sherif Fahmy

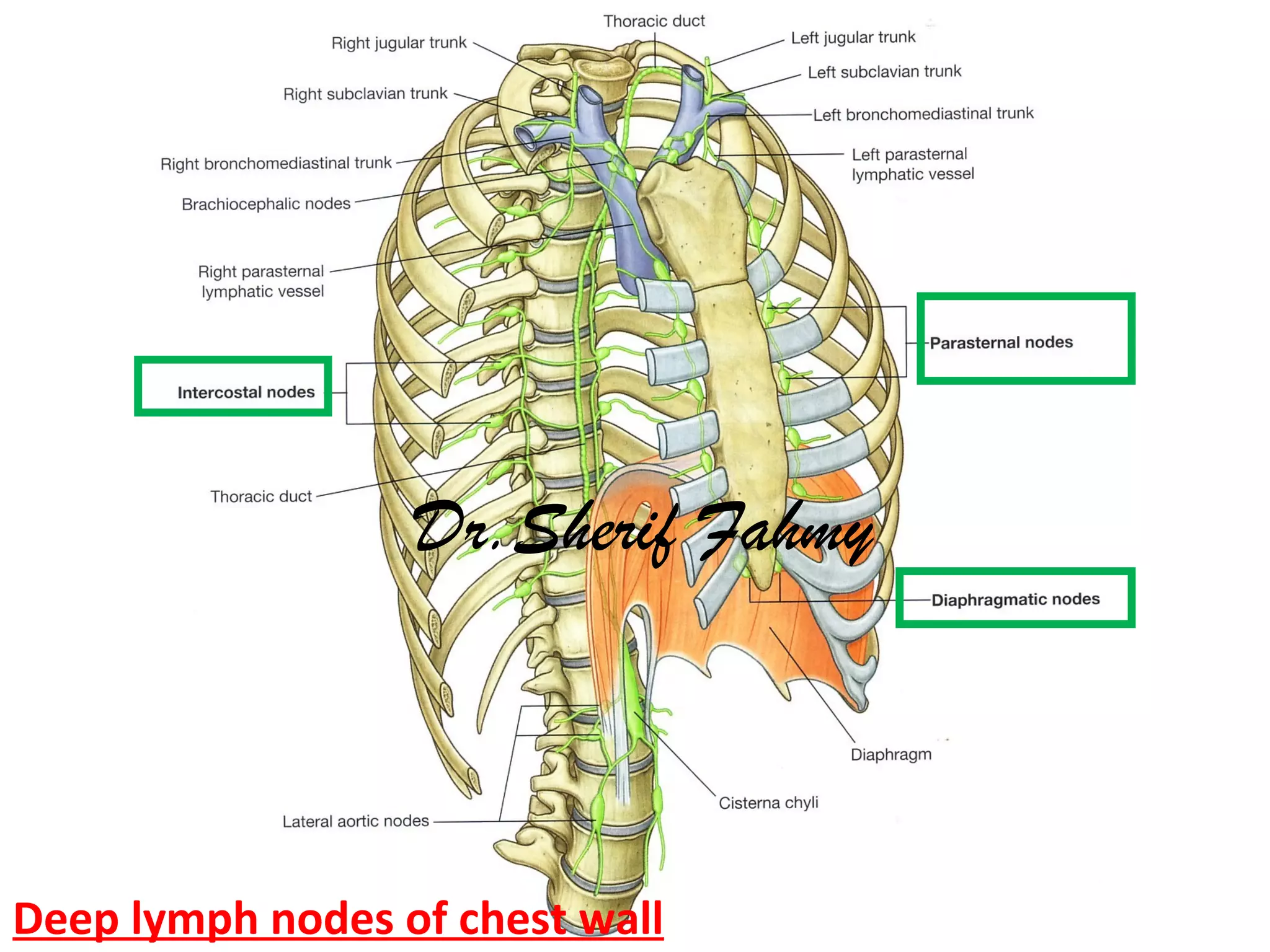

30. Deep lymph nodes of chest wall
Dr.Sherif Fahmy

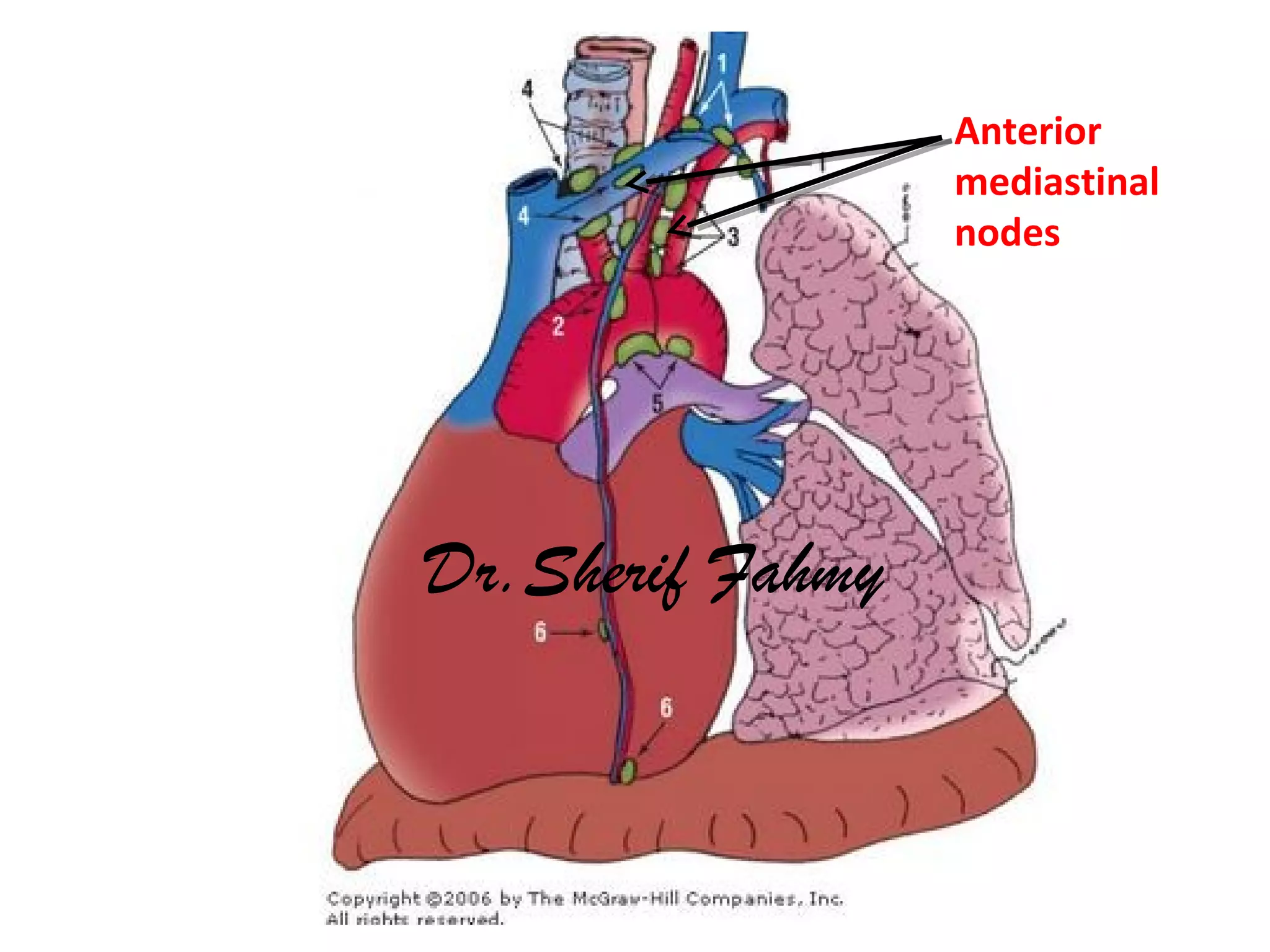

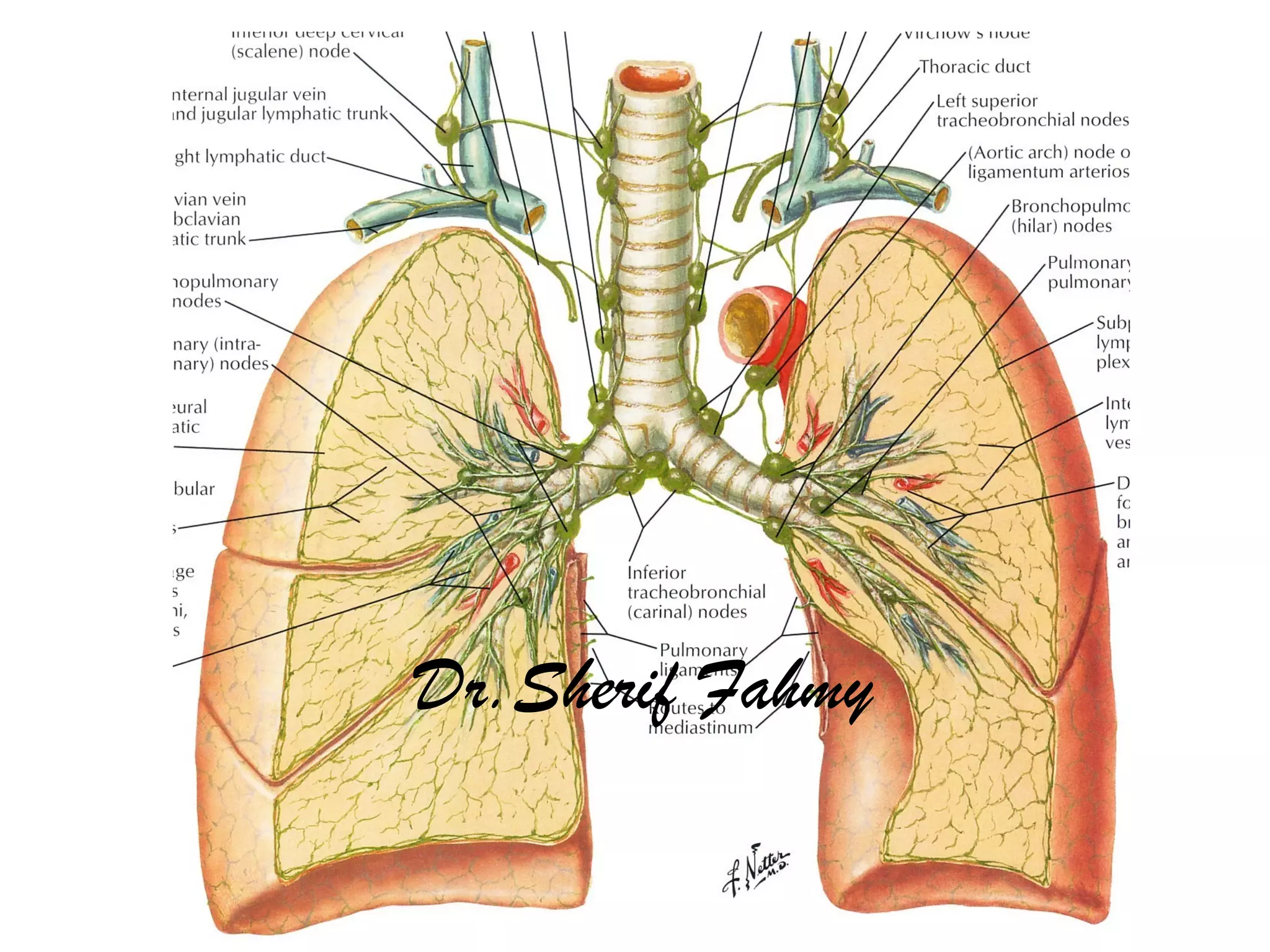

31. Anterior
mediastinal
nodes
Dr.Sherif Fahmy

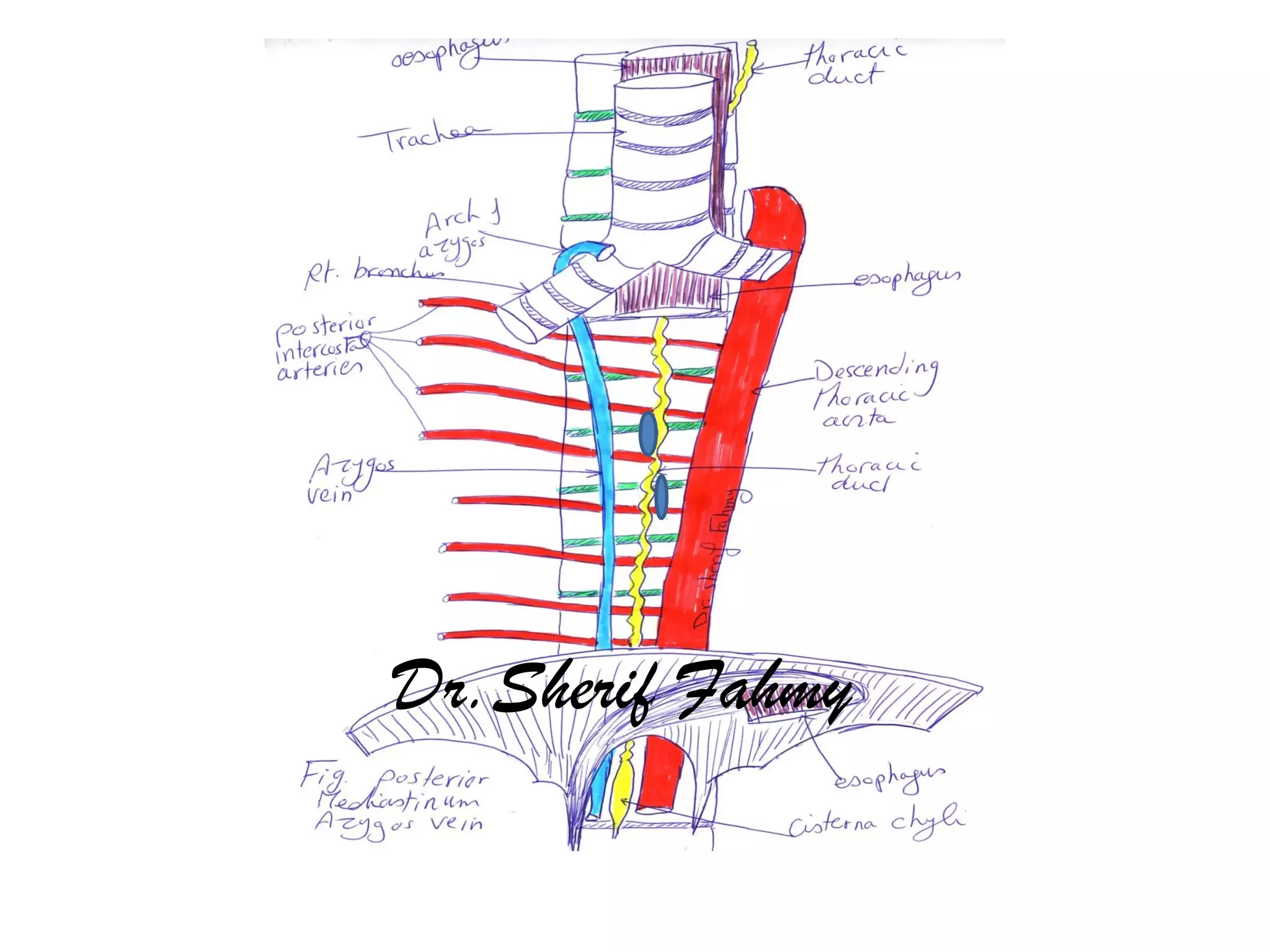

32. Dr.Sherif Fahmy

33. Dr.Sherif Fahmy

34. Dr.Sherif Fahmy

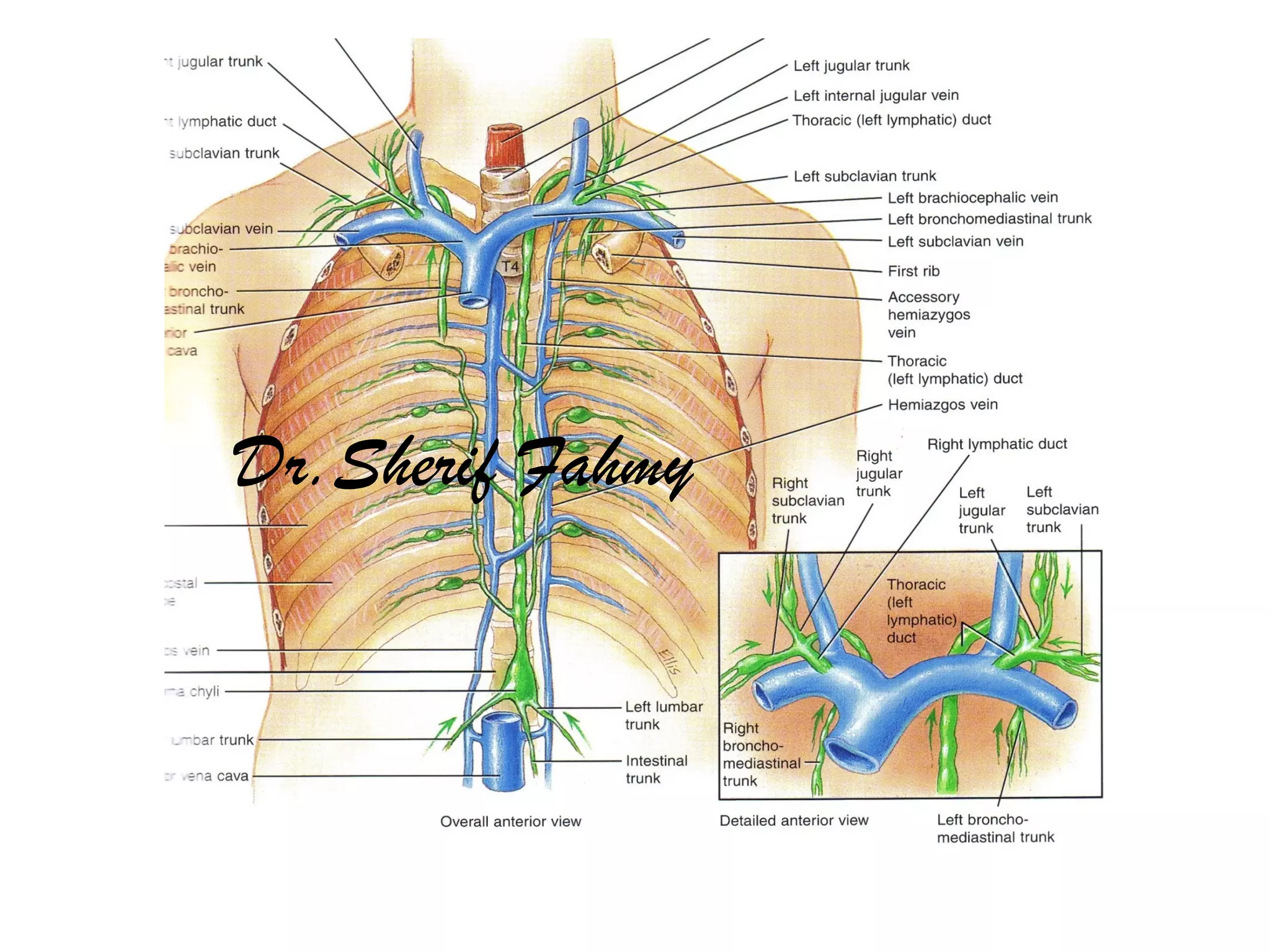

35. Thoracic Duct
(Page 121)
Dr.Sherif Fahmy

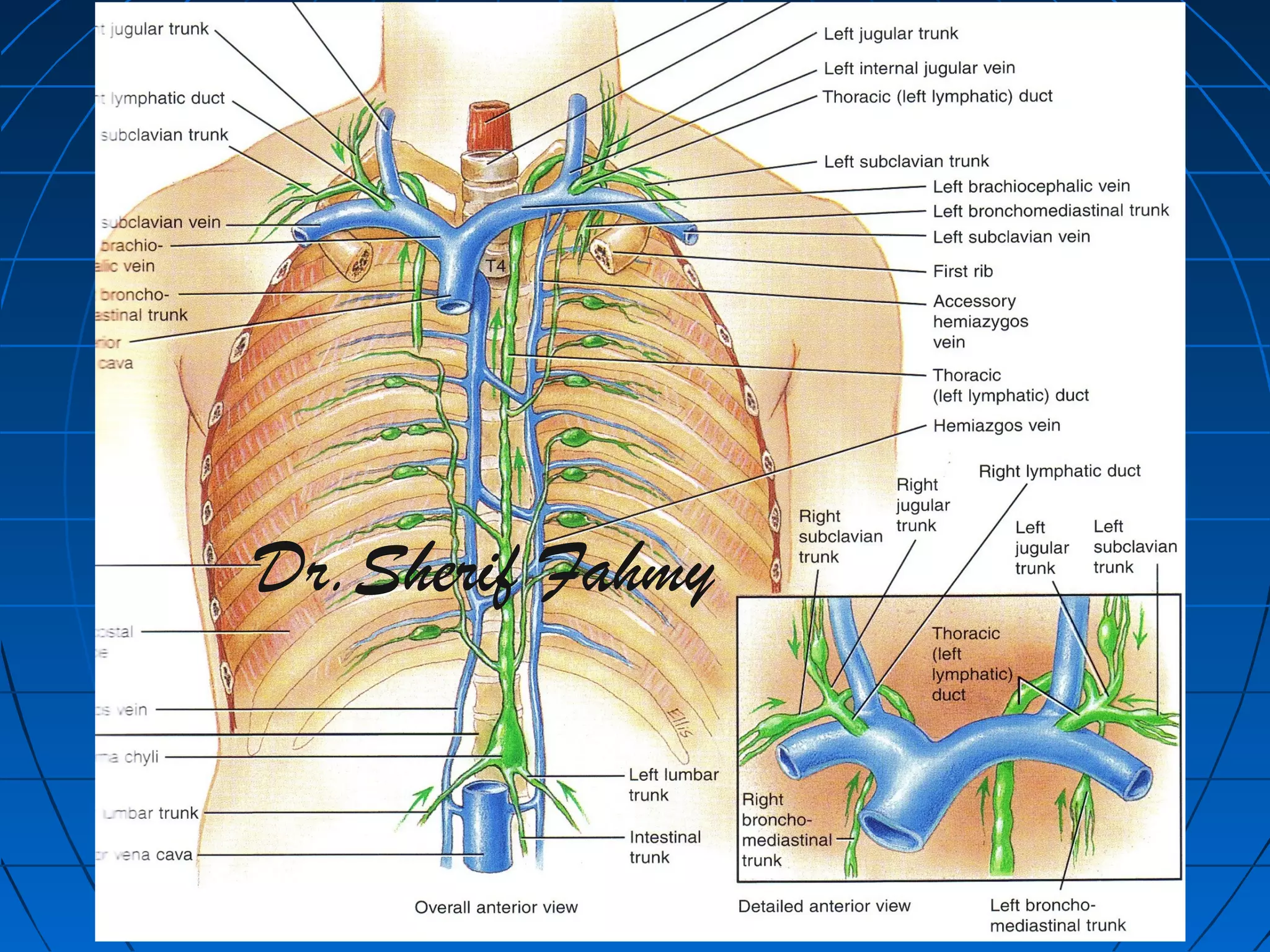

36. Dr.Sherif Fahmy

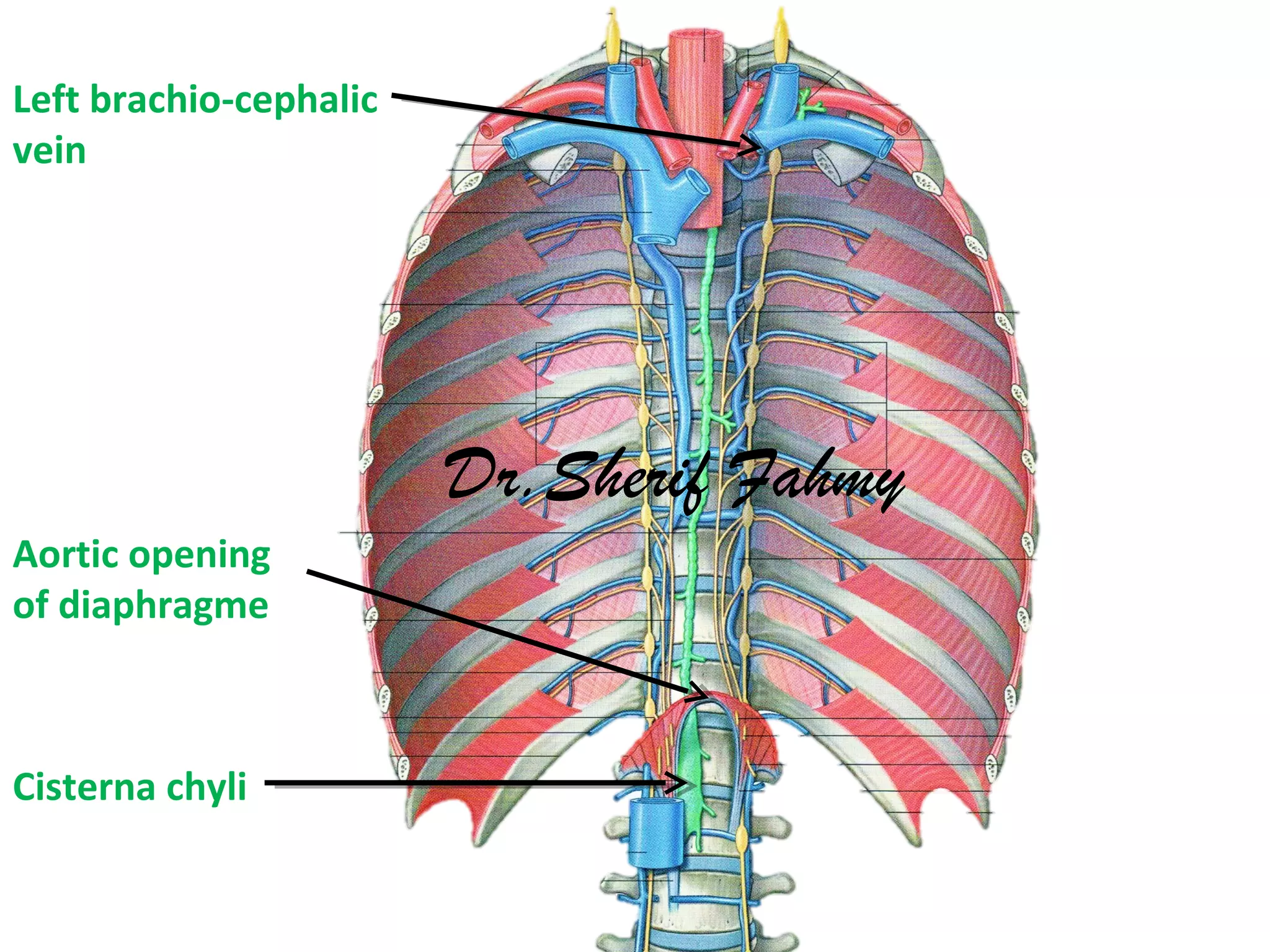

37. Cisterna chyli
Aortic opening
of diaphragme
Left brachio-cephalic
vein
Dr.Sherif Fahmy

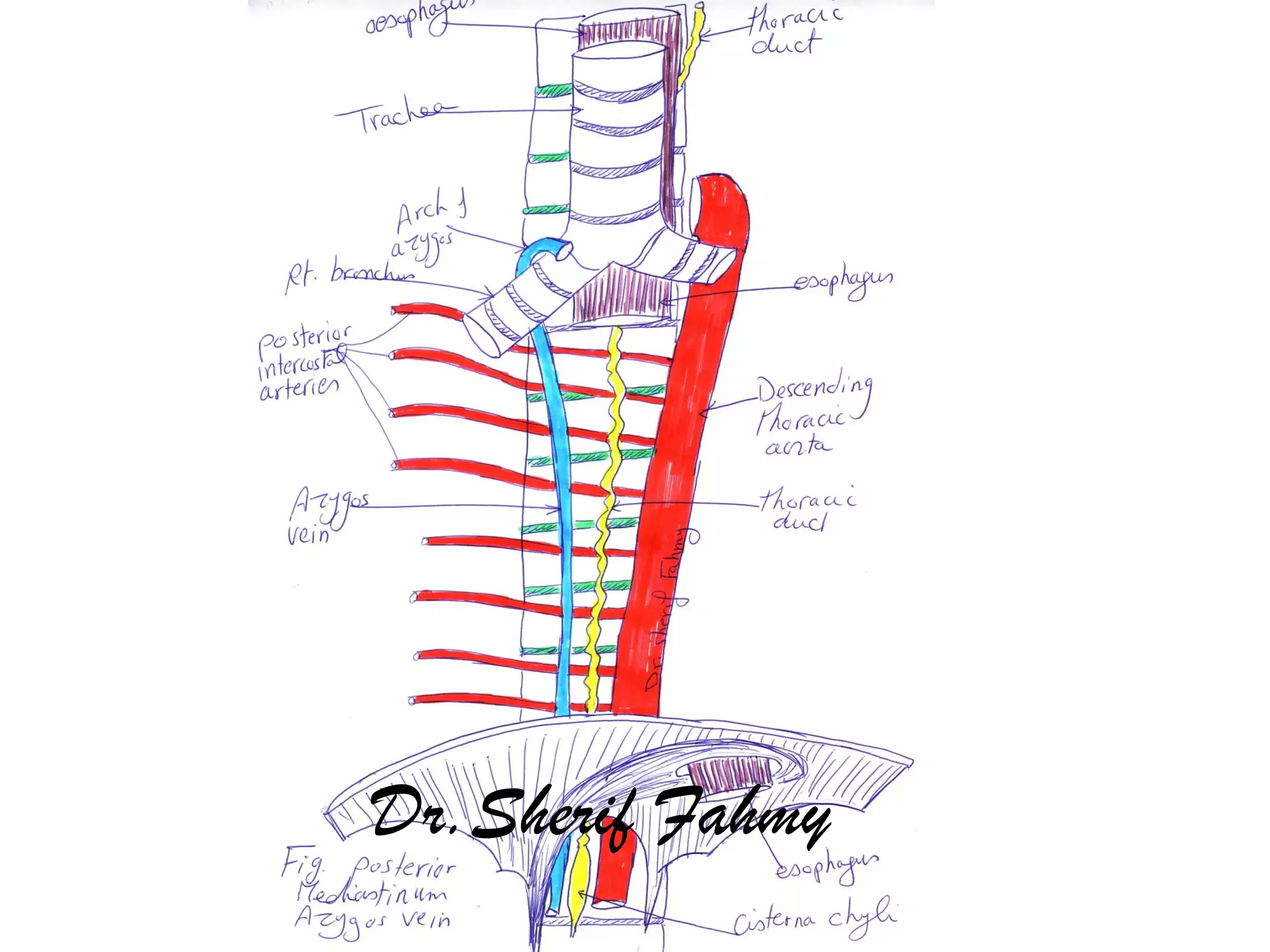

38. Dr.Sherif Fahmy

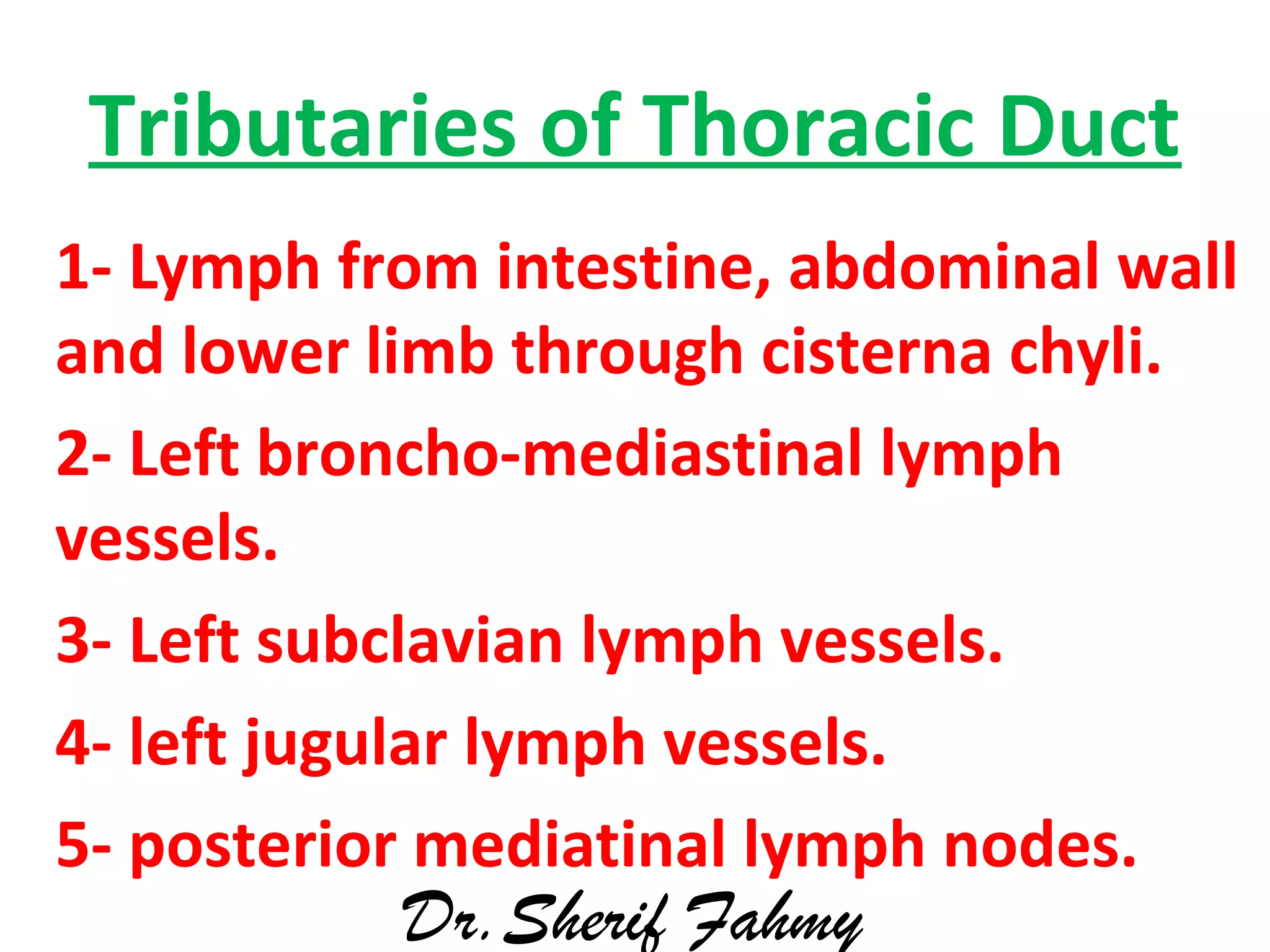

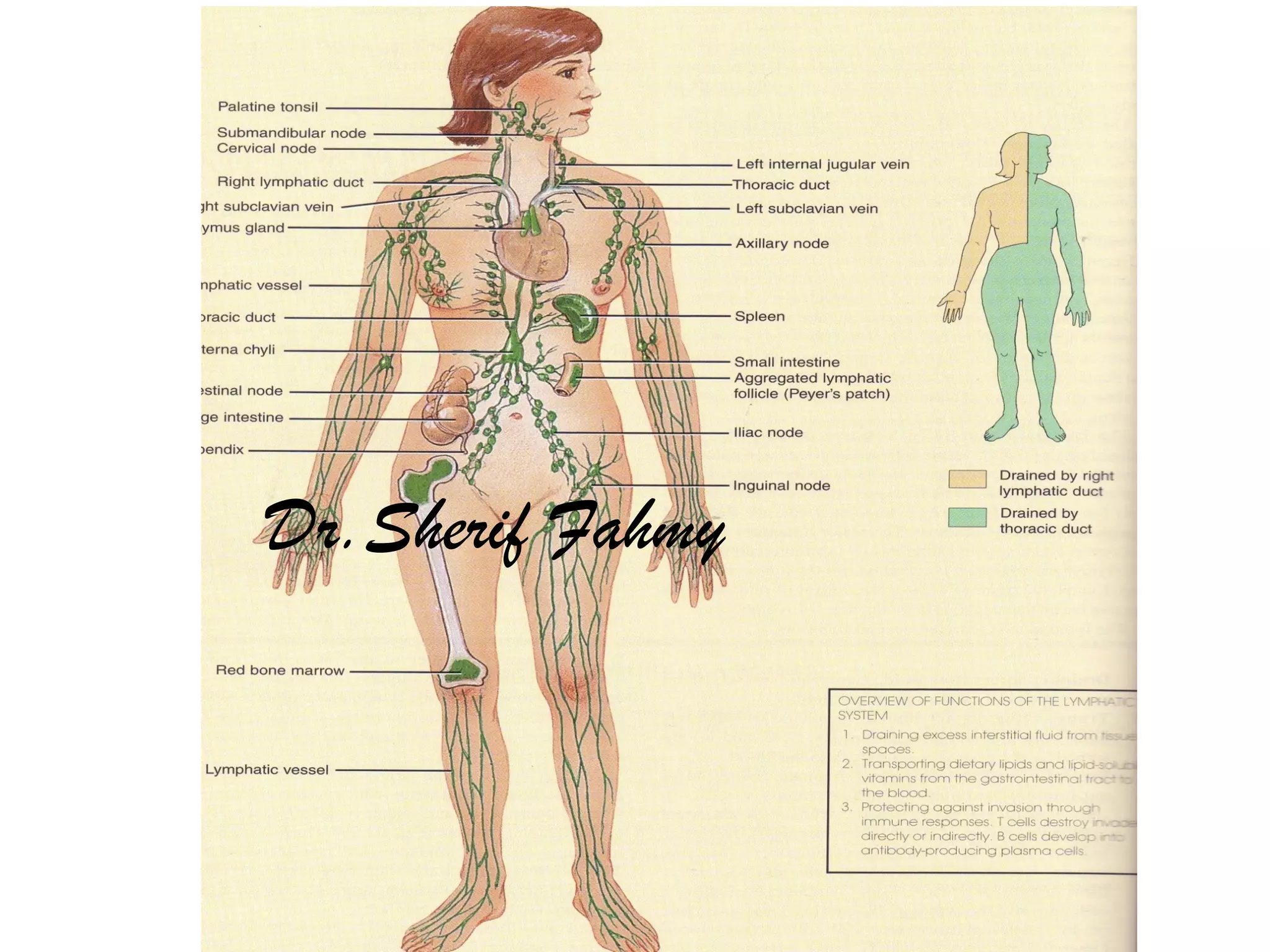

39. Tributaries of Thoracic Duct
1- Lymph from intestine, abdominal wall
and lower limb through cisterna chyli.
2- Left broncho-mediastinal lymph
vessels.
3- Left subclavian lymph vessels.
4- left jugular lymph vessels.
5- posterior mediatinal lymph nodes.
Dr.Sherif Fahmy

40. Dr.Sherif Fahmy

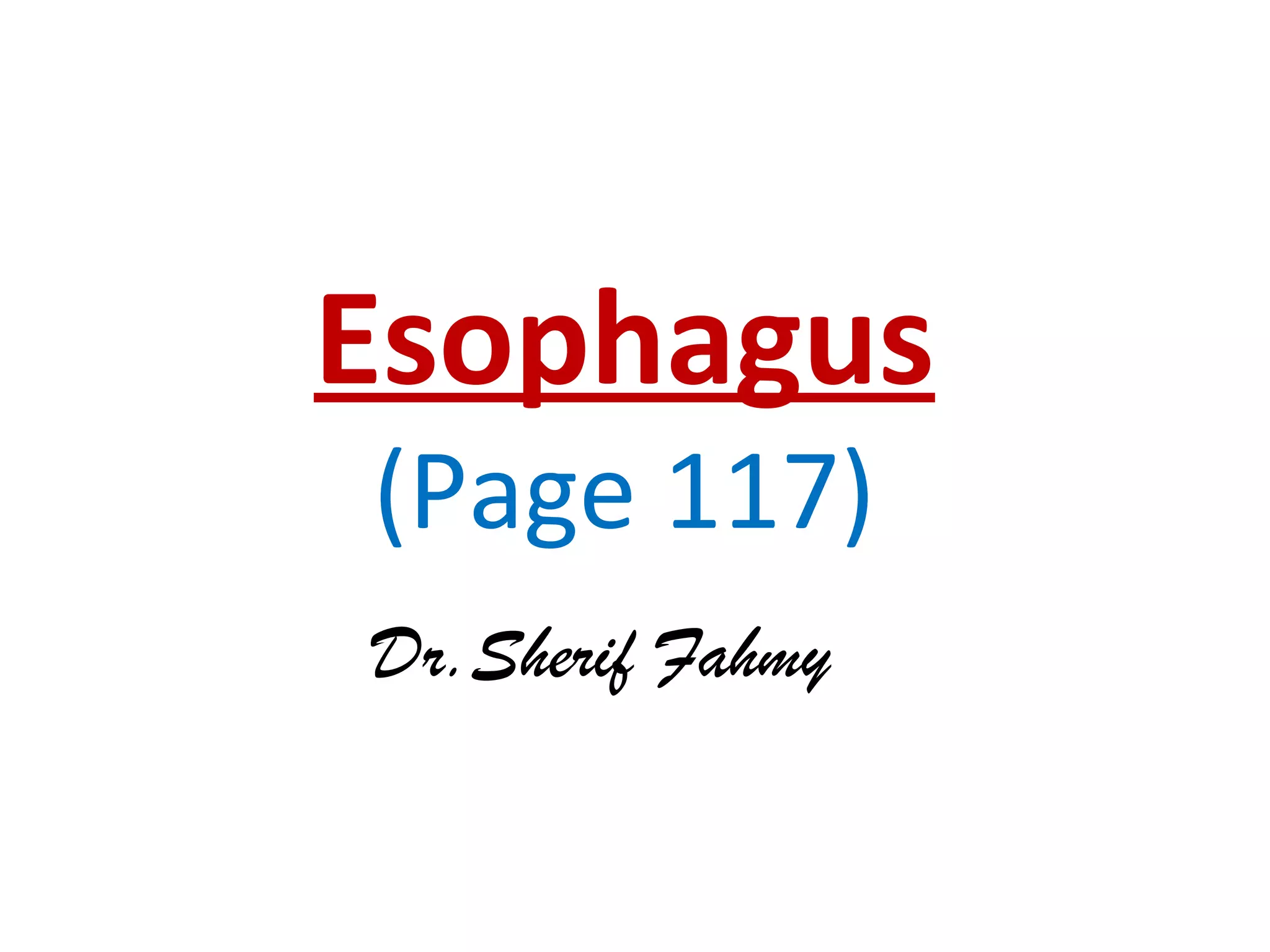

41. Esophagus
(Page 117)
Dr.Sherif Fahmy

42. Parts & Course
Dr.Sherif Fahmy

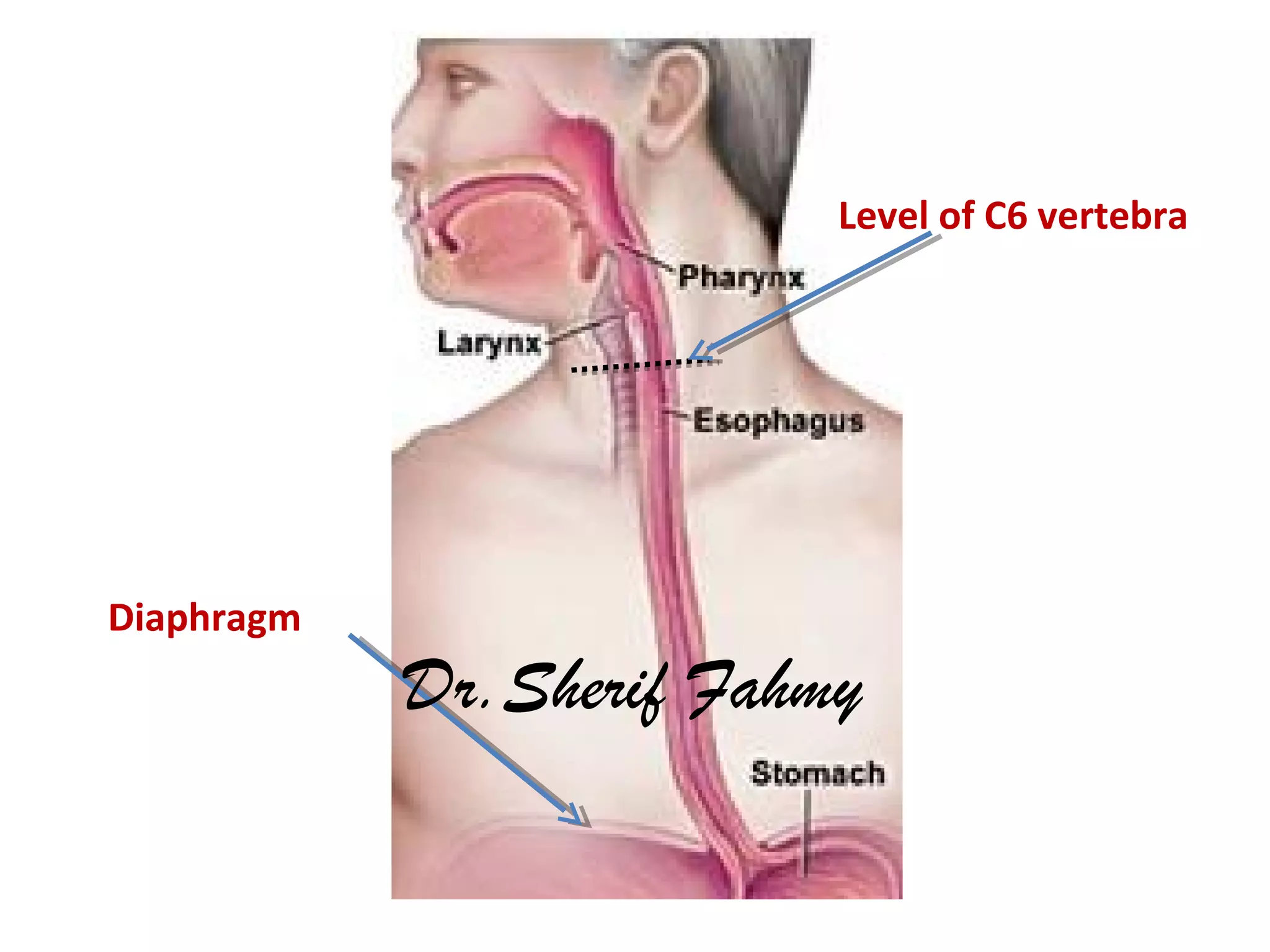

43. Level of C6 vertebra
Diaphragm
Dr.Sherif Fahmy

44. Shape, Size and
Curves
Dr.Sherif Fahmy

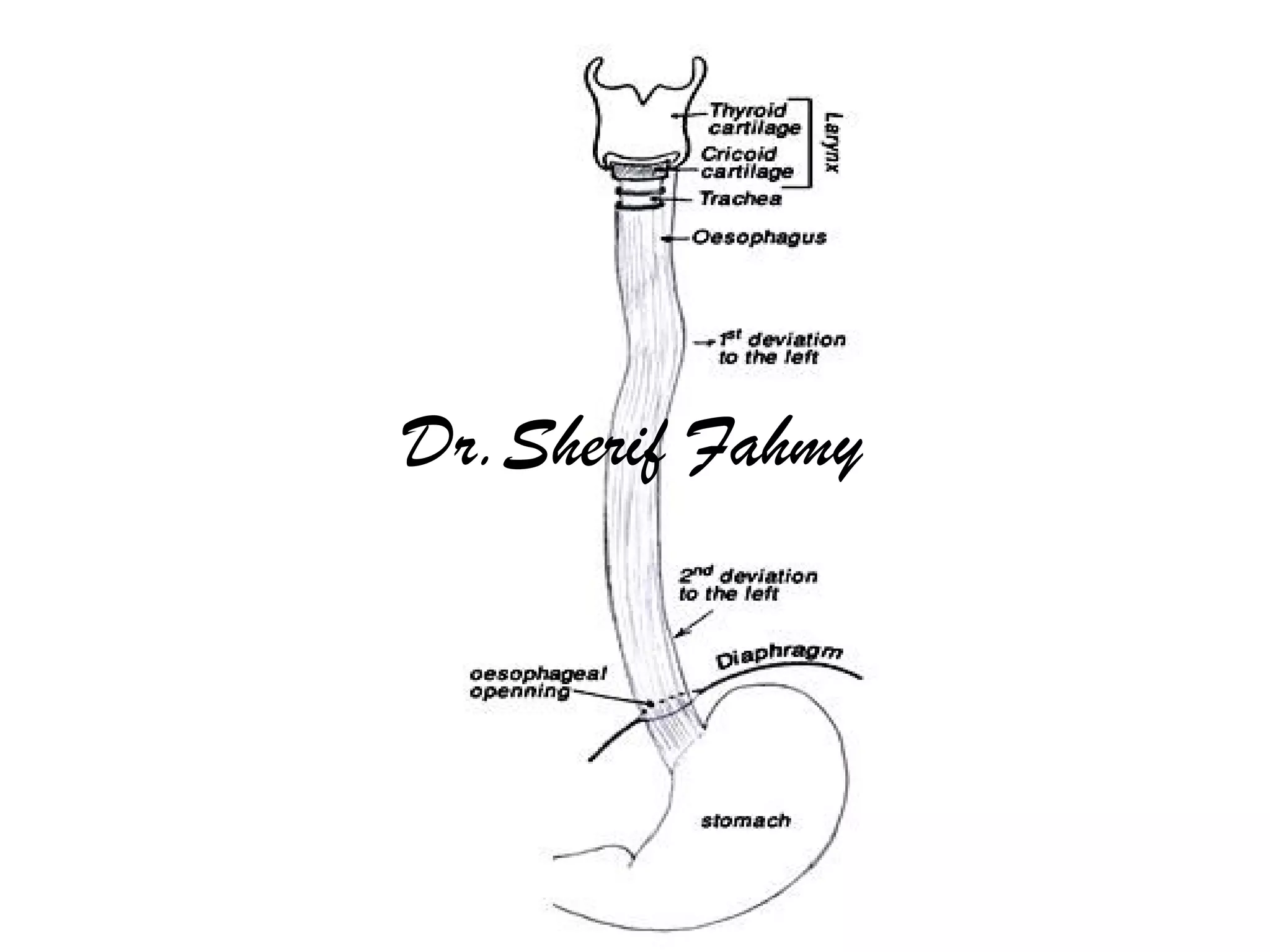

45. Dr.Sherif Fahmy

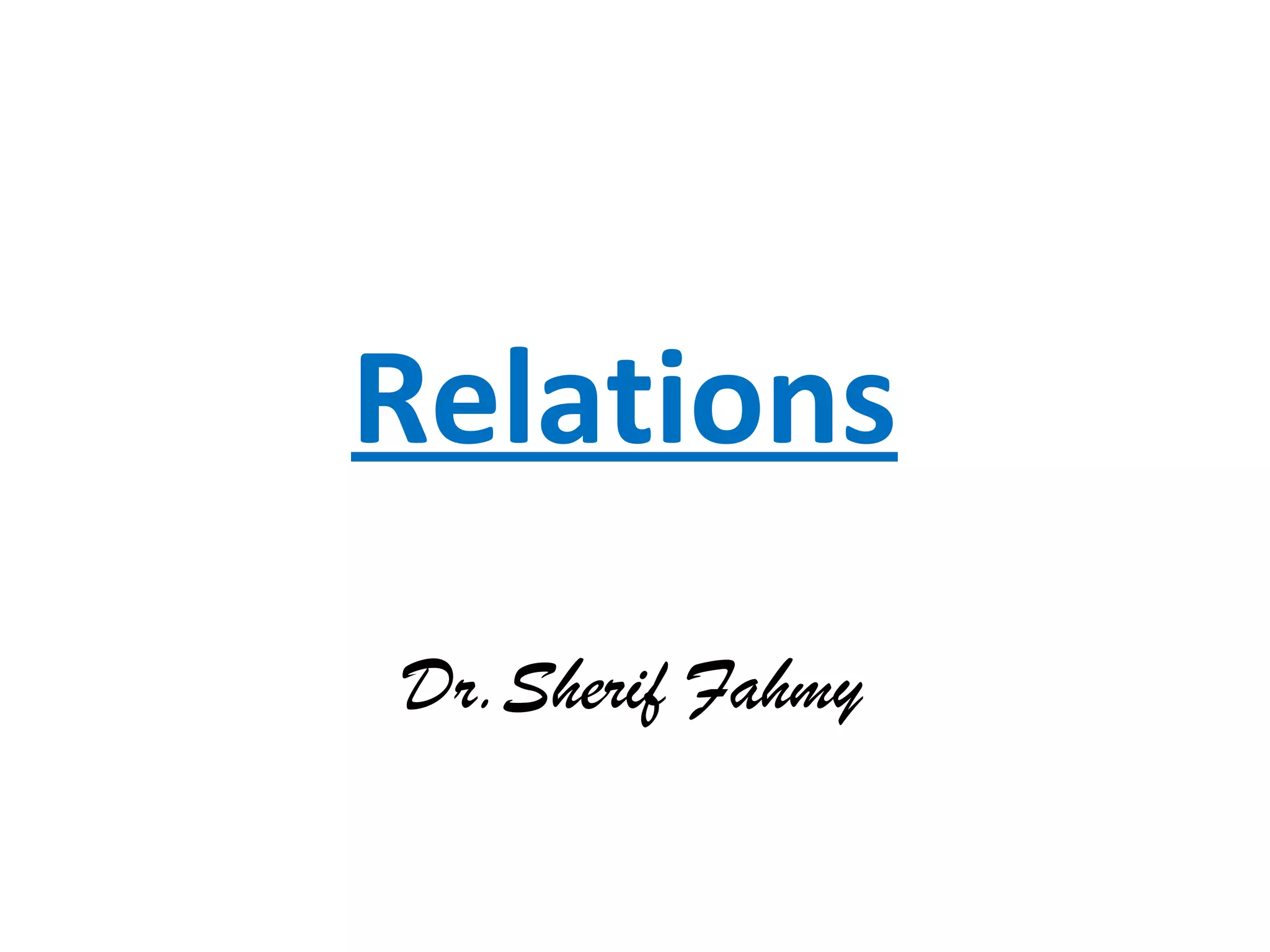

46. Relations
Dr.Sherif Fahmy

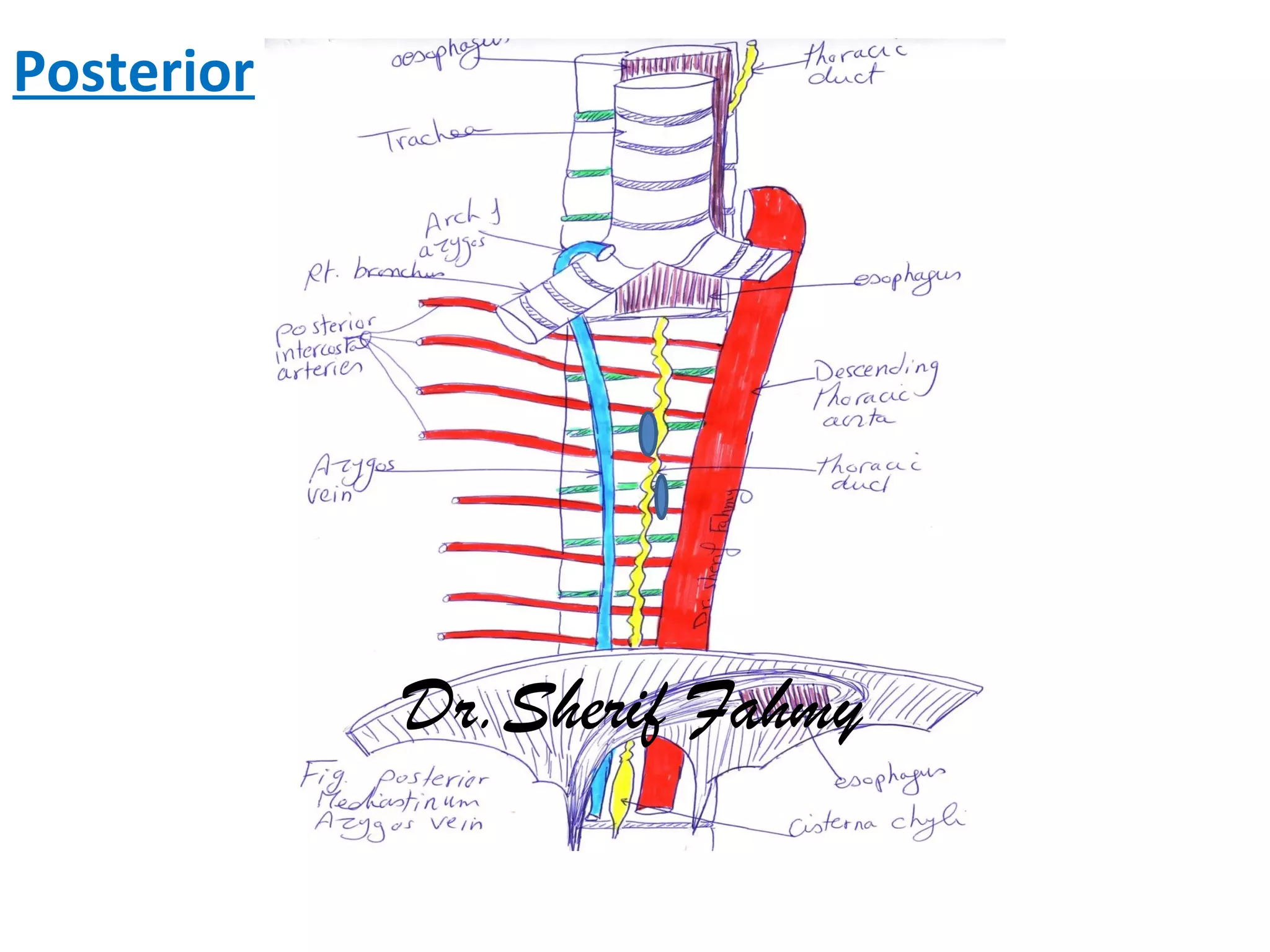

47. Posterior
Dr.Sherif Fahmy

48. Anterior
Dr.Sherif Fahmy

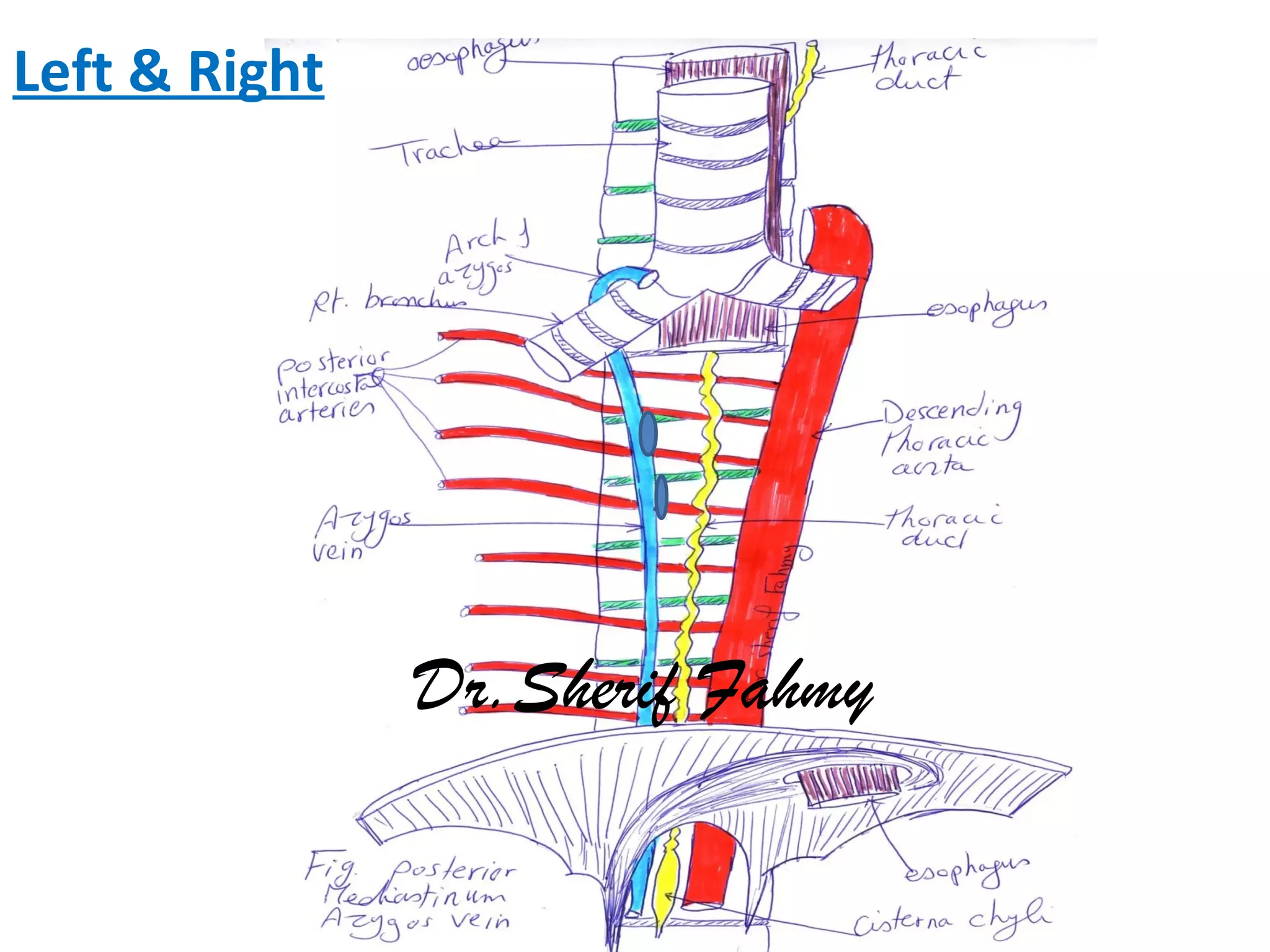

49. Left & Right
Dr.Sherif Fahmy

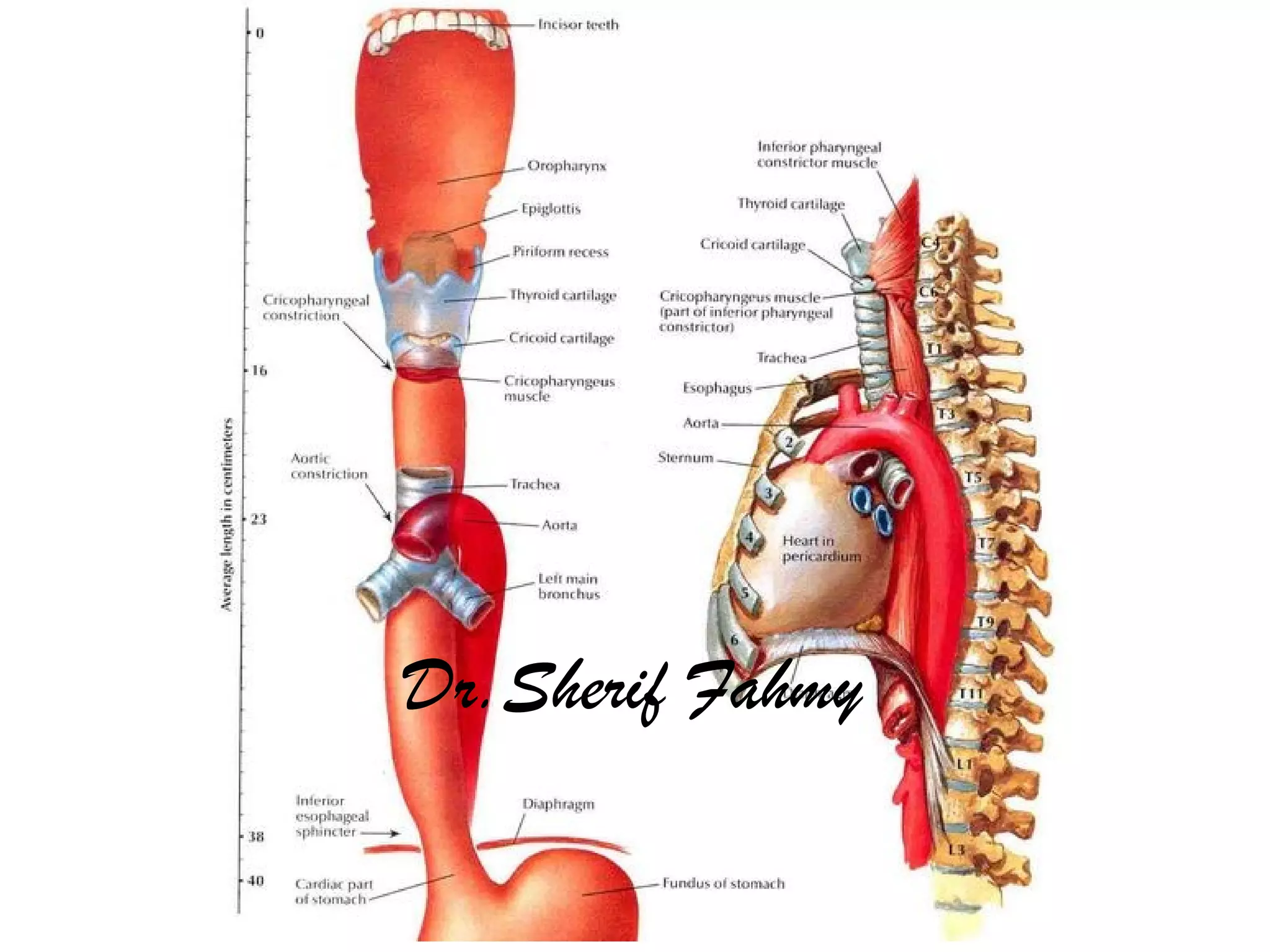

50. Constrictions
Dr.Sherif Fahmy

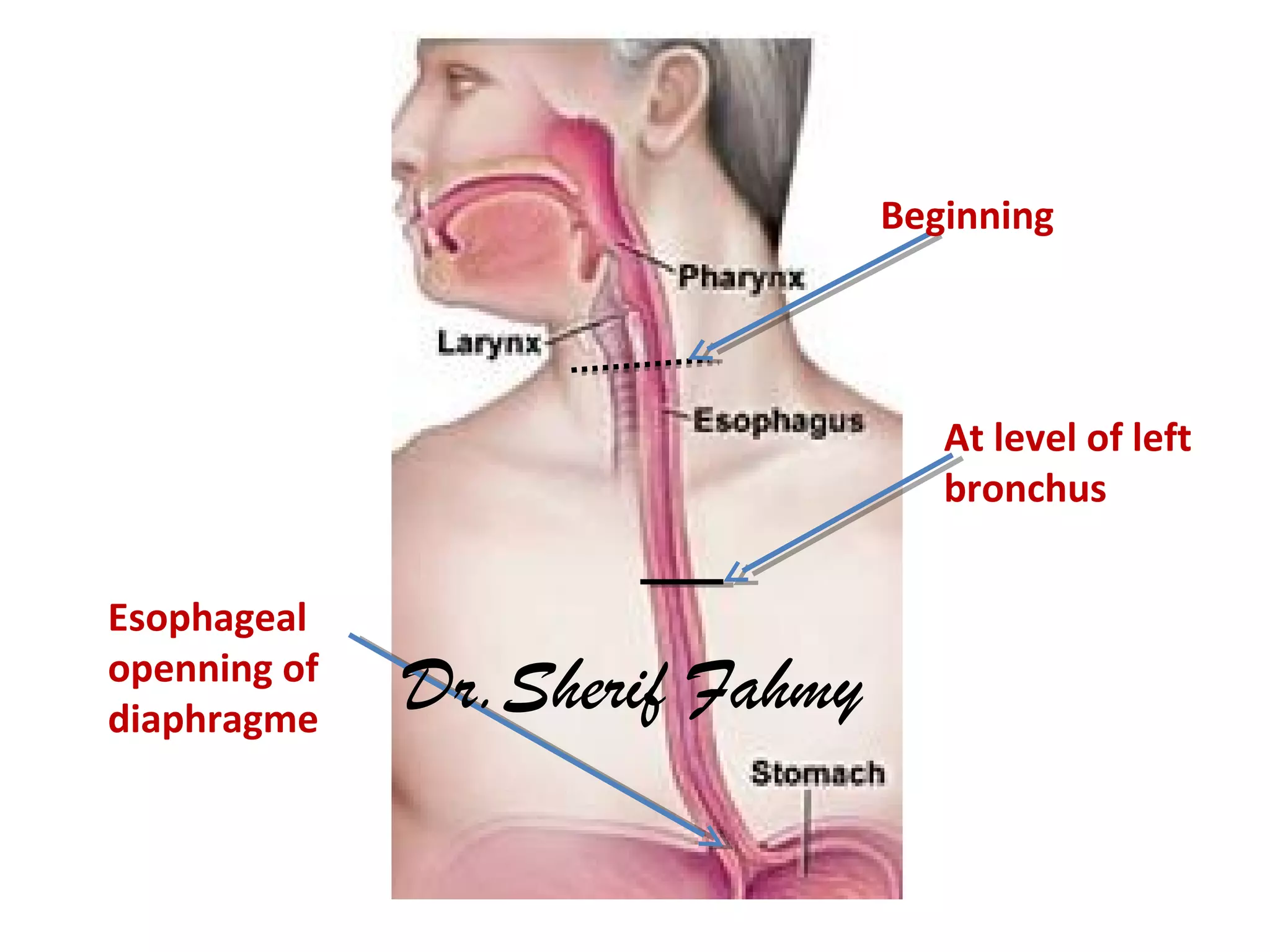

51. Beginning
Esophageal
openning of
diaphragme
At level of left
bronchus
Dr.Sherif Fahmy

52. Dr.Sherif Fahmy

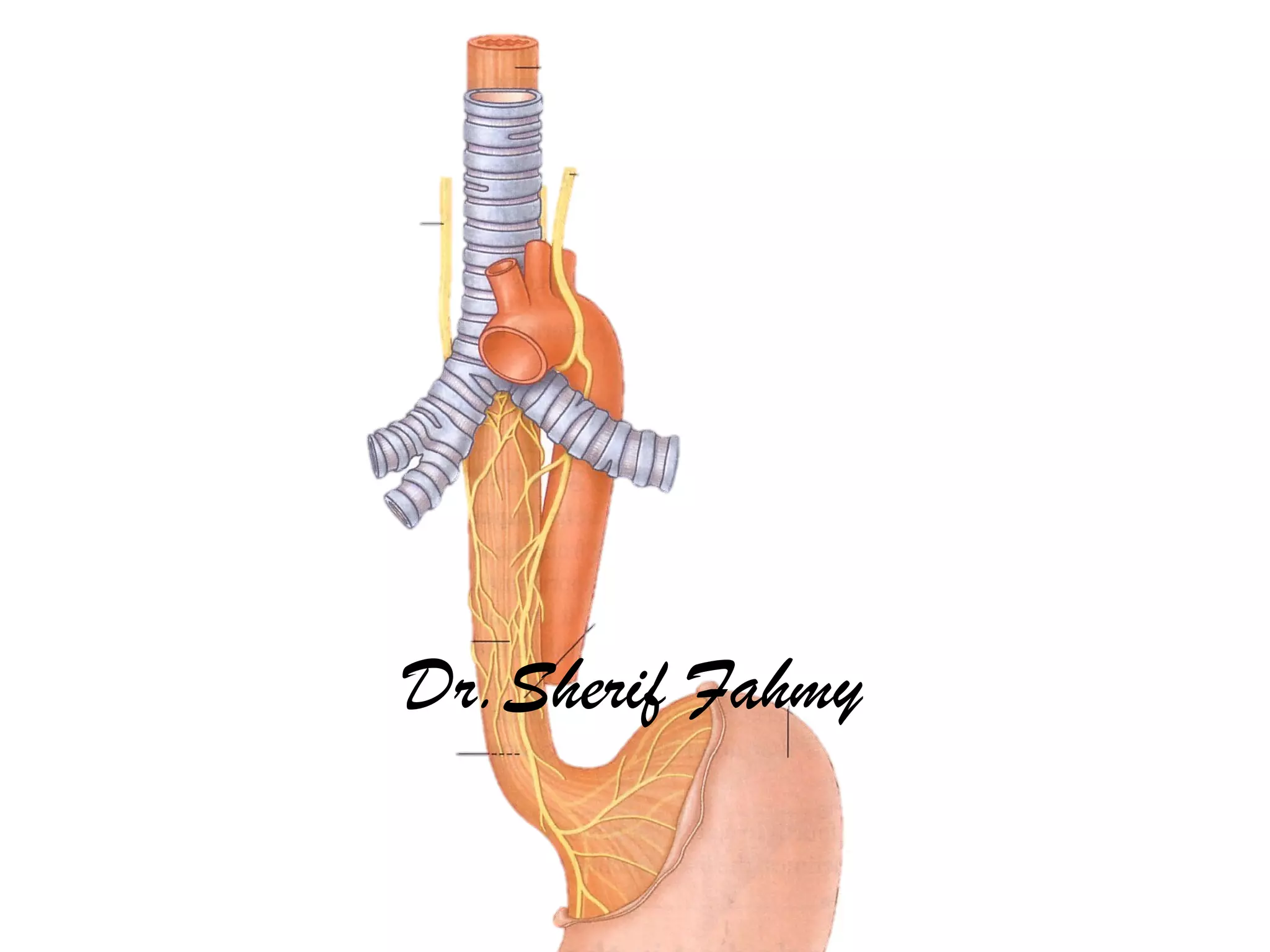

53. Nerve Supply
Dr.Sherif Fahmy

54. Dr.Sherif Fahmy

55. Dr.Sherif Fahmy

56. Blood Supply
Dr.Sherif Fahmy

57. Left & Right
Dr.Sherif Fahmy

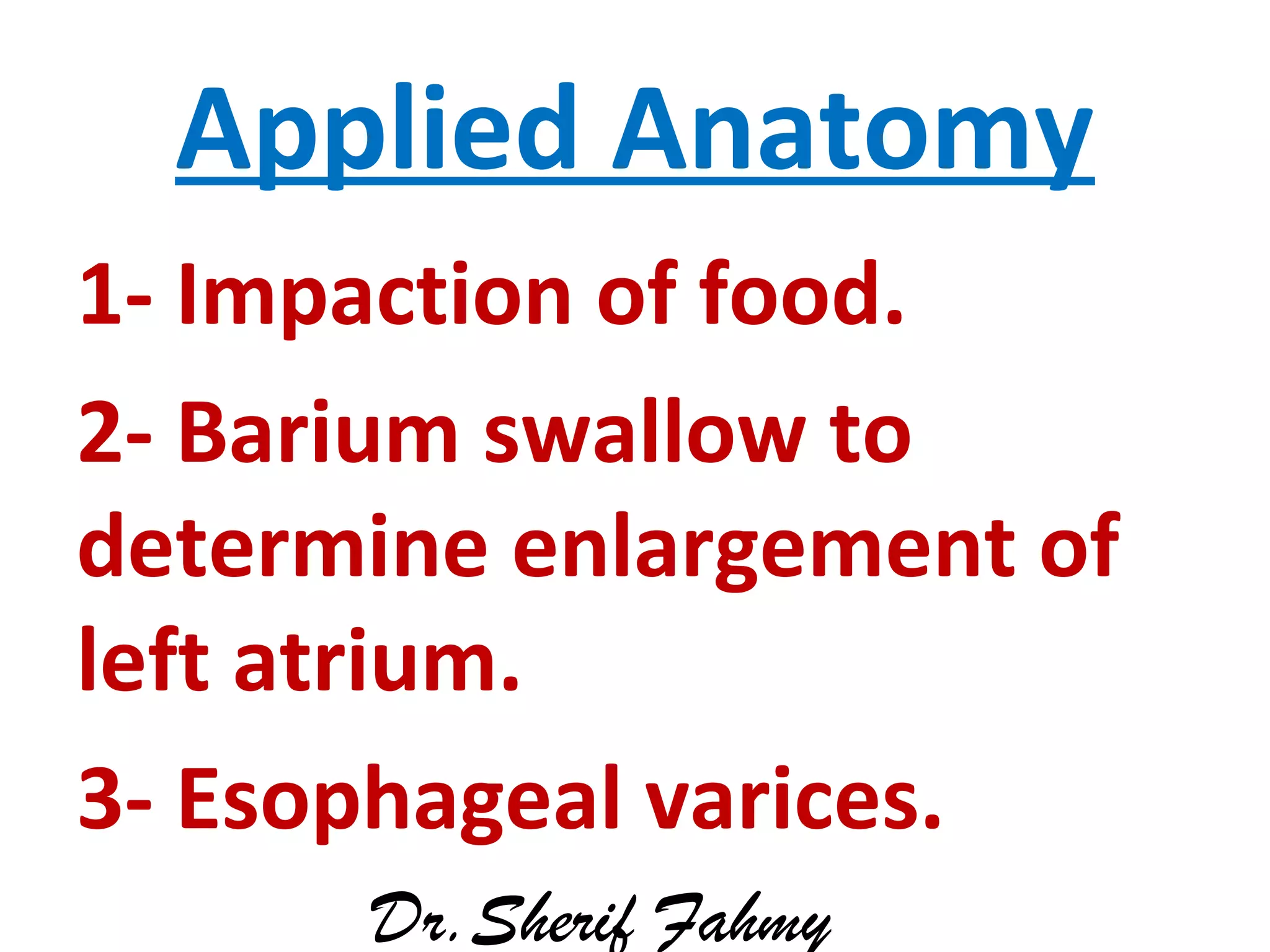

58. Applied Anatomy
1- Impaction of food.
2- Barium swallow to
determine enlargement of
left atrium.
3- Esophageal varices.
Dr.Sherif Fahmy
