BY
JILANI S M
I M PHARM
GCP, BANGALORE
THERMOGRAVIMETRIC
ANALYSIS
CONTENTS
1. INTRODUCTION
2. INSTRUMENTATION
3. DERIVATIVE THERMOGRAVIMETRIC ANALYSIS
4. FACTORS AFFEVTING TGA
5. APPLICATION OF TGA

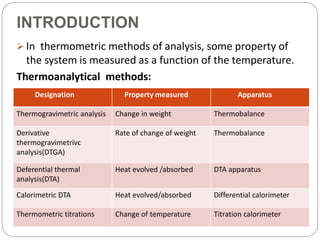

INTRODUCTION
 In thermometric methods of analysis, some property of
the system is measured as a function of the temperature.
Thermoanalytical methods:
Designation Property measured Apparatus
Thermogravimetric analysis Change in weight Thermobalance
Derivative
thermogravimetrivc
analysis(DTGA)
Rate of change of weight Thermobalance
Deferential thermal
analysis(DTA)
Heat evolved /absorbed DTA apparatus
Calorimetric DTA Heat evolved/absorbed Differential calorimeter
Thermometric titrations Change of temperature Titration calorimeter

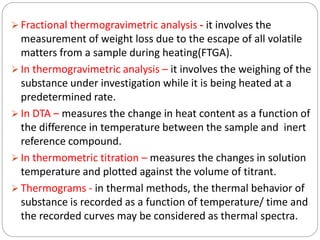

 Fractional thermogravimetric analysis - it involves the
measurement of weight loss due to the escape of all volatile
matters from a sample during heating(FTGA).
 In thermogravimetric analysis – it involves the weighing of the
substance under investigation while it is being heated at a
predetermined rate.
 In DTA – measures the change in heat content as a function of
the difference in temperature between the sample and inert
reference compound.
 In thermometric titration – measures the changes in solution
temperature and plotted against the volume of titrant.
 Thermograms - in thermal methods, the thermal behavior of
substance is recorded as a function of temperature/ time and
the recorded curves may be considered as thermal spectra.

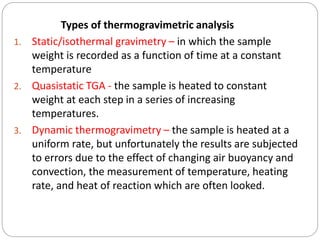

Types of thermogravimetric analysis
1. Static/isothermal gravimetry – in which the sample
weight is recorded as a function of time at a constant
temperature
2. Quasistatic TGA - the sample is heated to constant
weight at each step in a series of increasing
temperatures.
3. Dynamic thermogravimetry – the sample is heated at a
uniform rate, but unfortunately the results are subjected
to errors due to the effect of changing air buoyancy and
convection, the measurement of temperature, heating
rate, and heat of reaction which are often looked.

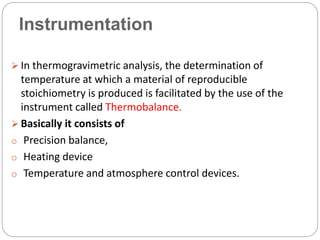

Instrumentation
 In thermogravimetric analysis, the determination of
temperature at which a material of reproducible
stoichiometry is produced is facilitated by the use of the
instrument called Thermobalance.
 Basically it consists of
o Precision balance,
o Heating device
o Temperature and atmosphere control devices.

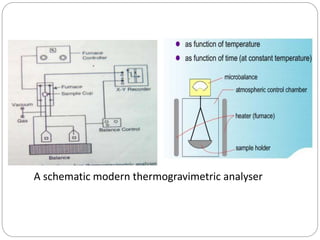

A schematic modern thermogravimetric analyser

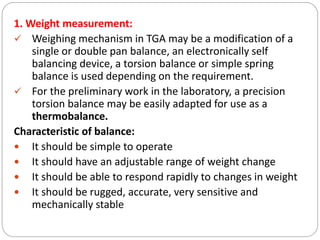

1. Weight measurement:
 Weighing mechanism in TGA may be a modification of a
single or double pan balance, an electronically self
balancing device, a torsion balance or simple spring
balance is used depending on the requirement.
 For the preliminary work in the laboratory, a precision
torsion balance may be easily adapted for use as a
thermobalance.
Characteristic of balance:
 It should be simple to operate
 It should have an adjustable range of weight change
 It should be able to respond rapidly to changes in weight
 It should be rugged, accurate, very sensitive and
mechanically stable

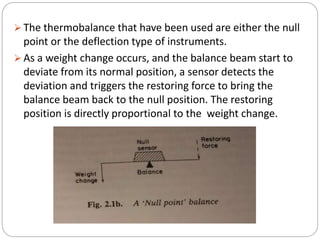

 The thermobalance that have been used are either the null
point or the deflection type of instruments.
 As a weight change occurs, and the balance beam start to
deviate from its normal position, a sensor detects the
deviation and triggers the restoring force to bring the
balance beam back to the null position. The restoring
position is directly proportional to the weight change.

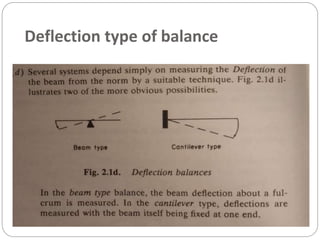

Deflection type of balance

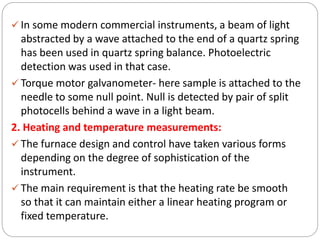

 In some modern commercial instruments, a beam of light
abstracted by a wave attached to the end of a quartz spring
has been used in quartz spring balance. Photoelectric
detection was used in that case.
 Torque motor galvanometer- here sample is attached to the
needle to some null point. Null is detected by pair of split
photocells behind a wave in a light beam.
2. Heating and temperature measurements:
 The furnace design and control have taken various forms
depending on the degree of sophistication of the
instrument.
 The main requirement is that the heating rate be smooth
so that it can maintain either a linear heating program or
fixed temperature.

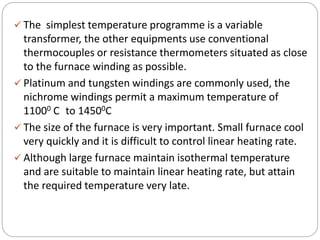

 The simplest temperature programme is a variable
transformer, the other equipments use conventional
thermocouples or resistance thermometers situated as close
to the furnace winding as possible.
 Platinum and tungsten windings are commonly used, the
nichrome windings permit a maximum temperature of
11000 C to 14500C
 The size of the furnace is very important. Small furnace cool
very quickly and it is difficult to control linear heating rate.
 Although large furnace maintain isothermal temperature
and are suitable to maintain linear heating rate, but attain
the required temperature very late.

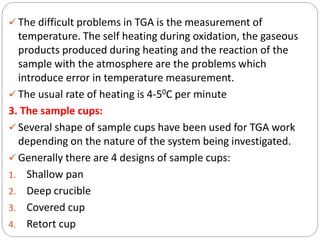

 The difficult problems in TGA is the measurement of
temperature. The self heating during oxidation, the gaseous
products produced during heating and the reaction of the
sample with the atmosphere are the problems which
introduce error in temperature measurement.
 The usual rate of heating is 4-50C per minute
3. The sample cups:
 Several shape of sample cups have been used for TGA work
depending on the nature of the system being investigated.
 Generally there are 4 designs of sample cups:
1. Shallow pan
2. Deep crucible
3. Covered cup
4. Retort cup

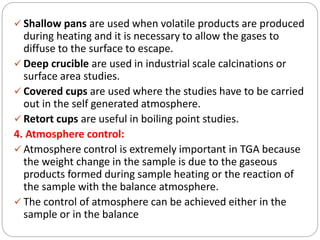

 Shallow pans are used when volatile products are produced
during heating and it is necessary to allow the gases to
diffuse to the surface to escape.
 Deep crucible are used in industrial scale calcinations or
surface area studies.
 Covered cups are used where the studies have to be carried
out in the self generated atmosphere.
 Retort cups are useful in boiling point studies.
4. Atmosphere control:
 Atmosphere control is extremely important in TGA because
the weight change in the sample is due to the gaseous
products formed during sample heating or the reaction of
the sample with the balance atmosphere.
 The control of atmosphere can be achieved either in the
sample or in the balance

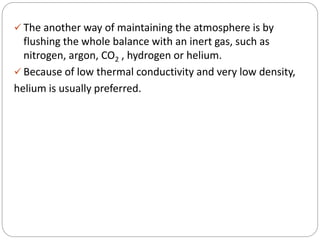

 The another way of maintaining the atmosphere is by
flushing the whole balance with an inert gas, such as
nitrogen, argon, CO2 , hydrogen or helium.
 Because of low thermal conductivity and very low density,
helium is usually preferred.

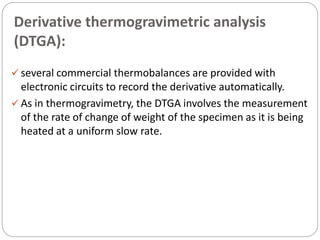

Derivative thermogravimetric analysis
(DTGA):
 several commercial thermobalances are provided with
electronic circuits to record the derivative automatically.
 As in thermogravimetry, the DTGA involves the measurement
of the rate of change of weight of the specimen as it is being
heated at a uniform slow rate.
Relation between TGA and DTG curves for the pyrolysis of
CaCO3 and MgCO3

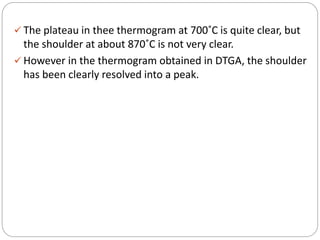

 The plateau in thee thermogram at 700˚C is quite clear, but
the shoulder at about 870˚C is not very clear.
 However in the thermogram obtained in DTGA, the shoulder
has been clearly resolved into a peak.

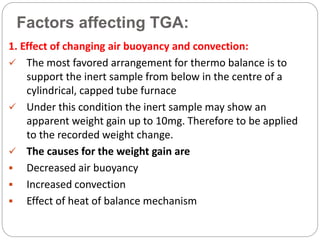

Factors affecting TGA:
1. Effect of changing air buoyancy and convection:
 The most favored arrangement for thermo balance is to
support the inert sample from below in the centre of a
cylindrical, capped tube furnace
 Under this condition the inert sample may show an
apparent weight gain up to 10mg. Therefore to be applied
to the recorded weight change.
 The causes for the weight gain are
 Decreased air buoyancy
 Increased convection
 Effect of heat of balance mechanism

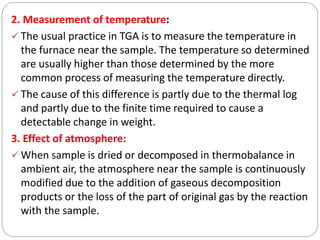

2. Measurement of temperature:
 The usual practice in TGA is to measure the temperature in
the furnace near the sample. The temperature so determined
are usually higher than those determined by the more
common process of measuring the temperature directly.
 The cause of this difference is partly due to the thermal log
and partly due to the finite time required to cause a
detectable change in weight.
3. Effect of atmosphere:
 When sample is dried or decomposed in thermobalance in
ambient air, the atmosphere near the sample is continuously
modified due to the addition of gaseous decomposition
products or the loss of the part of original gas by the reaction
with the sample.

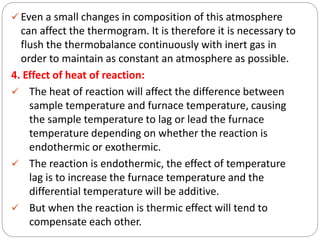

 Even a small changes in composition of this atmosphere
can affect the thermogram. It is therefore it is necessary to
flush the thermobalance continuously with inert gas in
order to maintain as constant an atmosphere as possible.
4. Effect of heat of reaction:
 The heat of reaction will affect the difference between
sample temperature and furnace temperature, causing
the sample temperature to lag or lead the furnace
temperature depending on whether the reaction is
endothermic or exothermic.
 The reaction is endothermic, the effect of temperature
lag is to increase the furnace temperature and the
differential temperature will be additive.
 But when the reaction is thermic effect will tend to
compensate each other.

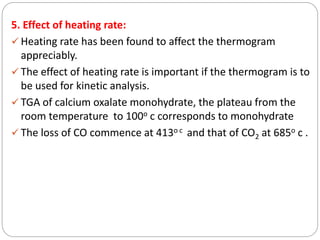

5. Effect of heating rate:
 Heating rate has been found to affect the thermogram
appreciably.
 The effect of heating rate is important if the thermogram is to
be used for kinetic analysis.
 TGA of calcium oxalate monohydrate, the plateau from the
room temperature to 100o c corresponds to monohydrate
 The loss of CO commence at 413o c and that of CO2 at 685o c .

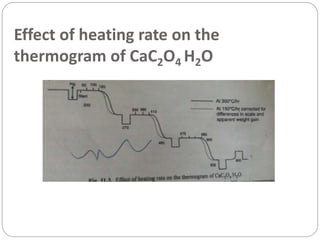

Effect of heating rate on the
thermogram of CaC2O4 H2O
6. Sample characteristics:
 Weight of the sample – large sample affects the TG curve
and the curve deviates from linearity as the temperature
rises. Hence, small samples are preferred. If 20mg of copper
sulphate.5H20 is used, no platuex corresponding to
CuSO4.3H2O is obtained, but if only 0.5mg of the sample is
used this plateau can be observed.
 Particle size – particle size also affects the Tgcurve. Smaller
particles decomposes at lower temperature while larger
sized particles of the sample take longer time and
decompose at higher temperature.
 Compactness of the sample – compact sample decompose
at higher temperature than loose samples.

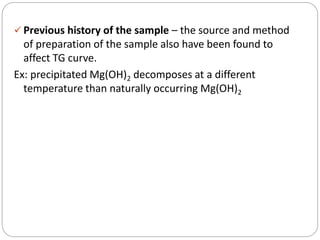

 Previous history of the sample – the source and method
of preparation of the sample also have been found to
affect TG curve.
Ex: precipitated Mg(OH)2 decomposes at a different
temperature than naturally occurring Mg(OH)2

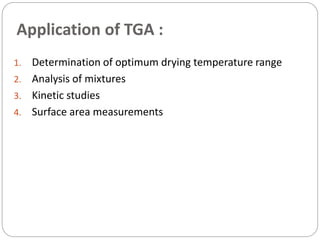

Application of TGA :
1. Determination of optimum drying temperature range
2. Analysis of mixtures
3. Kinetic studies

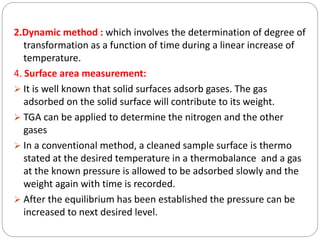

4. Surface area measurements
1. Determination of optimum drying temperature:
 Thermogravimetric analysis being widely used in
qualitative, quantitative analysis and thermal stability
studies etc.
 Much of the work in thermogravimetry has been done to
establish optimum temperature for the conditioning of
precipitates for conventional gravimetric analysis.

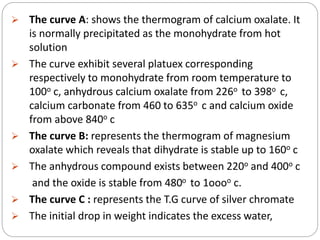

 The curve A: shows the thermogram of calcium oxalate. It
is normally precipitated as the monohydrate from hot
solution
 The curve exhibit several platuex corresponding
respectively to monohydrate from room temperature to
100o c, anhydrous calcium oxalate from 226o to 398o c,
calcium carbonate from 460 to 635o c and calcium oxide
from above 840o c
 The curve B: represents the thermogram of magnesium
oxalate which reveals that dihydrate is stable up to 160o c
 The anhydrous compound exists between 220o and 400o c
and the oxide is stable from 480o to 1oooo c.
 The curve C : represents the T.G curve of silver chromate
 The initial drop in weight indicates the excess water,
And just about 92o c the weight becomes constant and remains
so up to 812o c after which oxygen is lost.
 The decomposition of silver chromate can, therefore, be
represented as
2Ag2 Cro4 Ag2CR2O4 +2Ag +2o2
 Silver chromate is thus stable over a temperature range of
about 90o to 800o c. hence in gravimetric analysis of
chromium, the precipitate of silver chromate can dried
anywhere in this region.
 The curve D: represents the excess water. The curve
mercurous chromate is stable over the range of 52-256o c it
commences to decompose in to Hg2O and the weight
becomes constant at about 671o c

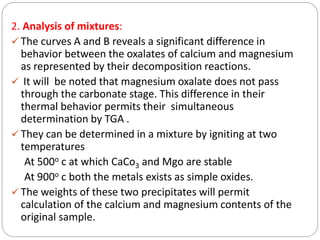

2. Analysis of mixtures:
 The curves A and B reveals a significant difference in
behavior between the oxalates of calcium and magnesium
as represented by their decomposition reactions.
 It will be noted that magnesium oxalate does not pass
through the carbonate stage. This difference in their
thermal behavior permits their simultaneous
determination by TGA .
 They can be determined in a mixture by igniting at two
temperatures
At 500o c at which CaCo3 and Mgo are stable
At 900o c both the metals exists as simple oxides.
 The weights of these two precipitates will permit
calculation of the calcium and magnesium contents of the
original sample.

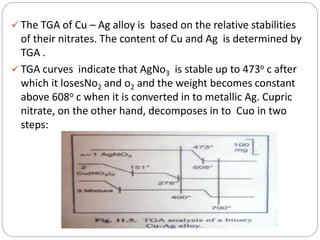

 The TGA of Cu – Ag alloy is based on the relative stabilities
of their nitrates. The content of Cu and Ag is determined by
TGA .
 TGA curves indicate that AgNo3 is stable up to 473o c after
which it losesNo2 and o2 and the weight becomes constant
above 608o c when it is converted in to metallic Ag. Cupric
nitrate, on the other hand, decomposes in to Cuo in two
steps:

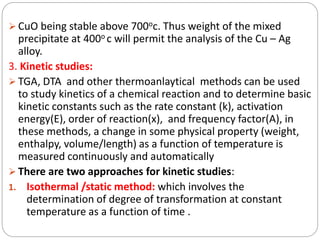

 CuO being stable above 700oc. Thus weight of the mixed
precipitate at 400o c will permit the analysis of the Cu – Ag
alloy.
3. Kinetic studies:
 TGA, DTA and other thermoanlaytical methods can be used
to study kinetics of a chemical reaction and to determine basic
kinetic constants such as the rate constant (k), activation
energy(E), order of reaction(x), and frequency factor(A), in
these methods, a change in some physical property (weight,
enthalpy, volume/length) as a function of temperature is
measured continuously and automatically
 There are two approaches for kinetic studies:
1. Isothermal /static method: which involves the
determination of degree of transformation at constant
temperature as a function of time .
2.Dynamic method : which involves the determination of degree of
transformation as a function of time during a linear increase of
temperature.
4. Surface area measurement:
 It is well known that solid surfaces adsorb gases. The gas
adsorbed on the solid surface will contribute to its weight.
 TGA can be applied to determine the nitrogen and the other
gases
 In a conventional method, a cleaned sample surface is thermo
stated at the desired temperature in a thermobalance and a gas
at the known pressure is allowed to be adsorbed slowly and the
weight again with time is recorded.
 After the equilibrium has been established the pressure can be
increased to next desired level.

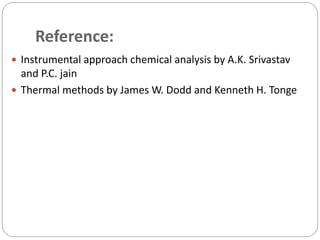

Reference:
 Instrumental approach chemical analysis by A.K. Srivastav
and P.C. jain
 Thermal methods by James W. Dodd and Kenneth H. Tonge
THANK YOU

More Related Content

Similar to THERMOGRAVIMETRIC ANALYSIS ppt by devika.pptx

Thermogravimetry Notes.pptx
Thermogravimetry Notes.pptxThermogravimetry Notes.pptx
Thermogravimetry Notes.pptx
AzaboKennedy

thermogravimetry1-230123135721-d5d5fa65.pdf
thermogravimetry1-230123135721-d5d5fa65.pdfthermogravimetry1-230123135721-d5d5fa65.pdf
thermogravimetry1-230123135721-d5d5fa65.pdf
SanDeepSharma926061

TGA.pptx principle, instrumentation, theory
TGA.pptx principle, instrumentation, theoryTGA.pptx principle, instrumentation, theory
TGA.pptx principle, instrumentation, theory
Dr. Vijaya Barge

thermogravimetric analysis
thermogravimetric analysisthermogravimetric analysis
thermogravimetric analysis
Dalpat Singh

Differential thermal analysis and it's pharmaceutical application
Differential thermal analysis and it's pharmaceutical applicationDifferential thermal analysis and it's pharmaceutical application
Differential thermal analysis and it's pharmaceutical application
Jp Prakash

Thermal Gravimetric Analysis (TGA).pdf
Thermal Gravimetric Analysis (TGA).pdfThermal Gravimetric Analysis (TGA).pdf
Thermal Gravimetric Analysis (TGA).pdf
SanDeepSharma926061

Thermo analytical methods by srk
Thermo analytical methods by srkThermo analytical methods by srk
Thermo analytical methods by srk
Vaishnavi Patil

THERMO GRAVIMETRIC ANALYSIS
THERMO GRAVIMETRIC ANALYSIS THERMO GRAVIMETRIC ANALYSIS
THERMO GRAVIMETRIC ANALYSIS
suhasini

Tga
TgaTga
Thermo gravimetric analysis(tga)
Thermo gravimetric analysis(tga)Thermo gravimetric analysis(tga)
Thermo gravimetric analysis(tga)
Amruta Balekundri

Thermogravimetric Analysis
Thermogravimetric Analysis  Thermogravimetric Analysis
Thermogravimetric Analysis
Ayush Koul

Thermo gravimetric analysis
Thermo gravimetric analysisThermo gravimetric analysis
Thermo gravimetric analysis
SIVASWAROOP YARASI

Thermogravimetric analysis methods .....
Thermogravimetric analysis methods .....Thermogravimetric analysis methods .....
Thermogravimetric analysis methods .....
Mansi Nikhade

TGA.pptx
TGA.pptxTGA.pptx
TGA.pptx
fehice9596

THERMOGRAVIMETRIC ANALYSIS
THERMOGRAVIMETRIC ANALYSISTHERMOGRAVIMETRIC ANALYSIS
THERMOGRAVIMETRIC ANALYSIS
PiuKumbhakar

Thermogravimetric analysis - Pharmaceutical analysis
Thermogravimetric analysis - Pharmaceutical analysisThermogravimetric analysis - Pharmaceutical analysis
Thermogravimetric analysis - Pharmaceutical analysis
Drx Mathivanan Selvam

Thermal analysis - TGA & DTA
Thermal analysis - TGA & DTAThermal analysis - TGA & DTA
Thermal analysis - TGA & DTA
Naresh Babu

Thermogravimetric analysis (TGA)-1.pptx
Thermogravimetric analysis (TGA)-1.pptxThermogravimetric analysis (TGA)-1.pptx
Thermogravimetric analysis (TGA)-1.pptx
AqibRao6

TGA
TGA TGA
Thermogravimetric analysis (TGA) By Thermogravimetric analysis(TGA) by Vikr...
Thermogravimetric analysis (TGA) By  Thermogravimetric analysis(TGA)  by Vikr...Thermogravimetric analysis (TGA) By  Thermogravimetric analysis(TGA)  by Vikr...
Thermogravimetric analysis (TGA) By Thermogravimetric analysis(TGA) by Vikr...
mian34


Similar to THERMOGRAVIMETRIC ANALYSIS ppt by devika.pptx (20)

Thermogravimetry Notes.pptx
Thermogravimetry Notes.pptxThermogravimetry Notes.pptx
Thermogravimetry Notes.pptx

thermogravimetry1-230123135721-d5d5fa65.pdf
thermogravimetry1-230123135721-d5d5fa65.pdfthermogravimetry1-230123135721-d5d5fa65.pdf
thermogravimetry1-230123135721-d5d5fa65.pdf

TGA.pptx principle, instrumentation, theory
TGA.pptx principle, instrumentation, theoryTGA.pptx principle, instrumentation, theory
TGA.pptx principle, instrumentation, theory

thermogravimetric analysis
thermogravimetric analysisthermogravimetric analysis
thermogravimetric analysis

Differential thermal analysis and it's pharmaceutical application
Differential thermal analysis and it's pharmaceutical applicationDifferential thermal analysis and it's pharmaceutical application
Differential thermal analysis and it's pharmaceutical application

Thermal Gravimetric Analysis (TGA).pdf
Thermal Gravimetric Analysis (TGA).pdfThermal Gravimetric Analysis (TGA).pdf
Thermal Gravimetric Analysis (TGA).pdf

Thermo analytical methods by srk
Thermo analytical methods by srkThermo analytical methods by srk
Thermo analytical methods by srk

THERMO GRAVIMETRIC ANALYSIS
THERMO GRAVIMETRIC ANALYSIS THERMO GRAVIMETRIC ANALYSIS
THERMO GRAVIMETRIC ANALYSIS

Tga
TgaTga
Tga

Thermo gravimetric analysis(tga)
Thermo gravimetric analysis(tga)Thermo gravimetric analysis(tga)
Thermo gravimetric analysis(tga)

Thermogravimetric Analysis
Thermogravimetric Analysis  Thermogravimetric Analysis
Thermogravimetric Analysis

Thermo gravimetric analysis
Thermo gravimetric analysisThermo gravimetric analysis
Thermo gravimetric analysis

Thermogravimetric analysis methods .....
Thermogravimetric analysis methods .....Thermogravimetric analysis methods .....
Thermogravimetric analysis methods .....

TGA.pptx
TGA.pptxTGA.pptx
TGA.pptx

THERMOGRAVIMETRIC ANALYSIS
THERMOGRAVIMETRIC ANALYSISTHERMOGRAVIMETRIC ANALYSIS
THERMOGRAVIMETRIC ANALYSIS

Thermogravimetric analysis - Pharmaceutical analysis
Thermogravimetric analysis - Pharmaceutical analysisThermogravimetric analysis - Pharmaceutical analysis
Thermogravimetric analysis - Pharmaceutical analysis

Thermal analysis - TGA & DTA
Thermal analysis - TGA & DTAThermal analysis - TGA & DTA
Thermal analysis - TGA & DTA

Thermogravimetric analysis (TGA)-1.pptx
Thermogravimetric analysis (TGA)-1.pptxThermogravimetric analysis (TGA)-1.pptx
Thermogravimetric analysis (TGA)-1.pptx

TGA
TGA TGA
TGA

Thermogravimetric analysis (TGA) By Thermogravimetric analysis(TGA) by Vikr...
Thermogravimetric analysis (TGA) By  Thermogravimetric analysis(TGA)  by Vikr...Thermogravimetric analysis (TGA) By  Thermogravimetric analysis(TGA)  by Vikr...
Thermogravimetric analysis (TGA) By Thermogravimetric analysis(TGA) by Vikr...


Recently uploaded

Compexometric titration/Chelatorphy titration/chelating titration
Compexometric titration/Chelatorphy titration/chelating titrationCompexometric titration/Chelatorphy titration/chelating titration
Compexometric titration/Chelatorphy titration/chelating titration
Vandana Devesh Sharma

8.Isolation of pure cultures and preservation of cultures.pdf
8.Isolation of pure cultures and preservation of cultures.pdf8.Isolation of pure cultures and preservation of cultures.pdf
8.Isolation of pure cultures and preservation of cultures.pdf
by6843629

Gadgets for management of stored product pests_Dr.UPR.pdf
Gadgets for management of stored product pests_Dr.UPR.pdfGadgets for management of stored product pests_Dr.UPR.pdf
Gadgets for management of stored product pests_Dr.UPR.pdf
PirithiRaju

Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...
Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...
Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...
frank0071

Immersive Learning That Works: Research Grounding and Paths Forward
Immersive Learning That Works: Research Grounding and Paths ForwardImmersive Learning That Works: Research Grounding and Paths Forward
Immersive Learning That Works: Research Grounding and Paths Forward
Leonel Morgado

Describing and Interpreting an Immersive Learning Case with the Immersion Cub...
Describing and Interpreting an Immersive Learning Case with the Immersion Cub...Describing and Interpreting an Immersive Learning Case with the Immersion Cub...
Describing and Interpreting an Immersive Learning Case with the Immersion Cub...
Leonel Morgado

Farming systems analysis: what have we learnt?.pptx
Farming systems analysis: what have we learnt?.pptxFarming systems analysis: what have we learnt?.pptx
Farming systems analysis: what have we learnt?.pptx
Frédéric Baudron

aziz sancar nobel prize winner: from mardin to nobel
aziz sancar nobel prize winner: from mardin to nobelaziz sancar nobel prize winner: from mardin to nobel
aziz sancar nobel prize winner: from mardin to nobel
İsa Badur

Mending Clothing to Support Sustainable Fashion_CIMaR 2024.pdf
Mending Clothing to Support Sustainable Fashion_CIMaR 2024.pdfMending Clothing to Support Sustainable Fashion_CIMaR 2024.pdf
Mending Clothing to Support Sustainable Fashion_CIMaR 2024.pdf
Selcen Ozturkcan

GBSN - Biochemistry (Unit 6) Chemistry of Proteins
GBSN - Biochemistry (Unit 6) Chemistry of ProteinsGBSN - Biochemistry (Unit 6) Chemistry of Proteins
GBSN - Biochemistry (Unit 6) Chemistry of Proteins
Areesha Ahmad

Modelo de slide quimica para powerpoint
Modelo  de slide quimica para powerpointModelo  de slide quimica para powerpoint
Modelo de slide quimica para powerpoint
Karen593256

Pests of Storage_Identification_Dr.UPR.pdf
Pests of Storage_Identification_Dr.UPR.pdfPests of Storage_Identification_Dr.UPR.pdf
Pests of Storage_Identification_Dr.UPR.pdf
PirithiRaju

23PH301 - Optics - Optical Lenses.pptx
23PH301 - Optics  -  Optical Lenses.pptx23PH301 - Optics  -  Optical Lenses.pptx
23PH301 - Optics - Optical Lenses.pptx
RDhivya6

Sexuality - Issues, Attitude and Behaviour - Applied Social Psychology - Psyc...
Sexuality - Issues, Attitude and Behaviour - Applied Social Psychology - Psyc...Sexuality - Issues, Attitude and Behaviour - Applied Social Psychology - Psyc...
Sexuality - Issues, Attitude and Behaviour - Applied Social Psychology - Psyc...
PsychoTech Services

waterlessdyeingtechnolgyusing carbon dioxide chemicalspdf
waterlessdyeingtechnolgyusing carbon dioxide chemicalspdfwaterlessdyeingtechnolgyusing carbon dioxide chemicalspdf
waterlessdyeingtechnolgyusing carbon dioxide chemicalspdf
LengamoLAppostilic

Direct Seeded Rice - Climate Smart Agriculture
Direct Seeded Rice - Climate Smart AgricultureDirect Seeded Rice - Climate Smart Agriculture
Direct Seeded Rice - Climate Smart Agriculture
International Food Policy Research Institute- South Asia Office

Sciences of Europe journal No 142 (2024)
Sciences of Europe journal No 142 (2024)Sciences of Europe journal No 142 (2024)
Sciences of Europe journal No 142 (2024)
Sciences of Europe

Applied Science: Thermodynamics, Laws & Methodology.pdf
Applied Science: Thermodynamics, Laws & Methodology.pdfApplied Science: Thermodynamics, Laws & Methodology.pdf
Applied Science: Thermodynamics, Laws & Methodology.pdf
University of Hertfordshire

molar-distalization in orthodontics-seminar.pptx
molar-distalization in orthodontics-seminar.pptxmolar-distalization in orthodontics-seminar.pptx
molar-distalization in orthodontics-seminar.pptx
Anagha Prasad

Travis Hills of MN is Making Clean Water Accessible to All Through High Flux ...
Travis Hills of MN is Making Clean Water Accessible to All Through High Flux ...Travis Hills of MN is Making Clean Water Accessible to All Through High Flux ...
Travis Hills of MN is Making Clean Water Accessible to All Through High Flux ...
Travis Hills MN


Recently uploaded (20)

Compexometric titration/Chelatorphy titration/chelating titration
Compexometric titration/Chelatorphy titration/chelating titrationCompexometric titration/Chelatorphy titration/chelating titration
Compexometric titration/Chelatorphy titration/chelating titration

8.Isolation of pure cultures and preservation of cultures.pdf
8.Isolation of pure cultures and preservation of cultures.pdf8.Isolation of pure cultures and preservation of cultures.pdf
8.Isolation of pure cultures and preservation of cultures.pdf

Gadgets for management of stored product pests_Dr.UPR.pdf
Gadgets for management of stored product pests_Dr.UPR.pdfGadgets for management of stored product pests_Dr.UPR.pdf
Gadgets for management of stored product pests_Dr.UPR.pdf

Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...
Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...
Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...

Immersive Learning That Works: Research Grounding and Paths Forward
Immersive Learning That Works: Research Grounding and Paths ForwardImmersive Learning That Works: Research Grounding and Paths Forward
Immersive Learning That Works: Research Grounding and Paths Forward

Describing and Interpreting an Immersive Learning Case with the Immersion Cub...
Describing and Interpreting an Immersive Learning Case with the Immersion Cub...Describing and Interpreting an Immersive Learning Case with the Immersion Cub...
Describing and Interpreting an Immersive Learning Case with the Immersion Cub...

Farming systems analysis: what have we learnt?.pptx
Farming systems analysis: what have we learnt?.pptxFarming systems analysis: what have we learnt?.pptx
Farming systems analysis: what have we learnt?.pptx

aziz sancar nobel prize winner: from mardin to nobel
aziz sancar nobel prize winner: from mardin to nobelaziz sancar nobel prize winner: from mardin to nobel
aziz sancar nobel prize winner: from mardin to nobel

Mending Clothing to Support Sustainable Fashion_CIMaR 2024.pdf
Mending Clothing to Support Sustainable Fashion_CIMaR 2024.pdfMending Clothing to Support Sustainable Fashion_CIMaR 2024.pdf
Mending Clothing to Support Sustainable Fashion_CIMaR 2024.pdf

GBSN - Biochemistry (Unit 6) Chemistry of Proteins
GBSN - Biochemistry (Unit 6) Chemistry of ProteinsGBSN - Biochemistry (Unit 6) Chemistry of Proteins
GBSN - Biochemistry (Unit 6) Chemistry of Proteins

Modelo de slide quimica para powerpoint
Modelo  de slide quimica para powerpointModelo  de slide quimica para powerpoint
Modelo de slide quimica para powerpoint

Pests of Storage_Identification_Dr.UPR.pdf
Pests of Storage_Identification_Dr.UPR.pdfPests of Storage_Identification_Dr.UPR.pdf
Pests of Storage_Identification_Dr.UPR.pdf

23PH301 - Optics - Optical Lenses.pptx
23PH301 - Optics  -  Optical Lenses.pptx23PH301 - Optics  -  Optical Lenses.pptx
23PH301 - Optics - Optical Lenses.pptx

Sexuality - Issues, Attitude and Behaviour - Applied Social Psychology - Psyc...
Sexuality - Issues, Attitude and Behaviour - Applied Social Psychology - Psyc...Sexuality - Issues, Attitude and Behaviour - Applied Social Psychology - Psyc...
Sexuality - Issues, Attitude and Behaviour - Applied Social Psychology - Psyc...

waterlessdyeingtechnolgyusing carbon dioxide chemicalspdf
waterlessdyeingtechnolgyusing carbon dioxide chemicalspdfwaterlessdyeingtechnolgyusing carbon dioxide chemicalspdf
waterlessdyeingtechnolgyusing carbon dioxide chemicalspdf

Direct Seeded Rice - Climate Smart Agriculture
Direct Seeded Rice - Climate Smart AgricultureDirect Seeded Rice - Climate Smart Agriculture
Direct Seeded Rice - Climate Smart Agriculture

Sciences of Europe journal No 142 (2024)
Sciences of Europe journal No 142 (2024)Sciences of Europe journal No 142 (2024)
Sciences of Europe journal No 142 (2024)

Applied Science: Thermodynamics, Laws & Methodology.pdf
Applied Science: Thermodynamics, Laws & Methodology.pdfApplied Science: Thermodynamics, Laws & Methodology.pdf
Applied Science: Thermodynamics, Laws & Methodology.pdf

molar-distalization in orthodontics-seminar.pptx
molar-distalization in orthodontics-seminar.pptxmolar-distalization in orthodontics-seminar.pptx
molar-distalization in orthodontics-seminar.pptx

Travis Hills of MN is Making Clean Water Accessible to All Through High Flux ...
Travis Hills of MN is Making Clean Water Accessible to All Through High Flux ...Travis Hills of MN is Making Clean Water Accessible to All Through High Flux ...
Travis Hills of MN is Making Clean Water Accessible to All Through High Flux ...


THERMOGRAVIMETRIC ANALYSIS ppt by devika.pptx

  • 1. BY JILANI S M I M PHARM GCP, BANGALORE THERMOGRAVIMETRIC ANALYSIS
  • 2. CONTENTS 1. INTRODUCTION 2. INSTRUMENTATION 3. DERIVATIVE THERMOGRAVIMETRIC ANALYSIS 4. FACTORS AFFEVTING TGA 5. APPLICATION OF TGA
  • 3. INTRODUCTION  In thermometric methods of analysis, some property of the system is measured as a function of the temperature. Thermoanalytical methods: Designation Property measured Apparatus Thermogravimetric analysis Change in weight Thermobalance Derivative thermogravimetrivc analysis(DTGA) Rate of change of weight Thermobalance Deferential thermal analysis(DTA) Heat evolved /absorbed DTA apparatus Calorimetric DTA Heat evolved/absorbed Differential calorimeter Thermometric titrations Change of temperature Titration calorimeter
  • 4.  Fractional thermogravimetric analysis - it involves the measurement of weight loss due to the escape of all volatile matters from a sample during heating(FTGA).  In thermogravimetric analysis – it involves the weighing of the substance under investigation while it is being heated at a predetermined rate.  In DTA – measures the change in heat content as a function of the difference in temperature between the sample and inert reference compound.  In thermometric titration – measures the changes in solution temperature and plotted against the volume of titrant.  Thermograms - in thermal methods, the thermal behavior of substance is recorded as a function of temperature/ time and the recorded curves may be considered as thermal spectra.
  • 5. Types of thermogravimetric analysis 1. Static/isothermal gravimetry – in which the sample weight is recorded as a function of time at a constant temperature 2. Quasistatic TGA - the sample is heated to constant weight at each step in a series of increasing temperatures. 3. Dynamic thermogravimetry – the sample is heated at a uniform rate, but unfortunately the results are subjected to errors due to the effect of changing air buoyancy and convection, the measurement of temperature, heating rate, and heat of reaction which are often looked.
  • 6. Instrumentation  In thermogravimetric analysis, the determination of temperature at which a material of reproducible stoichiometry is produced is facilitated by the use of the instrument called Thermobalance.  Basically it consists of o Precision balance, o Heating device o Temperature and atmosphere control devices.
  • 7. A schematic modern thermogravimetric analyser
  • 8. 1. Weight measurement:  Weighing mechanism in TGA may be a modification of a single or double pan balance, an electronically self balancing device, a torsion balance or simple spring balance is used depending on the requirement.  For the preliminary work in the laboratory, a precision torsion balance may be easily adapted for use as a thermobalance. Characteristic of balance:  It should be simple to operate  It should have an adjustable range of weight change  It should be able to respond rapidly to changes in weight  It should be rugged, accurate, very sensitive and mechanically stable
  • 9.  The thermobalance that have been used are either the null point or the deflection type of instruments.  As a weight change occurs, and the balance beam start to deviate from its normal position, a sensor detects the deviation and triggers the restoring force to bring the balance beam back to the null position. The restoring position is directly proportional to the weight change.
  • 11.  In some modern commercial instruments, a beam of light abstracted by a wave attached to the end of a quartz spring has been used in quartz spring balance. Photoelectric detection was used in that case.  Torque motor galvanometer- here sample is attached to the needle to some null point. Null is detected by pair of split photocells behind a wave in a light beam. 2. Heating and temperature measurements:  The furnace design and control have taken various forms depending on the degree of sophistication of the instrument.  The main requirement is that the heating rate be smooth so that it can maintain either a linear heating program or fixed temperature.
  • 12.  The simplest temperature programme is a variable transformer, the other equipments use conventional thermocouples or resistance thermometers situated as close to the furnace winding as possible.  Platinum and tungsten windings are commonly used, the nichrome windings permit a maximum temperature of 11000 C to 14500C  The size of the furnace is very important. Small furnace cool very quickly and it is difficult to control linear heating rate.  Although large furnace maintain isothermal temperature and are suitable to maintain linear heating rate, but attain the required temperature very late.
  • 13.  The difficult problems in TGA is the measurement of temperature. The self heating during oxidation, the gaseous products produced during heating and the reaction of the sample with the atmosphere are the problems which introduce error in temperature measurement.  The usual rate of heating is 4-50C per minute 3. The sample cups:  Several shape of sample cups have been used for TGA work depending on the nature of the system being investigated.  Generally there are 4 designs of sample cups: 1. Shallow pan 2. Deep crucible 3. Covered cup 4. Retort cup
  • 14.  Shallow pans are used when volatile products are produced during heating and it is necessary to allow the gases to diffuse to the surface to escape.  Deep crucible are used in industrial scale calcinations or surface area studies.  Covered cups are used where the studies have to be carried out in the self generated atmosphere.  Retort cups are useful in boiling point studies. 4. Atmosphere control:  Atmosphere control is extremely important in TGA because the weight change in the sample is due to the gaseous products formed during sample heating or the reaction of the sample with the balance atmosphere.  The control of atmosphere can be achieved either in the sample or in the balance
  • 15.  The another way of maintaining the atmosphere is by flushing the whole balance with an inert gas, such as nitrogen, argon, CO2 , hydrogen or helium.  Because of low thermal conductivity and very low density, helium is usually preferred.
  • 16. Derivative thermogravimetric analysis (DTGA):  several commercial thermobalances are provided with electronic circuits to record the derivative automatically.  As in thermogravimetry, the DTGA involves the measurement of the rate of change of weight of the specimen as it is being heated at a uniform slow rate.
  • 17. Relation between TGA and DTG curves for the pyrolysis of CaCO3 and MgCO3
  • 18.  The plateau in thee thermogram at 700˚C is quite clear, but the shoulder at about 870˚C is not very clear.  However in the thermogram obtained in DTGA, the shoulder has been clearly resolved into a peak.
  • 19. Factors affecting TGA: 1. Effect of changing air buoyancy and convection:  The most favored arrangement for thermo balance is to support the inert sample from below in the centre of a cylindrical, capped tube furnace  Under this condition the inert sample may show an apparent weight gain up to 10mg. Therefore to be applied to the recorded weight change.  The causes for the weight gain are  Decreased air buoyancy  Increased convection  Effect of heat of balance mechanism
  • 20. 2. Measurement of temperature:  The usual practice in TGA is to measure the temperature in the furnace near the sample. The temperature so determined are usually higher than those determined by the more common process of measuring the temperature directly.  The cause of this difference is partly due to the thermal log and partly due to the finite time required to cause a detectable change in weight. 3. Effect of atmosphere:  When sample is dried or decomposed in thermobalance in ambient air, the atmosphere near the sample is continuously modified due to the addition of gaseous decomposition products or the loss of the part of original gas by the reaction with the sample.
  • 21.  Even a small changes in composition of this atmosphere can affect the thermogram. It is therefore it is necessary to flush the thermobalance continuously with inert gas in order to maintain as constant an atmosphere as possible. 4. Effect of heat of reaction:  The heat of reaction will affect the difference between sample temperature and furnace temperature, causing the sample temperature to lag or lead the furnace temperature depending on whether the reaction is endothermic or exothermic.  The reaction is endothermic, the effect of temperature lag is to increase the furnace temperature and the differential temperature will be additive.  But when the reaction is thermic effect will tend to compensate each other.
  • 22. 5. Effect of heating rate:  Heating rate has been found to affect the thermogram appreciably.  The effect of heating rate is important if the thermogram is to be used for kinetic analysis.  TGA of calcium oxalate monohydrate, the plateau from the room temperature to 100o c corresponds to monohydrate  The loss of CO commence at 413o c and that of CO2 at 685o c .
  • 23. Effect of heating rate on the thermogram of CaC2O4 H2O
  • 24. 6. Sample characteristics:  Weight of the sample – large sample affects the TG curve and the curve deviates from linearity as the temperature rises. Hence, small samples are preferred. If 20mg of copper sulphate.5H20 is used, no platuex corresponding to CuSO4.3H2O is obtained, but if only 0.5mg of the sample is used this plateau can be observed.  Particle size – particle size also affects the Tgcurve. Smaller particles decomposes at lower temperature while larger sized particles of the sample take longer time and decompose at higher temperature.  Compactness of the sample – compact sample decompose at higher temperature than loose samples.
  • 25.  Previous history of the sample – the source and method of preparation of the sample also have been found to affect TG curve. Ex: precipitated Mg(OH)2 decomposes at a different temperature than naturally occurring Mg(OH)2
  • 26. Application of TGA : 1. Determination of optimum drying temperature range 2. Analysis of mixtures 3. Kinetic studies 4. Surface area measurements
  • 27. 1. Determination of optimum drying temperature:  Thermogravimetric analysis being widely used in qualitative, quantitative analysis and thermal stability studies etc.  Much of the work in thermogravimetry has been done to establish optimum temperature for the conditioning of precipitates for conventional gravimetric analysis.
  • 28.
  • 29.  The curve A: shows the thermogram of calcium oxalate. It is normally precipitated as the monohydrate from hot solution  The curve exhibit several platuex corresponding respectively to monohydrate from room temperature to 100o c, anhydrous calcium oxalate from 226o to 398o c, calcium carbonate from 460 to 635o c and calcium oxide from above 840o c  The curve B: represents the thermogram of magnesium oxalate which reveals that dihydrate is stable up to 160o c  The anhydrous compound exists between 220o and 400o c and the oxide is stable from 480o to 1oooo c.  The curve C : represents the T.G curve of silver chromate  The initial drop in weight indicates the excess water,
  • 30. And just about 92o c the weight becomes constant and remains so up to 812o c after which oxygen is lost.  The decomposition of silver chromate can, therefore, be represented as 2Ag2 Cro4 Ag2CR2O4 +2Ag +2o2  Silver chromate is thus stable over a temperature range of about 90o to 800o c. hence in gravimetric analysis of chromium, the precipitate of silver chromate can dried anywhere in this region.  The curve D: represents the excess water. The curve mercurous chromate is stable over the range of 52-256o c it commences to decompose in to Hg2O and the weight becomes constant at about 671o c
  • 31. 2. Analysis of mixtures:  The curves A and B reveals a significant difference in behavior between the oxalates of calcium and magnesium as represented by their decomposition reactions.  It will be noted that magnesium oxalate does not pass through the carbonate stage. This difference in their thermal behavior permits their simultaneous determination by TGA .  They can be determined in a mixture by igniting at two temperatures At 500o c at which CaCo3 and Mgo are stable At 900o c both the metals exists as simple oxides.  The weights of these two precipitates will permit calculation of the calcium and magnesium contents of the original sample.
  • 32.  The TGA of Cu – Ag alloy is based on the relative stabilities of their nitrates. The content of Cu and Ag is determined by TGA .  TGA curves indicate that AgNo3 is stable up to 473o c after which it losesNo2 and o2 and the weight becomes constant above 608o c when it is converted in to metallic Ag. Cupric nitrate, on the other hand, decomposes in to Cuo in two steps:
  • 33.  CuO being stable above 700oc. Thus weight of the mixed precipitate at 400o c will permit the analysis of the Cu – Ag alloy. 3. Kinetic studies:  TGA, DTA and other thermoanlaytical methods can be used to study kinetics of a chemical reaction and to determine basic kinetic constants such as the rate constant (k), activation energy(E), order of reaction(x), and frequency factor(A), in these methods, a change in some physical property (weight, enthalpy, volume/length) as a function of temperature is measured continuously and automatically  There are two approaches for kinetic studies: 1. Isothermal /static method: which involves the determination of degree of transformation at constant temperature as a function of time .
  • 34. 2.Dynamic method : which involves the determination of degree of transformation as a function of time during a linear increase of temperature. 4. Surface area measurement:  It is well known that solid surfaces adsorb gases. The gas adsorbed on the solid surface will contribute to its weight.  TGA can be applied to determine the nitrogen and the other gases  In a conventional method, a cleaned sample surface is thermo stated at the desired temperature in a thermobalance and a gas at the known pressure is allowed to be adsorbed slowly and the weight again with time is recorded.  After the equilibrium has been established the pressure can be increased to next desired level.
  • 35. Reference:  Instrumental approach chemical analysis by A.K. Srivastav and P.C. jain  Thermal methods by James W. Dodd and Kenneth H. Tonge
