This document discusses the DevOps tools and technologies used by resin.io to deploy applications to remote Linux devices. Resin.io uses a service-oriented architecture deployed with Docker containers on AWS. Core technologies include git for source control, Docker for containerization, Yocto Linux for building device-specific distributions, Node.js for APIs and CLIs, and Go for the Resin Agent. Resin.io provides development tools like Flowdock, Mumble, Bitbucket, Jira and Confluence and uses a Git-based workflow for development.

1. DevOps for the Internet of Things

2. Senior Software Engineer
Experience Team @ resin.io
Akis Kesoglou

3. The tools and technologies
behind resin.io

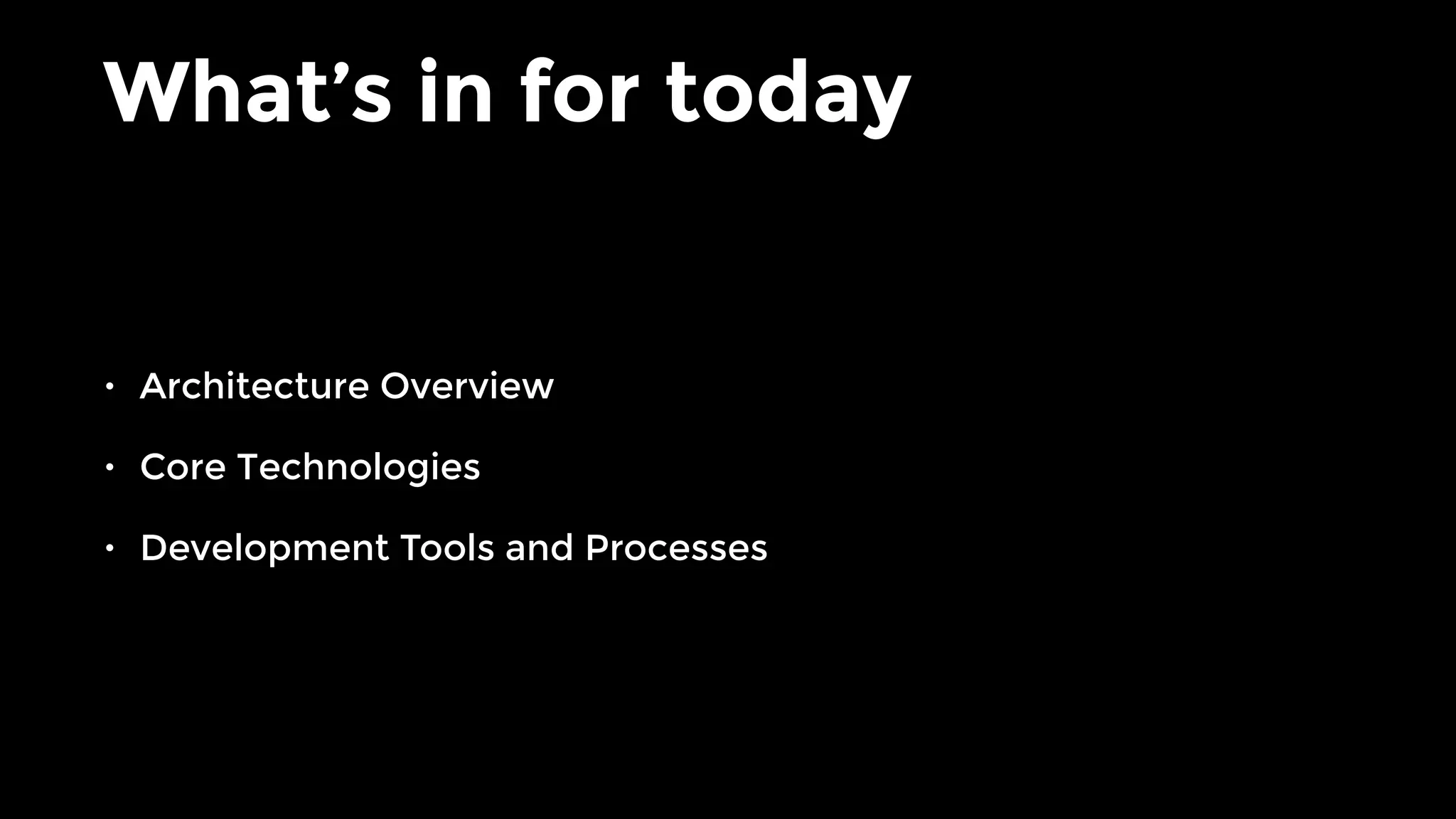

4. What’s in for today
• Architecture Overview
• Core Technologies
• Development Tools and Processes

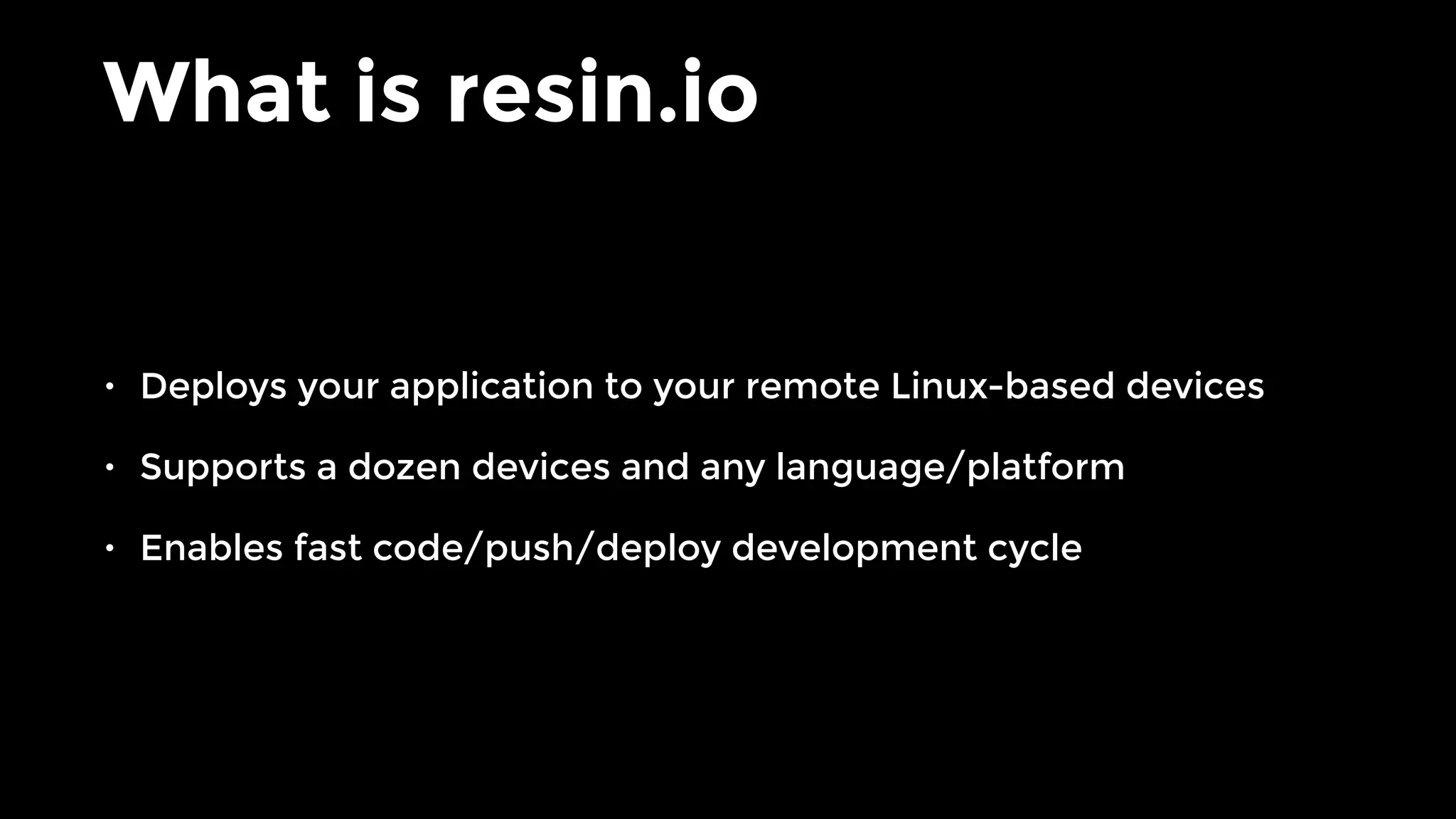

5. What is resin.io
• Deploys your application to your remote Linux-based devices
• Supports a dozen devices and any language/platform
• Enables fast code/push/deploy development cycle

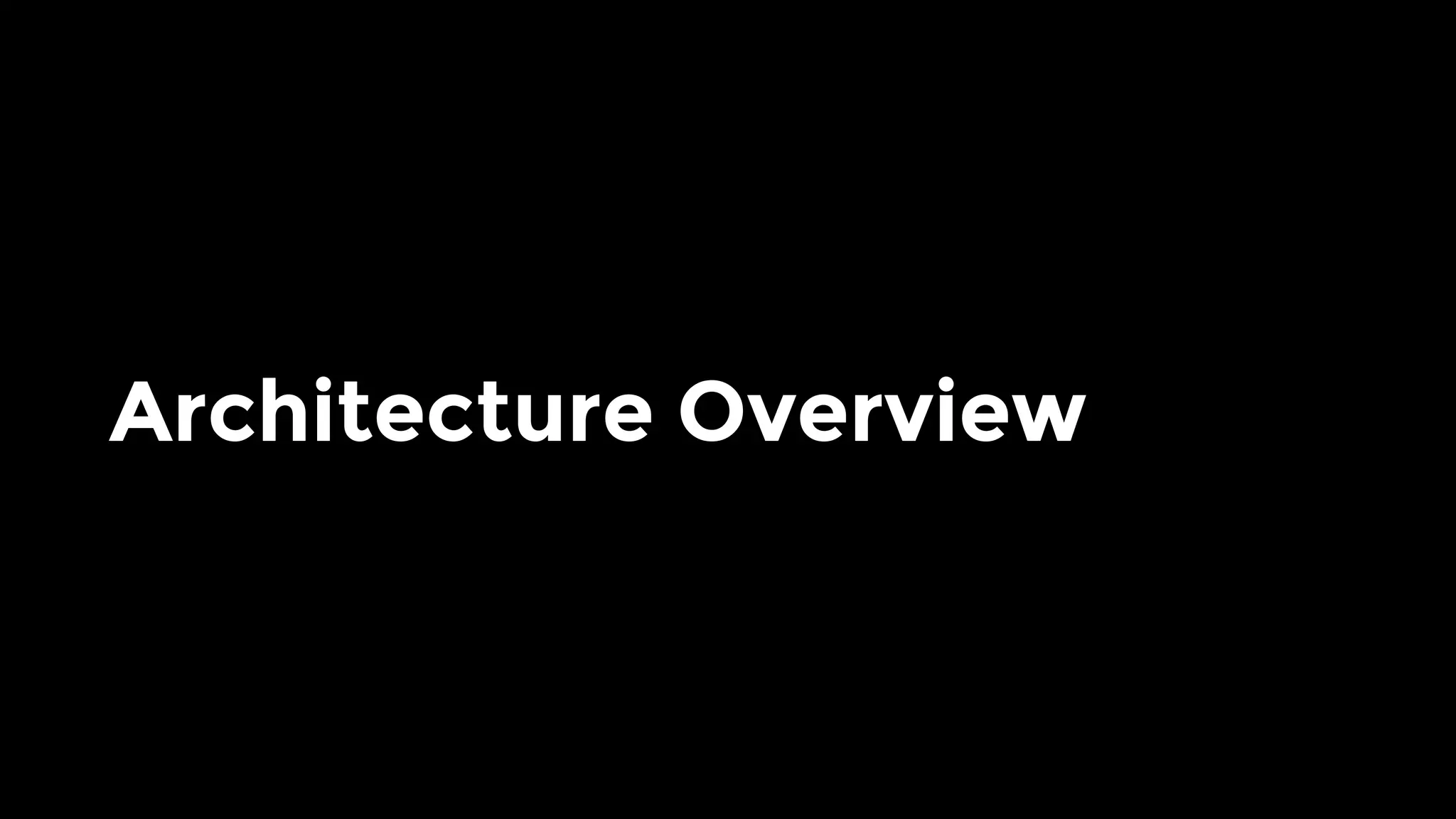

6. Architecture Overview

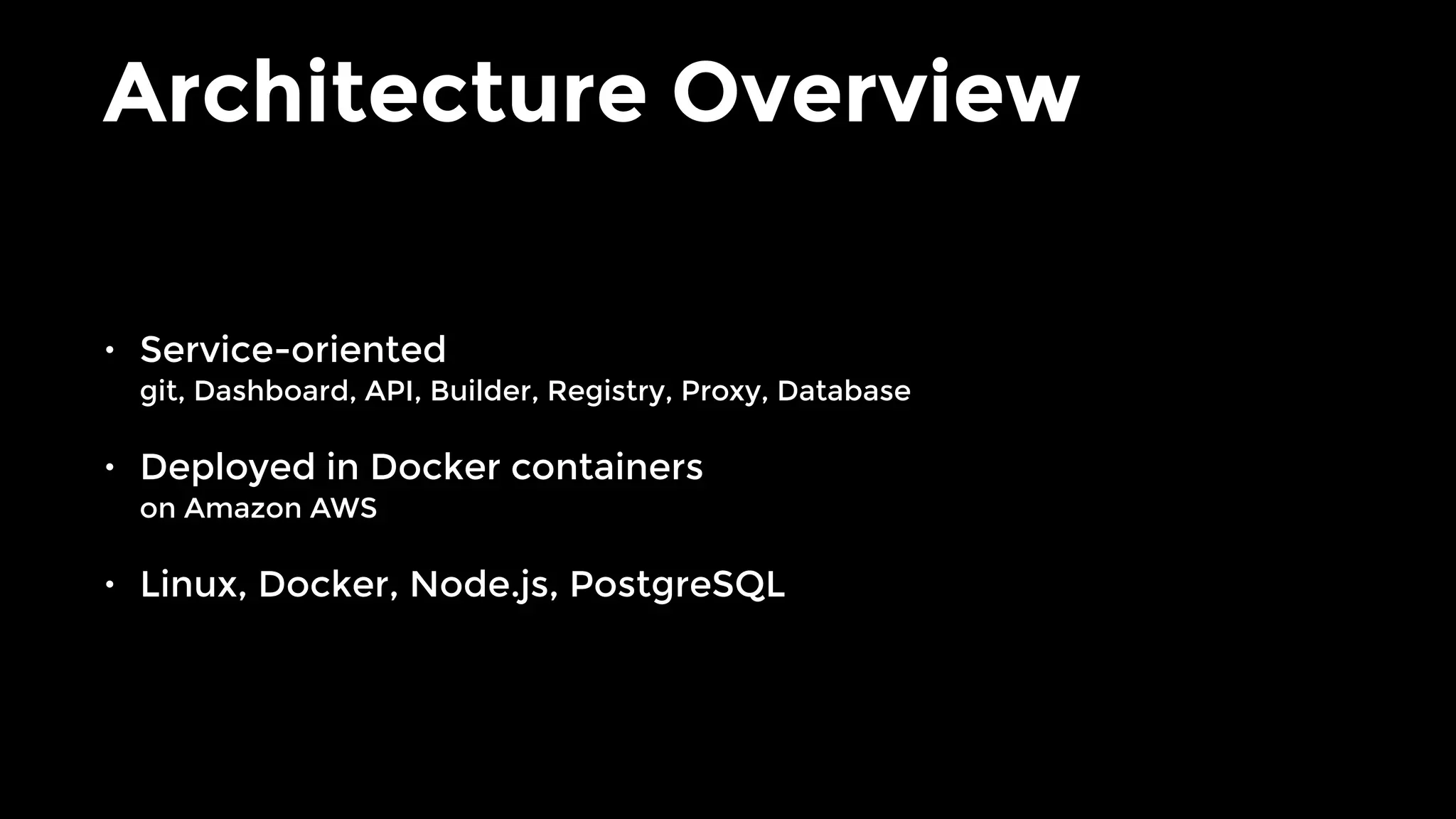

7. Architecture Overview
• Service-oriented
git, Dashboard, API, Builder, Registry, Proxy, Database
• Deployed in Docker containers
on Amazon AWS
• Linux, Docker, Node.js, PostgreSQL

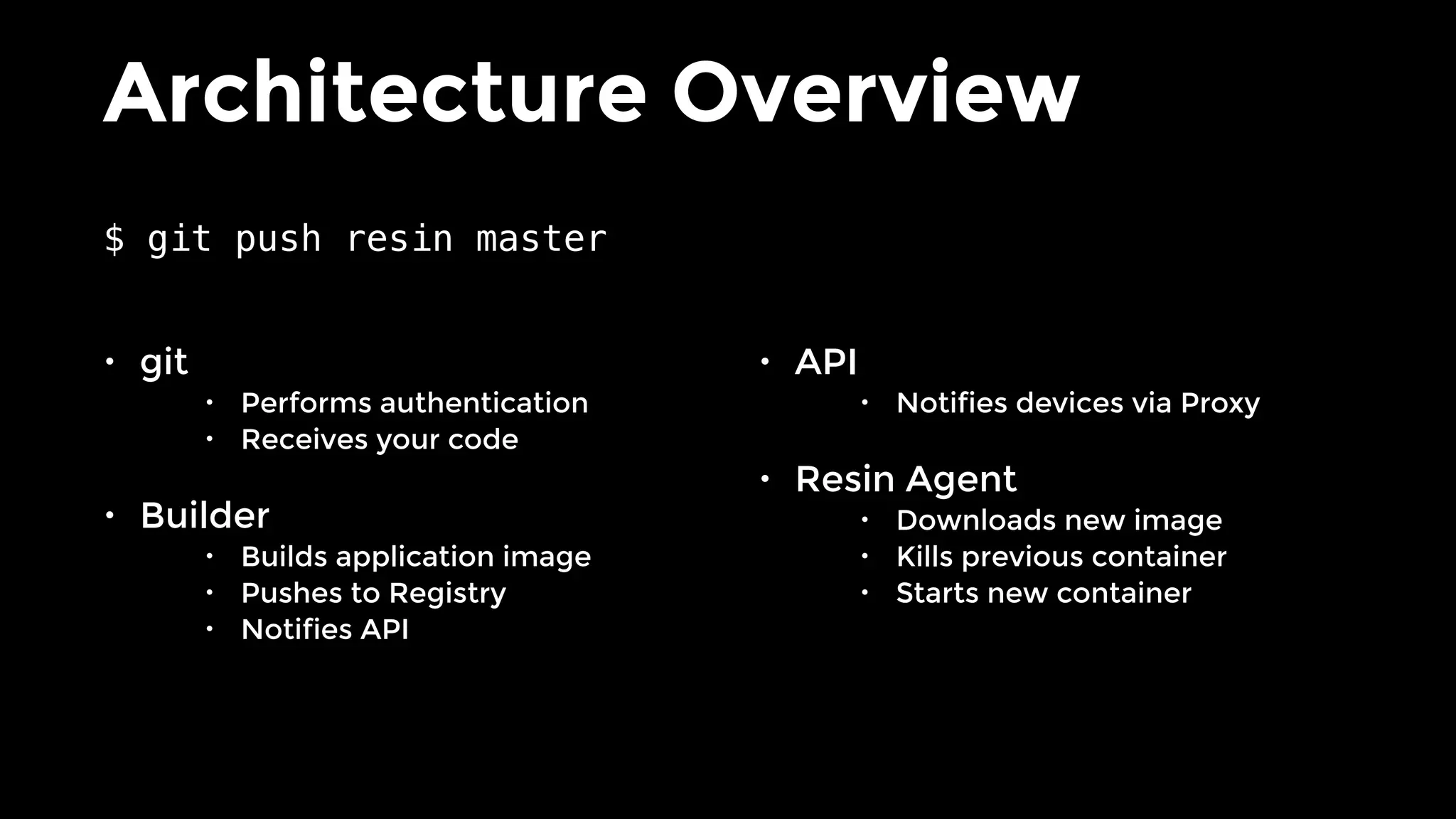

8. Architecture Overview
• git
• Performs authentication
• Receives your code
• Builder
• Builds application image
• Pushes to Registry
• Notifies API
• API
• Notifies devices via Proxy
• Resin Agent
• Downloads new image
• Kills previous container
• Starts new container
$ git push resin master

9. Core Technologies

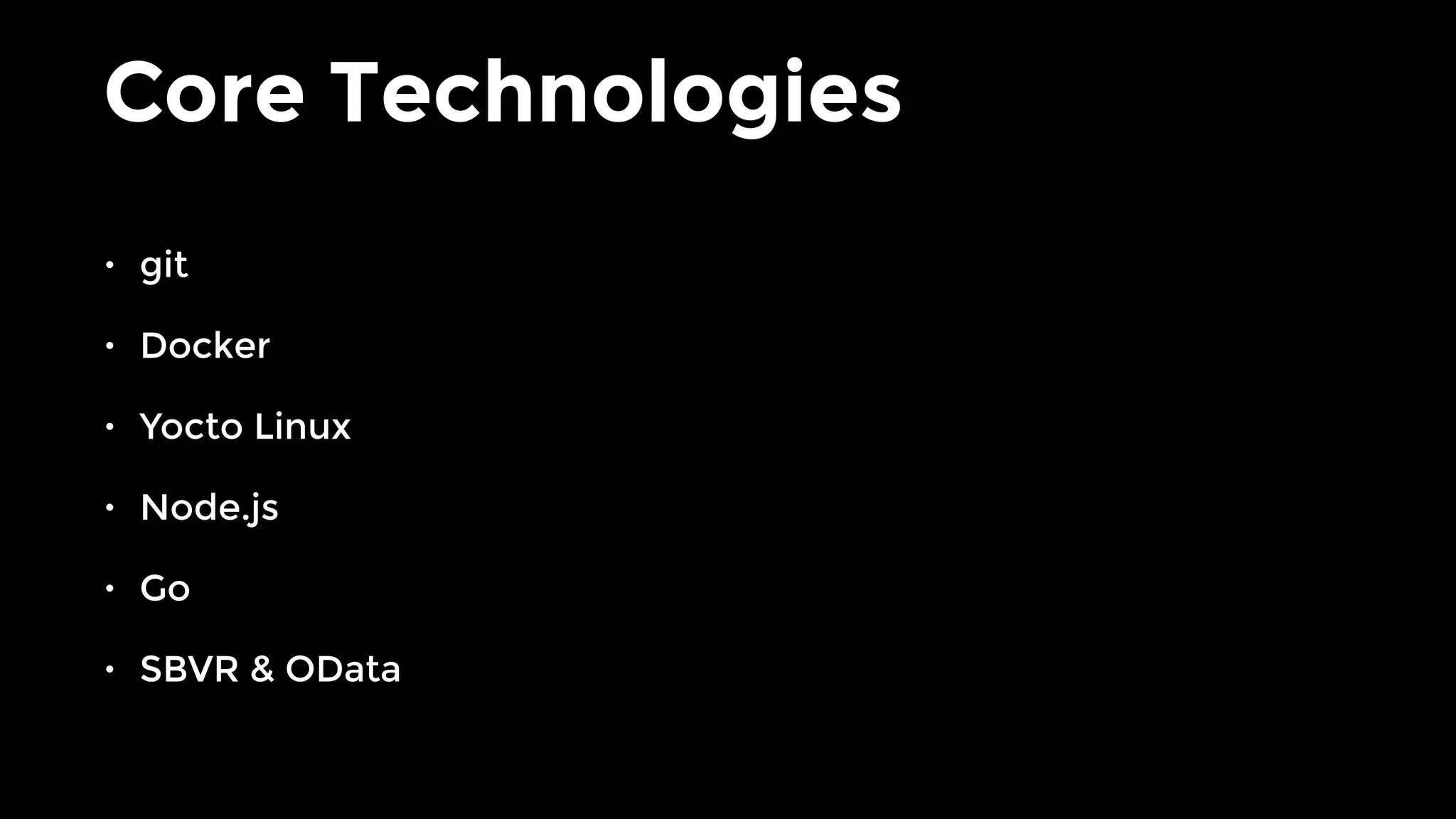

10. Core Technologies
• git
• Docker
• Yocto Linux
• Node.js
• Go
• SBVR & OData

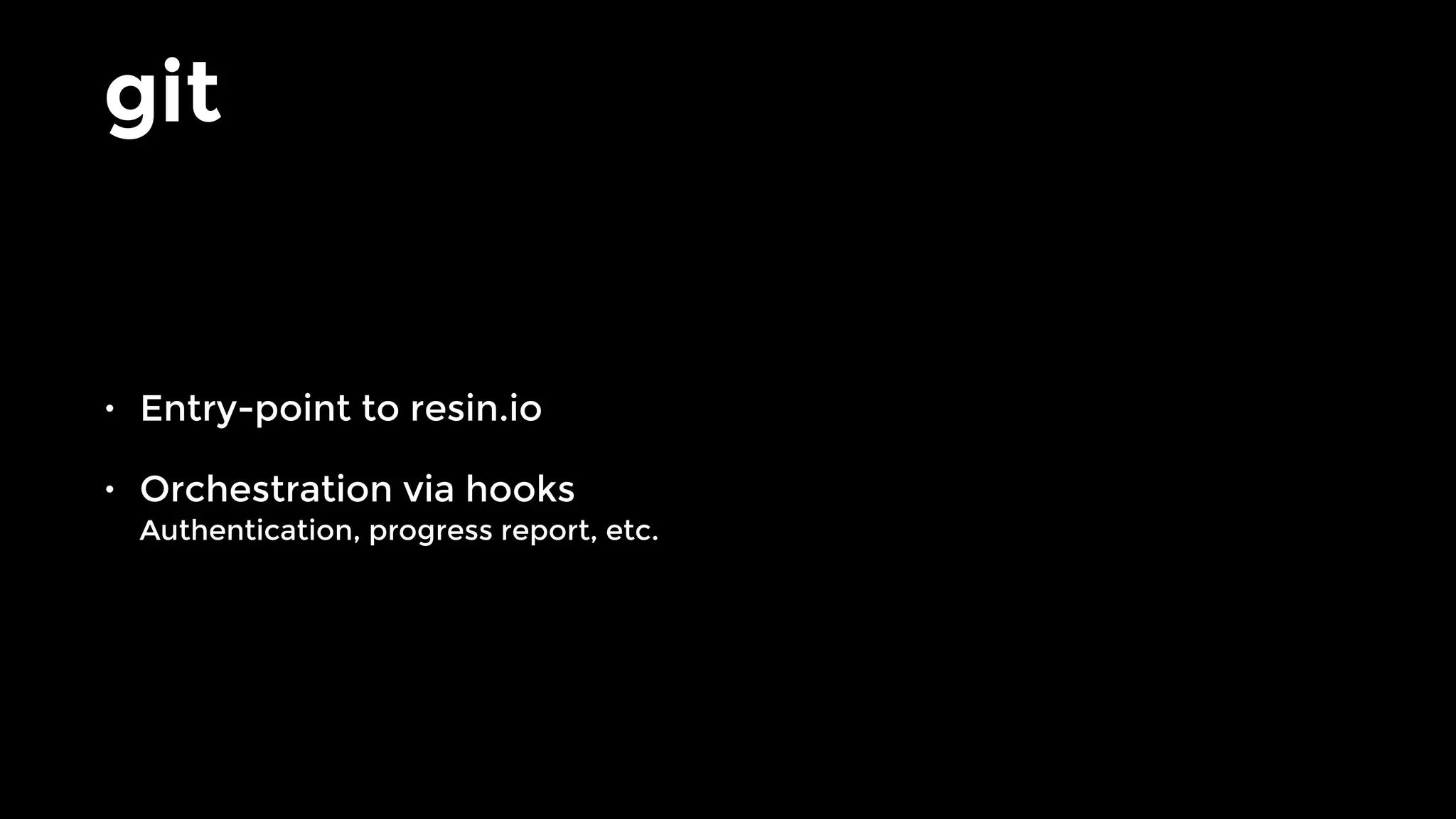

11. • Entry-point to resin.io
• Orchestration via hooks
Authentication, progress report, etc.
git

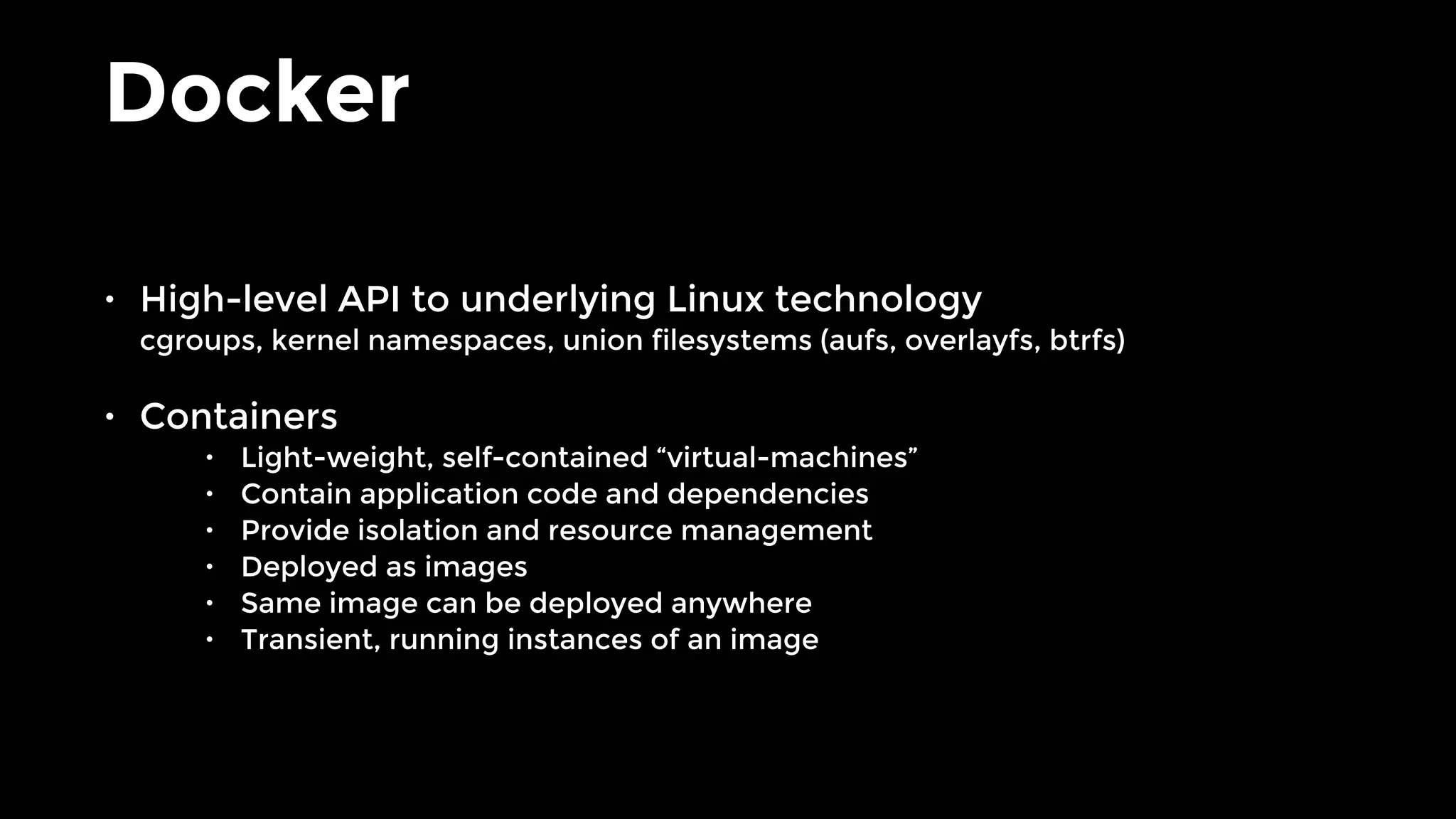

12. Docker
• High-level API to underlying Linux technology
cgroups, kernel namespaces, union filesystems (aufs, overlayfs, btrfs)
• Containers
• Light-weight, self-contained “virtual-machines”
• Contain application code and dependencies
• Provide isolation and resource management
• Deployed as images
• Same image can be deployed anywhere
• Transient, running instances of an image

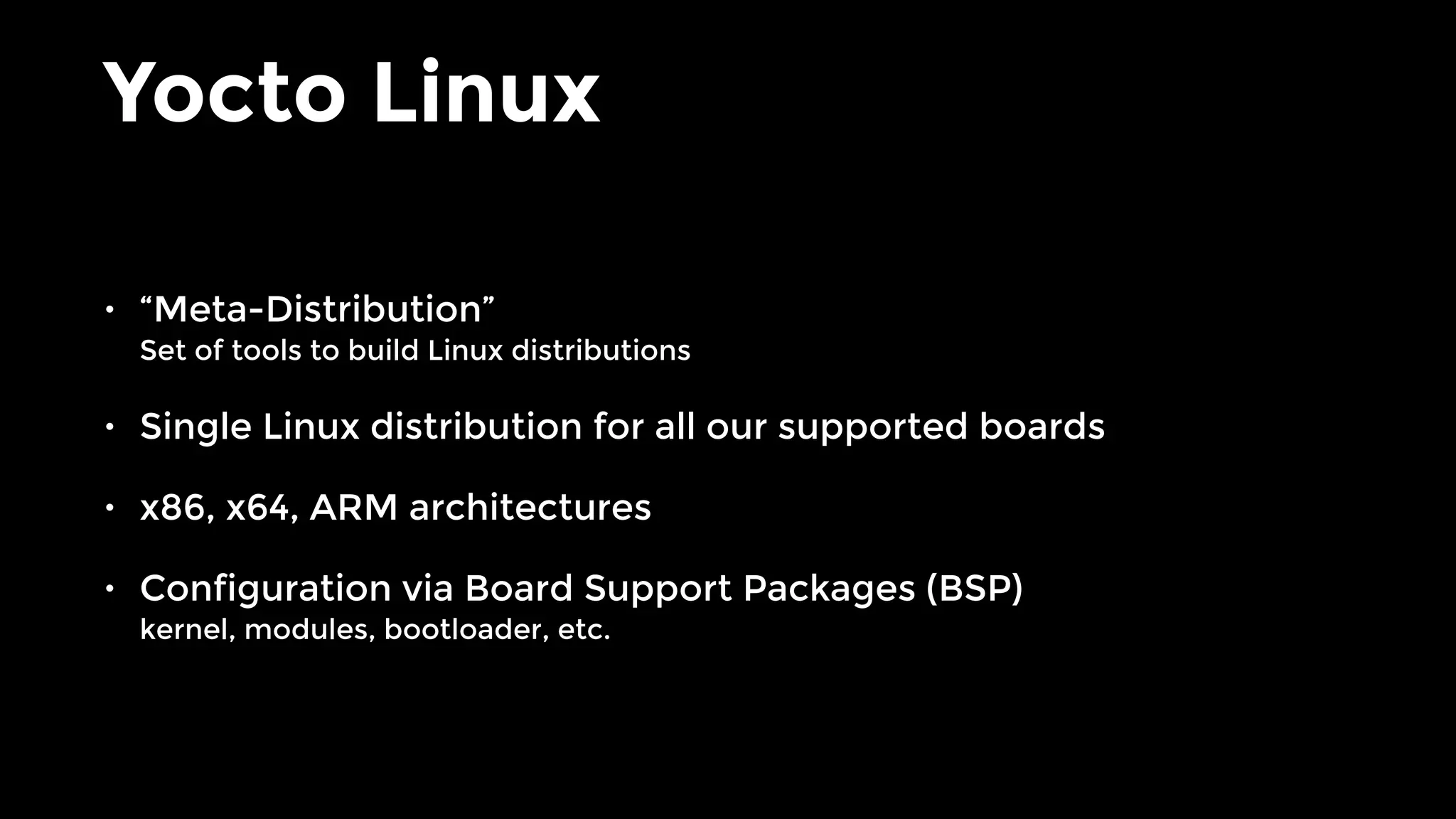

13. Yocto Linux
• “Meta-Distribution”
Set of tools to build Linux distributions
• Single Linux distribution for all our supported boards
• x86, x64, ARM architectures
• Configuration via Board Support Packages (BSP)
kernel, modules, bootloader, etc.

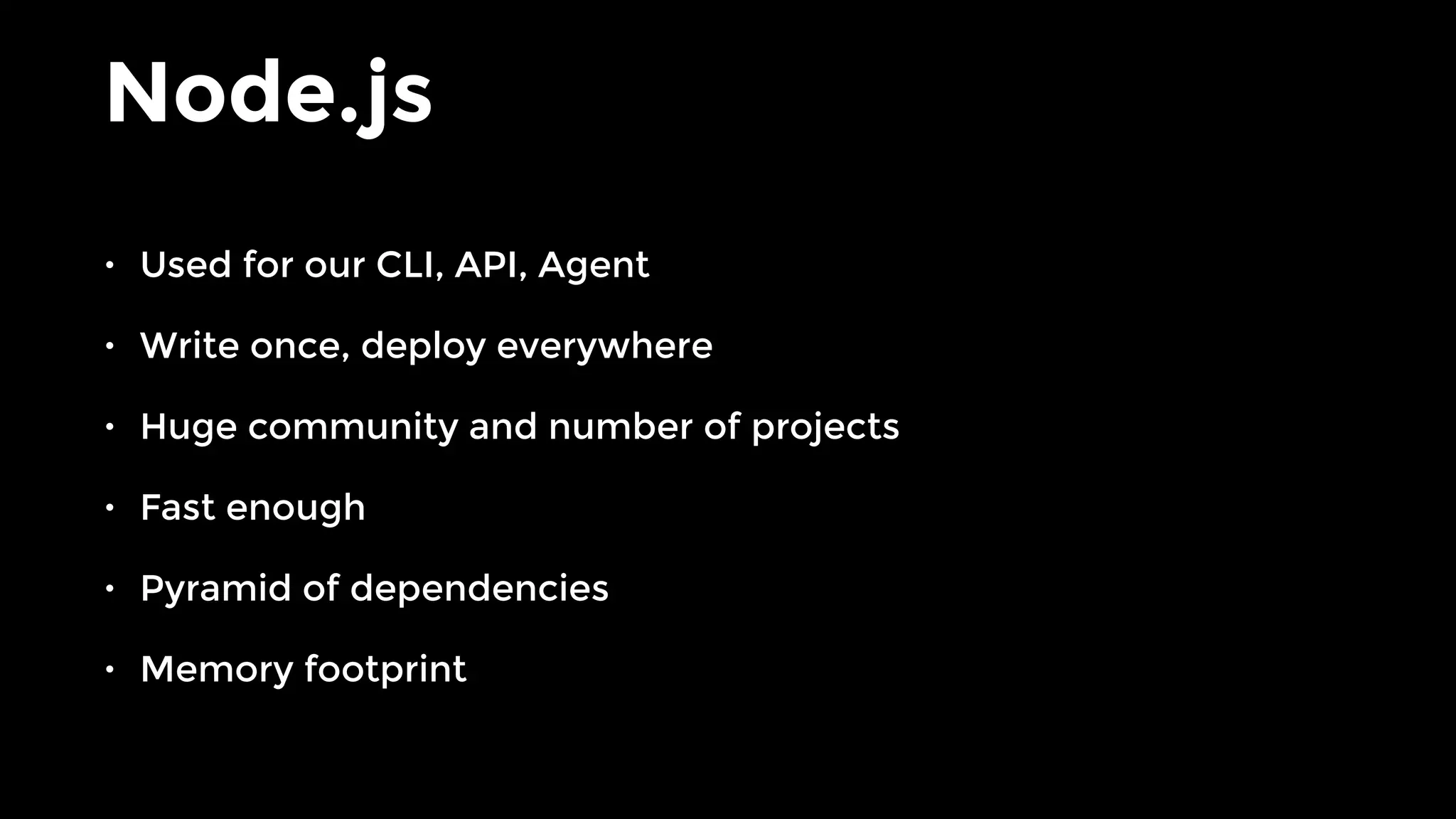

14. Node.js
• Used for our CLI, API, Agent
• Write once, deploy everywhere
• Huge community and number of projects
• Fast enough
• Pyramid of dependencies
• Memory footprint

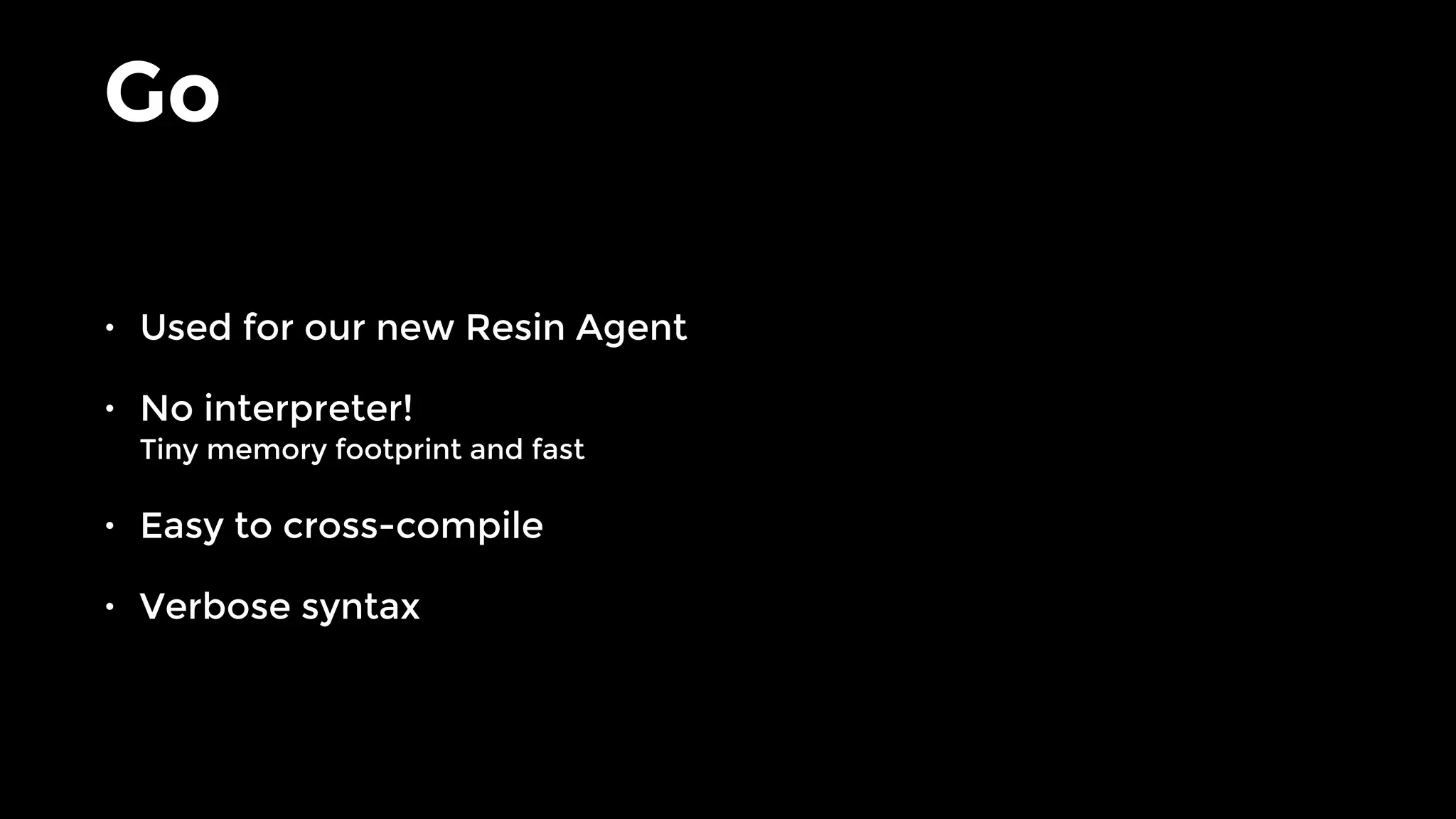

15. Go
• Used for our new Resin Agent
• No interpreter!
Tiny memory footprint and fast
• Easy to cross-compile
• Verbose syntax

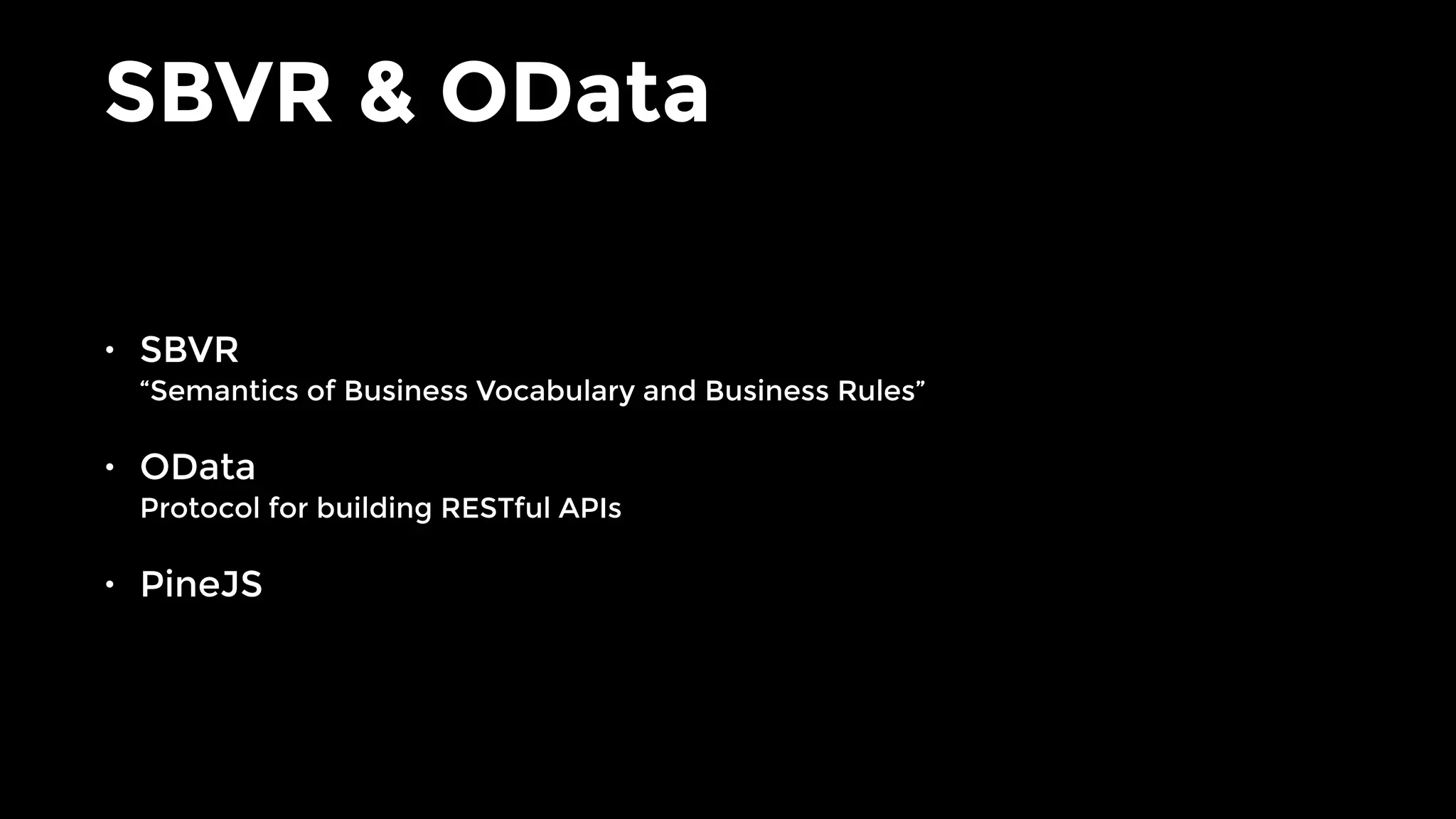

16. SBVR & OData
• SBVR
“Semantics of Business Vocabulary and Business Rules”
• OData
Protocol for building RESTful APIs
• PineJS

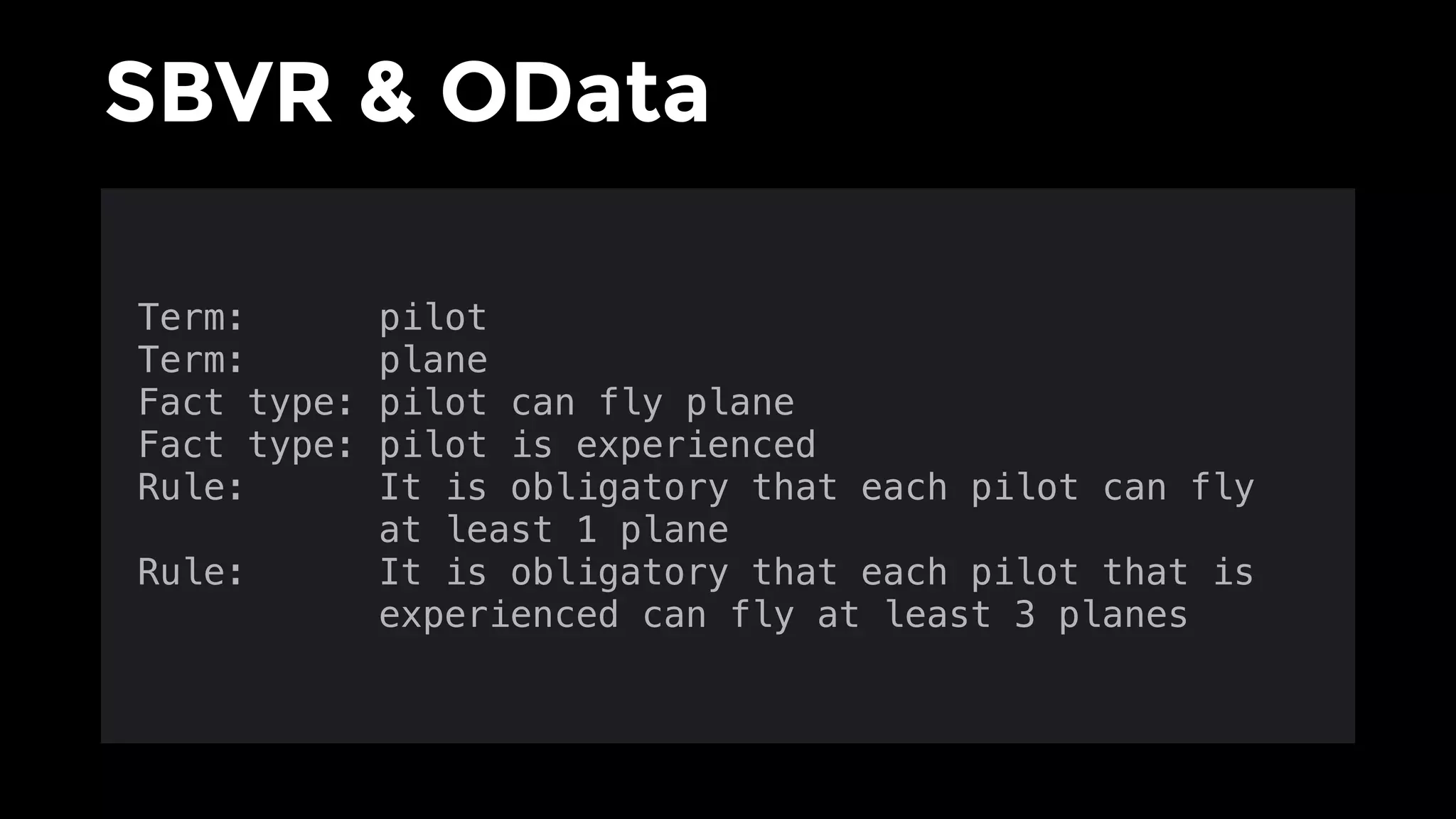

17. SBVR & OData
Term: pilot
Term: plane
Fact type: pilot can fly plane
Fact type: pilot is experienced
Rule: It is obligatory that each pilot can fly
at least 1 plane
Rule: It is obligatory that each pilot that is
experienced can fly at least 3 planes

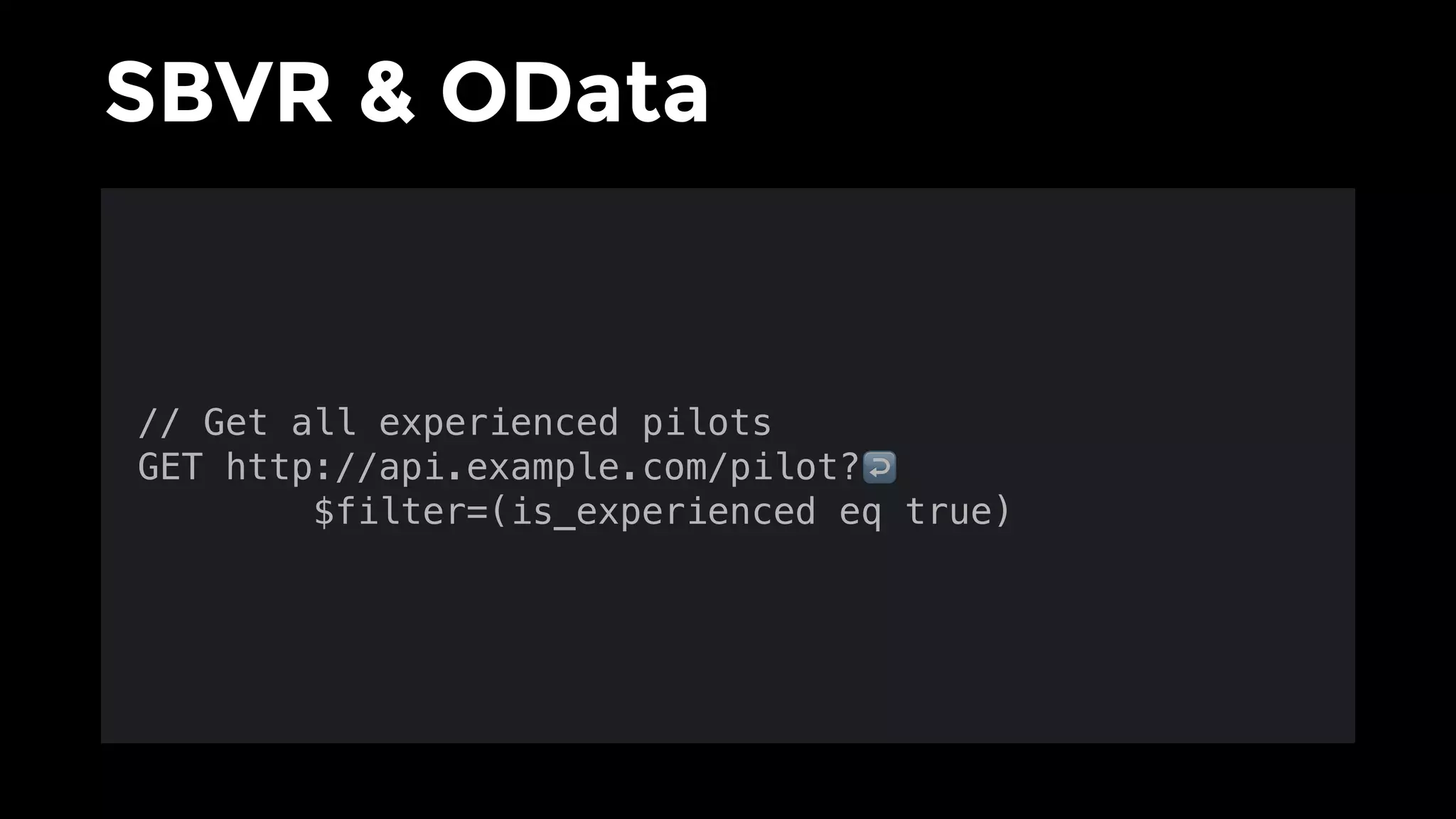

18. SBVR & OData
// Get all experienced pilots
GET http://api.example.com/pilot?↩
$filter=(is_experienced eq true)

19. Development Tools and
Processes

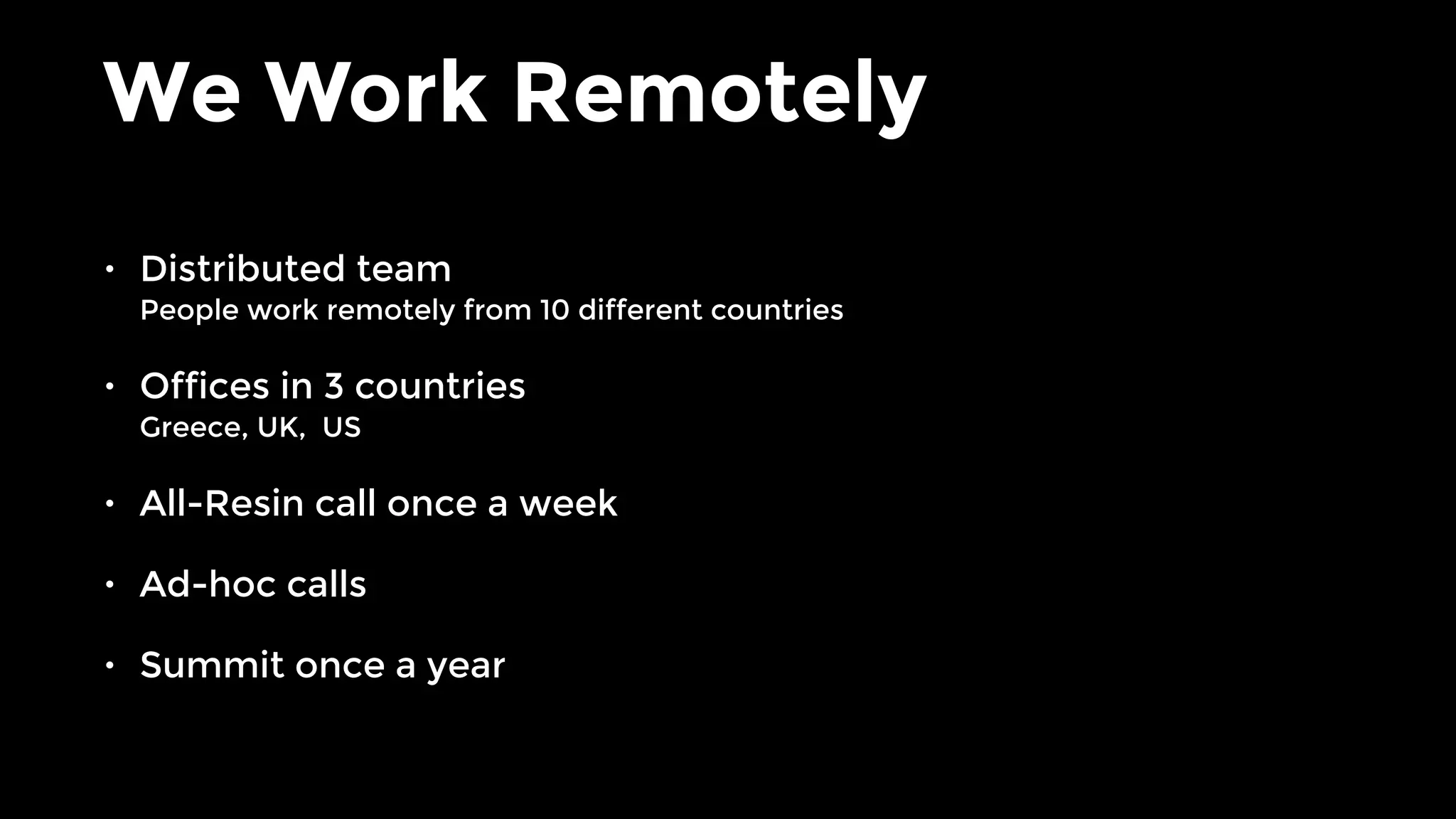

20. We Work Remotely
• Distributed team
People work remotely from 10 different countries
• Offices in 3 countries
Greece, UK, US
• All-Resin call once a week
• Ad-hoc calls
• Summit once a year

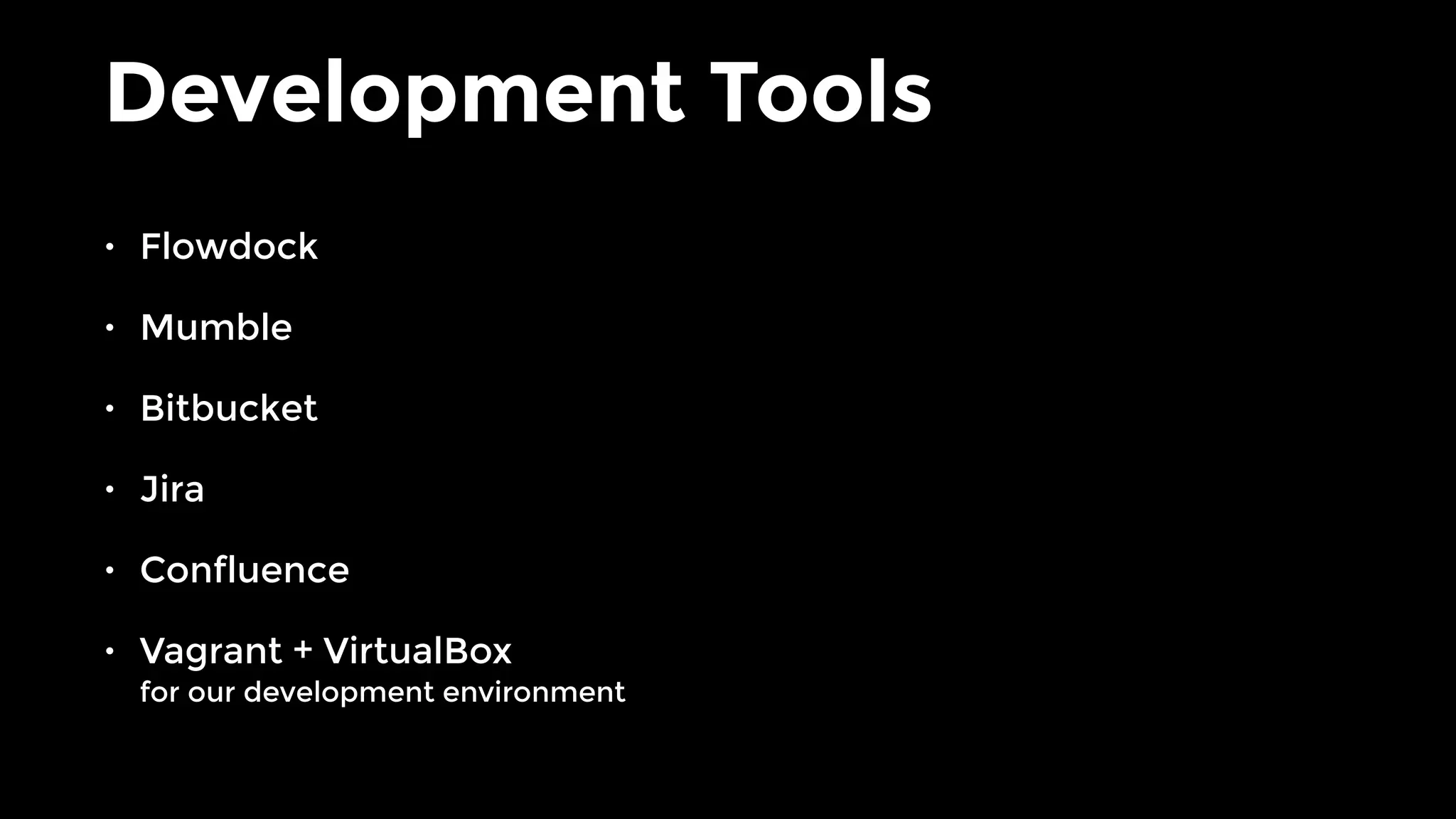

21. Development Tools
• Flowdock
• Mumble
• Bitbucket
• Jira
• Confluence
• Vagrant + VirtualBox
for our development environment

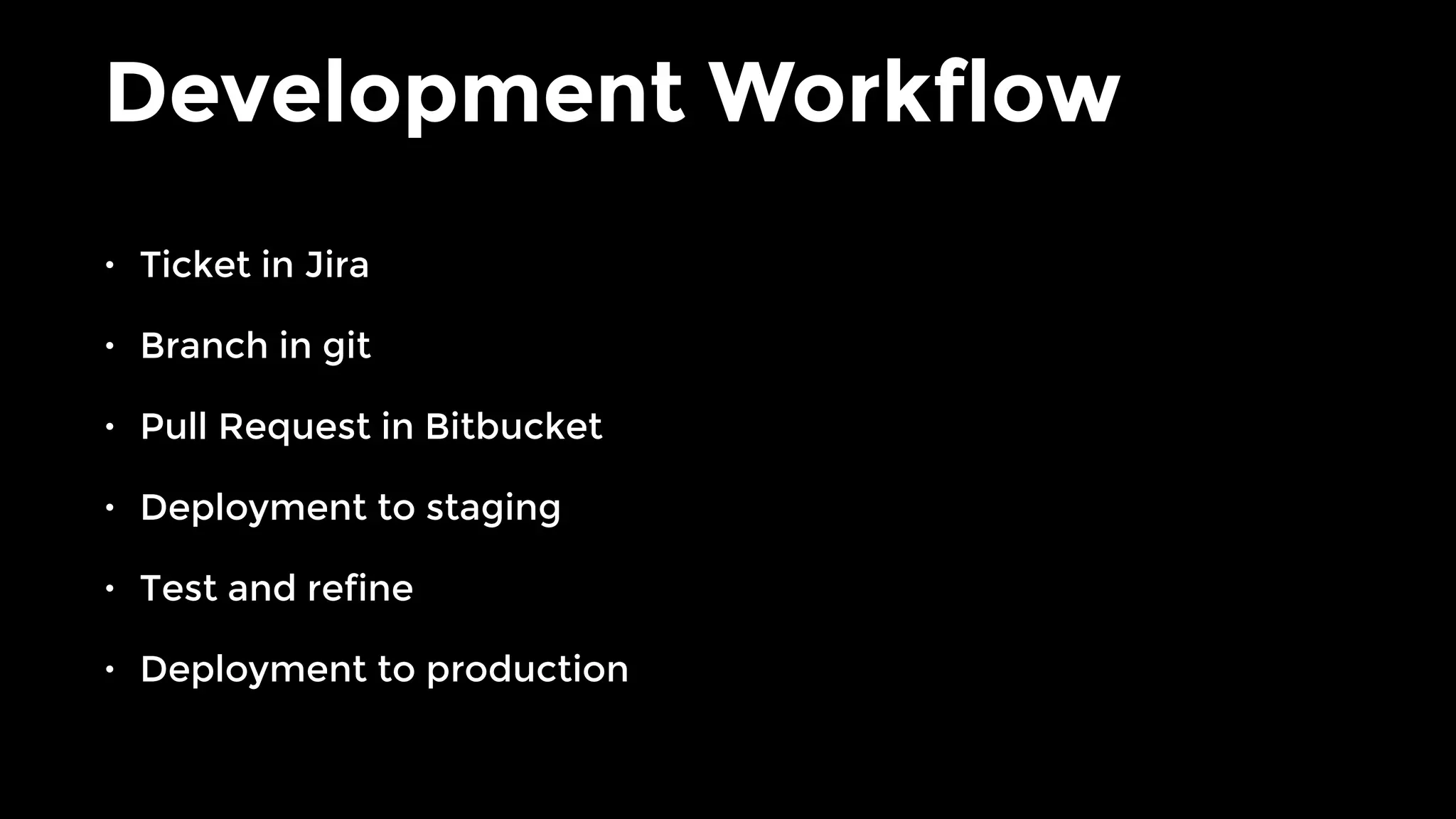

22. Development Workflow
• Ticket in Jira
• Branch in git
• Pull Request in Bitbucket
• Deployment to staging
• Test and refine
• Deployment to production

23. Links
Resin.io https://resin.io/
Docker https://docker.com/
Yocto Project https://yoctoproject.org/
SBVR Spec http://www.omg.org/spec/SBVR/Current/
OData http://odata.org/
Flowdock https://flowdock.com/
Mumble http://mumble.info/
Vagrant https://vagrantup.com/
Jira https://atlassian.com/software/jira/
Confluence https://atlassian.com/software/confluence/

24. Thank you!

25. The tools and technologies behind resin.io
Questions?
