Enlighten your software
REST API design & dev
Domingo Suárez Torres
@domix
http://github.com/domix
http://domingosuarez.com
Una propuesta de: “Como construir APIs REST
para sistemas distribuidos con alta
escalabilidad y resilencia"
1/jul/2015

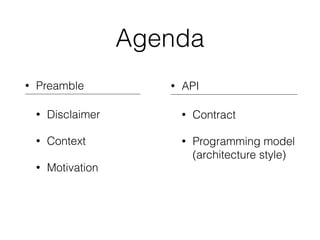

Agenda
• Preamble
• Disclaimer
• Context
• Motivation
• API
• Contract
• Programming model
(architecture style)
Preamble
Disclaimer
• This talk and its contents are based in my own
experience.
• I’m not trying to say all the following IS the way to
do the right thing. Just my opinion. :)
• All I want is to share my experience with the
community.
• This talk is huge. Hope I can finish on time.

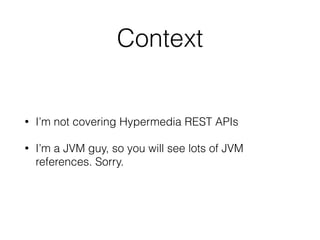

Context
• I’m not covering Hypermedia REST APIs
• I’m a JVM guy, so you will see lots of JVM
references. Sorry.

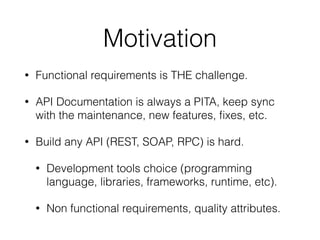

Motivation
• Functional requirements is THE challenge.
• API Documentation is always a PITA, keep sync
with the maintenance, new features, fixes, etc.
• Build any API (REST, SOAP, RPC) is hard.
• Development tools choice (programming
language, libraries, frameworks, runtime, etc).
• Non functional requirements, quality attributes.
SOAP
No longer an acronym. Since 1.2

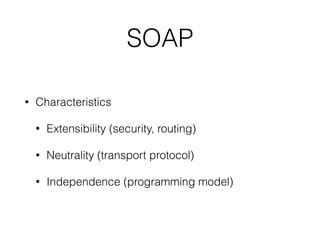

SOAP
• Characteristics
• Extensibility (security, routing)
• Neutrality (transport protocol)
• Independence (programming model)

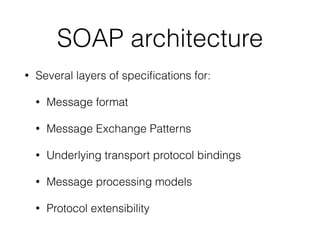

SOAP architecture
• Several layers of specifications for:
• Message format
• Message Exchange Patterns
• Underlying transport protocol bindings
• Message processing models
• Protocol extensibility

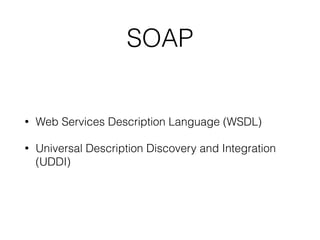

SOAP
• Web Services Description Language (WSDL)
• Universal Description Discovery and Integration
(UDDI)

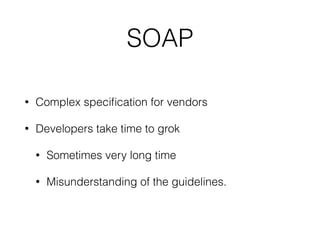

SOAP
• Complex specification for vendors
• Developers take time to grok
• Sometimes very long time
• Misunderstanding of the guidelines.
I like SOAP intentions
I dislike SOAP complexity
API Contract

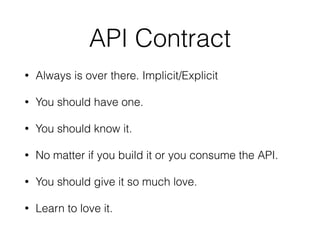

API Contract
• Always is over there. Implicit/Explicit
• You should have one.
• You should know it.
• No matter if you build it or you consume the API.
• You should give it so much love.
• Learn to love it.

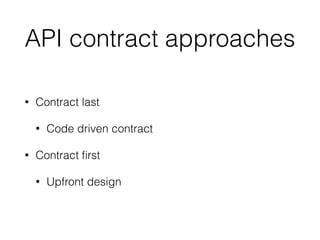

API contract approaches
• Contract last
• Code driven contract
• Contract first
• Upfront design

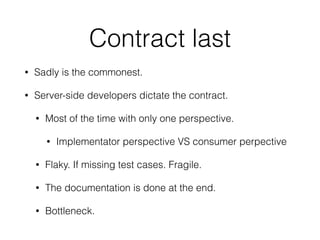

Contract last
• Sadly is the commonest.
• Server-side developers dictate the contract.
• Most of the time with only one perspective.
• Implementator perspective VS consumer perpective
• Flaky. If missing test cases. Fragile.
• The documentation is done at the end.
• Bottleneck.

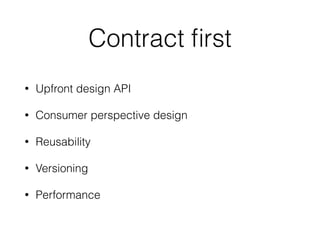

Contract first
• Upfront design API
• Consumer perspective design
• Reusability
• Versioning
• Performance

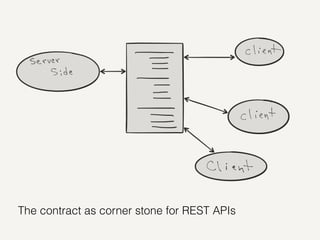

The contract as corner stone for REST APIs
How to build the contract?

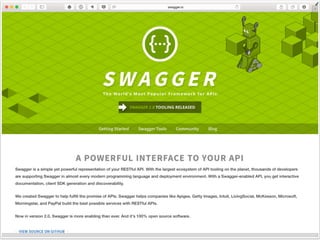

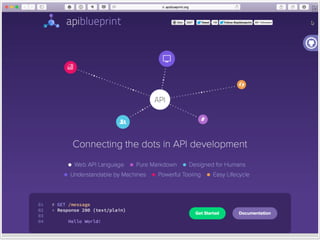

Tools

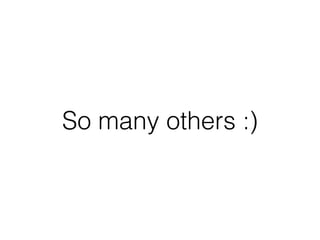

So many others :)

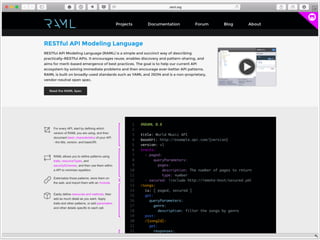

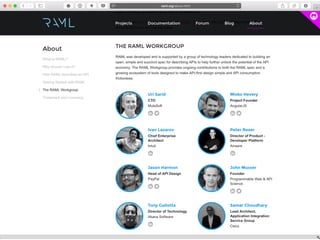

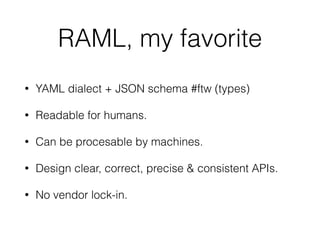

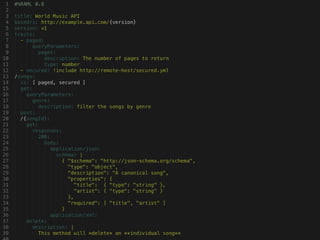

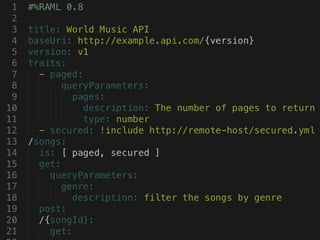

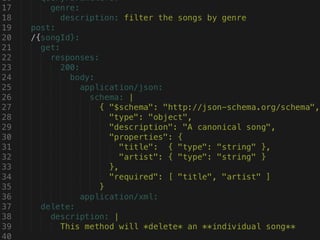

RAML, my favorite
• YAML dialect + JSON schema #ftw (types)
• Readable for humans.
• Can be procesable by machines.
• Design clear, correct, precise & consistent APIs.
• No vendor lock-in.
Design & build

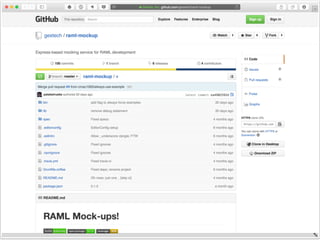

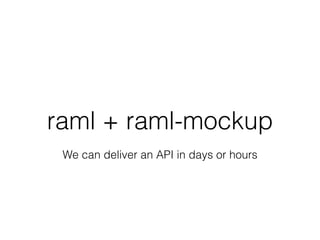

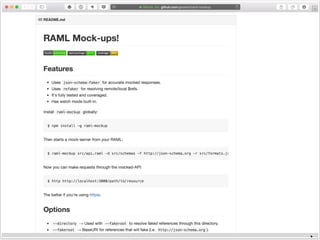

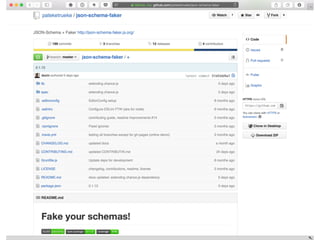

raml + raml-mockup
We can deliver an API in days or hours

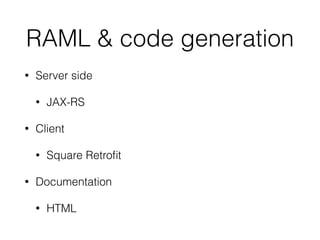

RAML & code generation
• Server side
• JAX-RS
• Client
• Square Retrofit

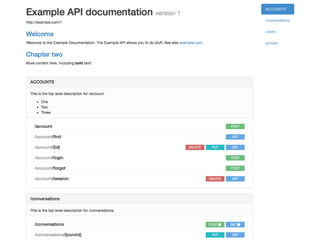

• Documentation
• HTML

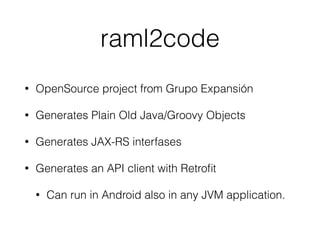

raml2code
• OpenSource project from Grupo Expansión
• Generates Plain Old Java/Groovy Objects
• Generates JAX-RS interfases
• Generates an API client with Retrofit
• Can run in Android also in any JVM application.

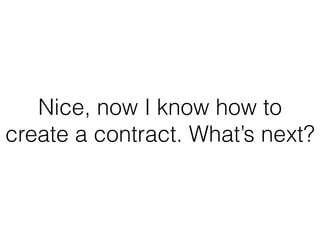

Nice, now I know how to
create a contract. What’s next?

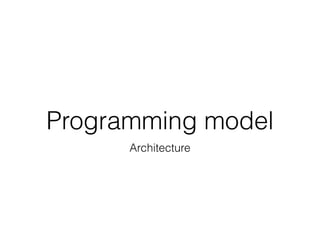

Programming model
Architecture
SOA + EDA

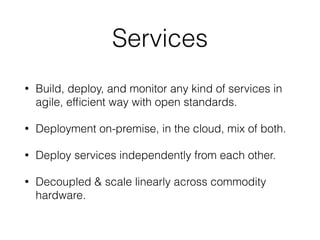

Services
• Build, deploy, and monitor any kind of services in
agile, efficient way with open standards.
• Deployment on-premise, in the cloud, mix of both.
• Deploy services independently from each other.
• Decoupled & scale linearly across commodity
hardware.

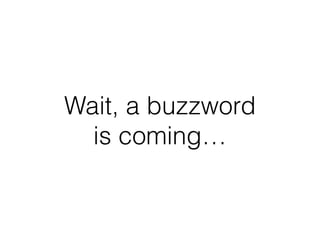

Wait, a buzzword
is coming…

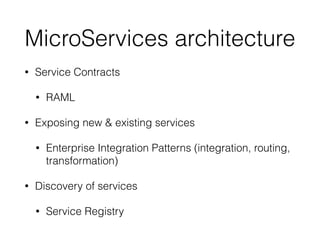

MicroServices architecture
• Service Contracts
• RAML
• Exposing new & existing services
• Enterprise Integration Patterns (integration, routing,
transformation)
• Discovery of services
• Service Registry

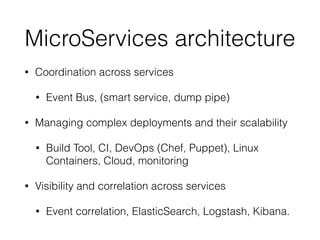

MicroServices architecture
• Coordination across services
• Event Bus, (smart service, dump pipe)
• Managing complex deployments and their scalability
• Build Tool, CI, DevOps (Chef, Puppet), Linux
Containers, Cloud, monitoring
• Visibility and correlation across services
• Event correlation, ElasticSearch, Logstash, Kibana.
Sounds nice, but…

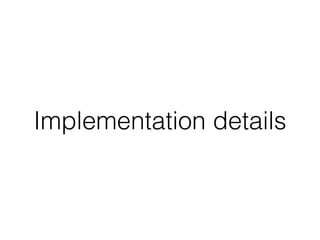

Implementation details

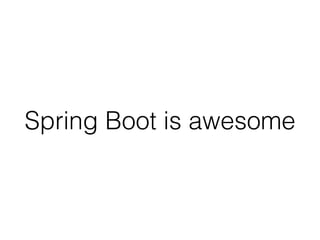

Spring Boot is awesome
–Spring Boot reference documentation
“Spring Boot makes it easy to create stand-
alone, production-grade Spring based
Applications that you can “just run”. We take an
opinionated view of the Spring platform and
third-party libraries so you can get started with
minimum fuss. Most Spring Boot applications
need very little Spring configuration.”

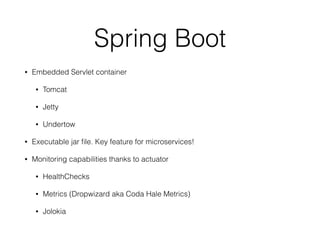

Spring Boot
• Embedded Servlet container
• Tomcat
• Jetty
• Undertow
• Executable jar file. Key feature for microservices!
• Monitoring capabilities thanks to actuator
• HealthChecks
• Metrics (Dropwizard aka Coda Hale Metrics)
• Jolokia

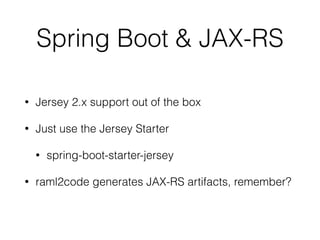

Spring Boot & JAX-RS
• Jersey 2.x support out of the box
• Just use the Jersey Starter
• spring-boot-starter-jersey
• raml2code generates JAX-RS artifacts, remember?

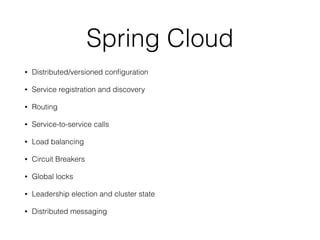

Spring Cloud
• Distributed/versioned configuration
• Service registration and discovery
• Routing
• Service-to-service calls
• Load balancing
• Circuit Breakers
• Global locks
• Leadership election and cluster state
• Distributed messaging

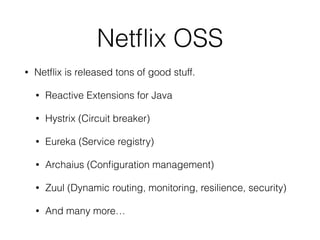

Netflix OSS
• Netflix is released tons of good stuff.
• Reactive Extensions for Java
• Hystrix (Circuit breaker)
• Eureka (Service registry)
• Archaius (Configuration management)
• Zuul (Dynamic routing, monitoring, resilience, security)
• And many more…
Spring Boot loves
Netflix OSS
Spring Boot & Spring Cloud
for impatient developers

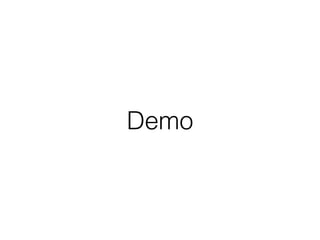

Demo

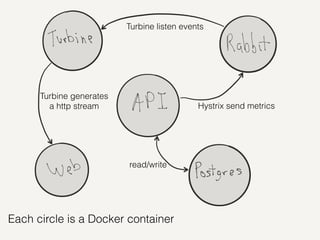

Each circle is a Docker container
read/write
Hystrix send metrics
Turbine listen events
Turbine generates
a http stream

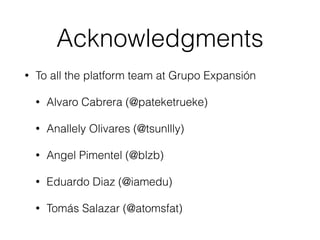

Acknowledgments
• To all the platform team at Grupo Expansión
• Alvaro Cabrera (@pateketrueke)
• Anallely Olivares (@tsunllly)
• Angel Pimentel (@blzb)
• Eduardo Diaz (@iamedu)
• Tomás Salazar (@atomsfat)
Enlighten your software
¿Preguntas?
@domix
domingo.suarez@gmail.com
http://github.com/domix
http://domingosuarez.com

More Related Content

What's hot

Python to go
Python to goPython to go
Python to goWeng Wei

Practical Application of API-First in microservices development
Practical Application of API-First in microservices developmentPractical Application of API-First in microservices development
Practical Application of API-First in microservices development
Chavdar Baikov

eZ Publish 5: from zero to automated deployment (and no regressions!) in one ...
eZ Publish 5: from zero to automated deployment (and no regressions!) in one ...eZ Publish 5: from zero to automated deployment (and no regressions!) in one ...
eZ Publish 5: from zero to automated deployment (and no regressions!) in one ...
Gaetano Giunta

Why use Go for web development?
Why use Go for web development?Why use Go for web development?
Why use Go for web development?
Weng Wei

Functional Programming in PHP
Functional Programming in PHPFunctional Programming in PHP
Functional Programming in PHP
Aurimas Niekis

Developing Cross-Platform Web Apps with ASP.NET Core1.0
Developing Cross-Platform Web Apps with ASP.NET Core1.0Developing Cross-Platform Web Apps with ASP.NET Core1.0
Developing Cross-Platform Web Apps with ASP.NET Core1.0
EastBanc Tachnologies

RubyConf Taiwan 2016 - Large scale Rails applications
RubyConf Taiwan 2016 - Large scale Rails applicationsRubyConf Taiwan 2016 - Large scale Rails applications
RubyConf Taiwan 2016 - Large scale Rails applications
Florian Dutey

Kiss.ts - The Keep It Simple Software Stack for 2017++
Kiss.ts - The Keep It Simple Software Stack for 2017++Kiss.ts - The Keep It Simple Software Stack for 2017++
Kiss.ts - The Keep It Simple Software Stack for 2017++
Ethan Ram

A Personal Journey
A Personal JourneyA Personal Journey
A Personal Journey
Michael Lihs

Craft Beer & Clojure
Craft Beer & ClojureCraft Beer & Clojure
Craft Beer & Clojure
Metosin Oy

RubyConf China 2015 - Rails off assets pipeline
RubyConf China 2015 - Rails off assets pipelineRubyConf China 2015 - Rails off assets pipeline
RubyConf China 2015 - Rails off assets pipeline
Florian Dutey

Riak at Posterous
Riak at PosterousRiak at Posterous
Riak at Posterous
capotej

Contributing to open source
Contributing to open sourceContributing to open source
Contributing to open source
Devin Abbott

Performance and Abstractions
Performance and AbstractionsPerformance and Abstractions
Performance and Abstractions
Metosin Oy

Devops and Immutable infrastructure - Cloud Expo 2015 NYC
Devops and Immutable infrastructure  - Cloud Expo 2015 NYCDevops and Immutable infrastructure  - Cloud Expo 2015 NYC
Devops and Immutable infrastructure - Cloud Expo 2015 NYC
John Willis

Beyond The Rails Way
Beyond The Rails WayBeyond The Rails Way
Beyond The Rails Way
Andrzej Krzywda

GitHub as a Landing Page
GitHub as a Landing Page GitHub as a Landing Page
GitHub as a Landing Page
Pronovix

Effective Code Review (Or How To Alienate Your Coworkers)
Effective Code Review (Or How To Alienate Your Coworkers)Effective Code Review (Or How To Alienate Your Coworkers)
Effective Code Review (Or How To Alienate Your Coworkers)
Perforce

From Rails legacy to DDD - Pivorak, Lviv
From Rails legacy to DDD - Pivorak, LvivFrom Rails legacy to DDD - Pivorak, Lviv
From Rails legacy to DDD - Pivorak, Lviv
Andrzej Krzywda

Getting started with mobile application development
Getting started with mobile application developmentGetting started with mobile application development
Getting started with mobile application development
ColdFusionConference


What's hot (20)

Python to go
Python to goPython to go
Python to go

Practical Application of API-First in microservices development
Practical Application of API-First in microservices developmentPractical Application of API-First in microservices development
Practical Application of API-First in microservices development

eZ Publish 5: from zero to automated deployment (and no regressions!) in one ...
eZ Publish 5: from zero to automated deployment (and no regressions!) in one ...eZ Publish 5: from zero to automated deployment (and no regressions!) in one ...
eZ Publish 5: from zero to automated deployment (and no regressions!) in one ...

Why use Go for web development?
Why use Go for web development?Why use Go for web development?
Why use Go for web development?

Functional Programming in PHP
Functional Programming in PHPFunctional Programming in PHP
Functional Programming in PHP

Developing Cross-Platform Web Apps with ASP.NET Core1.0
Developing Cross-Platform Web Apps with ASP.NET Core1.0Developing Cross-Platform Web Apps with ASP.NET Core1.0
Developing Cross-Platform Web Apps with ASP.NET Core1.0

RubyConf Taiwan 2016 - Large scale Rails applications
RubyConf Taiwan 2016 - Large scale Rails applicationsRubyConf Taiwan 2016 - Large scale Rails applications
RubyConf Taiwan 2016 - Large scale Rails applications

Kiss.ts - The Keep It Simple Software Stack for 2017++
Kiss.ts - The Keep It Simple Software Stack for 2017++Kiss.ts - The Keep It Simple Software Stack for 2017++
Kiss.ts - The Keep It Simple Software Stack for 2017++

A Personal Journey
A Personal JourneyA Personal Journey
A Personal Journey

Craft Beer & Clojure
Craft Beer & ClojureCraft Beer & Clojure
Craft Beer & Clojure

RubyConf China 2015 - Rails off assets pipeline
RubyConf China 2015 - Rails off assets pipelineRubyConf China 2015 - Rails off assets pipeline
RubyConf China 2015 - Rails off assets pipeline

Riak at Posterous
Riak at PosterousRiak at Posterous
Riak at Posterous

Contributing to open source
Contributing to open sourceContributing to open source
Contributing to open source

Performance and Abstractions
Performance and AbstractionsPerformance and Abstractions
Performance and Abstractions

Devops and Immutable infrastructure - Cloud Expo 2015 NYC
Devops and Immutable infrastructure  - Cloud Expo 2015 NYCDevops and Immutable infrastructure  - Cloud Expo 2015 NYC
Devops and Immutable infrastructure - Cloud Expo 2015 NYC

Beyond The Rails Way
Beyond The Rails WayBeyond The Rails Way
Beyond The Rails Way

GitHub as a Landing Page
GitHub as a Landing Page GitHub as a Landing Page
GitHub as a Landing Page

Effective Code Review (Or How To Alienate Your Coworkers)
Effective Code Review (Or How To Alienate Your Coworkers)Effective Code Review (Or How To Alienate Your Coworkers)
Effective Code Review (Or How To Alienate Your Coworkers)

From Rails legacy to DDD - Pivorak, Lviv
From Rails legacy to DDD - Pivorak, LvivFrom Rails legacy to DDD - Pivorak, Lviv
From Rails legacy to DDD - Pivorak, Lviv

Getting started with mobile application development
Getting started with mobile application developmentGetting started with mobile application development
Getting started with mobile application development


Similar to APIs distribuidos con alta escalabilidad

Delivering Developer Tools at Scale
Delivering Developer Tools at ScaleDelivering Developer Tools at Scale
Delivering Developer Tools at Scale
Oracle Developers

The tools & technologies behind Resin.io
The tools & technologies behind Resin.ioThe tools & technologies behind Resin.io
The tools & technologies behind Resin.io
GreeceJS

Scaling with swagger
Scaling with swaggerScaling with swagger
Scaling with swagger
Tony Tam

Building Enterprise Grade Front-End Applications with JavaScript Frameworks
Building Enterprise Grade Front-End Applications with JavaScript FrameworksBuilding Enterprise Grade Front-End Applications with JavaScript Frameworks
Building Enterprise Grade Front-End Applications with JavaScript Frameworks
FITC

Scylla Summit 2022: Learning Rust the Hard Way for a Production Kafka+ScyllaD...
Scylla Summit 2022: Learning Rust the Hard Way for a Production Kafka+ScyllaD...Scylla Summit 2022: Learning Rust the Hard Way for a Production Kafka+ScyllaD...
Scylla Summit 2022: Learning Rust the Hard Way for a Production Kafka+ScyllaD...
ScyllaDB

An Open Source Workbench for Prototyping Multimodal Interactions Based on Off...
An Open Source Workbench for Prototyping Multimodal Interactions Based on Off...An Open Source Workbench for Prototyping Multimodal Interactions Based on Off...
An Open Source Workbench for Prototyping Multimodal Interactions Based on Off...
Jean Vanderdonckt

What is cool with Domino V10, Proton and Node.JS, and why would I use it in ...
What is cool with Domino V10, Proton and Node.JS, and why would I use it in ...What is cool with Domino V10, Proton and Node.JS, and why would I use it in ...
What is cool with Domino V10, Proton and Node.JS, and why would I use it in ...
Heiko Voigt

Building a Startup in .NET
Building a Startup in .NETBuilding a Startup in .NET
Building a Startup in .NET
Marcelo Calbucci

IBM Connect 2017: Your Data In the Major Leagues: A Practical Guide to REST S...
IBM Connect 2017: Your Data In the Major Leagues: A Practical Guide to REST S...IBM Connect 2017: Your Data In the Major Leagues: A Practical Guide to REST S...
IBM Connect 2017: Your Data In the Major Leagues: A Practical Guide to REST S...
Serdar Basegmez

Apache Drill (ver. 0.2)
Apache Drill (ver. 0.2)Apache Drill (ver. 0.2)
Apache Drill (ver. 0.2)
Camuel Gilyadov

Reactive Development: Commands, Actors and Events. Oh My!!
Reactive Development: Commands, Actors and Events.  Oh My!!Reactive Development: Commands, Actors and Events.  Oh My!!
Reactive Development: Commands, Actors and Events. Oh My!!
David Hoerster

SOA Latam 2015
SOA Latam 2015SOA Latam 2015
SOA Latam 2015
Domingo Suarez Torres

REST vs. GraphQL: Critical Look
REST vs. GraphQL: Critical LookREST vs. GraphQL: Critical Look
REST vs. GraphQL: Critical Look
Nordic APIs

Containers, microservices and serverless for realists
Containers, microservices and serverless for realistsContainers, microservices and serverless for realists
Containers, microservices and serverless for realists
Karthik Gaekwad

Modern Web-site Development Pipeline
Modern Web-site Development PipelineModern Web-site Development Pipeline
Modern Web-site Development Pipeline
GlobalLogic Ukraine

Beginners Node.js
Beginners Node.jsBeginners Node.js
Beginners Node.js
Khaled Mosharraf

Micro Services Architecture
Micro Services ArchitectureMicro Services Architecture
Micro Services Architecture
Ranjan Baisak

Lessons learned on the Azure API Stewardship Journey.pptx
Lessons learned on the Azure API Stewardship Journey.pptxLessons learned on the Azure API Stewardship Journey.pptx
Lessons learned on the Azure API Stewardship Journey.pptx
apidays

A guide to hiring a great developer to build your first app (redacted version)
A guide to hiring a great developer to build your first app (redacted version)A guide to hiring a great developer to build your first app (redacted version)
A guide to hiring a great developer to build your first app (redacted version)
Oursky


Similar to APIs distribuidos con alta escalabilidad (20)

Delivering Developer Tools at Scale
Delivering Developer Tools at ScaleDelivering Developer Tools at Scale
Delivering Developer Tools at Scale

The tools & technologies behind Resin.io
The tools & technologies behind Resin.ioThe tools & technologies behind Resin.io
The tools & technologies behind Resin.io

Scaling with swagger
Scaling with swaggerScaling with swagger
Scaling with swagger

Building Enterprise Grade Front-End Applications with JavaScript Frameworks
Building Enterprise Grade Front-End Applications with JavaScript FrameworksBuilding Enterprise Grade Front-End Applications with JavaScript Frameworks
Building Enterprise Grade Front-End Applications with JavaScript Frameworks

Scylla Summit 2022: Learning Rust the Hard Way for a Production Kafka+ScyllaD...
Scylla Summit 2022: Learning Rust the Hard Way for a Production Kafka+ScyllaD...Scylla Summit 2022: Learning Rust the Hard Way for a Production Kafka+ScyllaD...
Scylla Summit 2022: Learning Rust the Hard Way for a Production Kafka+ScyllaD...

An Open Source Workbench for Prototyping Multimodal Interactions Based on Off...
An Open Source Workbench for Prototyping Multimodal Interactions Based on Off...An Open Source Workbench for Prototyping Multimodal Interactions Based on Off...
An Open Source Workbench for Prototyping Multimodal Interactions Based on Off...

Node.js
Node.jsNode.js
Node.js

What is cool with Domino V10, Proton and Node.JS, and why would I use it in ...
What is cool with Domino V10, Proton and Node.JS, and why would I use it in ...What is cool with Domino V10, Proton and Node.JS, and why would I use it in ...
What is cool with Domino V10, Proton and Node.JS, and why would I use it in ...

Building a Startup in .NET
Building a Startup in .NETBuilding a Startup in .NET
Building a Startup in .NET

IBM Connect 2017: Your Data In the Major Leagues: A Practical Guide to REST S...
IBM Connect 2017: Your Data In the Major Leagues: A Practical Guide to REST S...IBM Connect 2017: Your Data In the Major Leagues: A Practical Guide to REST S...
IBM Connect 2017: Your Data In the Major Leagues: A Practical Guide to REST S...

Apache Drill (ver. 0.2)
Apache Drill (ver. 0.2)Apache Drill (ver. 0.2)
Apache Drill (ver. 0.2)

Reactive Development: Commands, Actors and Events. Oh My!!
Reactive Development: Commands, Actors and Events.  Oh My!!Reactive Development: Commands, Actors and Events.  Oh My!!
Reactive Development: Commands, Actors and Events. Oh My!!

SOA Latam 2015
SOA Latam 2015SOA Latam 2015
SOA Latam 2015

REST vs. GraphQL: Critical Look
REST vs. GraphQL: Critical LookREST vs. GraphQL: Critical Look
REST vs. GraphQL: Critical Look

Containers, microservices and serverless for realists
Containers, microservices and serverless for realistsContainers, microservices and serverless for realists
Containers, microservices and serverless for realists

Modern Web-site Development Pipeline
Modern Web-site Development PipelineModern Web-site Development Pipeline
Modern Web-site Development Pipeline

Beginners Node.js
Beginners Node.jsBeginners Node.js
Beginners Node.js

Micro Services Architecture
Micro Services ArchitectureMicro Services Architecture
Micro Services Architecture

Lessons learned on the Azure API Stewardship Journey.pptx
Lessons learned on the Azure API Stewardship Journey.pptxLessons learned on the Azure API Stewardship Journey.pptx
Lessons learned on the Azure API Stewardship Journey.pptx

A guide to hiring a great developer to build your first app (redacted version)
A guide to hiring a great developer to build your first app (redacted version)A guide to hiring a great developer to build your first app (redacted version)
A guide to hiring a great developer to build your first app (redacted version)


More from Software Guru

Hola Mundo del Internet de las Cosas
Hola Mundo del Internet de las CosasHola Mundo del Internet de las Cosas
Hola Mundo del Internet de las Cosas
Software Guru

Estructuras de datos avanzadas: Casos de uso reales
Estructuras de datos avanzadas: Casos de uso realesEstructuras de datos avanzadas: Casos de uso reales
Estructuras de datos avanzadas: Casos de uso reales
Software Guru

Building bias-aware environments
Building bias-aware environmentsBuilding bias-aware environments
Building bias-aware environments
Software Guru

El secreto para ser un desarrollador Senior
El secreto para ser un desarrollador SeniorEl secreto para ser un desarrollador Senior
El secreto para ser un desarrollador Senior
Software Guru

Cómo encontrar el trabajo remoto ideal
Cómo encontrar el trabajo remoto idealCómo encontrar el trabajo remoto ideal
Cómo encontrar el trabajo remoto ideal
Software Guru

Automatizando ideas con Apache Airflow
Automatizando ideas con Apache AirflowAutomatizando ideas con Apache Airflow
Automatizando ideas con Apache Airflow
Software Guru

How thick data can improve big data analysis for business:
How thick data can improve big data analysis for business:How thick data can improve big data analysis for business:
How thick data can improve big data analysis for business:
Software Guru

Introducción al machine learning
Introducción al machine learningIntroducción al machine learning
Introducción al machine learning
Software Guru

Democratizando el uso de CoDi
Democratizando el uso de CoDiDemocratizando el uso de CoDi
Democratizando el uso de CoDi
Software Guru

Gestionando la felicidad de los equipos con Management 3.0
Gestionando la felicidad de los equipos con Management 3.0Gestionando la felicidad de los equipos con Management 3.0
Gestionando la felicidad de los equipos con Management 3.0
Software Guru

Taller: Creación de Componentes Web re-usables con StencilJS
Taller: Creación de Componentes Web re-usables con StencilJSTaller: Creación de Componentes Web re-usables con StencilJS
Taller: Creación de Componentes Web re-usables con StencilJS
Software Guru

El camino del full stack developer (o como hacemos en SERTI para que no solo ...
El camino del full stack developer (o como hacemos en SERTI para que no solo ...El camino del full stack developer (o como hacemos en SERTI para que no solo ...
El camino del full stack developer (o como hacemos en SERTI para que no solo ...
Software Guru

¿Qué significa ser un programador en Bitso?
¿Qué significa ser un programador en Bitso?¿Qué significa ser un programador en Bitso?
¿Qué significa ser un programador en Bitso?
Software Guru

Colaboración efectiva entre desarrolladores del cliente y tu equipo.
Colaboración efectiva entre desarrolladores del cliente y tu equipo.Colaboración efectiva entre desarrolladores del cliente y tu equipo.
Colaboración efectiva entre desarrolladores del cliente y tu equipo.
Software Guru

Pruebas de integración con Docker en Azure DevOps
Pruebas de integración con Docker en Azure DevOpsPruebas de integración con Docker en Azure DevOps
Pruebas de integración con Docker en Azure DevOps
Software Guru

Elixir + Elm: Usando lenguajes funcionales en servicios productivos
Elixir + Elm: Usando lenguajes funcionales en servicios productivosElixir + Elm: Usando lenguajes funcionales en servicios productivos
Elixir + Elm: Usando lenguajes funcionales en servicios productivos
Software Guru

Así publicamos las apps de Spotify sin stress
Así publicamos las apps de Spotify sin stressAsí publicamos las apps de Spotify sin stress
Así publicamos las apps de Spotify sin stress
Software Guru

Achieving Your Goals: 5 Tips to successfully achieve your goals
Achieving Your Goals: 5 Tips to successfully achieve your goalsAchieving Your Goals: 5 Tips to successfully achieve your goals
Achieving Your Goals: 5 Tips to successfully achieve your goals
Software Guru

Acciones de comunidades tech en tiempos del Covid19
Acciones de comunidades tech en tiempos del Covid19Acciones de comunidades tech en tiempos del Covid19
Acciones de comunidades tech en tiempos del Covid19
Software Guru

De lo operativo a lo estratégico: un modelo de management de diseño
De lo operativo a lo estratégico: un modelo de management de diseñoDe lo operativo a lo estratégico: un modelo de management de diseño
De lo operativo a lo estratégico: un modelo de management de diseño
Software Guru


More from Software Guru (20)

Hola Mundo del Internet de las Cosas
Hola Mundo del Internet de las CosasHola Mundo del Internet de las Cosas
Hola Mundo del Internet de las Cosas

Estructuras de datos avanzadas: Casos de uso reales
Estructuras de datos avanzadas: Casos de uso realesEstructuras de datos avanzadas: Casos de uso reales
Estructuras de datos avanzadas: Casos de uso reales

Building bias-aware environments
Building bias-aware environmentsBuilding bias-aware environments
Building bias-aware environments

El secreto para ser un desarrollador Senior
El secreto para ser un desarrollador SeniorEl secreto para ser un desarrollador Senior
El secreto para ser un desarrollador Senior

Cómo encontrar el trabajo remoto ideal
Cómo encontrar el trabajo remoto idealCómo encontrar el trabajo remoto ideal
Cómo encontrar el trabajo remoto ideal

Automatizando ideas con Apache Airflow
Automatizando ideas con Apache AirflowAutomatizando ideas con Apache Airflow
Automatizando ideas con Apache Airflow

How thick data can improve big data analysis for business:
How thick data can improve big data analysis for business:How thick data can improve big data analysis for business:
How thick data can improve big data analysis for business:

Introducción al machine learning
Introducción al machine learningIntroducción al machine learning
Introducción al machine learning

Democratizando el uso de CoDi
Democratizando el uso de CoDiDemocratizando el uso de CoDi
Democratizando el uso de CoDi

Gestionando la felicidad de los equipos con Management 3.0
Gestionando la felicidad de los equipos con Management 3.0Gestionando la felicidad de los equipos con Management 3.0
Gestionando la felicidad de los equipos con Management 3.0

Taller: Creación de Componentes Web re-usables con StencilJS
Taller: Creación de Componentes Web re-usables con StencilJSTaller: Creación de Componentes Web re-usables con StencilJS
Taller: Creación de Componentes Web re-usables con StencilJS

El camino del full stack developer (o como hacemos en SERTI para que no solo ...
El camino del full stack developer (o como hacemos en SERTI para que no solo ...El camino del full stack developer (o como hacemos en SERTI para que no solo ...
El camino del full stack developer (o como hacemos en SERTI para que no solo ...

¿Qué significa ser un programador en Bitso?
¿Qué significa ser un programador en Bitso?¿Qué significa ser un programador en Bitso?
¿Qué significa ser un programador en Bitso?

Colaboración efectiva entre desarrolladores del cliente y tu equipo.
Colaboración efectiva entre desarrolladores del cliente y tu equipo.Colaboración efectiva entre desarrolladores del cliente y tu equipo.
Colaboración efectiva entre desarrolladores del cliente y tu equipo.

Pruebas de integración con Docker en Azure DevOps
Pruebas de integración con Docker en Azure DevOpsPruebas de integración con Docker en Azure DevOps
Pruebas de integración con Docker en Azure DevOps

Elixir + Elm: Usando lenguajes funcionales en servicios productivos
Elixir + Elm: Usando lenguajes funcionales en servicios productivosElixir + Elm: Usando lenguajes funcionales en servicios productivos
Elixir + Elm: Usando lenguajes funcionales en servicios productivos

Así publicamos las apps de Spotify sin stress
Así publicamos las apps de Spotify sin stressAsí publicamos las apps de Spotify sin stress
Así publicamos las apps de Spotify sin stress

Achieving Your Goals: 5 Tips to successfully achieve your goals
Achieving Your Goals: 5 Tips to successfully achieve your goalsAchieving Your Goals: 5 Tips to successfully achieve your goals
Achieving Your Goals: 5 Tips to successfully achieve your goals

Acciones de comunidades tech en tiempos del Covid19
Acciones de comunidades tech en tiempos del Covid19Acciones de comunidades tech en tiempos del Covid19
Acciones de comunidades tech en tiempos del Covid19

De lo operativo a lo estratégico: un modelo de management de diseño
De lo operativo a lo estratégico: un modelo de management de diseñoDe lo operativo a lo estratégico: un modelo de management de diseño
De lo operativo a lo estratégico: un modelo de management de diseño


Recently uploaded

Exploring Innovations in Data Repository Solutions - Insights from the U.S. G...
Exploring Innovations in Data Repository Solutions - Insights from the U.S. G...Exploring Innovations in Data Repository Solutions - Insights from the U.S. G...
Exploring Innovations in Data Repository Solutions - Insights from the U.S. G...
Globus

Innovating Inference - Remote Triggering of Large Language Models on HPC Clus...
Innovating Inference - Remote Triggering of Large Language Models on HPC Clus...Innovating Inference - Remote Triggering of Large Language Models on HPC Clus...
Innovating Inference - Remote Triggering of Large Language Models on HPC Clus...
Globus

Cracking the code review at SpringIO 2024
Cracking the code review at SpringIO 2024Cracking the code review at SpringIO 2024
Cracking the code review at SpringIO 2024
Paco van Beckhoven

A Comprehensive Look at Generative AI in Retail App Testing.pdf
A Comprehensive Look at Generative AI in Retail App Testing.pdfA Comprehensive Look at Generative AI in Retail App Testing.pdf
A Comprehensive Look at Generative AI in Retail App Testing.pdf
kalichargn70th171

Enterprise Resource Planning System in Telangana
Enterprise Resource Planning System in TelanganaEnterprise Resource Planning System in Telangana
Enterprise Resource Planning System in Telangana
NYGGS Automation Suite

Paketo Buildpacks : la meilleure façon de construire des images OCI? DevopsDa...
Paketo Buildpacks : la meilleure façon de construire des images OCI? DevopsDa...Paketo Buildpacks : la meilleure façon de construire des images OCI? DevopsDa...
Paketo Buildpacks : la meilleure façon de construire des images OCI? DevopsDa...
Anthony Dahanne

Cyaniclab : Software Development Agency Portfolio.pdf
Cyaniclab : Software Development Agency Portfolio.pdfCyaniclab : Software Development Agency Portfolio.pdf
Cyaniclab : Software Development Agency Portfolio.pdf
Cyanic lab

Beyond Event Sourcing - Embracing CRUD for Wix Platform - Java.IL
Beyond Event Sourcing - Embracing CRUD for Wix Platform - Java.ILBeyond Event Sourcing - Embracing CRUD for Wix Platform - Java.IL
Beyond Event Sourcing - Embracing CRUD for Wix Platform - Java.IL
Natan Silnitsky

Custom Healthcare Software for Managing Chronic Conditions and Remote Patient...
Custom Healthcare Software for Managing Chronic Conditions and Remote Patient...Custom Healthcare Software for Managing Chronic Conditions and Remote Patient...
Custom Healthcare Software for Managing Chronic Conditions and Remote Patient...
Mind IT Systems

Graphic Design Crash Course for beginners
Graphic Design Crash Course for beginnersGraphic Design Crash Course for beginners
Graphic Design Crash Course for beginners
e20449

Vitthal Shirke Microservices Resume Montevideo
Vitthal Shirke Microservices Resume MontevideoVitthal Shirke Microservices Resume Montevideo
Vitthal Shirke Microservices Resume Montevideo
Vitthal Shirke

May Marketo Masterclass, London MUG May 22 2024.pdf
May Marketo Masterclass, London MUG May 22 2024.pdfMay Marketo Masterclass, London MUG May 22 2024.pdf
May Marketo Masterclass, London MUG May 22 2024.pdf
Adele Miller

Into the Box 2024 - Keynote Day 2 Slides.pdf
Into the Box 2024 - Keynote Day 2 Slides.pdfInto the Box 2024 - Keynote Day 2 Slides.pdf
Into the Box 2024 - Keynote Day 2 Slides.pdf
Ortus Solutions, Corp

2024 RoOUG Security model for the cloud.pptx
2024 RoOUG Security model for the cloud.pptx2024 RoOUG Security model for the cloud.pptx
2024 RoOUG Security model for the cloud.pptx
Georgi Kodinov

Dominate Social Media with TubeTrivia AI’s Addictive Quiz Videos.pdf
Dominate Social Media with TubeTrivia AI’s Addictive Quiz Videos.pdfDominate Social Media with TubeTrivia AI’s Addictive Quiz Videos.pdf
Dominate Social Media with TubeTrivia AI’s Addictive Quiz Videos.pdf
AMB-Review

Globus Connect Server Deep Dive - GlobusWorld 2024
Globus Connect Server Deep Dive - GlobusWorld 2024Globus Connect Server Deep Dive - GlobusWorld 2024
Globus Connect Server Deep Dive - GlobusWorld 2024
Globus

Prosigns: Transforming Business with Tailored Technology Solutions
Prosigns: Transforming Business with Tailored Technology SolutionsProsigns: Transforming Business with Tailored Technology Solutions
Prosigns: Transforming Business with Tailored Technology Solutions
Prosigns

Quarkus Hidden and Forbidden Extensions
Quarkus Hidden and Forbidden ExtensionsQuarkus Hidden and Forbidden Extensions
Quarkus Hidden and Forbidden Extensions
Max Andersen

Globus Compute wth IRI Workflows - GlobusWorld 2024
Globus Compute wth IRI Workflows - GlobusWorld 2024Globus Compute wth IRI Workflows - GlobusWorld 2024
Globus Compute wth IRI Workflows - GlobusWorld 2024
Globus

Lecture 1 Introduction to games development
Lecture 1 Introduction to games developmentLecture 1 Introduction to games development
Lecture 1 Introduction to games development
abdulrafaychaudhry


Recently uploaded (20)

Exploring Innovations in Data Repository Solutions - Insights from the U.S. G...
Exploring Innovations in Data Repository Solutions - Insights from the U.S. G...Exploring Innovations in Data Repository Solutions - Insights from the U.S. G...
Exploring Innovations in Data Repository Solutions - Insights from the U.S. G...

Innovating Inference - Remote Triggering of Large Language Models on HPC Clus...
Innovating Inference - Remote Triggering of Large Language Models on HPC Clus...Innovating Inference - Remote Triggering of Large Language Models on HPC Clus...
Innovating Inference - Remote Triggering of Large Language Models on HPC Clus...

Cracking the code review at SpringIO 2024
Cracking the code review at SpringIO 2024Cracking the code review at SpringIO 2024
Cracking the code review at SpringIO 2024

A Comprehensive Look at Generative AI in Retail App Testing.pdf
A Comprehensive Look at Generative AI in Retail App Testing.pdfA Comprehensive Look at Generative AI in Retail App Testing.pdf
A Comprehensive Look at Generative AI in Retail App Testing.pdf

Enterprise Resource Planning System in Telangana
Enterprise Resource Planning System in TelanganaEnterprise Resource Planning System in Telangana
Enterprise Resource Planning System in Telangana

Paketo Buildpacks : la meilleure façon de construire des images OCI? DevopsDa...
Paketo Buildpacks : la meilleure façon de construire des images OCI? DevopsDa...Paketo Buildpacks : la meilleure façon de construire des images OCI? DevopsDa...
Paketo Buildpacks : la meilleure façon de construire des images OCI? DevopsDa...

Cyaniclab : Software Development Agency Portfolio.pdf
Cyaniclab : Software Development Agency Portfolio.pdfCyaniclab : Software Development Agency Portfolio.pdf
Cyaniclab : Software Development Agency Portfolio.pdf

Beyond Event Sourcing - Embracing CRUD for Wix Platform - Java.IL
Beyond Event Sourcing - Embracing CRUD for Wix Platform - Java.ILBeyond Event Sourcing - Embracing CRUD for Wix Platform - Java.IL
Beyond Event Sourcing - Embracing CRUD for Wix Platform - Java.IL

Custom Healthcare Software for Managing Chronic Conditions and Remote Patient...
Custom Healthcare Software for Managing Chronic Conditions and Remote Patient...Custom Healthcare Software for Managing Chronic Conditions and Remote Patient...
Custom Healthcare Software for Managing Chronic Conditions and Remote Patient...

Graphic Design Crash Course for beginners
Graphic Design Crash Course for beginnersGraphic Design Crash Course for beginners
Graphic Design Crash Course for beginners

Vitthal Shirke Microservices Resume Montevideo
Vitthal Shirke Microservices Resume MontevideoVitthal Shirke Microservices Resume Montevideo
Vitthal Shirke Microservices Resume Montevideo

May Marketo Masterclass, London MUG May 22 2024.pdf
May Marketo Masterclass, London MUG May 22 2024.pdfMay Marketo Masterclass, London MUG May 22 2024.pdf
May Marketo Masterclass, London MUG May 22 2024.pdf

Into the Box 2024 - Keynote Day 2 Slides.pdf
Into the Box 2024 - Keynote Day 2 Slides.pdfInto the Box 2024 - Keynote Day 2 Slides.pdf
Into the Box 2024 - Keynote Day 2 Slides.pdf

2024 RoOUG Security model for the cloud.pptx
2024 RoOUG Security model for the cloud.pptx2024 RoOUG Security model for the cloud.pptx
2024 RoOUG Security model for the cloud.pptx

Dominate Social Media with TubeTrivia AI’s Addictive Quiz Videos.pdf
Dominate Social Media with TubeTrivia AI’s Addictive Quiz Videos.pdfDominate Social Media with TubeTrivia AI’s Addictive Quiz Videos.pdf
Dominate Social Media with TubeTrivia AI’s Addictive Quiz Videos.pdf

Globus Connect Server Deep Dive - GlobusWorld 2024
Globus Connect Server Deep Dive - GlobusWorld 2024Globus Connect Server Deep Dive - GlobusWorld 2024
Globus Connect Server Deep Dive - GlobusWorld 2024

Prosigns: Transforming Business with Tailored Technology Solutions
Prosigns: Transforming Business with Tailored Technology SolutionsProsigns: Transforming Business with Tailored Technology Solutions
Prosigns: Transforming Business with Tailored Technology Solutions

Quarkus Hidden and Forbidden Extensions
Quarkus Hidden and Forbidden ExtensionsQuarkus Hidden and Forbidden Extensions
Quarkus Hidden and Forbidden Extensions

Globus Compute wth IRI Workflows - GlobusWorld 2024
Globus Compute wth IRI Workflows - GlobusWorld 2024Globus Compute wth IRI Workflows - GlobusWorld 2024
Globus Compute wth IRI Workflows - GlobusWorld 2024

Lecture 1 Introduction to games development
Lecture 1 Introduction to games developmentLecture 1 Introduction to games development
Lecture 1 Introduction to games development


APIs distribuidos con alta escalabilidad

  • 1. Enlighten your software REST API design & dev Domingo Suárez Torres @domix http://github.com/domix http://domingosuarez.com Una propuesta de: “Como construir APIs REST para sistemas distribuidos con alta escalabilidad y resilencia" 1/jul/2015
  • 2. Agenda • Preamble • Disclaimer • Context • Motivation • API • Contract • Programming model (architecture style)
  • 4. Disclaimer • This talk and its contents are based in my own experience. • I’m not trying to say all the following IS the way to do the right thing. Just my opinion. :) • All I want is to share my experience with the community. • This talk is huge. Hope I can finish on time.
  • 5. Context • I’m not covering Hypermedia REST APIs • I’m a JVM guy, so you will see lots of JVM references. Sorry.
  • 6. Motivation • Functional requirements is THE challenge. • API Documentation is always a PITA, keep sync with the maintenance, new features, fixes, etc. • Build any API (REST, SOAP, RPC) is hard. • Development tools choice (programming language, libraries, frameworks, runtime, etc). • Non functional requirements, quality attributes.
  • 7. SOAP No longer an acronym. Since 1.2
  • 8. SOAP • Characteristics • Extensibility (security, routing) • Neutrality (transport protocol) • Independence (programming model)
  • 9. SOAP architecture • Several layers of specifications for: • Message format • Message Exchange Patterns • Underlying transport protocol bindings • Message processing models • Protocol extensibility
  • 10. SOAP • Web Services Description Language (WSDL) • Universal Description Discovery and Integration (UDDI)
  • 11. SOAP • Complex specification for vendors • Developers take time to grok • Sometimes very long time • Misunderstanding of the guidelines.
  • 12. I like SOAP intentions
  • 13. I dislike SOAP complexity
  • 15. API Contract • Always is over there. Implicit/Explicit • You should have one. • You should know it. • No matter if you build it or you consume the API. • You should give it so much love. • Learn to love it.
  • 16. API contract approaches • Contract last • Code driven contract • Contract first • Upfront design
  • 17. Contract last • Sadly is the commonest. • Server-side developers dictate the contract. • Most of the time with only one perspective. • Implementator perspective VS consumer perpective • Flaky. If missing test cases. Fragile. • The documentation is done at the end. • Bottleneck.
  • 18. Contract first • Upfront design API • Consumer perspective design • Reusability • Versioning • Performance
  • 19. The contract as corner stone for REST APIs
  • 20. How to build the contract?
  • 21. Tools
  • 22.
  • 23.
  • 24.
  • 26. RAML, my favorite • YAML dialect + JSON schema #ftw (types) • Readable for humans. • Can be procesable by machines. • Design clear, correct, precise & consistent APIs. • No vendor lock-in.
  • 27.
  • 28.
  • 29.
  • 30.
  • 32.
  • 33.
  • 34.

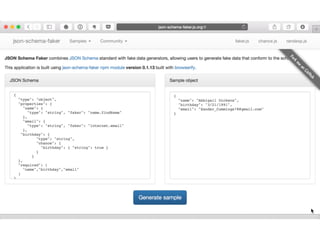

  • 35.
  • 36. raml + raml-mockup We can deliver an API in days or hours
  • 37. RAML & code generation • Server side • JAX-RS • Client • Square Retrofit • Documentation • HTML
  • 38. raml2code • OpenSource project from Grupo Expansión • Generates Plain Old Java/Groovy Objects • Generates JAX-RS interfases • Generates an API client with Retrofit • Can run in Android also in any JVM application.
  • 39.
  • 40.
  • 41. Nice, now I know how to create a contract. What’s next?
  • 44. Services • Build, deploy, and monitor any kind of services in agile, efficient way with open standards. • Deployment on-premise, in the cloud, mix of both. • Deploy services independently from each other. • Decoupled & scale linearly across commodity hardware.
  • 45. Wait, a buzzword is coming…
  • 46. MicroServices architecture • Service Contracts • RAML • Exposing new & existing services • Enterprise Integration Patterns (integration, routing, transformation) • Discovery of services • Service Registry
  • 47. MicroServices architecture • Coordination across services • Event Bus, (smart service, dump pipe) • Managing complex deployments and their scalability • Build Tool, CI, DevOps (Chef, Puppet), Linux Containers, Cloud, monitoring • Visibility and correlation across services • Event correlation, ElasticSearch, Logstash, Kibana.

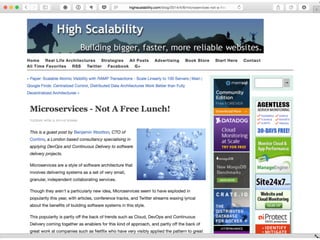

  • 49.
  • 51. Spring Boot is awesome
  • 52. –Spring Boot reference documentation “Spring Boot makes it easy to create stand- alone, production-grade Spring based Applications that you can “just run”. We take an opinionated view of the Spring platform and third-party libraries so you can get started with minimum fuss. Most Spring Boot applications need very little Spring configuration.”
  • 53. Spring Boot • Embedded Servlet container • Tomcat • Jetty • Undertow • Executable jar file. Key feature for microservices! • Monitoring capabilities thanks to actuator • HealthChecks • Metrics (Dropwizard aka Coda Hale Metrics) • Jolokia
  • 54. Spring Boot & JAX-RS • Jersey 2.x support out of the box • Just use the Jersey Starter • spring-boot-starter-jersey • raml2code generates JAX-RS artifacts, remember?
  • 55. Spring Cloud • Distributed/versioned configuration • Service registration and discovery • Routing • Service-to-service calls • Load balancing • Circuit Breakers • Global locks • Leadership election and cluster state • Distributed messaging
  • 56. Netflix OSS • Netflix is released tons of good stuff. • Reactive Extensions for Java • Hystrix (Circuit breaker) • Eureka (Service registry) • Archaius (Configuration management) • Zuul (Dynamic routing, monitoring, resilience, security) • And many more…
  • 58. Spring Boot & Spring Cloud for impatient developers

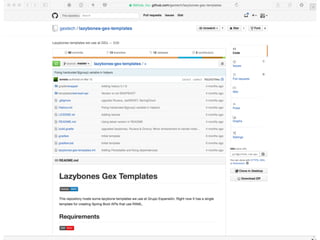

  • 59.
  • 60. Demo
  • 61. Each circle is a Docker container read/write Hystrix send metrics Turbine listen events Turbine generates a http stream
  • 62. Acknowledgments • To all the platform team at Grupo Expansión • Alvaro Cabrera (@pateketrueke) • Anallely Olivares (@tsunllly) • Angel Pimentel (@blzb) • Eduardo Diaz (@iamedu) • Tomás Salazar (@atomsfat)
