1. Dockerizing Enterprise Apps
Docker @ Dianrong.com
Tony Wan
Principal DevOps Lead
Dianrong.com
Docker Shanghai Meetup @2015

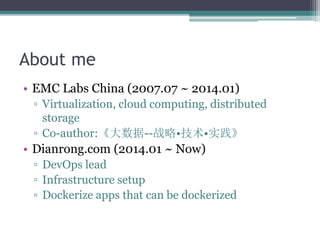

2. About me
• EMC Labs China (2007.07 ~ 2014.01)
▫ Virtualization, cloud computing, distributed
storage
▫ Co-author:《大数据--战略•技术•实践》
• Dianrong.com (2014.01 ~ Now)
▫ DevOps lead
▫ Infrastructure setup
▫ Dockerize apps that can be dockerized

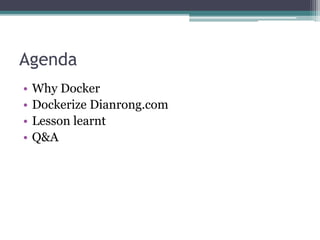

3. Agenda
• Why Docker
• Dockerize Dianrong.com
• Lesson learnt
• Q&A

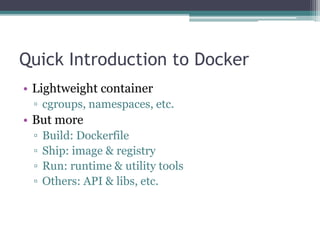

4. Quick Introduction to Docker
• Lightweight container
▫ cgroups, namespaces, etc.
• But more
▫ Build: Dockerfile
▫ Ship: image & registry
▫ Run: runtime & utility tools
▫ Others: API & libs, etc.

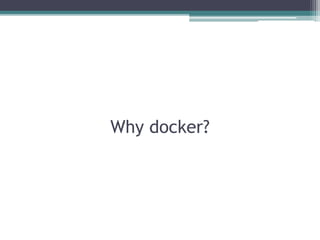

5. Why docker?

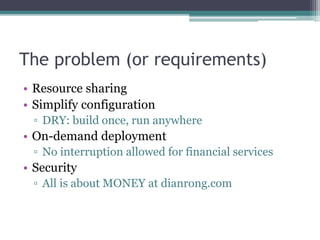

6. The problem (or requirements)
• Resource sharing
• Simplify configuration
▫ DRY: build once, run anywhere
• On-demand deployment
▫ No interruption allowed for financial services
• Security
▫ All is about MONEY at dianrong.com

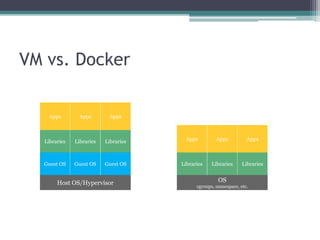

7. OS
cgroups, namespace, etc.
Libraries Libraries Libraries
Apps Apps Apps
VM vs. Docker
Host OS/Hypervisor
Guest OS Guest OS Guest OS
Libraries Libraries Libraries
Apps Apps Apps

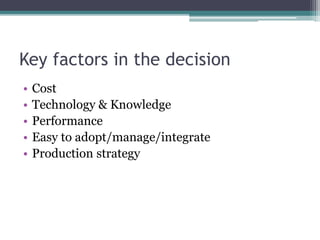

8. Key factors in the decision
• Cost
• Technology & Knowledge
• Performance
• Easy to adopt/manage/integrate
• Production strategy

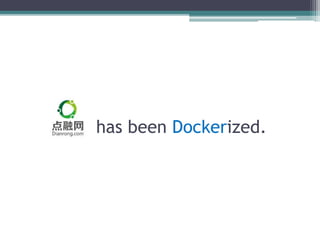

9. has been Dockerized.

10. Dockerizing Dianrong.com
Firewall
Frontend
Apps Other
Components
(redis, mongodb,
etc.)
LB1 LB2
--------------------------------------------------------------------
--------------------------------------------------------------------
…
Oracle Data Guard
Backend
Apps

11. Env & Apps
• CentOS 6.5/7
• Docker 1.3.2
• Apps
▫ NodeJS
▫ Oracle OC4J
▫ MongoDB
▫ Redis
▫ RabbitMQ
▫ MySQL
▫ …

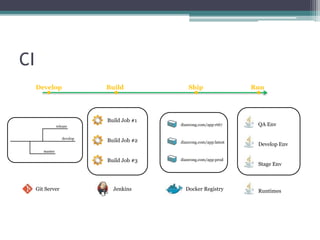

12. CI
develop
release
master
Git Server
dianrong.com/app:rt67
dianrong.com/app:latest
dianrong.com/app:prod
Develop Build Ship Run
Jenkins Docker Registry
Build Job #1
Build Job #2
Build Job #3
QA Env
Develop Env
Stage Env
Runtimes

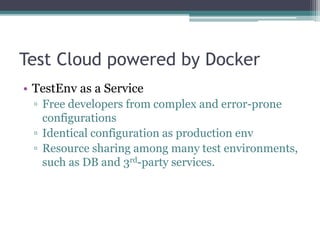

13. Test Cloud powered by Docker
• TestEnv as a Service
▫ Free developers from complex and error-prone
configurations
▫ Identical configuration as production env
▫ Resource sharing among many test environments,
such as DB and 3rd-party services.

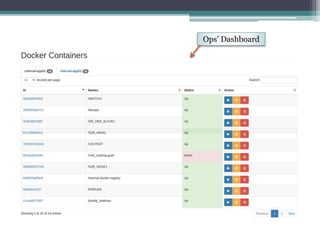

14. Ops’ Dashboard

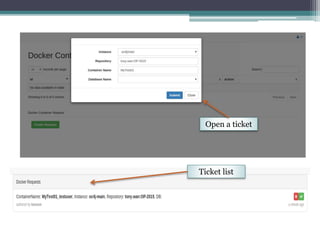

15. Open a ticket
Ticket list

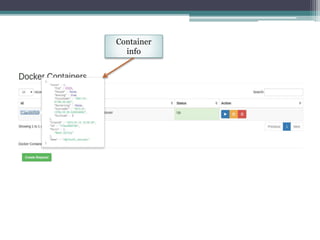

16. Container
info

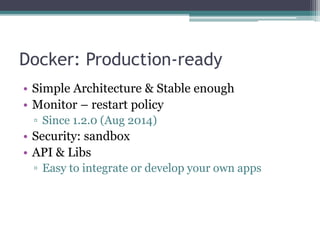

18. Docker: Production-ready
• Simple Architecture & Stable enough
• Monitor – restart policy
▫ Since 1.2.0 (Aug 2014)
• Security: sandbox
• API & Libs
▫ Easy to integrate or develop your own apps

19. Docker @ Dianrong production
Firewall
Docker
RegistryLB1 LB2
…
Oracle Data Guard
DockerMan
Service
Node
Service
Node
Service
Node
NodeJSNodeJSNodeJS
MainApp
MainAppMainApp
MainApp
MainAppWorkflow
Monitoring
System

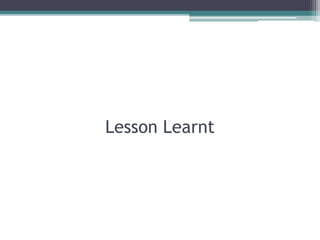

20. Lesson Learnt

21. Best practices
• Volume on disk directly, instead of the default
loop device
▫ Performance
▫ Size limitation
▫ DOCKER_STORAGE_OPTIONS="--storage-opt
dm.metadatadev=/dev/vg-app/dr-metadata --
storage-opt dm.datadev=/dev/vg-app/dr-data"
• Identify varieties and use environment variables
for changes
• Tips to minimize Docker images

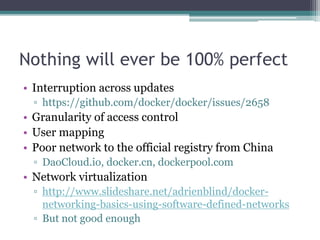

22. Nothing will ever be 100% perfect
• Interruption across updates
▫ https://github.com/docker/docker/issues/2658
• Granularity of access control
• User mapping
• Poor network to the official registry from China
▫ DaoCloud.io, docker.cn, dockerpool.com
• Network virtualization
▫ http://www.slideshare.net/adrienblind/docker-
networking-basics-using-software-defined-networks
▫ But not good enough

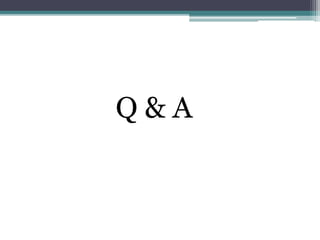

23. Q & A

24. THANKS!
