- 1. The Essentials ofBuilding Cloud- Based Web Apps with Azure Ido Flatow Senior Architect, Sela Group Microsoft MVP & RD Level: Intermediate
- 2.
- 3.

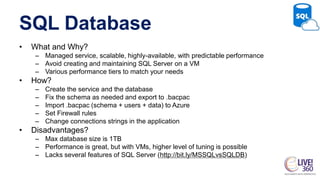

- 4. SQL Database • Whatand Why? – Managed service, scalable, highly-available, with predictable performance – Avoid creating and maintaining SQL Server on a VM – Various performance tiers to match your needs • How? – Create the service and the database – Fix the schema as needed and export to .bacpac – Import .bacpac (schema + users + data) to Azure – Set Firewall rules – Change connections strings in the application • Disadvantages? – Max database size is 1TB – Performance is great, but with VMs, higher level of tuning is possible – Lacks several features of SQL Server (http://bit.ly/MSSQLvsSQLDB)
- 5.

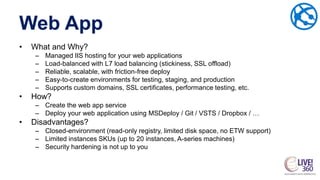

- 6. Web App • Whatand Why? – Managed IIS hosting for your web applications – Load-balanced with L7 load balancing (stickiness, SSL offload) – Reliable, scalable, with friction-free deploy – Easy-to-create environments for testing, staging, and production – Supports custom domains, SSL certificates, performance testing, etc. • How? – Create the web app service – Deploy your web application using MSDeploy / Git / VSTS / Dropbox / … • Disadvantages? – Closed-environment (read-only registry, limited disk space, no ETW support) – Limited instances SKUs (up to 20 instances, A-series machines) – Security hardening is not up to you
- 7.

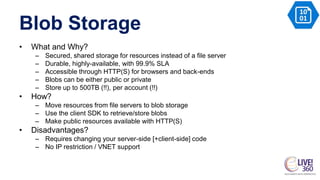

- 8. Blob Storage • Whatand Why? – Secured, shared storage for resources instead of a file server – Durable, highly-available, with 99.9% SLA – Accessible through HTTP(S) for browsers and back-ends – Blobs can be either public or private – Store up to 500TB (!!), per account (!!) • How? – Move resources from file servers to blob storage – Use the client SDK to retrieve/store blobs – Make public resources available with HTTP(S) • Disadvantages? – Requires changing your server-side [+client-side] code – No IP restriction / VNET support
- 9.
- 10. Azure Redis Cache •What and Why? – Cache-as-a-Service to store session state and cacheable resources – Based on the well-known Redis Cache – Master-slave replication for high-availability SLA – Scale out with cache units, up to 530GB • How? – Create a new Redis cache service, then wait 15 minutes – Replace caching code with the Redis client SDK – Configure the session state provider to use Redis (optional) • Disadvantages? – Few versions back from the original Redis for Linux – Small throughput latency due to it being a public, secured service – Prices soar as you require more features (compared to creating your own VMs)
- 11.
- 12. Azure Active Directory •What and Why? – Identity as a Services (IDMaaS) – Integrates with on-premises AD/ADFS – Standard protocols support: OAuth2, OpenId Connect, WS-Federation – Supports single and multi-tenant applications – Built-in features, such as MFA, custom domains, and reporting • How? – Create users and groups – Create an AAD application for your web application – Add OWIN Authentication middleware for AAD • Disadvantages? – Still no descent management tools, except the portal – Cool features (self-service, branding) are costly

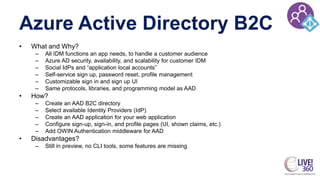

- 13. Azure Active DirectoryB2C • What and Why? – All IDM functions an app needs, to handle a customer audience – Azure AD security, availability, and scalability for customer IDM – Social IdPs and “application local accounts” – Self-service sign up, password reset, profile management – Customizable sign in and sign up UI – Same protocols, libraries, and programming model as AAD • How? – Create an AAD B2C directory – Select available Identity Providers (IdP) – Create an AAD application for your web application – Configure sign-up, sign-in, and profile pages (UI, shown claims, etc.) – Add OWIN Authentication middleware for AAD • Disadvantages? – Still in preview, no CLI tools, some features are missing
- 14.

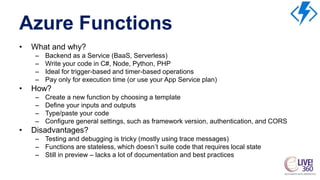

- 15. Azure Functions • Whatand why? – Backend as a Service (BaaS, Serverless) – Write your code in C#, Node, Python, PHP – Ideal for trigger-based and timer-based operations – Pay only for execution time (or use your App Service plan) • How? – Create a new function by choosing a template – Define your inputs and outputs – Type/paste your code – Configure general settings, such as framework version, authentication, and CORS • Disadvantages? – Testing and debugging is tricky (mostly using trace messages) – Functions are stateless, which doesn’t suite code that requires local state – Still in preview – lacks a lot of documentation and best practices
- 16.
- 17. Cloud-Based Web Application ArchitecturalOverview Web App Azure Active Directory B2C Blob Storage Processed blobs SQL Database Azure Redis Cache Azure Functions Pre-Processed blobs

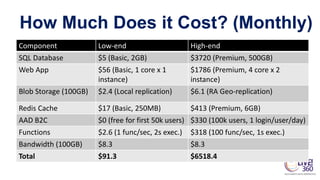

- 18. How Much Doesit Cost? (Monthly) Component Low-end High-end SQL Database $5 (Basic, 2GB) $3720 (Premium, 500GB) Web App $56 (Basic, 1 core x 1 instance) $1786 (Premium, 4 core x 2 instance) Blob Storage (100GB) $2.4 (Local replication) $6.1 (RA Geo-replication) Redis Cache $17 (Basic, 250MB) $413 (Premium, 6GB) AAD B2C $0 (free for first 50k users) $330 (100k users, 1 login/user/day) Functions $2.6 (1 func/sec, 2s exec.) $318 (100 func/sec, 1s exec.) Bandwidth (100GB) $8.3 $8.3 Total $91.3 $6518.4

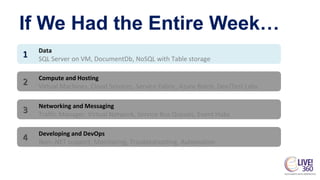

- 19. If We Hadthe Entire Week… Data SQL Server on VM, DocumentDb, NoSQL with Table storage 1 Compute and Hosting Virtual Machines, Cloud Services, Service Fabric, Azure Batch, Dev/Test Labs 2 Networking and Messaging Traffic Manager, Virtual Network, Service Bus Queues, Event Hubs 3 Developing and DevOps Non-.NET support, Monitoring, Troubleshooting, Automation 4

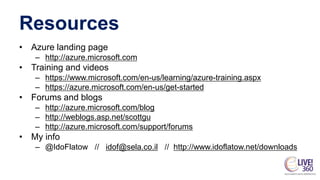

- 20. Resources • Azure landingpage – http://azure.microsoft.com • Training and videos – https://www.microsoft.com/en-us/learning/azure-training.aspx – https://azure.microsoft.com/en-us/get-started • Forums and blogs – http://azure.microsoft.com/blog – http://weblogs.asp.net/scottgu – http://azure.microsoft.com/support/forums • My info – @IdoFlatow // idof@sela.co.il // http://www.idoflatow.net/downloads
