This document provides an overview of Microsoft's Windows Azure cloud computing platform. It discusses the state of cloud computing including perceptions, types of clouds, and drivers. It then covers Microsoft's involvement in the cloud over the past 15 years with various services like Bing, Exchange Online, and MSN. The core sections describe the key components of Windows Azure including compute, storage, SQL Azure database, service bus, access control, and various application frameworks. It positions Windows Azure as a platform for building applications that can leverage on-premise and cloud services and provides three key takeaways about it being a platform-as-a-service, enabling hybrid solutions, and consistent programming models.

1. Windows Azure Platform
David Chou
david.chou@microsoft.com
blogs.msdn.com/dachou

2. State of Cloud Computing
> Perceptions
> Types
• “The end of software”
• Public
• On-demand infrastructure
• Private
• Cheaper and better
• Internal
> Reality
• Hybrid world; not “all-or-nothing”
• Leverage existing IT skills and
investments
• Seamless user experiences
• Evolutionary; not revolutionary
> Drivers
• Ease-of-use, convenience
• Product effectiveness
• Simplify IT, reduce costs
• External
• Hybrid
> Categories
• SaaS
• PaaS
• IaaS

3. Microsoft in the Cloud
(15 years)
450M+
active users
(13 years)
550M
users/mth
(11 years)
320M+
(12 years)
active
Largest nonusers
ICP/IP cloud
service
x100M users
(11 years)
2B
queries/mth
(15 years)
450M+
active users
(7 years)
5B conf
min/yr
(6 years)
4B emails/day

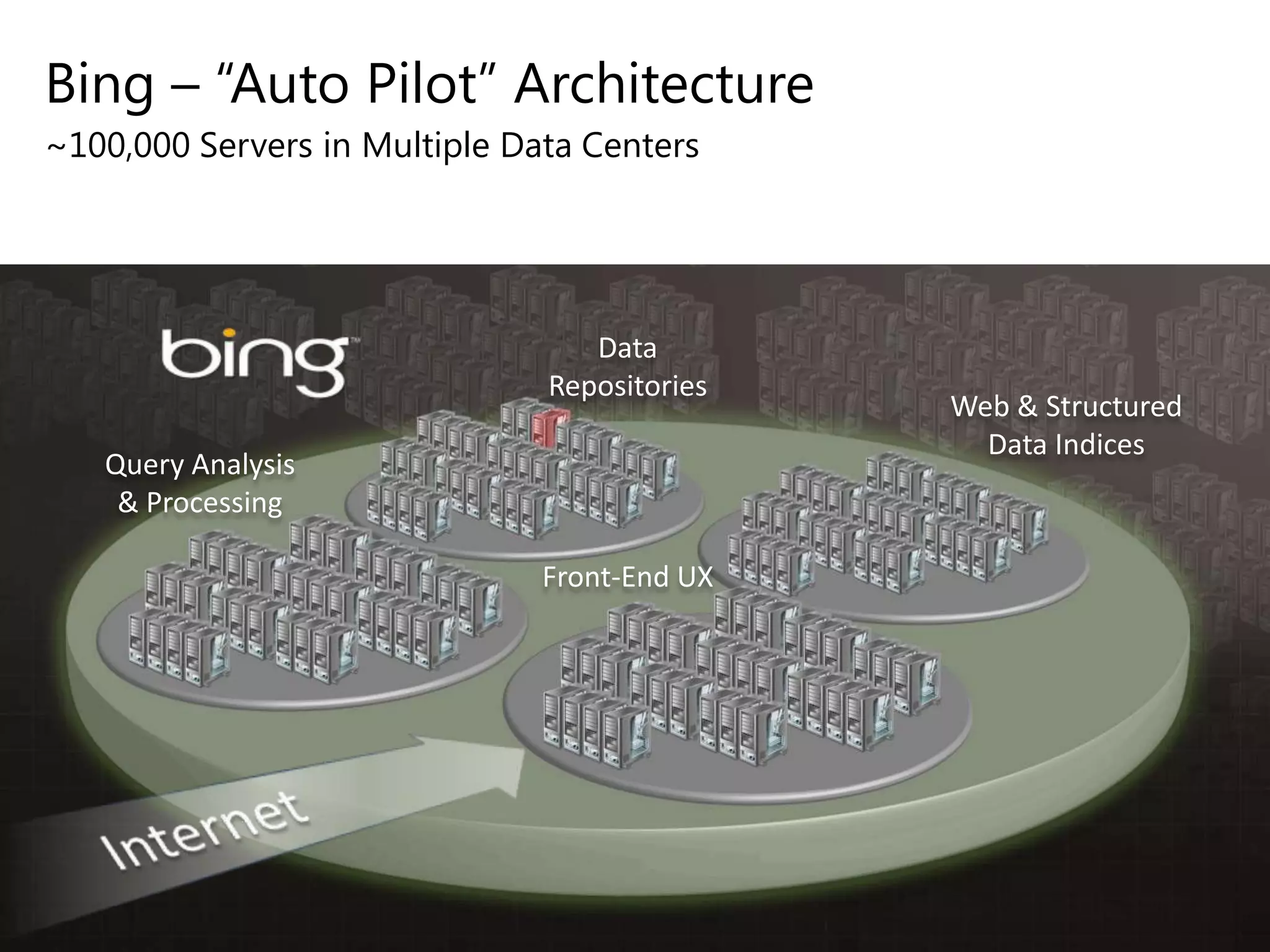

4. Bing – “Auto Pilot” Architecture
~100,000 Servers in Multiple Data Centers
Web & Structured
Data Indices

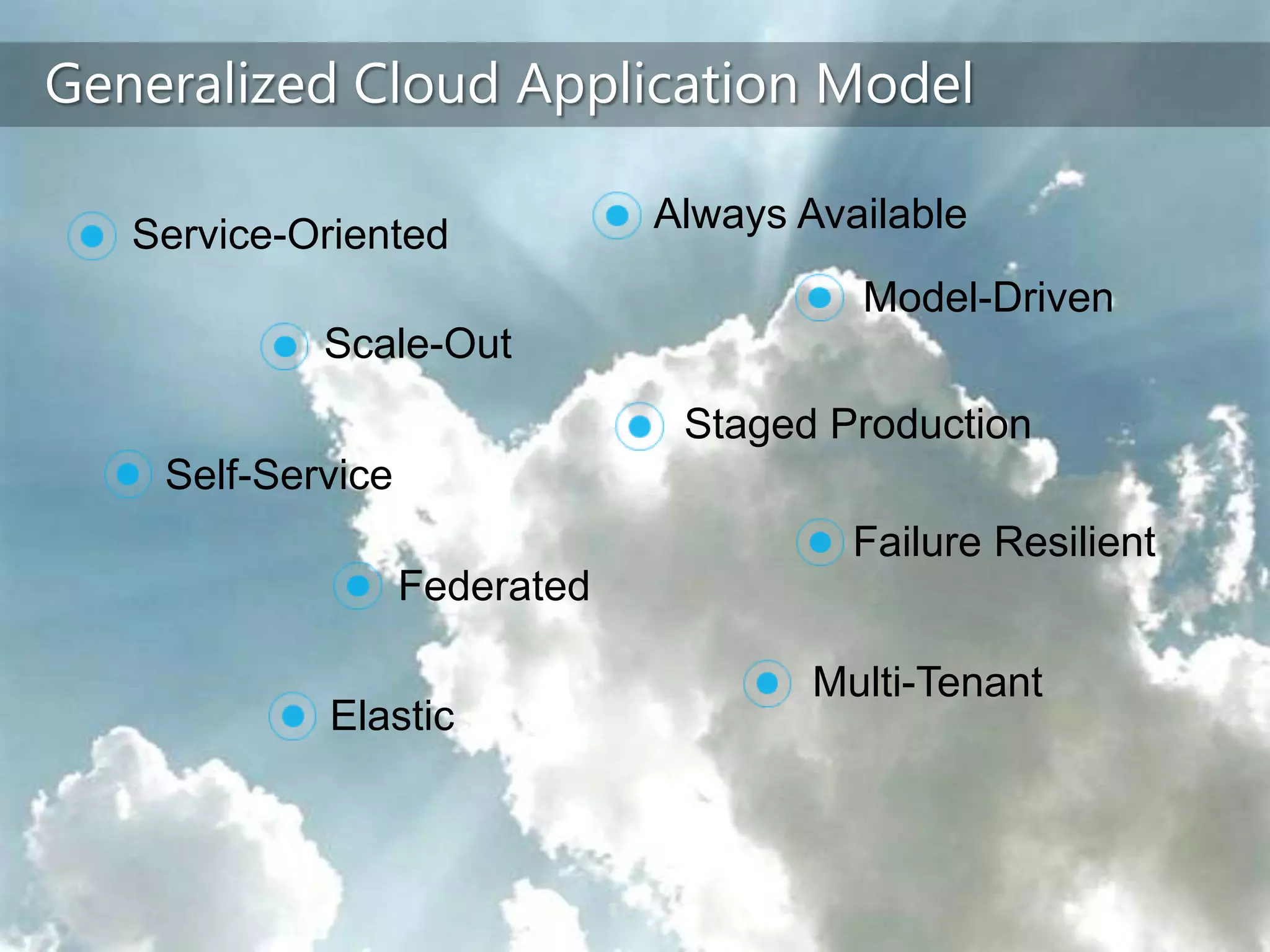

5. Generalized Cloud Application Model
Service-Oriented
Always Available
Model-Driven
Scale-Out
Staged Production
Self-Service
Failure Resilient
Federated
Elastic
Multi-Tenant

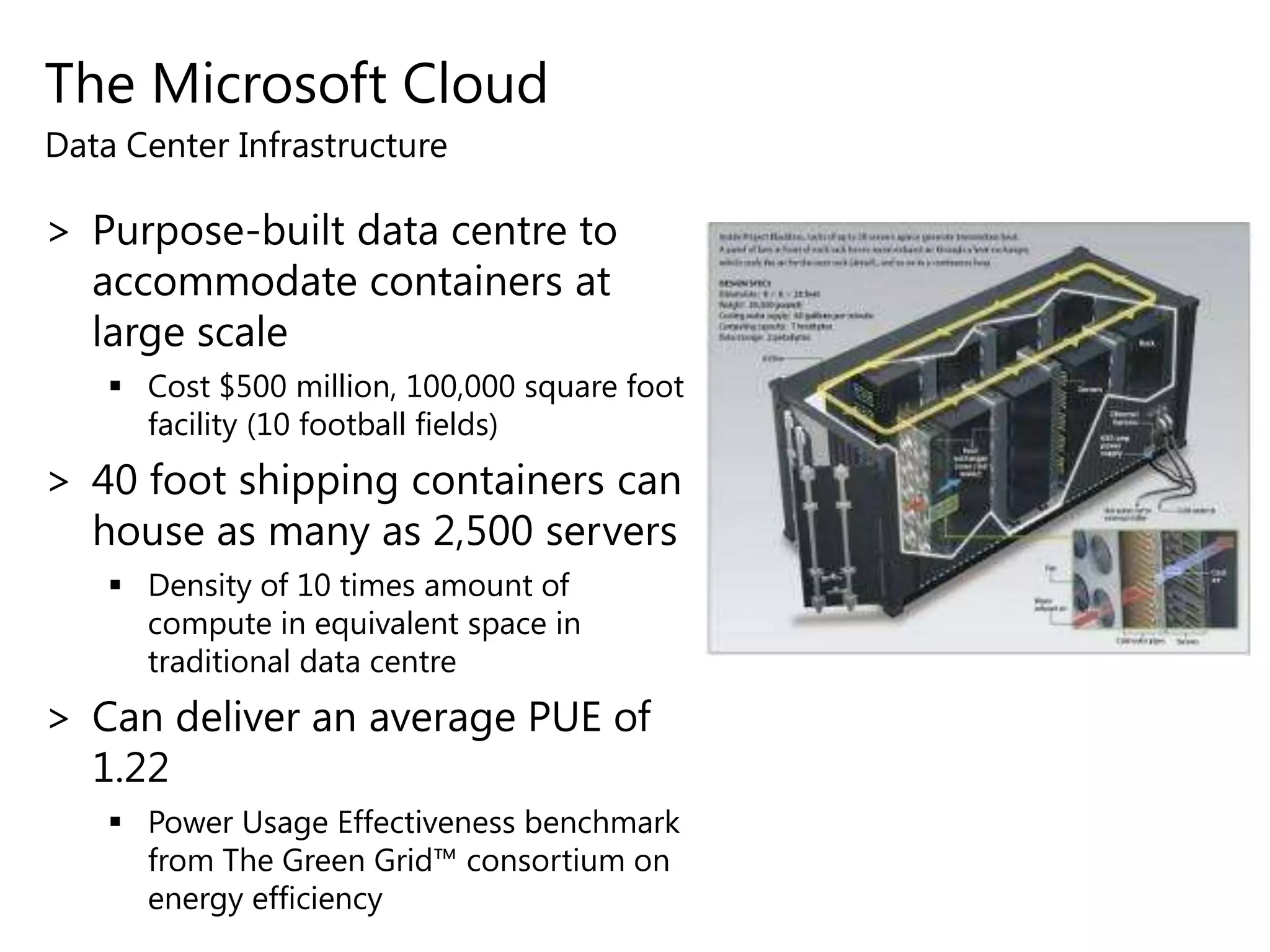

6. The Microsoft Cloud
Data Center Infrastructure
> Purpose-built data centre to
accommodate containers at
large scale
 Cost $500 million, 100,000 square foot
facility (10 football fields)
> 40 foot shipping containers can
house as many as 2,500 servers
 Density of 10 times amount of
compute in equivalent space in
traditional data centre
> Can deliver an average PUE of
1.22
 Power Usage Effectiveness benchmark
from The Green Grid™ consortium on
energy efficiency

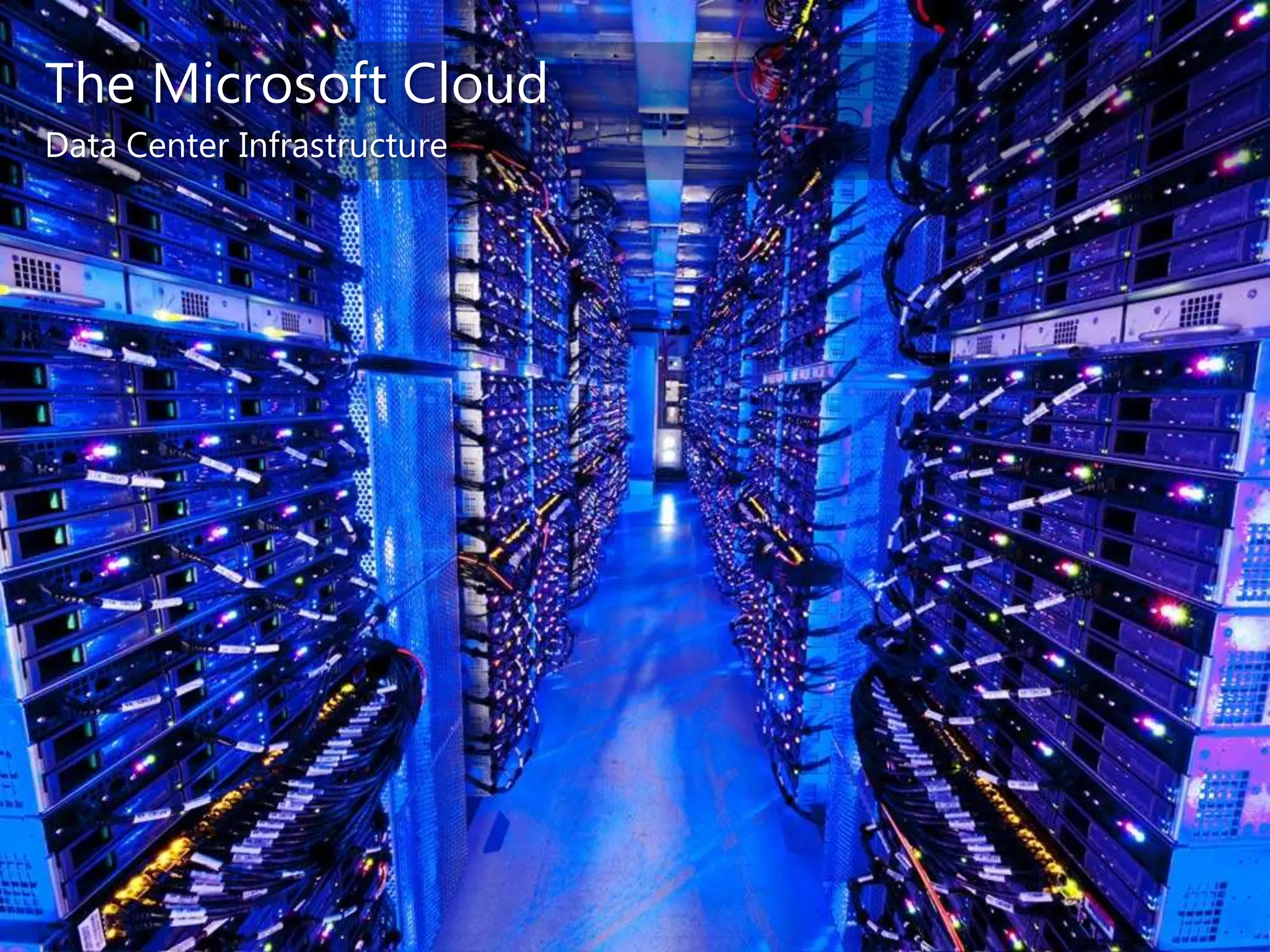

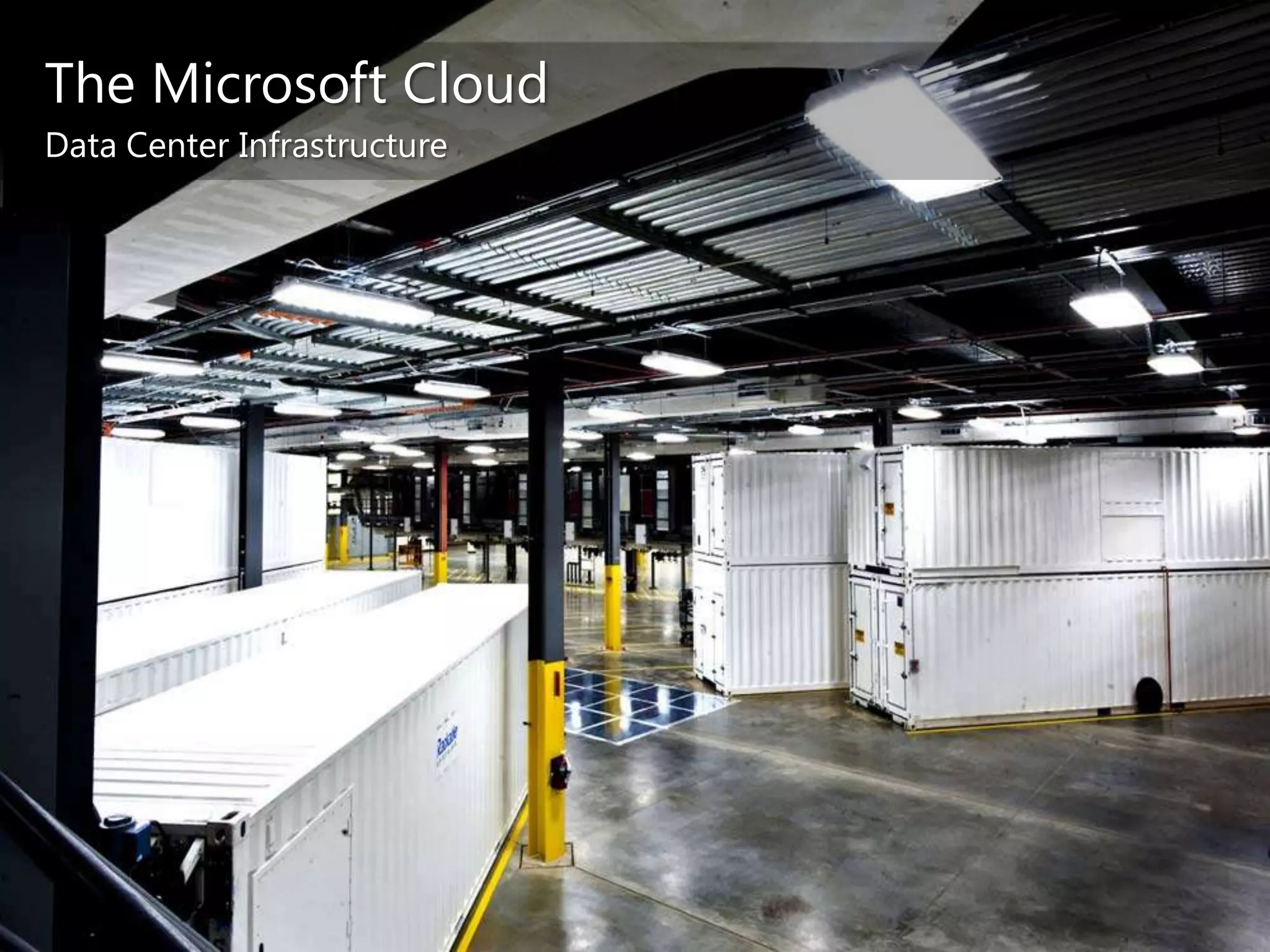

7. The Microsoft Cloud
Data Center Infrastructure

8. The Microsoft Cloud
Data Center Infrastructure

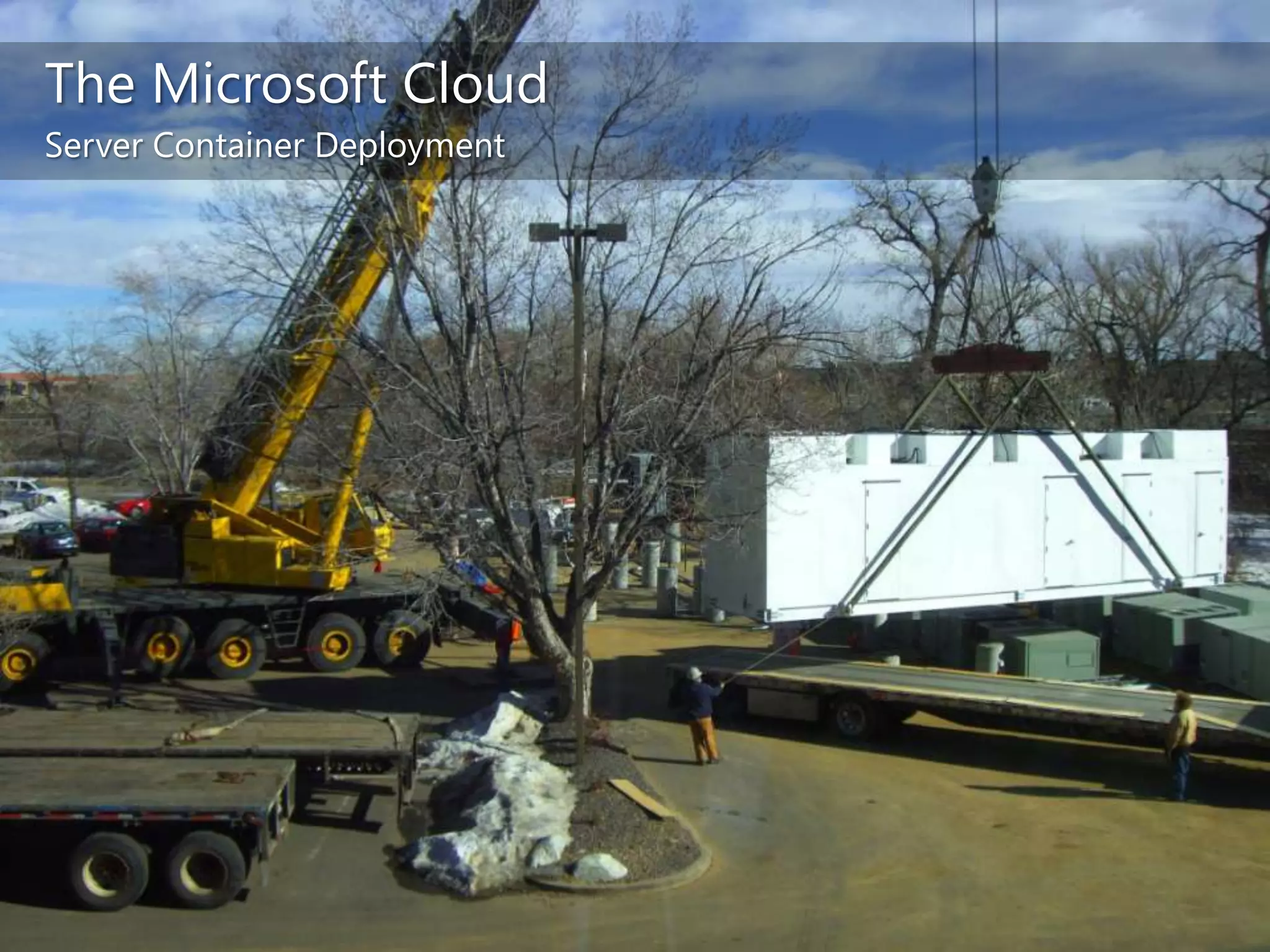

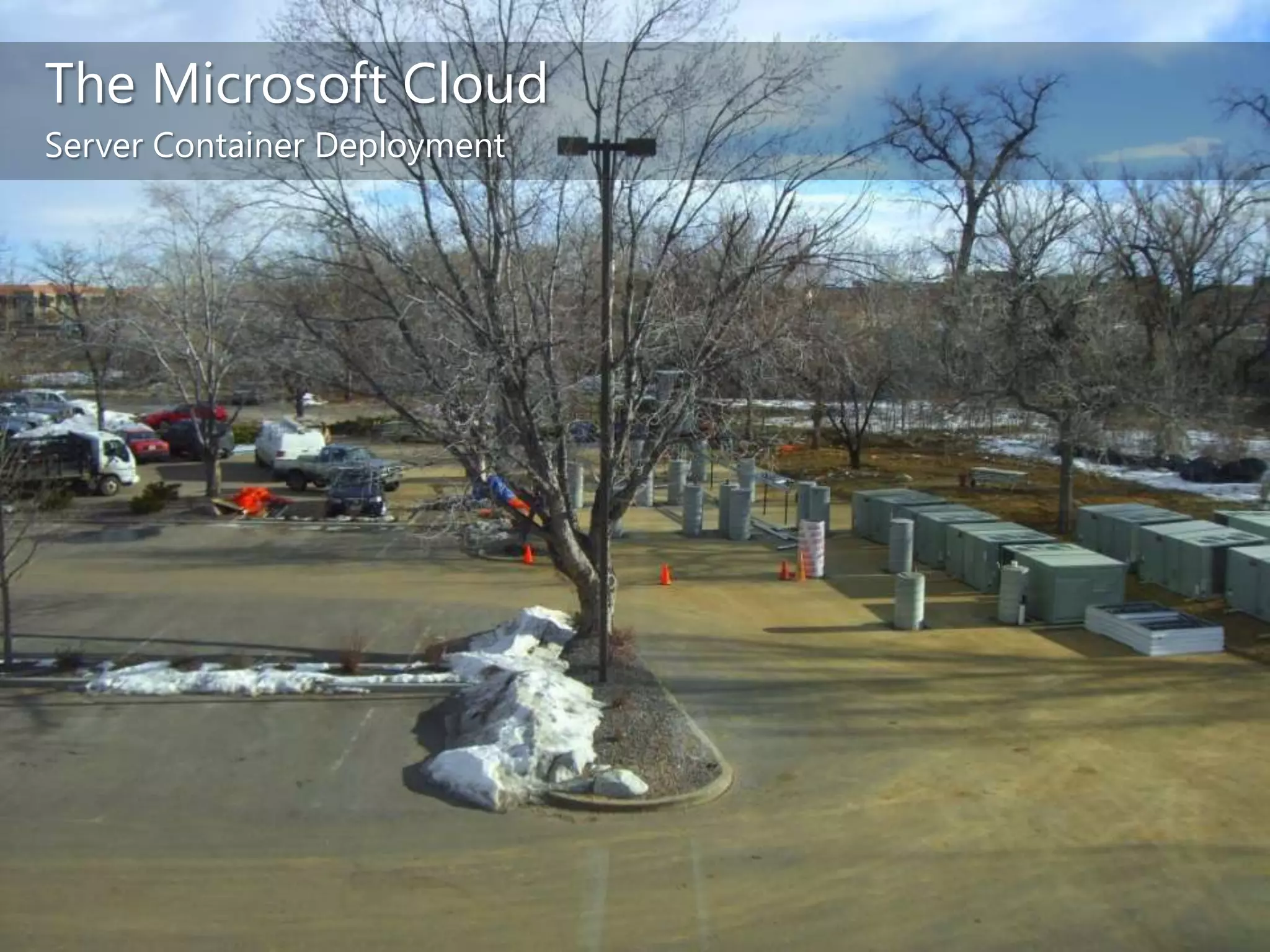

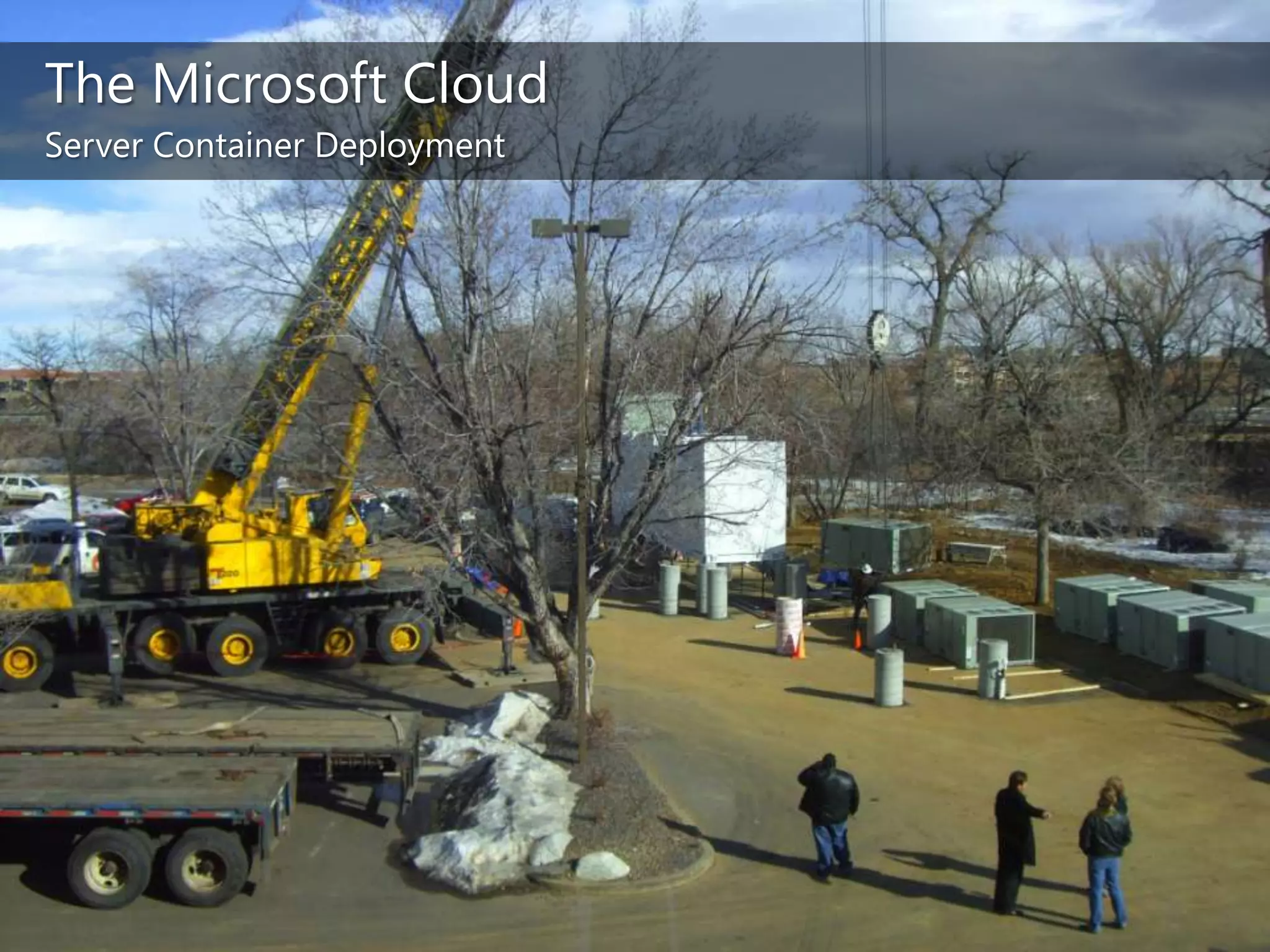

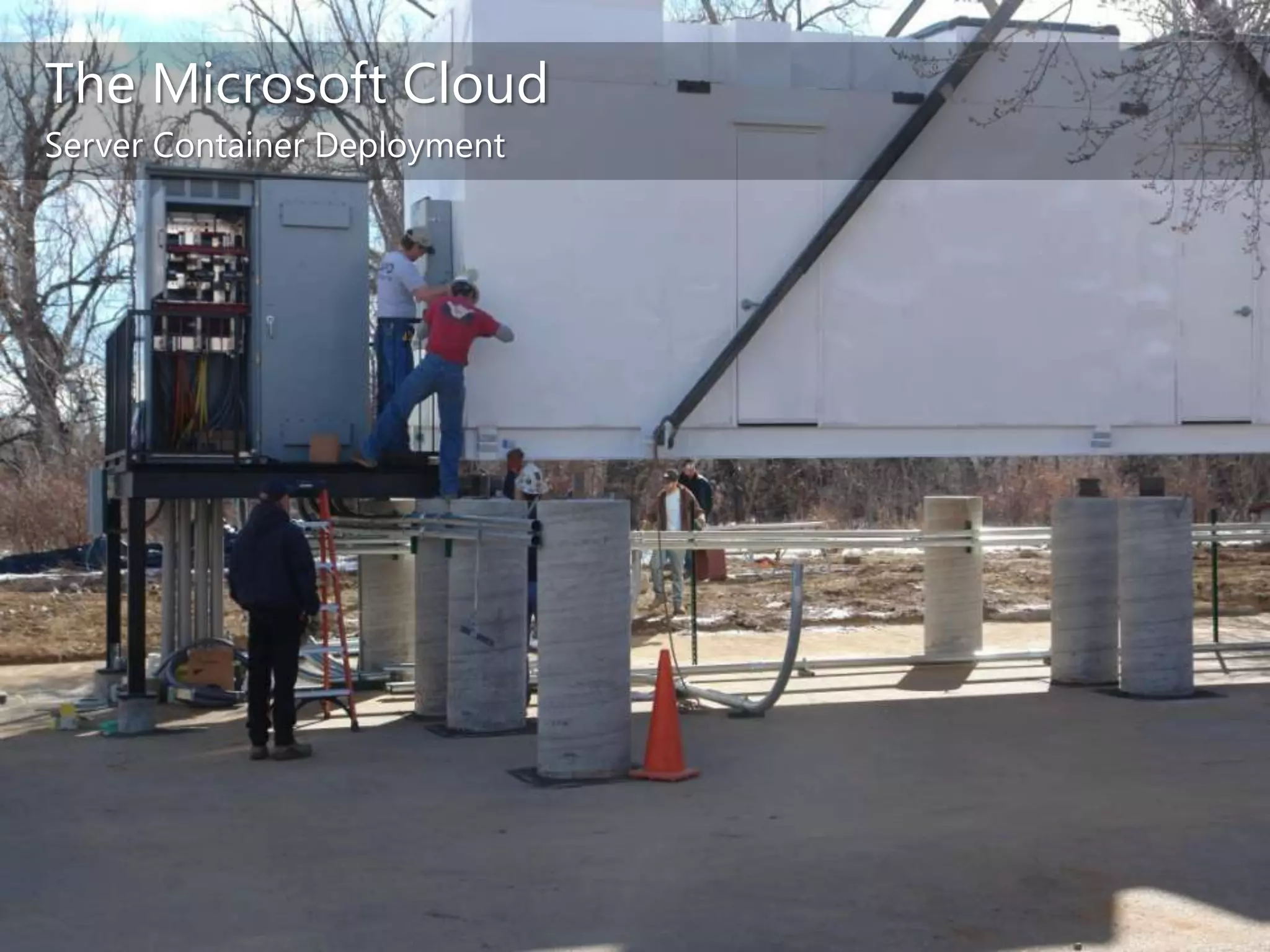

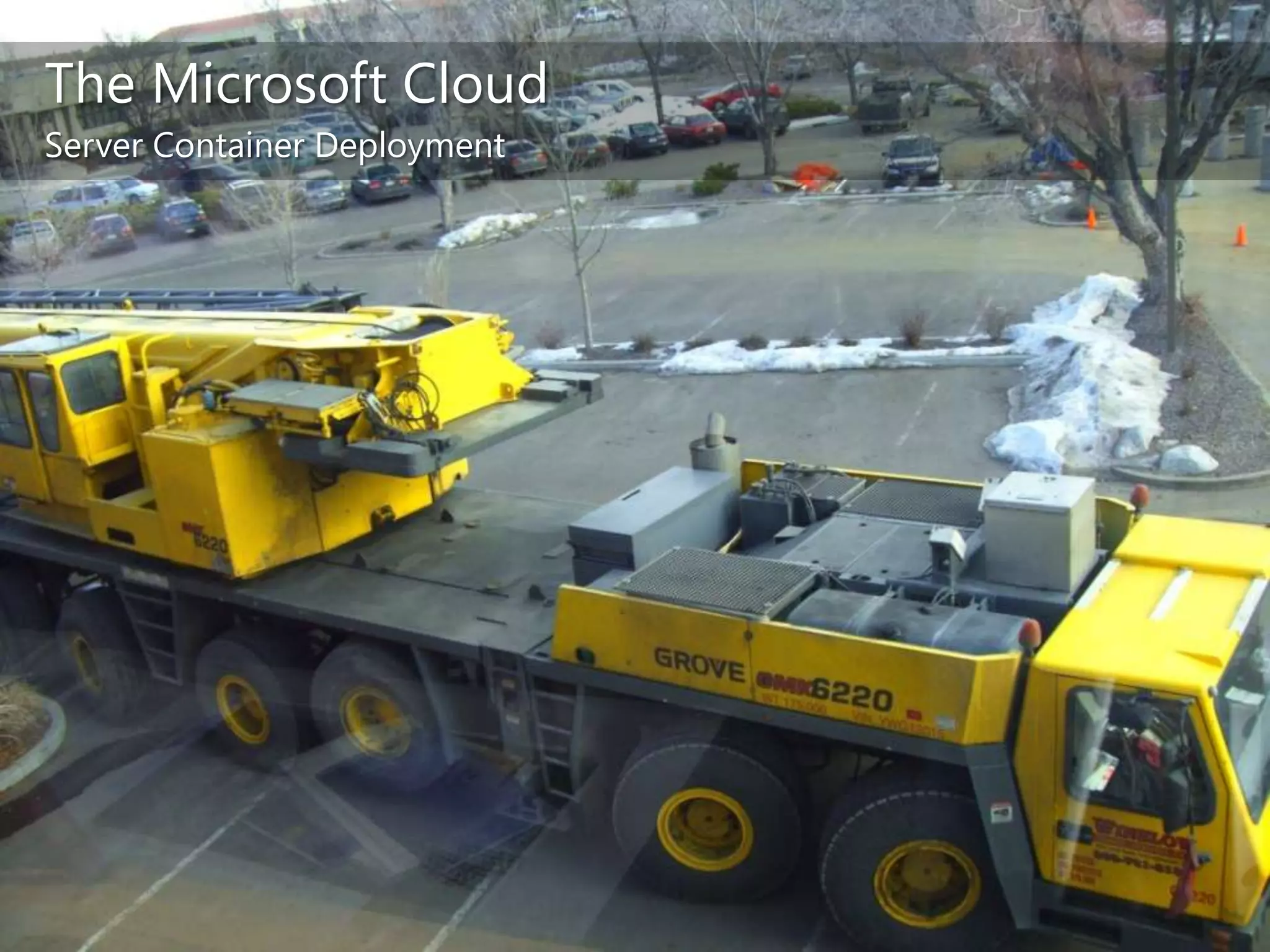

9. The Microsoft Cloud

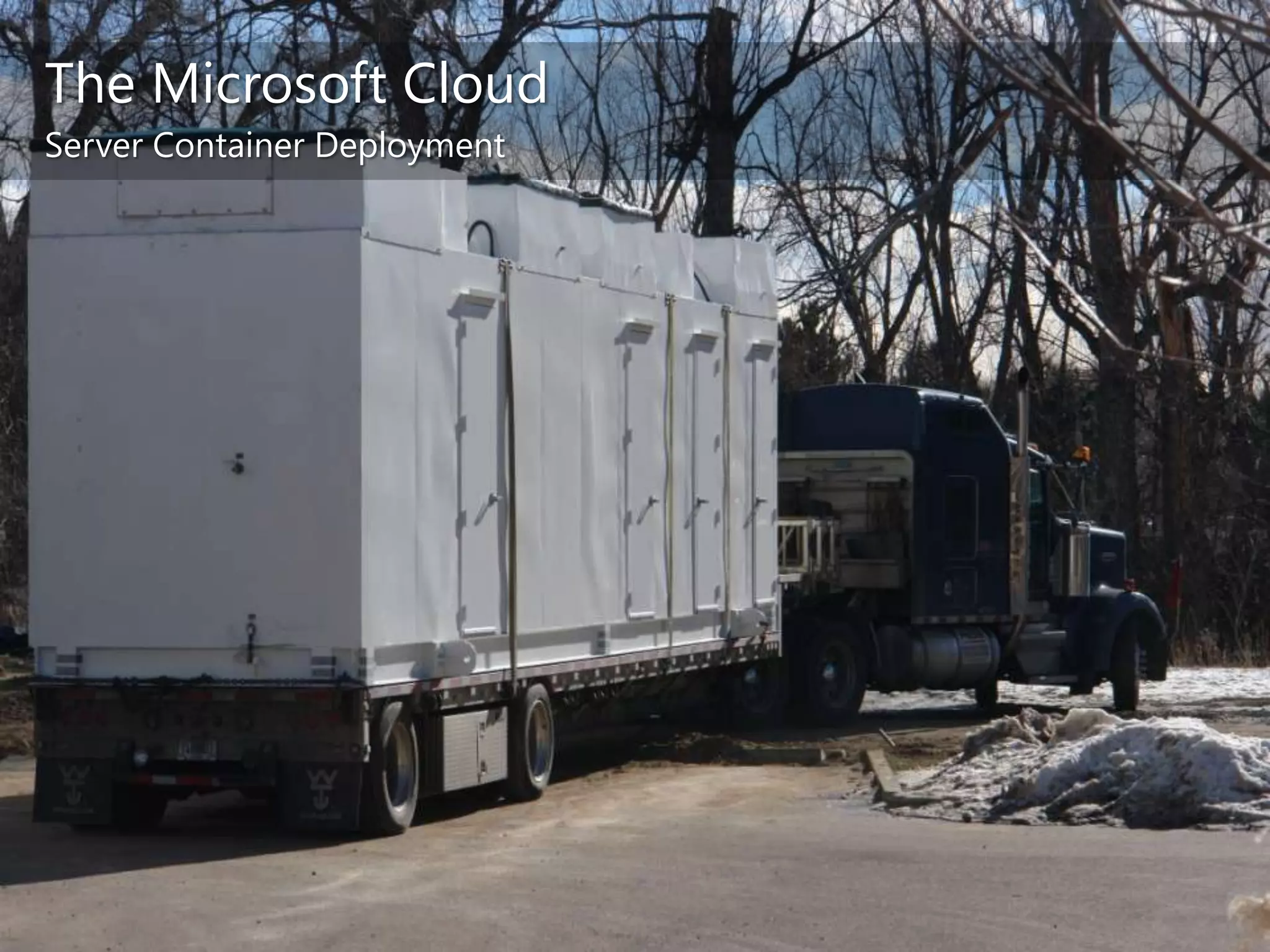

Server Container Deployment

10. The Microsoft Cloud
Server Container Deployment

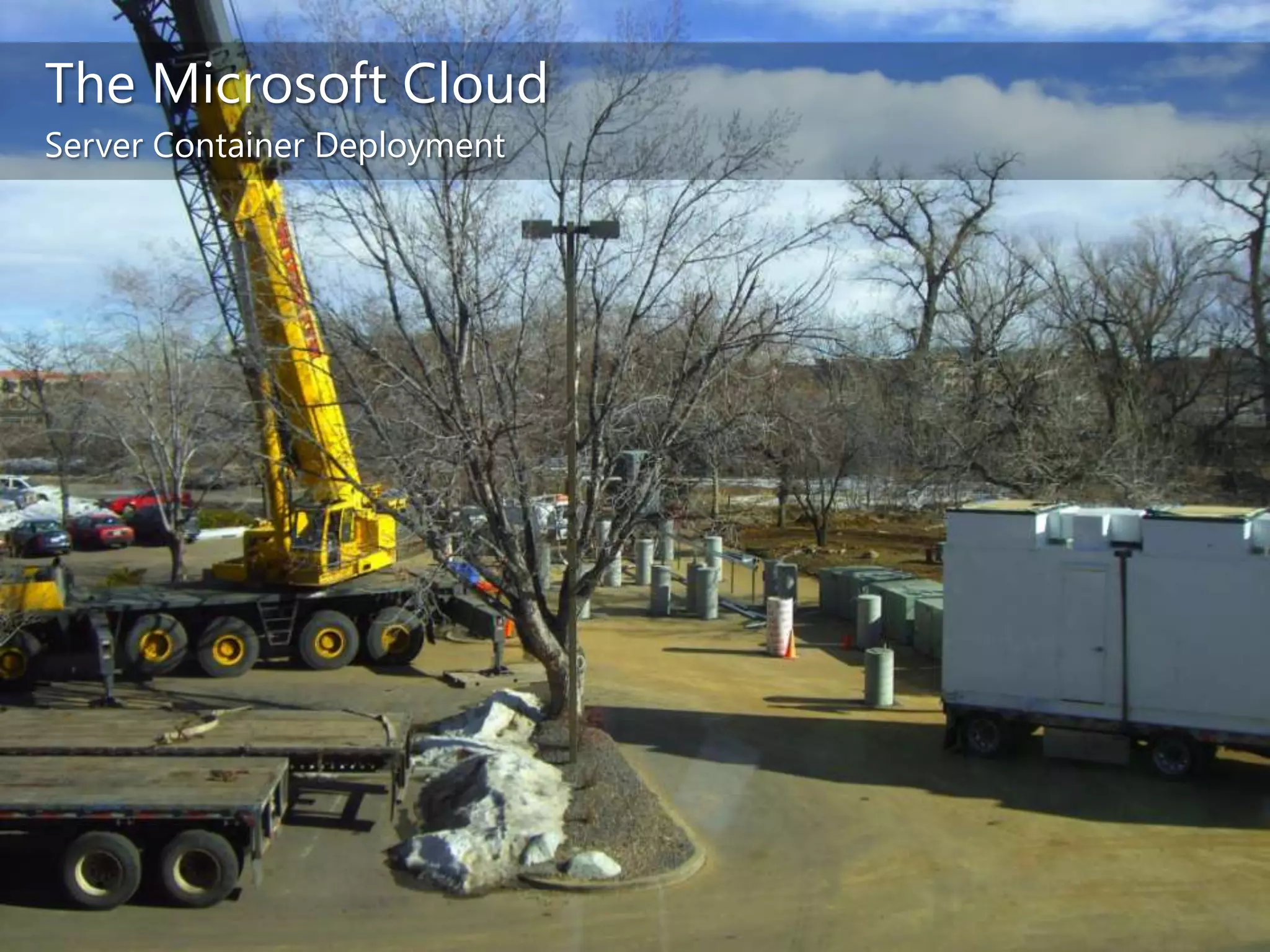

11. The Microsoft Cloud
Server Container Deployment

12. The Microsoft Cloud
Server Container Deployment

13. The Microsoft Cloud
Server Container Deployment

14. The Microsoft Cloud
Server Container Deployment

15. The Microsoft Cloud
Server Container Deployment

16. The Microsoft Cloud
~100 Globally Distributed Data Centers
Quincy, WA
Chicago, IL
San Antonio, TX
Dublin, Ireland
Generation 4 DCs

17. The Microsoft Cloud

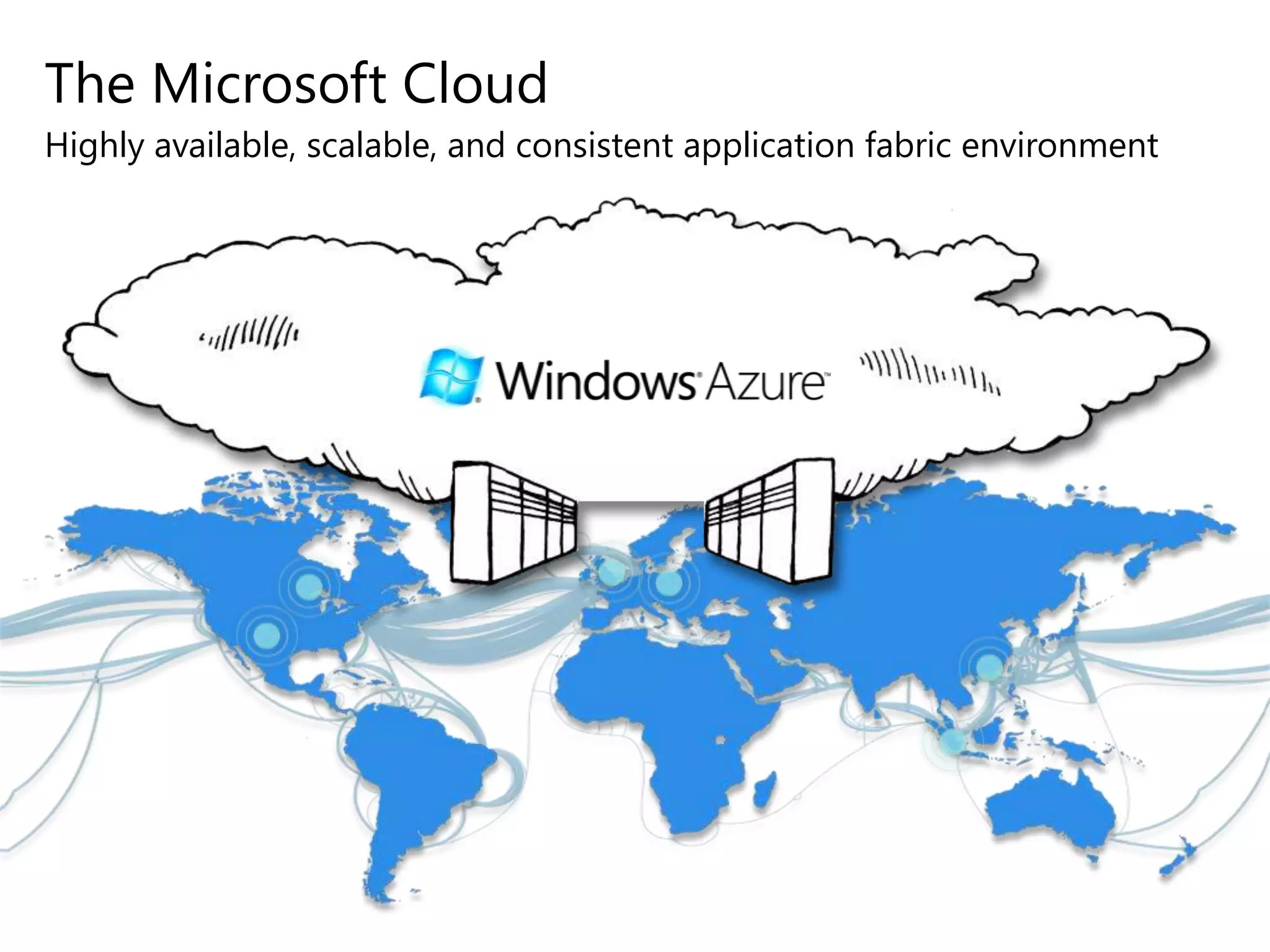

Highly available, scalable, and consistent application fabric environment

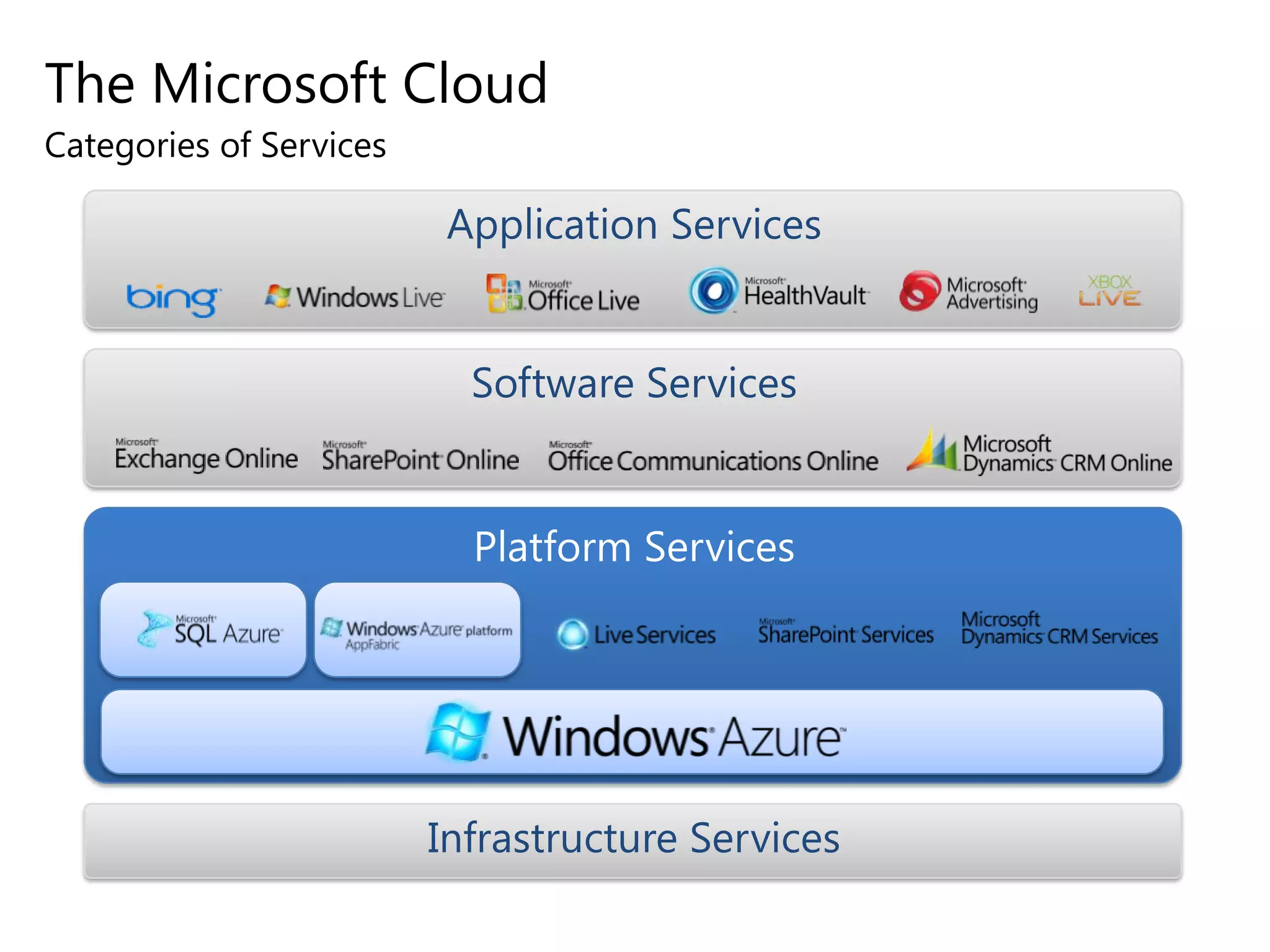

18. The Microsoft Cloud
Categories of Services
Application Services
Software Services
Platform Services
Infrastructure Services

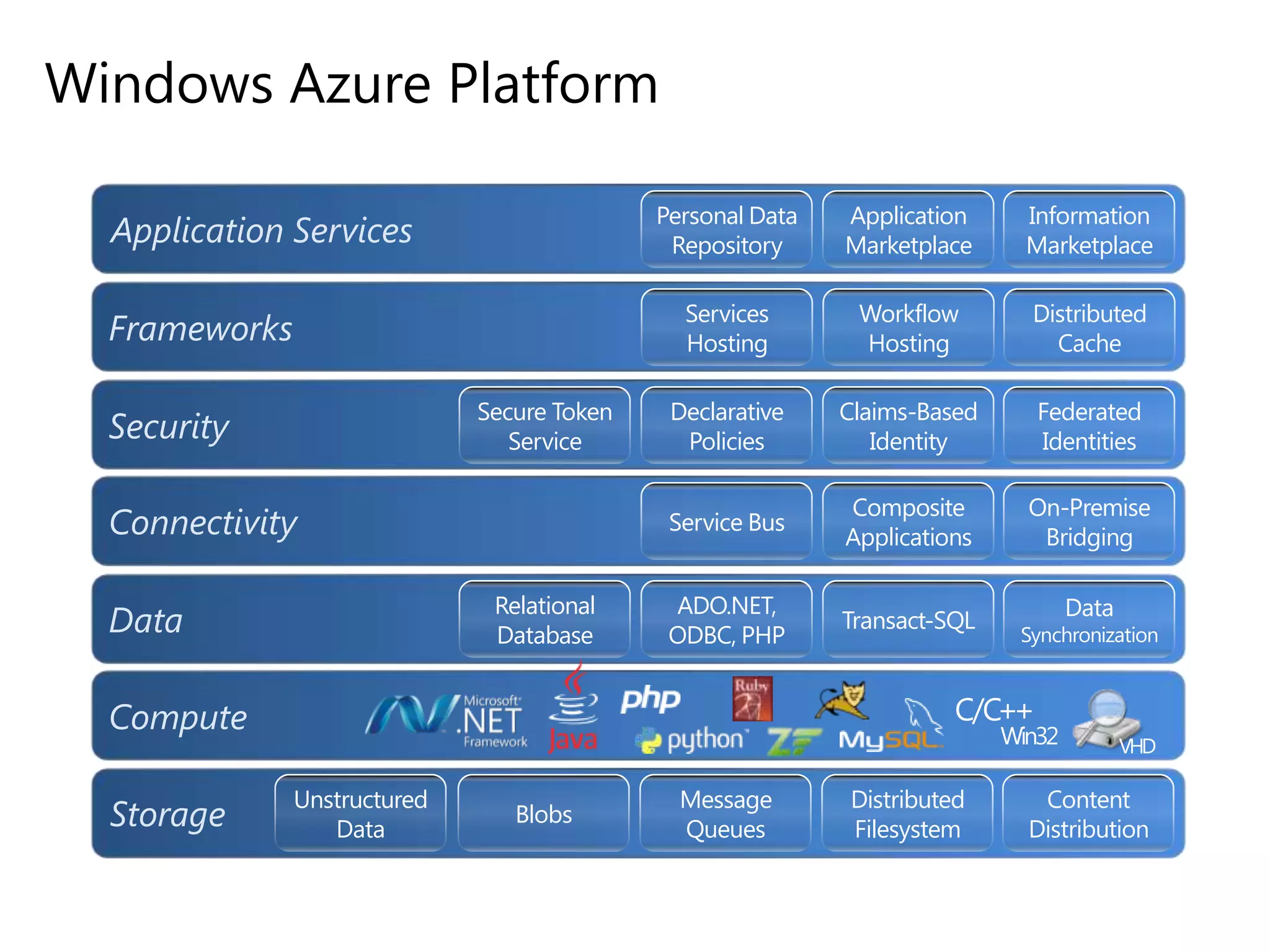

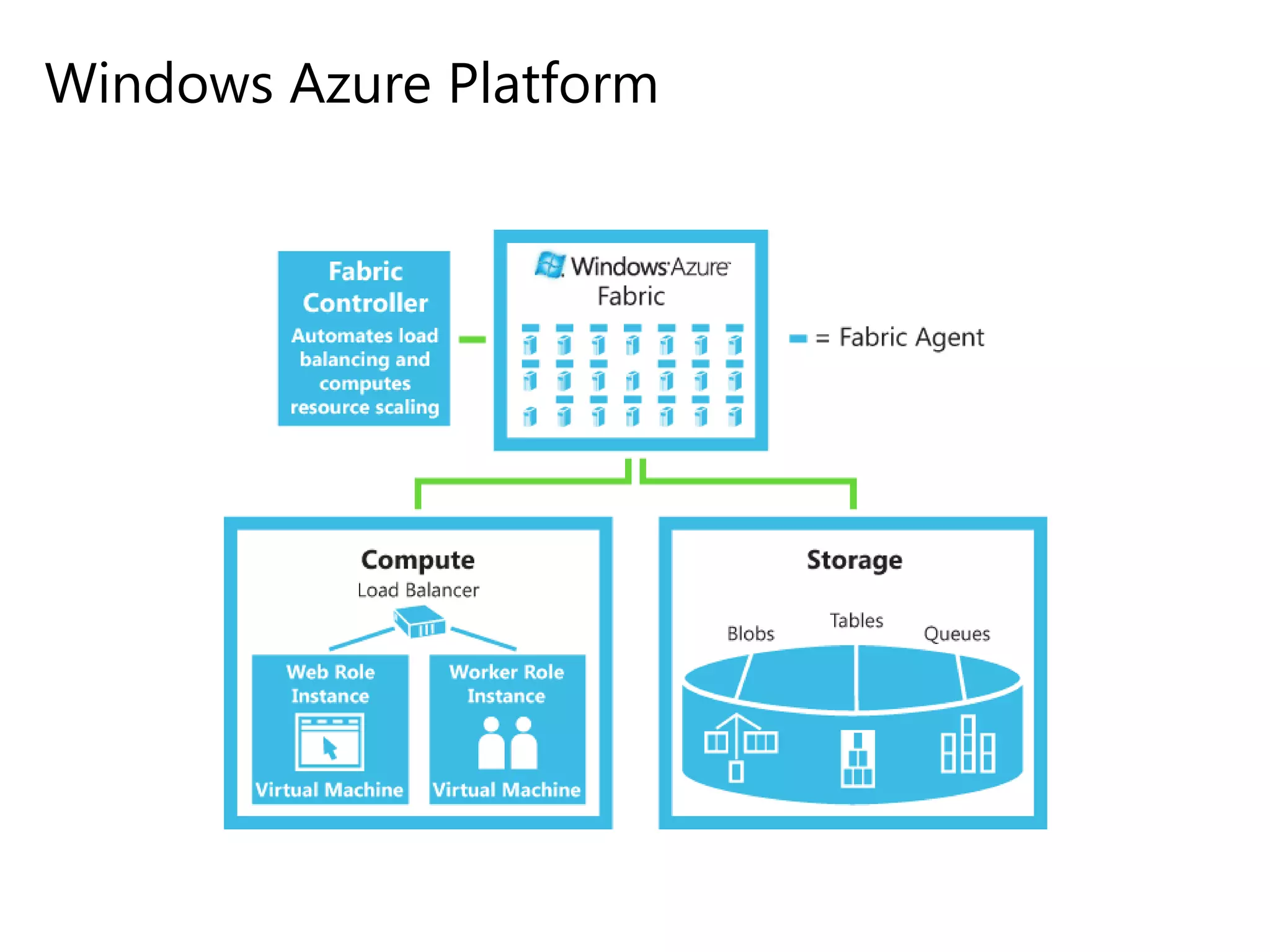

19. Windows Azure Platform
Personal Data
Repository
Secure Token
Service
Security
Connectivity
Relational
Database
Data
Information
Marketplace
Workflow
Hosting
Distributed
Cache
Declarative
Policies
Claims-Based
Identity
Federated
Identities
Service Bus
Frameworks
Application
Marketplace
Services
Hosting
Application Services
Composite
Applications
On-Premise
Bridging
ADO.NET,
ODBC, PHP
Transact-SQL
Synchronization
C/C++
Compute
Storage
Data
Win32
Unstructured
Data
Blobs
Message
Queues
Distributed
Filesystem
VHD
Content
Distribution

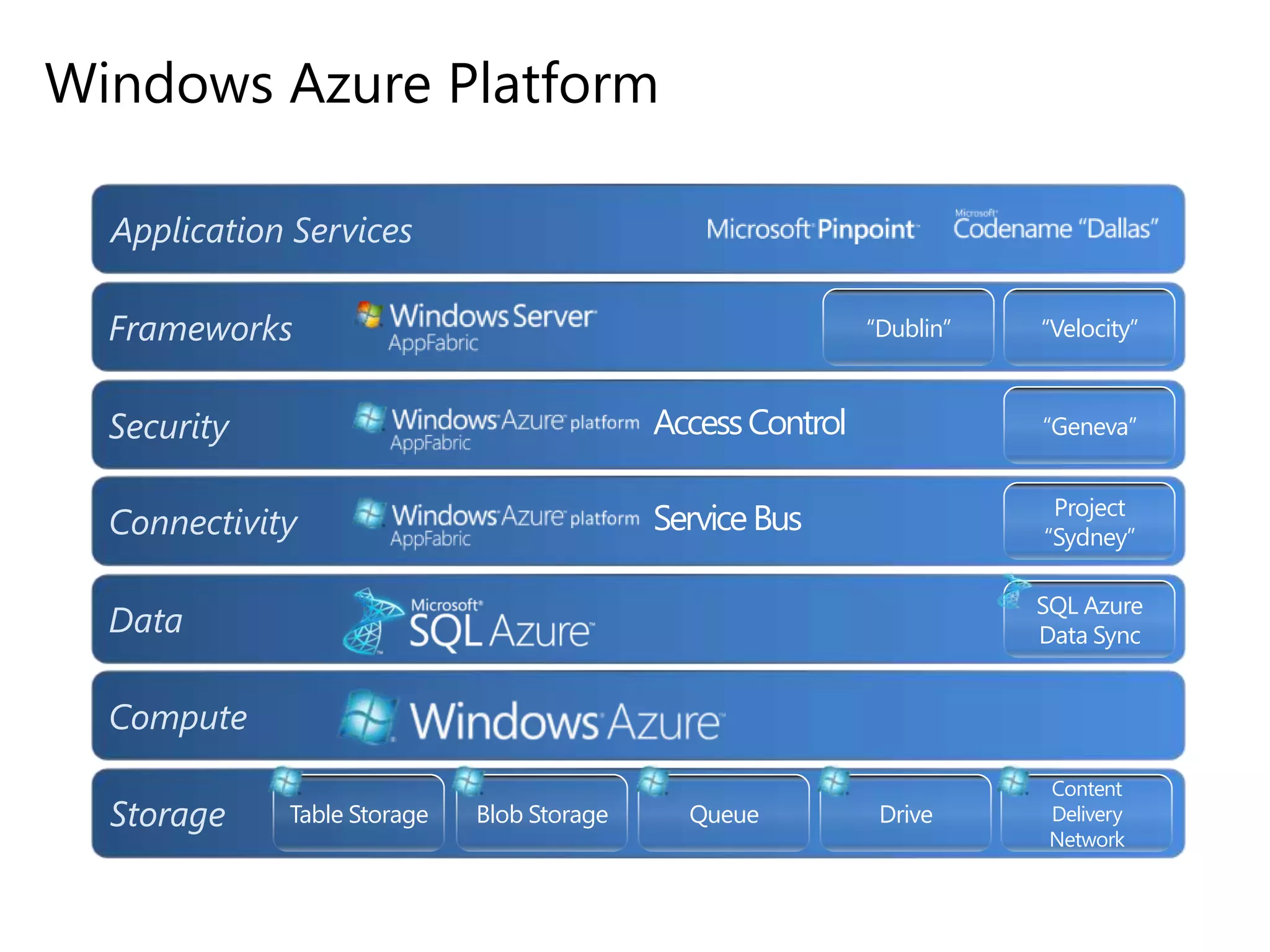

20. Windows Azure Platform
Application Services
Frameworks
“Dublin”
“Velocity”
Security
Access Control
“Geneva”
Connectivity
Service Bus
Project
“Sydney”
SQL Azure
Data Sync
Data
Compute
Storage
Table Storage
Blob Storage
Queue
Drive
Content
Delivery
Network

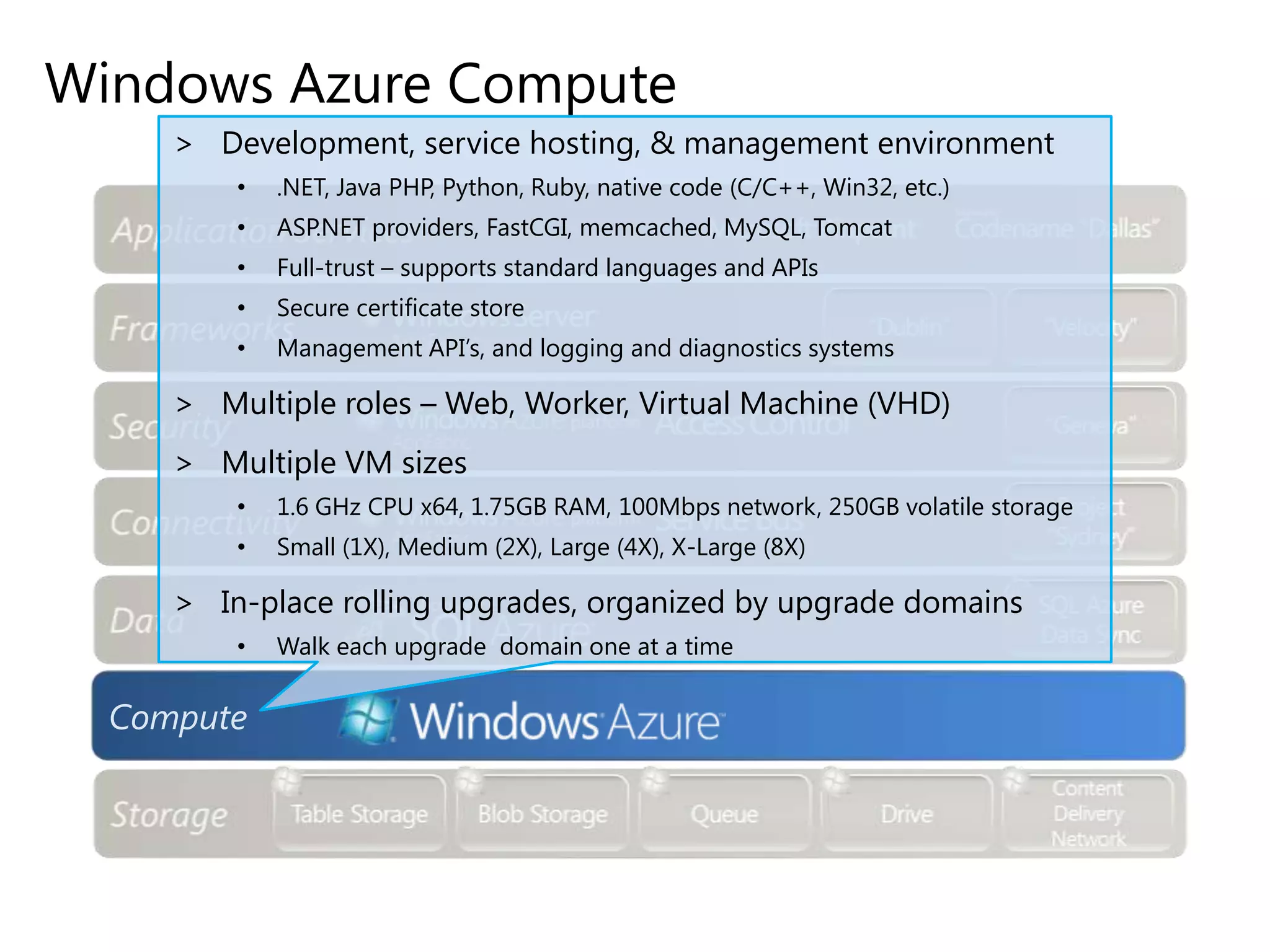

21. Windows Azure Compute
> Development, service hosting, & management environment
•
.NET, Java PHP, Python, Ruby, native code (C/C++, Win32, etc.)
•
ASP.NET providers, FastCGI, memcached, MySQL, Tomcat
•
Full-trust – supports standard languages and APIs
•
Secure certificate store
•
Management API‟s, and logging and diagnostics systems
> Multiple roles – Web, Worker, Virtual Machine (VHD)
> Multiple VM sizes
•
1.6 GHz CPU x64, 1.75GB RAM, 100Mbps network, 250GB volatile storage
•
Small (1X), Medium (2X), Large (4X), X-Large (8X)
> In-place rolling upgrades, organized by upgrade domains
•
Compute
Walk each upgrade domain one at a time

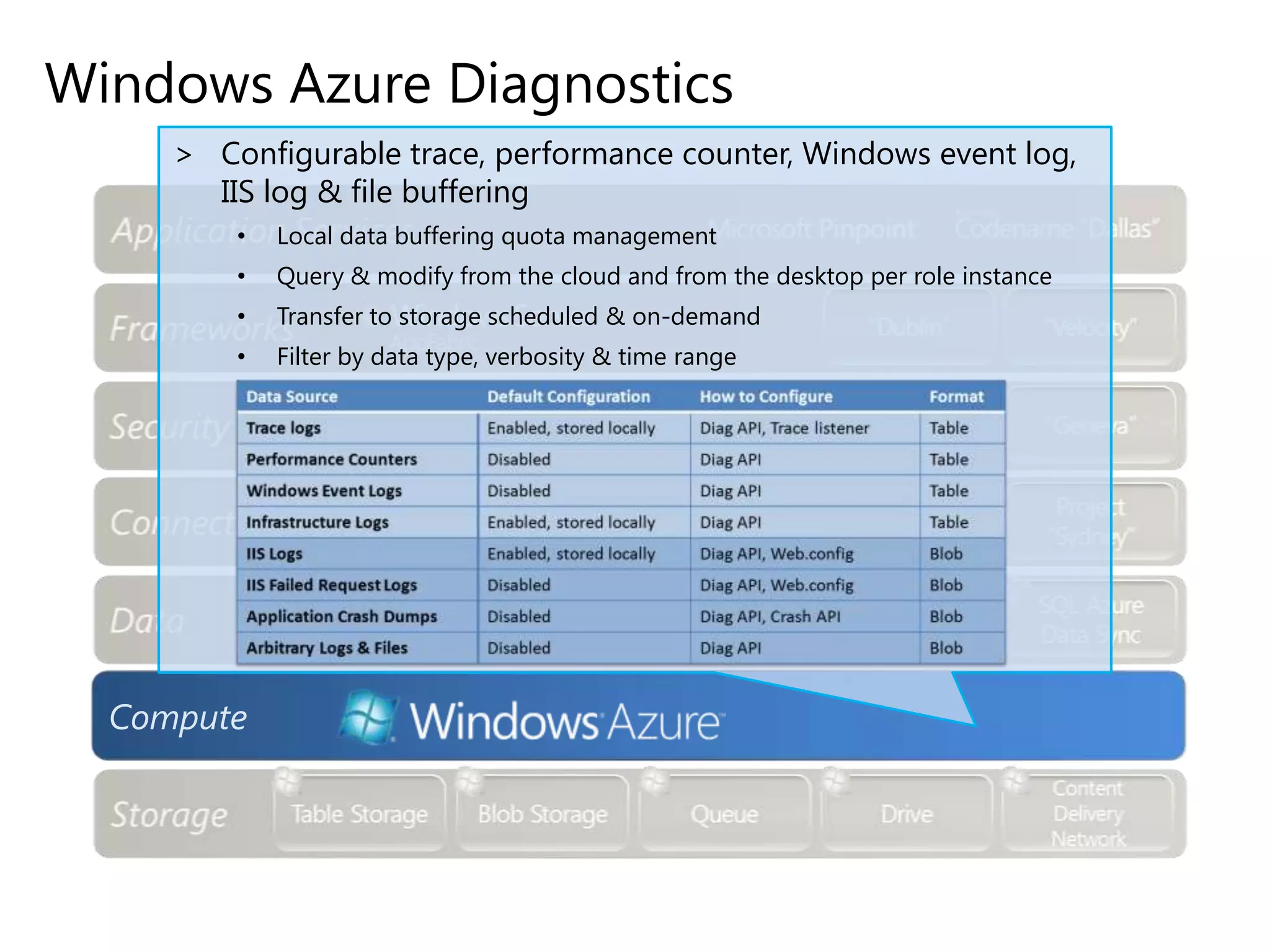

22. Windows Azure Diagnostics
> Configurable trace, performance counter, Windows event log,
IIS log & file buffering
•
Local data buffering quota management
•
Query & modify from the cloud and from the desktop per role instance
•
Transfer to storage scheduled & on-demand
•
Filter by data type, verbosity & time range
Compute

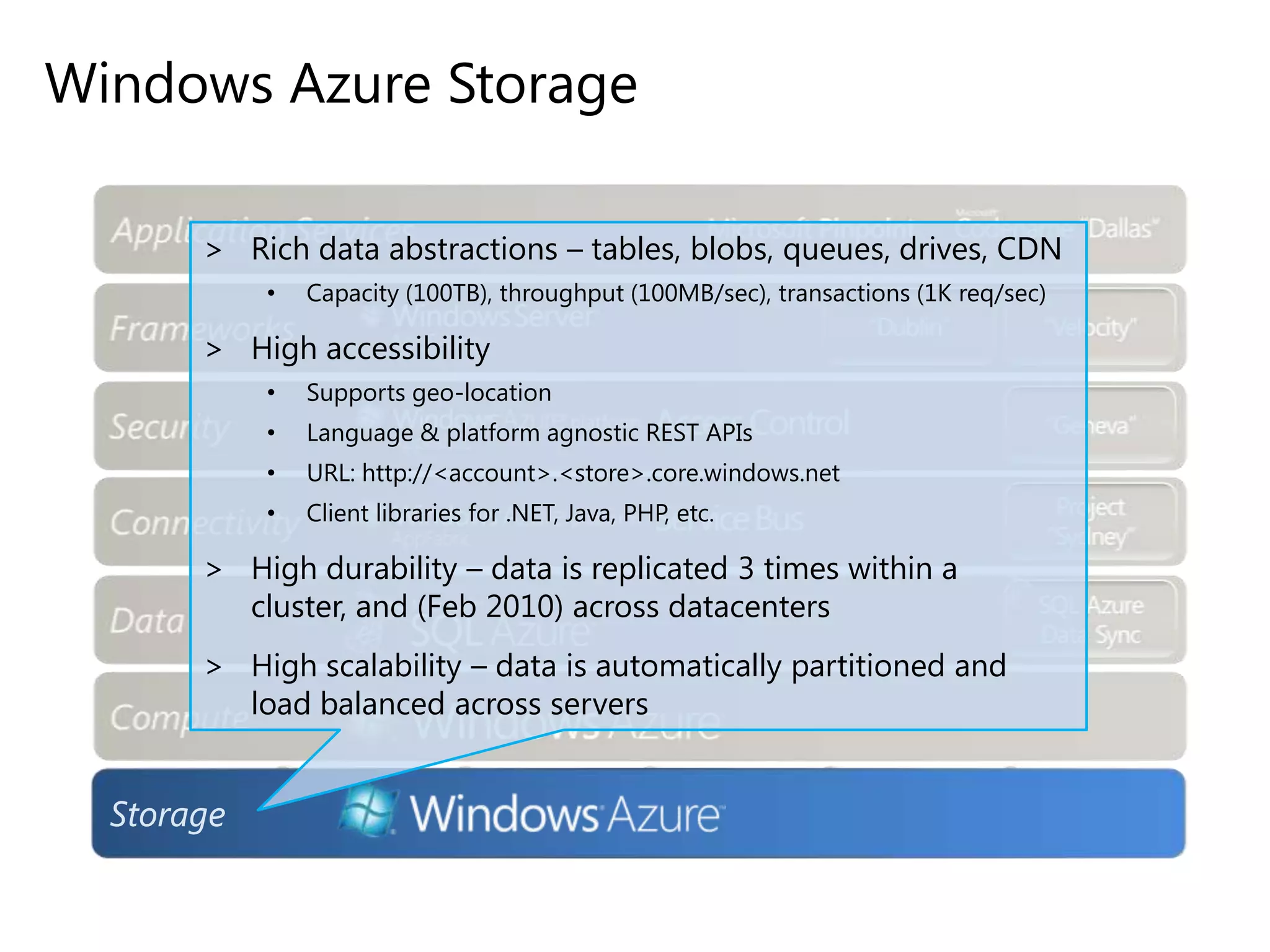

23. Windows Azure Storage
> Rich data abstractions – tables, blobs, queues, drives, CDN
•
Capacity (100TB), throughput (100MB/sec), transactions (1K req/sec)
> High accessibility
•
Supports geo-location
•
Language & platform agnostic REST APIs
•
URL: http://<account>.<store>.core.windows.net
•
Client libraries for .NET, Java, PHP, etc.
> High durability – data is replicated 3 times within a
cluster, and (Feb 2010) across datacenters
> High scalability – data is automatically partitioned and
load balanced across servers
Storage

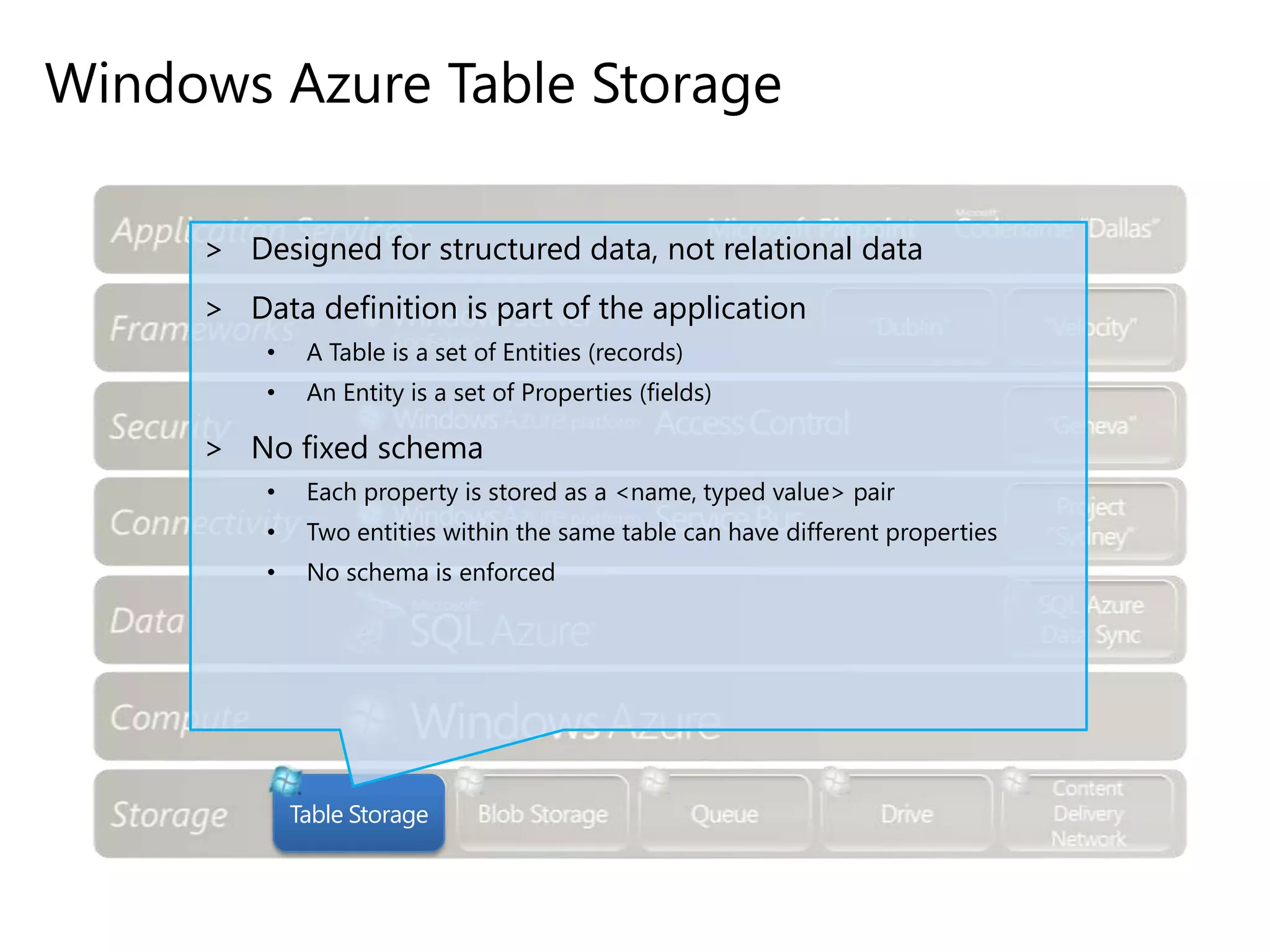

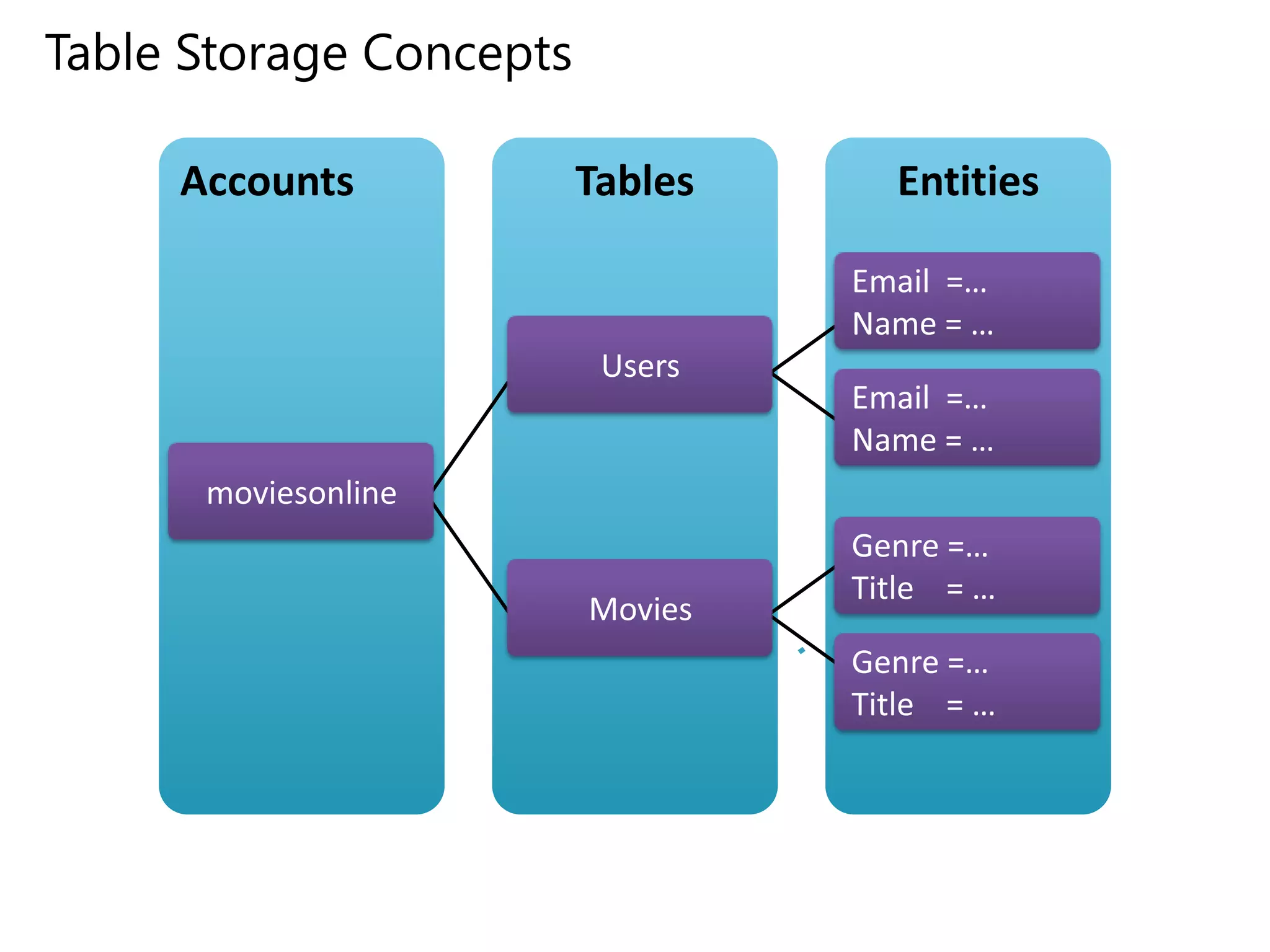

24. Windows Azure Table Storage
> Designed for structured data, not relational data
> Data definition is part of the application
•
A Table is a set of Entities (records)
•
An Entity is a set of Properties (fields)
> No fixed schema
•
Each property is stored as a <name, typed value> pair
•
Two entities within the same table can have different properties
•
No schema is enforced
Table Storage

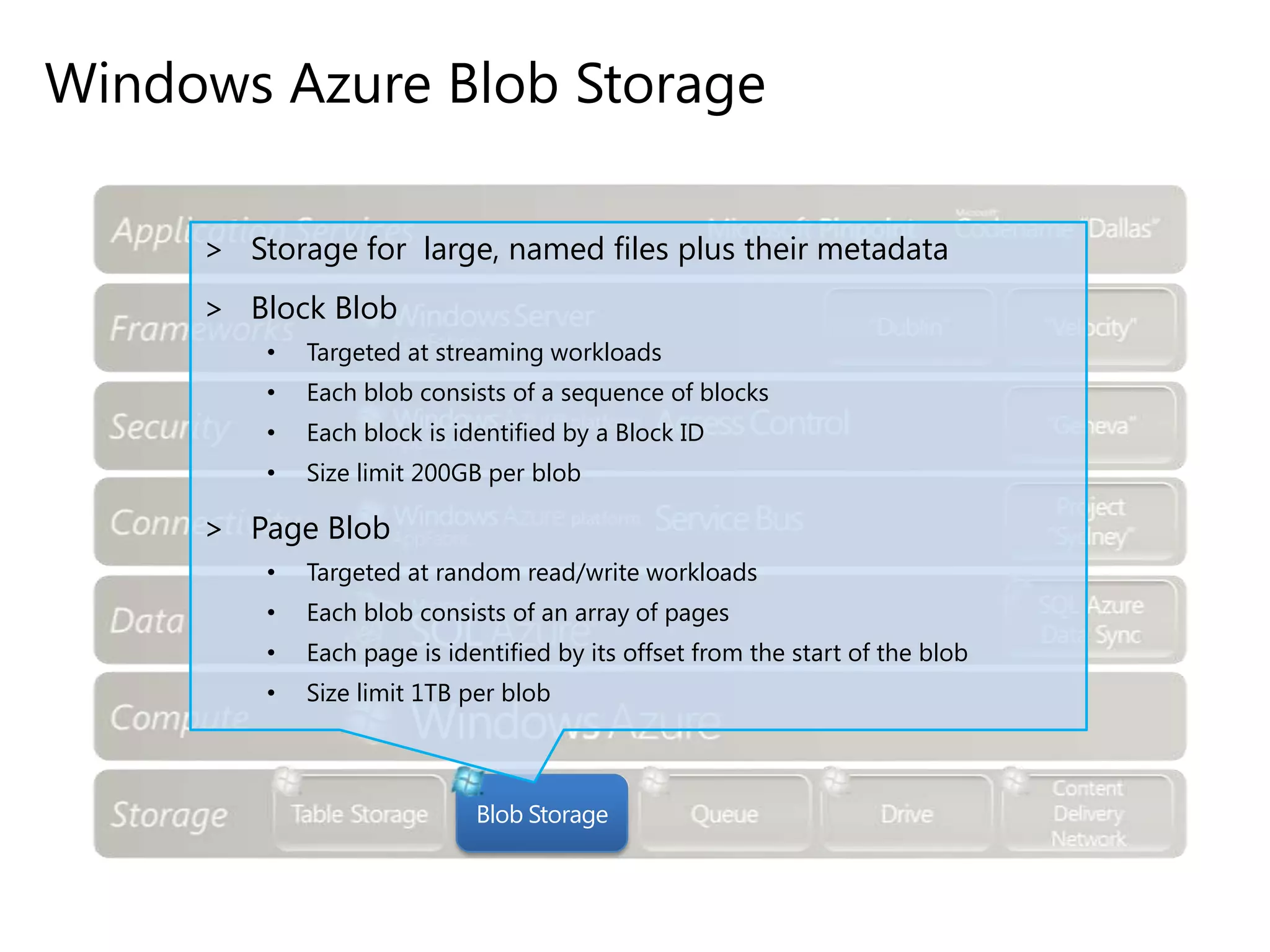

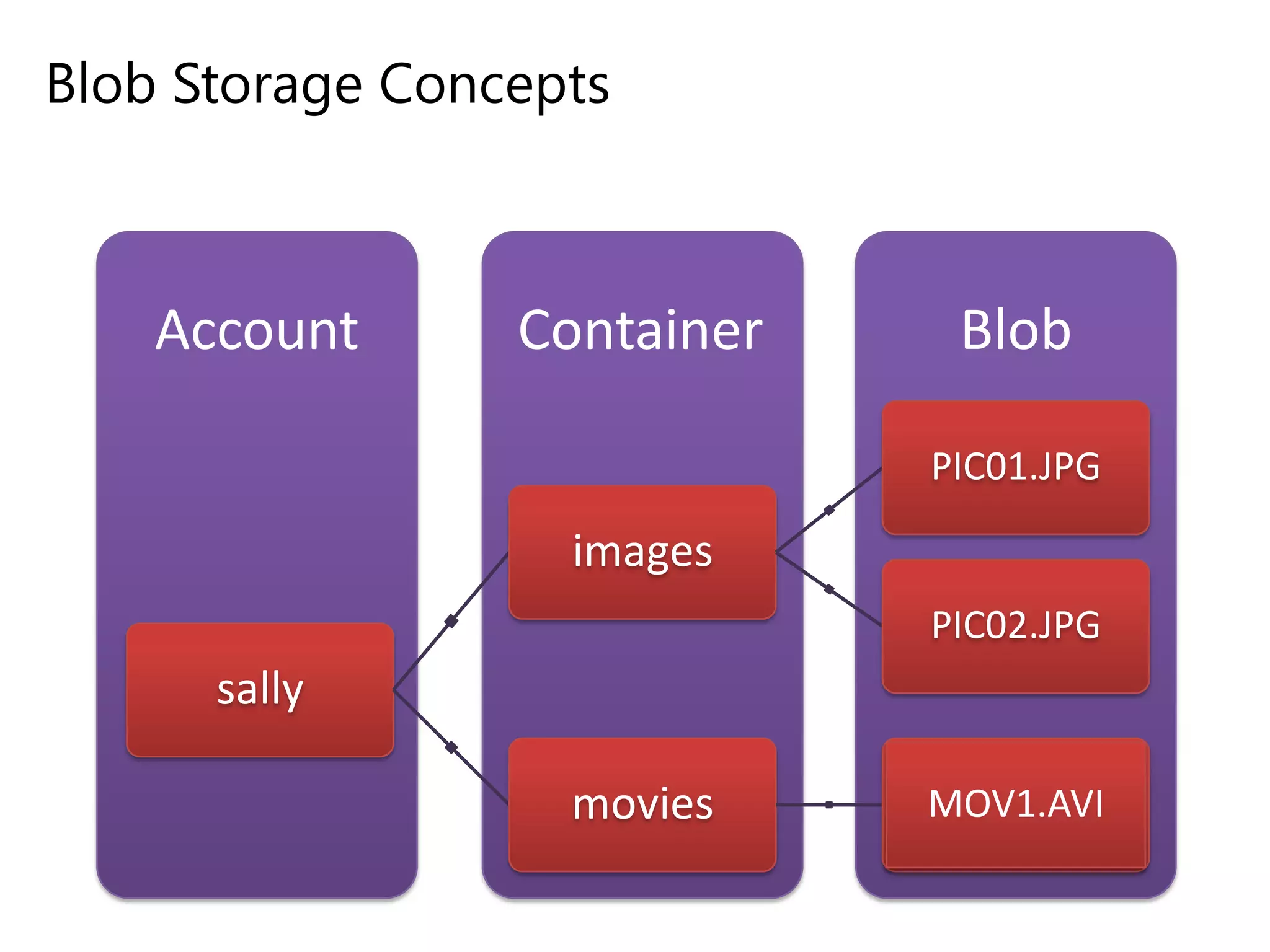

25. Windows Azure Blob Storage
> Storage for large, named files plus their metadata
> Block Blob
•
Targeted at streaming workloads
•
Each blob consists of a sequence of blocks
•
Each block is identified by a Block ID
•
Size limit 200GB per blob
> Page Blob
•
Targeted at random read/write workloads
•
Each blob consists of an array of pages
•
Each page is identified by its offset from the start of the blob
•
Size limit 1TB per blob
Blob Storage

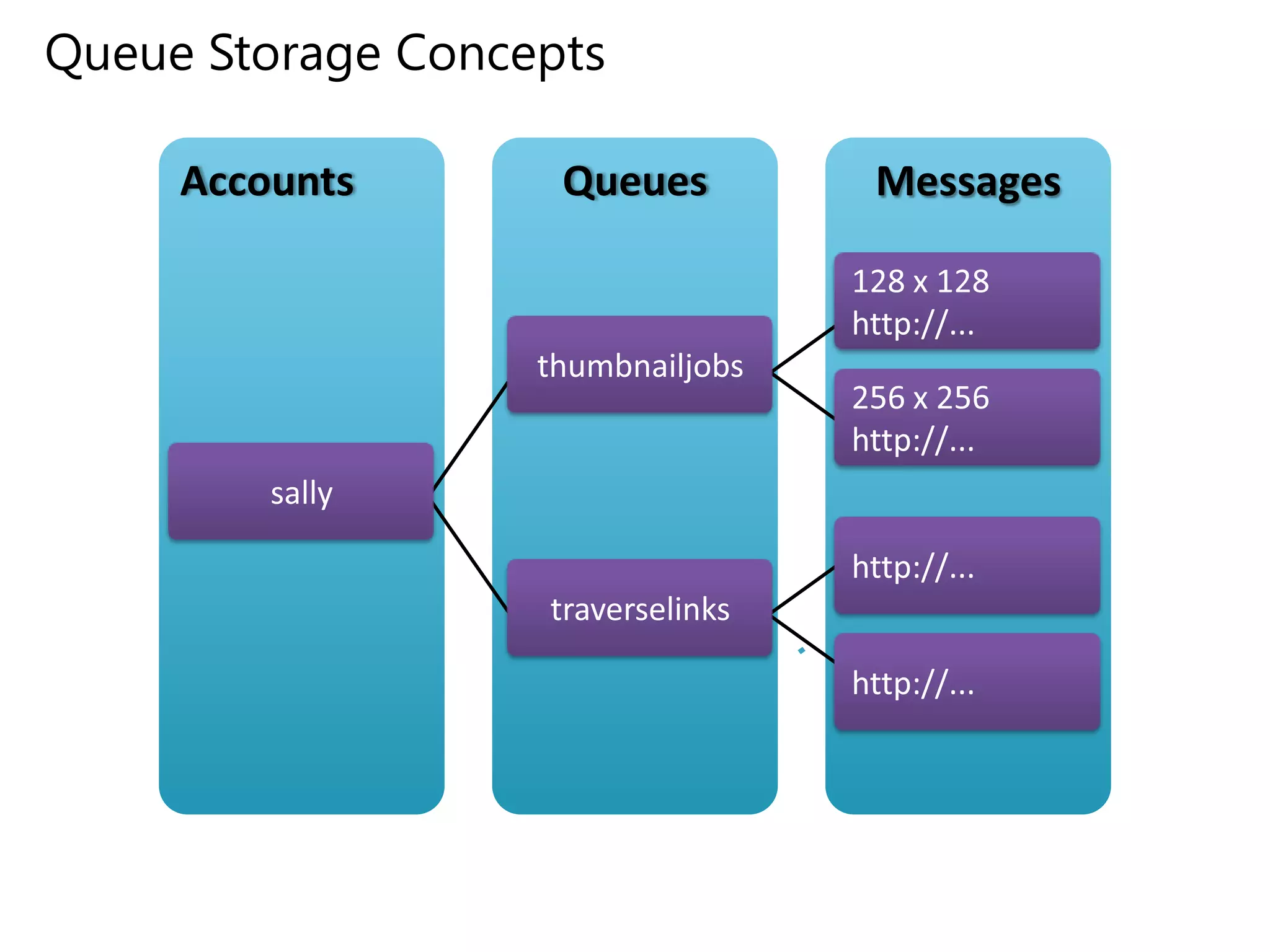

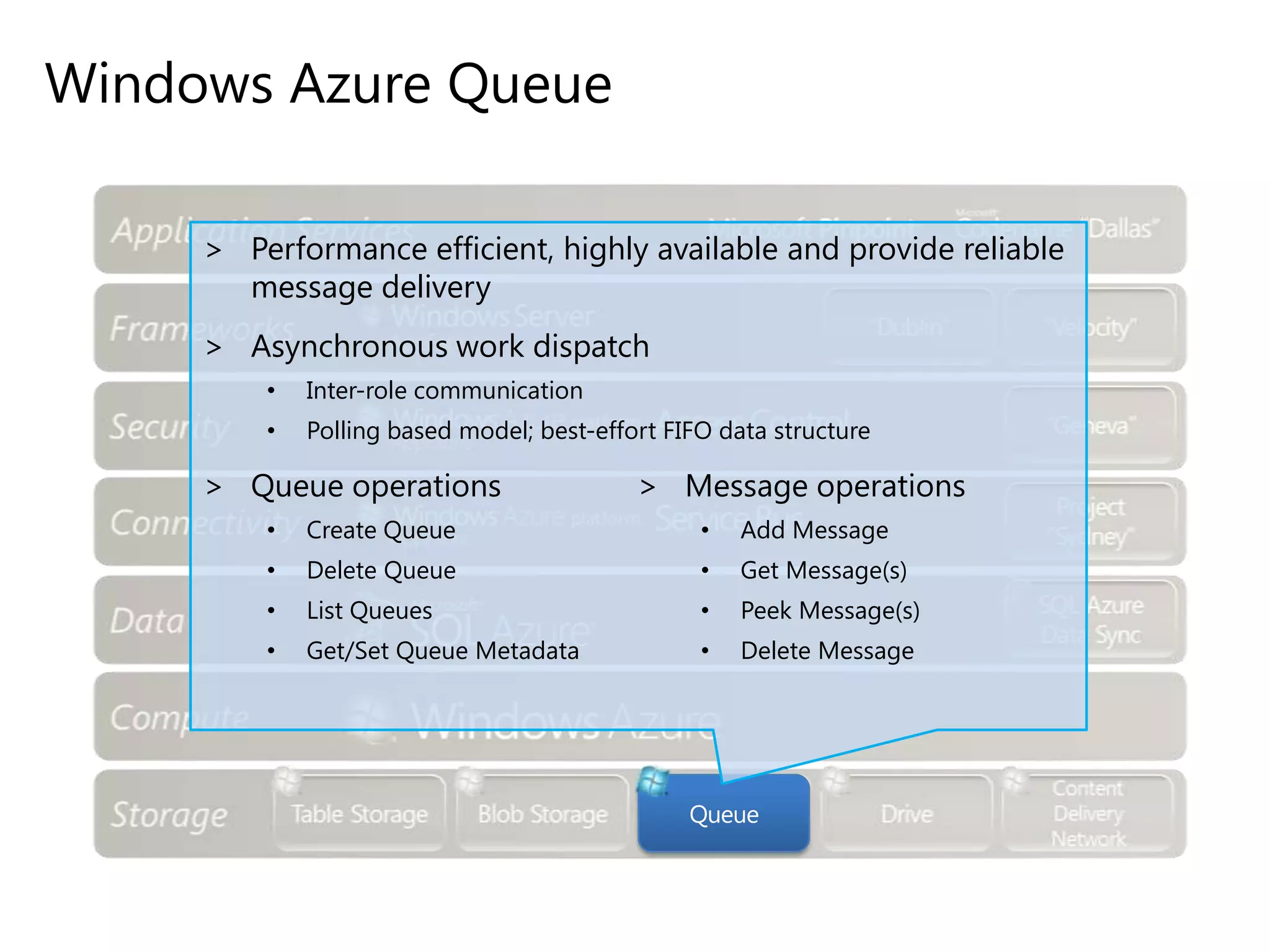

26. Windows Azure Queue
> Performance efficient, highly available and provide reliable
message delivery
> Asynchronous work dispatch
•
Inter-role communication
•
Polling based model; best-effort FIFO data structure
> Queue operations
> Message operations
•
Create Queue
•
Add Message
•
Delete Queue
•
Get Message(s)
•
List Queues
•
Peek Message(s)
•
Get/Set Queue Metadata
•
Delete Message
Queue

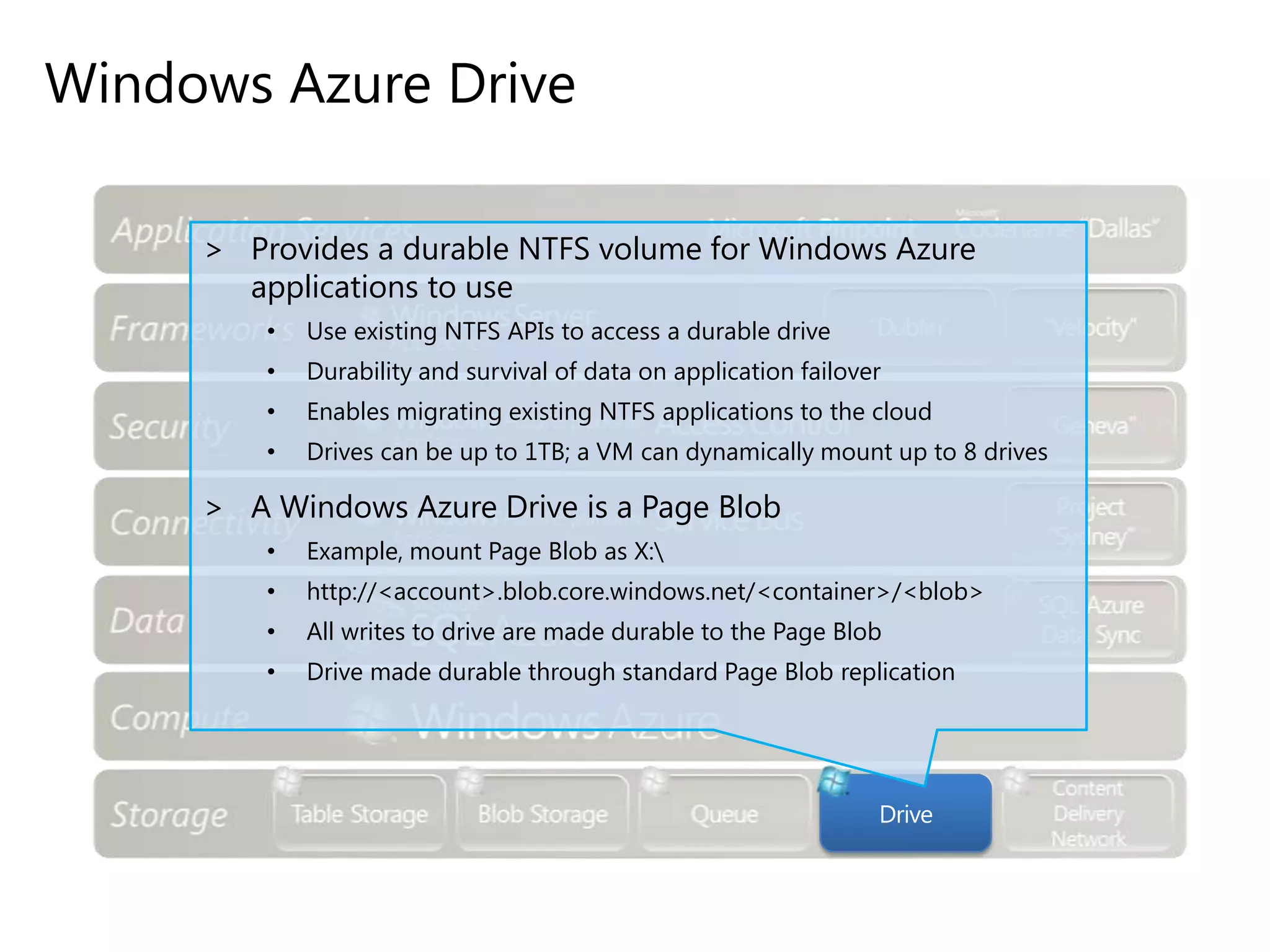

27. Windows Azure Drive
> Provides a durable NTFS volume for Windows Azure
applications to use
•
Use existing NTFS APIs to access a durable drive
•
Durability and survival of data on application failover
•
Enables migrating existing NTFS applications to the cloud
•
Drives can be up to 1TB; a VM can dynamically mount up to 8 drives
> A Windows Azure Drive is a Page Blob
•
Example, mount Page Blob as X:
•
http://<account>.blob.core.windows.net/<container>/<blob>
•
All writes to drive are made durable to the Page Blob
•
Drive made durable through standard Page Blob replication
Drive

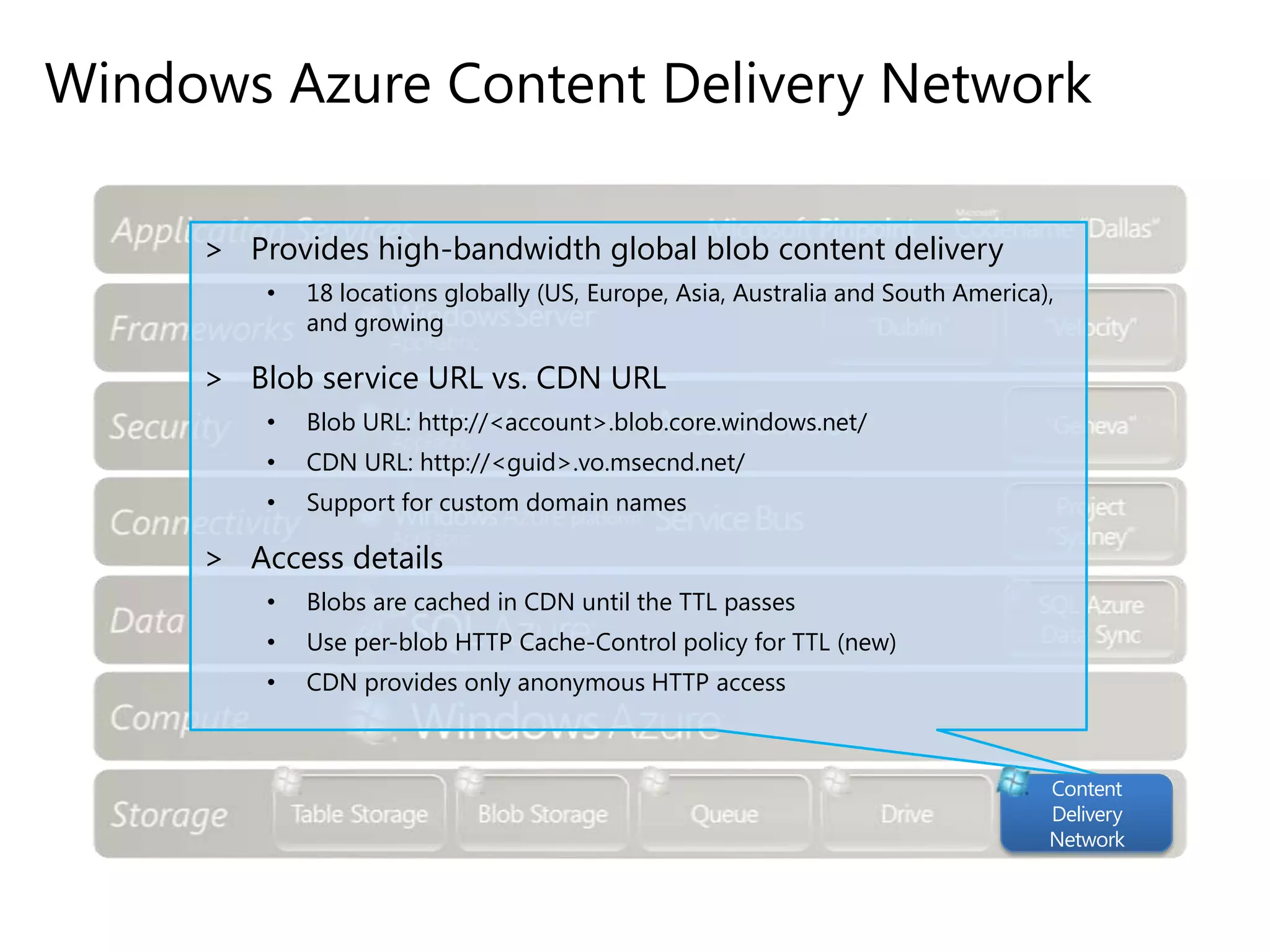

28. Windows Azure Content Delivery Network
> Provides high-bandwidth global blob content delivery
•
18 locations globally (US, Europe, Asia, Australia and South America),
and growing
> Blob service URL vs. CDN URL
•
Blob URL: http://<account>.blob.core.windows.net/
•
CDN URL: http://<guid>.vo.msecnd.net/
•
Support for custom domain names
> Access details
•
Blobs are cached in CDN until the TTL passes
•
Use per-blob HTTP Cache-Control policy for TTL (new)
•
CDN provides only anonymous HTTP access
Content
Delivery
Network

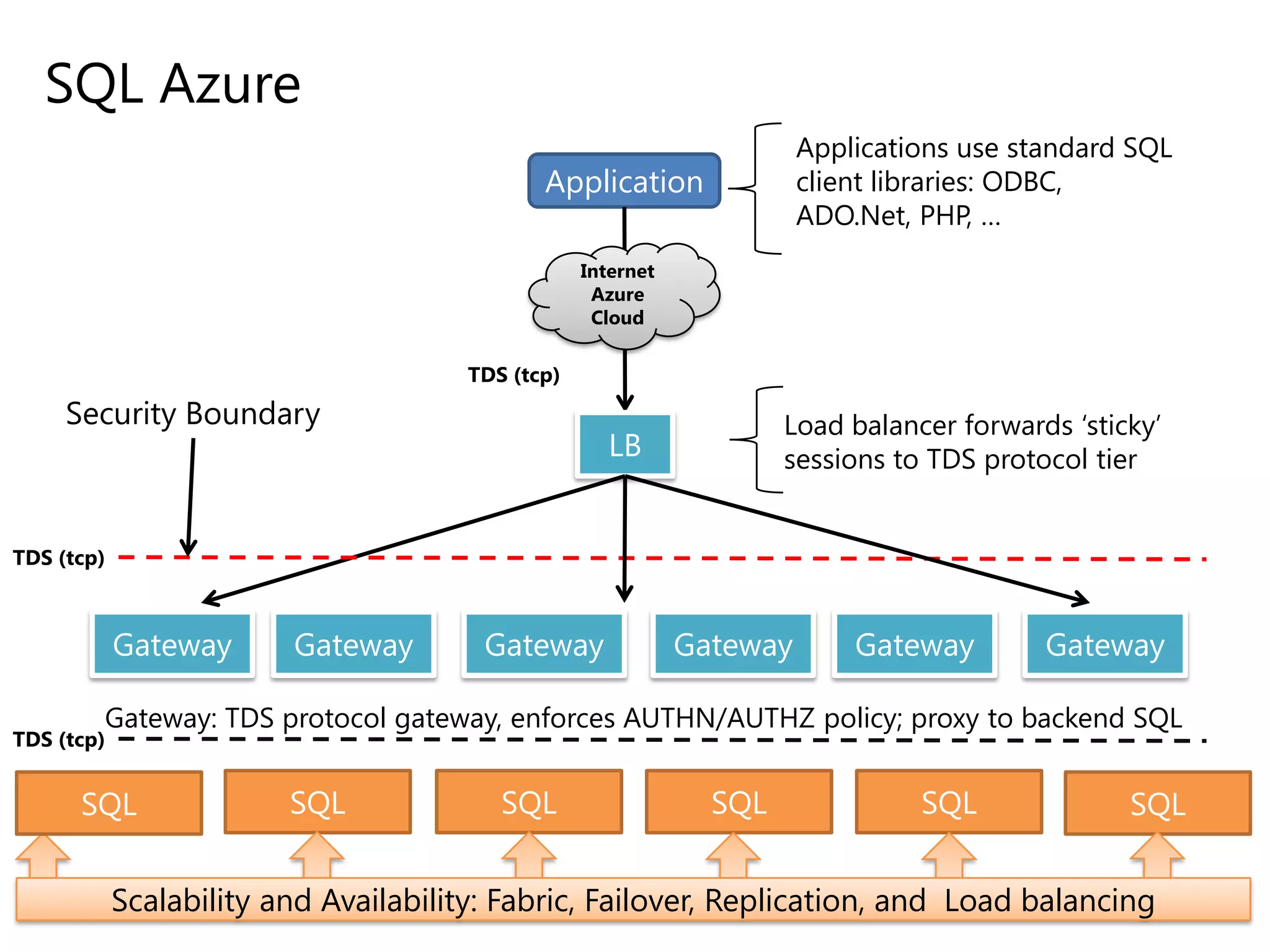

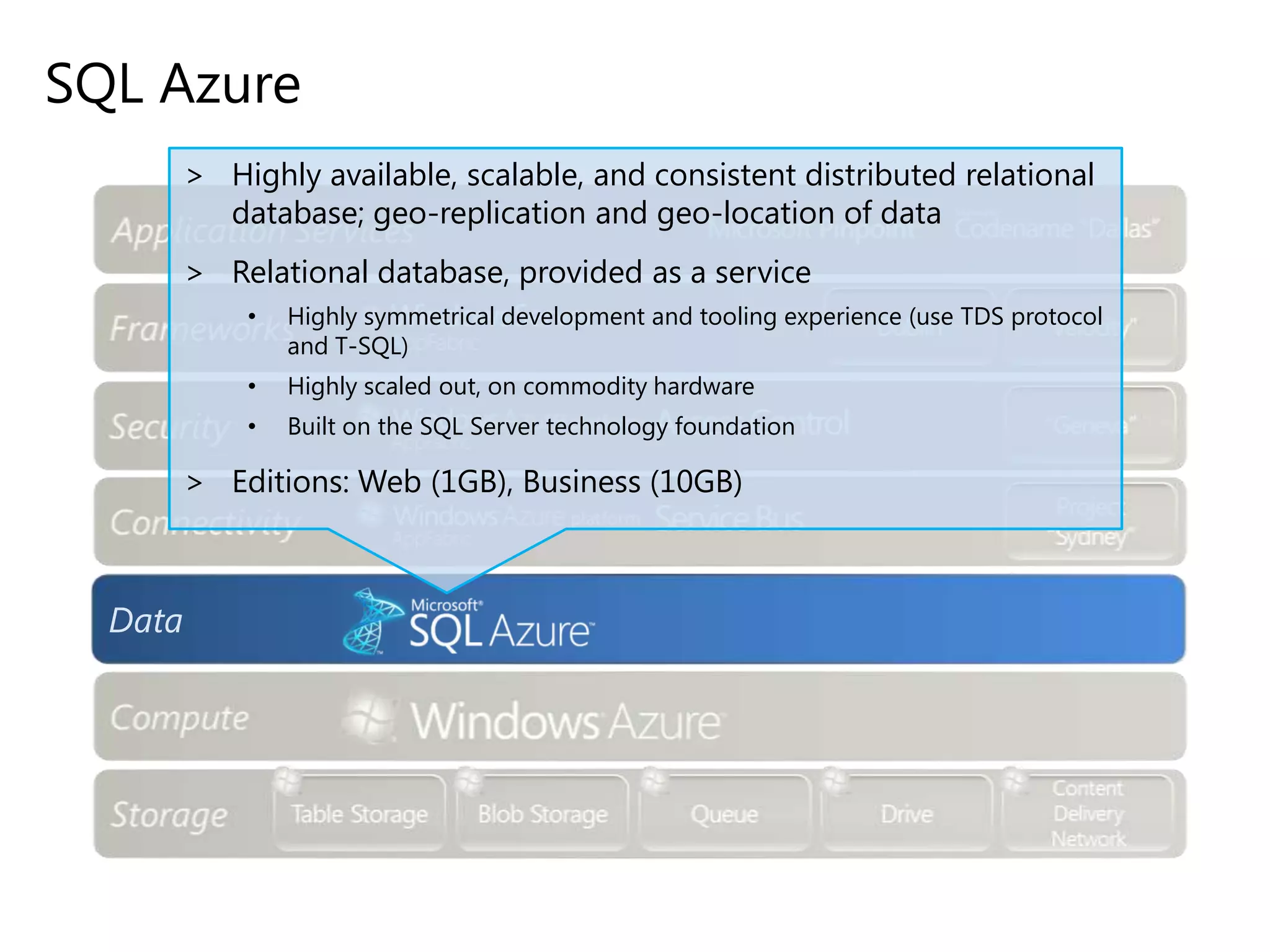

29. SQL Azure
> Highly available, scalable, and consistent distributed relational
database; geo-replication and geo-location of data
> Relational database, provided as a service
•
Highly symmetrical development and tooling experience (use TDS protocol
and T-SQL)
•
Highly scaled out, on commodity hardware
•
Built on the SQL Server technology foundation
> Editions: Web (1GB), Business (10GB)
Data

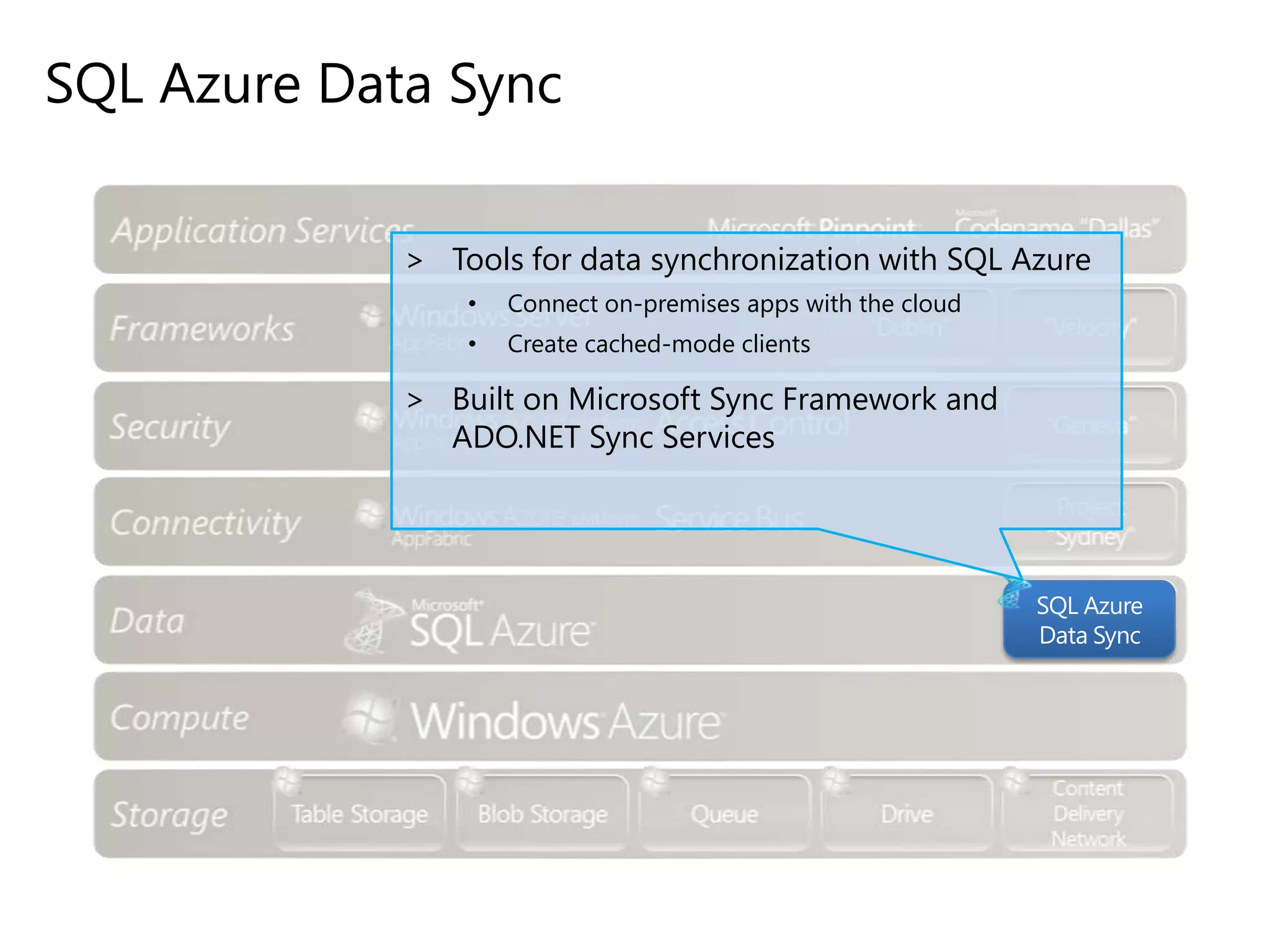

30. SQL Azure Data Sync
> Tools for data synchronization with SQL Azure
•
Connect on-premises apps with the cloud
•
Create cached-mode clients
> Built on Microsoft Sync Framework and
ADO.NET Sync Services
SQL Azure
Data Sync

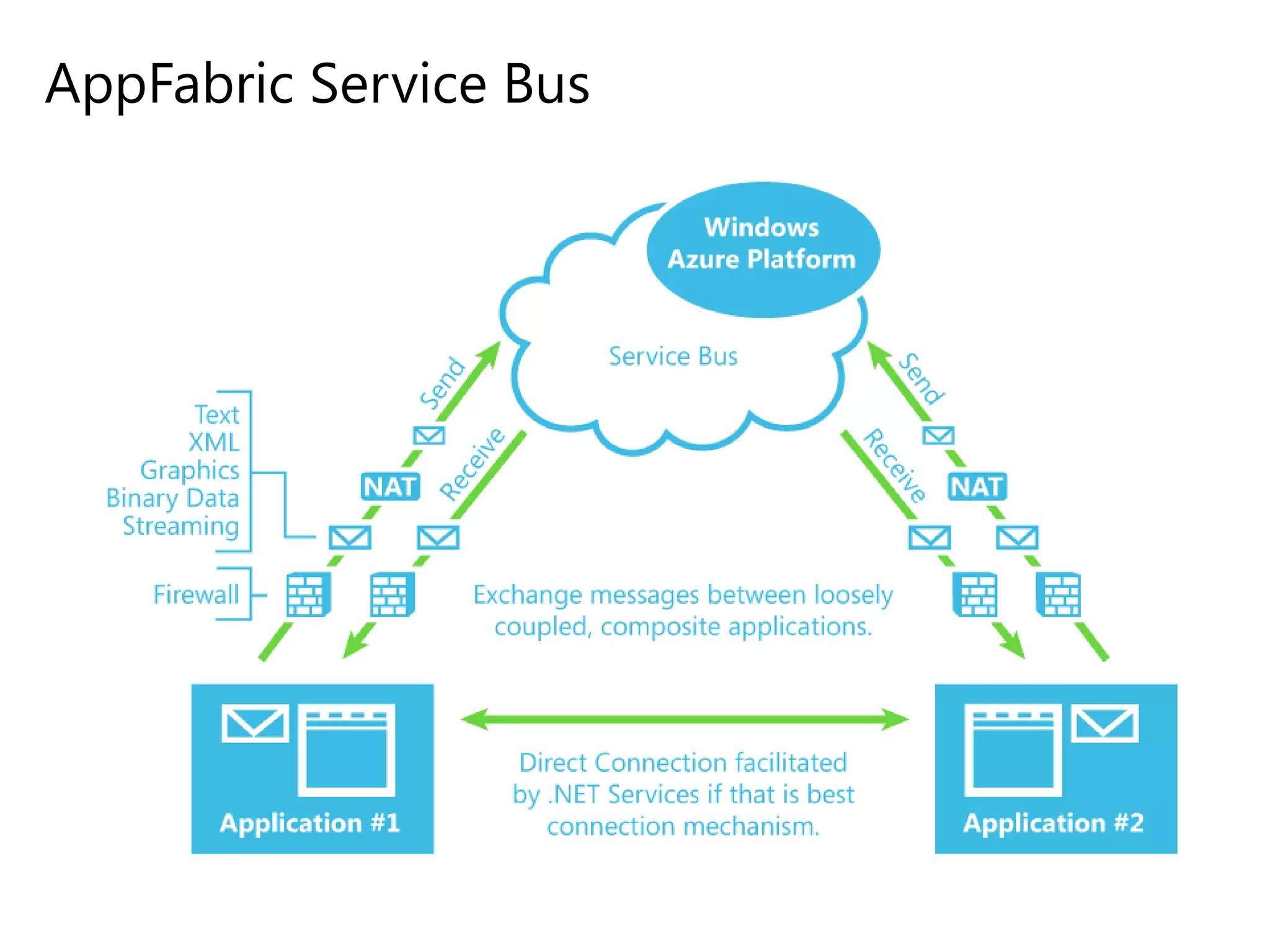

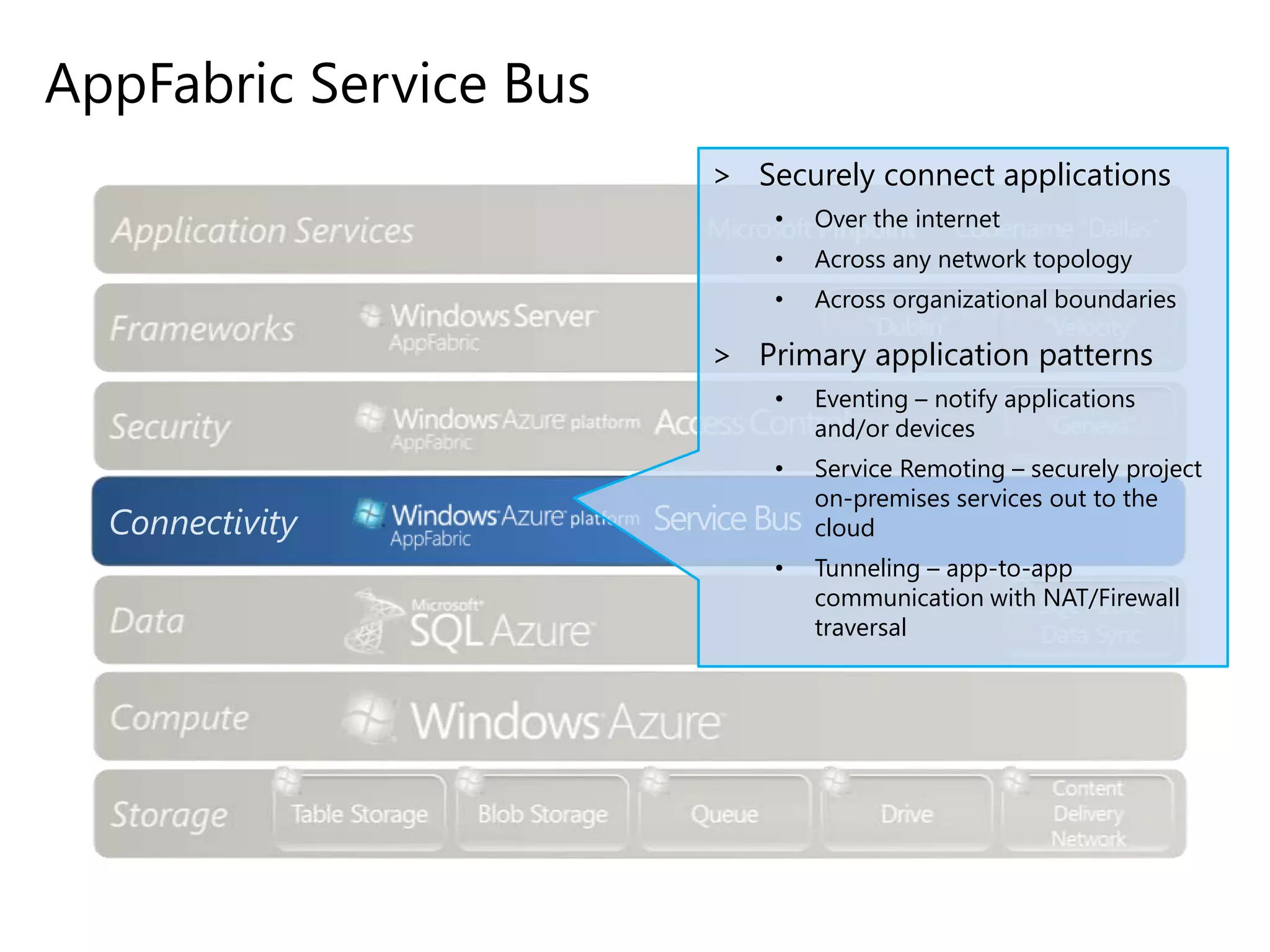

31. AppFabric Service Bus
> Securely connect applications
•
Over the internet
•
Across any network topology
•
Across organizational boundaries
> Primary application patterns
•
•
Connectivity
Eventing – notify applications
and/or devices
Service Remoting – securely project
on-premises services out to the
cloud
Service Bus
•
Tunneling – app-to-app
communication with NAT/Firewall
traversal

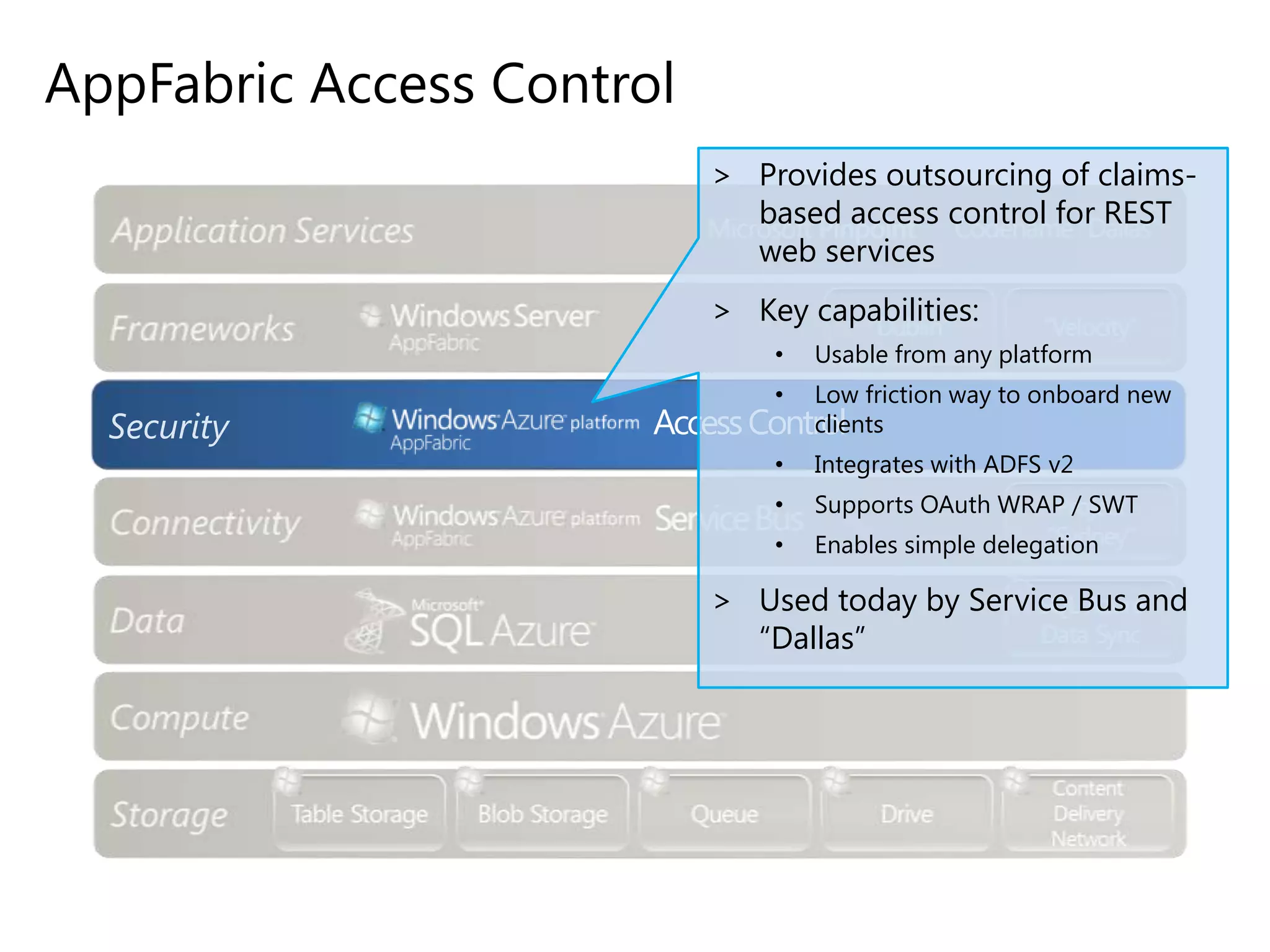

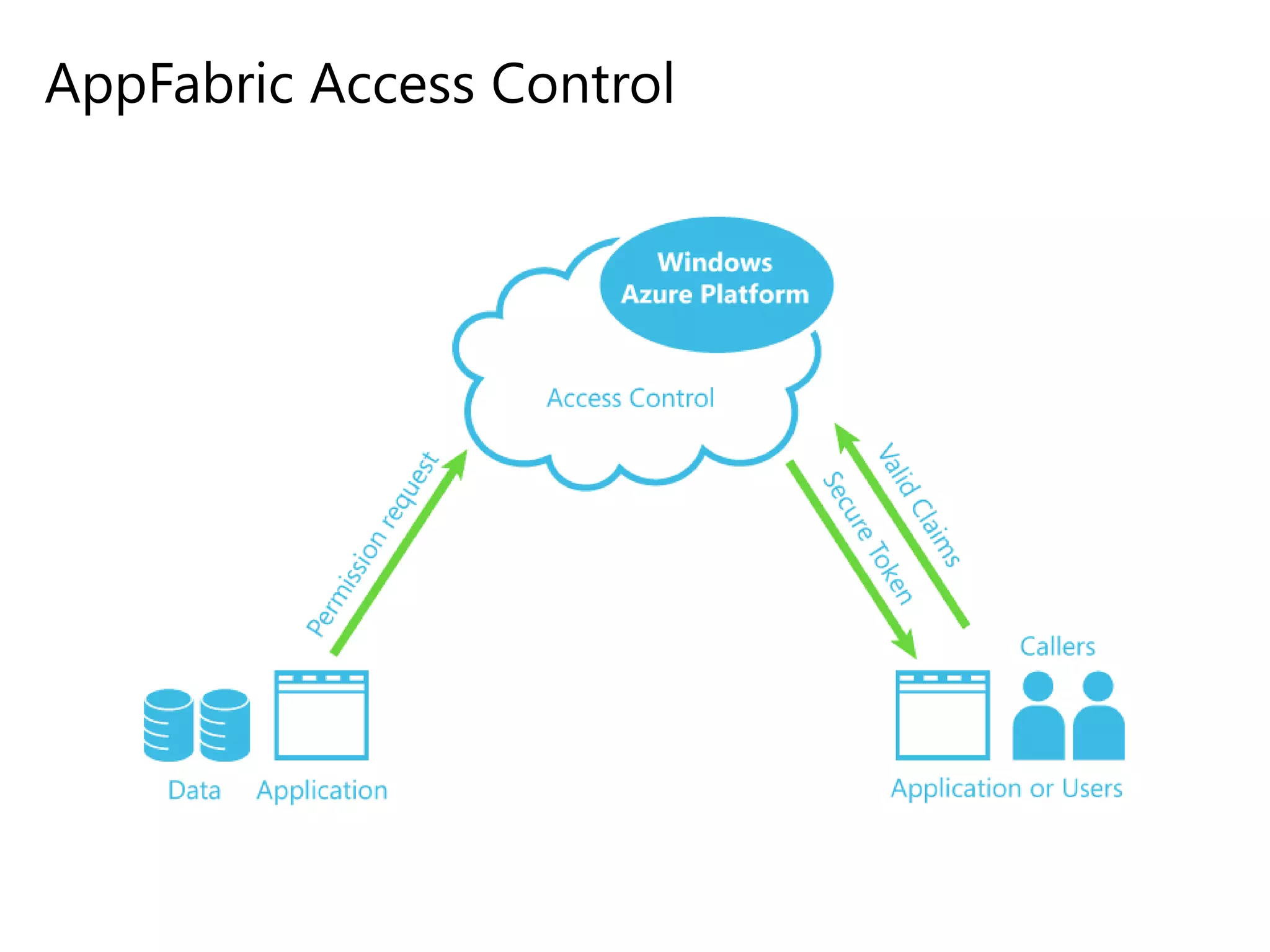

32. AppFabric Access Control
> Provides outsourcing of claimsbased access control for REST
web services
> Key capabilities:
•
Security
Usable from any platform
Low friction way to onboard new
clients
Access Control
•
•
Integrates with ADFS v2
•
Supports OAuth WRAP / SWT
•
Enables simple delegation
> Used today by Service Bus and
“Dallas”

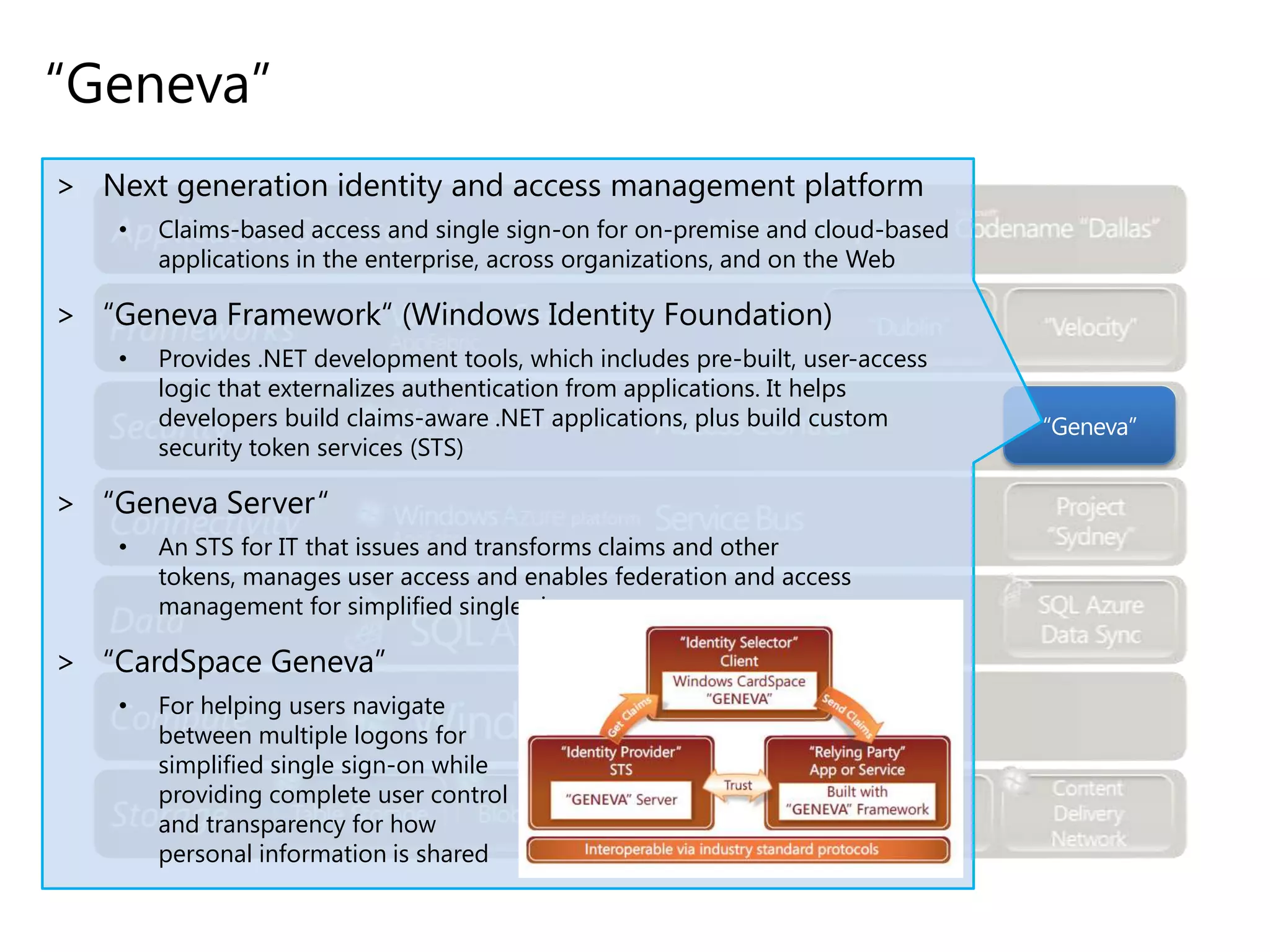

33. “Geneva”
> Next generation identity and access management platform
•
Claims-based access and single sign-on for on-premise and cloud-based
applications in the enterprise, across organizations, and on the Web
> “Geneva Framework“ (Windows Identity Foundation)
•
Provides .NET development tools, which includes pre-built, user-access
logic that externalizes authentication from applications. It helps
developers build claims-aware .NET applications, plus build custom
security token services (STS)
> “Geneva Server“
•
An STS for IT that issues and transforms claims and other
tokens, manages user access and enables federation and access
management for simplified single sign-on
> “CardSpace Geneva”
•
For helping users navigate
between multiple logons for
simplified single sign-on while
providing complete user control
and transparency for how
personal information is shared
“Geneva”

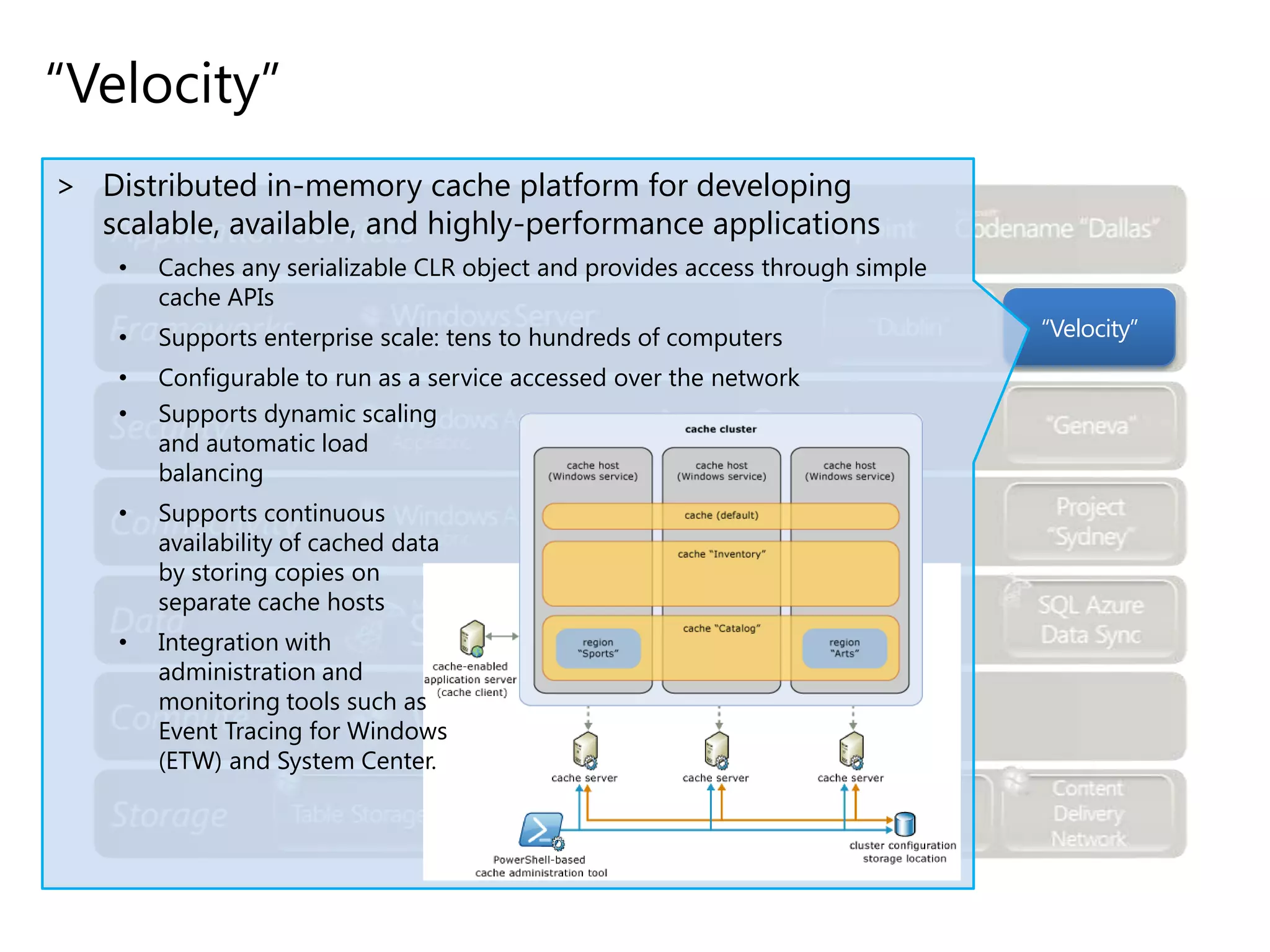

34. “Velocity”
> Distributed in-memory cache platform for developing
scalable, available, and highly-performance applications
•
Caches any serializable CLR object and provides access through simple
cache APIs
•
Supports enterprise scale: tens to hundreds of computers
•
•
Configurable to run as a service accessed over the network
Supports dynamic scaling
and automatic load
balancing
•
Supports continuous
availability of cached data
by storing copies on
separate cache hosts
•
Integration with
administration and
monitoring tools such as
Event Tracing for Windows
(ETW) and System Center.
“Velocity”

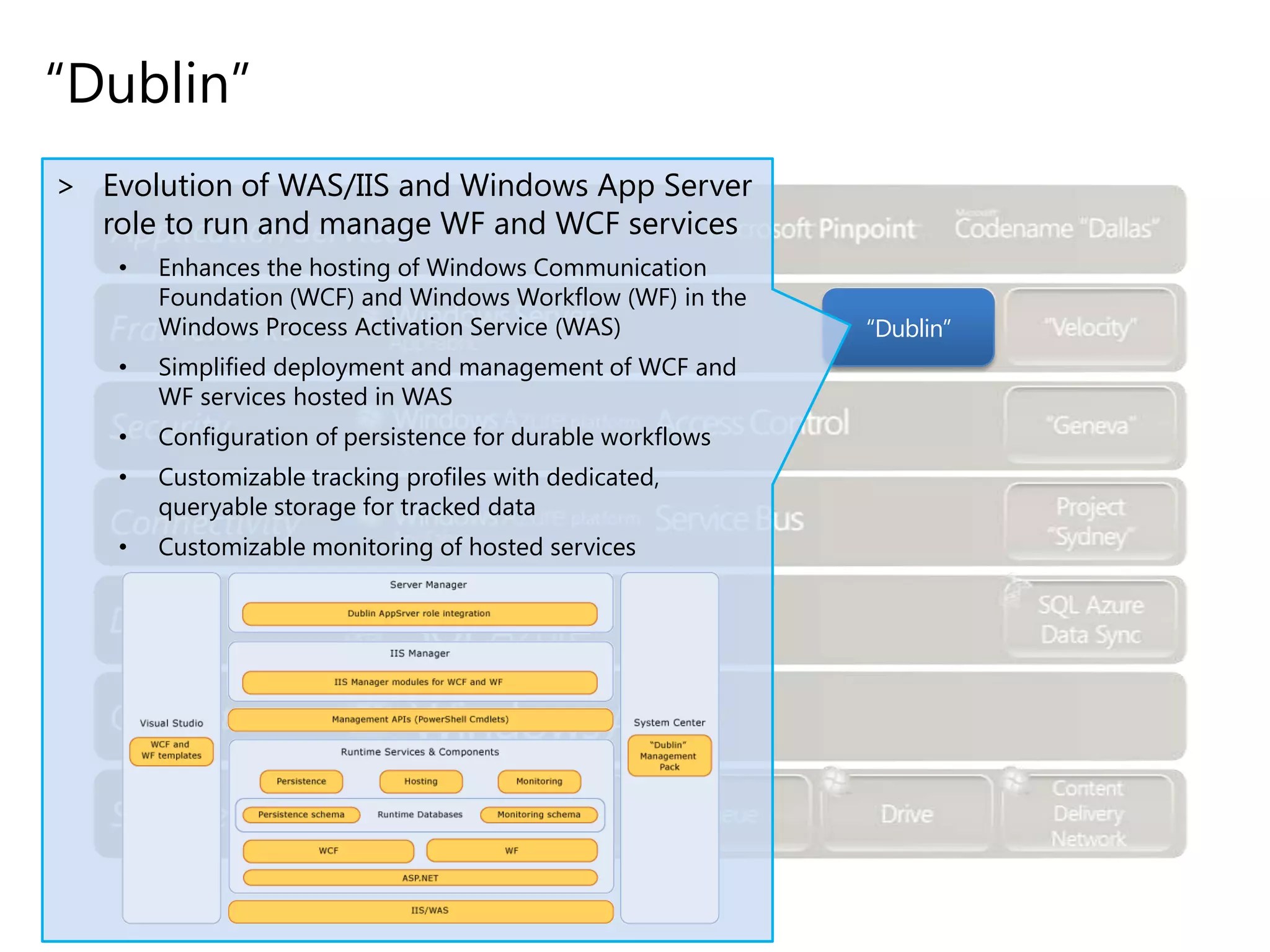

35. “Dublin”
> Evolution of WAS/IIS and Windows App Server
role to run and manage WF and WCF services
•
Enhances the hosting of Windows Communication
Foundation (WCF) and Windows Workflow (WF) in the
Windows Process Activation Service (WAS)
•
Simplified deployment and management of WCF and
WF services hosted in WAS
•
Configuration of persistence for durable workflows
•
Customizable tracking profiles with dedicated,
queryable storage for tracked data
•
Customizable monitoring of hosted services
“Dublin”

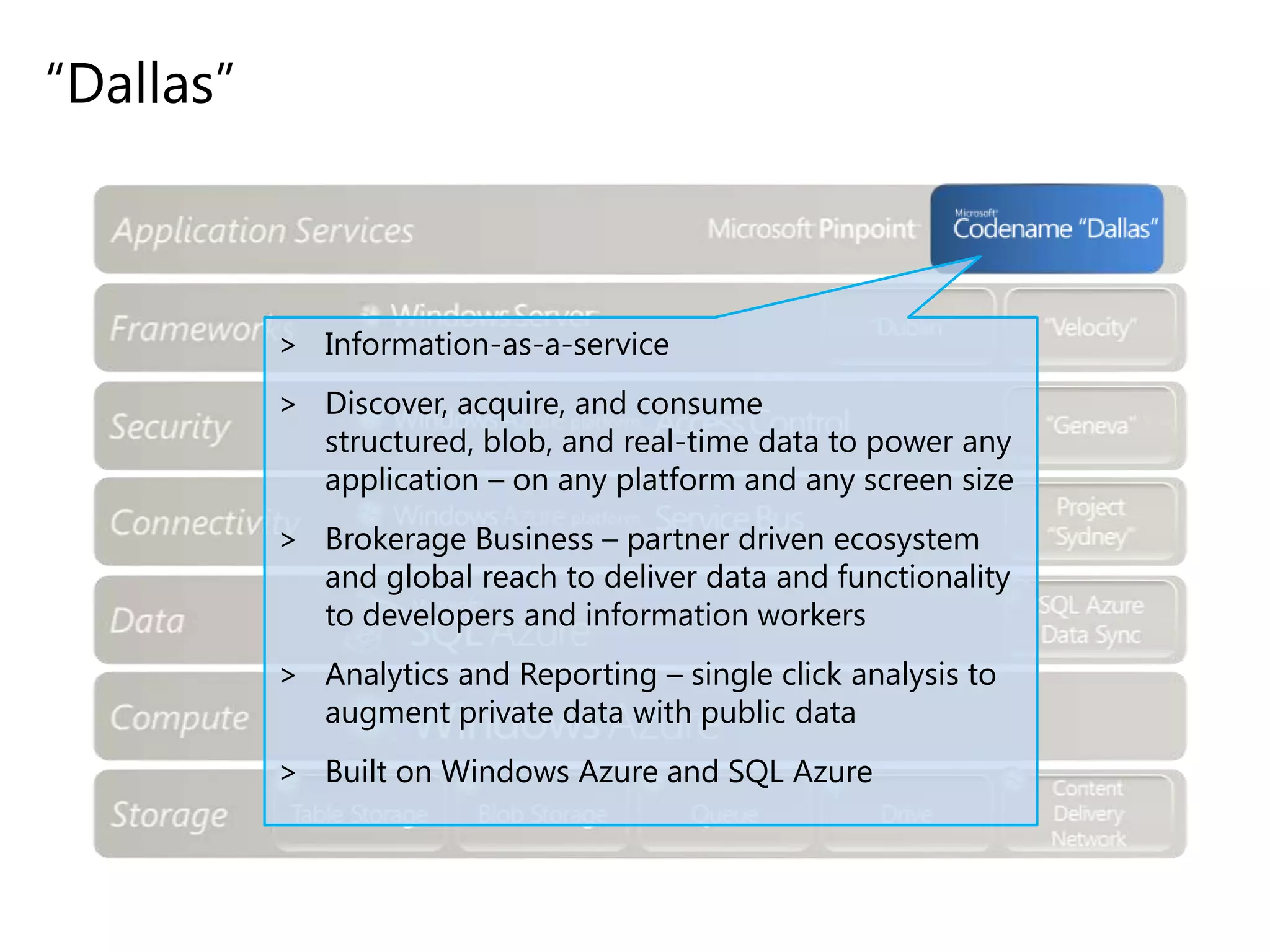

36. “Dallas”
> Information-as-a-service
> Discover, acquire, and consume
structured, blob, and real-time data to power any
application – on any platform and any screen size
> Brokerage Business – partner driven ecosystem
and global reach to deliver data and functionality
to developers and information workers
> Analytics and Reporting – single click analysis to
augment private data with public data
> Built on Windows Azure and SQL Azure

37. Windows Azure Platform
Application Services
Frameworks
“Dublin”
“Velocity”
Security
Access Control
“Geneva”
Connectivity
Service Bus
Project
“Sydney”
SQL Azure
Data Sync
Data
Compute
Storage
Table Storage
Blob Storage
Queue
Drive
Content
Delivery
Network

38. Platform of Choice

39. 3 Key Takeaways
> Platform-as-a-service fabric cloud
> Hybrid on-premise software and cloud
services platform
> Consistent programming model and tools

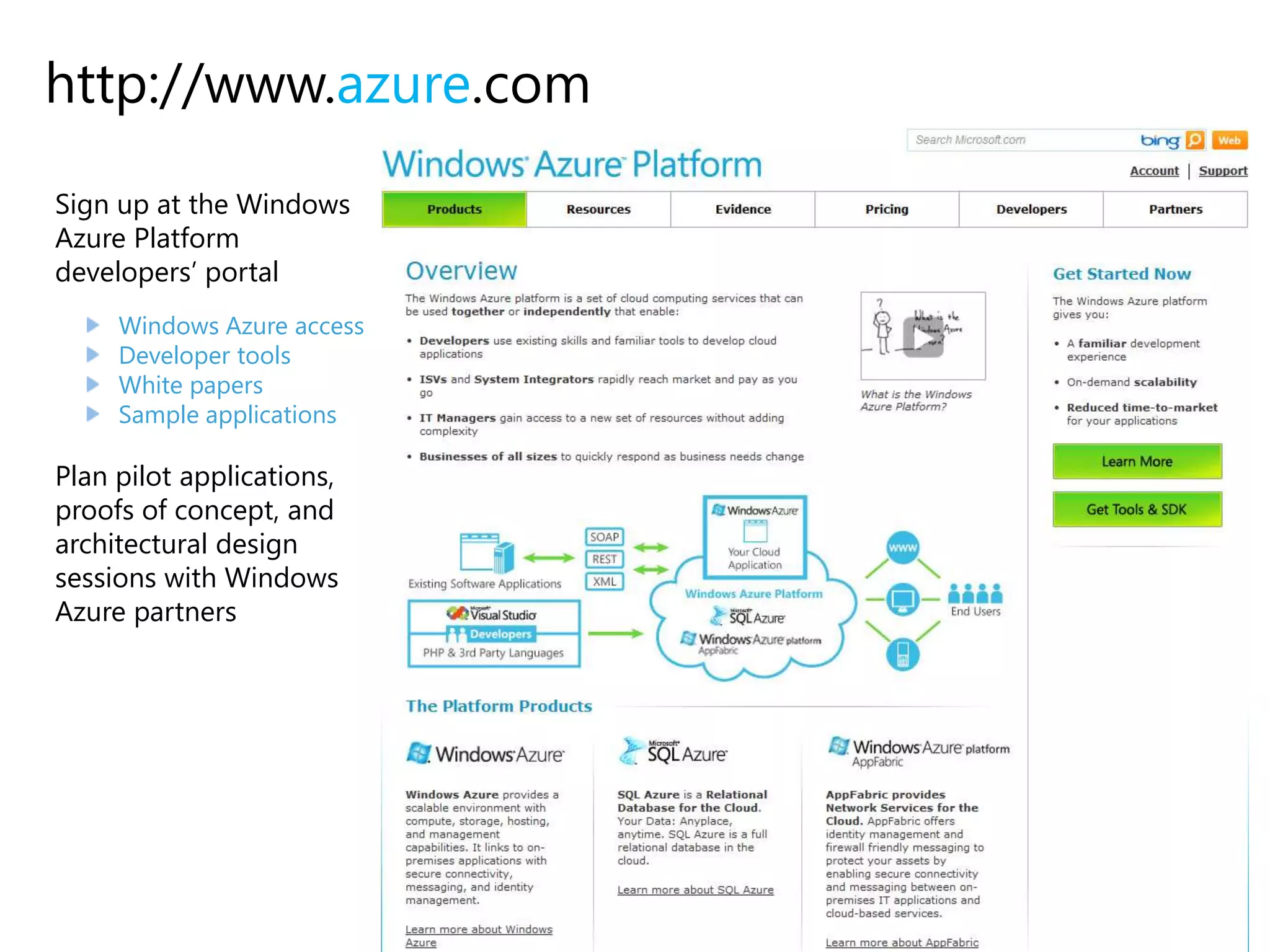

40. http://www.azure.com
Sign up at the Windows
Azure Platform
developers‟ portal
Windows Azure access
Developer tools
White papers
Sample applications
Plan pilot applications,
proofs of concept, and
architectural design
sessions with Windows
Azure partners

41. Thank you
david.chou@microsoft.com
blogs.msdn.com/dachou
© 2009 Microsoft Corporation. All rights reserved. Microsoft, Windows, Windows Vista and other product names are or may be registered trademarks and/or trademarks in the U.S. and/or other countries.
The information herein is for informational purposes only and represents the current view of Microsoft Corporation as of the date of this presentation. Because Microsoft must respond to changing market
conditions, it should not be interpreted to be a commitment on the part of Microsoft, and Microsoft cannot guarantee the accuracy of any information provided after the date of this presentation.
MICROSOFT MAKES NO WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, AS TO THE INFORMATION IN THIS PRESENTATION.

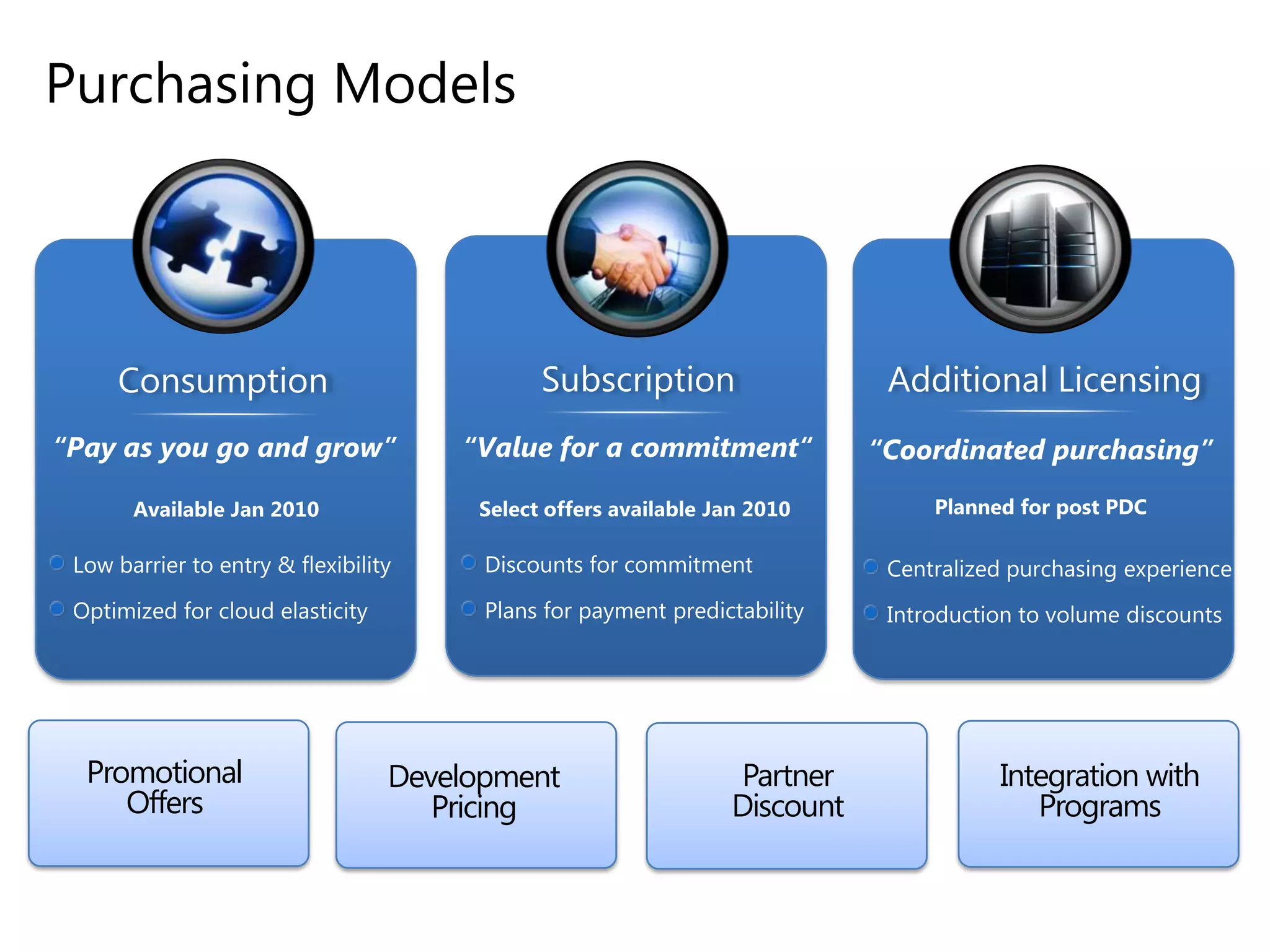

42. Purchasing Models
Promotional
Offers
Development
Pricing
Partner
Discount
Integration with
Programs

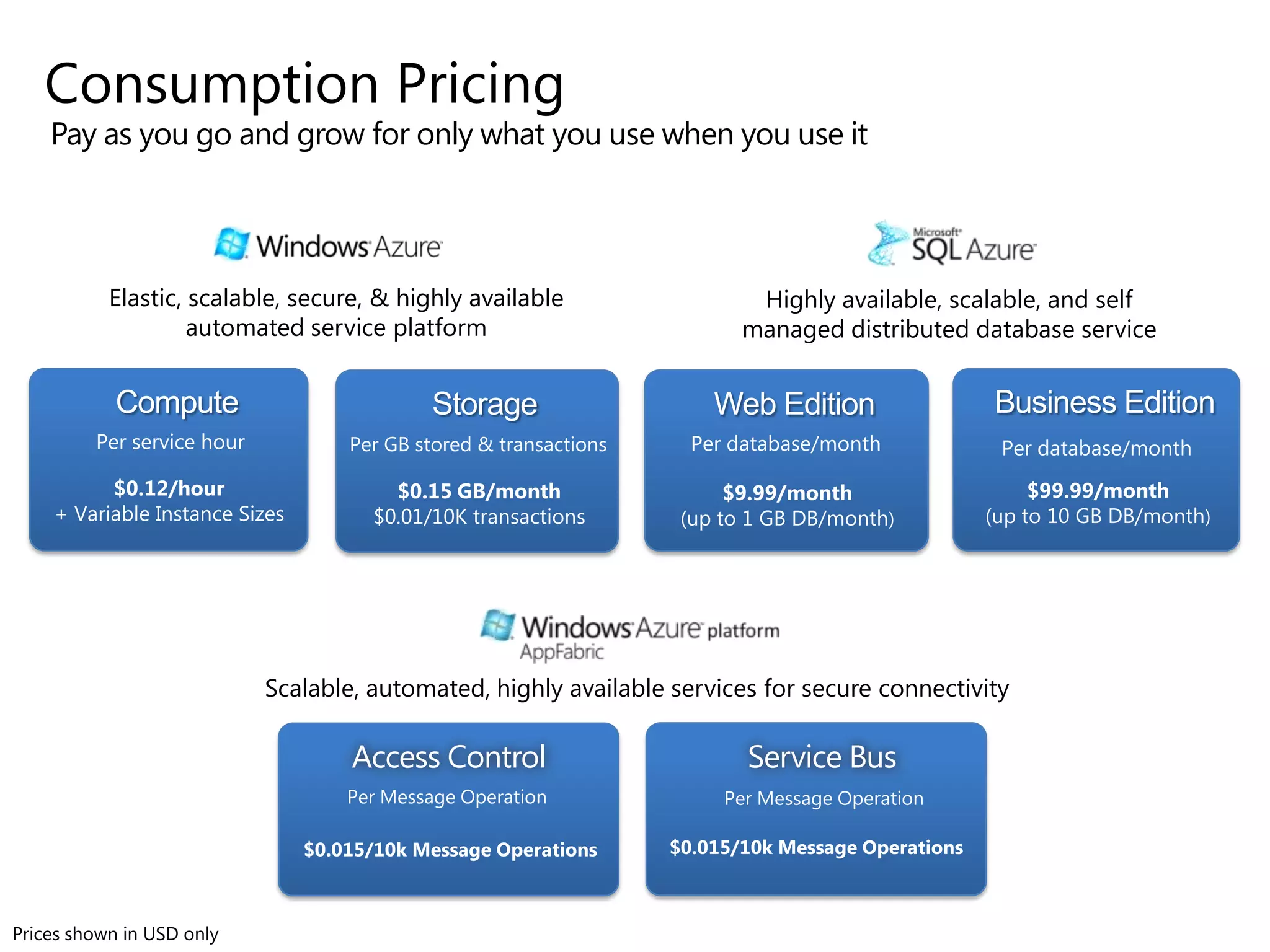

43. Consumption Pricing
Pay as you go and grow for only what you use when you use it
Elastic, scalable, secure, & highly available
automated service platform
Compute
Storage
$0.12/hour
+ Variable Instance Sizes
$0.15 GB/month
$0.01/10K transactions
Highly available, scalable, and self
managed distributed database service
Web Edition
$9.99/month
(up to 1 GB DB/month)
Business Edition
$99.99/month
(up to 10 GB DB/month)
Scalable, automated, highly available services for secure connectivity
Access Control
Service Bus
Per Message Operation
Per Message Operation
$0.015/10k Message Operations
Prices shown in USD only
$0.015/10k Message Operations

44. Promotional Offers & Programs
Introductory
Special
MSDN
Premium
Biz Spark
One
Anyone can try the
platform at no charge
(monthly service
allocations)
Subscribers receive
monthly allocation of
platform services at no
additional charge
Investing in high potential
start-ups; receive full
platform services at no
charge
Development Accelerator
Core
Extended
Includes Windows Azure
compute, storage, storage
transactions, data transfer,
& message operations
Includes Core plus SQL
Azure Business Edition
1. Accelerate cloud development projects
2. Flexible consumption (flex # of instances)
3. Predictable payments (6 mo subscription)
4. Exceptional value (discounted price)

45. Promotional Offers & Programs
Introductory
Special
Available to all partners & customers
Limit of one per customer
Promotion ends 6/30/10
Overage charged at Consumption rates
Biz Spark One
MSDN
Premium
Available for selected startups
Program participation is by
invitation only
Program available in 10 countries
MSDN Premium subscribers
Limit of one per MSDN subscription
8 month term
Limited time offer thru 7/31/10
Overage at partner Consumption rates
Offer
Amount of Windows Azure platform services included per month at no charge
Windows Azure
Compute 25 Hrs
Storage 0.5 GB
Storage X-actions 10K
Amount of Windows Azure
Platform services will vary by
customer
Windows Azure
Compute 750 hrs
Storage 10 GB
Storage X-actions 1M
SQL Azure
1 Web Edition DB
(1GB DB for 90 day trial)
SQL Azure
3 Web Edition DB
(1 GB)
Message Operations
Messages 100K
Message Operations
Messages 1 Million
Data transfer
0.5 GB In & 0.5GB Out
Additional 5% off for partners
(except storage & data transfers)
Data transfer
7GB In & 14GB Out N.A/EU
2.5GB In / 5GB Out Asia Pacific

46. Development Accelerator Offer
6 month subscription offered at 42%-46% off consumption prices
Offered as a monthly “unit” (you can order multiple “units”)
Overage charged at Consumption rates
Promotional offer, expires 6/30/2010 for new subscriptions
EXTENDED
CORE
Windows Azure
Includes CORE plus
Message Operations
Messages 1 M
Compute 750 hrs
Storage 10 GB
Storage X-actions 1M
SQL Azure
Business Edition (10 GB)
Data transfer
7GB In/14GB Out N.A & EU
2.5GB In/5GB Out Asia Pacific
Monthly price
Monthly price
$59.95
$109.95
(42% off consumption prices)
(46% off consumption prices)
Additional 5% off for partners
(except storage & data transfers)

47. Windows Azure Platform

48. AppFabric Service Bus

49. AppFabric Access Control

50. SQL Azure
Applications use standard SQL
client libraries: ODBC,
ADO.Net, PHP, …
Application
Internet
Azure
Cloud
TDS (tcp)
Security Boundary
Load balancer forwards „sticky‟
sessions to TDS protocol tier
LB
TDS (tcp)
Gateway
Gateway
Gateway
Gateway
Gateway
Gateway
Gateway: TDS protocol gateway, enforces AUTHN/AUTHZ policy; proxy to backend SQL
TDS (tcp)
SQL
SQL
SQL
SQL
SQL
SQL
Scalability and Availability: Fabric, Failover, Replication, and Load balancing

51. Table Storage Concepts
Accounts
Tables
Entities

52. Queue Storage Concepts
Accounts
Queues
Messages

53. Blob Storage Concepts
Account
Container
Blob
images
sally
movies
MOV1.AVI

54. Blob Storage Concepts
Account
Container
images
Blob
PIC01.
JPG
Blocks or
Pages
PIC02.
JPG
sally
Block or
Page 1
movies
MOV1.AVI
Block or
Page 2
Block or
Page 3
