This document provides an overview of migrating applications and workloads to the Microsoft Azure cloud platform. It discusses Ethos, a Microsoft preferred cloud computing partner, and some of their case studies helping companies migrate to Azure. Specific topics covered include SQL Azure, design considerations, performance, security best practices, migration approaches, and tools to help with the process.

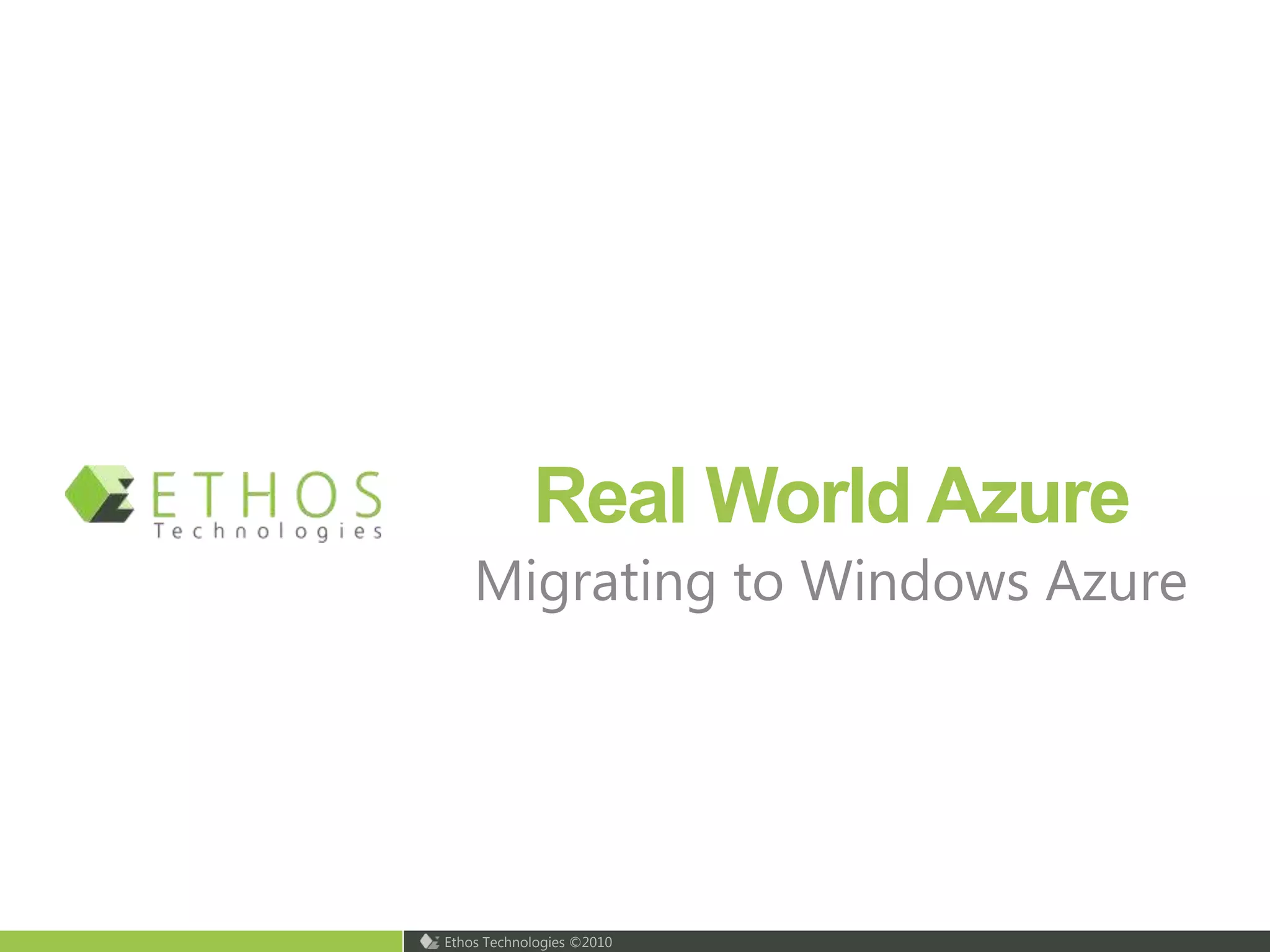

1. Real World AzureMigrating to Windows Azure

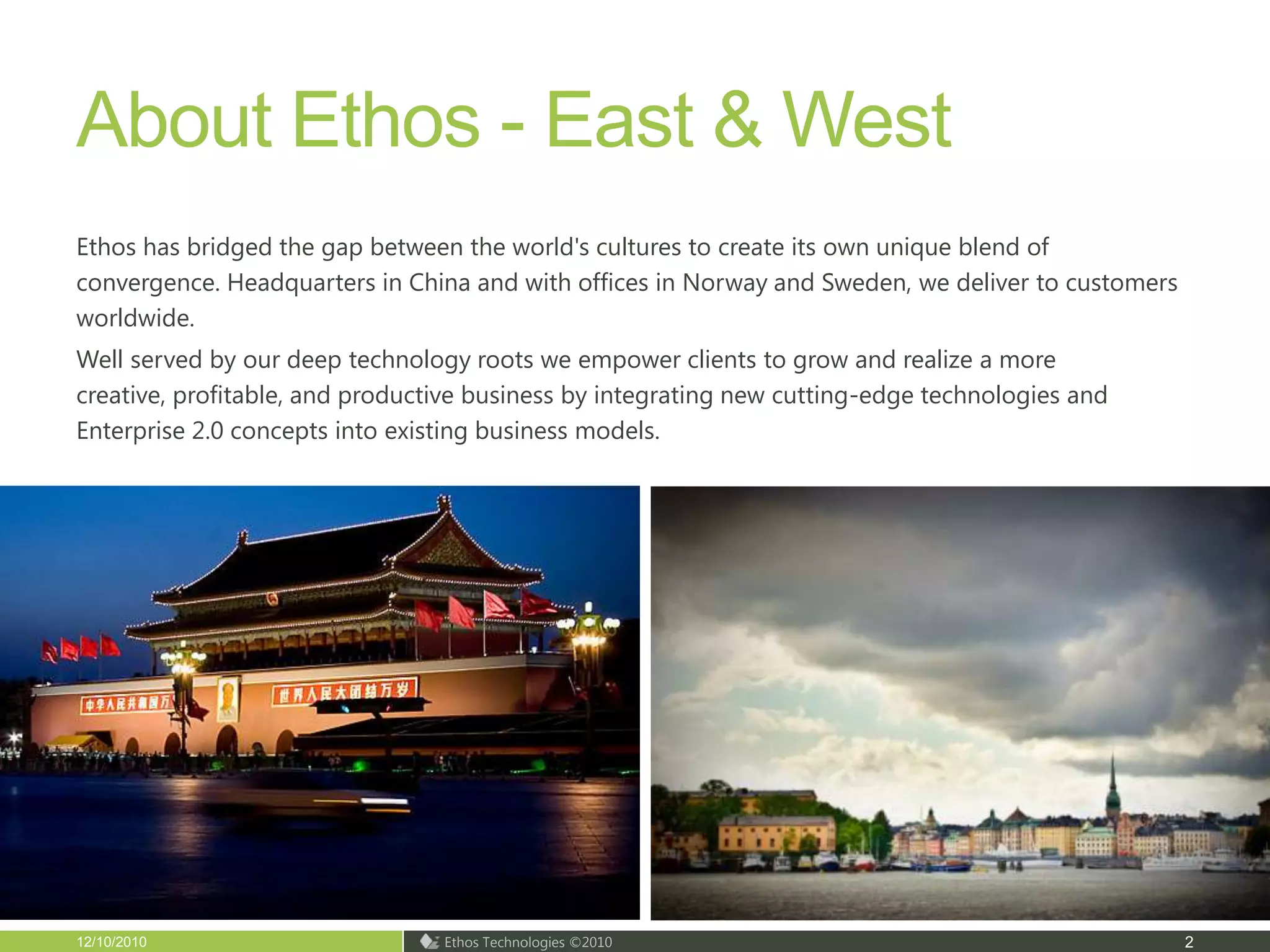

2. About Ethos - East & WestEthos has bridged the gap between the world's cultures to create its own unique blend of convergence. Headquarters in China and with offices in Norway and Sweden, we deliver to customers worldwide. Well served by our deep technology roots we empower clients to grow and realize a more creative, profitable, and productive business by integrating new cutting-edge technologies and Enterprise 2.0 concepts into existing business models. 12/10/20102

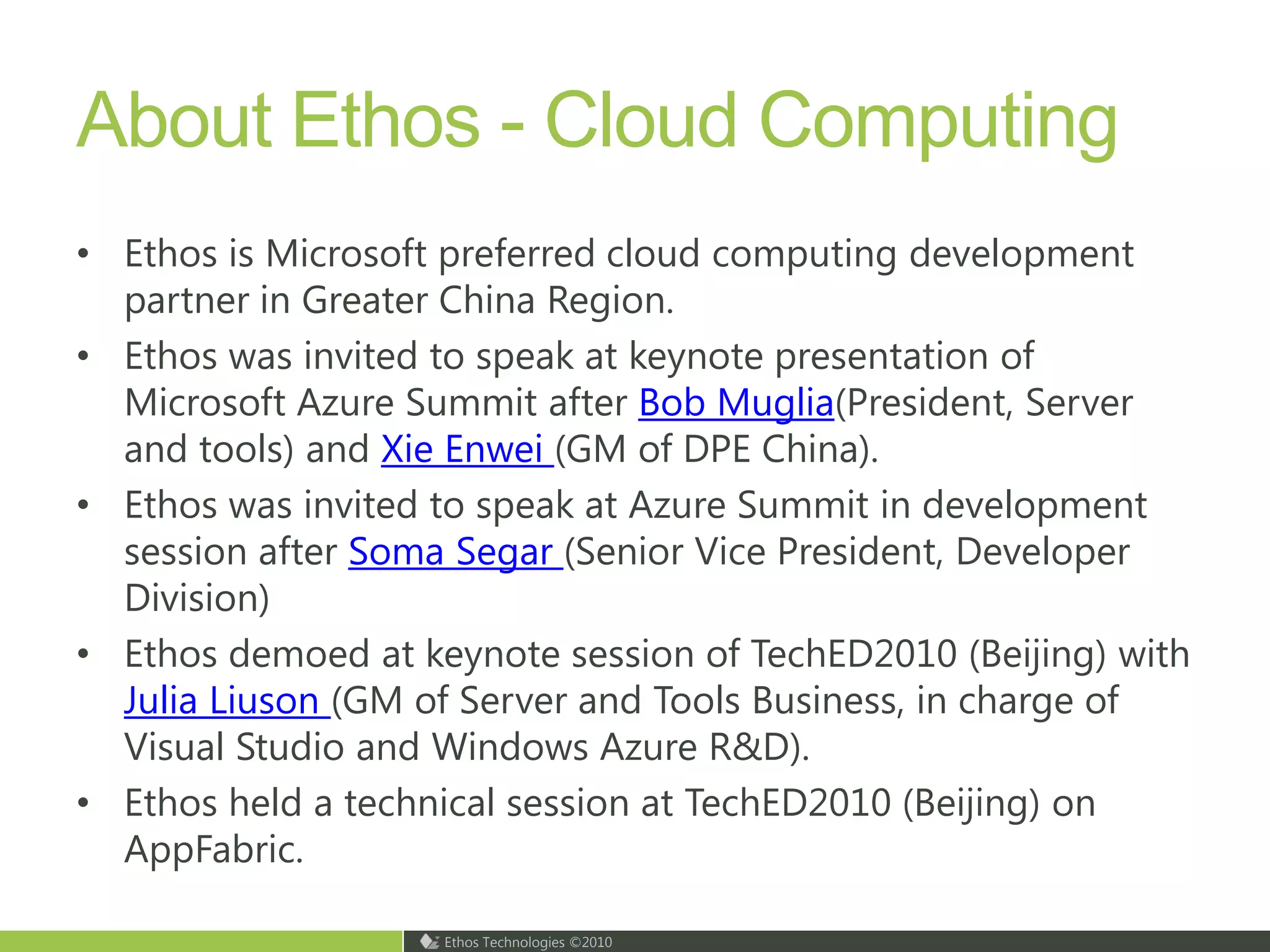

3. About Ethos - Cloud ComputingEthos is Microsoft preferred cloud computing development partner in Greater China Region.Ethos was invited to speak at keynote presentation of Microsoft Azure Summit after Bob Muglia(President, Server and tools) and Xie Enwei (GM of DPE China).Ethos was invited to speak at Azure Summit in development session after Soma Segar (Senior Vice President, Developer Division)Ethos demoed at keynote session of TechED2010 (Beijing) with Julia Liuson(GM of Server and Tools Business, in charge of Visual Studio and Windows Azure R&D). Ethos held a technical session at TechED2010 (Beijing) on AppFabric.

4. Why the Cloud?“The bottom line: Early adopters are finding serious benefits, meaning that cloud computing is real and warrants your scrutiny as a new set of platforms for business applications.” “By 2012, 80% of Fortune 1000 enterprises will be using some cloud computing services, 20% of businesses will own no IT assets”

5. Windows Azure

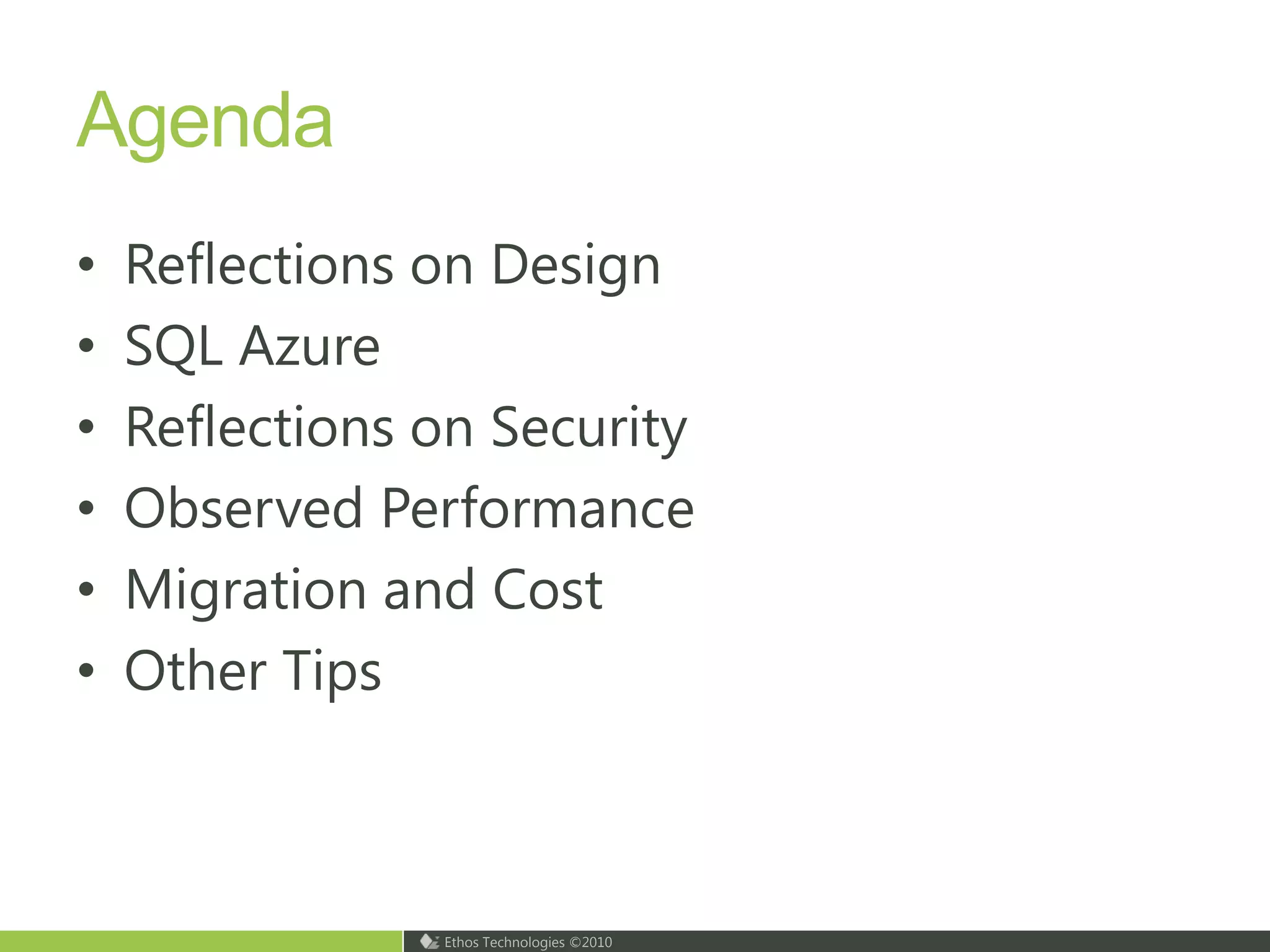

6. AgendaReflections on DesignSQL AzureReflections on SecurityObserved PerformanceMigration and CostOther Tips

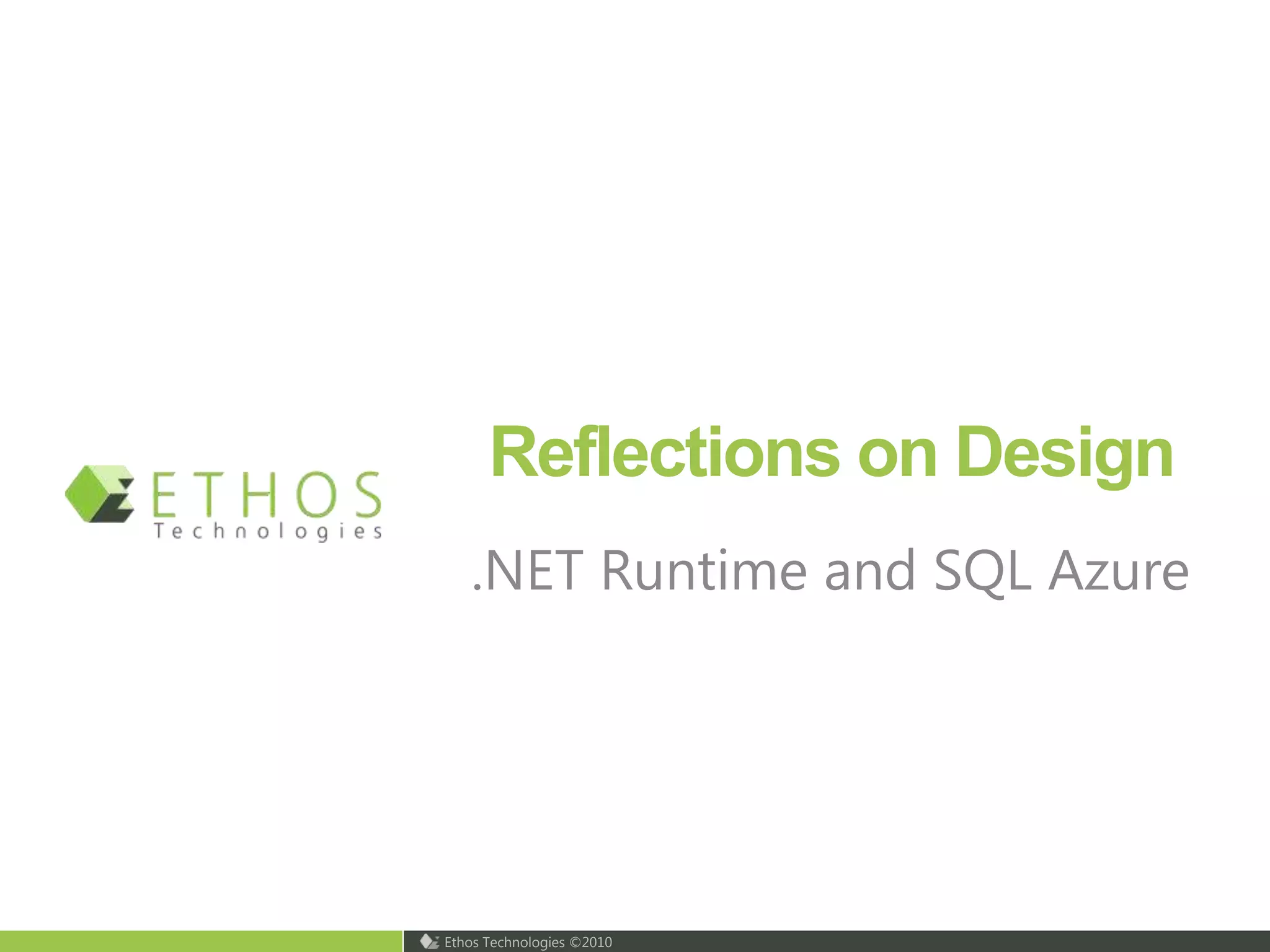

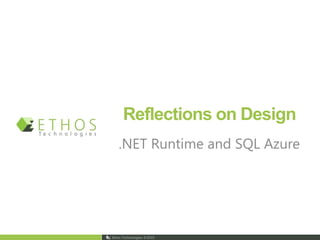

7. Reflections on Design .NET Runtime and SQL Azure

8. Azure datacentersNorth Central – US Chicago, ILNorth Europe - Amsterdam West Europe - DublinEast Asia – Hong KongSouth Central - US San Antonio, TXSouth East Asia - Singapore

9. Windows Azure Platform

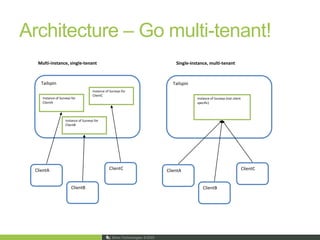

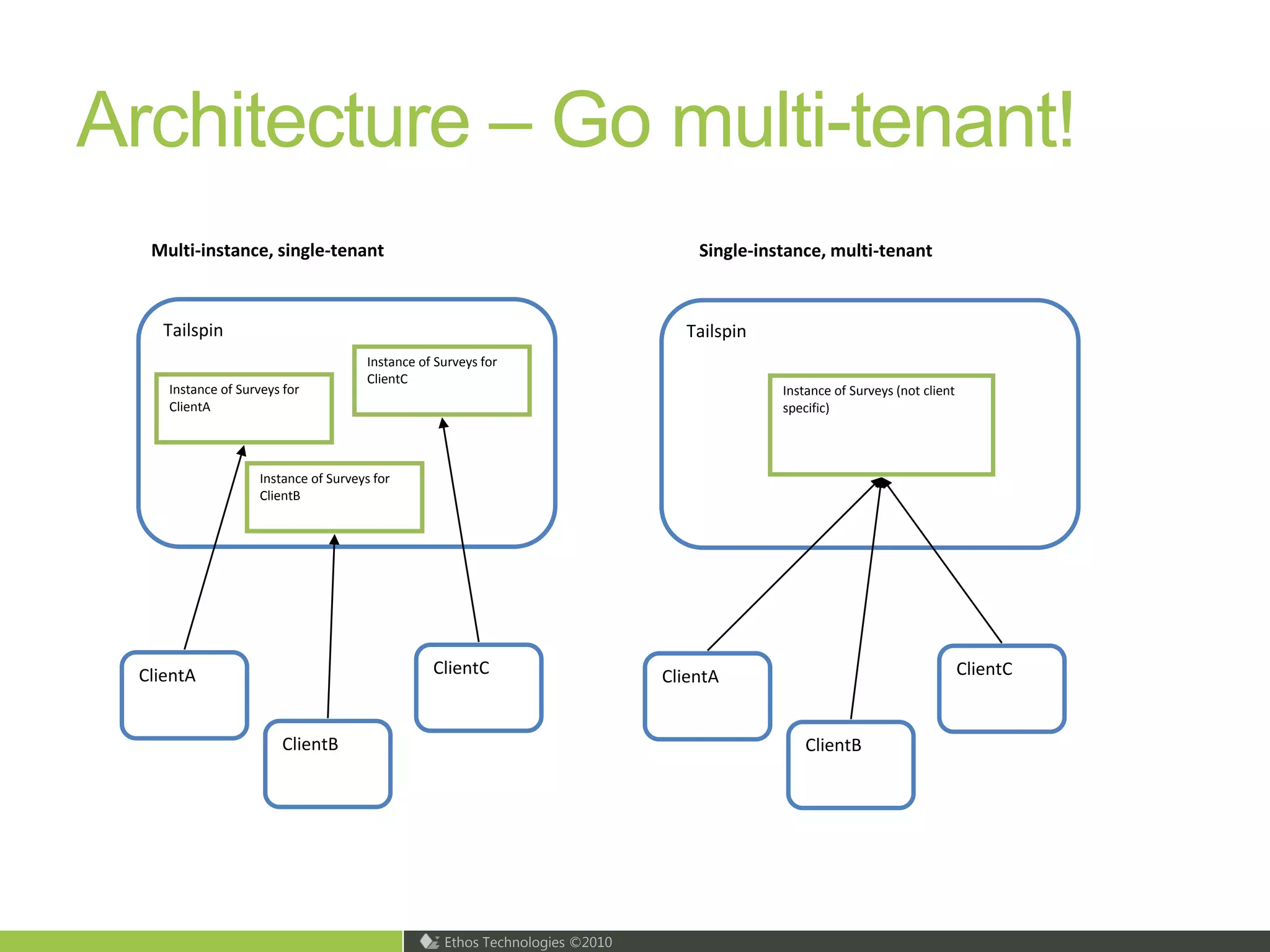

10. Architecture – Go multi-tenant!Multi-instance, single-tenantSingle-instance, multi-tenantTailspinTailspinInstance of Surveys for ClientCInstance of Surveys for ClientAInstance of Surveys (not client specific)Instance of Surveys for ClientBClientCClientCClientAClientAClientBClientB

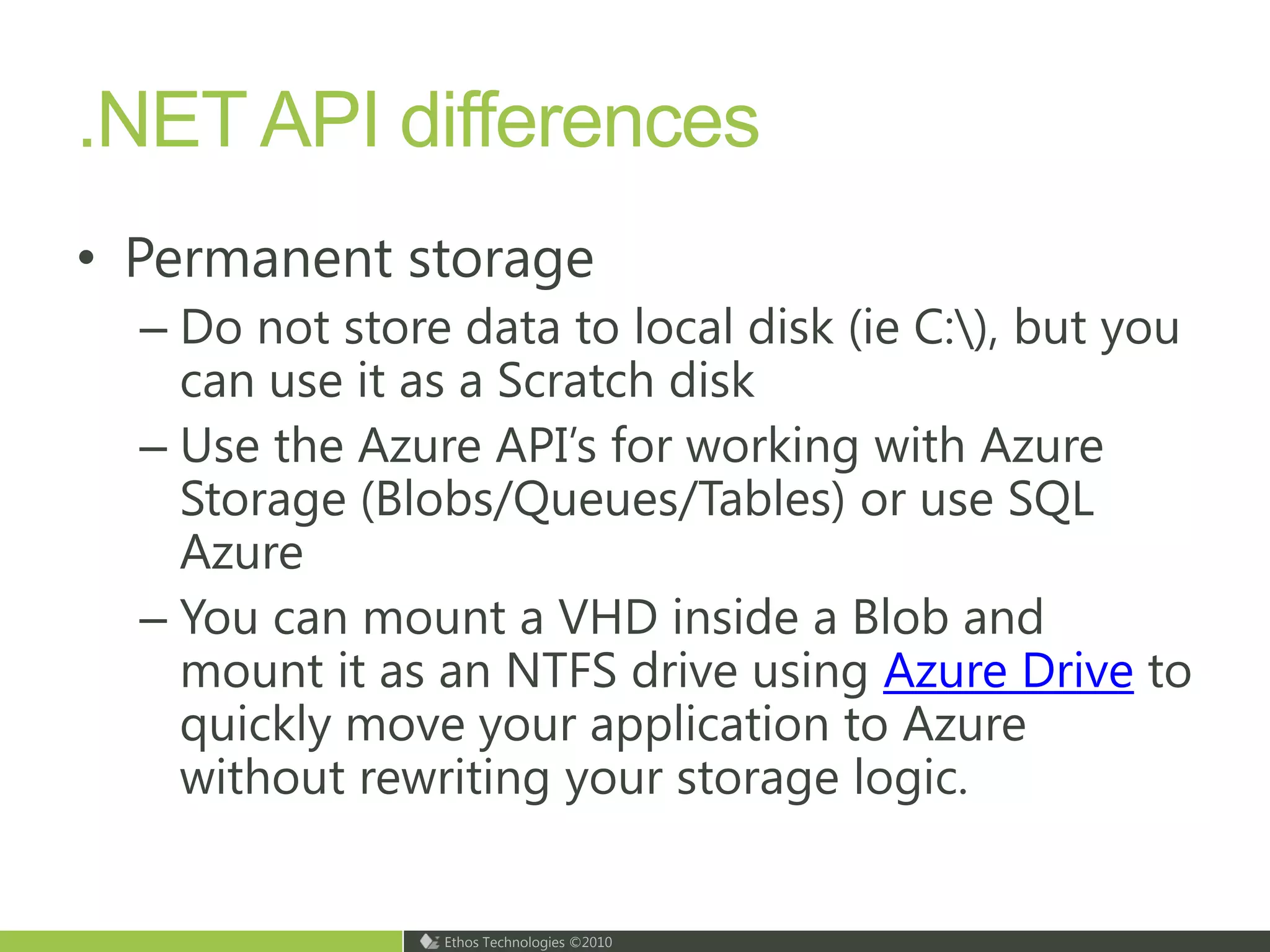

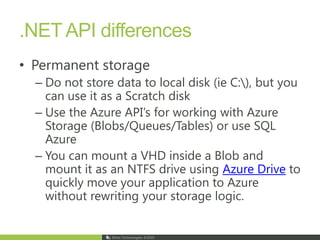

11. .NET API differencesPermanent storageDo not store data to local disk (ie C:\), but you can use it as a Scratch diskUse the Azure API’s for working with Azure Storage (Blobs/Queues/Tables) or use SQL AzureYou can mount a VHD inside a Blob and mount it as an NTFS drive using Azure Drive to quickly move your application to Azure without rewriting your storage logic.

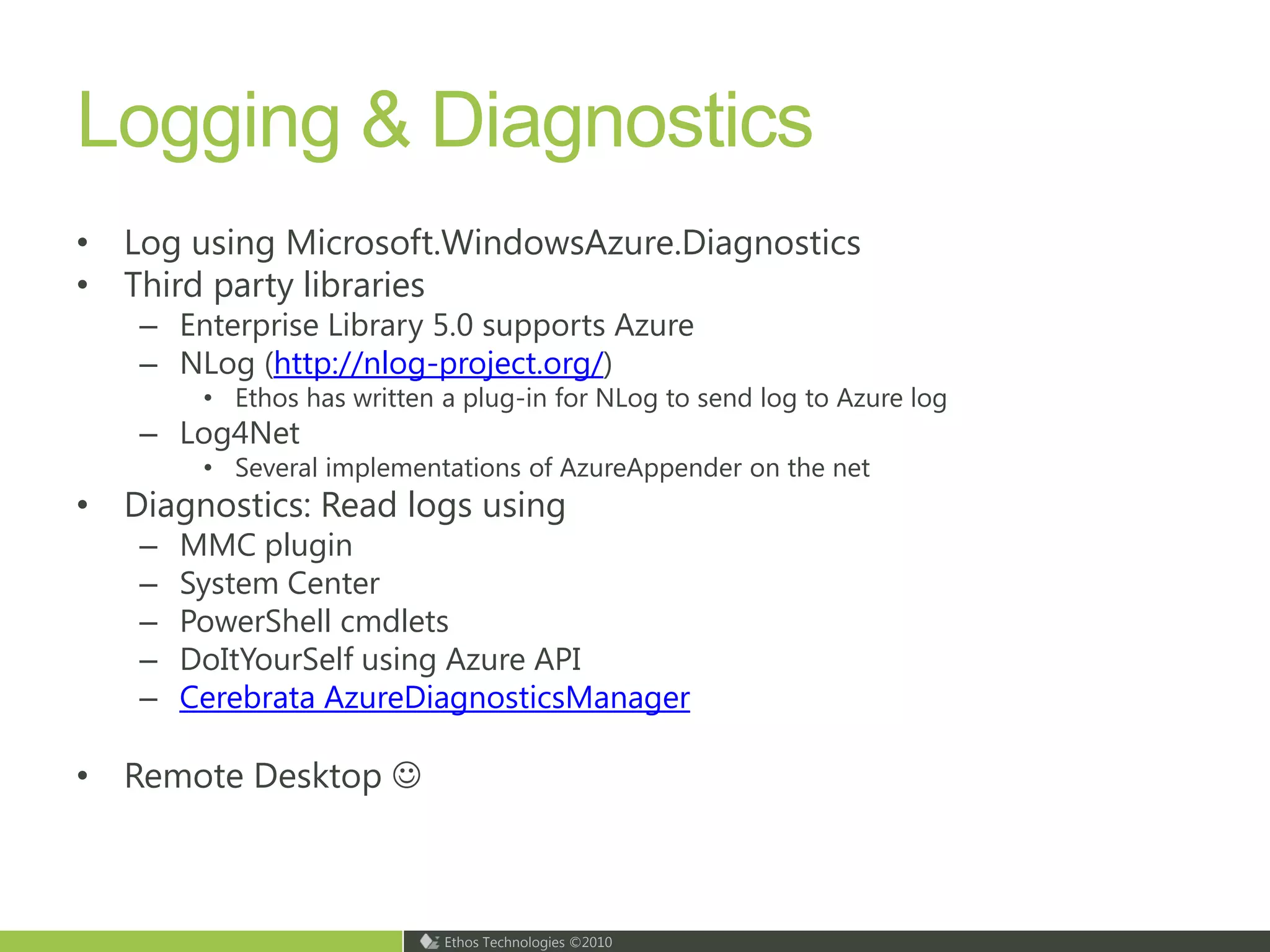

12. Logging & DiagnosticsLog using Microsoft.WindowsAzure.DiagnosticsThird party librariesEnterprise Library 5.0 supports AzureNLog(http://nlog-project.org/)Ethos has written a plug-in for NLog to send log to Azure logLog4NetSeveral implementations of AzureAppender on the netDiagnostics: Read logs using MMC pluginSystem CenterPowerShell cmdletsDoItYourSelf using Azure APICerebrata AzureDiagnosticsManagerRemote Desktop 

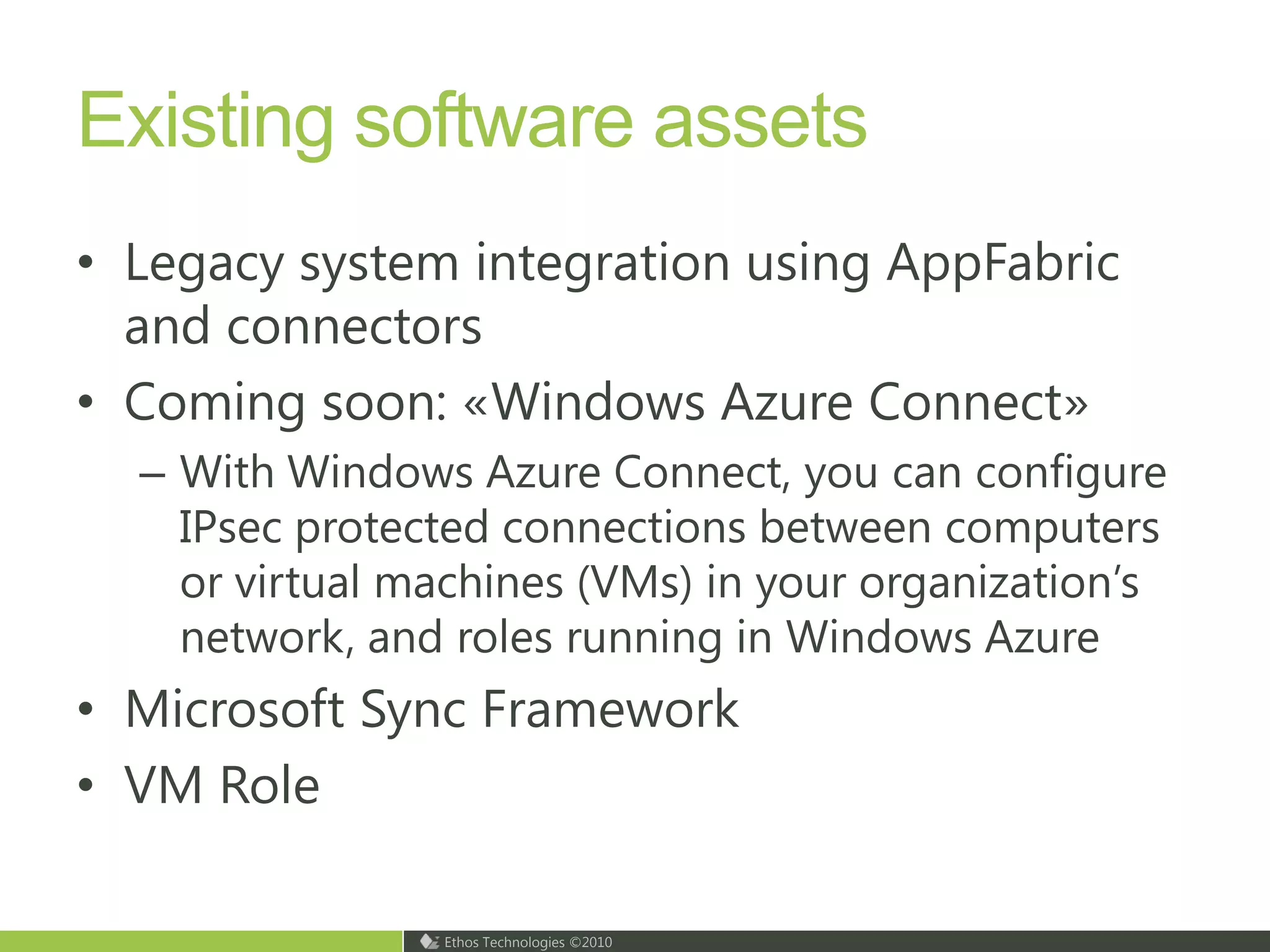

13. Existing software assetsLegacy system integration using AppFabric and connectorsComing soon: «Windows Azure Connect»With Windows Azure Connect, you can configure IPsec protected connections between computers or virtual machines (VMs) in your organization’s network, and roles running in Windows AzureMicrosoft Sync FrameworkVM Role

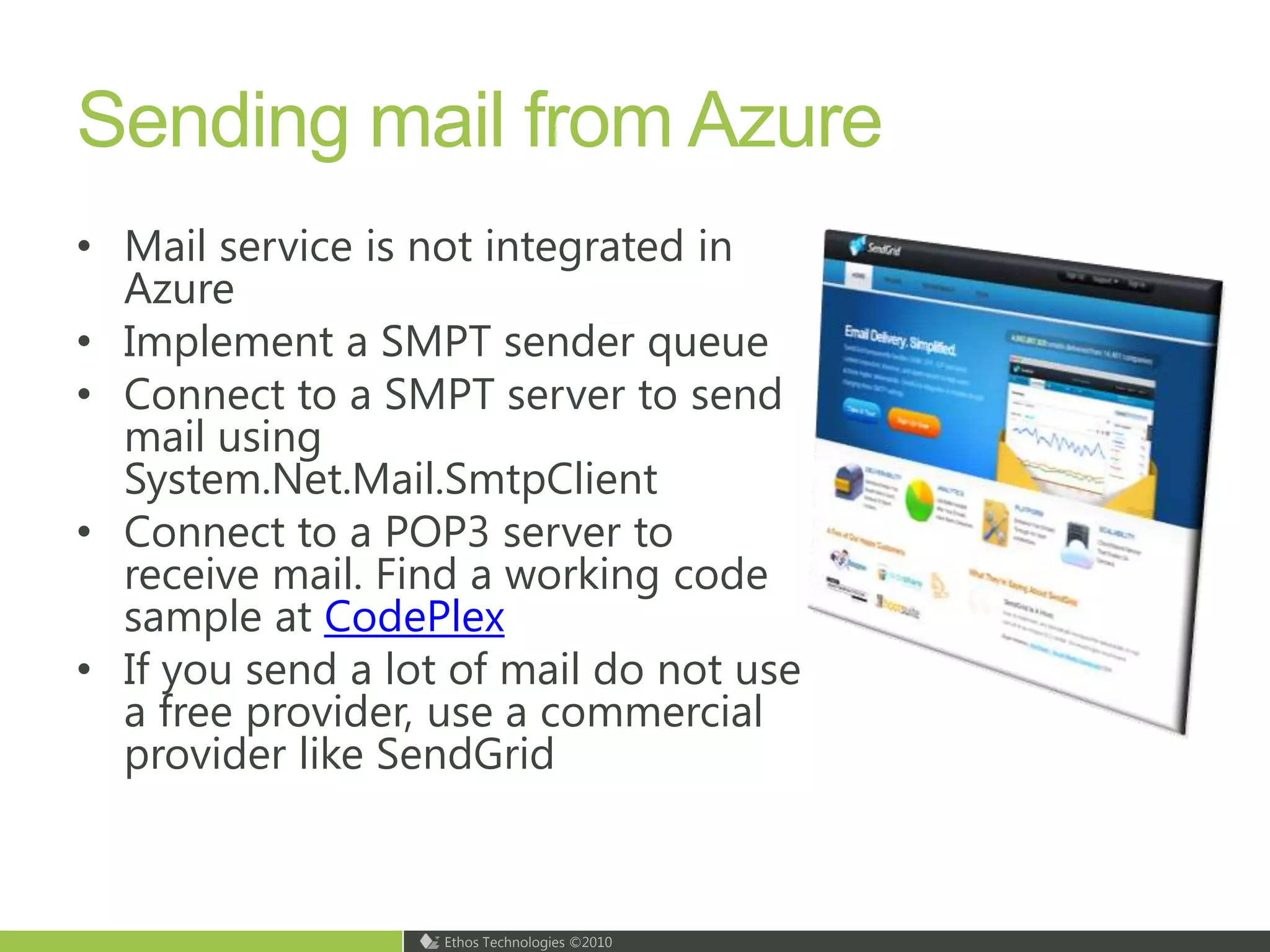

14. Sending mail from AzureMail service is not integrated in AzureImplement a SMPT sender queueConnect to a SMPT server to send mail using System.Net.Mail.SmtpClientConnect to a POP3 server to receive mail. Find a working code sample at CodePlexIf you send a lot of mail do not use a free provider, use a commercial provider like SendGrid

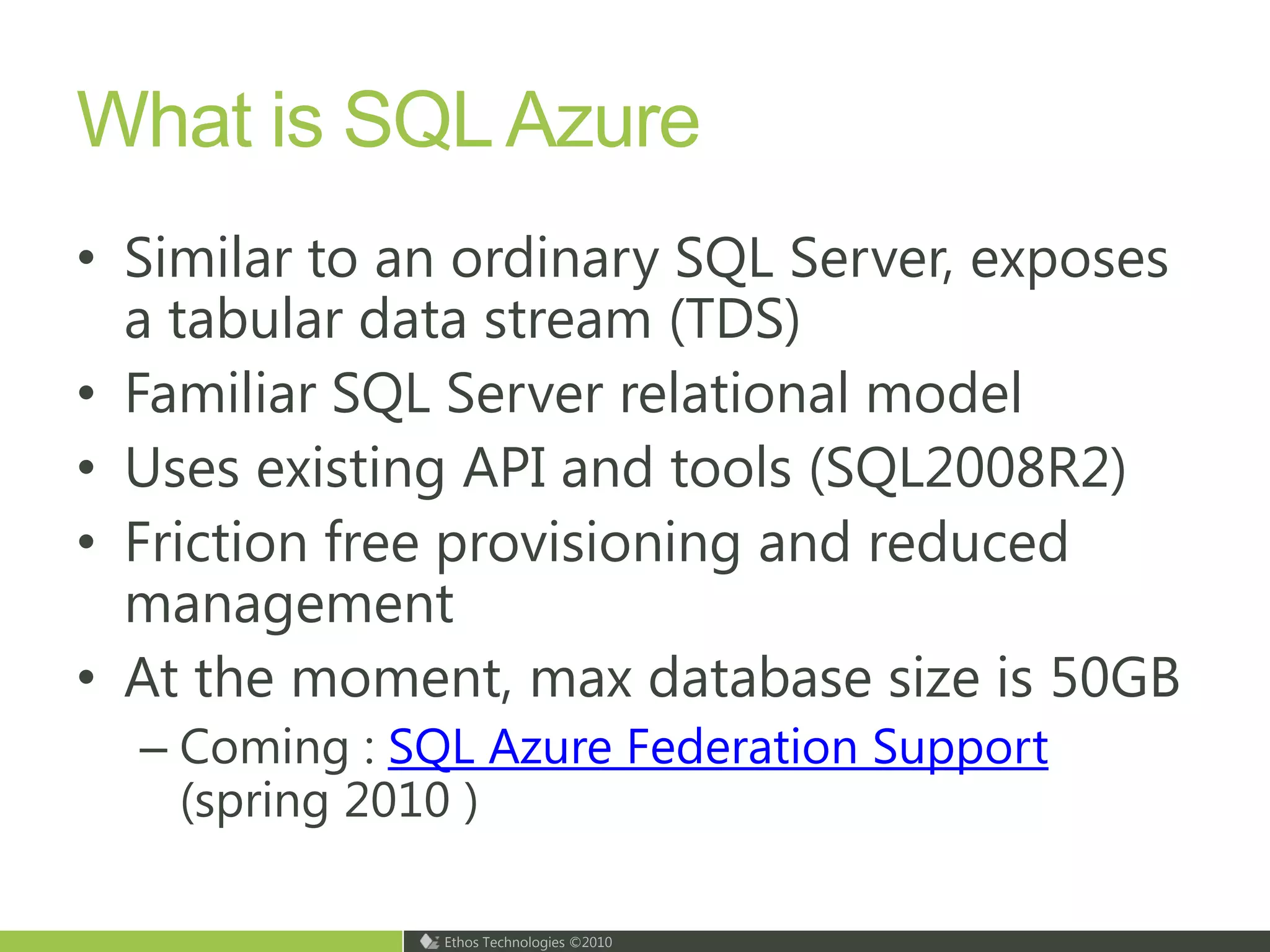

16. What is SQL AzureSimilar to an ordinary SQL Server, exposes a tabular data stream (TDS)Familiar SQL Server relational modelUses existing API and tools (SQL2008R2)Friction free provisioning and reduced managementAt the moment, max database size is 50GBComing : SQL Azure Federation Support (spring 2010 )

17. SQL Azure Under The HoodApplications use standard SQL client libraries: ODBC, ADO.Net, …ApplicationTDS (tcp:1433)Load balancer forwards ‘sticky’ sessions to TDS protocol tierLoad BalancerTDS (tcp: 1433)GatewayGatewayGatewayGatewayGatewayGatewayData NodeData NodeData NodeData NodeData NodeData NodeTDS (tcp: 1433)Scalability and Availability: Fabric, Failover, Replication and Load balancing

18. Key Benefits of the Service High AvailabilityScalabilityFamiliar Development ModelRelational Data Model

19. Features and TypesSQL Azure does not support all of the features and data types found in SQL ServerAnalysis Services, Replication, Reporting Services, and Service Broker are not currently provided as services on the SQL Azure.Reporting Services was announced 28. October at the PDC, soon available as a CTP

20. Transacts SQL supportTransact-SQL Features Supported ConstantsConstraintsCursorsIndex management and rebuilding indexesLocal temporary tablesReserved keywordsStored proceduresStatistics managementTransactionsTriggersTables, joins, and table variablesTransact-SQL language elements such as Create/drop databasesCreate/alter/drop tablesCreate/alter/drop users and loginsand so on.User-defined functionsViews, including sys.synonyms viewTransact-SQL Features UnsupportedCommon Language Runtime (CLR)Database file placementDatabase mirroringDistributed queriesDistributed transactionsFilegroup managementGlobal temporary tablesSpatial data and indexesSQL Server configuration optionsSQL Server Service BrokerSystem tables Trace Flags

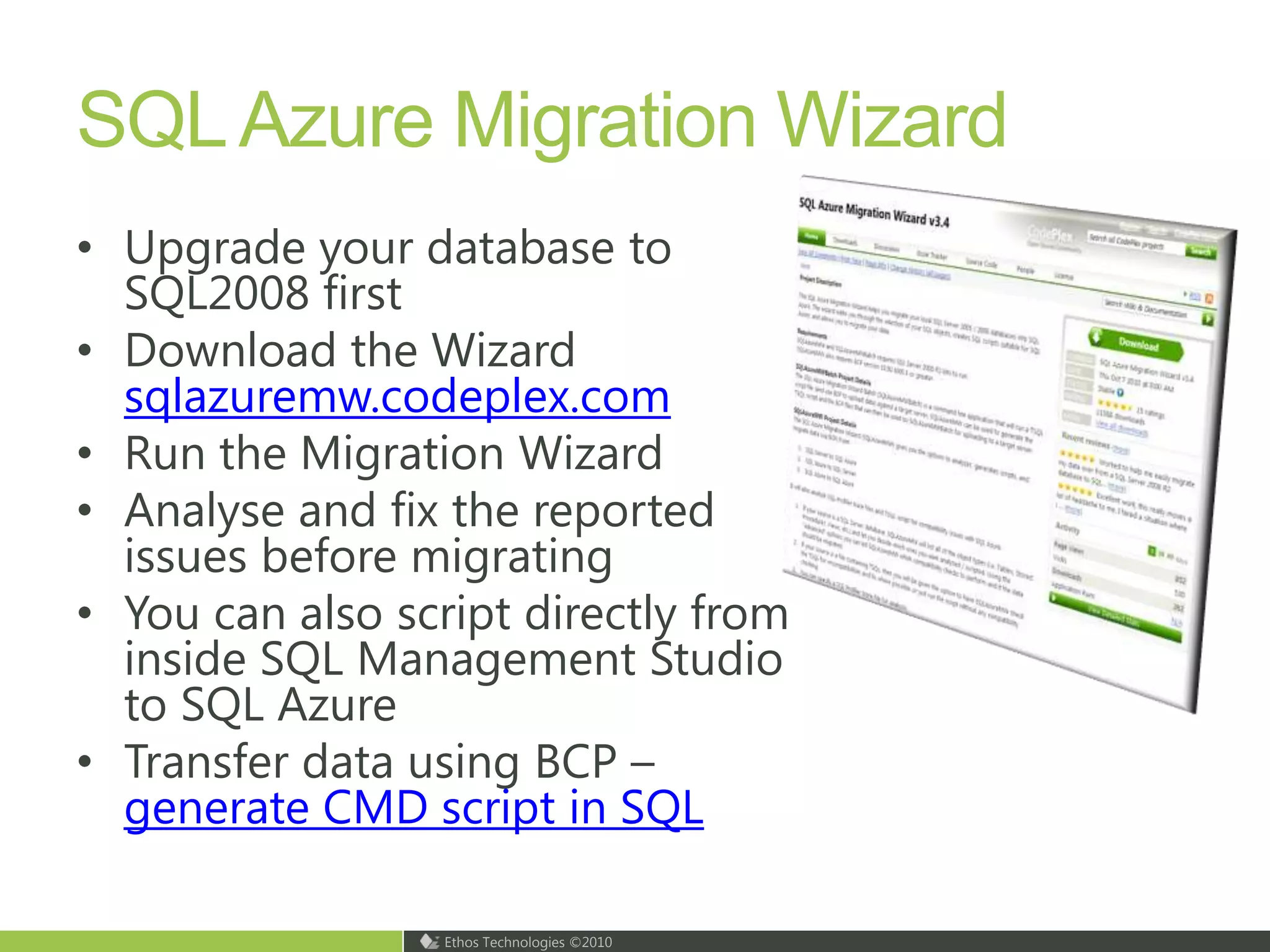

21. SQL Azure Migration WizardUpgrade your database to SQL2008 firstDownload the Wizard sqlazuremw.codeplex.comRun the Migration WizardAnalyse and fix the reported issues before migratingYou can also script directly from inside SQL Management Studio to SQL AzureTransfer data using BCP – generate CMD script in SQL

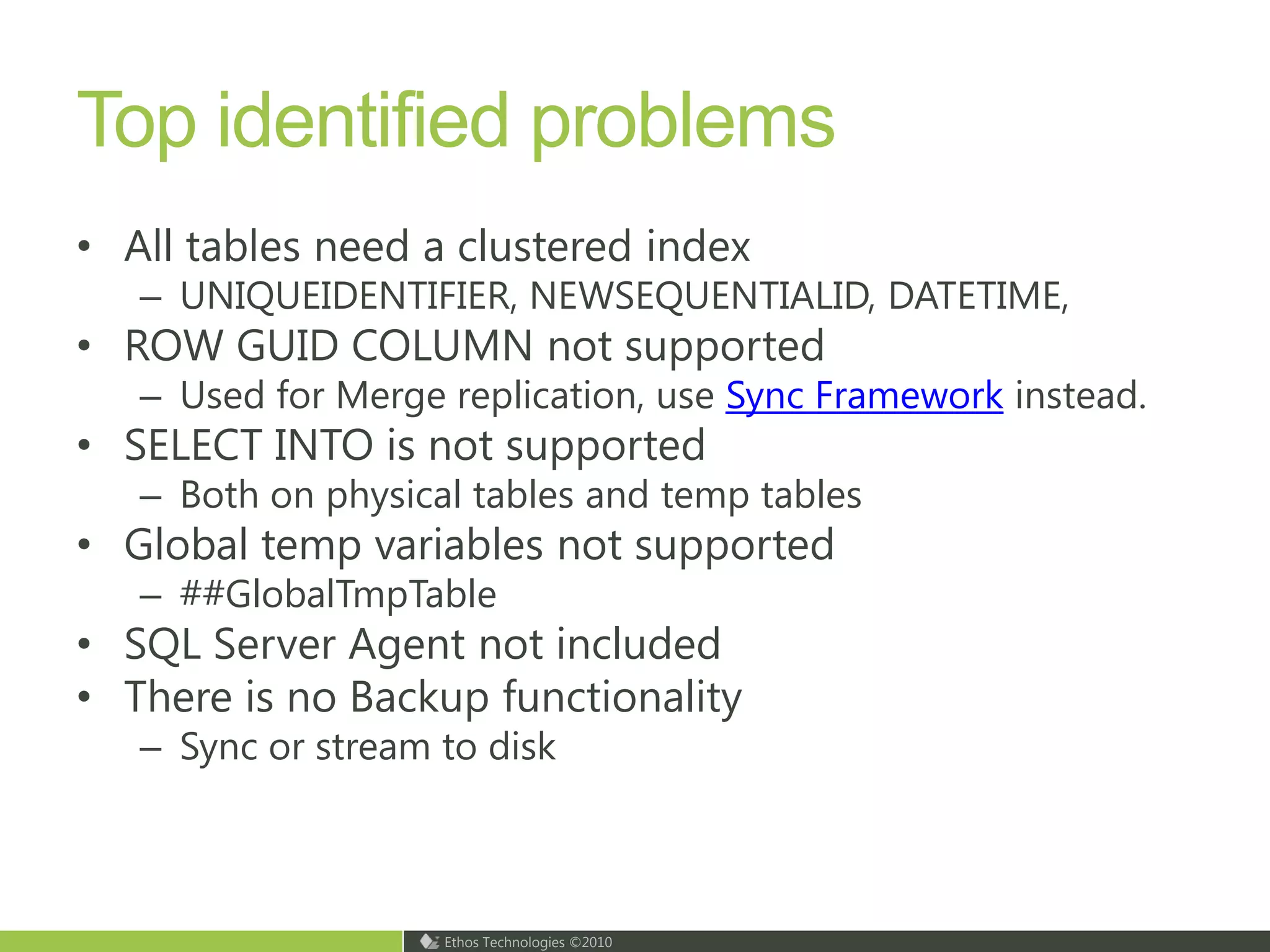

22. Top identified problemsAll tables need a clustered indexUNIQUEIDENTIFIER, NEWSEQUENTIALID, DATETIME, ROW GUID COLUMN not supportedUsed for Merge replication, use Sync Framework instead.SELECT INTO is not supportedBoth on physical tables and temp tablesGlobal temp variables not supported##GlobalTmpTableSQL Server Agent not includedThere is no Backup functionalitySync or stream to disk

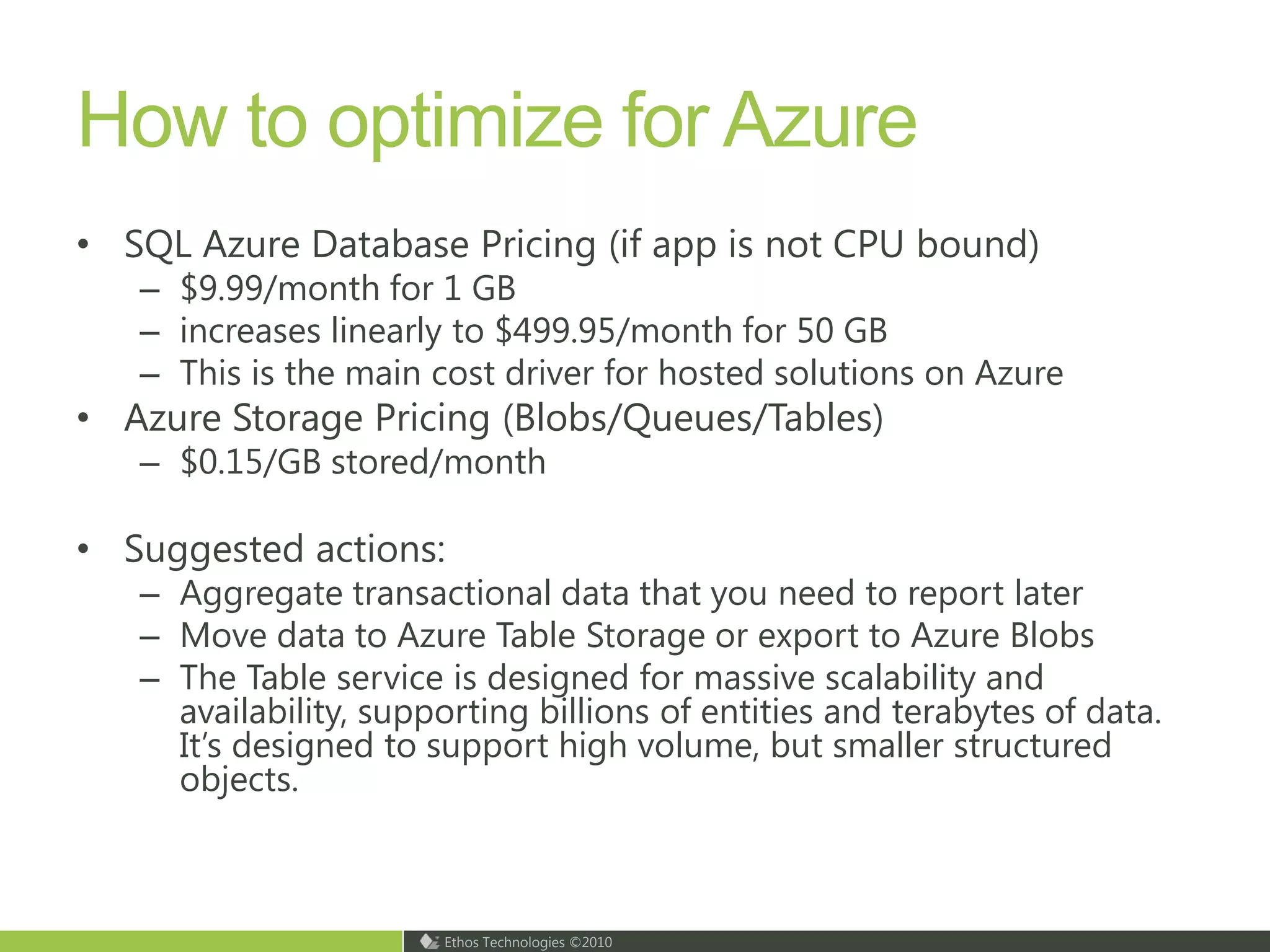

23. How to optimize for AzureSQL Azure Database Pricing (if app is not CPU bound)$9.99/month for 1 GB increases linearly to $499.95/month for 50 GBThis is the main cost driver for hosted solutions on AzureAzure Storage Pricing (Blobs/Queues/Tables)$0.15/GB stored/monthSuggested actions:Aggregate transactional data that you need to report laterMove data to Azure Table Storage or export to Azure BlobsThe Table service is designed for massive scalability and availability, supporting billions of entities and terabytes of data. It’s designed to support high volume, but smaller structured objects.

24. Reflections on SecurityProtecting yourself

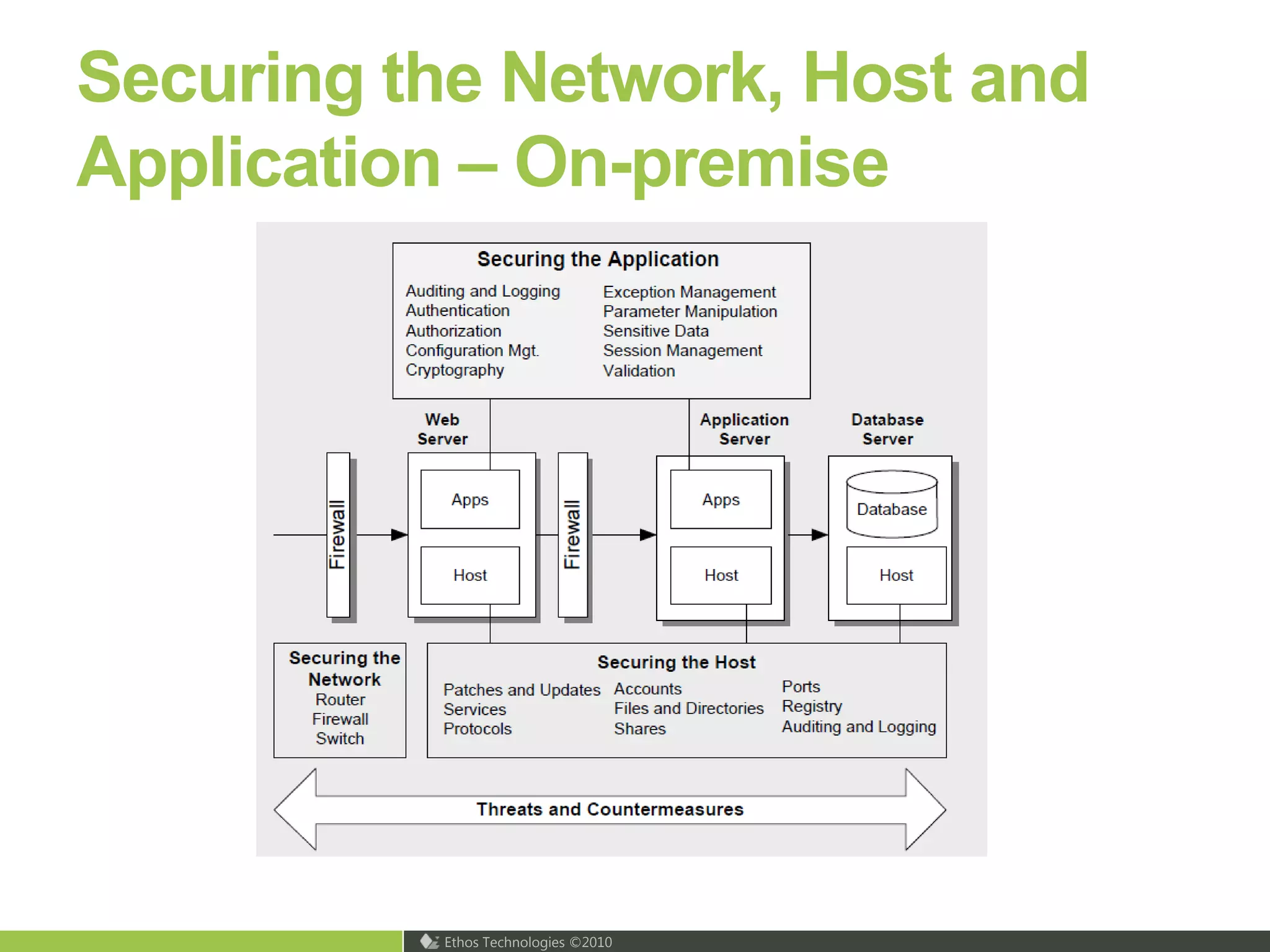

25. Securing the Network, Host and Application – On-premise

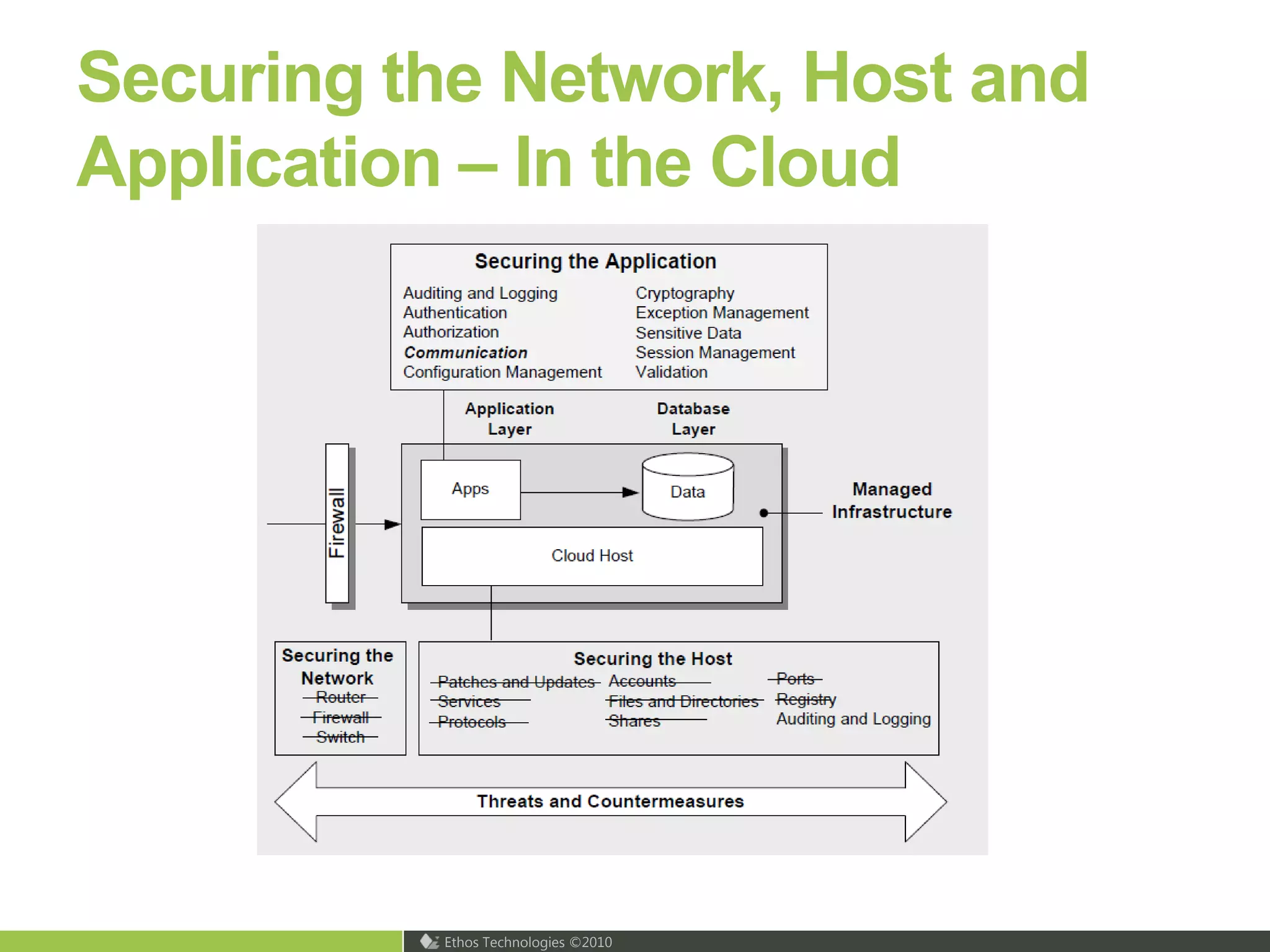

26. Securing the Network, Host and Application – In the Cloud

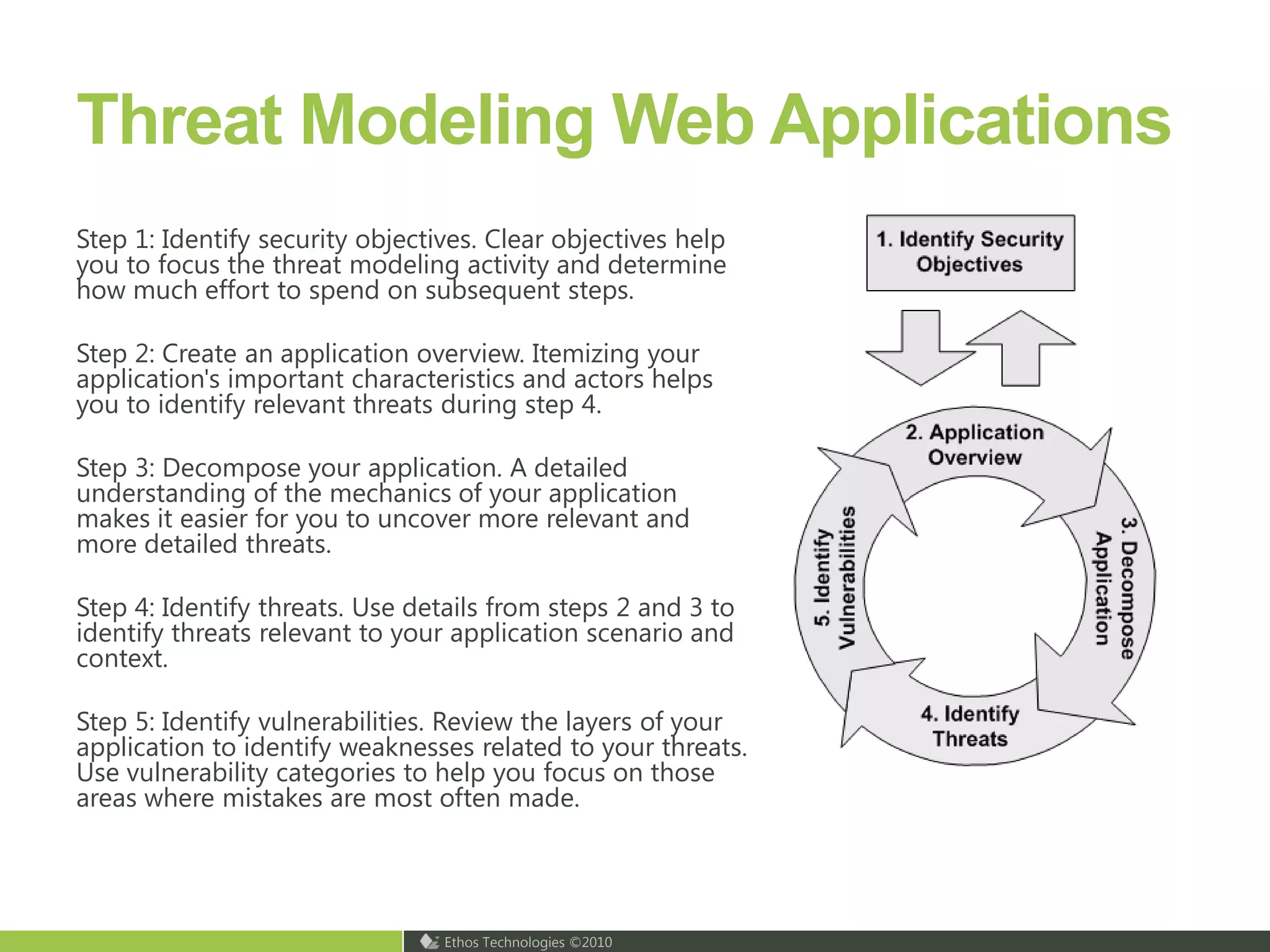

27. Threat Modeling Web ApplicationsStep 1: Identify security objectives. Clear objectives help you to focus the threat modeling activity and determine how much effort to spend on subsequent steps.Step 2: Create an application overview. Itemizing your application's important characteristics and actors helps you to identify relevant threats during step 4.Step 3: Decompose your application. A detailed understanding of the mechanics of your application makes it easier for you to uncover more relevant and more detailed threats.Step 4: Identify threats. Use details from steps 2 and 3 to identify threats relevant to your application scenario and context.Step 5: Identify vulnerabilities. Review the layers of your application to identify weaknesses related to your threats. Use vulnerability categories to help you focus on those areas where mistakes are most often made.

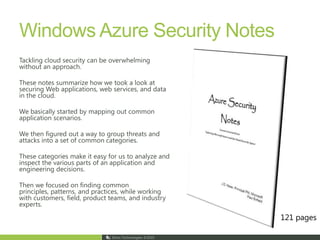

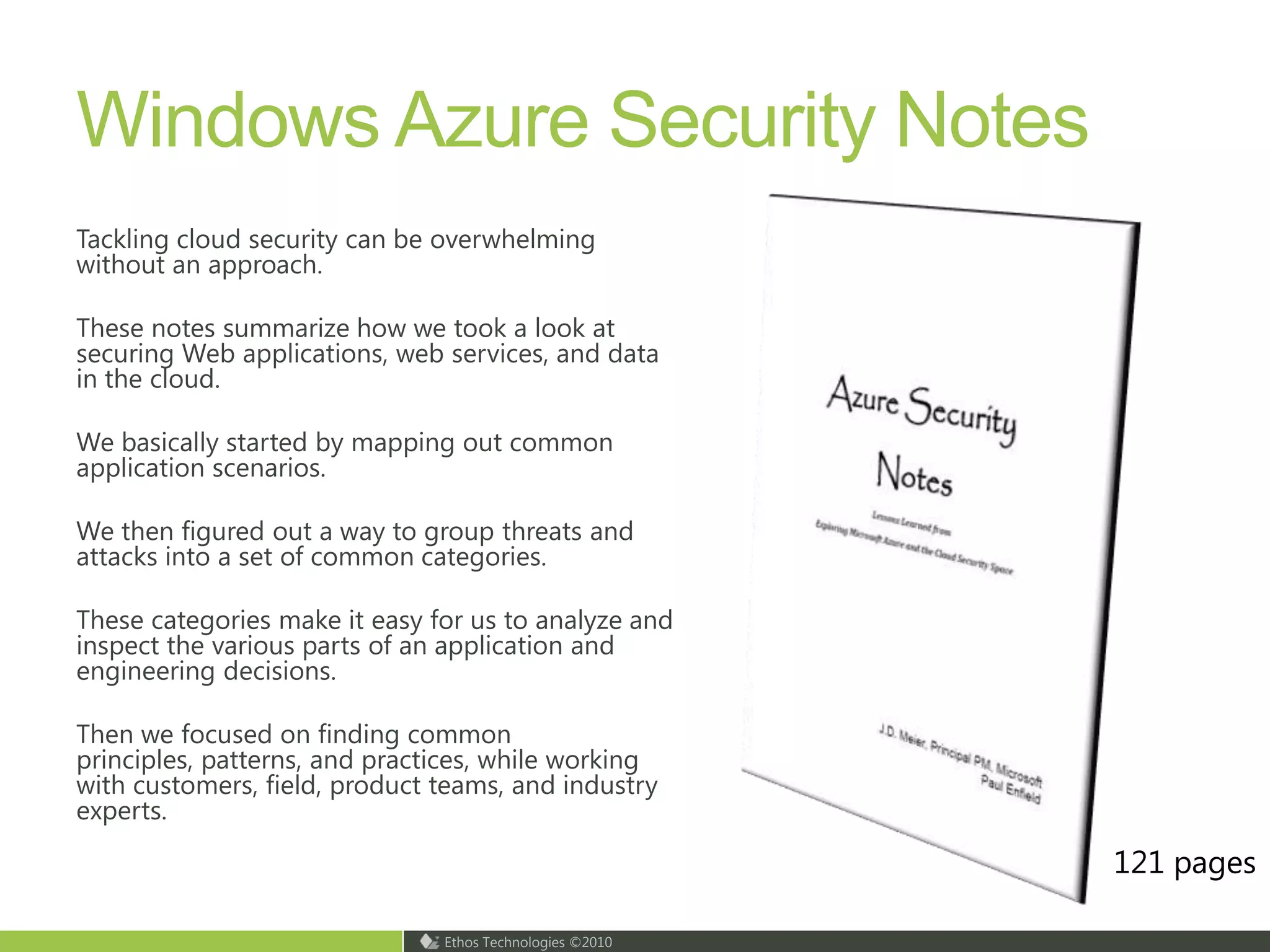

28. Windows Azure Security Notes Tackling cloud security can be overwhelming without an approach. These notes summarize how we took a look at securing Web applications, web services, and data in the cloud. We basically started by mapping out common application scenarios. We then figured out a way to group threats and attacks into a set of common categories. These categories make it easy for us to analyze and inspect the various parts of an application and engineering decisions. Then we focused on finding common principles, patterns, and practices, while working with customers, field, product teams, and industry experts.121 pages

29. Security Best Practices For Developing Windows Azure ApplicationsThis paper focuses on the security challenges and recommended approaches to design and develop more secure applications for Microsoft’s Windows Azure platform. Microsoft Security Engineering Center (MSEC) and Microsoft’s Online Services Security & Compliance (OSSC) team have partnered with the Windows Azure team to build on the same security principles and processes that Microsoft has developed through years of experience managing security risks in traditional development and operating environments.26 pages

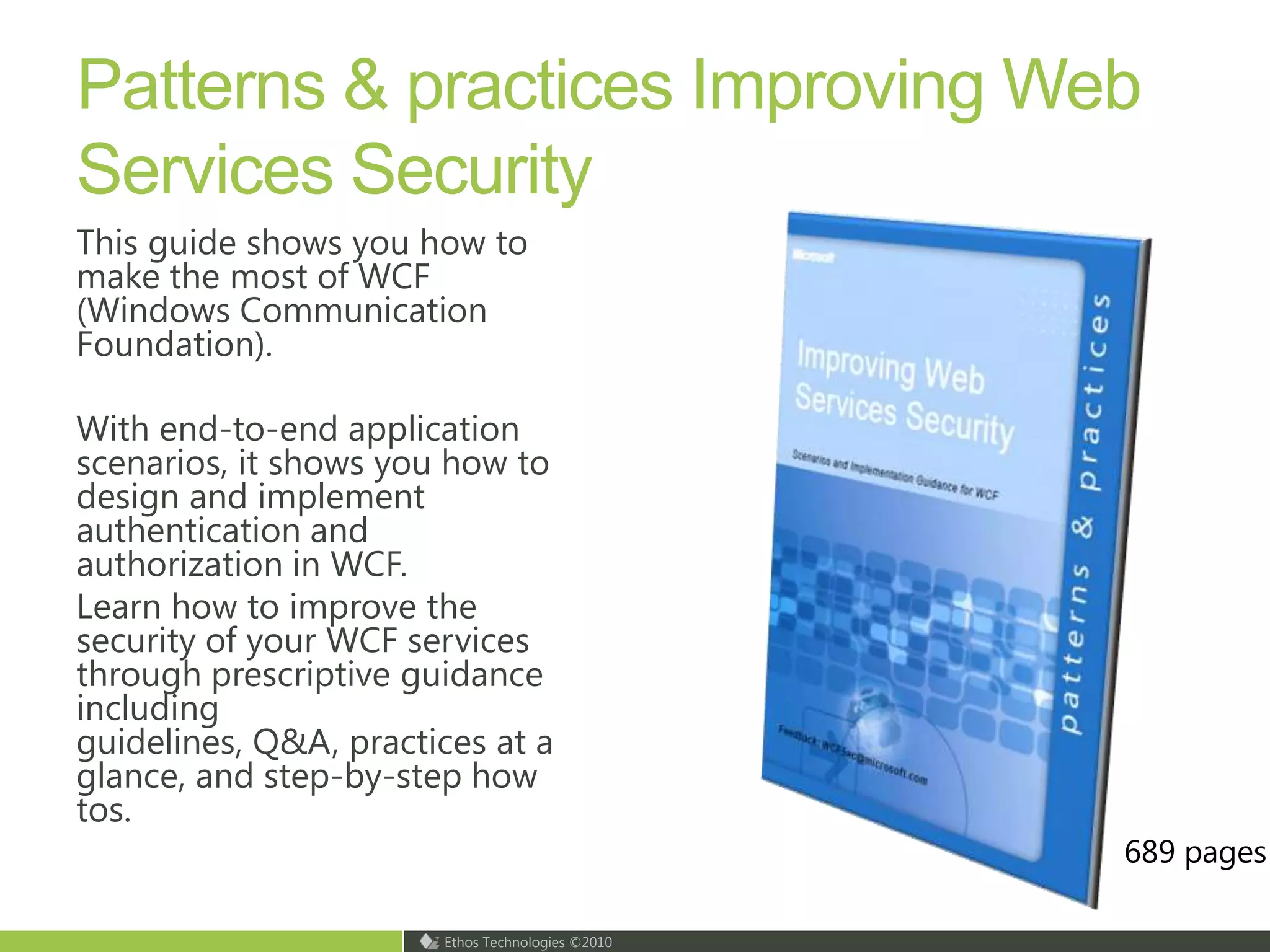

30. Patterns & practices Improving Web Services SecurityThis guide shows you how to make the most of WCF (Windows Communication Foundation). With end-to-end application scenarios, it shows you how to design and implement authentication and authorization in WCF. Learn how to improve the security of your WCF services through prescriptive guidance including guidelines, Q&A, practices at a glance, and step-by-step how tos.689 pages

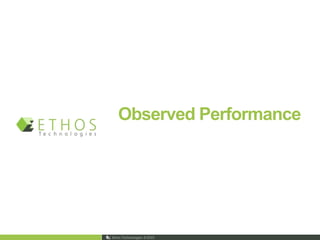

31. Observed Performance

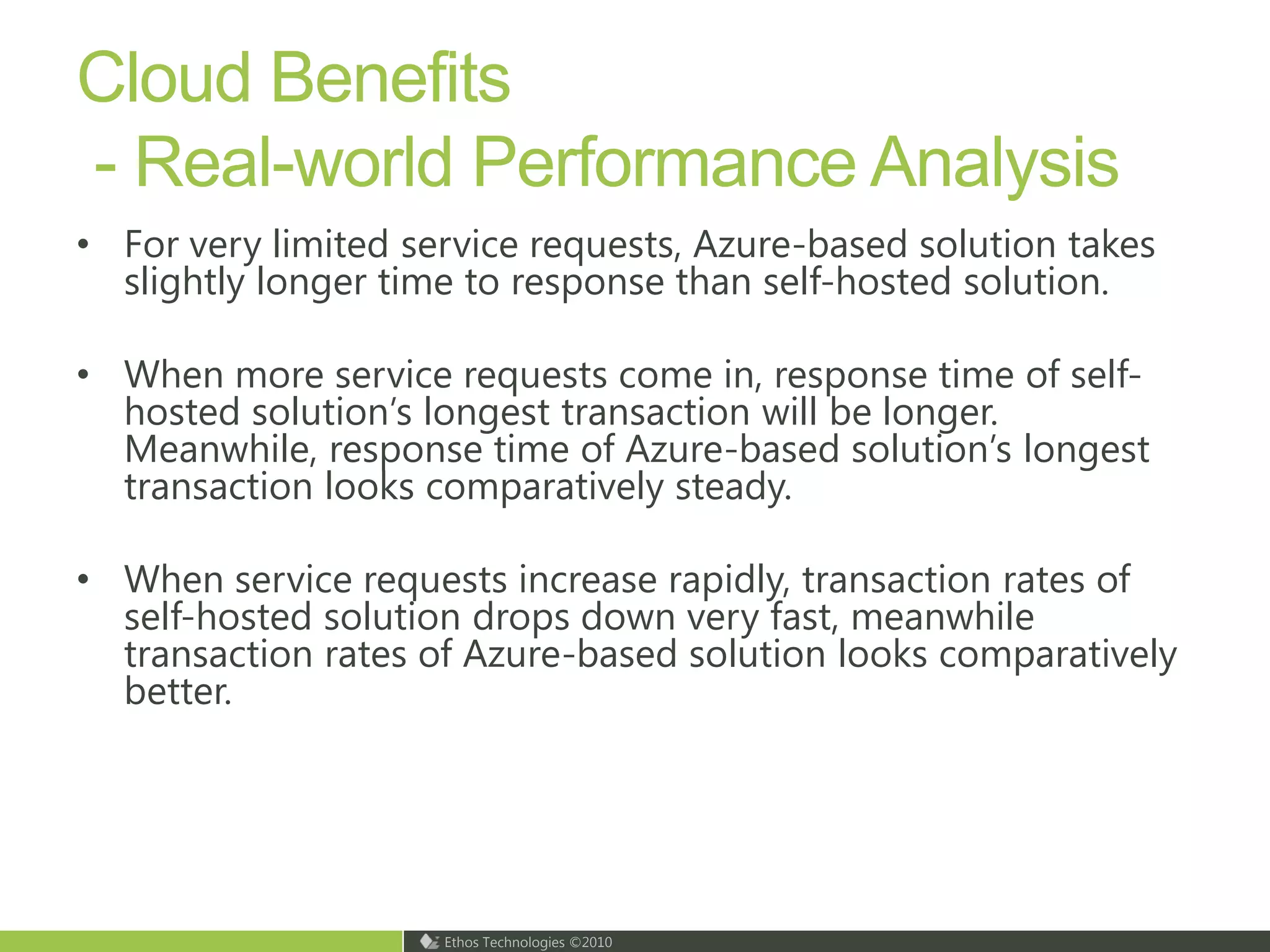

32. Cloud Benefits - Real-world Performance AnalysisFor very limited service requests, Azure-based solution takes slightly longer time to response than self-hosted solution.When more service requests come in, response time of self-hosted solution’s longest transaction will be longer. Meanwhile, response time of Azure-based solution’s longest transaction looks comparatively steady.When service requests increase rapidly, transaction rates of self-hosted solution drops down very fast, meanwhile transaction rates of Azure-based solution looks comparatively better.

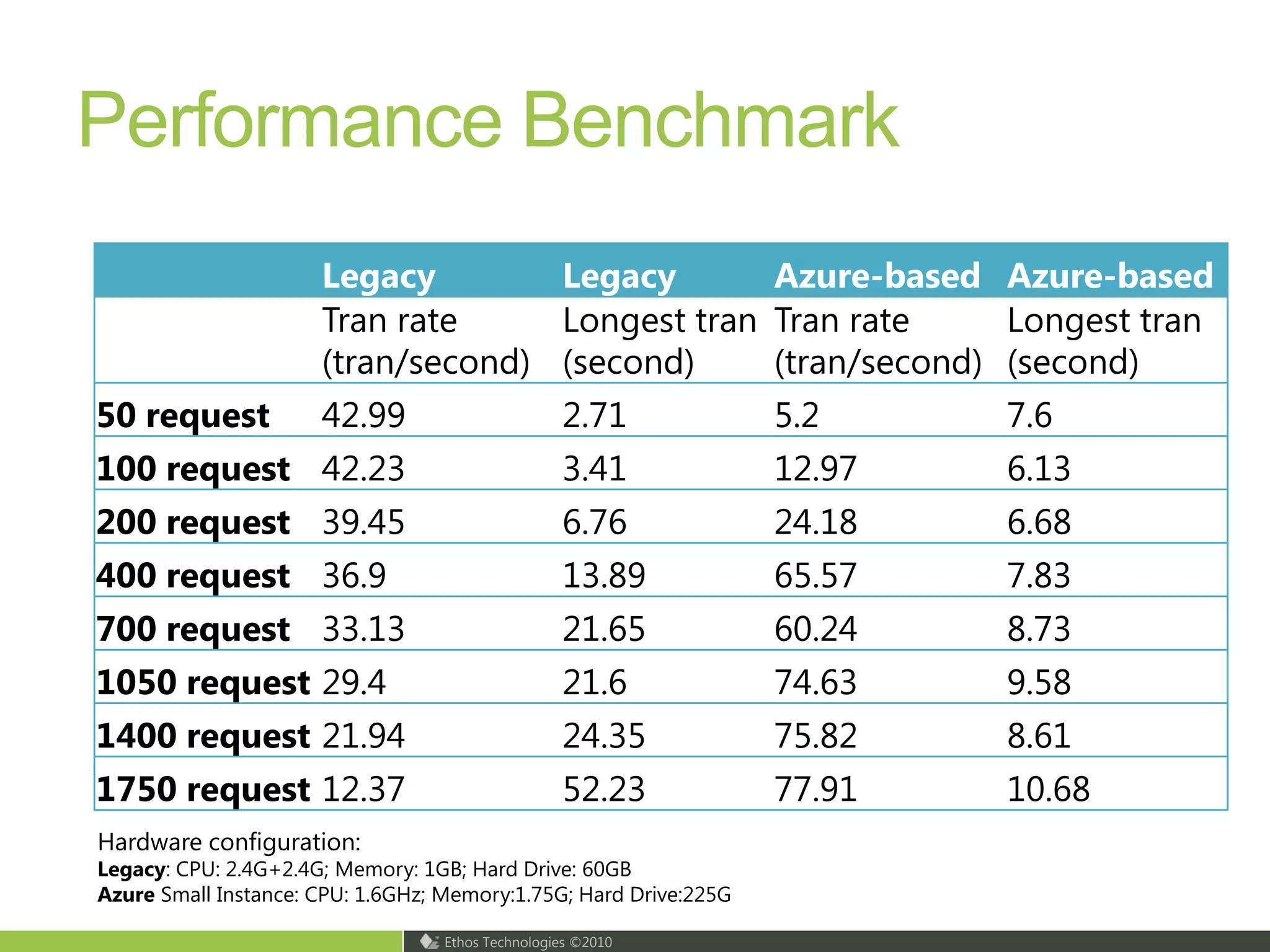

33. Performance BenchmarkHardware configuration: Legacy: CPU: 2.4G+2.4G; Memory: 1GB; Hard Drive: 60GBAzure Small Instance: CPU: 1.6GHz; Memory:1.75G; Hard Drive:225G

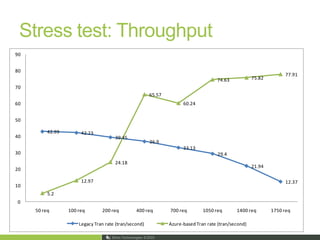

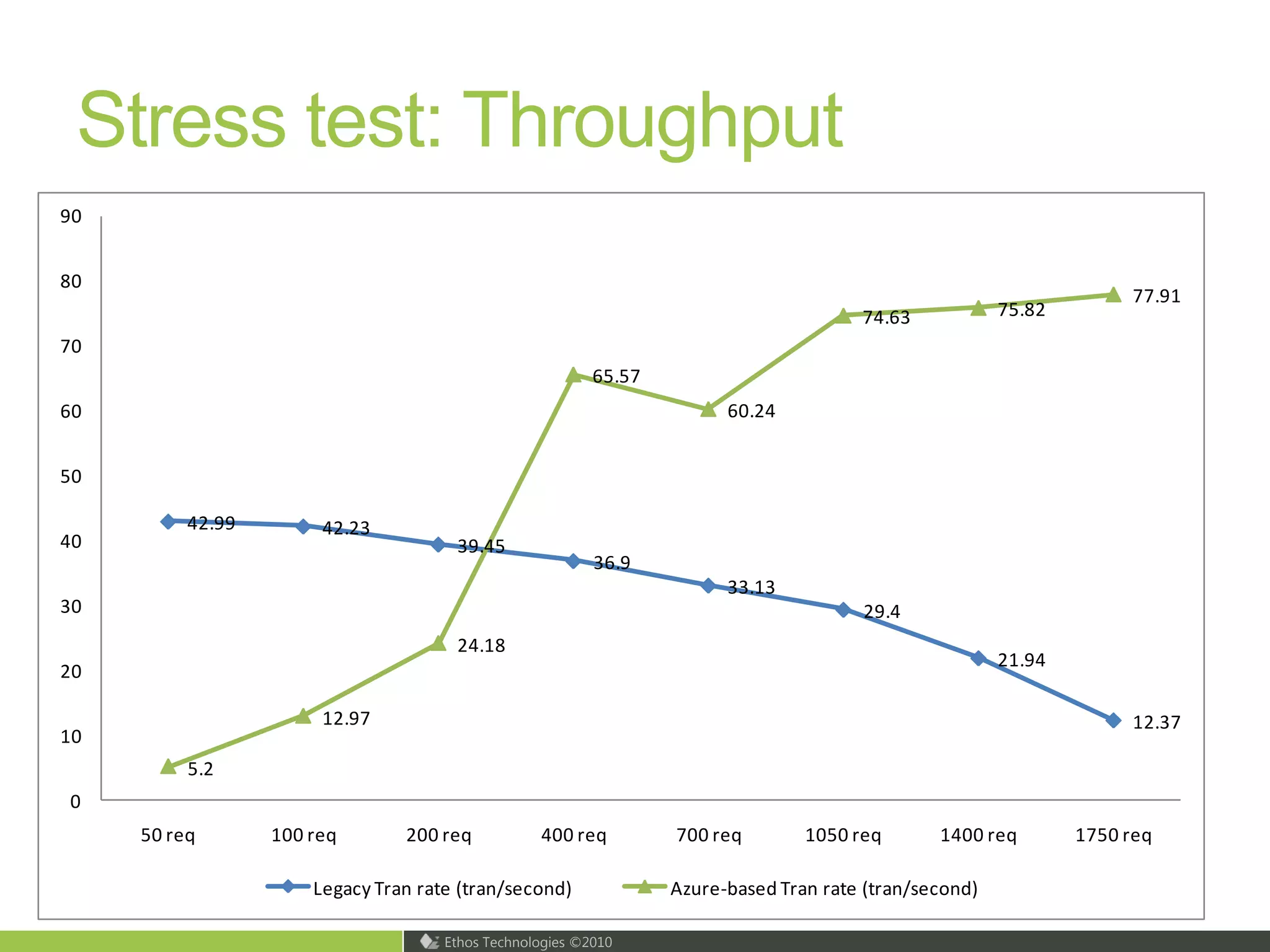

34. Stress test: Throughput

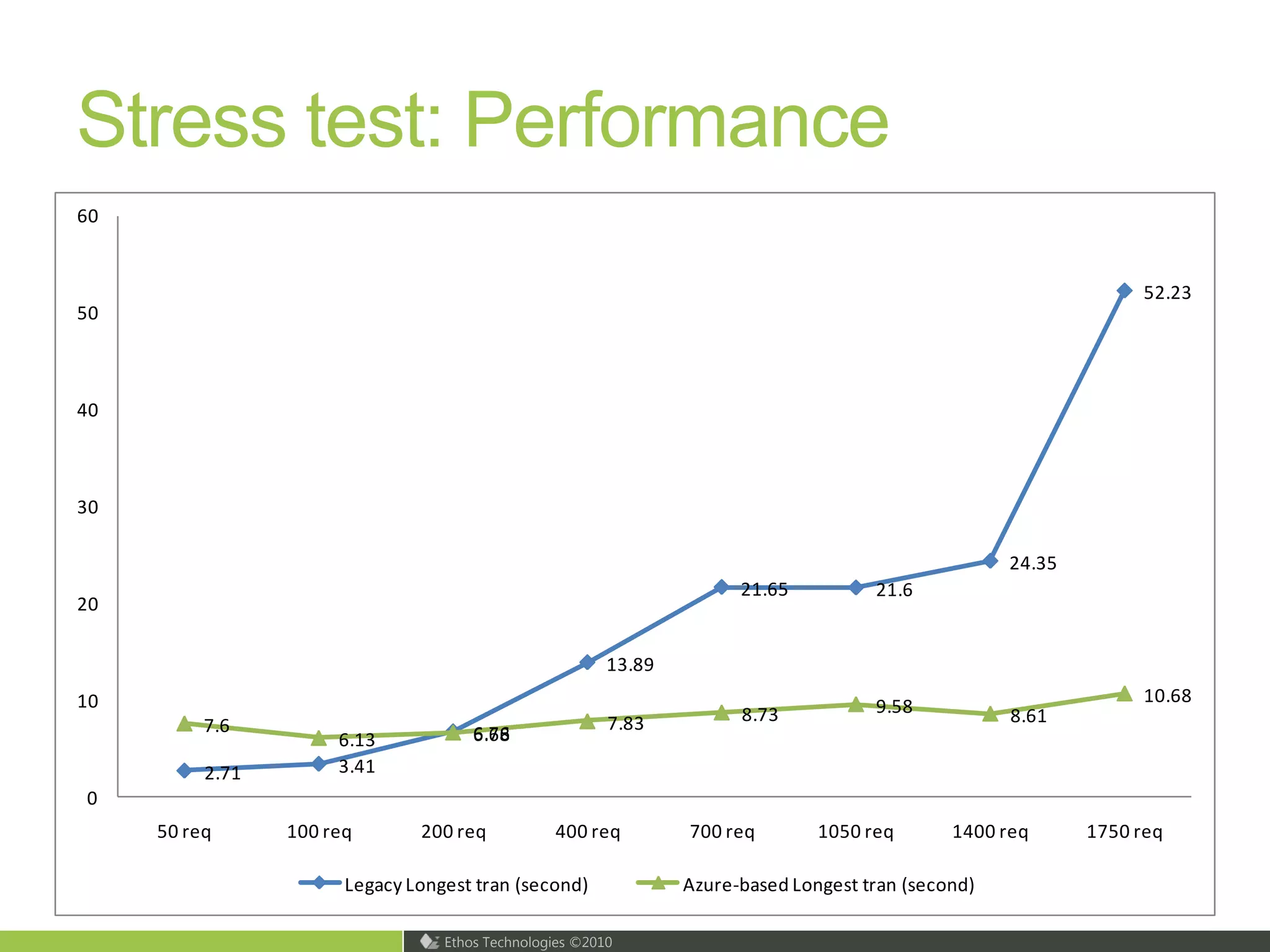

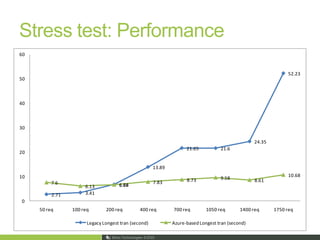

35. Stress test: Performance

36. Migration and Cost

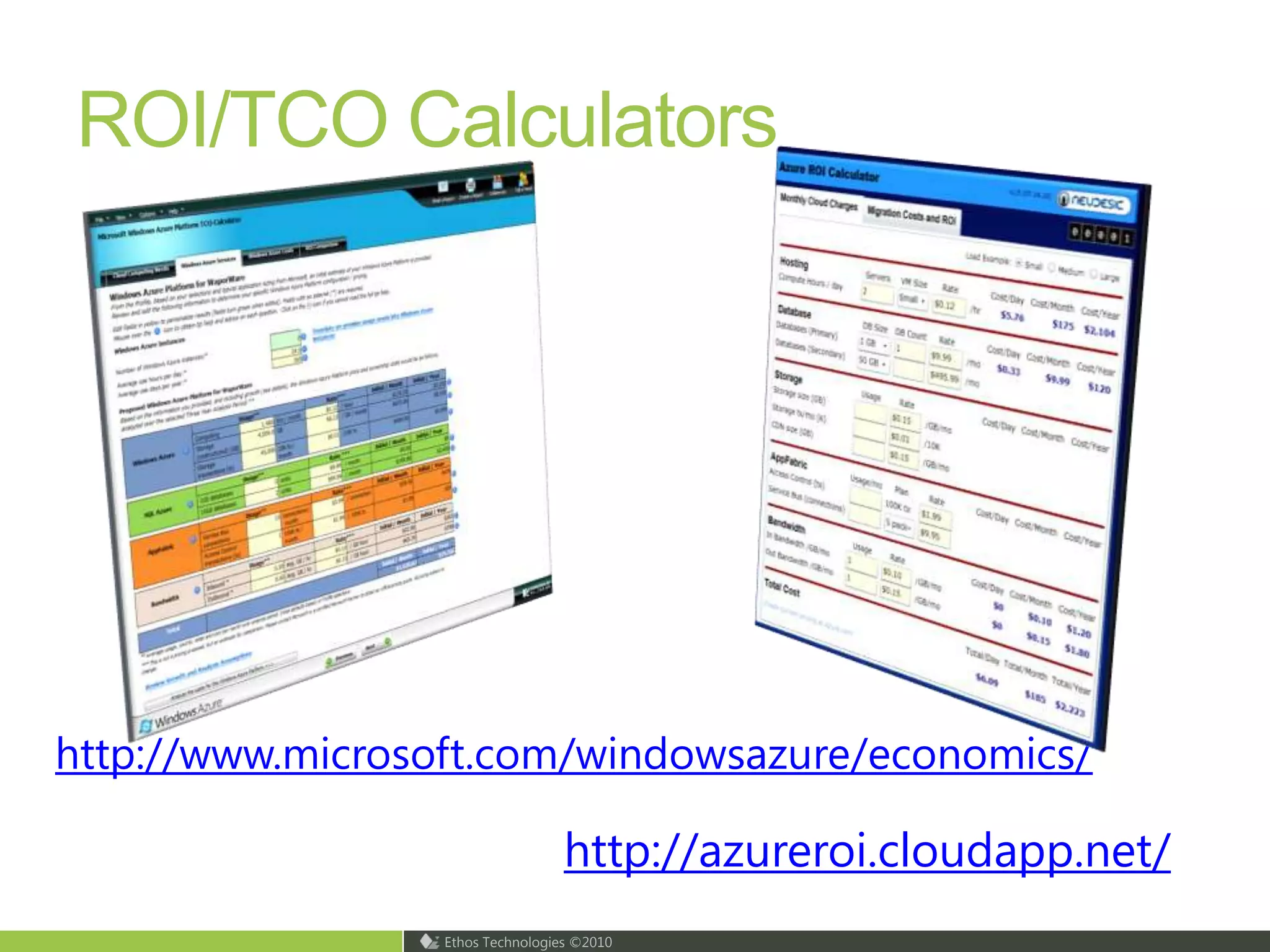

37. ROI/TCO Calculatorshttp://www.microsoft.com/windowsazure/economics/http://azureroi.cloudapp.net/

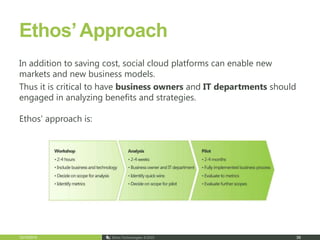

38. Ethos’ ApproachIn addition to saving cost, social cloud platforms can enable new markets and new business models. Thus it is critical to have business owners and IT departments should engaged in analyzing benefits and strategies. Ethos' approach is:12/10/201038

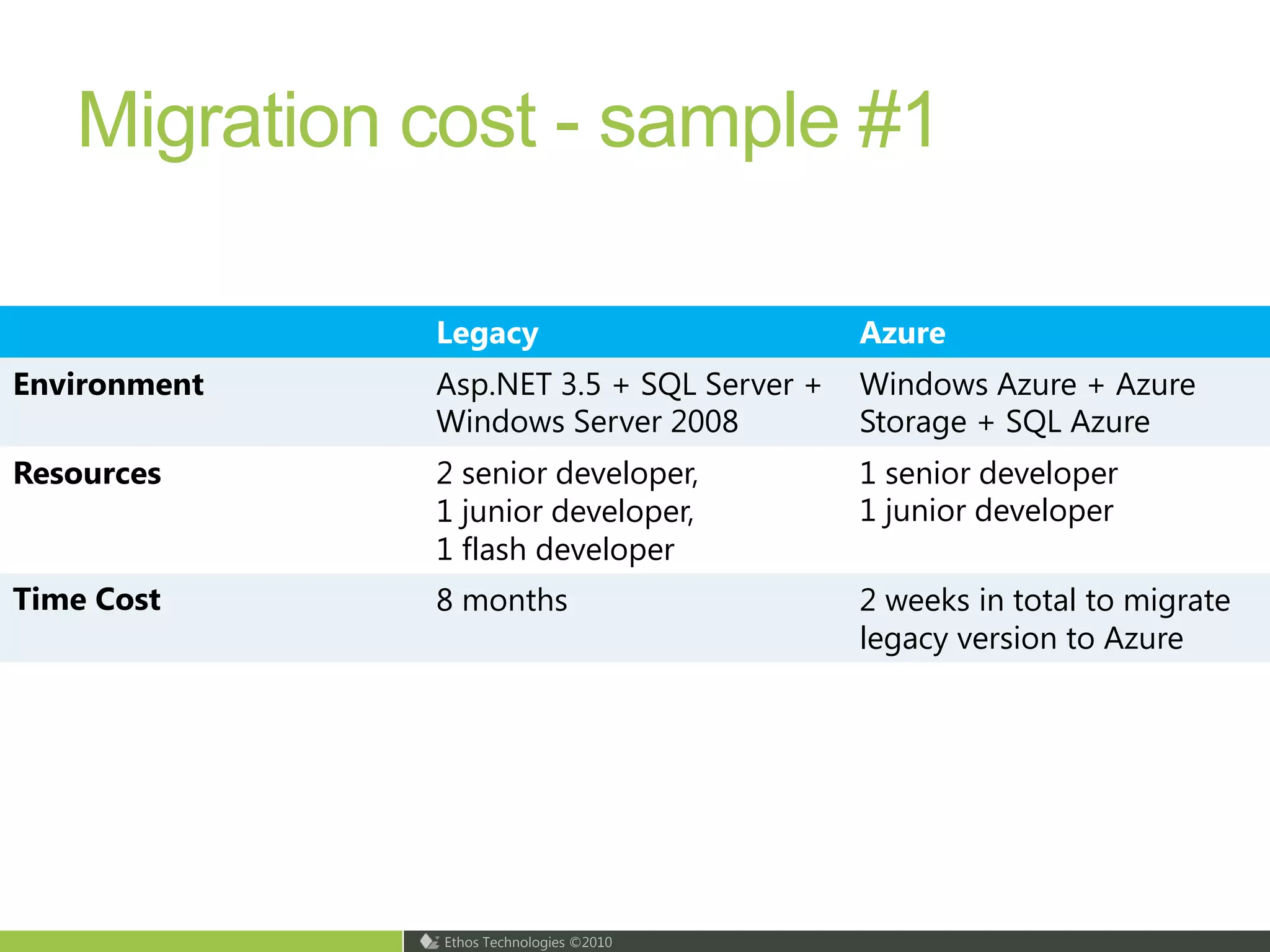

39. Migration cost - sample #1

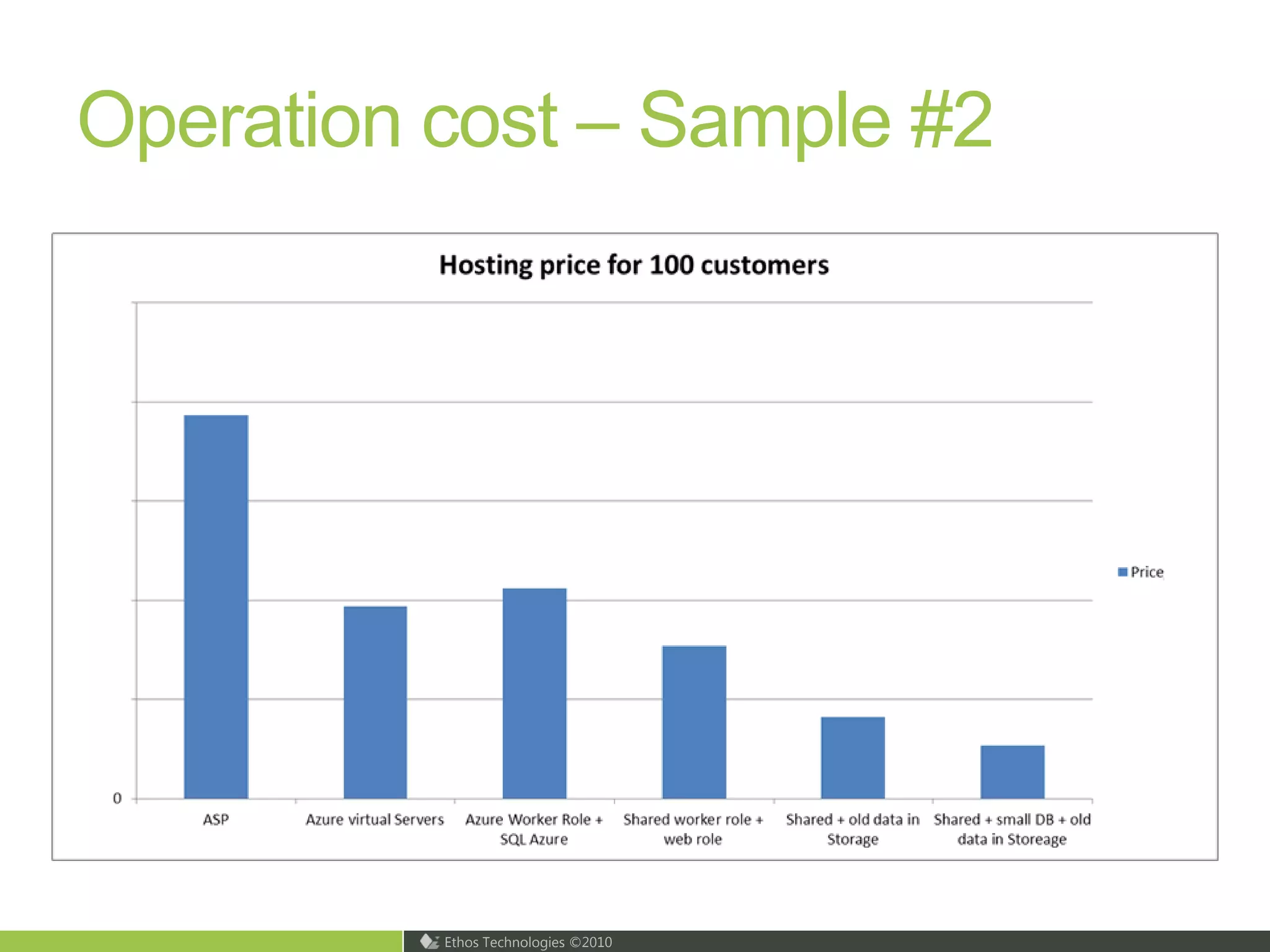

40. Operation cost – Sample #2

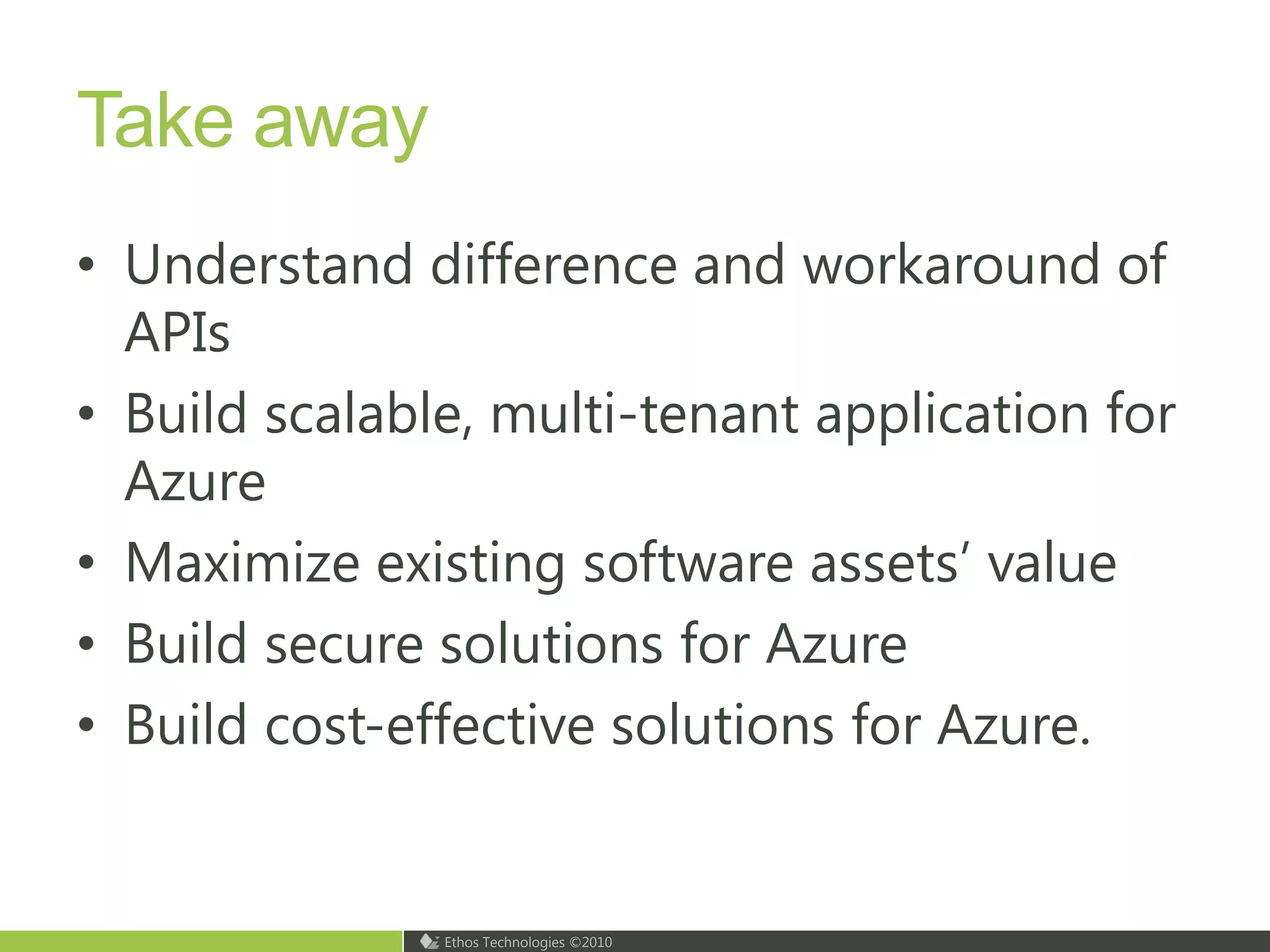

41. Take awayUnderstand difference and workaround of APIsBuild scalable, multi-tenant application for AzureMaximize existing software assets’ valueBuild secure solutions for AzureBuild cost-effective solutions for Azure.

42. Other Tips

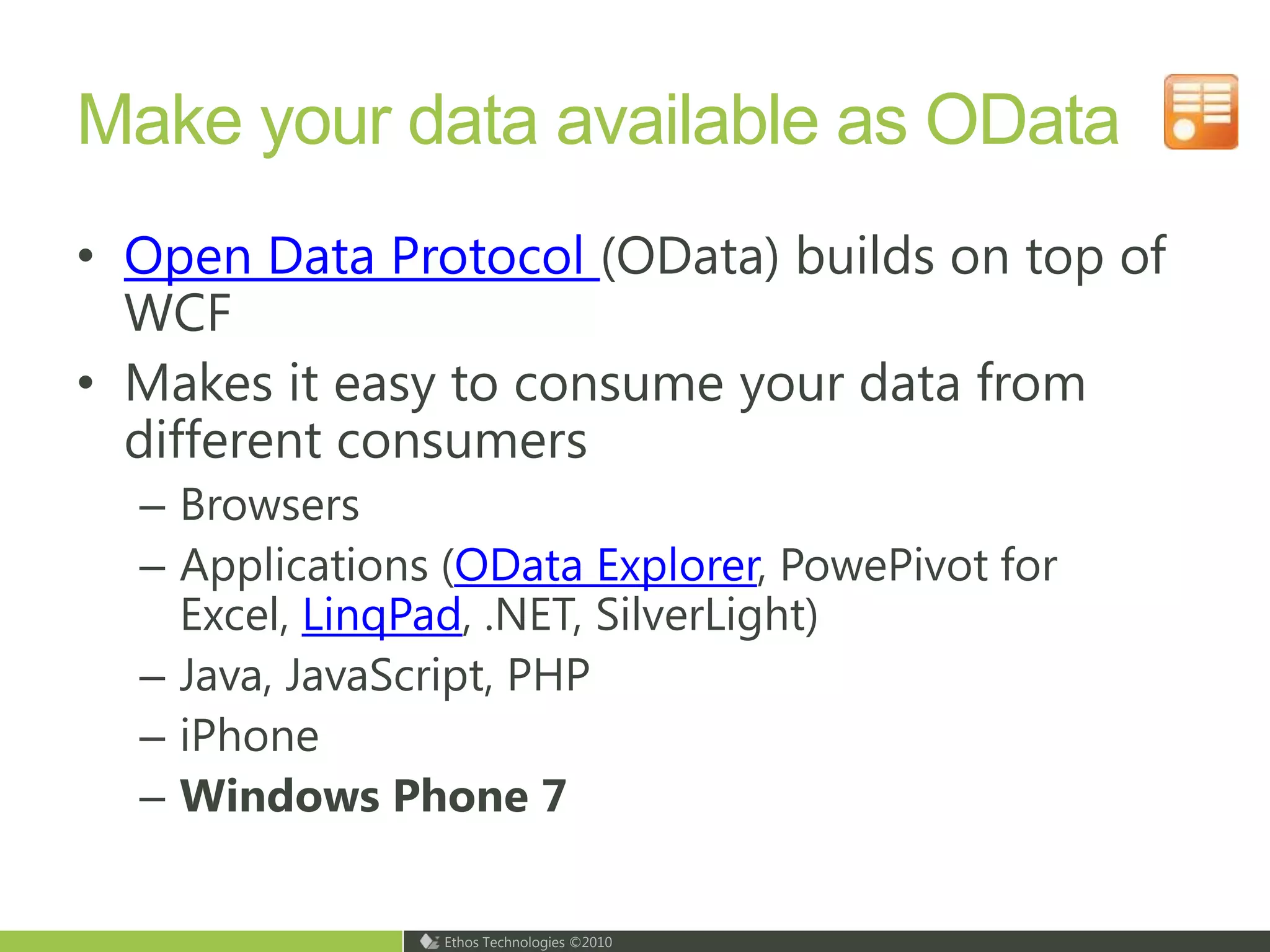

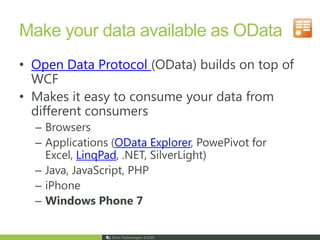

43. Make your data available as ODataOpen Data Protocol (OData) builds on top of WCFMakes it easy to consume your data from different consumersBrowsersApplications (OData Explorer, PowePivot for Excel, LinqPad, .NET, SilverLight)Java, JavaScript, PHPiPhoneWindows Phone 7

44. Azure booksAzure Whitepapers: http://www.microsoft.com/windowsazure/whitepapers/default.aspx

45. Jobber du med et spennende Azure prosjekt ?Ta i så fall kontakt med Microsoft og du kan få hjelp til:Komme i gangRådgivningKursingHolde deg oppdatert Ta kontakt med:Petter Merok (petterm@microsoft.com)Børge Hansen (borgeh@microsoft.com)

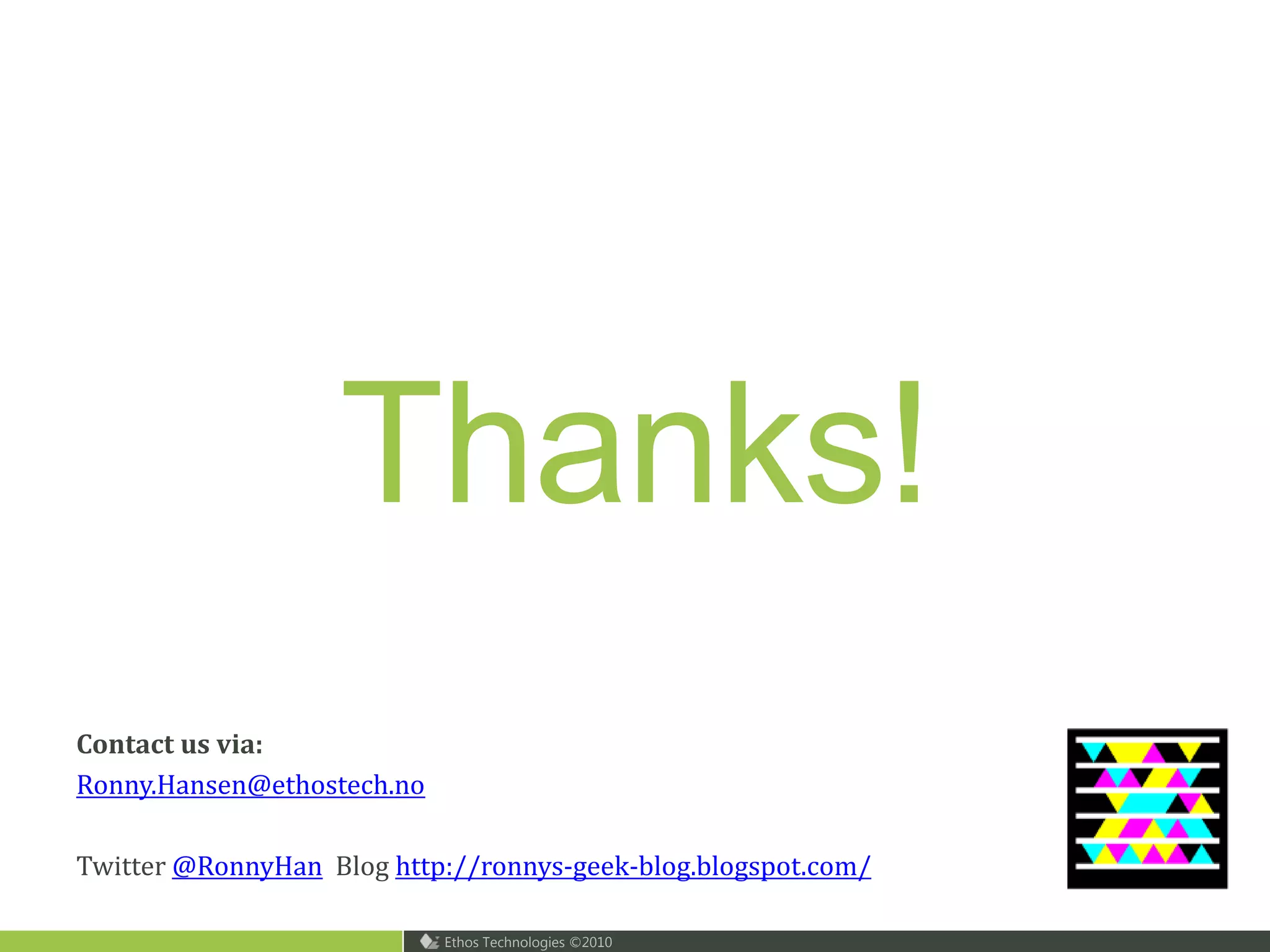

46. Thanks!Contact us via:Ronny.Hansen@ethostech.noTwitter @RonnyHan Blog http://ronnys-geek-blog.blogspot.com/

47. Case Studies

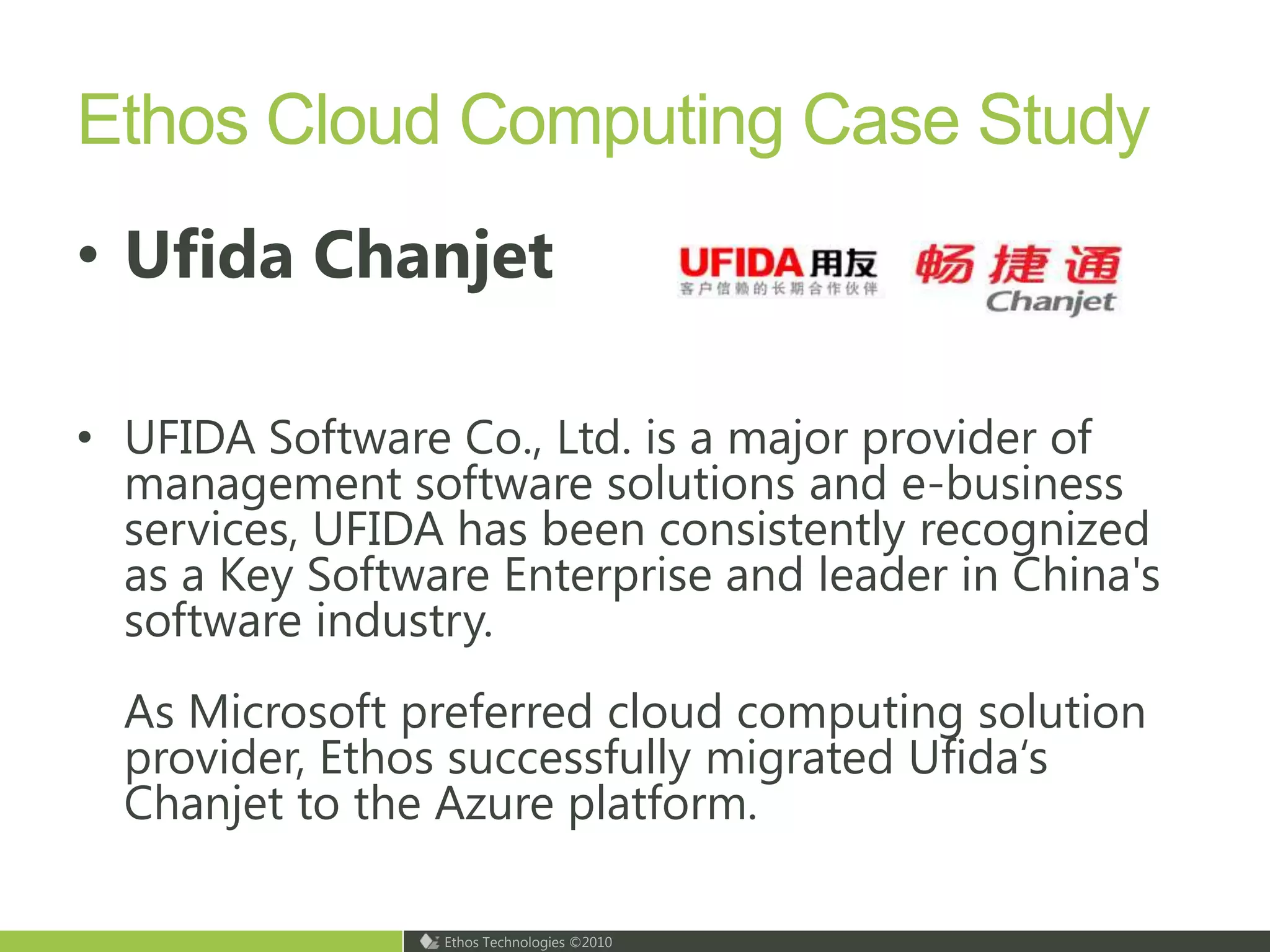

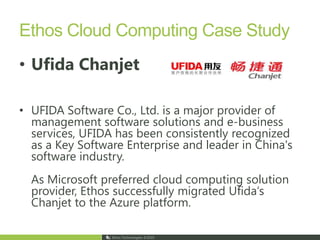

48. Ethos Cloud Computing Case StudyUfidaChanjetUFIDA Software Co., Ltd. is a major provider of management software solutions and e-business services, UFIDA has been consistently recognized as a Key Software Enterprise and leader in China's software industry.As Microsoft preferred cloud computing solution provider, Ethos successfully migrated Ufida‘sChanjetto the Azure platform.

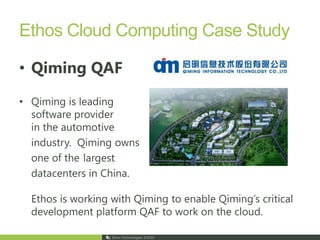

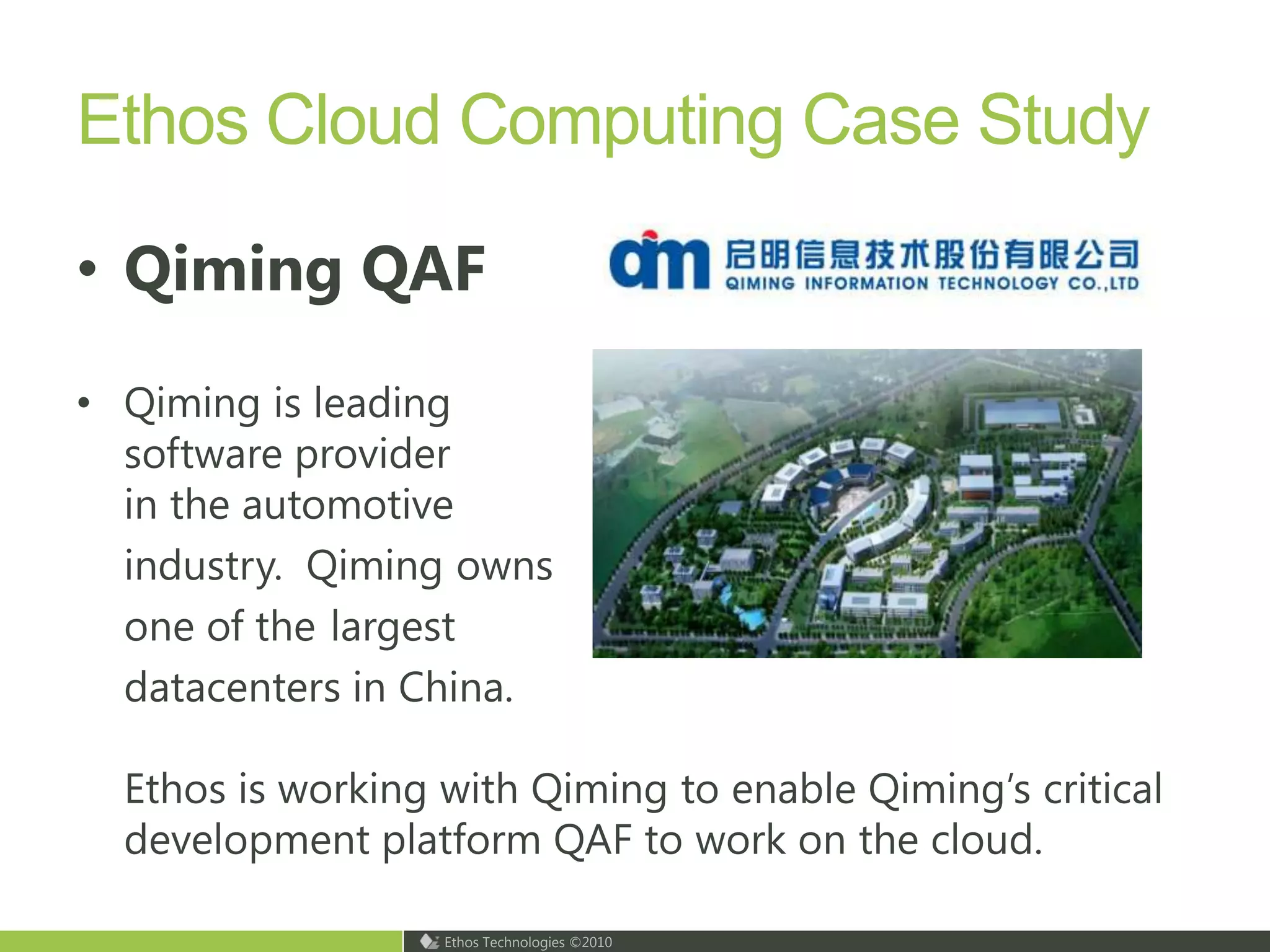

49. Ethos Cloud Computing Case StudyQiming QAFQiming is leadingsoftware providerin the automotive industry. Qiming owns one of the largest datacenters in China.Ethos is working with Qiming to enable Qiming’scritical development platform QAF to work on the cloud.

50. Ethos Cloud Computing Case StudyChangeTechAn online cloud computing service to help people change habits, lifestyles and personal qualities. Very popular public health service in Norway.One of the first commercial Azure application in the world.Developed by Ethos.
