The document introduces the ADVA MicroMux, which enables 100GbE ports to support legacy 10GbE or 40GbE clients without loss of total system capacity. It can fit into existing QSFP28 cages without modification. The MicroMux is part of ADVA's FSP 3000 CloudConnect system, which offers high power efficiency, scalability from gigabits to terabits, and open hardware and software. The CloudConnect combined with the MicroMux allows for flexible client port configurations from 20 to 52 ports of 100GbE or 200 to 520 ports of 10GbE in a single system.

1. OFC 2016

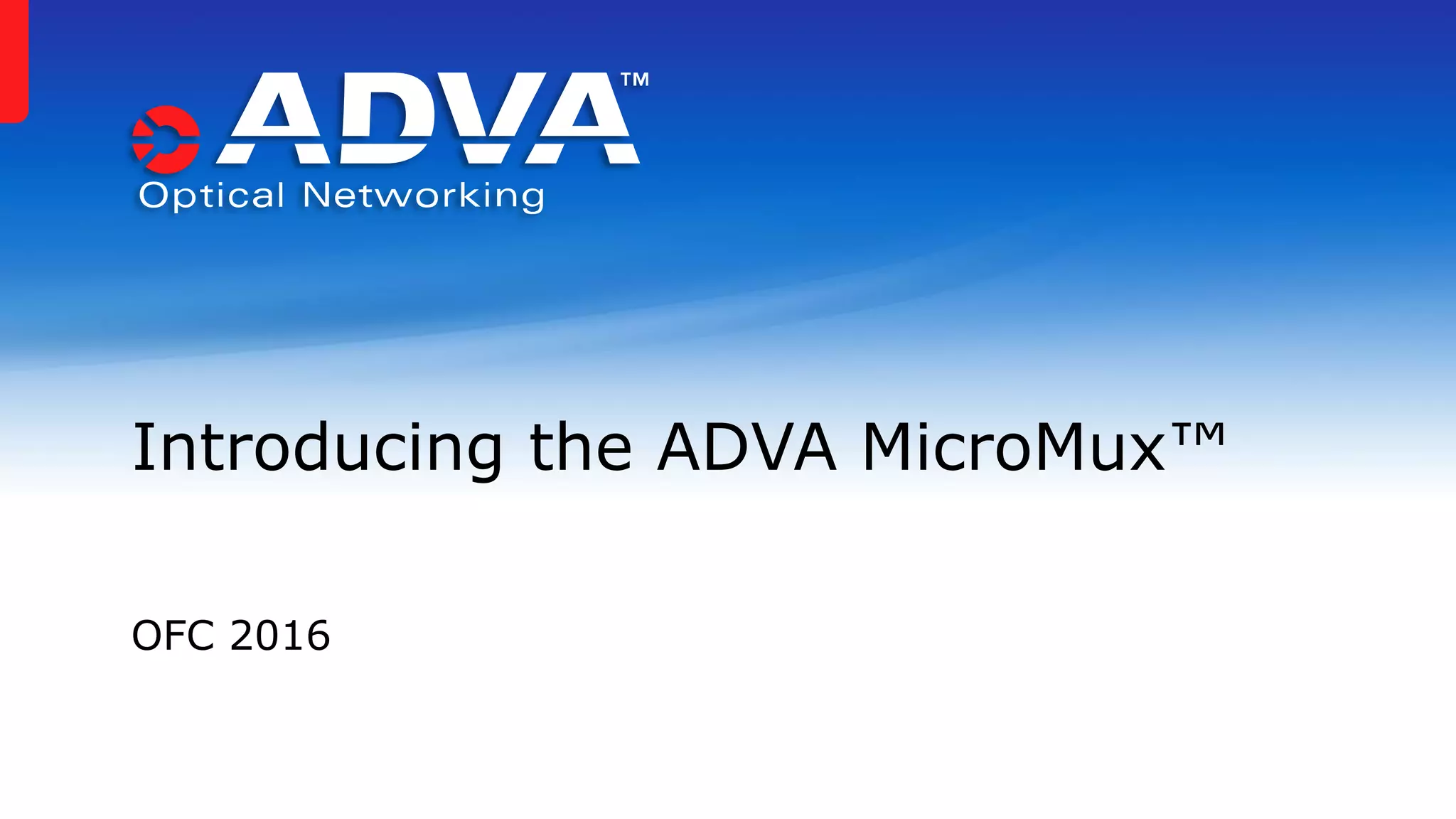

Introducing the ADVA MicroMux™

2. © 2016 ADVA Optical Networking. All rights reserved. Confidential.2

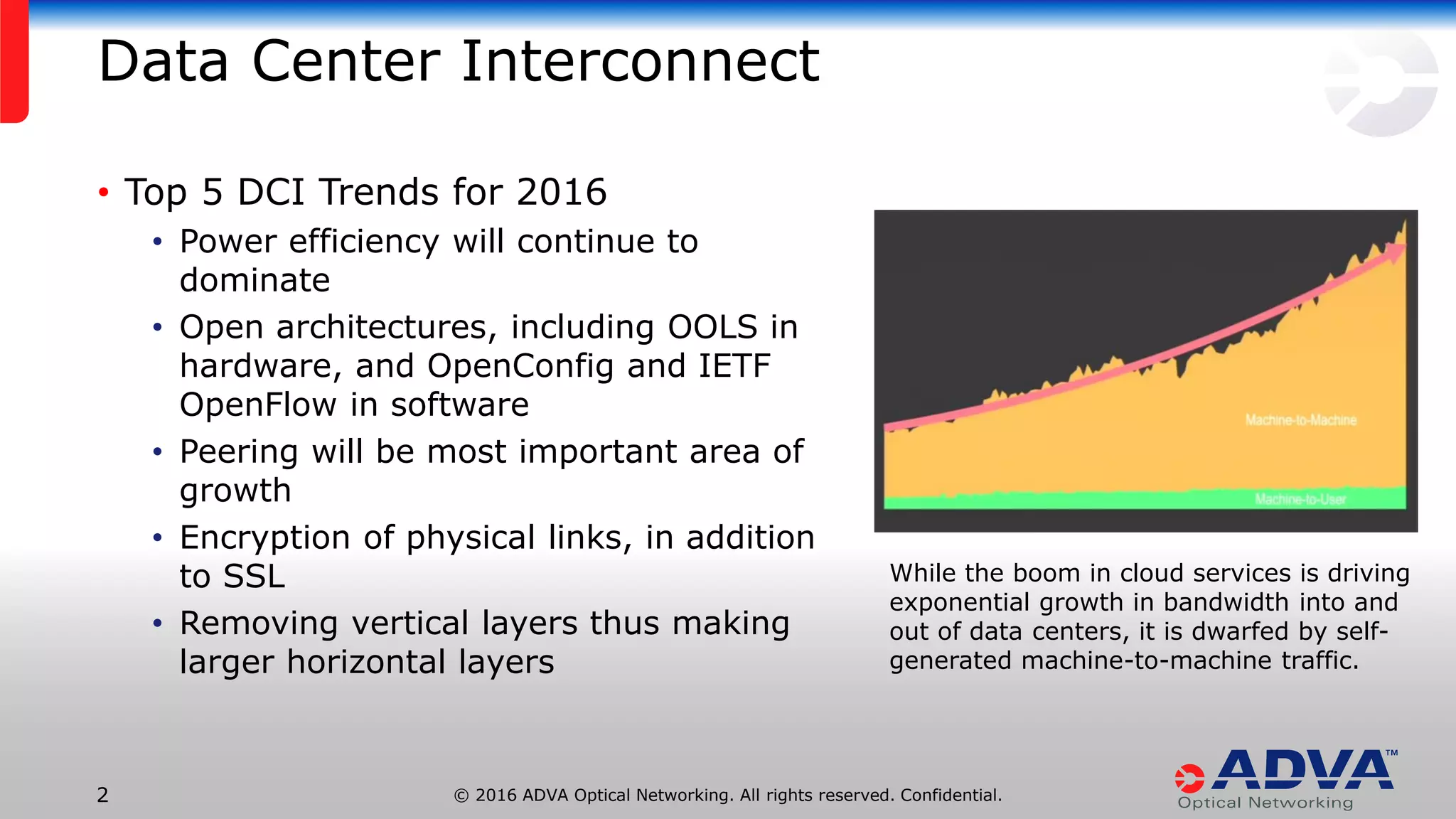

Data Center Interconnect
While the boom in cloud services is driving
exponential growth in bandwidth into and
out of data centers, it is dwarfed by self-
generated machine-to-machine traffic.
• Top 5 DCI Trends for 2016
• Power efficiency will continue to
dominate
• Open architectures, including OOLS in
hardware, and OpenConfig and IETF
OpenFlow in software
• Peering will be most important area of
growth
• Encryption of physical links, in addition
to SSL
• Removing vertical layers thus making
larger horizontal layers

3. © 2016 ADVA Optical Networking. All rights reserved. Confidential.3

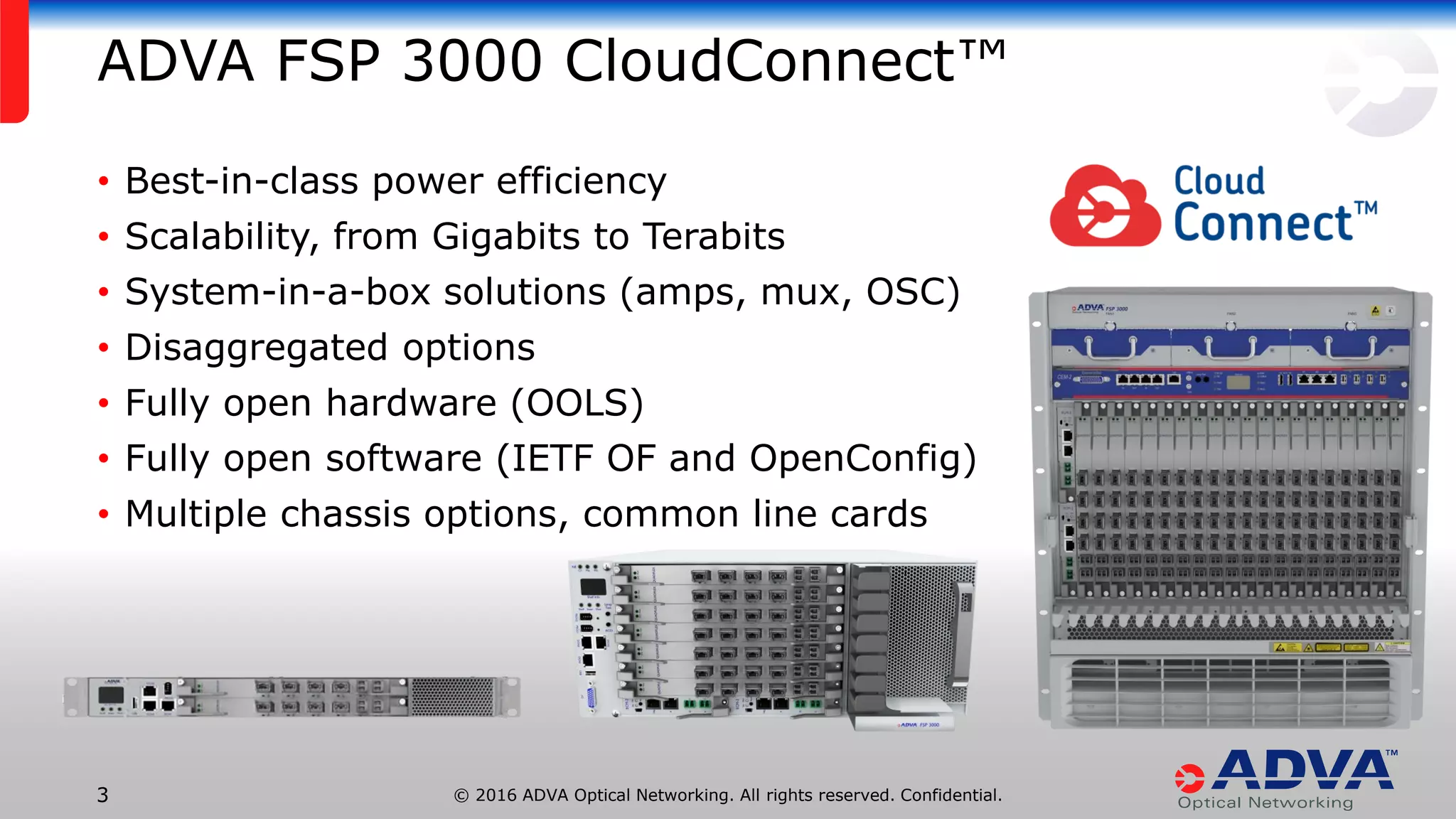

ADVA FSP 3000 CloudConnect™
• Best-in-class power efficiency
• Scalability, from Gigabits to Terabits
• System-in-a-box solutions (amps, mux, OSC)
• Disaggregated options
• Fully open hardware (OOLS)
• Fully open software (IETF OF and OpenConfig)
• Multiple chassis options, common line cards

4. © 2016 ADVA Optical Networking. All rights reserved. Confidential.4

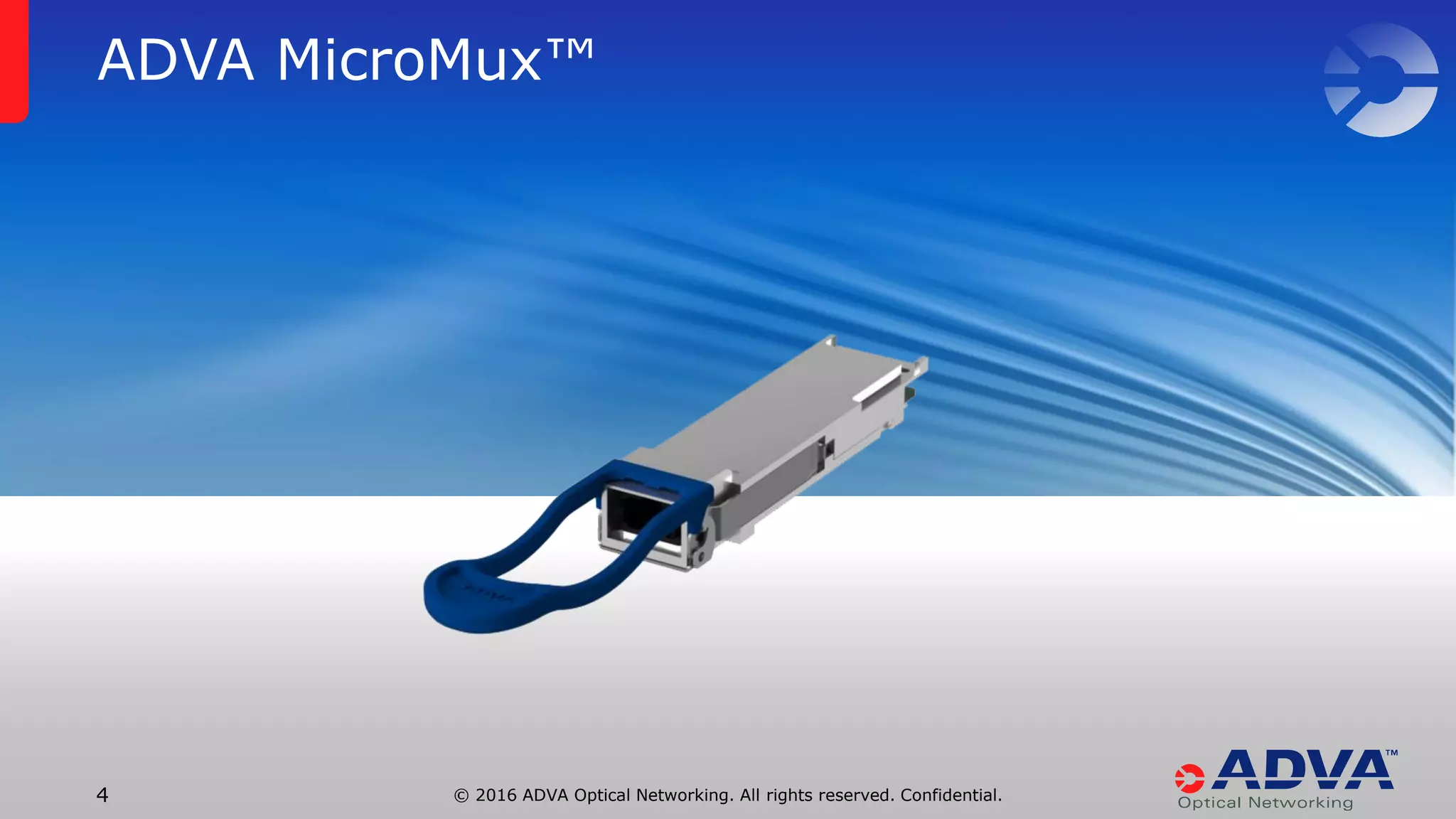

ADVA MicroMux™

5. © 2016 ADVA Optical Networking. All rights reserved. Confidential.5

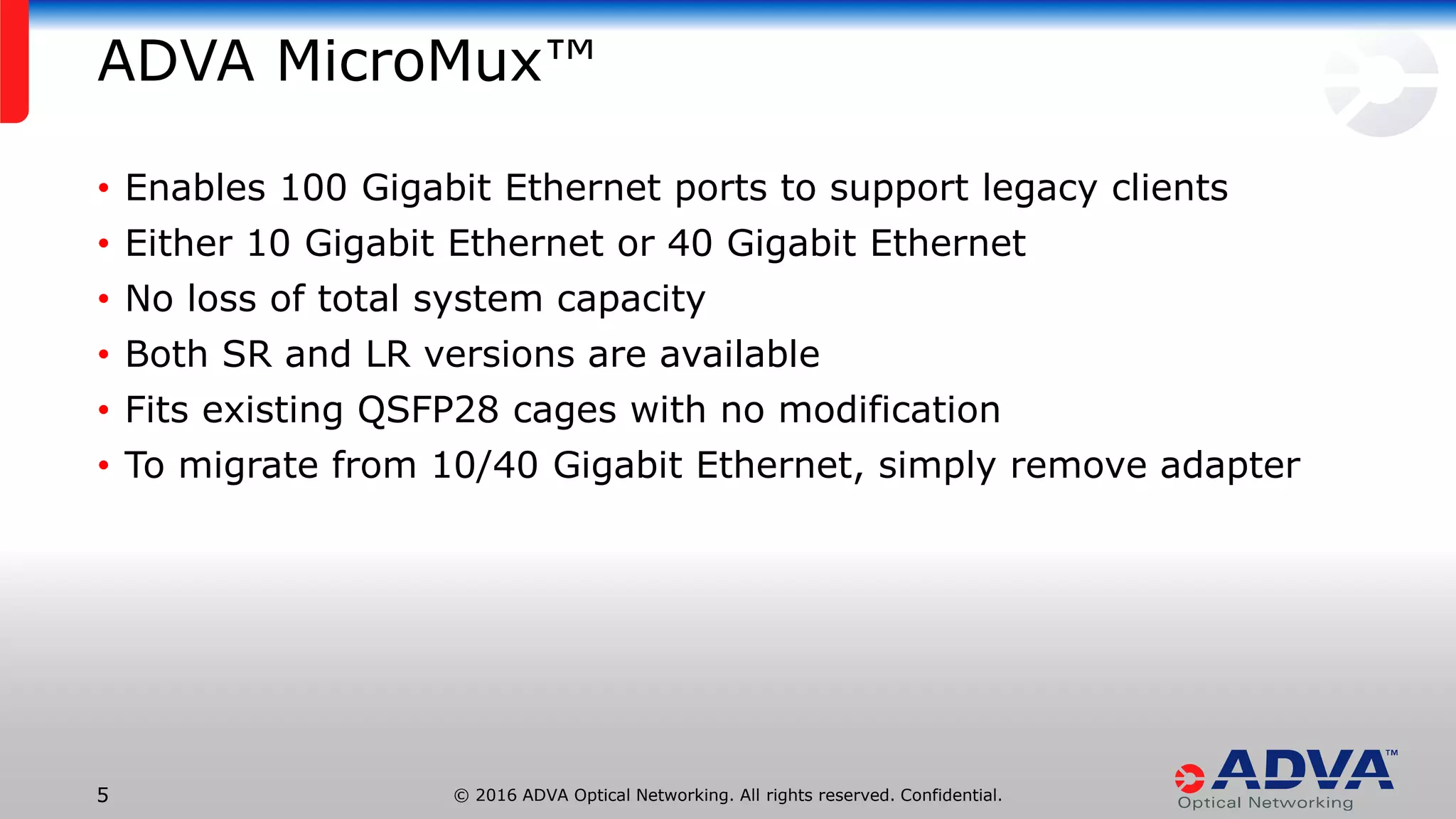

ADVA MicroMux™
• Enables 100 Gigabit Ethernet ports to support legacy clients
• Either 10 Gigabit Ethernet or 40 Gigabit Ethernet
• No loss of total system capacity
• Both SR and LR versions are available
• Fits existing QSFP28 cages with no modification
• To migrate from 10/40 Gigabit Ethernet, simply remove adapter

6. © 2016 ADVA Optical Networking. All rights reserved. Confidential.6
MPO
ADVA FSP 3000
CloudConnect™
MicroMux™
QSFP28 Cage
Line Card
CAUI-4
Electrical
Interface
10 x 10GE
2 x 40GE
SR, LR

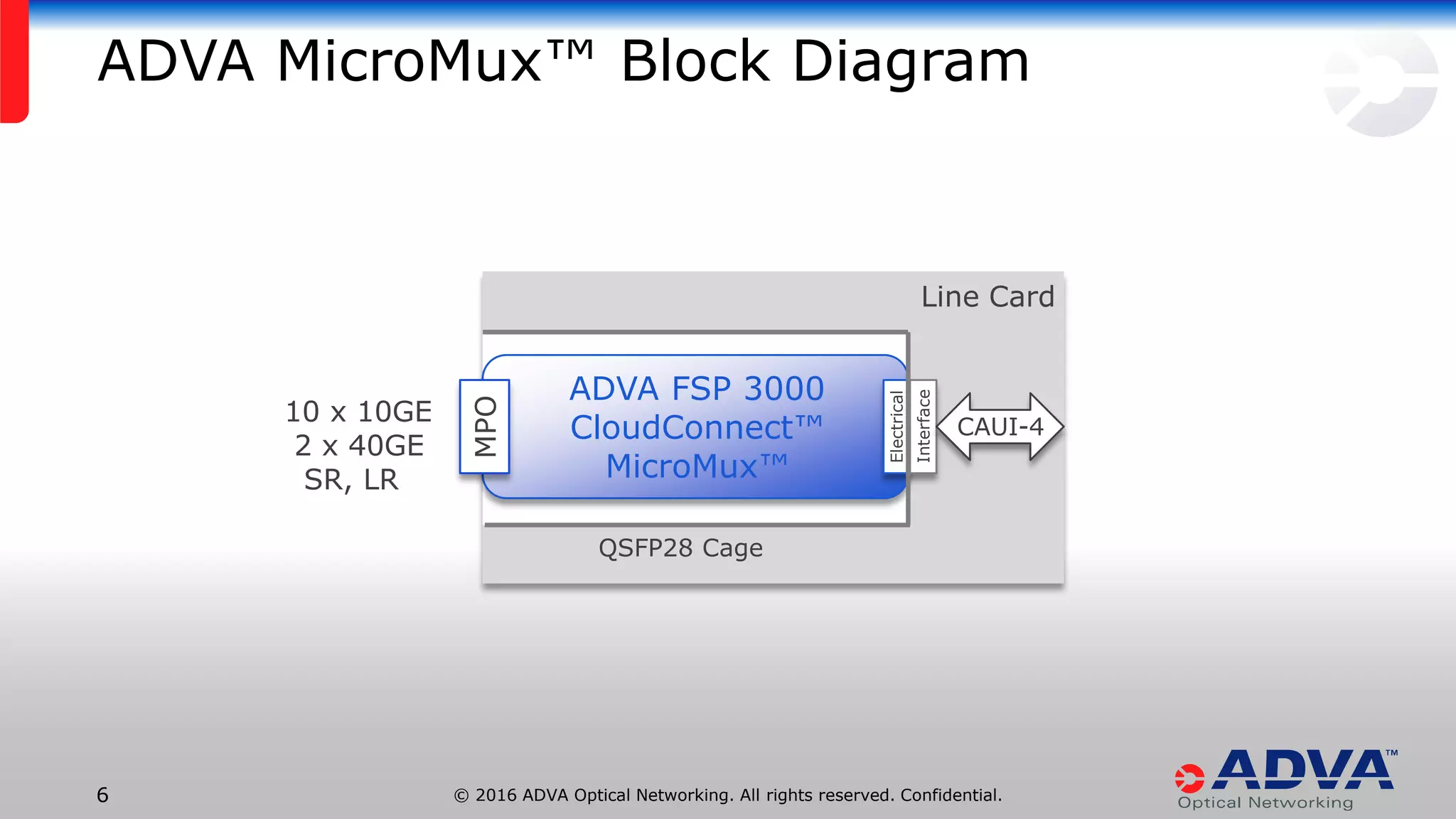

ADVA MicroMux™ Block Diagram

7. © 2016 ADVA Optical Networking. All rights reserved. Confidential.7
Client Options
20 x 100GbE
40 x 40GbE
200 x 10GbE
2 Terabit
Client Options
52 x 100GbE
104 x 40GbE
520 x 10GbE
5 Terabit
With
ADVA MicroMux™
With
ADVA MicroMux™
4RU
9RU

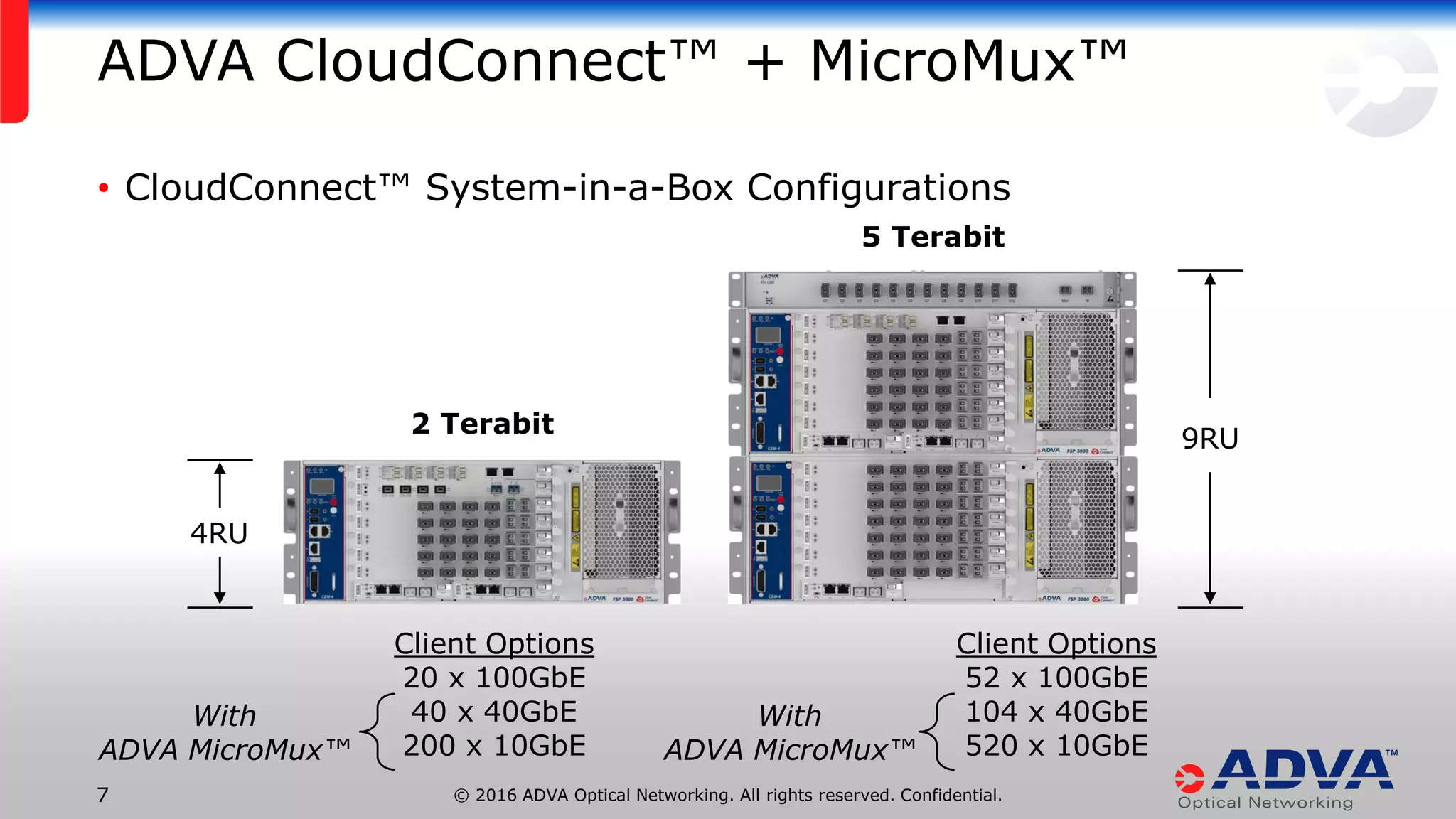

ADVA CloudConnect™ + MicroMux™
• CloudConnect™ System-in-a-Box Configurations
