1. Finding simple patterns is not always simple
Ajit Thakkar
Department of Chemistry
University of New Brunswick
Fredericton, New Brunswick E3B 5A3, Canada

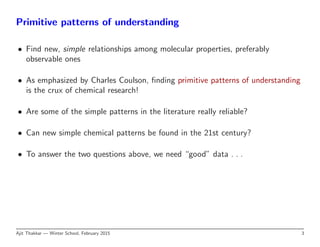

2. Primitive patterns of understanding
• Find new, simple relationships among molecular properties, preferably
observable ones
• As emphasized by Charles Coulson, finding primitive patterns of understanding
is the crux of chemical research!
• Are some of the simple patterns in the literature really reliable?
• Can new simple chemical patterns be found in the 21st century?
• To answer the two questions above, we need “good” data . . .
Ajit Thakkar — Winter School, February 2015 3

3. What constitutes “good” data?
• Size: The database must be large enough
• Breadth and Balance: The database must be representative of a wide enough
class of molecules
• Consistency: The database must be consistent enough
• Reliability: The database must be accurate enough
Ajit Thakkar — Winter School, February 2015 4

4. TABS: A database of molecular structures and properties
• 1641 neutral, closed-shell, ground-state organic molecules (at least one C atom
and one or more H, N, O, F, S, Cl, and Br atoms)
• Average: 13 atoms, 56 electrons. Maximum: 34 atoms, 246 electrons
• At least 25 (often many more) instances of each of 24 functional categories
• Consistency is provided by using a (Pople) model chemistry: all data computed
at the same level
• Used B3LYP/aug-cc-pVTZ which should be reliable enough for correlations
among properties
• But double check reliability later
• Details: Blair & Thakkar, Comput. Theor. Chem. 1043, 13 (2014).
Ajit Thakkar — Winter School, February 2015 5

5. Correlations between α and other molecular properties
• There is a huge literature reporting simple correlations between the mean
dipole polarizability (α) and other molecular properties.
• Many references can be found listed in J. Chem. Phys., 141, 074306 (2014).
Apologies to those not mentioned.
• How many of these stand up to close scrutiny using the “good” TABS data?
Ajit Thakkar — Winter School, February 2015 6

6. Correlations between α and χ, η
• Polarizability ought to be inversely related to both electronegativity χ and
hardness η. For example,
– Brown (1961),
– Vela and G´azquez (1990),
– Nagle (1990),
– Ghanty and Ghosh (1993),
– Sim´on-Manso and Fuentealba (1998),
– Ayers (2007)
• Do such correlations really work well?
Ajit Thakkar — Winter School, February 2015 7

7. Polarizability correlates poorly with χ & η
• Using α vs. 1/ηo, where ηo = ǫHOMO − ǫLUMO, gives an RMSPE of 43%.
Equally weak correlations are obtained when either η = I − A or
χ2
= (I + A)2
/4 are used instead of ηo. Different powers of χ and η are worse.
0
40
80
120
160
0 5 10
α
1/ηo
Ajit Thakkar — Winter School, February 2015 8

8. Correlations between α and ionization energy
• Inverse correlations have been reported between α and ionization energy I and
sometimes I2 − I1 as well. For example,
– Dimitrieva and Plindov (1983),
– Fricke (1986),
– Rosseinsky (1994).
• Do such correlations really work well?
Ajit Thakkar — Winter School, February 2015 9

9. Polarizability correlates poorly with the ionization energy
• The best correlation with the vertical ionization energy I involves 1/I2
rather
than 1/I3
leading to an RMSPE of 36%.
0
40
80
120
160
0 6 12 18
α
1/I
2
Ajit Thakkar — Winter School, February 2015 10

10. Correlations between α and molecular size
• Correlation between α and Rk
(R is a characteristic length). For example,
– Wasastjerna (1922),
– Le Fevre (1950’s and 60’s).
Unexpectedly, k > 3 usually found.
• Does this correlation really work well?
• How do we measure molecular size?
Ajit Thakkar — Winter School, February 2015 11

11. Measures of molecular size can be extracted from ρ(r)
• (Bader) Volume V enclosed by 0.001 e/a3
0 isodensity surface of ρ(r)
• (Robb) Size: r2
= r2
ρ(r) dr (related to diamagnetic susceptibility)
• V ≈ 29.07 r2 1/2
has a MAPE of 11%
0
500
1000
1500
2000
0 25 50 75 100
V
<r2
>1/2
Ajit Thakkar — Winter School, February 2015 12

12. The polarizability correlates better with molecular size
• If R = r2 1/2
is taken as the size or characteristic length parameter, then the
best correlation is α versus R [RMSPE = 18%], not versus R3
or R4
.
0
40
80
120
160
0 25 50 75 100
α
<r2
>1/2
• The egregious outliers have a very different spatial extent in one direction.
Ajit Thakkar — Winter School, February 2015 13

13. Correlations between α and molecular volume
• Volume should correlate with α. For example,
– Debye (1929),
– Cohen (1979),
– Gough (1989),
– Laidig and Bader (1990),
– Brinck, Murray and Politzer (1993).
• Does this correlation really work well?
Ajit Thakkar — Winter School, February 2015 14

14. The polarizability correlates fairly well with molecular volume
• V is the volume contained by the 0.001 e/a3
0 electron isodensity surface of
ρ(r). Using α vs. V and V 4/3
give RMSPE’s of 14.8% and 12%, respectively.
0
40
80
120
160
0 500 1000 1500 2000
α
V
Ajit Thakkar — Winter School, February 2015 15

15. What have we found so far?
• The dipole polarizability α correlates only very roughly [RMSPE ≈ 40%] with
χ, η, I.
• Somewhat better correlations with an RMSPE under 20% are obtained with
R = r2 1/2
• Using the (Bader) volume brings the RMSPE down to 12%–15%
Ajit Thakkar — Winter School, February 2015 16

16. What next?
• Can better correlations between α and other molecular properties be obtained?
• Try composite variables, even those for which no physical interpretation may be
apparent.
Ajit Thakkar — Winter School, February 2015 17

17. One composite variable that works better is V/I
• A correlation between α and V/I has an RMSPE of 9.7%.
0
40
80
120
160
0 2000 4000 6000
α
V/I
Ajit Thakkar — Winter School, February 2015 18

18. The best polarizability correlation we found
• Our best correlation vs. V/η
3/4
1 has an RMSPE=7.3%. It involves the hardness
η1 = 2(I − χo) where the electronegativity χo = −(ǫHOMO + ǫLUMO)/2. η1
uses Tozer and deProft’s approximation A = 2χo − I.
0
40
80
120
160
0 1000 2000 3000 4000
α
V/η1
3/4
• Details: Blair & Thakkar, J. Chem. Phys., 141, 074306 (2014).
Ajit Thakkar — Winter School, February 2015 19

19. Do the correlations depend on the model chemistry?
• B3LYP does not scale well with molecular size and overestimates polarizabilities
• Do the correlations change if the model chemistry is changed?
• Double check everything with CAM-B3LYP and ωB97XD
• Numbers change but nothing significant about the correlations changes
Ajit Thakkar — Winter School, February 2015 20

20. Can we really find new, good, simple patterns?
• Connect properties of the electron density ρ(r) with properties of the electron
momentum density Π(p)
Ajit Thakkar — Winter School, February 2015 21

21. Notes on the electron momentum density
• Squaring does not commute with Fourier transformation. The electron
momentum density Π(p) is NOT the Fourier transform of ρ(r)
• Π(p) is the diagonal element of the Fourier transform of the r-space density
matrix
• All the nuclei have p = 0 in the Born-Oppenheimer approximation
• Moments of Π(p), pk
= pk
Π(p) dp, are finite for −2 ≤ k ≤ 4
• All the above pk
can be obtained from experiment
• Details: Thakkar, Adv. Chem. Phys., 128, 303 (2004).
Ajit Thakkar — Winter School, February 2015 22

22. The Compton profile is an observable momentum property
• An observable directly related to Π(p) is the Compton profile J(q). It is the
intensity of inelastic (Compton) scattering at wavelengths shifted, by a
“Doppler broadening” mechanism, from the wavelength at which inelastic
scattering by a motionless electron would be predicted.
• In the impulse approximation, the gas-phase Compton profile for momentum
transfer q is related to the radial momentum density I(p) by
J(q) = 1
2
∞
|q|
I(p)/p dp
• The peak height of J is just J(0) = 1
2 1/p
• A sum rule tells us that
1/p2
= 2
∞
0
q−2
[J(0) − J(q)] dq
• Details: Thakkar, Adv. Chem. Phys., 128, 303 (2004).
Ajit Thakkar — Winter School, February 2015 23

23. How do we obtain molecular size from Π(p)?
• Molecular size tells us how far the electrons are spread out — that is, size is
sensitive to ρ(r) at larger values of |r|
• Reciprocity of position and momentum suggests that molecular size is most
likely to be correlated with properties sensitive to small values of |p|
• How about 1/p = 2J(0) and 1/p2
?
Ajit Thakkar — Winter School, February 2015 24

24. The Compton profile peak height measures molecular volume
• V ≈ 40.81 J(0) has a MAPE of 5.5%
0
500
1000
1500
2000
0 50 100
V
<1/p> = 2J(0)
Ajit Thakkar — Winter School, February 2015 25

25. Molecular volume is predicted rather well by 1/p2
• V ≈ 13.71 1/p2
has a MAPE of 3.1%.
V ≈ 12.70 1/p2
+ 72.11 has a MAPE of 2.1%
0
500
1000
1500
2000
0 50 100 150
V
<1/p
2
>
• Details: Blair & Thakkar, Chem. Phys. Lett., 609, 113 (2014)
Ajit Thakkar — Winter School, February 2015 26

26. The take-home message
• Finding simple (primitive) patterns is important . . .
• but finding them is not simple.
• Don’t believe all the patterns that are reported in the literature.
– For example, α versus other molecular properties.
• Yes, Virginia, it is possible to find good simple patterns even today.
– For example, 1/p2
versus Bader volume.
Ajit Thakkar — Winter School, February 2015 27
