1. Testing Hadoop jobs
with MRUnit
Boulder/Denver Hadoop Users Group
05.12.2010
© 2010 Eric Wendelin

2. Eric Wendelin
Hadooper @returnpath
Blog: eriwen.com
Twitter: @eriwen

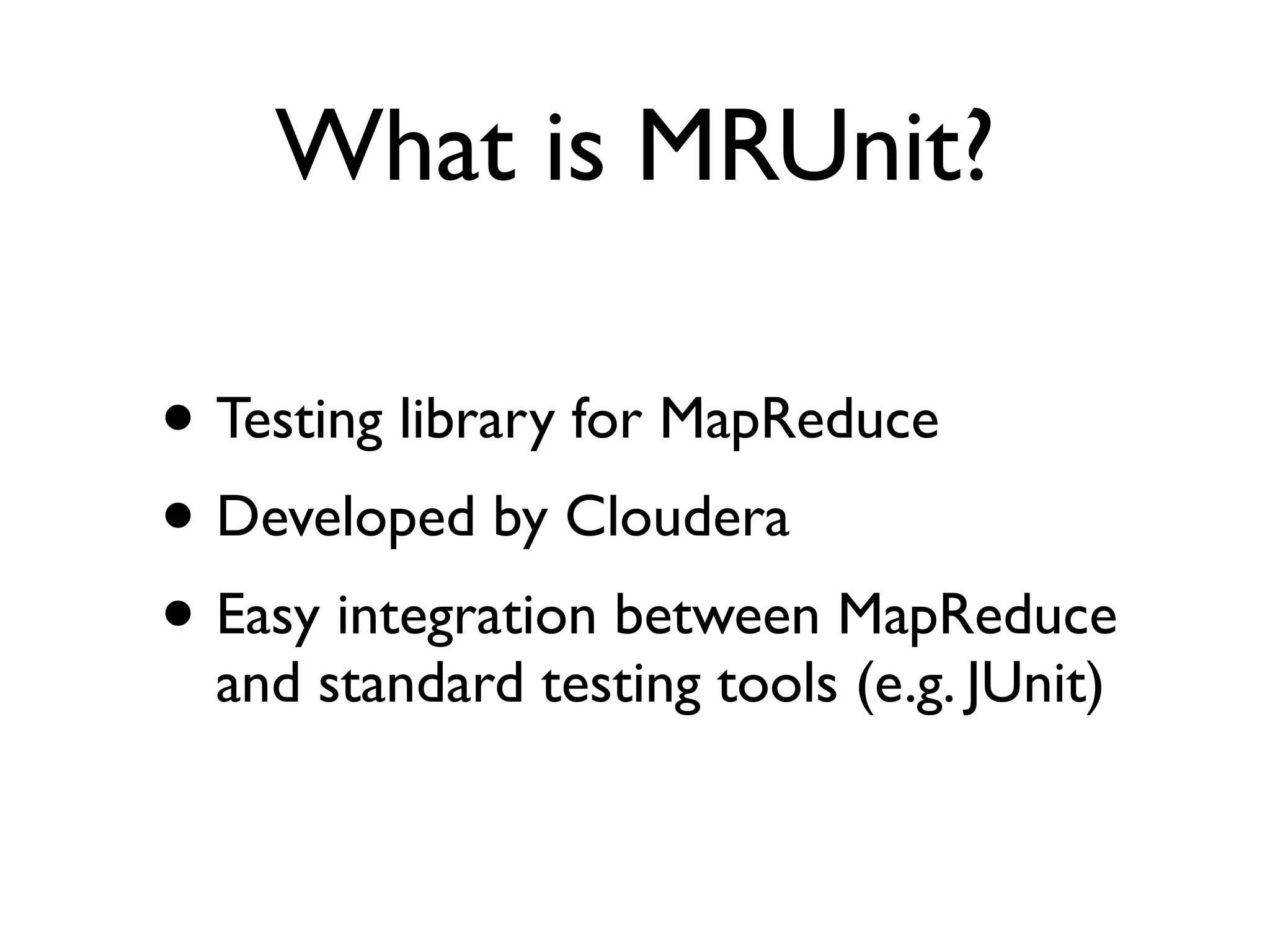

3. What is MRUnit?
• Testing library for MapReduce
• Developed by Cloudera
• Easy integration between MapReduce
and standard testing tools (e.g. JUnit)
cloudera.com/hadoop-mrunit

4. Why do I need that?

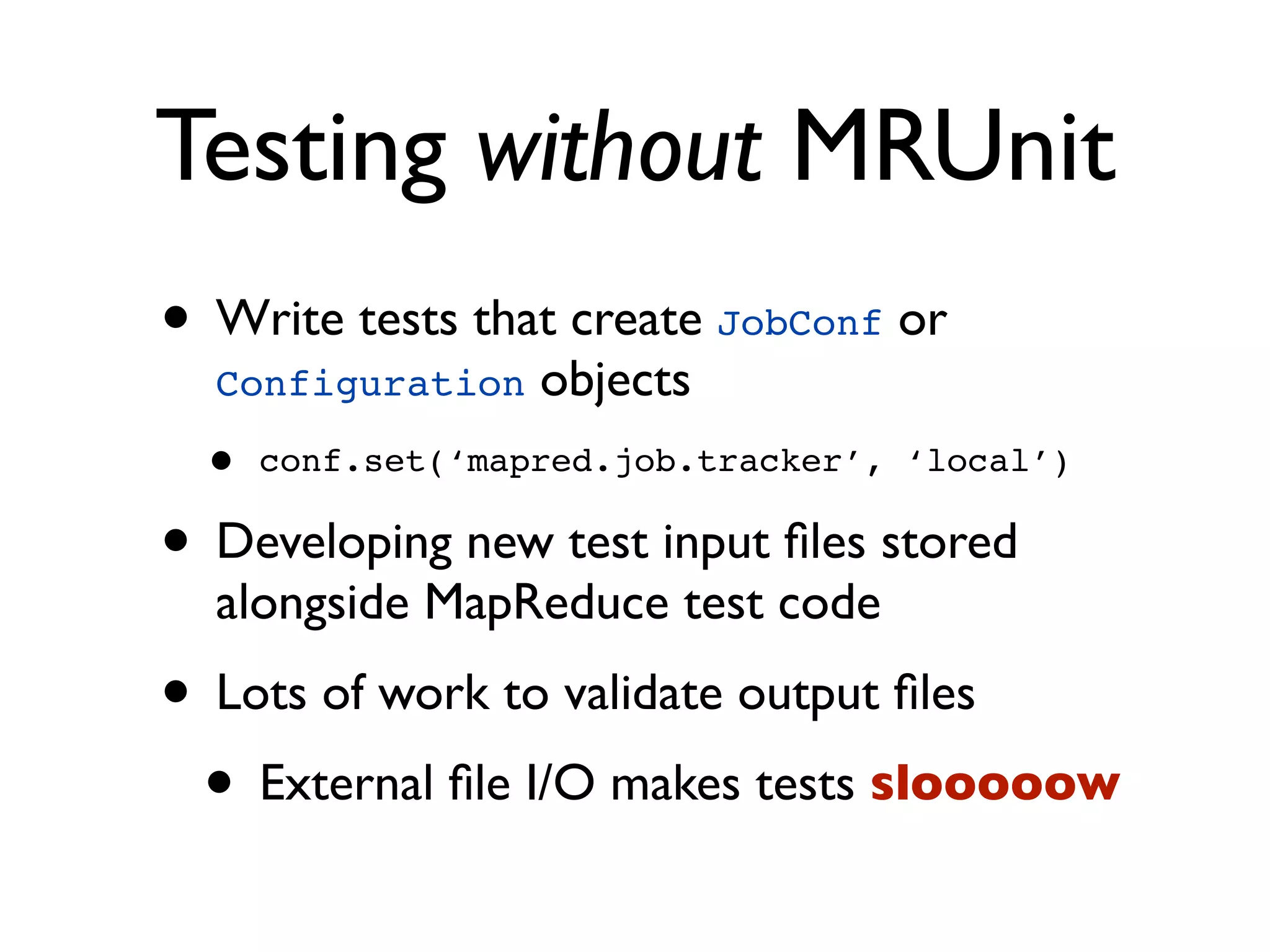

5. Testing without MRUnit
• Write tests that create JobConf or
Configuration objects
• conf.set(‘mapred.job.tracker’, ‘local’)
• Developing new test input files stored
alongside MapReduce test code
• Lots of work to validate output files
• External file I/O makes tests slooooow

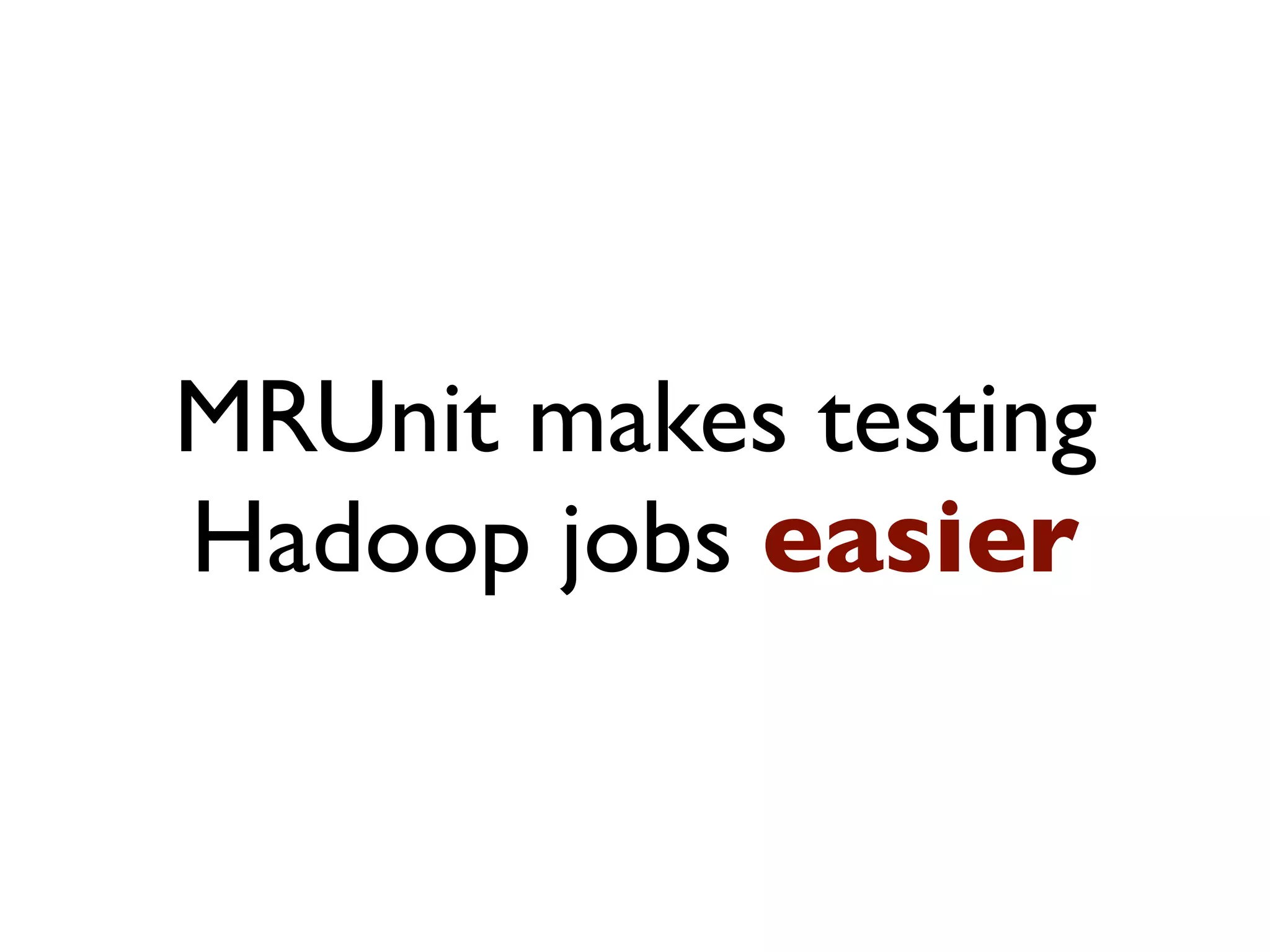

6. MRUnit makes testing
Hadoop jobs easier

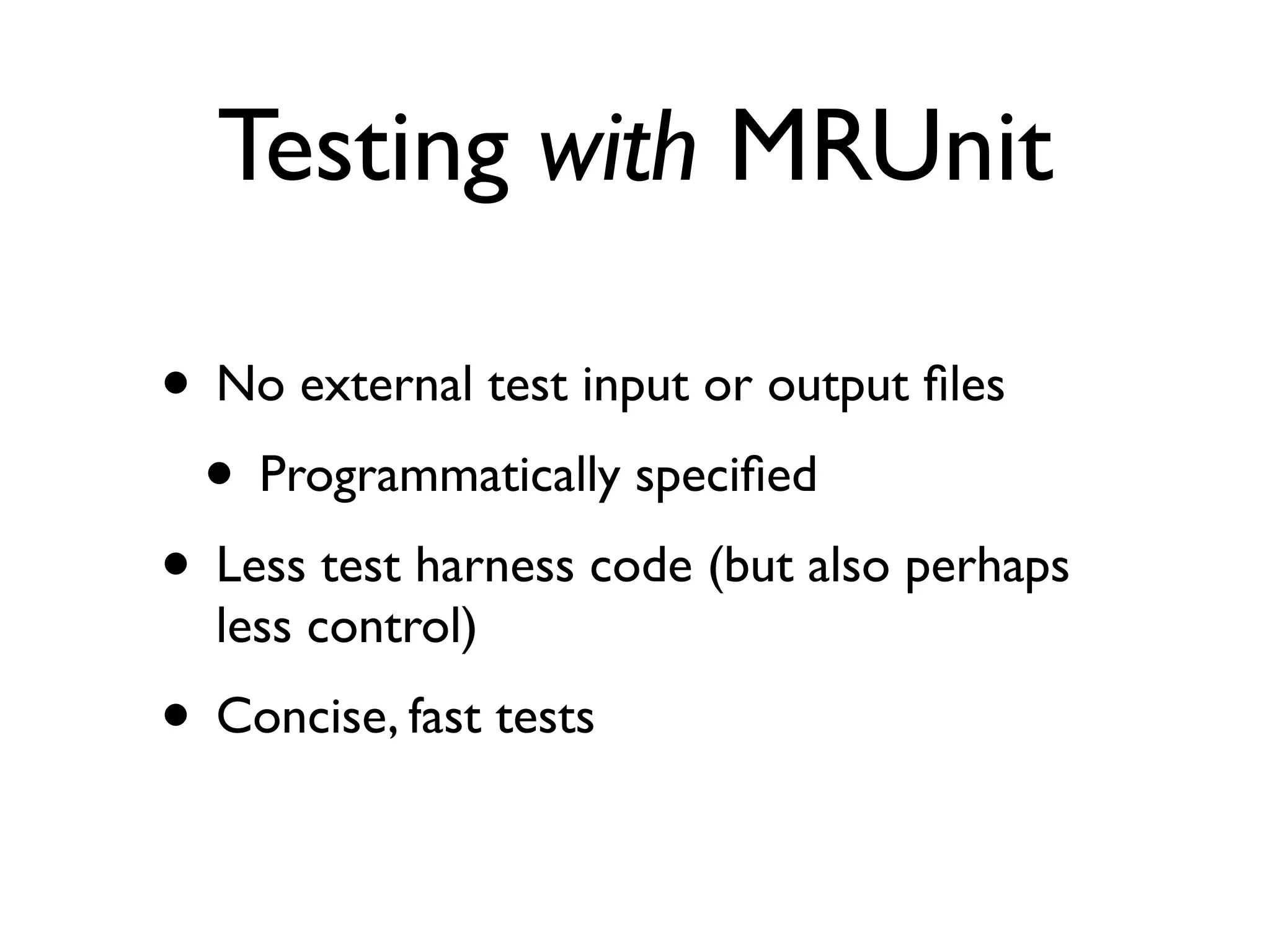

7. Testing with MRUnit
• No external test input or output files
• Programmatically specified
• Less test harness code (but also perhaps
less control)
• Concise, fast tests

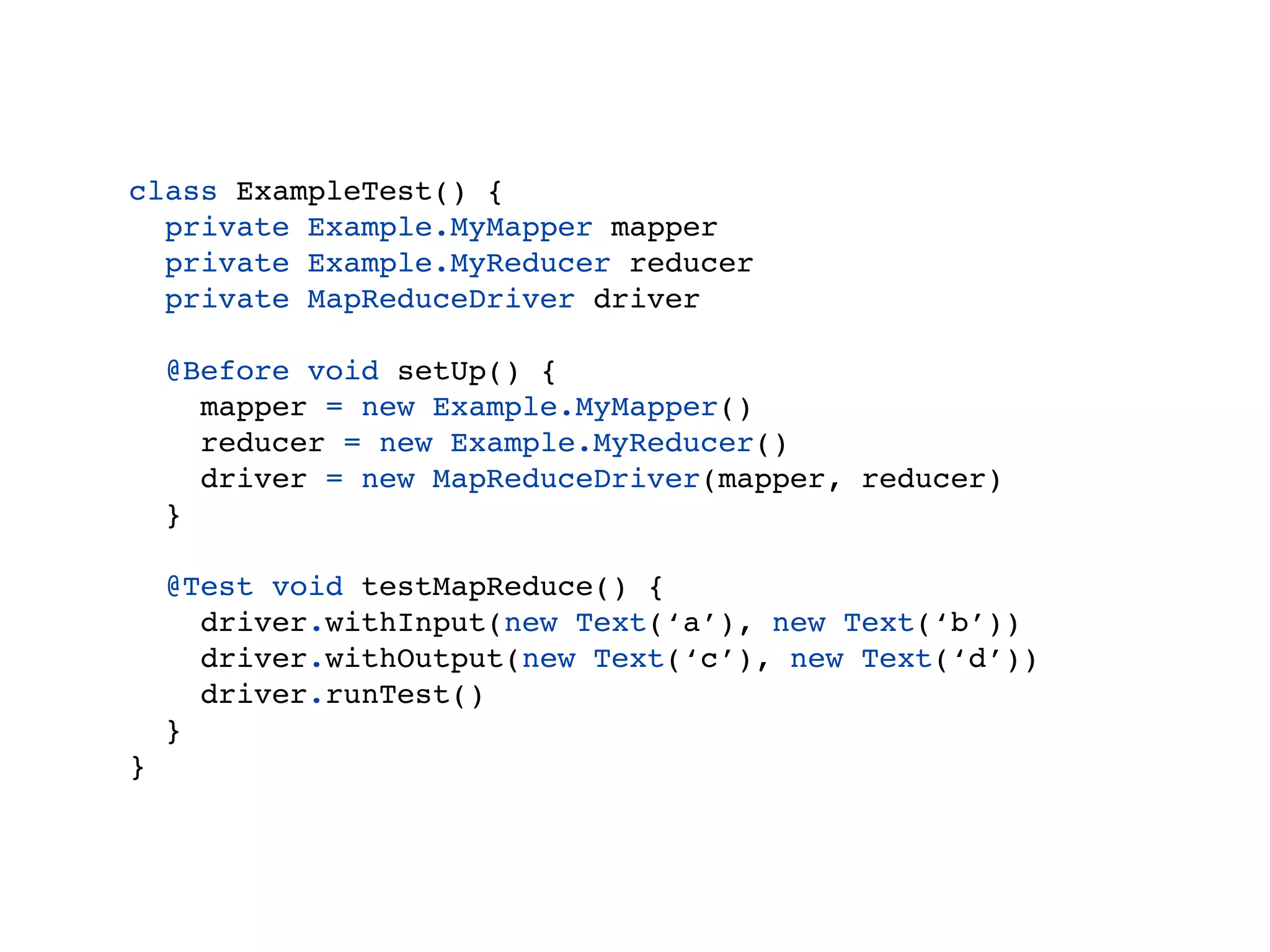

8. Example
class ExampleTest() {
private Example.MyMapper mapper
private Example.MyReducer reducer
private MapReduceDriver driver
@Before void setUp() {
mapper = new Example.MyMapper()
reducer = new Example.MyReducer()
driver = new MapReduceDriver(mapper, reducer)
}
@Test void testMapReduce() {
driver.withInput(new Text(‘a’), new Text(‘b’))
driver.withOutput(new Text(‘c’), new Text(‘d’))
driver.runTest()
}
}

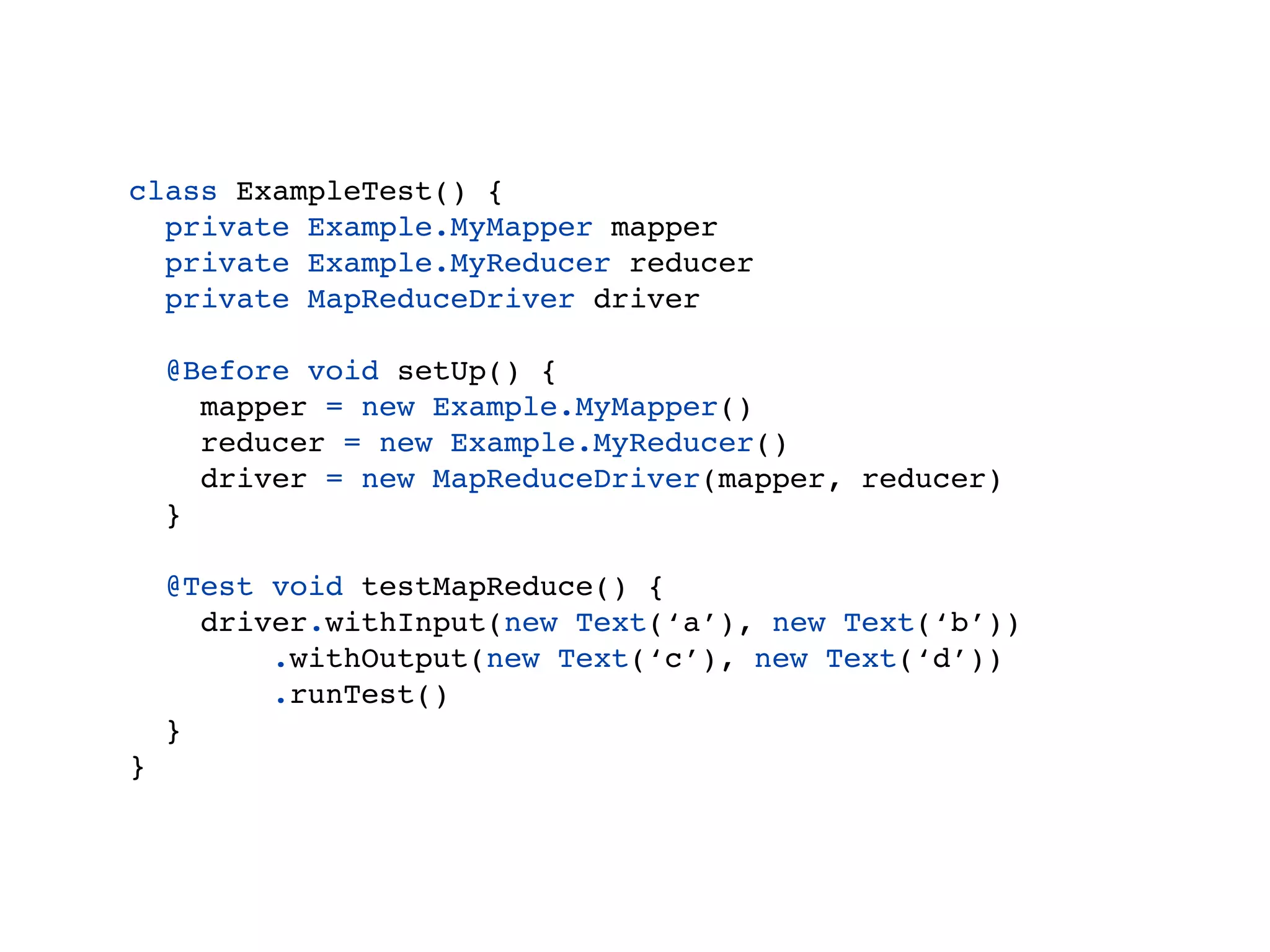

9. Example
class ExampleTest() {
private Example.MyMapper mapper
private Example.MyReducer reducer
private MapReduceDriver driver
@Before void setUp() {
mapper = new Example.MyMapper()
reducer = new Example.MyReducer()
driver = new MapReduceDriver(mapper, reducer)
}
@Test void testMapReduce() {
driver.withInput(new Text(‘a’), new Text(‘b’))
.withOutput(new Text(‘c’), new Text(‘d’))
.runTest()
}
}

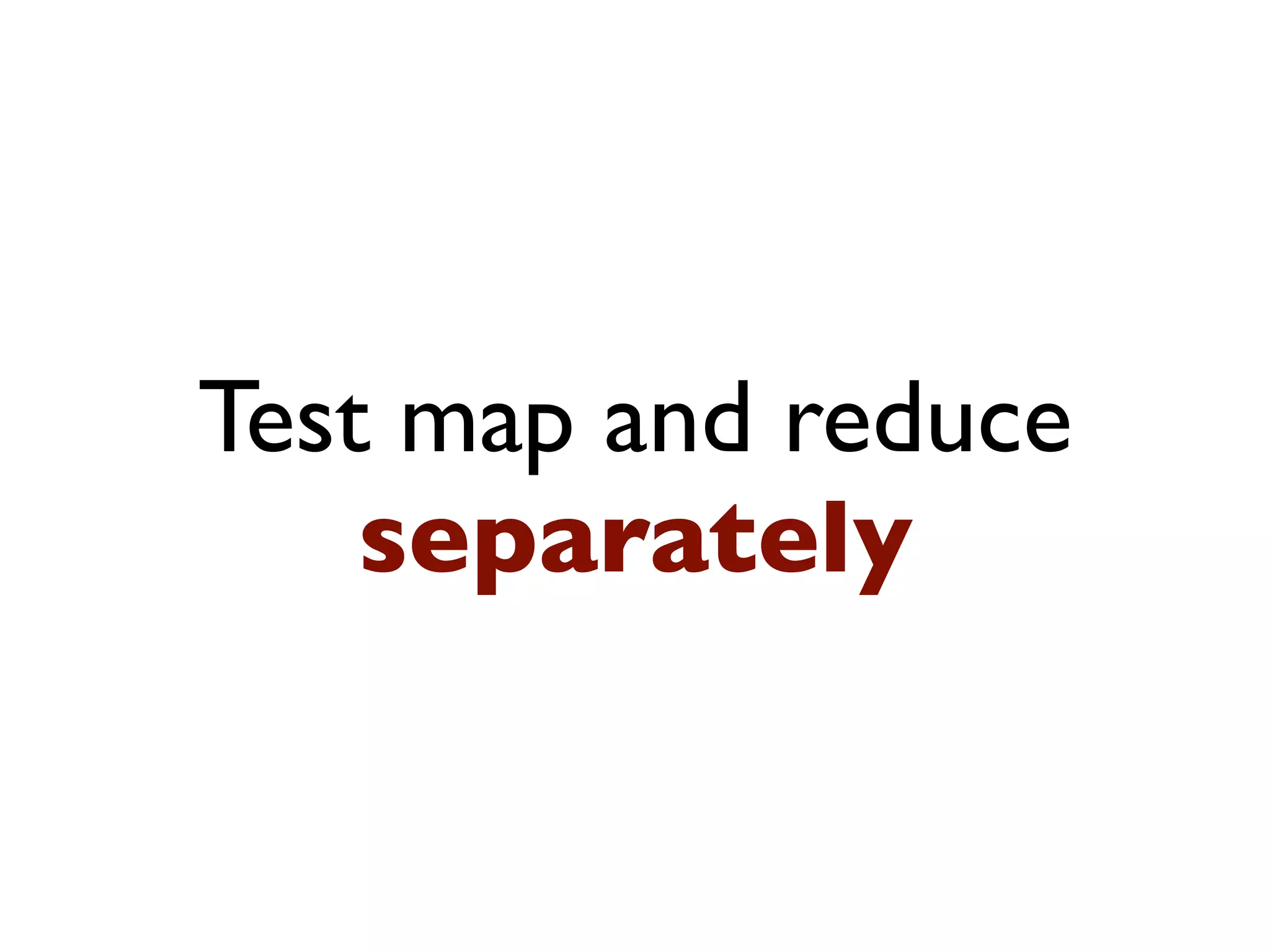

10. Test map and reduce
separately

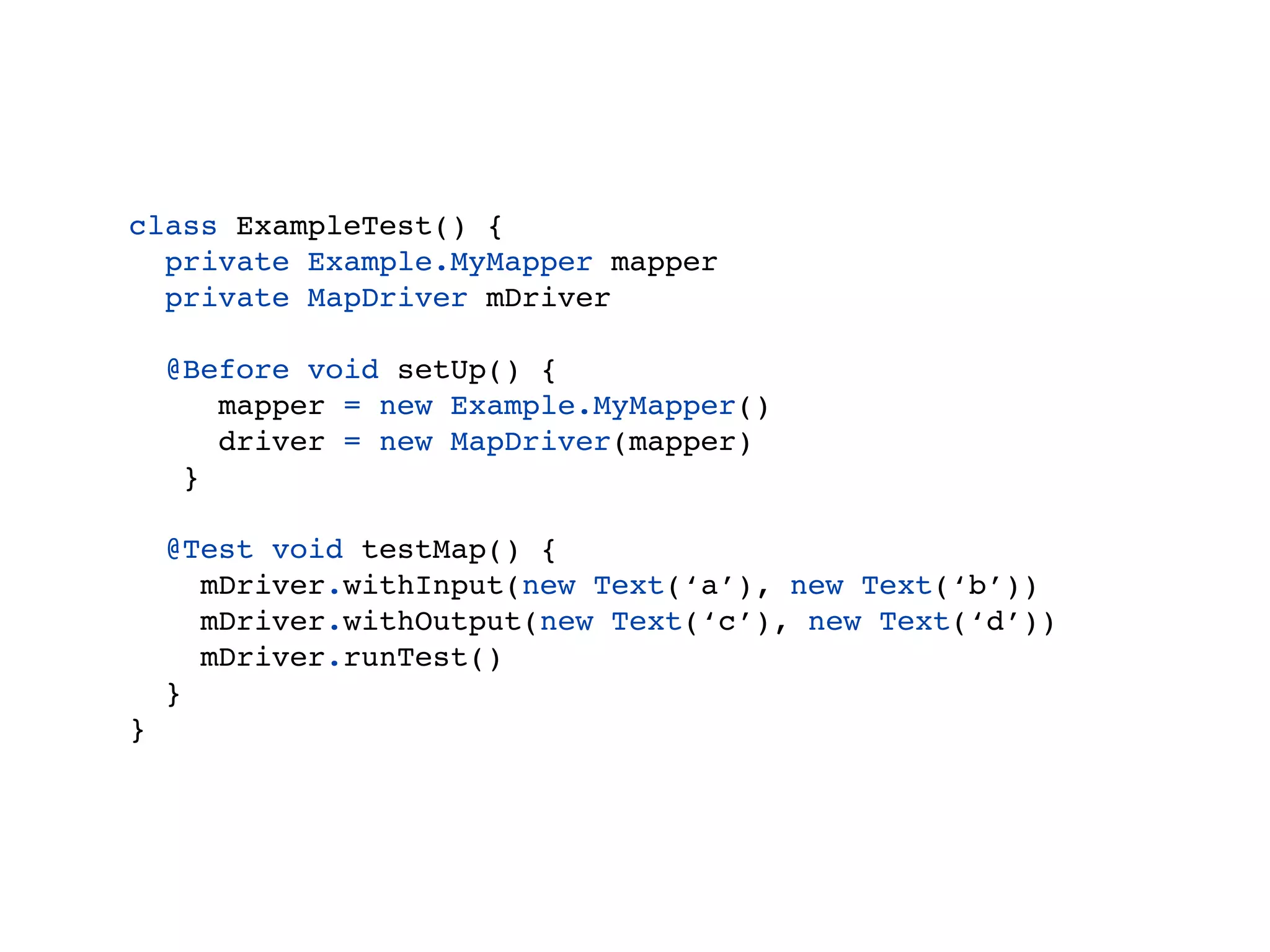

11. class ExampleTest() {
private Example.MyMapper mapper
private MapDriver driver
@Before void setUp() {
mapper = new Example.MyMapper()
driver = new MapDriver(mapper)
}
@Test void testMap() {
driver.withInput(new Text(‘a’), new Text(‘b’))
driver.withOutput(new Text(‘c’), new Text(‘d’))
driver.runTest()
}
}

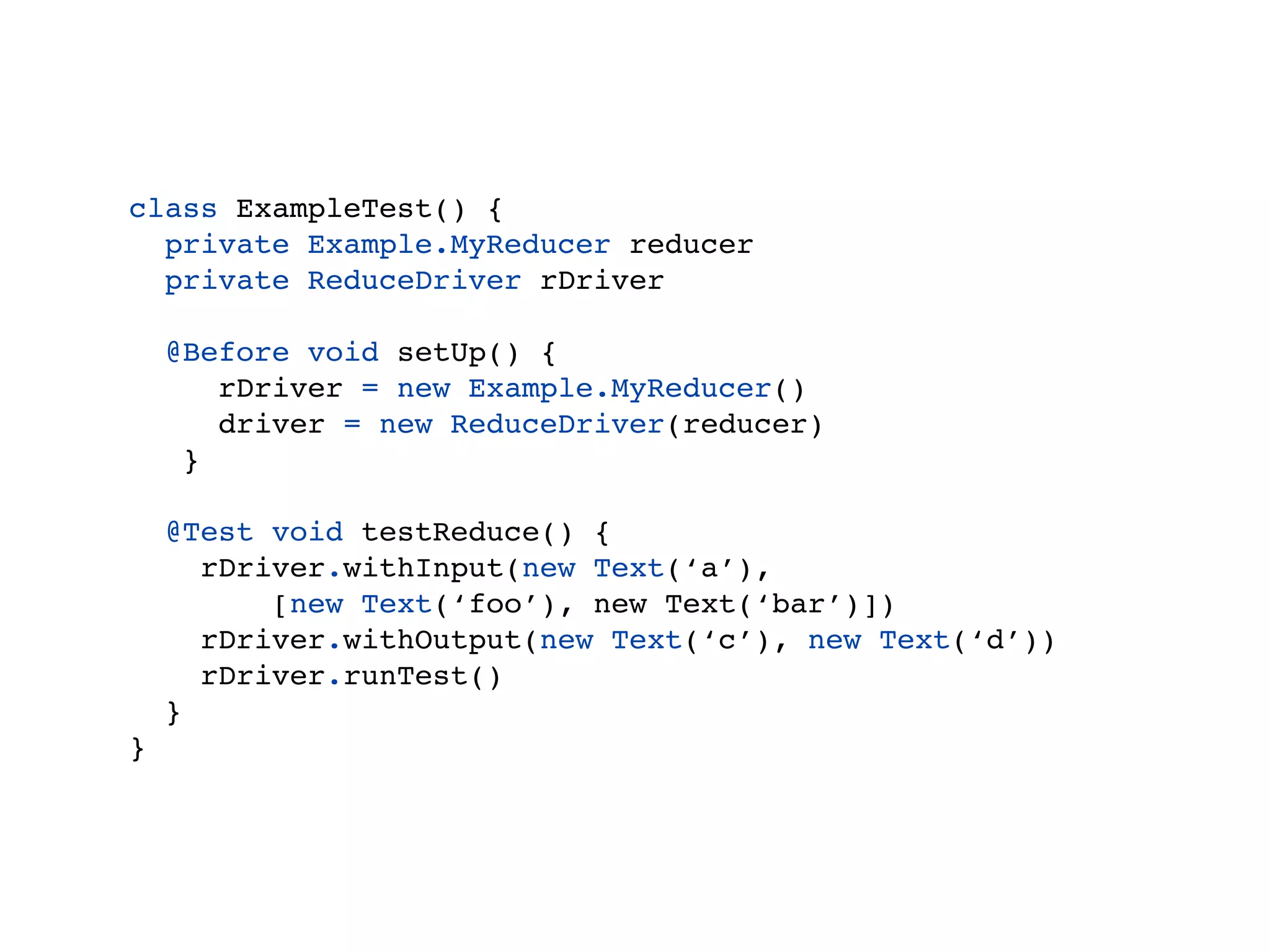

12. class ExampleTest() {
private Example.MyReducer reducer
private ReduceDriver driver
@Before void setUp() {
reducer = new Example.MyReducer()
driver = new ReduceDriver(reducer)
}
@Test void testReduce() {
driver.withInput(new Text(‘a’),
[new Text(‘foo’), new Text(‘bar’)])
driver.withOutput(new Text(‘c’), new Text(‘d’))
driver.runTest()
}
}

13. Counters!

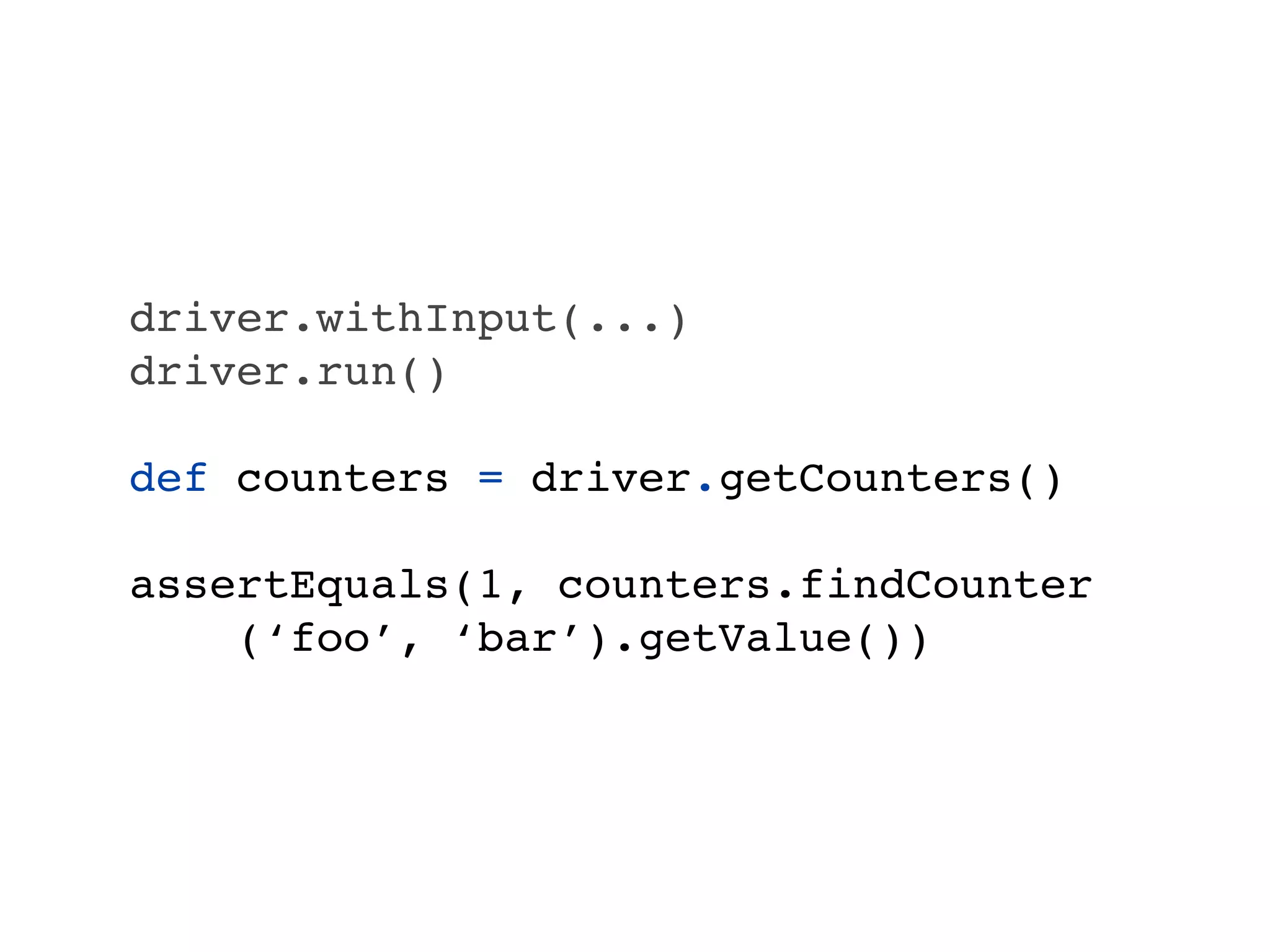

driver.withInput(...)
driver.run()
def counters = driver.getCounters()
assertEquals(1, counters.findCounter
(‘foo’, ‘bar’).getValue())

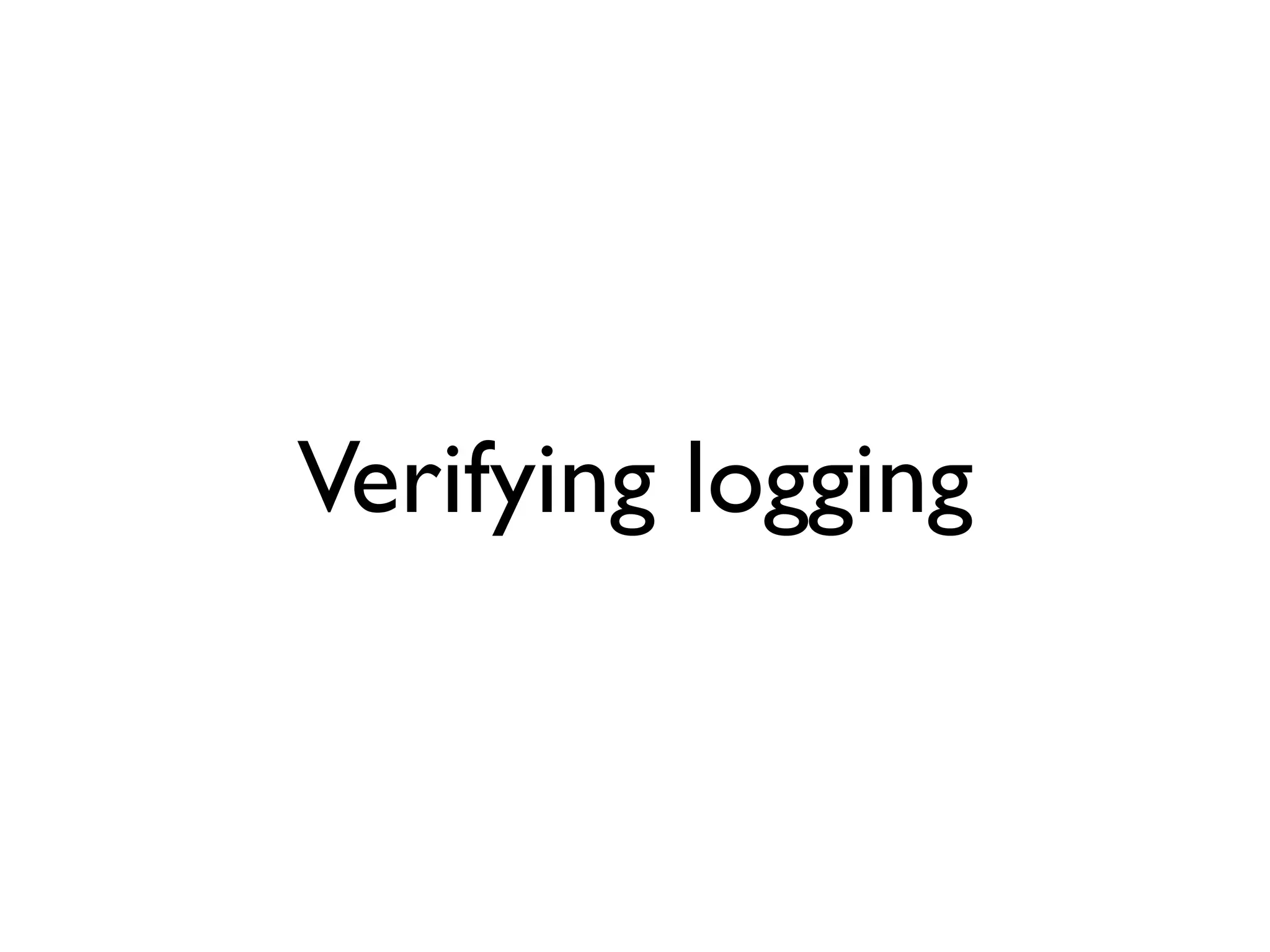

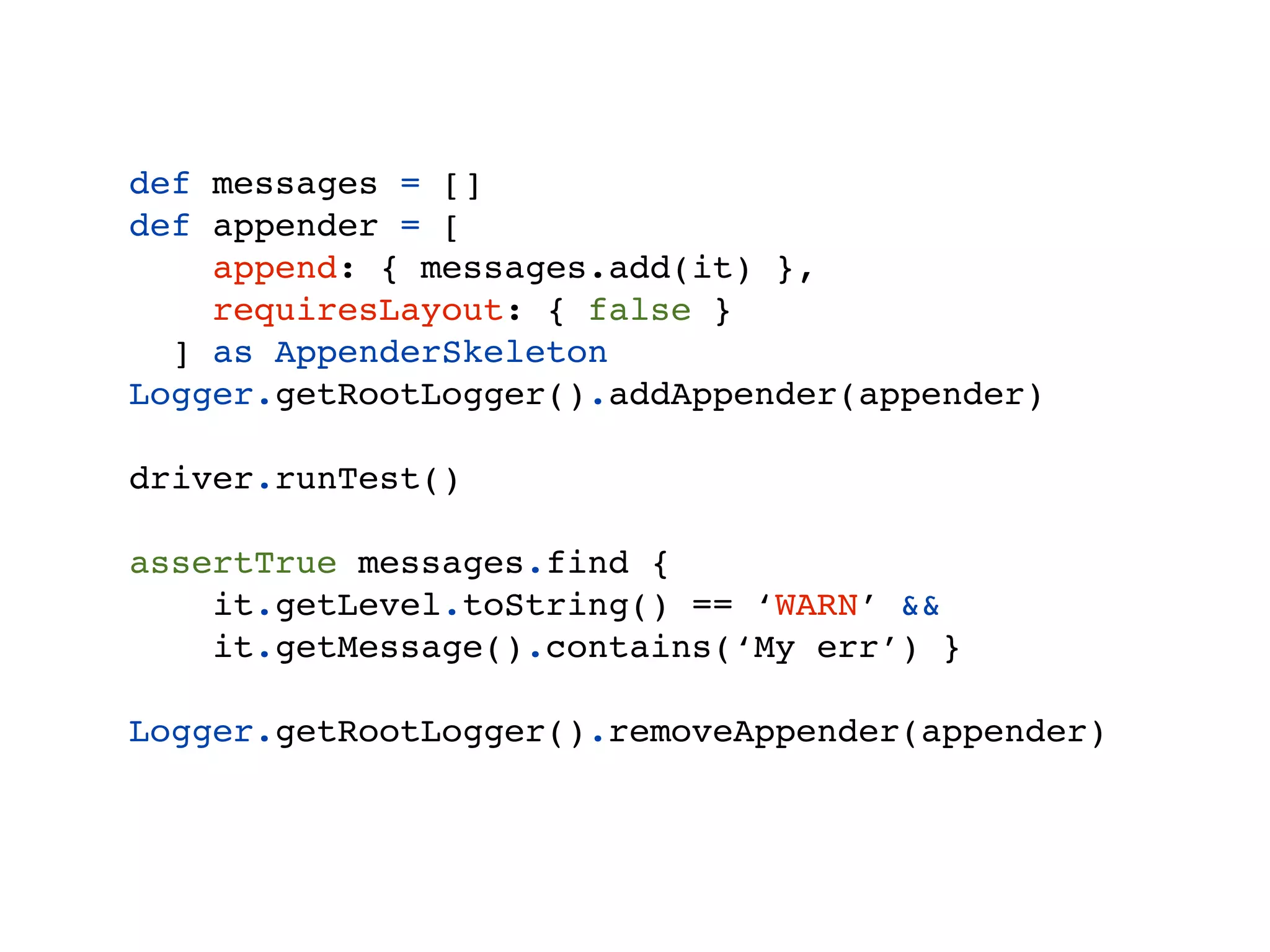

14. Verifying logging
def messages = []
def appender = [
append: { messages.add(it) },
requiresLayout: { false }
] as AppenderSkeleton
Logger.getRootLogger().addAppender(appender)
driver.runTest()
assertTrue messages.find {
it.getLevel.toString() == ‘WARN’ &&
it.getMessage().contains(‘My err’) }
Logger.getRootLogger().removeAppender(appender)

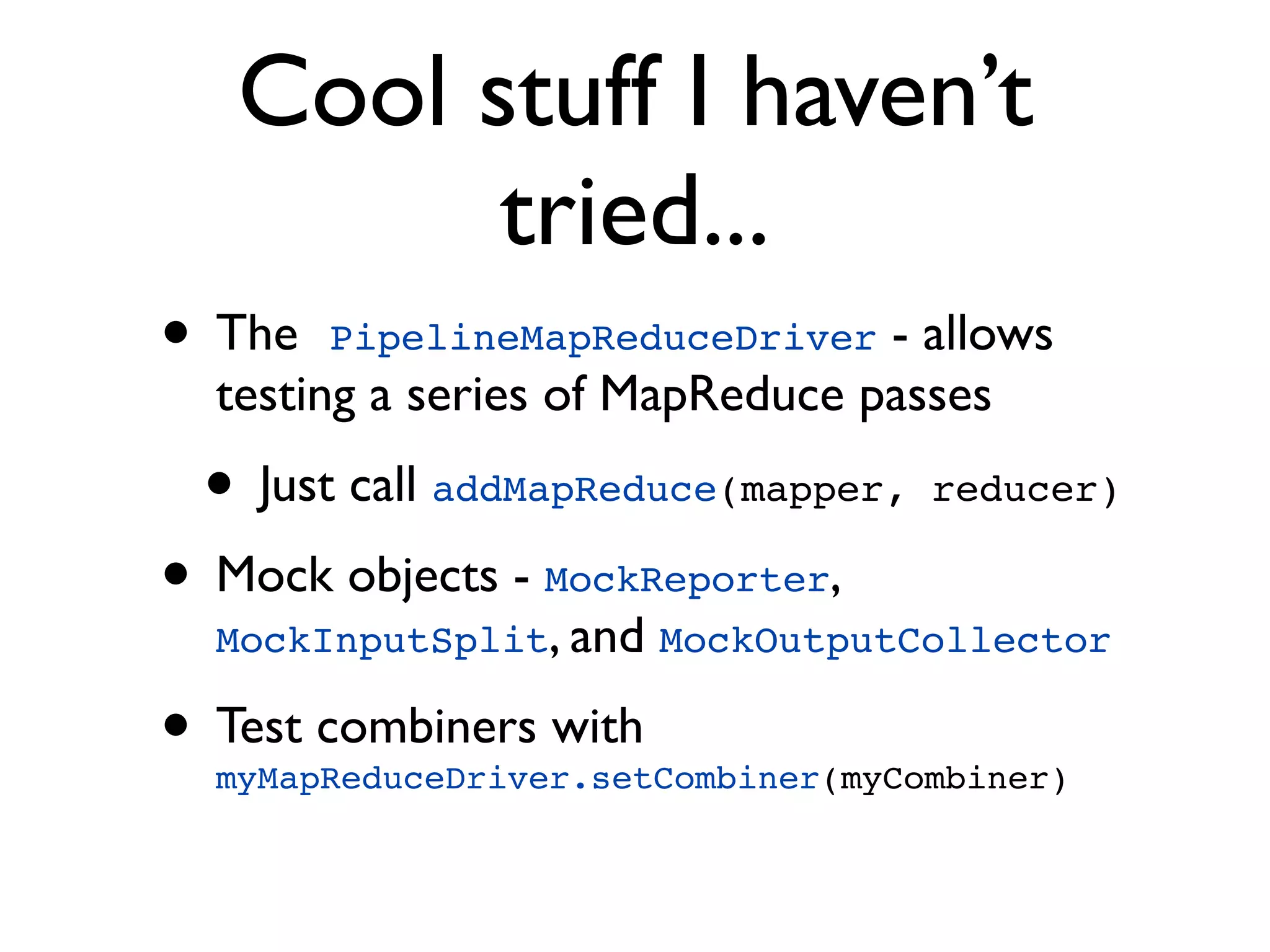

15. Cool stuff I haven’t
tried...
• The PipelineMapReduceDriver - allows
testing a series of MapReduce passes
• Just call addMapReduce(mapper, reducer)
• Mock objects - MockReporter,
MockInputSplit, and MockOutputCollector
• Test combiners with
myMapReduceDriver.setCombiner(myCombiner)

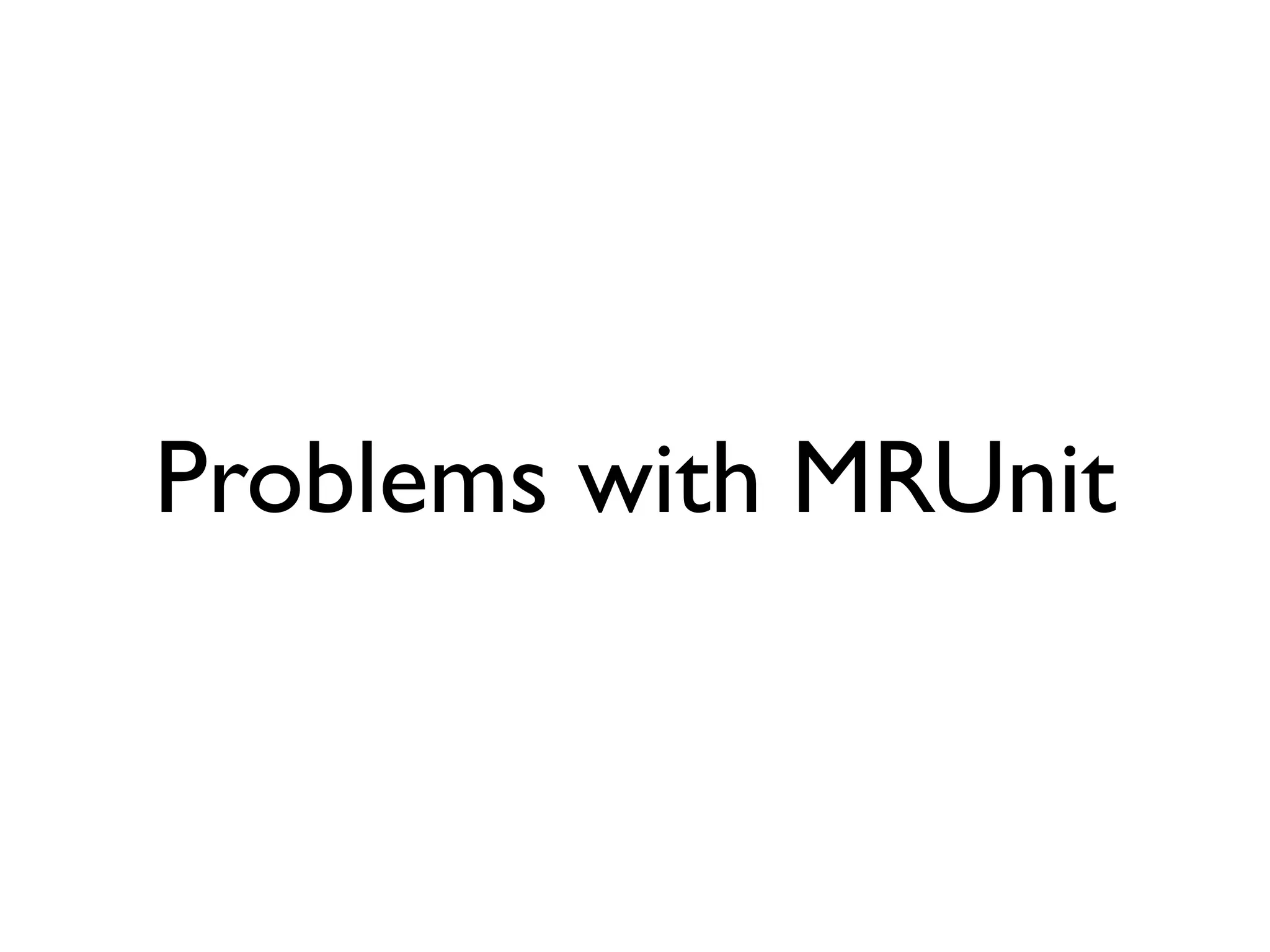

16. Problems with MRUnit

17. Not useful for
streaming jobs

18. shell$ ./myMapper.py < test.input |
sort | ./myReducer.py > actual.out
shell$ diff expected.out actual.out

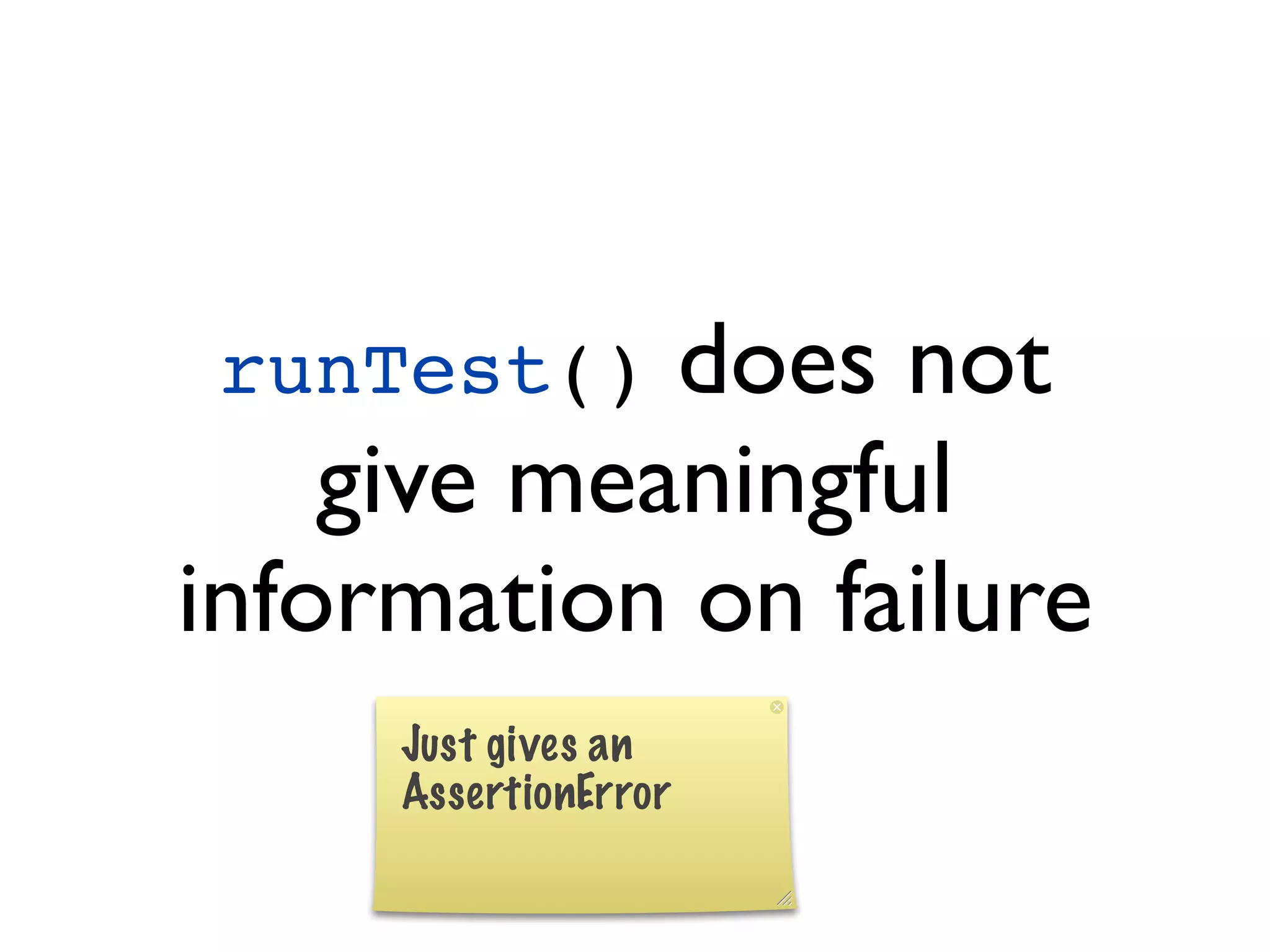

19. runTest() does not
give meaningful
information on failure

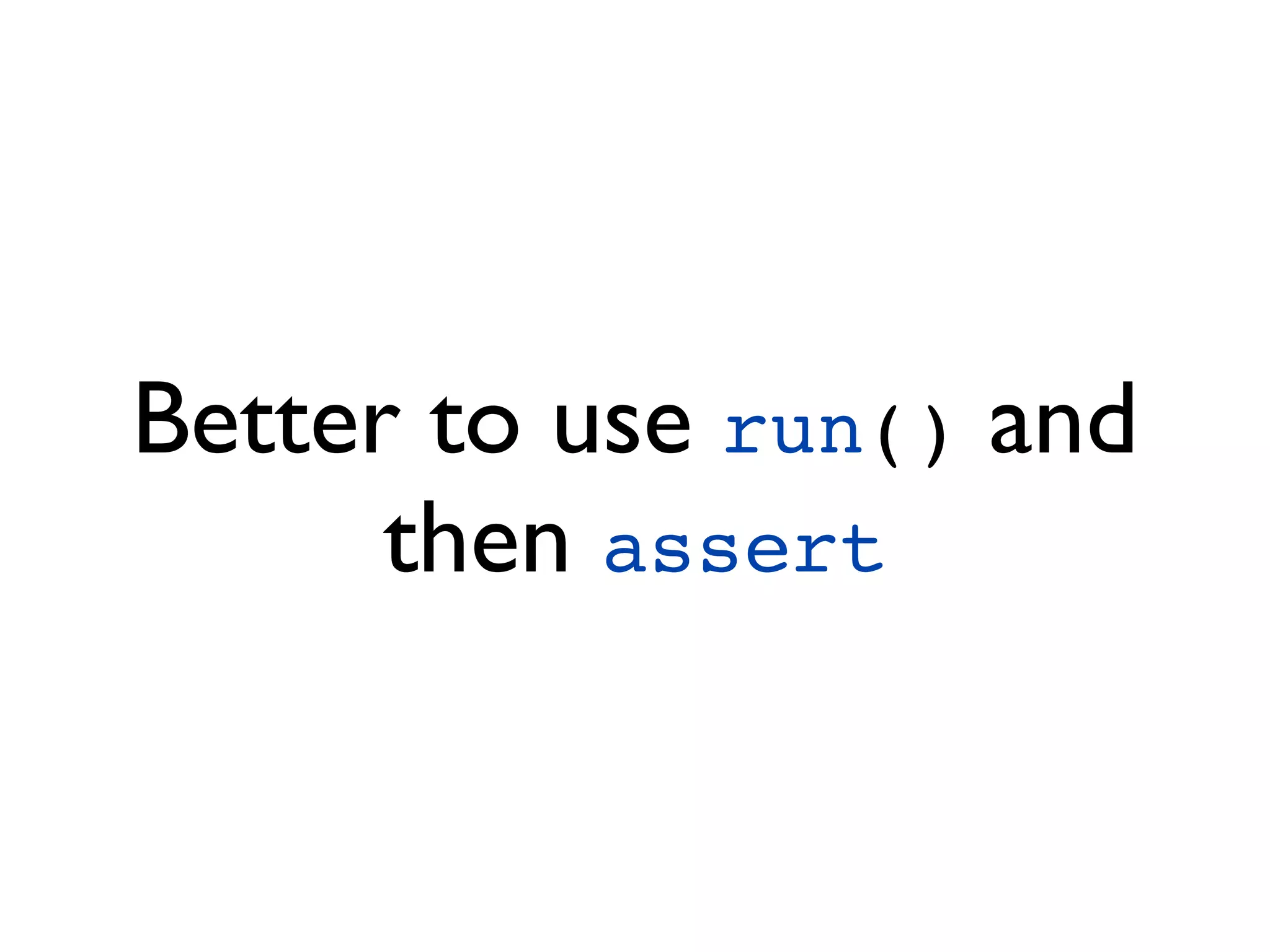

20. Better to use run() and
then assert

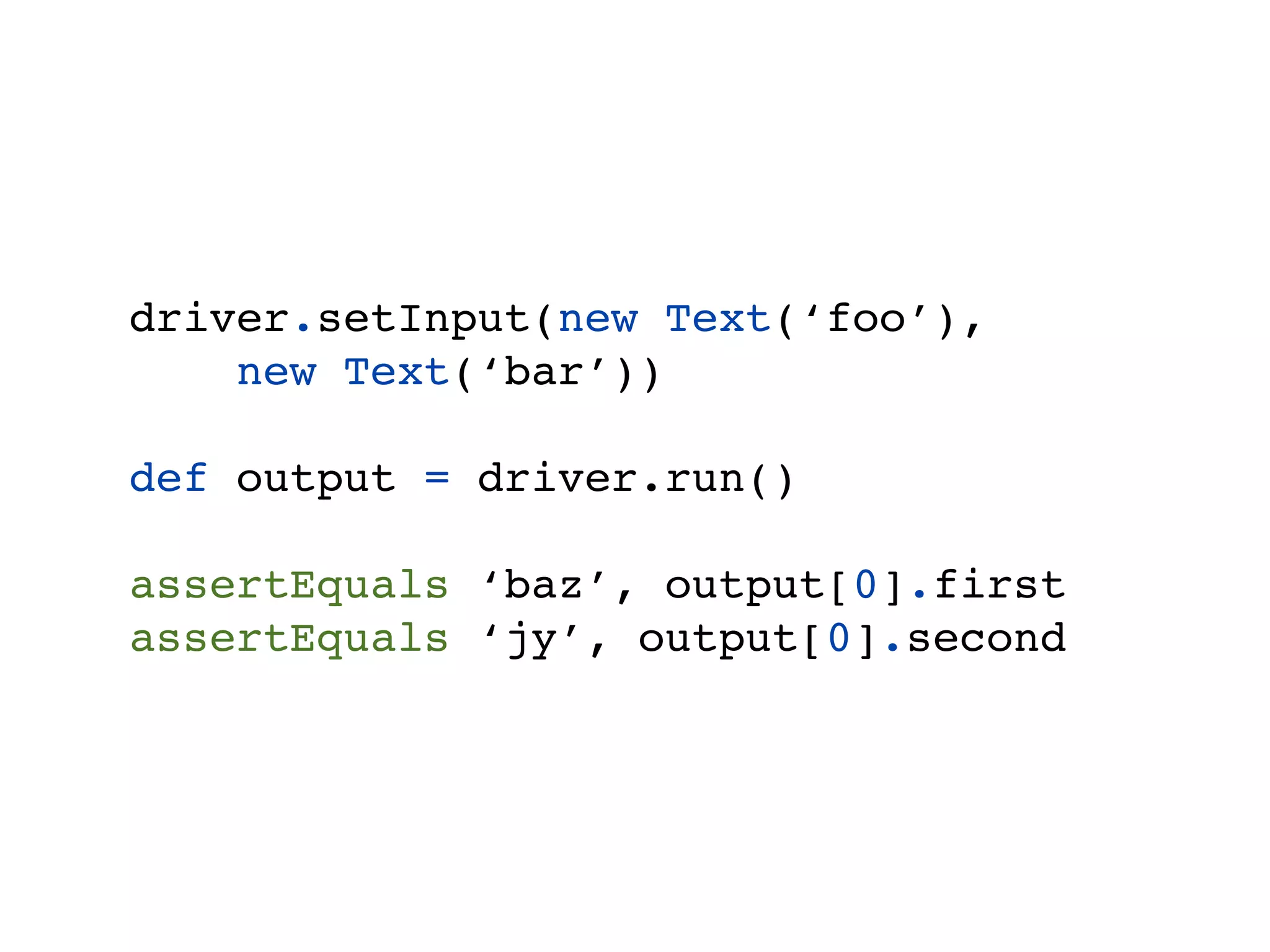

21. driver.setInput(new Text(‘foo’),
new Text(‘bar’))
def output = driver.run()
assertEquals ‘baz’, output[0].first
assertEquals ‘jy’, output[0].second

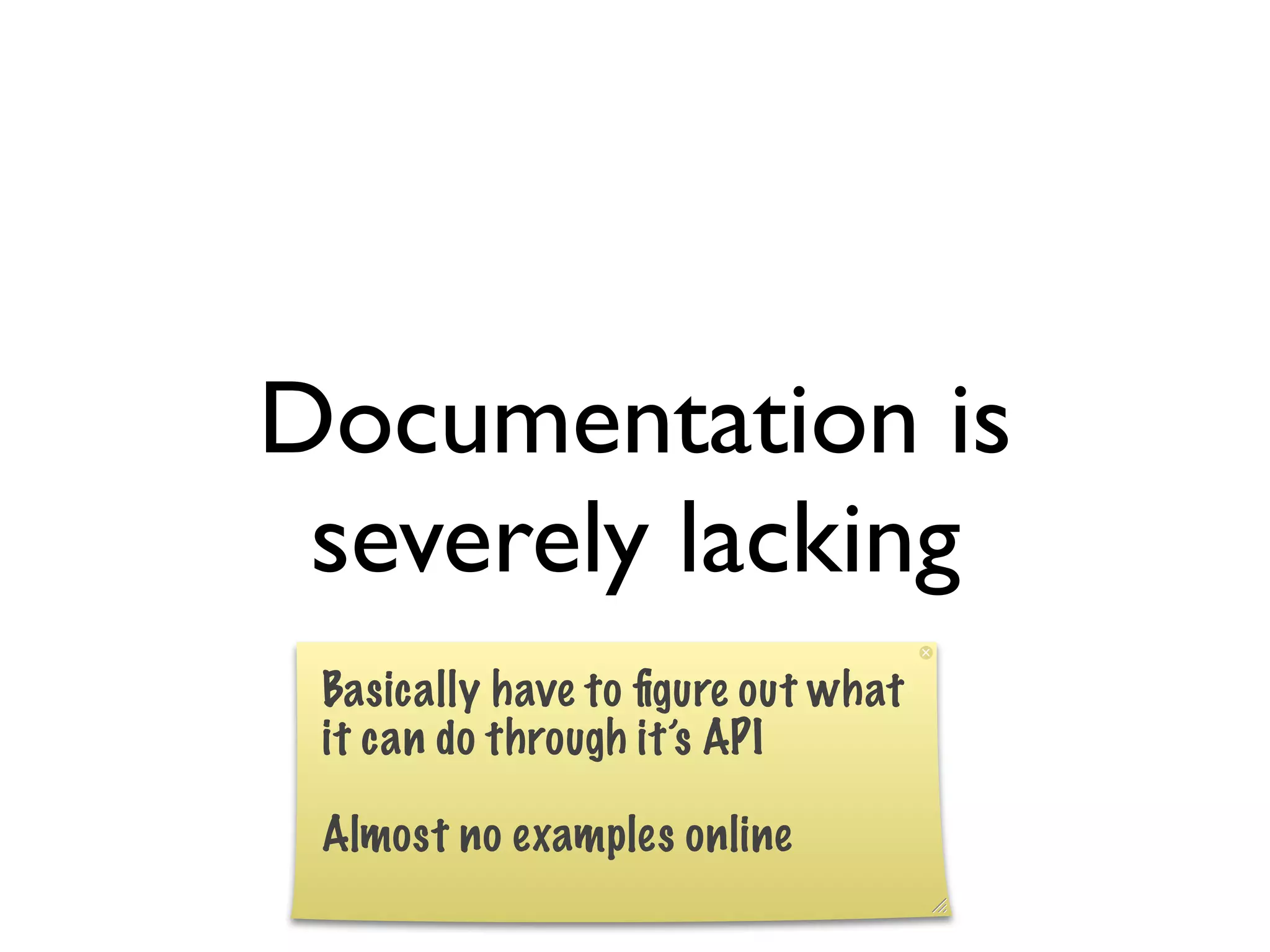

22. Documentation is
severely lacking

23. runXxx() calls setup()
called for new Hadoop
API, but not old API

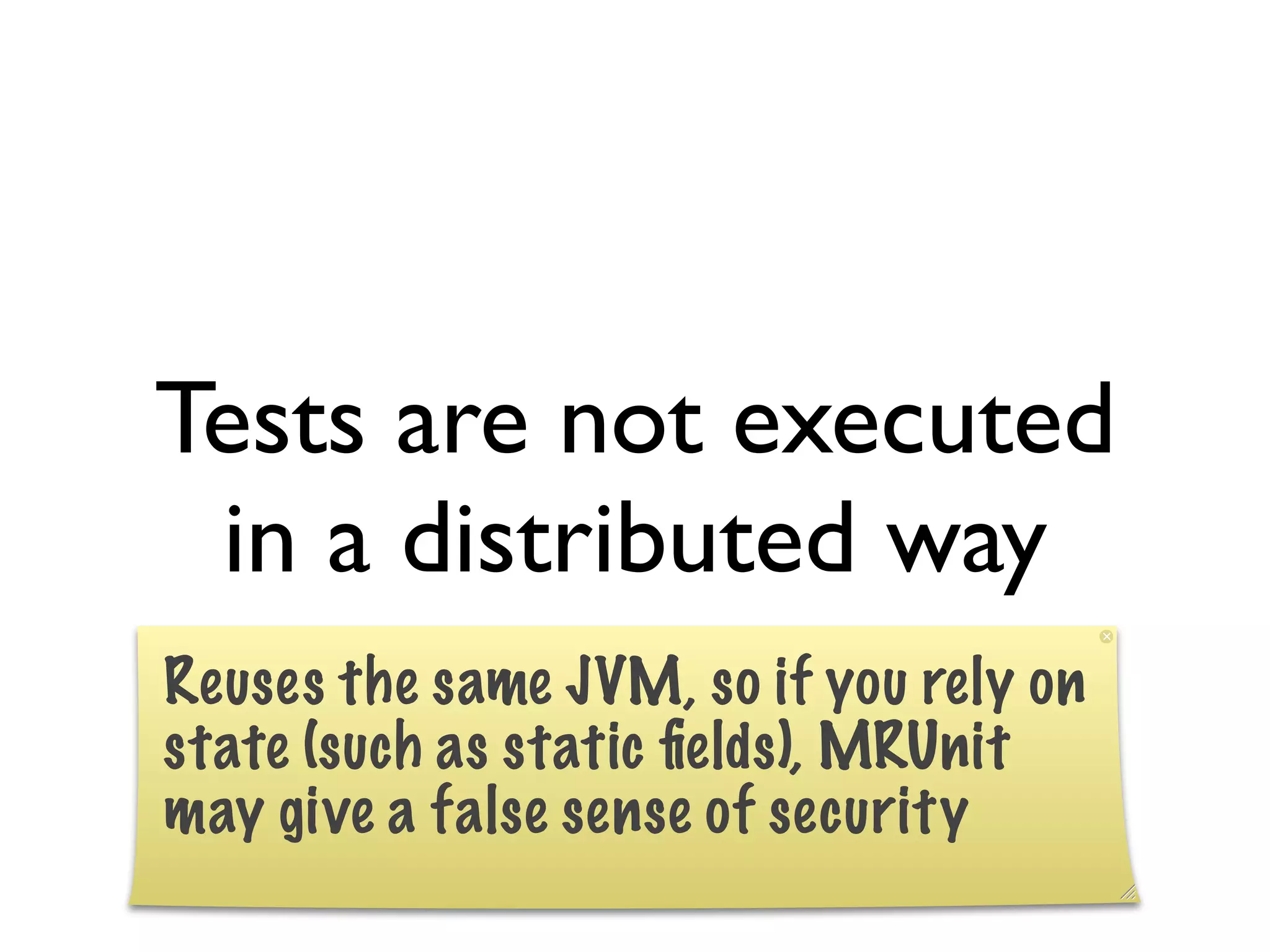

24. Tests are not executed
in a distributed way

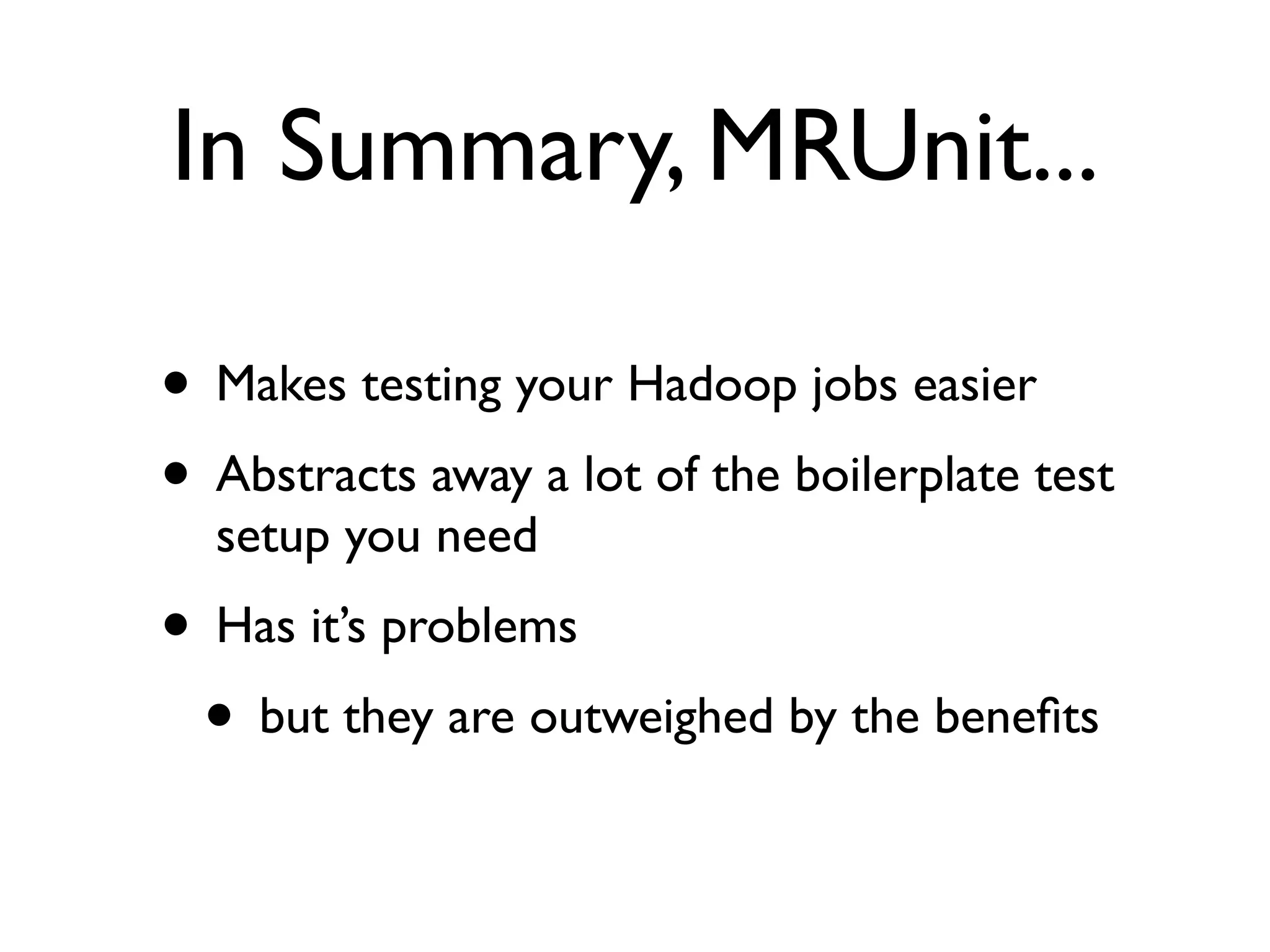

25. In Summary, MRUnit...
• Makes testing your Hadoop jobs easier
• Abstracts away a lot of the boilerplate test
setup you need
• Has it’s problems
• but they are outweighed by the benefits

26. ?

27. cloudera.com/hadoop-mrunit
Blog: eriwen.com
Twitter: @eriwen
