- 1. TEMPOROMANDIBULAR JOINT & MUSCLES OF MASTICATION
- 2. CONTENTS • Introduction • Temporomandibular Joint – Evolution – Embroyology – Anatomy – Histology • Muscles Of Mastication • Biomechanics • Temperomandibular Disorders • Conclusion • References
- 3. JOINT • Jointis a junction between two or more bones & is responsible for movement, growth or transmission of forces. • Classification Based on function Synarthosis Diarthosis

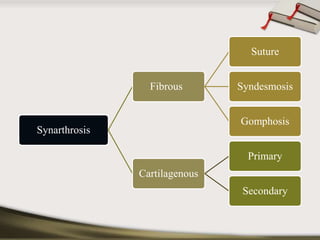

- 4. Synarthrosis Fibrous Suture Syndesmosis Gomphosis Cartilagenous Primary Secondary

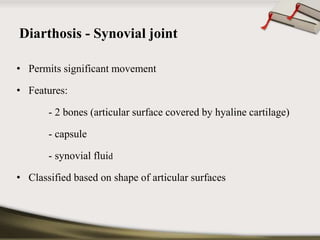

- 6. Diarthosis - Synovialjoint • Permits significant movement • Features: - 2 bones (articular surface covered by hyaline cartilage) - capsule - synovial fluid • Classified based on shape of articular surfaces

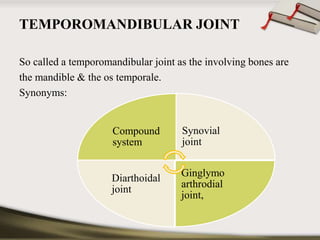

- 7. TEMPOROMANDIBULAR JOINT Socalled a temporomandibular joint as the involving bones are the mandible & the os temporale. Synonyms: Compound system Synovial joint Ginglymo arthrodial joint, Diarthoidal joint

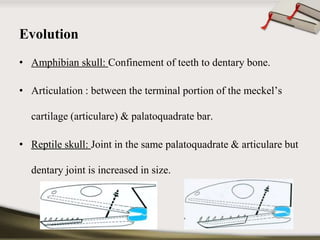

- 8. Evolution • Amphibianskull: Confinement of teeth to dentary bone. • Articulation : between the terminal portion of the meckel’s cartilage (articulare) & palatoquadrate bar. • Reptile skull: Joint in the same palatoquadrate & articulare but dentary joint is increased in size.

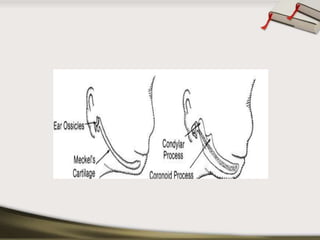

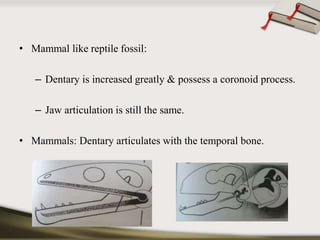

- 9. • Mammal likereptile fossil: – Dentary is increased greatly & possess a coronoid process. – Jaw articulation is still the same. • Mammals: Dentary articulates with the temporal bone.

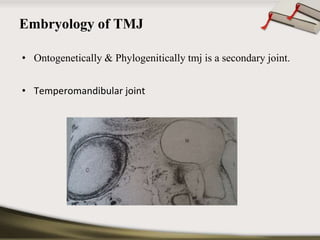

- 10. Embryology of TMJ • Ontogenetically & Phylogenitically tmj is a secondary joint. • Temperomandibular joint

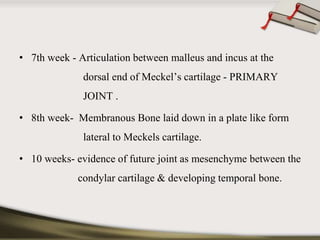

- 11. • 7th week- Articulation between malleus and incus at the dorsal end of Meckel’s cartilage - PRIMARY JOINT . • 8th week- Membranous Bone laid down in a plate like form lateral to Meckels cartilage. • 10 weeks- evidence of future joint as mesenchyme between the condylar cartilage & developing temporal bone.
- 13. • 12 weeks: 2 mesenchymal condensations Condylar grows dorsolaterally Ossification of temporal blastema Inferior joint cavity Differentiation of condylar into cartilage & Sup.joint cavity Formation of disc
- 14. • 13th week: Condyle and articular disk have moved up into contact with temporal bone. • Remnant of meckels cartilage - sphenomandibular ligament • Full differentiation of all articular surfaces occurs by 4th fetal month.

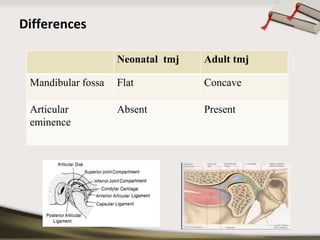

- 15. Differences Neonatal tmjAdult tmj Mandibular fossa Flat Concave Articular eminence Absent Present

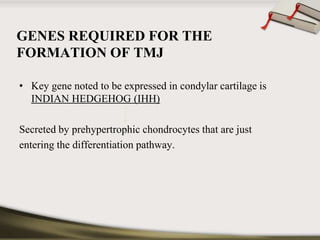

- 16. GENES REQUIRED FORTHE FORMATION OF TMJ • Key gene noted to be expressed in condylar cartilage is INDIAN HEDGEHOG (IHH) Secreted by prehypertrophic chondrocytes that are just entering the differentiation pathway.

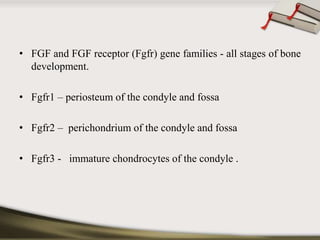

- 17. • FGF andFGF receptor (Fgfr) gene families - all stages of bone development. • Fgfr1 – periosteum of the condyle and fossa • Fgfr2 – perichondrium of the condyle and fossa • Fgfr3 - immature chondrocytes of the condyle .
- 18. Pecularities of tmj A. Bilateral diarthosis B. Articular surface covered by fibrocartilage C. Last joint among diarthoidals to begin development D. Development from 2 blastemas Synovial joint( 7th week) TMJ

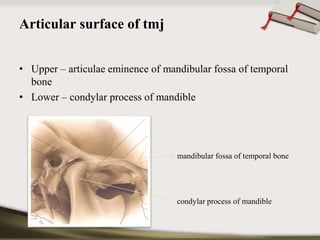

- 19. Articular surface oftmj • Upper – articulae eminence of mandibular fossa of temporal bone • Lower – condylar process of mandible mandibular fossa of temporal bone condylar process of mandible

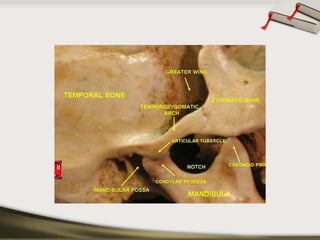

- 20. Components of TMJ • Bony components: 1. Mandibular condyle 2. Glenoid fossa 3. Articular eminence

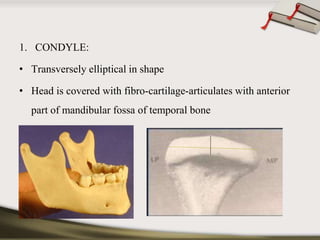

- 22. 1. CONDYLE: •Transversely elliptical in shape • Head is covered with fibro-cartilage-articulates with anterior part of mandibular fossa of temporal bone

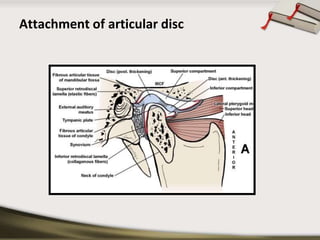

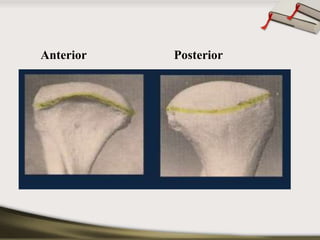

- 23.

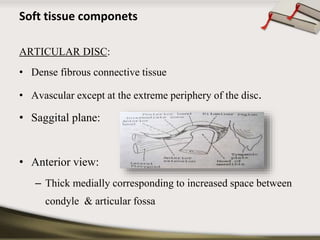

- 24. Soft tissue componets ARTICULAR DISC: • Dense fibrous connective tissue • Avascular except at the extreme periphery of the disc. • Saggital plane: • Anterior view: – Thick medially corresponding to increased space between condyle & articular fossa
- 25.

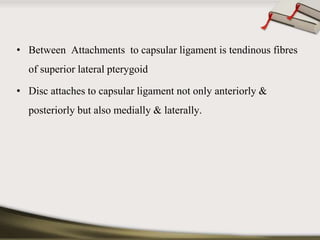

- 26. • Between Attachmentsto capsular ligament is tendinous fibres of superior lateral pterygoid • Disc attaches to capsular ligament not only anteriorly & posteriorly but also medially & laterally.
- 27. • Movements oftmj: – Superior cavity: Gliding movement. – Inferior cavity: Rotatory +Gliding movement • Functions of articular disc i. Separation ii. Protection iii. stabilization During functional movements of condyle

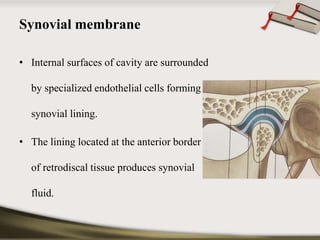

- 28. Synovial membrane •Internal surfaces of cavity are surrounded by specialized endothelial cells forming synovial lining. • The lining located at the anterior border of retrodiscal tissue produces synovial fluid.

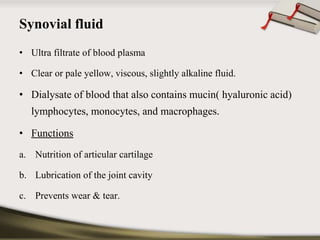

- 29. Synovial fluid •Ultra filtrate of blood plasma • Clear or pale yellow, viscous, slightly alkaline fluid. • Dialysate of blood that also contains mucin( hyaluronic acid) lymphocytes, monocytes, and macrophages. • Functions a. Nutrition of articular cartilage b. Lubrication of the joint cavity c. Prevents wear & tear.

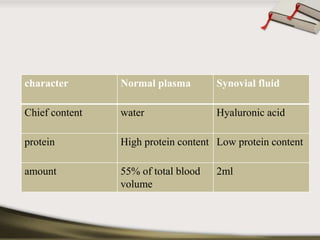

- 30. character Normal plasmaSynovial fluid Chief content water Hyaluronic acid protein High protein content Low protein content amount 55% of total blood volume 2ml

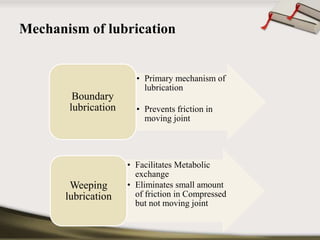

- 31. Mechanism of lubrication • Primary mechanism of lubrication • Prevents friction in moving joint Boundary lubrication • Facilitates Metabolic exchange • Eliminates small amount of friction in Compressed but not moving joint Weeping lubrication
- 32. Ligaments • Collagenous& act predominantly as restraints to motion of the condyle and the disc. Functional ligaments Accessory ligaments

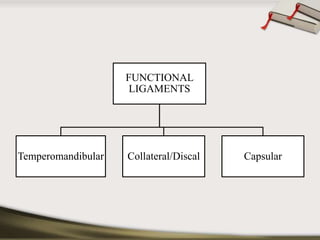

- 33. FUNCTIONAL LIGAMENTS TemperomandibularCollateral/Discal Capsular

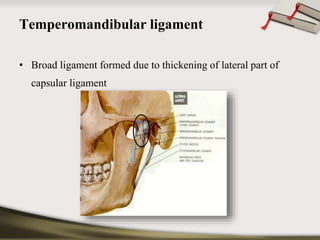

- 34. Temperomandibular ligament •Broad ligament formed due to thickening of lateral part of capsular ligament

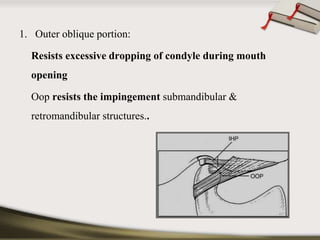

- 35. 1. Outer obliqueportion: Resists excessive dropping of condyle during mouth opening Oop resists the impingement submandibular & retromandibular structures..
- 36. 2. Inner horizontalportion: Prevents further posterior movement of condyle into the gleniod fossa Eg: During extreme trauma to mandible, neck of condyle fractures before the retrodiscal tissues are injured.
- 37. Collateral ligament •Syn: Discal ligaments • Possess vascular supply & are innervated. Function: • Gliding & hinging movements

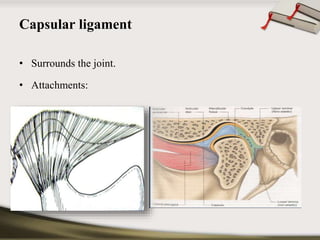

- 38. Capsular ligament •Surrounds the joint. • Attachments:

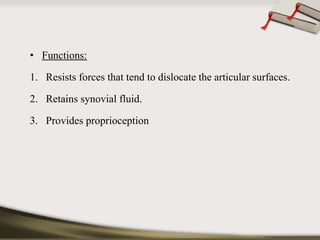

- 39. • Functions: 1.Resists forces that tend to dislocate the articular surfaces. 2. Retains synovial fluid. 3. Provides proprioception

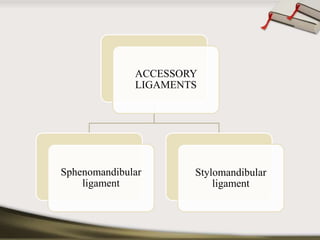

- 40. ACCESSORY LIGAMENTS Sphenomandibular ligament Stylomandibular ligament

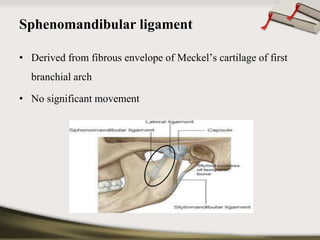

- 41. Sphenomandibular ligament •Derived from fibrous envelope of Meckel’s cartilage of first branchial arch • No significant movement

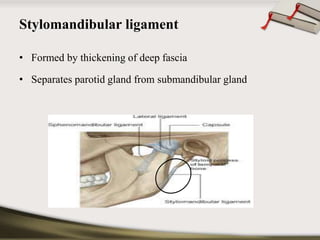

- 42. Stylomandibular ligament •Formed by thickening of deep fascia • Separates parotid gland from submandibular gland

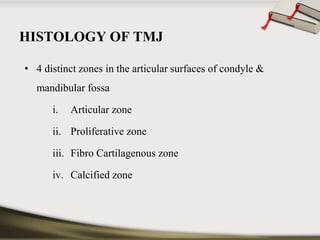

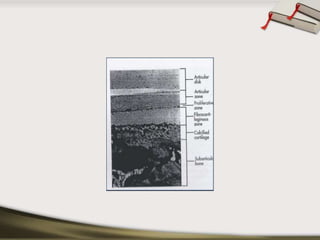

- 43. HISTOLOGY OF TMJ • 4 distinct zones in the articular surfaces of condyle & mandibular fossa i. Articular zone ii. Proliferative zone iii. Fibro Cartilagenous zone iv. Calcified zone

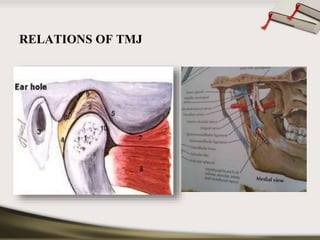

- 45.
- 46. Blood Supply OfTMJ: • Posteriorly - Superficial temporal A. • Inferiorly - internal MaxillaryA. • Anteriorly - middle meningeal A. Others • Deep auricular artery • Anterior tympanic artery

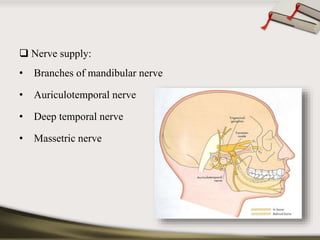

- 47. Nerve supply: • Branches of mandibular nerve • Auriculotemporal nerve • Deep temporal nerve • Massetric nerve

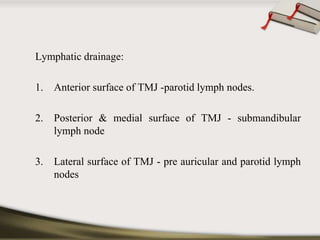

- 48. Lymphatic drainage: 1.Anterior surface of TMJ -parotid lymph nodes. 2. Posterior & medial surface of TMJ - submandibular lymph node 3. Lateral surface of TMJ - pre auricular and parotid lymph nodes

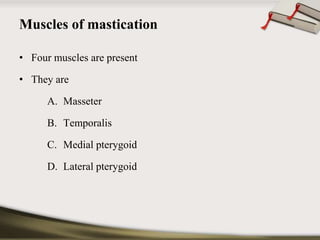

- 49. Muscles of mastication • Four muscles are present • They are A. Masseter B. Temporalis C. Medial pterygoid D. Lateral pterygoid

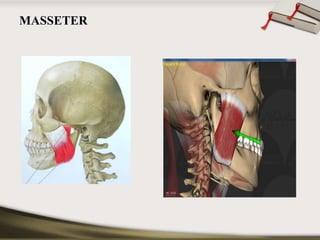

- 50.

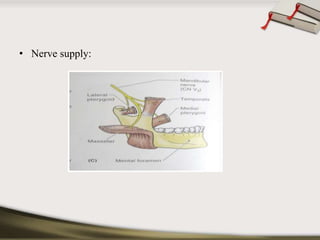

- 51.

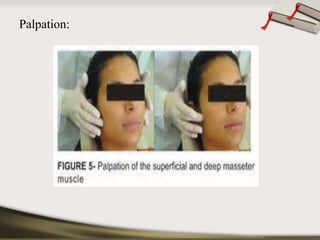

- 52.

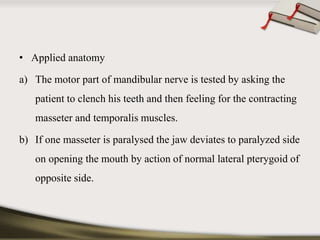

- 53. • Applied anatomy a) The motor part of mandibular nerve is tested by asking the patient to clench his teeth and then feeling for the contracting masseter and temporalis muscles. b) If one masseter is paralysed the jaw deviates to paralyzed side on opening the mouth by action of normal lateral pterygoid of opposite side.
- 54.

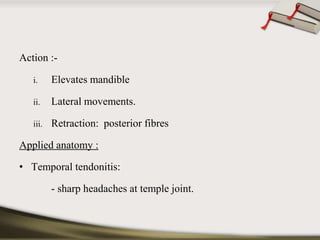

- 55. Action :- i.Elevates mandible ii. Lateral movements. iii. Retraction: posterior fibres Applied anatomy : • Temporal tendonitis: - sharp headaches at temple joint.

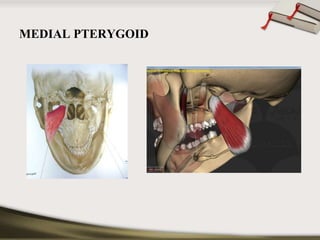

- 56.

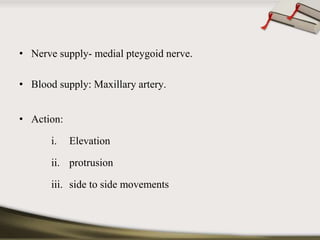

- 57. • Nerve supply-medial pteygoid nerve. • Blood supply: Maxillary artery. • Action: i. Elevation ii. protrusion iii. side to side movements
- 58.
- 59. • Applied anatomy Bleeding created by needle puncture in medial pterygoid muscle produces a hematoma followed by fibrosis and subsequent trismus.

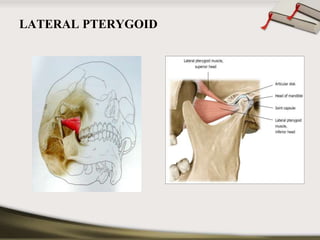

- 60.
- 61. • Nerve supply- branch of ant div of madibular nerve • Blood supply: Maxillary artery. • Action- Depression, protrusion & side to side movements

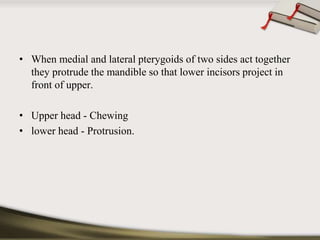

- 62. • When medialand lateral pterygoids of two sides act together they protrude the mandible so that lower incisors project in front of upper. • Upper head - Chewing • lower head - Protrusion.

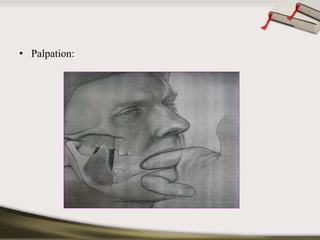

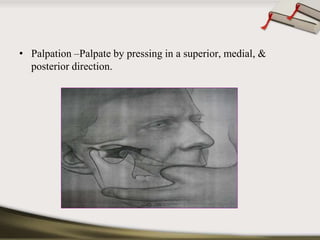

- 63. • Palpation –Palpateby pressing in a superior, medial, & posterior direction.
- 64. • Sphenomandibularis-5th muscle • Discovered by Dunn et al in the mid 1990s at University of Maryland, Baltimore. • Considered to be a part of temporalis. • Origin- Infratemporal surface of greater wing of sphenoid bone. Insertion-Temporal crest of mandible.

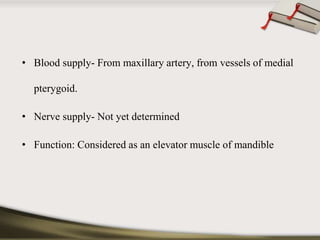

- 65. • Blood supply-From maxillary artery, from vessels of medial pterygoid. • Nerve supply- Not yet determined • Function: Considered as an elevator muscle of mandible

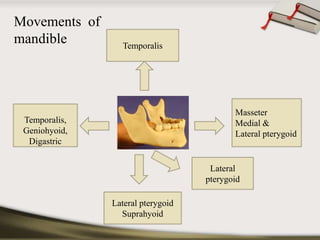

- 66. Temporalis Temporalis, Geniohyoid, Digastric Lateral pterygoid Lateral pterygoid Suprahyoid Masseter Medial & Lateral pterygoid Movements of mandible

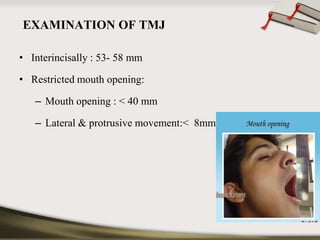

- 67. EXAMINATION OF TMJ • Interincisally : 53- 58 mm • Restricted mouth opening: – Mouth opening : < 40 mm – Lateral & protrusive movement:< 8mm

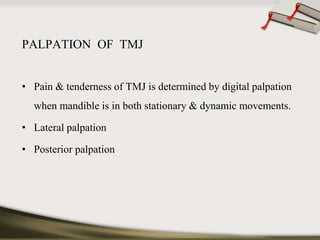

- 68. PALPATION OF TMJ • Pain & tenderness of TMJ is determined by digital palpation when mandible is in both stationary & dynamic movements. • Lateral palpation • Posterior palpation

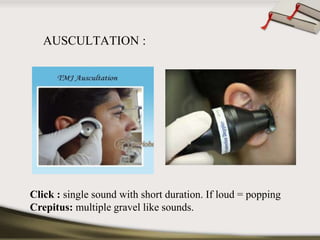

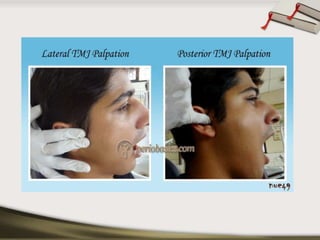

- 70. AUSCULTATION : Click: single sound with short duration. If loud = popping Crepitus: multiple gravel like sounds.

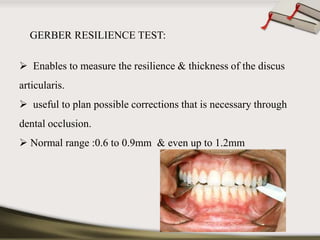

- 71. GERBER RESILIENCE TEST: Enables to measure the resilience & thickness of the discus articularis. useful to plan possible corrections that is necessary through dental occlusion. Normal range :0.6 to 0.9mm & even up to 1.2mm

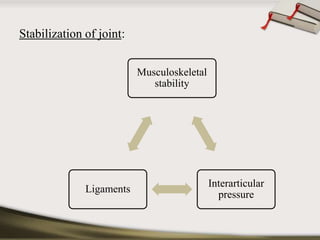

- 72. Musculoskeletal stability Interarticular pressure Stabilization of joint: Ligaments

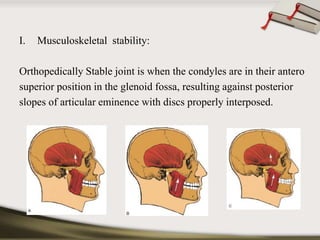

- 73. I. Musculoskeletal stability: Orthopedically Stable joint is when the condyles are in their antero superior position in the glenoid fossa, resulting against posterior slopes of articular eminence with discs properly interposed.
- 74. II. Ligaments: Stabilisethe joint by limiting the movement Ligaments elongate but are not streched Compromising the normal jaw function
- 75. III. Interarticular pressure: • Pressure between the articular surfaces of articular eminence & the condyle • Absence of inter articular pressure results in separation of joints and dislocation

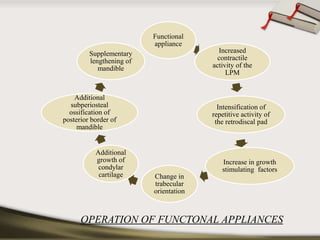

- 76. Functional appliance Increased contractile activity of the LPM Intensification of repetitive activity of the retrodiscal pad Increase in growth stimulating factors Change in trabecular orientation Supplementary lengthening of mandible Additional subperiosteal ossification of posterior border of mandible Additional growth of condylar cartilage OPERATION OF FUNCTONAL APPLIANCES
- 77. TemporomandibularJoint Disorders A.Derangement of condyle -disc complex i) Disc displacements ii) Disc dislocation with reduction iii) Disc dislocation without reduction B. Structural incompatibility of the articular surfaces 1. Deviation in form a. Disc b. Condyle c. Fossa
- 78. 2. Adhesions a.Disc to condyle b. Disc to fossa 3. Subluxation 4. Spontaneous dislocation C. Inflammatory disorders 1. Synovitis/ capsulitis 2. Arthritidis

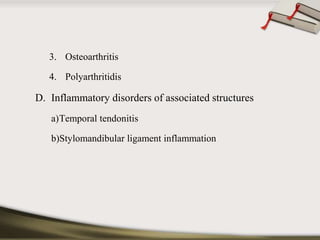

- 79. 3. Osteoarthritis 4.Polyarthritidis D. Inflammatory disorders of associated structures a)Temporal tendonitis b)Stylomandibular ligament inflammation

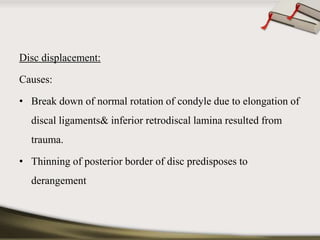

- 80. Disc displacement: Causes: • Break down of normal rotation of condyle due to elongation of discal ligaments& inferior retrodiscal lamina resulted from trauma. • Thinning of posterior border of disc predisposes to derangement

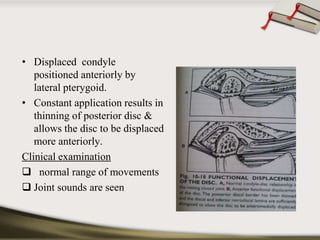

- 81. • Displaced condyle positioned anteriorly by lateral pterygoid. • Constant application results in thinning of posterior disc & allows the disc to be displaced more anteriorly. Clinical examination normal range of movements Joint sounds are seen

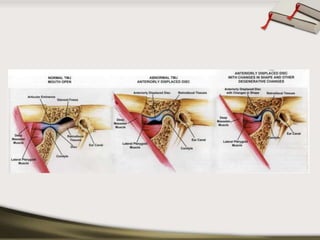

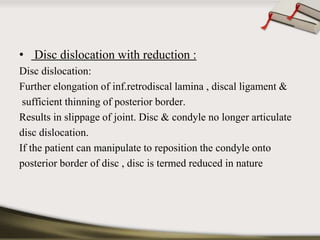

- 83. • Disc dislocationwith reduction : Disc dislocation: Further elongation of inf.retrodiscal lamina , discal ligament & sufficient thinning of posterior border. Results in slippage of joint. Disc & condyle no longer articulate disc dislocation. If the patient can manipulate to reposition the condyle onto posterior border of disc , disc is termed reduced in nature

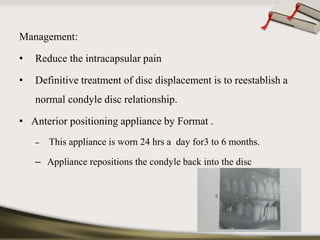

- 84. Management: • Reducethe intracapsular pain • Definitive treatment of disc displacement is to reestablish a normal condyle disc relationship. • Anterior positioning appliance by Format . – This appliance is worn 24 hrs a day for3 to 6 months. – Appliance repositions the condyle back into the disc

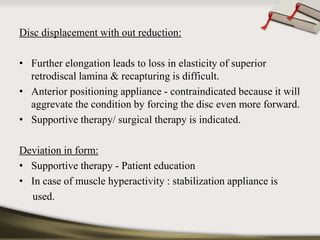

- 85. Disc displacement without reduction: • Further elongation leads to loss in elasticity of superior retrodiscal lamina & recapturing is difficult. • Anterior positioning appliance - contraindicated because it will aggrevate the condition by forcing the disc even more forward. • Supportive therapy/ surgical therapy is indicated. Deviation in form: • Supportive therapy - Patient education • In case of muscle hyperactivity : stabilization appliance is used.
- 86. Adhesions: When adhesionsare present breaking the fibrous attachment is only definitive treatment It is done by using arthroscopic surgery Subluxation: • Only definitive treatment by surgical alteration of joint i.e, by eminectomy. • Supportive therapy . Spontaneous dislocation: • surgical therapy is indicated

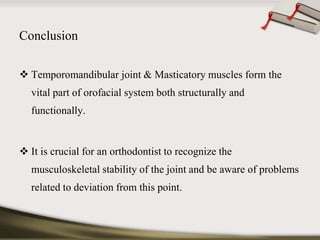

- 87. Conclusion Temporomandibularjoint & Masticatory muscles form the vital part of orofacial system both structurally and functionally. It is crucial for an orthodontist to recognize the musculoskeletal stability of the joint and be aware of problems related to deviation from this point.

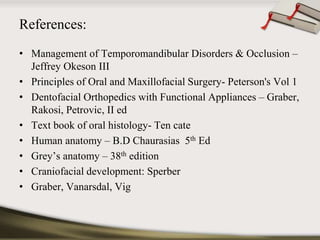

- 88. References: • Managementof Temporomandibular Disorders & Occlusion – Jeffrey Okeson III • Principles of Oral and Maxillofacial Surgery- Peterson's Vol 1 • Dentofacial Orthopedics with Functional Appliances – Graber, Rakosi, Petrovic, II ed • Text book of oral histology- Ten cate • Human anatomy – B.D Chaurasias 5th Ed • Grey’s anatomy – 38th edition • Craniofacial development: Sperber • Graber, Vanarsdal, Vig
