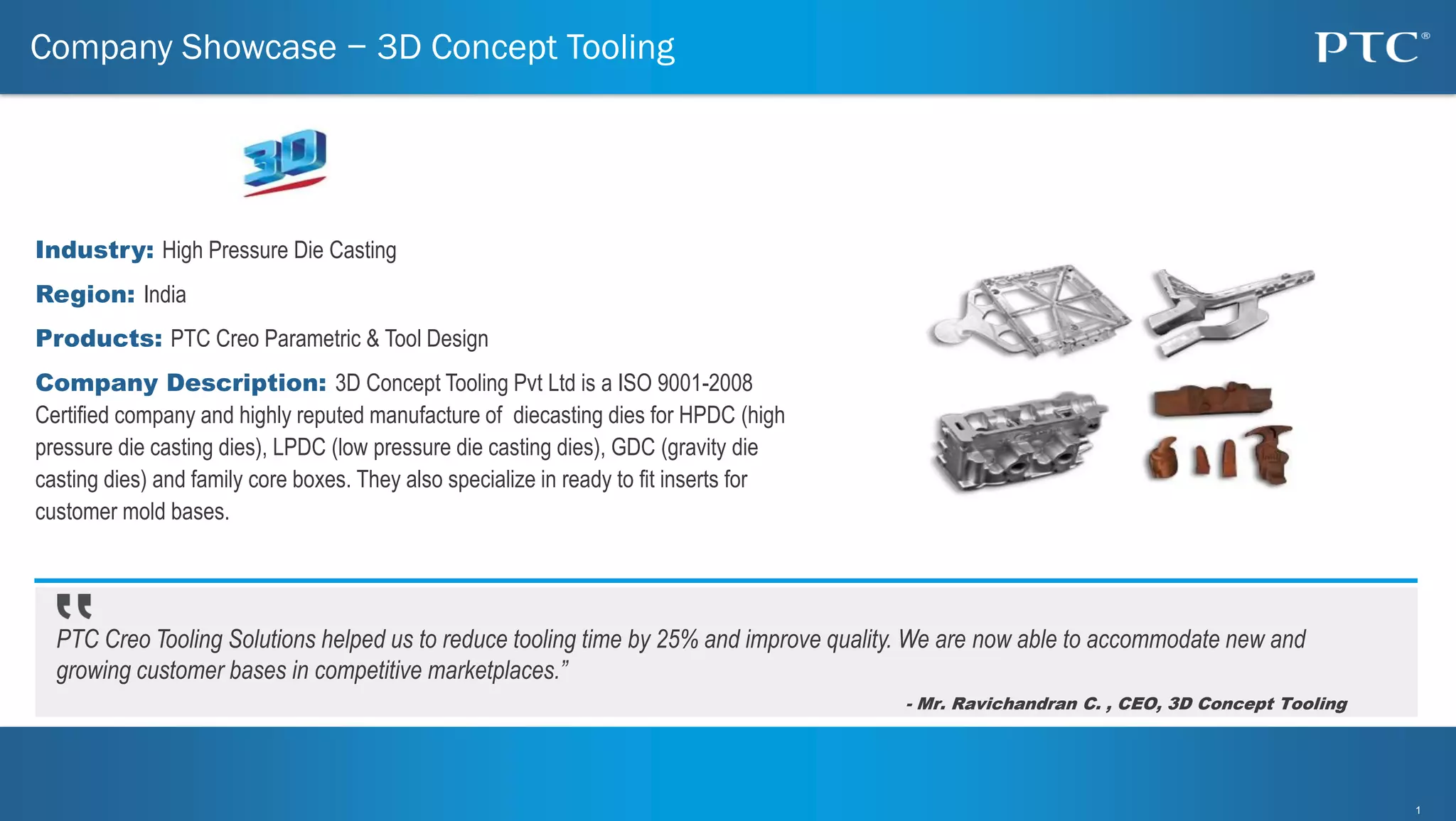

Company Showcase − 3D Concept Tooling
Industry: High Pressure Die Casting
Region: India
Products: PTC Creo Parametric & Tool Design
Company Description: 3D Concept Tooling Pvt Ltd is a ISO 9001-2008
Certified company and highly reputed manufacture of diecasting dies for HPDC (high
pressure die casting dies), LPDC (low pressure die casting dies), GDC (gravity die
casting dies) and family core boxes. They also specialize in ready to fit inserts for
customer mold bases.
PTC Creo Tooling Solutions helped us to reduce tooling time by 25% and improve quality. We are now able to accommodate new and
growing customer bases in competitive marketplaces.”
- Mr. Ravichandran C. , CEO, 3D Concept Tooling

2. 22

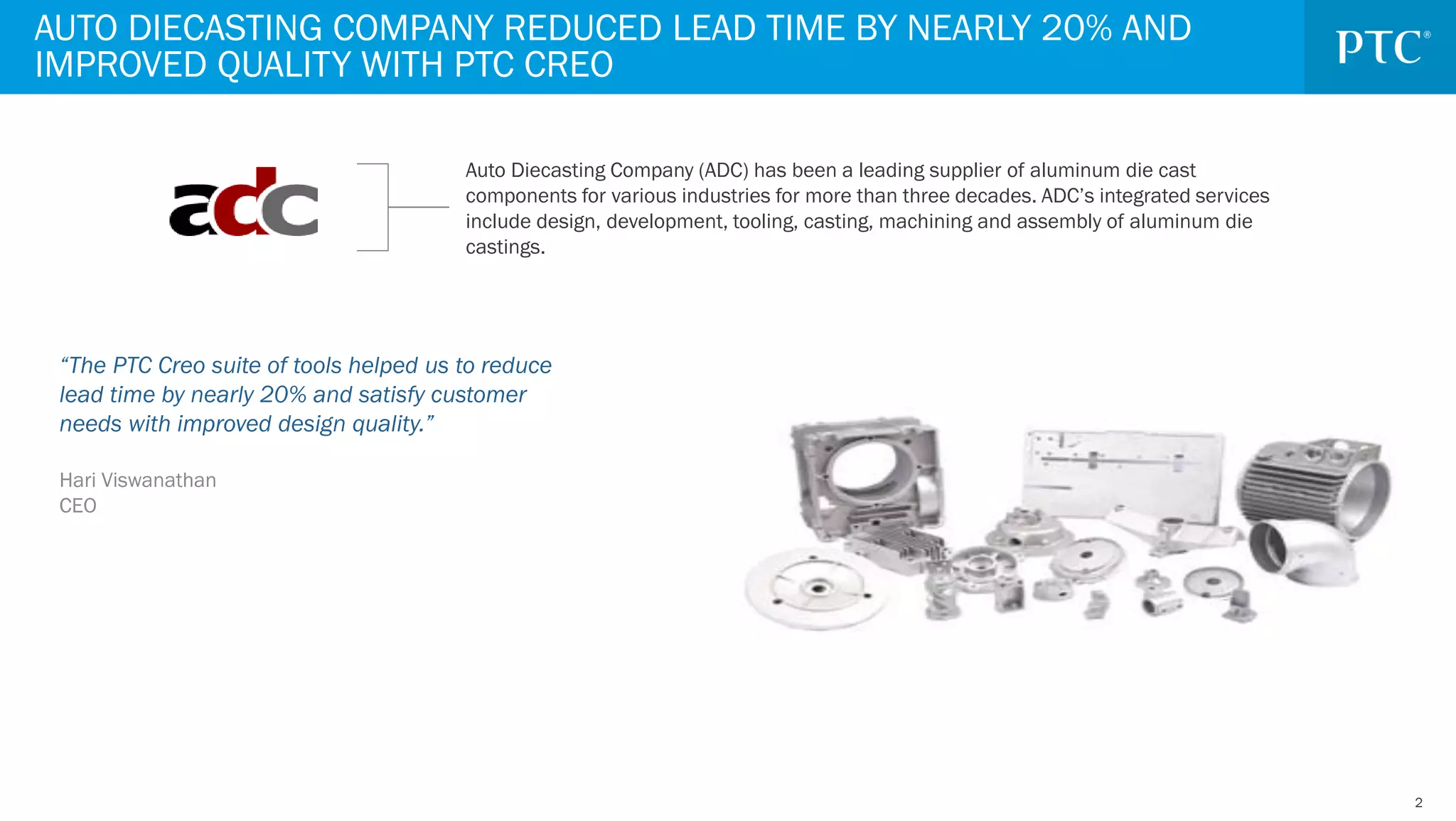

AUTO DIECASTING COMPANY REDUCED LEAD TIME BY NEARLY 20% AND
IMPROVED QUALITY WITH PTC CREO
Auto Diecasting Company (ADC) has been a leading supplier of aluminum die cast
components for various industries for more than three decades. ADC’s integrated services
include design, development, tooling, casting, machining and assembly of aluminum die
castings.
“The PTC Creo suite of tools helped us to reduce
lead time by nearly 20% and satisfy customer
needs with improved design quality.”
Hari Viswanathan
CEO

3. 33
I n i t i a t i v e s
• Improve Efficiency
• Reduce design time
• Improve quality
• Reduce error and rework

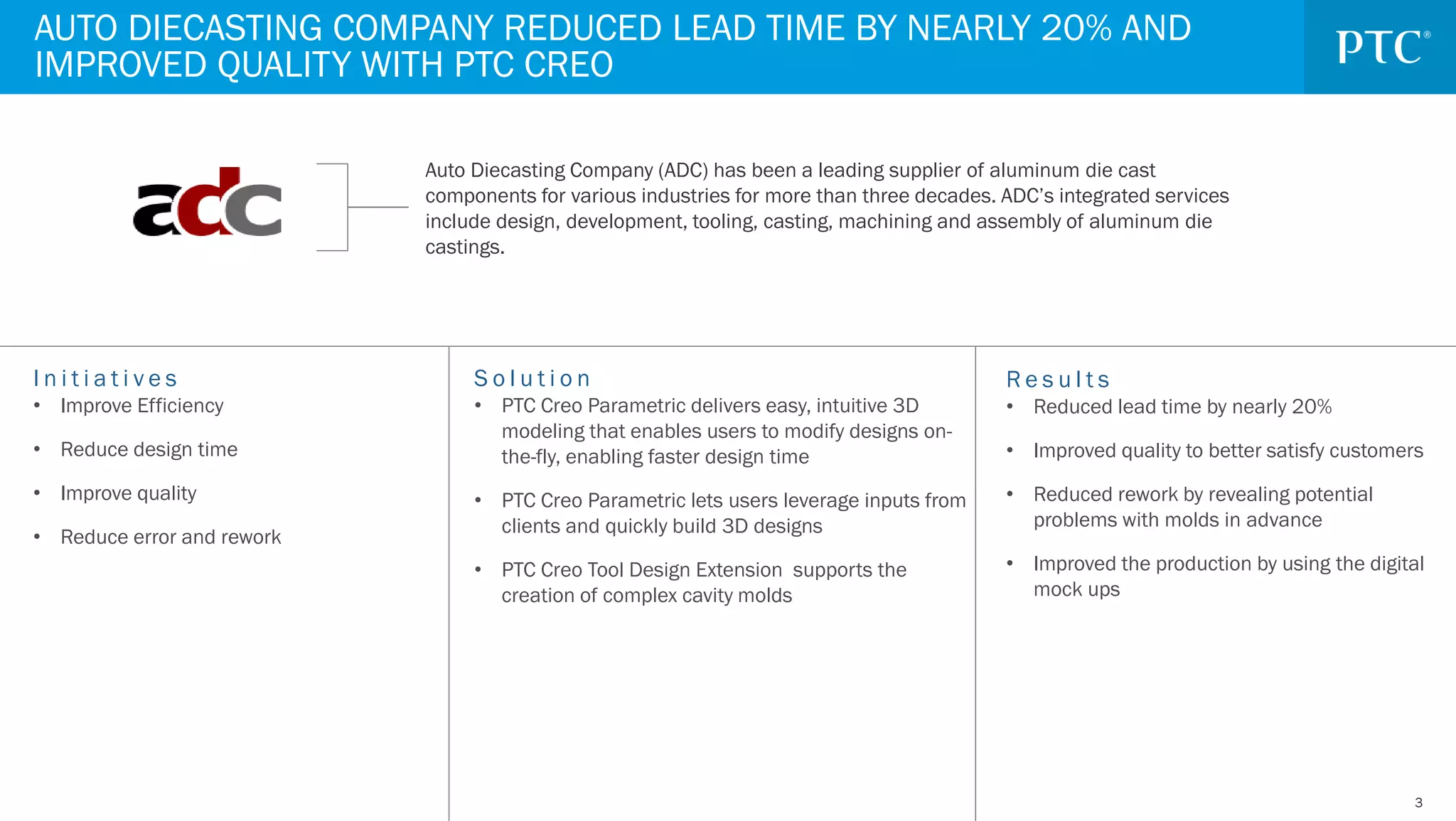

AUTO DIECASTING COMPANY REDUCED LEAD TIME BY NEARLY 20% AND
IMPROVED QUALITY WITH PTC CREO
Auto Diecasting Company (ADC) has been a leading supplier of aluminum die cast
components for various industries for more than three decades. ADC’s integrated services
include design, development, tooling, casting, machining and assembly of aluminum die
castings.
S o l u t i o n
• PTC Creo Parametric delivers easy, intuitive 3D
modeling that enables users to modify designs on-
the-fly, enabling faster design time
• PTC Creo Parametric lets users leverage inputs from
clients and quickly build 3D designs
• PTC Creo Tool Design Extension supports the
creation of complex cavity molds
R e s u l t s
• Reduced lead time by nearly 20%
• Improved quality to better satisfy customers
• Reduced rework by revealing potential
problems with molds in advance
• Improved the production by using the digital
mock ups

4. 4
“PTC Creo Tool Design Extension has
enabled us to reduce our design time by
approximately 30-40%.”
Mr. Makrand
Manager, Tool Design & Manufacturing
C&S ELECTRIC REDUCES TOOL DESIGN TIME BY 30-40% USING PTC CREO TOOL
DESIGN EXTENSION
C&S Electric Ltd. is amongst the leading suppliers of electrical equipment in India and is
India’s largest exporter of industrial switchgear. Its wide range of electrical and electronic
products find application in power generation, distribution, control, protection and final
consumption.

5. 5
I n i t i a t i v e s
• Faster creation of mold
components from design model
• Reduce tool design time
• Create mold animations to
provide better understanding of
the core cavity extraction process
R e s u l t s
• Reduced tool design time by
30-40% for new designs
• Improved the response time to
customers by a great extent
• Reduced re-works and scraps
• Lowered time and costs for
tool design with an improved,
user-friendly interface
• Reduce time spent in the mold
design process by using the
built-in mold library
C&S Electric Ltd. is amongst the leading suppliers of electrical equipment in India and is
India’s largest exporter of industrial switchgear. Its wide range of electrical and electronic
products find application in power generation, distribution, control, protection and final
consumption.
C&S ELECTRIC REDUCES TOOL DESIGN TIME BY 30-40% USING PTC CREO TOOL
DESIGN EXTENSION
S o l u t i o n
• PTC Creo delivers easy, intuitive 3D
modeling that enables users to modify
designs on-the-fly, enabling faster design
time
• The PTC Creo Tool Design Extension helps
to create mold components (core and
cavities) and mold layouts easily from 3D
designs
• With PTC Creo we can perform digital
design validation and checking before
manufacturing

6. 6
6
PTC Creo helps us to satisfy customers and create high quality, reliable and innovative designs.”
- Mr. R. John Mathew, Deputy Manager of Mechanical R&D
Company Showcase − Genus Power
Industry: Power
Region: India
Products: PTC Creo Parametric, PTC Creo Tool Design Option
Company Description: Genus Power Infrastructures (GPIL) manufactures and
distributes electronic energy meters, power distribution management projects, hybrid
microcircuits, inverters, batteries, as well as home and online uninterruptible power
supplies (UPS) in India and abroad.

7. 77
HPL IMPROVES TOOL DESIGN BY USING PTC CREO TOOL DESIGN OPTION
“With PTC Creo Tool Design Option we have improved our
tool design by as approximately 30% reduction in design
time for creating tooling components and drawings.”
Mool Chand Sharma
Deputy Manager Tool Room
HPL Group has created a niche for itself in the electrical industry. Today, HPL is regarded as “The
Technology Brand of India” and is one of the premium manufacturers of reliable Electrical Protection
Equipments, Switchgears, Electronic Energy Meters and Energy Management Systems.

8. 88
S o l u t i o n
• PTC Creo delivers easy, intuitive 3D
modeling that enables users to modify
designs on-the-fly, enabling faster design
time
• PTC Creo Tool Design option helps to
quickly develop mold components and
manufacturing drawings from 3D design
models
I n i t i a t i v e s
• Reduce mold development time
• Faster & accurate creation of
manufacturing drawings
• Quickly incorporate changes in design at
later stage
• Re-use existing data for new projects
R e s u l t s
• Reduced mold development time by 30%
• Fast incorporation of changes in the
design models in tooling
• Minimized errors
• Accurate manufacturing drawings
HPL IMPROVES TOOL DESIGN BY USING PTC CREO TOOL DESIGN OPTION
HPL Group has created a niche for itself in the electrical industry. Today, HPL is regarded as “The
Technology Brand of India” and is one of the premium manufacturers of reliable Electrical Protection
Equipments, Switchgears, Electronic Energy Meters and Energy Management Systems.

9. 9
JB-Konstruktion supports customers in all stages throughout the
entire development chain in tool making. With years of experience
and industry knowledge, use of modern development tools and
innovative solution concepts the design specialist is a partner of
choice for the plastics processing industry. JB-Konstruktion
specializes in plastic-compatible (re)design of injection molded parts
to developing and optimizing complete mold assemblies.
“Using PTC Creo Flexible Modeling Extension (FMX)
allows us to easily relocate a dome, remove radii or
add drafts. The ability of directly modeling 3rd party or
parametric parts has really improved our work.
Sometimes we're up to 90% faster; just a few parts
and FMX has paid off.“
“We are still exploring the full potential of parametric
design within an associative development chain from
part to tool assembly with PTC Creo: replace or
modify the reference part, regenerate and done!“
Jürgen Brichta
CEO, JB-Konstruktion
JB-KONSTRUKTION BENEFITS FROM A 90% TIME SAVINGS IN TOOL AND MOLD DESIGN USING PTC CREO

10. 10
S o l u t i o n
• Upgraded from Pro/ENGINEER
Wildfire 5.0 to PTC Creo
• PTC Creo Flexible Modeling
Extension is used for direct
modeling of parametric geometry
and easily opens 3rd party data
• PTC Creo Complete Mold Design
Extension is used for specialized
mold assemblies
• Easy to use interface
I n i t i a t i v e s
• Include direct modeling for
redesigning, quick geometry
modification for tool design, change
management, and variant design
• Need bidirectional data interchange
with customer CAD systems without
rework
• Take advantage of a parametric
development environment with
integrated, fully associative mold
features especially for multiple usage
of tools/molds and variants
• Increase CAD user productivity
through faster handling via the new
interface
R e s u l t s
• Up to 90% time savings when
redesigning products through direct
modeling using PTC Creo Flexible
Modeling Extension
• 50% faster at modification and
variant design in mold construction
with PTC Creo Complete Mold
Design Extension
• Tools and molds designed with PTC
Creo are 100% accurate
• Significantly less mouse interaction
and faster access via the new user
interface
JB-KONSTRUKTION BENEFITS FROM A 90% TIME SAVINGS IN TOOL AND MOLD DESIGN USING PTC CREO
JB-Konstruktion supports customers in all stages throughout the entire
development chain in tool making. With years of experience and
industry knowledge, use of modern development tools and innovative
solution concepts the design specialist is a partner of choice for the
plastics processing industry. JB-Konstruktion specializes in plastic-
compatible (re)design of injection molded parts to developing and
optimizing complete mold assemblies.

11. 11
11
We have reduced tool design time by 20% using the PTC Creo Tooling Design Extension.”
- Mr. Basavaraj Hombalimath, Senior Marketing Manager, LECS
Company Showcase − LECS
Industry: Electrical Component Manufacturer
Region: India
Products: PTC Creo, PTC Creo Tooling Design Extension, PTC
Creo Intelligent Fastener Extension
Company Description: Lakshmi Electrical Control
Systems Limited (LECS) is one of the leading manufacturers of
custom-engineered control panels for textile machinery, machine
tools and more. LECS specializes in precision plastic injection
molds and molded components for the consumer electronic,
industrial products and packing industries.

12. 12
Business Challenges & Initiatives Sales Win Overview PTC Product Use
Headquartered in PingTung Neipu, Taiwan, O-TA
Precision Industry specializes in the manufacture
of golf club heads, graphite shafts, and golf club
assembly
• O-TA Precision Industry is looking to
reduce time to market and improve the
quality of their product design
• An existing PTC customer, they are
looking to upgrade their use of PTC
products in order to address challenges
with 3D design and enterprise
validation & review.
Congratulations to the team that contributed to this win:
Sales: Jackie Chen, Ken Lin
Technical Sales: Scorpio Su
Global Support: Jack Chang
Product Management: Anderson Tsai
• $400K (License and Global Support) sales
win. The customer will upgrade from Creo
Elements/Pro 5.0 to PTC Creo 2.0. They
also purchased licenses of PTC Creo
Complete Mold Design and PTC Creo
Interactive Surface Design (ISDX).
• Key stakeholders at O-TA Precision
Industry in the buying process included the
Chairman (Economic Buyer) and R&D
Head (Technical Buyer).
Q4 FY13 SALES WIN: PTC CREO 2.0 WIN AT
O-TA PRECISION INDUSTRY
• O-TA Precision Industry plans to use
PTC Creo to accelerate the CAE
workflow, automate the creation of
engineering deliverables, and improve
product performance, quality, and
durability. With PTC Creo’s powerful
and flexible 3D CAD capabilities they'd
like to improve productivity and
creativity in concept design, and
improve surface creation and aesthetic
design.
• 60 individuals will use PTC Creo 2.0

13. 1313
PTC Creo Parametric and PTC Creo Tool Design Extension
Supangita Engineers
Reduce Reword
Increase data sharing and reuse
across designs
Increased design efficiency by 30% Improved data sharing and reuse by 15-20% Reduced errors and improved product quality
Quality Standards
Improve product quality and reduce
errors
Single Global Platform
Create a single global platform to
improve visibility and flow
Increase Design Efficiency
Decrease time between design and
manufacturing
SUPANGITA ENGINEERS– INCREASES DESIGN EFFICIENCY WITH PTC CREO
