1. © 2017 NETRONOME SYSTEMS, INC.
Simon Horman
Netdev 2.2, Seoul
TC Flower Offload

2. © 2017 NETRONOME SYSTEMS, INC. 2

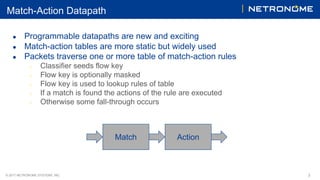

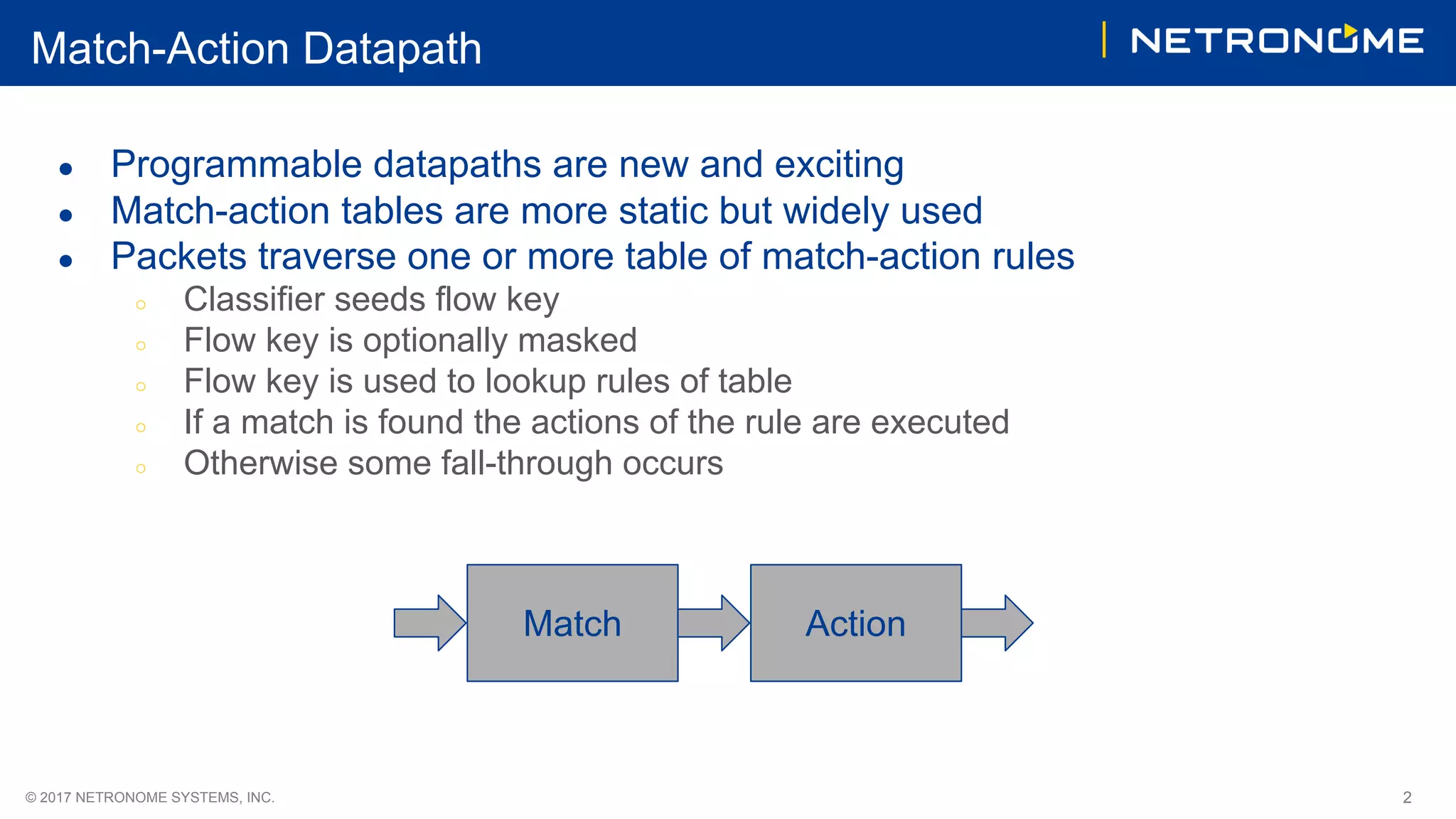

Match-Action Datapath
● Programmable datapaths are new and exciting
● Match-action tables are more static but widely used
● Packets traverse one or more table of match-action rules
○ Classifier seeds flow key
○ Flow key is optionally masked
○ Flow key is used to lookup rules of table
○ If a match is found the actions of the rule are executed
○ Otherwise some fall-through occurs
Match Action

3. © 2017 NETRONOME SYSTEMS, INC. 3

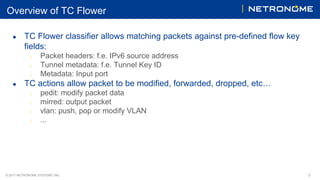

Overview of TC Flower
● TC Flower classifier allows matching packets against pre-defined flow key
fields:
○ Packet headers: f.e. IPv6 source address
○ Tunnel metadata: f.e. Tunnel Key ID
○ Metadata: Input port
● TC actions allow packet to be modified, forwarded, dropped, etc…
○ pedit: modify packet data
○ mirred: output packet
○ vlan: push, pop or modify VLAN
○ ...

4. © 2017 NETRONOME SYSTEMS, INC. 4

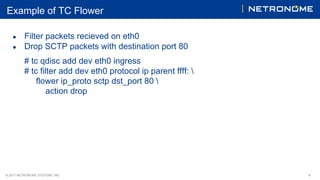

Example of TC Flower
● Filter packets recieved on eth0
● Drop SCTP packets with destination port 80
# tc qdisc add dev eth0 ingress
# tc filter add dev eth0 protocol ip parent ffff:
flower ip_proto sctp dst_port 80
action drop

5. © 2017 NETRONOME SYSTEMS, INC. 5

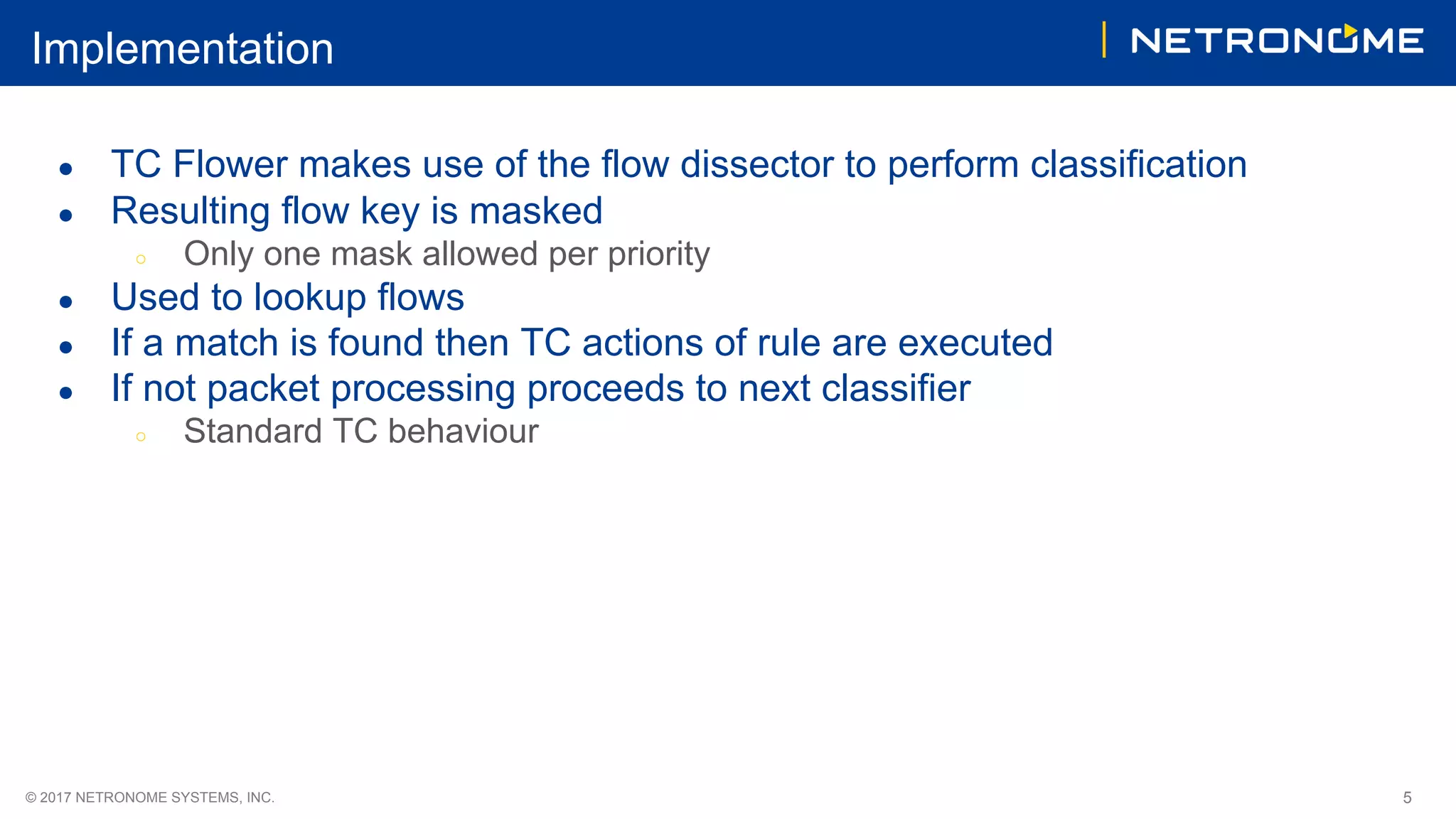

Implementation
● TC Flower makes use of the flow dissector to perform classification
● Resulting flow key is masked
○ Only one mask allowed per priority
● Used to lookup flows
● If a match is found then TC actions of rule are executed
● If not packet processing proceeds to next classifier
○ Standard TC behaviour

6. © 2017 NETRONOME SYSTEMS, INC. 6

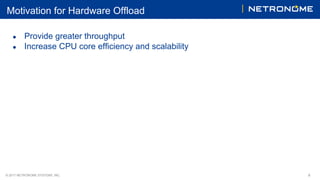

Motivation for Hardware Offload
● Provide greater throughput
● Increase CPU core efficiency and scalability

7. © 2017 NETRONOME SYSTEMS, INC. 7

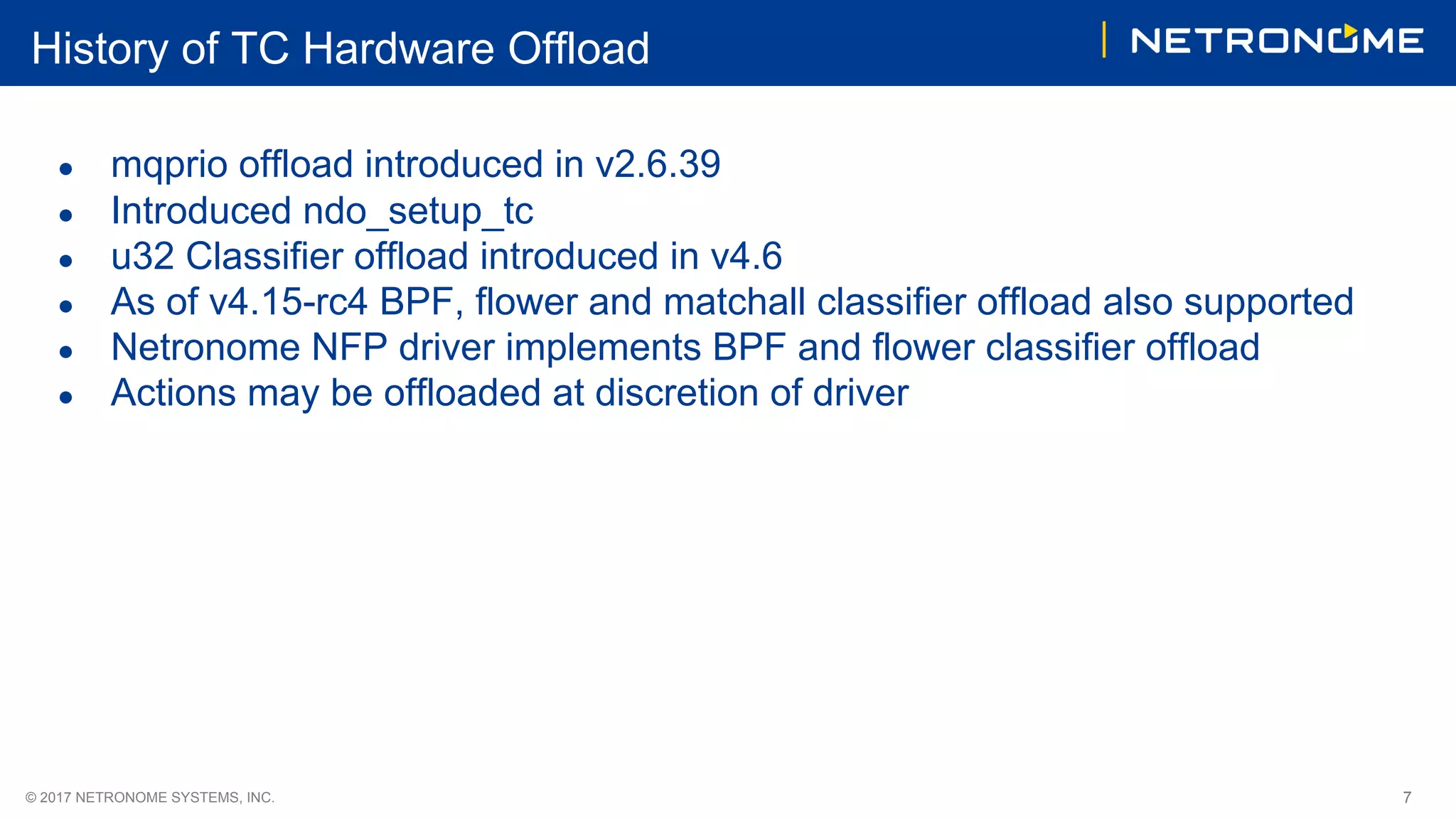

History of TC Hardware Offload
● mqprio offload introduced in v2.6.39
● Introduced ndo_setup_tc
● u32 Classifier offload introduced in v4.6
● As of v4.15-rc4 BPF, flower and matchall classifier offload also supported
● Netronome NFP driver implements BPF and flower classifier offload
● Actions may be offloaded at discretion of driver

8. © 2017 NETRONOME SYSTEMS, INC. 8

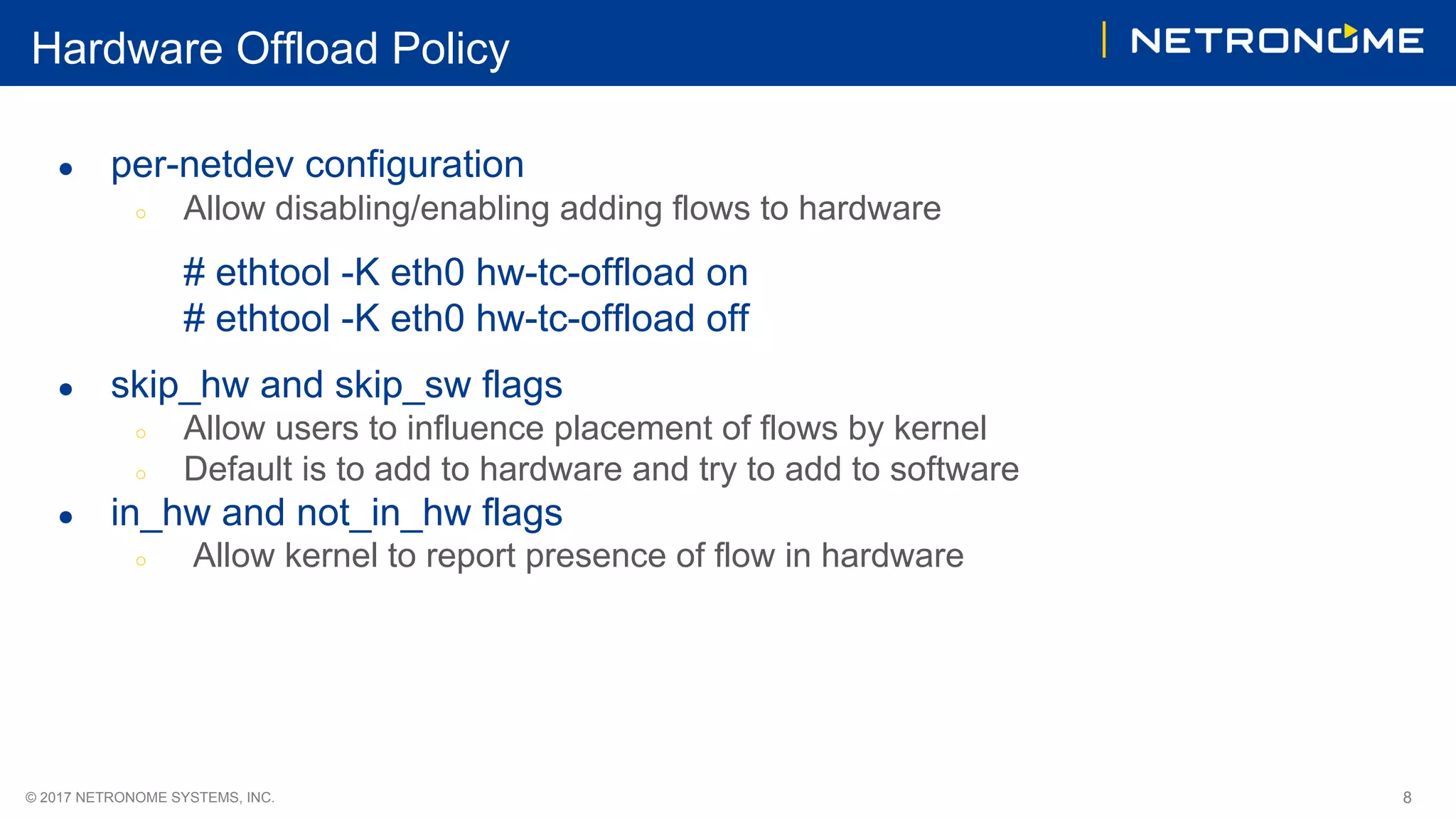

Hardware Offload Policy
● per-netdev configuration
○ Allow disabling/enabling adding flows to hardware
# ethtool -K eth0 hw-tc-offload on
# ethtool -K eth0 hw-tc-offload off
● skip_hw and skip_sw flags
○ Allow users to influence placement of flows by kernel
○ Default is to add to hardware and try to add to software
● in_hw and not_in_hw flags
○ Allow kernel to report presence of flow in hardware

9. © 2017 NETRONOME SYSTEMS, INC. 9
Example of Setting Hardware Policy
● Add flow only to hardware
# tc qdisc add dev eth0 ingress
# tc filter add dev eth0 protocol ip parent ffff:
flower skip_sw ip_proto sctp dst_port 80
action drop

10. © 2017 NETRONOME SYSTEMS, INC. 10

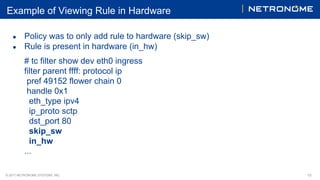

Example of Viewing Rule in Hardware
● Policy was to only add rule to hardware (skip_sw)
● Rule is present in hardware (in_hw)
# tc filter show dev eth0 ingress
filter parent ffff: protocol ip
pref 49152 flower chain 0
handle 0x1
eth_type ipv4
ip_proto sctp
dst_port 80
skip_sw
in_hw
...

11. © 2017 NETRONOME SYSTEMS, INC. 11

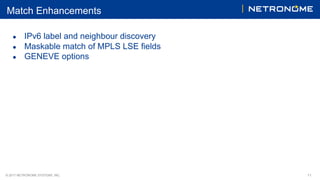

Match Enhancements
● IPv6 label and neighbour discovery
● Maskable match of MPLS LSE fields
● GENEVE options

12. © 2017 NETRONOME SYSTEMS, INC. 12

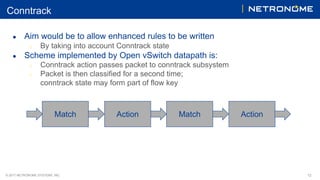

Conntrack
● Aim would be to allow enhanced rules to be written
○ By taking into account Conntrack state
● Scheme implemented by Open vSwitch datapath is:
○ Conntrack action passes packet to conntrack subsystem
○ Packet is then classified for a second time;
conntrack state may form part of flow key
Match Action Match Action

13. © 2017 NETRONOME SYSTEMS, INC.
Thank You
