1. Quality of Service (QoS) Ingress Rate Limiting
and OVS HW offloads

2. 2© 2019 NETRONOME SYSTEMS, INC.

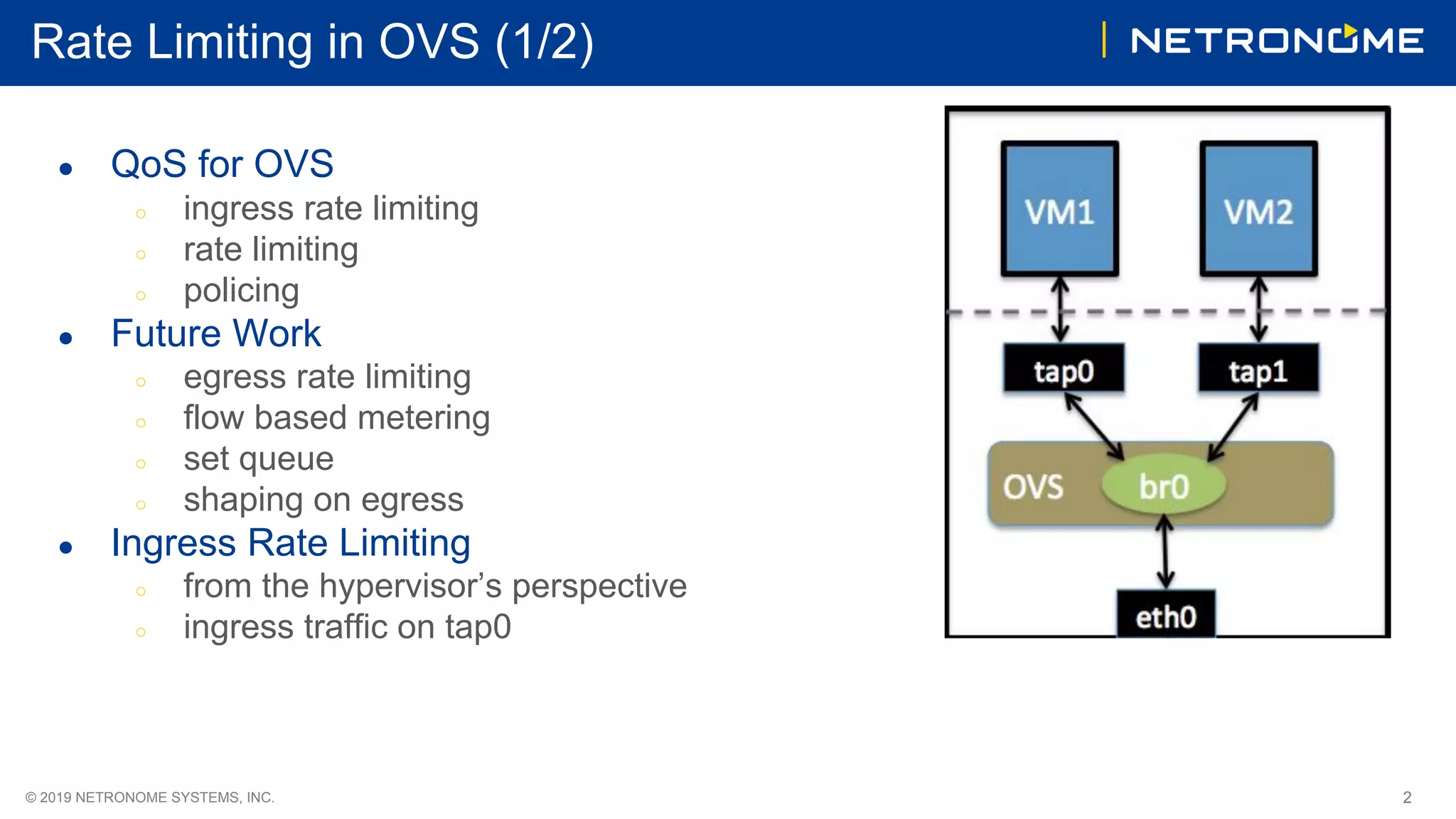

Rate Limiting in OVS (1/2)
● QoS for OVS
○ ingress rate limiting
○ rate limiting
○ policing
● Future Work
○ egress rate limiting
○ flow based metering
○ set queue
○ shaping on egress
● Ingress Rate Limiting
○ from the hypervisor’s perspective
○ ingress traffic on tap0

3. 3© 2019 NETRONOME SYSTEMS, INC.

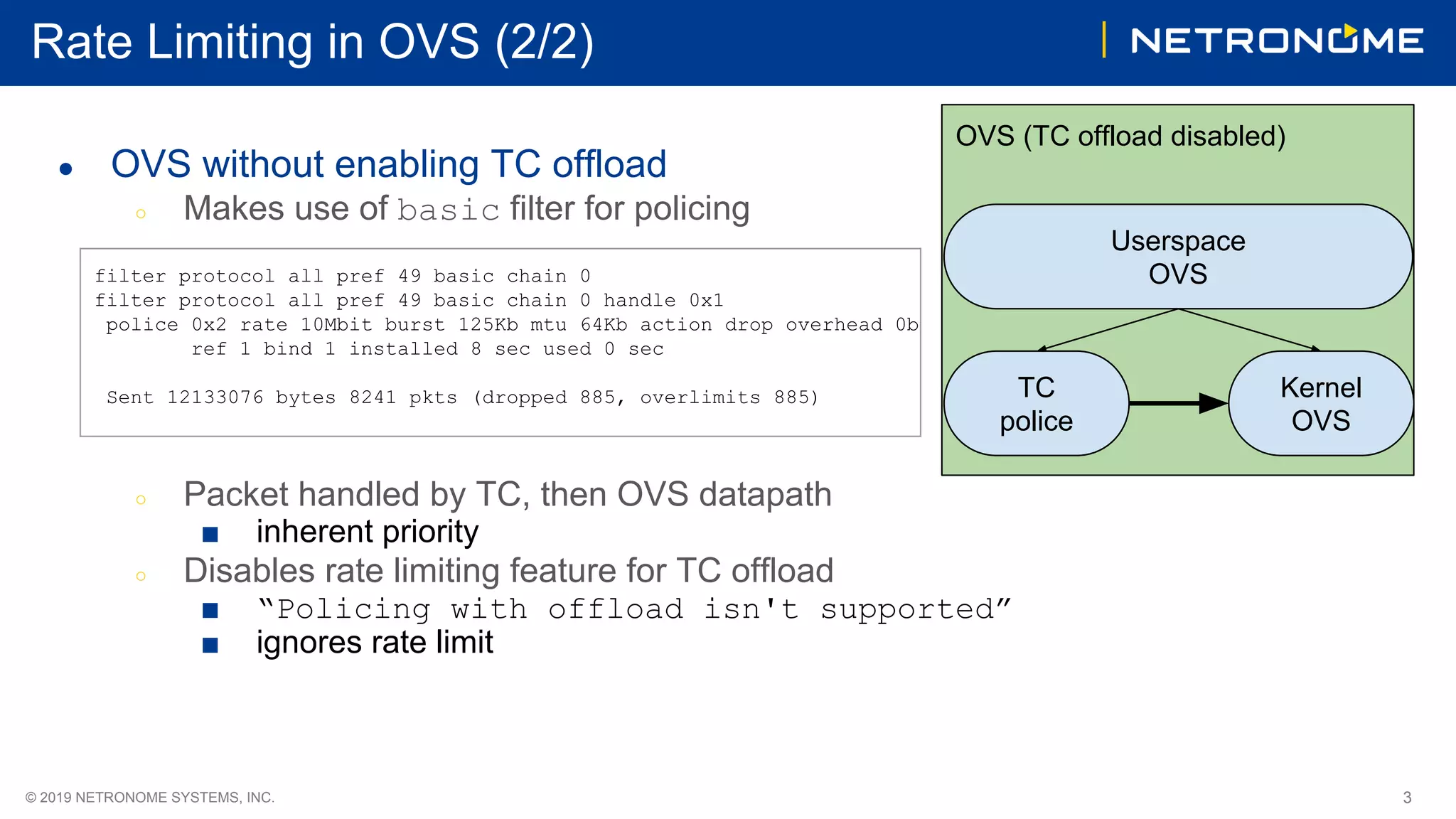

Rate Limiting in OVS (2/2)
OVS (TC offload disabled)
Userspace
OVS
TC
police
Kernel
OVS
● OVS without enabling TC offload
○ Makes use of basic filter for policing
○ Packet handled by TC, then OVS datapath
■ inherent priority
○ Disables rate limiting feature for TC offload
■ “Policing with offload isn't supported”
■ ignores rate limit
filter protocol all pref 49 basic chain 0
filter protocol all pref 49 basic chain 0 handle 0x1
police 0x2 rate 10Mbit burst 125Kb mtu 64Kb action drop overhead 0b
ref 1 bind 1 installed 8 sec used 0 sec
Sent 12133076 bytes 8241 pkts (dropped 885, overlimits 885)

4. 4© 2019 NETRONOME SYSTEMS, INC.
OVS (TC offload enabled)
Userspace
OVS
TC
police
TC
datapath

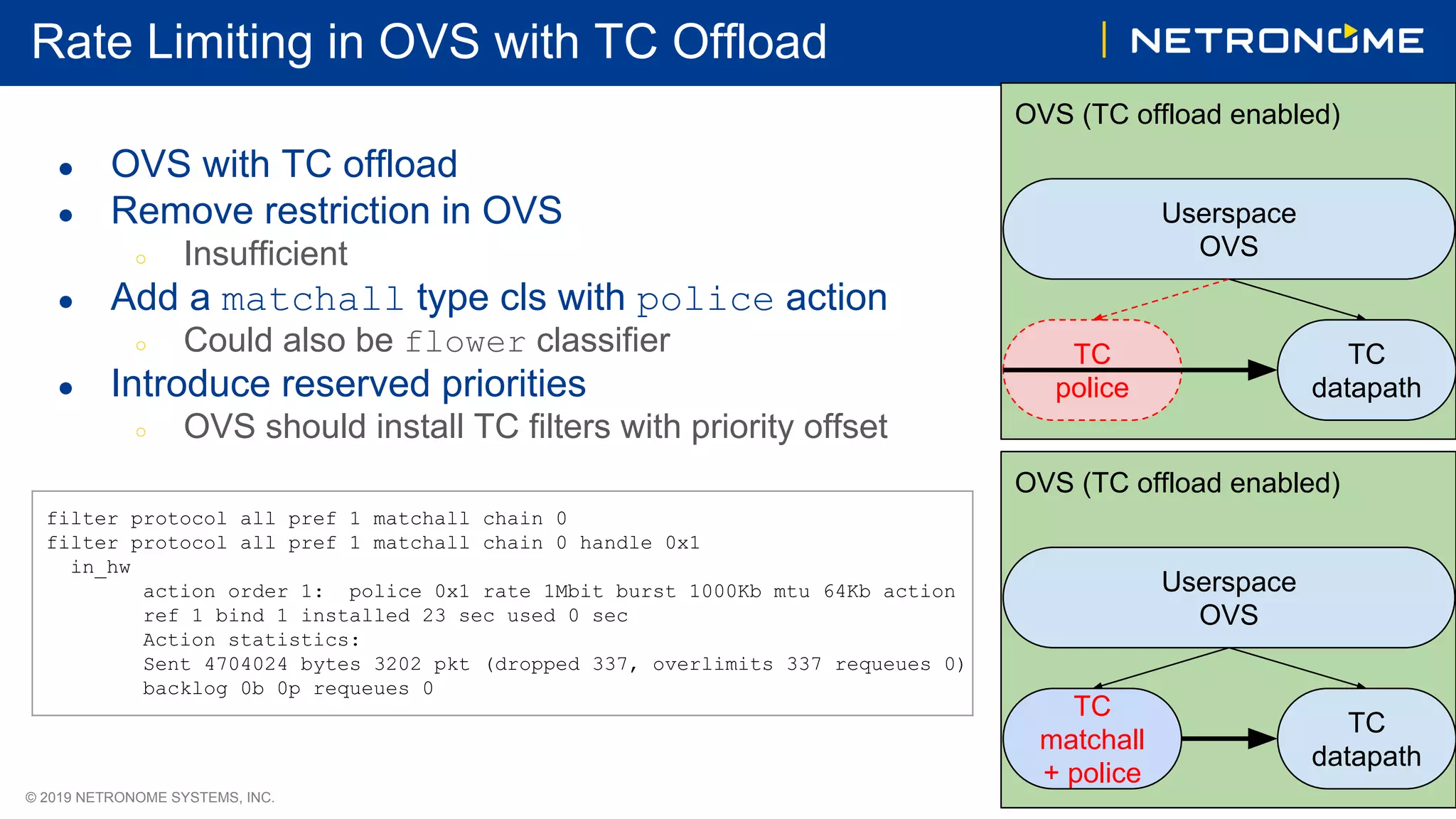

Rate Limiting in OVS with TC Offload
● OVS with TC offload
● Remove restriction in OVS
○ Insufficient
● Add a matchall type cls with police action
○ Could also be flower classifier
● Introduce reserved priorities
○ OVS should install TC filters with priority offset
OVS (TC offload enabled)
Userspace
OVS
TC
matchall
+ police
TC
datapath
filter protocol all pref 1 matchall chain 0
filter protocol all pref 1 matchall chain 0 handle 0x1
in_hw
action order 1: police 0x1 rate 1Mbit burst 1000Kb mtu 64Kb action
ref 1 bind 1 installed 23 sec used 0 sec
Action statistics:
Sent 4704024 bytes 3202 pkt (dropped 337, overlimits 337 requeues 0)
backlog 0b 0p requeues 0

5. 5© 2019 NETRONOME SYSTEMS, INC.
SmartNIC
OVS-TC
Userspace
OVS
TC
police
TC
filters
Issues with OVS-TC Offload
● Possible Issues:
○ Software -> Hardware
■ TC police is in software
■ filters are offloaded
■ lower performance
■ could break semantics
○ Hardware -> Software
■ TC police is offloaded
■ filters are in software
■ lower performance
■ still functionally correct
● Solutions:
○ Software -> Hardware
■ Revert to original semantics “policing with offload isn't supported”
■ OVS forces TC filters in software only
SmartNIC
OVS-TC
Userspace
OVS
TC
police
TC
filters

6. 6© 2019 NETRONOME SYSTEMS, INC.
OVS-TC Test/Demo (1/4)
● Original OVS Example
○ Source:
http://docs.openvswitch.org/en/latest/howto/qos/?highlight=r
ate%20limiting
● Setup:
○ Rate limit VM1 to 1 Mbps
○ Rate limit VM2 to 10 Mbps
○ Uses netperf
● Useful Tools:
○ ovs-vsctl show
○ ovs-vsctl list interface tap0
○ tc -s filter show dev tap0 parent ffff:

7. 7© 2019 NETRONOME SYSTEMS, INC.

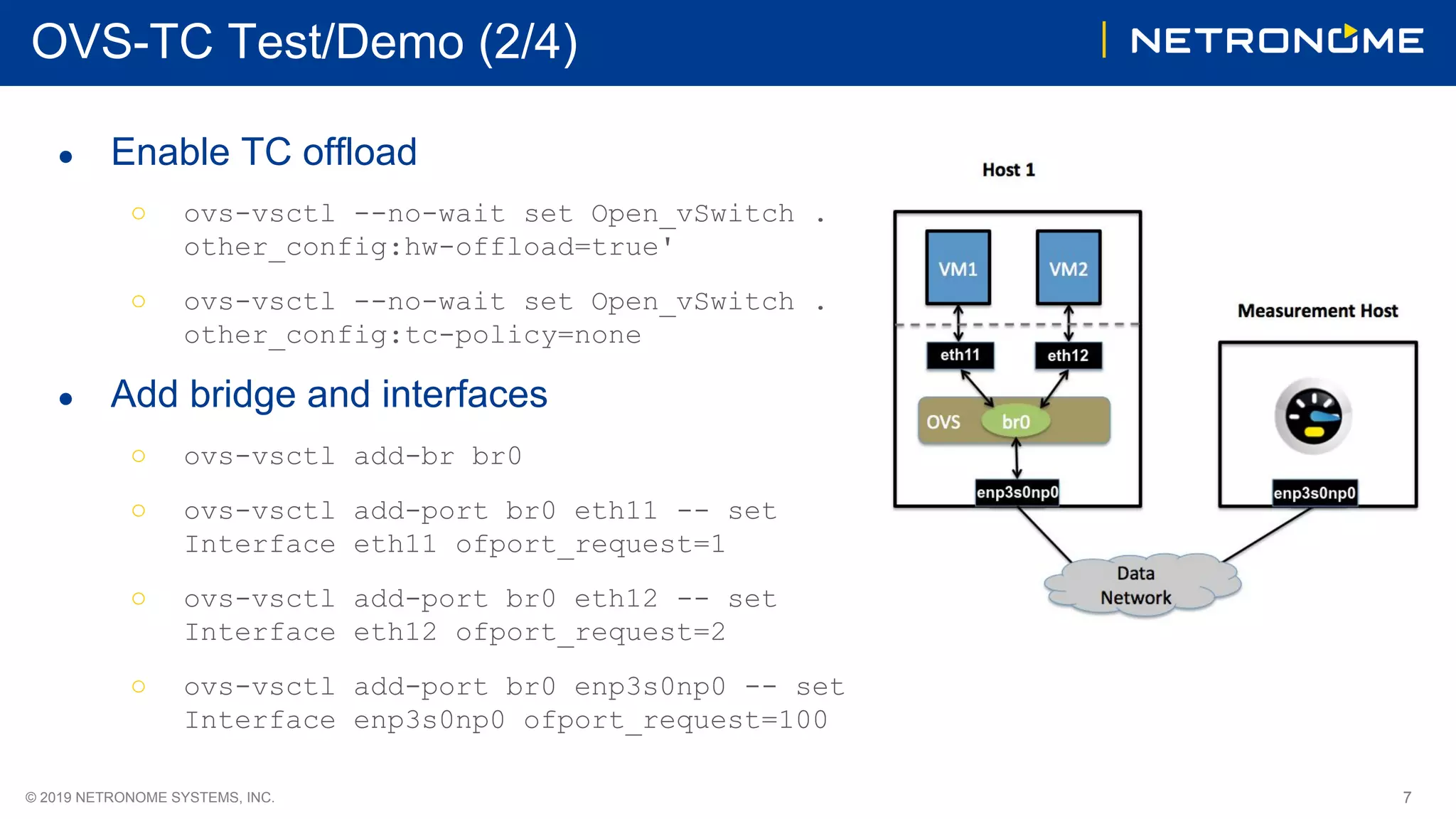

OVS-TC Test/Demo (2/4)
● Enable TC offload
○ ovs-vsctl --no-wait set Open_vSwitch .
other_config:hw-offload=true'
○ ovs-vsctl --no-wait set Open_vSwitch .
other_config:tc-policy=none
● Add bridge and interfaces
○ ovs-vsctl add-br br0
○ ovs-vsctl add-port br0 eth11 -- set
Interface eth11 ofport_request=1
○ ovs-vsctl add-port br0 eth12 -- set
Interface eth12 ofport_request=2
○ ovs-vsctl add-port br0 enp3s0np0 -- set
Interface enp3s0np0 ofport_request=100

8. 8© 2019 NETRONOME SYSTEMS, INC.

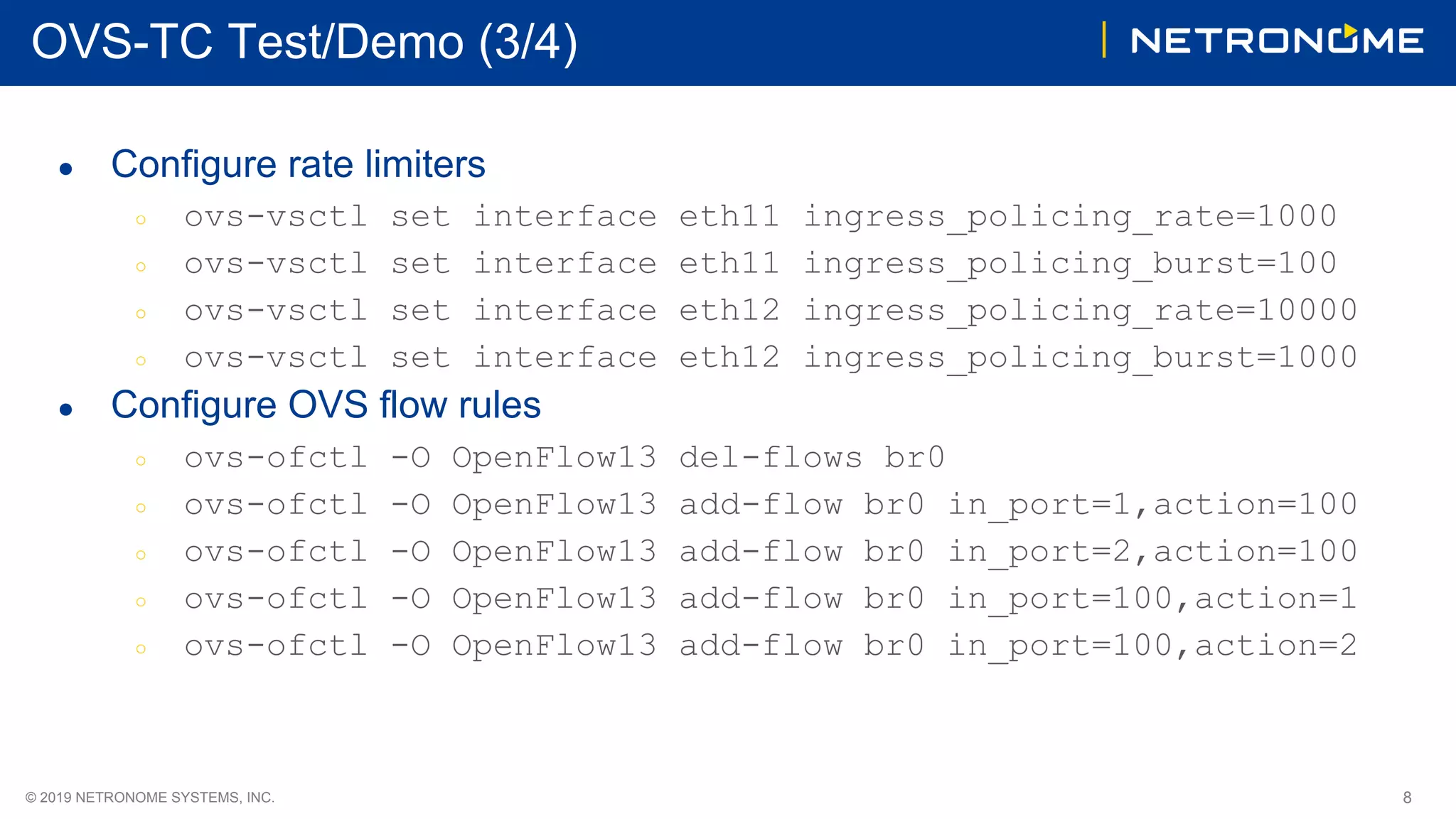

OVS-TC Test/Demo (3/4)
● Configure rate limiters
○ ovs-vsctl set interface eth11 ingress_policing_rate=1000
○ ovs-vsctl set interface eth11 ingress_policing_burst=100
○ ovs-vsctl set interface eth12 ingress_policing_rate=10000
○ ovs-vsctl set interface eth12 ingress_policing_burst=1000
● Configure OVS flow rules
○ ovs-ofctl -O OpenFlow13 del-flows br0
○ ovs-ofctl -O OpenFlow13 add-flow br0 in_port=1,action=100
○ ovs-ofctl -O OpenFlow13 add-flow br0 in_port=2,action=100
○ ovs-ofctl -O OpenFlow13 add-flow br0 in_port=100,action=1
○ ovs-ofctl -O OpenFlow13 add-flow br0 in_port=100,action=2

9. 9© 2019 NETRONOME SYSTEMS, INC.

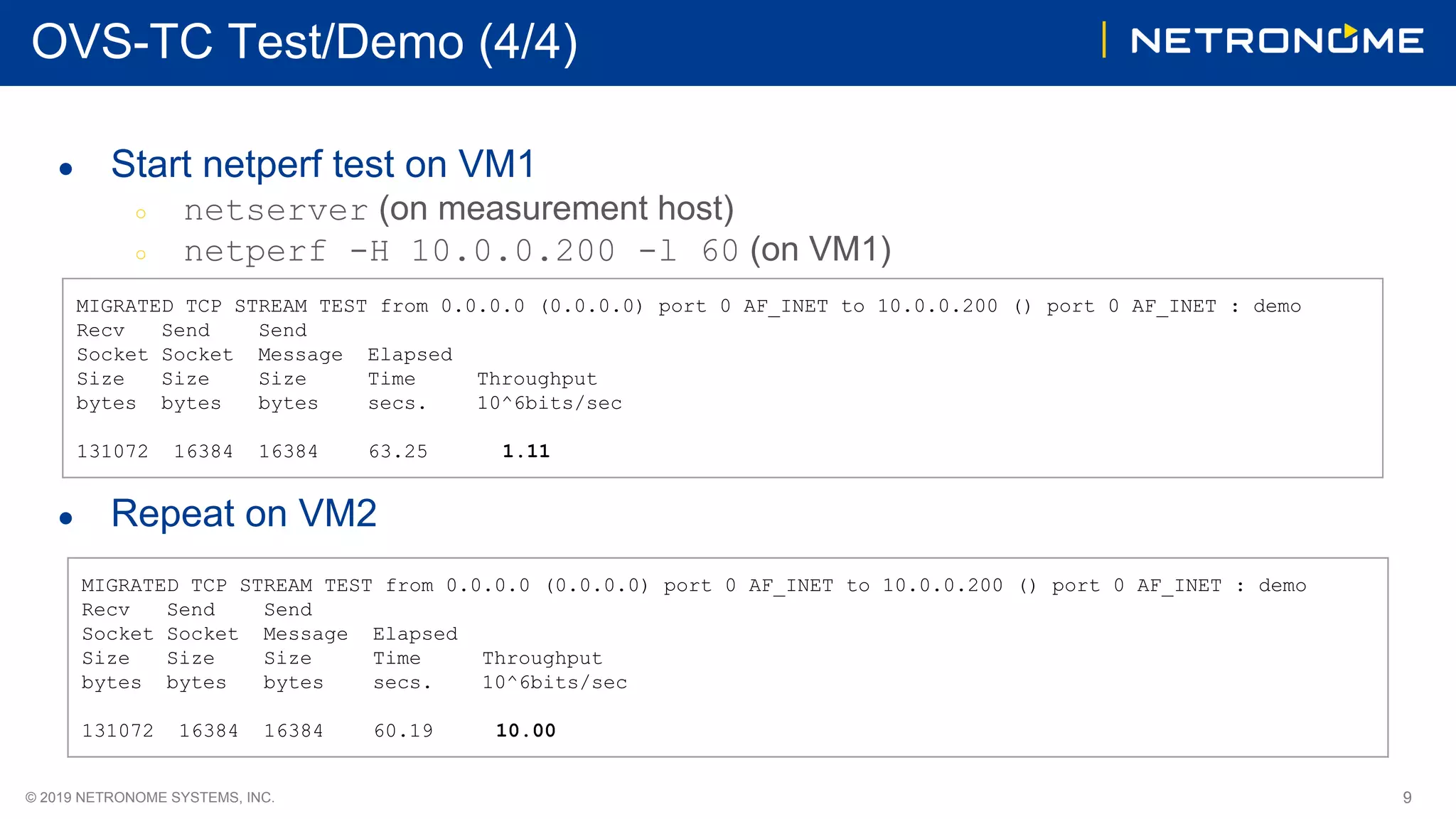

OVS-TC Test/Demo (4/4)
● Start netperf test on VM1
○ netserver (on measurement host)
○ netperf -H 10.0.0.200 -l 60 (on VM1)
● Repeat on VM2
MIGRATED TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.0.0.200 () port 0 AF_INET : demo
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
131072 16384 16384 63.25 1.11
MIGRATED TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.0.0.200 () port 0 AF_INET : demo
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
131072 16384 16384 60.19 10.00

10. 10© 2019 NETRONOME SYSTEMS, INC.
Examples of Useful Tools (1/2)
● ovs-vsctl show
dec65564-ce8c-4e48-974d-43f4df4acec4
Bridge "br0"
Port "eth11"
Interface "eth11"
Port "eth12"
Interface "eth12"
Port "enp3s0np0"
Interface "enp3s0np0"
Port "br0"
Interface "br0"
type: internal
ovs_version: "2.10.90"
● ovs-vsctl list interface eth11
_uuid : 4c6986e7-de1f-4559-96fb-9b0f5b9bb1d6
admin_state : up
...
ingress_policing_burst: 100
ingress_policing_rate: 1000
...

11. 11© 2019 NETRONOME SYSTEMS, INC.

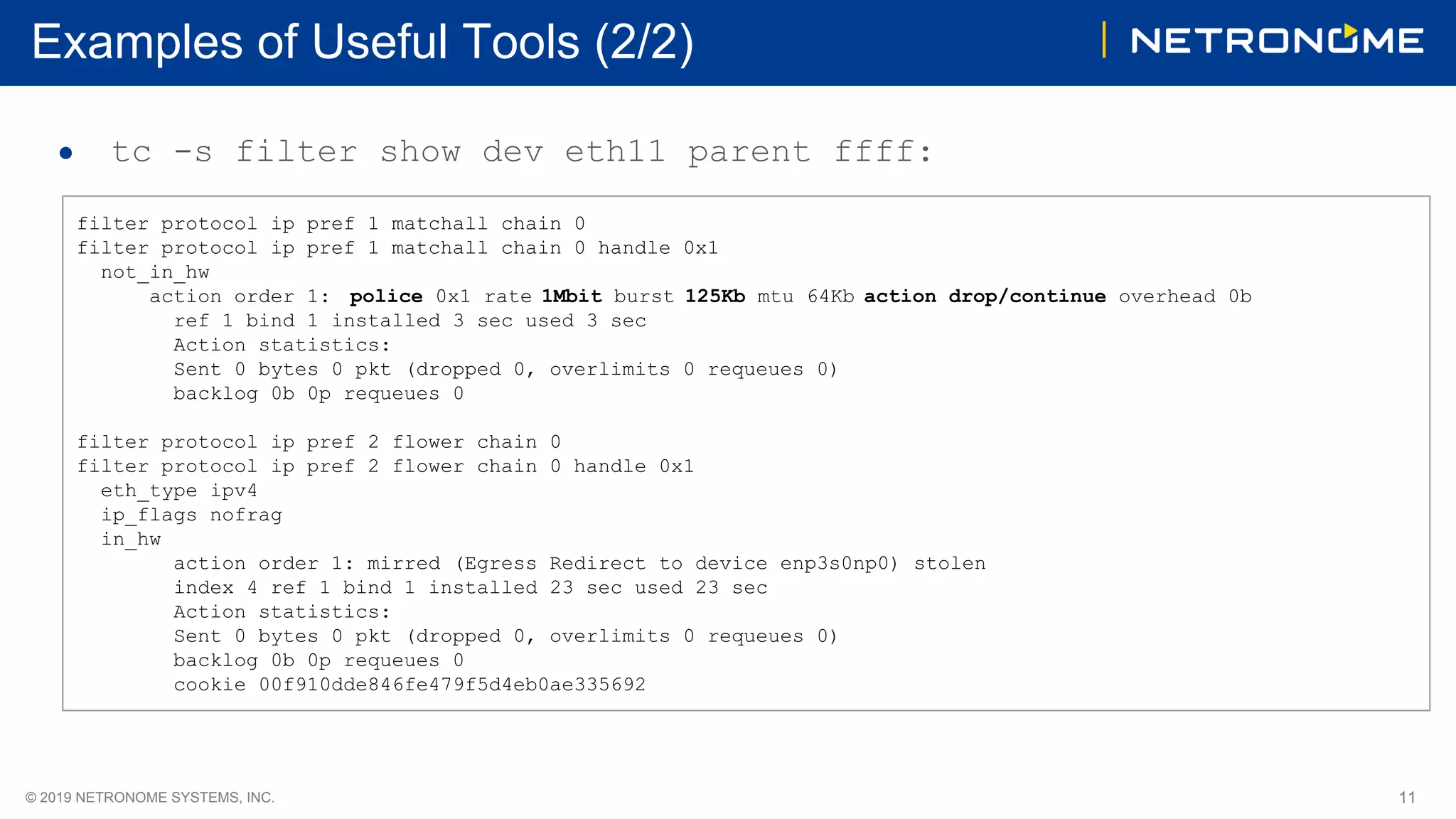

Examples of Useful Tools (2/2)
● tc -s filter show dev eth11 parent ffff:
filter protocol ip pref 1 matchall chain 0
filter protocol ip pref 1 matchall chain 0 handle 0x1
not_in_hw
action order 1: police 0x1 rate 1Mbit burst 125Kb mtu 64Kb action drop/continue overhead 0b
ref 1 bind 1 installed 3 sec used 3 sec
Action statistics:
Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
backlog 0b 0p requeues 0
filter protocol ip pref 2 flower chain 0
filter protocol ip pref 2 flower chain 0 handle 0x1
eth_type ipv4
ip_flags nofrag
in_hw
action order 1: mirred (Egress Redirect to device enp3s0np0) stolen
index 4 ref 1 bind 1 installed 23 sec used 23 sec
Action statistics:
Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
backlog 0b 0p requeues 0
cookie 00f910dde846fe479f5d4eb0ae335692
