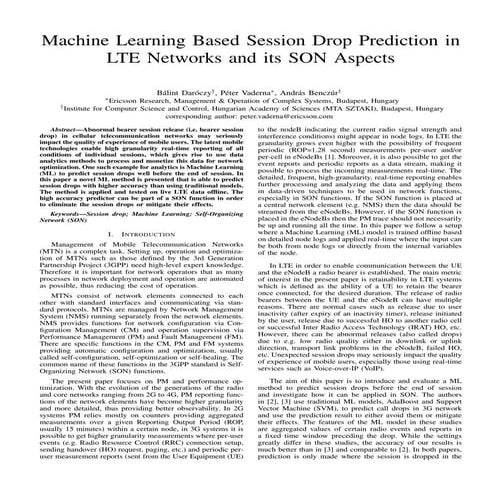

Abnormal bearer session release (i.e. bearer session drop) in cellular telecommunication networks may seriously impact the quality of experience of mobile users. The latest mobile technologies enable high granularity real-time reporting of all conditions of individual sessions, which gives rise to use data analytics methods to process and monetize this data for network optimization. One such example for analytics is Machine Learning (ML) to predict session drops well before the end of session.
Introduction to IBM Shared Memory Communications Version 2 (SMCv2) and SMC-Dv2zOSCommserver
IBM recently announced SMCv2 for SMC-Dv2. SMCv2 defines Shared Memory Communications for TCP/IP connections that span multiple IP subnets. This presentation will introduce how this new capability applies to SMC-Dv2 for z/OS V2R4 and ISMv2 for the IBM z15. The key concepts of the SMC-Dv2 will be introduced along with an overview of how to get started using the new solution with z/OS 2.4. The overview will also cover exploitation and configuration considerations for existing SMC-D users and for new SMC-Dv2 only users. In this presentation, customers will learn about this new capability and how this capability can extend the performance benefits of SMC-D to additional System Z workloads.
This presentation will show you how to right size customer networks, take advantage of ARM, Band steering and Client Match. Check out the webinar recording where this presentation was used. https://attendee.gotowebinar.com/recording/4688596131469180162
Register for the upcoming webinars: https://community.arubanetworks.com/t5/Training-Certification-Career/EMEA-Airheads-Webinars-Jul-Dec-2017/td-p/271908
Machine Learning Based Session Drop Prediction in LTE Networks and its SON As...Ericsson
Abnormal bearer session release (i.e. bearer session drop) in cellular telecommunication networks may seriously impact the quality of experience of mobile users. The latest mobile technologies enable high granularity real-time reporting of all conditions of individual sessions, which gives rise to use data analytics methods to process and monetize this data for network optimization. One such example for analytics is Machine Learning (ML) to predict session drops well before the end of session.
Introduction to IBM Shared Memory Communications Version 2 (SMCv2) and SMC-Dv2zOSCommserver
IBM recently announced SMCv2 for SMC-Dv2. SMCv2 defines Shared Memory Communications for TCP/IP connections that span multiple IP subnets. This presentation will introduce how this new capability applies to SMC-Dv2 for z/OS V2R4 and ISMv2 for the IBM z15. The key concepts of the SMC-Dv2 will be introduced along with an overview of how to get started using the new solution with z/OS 2.4. The overview will also cover exploitation and configuration considerations for existing SMC-D users and for new SMC-Dv2 only users. In this presentation, customers will learn about this new capability and how this capability can extend the performance benefits of SMC-D to additional System Z workloads.
This presentation will show you how to right size customer networks, take advantage of ARM, Band steering and Client Match. Check out the webinar recording where this presentation was used. https://attendee.gotowebinar.com/recording/4688596131469180162
Register for the upcoming webinars: https://community.arubanetworks.com/t5/Training-Certification-Career/EMEA-Airheads-Webinars-Jul-Dec-2017/td-p/271908
Getting Compensation for a Personal Injuryanna barton
Personal Injury is the legal term for any kind of physiological, psychological or emotional injury that is caused to a person. If you have suffered any personal injury in recent times and were not in any way responsible for the accident, then you can file a personal injury claim to get compensation for all the losses you have suffered.
http://personalinjurycompensationhelp.weebly.com/
Neuroblastoma diagnosis, treatment, complications, and further management. The main contents of this review have been accessed from MedScape. Please do not reprint or copy this material without permission from the copyright owner.
LÓPEZ LÒPEZ, Begoña (2017). Utilización del video como recurso TIC para introducir la cultura murciana en las aulas hospitalarias. En Revista Didáctica, Innovación y Multimedia, núm. 35 <http: />
We have recently developed an online marketing collateral portal for a huge franchise business in Australia. Zambrero hired us to build a complete custom build portal which would generate pdfs for franchisee's.
The marketing team would create their own marketing material in this portal which is completely code free...
The power of WordPress in conjunction with gravitypdf and gravity forms has made this all possible...
We have built many websites which have broken the conventional use of WordPress and made our clients very happy with the end result and we want to show people to think outside the box when it comes to WordPress and what it actually can do.
At Microsoft’s annual developers conference, Microsoft Azure CTO Mark Russinovich disclosed major advances in Microsoft’s hyperscale deployment of Intel field programmable gate arrays (FPGAs). These advances have resulted in the industry’s fastest public cloud network, and new technology for acceleration of Deep Neural Networks (DNNs) that replicate “thinking” in a manner that’s conceptually similar to that of the human brain.
Watch the video: http://wp.me/p3RLHQ-gNu
Sign up for our insideHPC Newsletter: http://insidehpc.com/newsletter
At Microsoft’s annual developers conference, Microsoft Azure CTO Mark Russinovich disclosed major advances in Microsoft’s hyperscale deployment of Intel field programmable gate arrays (FPGAs). These advances have resulted in the industry’s fastest public cloud network, and new technology for acceleration of Deep Neural Networks (DNNs) that replicate “thinking” in a manner that’s conceptually similar to that of the human brain.
Watch the video: http://wp.me/p3RLHQ-gNu
Sign up for our insideHPC Newsletter: http://insidehpc.com/newsletter
And first-class of all, a threat to hone your competencies. It’s adequate if you experience in over your head. We all did sooner or later, this subsequent step is about pushing thru that worry and on the point of address something as hard because the 200-301. In case you get caught, reach out. In case you see others caught, assist them.
How is this newsletter going to help you? Apart from providing you with a brief glimpse of the test’s topics and shape, we are able to additionally assist you discover efficient education substances. Cisco’s internet site is a extraordinary starting point, but you shouldn’t restriction your self to it. Despite the fact that you would possibly have by no means heard approximately them, you have to attempt exam dumps as they may grow to be your secret tool to get a passing rating in 2 hundred-301 assessment. But now, let’s start with the exam details.
Do not permit yourself face your ccna two hundred-301 exam without proper guidance to remorse later when you fail in cisco licensed community associate real exam because many people had been there. Let assist you to your cisco two hundred-301 ccna real examination preparation. To help you put together on your cisco certified network partner (ccna) 200-301 exam.
An experience is a personal and emotional event we remember. Every experience is established based upon pre-determined expectations we conceive and create in our minds. It’s personal, and therefore, remains a moving and evolving target in every scenario. When our experience concludes and the moment has passed, the outcome remains in our memory. Think about what makes you happy when connecting with your own device and then think about what makes you really upset when things are hard, complicated, and slow. If the user has a bad experience in anyone of these areas (simple, fast, and smart), they are likely to leave, share their negative experience, and potentially never return. Users might forget facts or details about their computing environment but they find it difficult to forgot the feeling behind a bad network experience. When something goes wrong with the network or an application, do you always get the blame?
If the number of spine switches were to be merely doubled, the effect of a single switch failure is halved. With 8 spine switches, the effect of a single switch failure only causes a 12% reduction in available bandwidth. So, in modern data centers, people build networks with anywhere from 4 to 32 spine switches. With a leaf-spine network, every server on the network is exactly the same distance away from all other servers – three port hops, to be precise. The benefit of this architecture is that you can just add more spines and leaves as you expand the cluster and you don't have to do any recabling. Intuition Systems will also get more predictable latency between the nodes.
As a trend, disaggregation seems to be most useful for very large companies like Facebook and Google, or cloud providers. The technology does not necessarily have significant implications for small or medium sized businesses. Historically, however, technology has a way of trickling down from the pioneering phases of existing only within large companies with tremendous resources, to becoming more standardized across the board.
Large venues like stadiums or concert halls are challenging environments for Wi-Fi deployments. Most of today’s phones and tablets carry Wi-Fi interfaces. A safe assumption is that at least one device per person in a stadium carry a Wi-Fi interface. Monetizing those Wi-Fi interfaces with real time information of the event in the venue, targeted advertising, internet access, multimedia and social applications can create new revenues to the owner of the venue, if executed properly.
Multiple Your Crypto Portfolio with the Innovative Features of Advanced Crypt...Hivelance Technology
Cryptocurrency trading bots are computer programs designed to automate buying, selling, and managing cryptocurrency transactions. These bots utilize advanced algorithms and machine learning techniques to analyze market data, identify trading opportunities, and execute trades on behalf of their users. By automating the decision-making process, crypto trading bots can react to market changes faster than human traders
Hivelance, a leading provider of cryptocurrency trading bot development services, stands out as the premier choice for crypto traders and developers. Hivelance boasts a team of seasoned cryptocurrency experts and software engineers who deeply understand the crypto market and the latest trends in automated trading, Hivelance leverages the latest technologies and tools in the industry, including advanced AI and machine learning algorithms, to create highly efficient and adaptable crypto trading bots
Listen to the keynote address and hear about the latest developments from Rachana Ananthakrishnan and Ian Foster who review the updates to the Globus Platform and Service, and the relevance of Globus to the scientific community as an automation platform to accelerate scientific discovery.
TROUBLESHOOTING 9 TYPES OF OUTOFMEMORYERRORTier1 app
Even though at surface level ‘java.lang.OutOfMemoryError’ appears as one single error; underlyingly there are 9 types of OutOfMemoryError. Each type of OutOfMemoryError has different causes, diagnosis approaches and solutions. This session equips you with the knowledge, tools, and techniques needed to troubleshoot and conquer OutOfMemoryError in all its forms, ensuring smoother, more efficient Java applications.
In software engineering, the right architecture is essential for robust, scalable platforms. Wix has undergone a pivotal shift from event sourcing to a CRUD-based model for its microservices. This talk will chart the course of this pivotal journey.
Event sourcing, which records state changes as immutable events, provided robust auditing and "time travel" debugging for Wix Stores' microservices. Despite its benefits, the complexity it introduced in state management slowed development. Wix responded by adopting a simpler, unified CRUD model. This talk will explore the challenges of event sourcing and the advantages of Wix's new "CRUD on steroids" approach, which streamlines API integration and domain event management while preserving data integrity and system resilience.
Participants will gain valuable insights into Wix's strategies for ensuring atomicity in database updates and event production, as well as caching, materialization, and performance optimization techniques within a distributed system.
Join us to discover how Wix has mastered the art of balancing simplicity and extensibility, and learn how the re-adoption of the modest CRUD has turbocharged their development velocity, resilience, and scalability in a high-growth environment.
How Does XfilesPro Ensure Security While Sharing Documents in Salesforce?XfilesPro
Worried about document security while sharing them in Salesforce? Fret no more! Here are the top-notch security standards XfilesPro upholds to ensure strong security for your Salesforce documents while sharing with internal or external people.
To learn more, read the blog: https://www.xfilespro.com/how-does-xfilespro-make-document-sharing-secure-and-seamless-in-salesforce/
Software Engineering, Software Consulting, Tech Lead.
Spring Boot, Spring Cloud, Spring Core, Spring JDBC, Spring Security,
Spring Transaction, Spring MVC,
Log4j, REST/SOAP WEB-SERVICES.
Climate Science Flows: Enabling Petabyte-Scale Climate Analysis with the Eart...Globus
The Earth System Grid Federation (ESGF) is a global network of data servers that archives and distributes the planet’s largest collection of Earth system model output for thousands of climate and environmental scientists worldwide. Many of these petabyte-scale data archives are located in proximity to large high-performance computing (HPC) or cloud computing resources, but the primary workflow for data users consists of transferring data, and applying computations on a different system. As a part of the ESGF 2.0 US project (funded by the United States Department of Energy Office of Science), we developed pre-defined data workflows, which can be run on-demand, capable of applying many data reduction and data analysis to the large ESGF data archives, transferring only the resultant analysis (ex. visualizations, smaller data files). In this talk, we will showcase a few of these workflows, highlighting how Globus Flows can be used for petabyte-scale climate analysis.
Experience our free, in-depth three-part Tendenci Platform Corporate Membership Management workshop series! In Session 1 on May 14th, 2024, we began with an Introduction and Setup, mastering the configuration of your Corporate Membership Module settings to establish membership types, applications, and more. Then, on May 16th, 2024, in Session 2, we focused on binding individual members to a Corporate Membership and Corporate Reps, teaching you how to add individual members and assign Corporate Representatives to manage dues, renewals, and associated members. Finally, on May 28th, 2024, in Session 3, we covered questions and concerns, addressing any queries or issues you may have.
For more Tendenci AMS events, check out www.tendenci.com/events
Exploring Innovations in Data Repository Solutions - Insights from the U.S. G...Globus
The U.S. Geological Survey (USGS) has made substantial investments in meeting evolving scientific, technical, and policy driven demands on storing, managing, and delivering data. As these demands continue to grow in complexity and scale, the USGS must continue to explore innovative solutions to improve its management, curation, sharing, delivering, and preservation approaches for large-scale research data. Supporting these needs, the USGS has partnered with the University of Chicago-Globus to research and develop advanced repository components and workflows leveraging its current investment in Globus. The primary outcome of this partnership includes the development of a prototype enterprise repository, driven by USGS Data Release requirements, through exploration and implementation of the entire suite of the Globus platform offerings, including Globus Flow, Globus Auth, Globus Transfer, and Globus Search. This presentation will provide insights into this research partnership, introduce the unique requirements and challenges being addressed and provide relevant project progress.
SOCRadar Research Team: Latest Activities of IntelBrokerSOCRadar
The European Union Agency for Law Enforcement Cooperation (Europol) has suffered an alleged data breach after a notorious threat actor claimed to have exfiltrated data from its systems. Infamous data leaker IntelBroker posted on the even more infamous BreachForums hacking forum, saying that Europol suffered a data breach this month.
The alleged breach affected Europol agencies CCSE, EC3, Europol Platform for Experts, Law Enforcement Forum, and SIRIUS. Infiltration of these entities can disrupt ongoing investigations and compromise sensitive intelligence shared among international law enforcement agencies.
However, this is neither the first nor the last activity of IntekBroker. We have compiled for you what happened in the last few days. To track such hacker activities on dark web sources like hacker forums, private Telegram channels, and other hidden platforms where cyber threats often originate, you can check SOCRadar’s Dark Web News.
Stay Informed on Threat Actors’ Activity on the Dark Web with SOCRadar!
Cyaniclab : Software Development Agency Portfolio.pdfCyanic lab
CyanicLab, an offshore custom software development company based in Sweden,India, Finland, is your go-to partner for startup development and innovative web design solutions. Our expert team specializes in crafting cutting-edge software tailored to meet the unique needs of startups and established enterprises alike. From conceptualization to execution, we offer comprehensive services including web and mobile app development, UI/UX design, and ongoing software maintenance. Ready to elevate your business? Contact CyanicLab today and let us propel your vision to success with our top-notch IT solutions.
Providing Globus Services to Users of JASMIN for Environmental Data AnalysisGlobus
JASMIN is the UK’s high-performance data analysis platform for environmental science, operated by STFC on behalf of the UK Natural Environment Research Council (NERC). In addition to its role in hosting the CEDA Archive (NERC’s long-term repository for climate, atmospheric science & Earth observation data in the UK), JASMIN provides a collaborative platform to a community of around 2,000 scientists in the UK and beyond, providing nearly 400 environmental science projects with working space, compute resources and tools to facilitate their work. High-performance data transfer into and out of JASMIN has always been a key feature, with many scientists bringing model outputs from supercomputers elsewhere in the UK, to analyse against observational or other model data in the CEDA Archive. A growing number of JASMIN users are now realising the benefits of using the Globus service to provide reliable and efficient data movement and other tasks in this and other contexts. Further use cases involve long-distance (intercontinental) transfers to and from JASMIN, and collecting results from a mobile atmospheric radar system, pushing data to JASMIN via a lightweight Globus deployment. We provide details of how Globus fits into our current infrastructure, our experience of the recent migration to GCSv5.4, and of our interest in developing use of the wider ecosystem of Globus services for the benefit of our user community.
Innovating Inference - Remote Triggering of Large Language Models on HPC Clus...Globus
Large Language Models (LLMs) are currently the center of attention in the tech world, particularly for their potential to advance research. In this presentation, we'll explore a straightforward and effective method for quickly initiating inference runs on supercomputers using the vLLM tool with Globus Compute, specifically on the Polaris system at ALCF. We'll begin by briefly discussing the popularity and applications of LLMs in various fields. Following this, we will introduce the vLLM tool, and explain how it integrates with Globus Compute to efficiently manage LLM operations on Polaris. Attendees will learn the practical aspects of setting up and remotely triggering LLMs from local machines, focusing on ease of use and efficiency. This talk is ideal for researchers and practitioners looking to leverage the power of LLMs in their work, offering a clear guide to harnessing supercomputing resources for quick and effective LLM inference.
Into the Box Keynote Day 2: Unveiling amazing updates and announcements for modern CFML developers! Get ready for exciting releases and updates on Ortus tools and products. Stay tuned for cutting-edge innovations designed to boost your productivity.
Your Digital Assistant.
Making complex approach simple. Straightforward process saves time. No more waiting to connect with people that matter to you. Safety first is not a cliché - Securely protect information in cloud storage to prevent any third party from accessing data.
Would you rather make your visitors feel burdened by making them wait? Or choose VizMan for a stress-free experience? VizMan is an automated visitor management system that works for any industries not limited to factories, societies, government institutes, and warehouses. A new age contactless way of logging information of visitors, employees, packages, and vehicles. VizMan is a digital logbook so it deters unnecessary use of paper or space since there is no requirement of bundles of registers that is left to collect dust in a corner of a room. Visitor’s essential details, helps in scheduling meetings for visitors and employees, and assists in supervising the attendance of the employees. With VizMan, visitors don’t need to wait for hours in long queues. VizMan handles visitors with the value they deserve because we know time is important to you.
Feasible Features
One Subscription, Four Modules – Admin, Employee, Receptionist, and Gatekeeper ensures confidentiality and prevents data from being manipulated
User Friendly – can be easily used on Android, iOS, and Web Interface
Multiple Accessibility – Log in through any device from any place at any time
One app for all industries – a Visitor Management System that works for any organisation.
Stress-free Sign-up
Visitor is registered and checked-in by the Receptionist
Host gets a notification, where they opt to Approve the meeting
Host notifies the Receptionist of the end of the meeting
Visitor is checked-out by the Receptionist
Host enters notes and remarks of the meeting
Customizable Components
Scheduling Meetings – Host can invite visitors for meetings and also approve, reject and reschedule meetings
Single/Bulk invites – Invitations can be sent individually to a visitor or collectively to many visitors
VIP Visitors – Additional security of data for VIP visitors to avoid misuse of information
Courier Management – Keeps a check on deliveries like commodities being delivered in and out of establishments
Alerts & Notifications – Get notified on SMS, email, and application
Parking Management – Manage availability of parking space
Individual log-in – Every user has their own log-in id
Visitor/Meeting Analytics – Evaluate notes and remarks of the meeting stored in the system
Visitor Management System is a secure and user friendly database manager that records, filters, tracks the visitors to your organization.
"Secure Your Premises with VizMan (VMS) – Get It Now"
Globus Compute wth IRI Workflows - GlobusWorld 2024Globus
As part of the DOE Integrated Research Infrastructure (IRI) program, NERSC at Lawrence Berkeley National Lab and ALCF at Argonne National Lab are working closely with General Atomics on accelerating the computing requirements of the DIII-D experiment. As part of the work the team is investigating ways to speedup the time to solution for many different parts of the DIII-D workflow including how they run jobs on HPC systems. One of these routes is looking at Globus Compute as a way to replace the current method for managing tasks and we describe a brief proof of concept showing how Globus Compute could help to schedule jobs and be a tool to connect compute at different facilities.

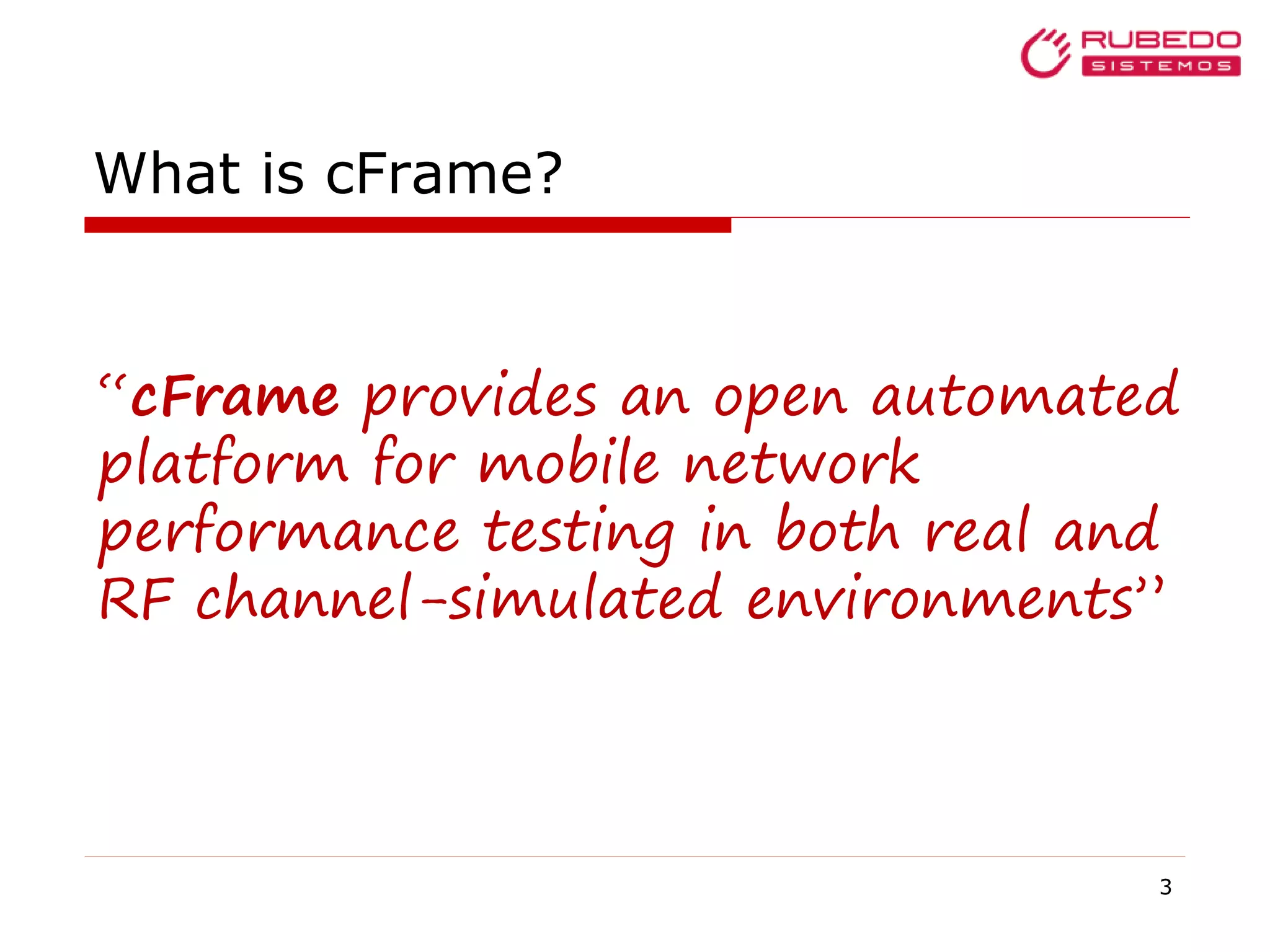

3. What is cFrame?
3
“cFrame provides an open automated
platform for mobile network
performance testing in both real and
RF channel-simulated environments”

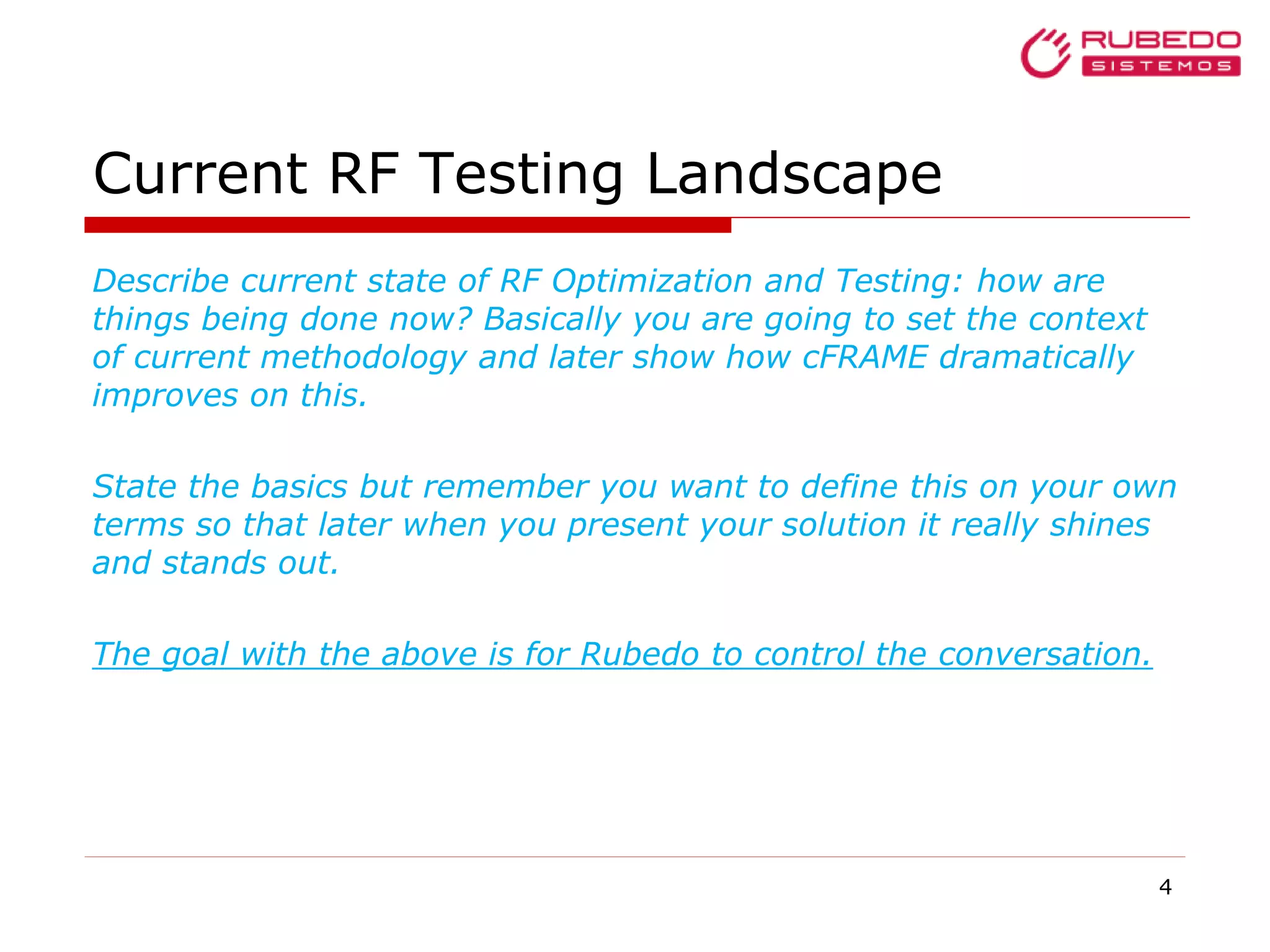

4. Current RF Testing Landscape
4
Describe current state of RF Optimization and Testing: how are
things being done now? Basically you are going to set the context
of current methodology and later show how cFRAME dramatically
improves on this.
State the basics but remember you want to define this on your own
terms so that later when you present your solution it really shines
and stands out.
The goal with the above is for Rubedo to control the conversation.

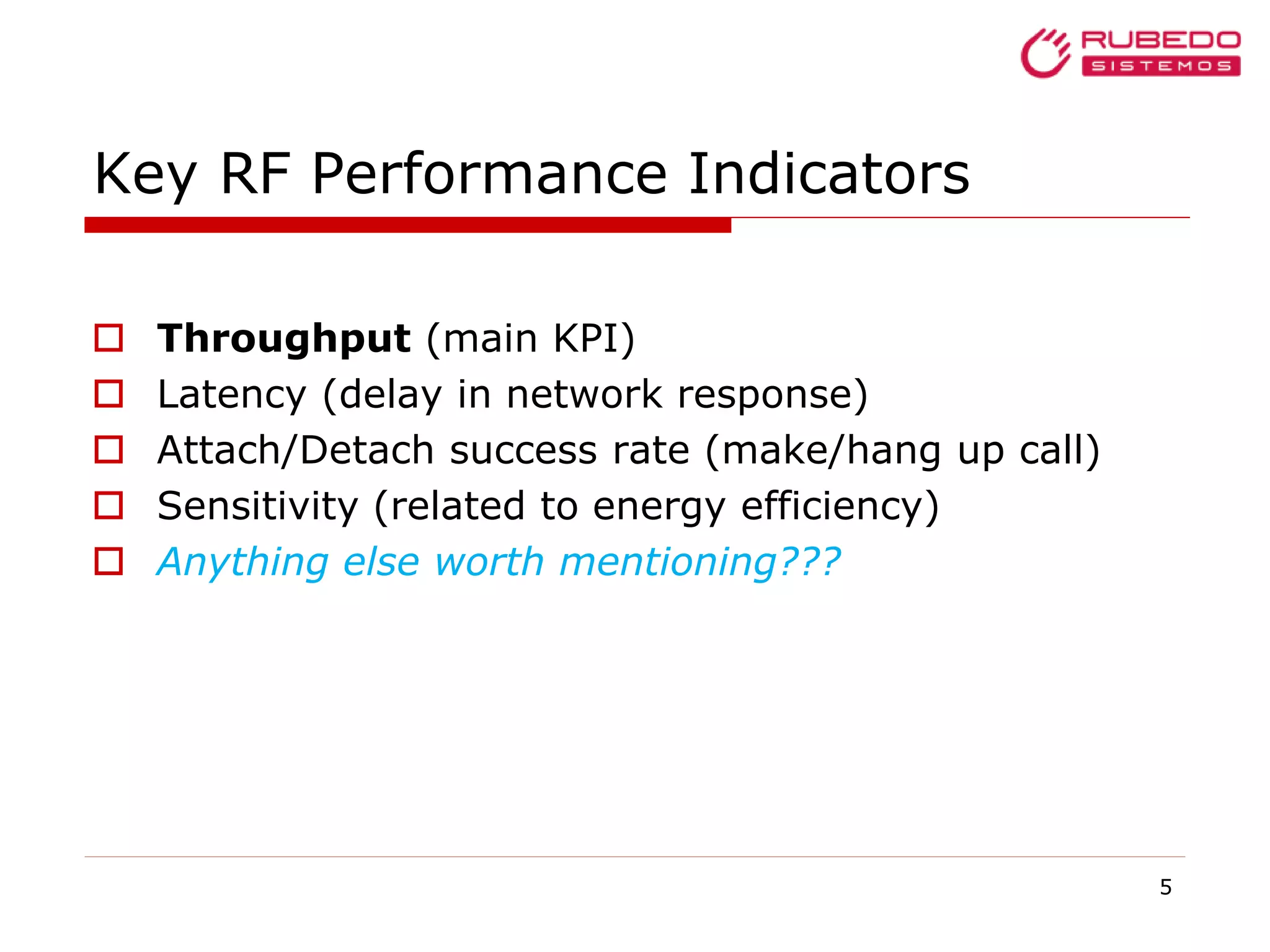

5. Key RF Performance Indicators
Throughput (main KPI)
Latency (delay in network response)
Attach/Detach success rate (make/hang up call)
Sensitivity (related to energy efficiency)
Anything else worth mentioning???
5

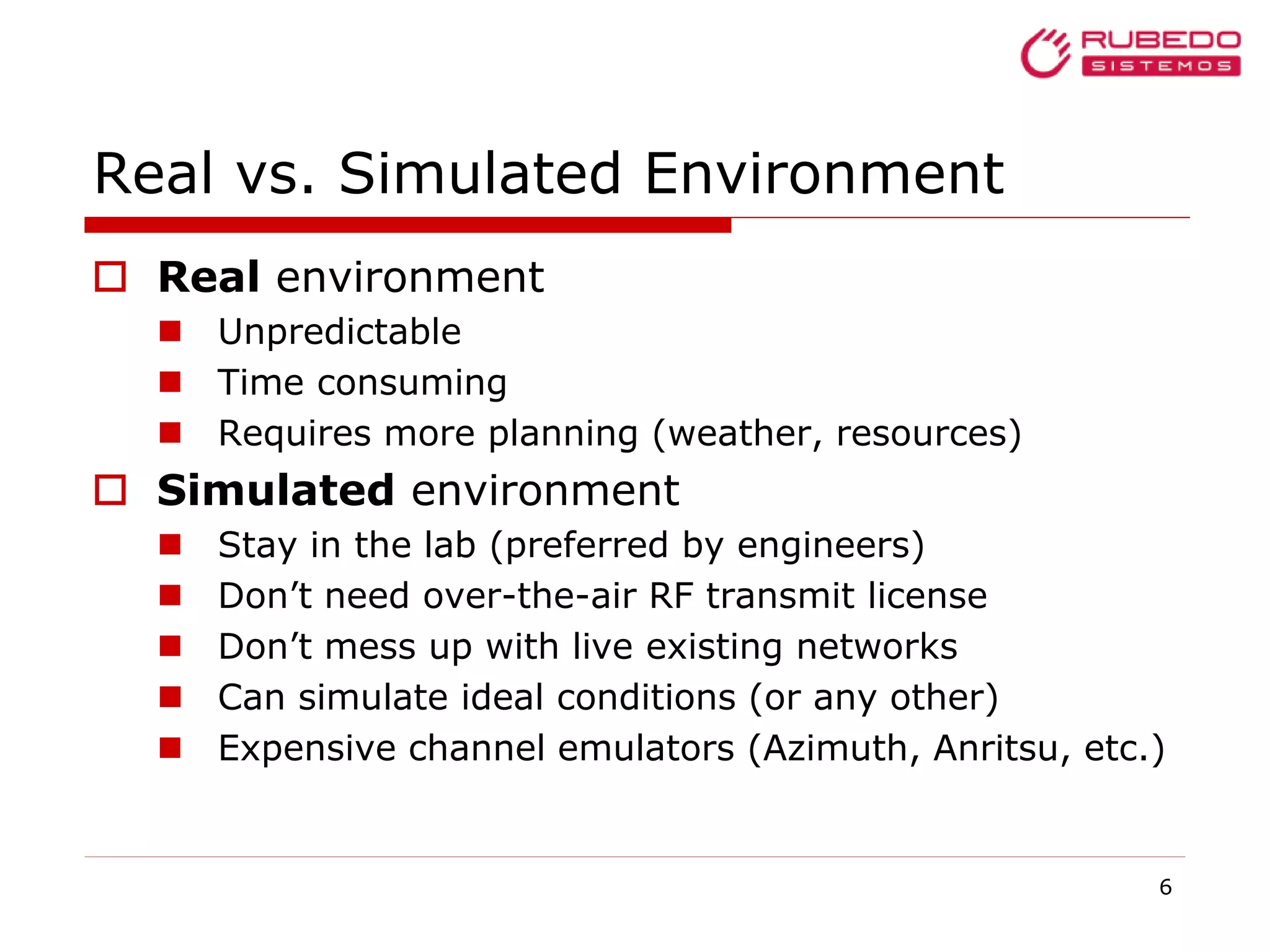

6. Real vs. Simulated Environment
Real environment
Unpredictable
Time consuming
Requires more planning (weather, resources)
Simulated environment
Stay in the lab (preferred by engineers)
Don’t need over-the-air RF transmit license
Don’t mess up with live existing networks
Can simulate ideal conditions (or any other)
Expensive channel emulators (Azimuth, Anritsu, etc.)
6

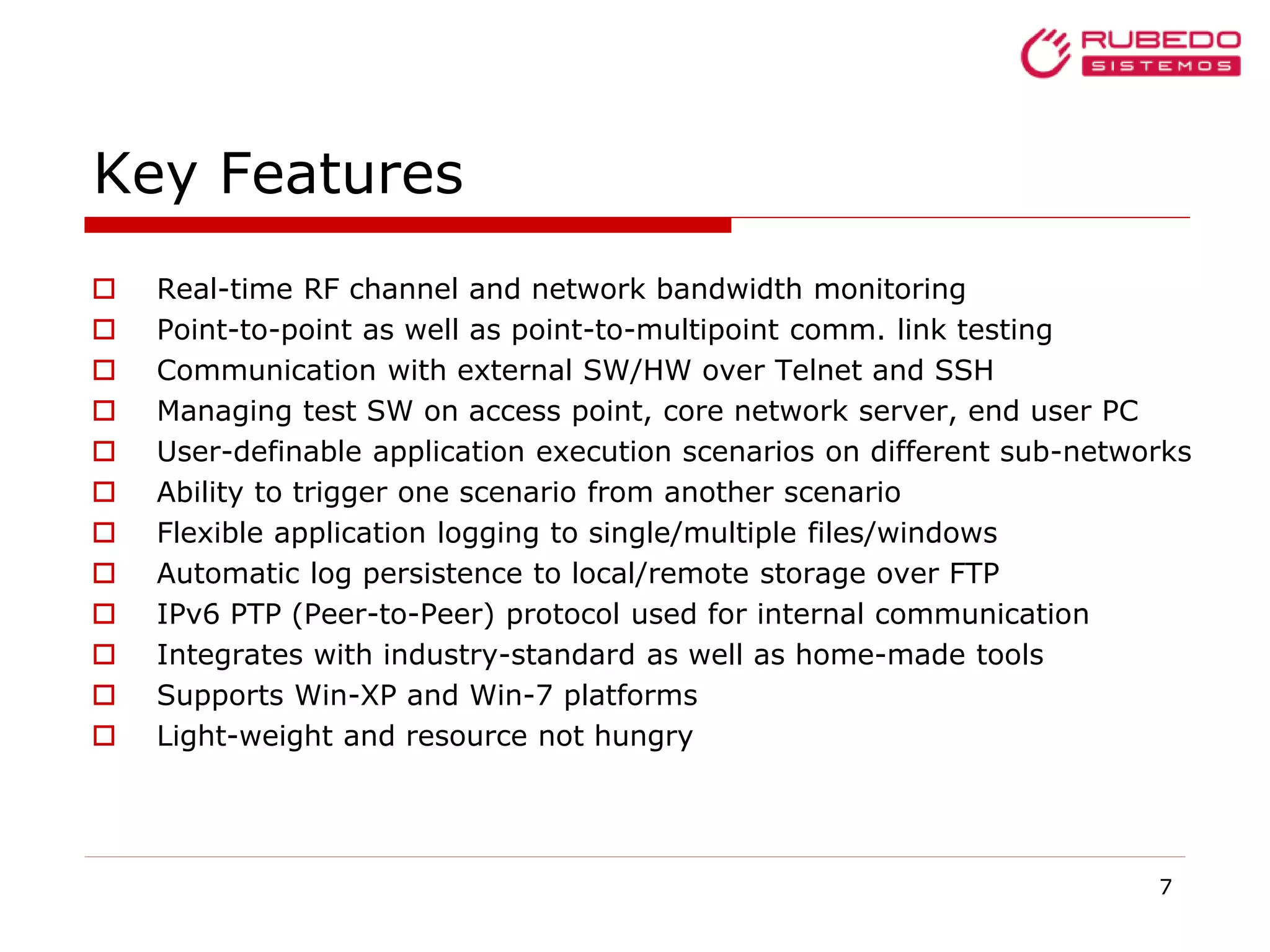

7. Key Features
7
Real-time RF channel and network bandwidth monitoring
Point-to-point as well as point-to-multipoint comm. link testing
Communication with external SW/HW over Telnet and SSH
Managing test SW on access point, core network server, end user PC
User-definable application execution scenarios on different sub-networks
Ability to trigger one scenario from another scenario
Flexible application logging to single/multiple files/windows
Automatic log persistence to local/remote storage over FTP
IPv6 PTP (Peer-to-Peer) protocol used for internal communication
Integrates with industry-standard as well as home-made tools
Supports Win-XP and Win-7 platforms
Light-weight and resource not hungry

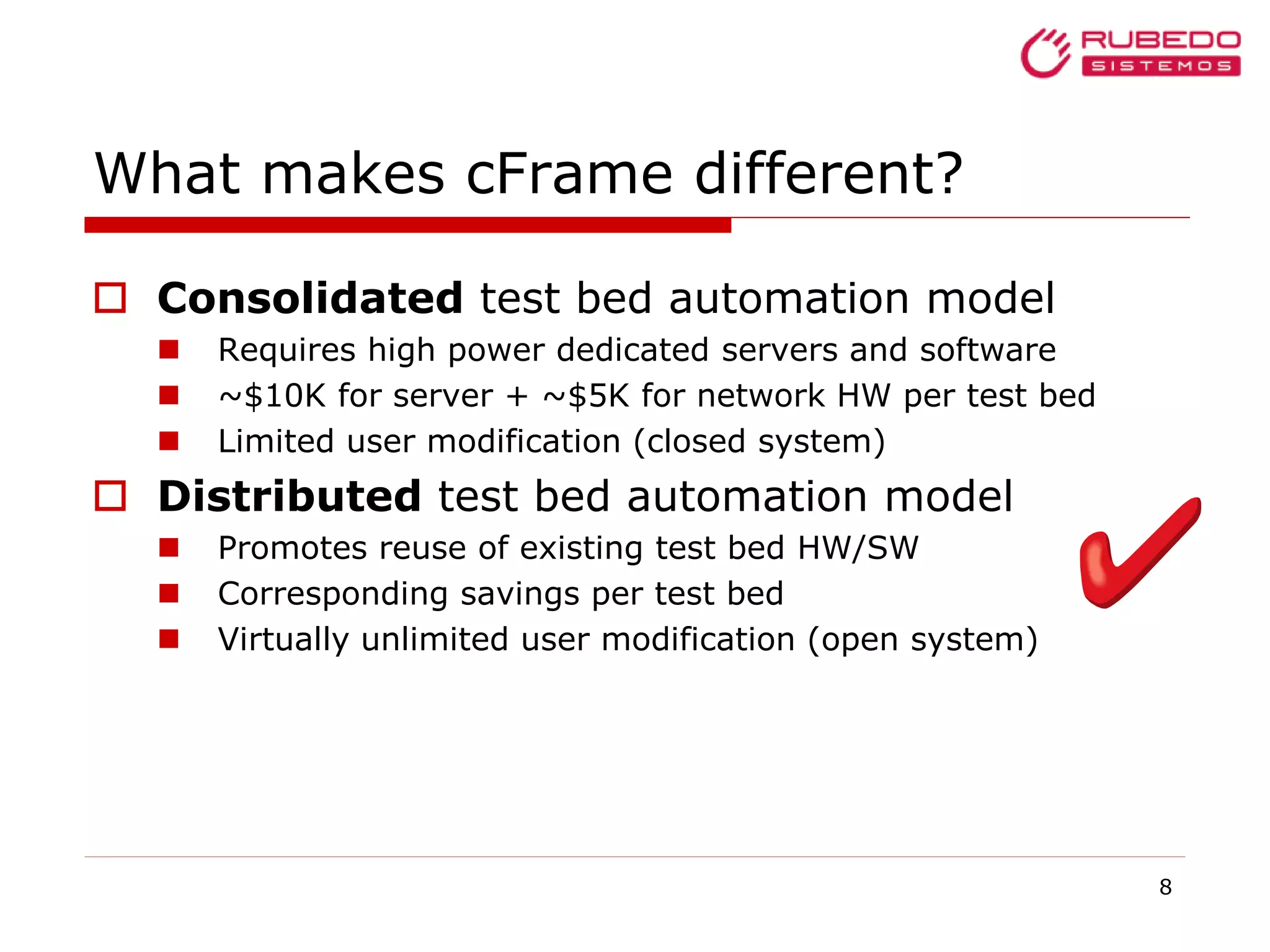

8. What makes cFrame different?
8
Consolidated test bed automation model
Requires high power dedicated servers and software
~$10K for server + ~$5K for network HW per test bed
Limited user modification (closed system)
Distributed test bed automation model
Promotes reuse of existing test bed HW/SW
Corresponding savings per test bed
Virtually unlimited user modification (open system)

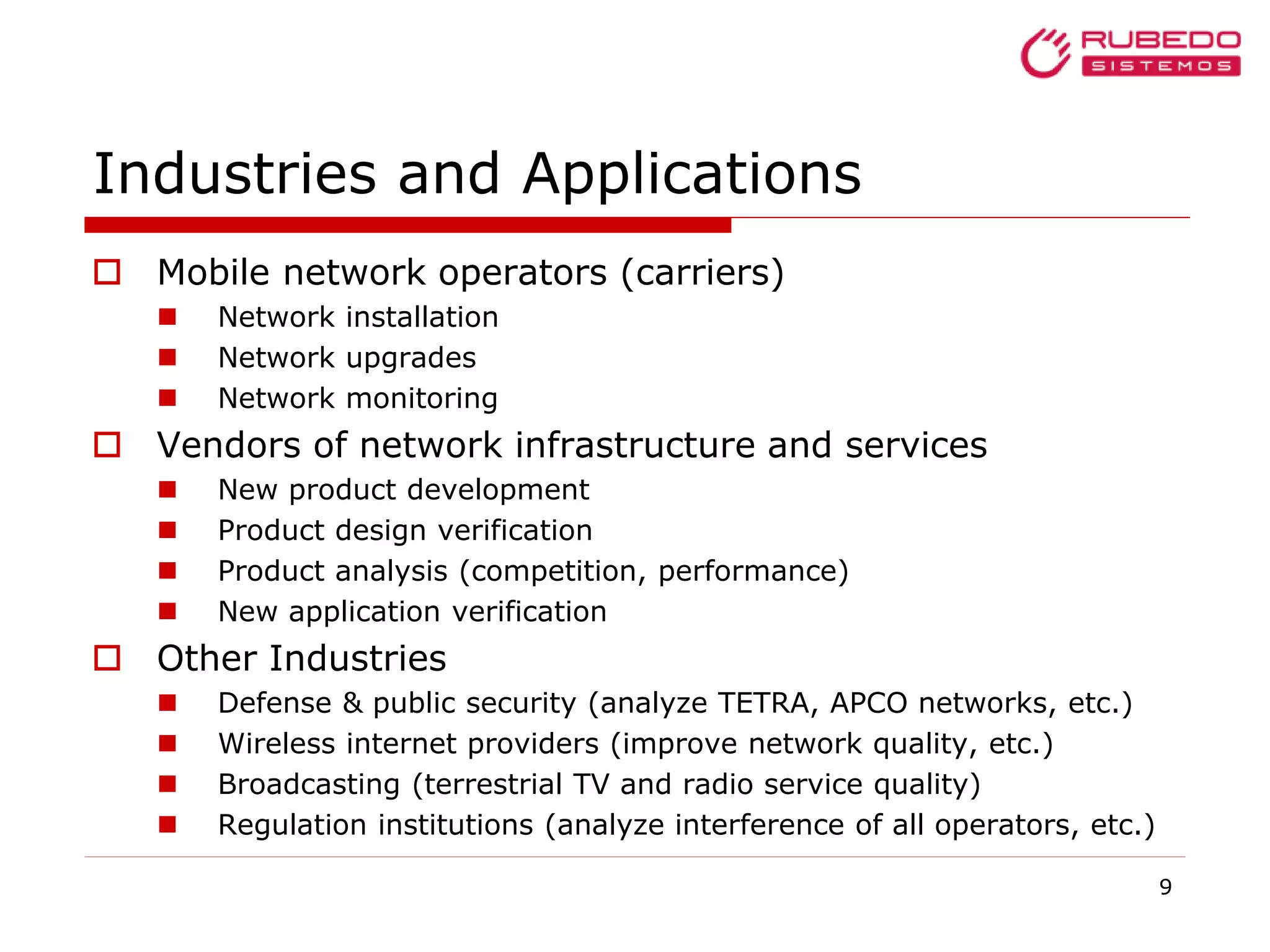

9. Industries and Applications
9
Mobile network operators (carriers)
Network installation
Network upgrades
Network monitoring
Vendors of network infrastructure and services
New product development
Product design verification
Product analysis (competition, performance)
New application verification
Other Industries
Defense & public security (analyze TETRA, APCO networks, etc.)
Wireless internet providers (improve network quality, etc.)
Broadcasting (terrestrial TV and radio service quality)
Regulation institutions (analyze interference of all operators, etc.)

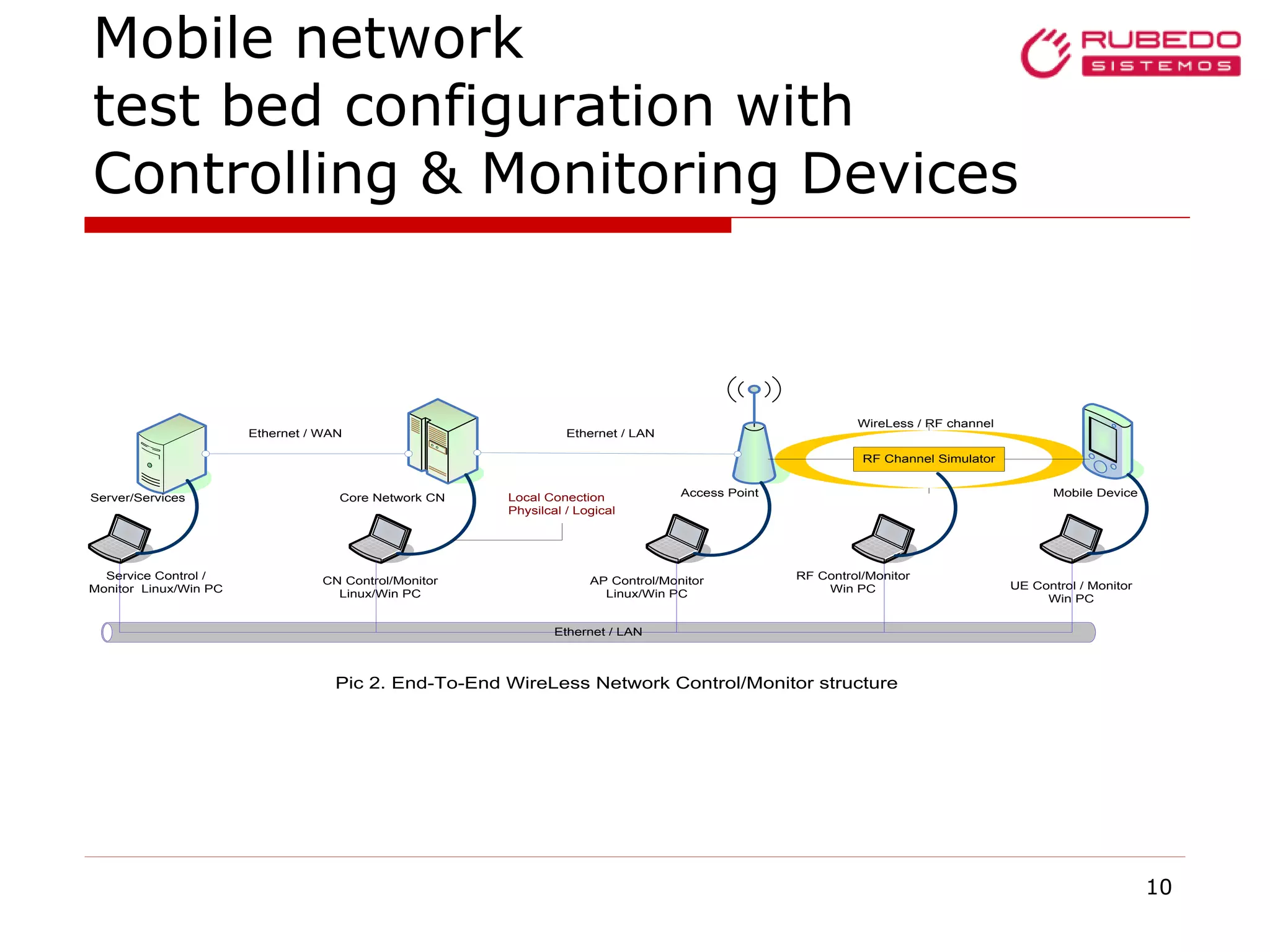

10. Mobile network
test bed configuration with
Controlling & Monitoring Devices
10
WireLess / RF channel
Ethernet / LANEthernet / WAN
Mobile DeviceAccess PointCore Network CNServer/Services
Pic 2. End-To-End WireLess Network Control/Monitor structure
RF Channel Simulator
UE Control / Monitor
Win PC
RF Control/Monitor
Win PC
AP Control/Monitor
Linux/Win PC
CN Control/Monitor
Linux/Win PC
Service Control /
Monitor Linux/Win PC
Ethernet / LAN
Local Conection
Physilcal / Logical

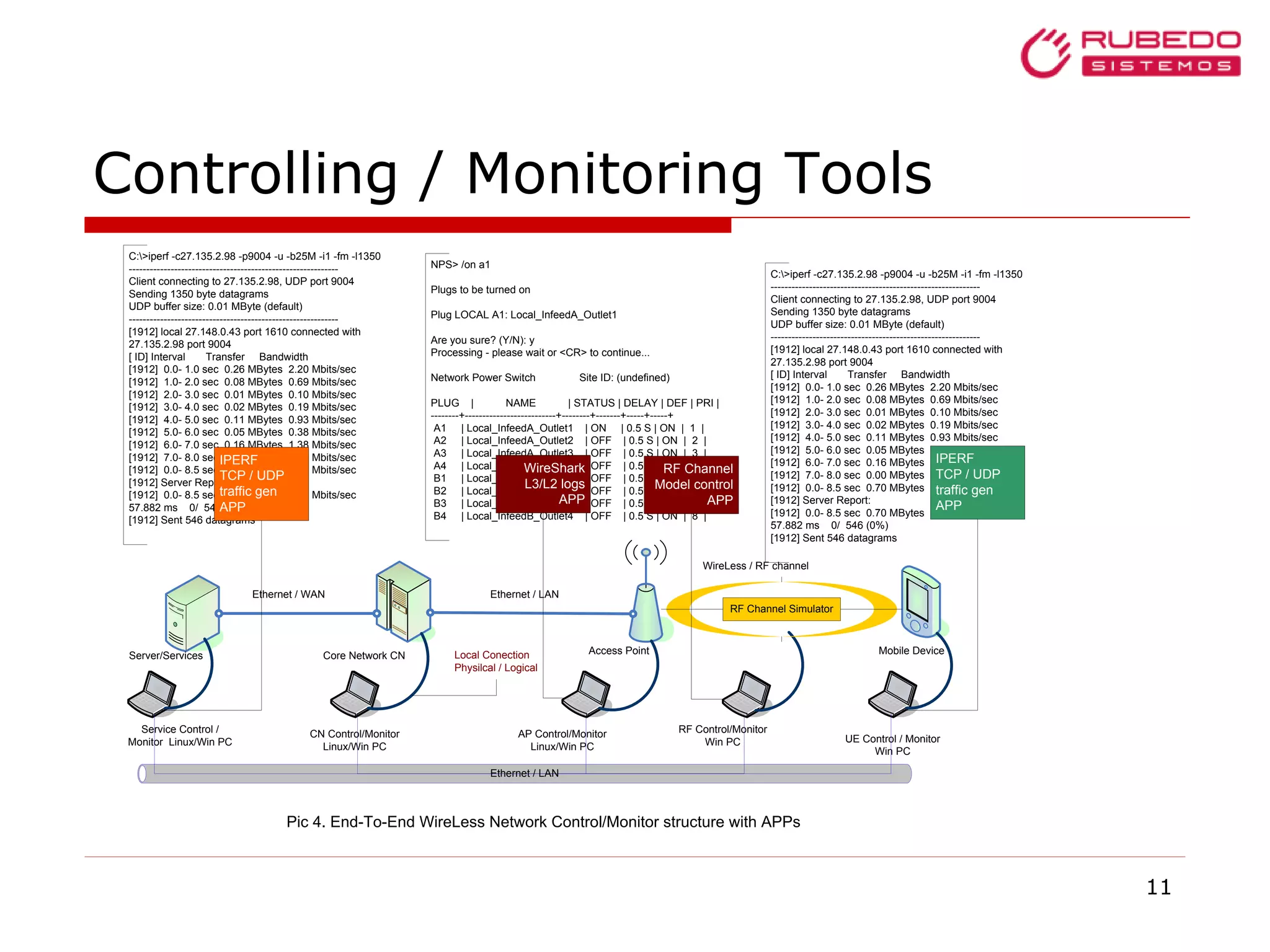

11. Controlling / Monitoring Tools
11
C:>iperf -c27.135.2.98 -p9004 -u -b25M -i1 -fm -l1350
------------------------------------------------------------
Client connecting to 27.135.2.98, UDP port 9004
Sending 1350 byte datagrams
UDP buffer size: 0.01 MByte (default)
------------------------------------------------------------
[1912] local 27.148.0.43 port 1610 connected with
27.135.2.98 port 9004
[ ID] Interval Transfer Bandwidth
[1912] 0.0- 1.0 sec 0.26 MBytes 2.20 Mbits/sec
[1912] 1.0- 2.0 sec 0.08 MBytes 0.69 Mbits/sec
[1912] 2.0- 3.0 sec 0.01 MBytes 0.10 Mbits/sec
[1912] 3.0- 4.0 sec 0.02 MBytes 0.19 Mbits/sec
[1912] 4.0- 5.0 sec 0.11 MBytes 0.93 Mbits/sec
[1912] 5.0- 6.0 sec 0.05 MBytes 0.38 Mbits/sec
[1912] 6.0- 7.0 sec 0.16 MBytes 1.38 Mbits/sec
[1912] 7.0- 8.0 sec 0.00 MBytes 0.01 Mbits/sec
[1912] 0.0- 8.5 sec 0.70 MBytes 0.70 Mbits/sec
[1912] Server Report:
[1912] 0.0- 8.5 sec 0.70 MBytes 0.70 Mbits/sec
57.882 ms 0/ 546 (0%)
[1912] Sent 546 datagrams
C:>iperf -c27.135.2.98 -p9004 -u -b25M -i1 -fm -l1350
------------------------------------------------------------
Client connecting to 27.135.2.98, UDP port 9004
Sending 1350 byte datagrams
UDP buffer size: 0.01 MByte (default)
------------------------------------------------------------
[1912] local 27.148.0.43 port 1610 connected with
27.135.2.98 port 9004
[ ID] Interval Transfer Bandwidth
[1912] 0.0- 1.0 sec 0.26 MBytes 2.20 Mbits/sec
[1912] 1.0- 2.0 sec 0.08 MBytes 0.69 Mbits/sec
[1912] 2.0- 3.0 sec 0.01 MBytes 0.10 Mbits/sec
[1912] 3.0- 4.0 sec 0.02 MBytes 0.19 Mbits/sec
[1912] 4.0- 5.0 sec 0.11 MBytes 0.93 Mbits/sec
[1912] 5.0- 6.0 sec 0.05 MBytes 0.38 Mbits/sec
[1912] 6.0- 7.0 sec 0.16 MBytes 1.38 Mbits/sec
[1912] 7.0- 8.0 sec 0.00 MBytes 0.01 Mbits/sec
[1912] 0.0- 8.5 sec 0.70 MBytes 0.70 Mbits/sec
[1912] Server Report:
[1912] 0.0- 8.5 sec 0.70 MBytes 0.70 Mbits/sec
57.882 ms 0/ 546 (0%)
[1912] Sent 546 datagrams
WireLess / RF channel
Ethernet / LANEthernet / WAN
Mobile DeviceAccess PointCore Network CNServer/Services
Pic 4. End-To-End WireLess Network Control/Monitor structure with APPs
UE Control / Monitor
Win PC
RF Control/Monitor
Win PC
AP Control/Monitor
Linux/Win PC
CN Control/Monitor
Linux/Win PC
Service Control /
Monitor Linux/Win PC
Ethernet / LAN
Local Conection
Physilcal / Logical
IPERF
TCP / UDP
traffic gen
APP
IPERF
TCP / UDP
traffic gen
APP
RF Channel Simulator
NPS> /on a1
Plugs to be turned on
Plug LOCAL A1: Local_InfeedA_Outlet1
Are you sure? (Y/N): y
Processing - please wait or <CR> to continue...
Network Power Switch Site ID: (undefined)
PLUG | NAME | STATUS | DELAY | DEF | PRI |
--------+--------------------------+--------+-------+-----+-----+
A1 | Local_InfeedA_Outlet1 | ON | 0.5 S | ON | 1 |
A2 | Local_InfeedA_Outlet2 | OFF | 0.5 S | ON | 2 |
A3 | Local_InfeedA_Outlet3 | OFF | 0.5 S | ON | 3 |
A4 | Local_InfeedA_Outlet4 | OFF | 0.5 S | ON | 4 |
B1 | Local_InfeedB_Outlet1 | OFF | 0.5 S | ON | 5 |
B2 | Local_InfeedB_Outlet2 | OFF | 0.5 S | ON | 6 |
B3 | Local_InfeedB_Outlet3 | OFF | 0.5 S | ON | 7 |
B4 | Local_InfeedB_Outlet4 | OFF | 0.5 S | ON | 8 |
WireShark
L3/L2 logs
APP
RF Channel
Model control
APP

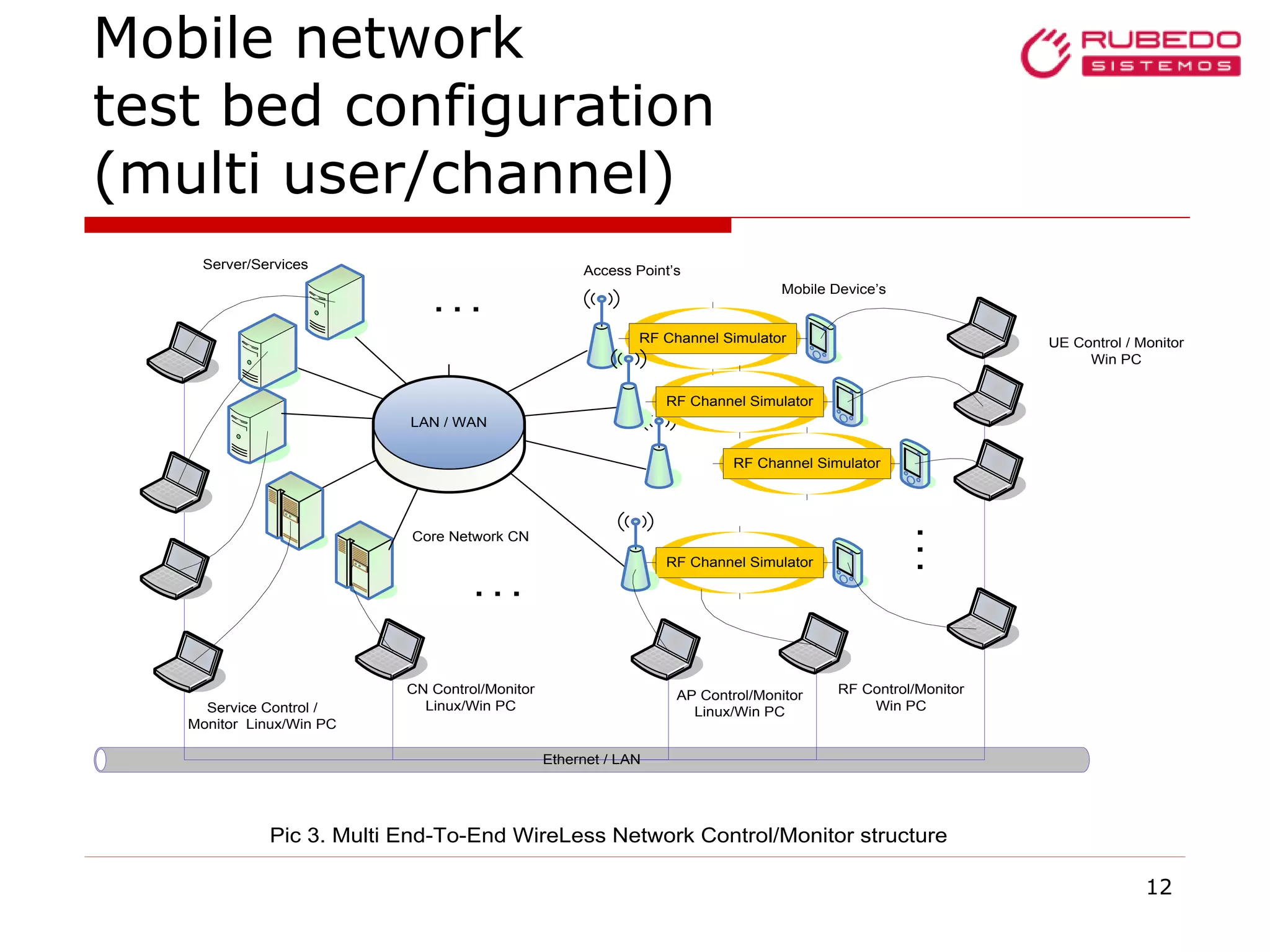

12. Mobile network
test bed configuration
(multi user/channel)
12
Ethernet / LAN
RF Channel Simulator
Access Point’s
Core Network CN
Server/Services
Pic 3. Multi End-To-End WireLess Network Control/Monitor structure
RF Channel Simulator UE Control / Monitor
Win PC
RF Control/Monitor
Win PC
AP Control/Monitor
Linux/Win PC
CN Control/Monitor
Linux/Win PCService Control /
Monitor Linux/Win PC
LAN / WAN
RF Channel Simulator
RF Channel Simulator
Mobile Device’s
. . .
. . .
...

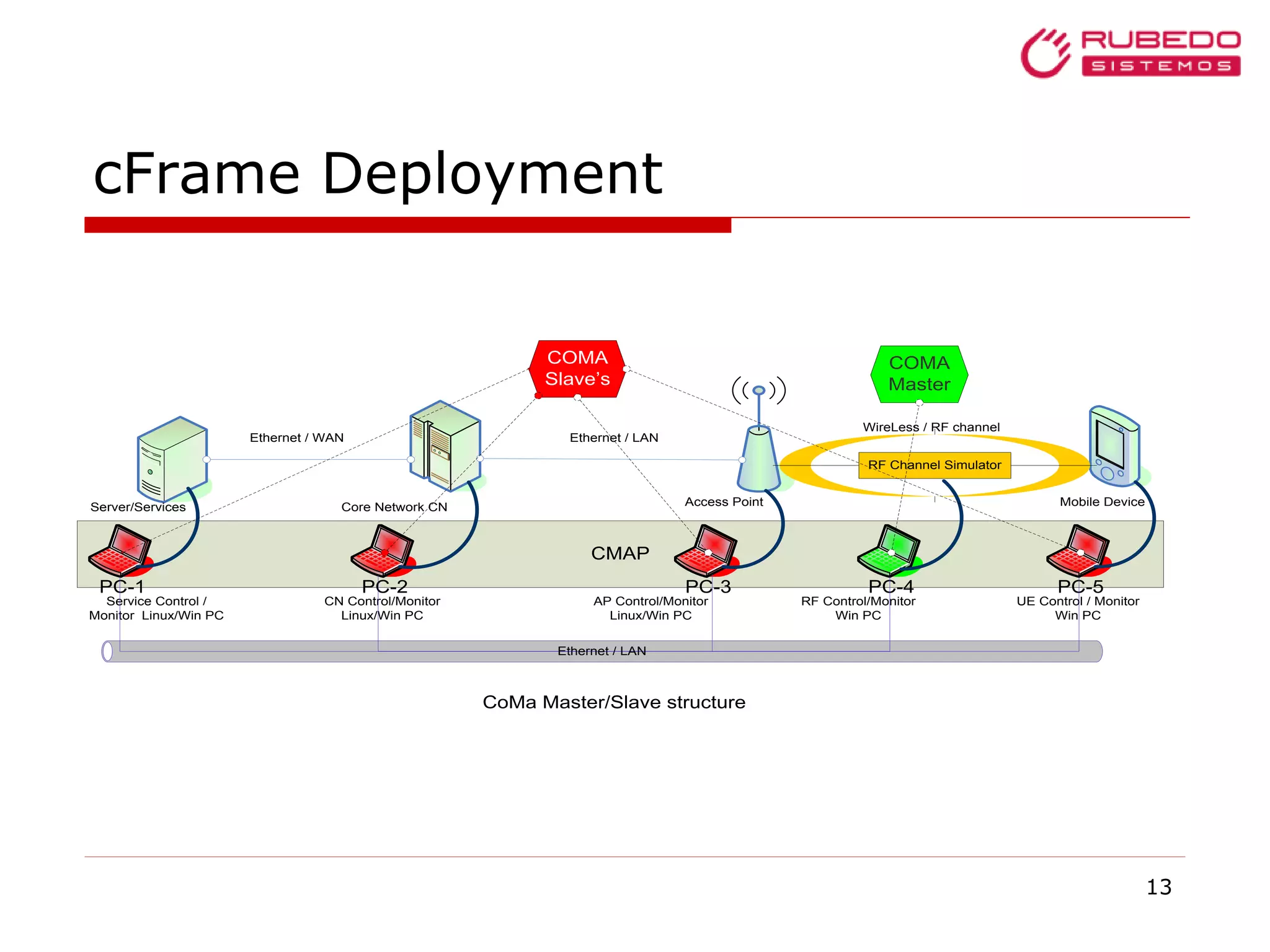

13. cFrame Deployment
13
CMAP
WireLess / RF channel
Ethernet / LANEthernet / WAN
Mobile DeviceAccess PointCore Network CNServer/Services
CoMa Master/Slave structure
RF Channel Simulator
PC-5PC-4PC-3PC-1 PC-2
UE Control / Monitor
Win PC
RF Control/Monitor
Win PC
AP Control/Monitor
Linux/Win PC
CN Control/Monitor
Linux/Win PC
Service Control /
Monitor Linux/Win PC
Ethernet / LAN
COMA
Slave’s
COMA
Master

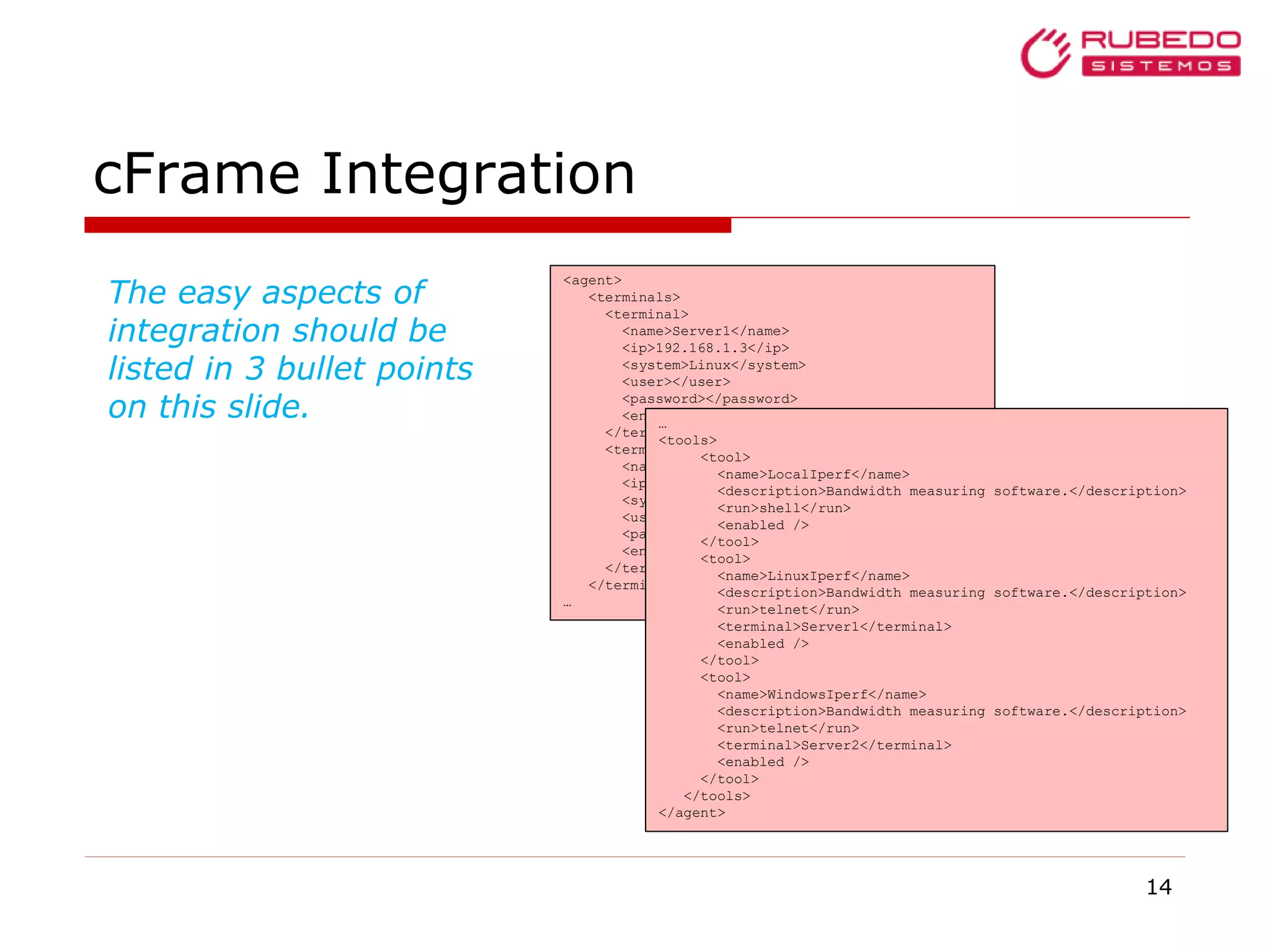

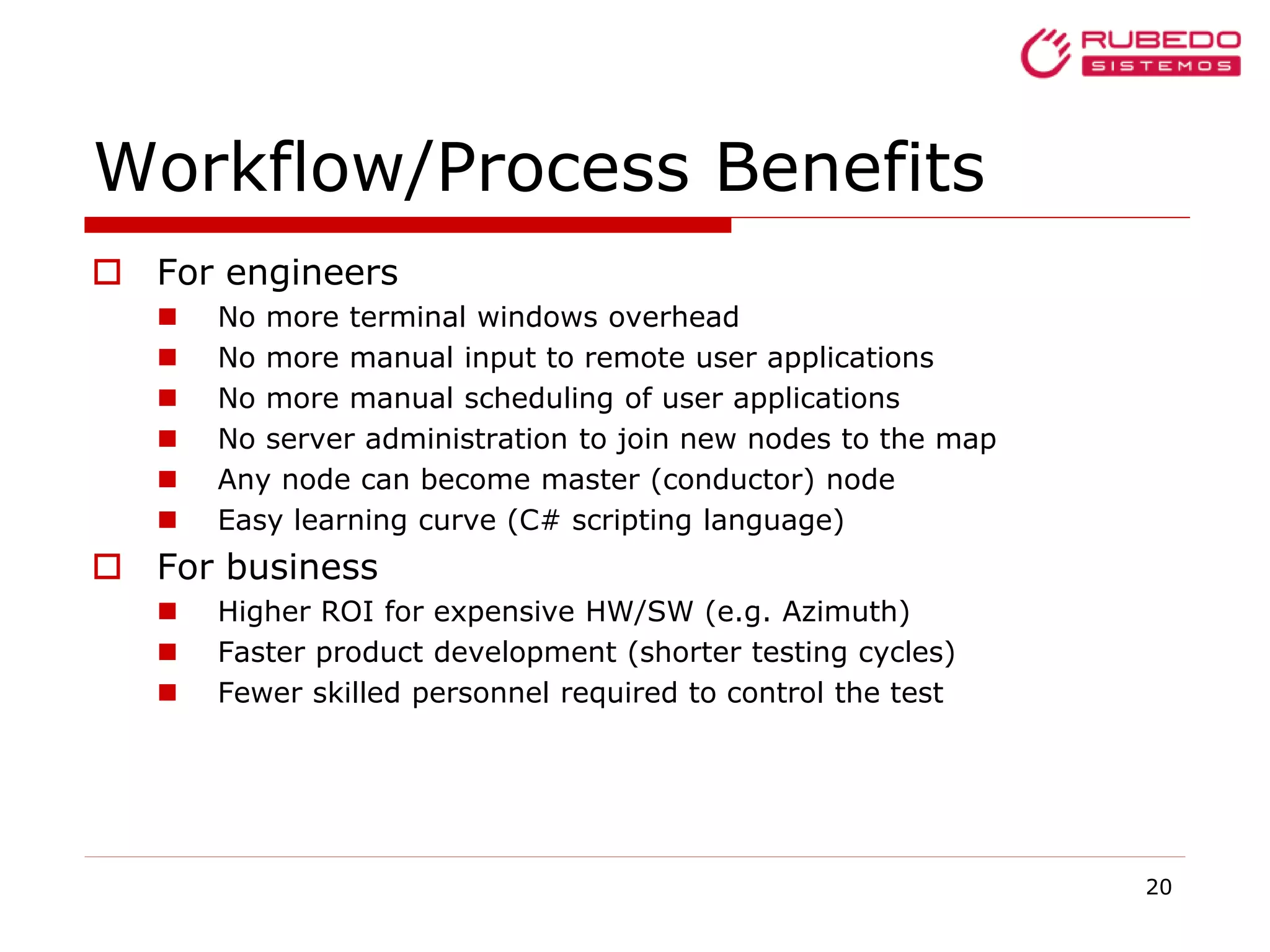

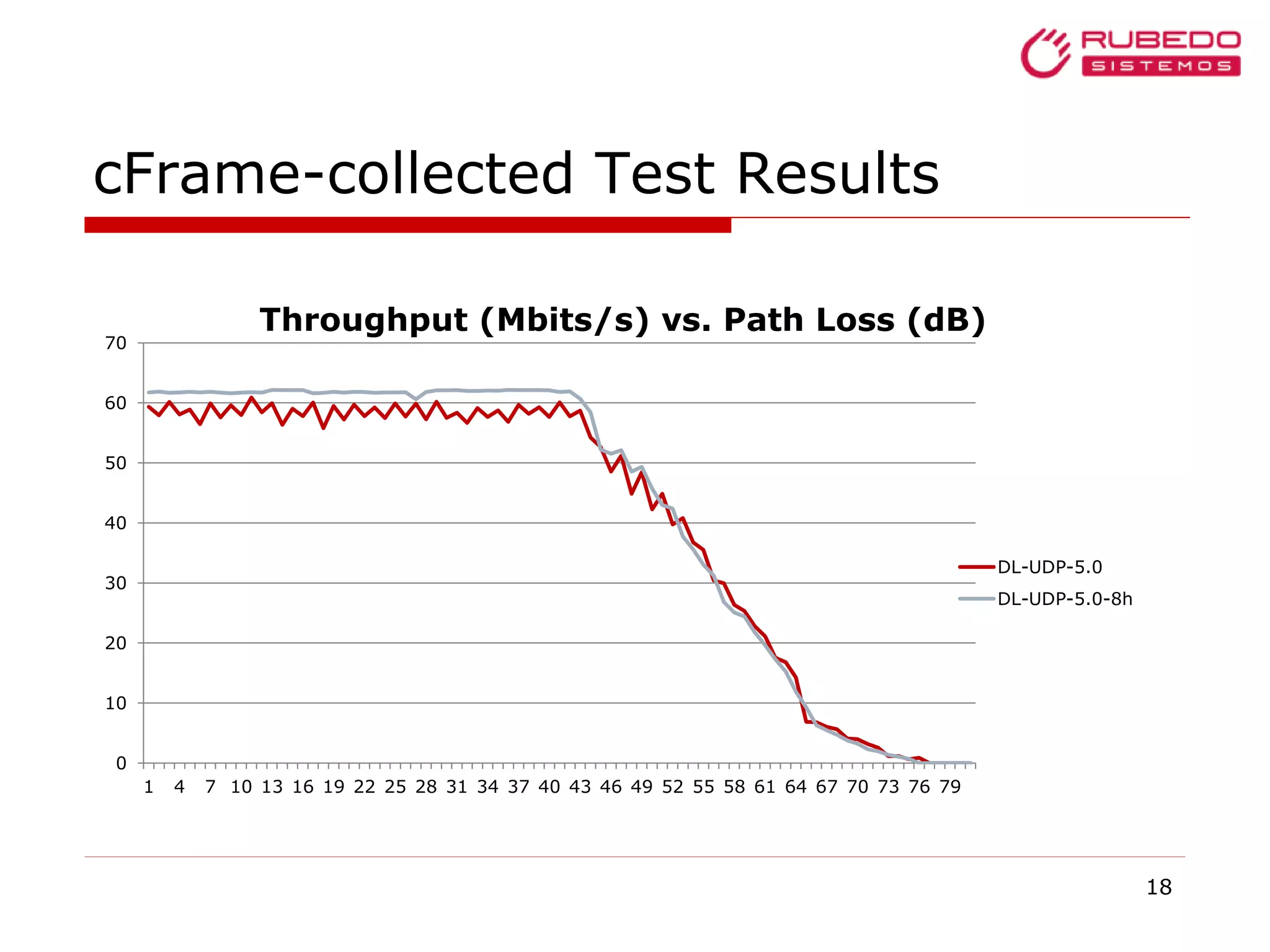

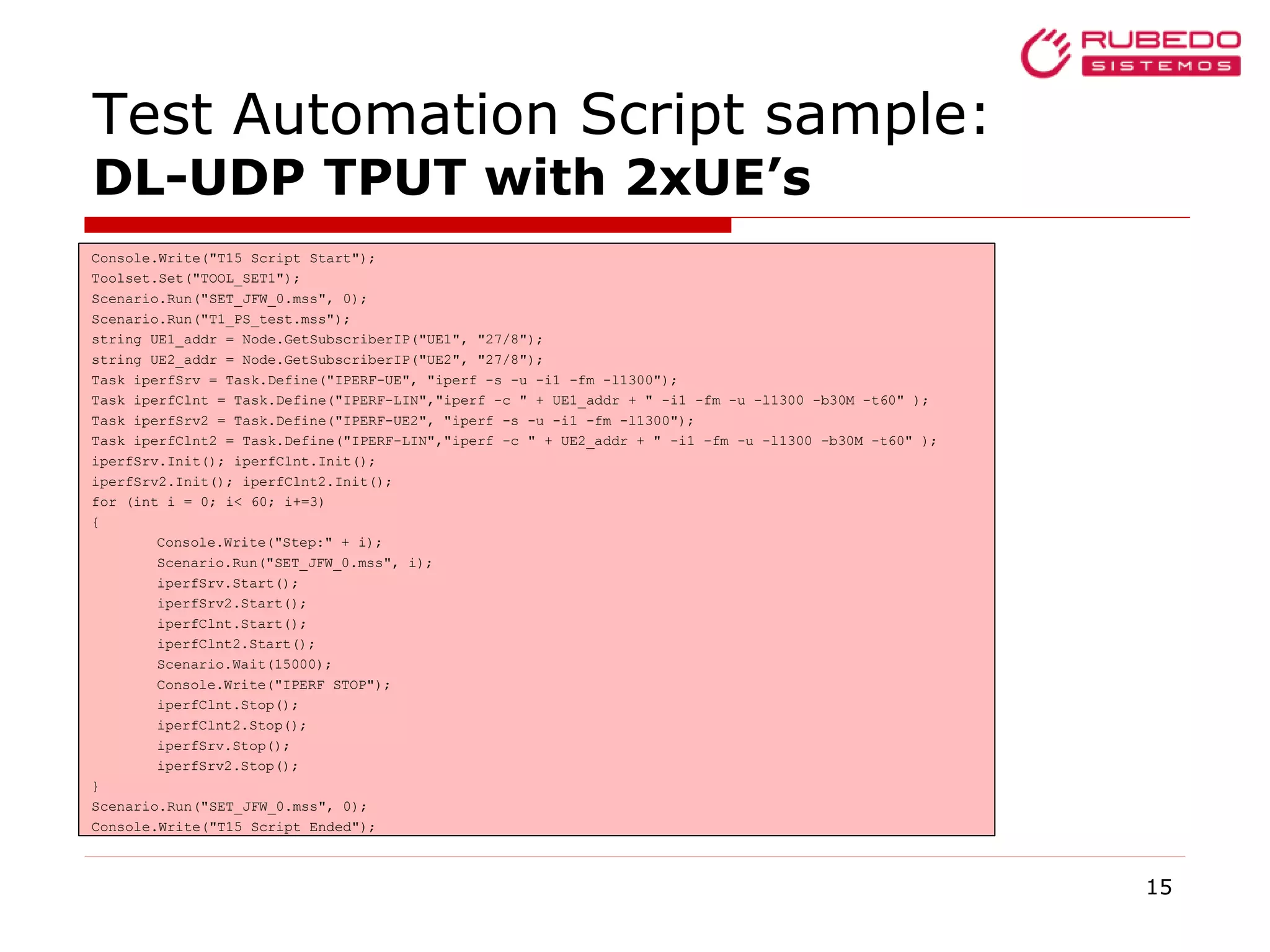

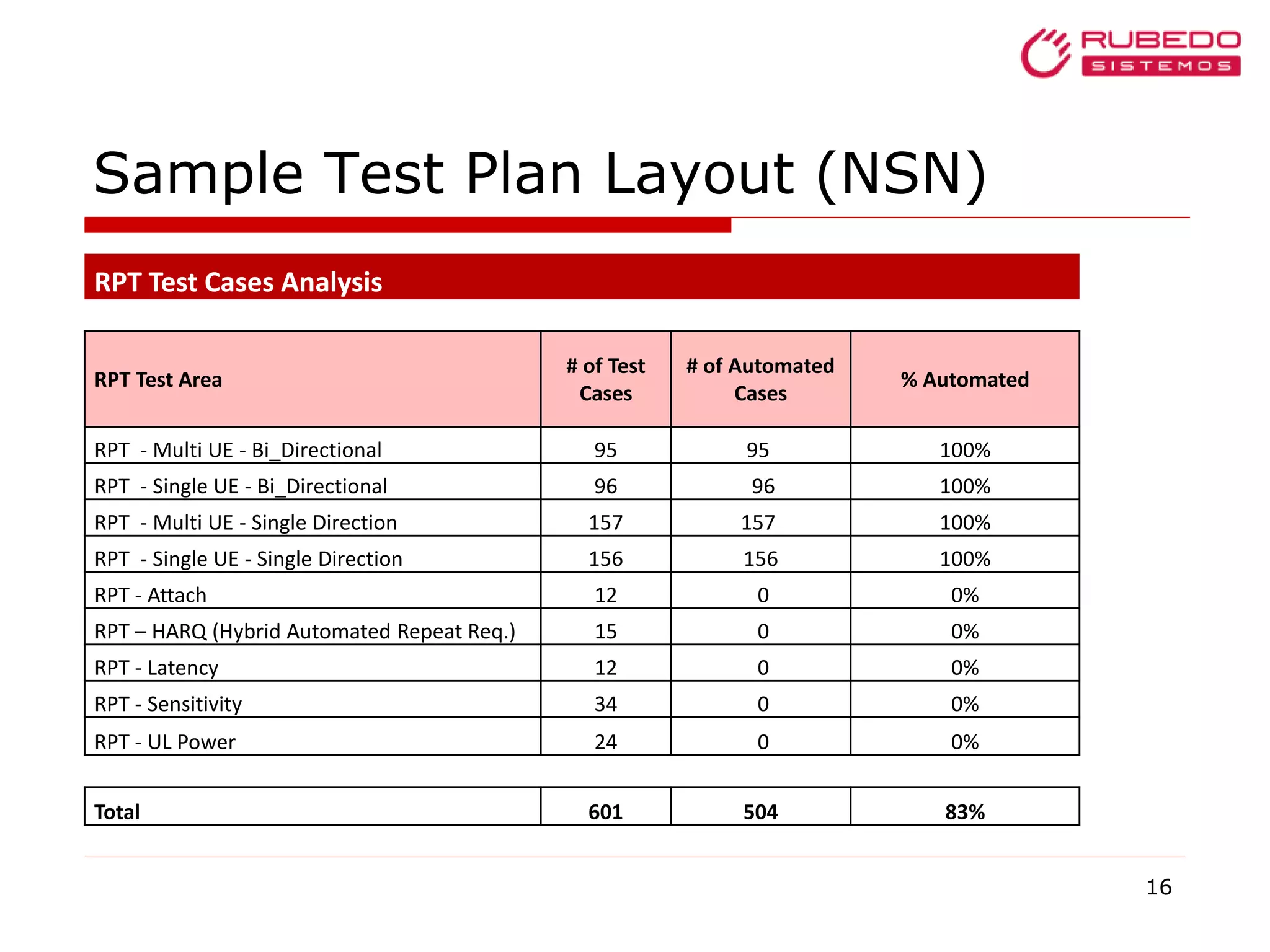

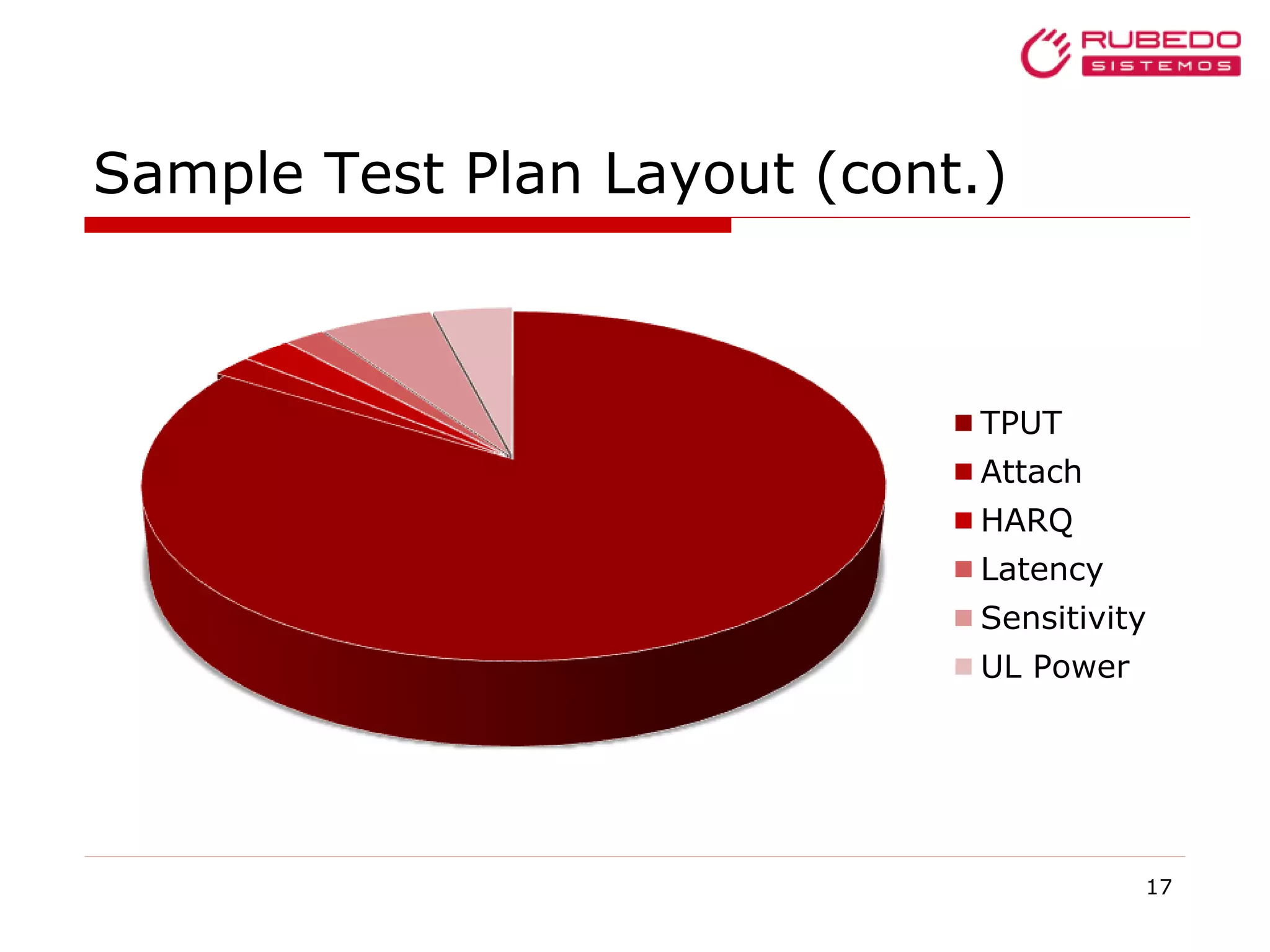

20. Workflow/Process Benefits
For engineers
No more terminal windows overhead
No more manual input to remote user applications
No more manual scheduling of user applications
No server administration to join new nodes to the map
Any node can become master (conductor) node
Easy learning curve (C# scripting language)
For business
Higher ROI for expensive HW/SW (e.g. Azimuth)
Faster product development (shorter testing cycles)
Fewer skilled personnel required to control the test
20

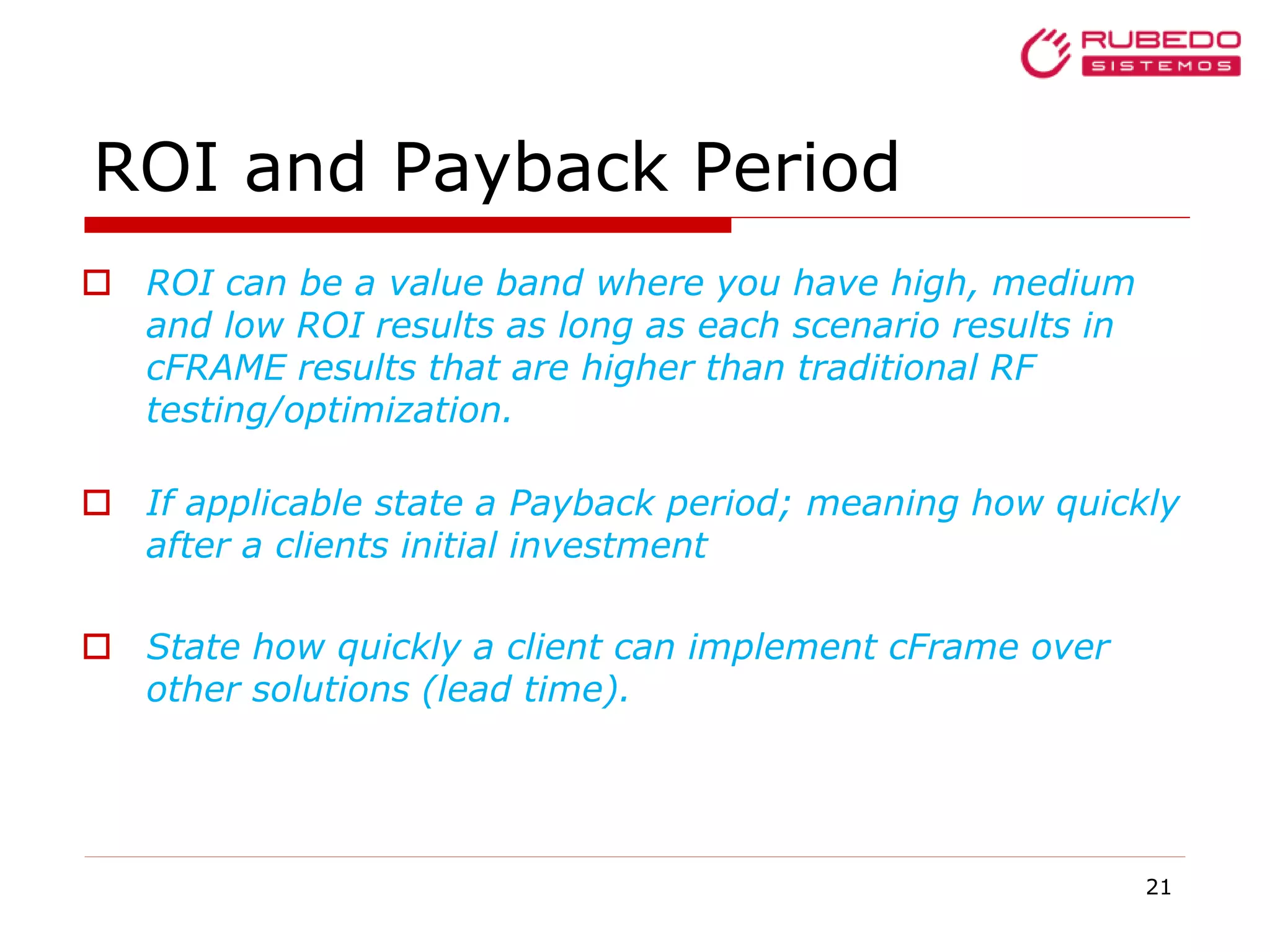

21. ROI and Payback Period
21
ROI can be a value band where you have high, medium
and low ROI results as long as each scenario results in
cFRAME results that are higher than traditional RF
testing/optimization.
If applicable state a Payback period; meaning how quickly
after a clients initial investment
State how quickly a client can implement cFrame over
other solutions (lead time).
