The document proposes a taxonomy for classifying tangible user interfaces based on their level of embodiment and metaphor. It defines embodiment as how closely the output is tied to the input. There are four levels of embodiment: full, nearby, environmental, and distant. It also defines metaphor as whether the system effect of user actions maps analogously to real-world effects. There are three levels of metaphor: no metaphor, noun metaphor, and verb metaphor. The taxonomy is a two-dimensional framework that can be used to analyze and compare different tangible interface designs based on their levels of embodiment and metaphor.

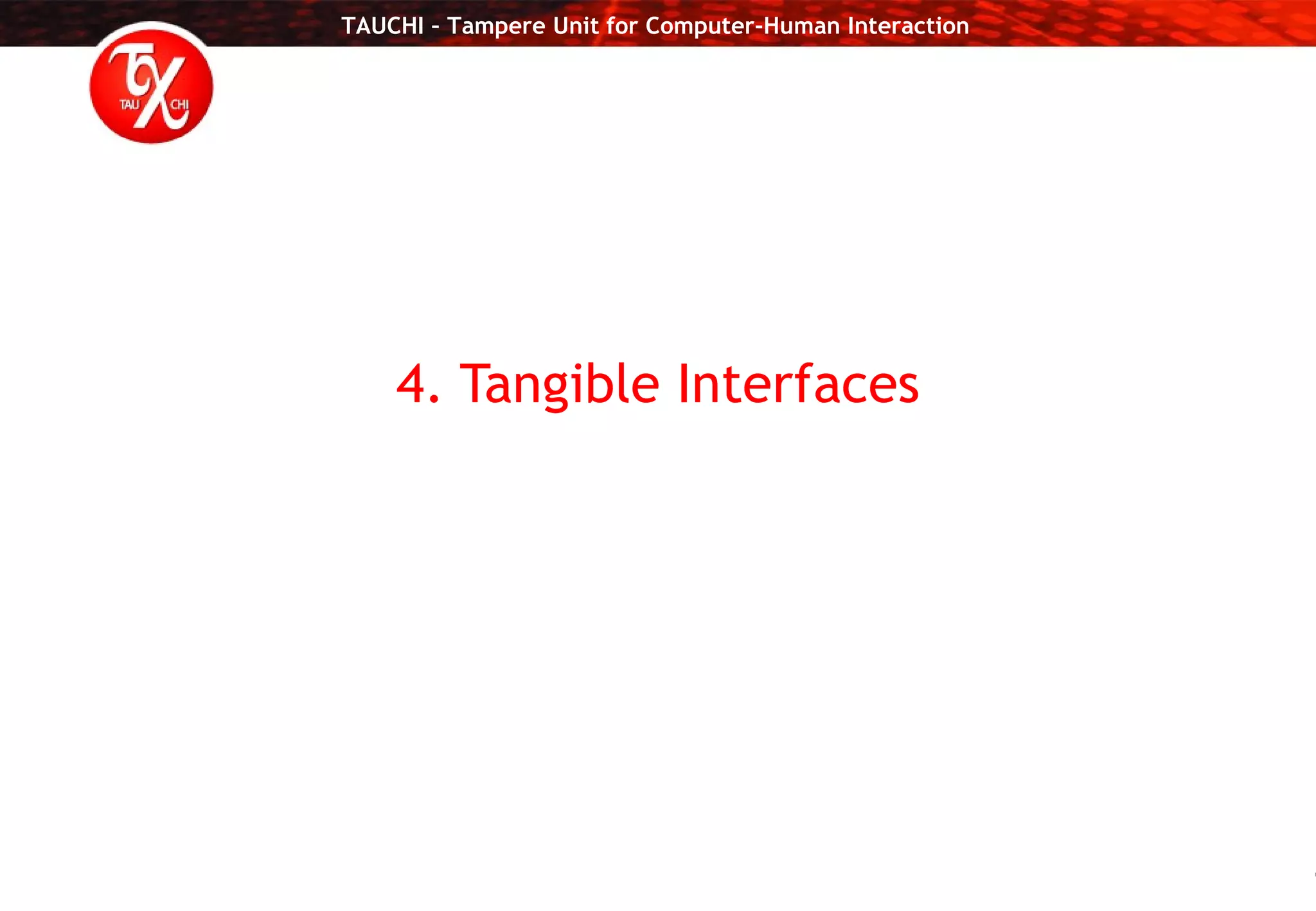

1. 4. Tangible Interfaces

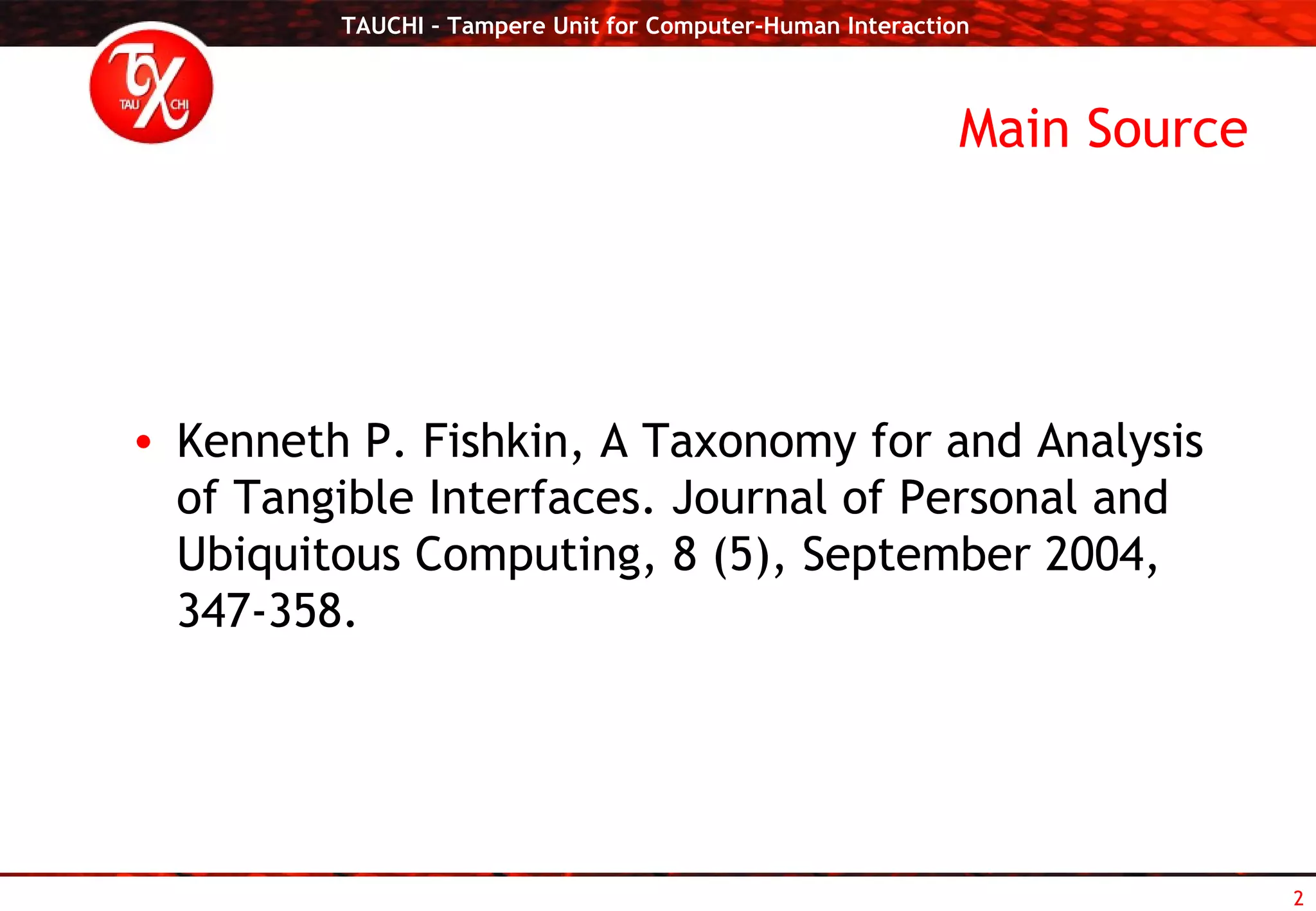

2. Main Source Kenneth P. Fishkin, A Taxonomy for and Analysis of Tangible Interfaces. Journal of Personal and Ubiquitous Computing, 8 (5), September 2004, 347-358.

3. Basics CHI 1997, Hiroshi Ishii & Brett Ullmer: “Tangible User Interfaces” (TUIs) = user interfaces that “augment the real physical world by coupling digital information to everyday physical objects and environments”. Later refined: No distinction between input and output (Ullmer & Ishii, 2001) Related terms: graspable, embodied, manipulative, haptic

4. Definitions hap-tic 1. relating to or based on the sense of touch 2. characterized by a predilection for the sense of touch <a haptic person> tac-tile 1. perceptible by touch: TANGIBLE 2. of or relating to the sense of touch tan-gi-ble 1.a : capable of being perceived especially by the sense of touch: PALPABLE Source: Merriam-Webster

5. Example of a Tangible Interface 1 Hug over a distance Source: M ü ller et al., 2005

6. Already Commercialized: Hug Shirt! Shirts with sensors and actuators Works by cell phones Java software BlueTooth Participatory design Taxonomy of hugs Bodystorming (people hugging for a long time  ) Source: http://www.cutecircuit.com/now/projects/wearables/fr-hugs/

7. Example of a Tangible Interface 2 I/O Brush: the world as the palette Source: Ryokai et al., 2004

8. Development of the I/O Brush Source: Ryokai et al., 2005 Robust design Pressure sensing Orientation sensing Smudging support Paint history Paint palette

9. Sample Art Work Source: Ryokai et al., 2005

10. Fishkin’s Framework Some input event occurs. This input event is typically a physical manipulation performed by a user with their hands on some “everyday physical object”, such as tilting, shaking, squeezing, pushing, or most often moving. A computer system senses this input event, and alters its state. The system provides feedback. This output event is via a change in the physical nature of some object – it alters its display surface, grows, shrinks, makes a sound, gives haptic feedback, etc.

11. Example 3: metaDESK Source: Ishii & Ullmer, 1997b “ The Great Dome”

12. Typical Components Source: Ishii & Ullmer, 1997b

13. Great Dome: Input and Output Input: rotation and translation Input object: indicative of a building Output: altered display of the workspace Output object: augmented desktop

14. Example 4: Shakepad Source: Levin & Yarin, 1999 Inspiration: Many keychain devices, all with lots of buttons Shaking erases screen

15. Shakepad: Input and Output Input: shake Input object: “non-everyday” object Output: clear the screen Output object: same as input object

16. Example 5: ToonTown Shared audio system Location on tray controls volume Source: Singer et al., 1999

17. ToonTown: Input and Output Input: change of position Input objects: two representative objects Output: audio changes

18. Example 6: Photo Cubes Source: Want et al., 1999

19. Photo Cubes: Input and Output Input: spatial motion with orientation Input objects: one everyday object Output: altered display Output objects: non-everyday object

20. What About These? Wellner, 1993: Digital Desktop Ishii, 1995: Tangible Bricks

21. Sorting Out the Design Space Taxonomy: “orderly classification of plants and animals according to their presumed natural relationships” (Merriam-Webster) Taxonomy of Tangible User Interfaces Two-dimensional Embodiment Metaphor The higher an interface is in both dimensions, the more tangible it is

22. Embodiment Reflects how closely output is tied to input Does the user have the illusion of the system state being “inside” the object that is manipulated? Fishkin proposes a four-level scale Full Nearby Environmental Distant

23. Full Embodiment The output device is the input device Analogy: clay sculpting Examples: Rekimoto, 1996: Tilting interface

24. Gummi Source: Schwesig et al., 2004 Commercial version by Sony: http:// www.sony.net / Fun / SonyDesign /2003/ Gummi /

25. Platybus Amoeba As users approach the Platypus Amoeba they see a strange glowing creature. A translucent white blob with two glowing eyes, the Platy looks like the helpless baby of an alien creature. Platypus Amoeba emits small noises and a faint glow until a hand is moved over the soft skin and Platy gives a pleasant coo. Petting Platy has made it happy. What will more petting do? Perhaps you excite Platy and are rewarded with a display of colors or maybe it is displeased and truculent. Platy's reactions give you information as you use petting to interface with Platy and understand how Platy wants to be petted. Source: Churi & Lin, 2003

26. Nearby Embodiment The output takes place near the input object First examples in HCI: light pen Examples: Bricks Great Dome (metaDESK) Photo Cube

27. Environmental Embodiment The output is around the user, often in audio “ Non-graspable” interfaces Examples: ToonTown

28. Distant Embodiment The output is “over there” On another screen In another room … Examples: Doll’s Head Source: Hinckley, 1994

29. Applications May Span Several Levels Platypus Amoeba Makes sounds  Environmental Responds to patting  Full PingPongPlus Environmental and Nearby (Ishii et al., 1999)

30. Metaphor “ figure of speech in which a word or phrase literally denoting one kind of object or idea is used in place of another to suggest a likeness or analogy between them” (Merriam-Webster) “ drown in money” Can use a variety of attributes: shape, size, color, weight, smell, texture, … Here: Is the system effect of a user action analogous to the real-world effect of similar actions? Fishkin proposes two sub-dimensions: Shape of object  “metaphor of noun” Motion of object  “metaphor of verb”

31. No Metaphor Analogy: command-line interface Examples: The BitBall Programmable Beads Source: http://web.media.mit.edu/~mres/papers/chi-98/digital-manip.html

32. eTextiles Source: http://www.cs.colorado.edu/~buechley/projects/LED_clothing/tank.html

33. Noun Metaphor Object looks like the real thing Actions are at most weakly related to real-world actions Examples: Navigational blocks Tagged objects Source for Blocks: http://dmg.caup.washington.edu/xmlSiteEngine/browsers/static/project3.html

34. Tagged Objects Source: Want et al., 1999

35. Verb Metaphor Object acts like the real thing Shape of object irrelevant Example: Shakepad

36. Noun and Verb Metaphor Object looks and acts like the real thing – but they are still different Analogy: Desktop metaphor (to some extent) Examples ToonTown Urp Source for Urps: http://tangible.media.mit.edu/projects/urbansim/

37. “Full” Metaphor “Really Direct Manipulation” Example: Illuminating Clay Source: http://tangible.media.mit.edu/projects/IlluminatingClay/IlluminatingClay.htm

38. Applications May Span Several Levels Example: Barney Peek-A-Boo: full metaphor Singing: noun metaphor

39. Let’s Try It! 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Names: None Verb Noun and verb Full Full Noun Metaphor Nearby Environment Distant Embodiment
