The document provides specifications for Sub10's Liberator wireless Ethernet bridges, which operate at 60GHz frequencies and can transmit data at speeds up to 1Gbps over distances up to 1km. The bridges are compact at 182x182x60mm and lightweight at 2.5kg. They use PoE for power and have an IP67 outdoor rating. Common applications include wireless backhauling, leased line replacement, LAN connectivity between buildings, and use in mobile networks and broadcast applications.

1. Specification How to Order
We distribute our products via a network
Frequency1: 60GHz (57 – 64GHz) V Band of distributors worldwide. Please visit
www.sub10systems.com/how-to-buy to
Ethernet throughput:
V320 (BPSK) 160Mbps – Full Duplex
find your local distributor. If you would A world class bridging solution
like to become a distributor, please
V320 (QPSK) 320Mbps – Full Duplex contact us on +44 (0)1626 818520 in the palm of your hand
V1000 (QPSK) 1000Mbps – Full Duplex Learn More 60 GHz PTP Wireless Ethernet Bridges
for Mobile, Data & Internet
Maximum Ranges2:
Download case studies, data
V320 (BPSK) 160Mbps – 1600M sheets & user manuals from
V320 (QPSK) 320Mbps – 1000M www.sub10systems.com
V1000 (QPSK) 1000Mbps – 800M
Size/Weight – ODU:
Download White Papers
182 x 182 x 60mm/2.5Kg
• The Benefits of 60GHz
Power Supply: PoE IEEE 802.3at • 60GHz Metro Cell and Small Cell
Backhauling for Service Providers
Connection: Cable – CAT5e
Outdoor Rated (100m max)
Connector: RJ45
About Sub10
Sub10 design, develop and manufacture
Notes: cutting edge MMW systems in the 60GHz,
1. Licence Exempt in many countries 70GHz and 80GHz areas of spectrum. We
– check with your regulator
2. Maximum operating range influenced
supply, train and support a carefully selected
by propagation and rain team of regional distributors worldwide,
who cascade our technology and ethos to
specialist resellers and their end users.
Frequently Asked Questions
Q. Do I need to apply for a licence for my link? Q. Will mist, fog, dust or snow
A. Many countries allow the use of 60GHz affect link performance?
without a licence or after payment of a A. No. However, rain will have an effect, but
small annual fee. Check the status of you we take this into account when planning
country with your telecoms regulator. a link and predicting availability.
Q. Is Liberator Non Line Q. How is the Liberator radio unit powered?
of Sight or Line of Sight? A. The Liberator radio uses the 802.3at
A. Strictly Line of Sight. There should be PoE standard. Providing a minimum
no obstructions in the Fresnel zone. of 18W is available, any compatible
Q. Do Liberator MMW links pose a health risk? supply can be used – including solar.
A. No, the RF power levels permitted are very Q. Why is the Ethernet cable factory • Wireless backhauling for mobile carriers
low and spread over the whole area of the fitted to the Outdoor Radio Unit?
antenna. Moreover, an antenna will always A. This is done to ensure there will be no water • Leased line replacement
be positioned well clear of the population. ingress and to preserve the 24 month warranty.
• Disaster recovery / backup
• Multi-building LAN connectivity
www.sub10systems.com
01502SUB10datasheetAW.indd 2-3 06/02/2012 15:53

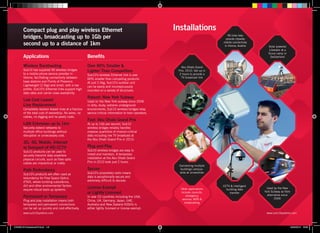

2. Compact plug and play wireless Ethernet Installations
bridges, broadcasting up to 1Gb per 90 links help
provide citywide
second up to a distance of 1km mobile connectivity
in Vienna, Austria Solar powered
Liberator at a
Scout camp in
Applications Benefits Switzerland
Wireless Backhauling Over 60% Smaller & Abu Dhabi Grand
Sub10 has supplied 90 wireless bridges Lighter Than Competitors Prix, 2010. Set up in
to a mobile phone service provider in Sub10’s wireless Ethernet link is over 2 hours to provide a
Vienna, facilitating connectivity between 60% smaller than competing products. TV broadcast link
base stations and Points of Presence. At just 2.5kg, Sub10’s outdoor unit
Lightweight (2.5kg) and small, with a low can be easily and inconspicuously
profile, Sub10’s Ethernet links support high mounted on a variety of structures.
data rates and carrier class availability.
Robust: New York Subway
Low Cost Leased Used on the New York subway since 2006
Line Replacement in dirty, dusty, extreme underground
Completely replace leased lines at a fraction environments, Sub10 wireless bridges relay
of the total cost of ownership. No wires, no service critical information to train operators.
cables, no digging and no yearly costs.
Fast: Abu Dhabi Grand Prix
LAN Extension up to 1km At up to 1Gb per second, Sub10
Securely extend networks to wireless bridges reliably handles
multiple office buildings without massive quantities of mission-critical
disruption or unnecessary cost. data including live TV broadcast at
the Abu Dhabi Grand Prix in 2010.
3G, 4G, Mobile, Internet
or transport of HD CCTV Plug and Play
Sub10 products can be used to Sub10 wireless bridges are easy to
securely transmit data anywhere install and maintain. A temporary
physical circuits, such as fibre optic installation at the Abu Dhabi Grand
cables are impractical or costly. Prix in 2010 took just 2 hours.
Connecting multiple
Path Redundancy Secure buildings campus-
Sub10’s proprietary radio means wide at universities
Sub10’s products are often used as
redundancy for Free Space Optics data is exceptionally secure and
(FSO), where building subsidence, extremely difficult to decode.
dirt and other environmental factors CCTV & intelligent
require robust back-up systems.
License Exempt Other applications building data Used by the New
or Lightly Licensed include: councils, transfer York Subway as fibre
alternative since
Permanent or Temporary In over 22 countries including the USA, emergency
2006
services, MOD &
Plug and play installation means both China, UK, Germany, Japan, UAE,
broadcasting
temporary and permanent connections Australia and New Zealand 60GHz is
can be set up quickly and cost-effectively. either lightly licensed or license exempt.
www.sub10systems.com www.sub10systems.com
